Sold

9060

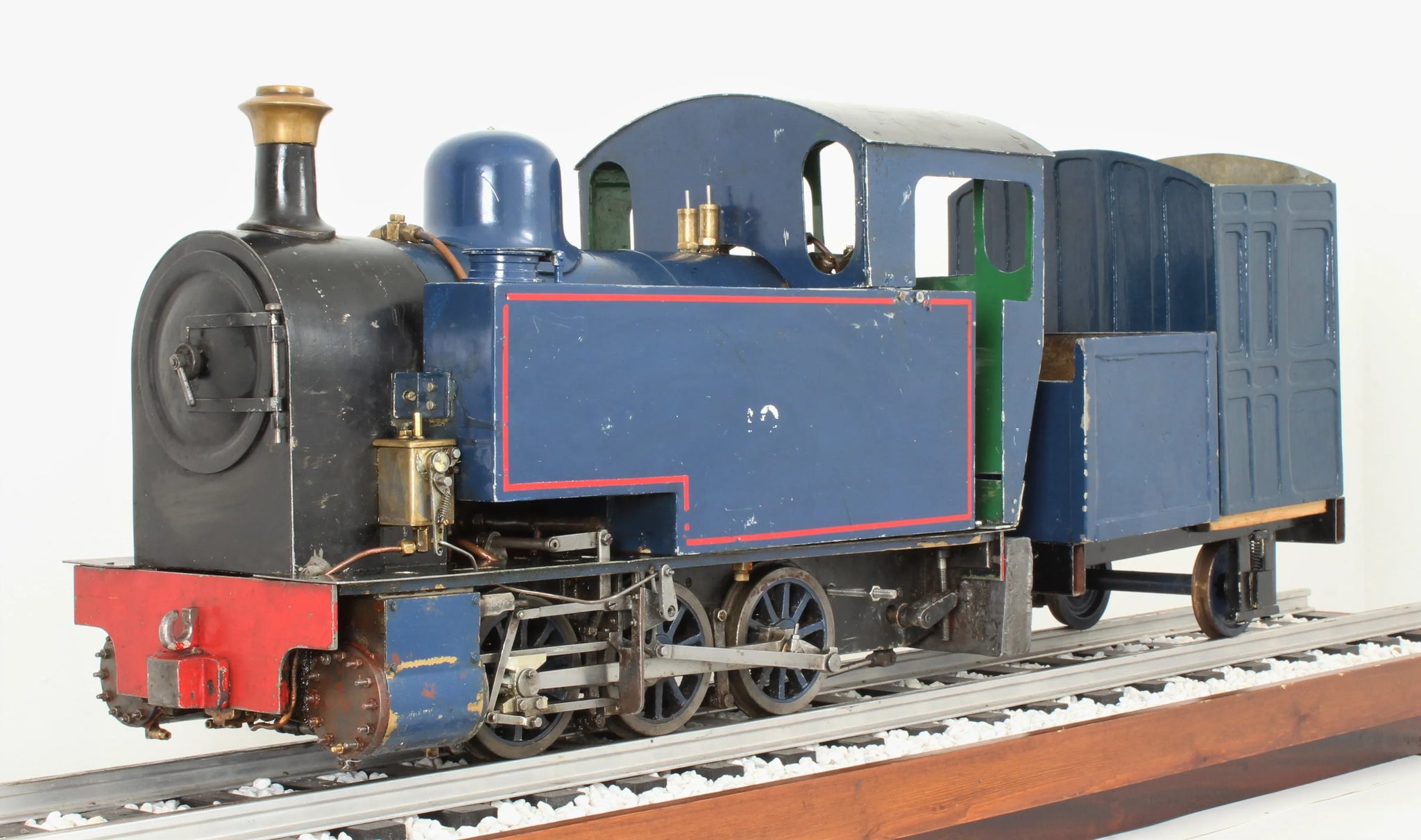

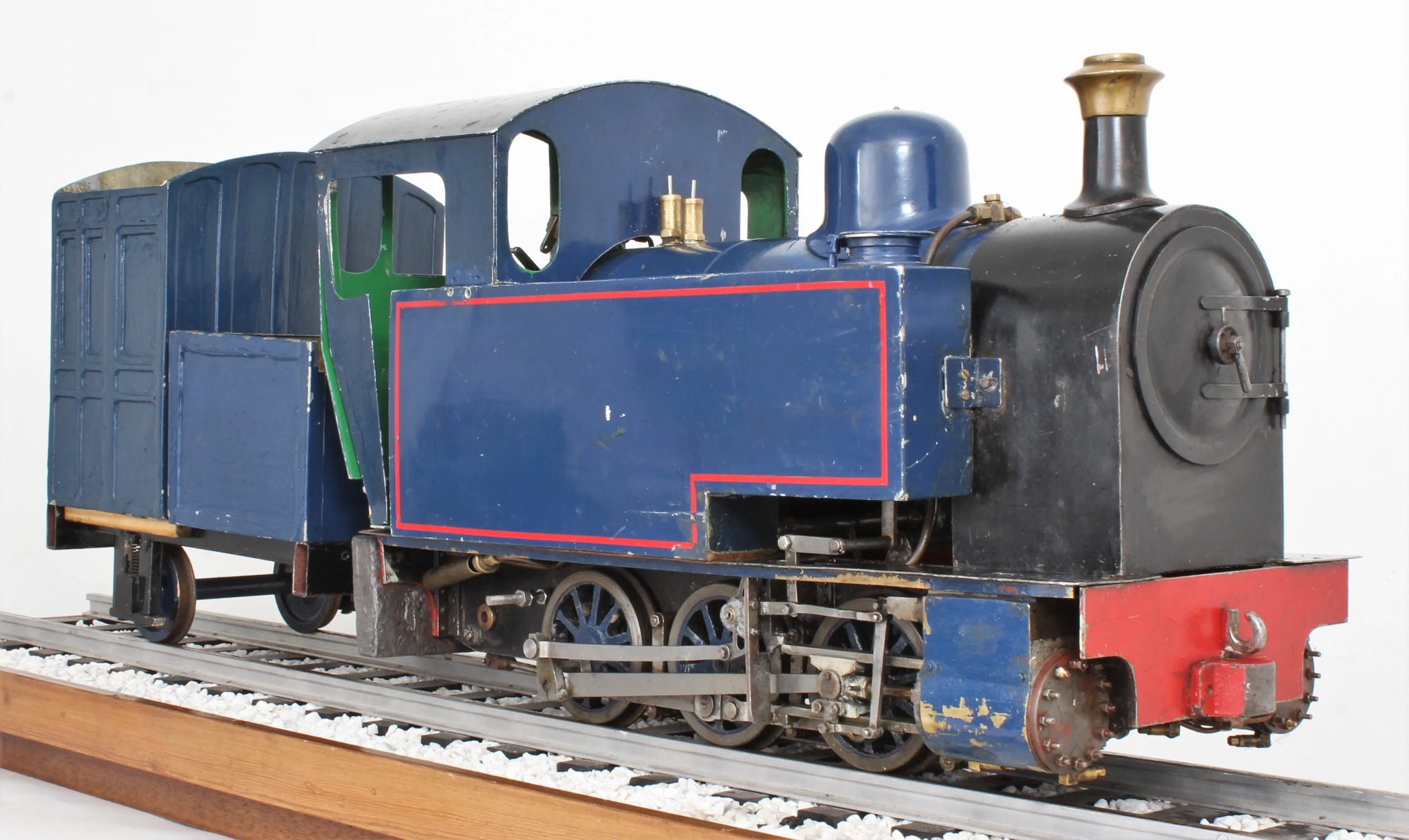

5 inch gauge Rail Motor 0-6-0

We sold this one last year, it's recently come back as a part exchange against a "Maid of Kent" in "barn find" condition. Exactly the same condition as before - pictures opposite and words below from last time it was here.

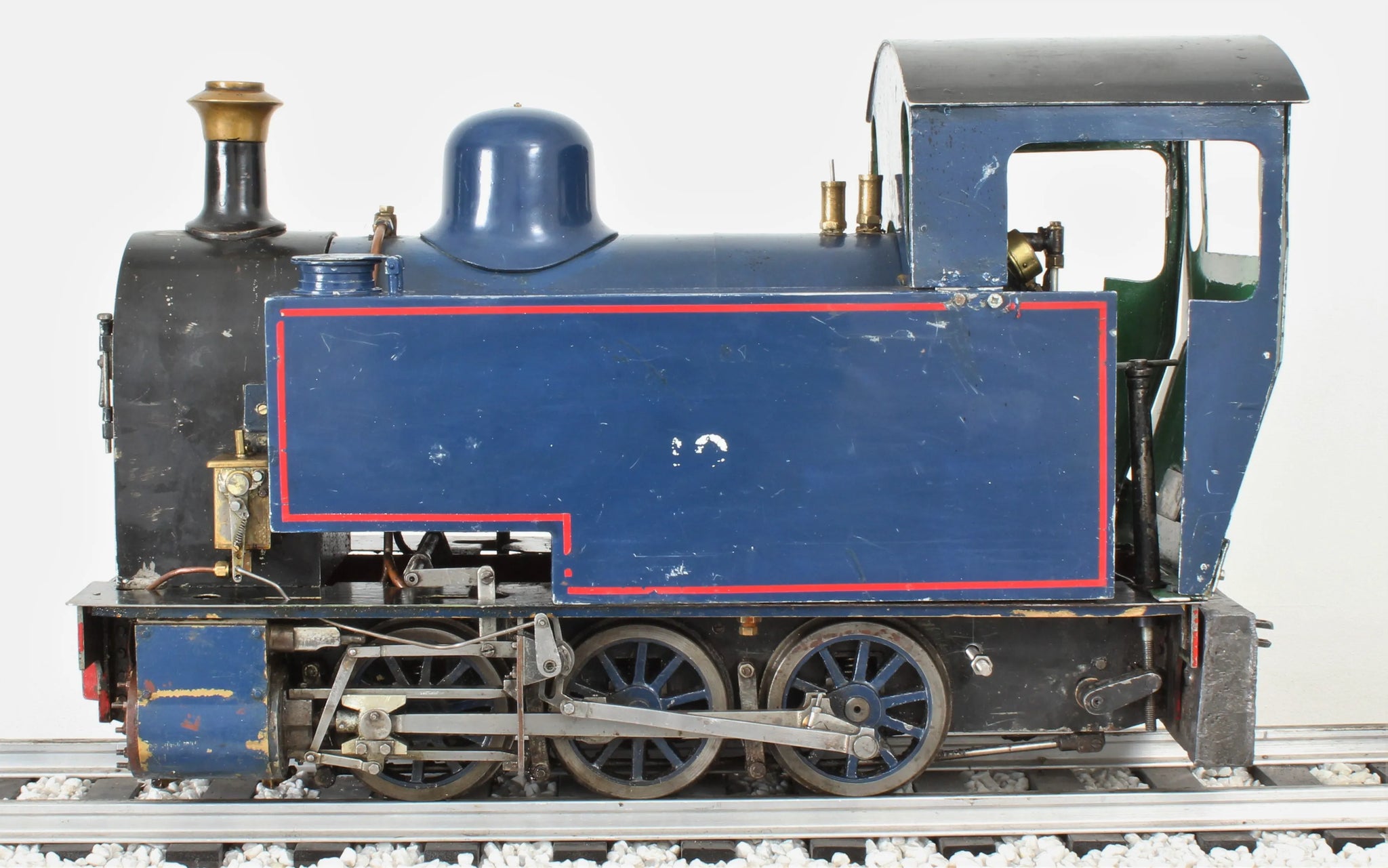

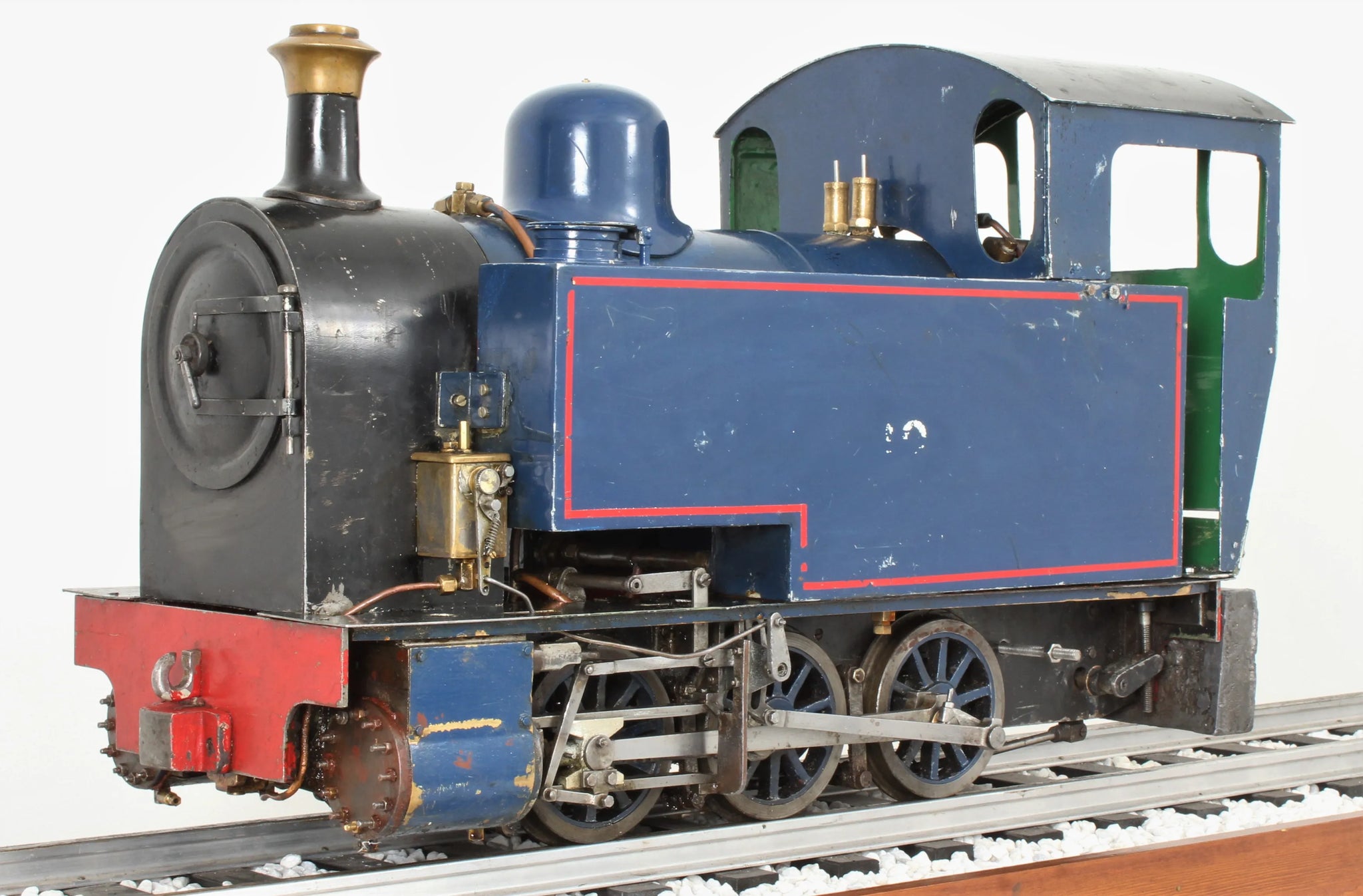

An older 5 inch gauge "Rail Motor", the work of one of the most prolific engineers we've encountered - by day he worked for ERF commercial vehicles whilst in his spare time building, by our estimation, at least two dozen locomotives, several of which we've sold in the past.

Whilst often building rare prototypes, in this case he's worked out a variation of Don Young's "Rail Motor", executed as an 0-6-0 rather than 0-4-0.

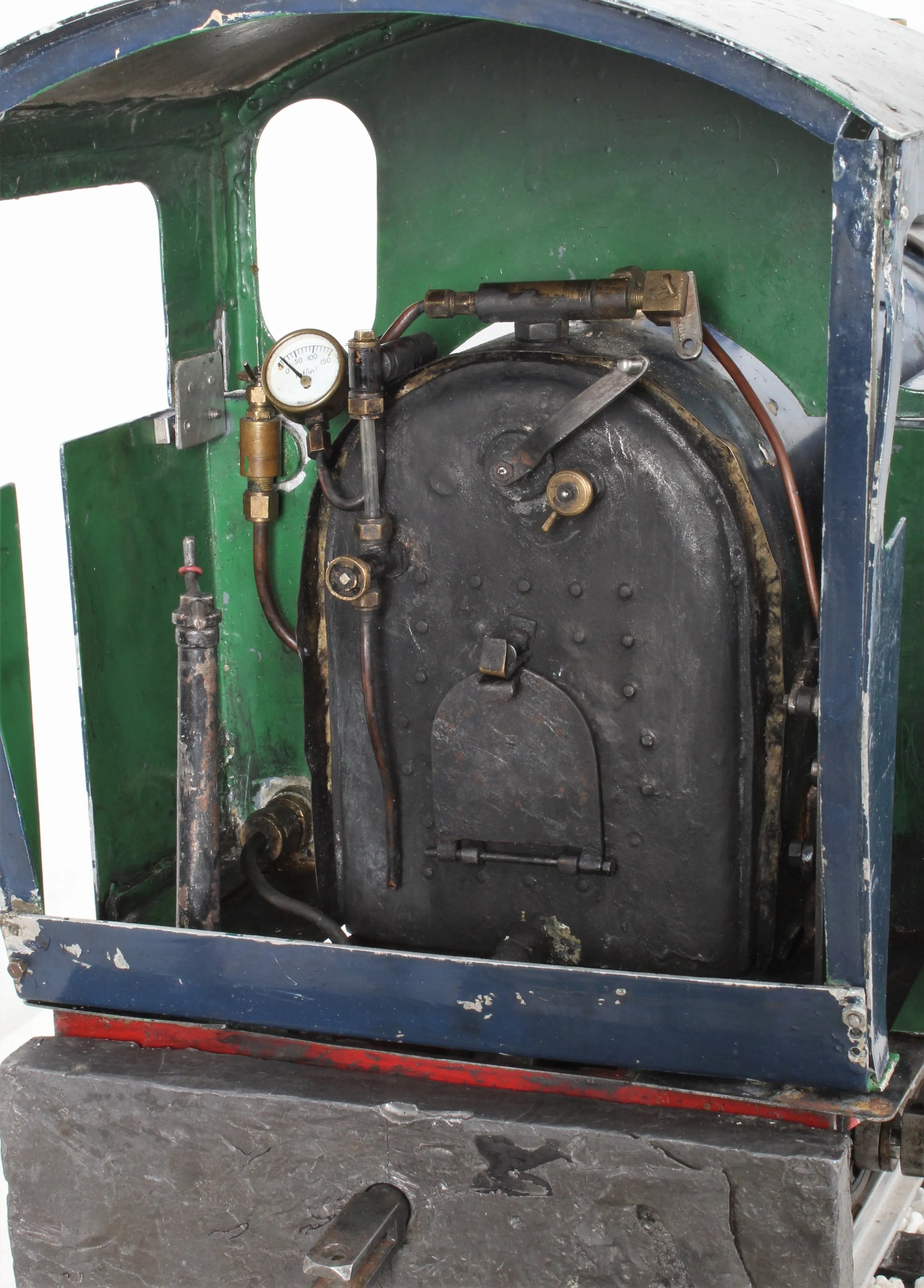

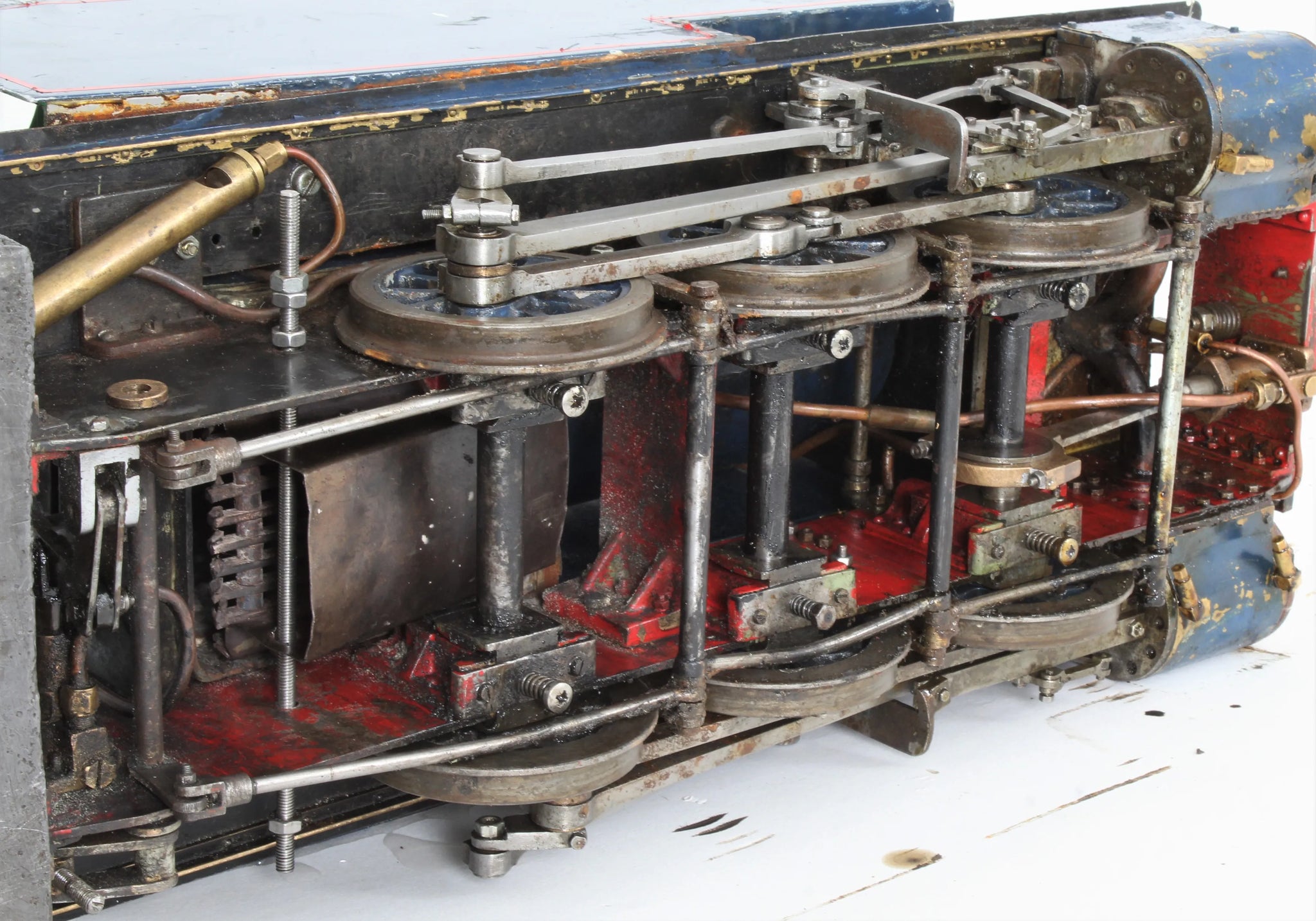

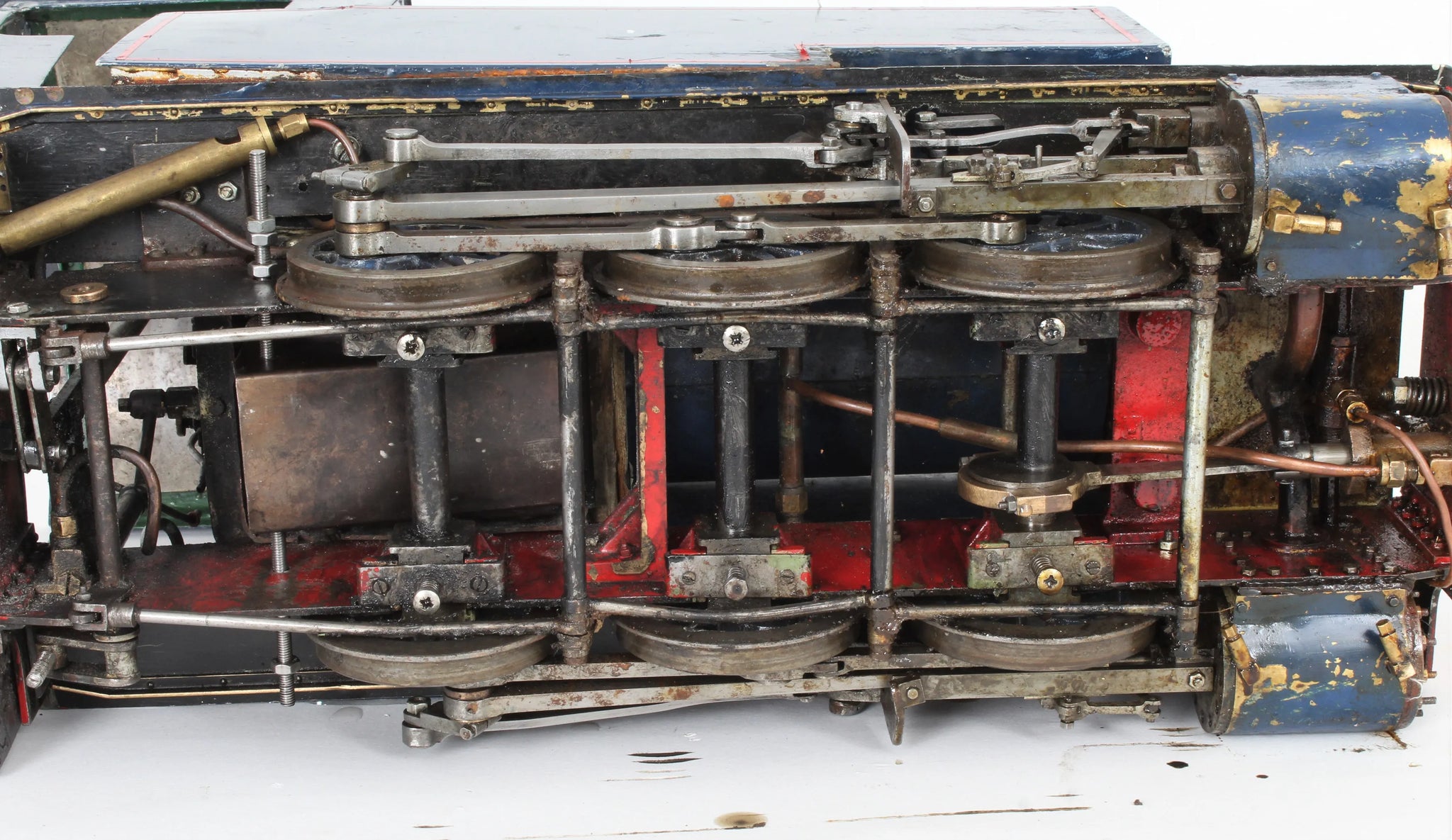

Boiler has had a twice working pressure hydraulic test and looks sound, the chassis runs on air.

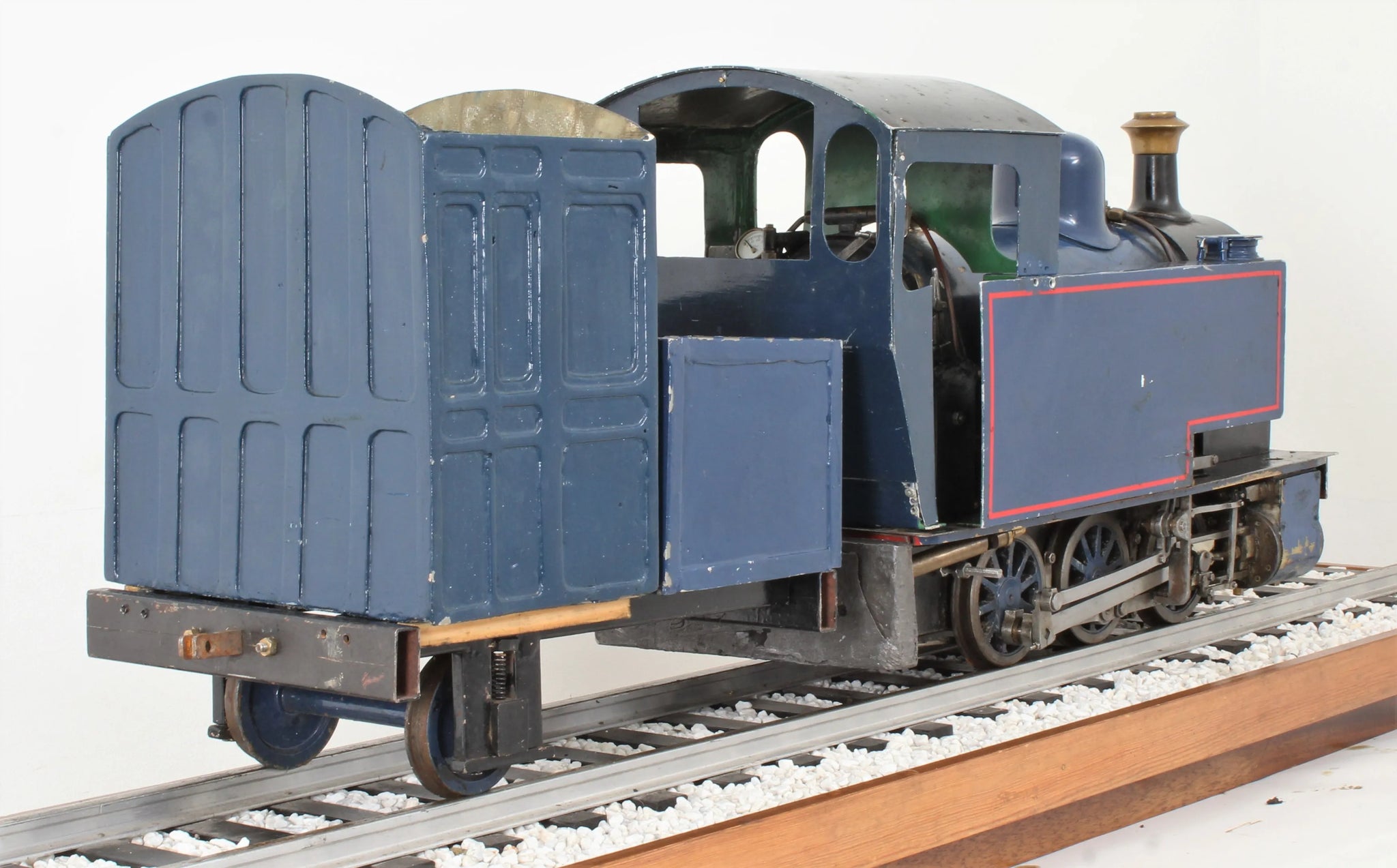

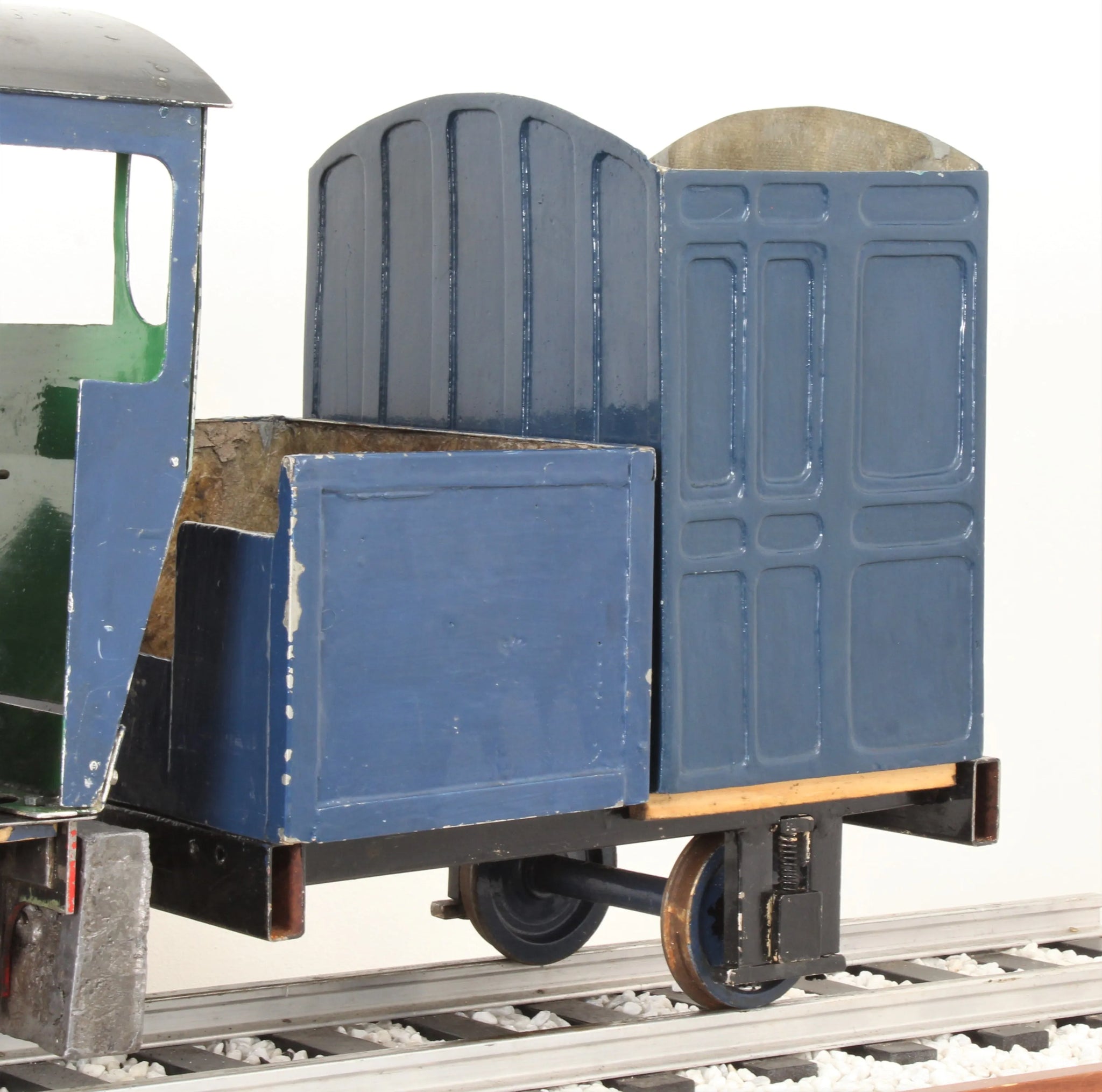

Complete with a two-wheeled tender arrangement, which looks like a cross between a shepherd's hut and a bad accident involving a Victorian third class carriage.

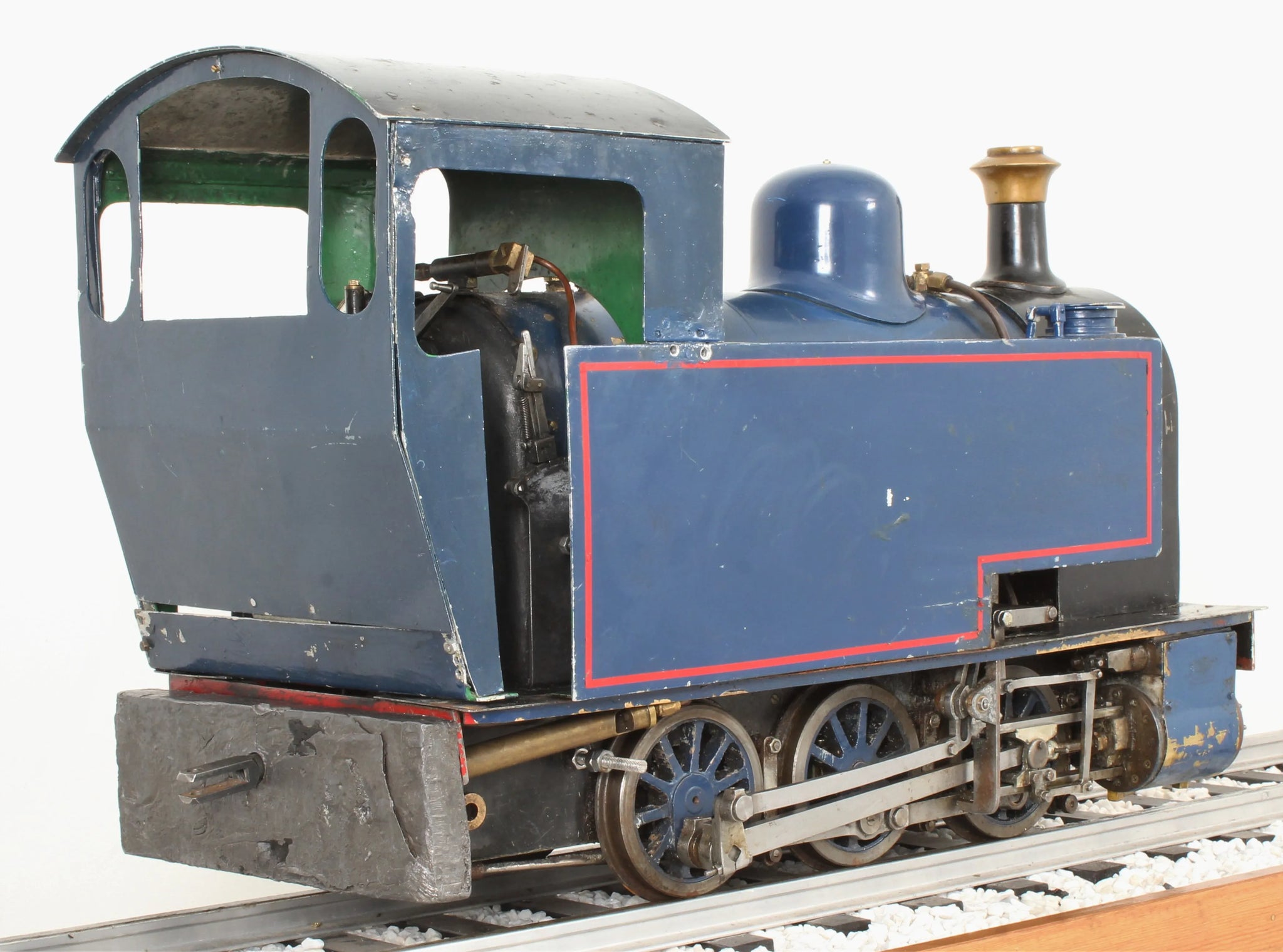

The large, heavy looking lump attached to the drag beam is lead ballast.

Technical information

Stock code

9060

Gauge

5 inch

Length/inches

23+14

Width/inches

9.5

Height/inches

15.5

Wheel material

cast iron

Cylinder material

cast iron

Valve type

slide

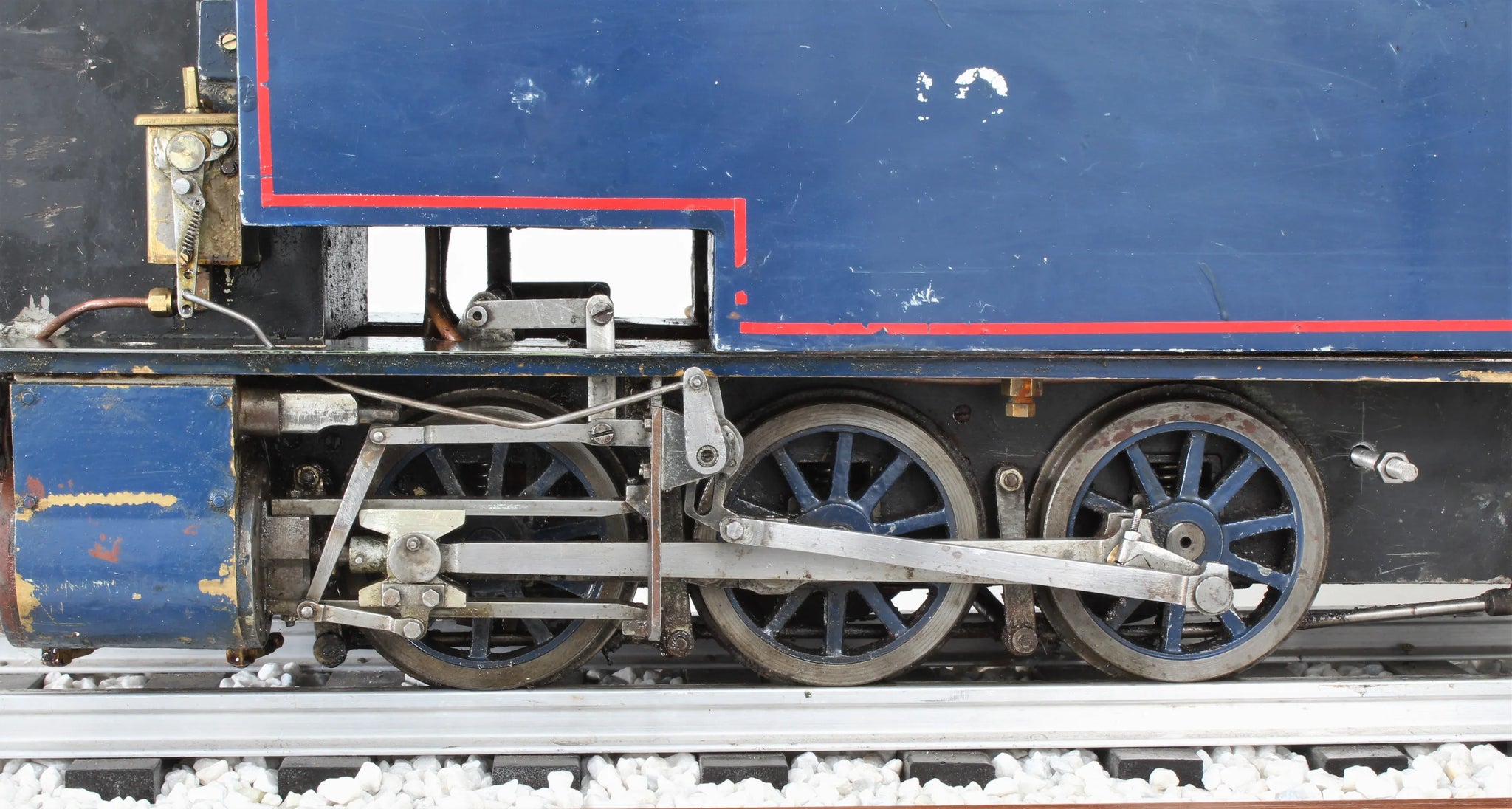

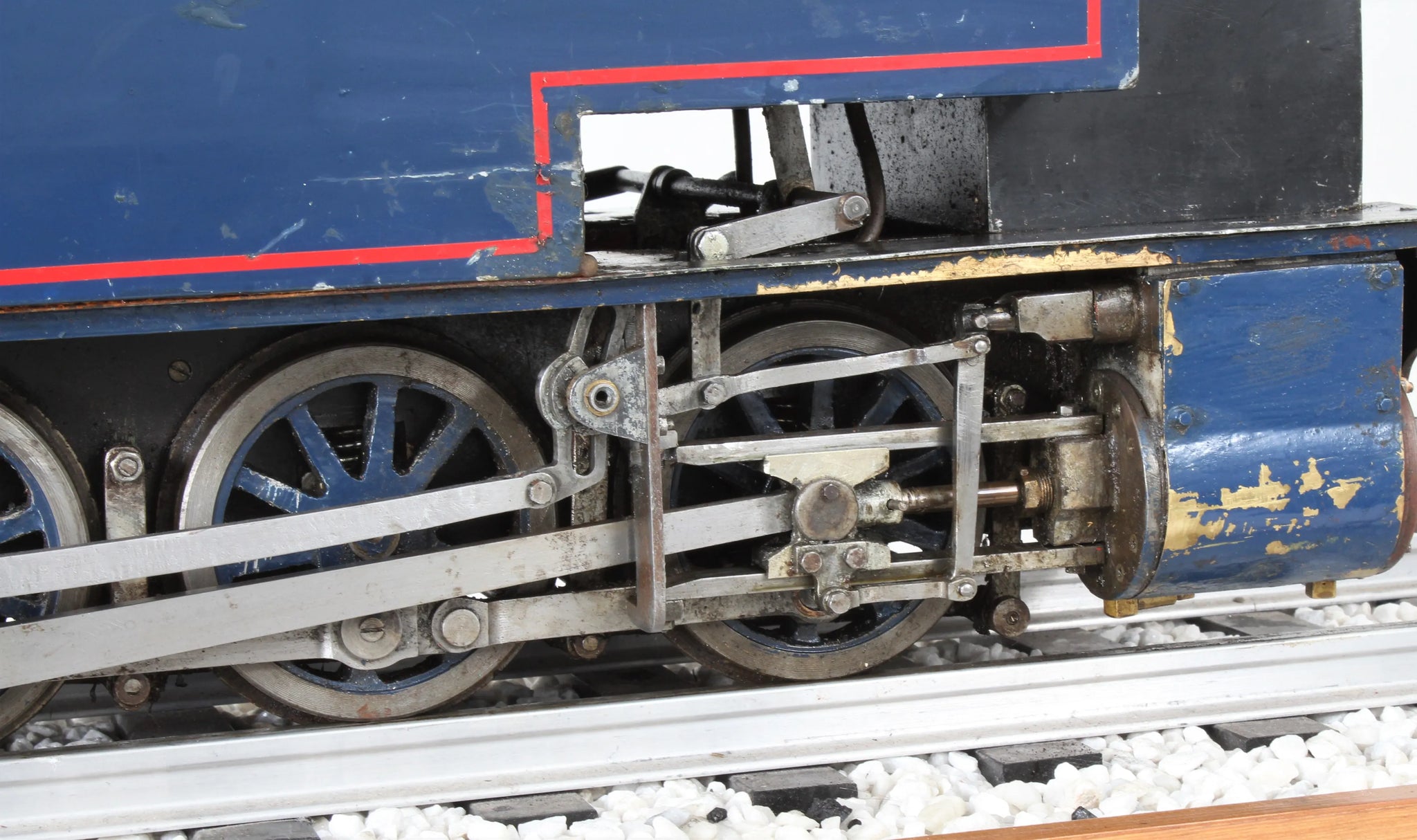

Valve gear

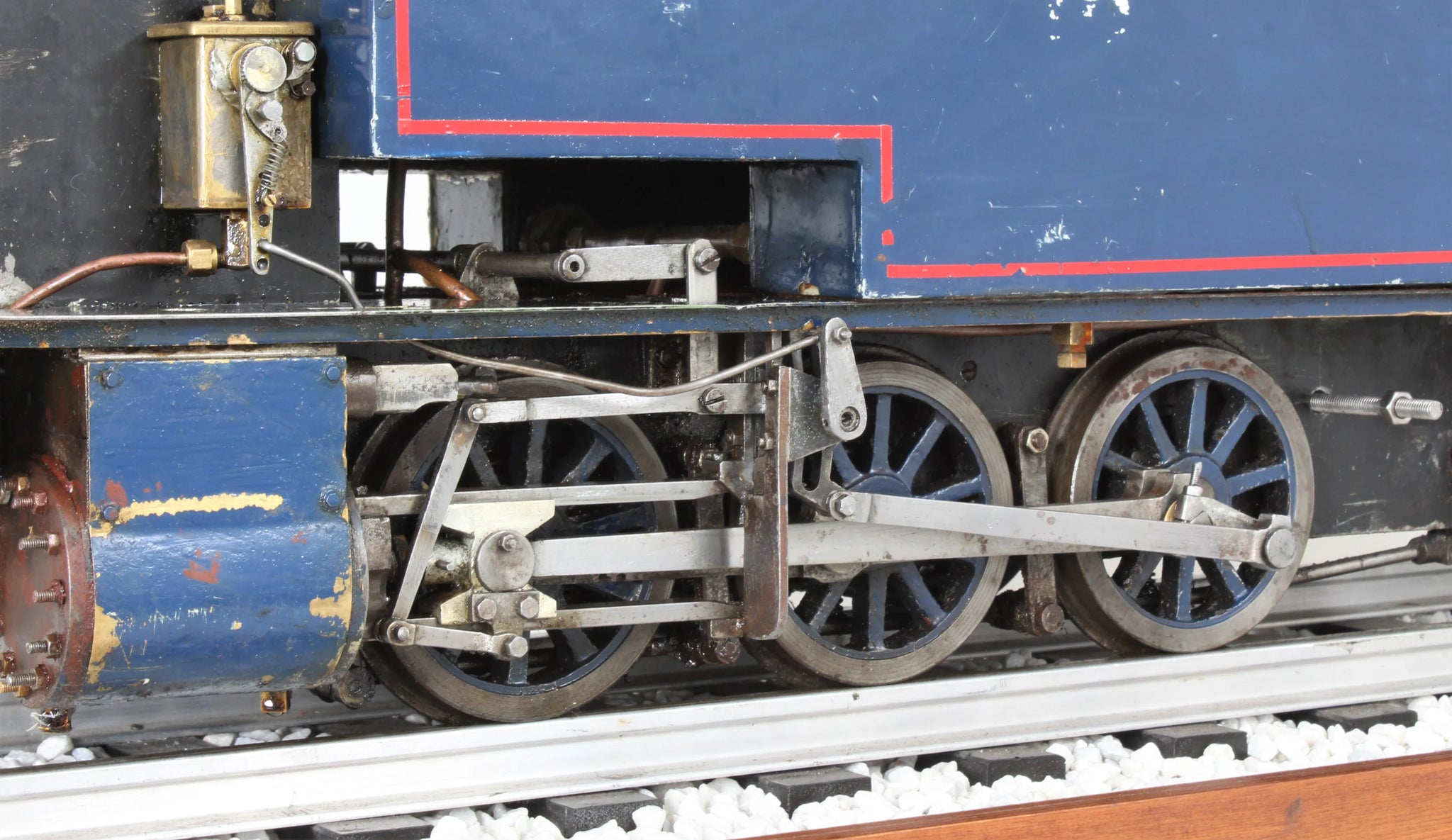

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - non-commercial

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Superheater type

flue tube

Superheater

3

Date out

Jul-21

Hydraulic test valid to

09-Mar-24
