8775

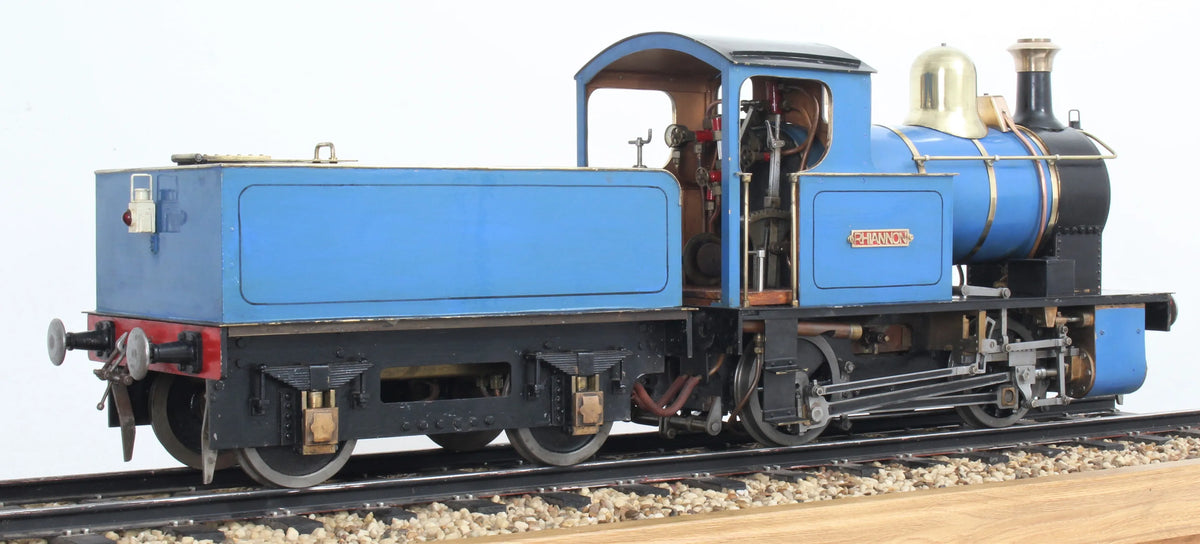

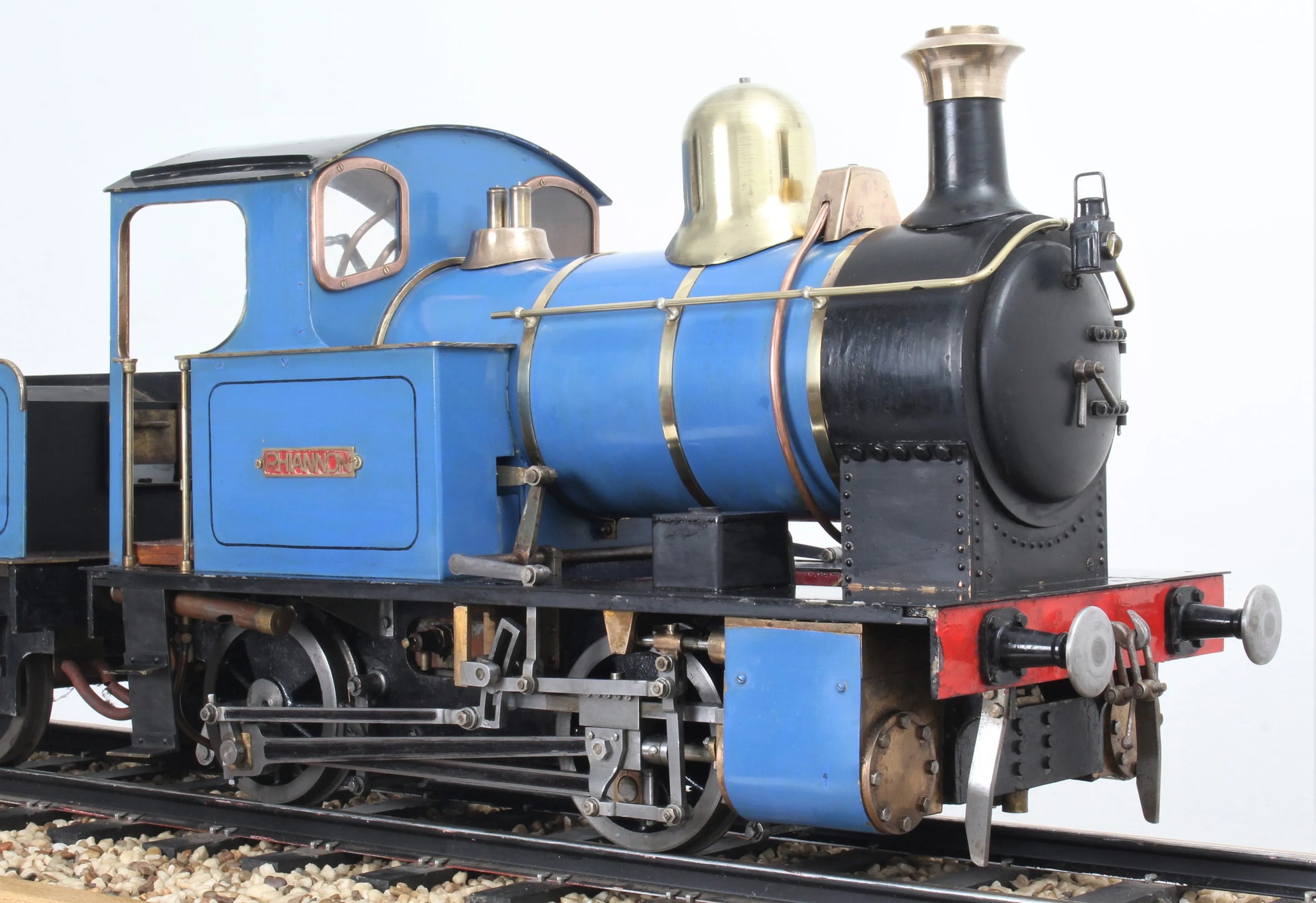

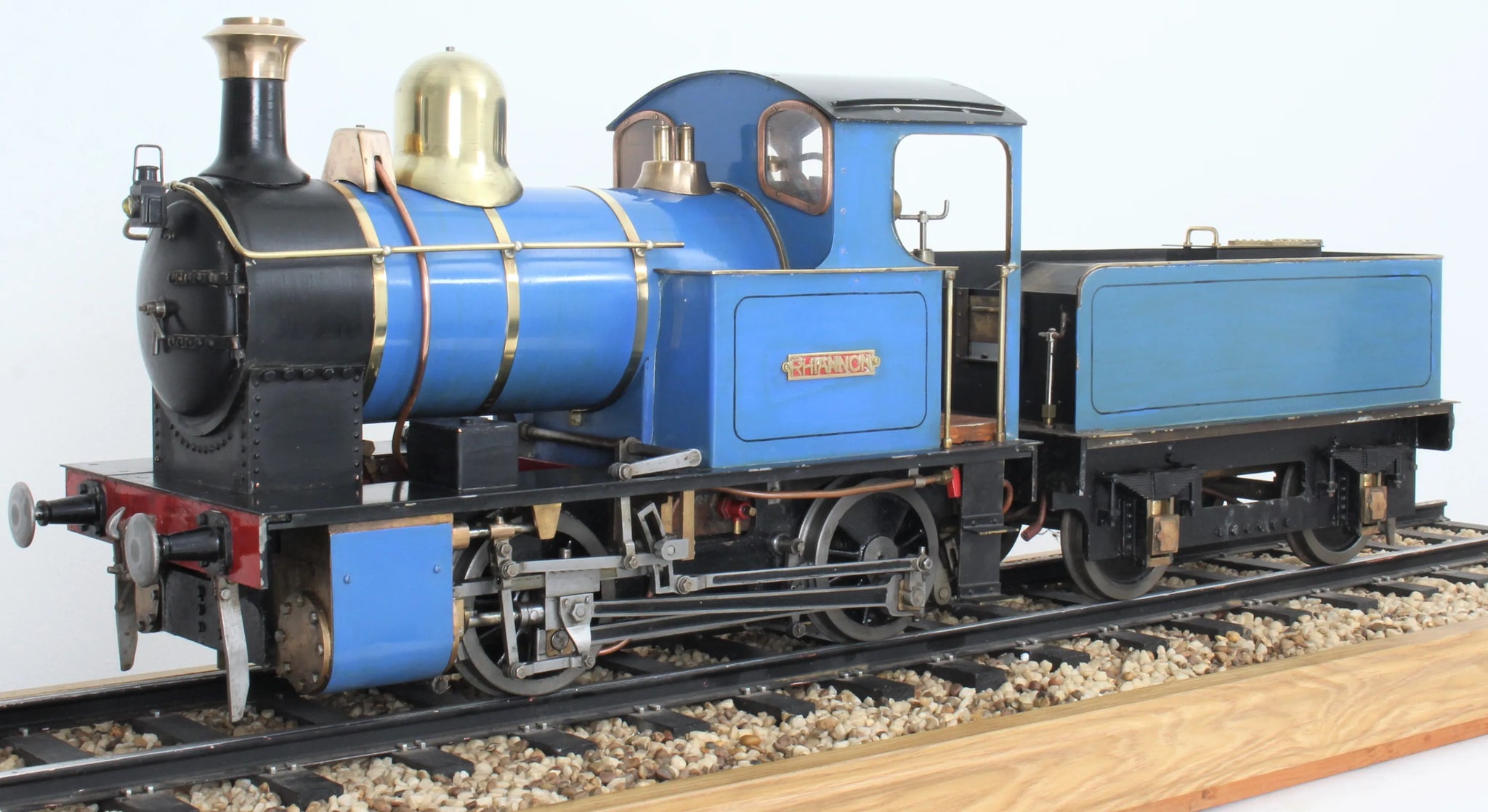

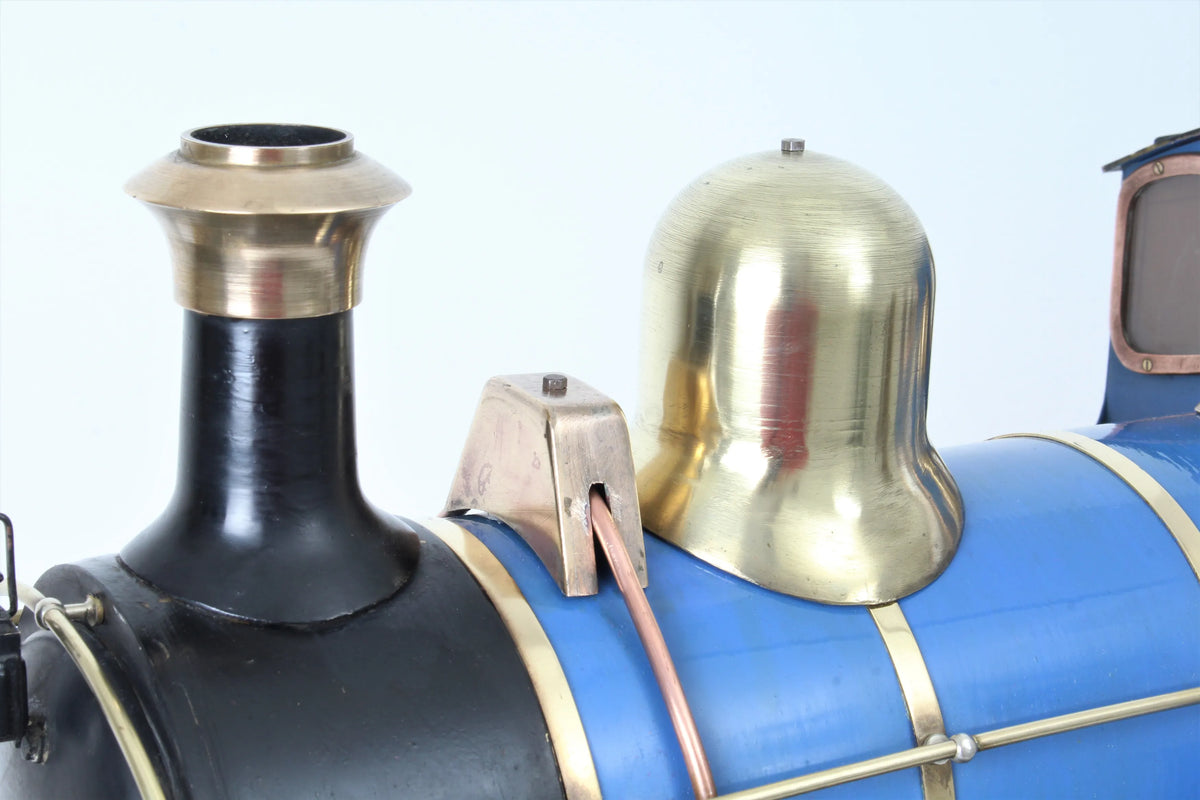

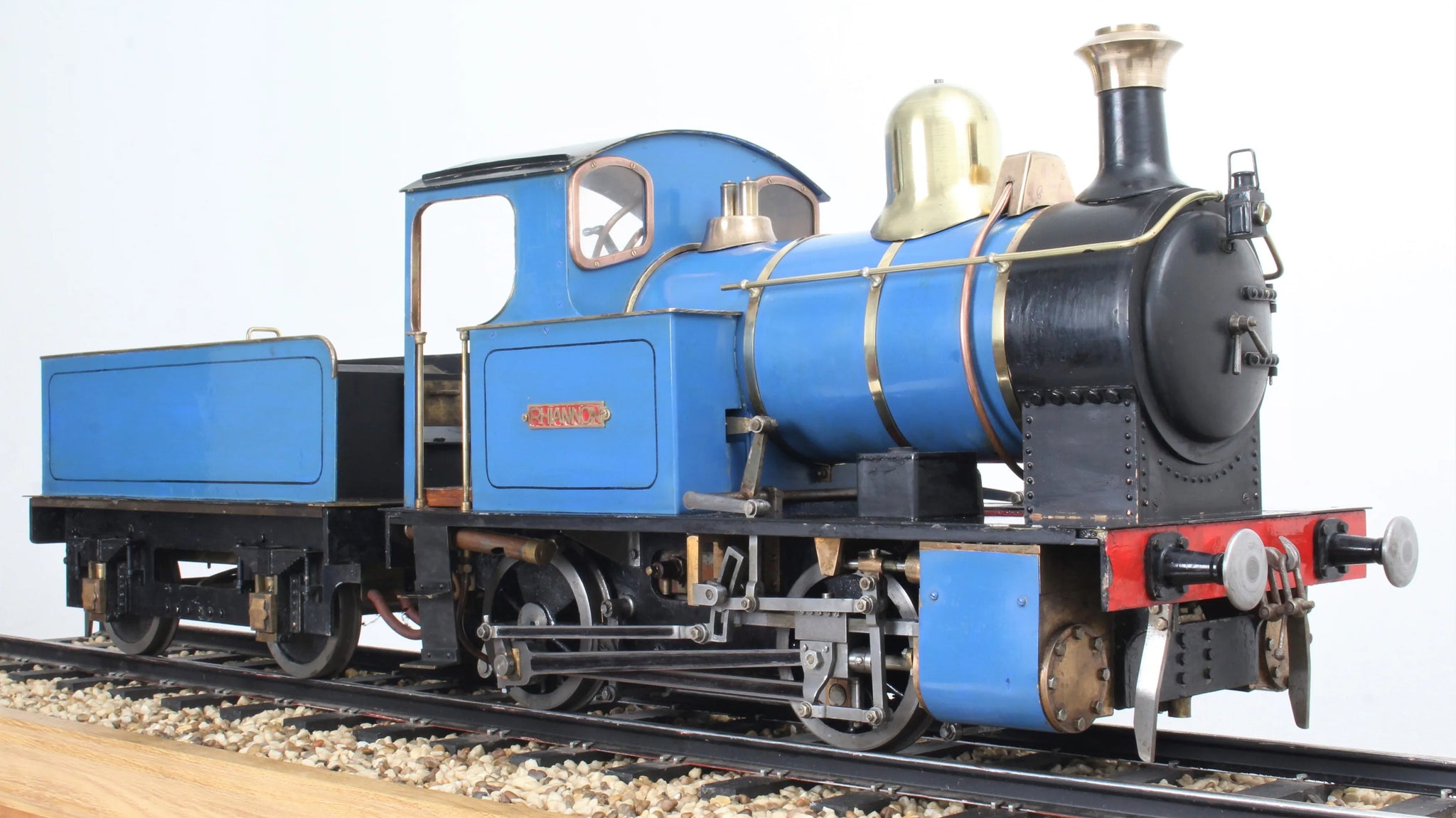

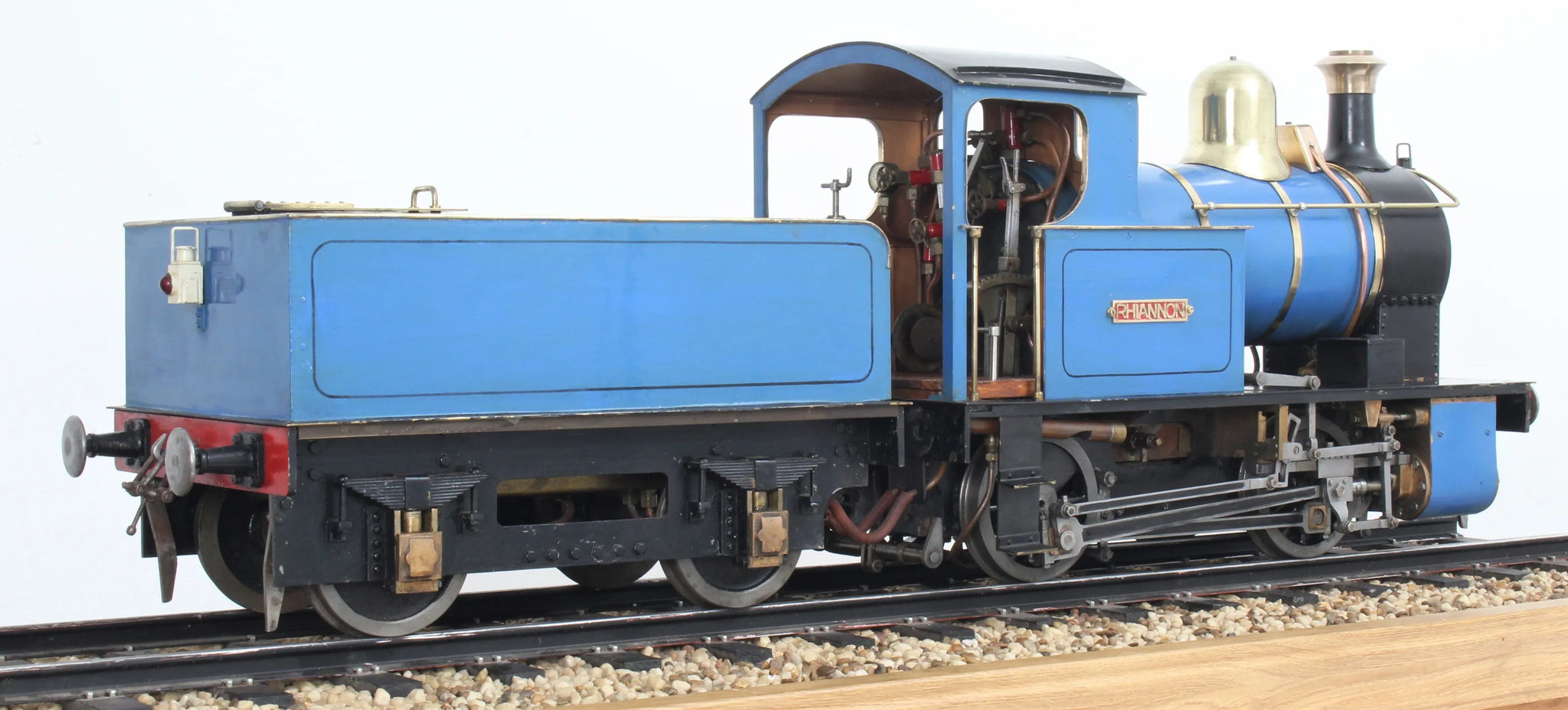

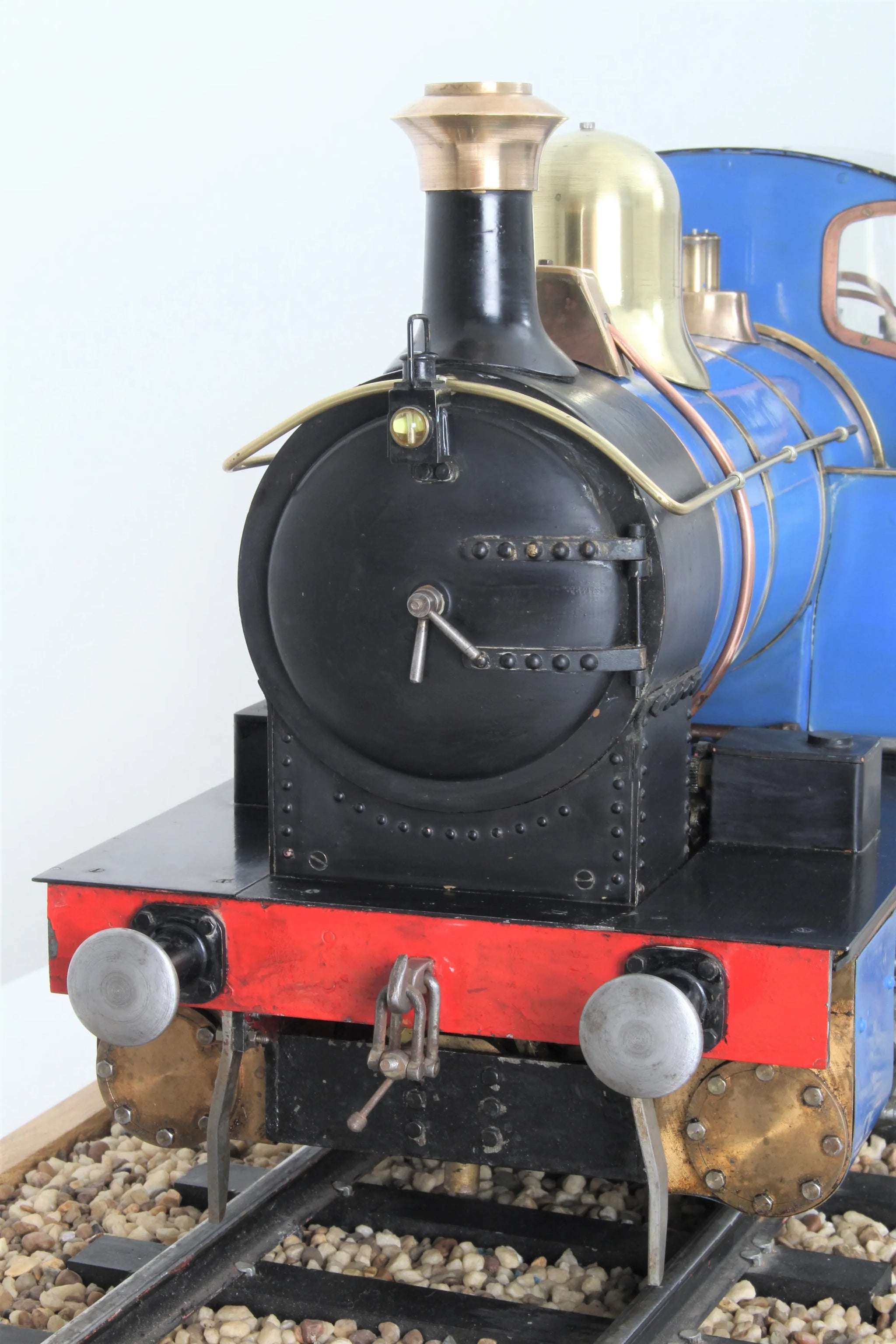

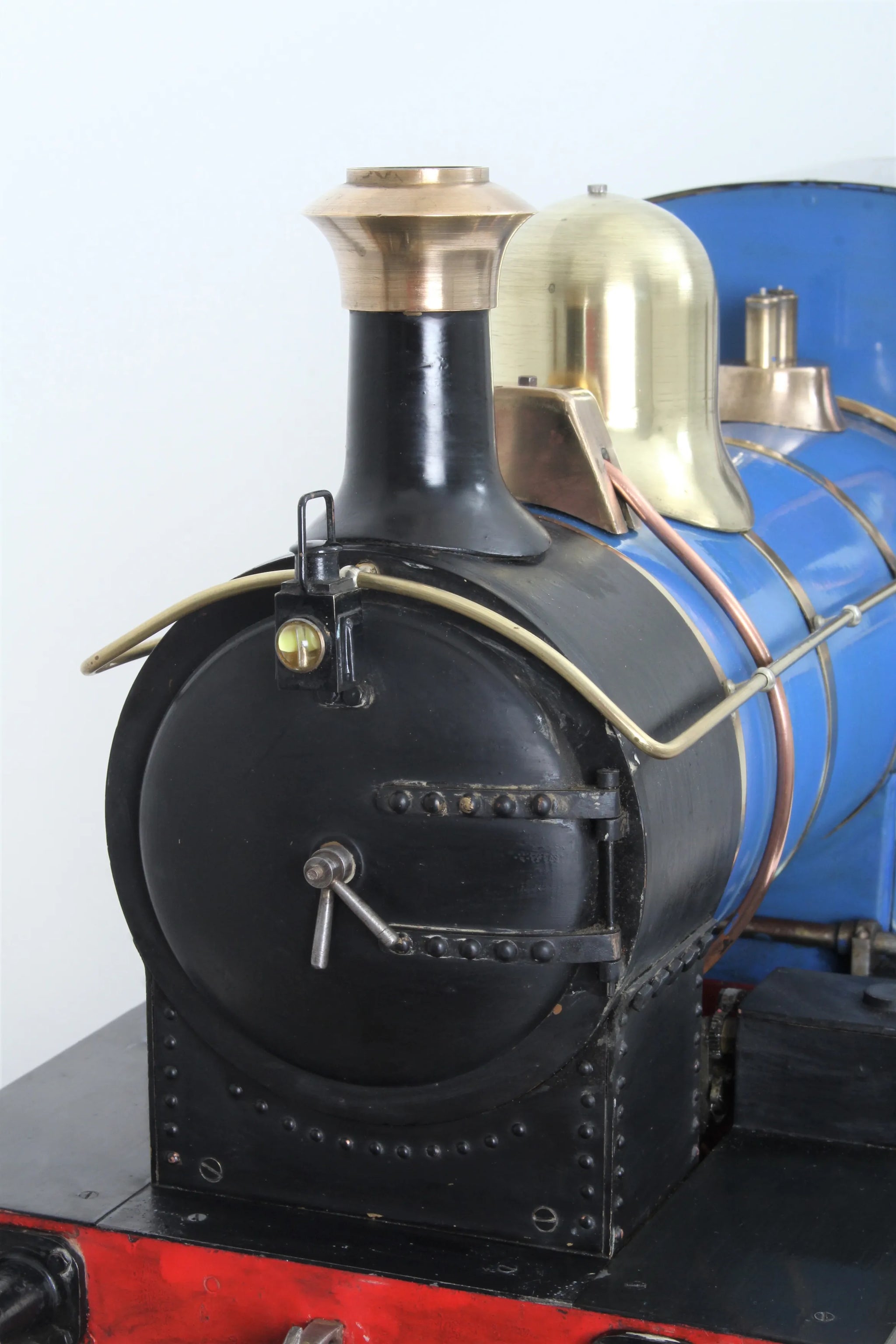

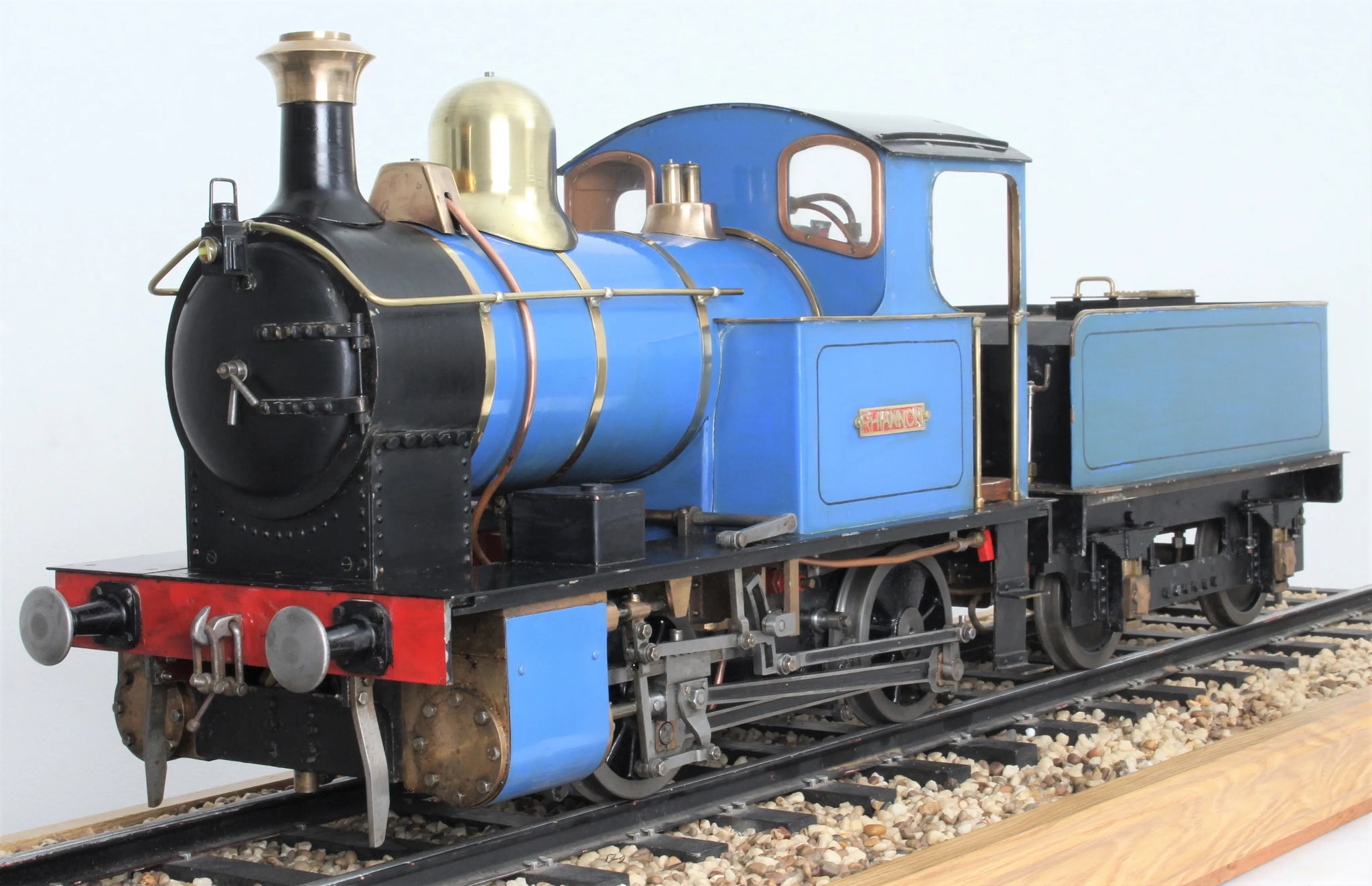

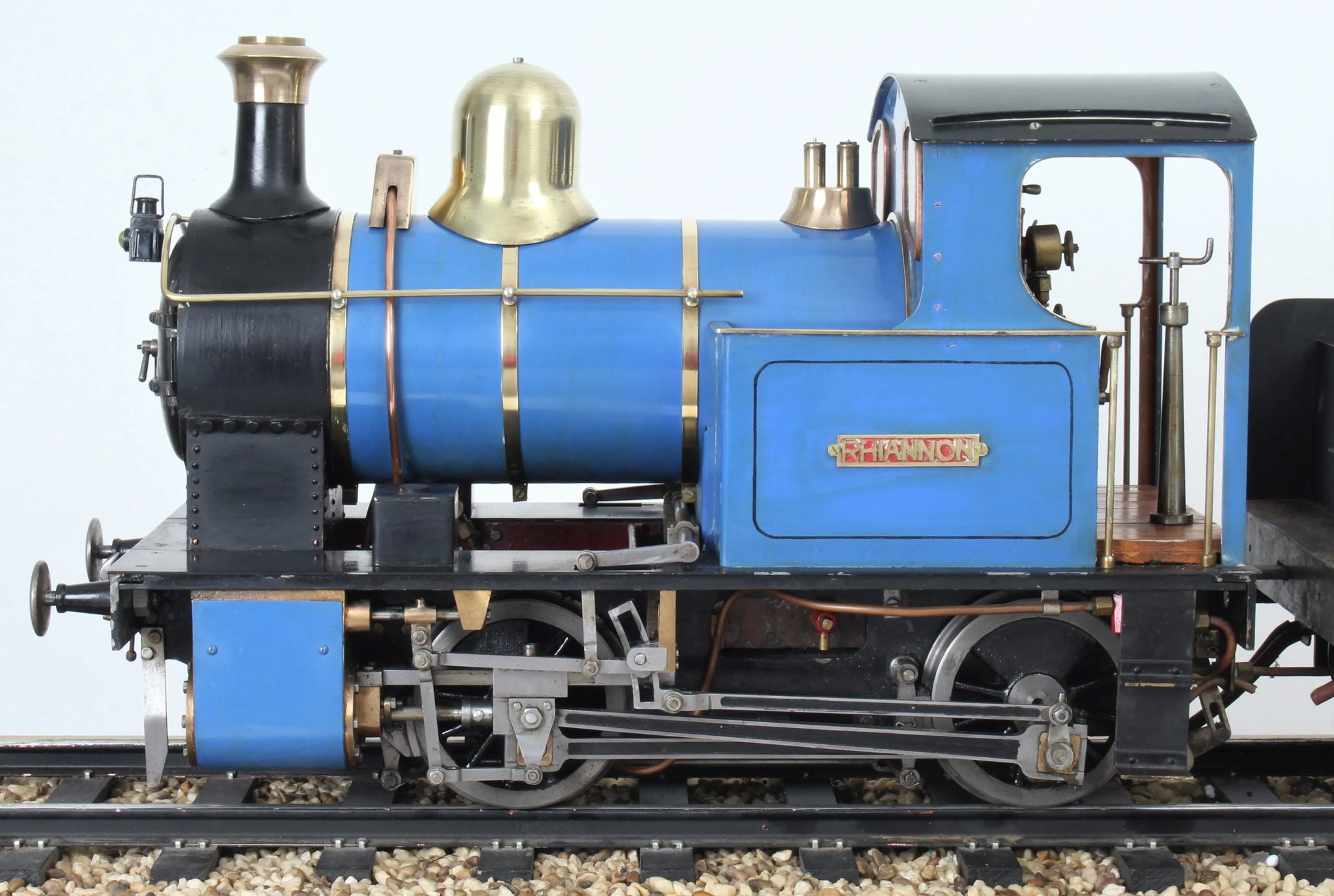

An older 5 inch gauge "Rail Motor", quite decently made and with a sound boiler, recently hydraulic tested at twice working pressure.

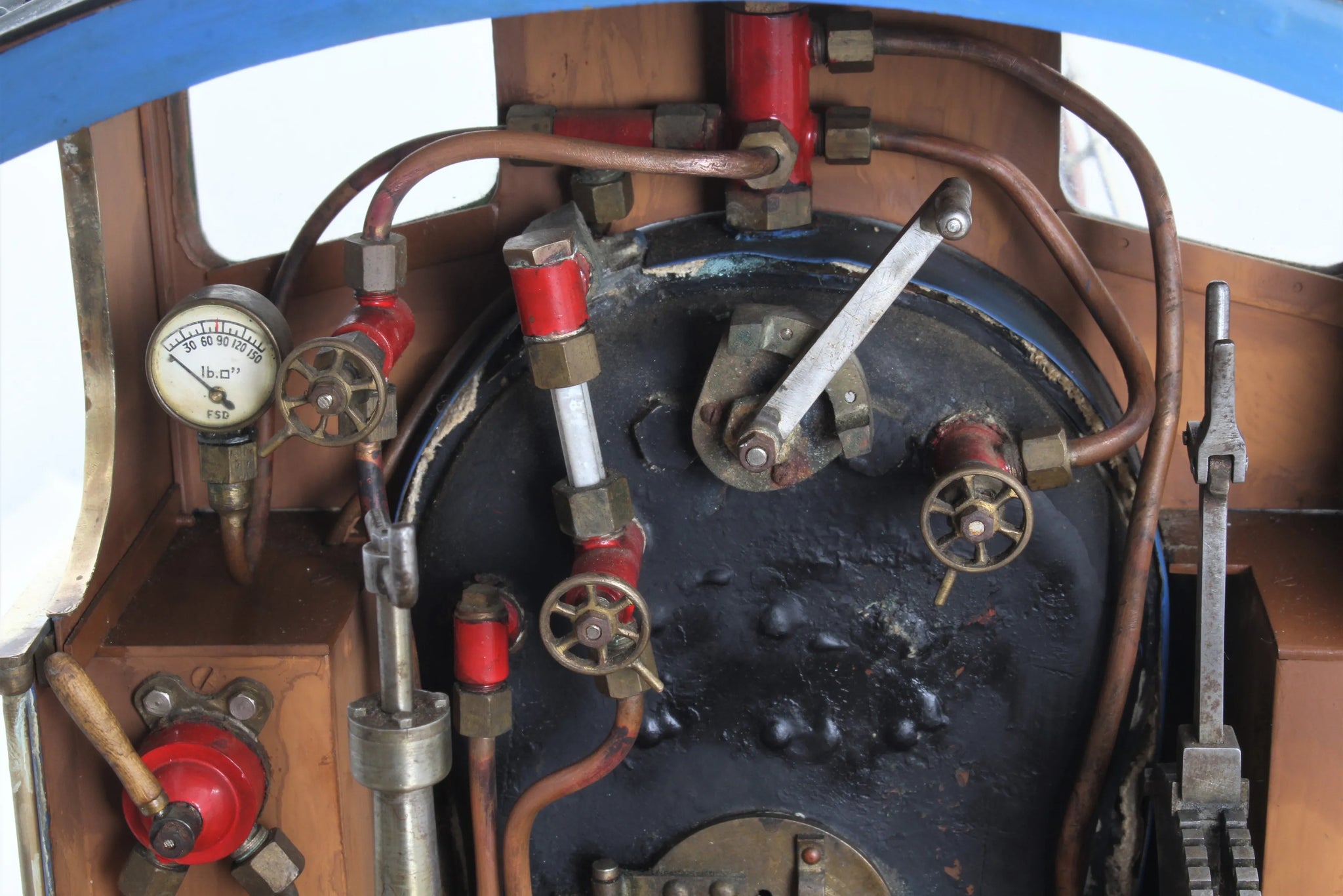

The locomotive runs on air but hasn't been steamed in a good while - it will need all the usual recommissioning jobs doing, from repacking the water gauge and checking the safety valve to servicing the boiler feed pumps.
Stock code |
8775 |
Gauge |
5 inch |
Length/inches |
37 |
Width/inches |
9 |
Height/inches |
13 |
Wheel material |
cast iron |
Axlebox type |
plain |
Valve type |
slide |
Valve gear |

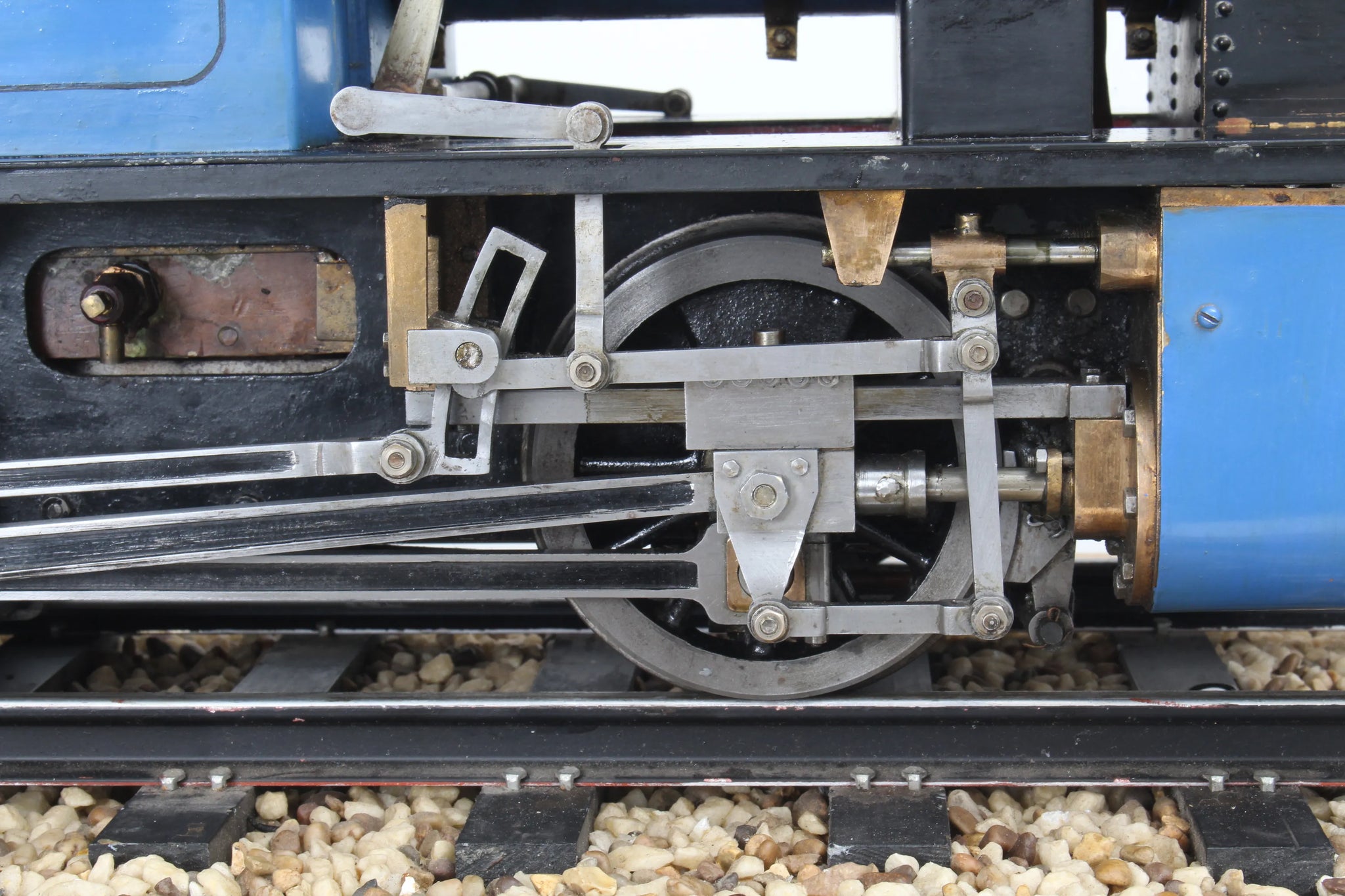

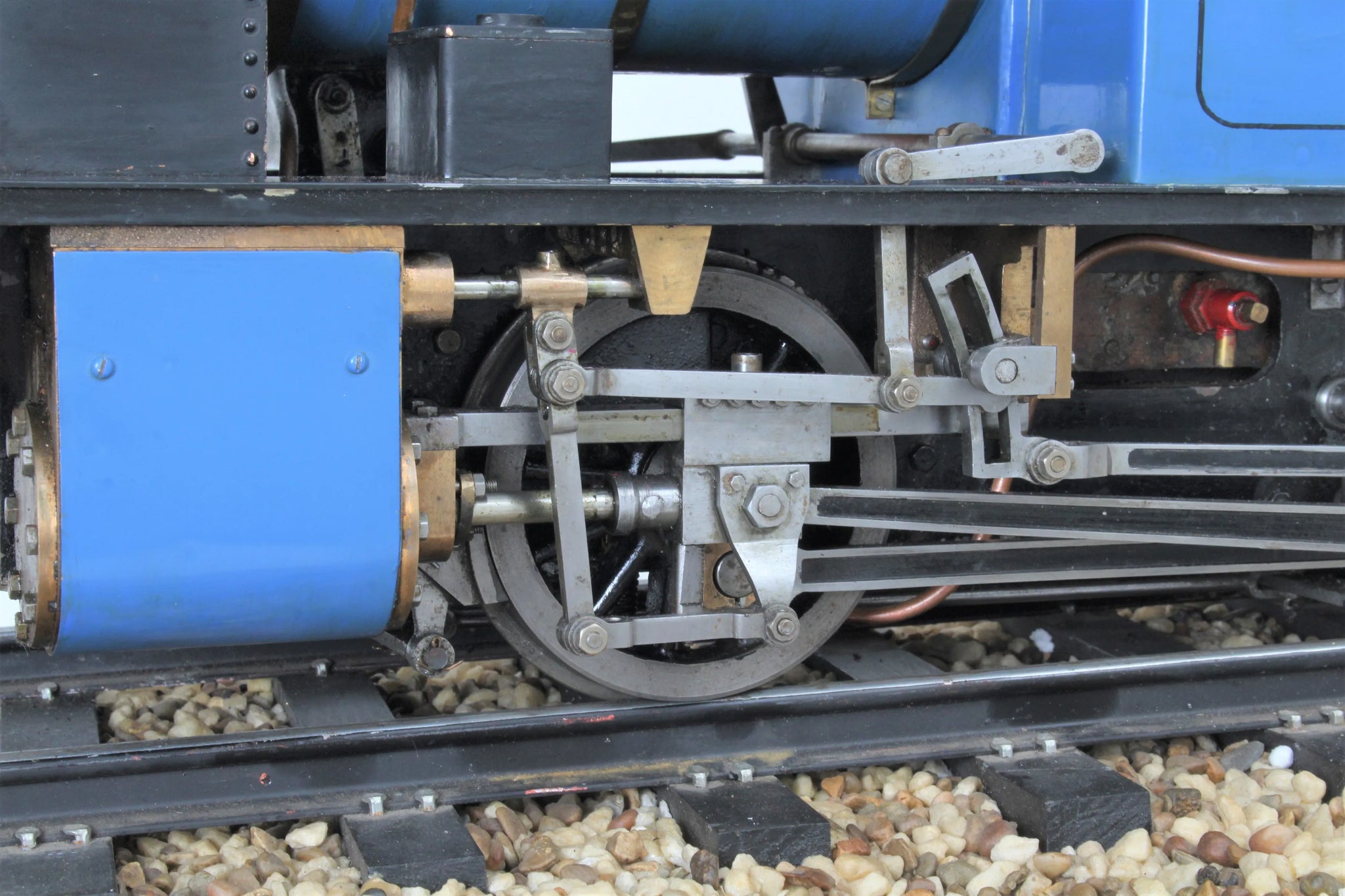

Walschaerts |

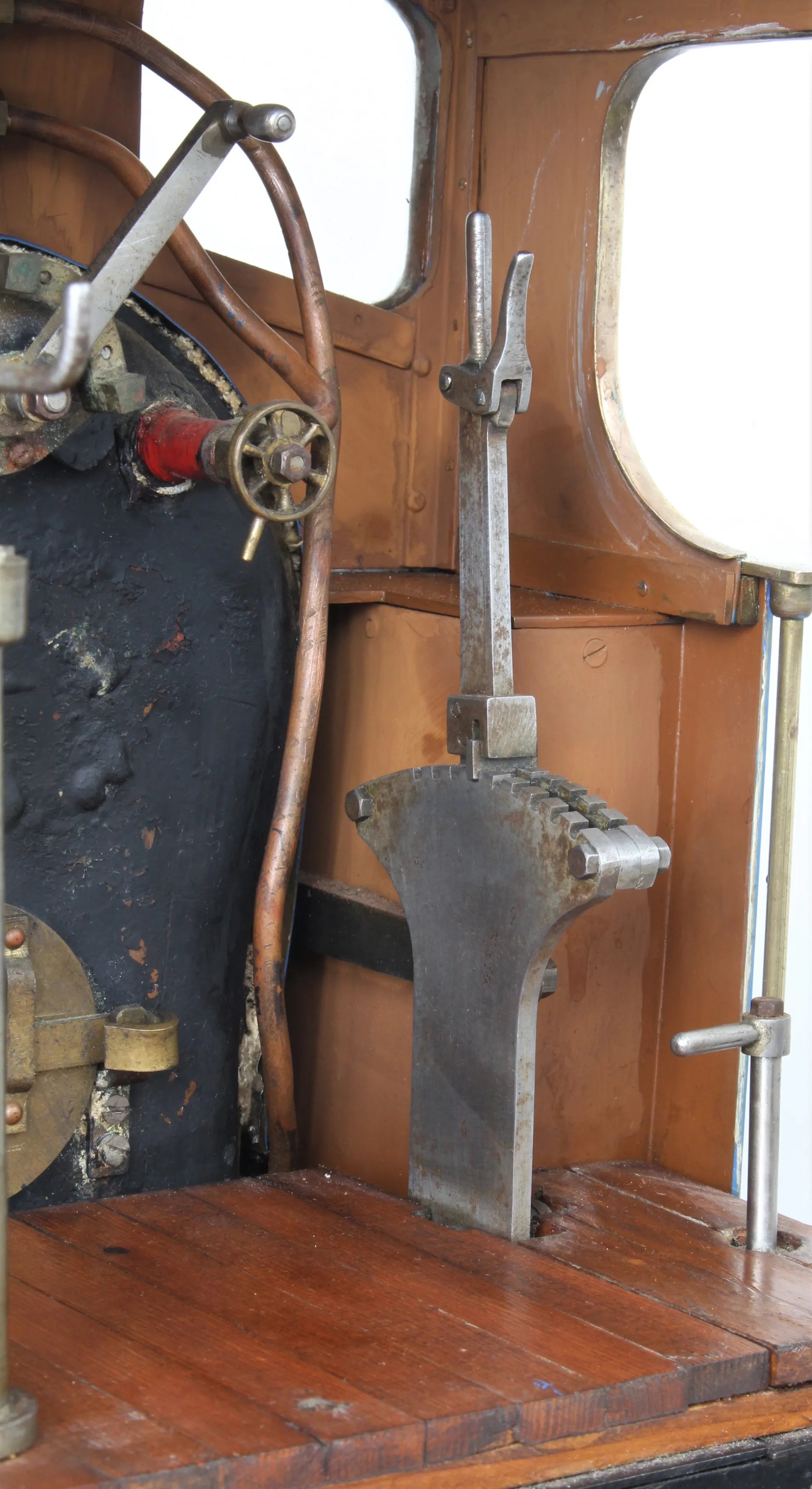

Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver-soldered |
Boiler material |
copper |
Working pressure |
80 |
Boiler number |
8775 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
yes |
Mechanical pump |
axle |
Superheater type |
flue tube |
Superheater |
2 |
Date out |
Feb-21 |
Hydraulic test valid to |
03-Nov-24 |
