Sold

8034

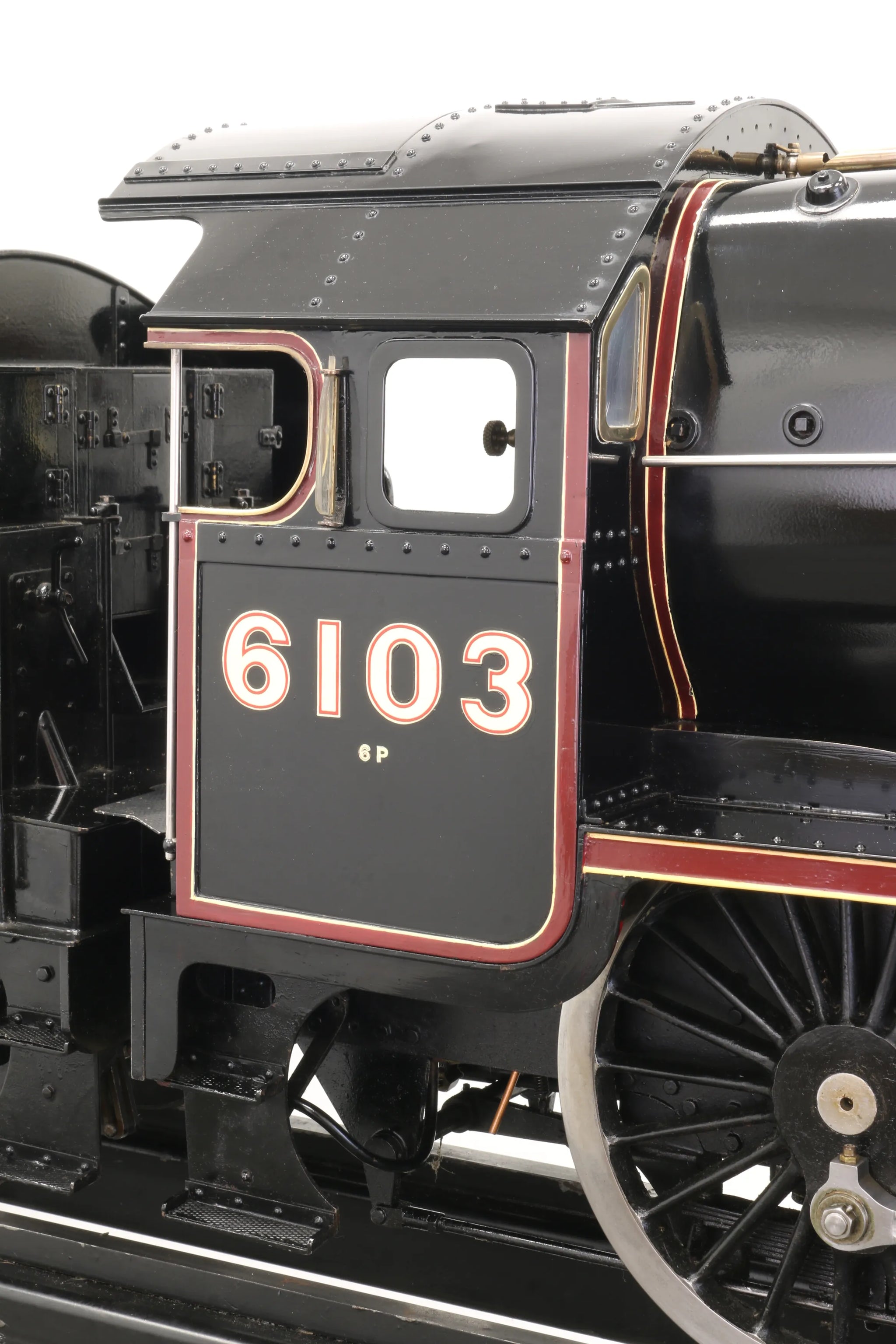

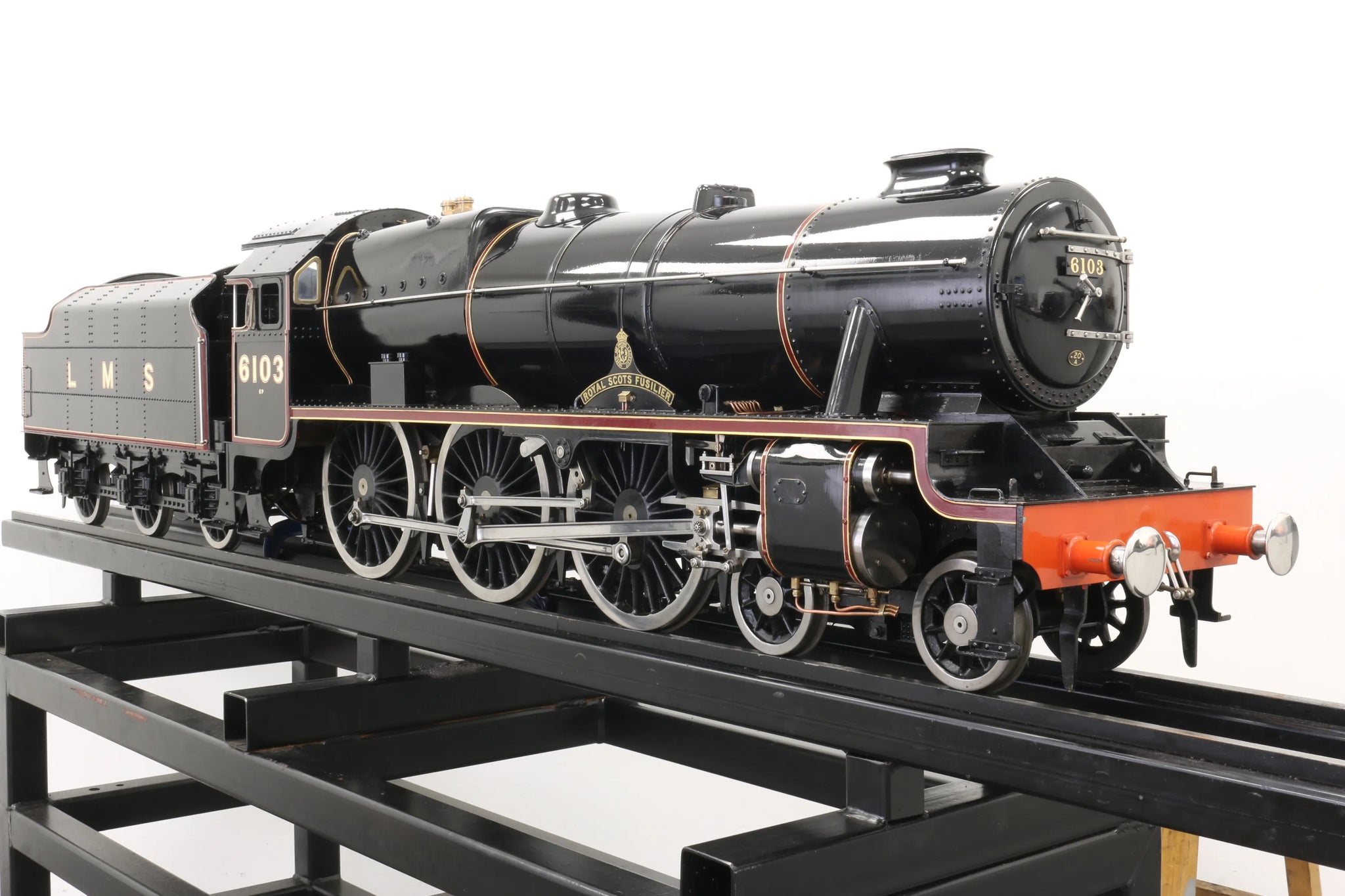

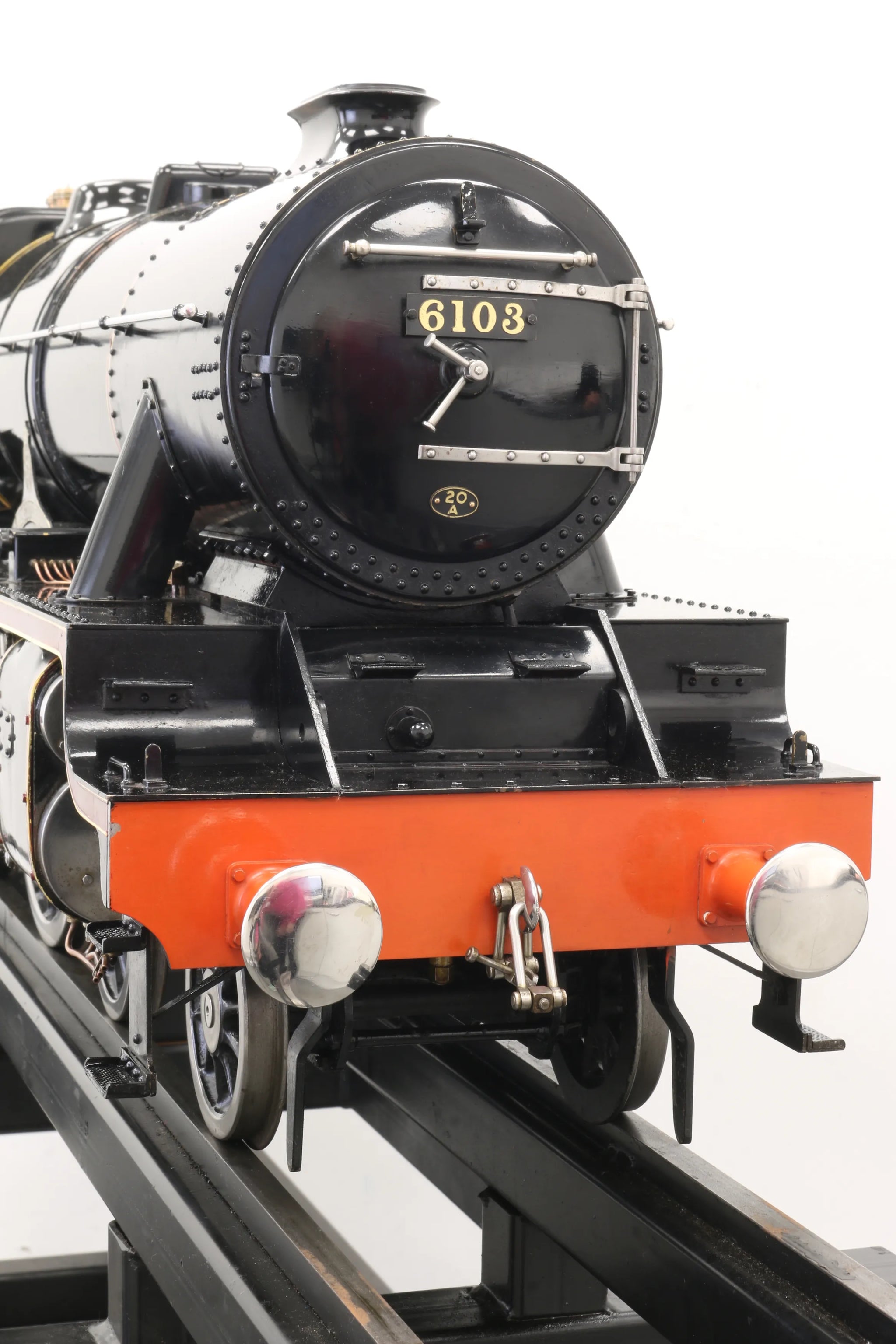

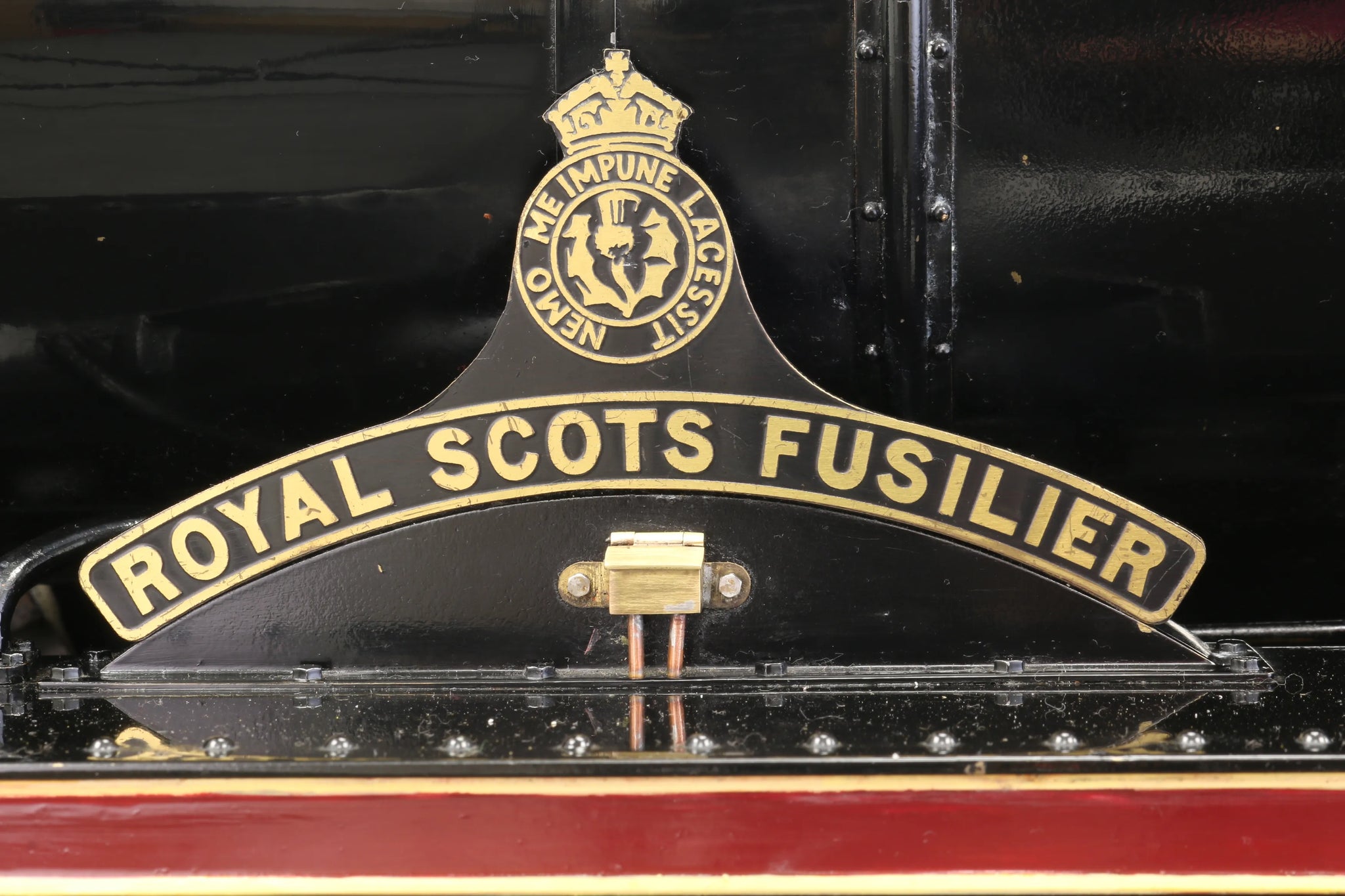

5 inch gauge Rebuilt Royal Scot 6103 "Royal Scots Fusilier"

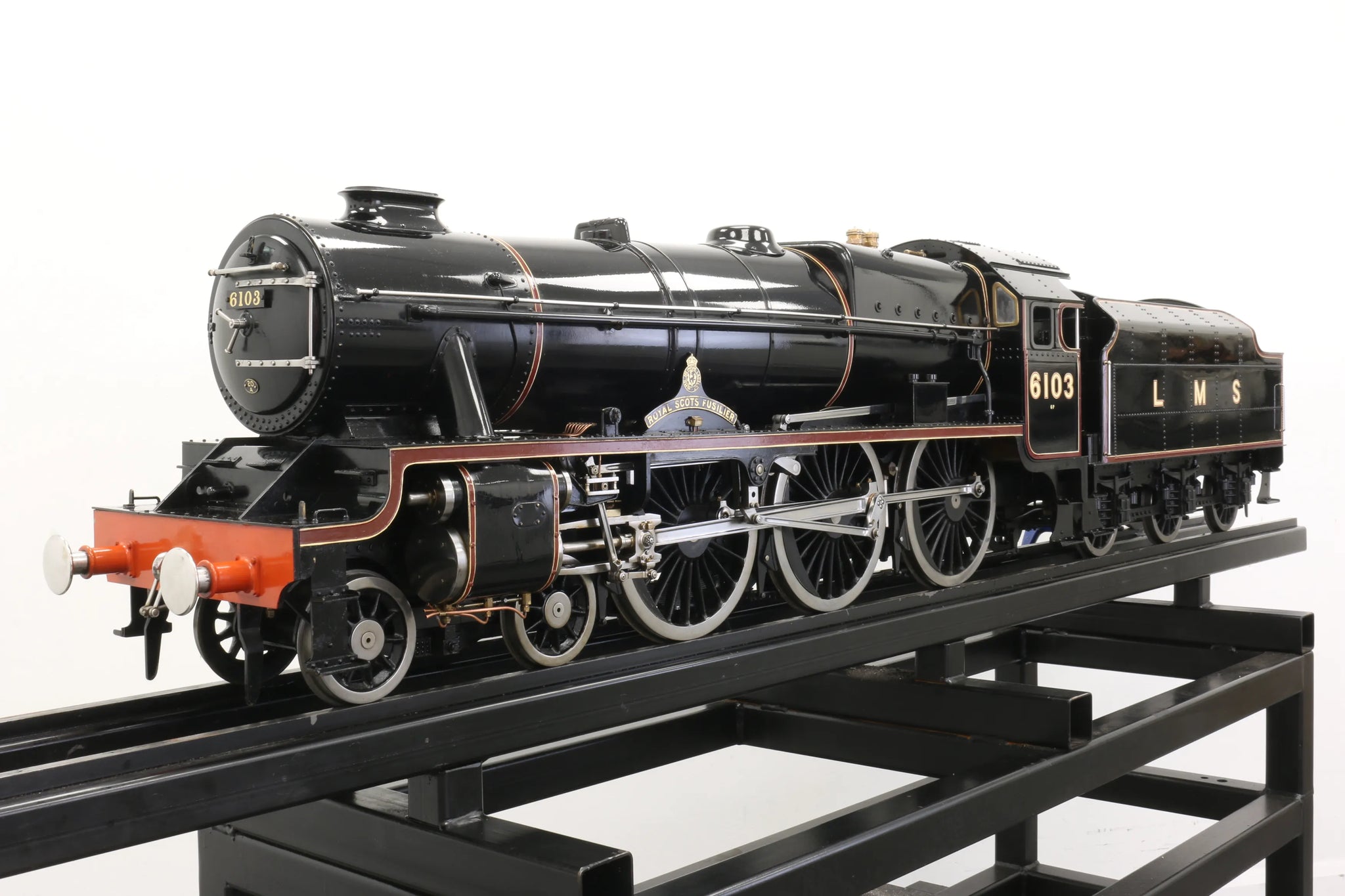

A finely made 5 inch gauge Rebuilt Royal Scot, built as a full three cylinder locomotive, as per the prototype. It's been on display for many years, the previous owner never steamed it - it's finally come to us in part exchange for a good 7 1/4 inch gauge Hunslet, which proved rather more convenient for him to drive.

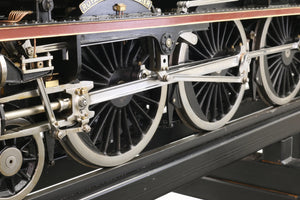

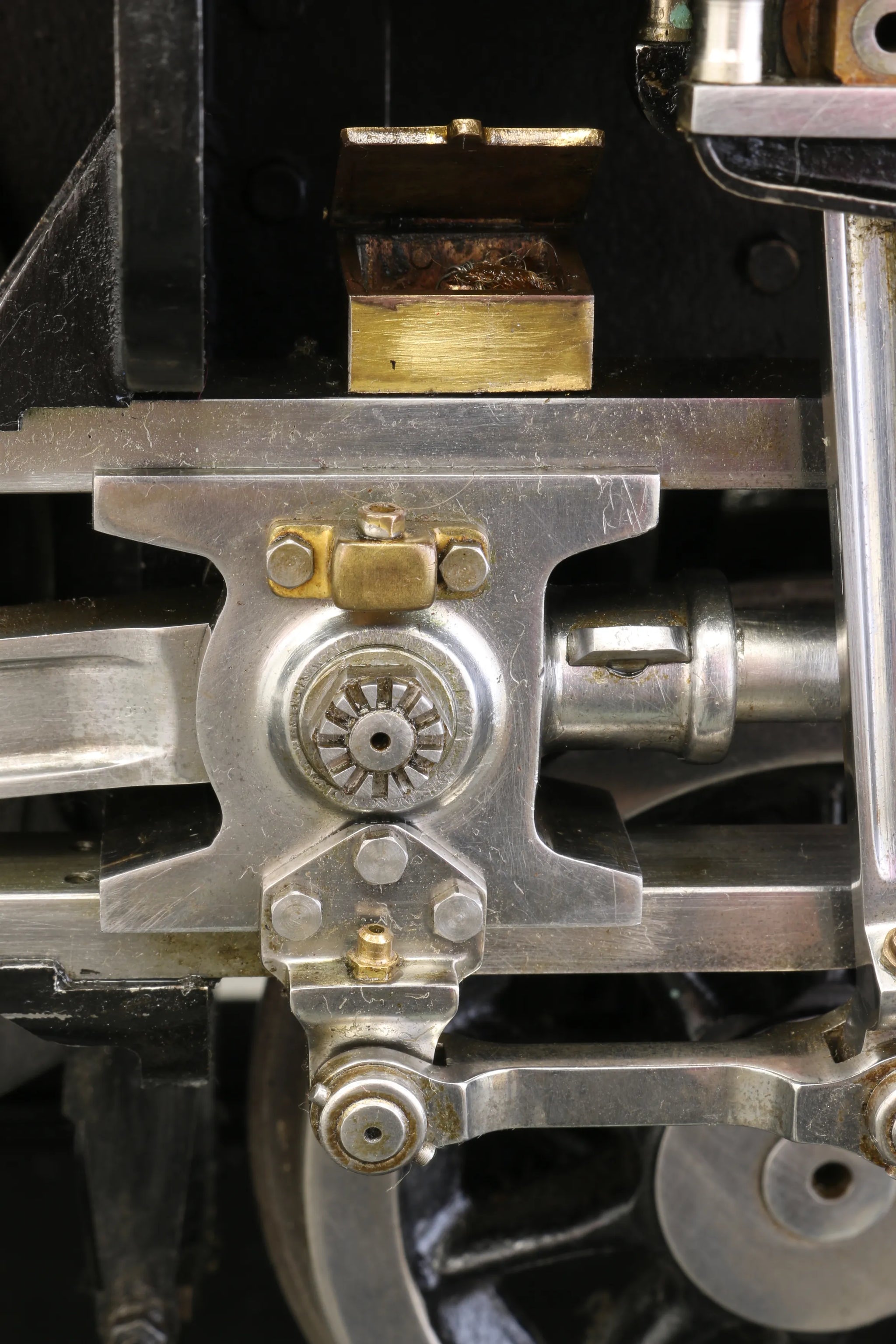

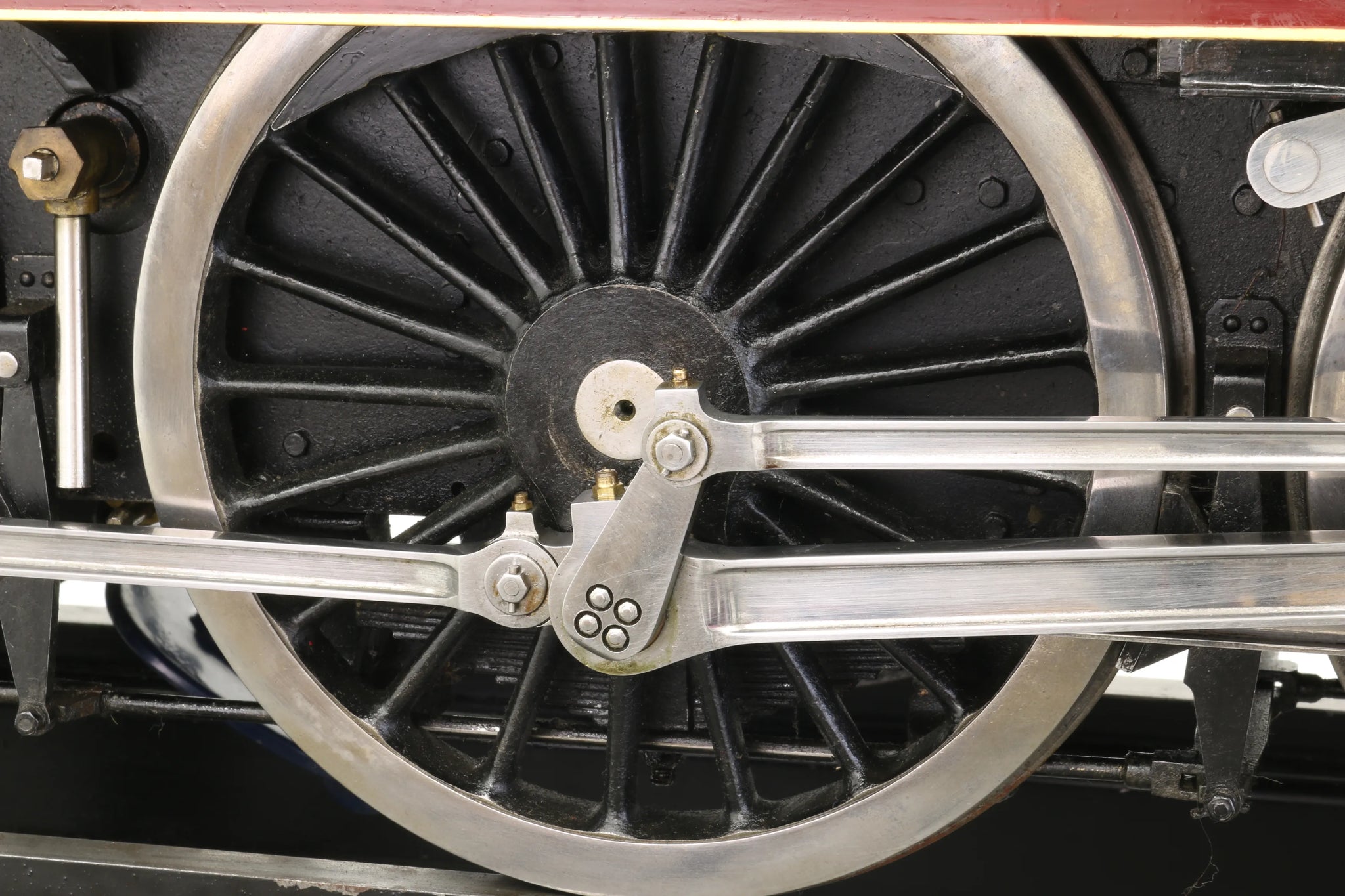

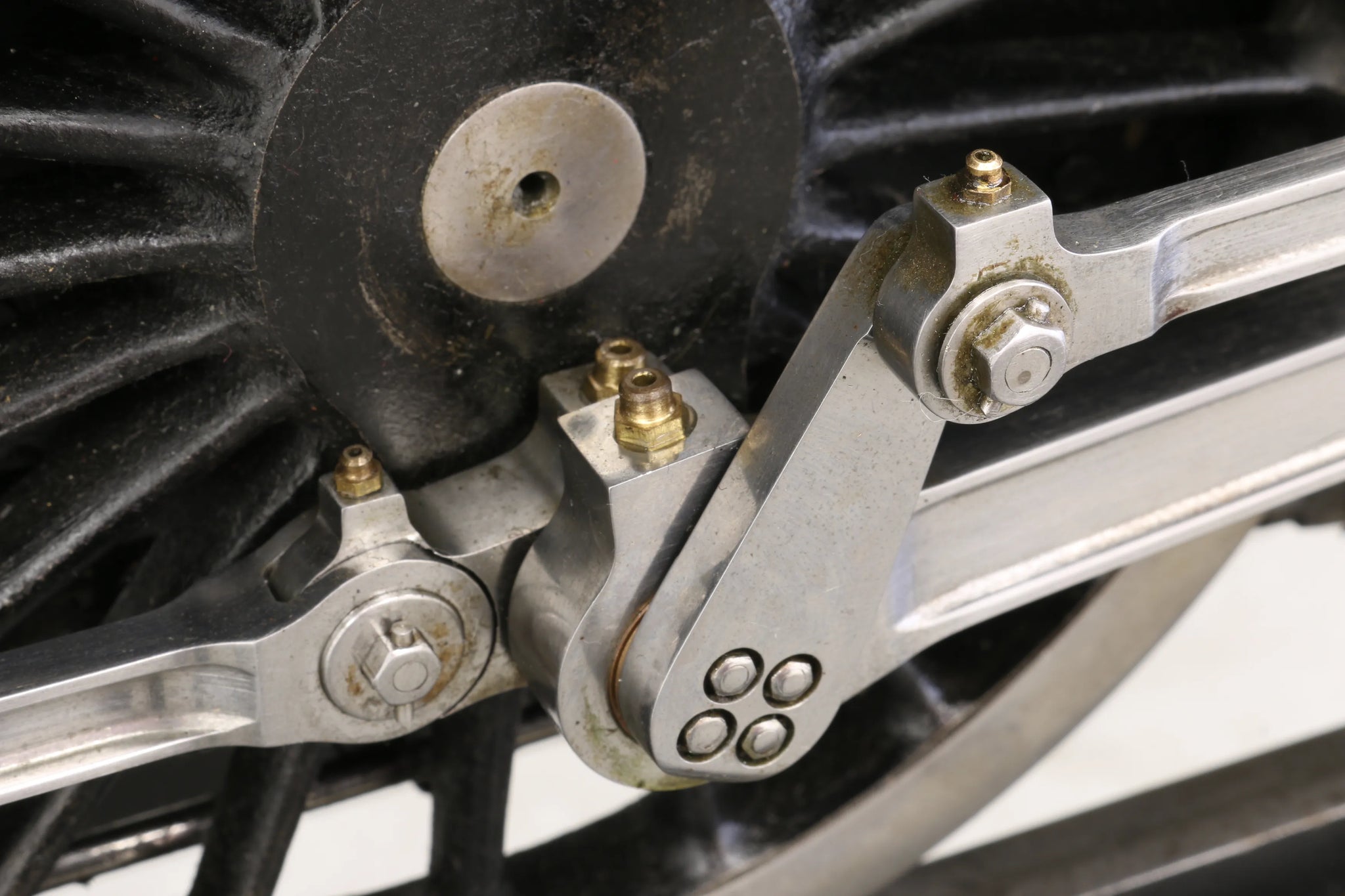

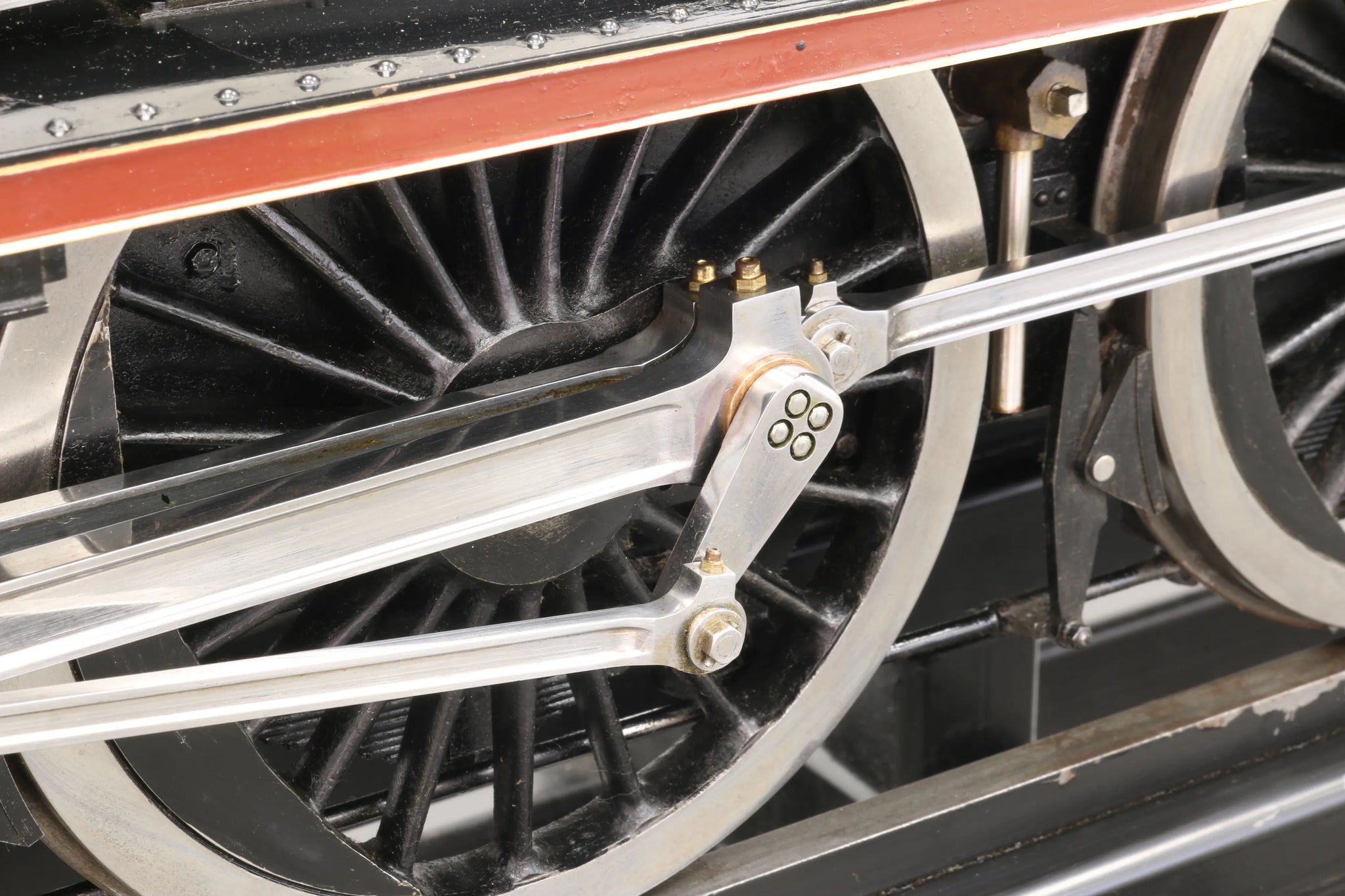

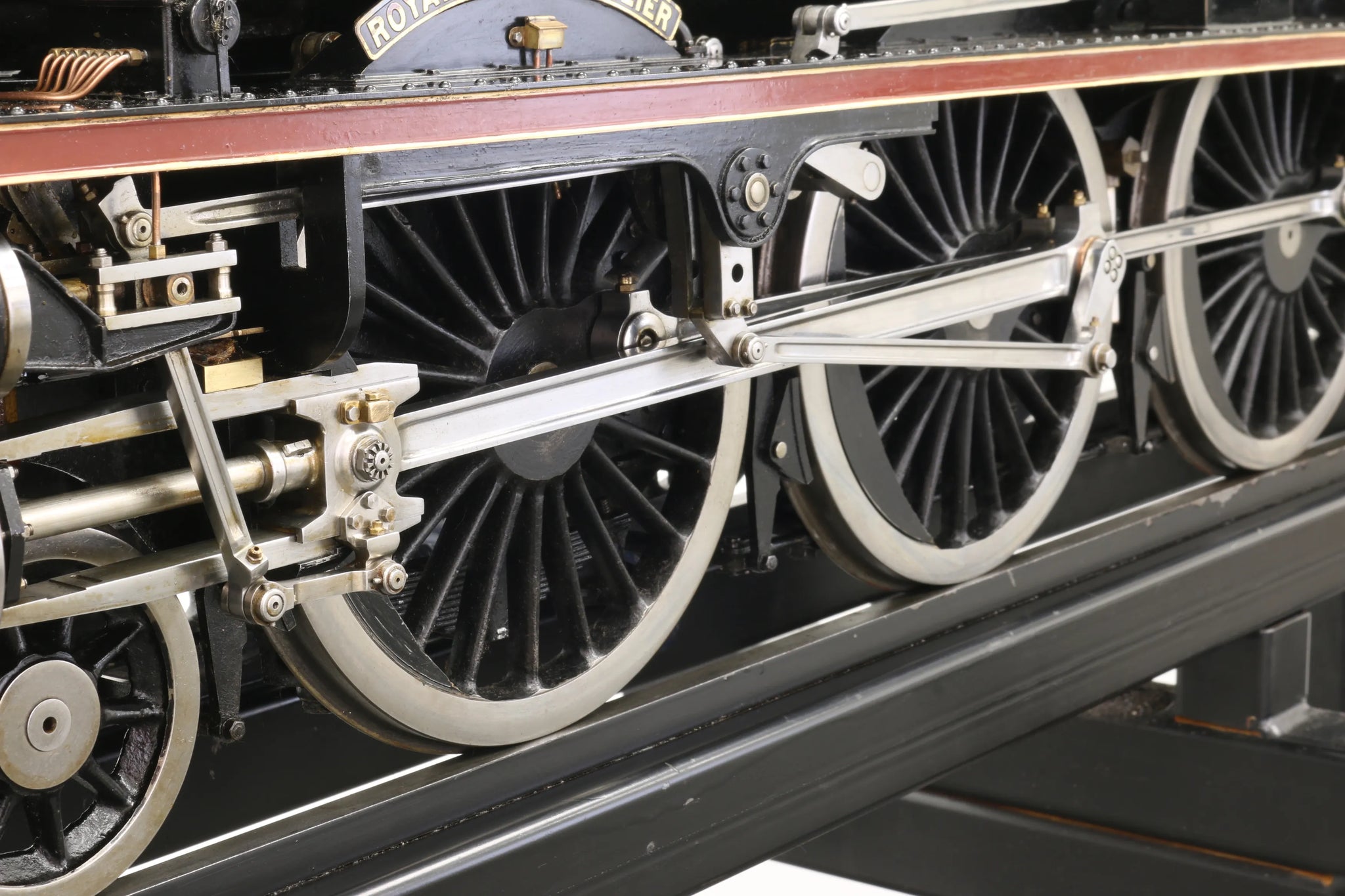

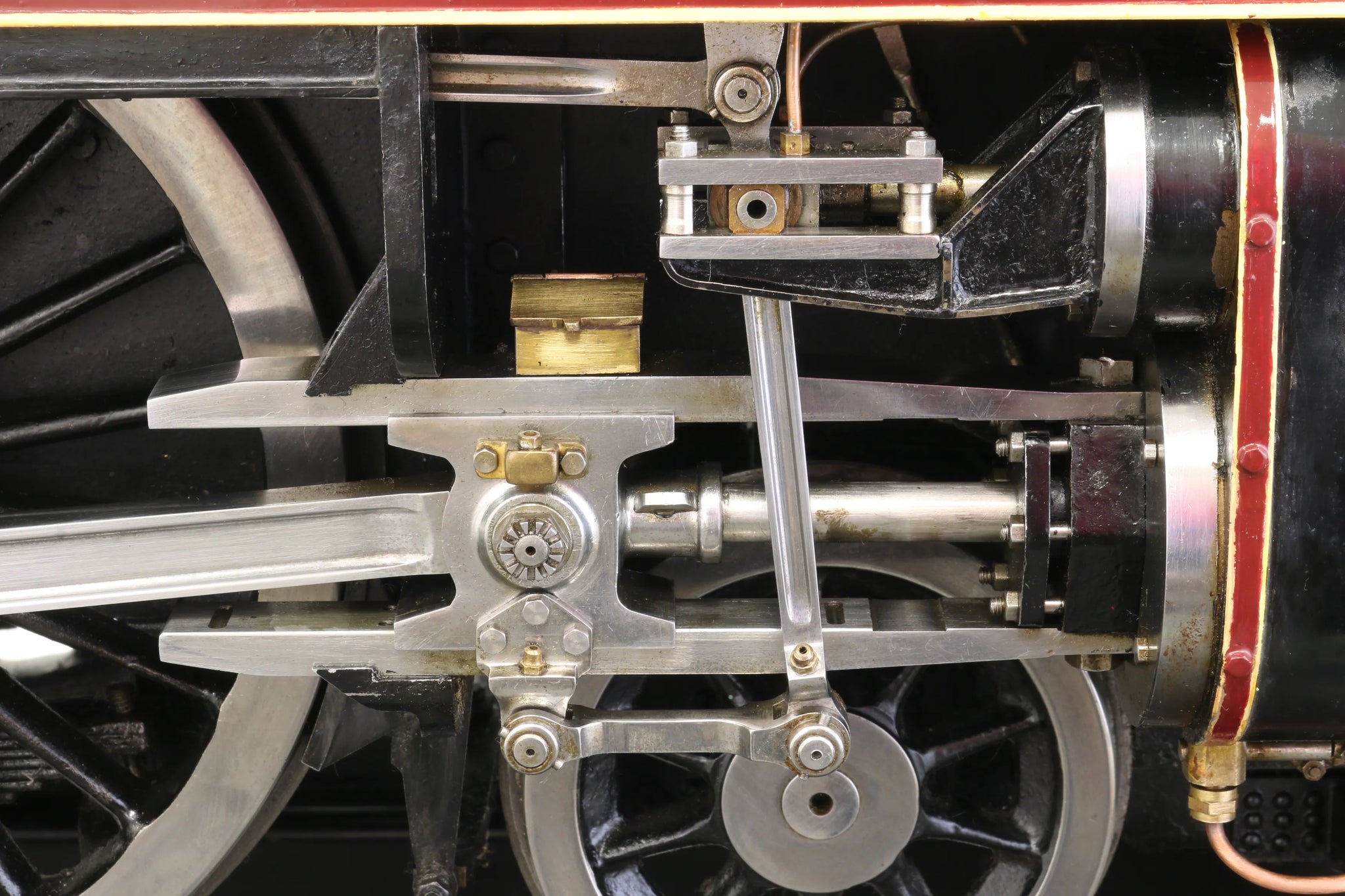

Standard of workmanship is very good throughout, fit and finish of the motionwork and valve gear is excellent, with nice detailing including castellated nuts, taper pins and turned lubricators throughout the running gear. The engine runs well in both directions on air.

Boiler had had a twice working pressure hydraulic shell test for thirty minutes - whilst structurally sound, there is a small bead forming at the dome flange which will require repair.


Technical information

Stock code

8034

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

piston

Valve gear

Walschaerts

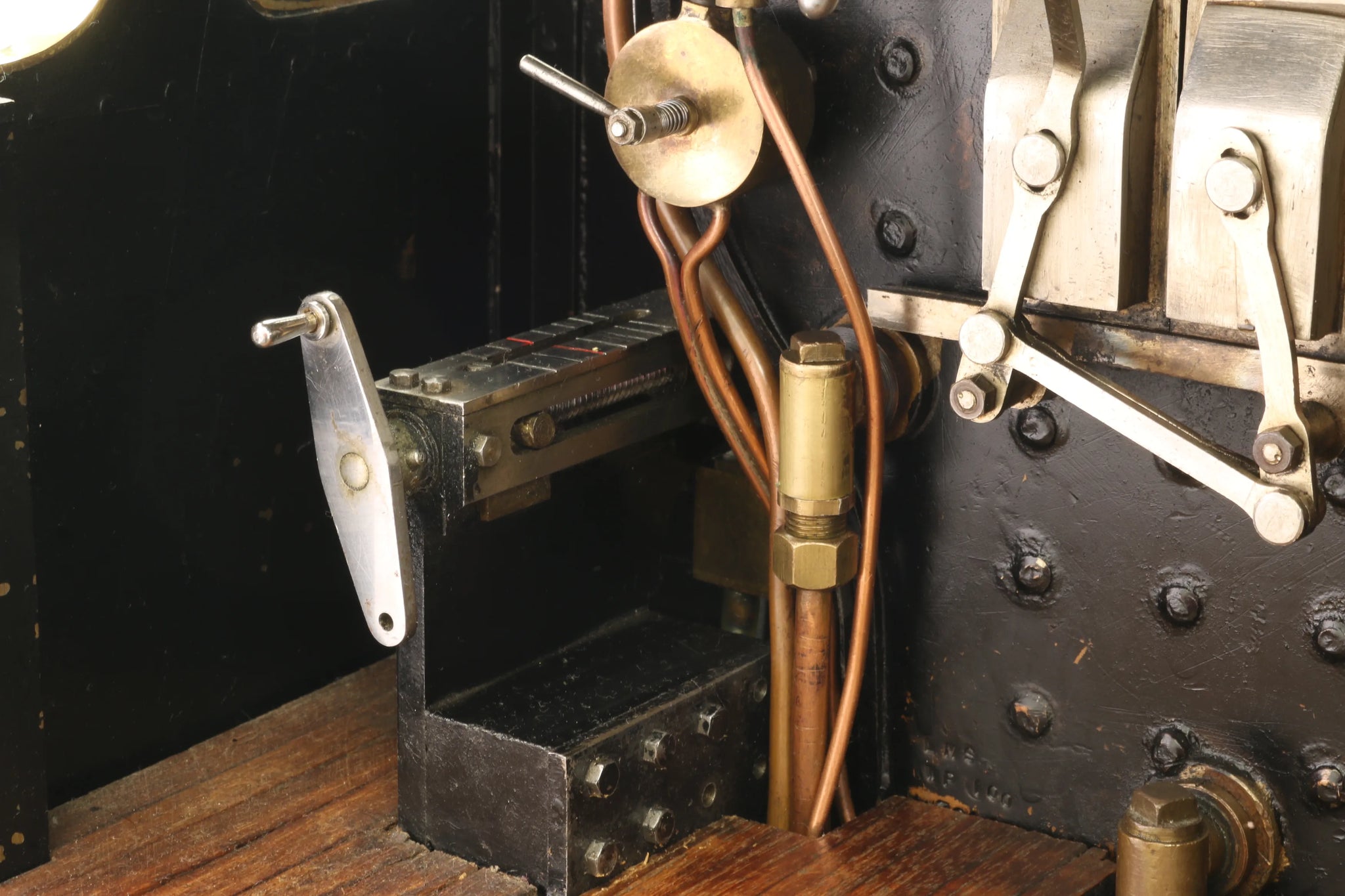

Reverser type

screw

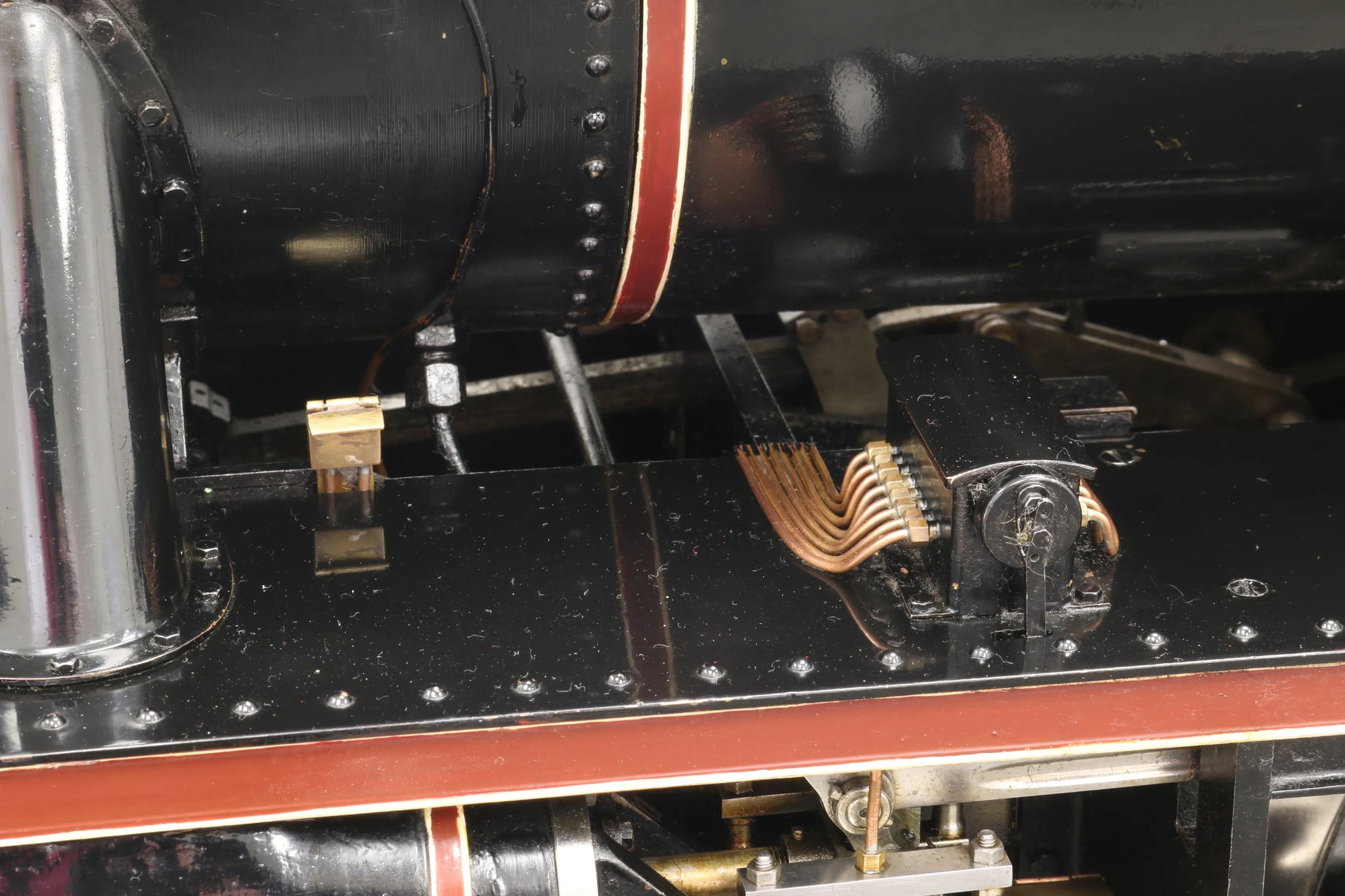

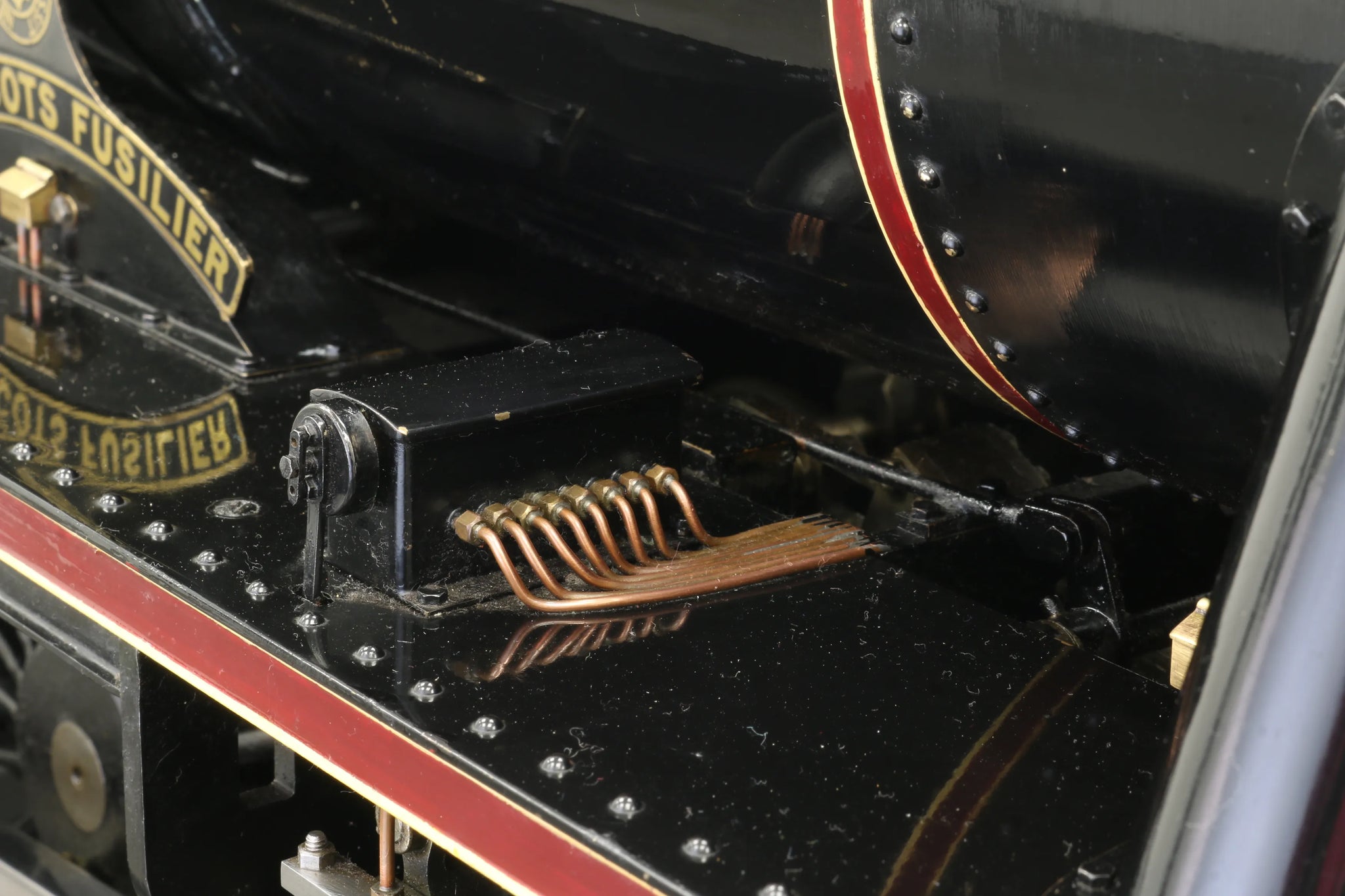

Lubricator type

mechanical

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

n/a - non-commercial

Year built

unknown

Boiler number

7018

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

Injector

2

Superheater type

radiant

Superheater

3

Date out

Jun-18
