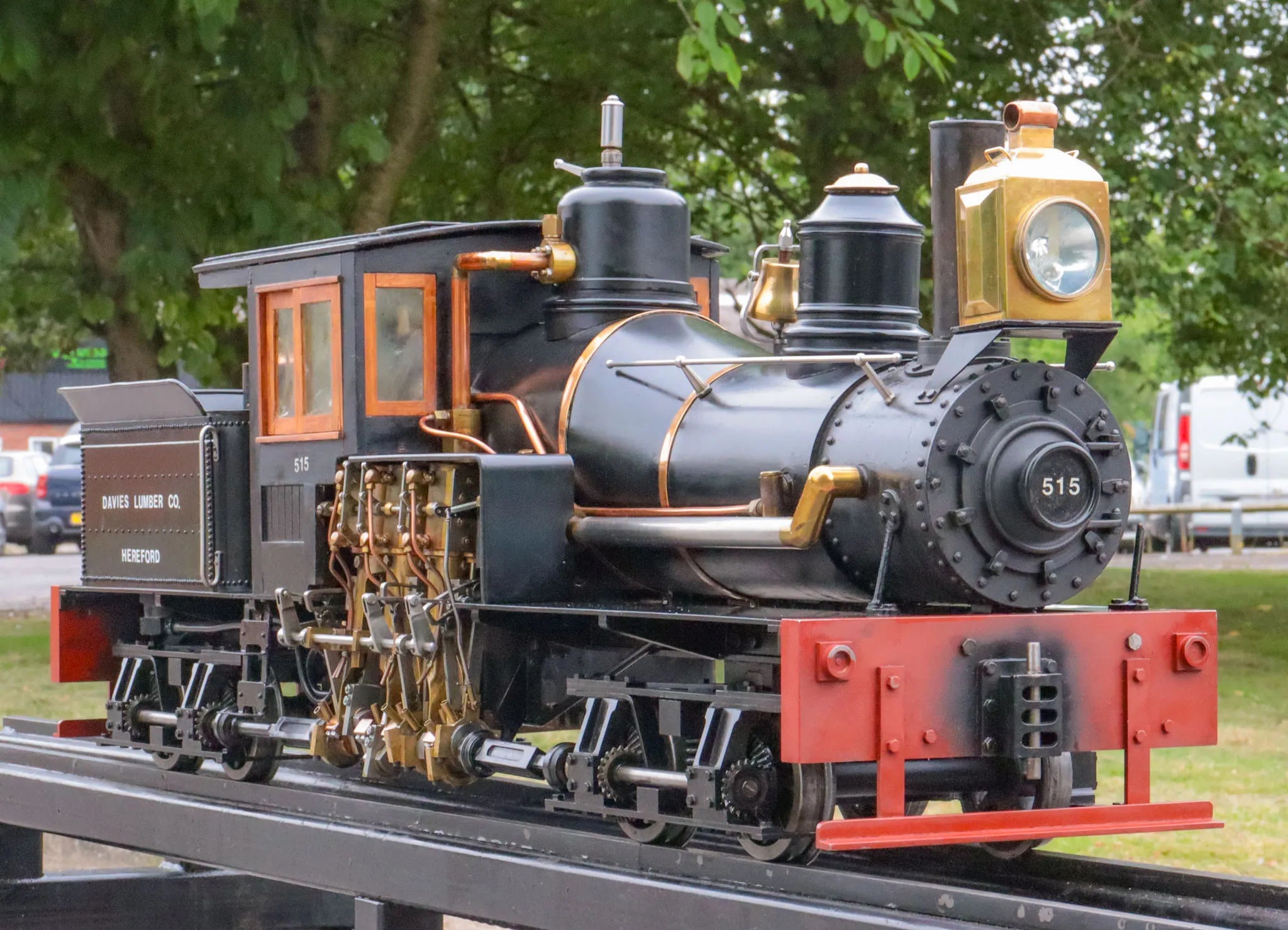

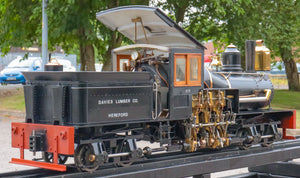

5 inch gauge Shay 0-4-0 + 0-4-0

Rather like waiting for a bus then two come along at once, no sooner do we sell a super 7 1/4 inch gauge two truck Shay (enroute to the USA at time of writing) than another comes in, this time in 5 inch gauge.

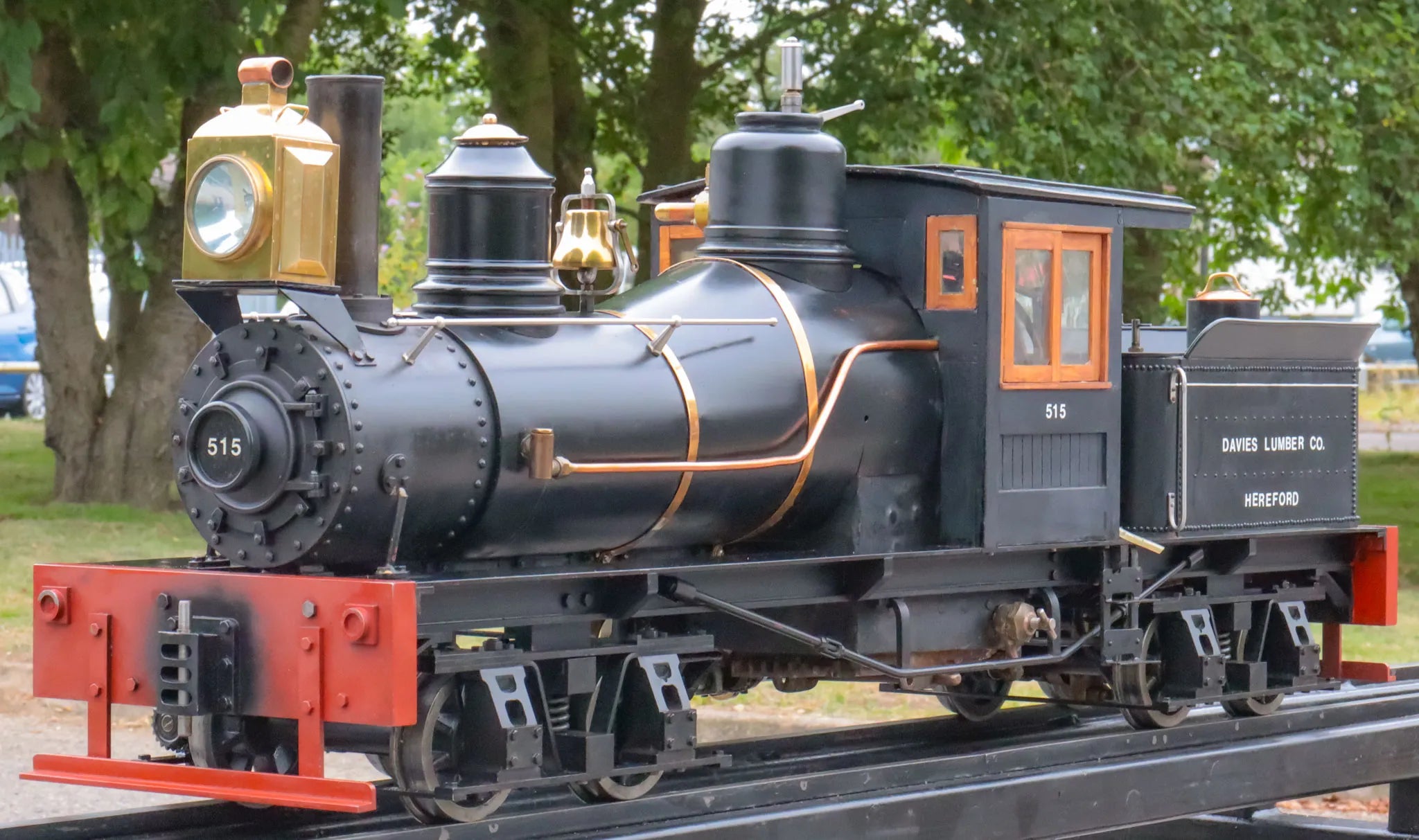

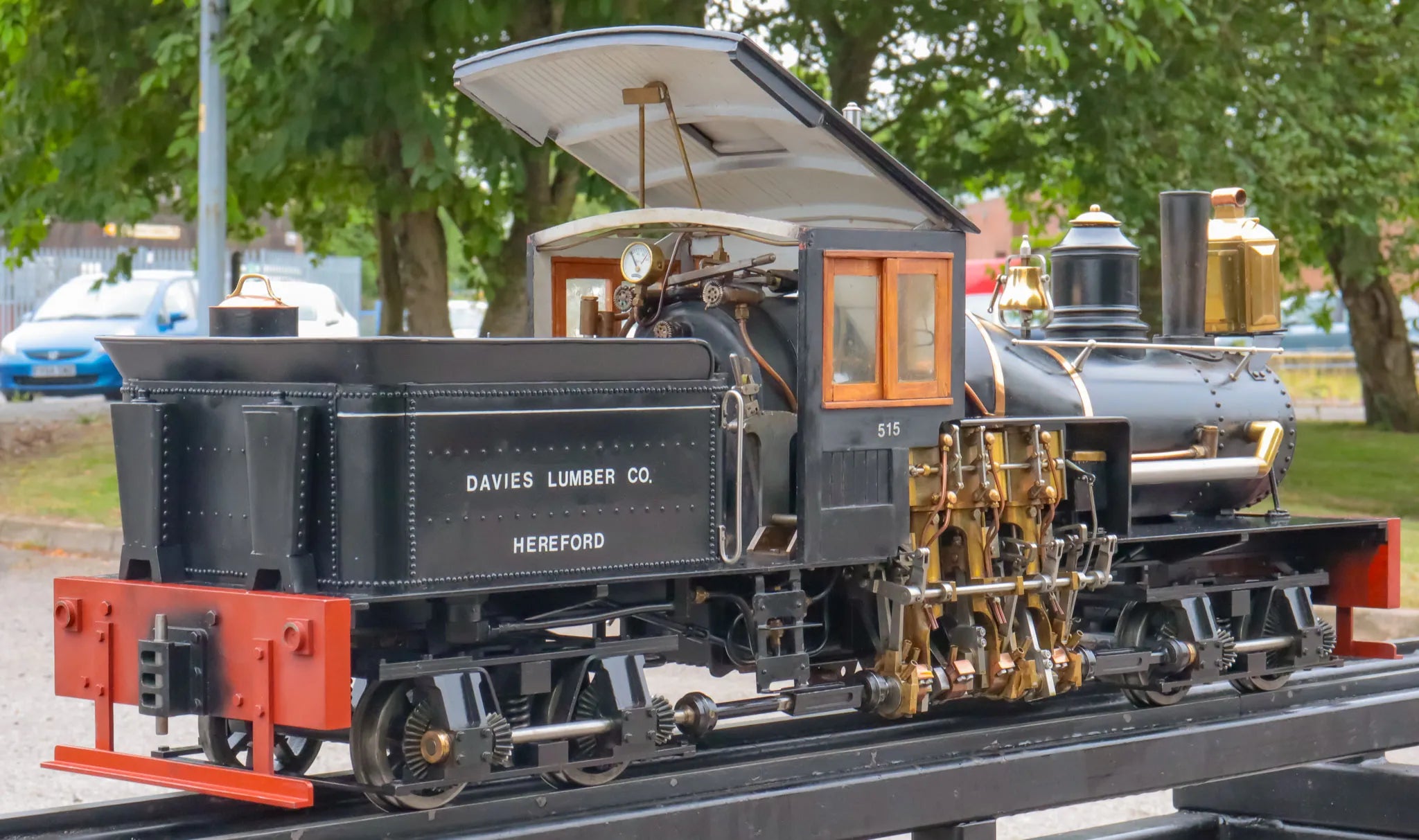

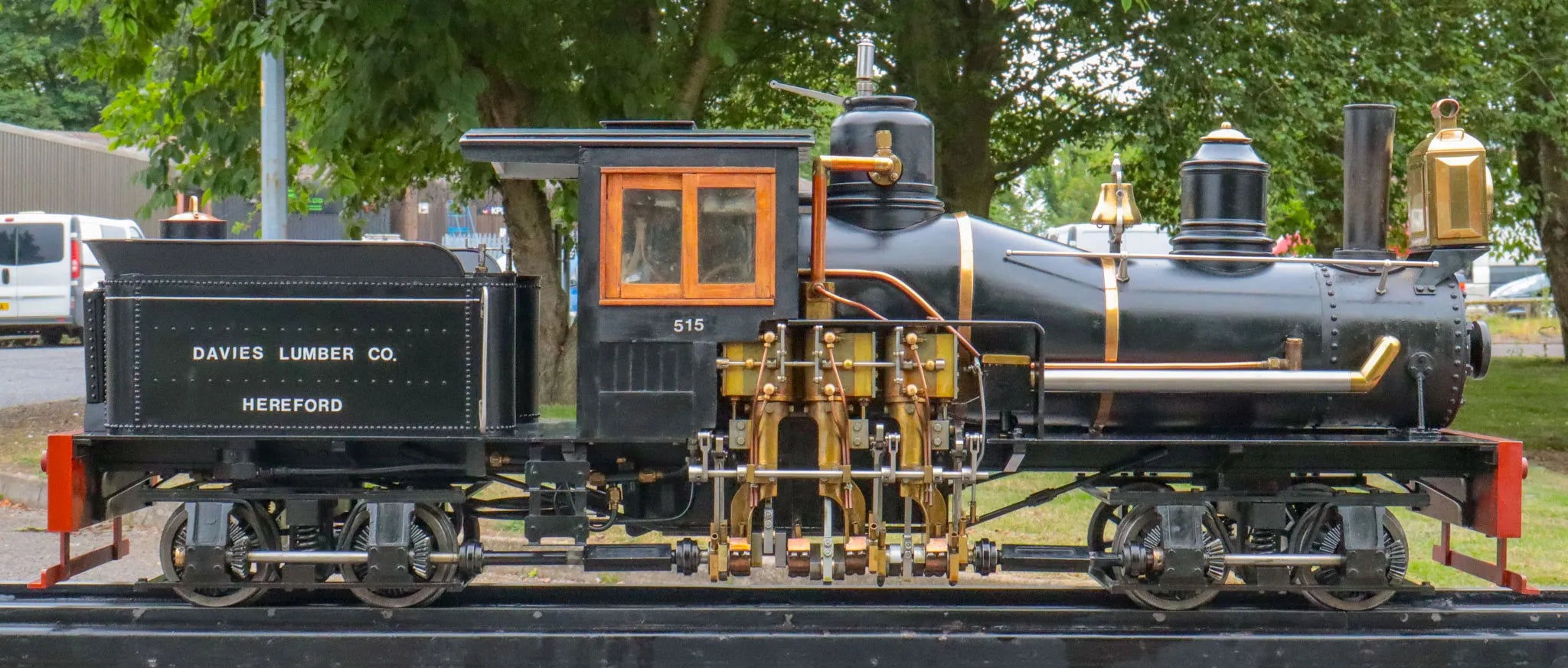

Another well built locomotive, this one has come to us from the late builder's grandson. Modelled on a Model B two truck Shay of 1895, it remains in good condition, typical of an engine that's come direct from the builder - a man who remembers how long it took to build a locomotive tends to be fastidious in his driving, care and maintenance of same!

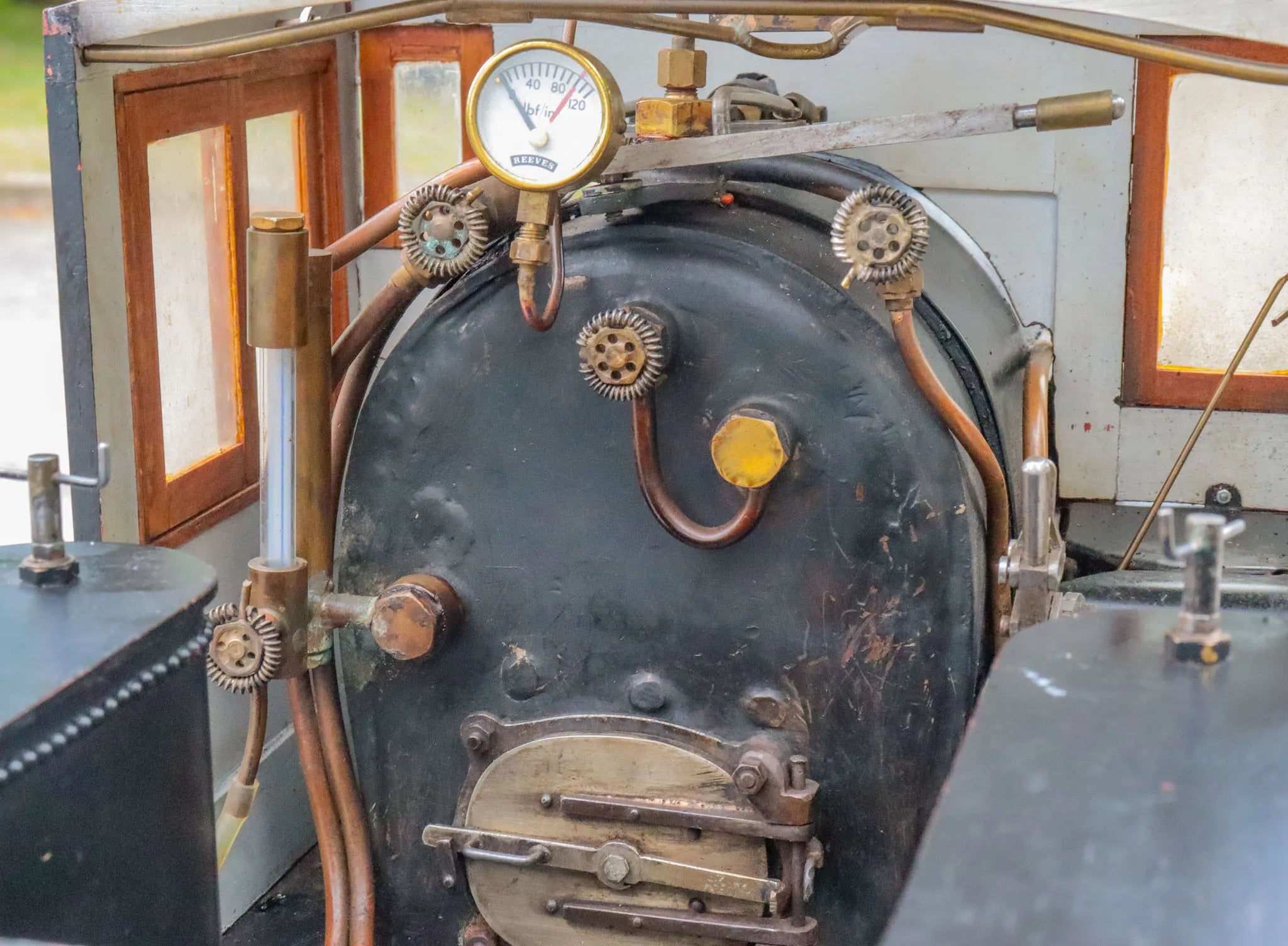

The commercially built boiler has had hydraulic and steam tests with new certification issued - it needed nothing more than a new injector to replace the original which was worn and becoming unreliable. The mechanical and hand pumps both worked well.

The safety valves are well made, highly effective pop types - they work beautifully.

On test the engine steamed freely and ran very nicely - we were impressed with this one.

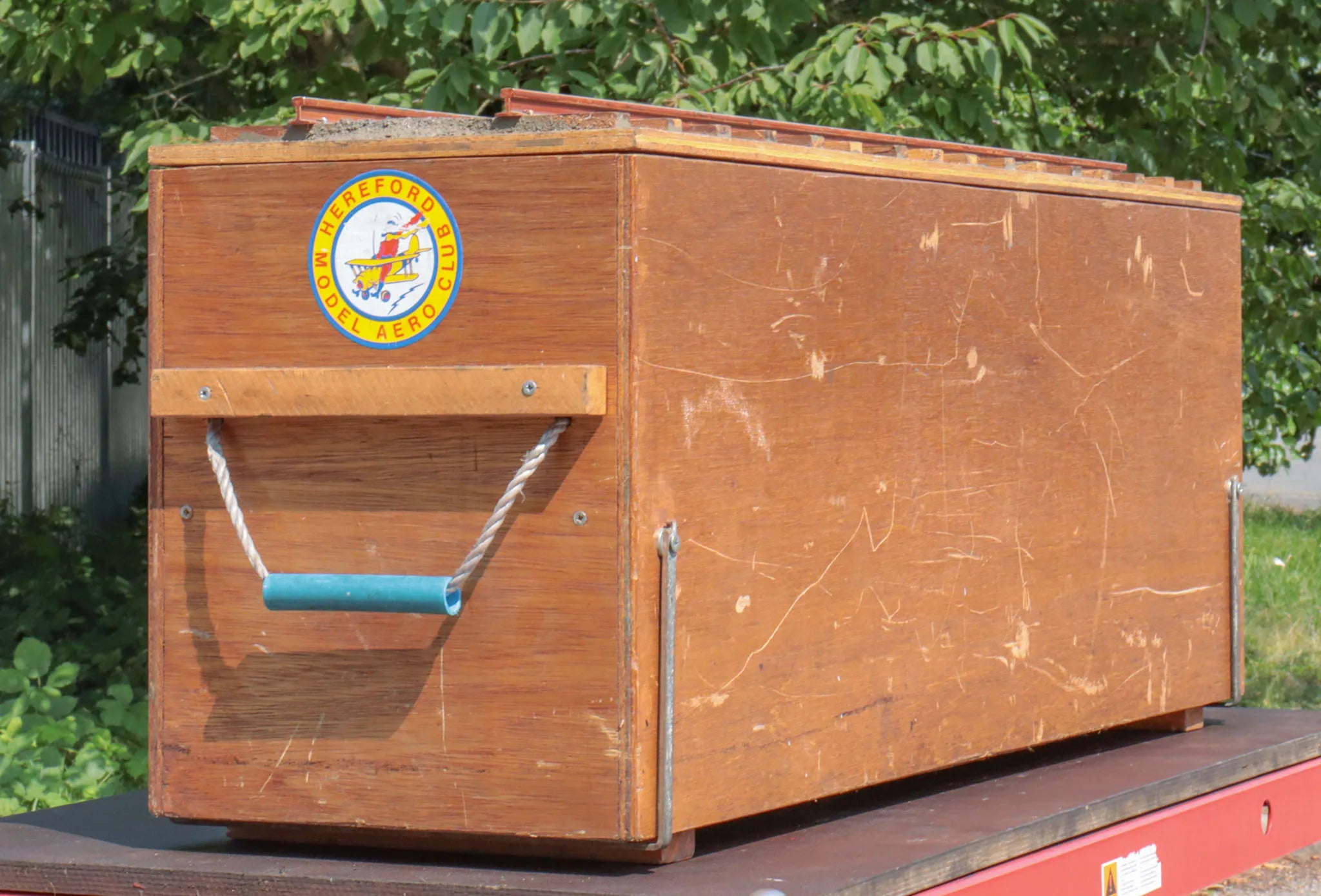

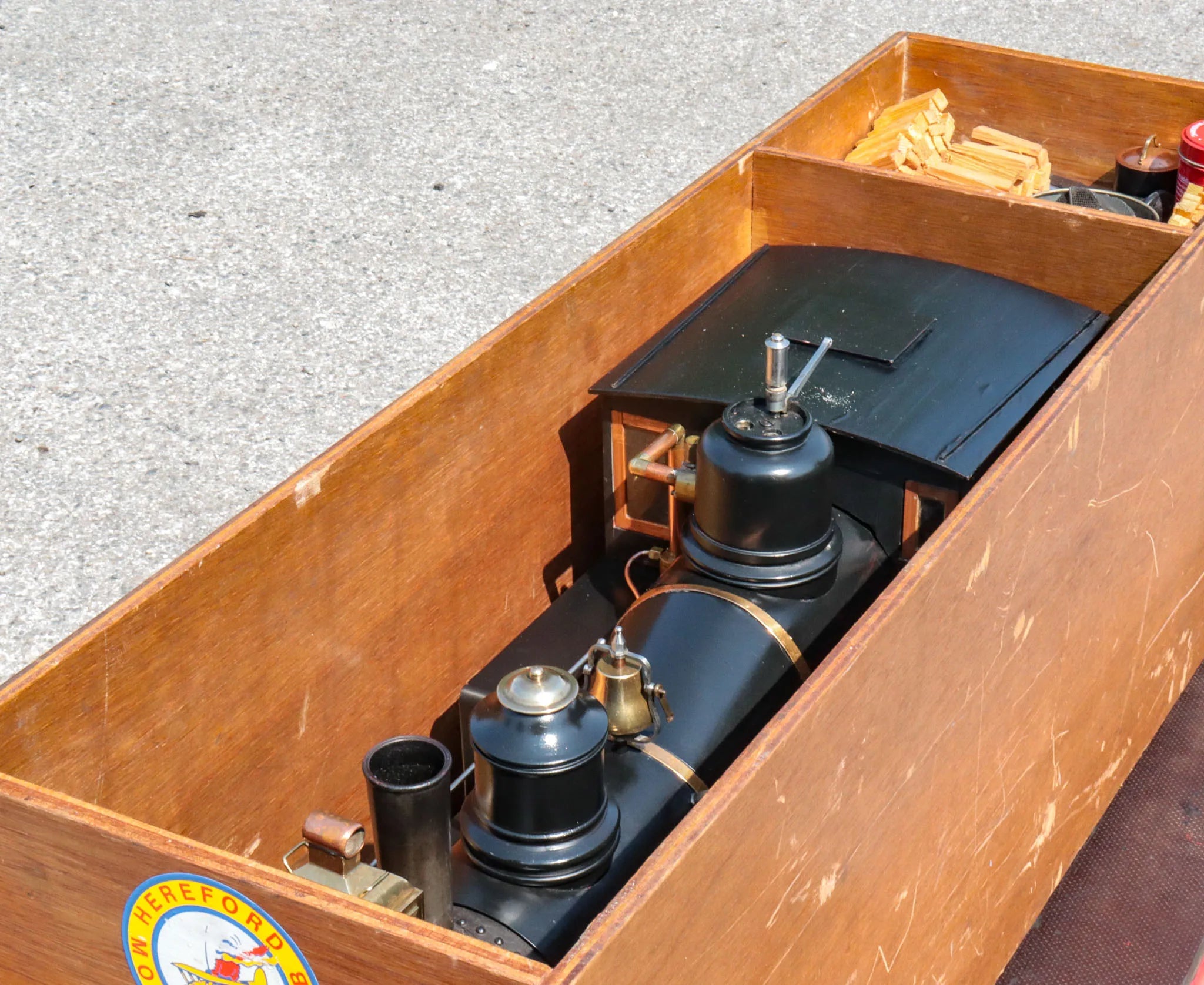

Complete with a purpose built storage/transport crate, fitted with a length of track on top.


Technical information

Stock code

12123

Gauge

5 inch

Length/inches

39

Width/inches

10

Height/inches

13

Weight/Kg

53

Wheel material

cast iron

Axlebox type

plain bearing

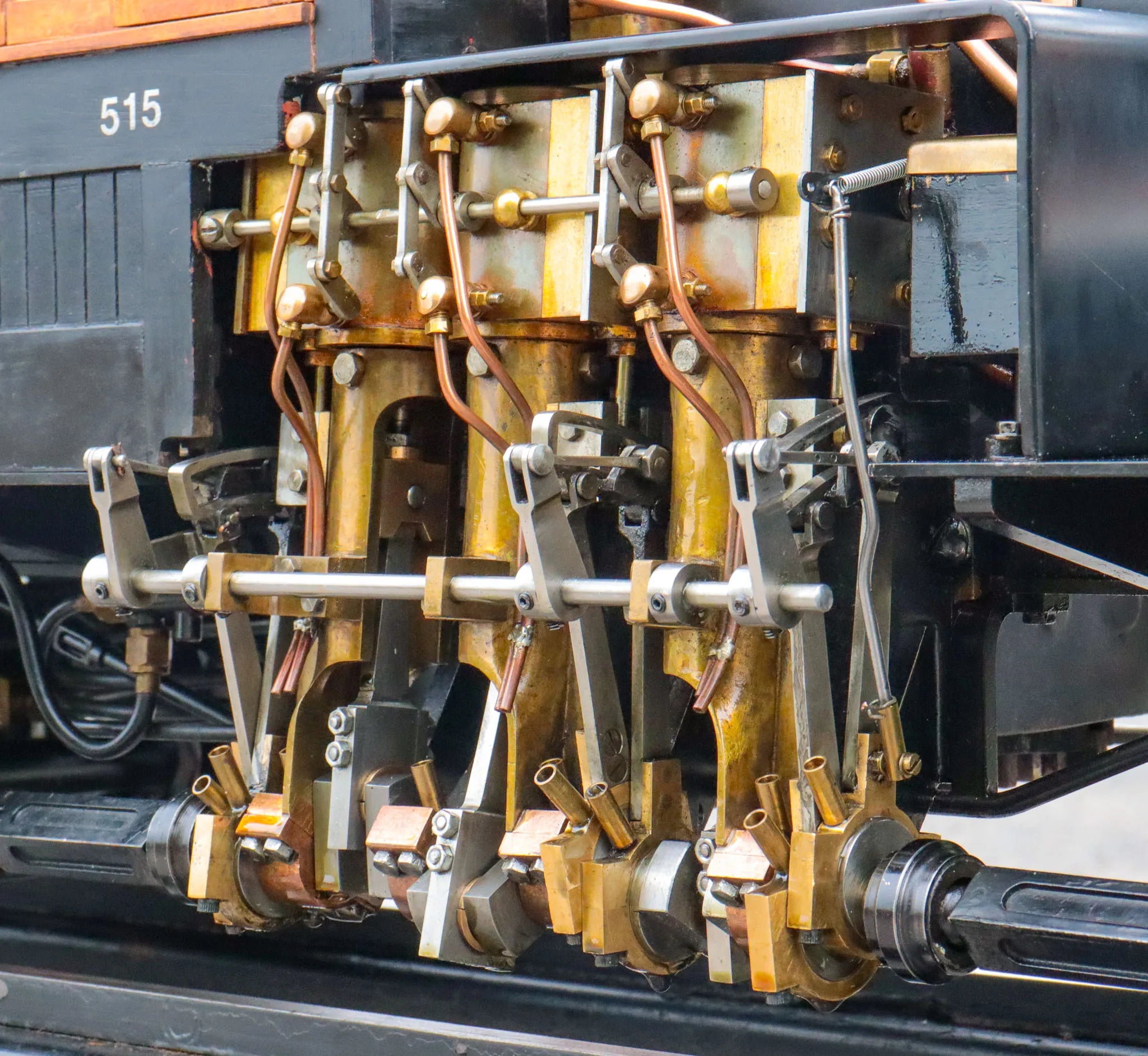

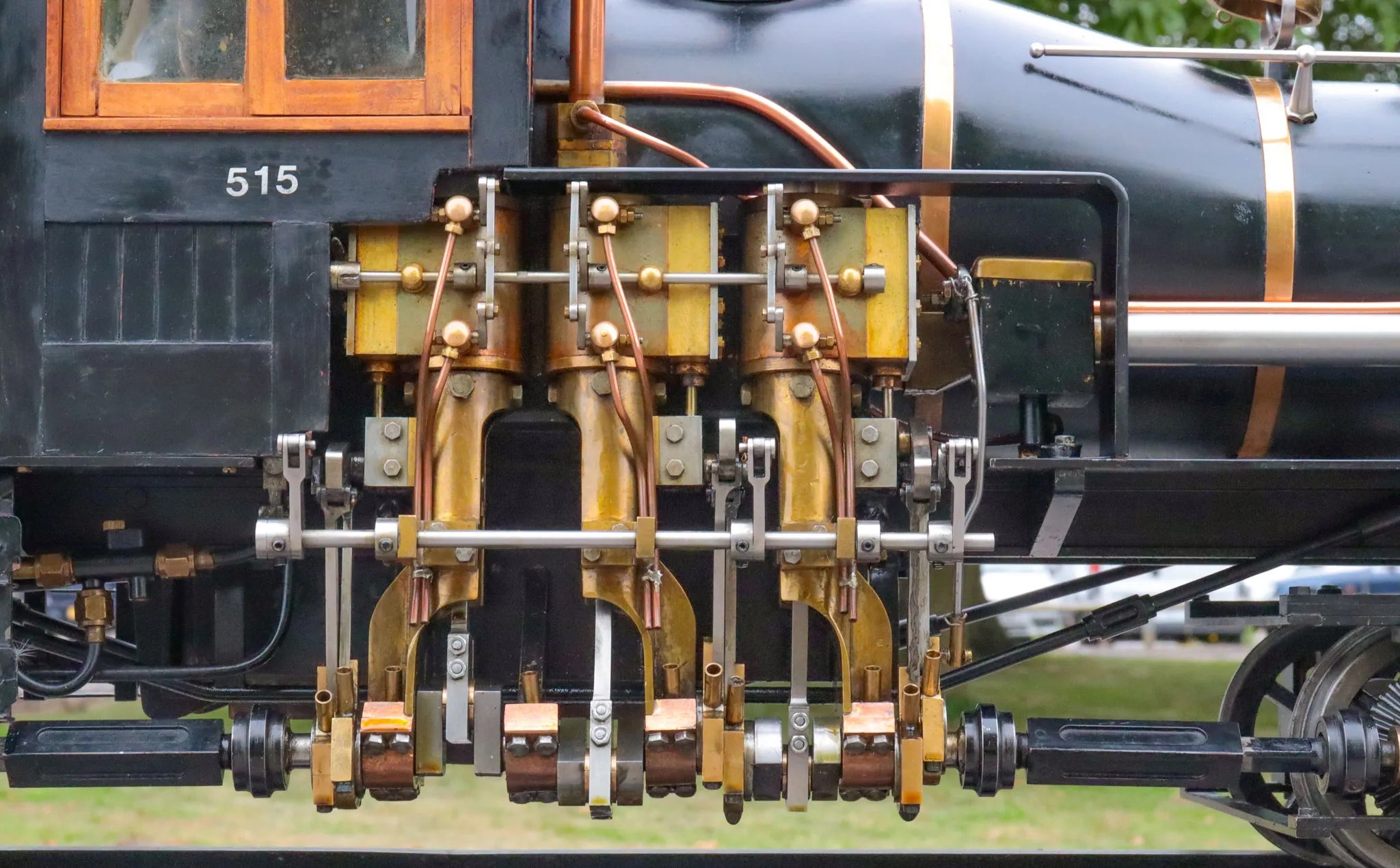

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Boiler maker

S.D.Williams, Gwent

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

n/a - pre-2002

Year built

1987

Boiler number

SD8711427

Safety valve type

pop

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Date out

Aug-24

Hydraulic test valid to

03-Jul-28

Steam test valid to

29-Sep-25
