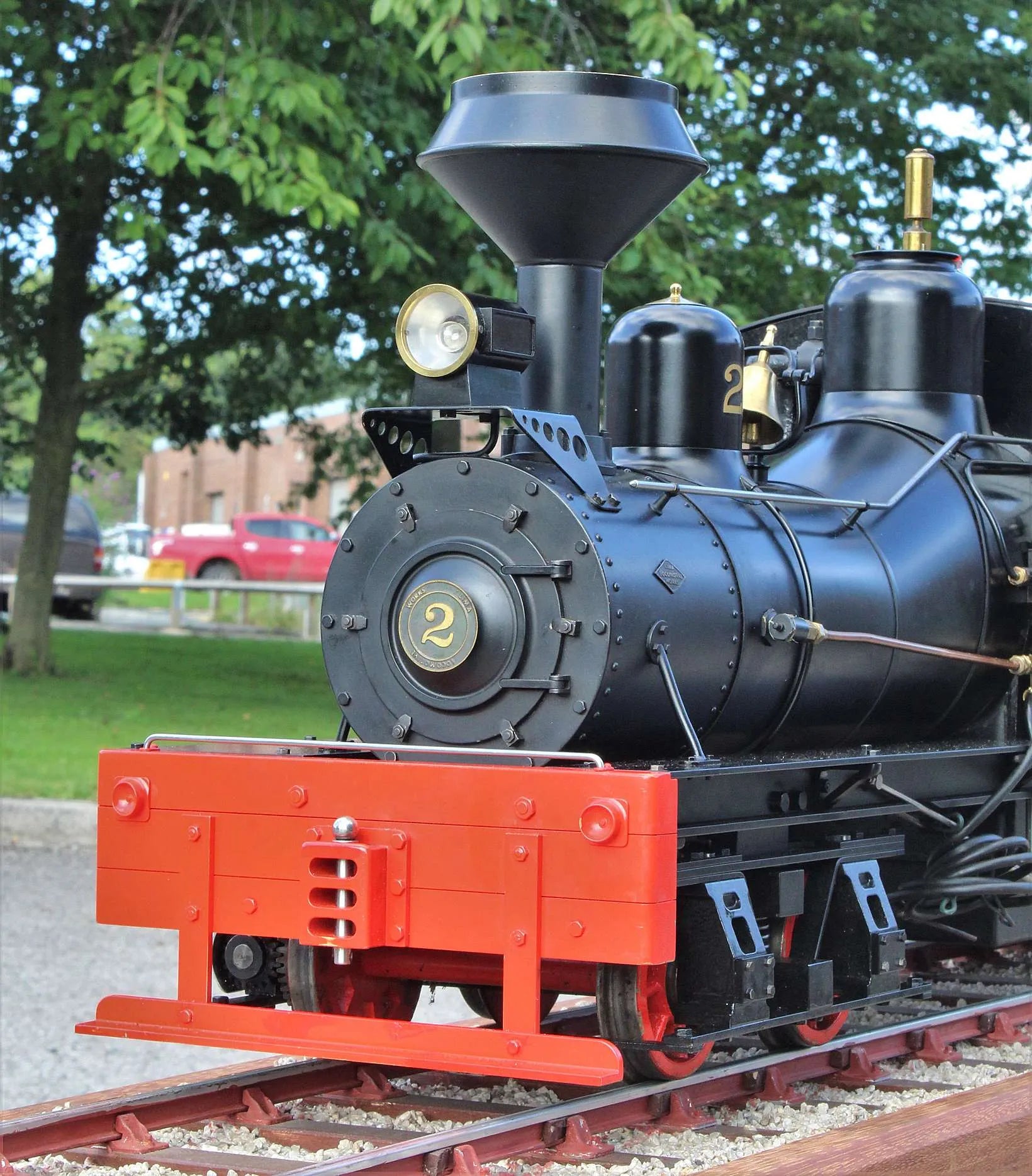

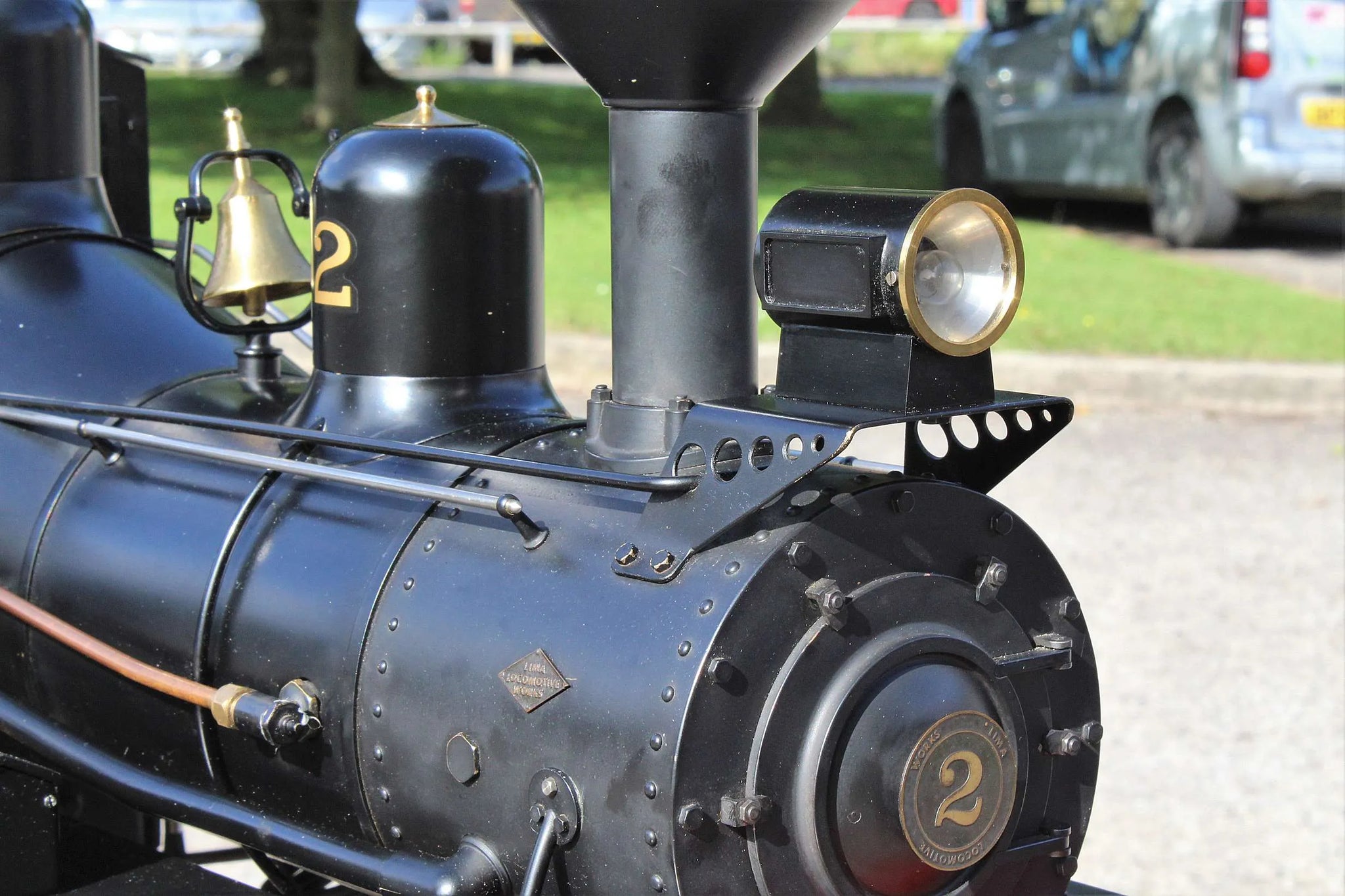

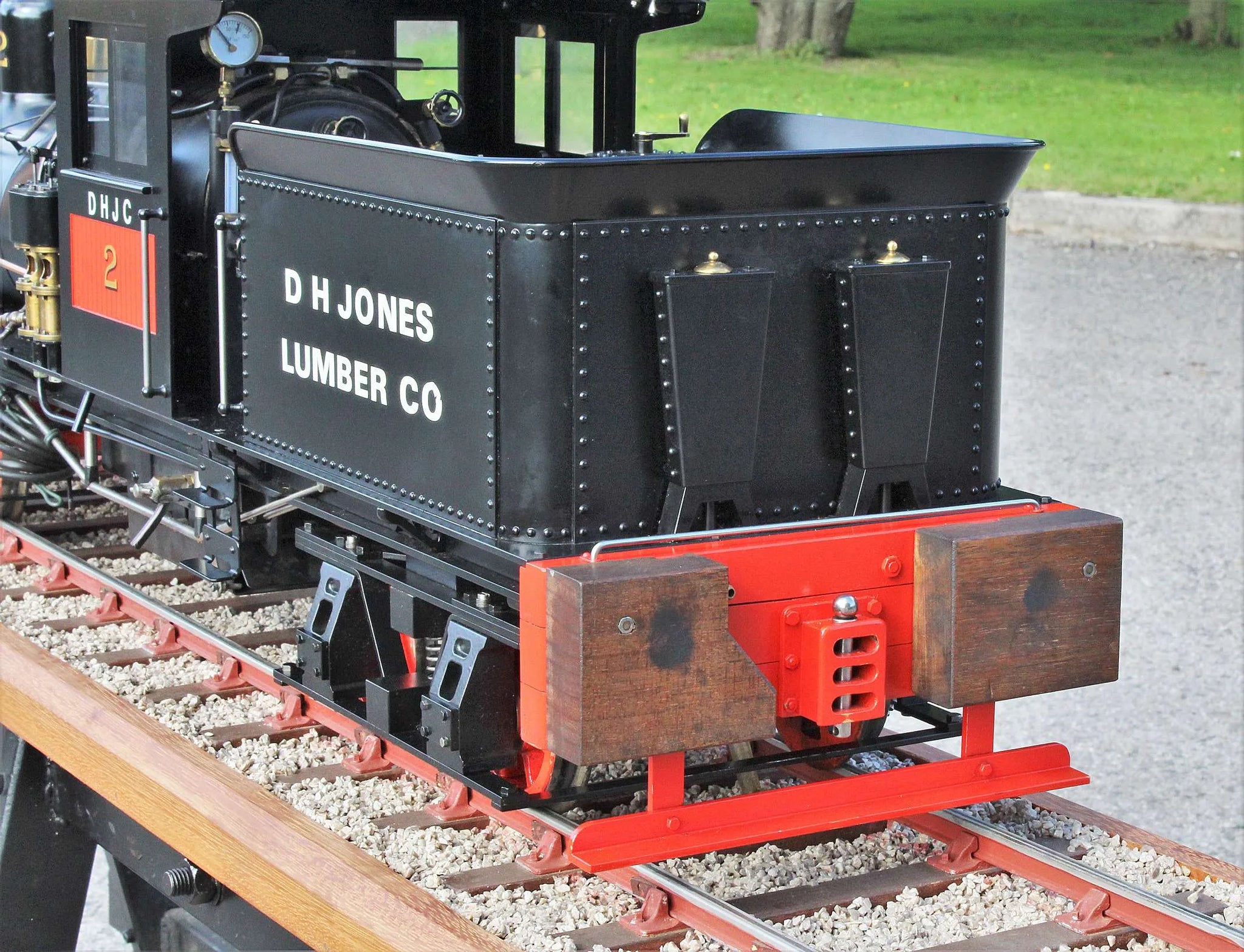

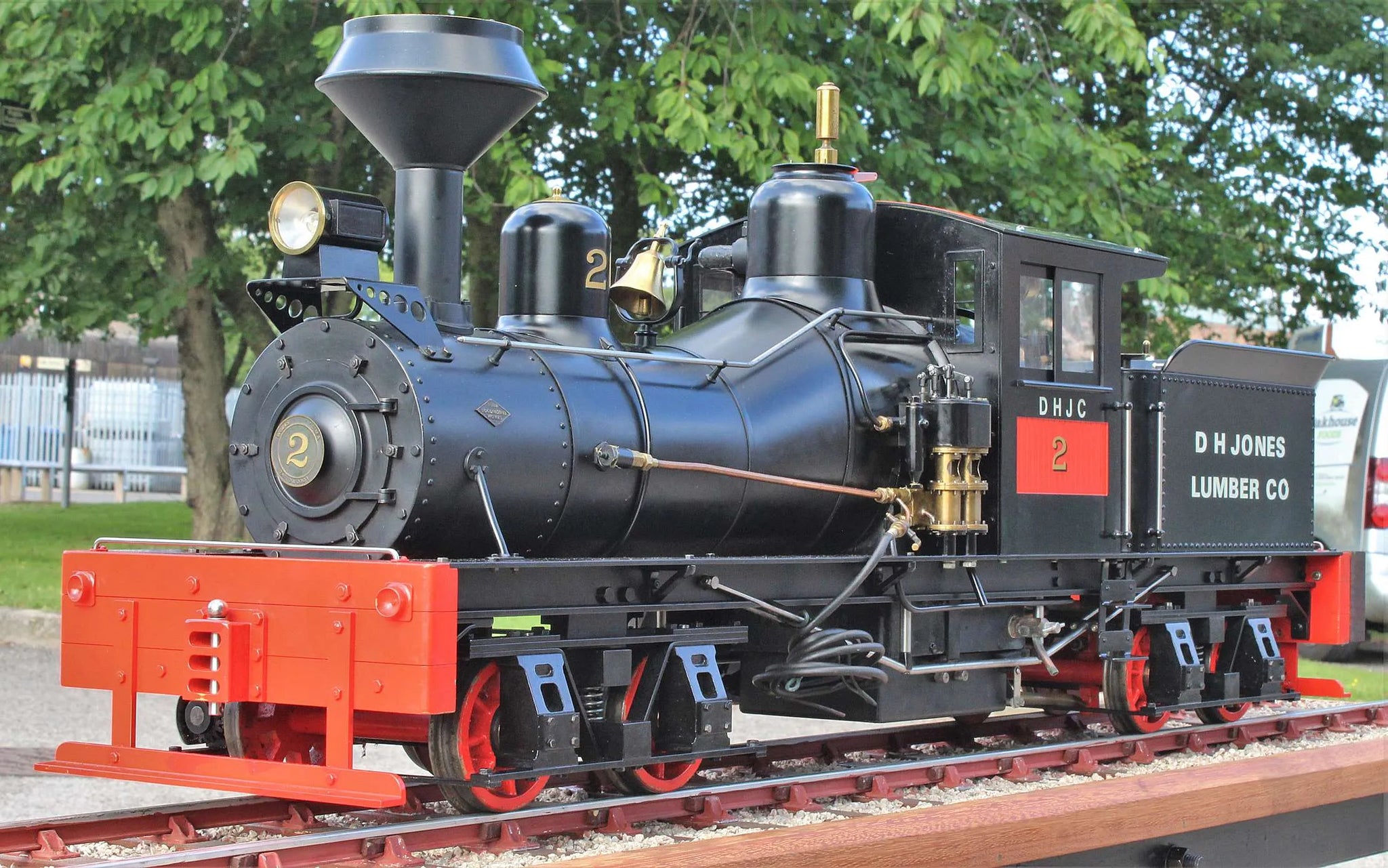

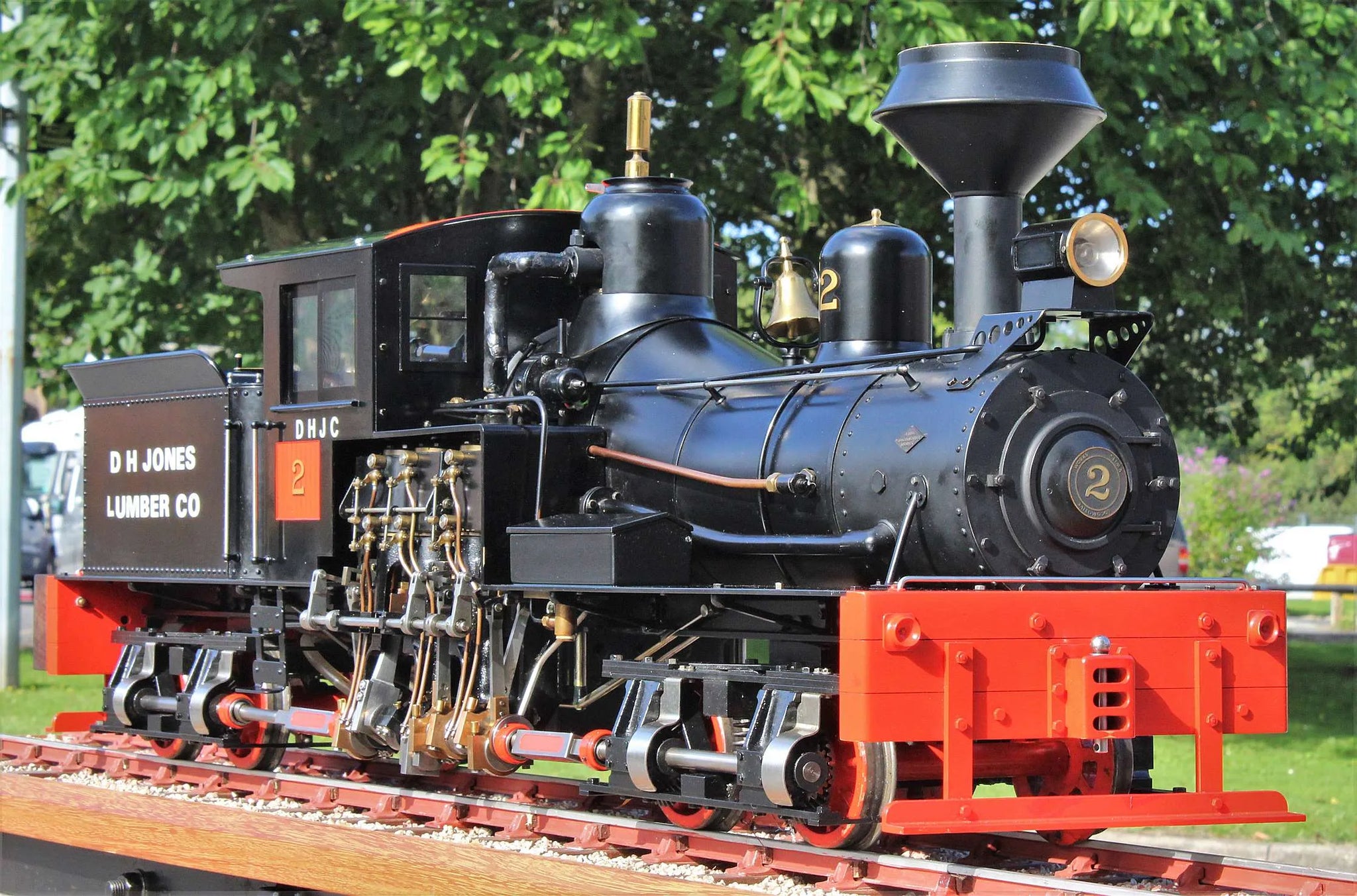

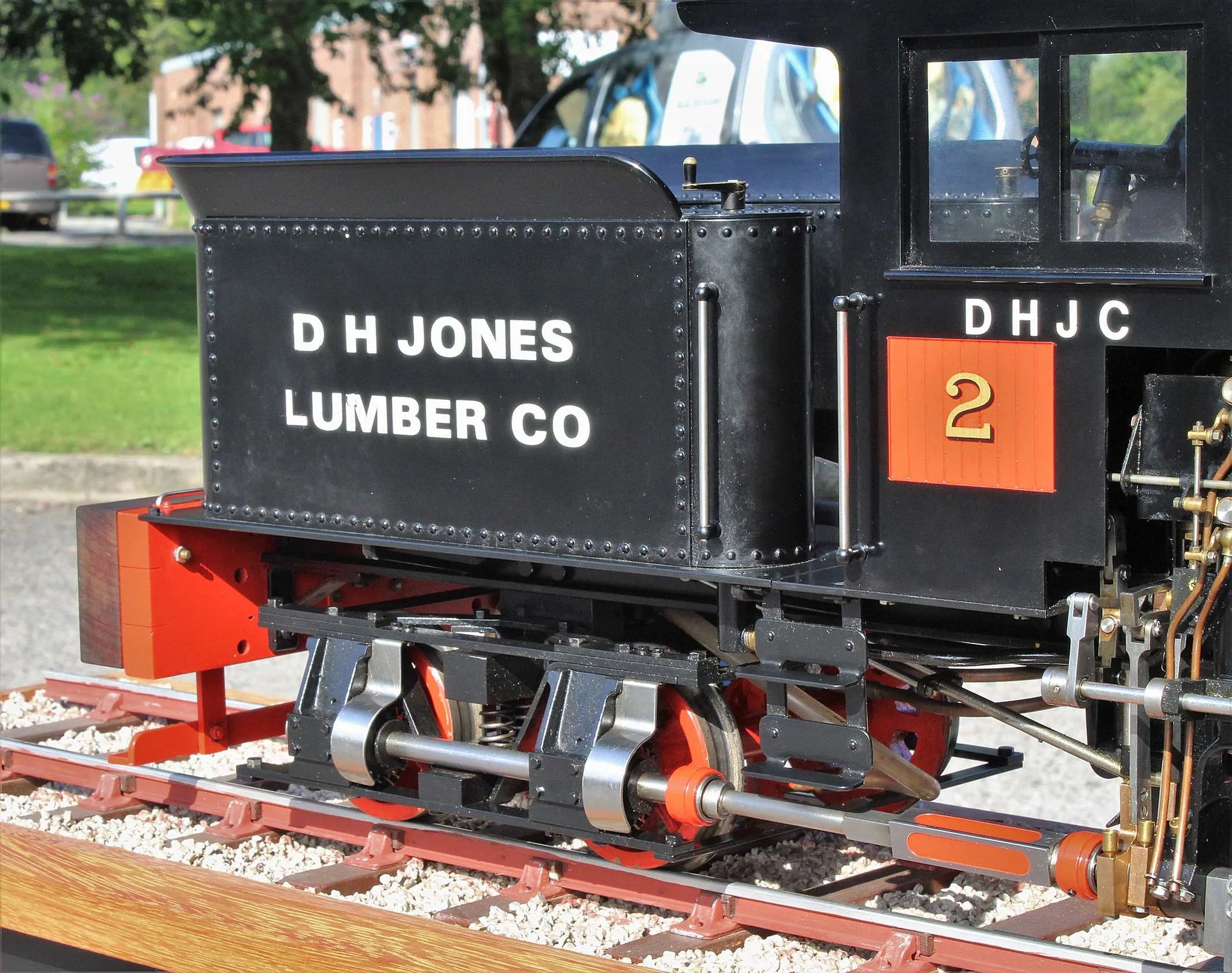

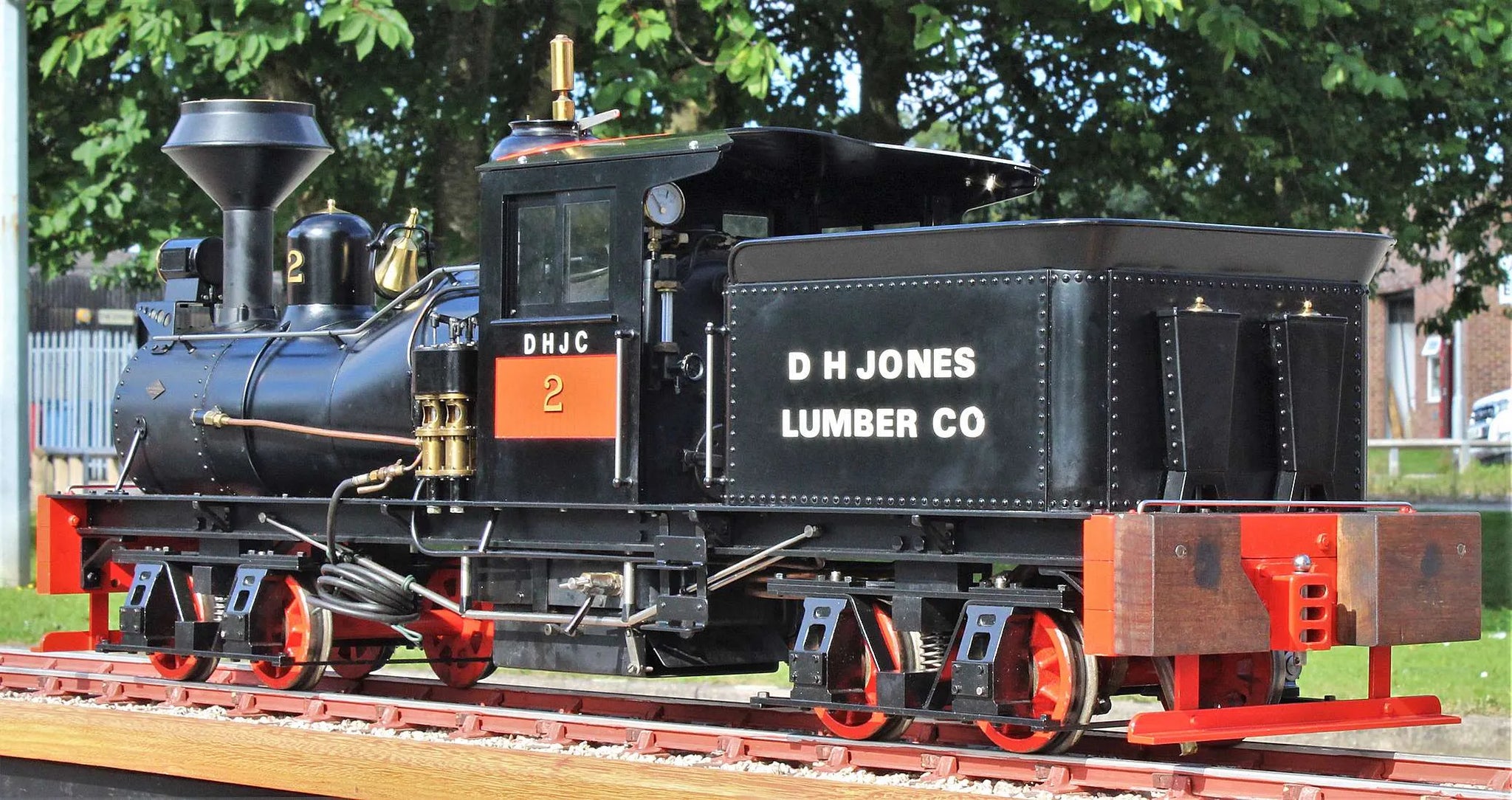

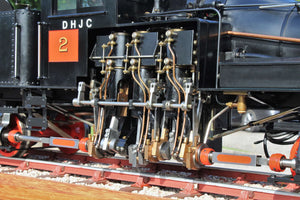

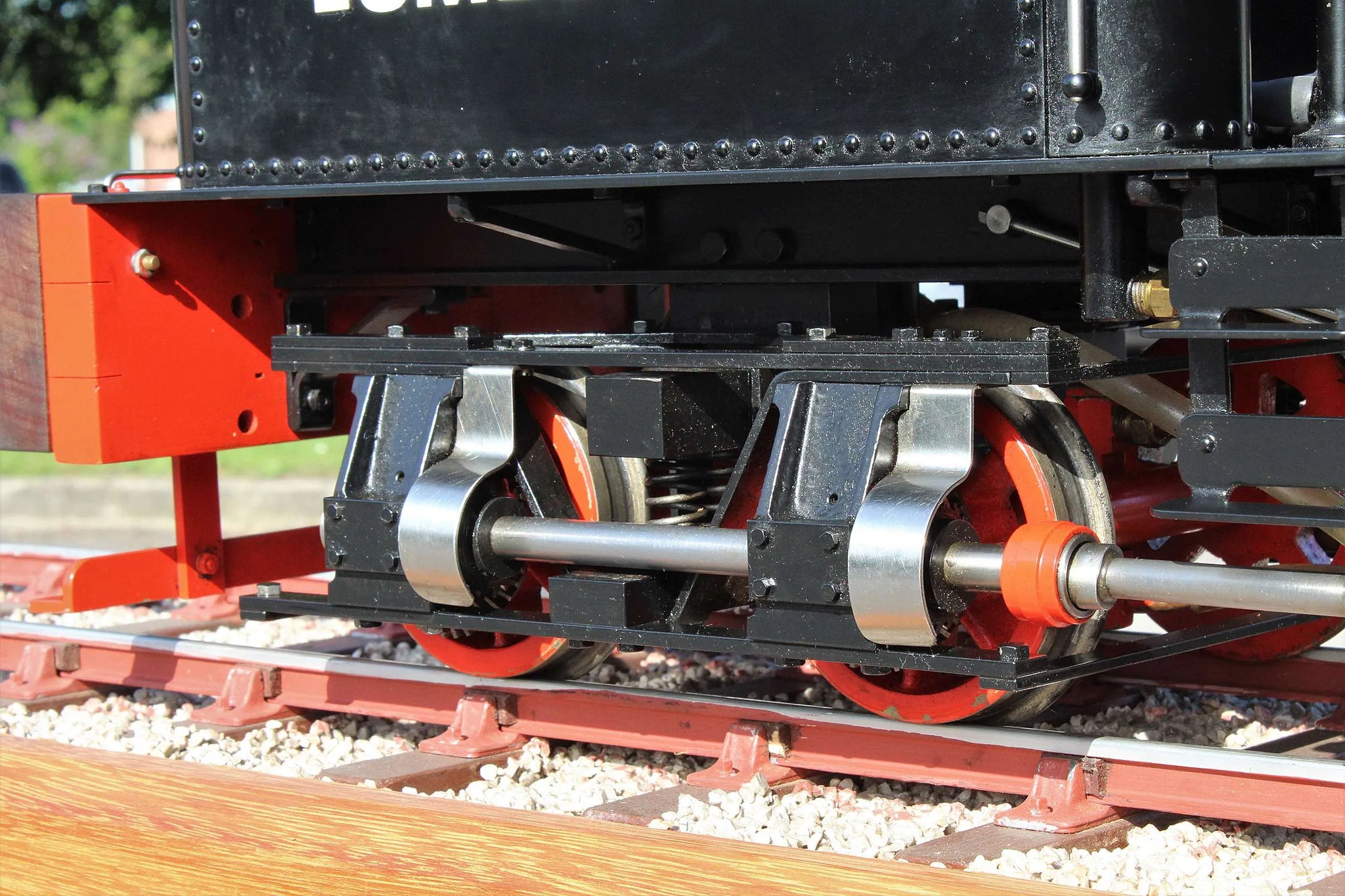

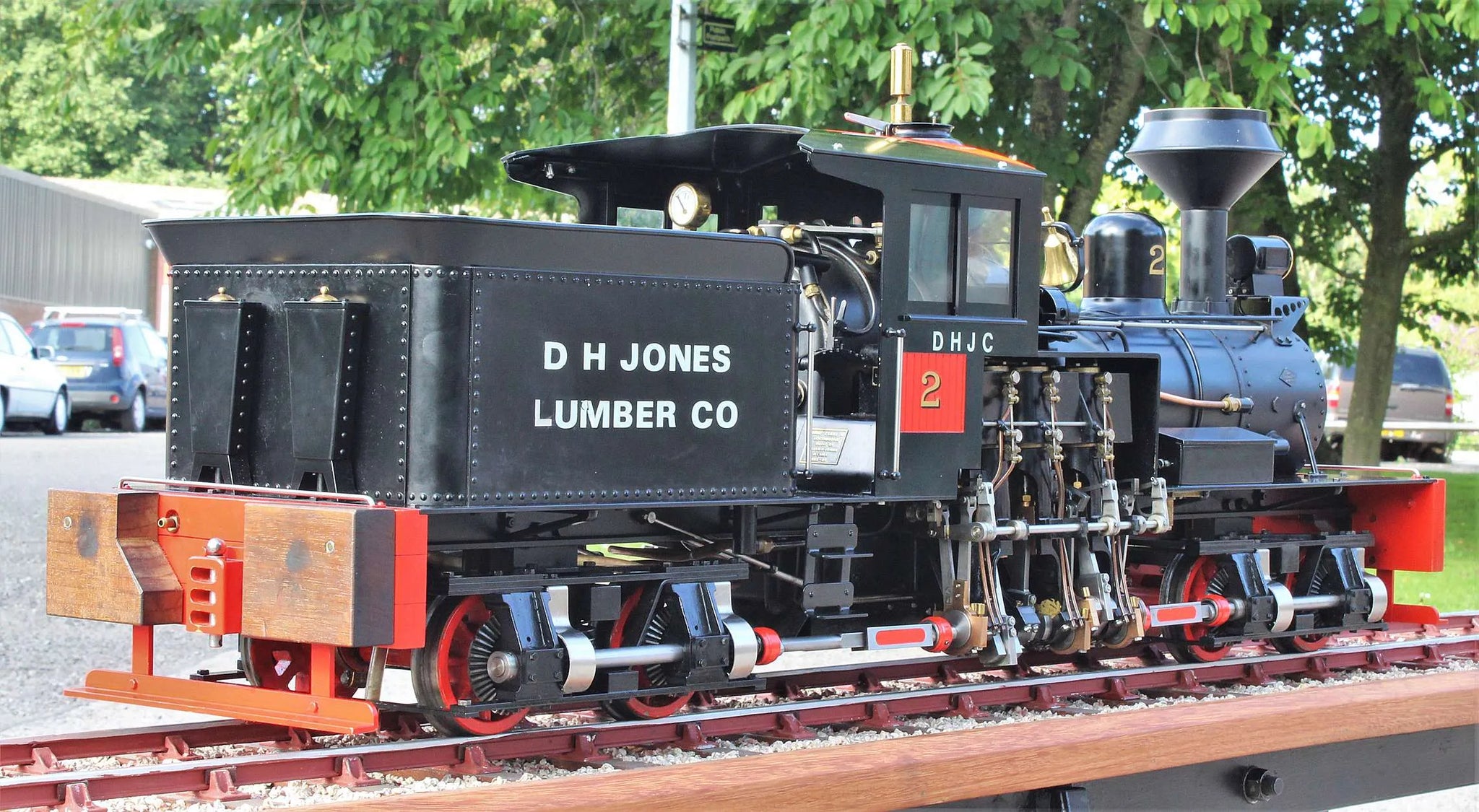

5 inch gauge Shay 0-4-0 + 0-4-0

An exceptionally finely made 5 inch gauge Shay, winner of a Silver medal and the Crebbin Cup at the London Model Engineer Exhibition.

The work of a talented engineer who built models over a forty year period, including locomotives from gauge 1 to 5 inch gauge as well as boats, cars, hot air engines and road steam vehicles.

He won his first medal at the Model Engineer Exhibition in the 1950s for a model of The Great Exhibition constructed from cereal packets - his last was for the Shay forty years later.

Scaled up from the highly-regarded 3 1/2 inch gauge design by Kozo Hiraoka, the engine was built over a four year period, completed in 1989.

The locomotive has spent much of its life in a glass case and condition reflects that - it remains in excellent mechanical and cosmetic condition. It's always very satisfying when a finely made engine goes as well as it looks; this one runs like a sewing machine, there's some video of it running on the rolling road here.

Technical information

Stock code

9783

Gauge

5 inch

Length/inches

40

Width/inches

9

Height/inches

15

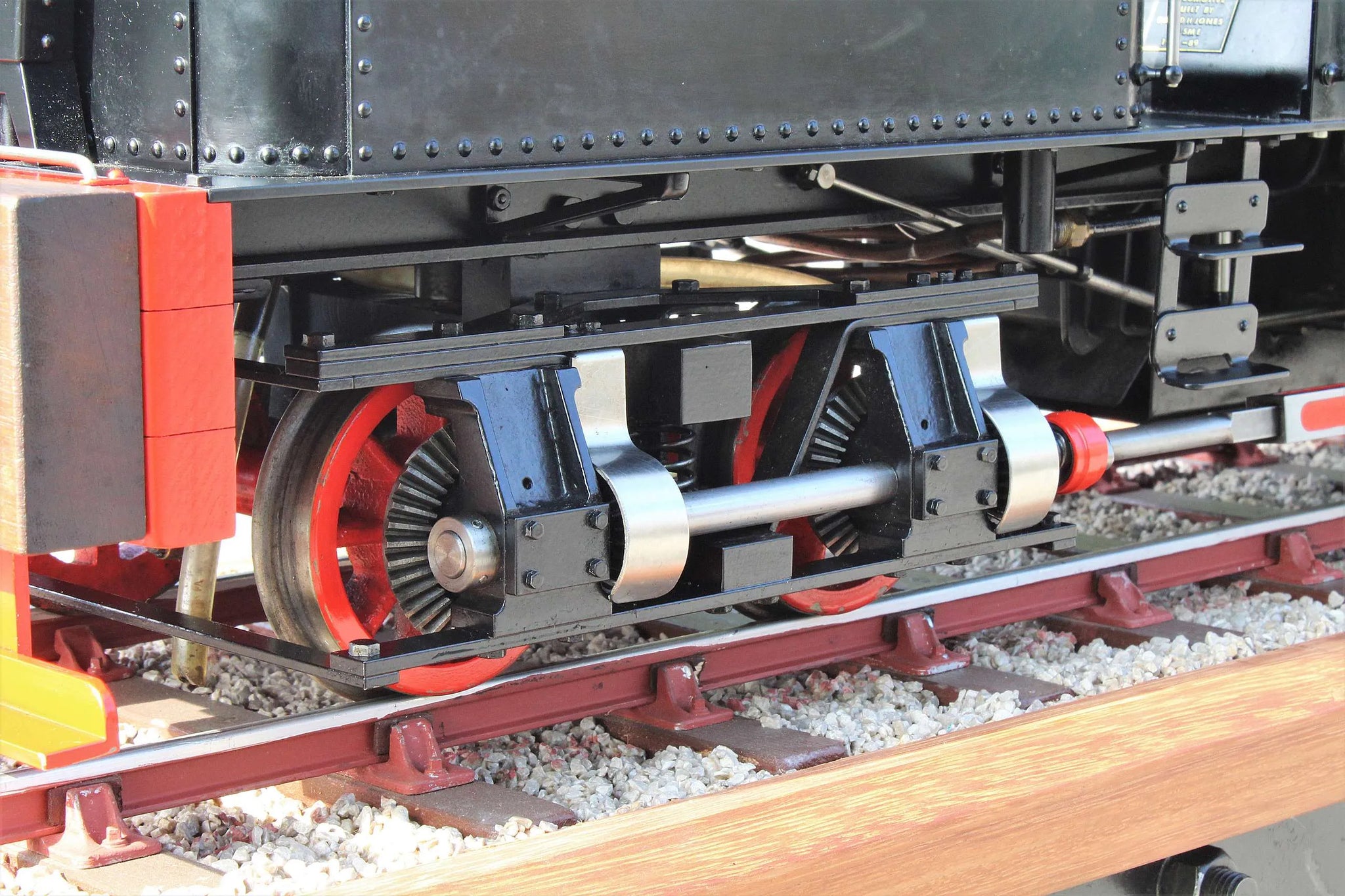

Wheel material

cast iron

Axlebox type

plain bearing

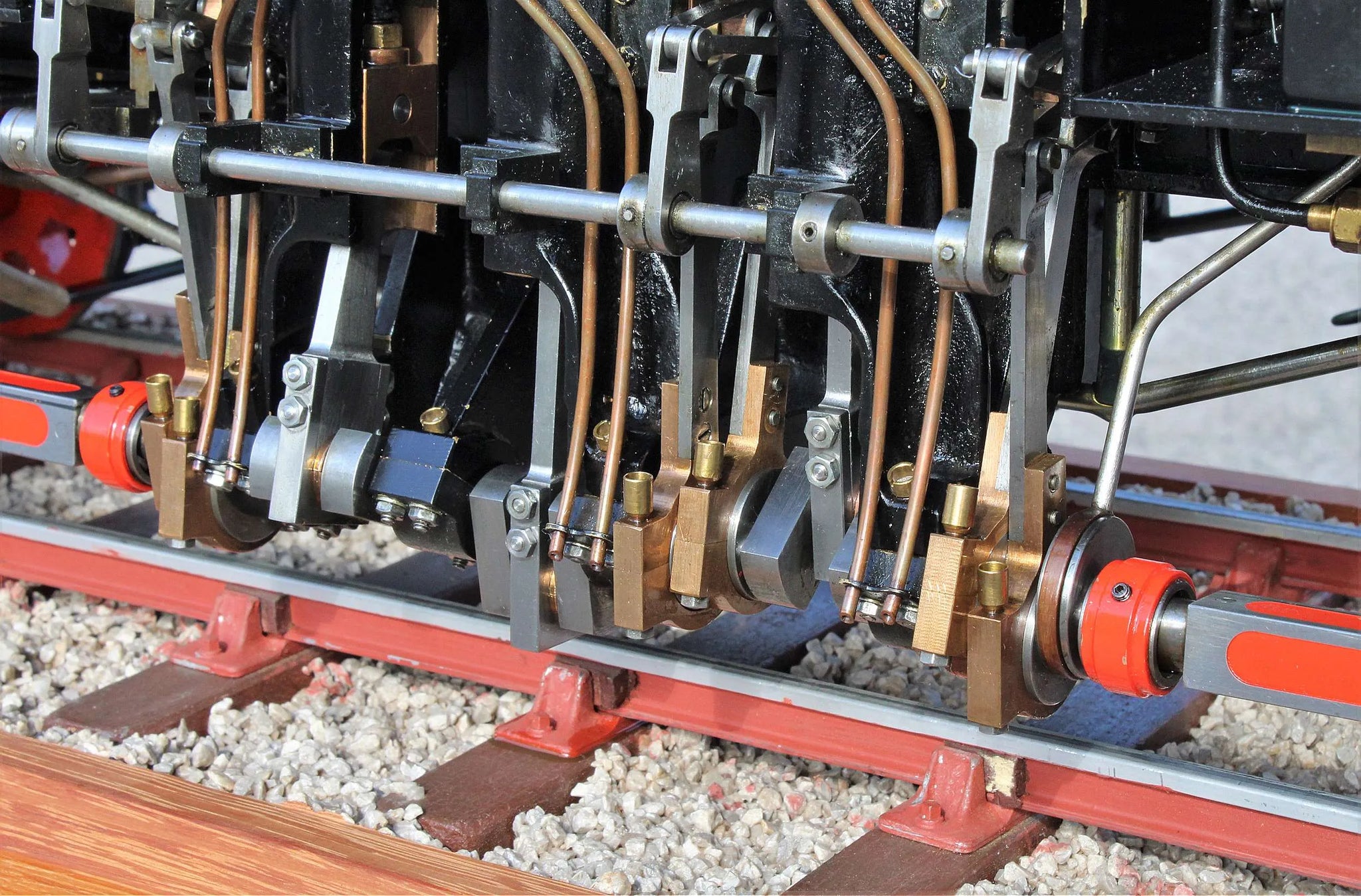

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

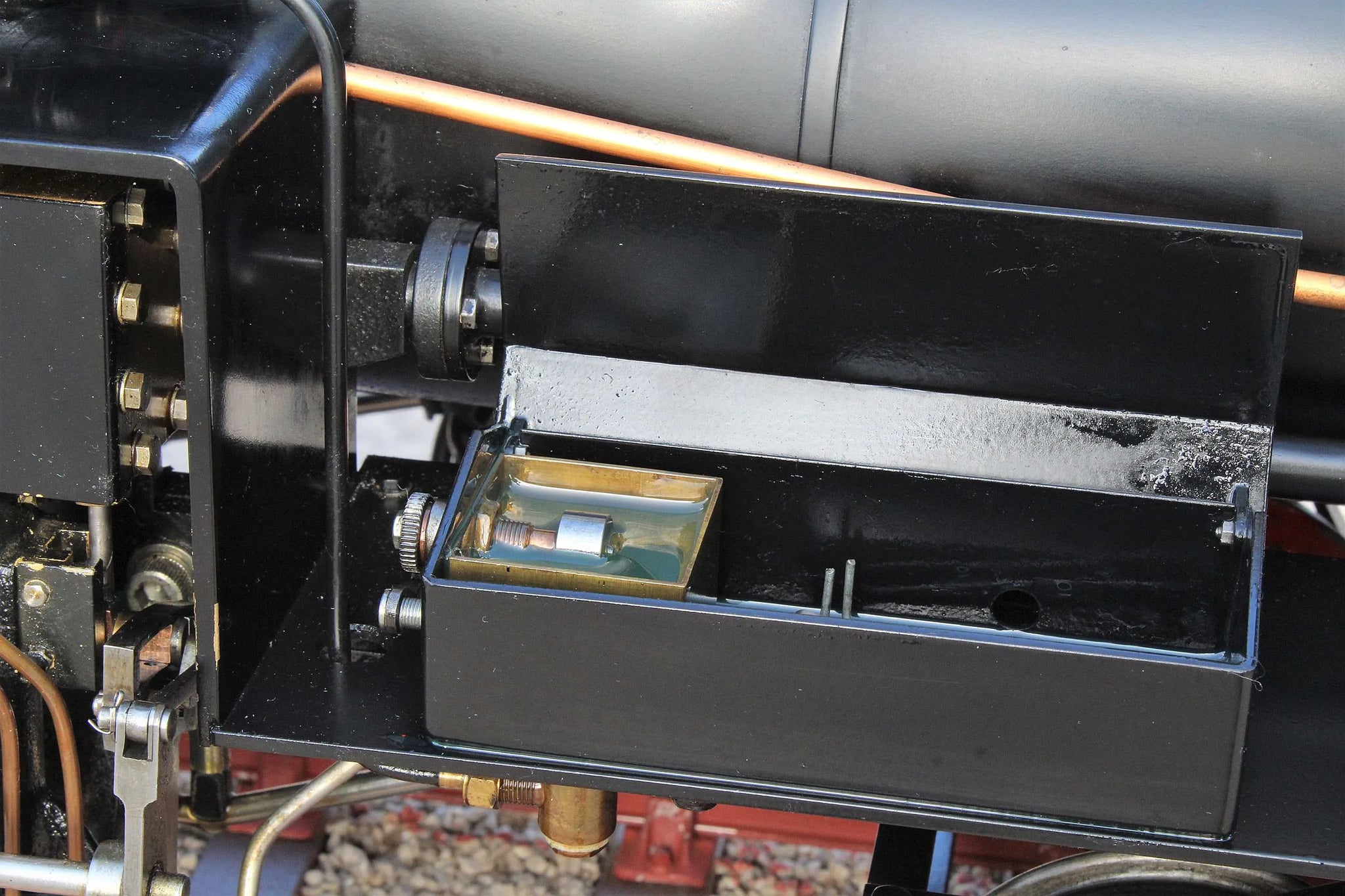

Lubricator type

mechanical

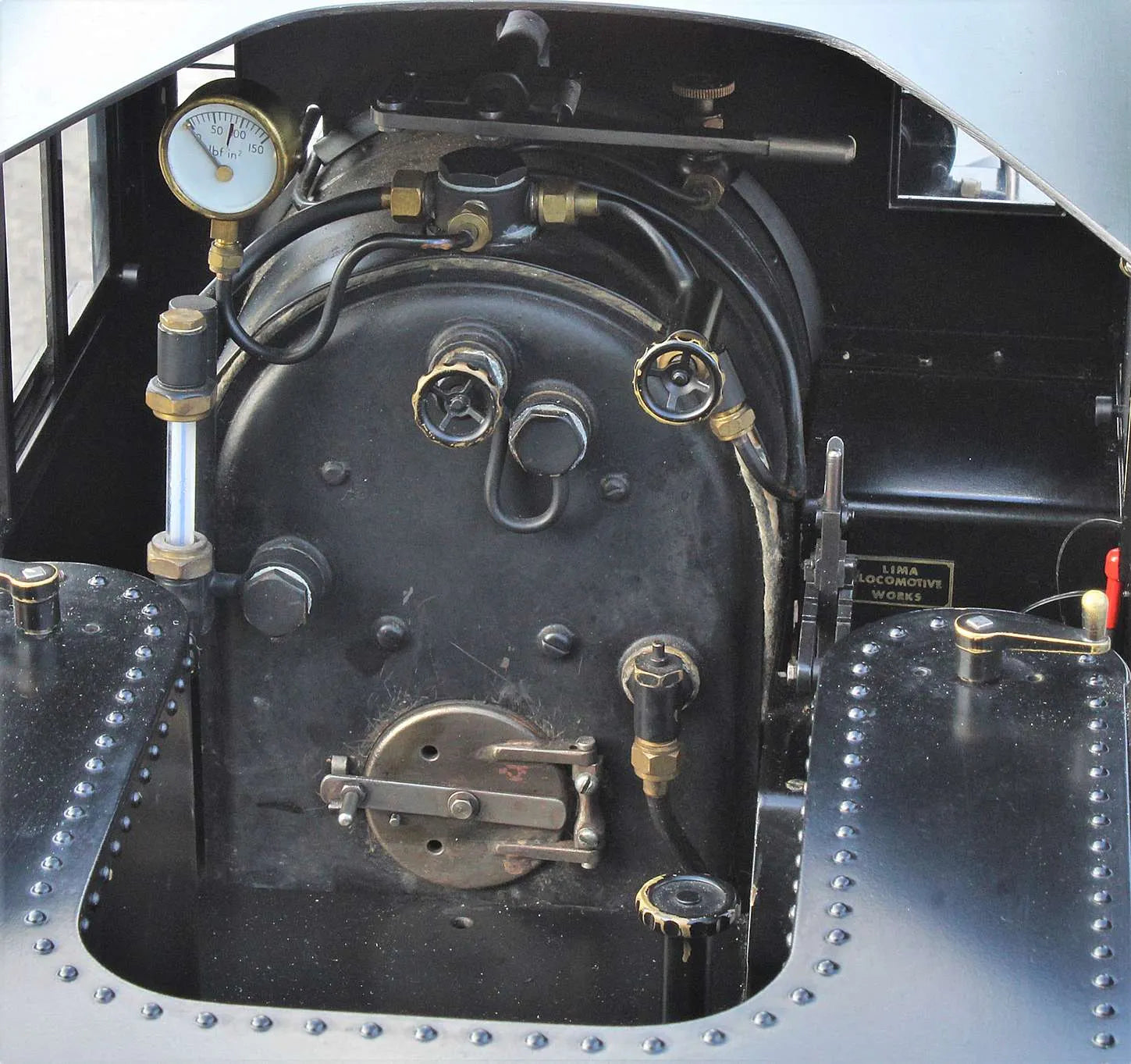

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

Year built

1988

Boiler number

NLL 171

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

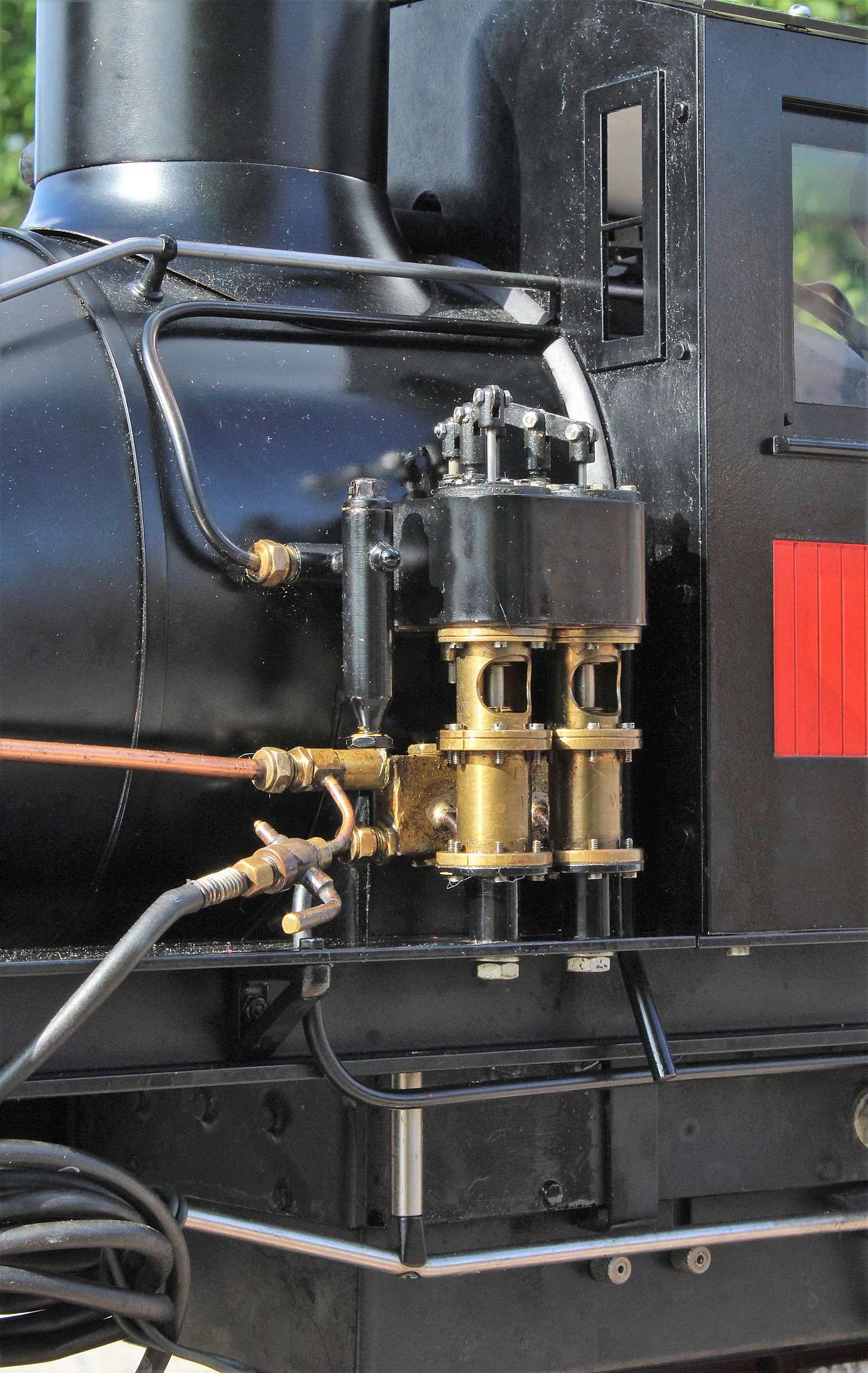

Steam pump

1

Hand pump

1

Mechanical pump

1

Date out

Aug-21

Hydraulic test valid to

26-Jul-25

Steam test valid to

05-Oct-22
