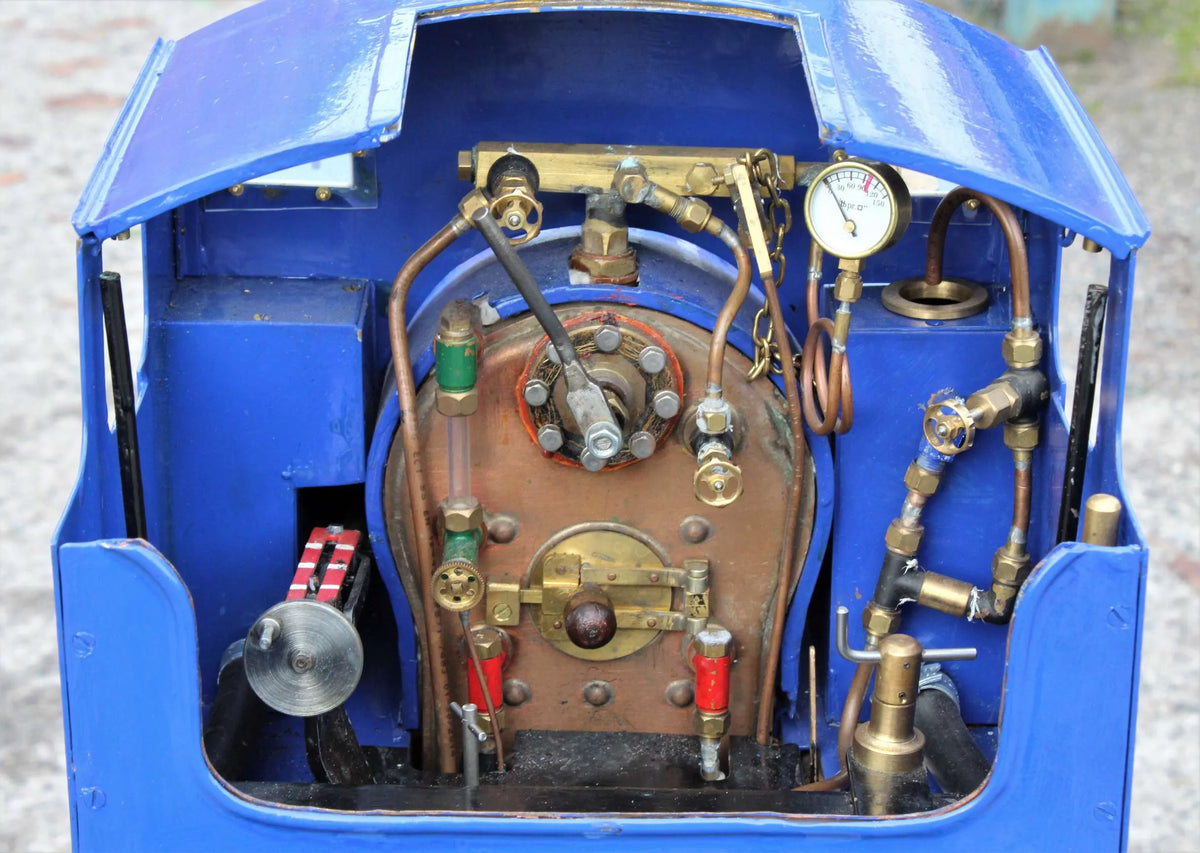

5 inch gauge "Simplex" 0-6-0

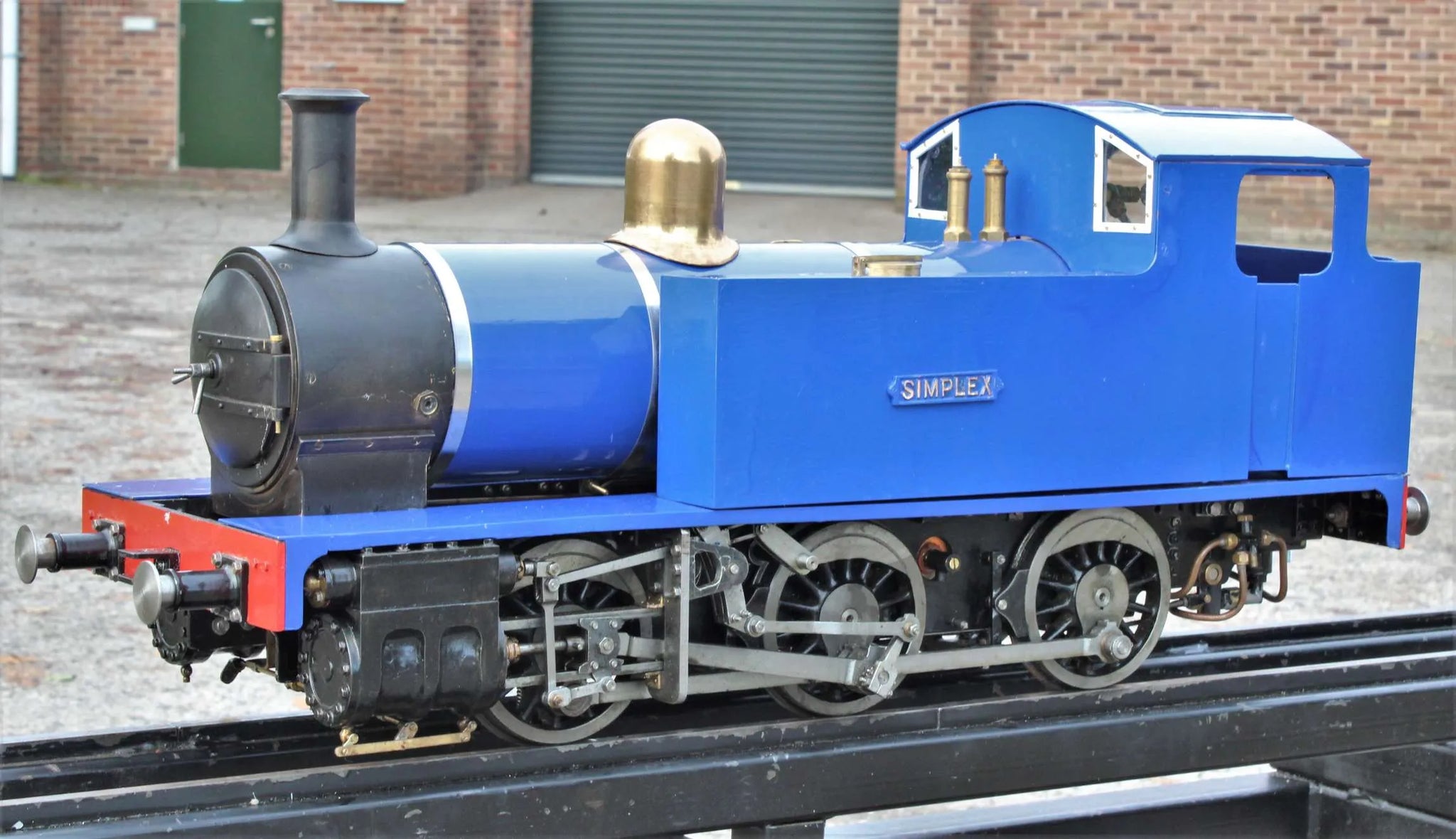

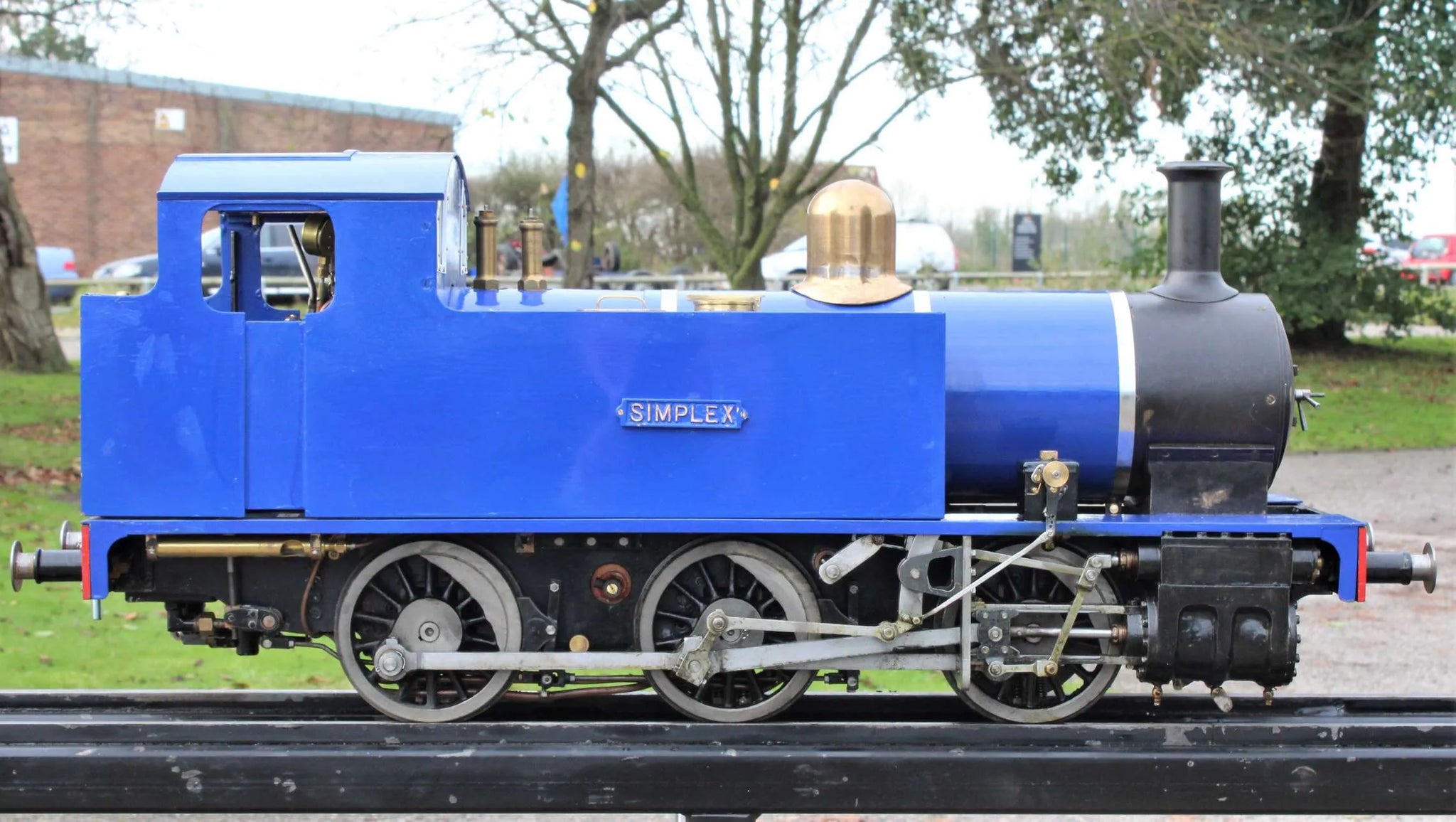

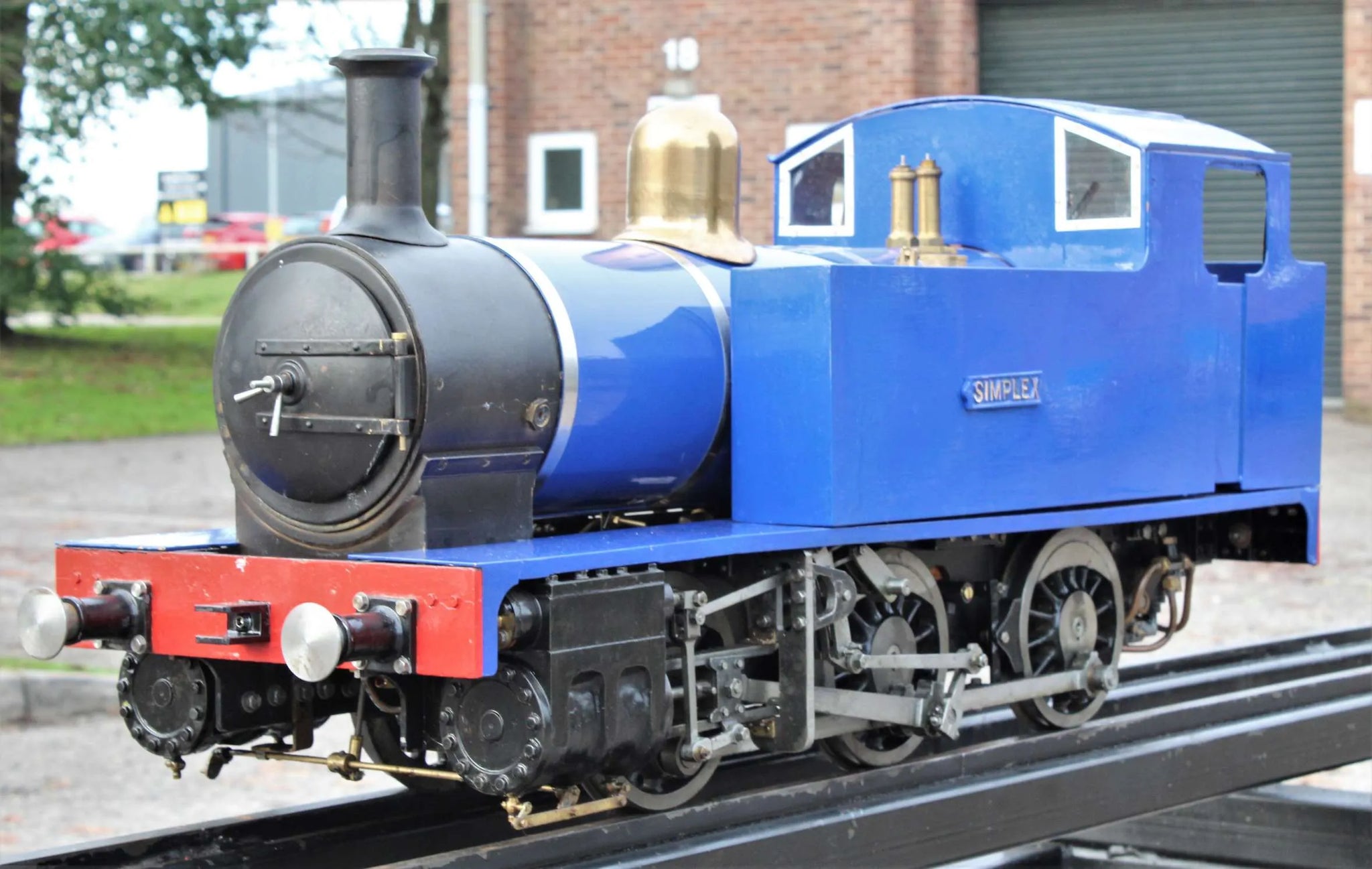

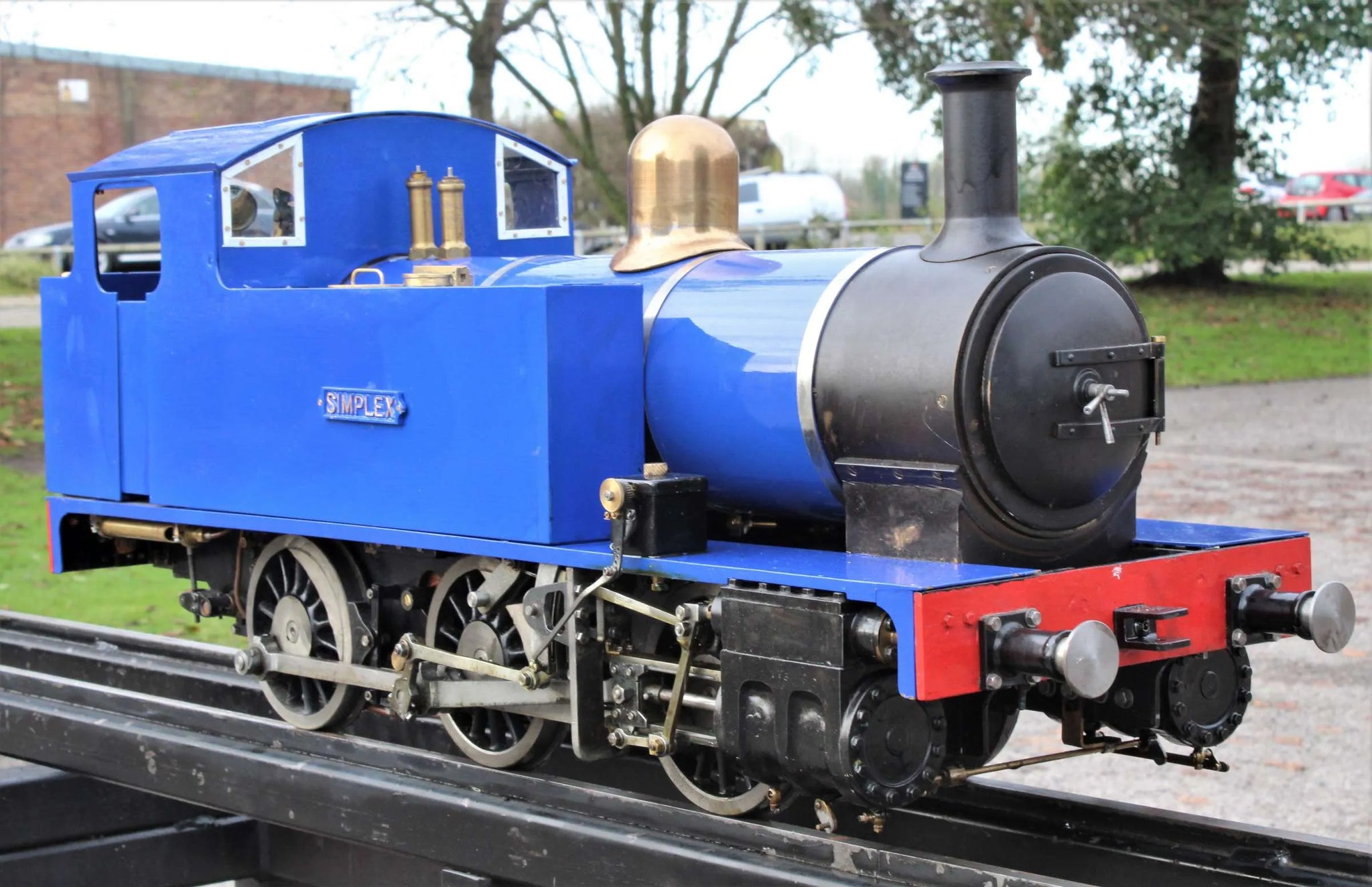

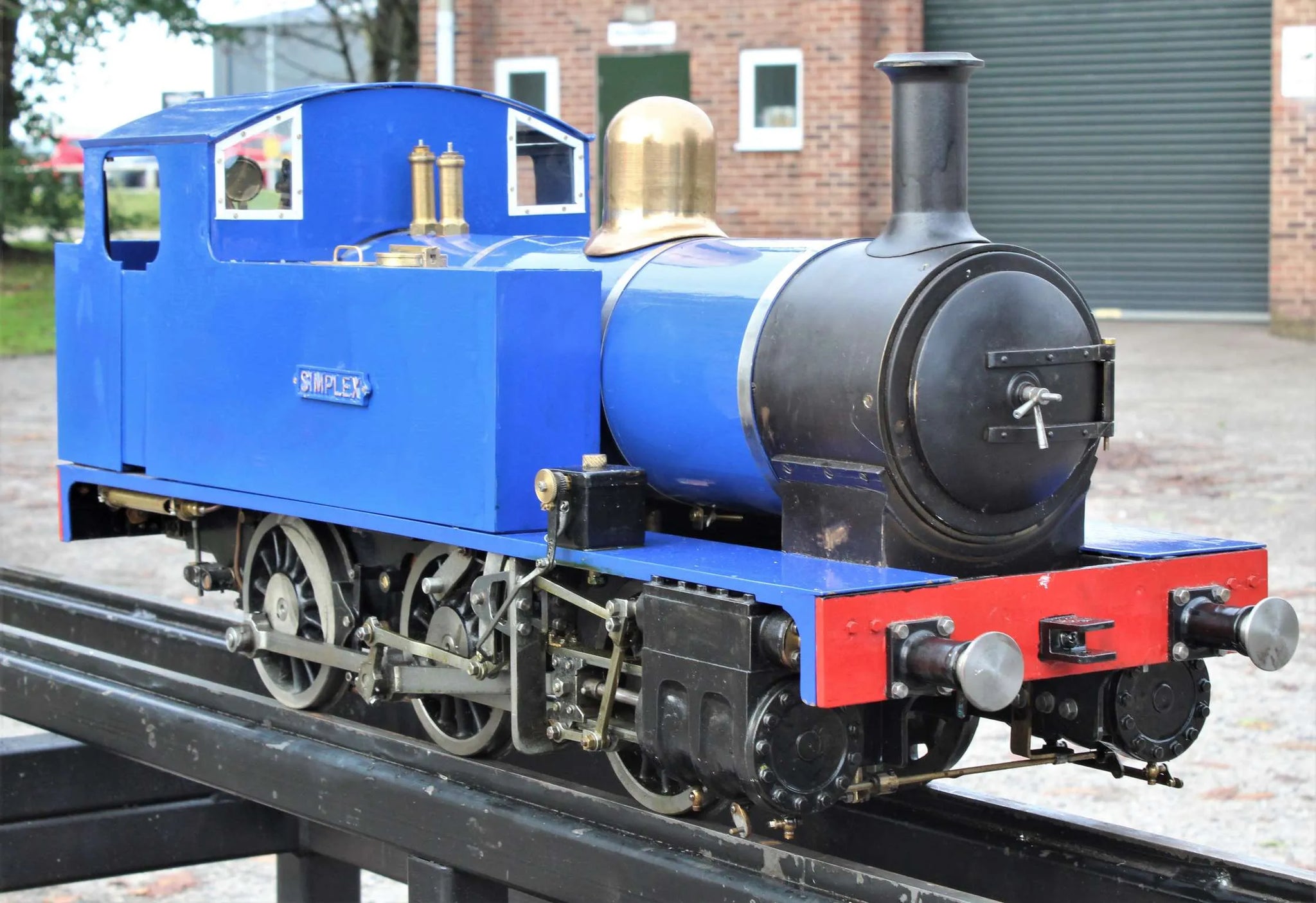

A 5 inch gauge 0-6-0T to Martin Evans' freelance "Simplex" design, complete with purpose-built carrying crate.

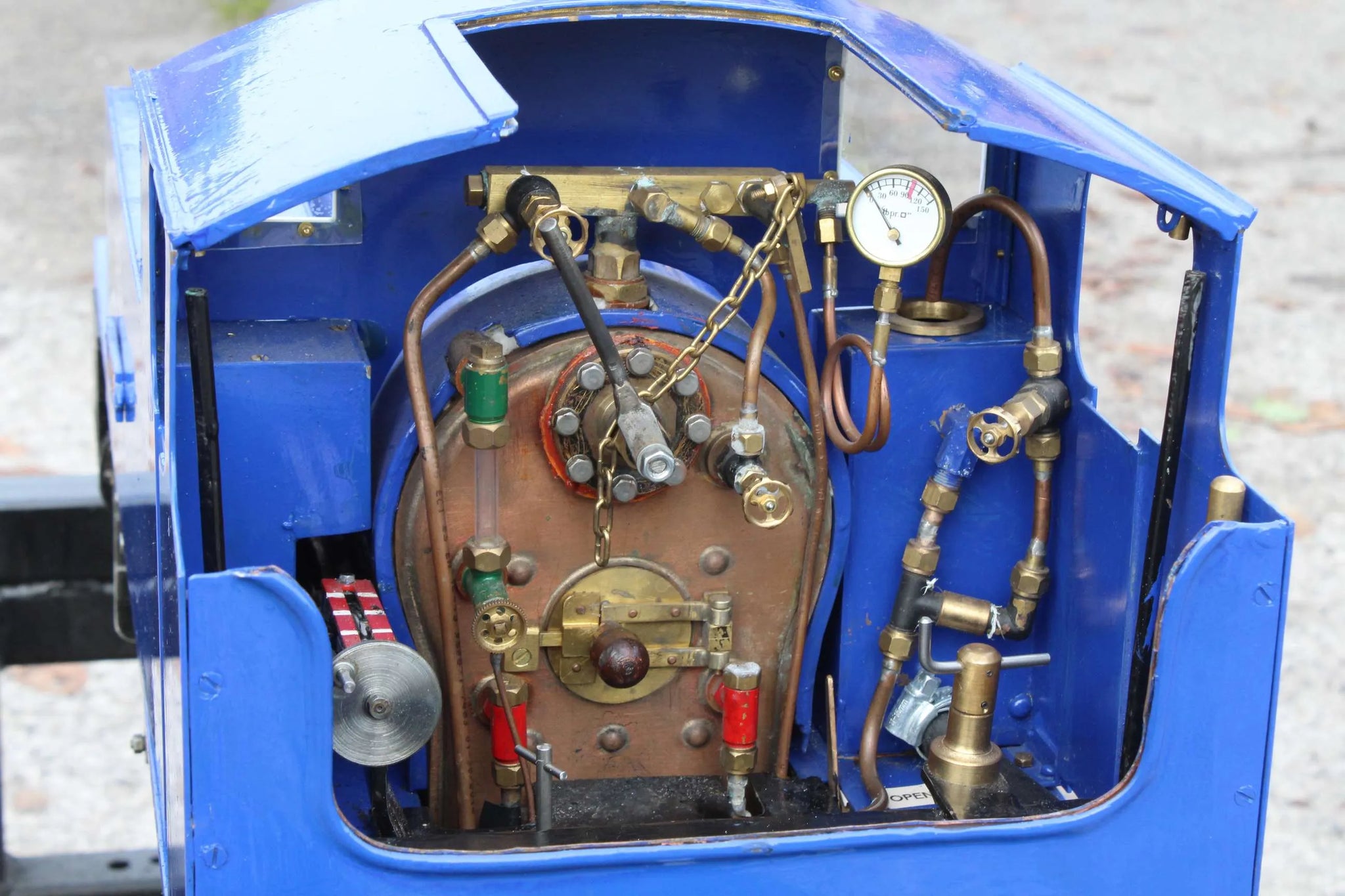

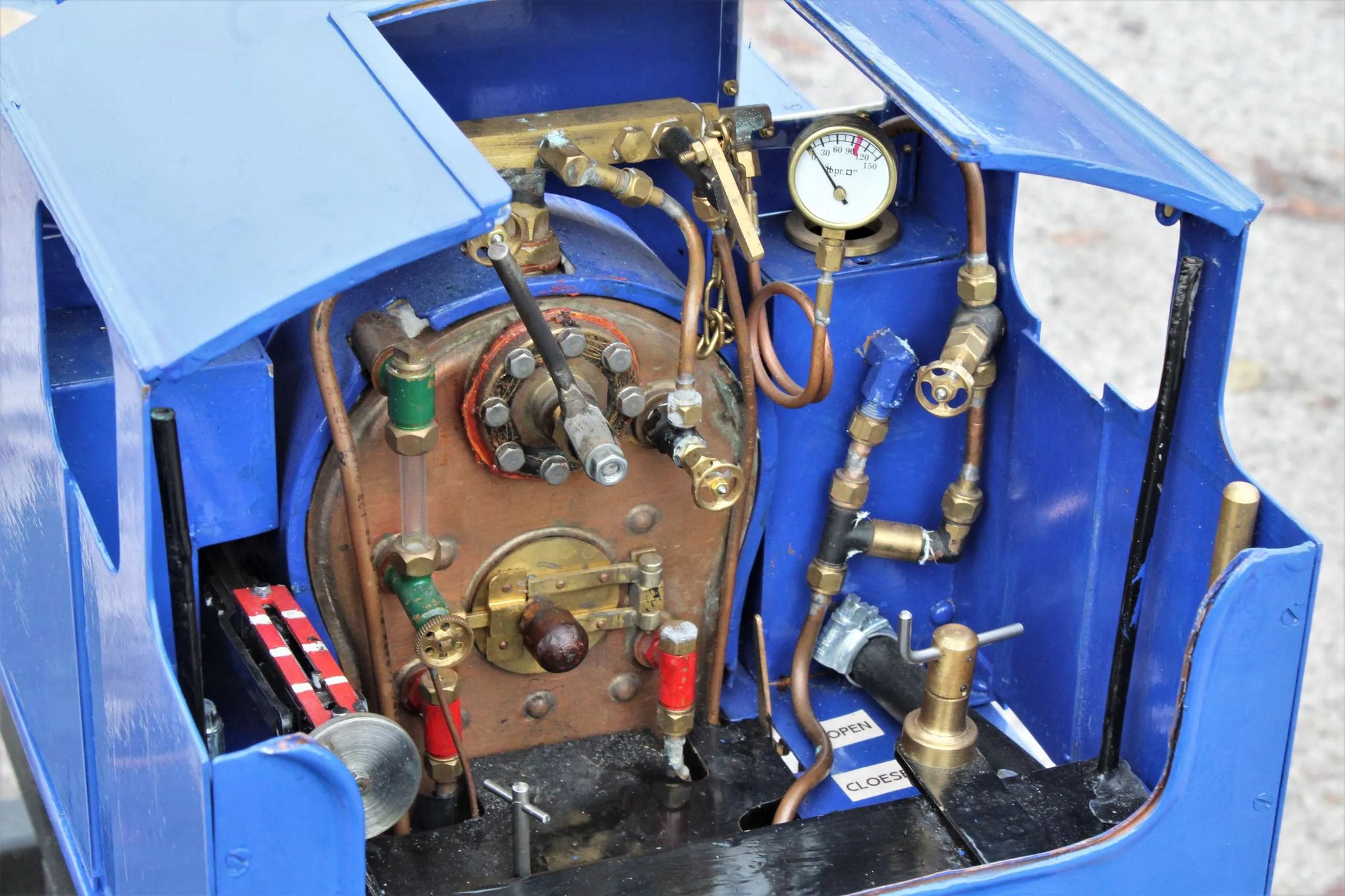

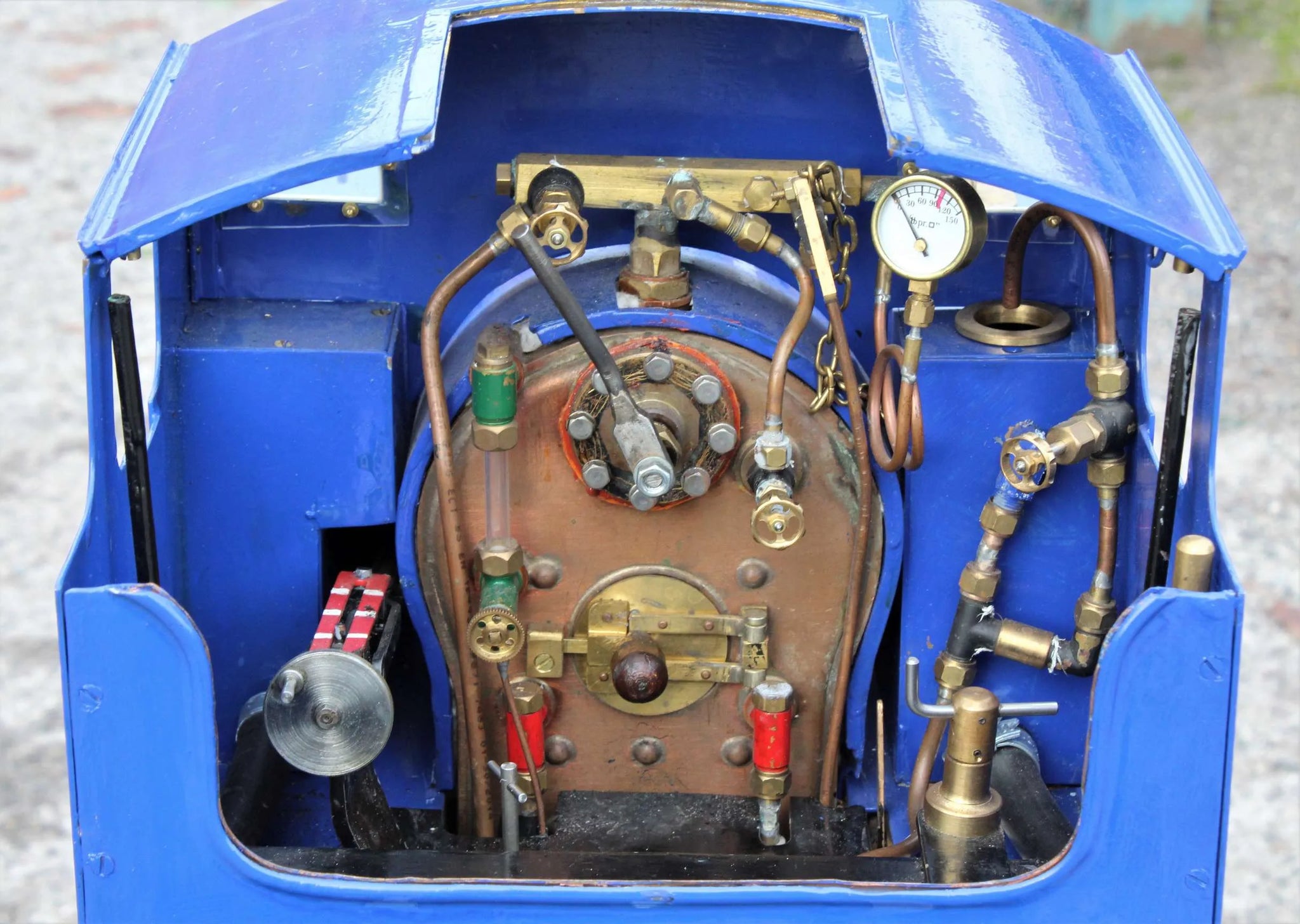

Boiler is a silver soldered copper job by Western Steam, a beautifully made thing which, by the colour of firebox and front tubeplate, appears to have had little use since the locomotive was completed.

Built to a reasonable standard, the chassis will require some work over winter - one expansion link touches the bottom of the running board when running, there is play in the motion work and valve gear, we suspect built in from new rather than the result of wear.

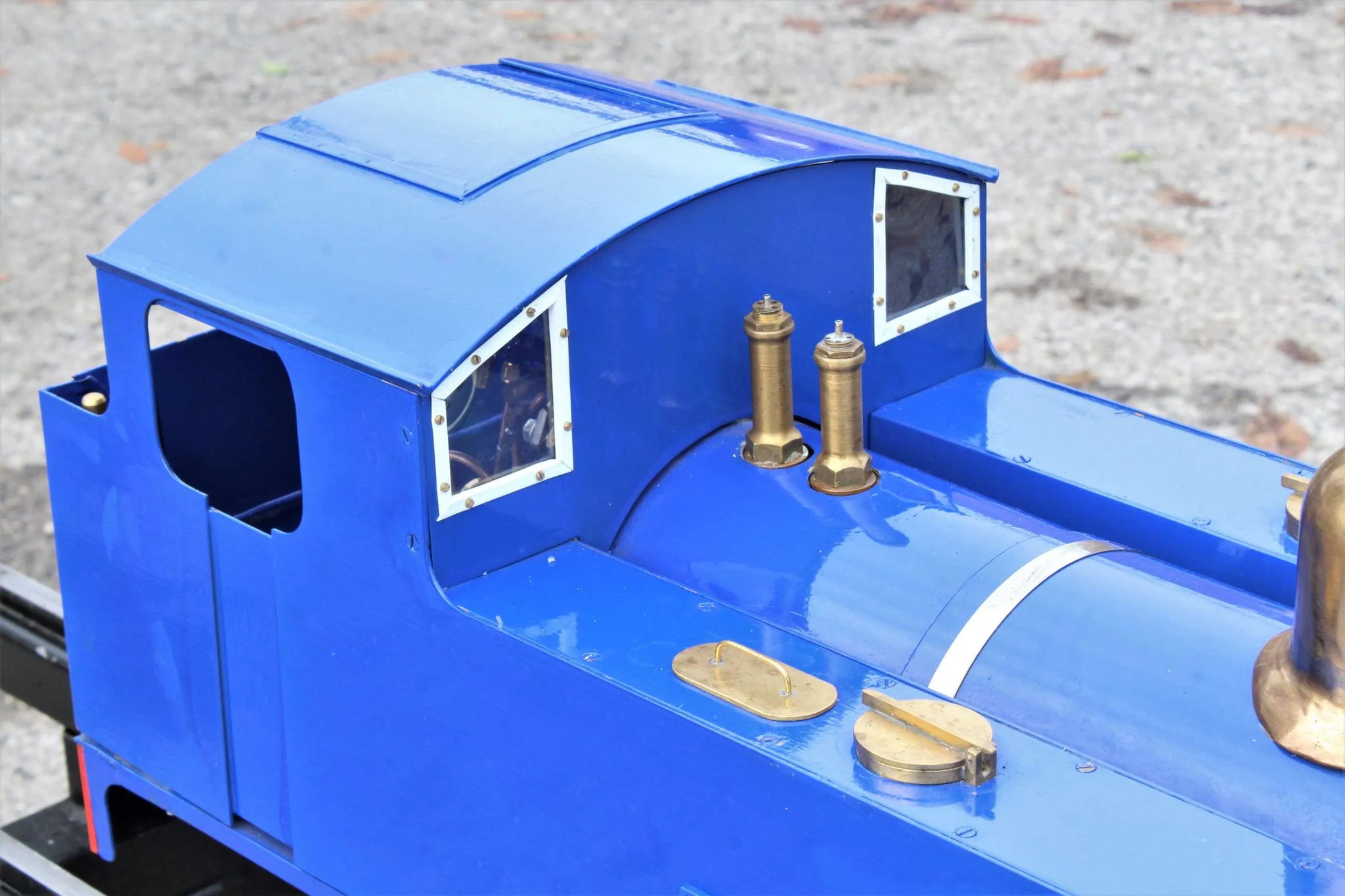

In steam the engine runs in both directions, safety valves accumulate and require servicing or replacement.

Technical information

Stock code

10115

Gauge

5 inch

Length/inches

33

Width/inches

10

Height/inches

13

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

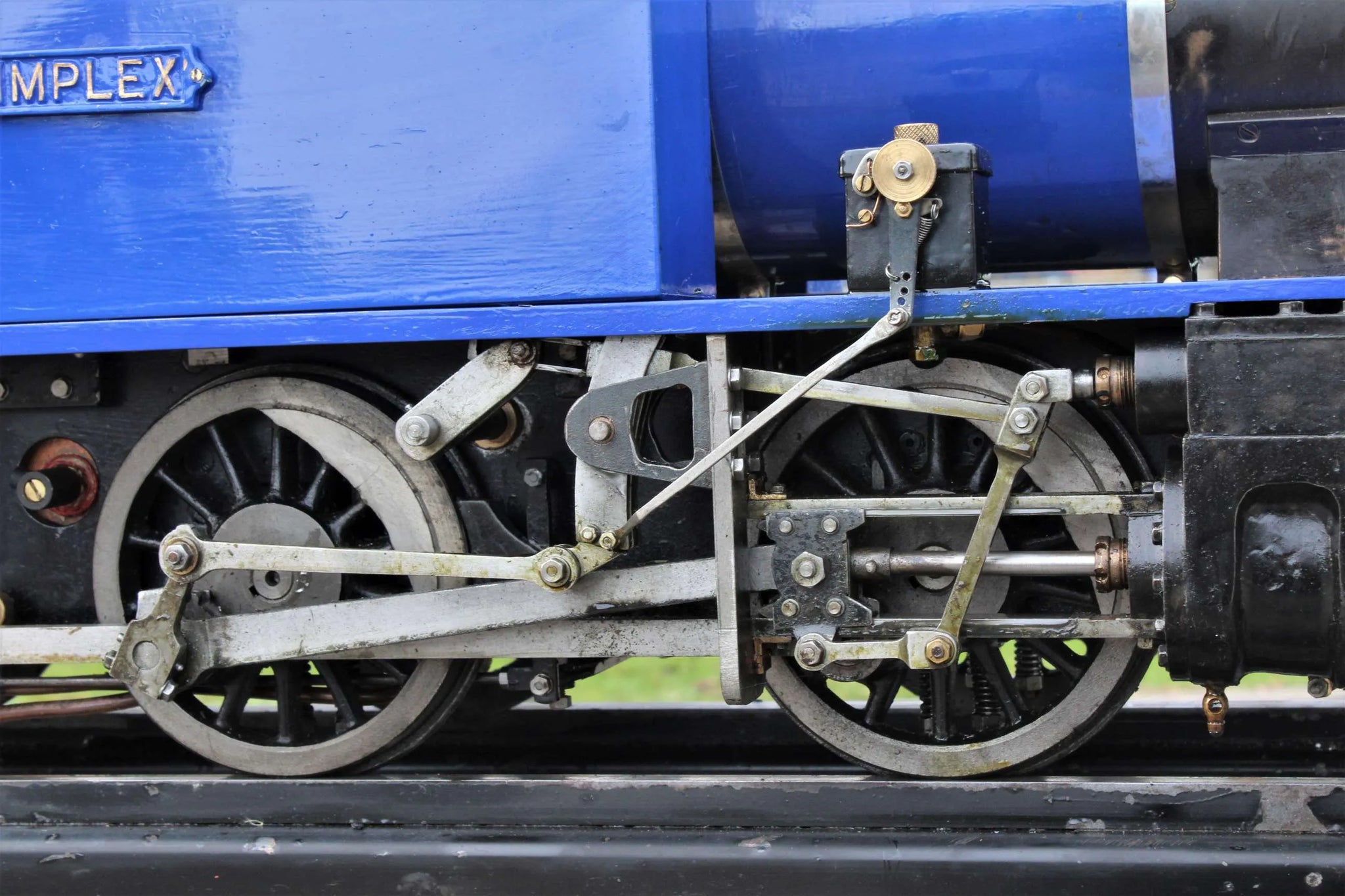

Valve gear

Walschaerts

Reverser type

screw

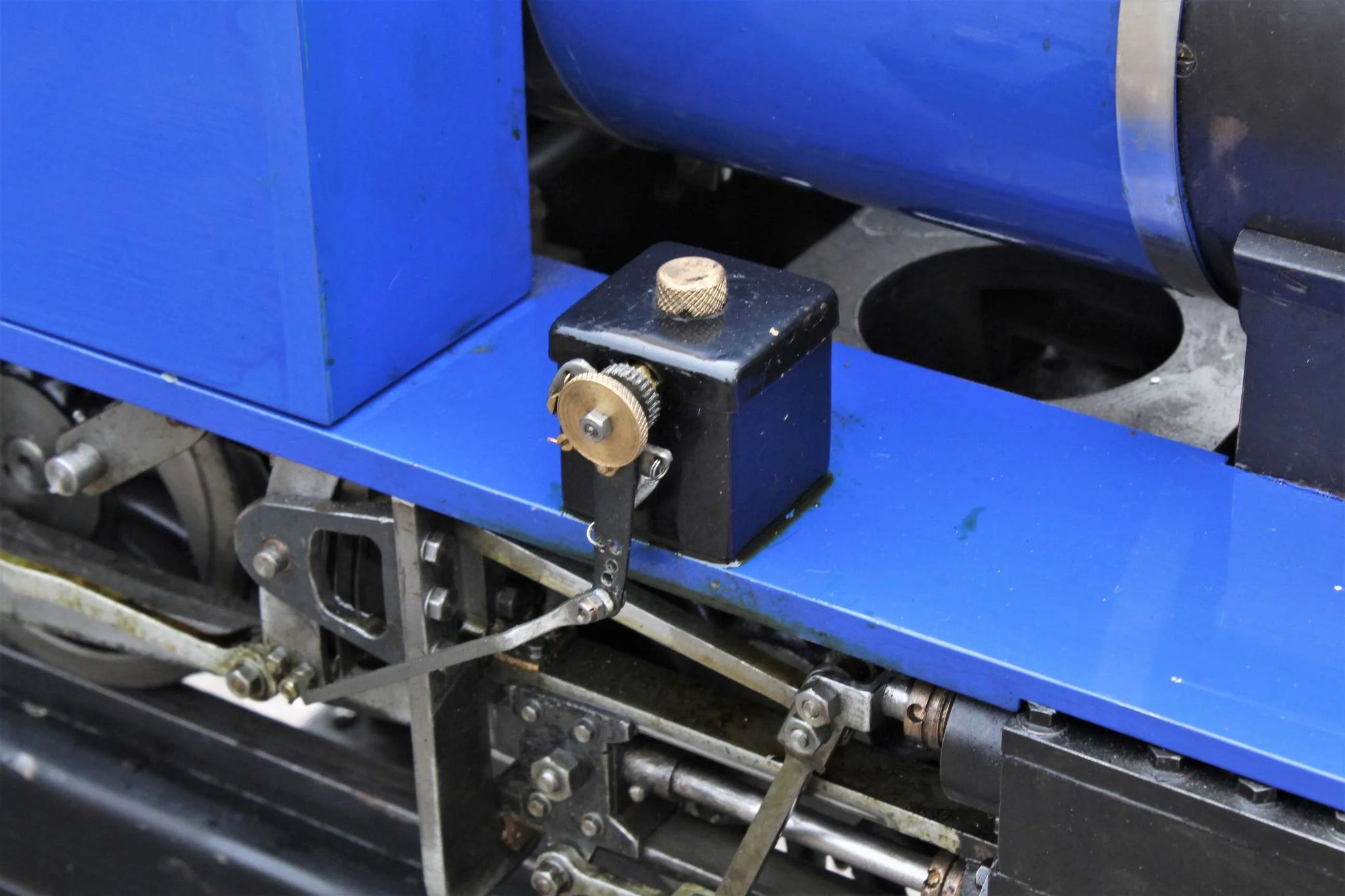

Lubricator type

mechanical

Boiler maker

Western Steam

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

yes

Year built

2007

Boiler number

WSME.481.07.07.H.V

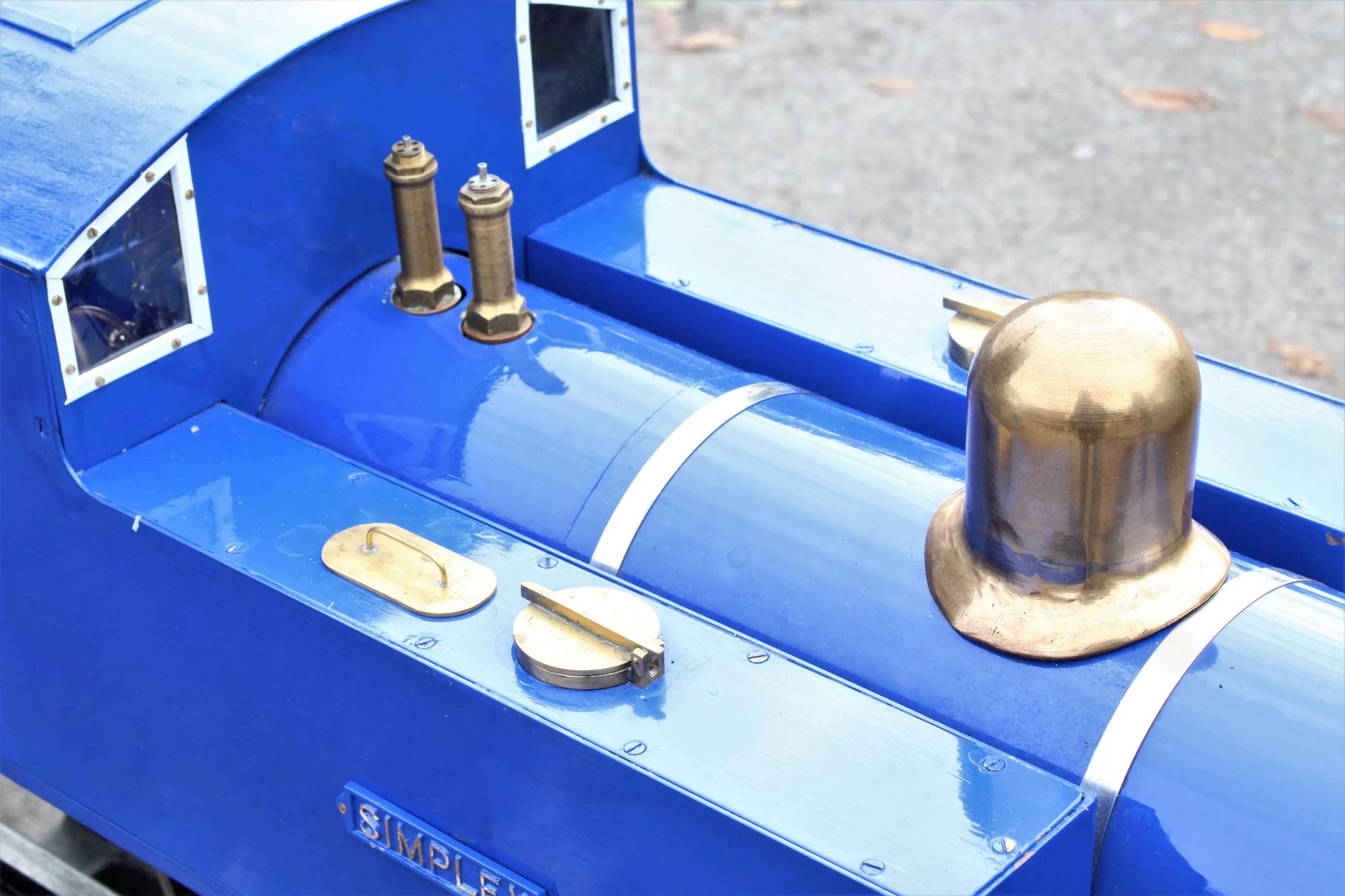

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

radiant

Superheater

1

Date out

May-22
