Stock code |
10473 |
Gauge |
5 inch |
Length/inches |
33 |
Width/inches |
10 |
Height/inches |
14.5 |
Weight/Kg |
54 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |

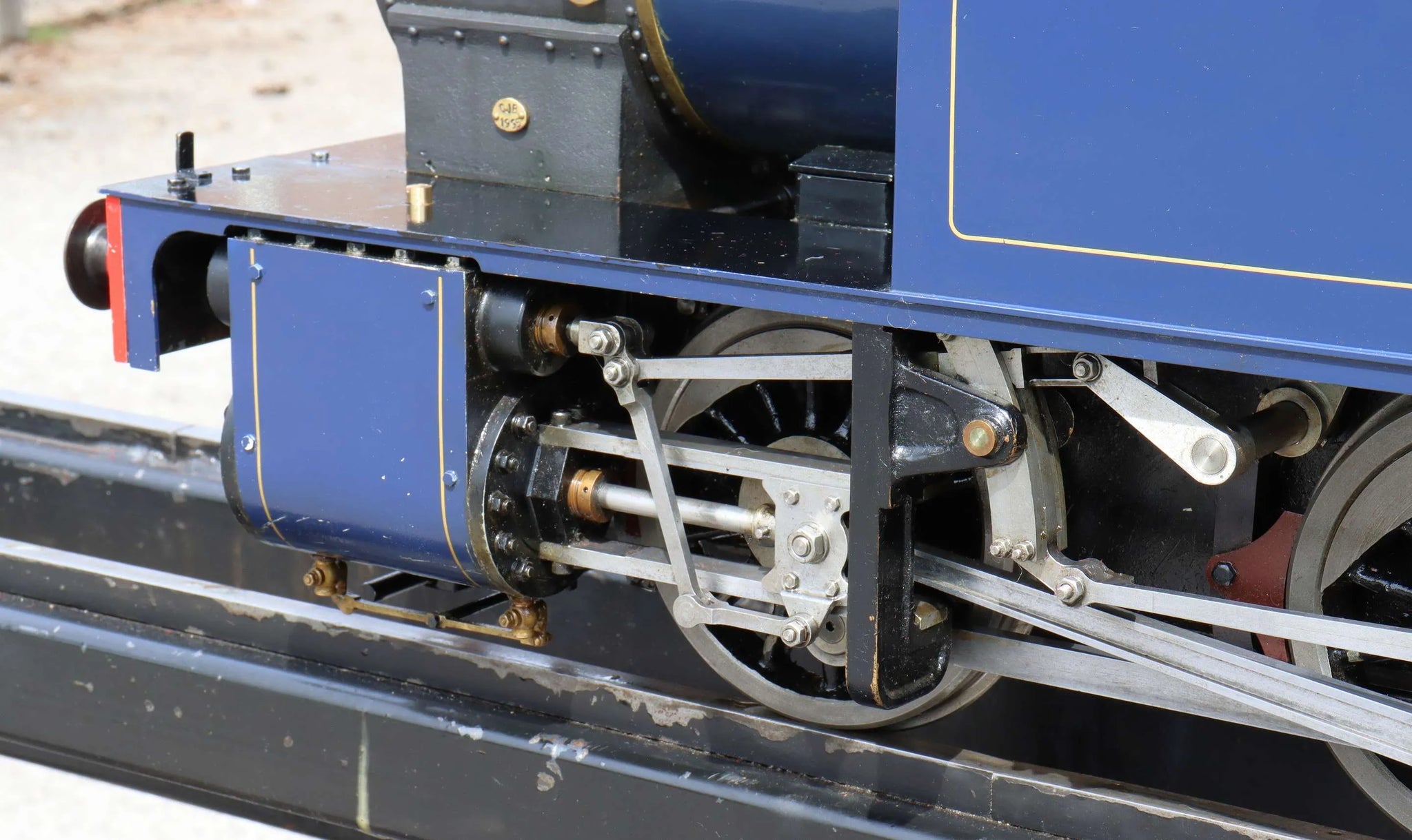

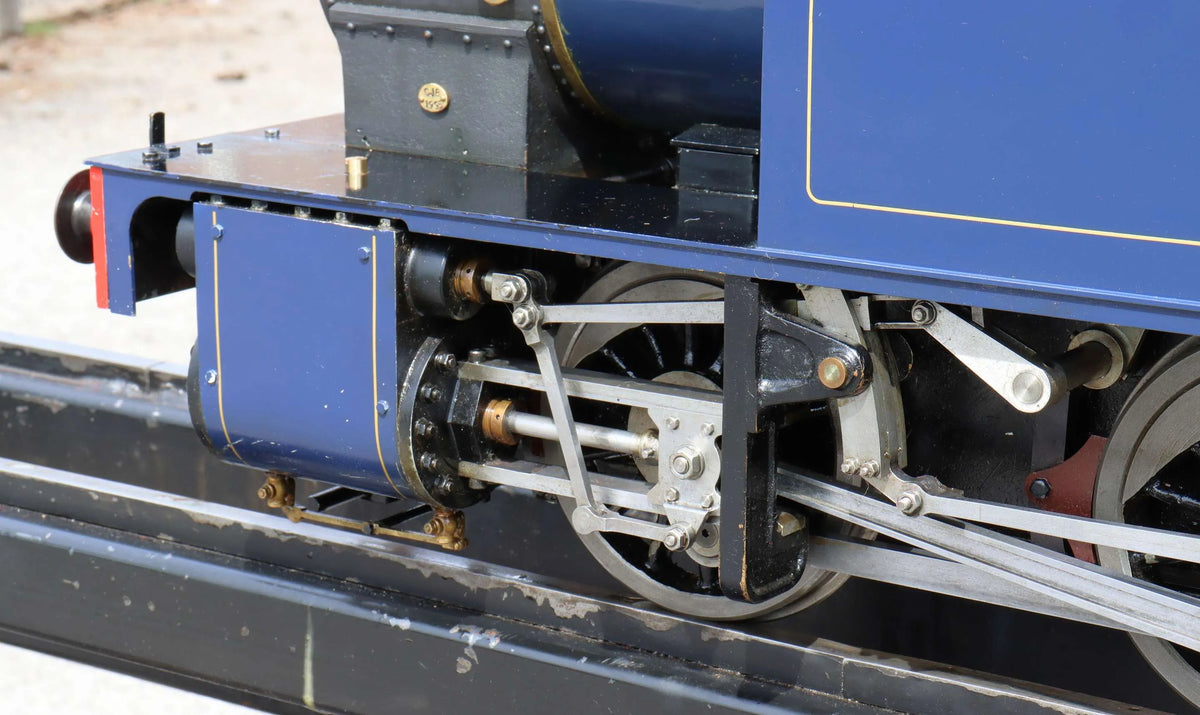

Cylinder material |
cast iron |
Valve type |
slide |

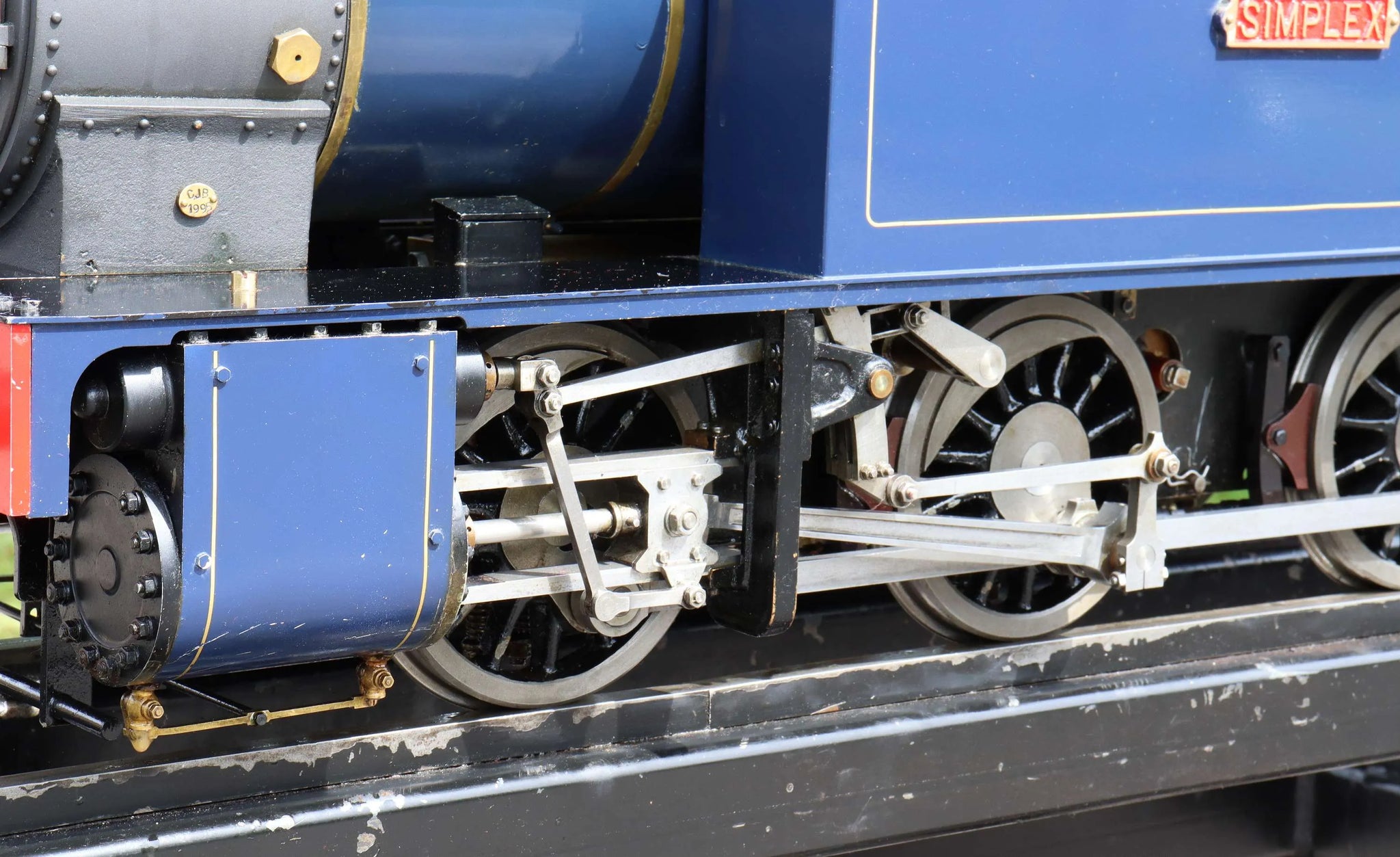

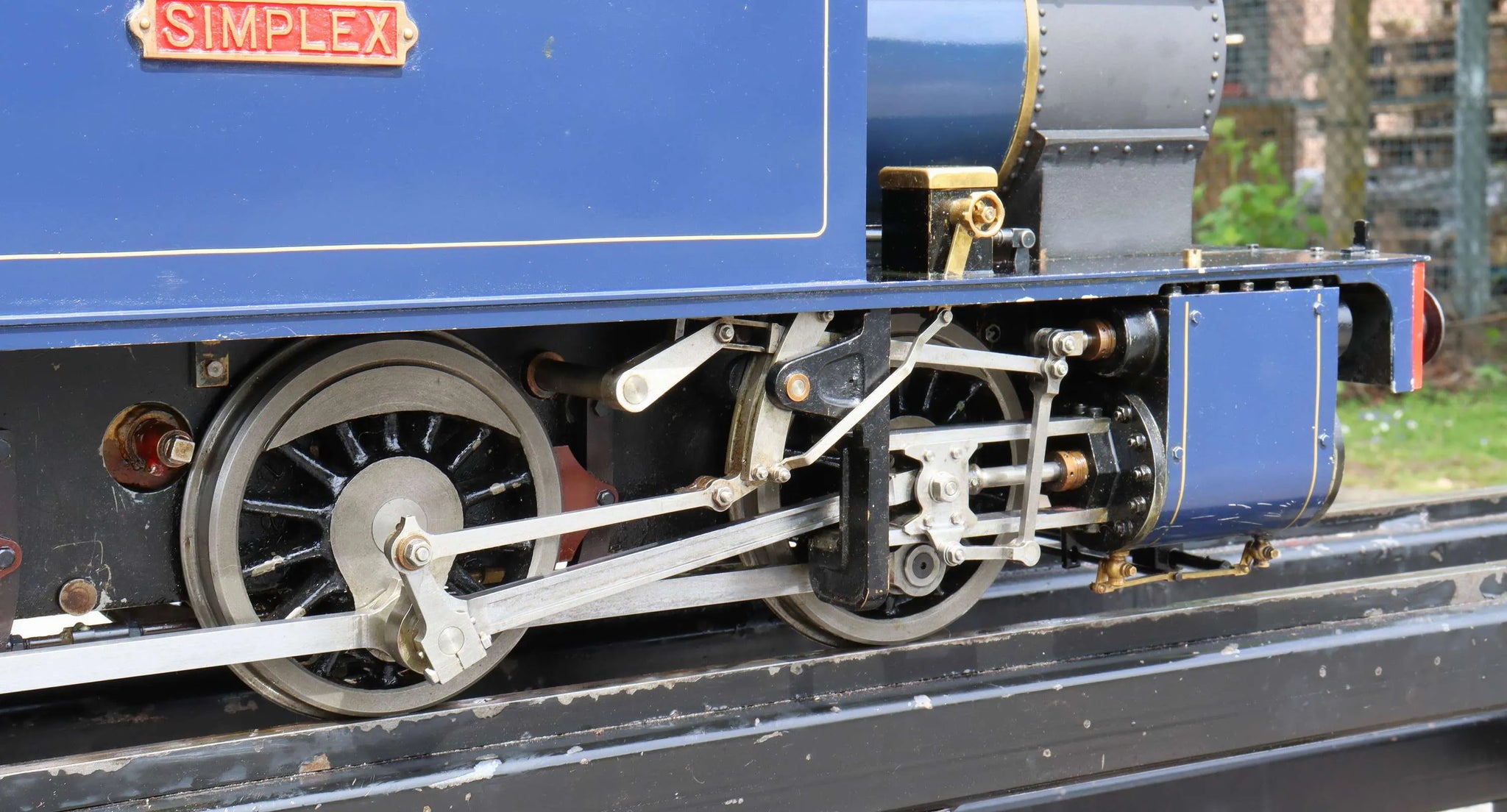

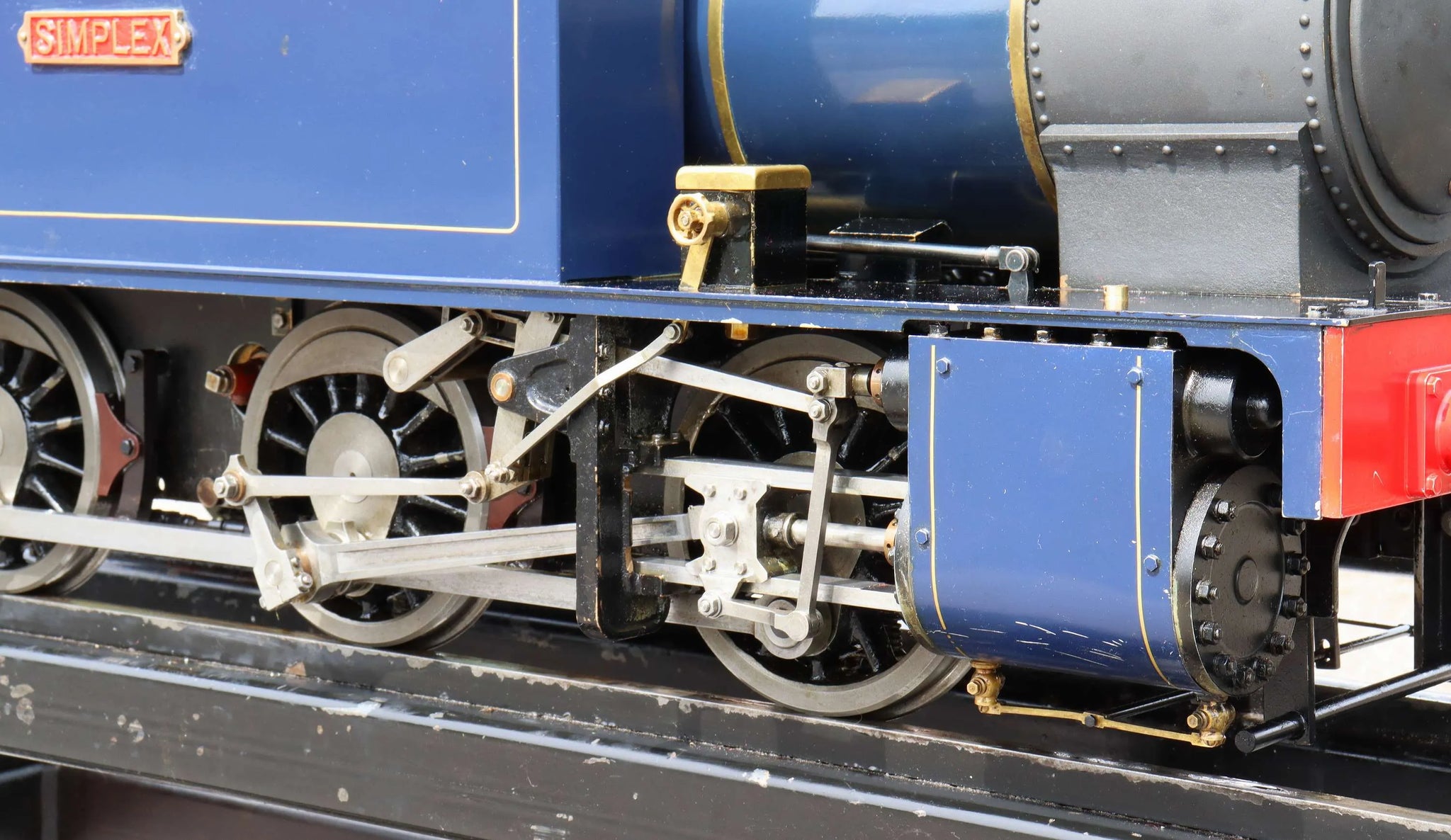

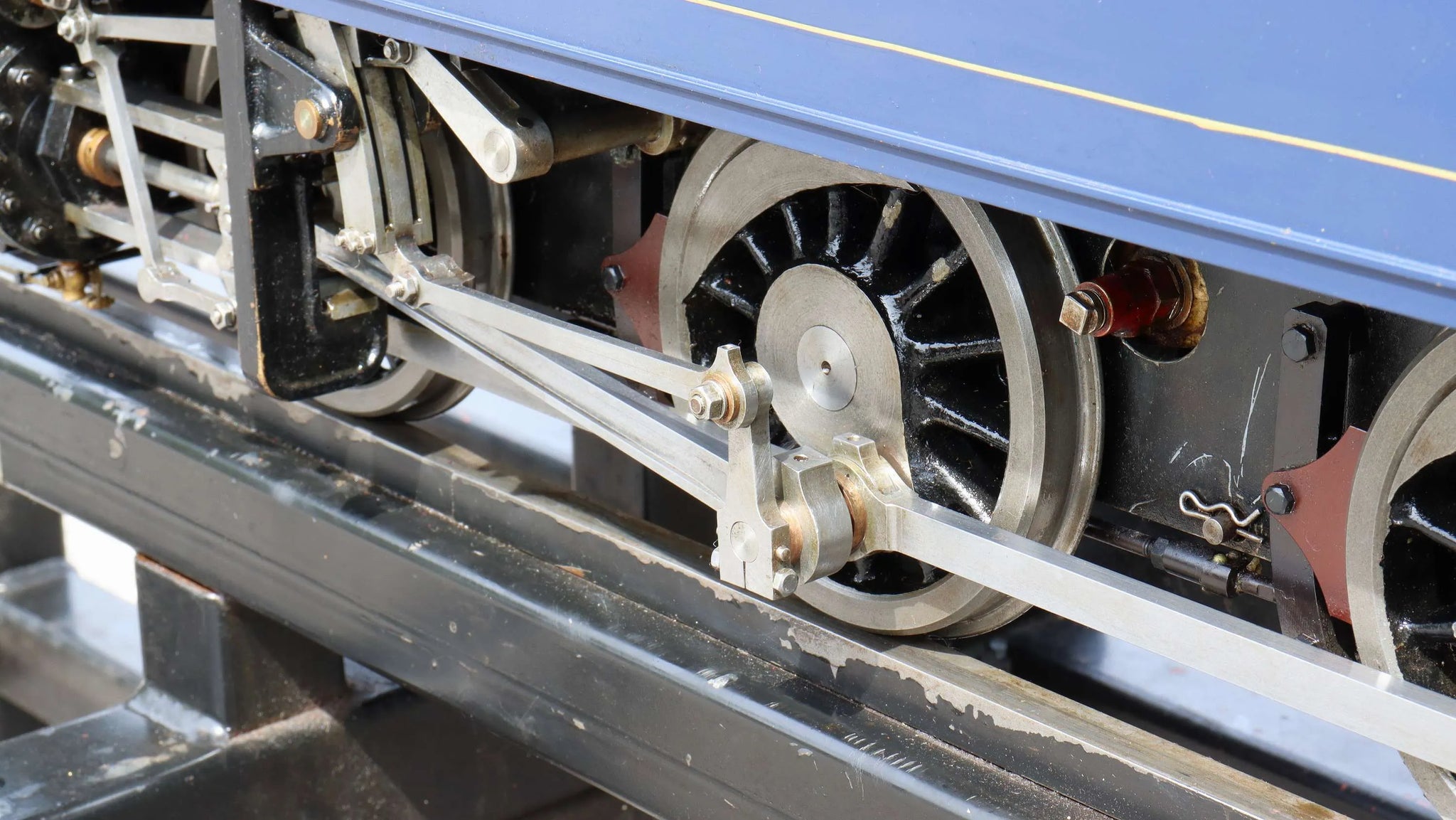

Valve gear |
Walschaerts |
Reverser type |
screw |
Lubricator type |
mechanical |
Boiler maker |
C.Bower |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
n/a - non-commercial |
Year built |
1995 |
Boiler number |
N16-100-263 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
radiant |
Superheater |
1 |
Date out |
Jul-22 |
Hydraulic test valid to |
04-May-26 |
Steam test valid to |
10-Jul-23 |
