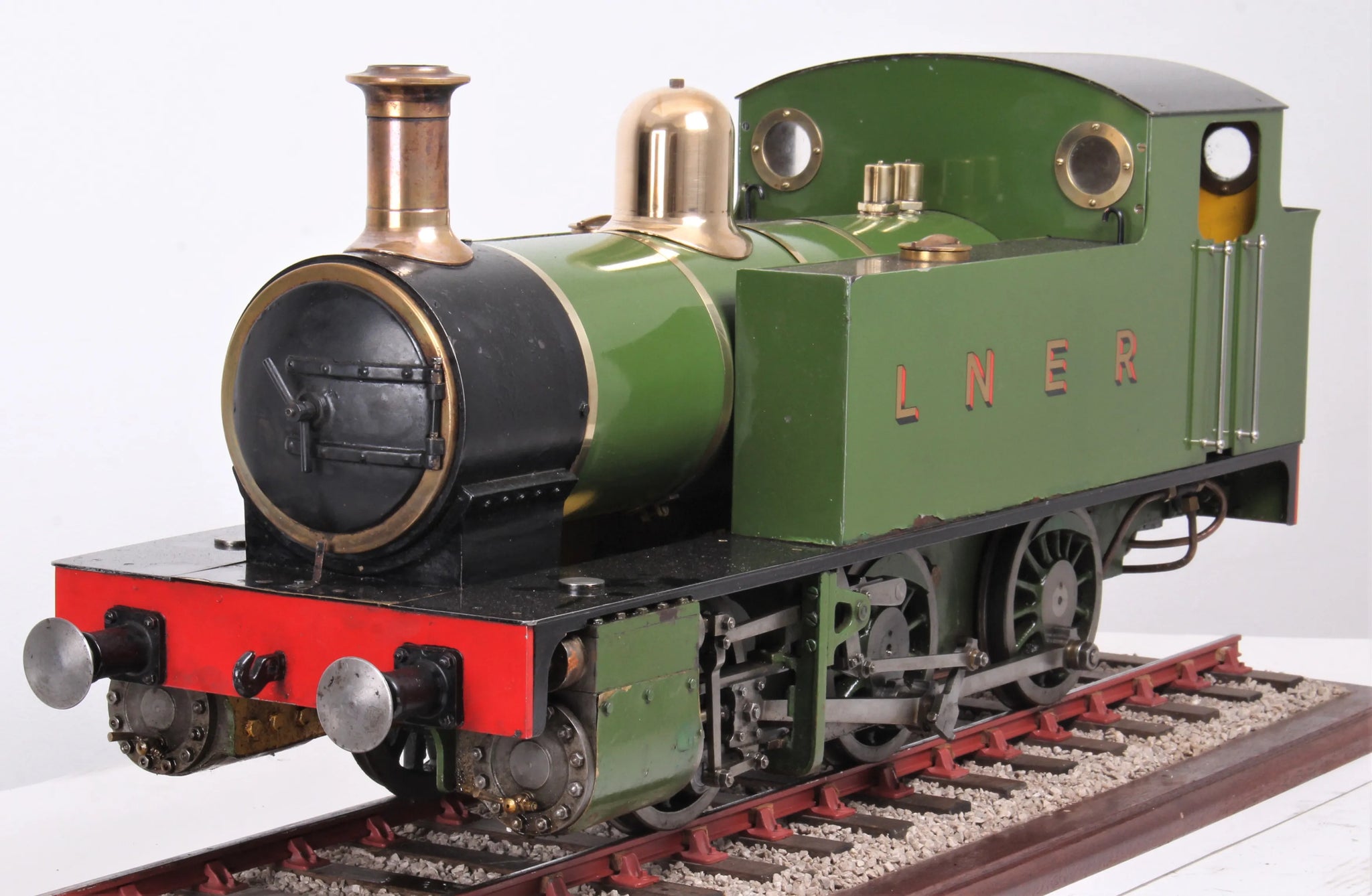

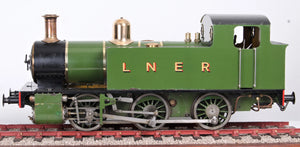

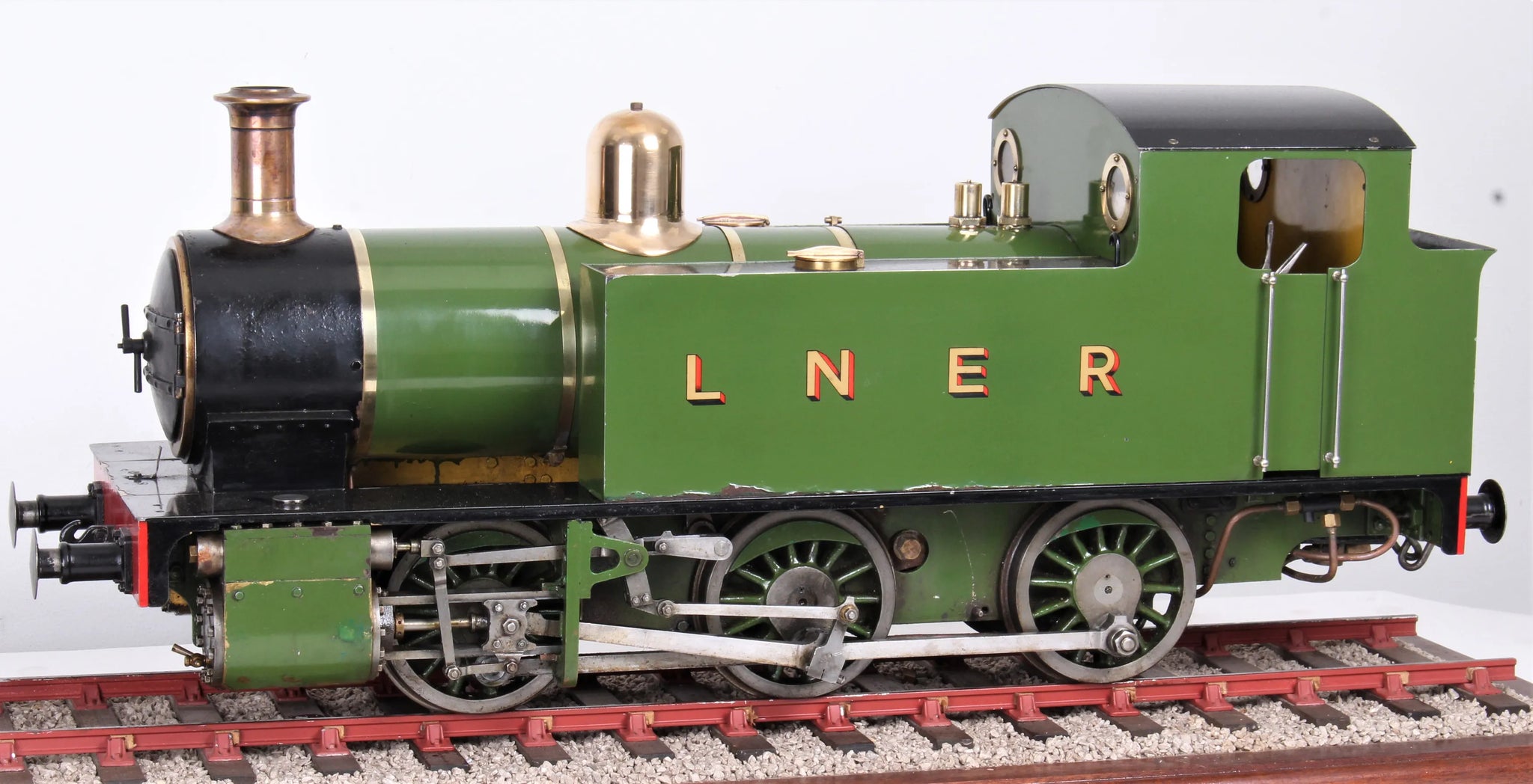

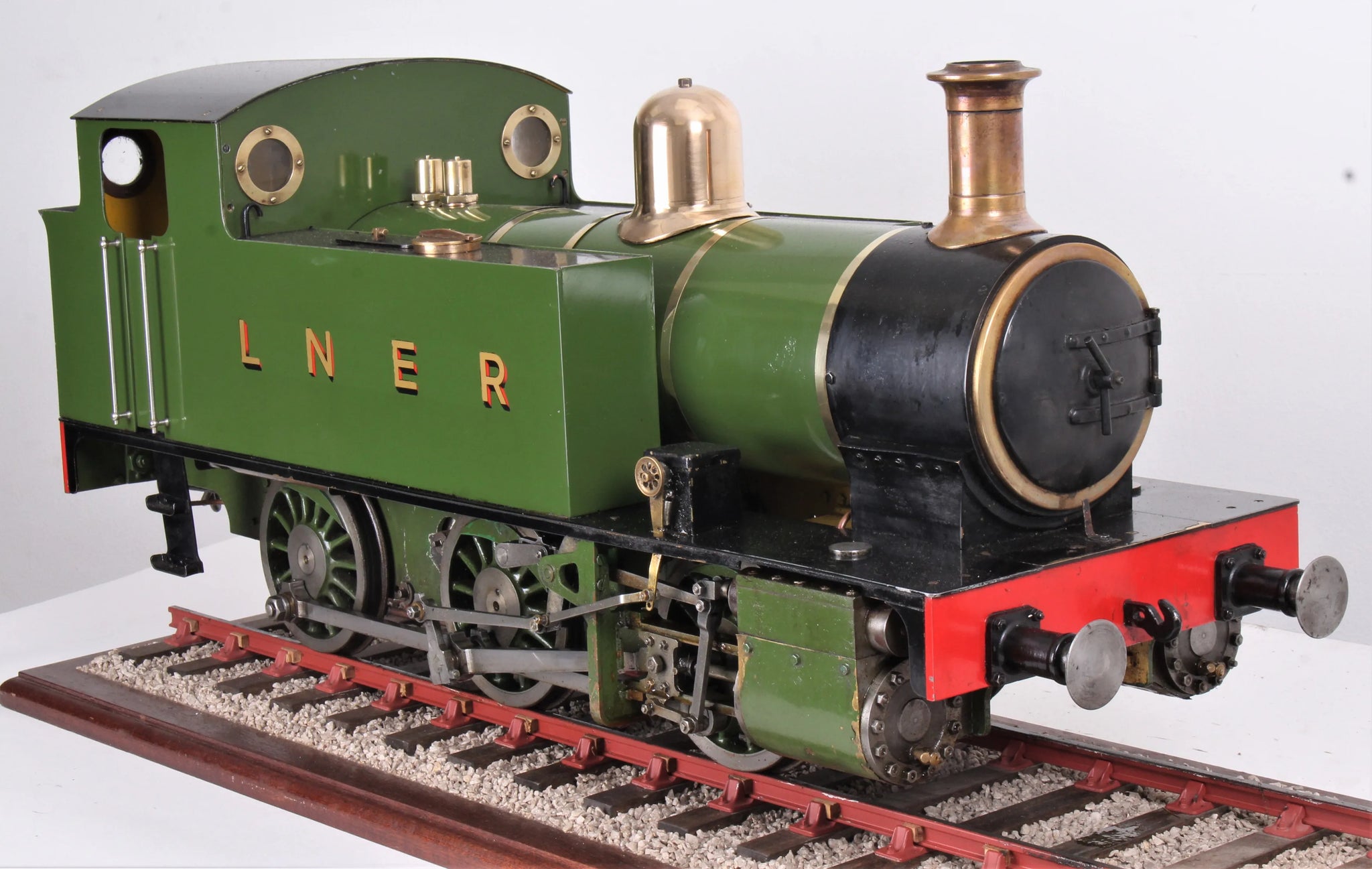

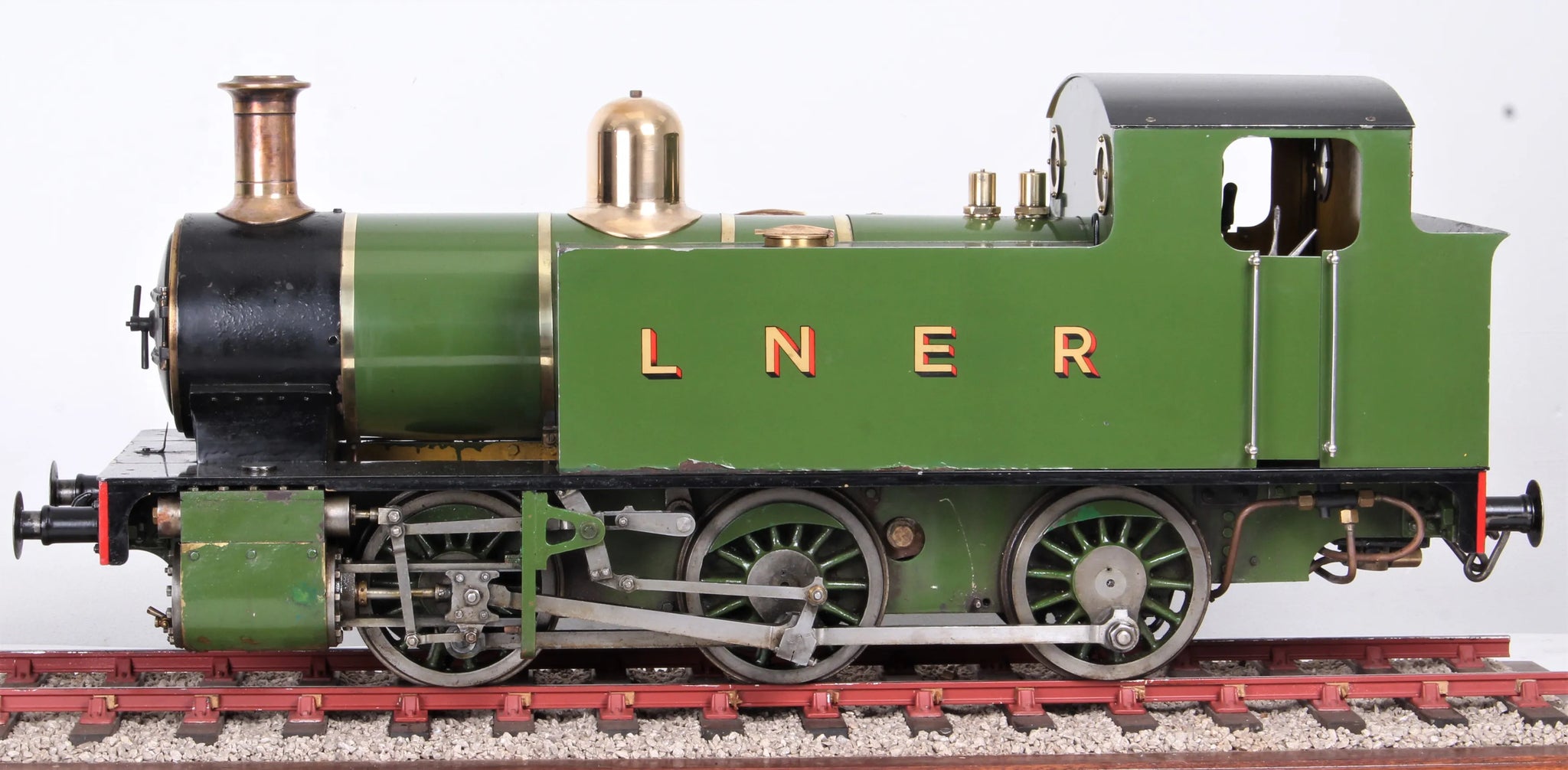

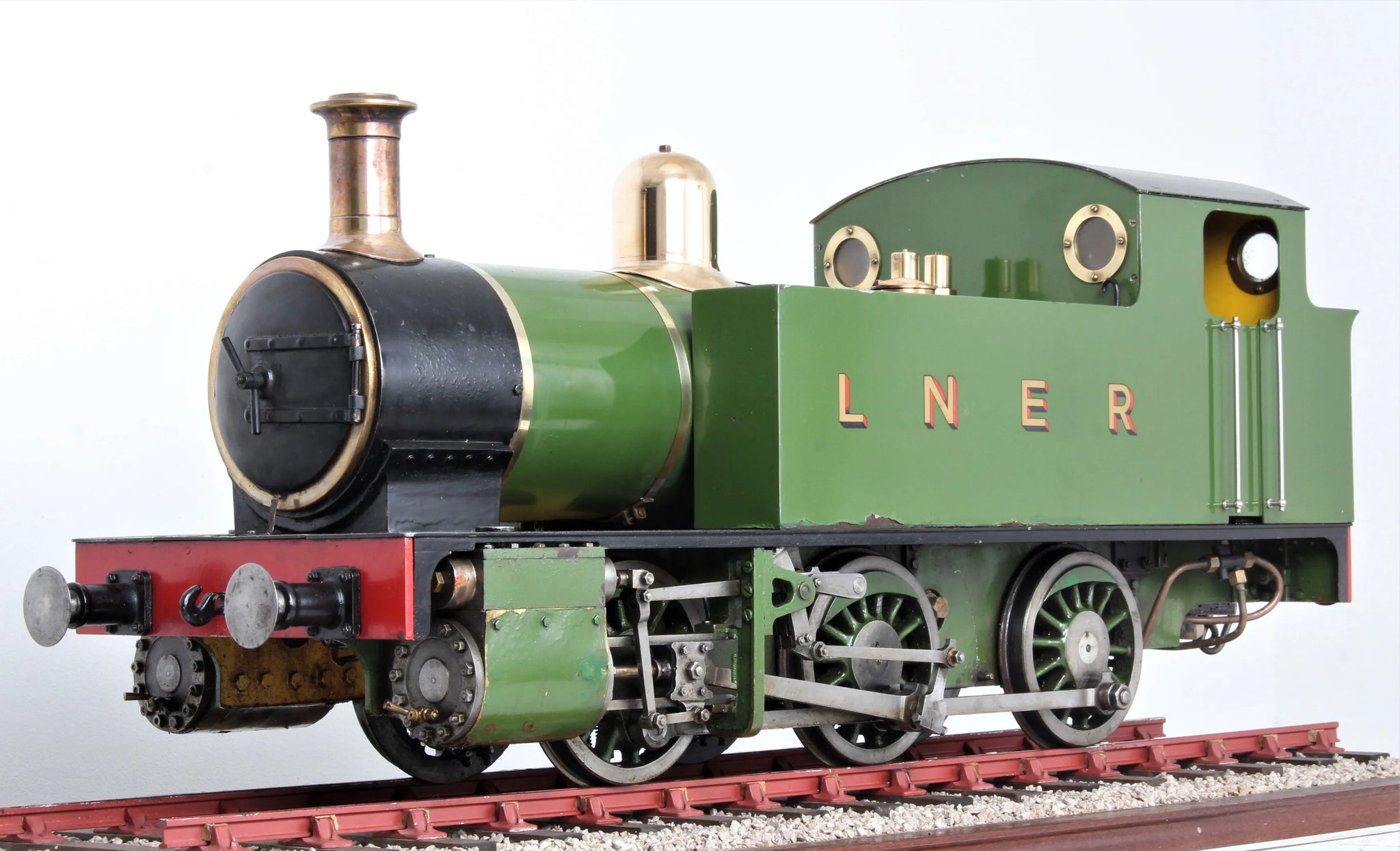

5 inch gauge "Simplex" 0-6-0T

A well-built 5 inch gauge "Simplex" 0-6-0T, an older engine in good running order if cosmetically somewhat tired.

It's come to us as part of a railway we dismantled last year, along with two battery electric locomotives. It's had regular if occasional use in the past - the owner's grandchildren growing up and losing interest in the railway the only reason for its sale.

The engine runs well in either direction and notches up efficiently - there's a clip of it running outside the workshop here.

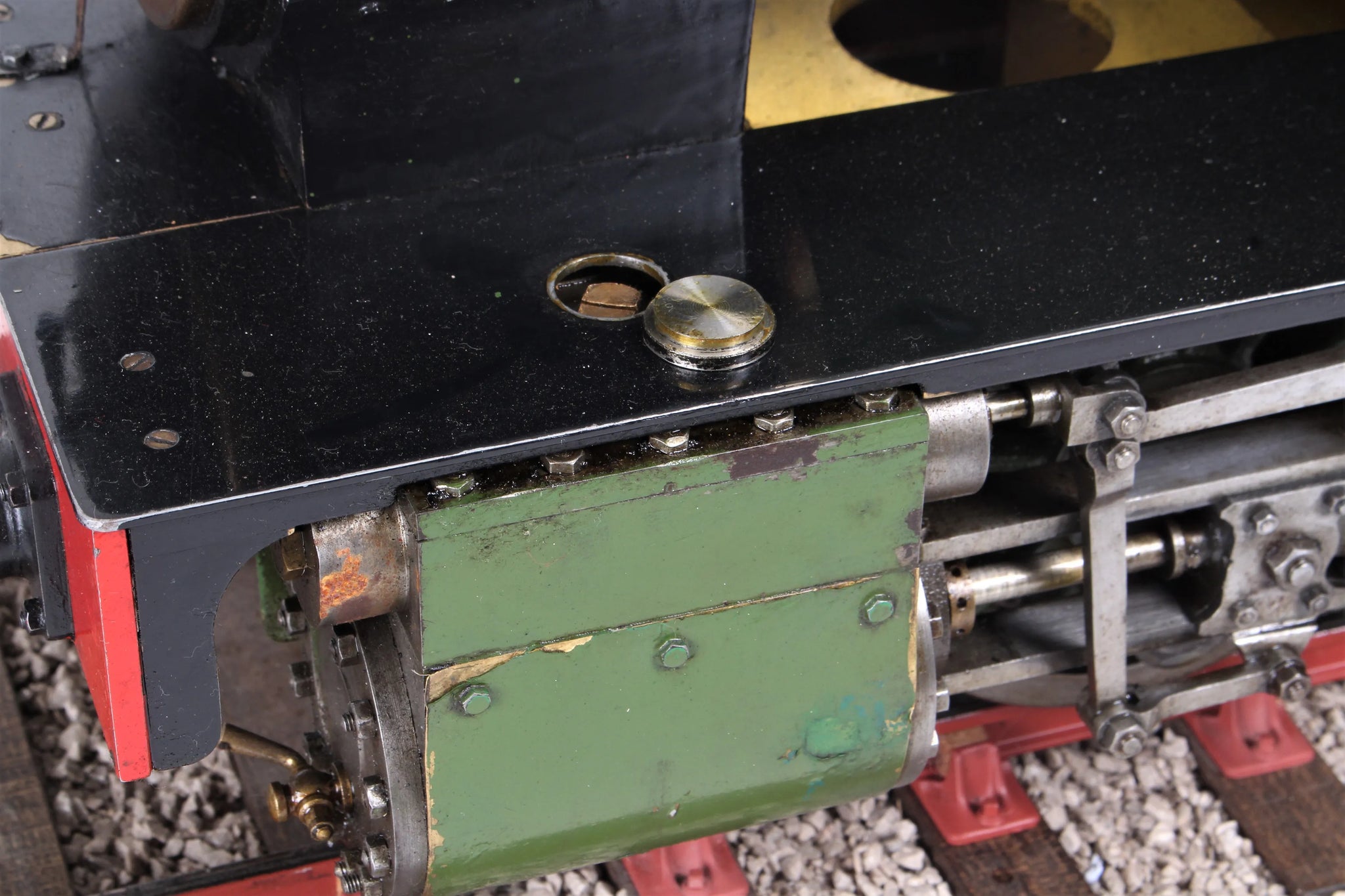

We like the valve chest doping plugs accessed through the running boards - we fit them to everything we build, should be required fitting on all engines!

Technical information

Stock code

8553

Gauge

5 inch

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

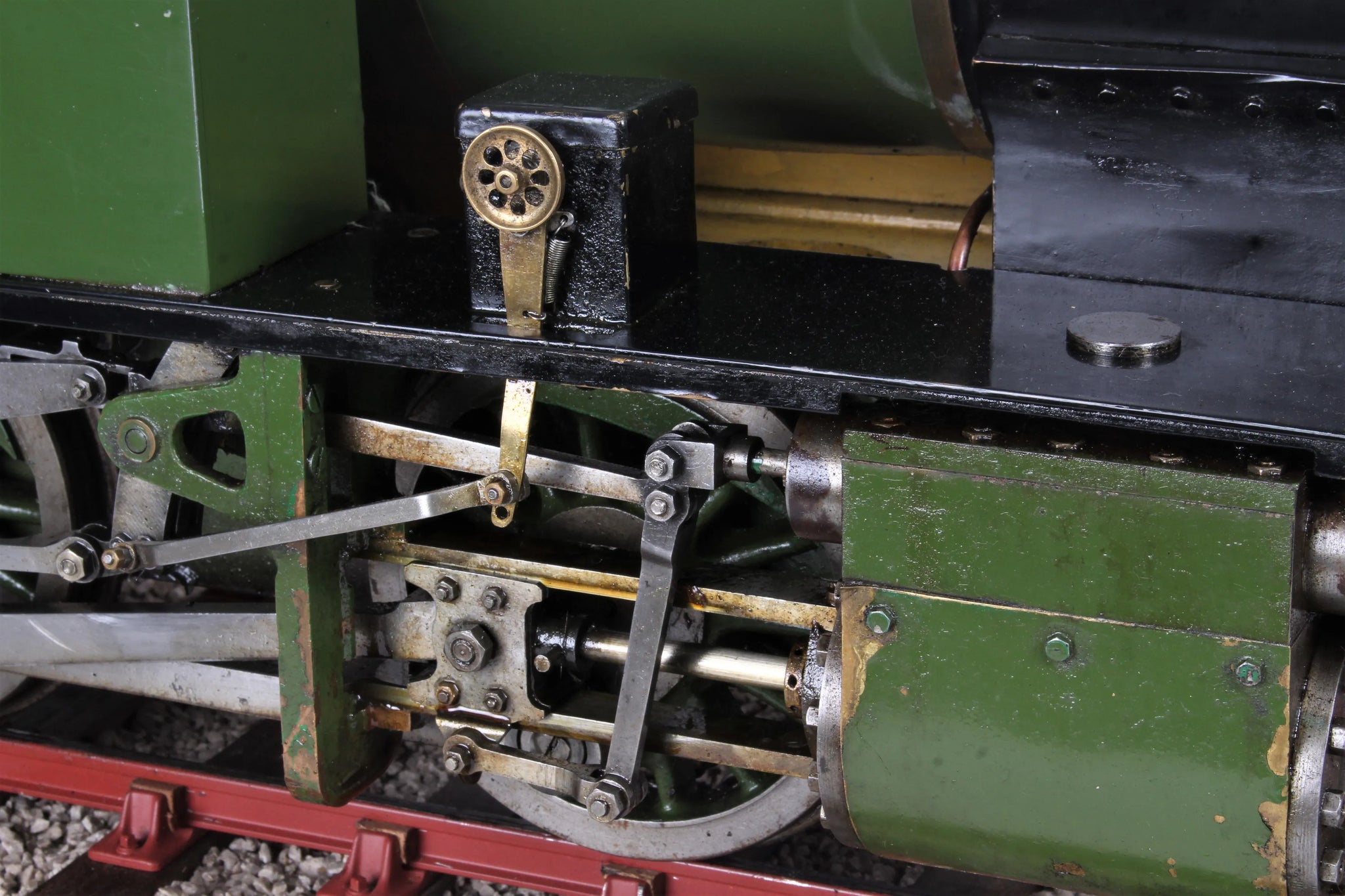

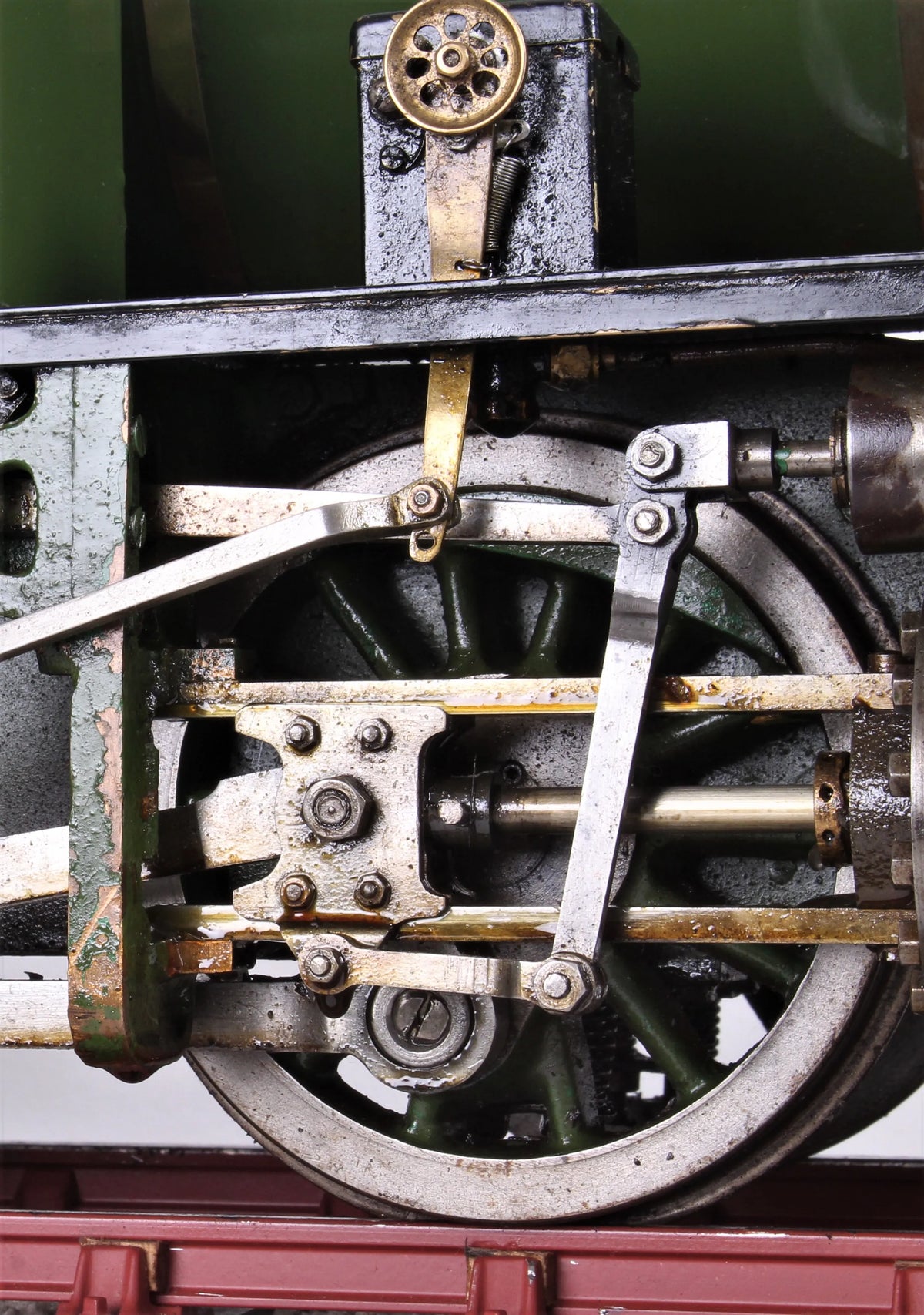

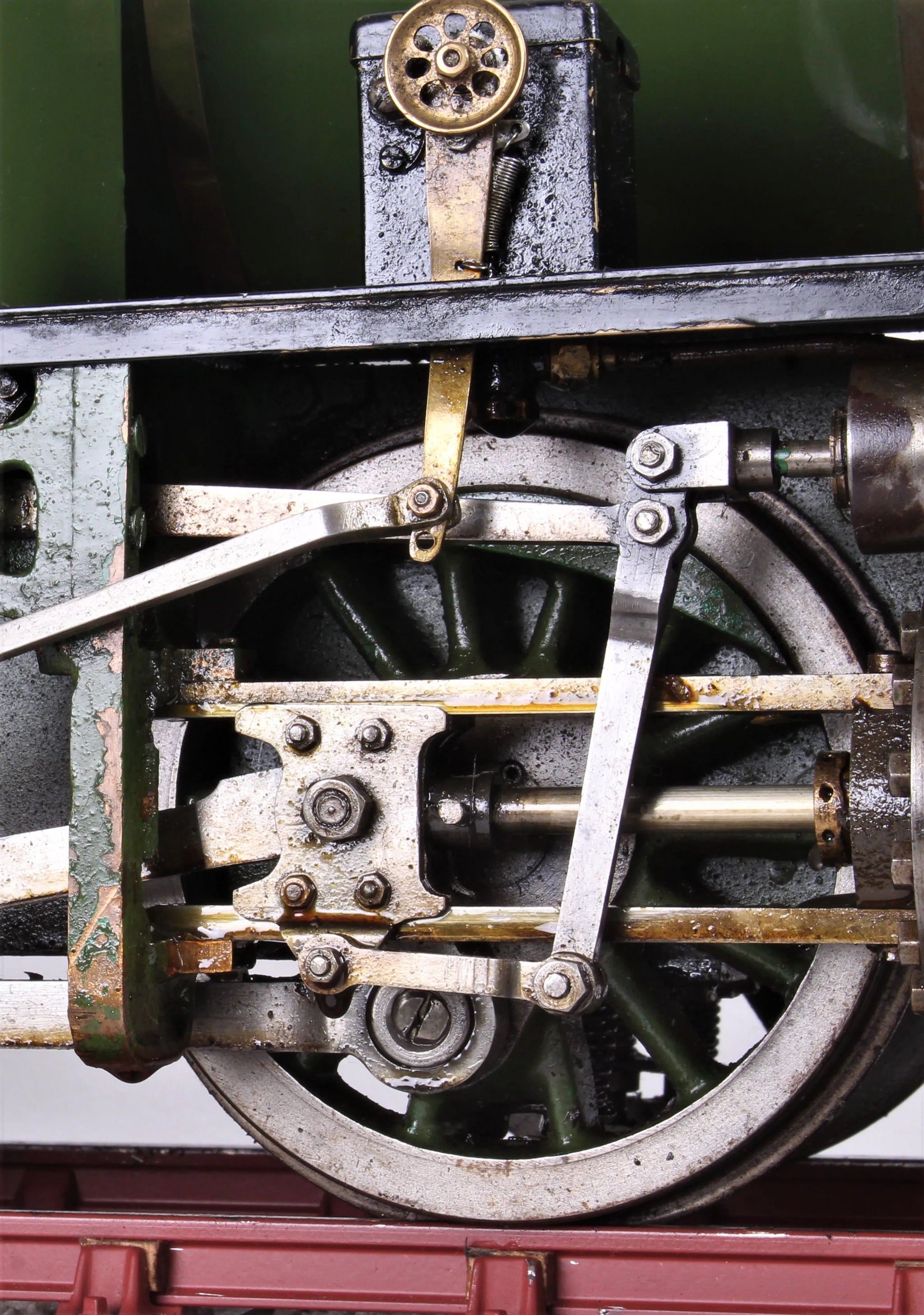

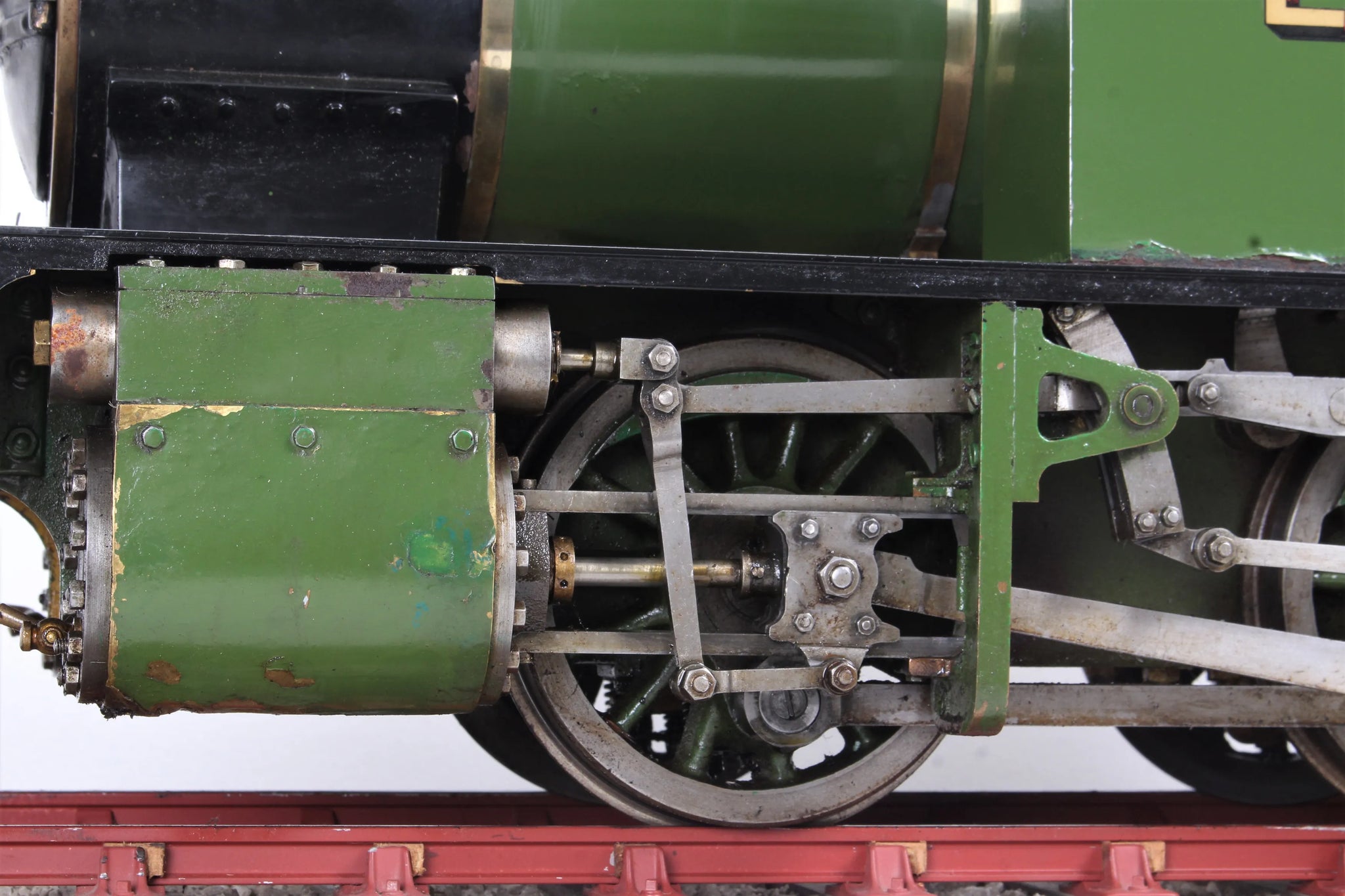

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Castle Boilers

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

n/a - pre-2002

Year built

1988

Boiler number

N24/100/167

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater

0

Date out

Aug-20

Hydraulic test valid to

13-Apr-24

Steam test valid to

13-Jun-21
