Sold

6600

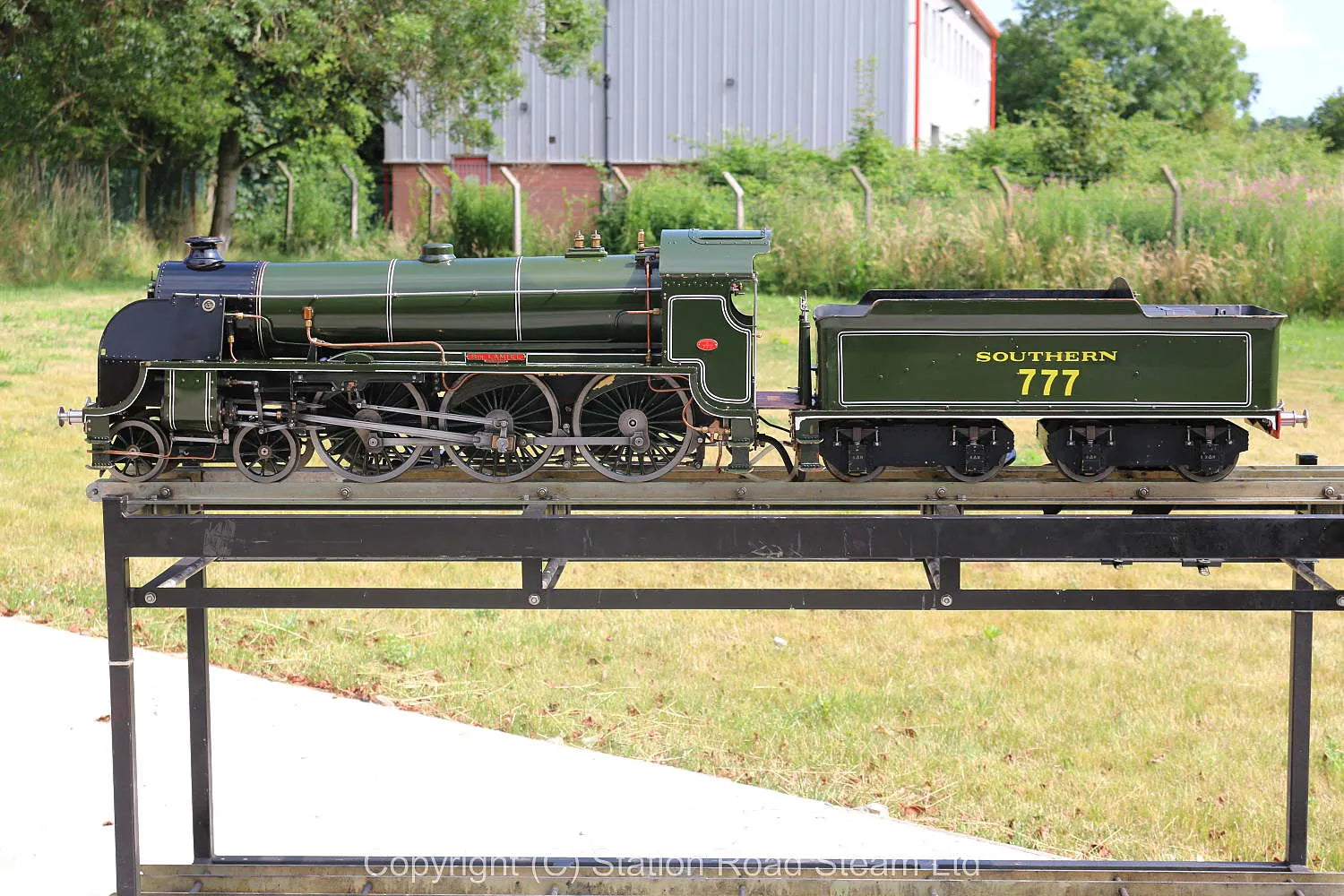

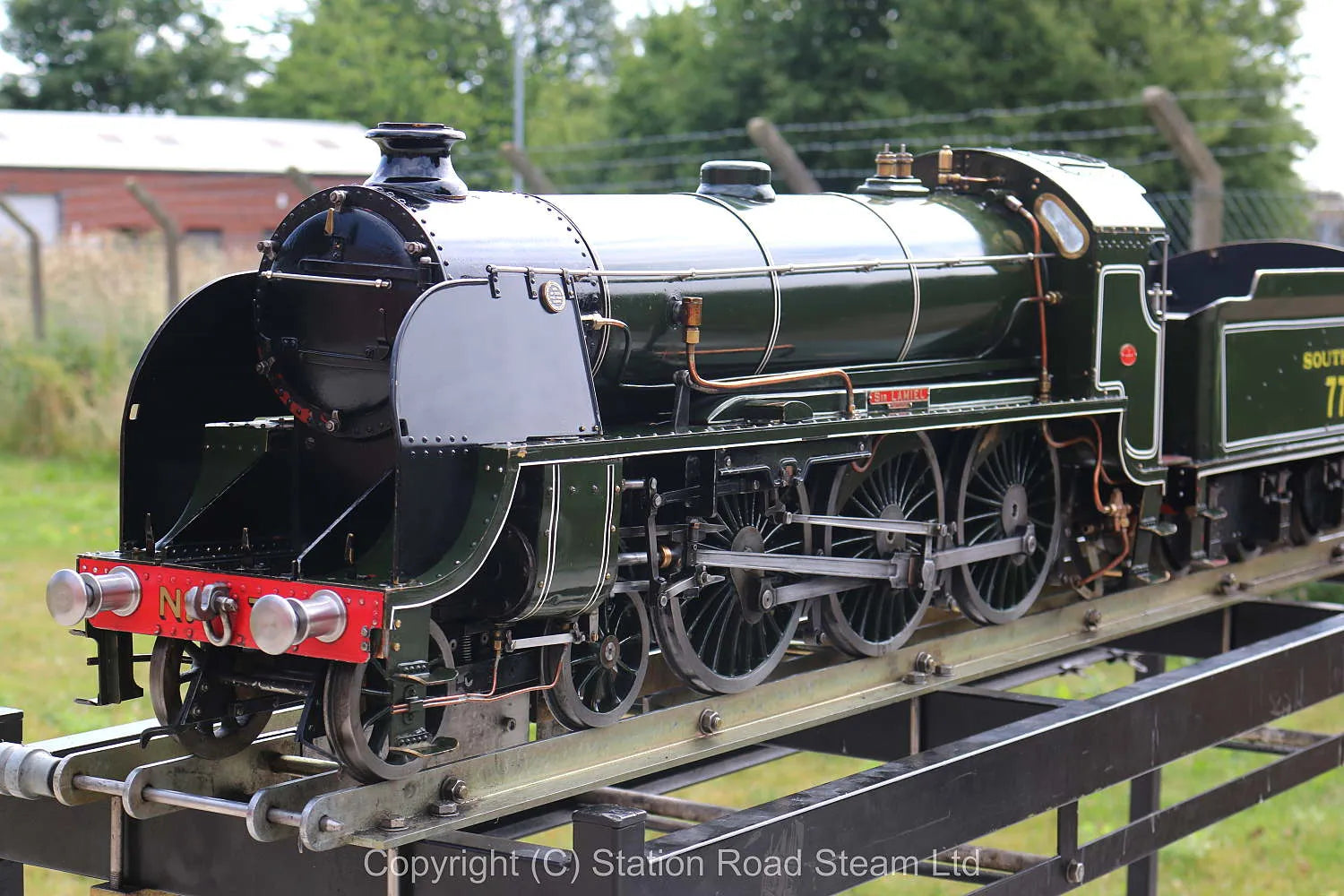

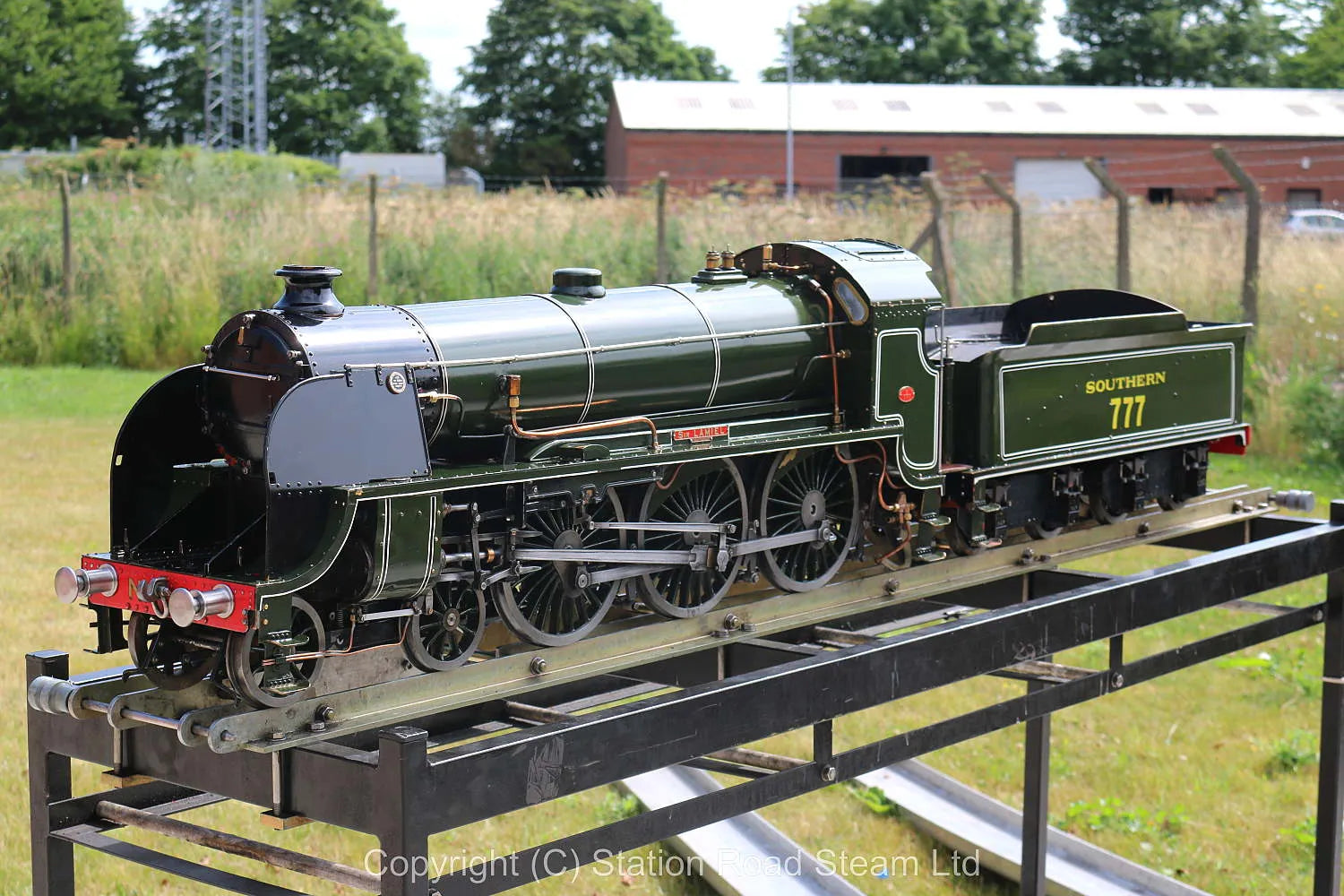

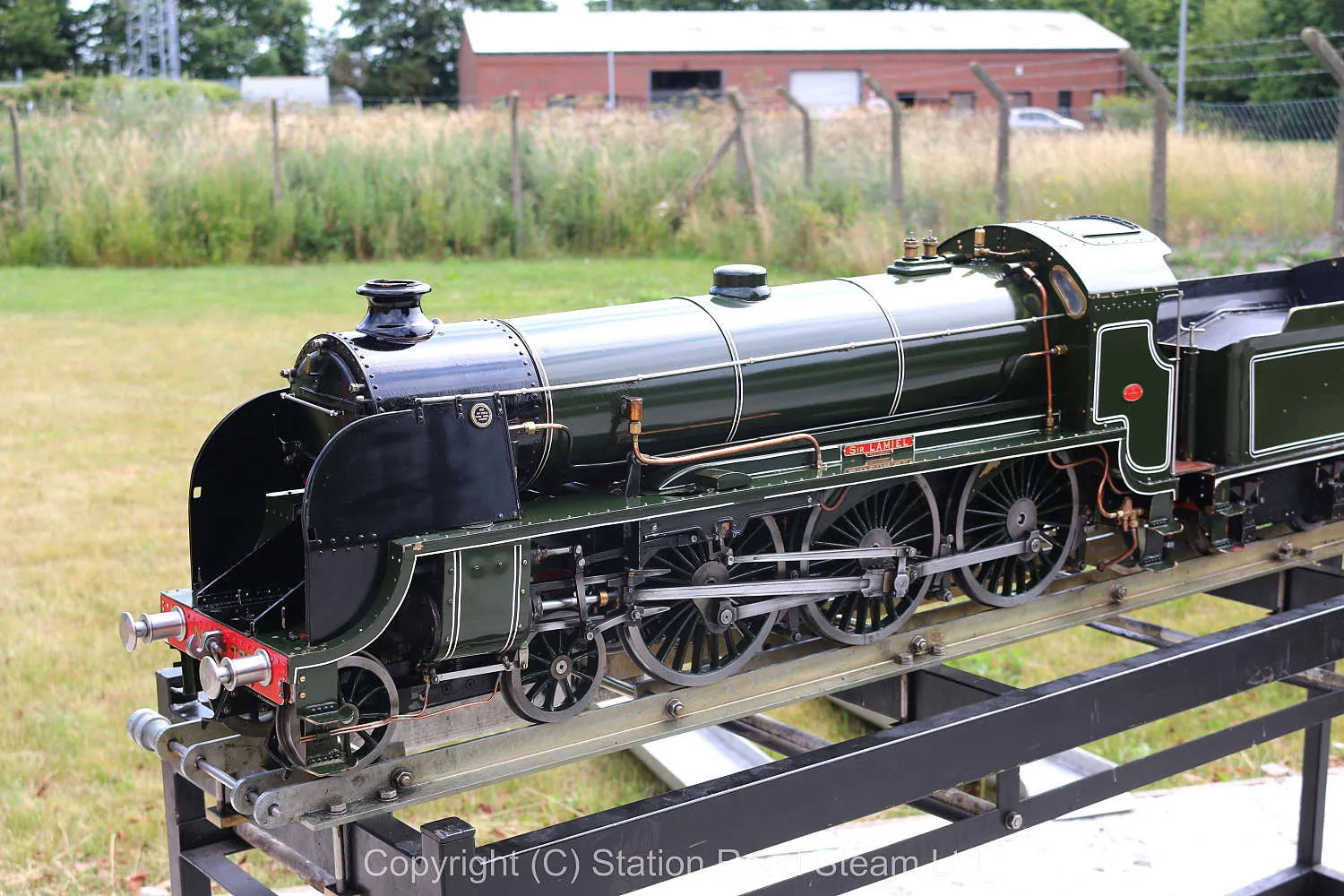

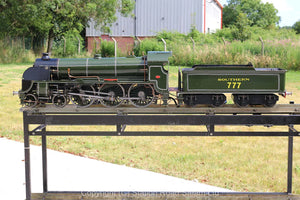

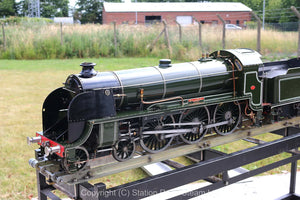

5 inch gauge Southern "King Arthur" 4-6-0

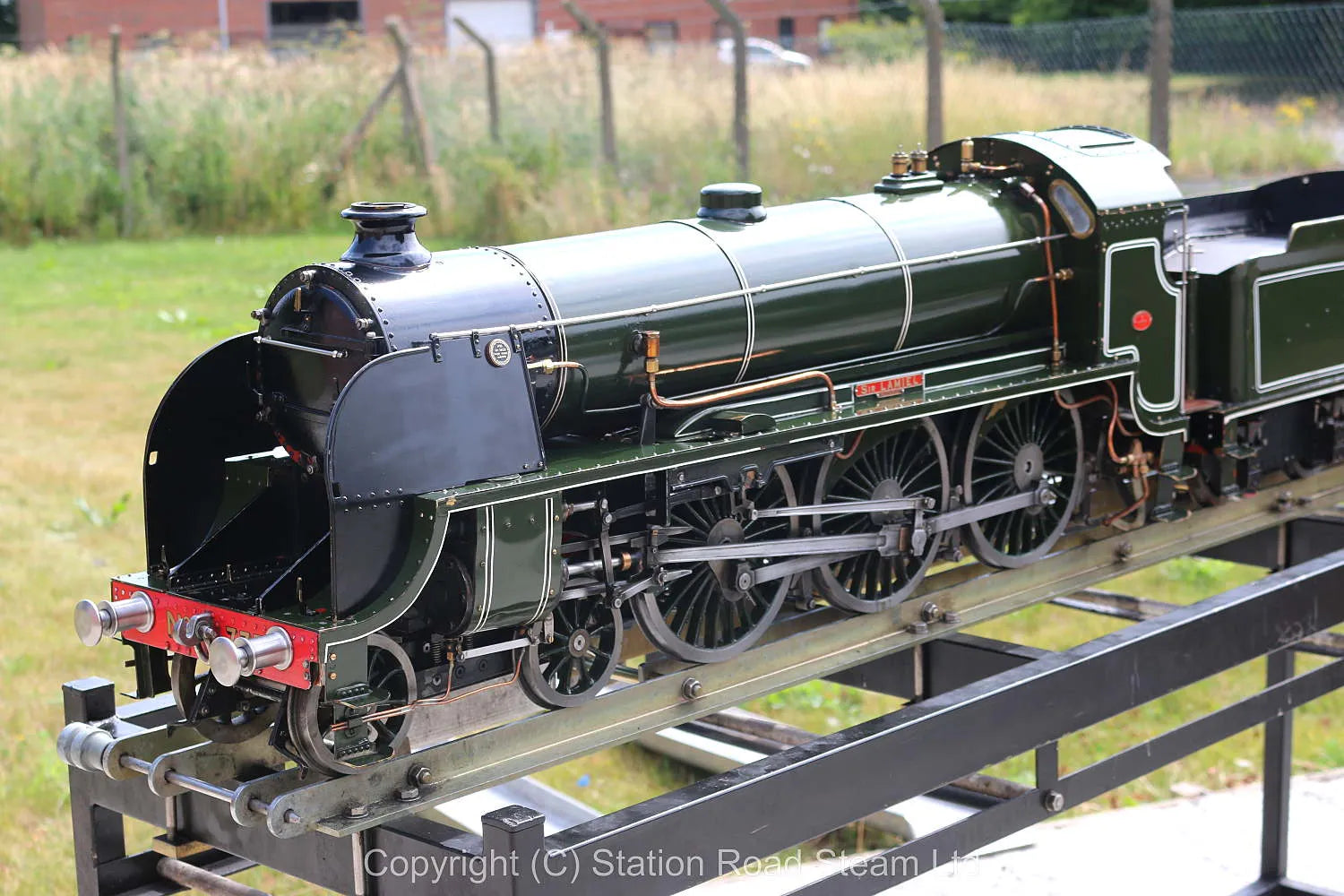

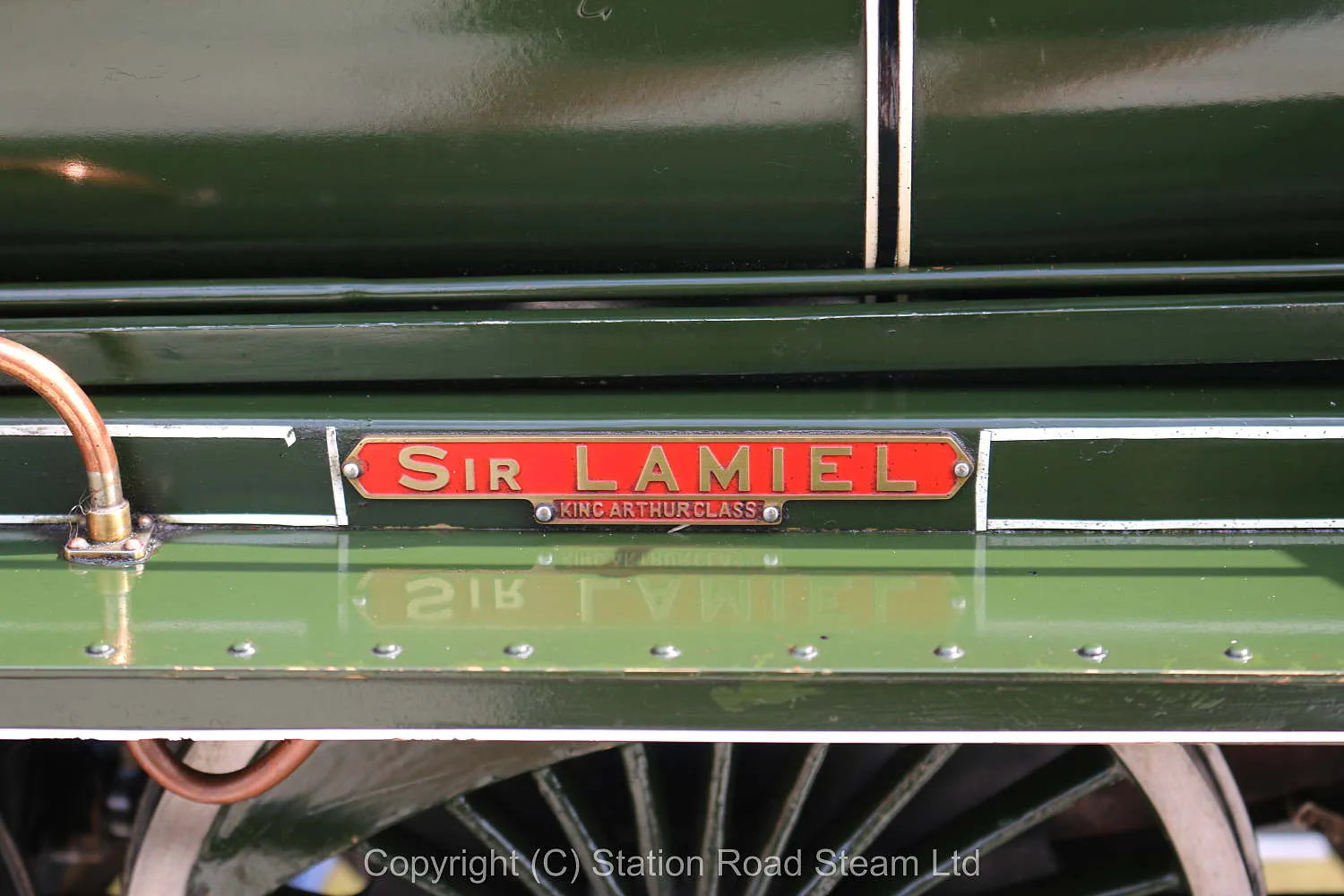

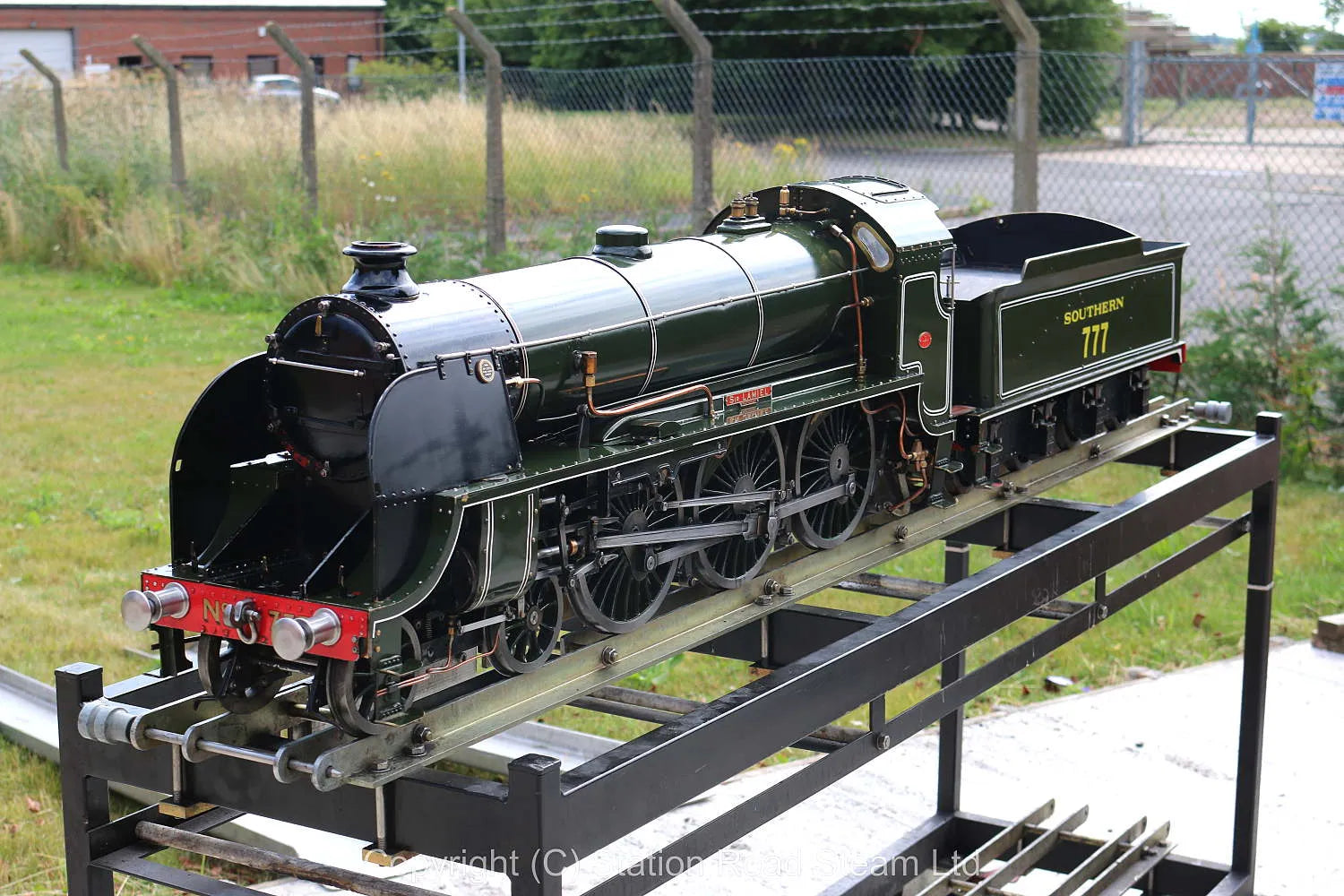

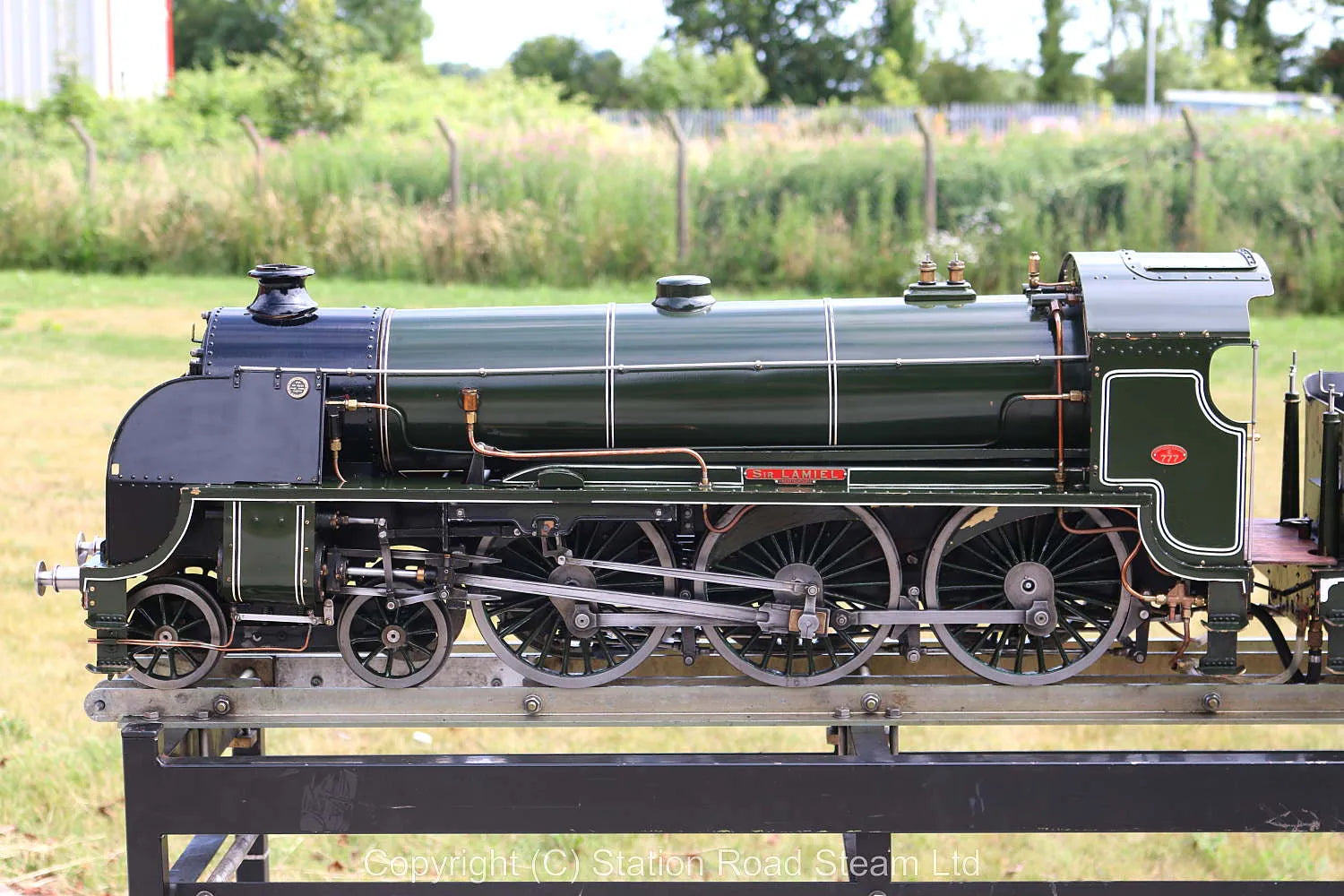

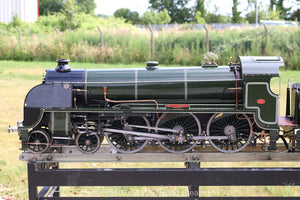

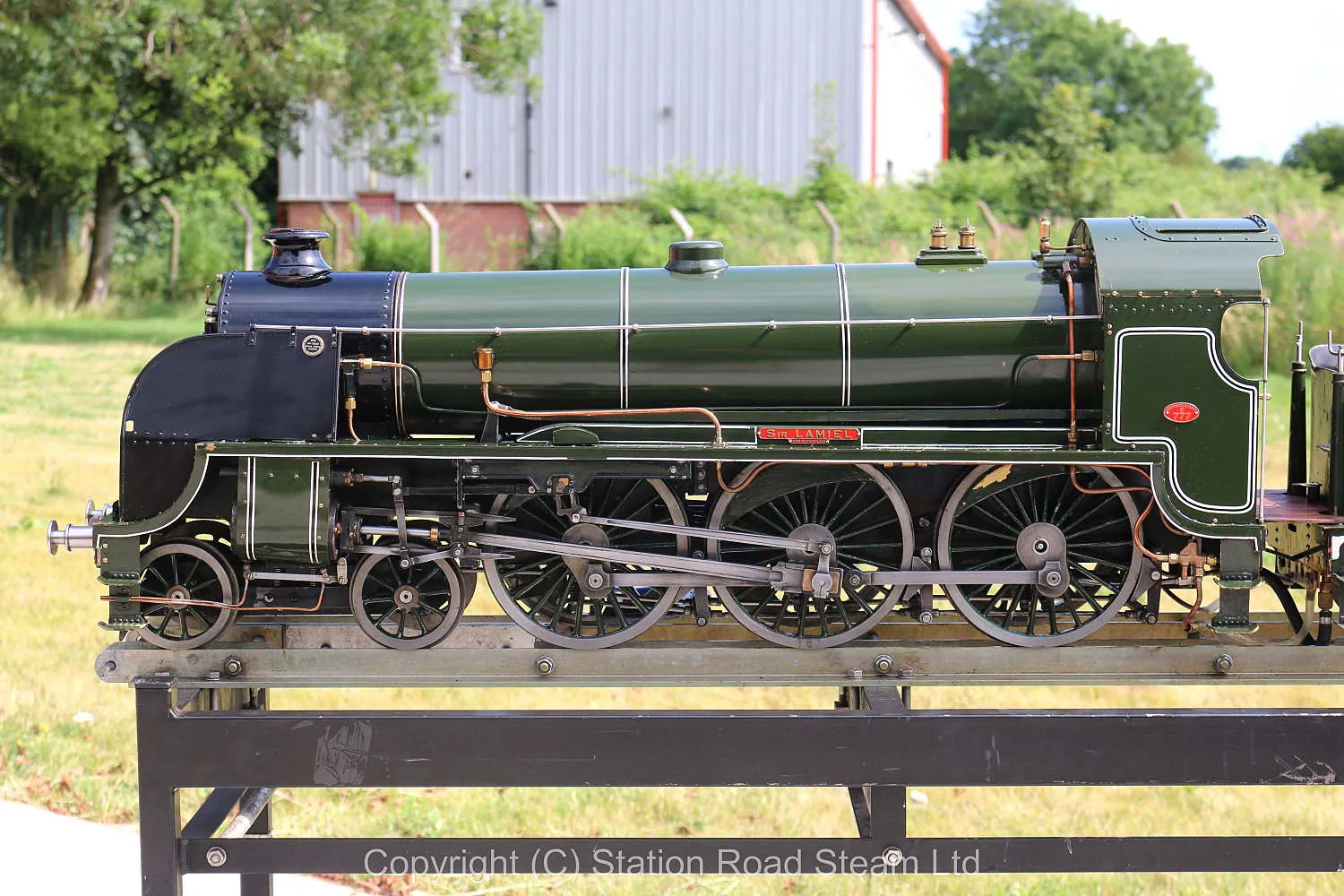

A 5 inch gauge Southern Railway "King Arthur" 4-6-0, turned out as "Sir Lamiel", now preserved as part of the national collection.

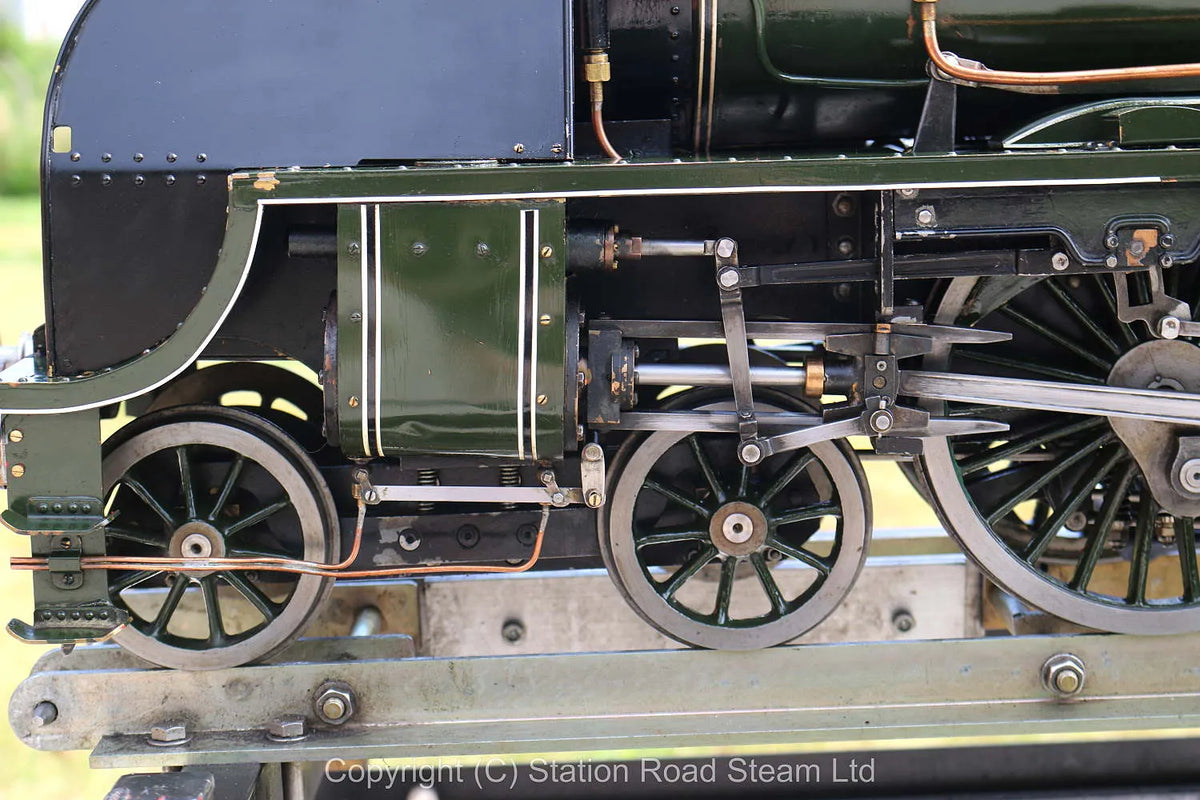

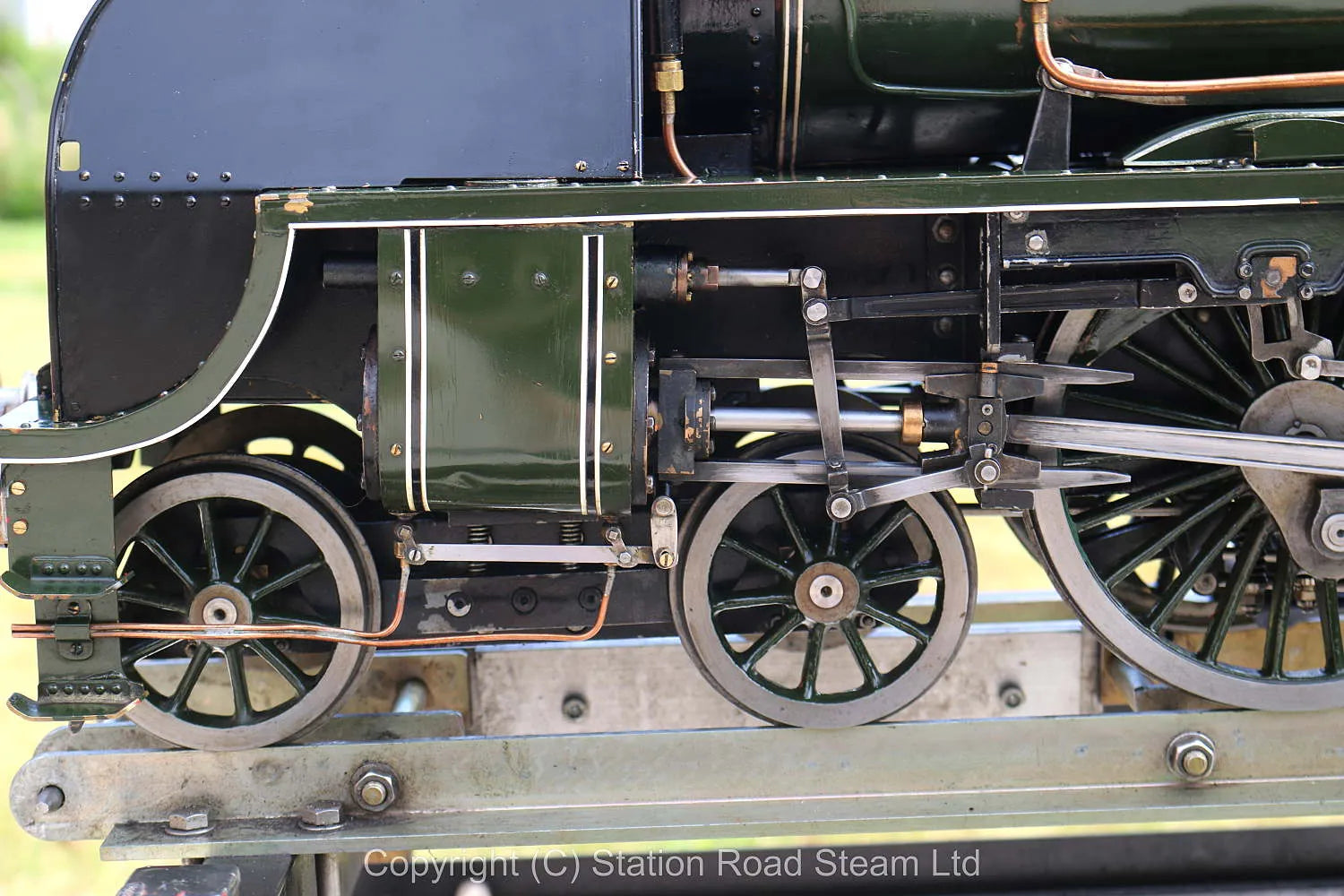

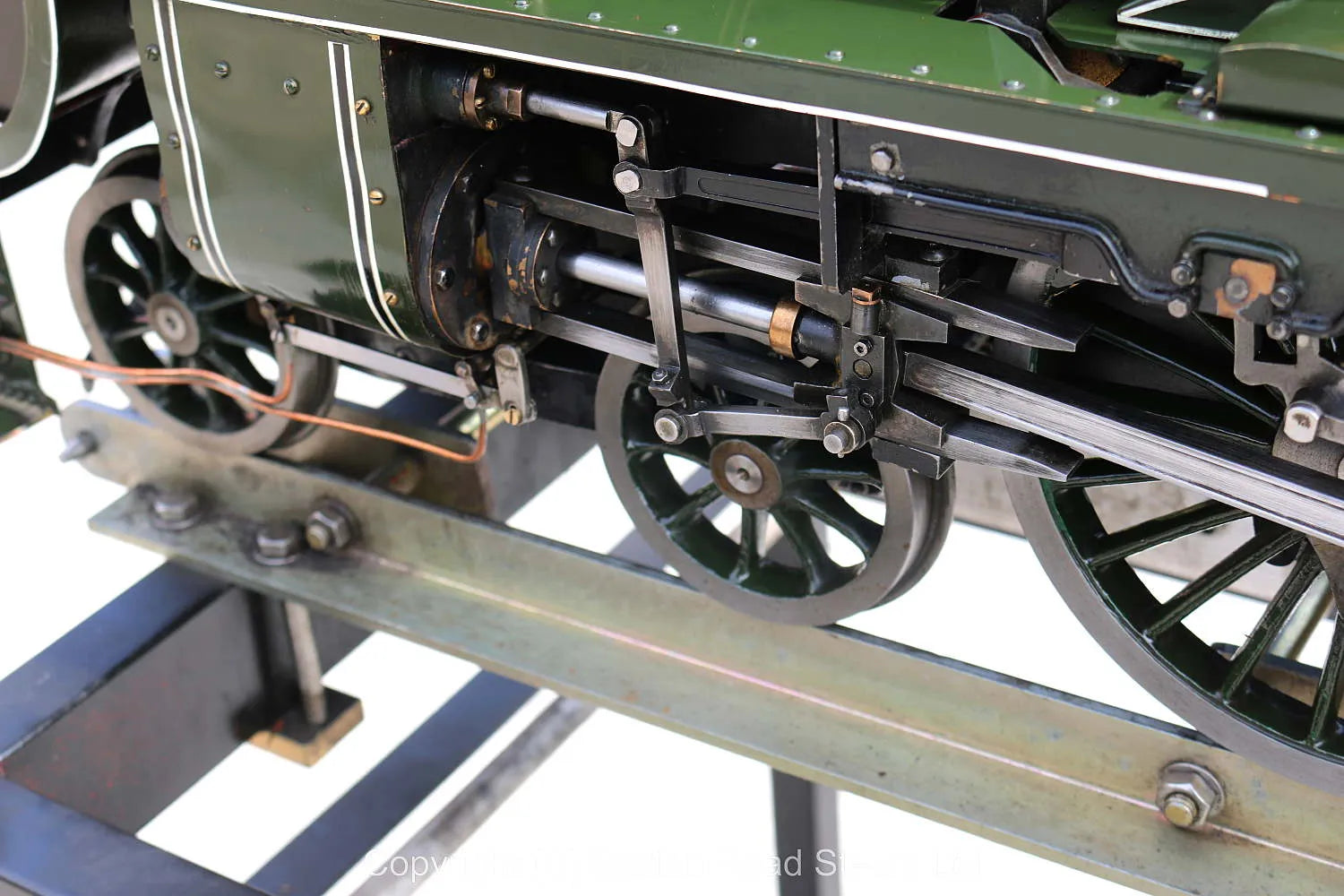

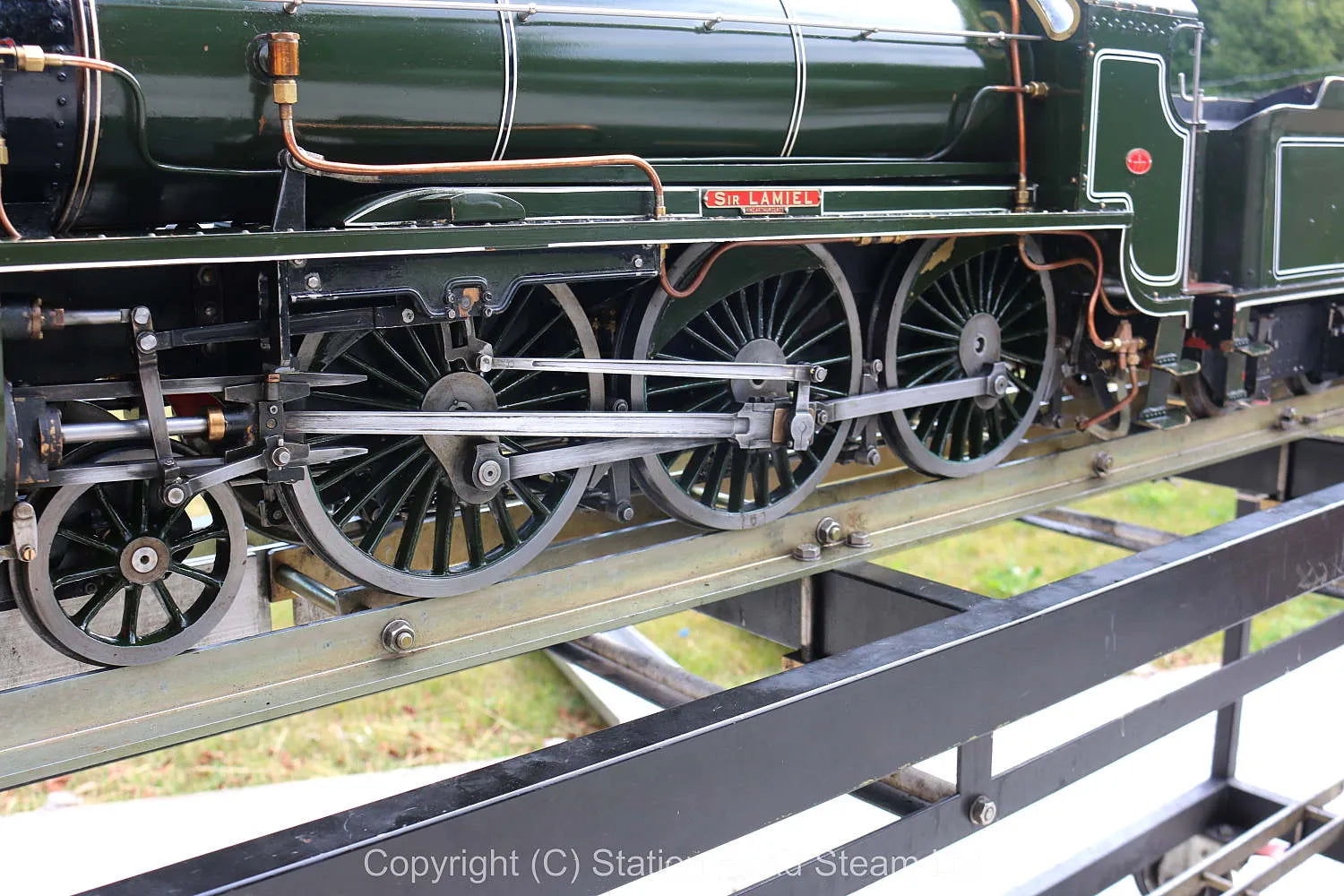

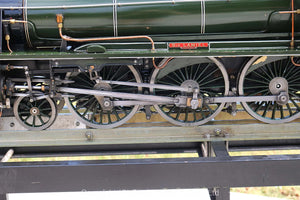

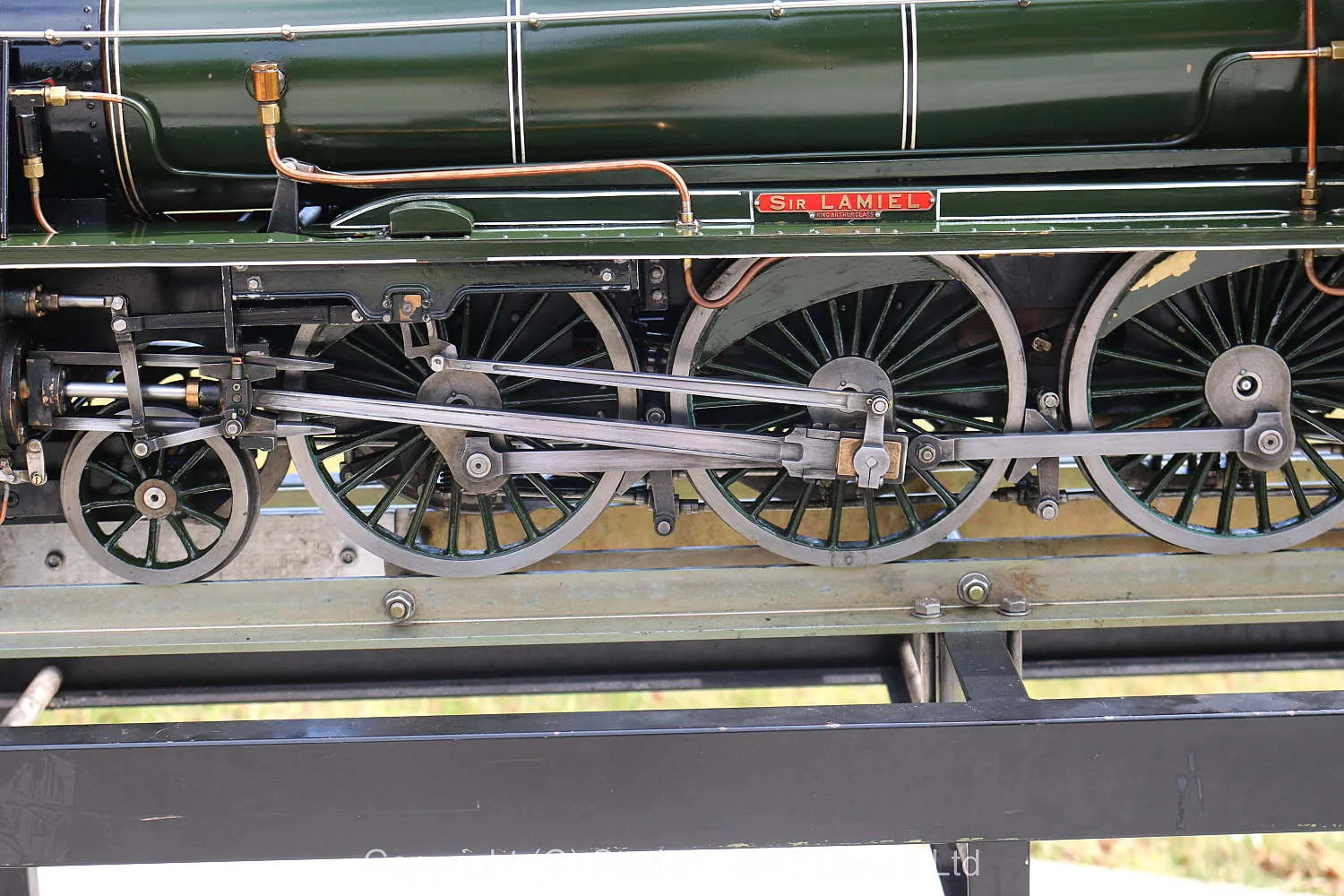

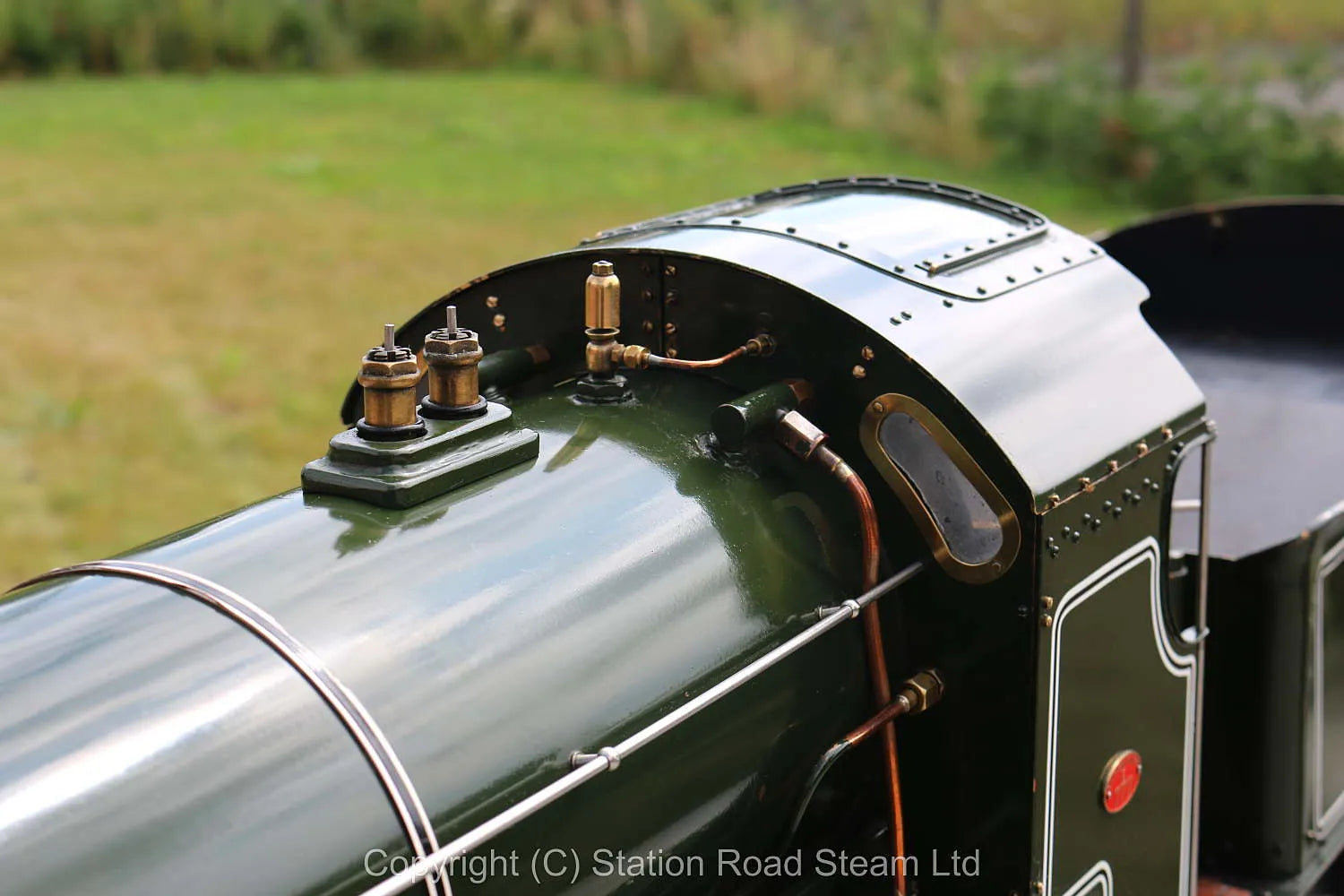

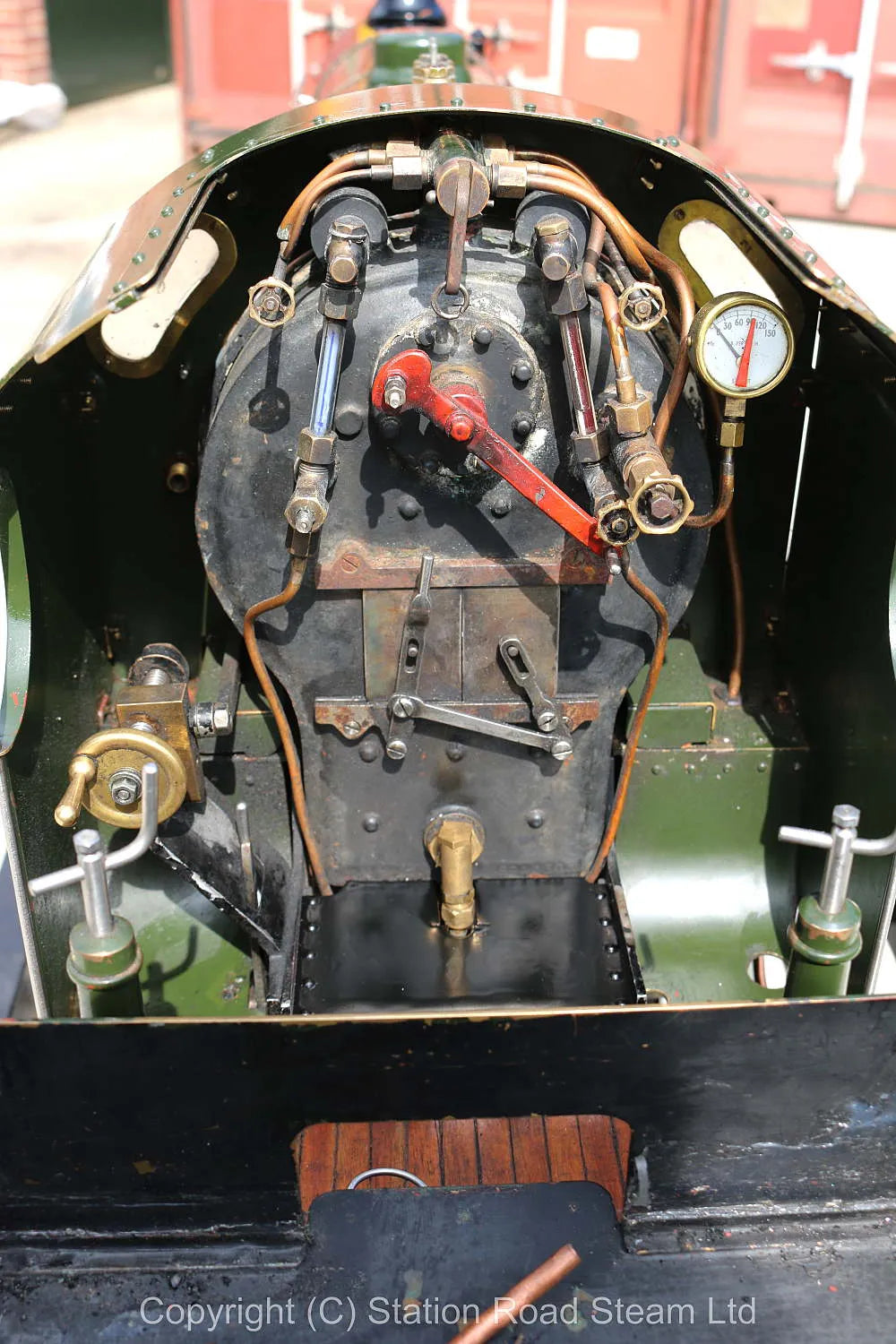

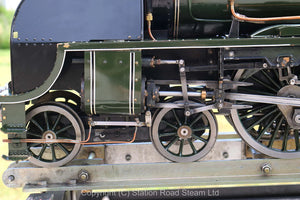

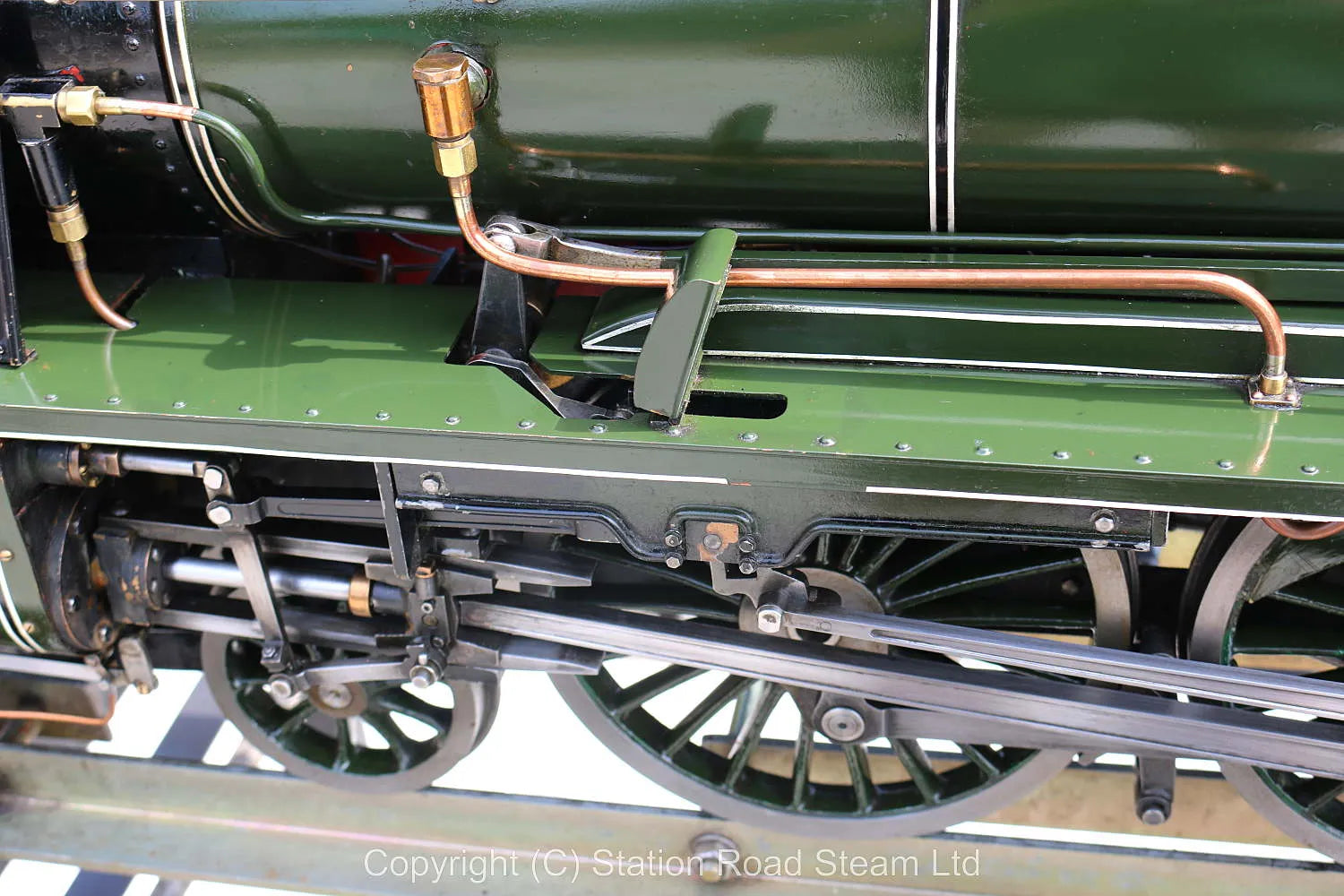

Commercially-built silver soldered copper boiler by Swindon Boilers with three element radiant superheater, 90 psi working pressure, feed by twin injectors with auxiliary hand pump in the tender - there is an axle pump fitted but no longer piped in circuit, although it could be reinstated. Cast iron cylinders with slide valves actuated by Walschaert's gear with screw reverser in cab, mechanical lubricator between the frames with extension pipe for filling it on the nearside running board.

No idea why so few Southern engines are modelled compared to the other three regions - they produced many handsome designs over the years with designs like the "King Arthur" providing a large, powerful prototype for a 5 inch gauge model.

Technical information

Stock code

6600

Gauge

5 inch

Length/inches

42 + 30

Wheel material

cast iron

Cylinder material

cast iron

Valve type

piston

Valve gear

Walschaerts

Reverser type

screw

Boiler maker

Swindon Boilers

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

Year built

1998

Boiler number

981130

Safety valve type

spring

Safety valve

2

Fusible plug

no

Hand pump

1

Injector

2

Date out

Dec-15
