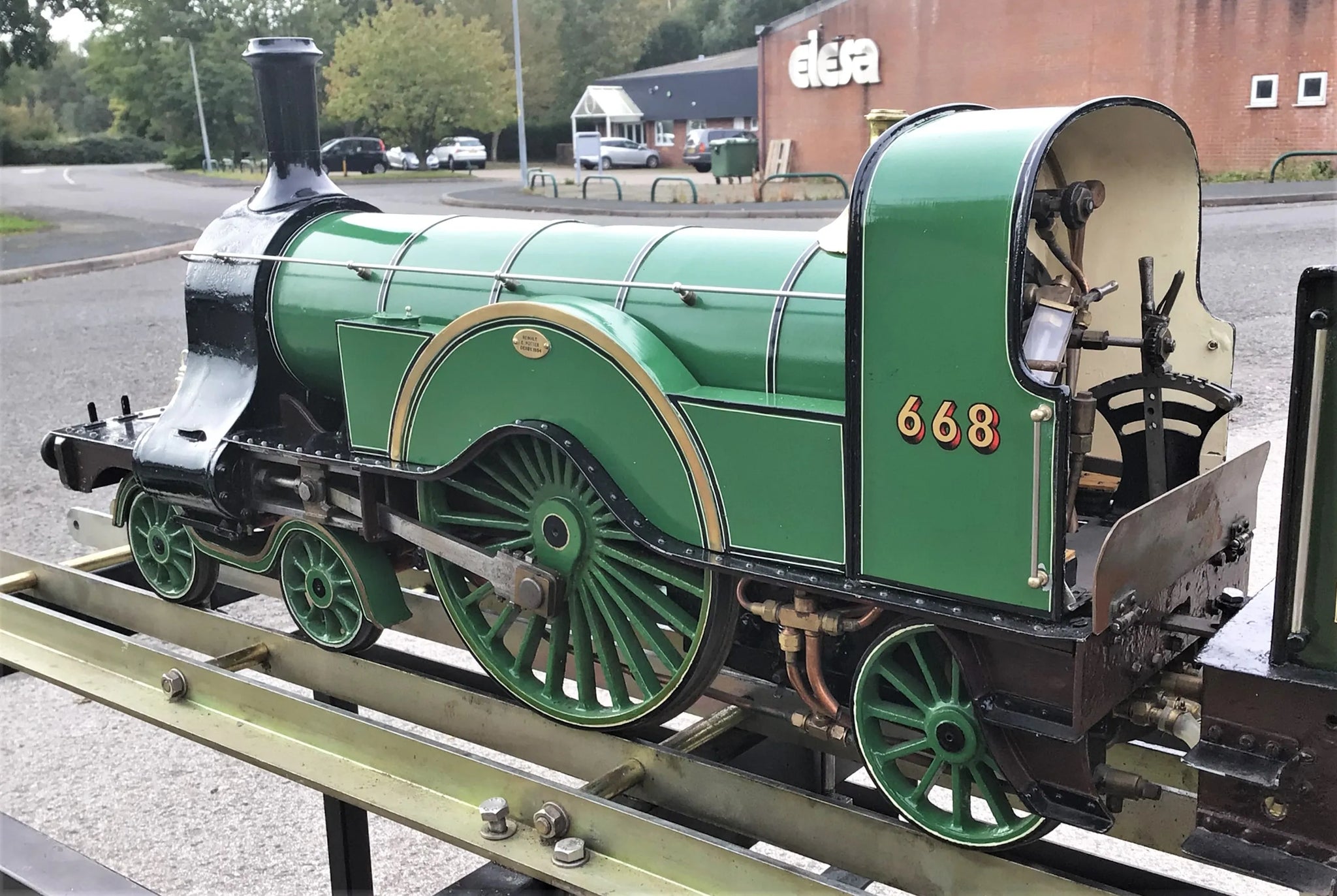

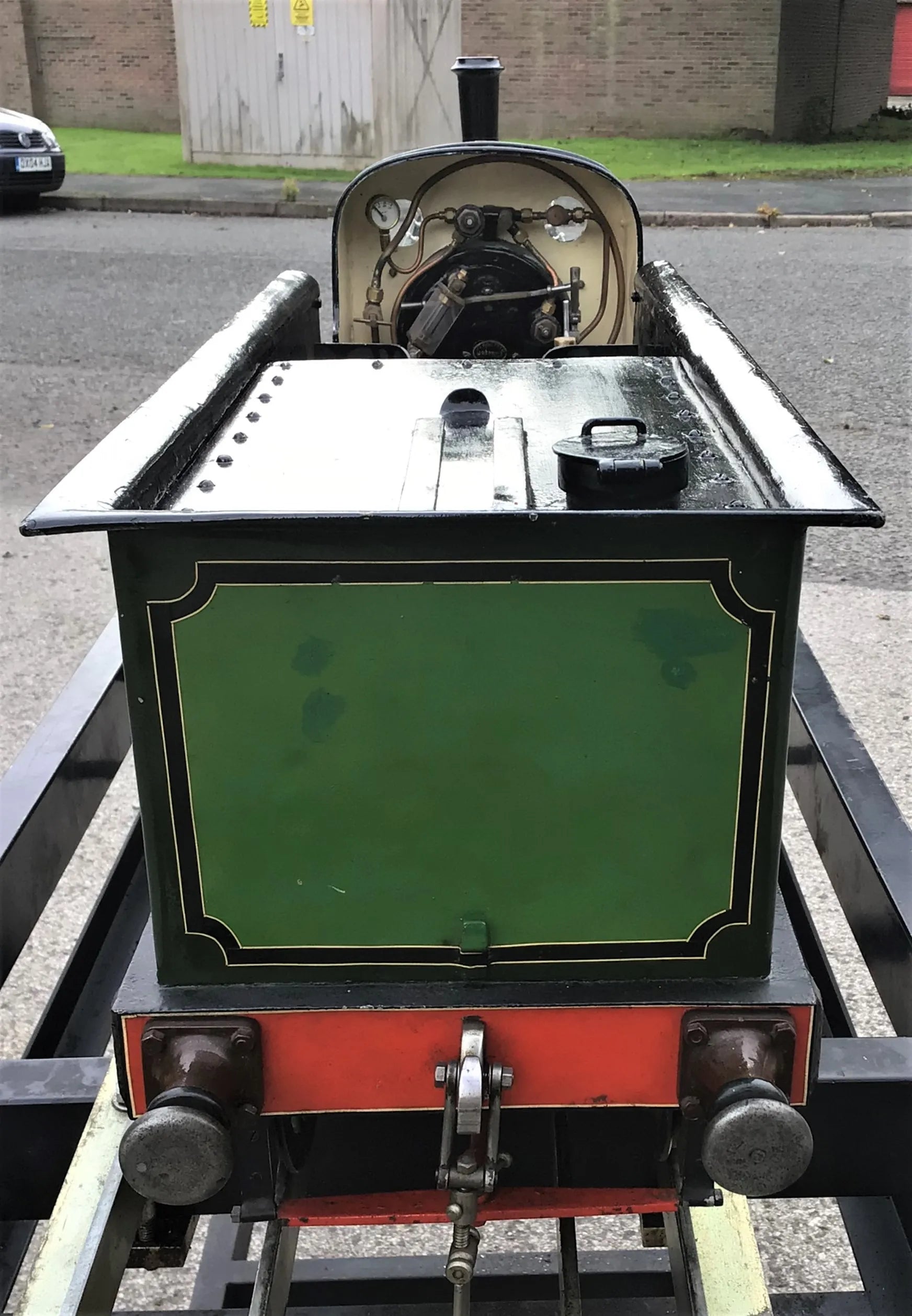

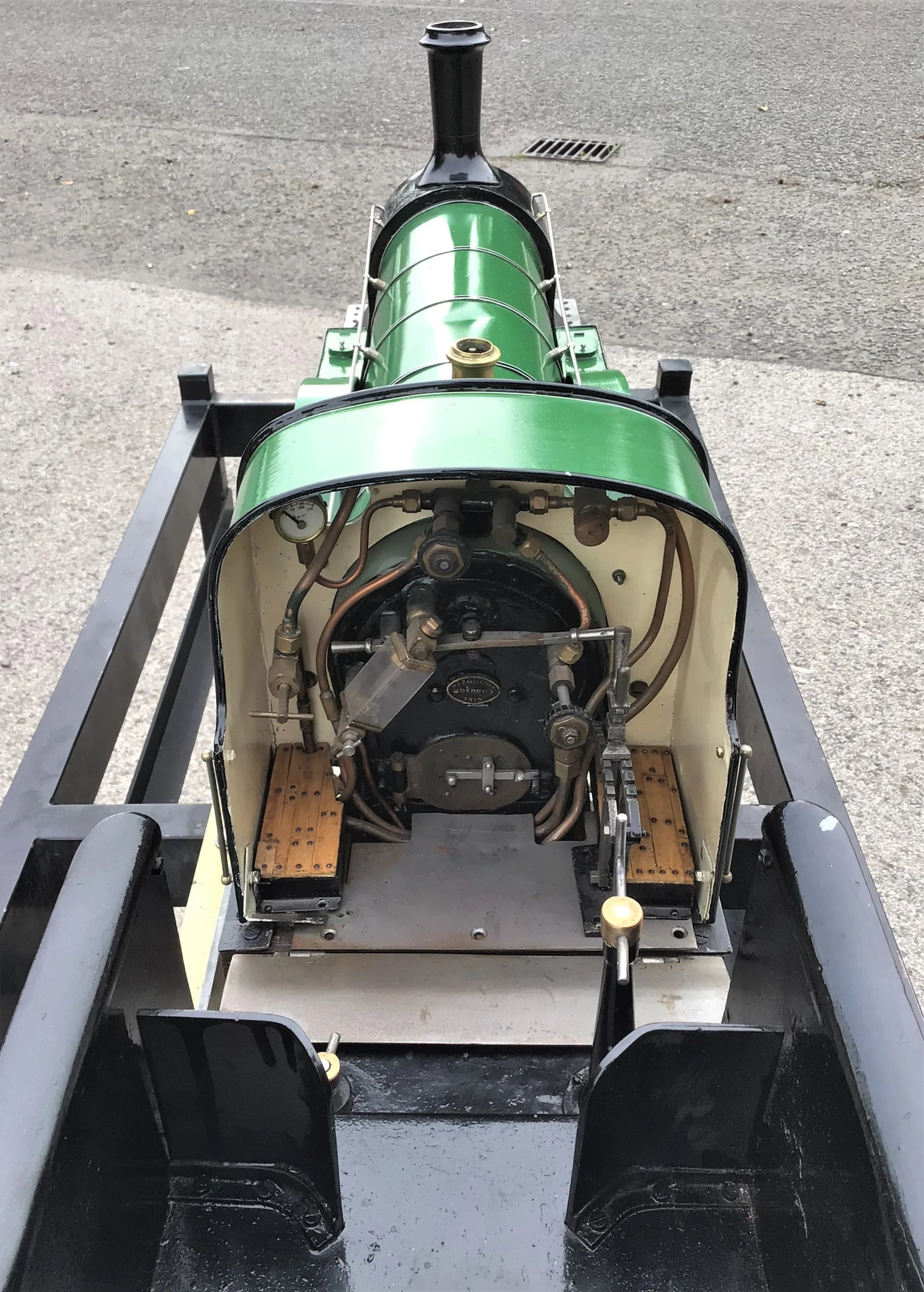

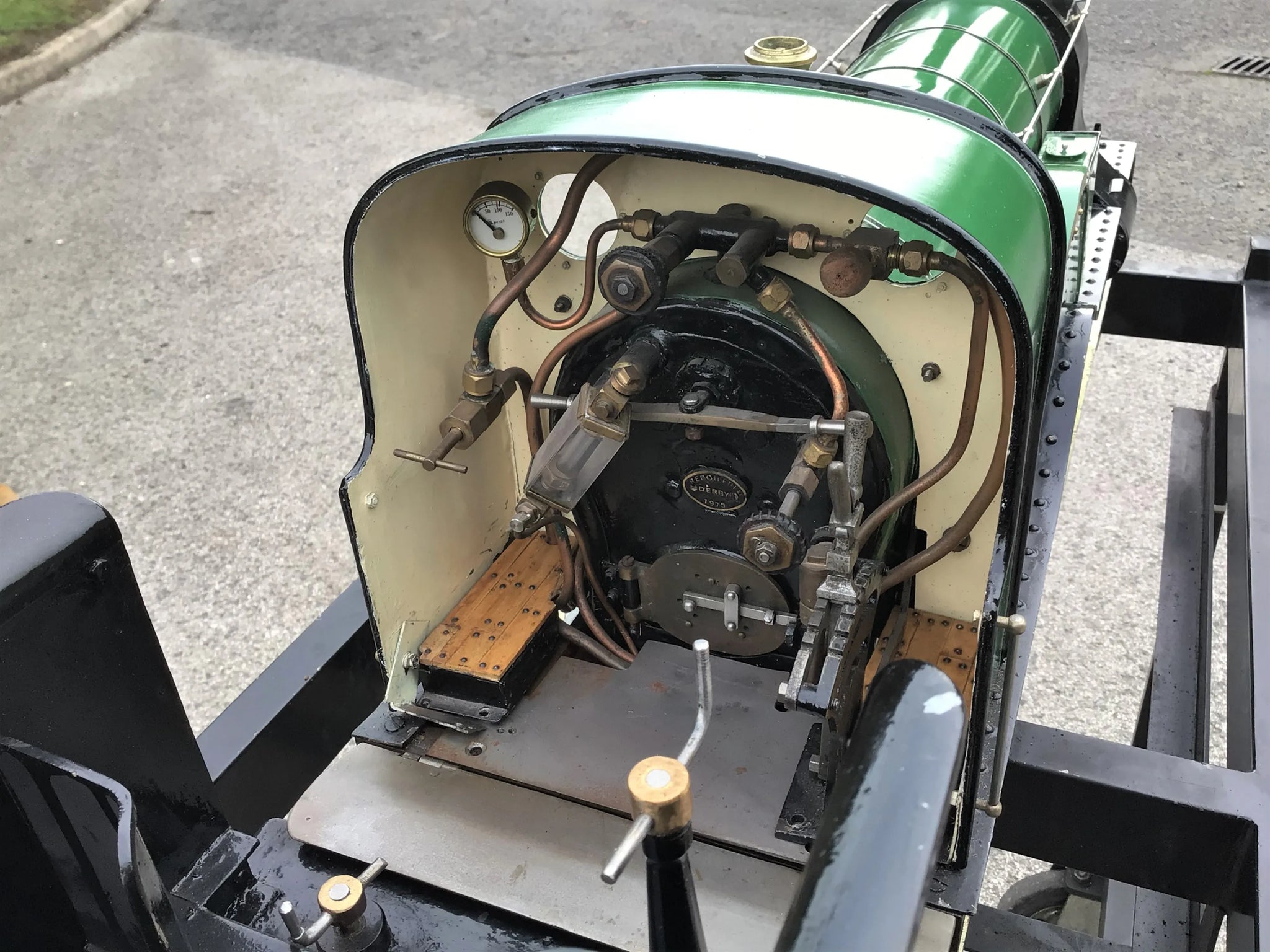

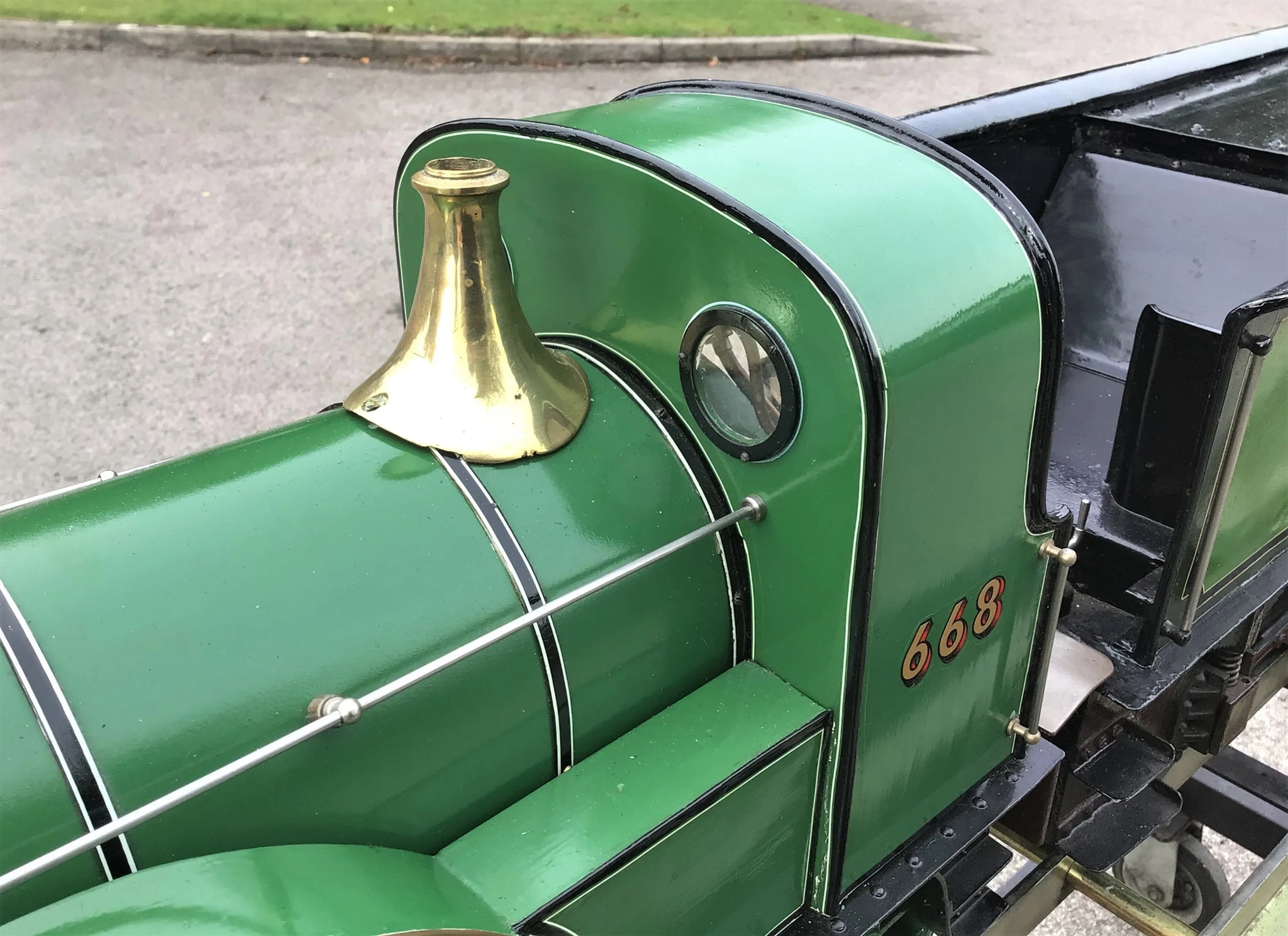

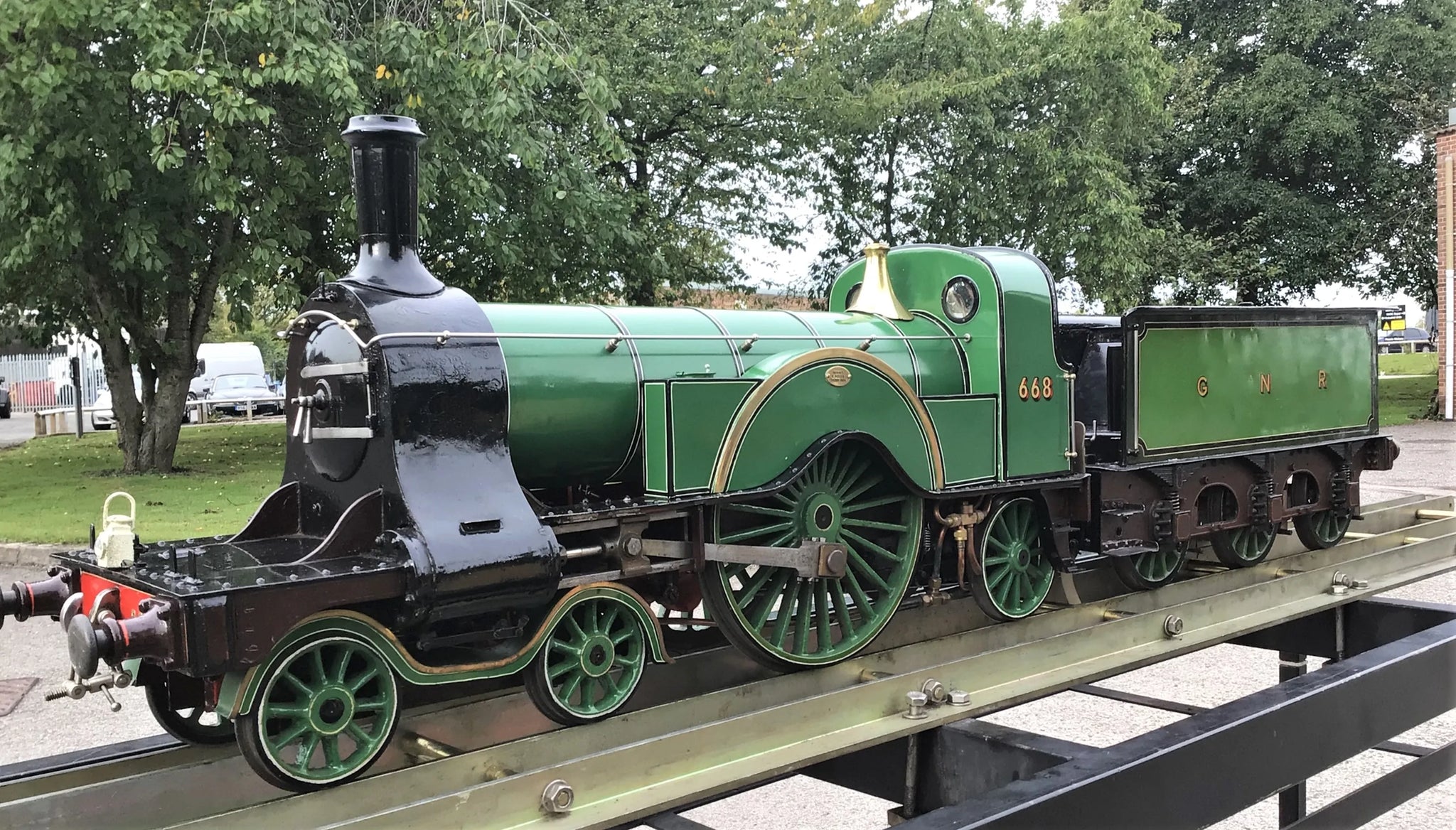

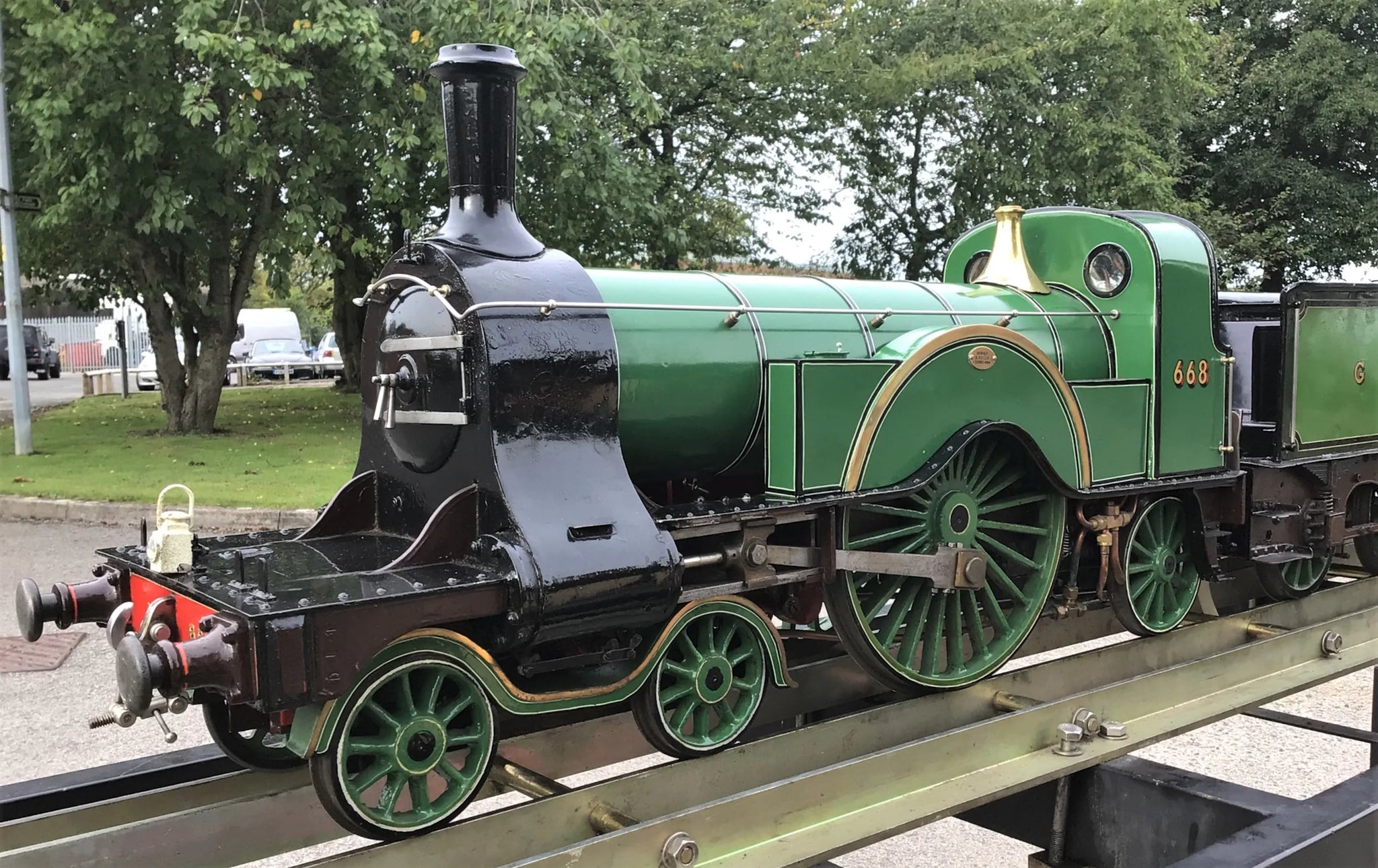

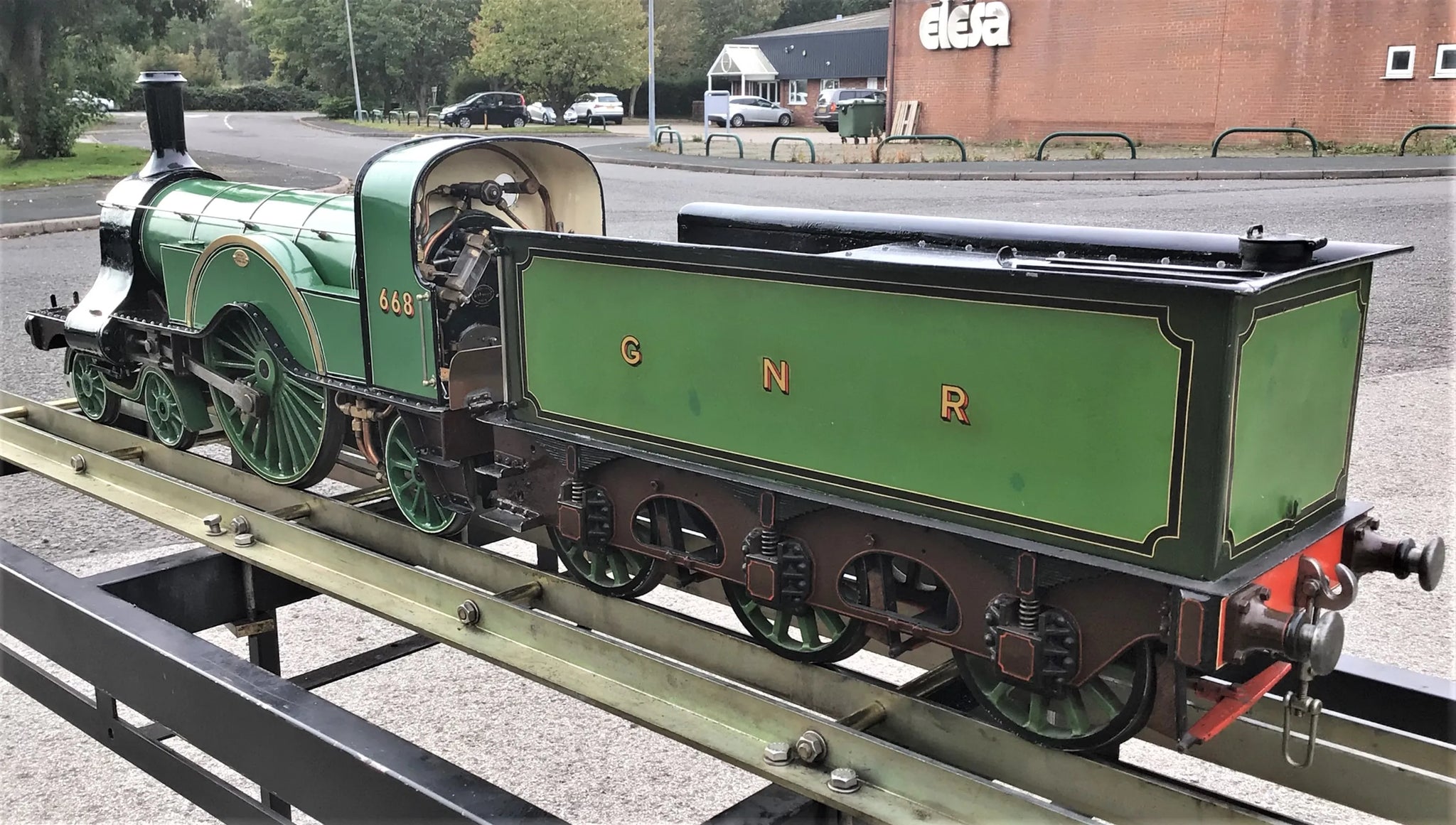

5 inch gauge Stirling 8 foot single

A 5 inch gauge Stirling 8 foot single, an old engine with interesting history.

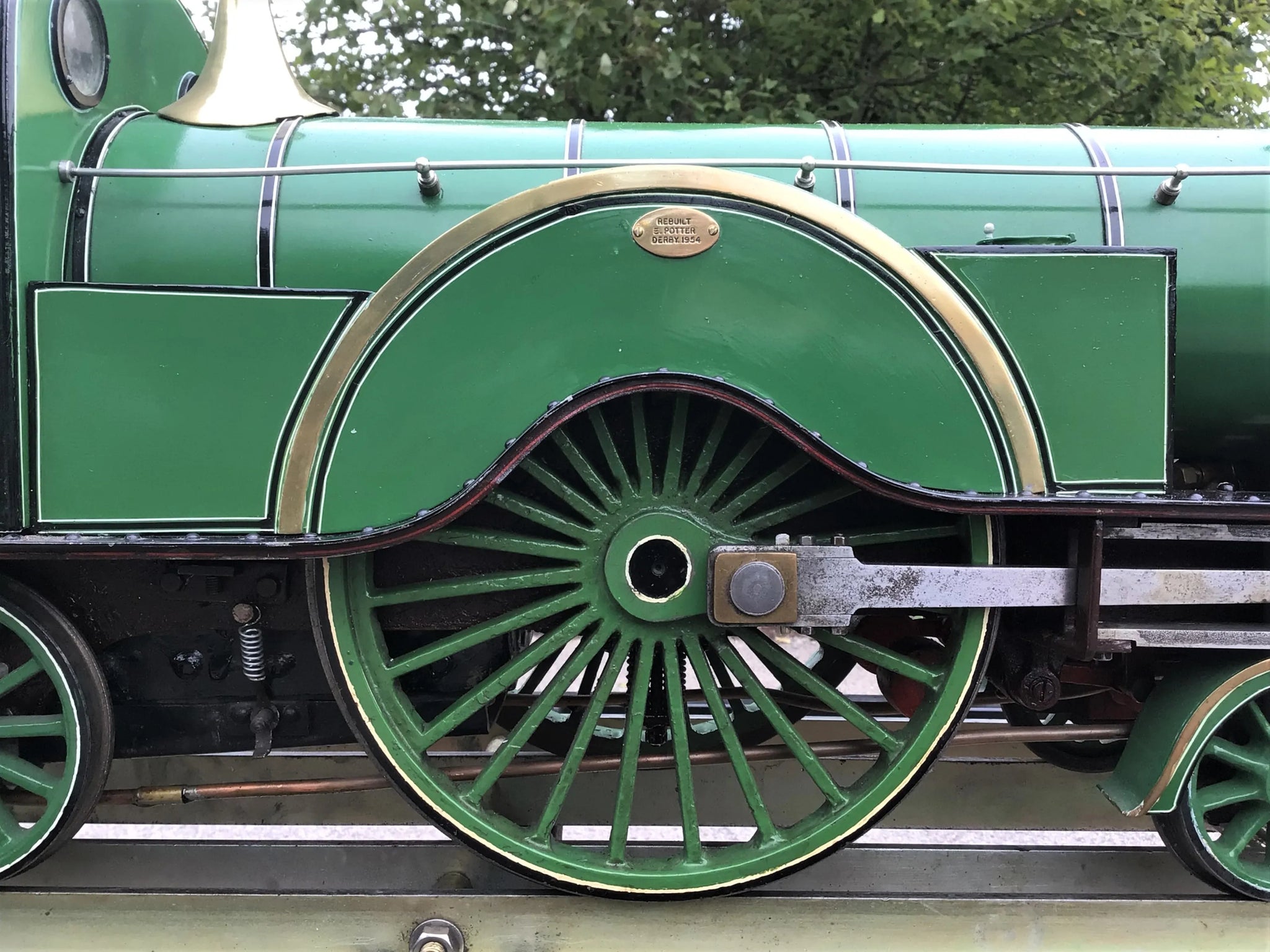

It was bought by the last owner's grandfather in Liverpool shortly after the war and subsequently rebuilt by his father in 1954 - the splashers bear brass plates recording the rebuild. A new boiler was made and fitted at that time, the engine hasn't been steamed since.

Unused in many years, it's come to us from the son of the man who rebuilt it in 1954 - both his father and grandfather built engines, several of which came to us as part of the same collection recently.

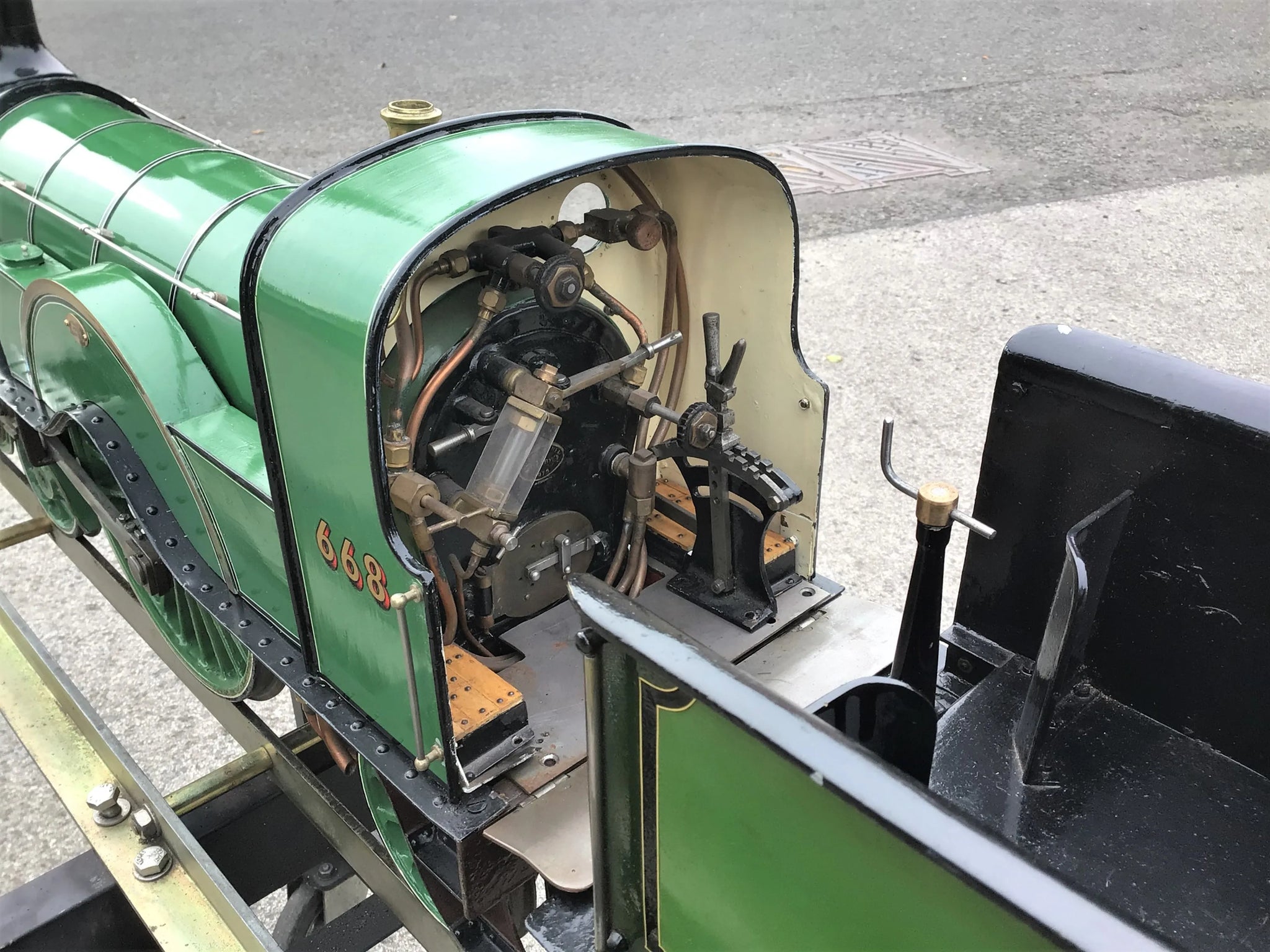

The engine rolls along freely and, after a liberal oil around, ran on air in both directions. The pole reverser is currently loose on the footplate and requires bolting down and reconnecting to the reach rod.

Technical information

Stock code

9230

Gauge

5 inch

Length/inches

30 + 22 1/2

Width/inches

8

Height/inches

15

Wheel material

cast iron

Axlebox type

plain bearing

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Safety valve

1

Hand pump

1

Mechanical pump

1

Injector

1

Date out

Oct-20
