5 inch gauge "Sweet Pea" 0-4-0ST

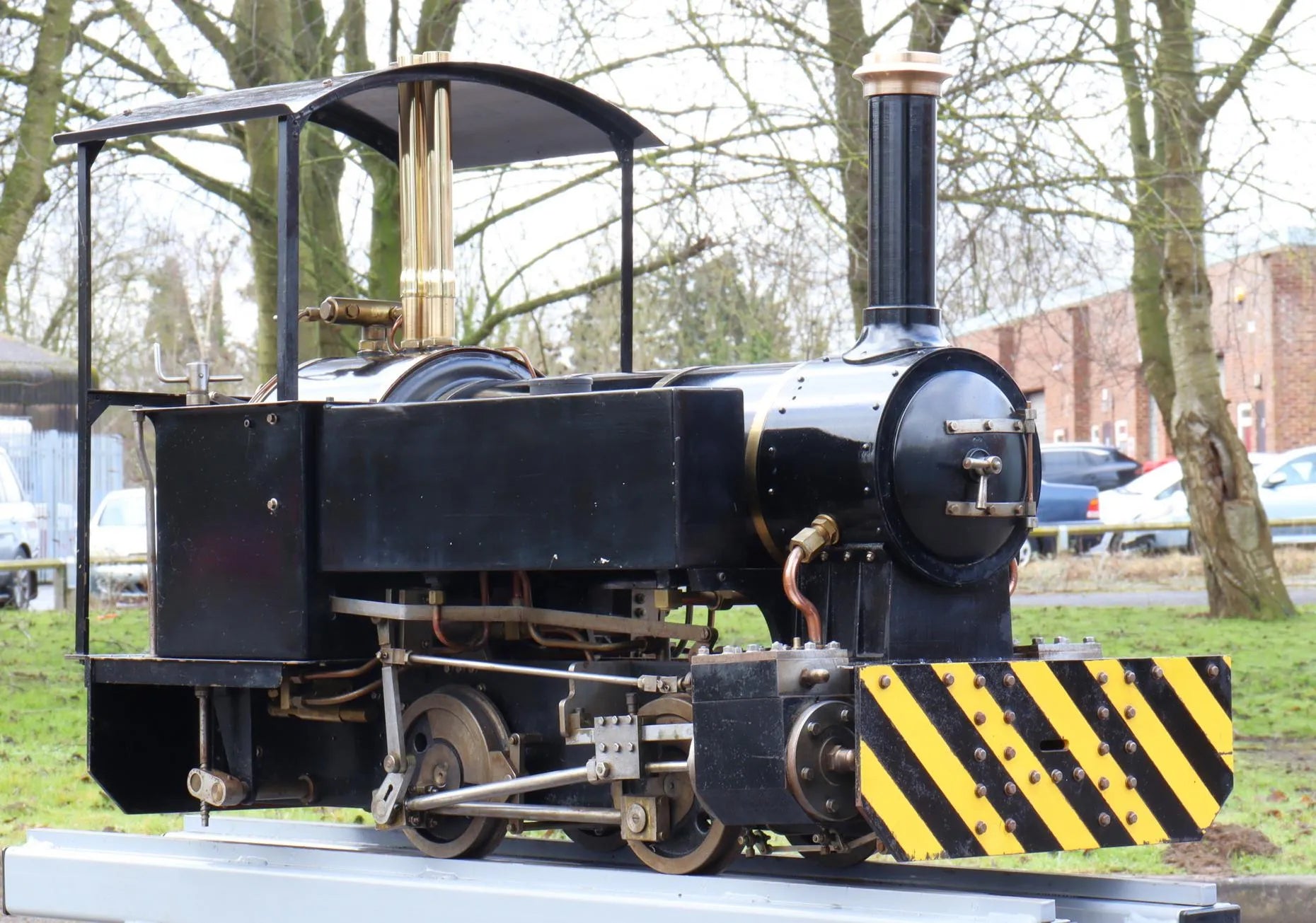

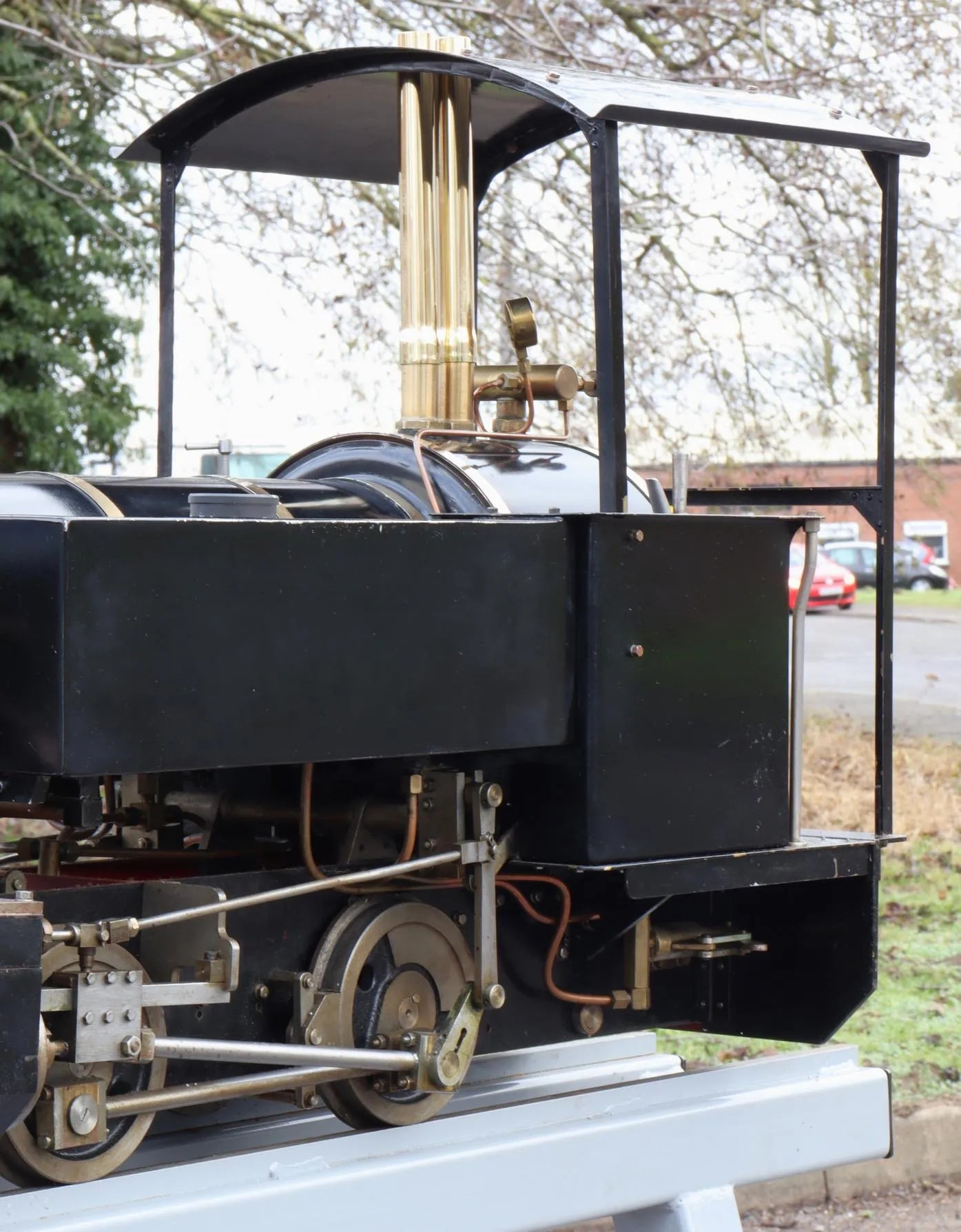

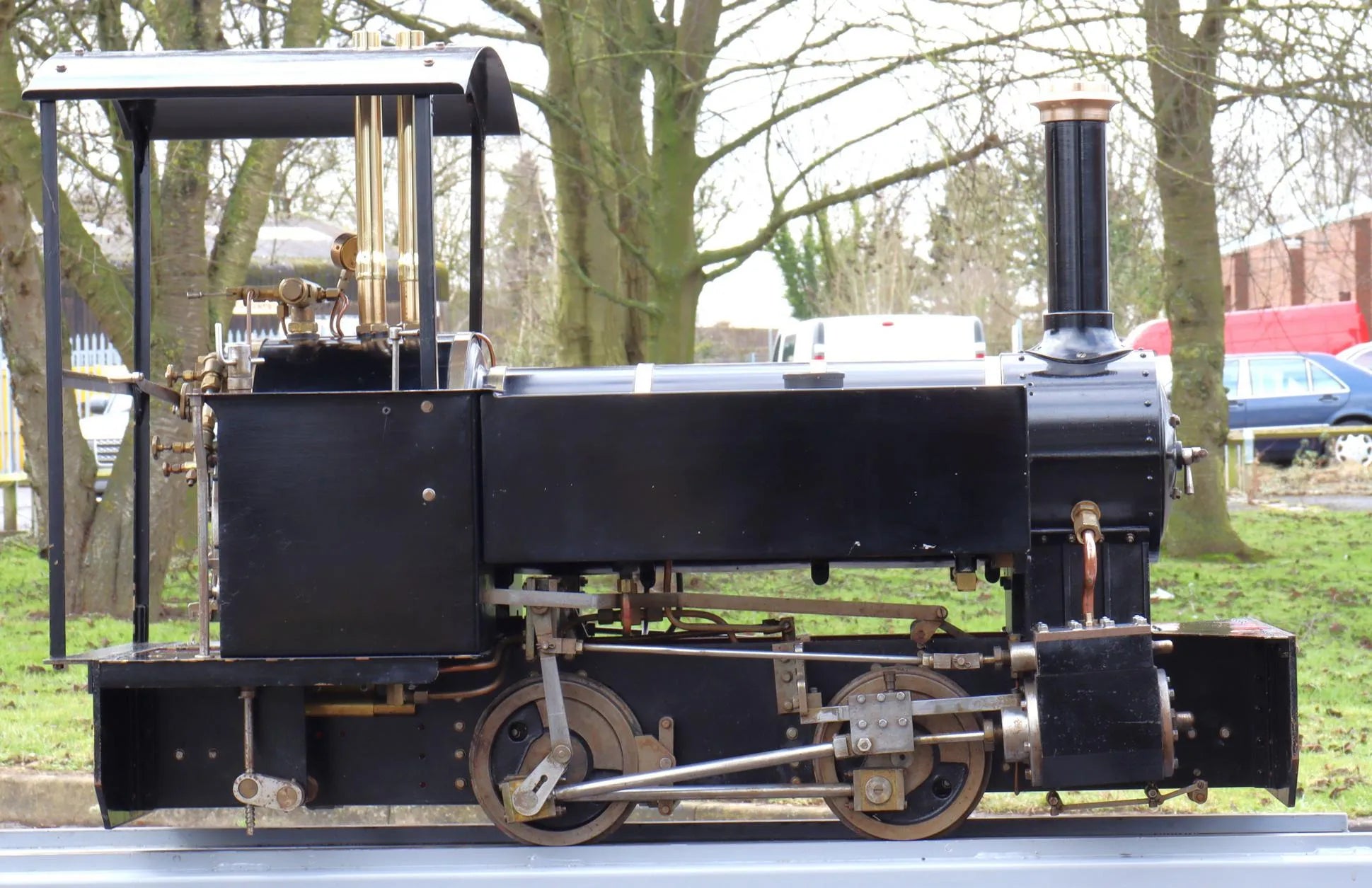

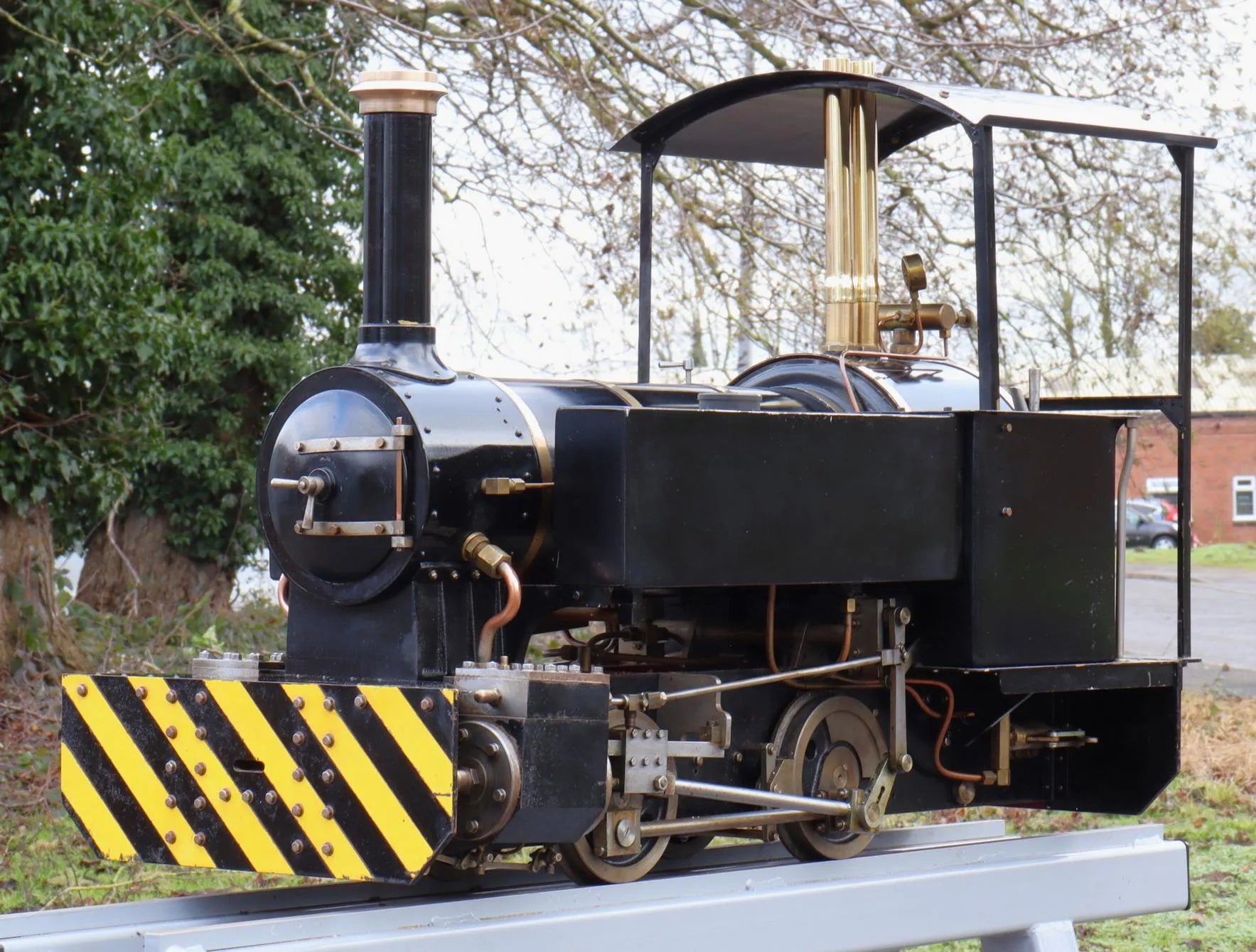

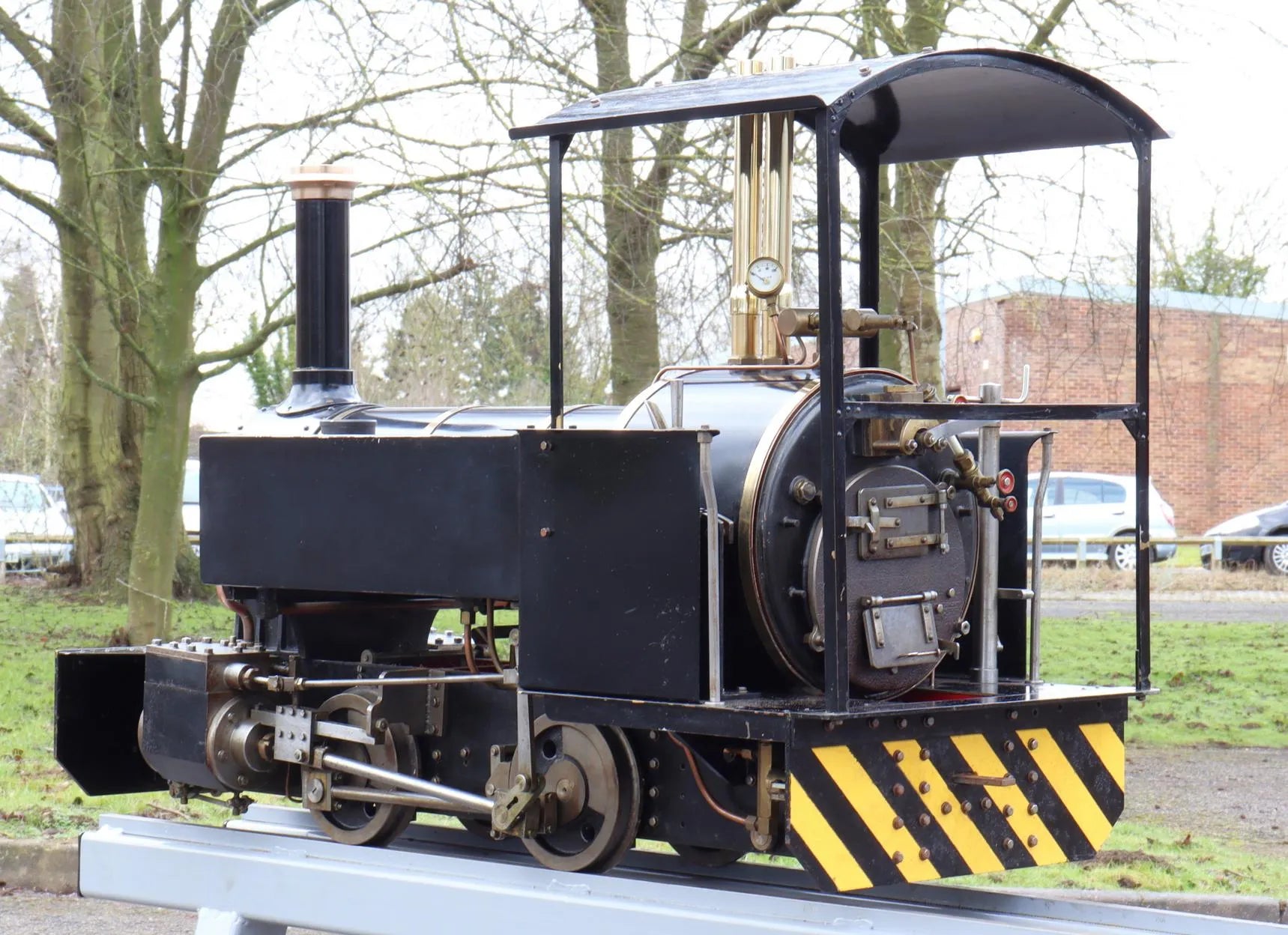

A 5 inch narrow gauge "Sweet Pea" 0-4-0, built with side tanks, rather than the more commonly seen saddle tank.

Unsteamed from new, the boiler has had a twice working pressure hydraulic test with new certification issued; the chassis runs on air - better in forwards than reverse.

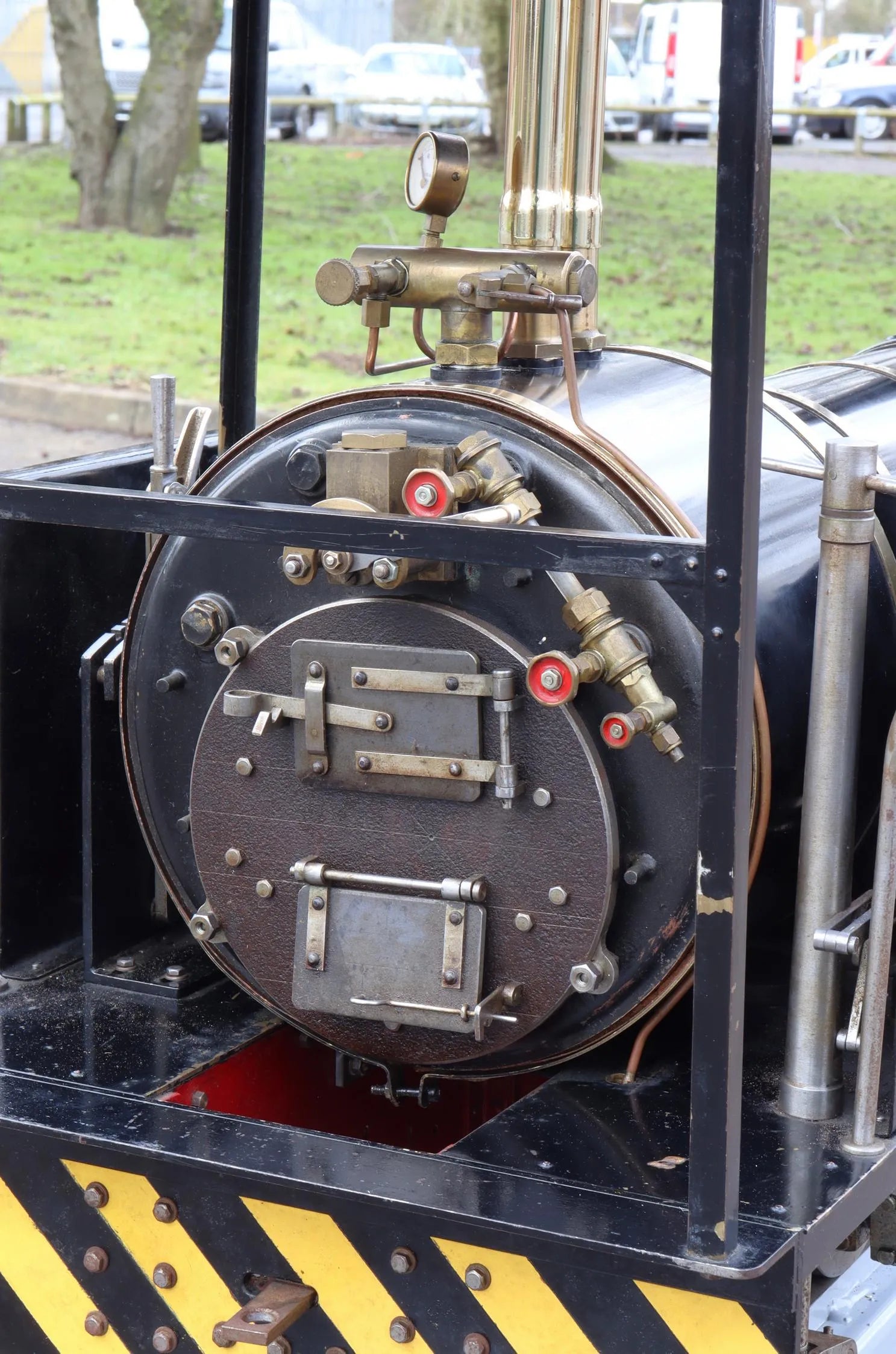

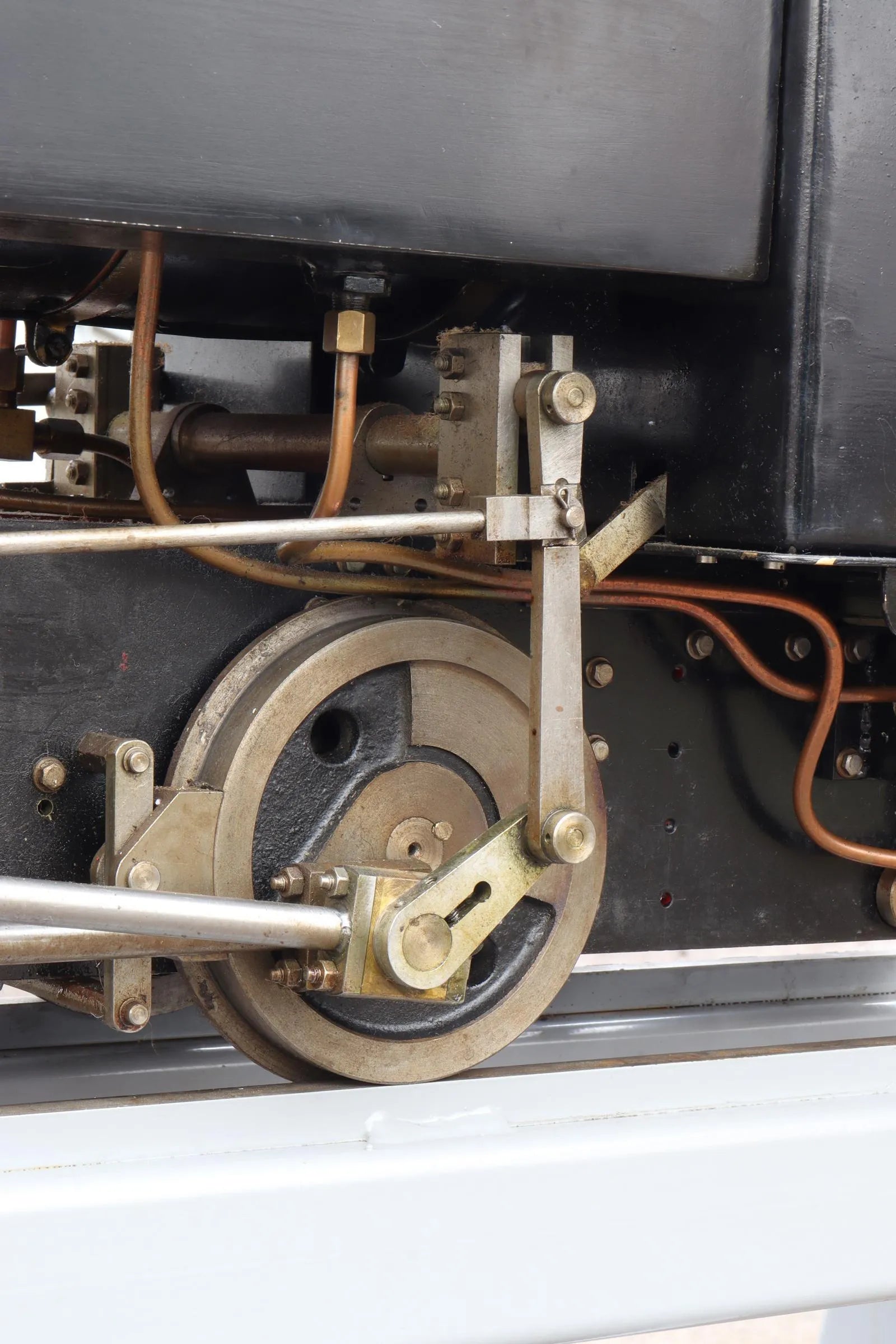

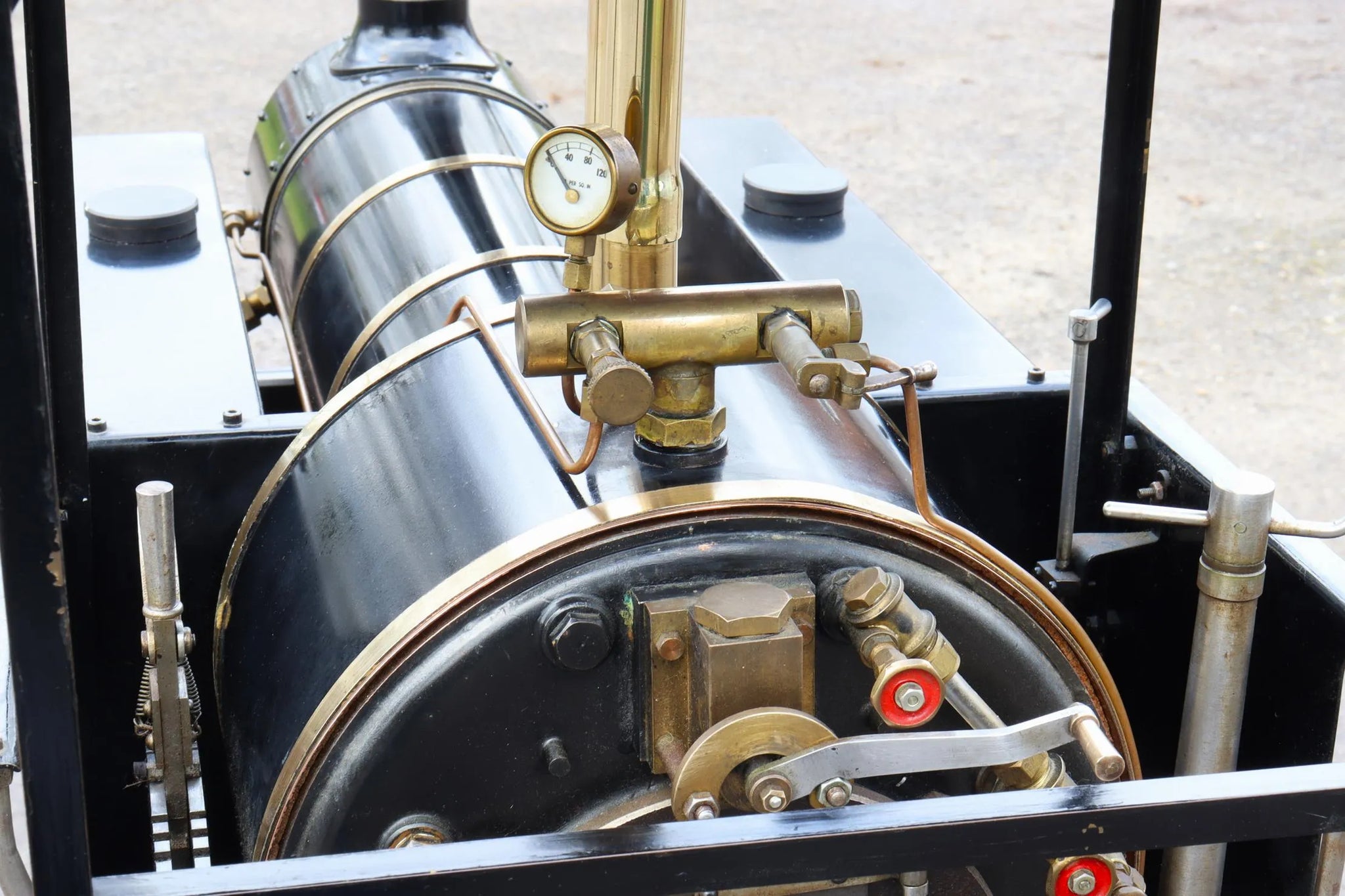

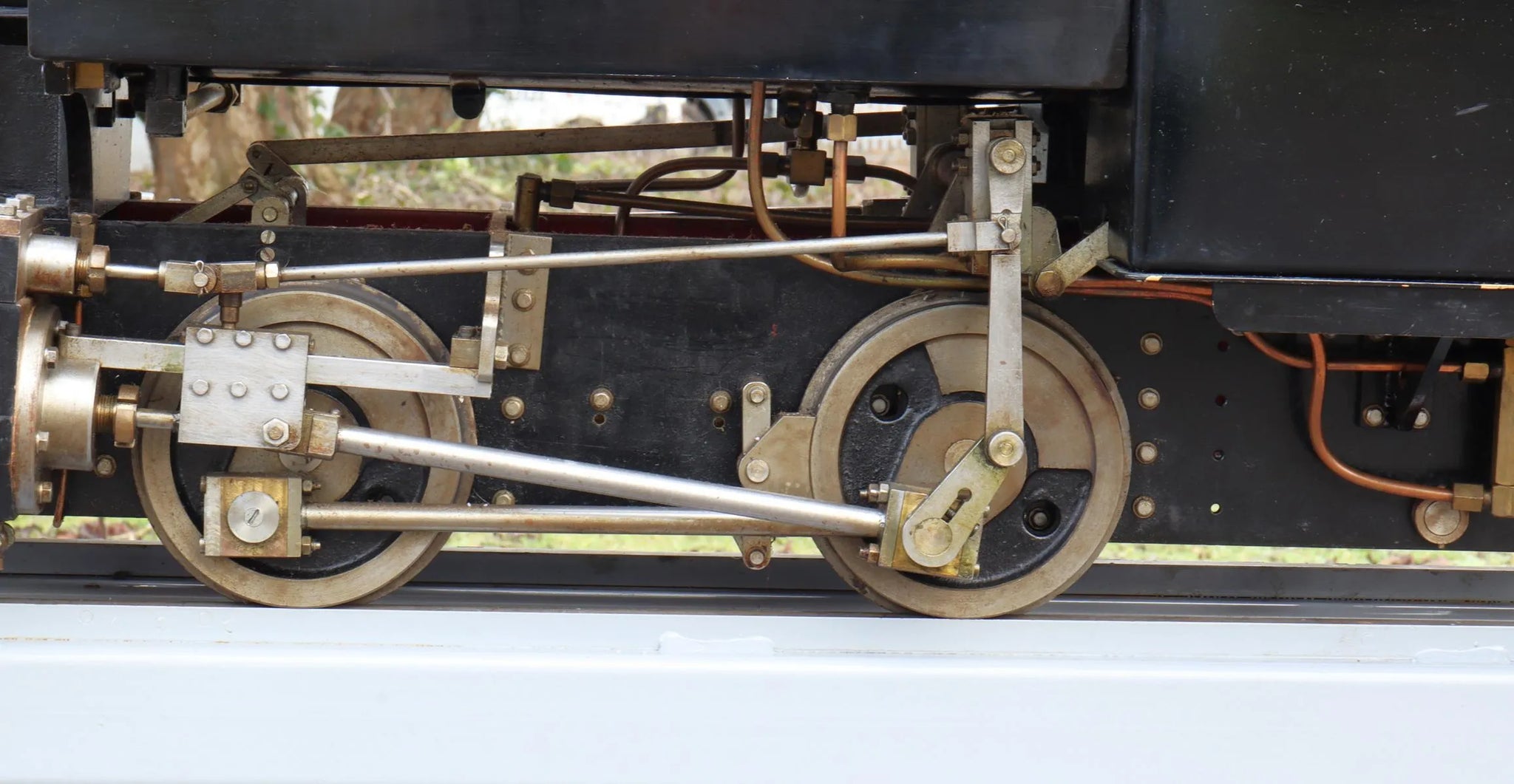

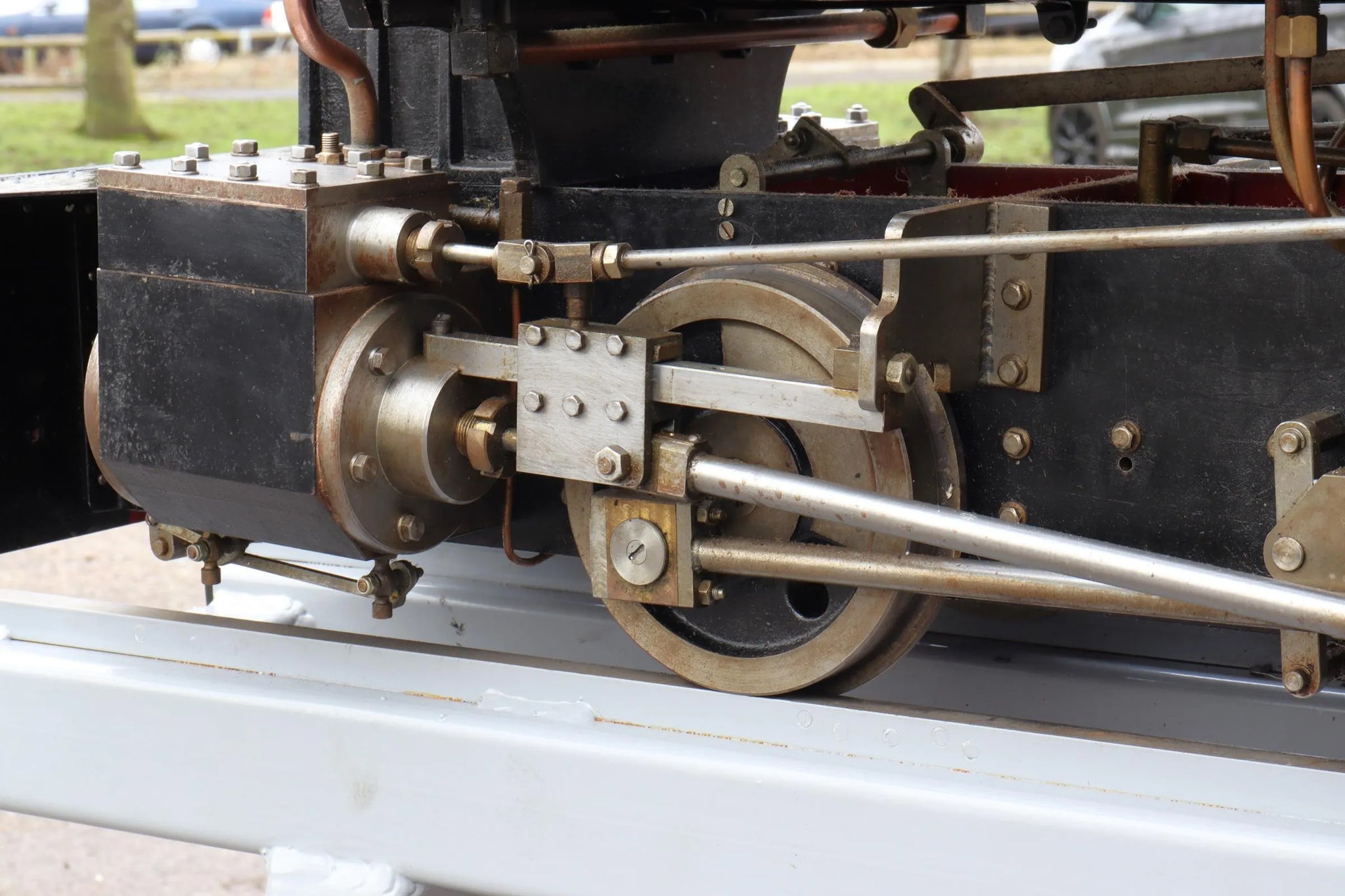

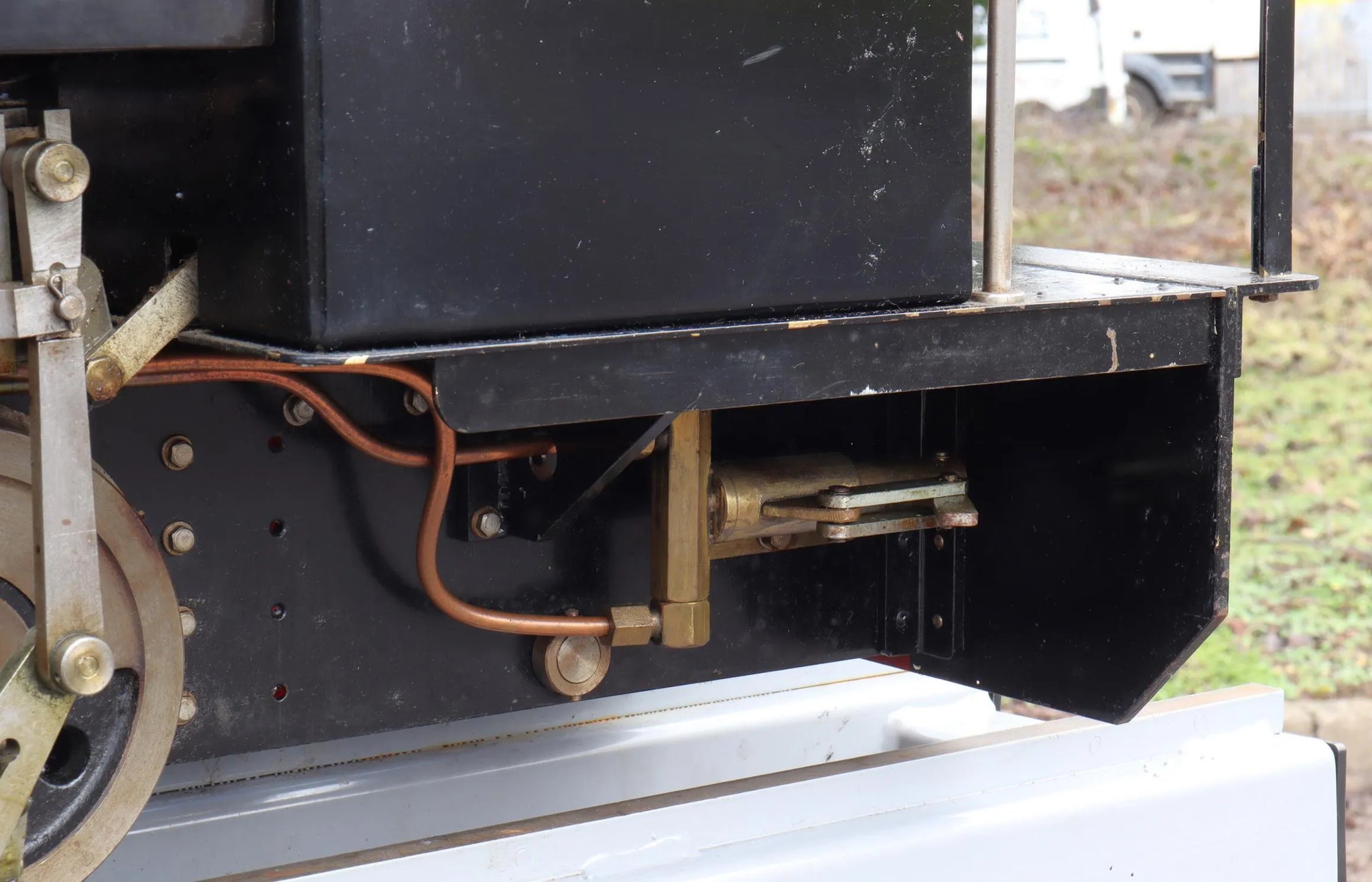

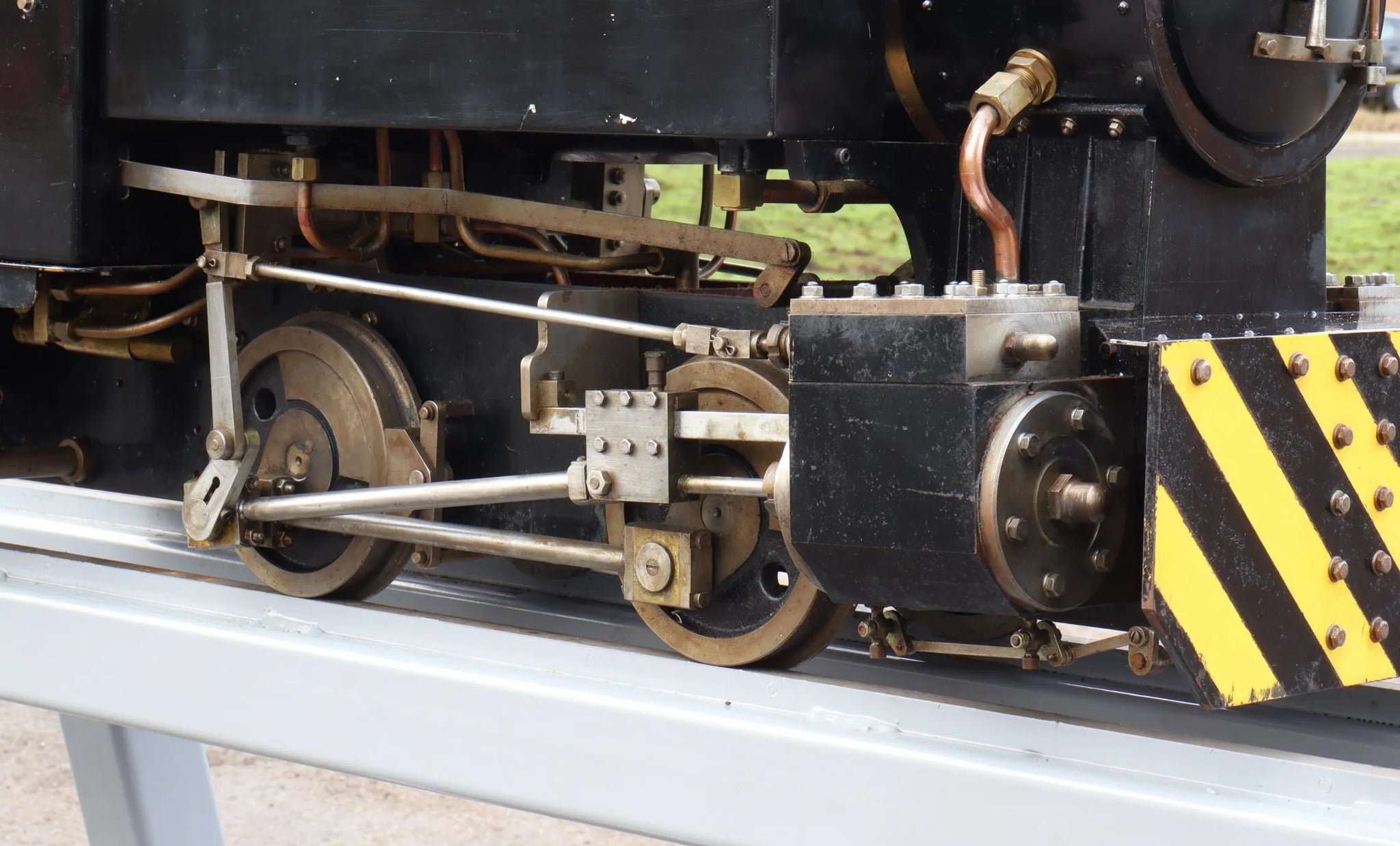

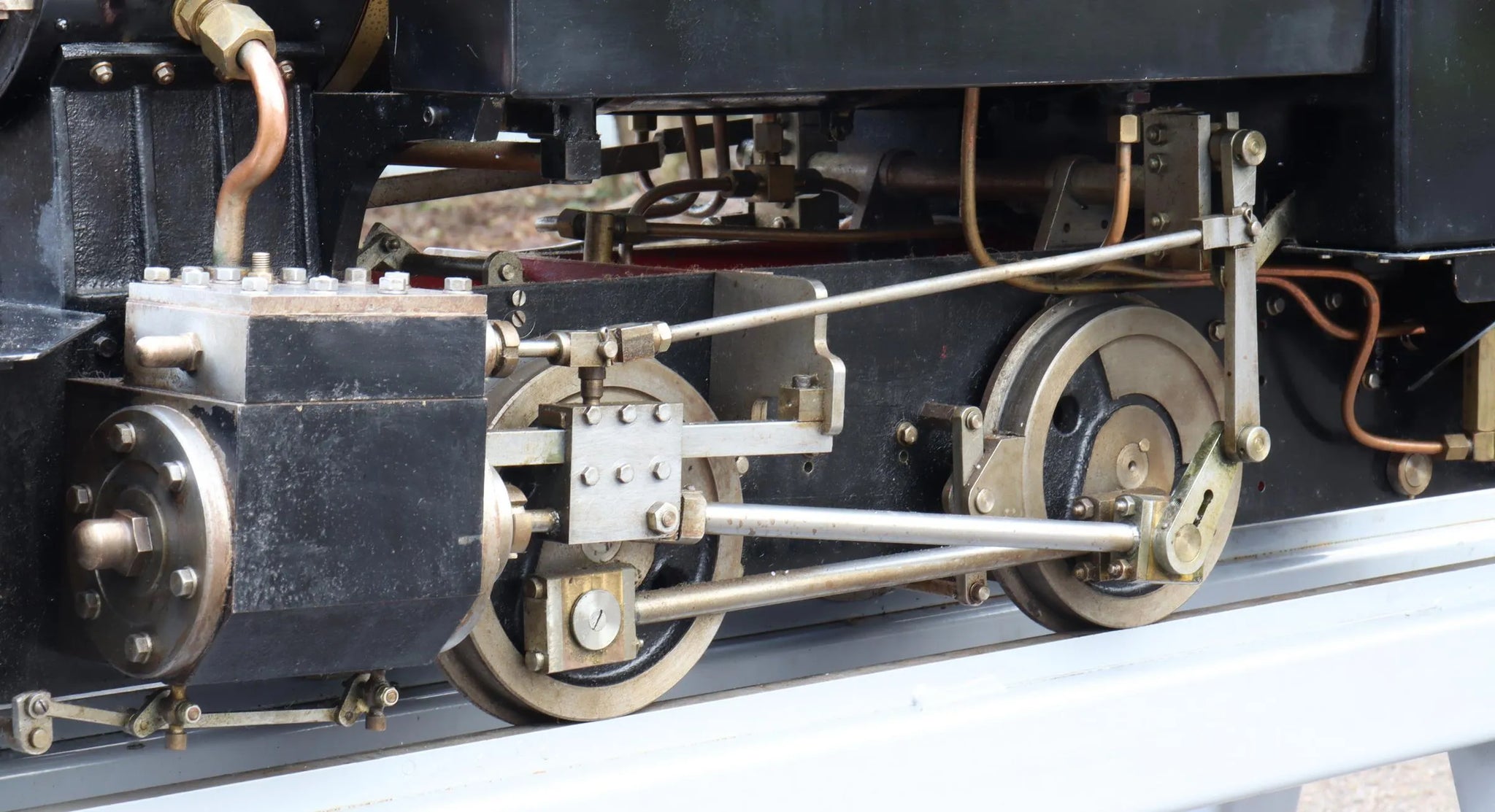

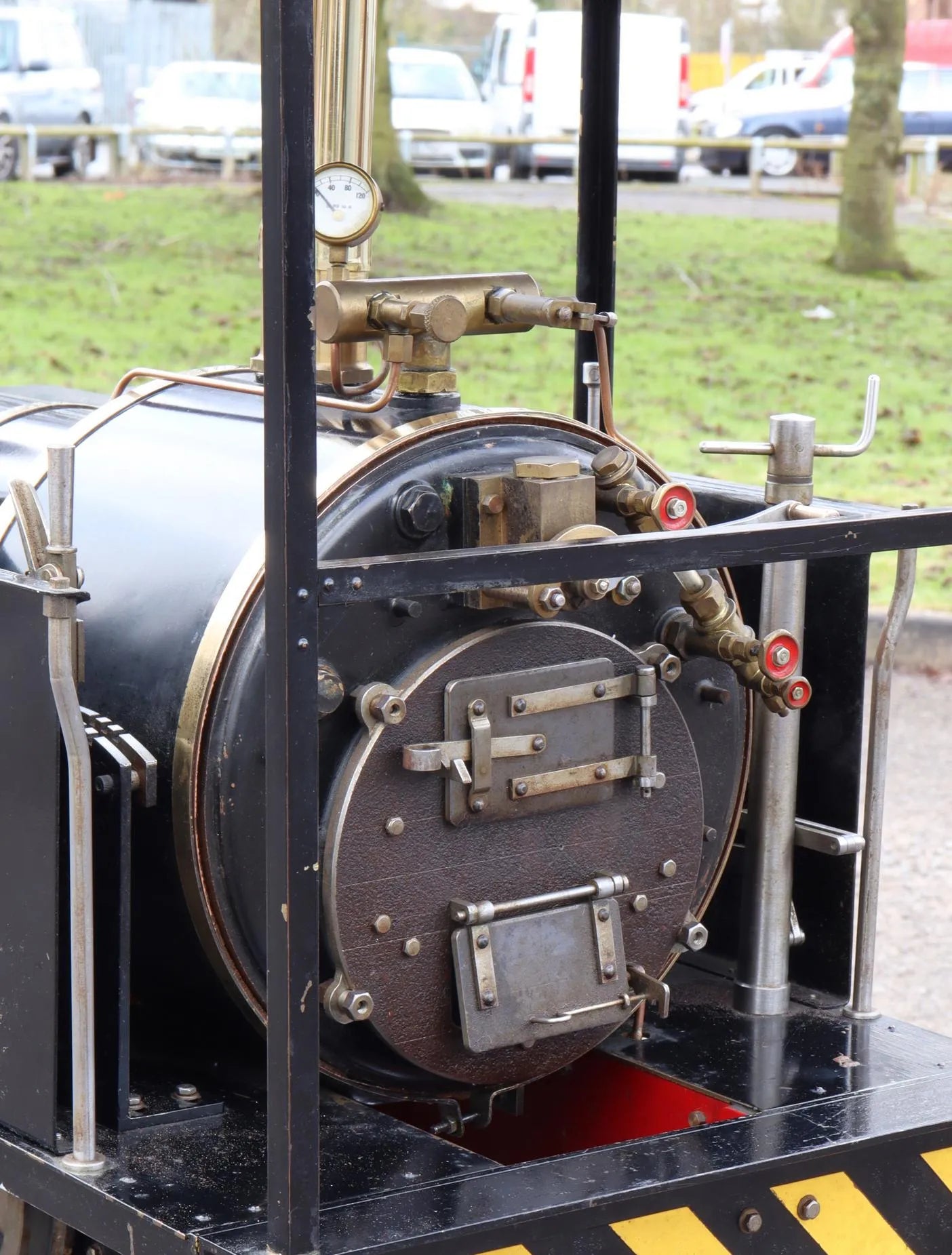

Built to a good standard throughout, machining is crisply executed; fit and finish of motionwork and valve gear is good; the platework neatly made and fitted. We like the neatly done firebox cladding sheet with brass bands, the twin ram lubricator with large tank mounted between the frames.

Whilst it will undoubtedly require commissioning for steaming - the glands are dry and leak air, requiring repacking - it will make a good example of this popular design.

Technical information

Stock code

12639

Gauge

5 inch

Length/inches

31.5

Width/inches

13

Height/inches

21.5

Weight/Kg

63

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

Hackworth

Reverser type

pole

Boiler maker

non-commercial

Boiler type

marine

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - pre-2002

Year built

1988

Boiler number

1472.6.88.V.P

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Date out

Apr-25

Hydraulic test valid to

30-Jan-29
