9677

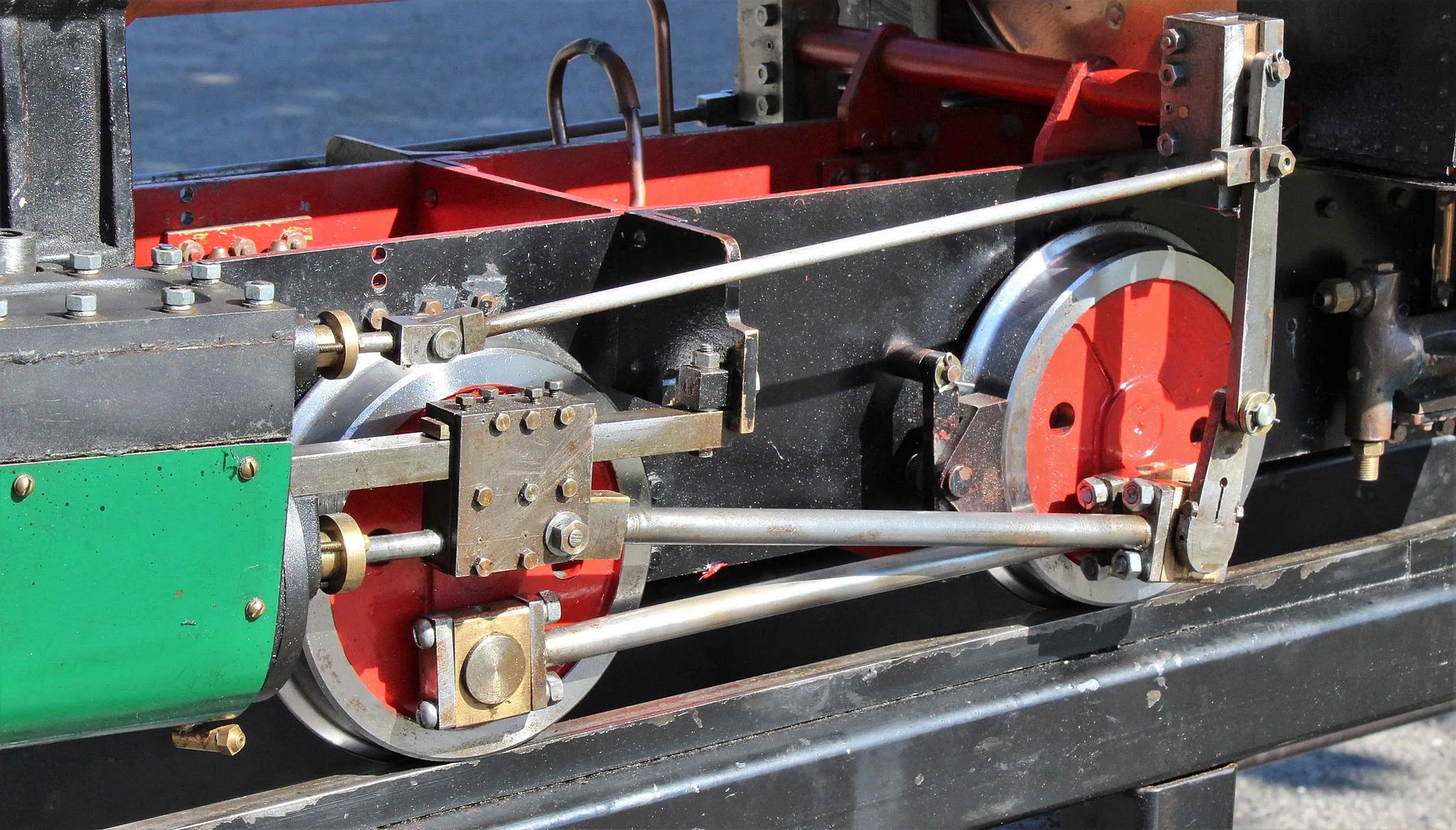

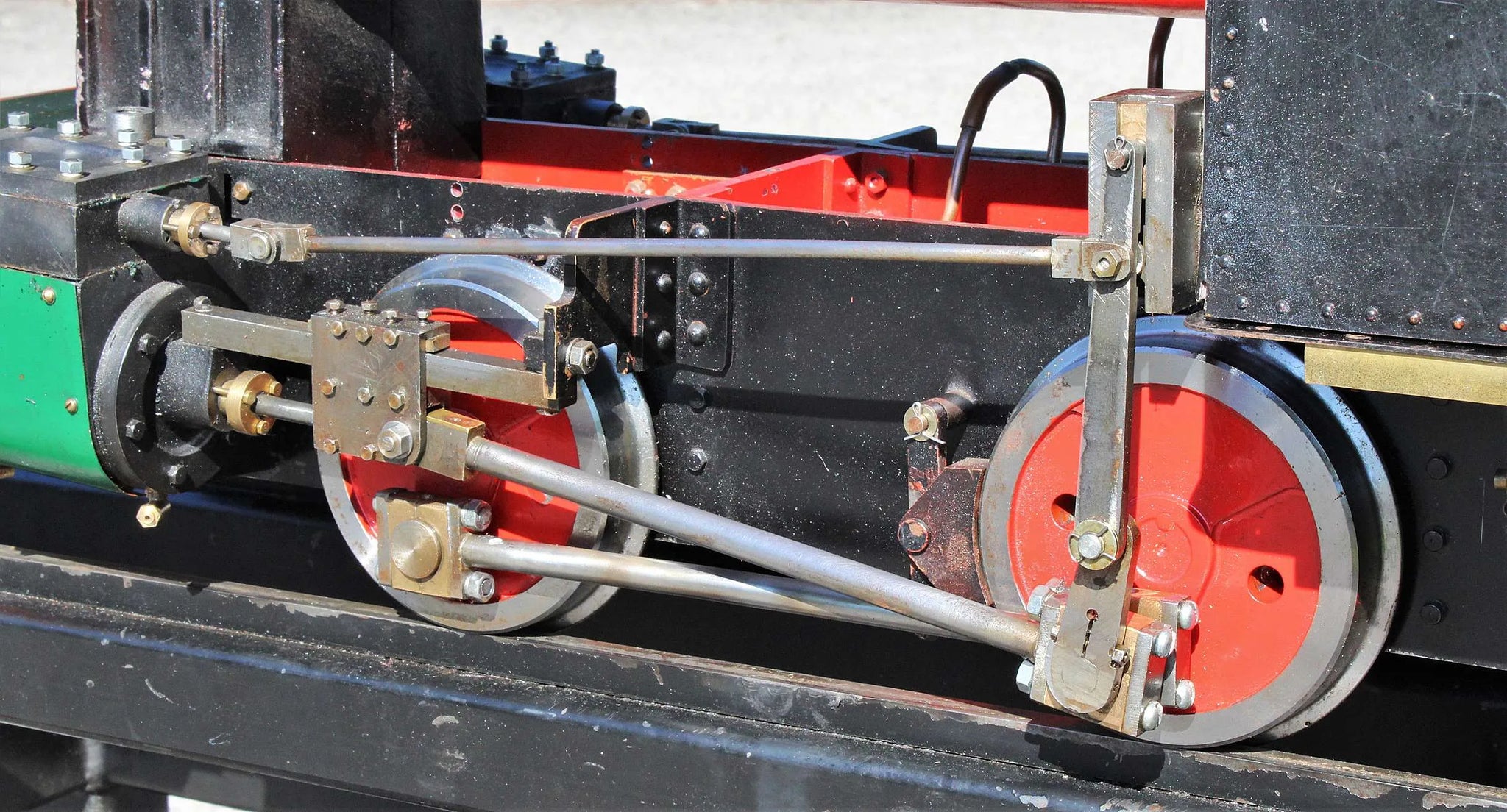

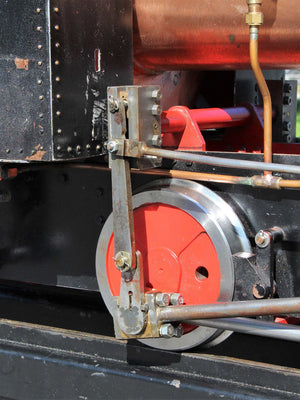

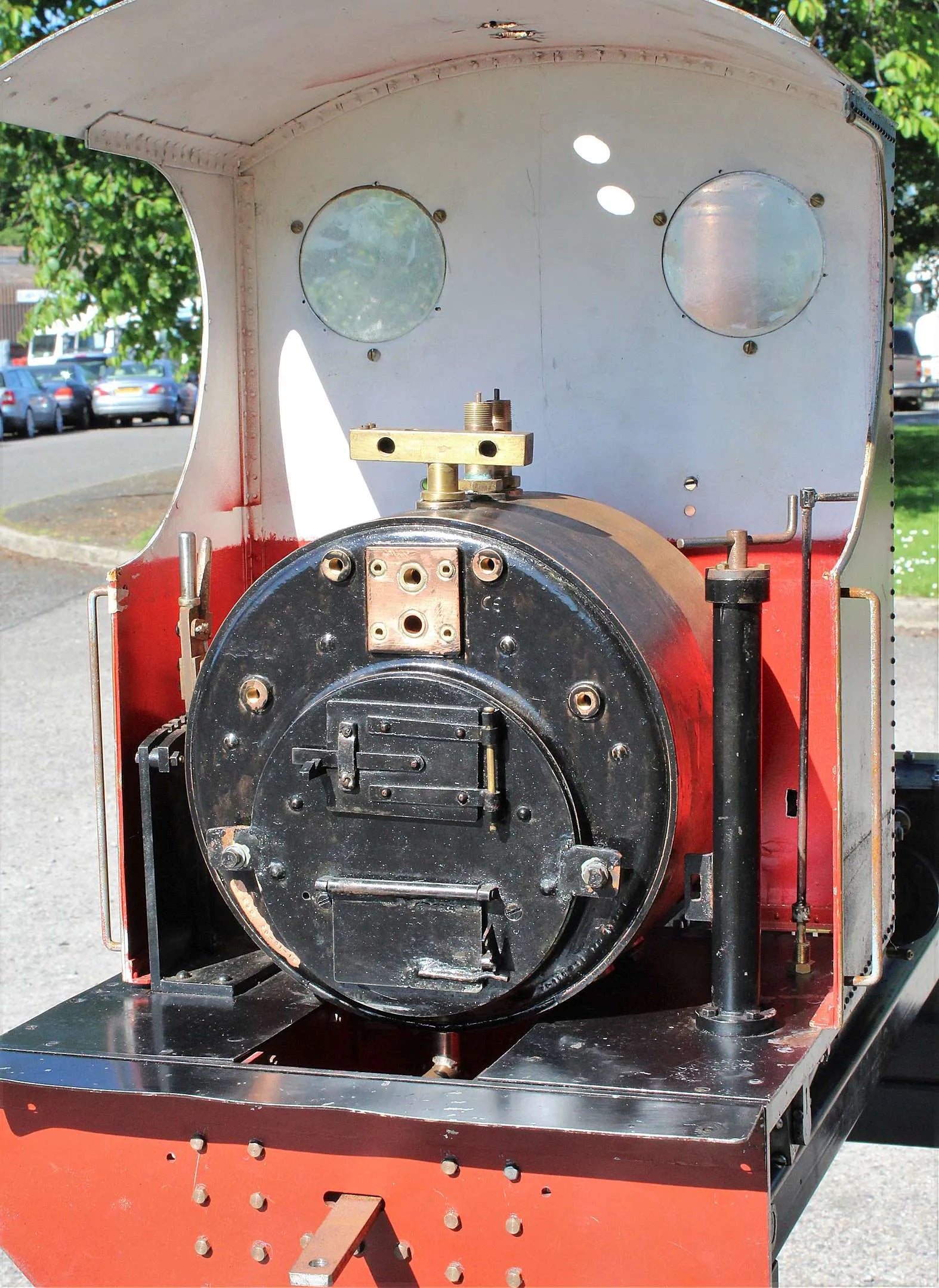

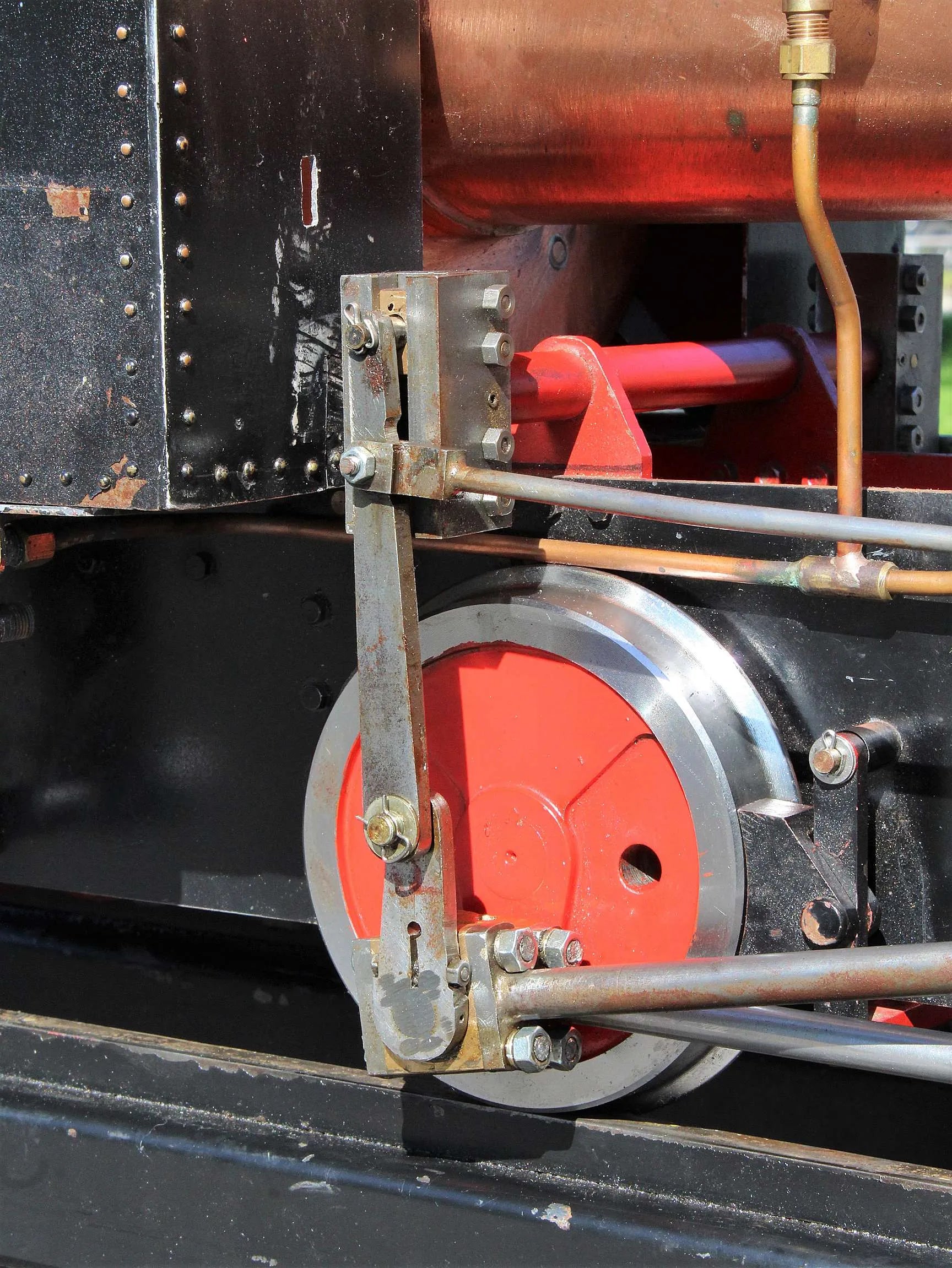

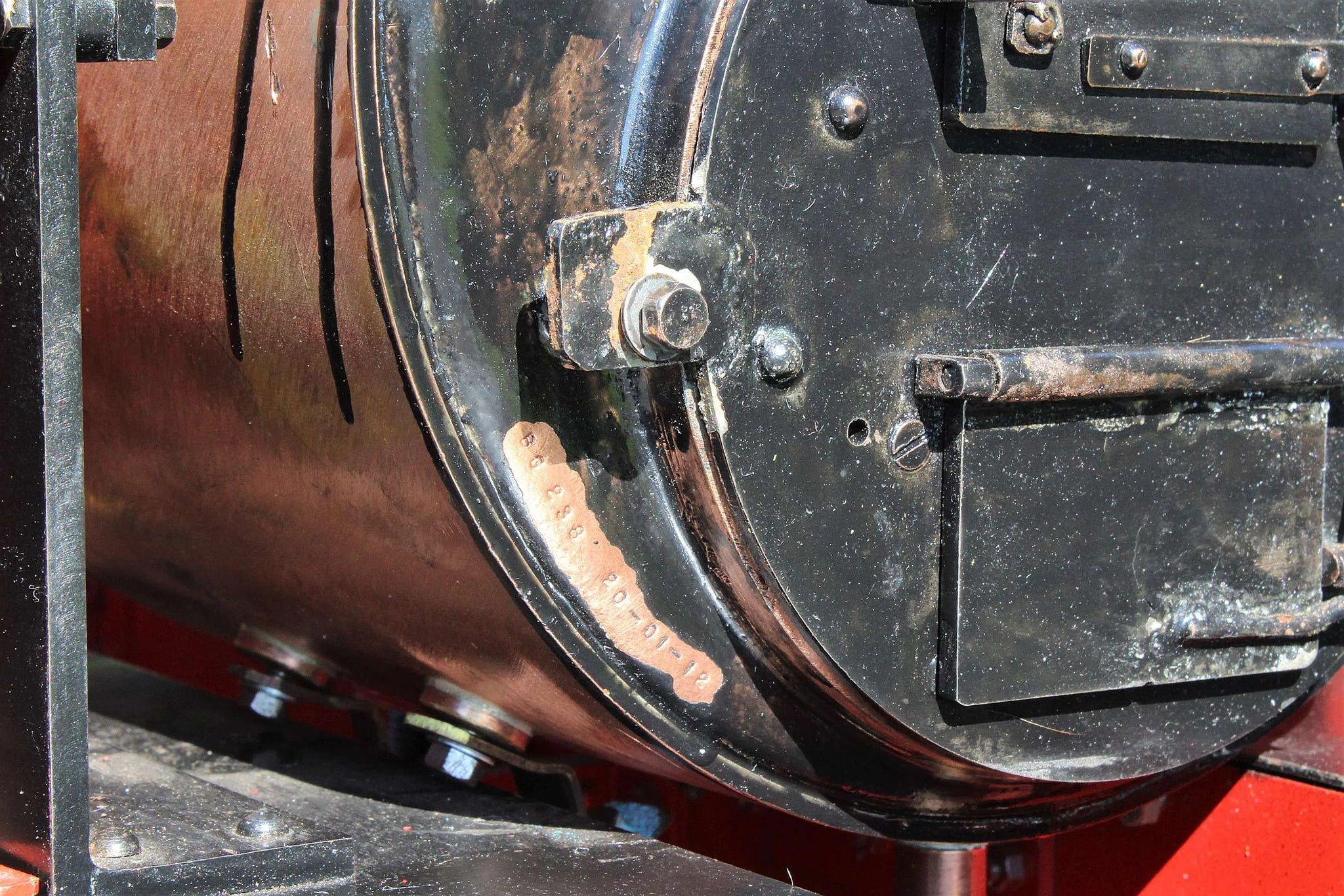

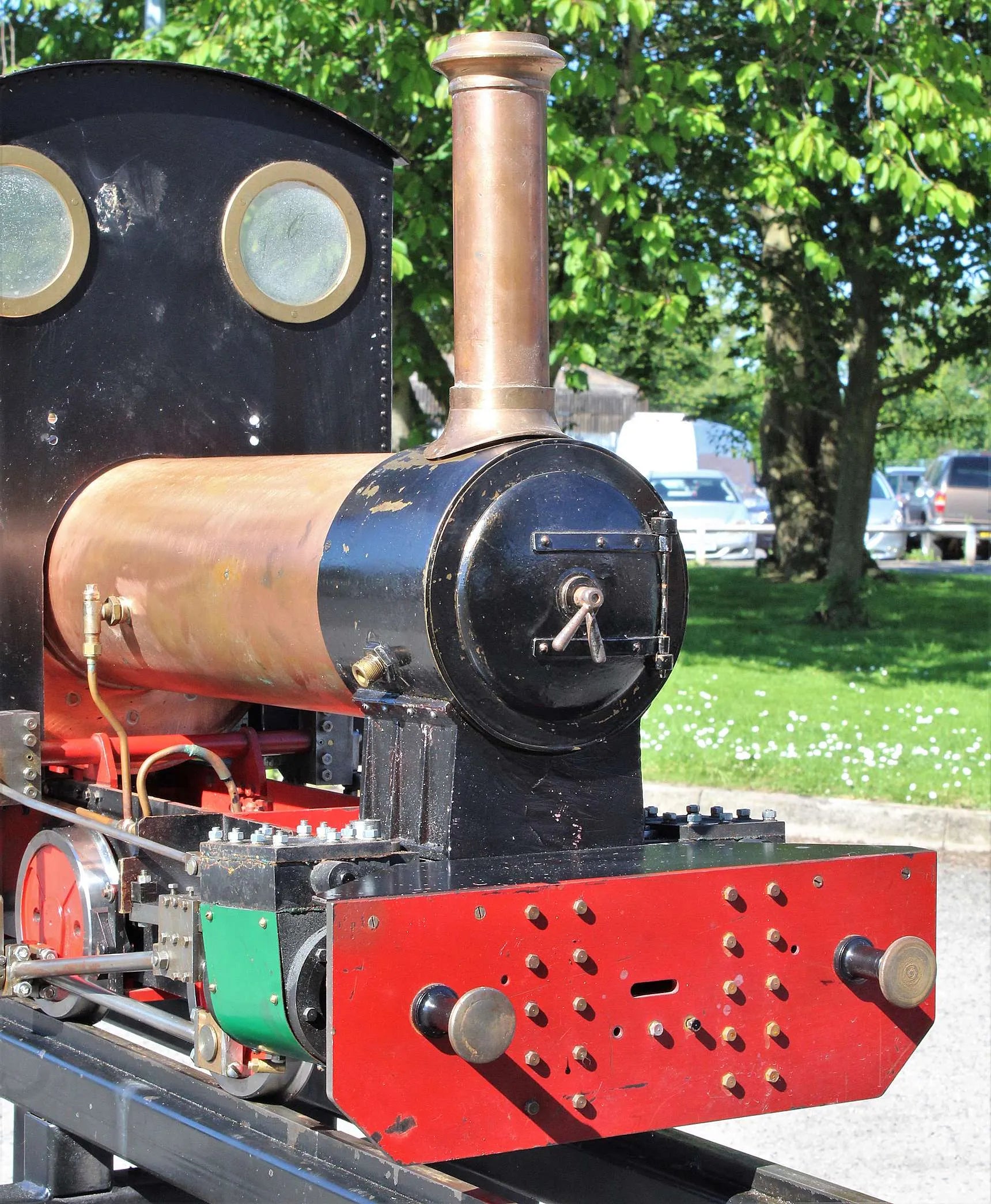

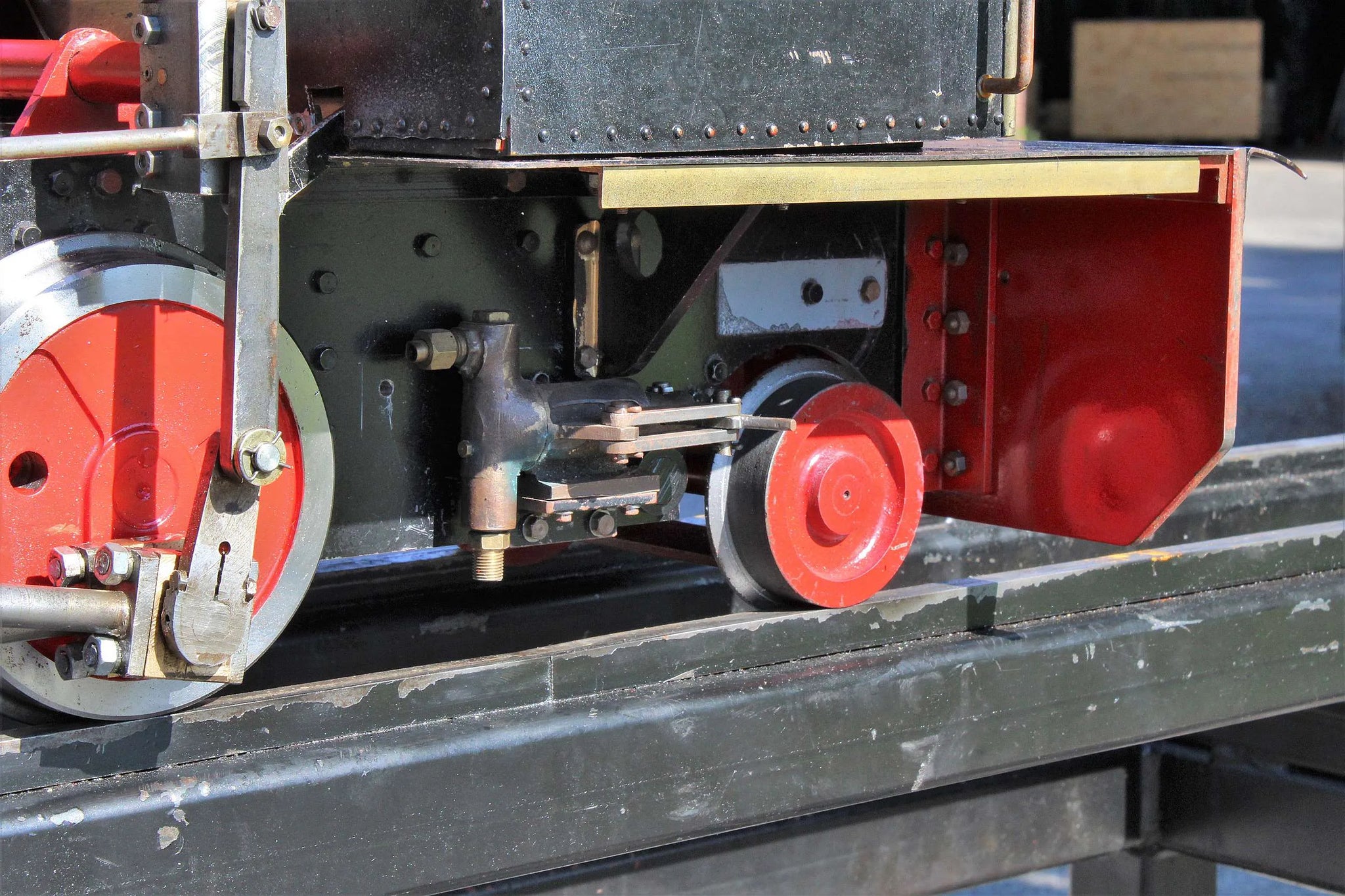

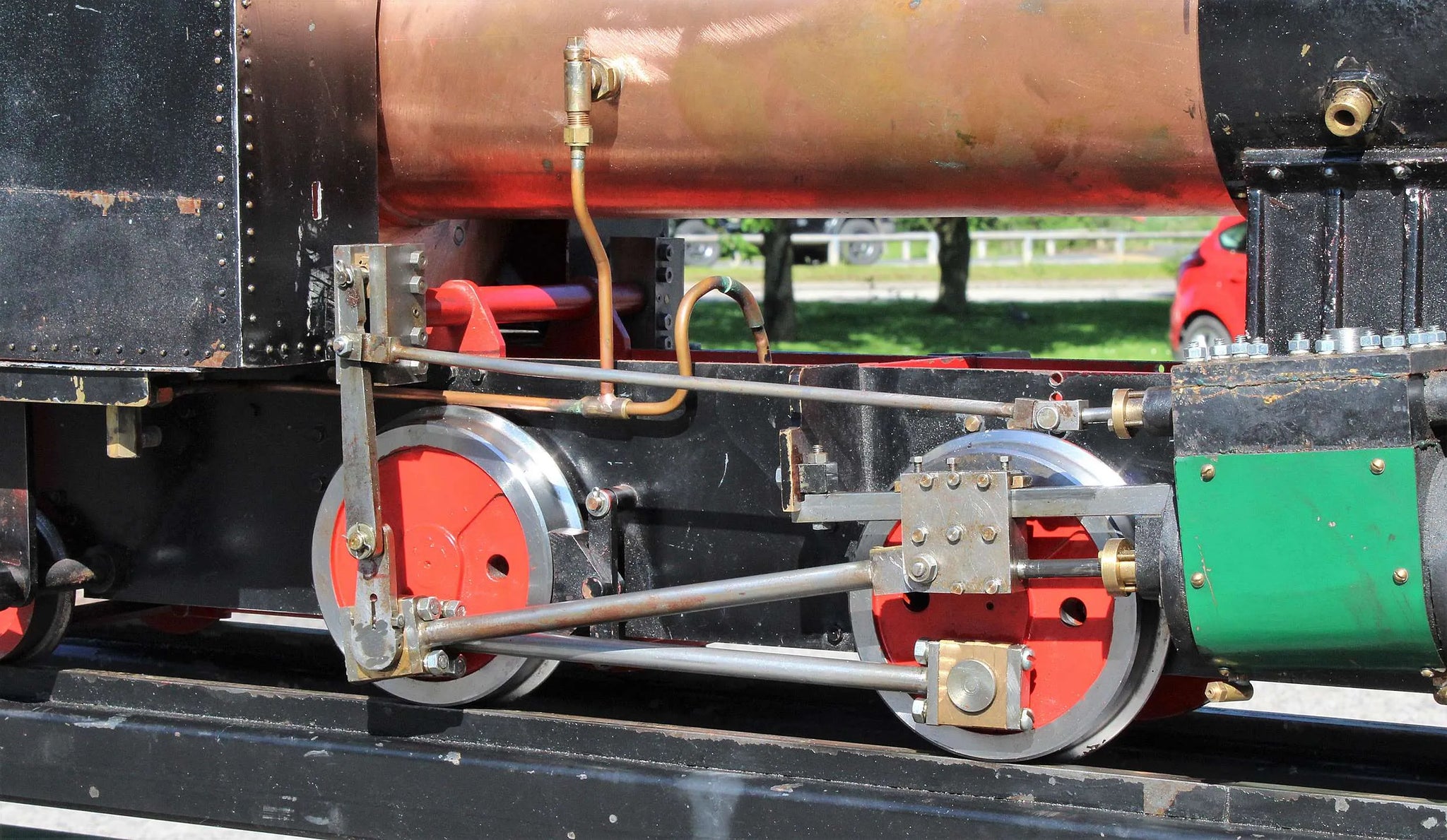

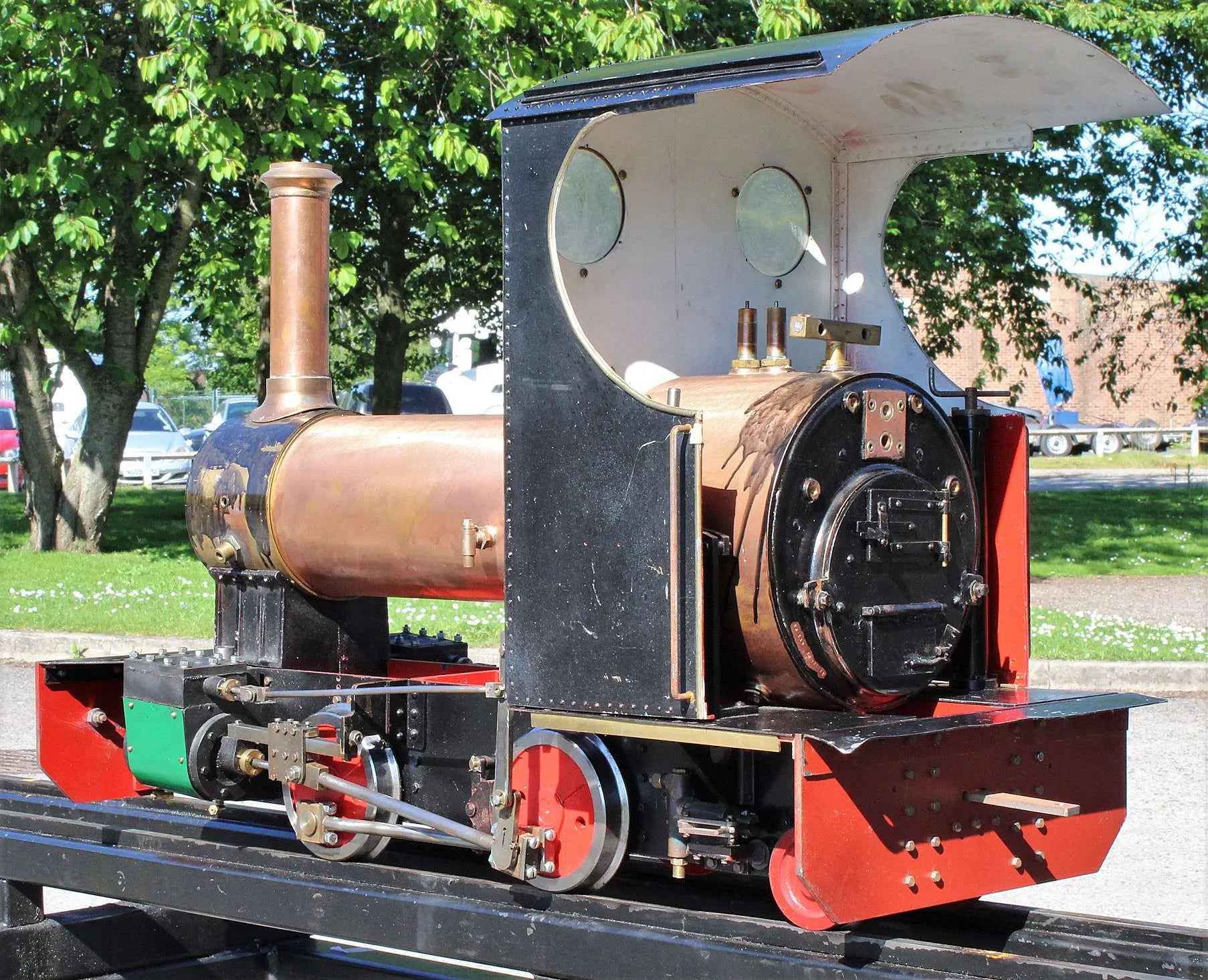

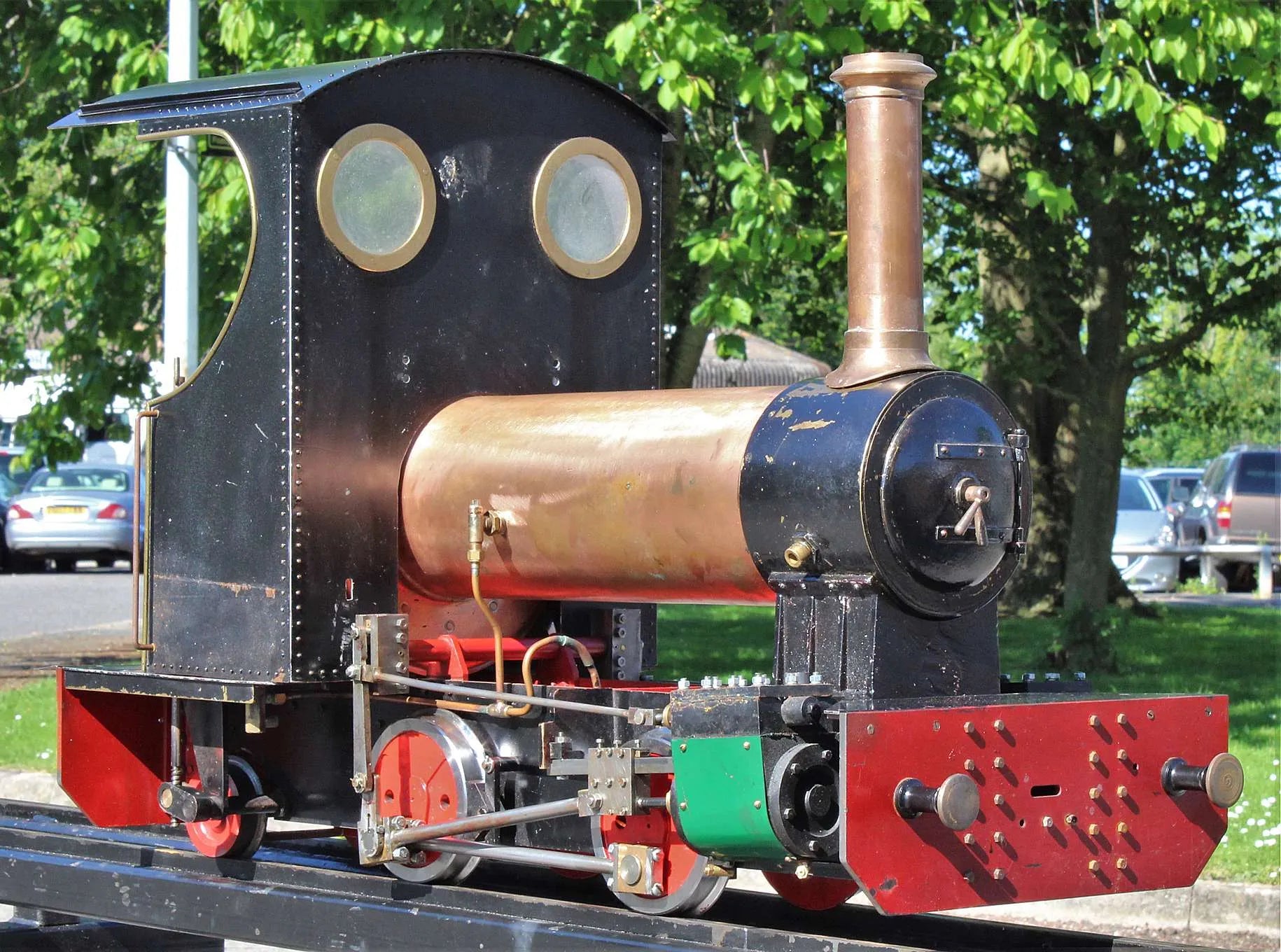

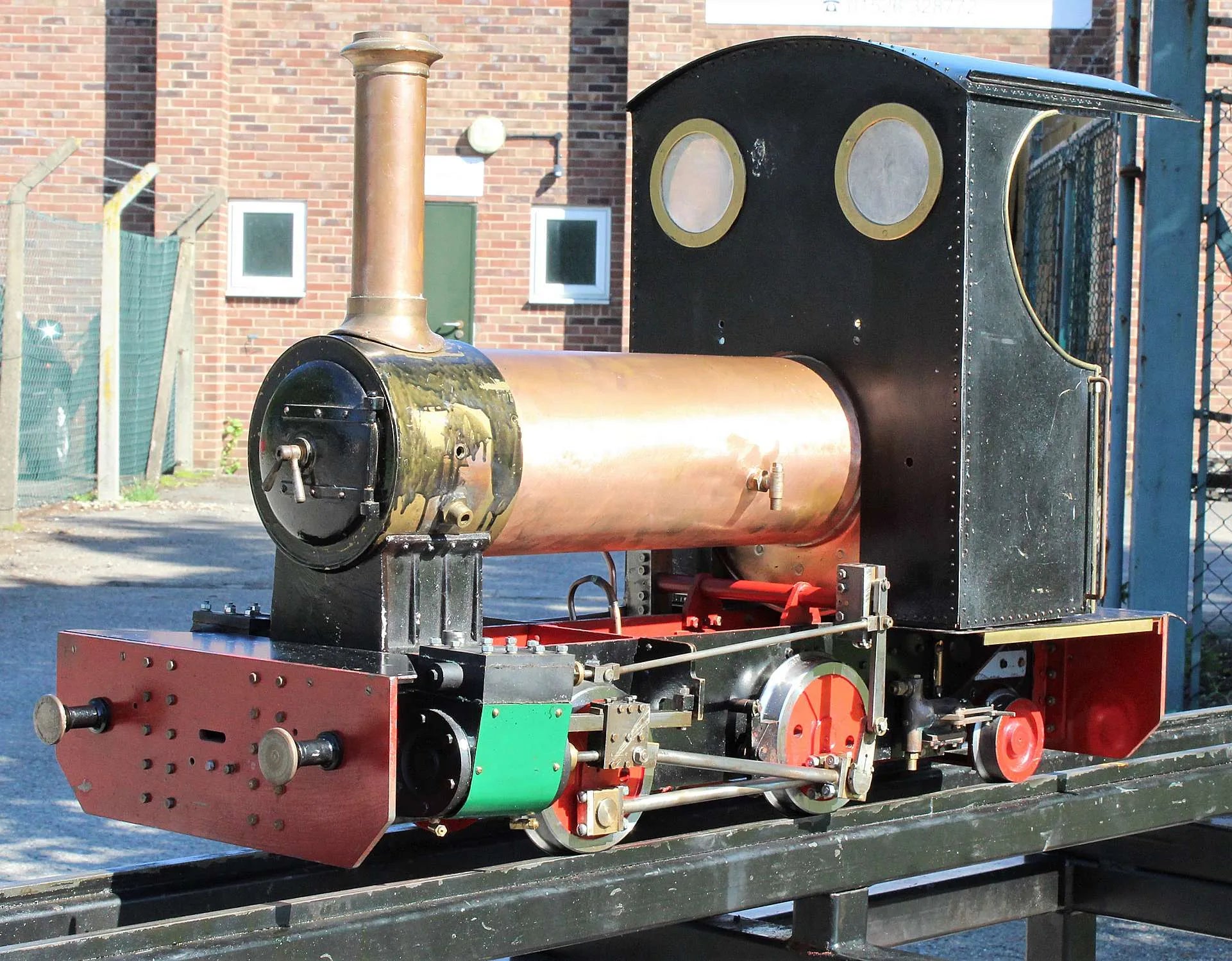

Work to date includes a largely complete chassis with all valve gear and motionwork erected. Unsteamed from new, the silver soldered copper boiler is commercially-built, CE-marked, supplied by Blackgates Engineering.

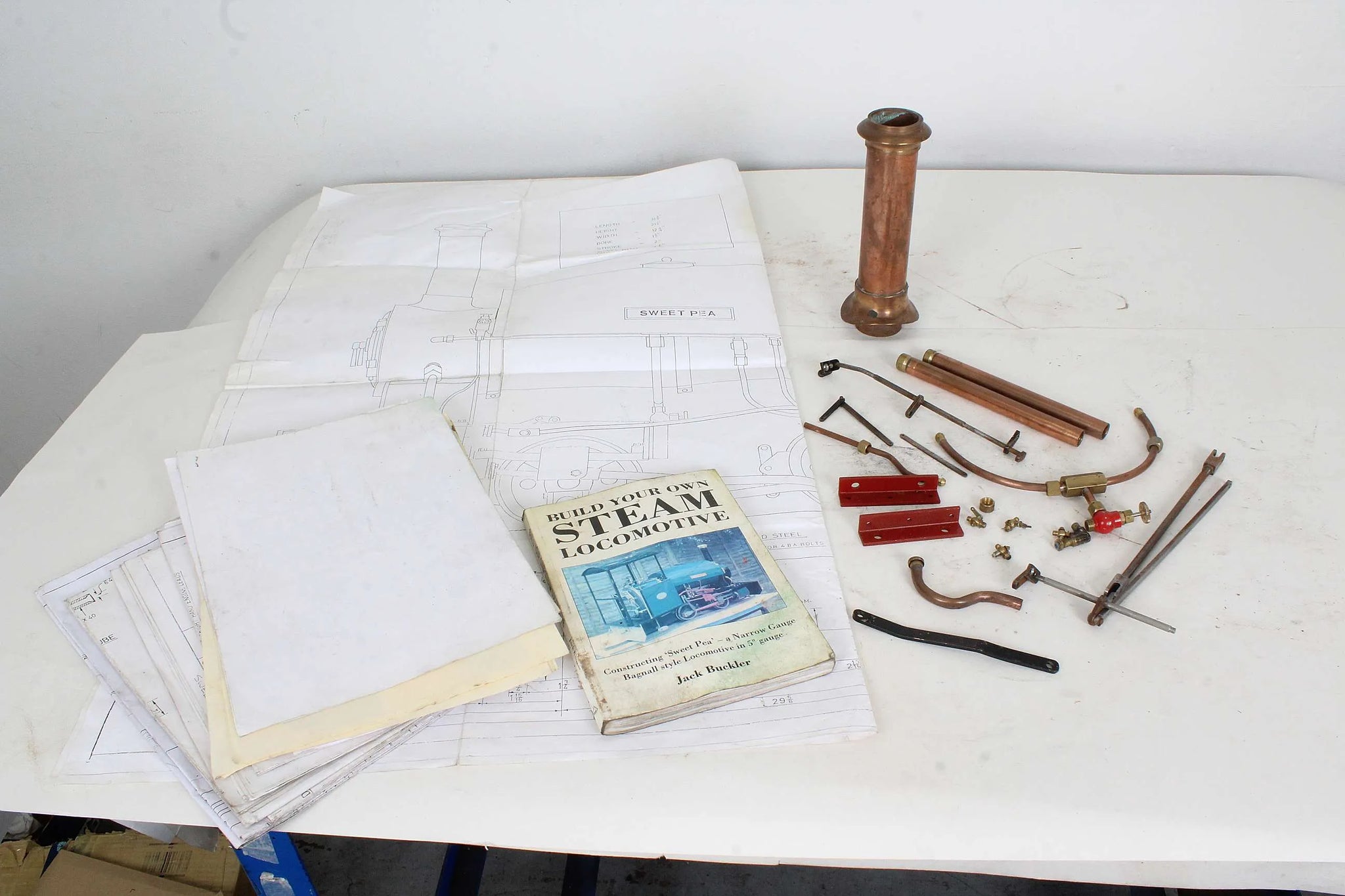

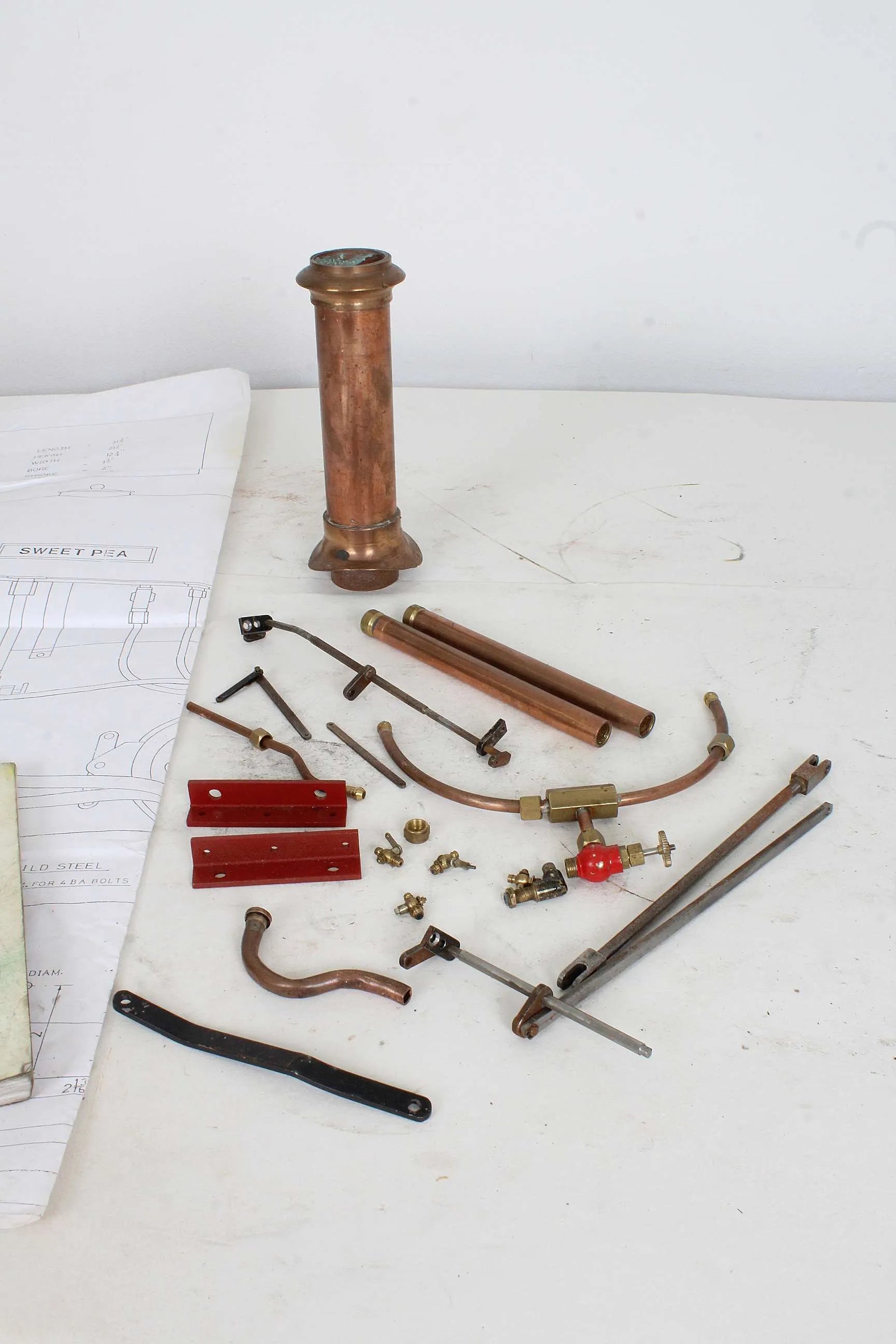

Work remaining is mainly pipework, fittings and paintwork - the engine could be completed at modest additional cost, plus some time in the workshop.
If you need some inspiration, there are pictures of the finest one of these we've ever seen in the archive here.
Stock code |
9677 |
Gauge |
5 inch |
Length/inches |
33 |
Width/inches |
13 |
Height/inches |
21.5 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
cast iron |
Valve type |
slide |
Valve gear |
Hackworth |
Reverser type |
pole |
Boiler maker |
Blackgates Engineering |
Boiler type |
marine |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
yes |
Year built |
2012 |
Boiler number |
BG.238 |
Safety valve |
2 |
Hand pump |
1 |
Mechanical pump |
1 |
Date out |
Jun-21 |
