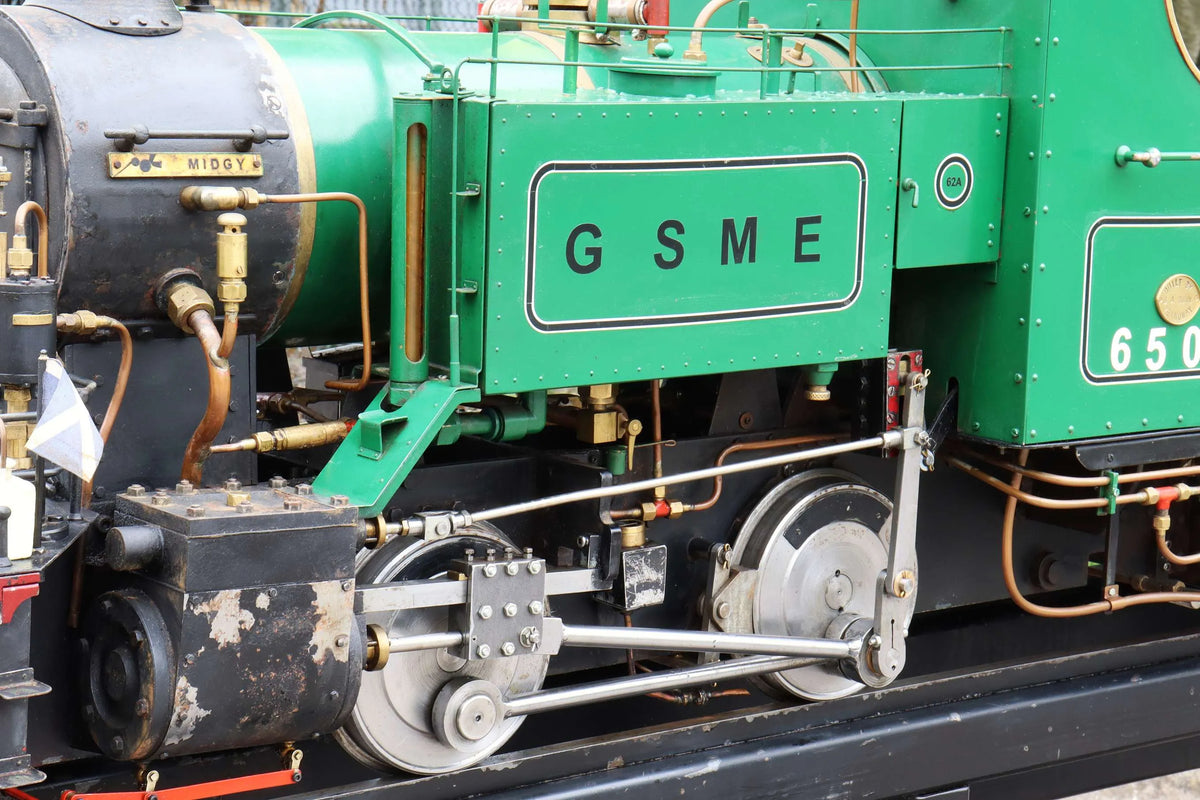

5 inch gauge 'Sweet Pea' 0-4-0T with tender

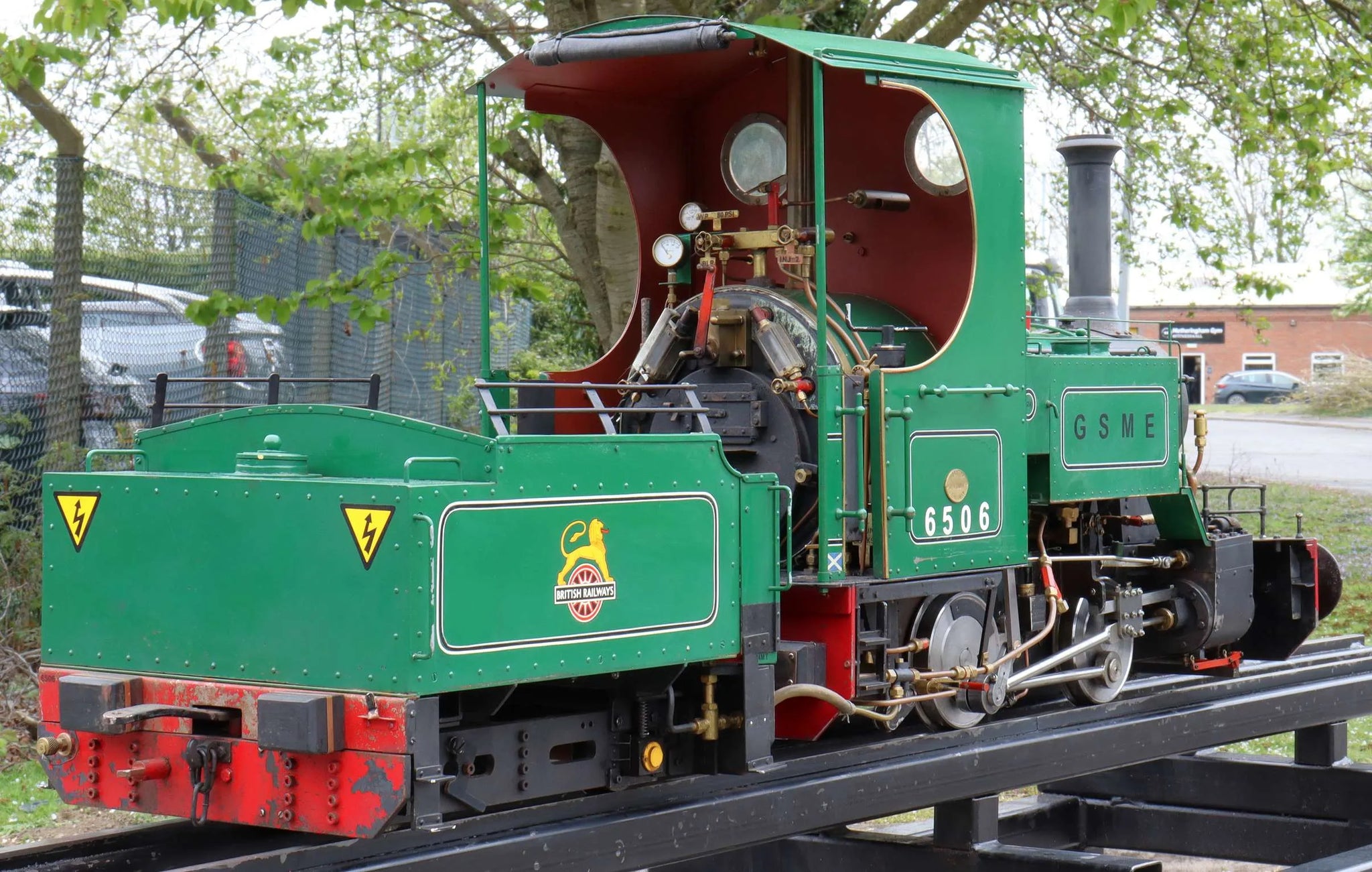

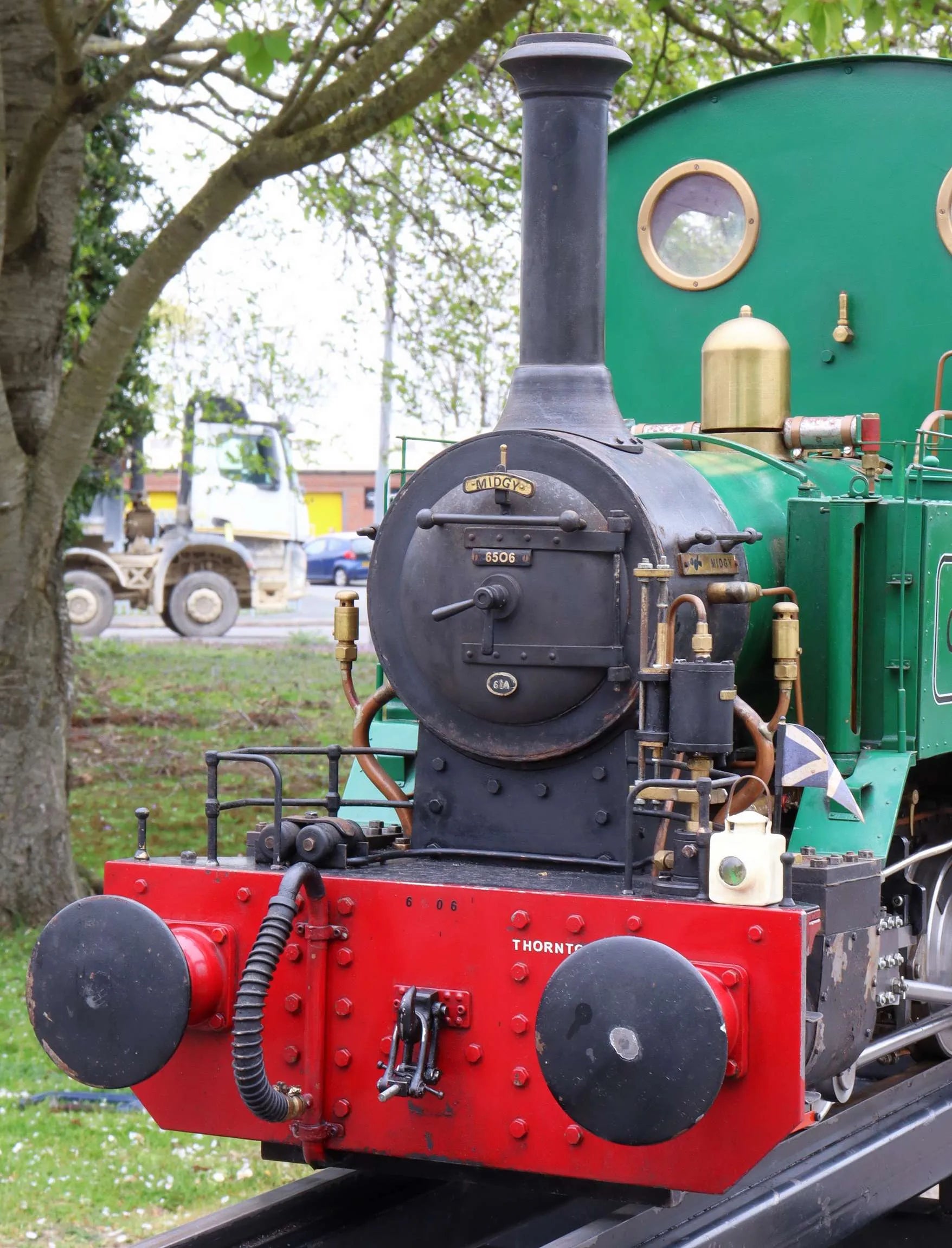

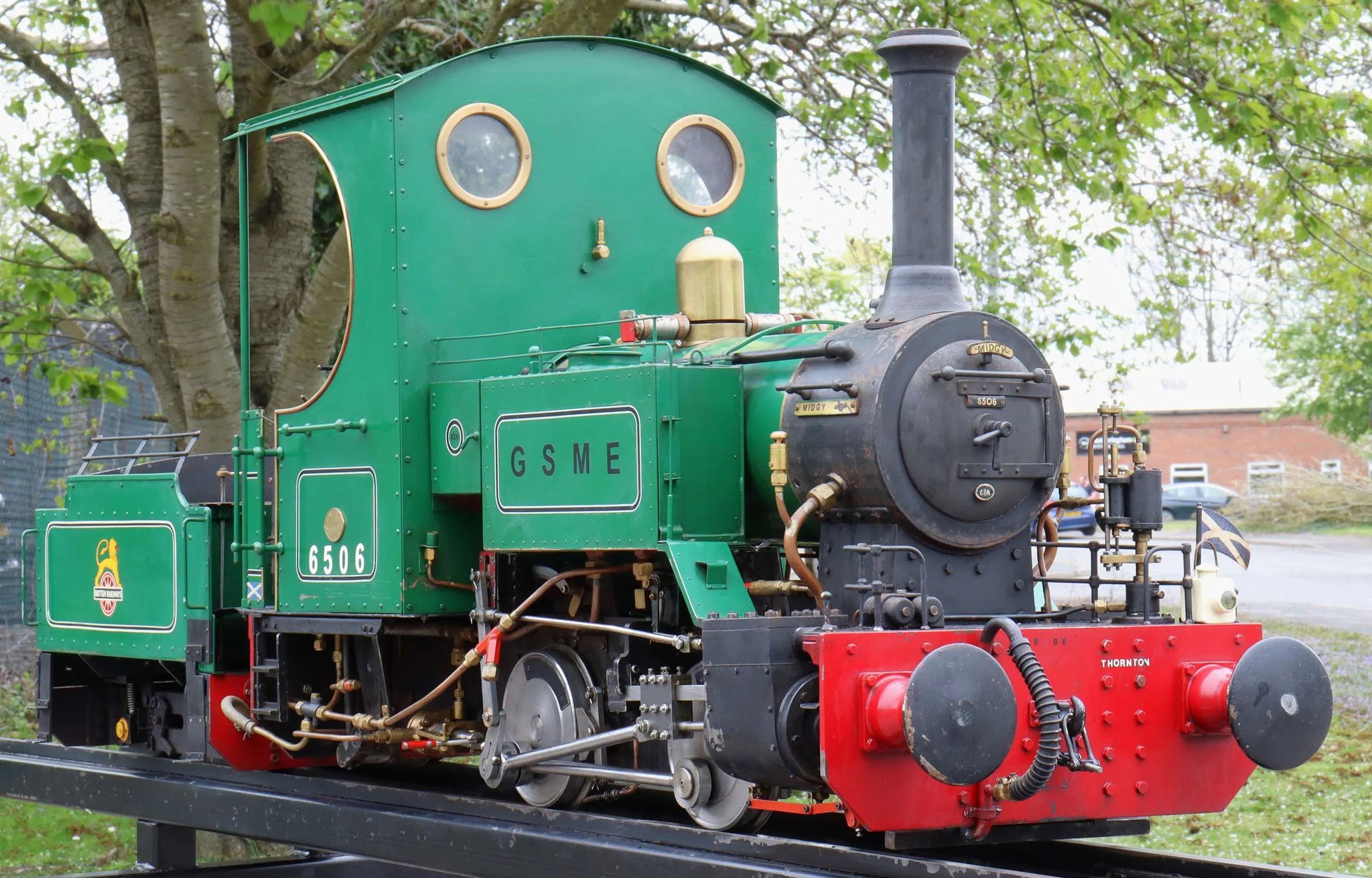

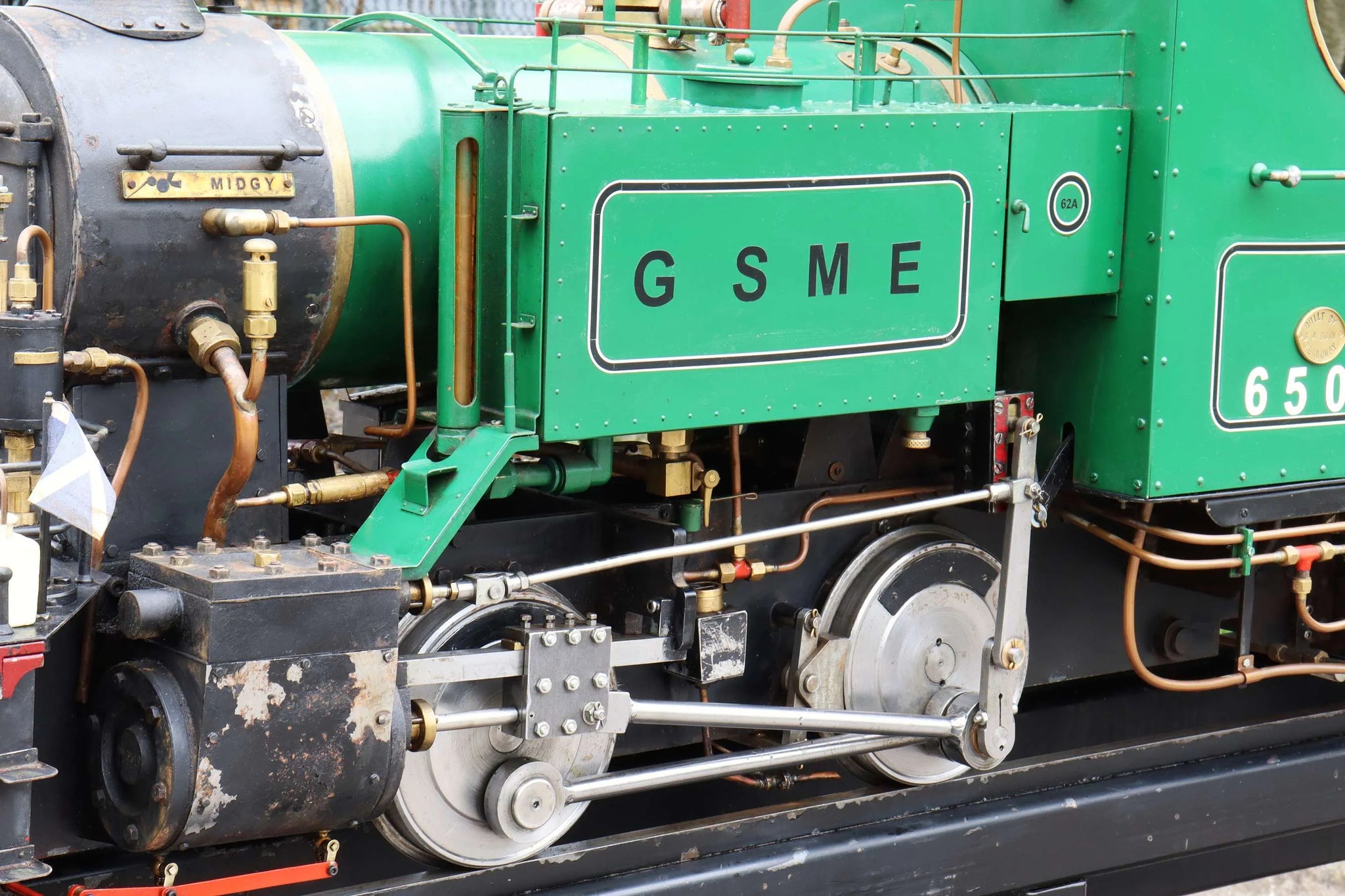

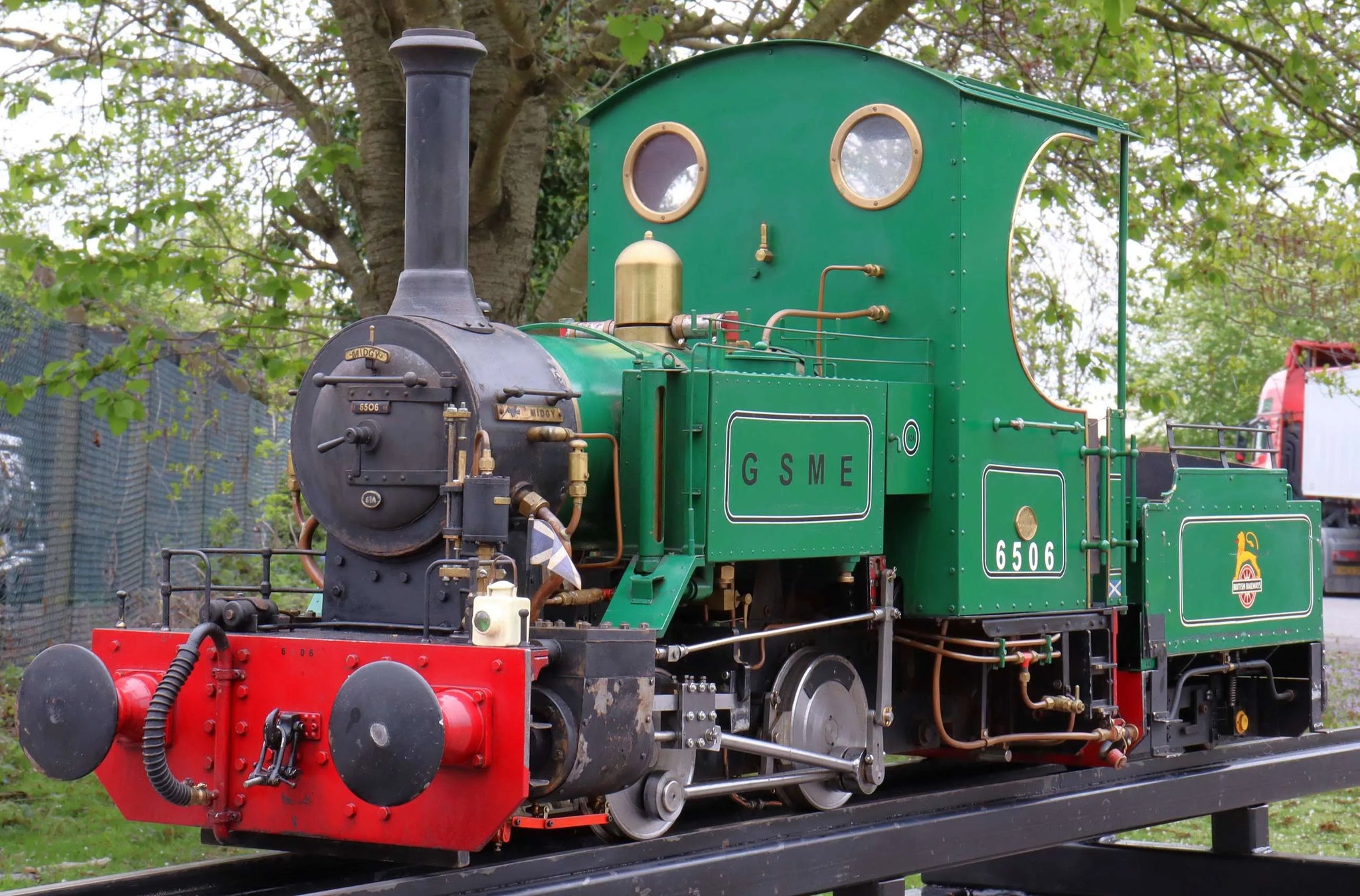

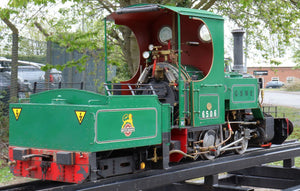

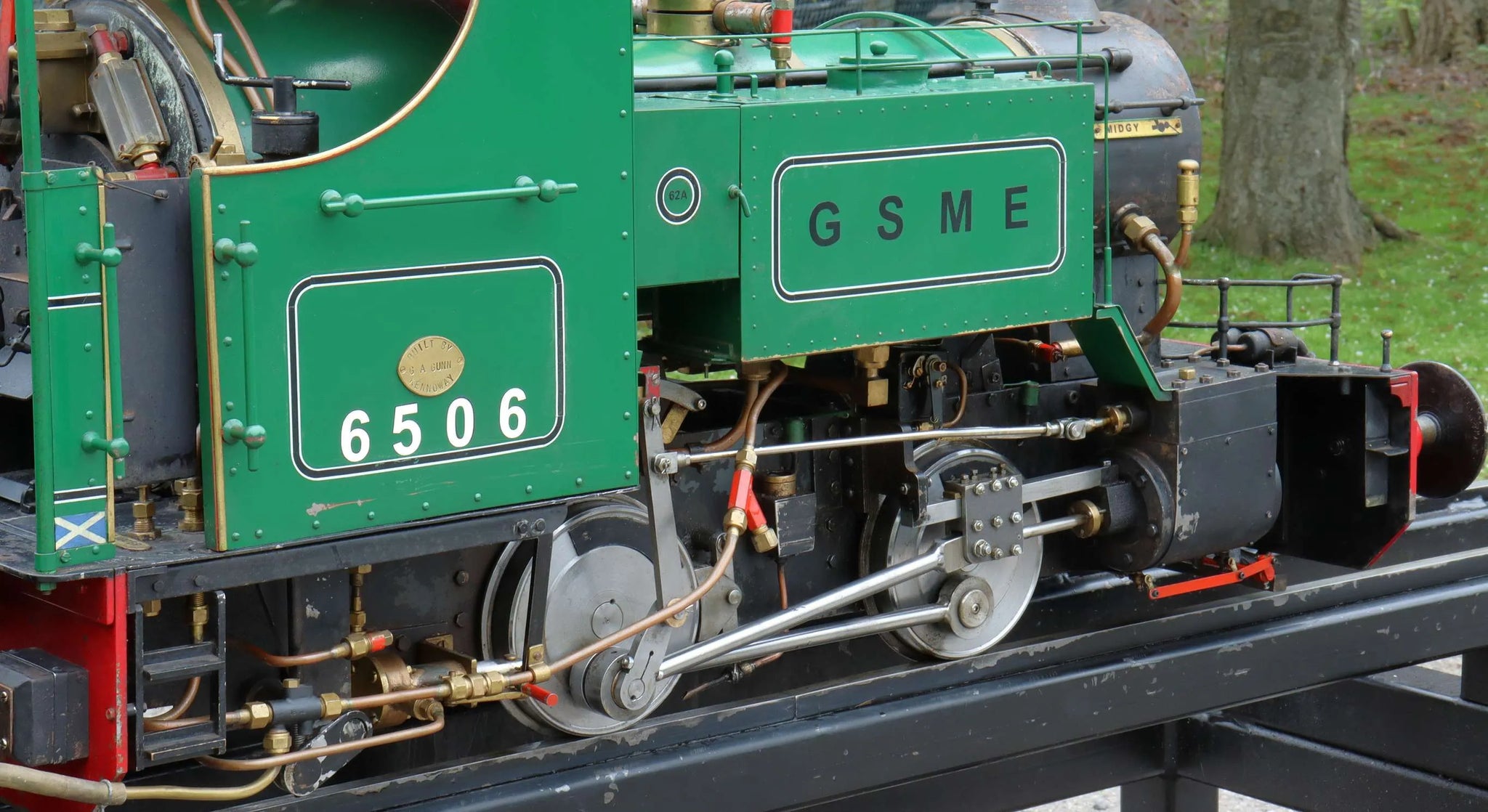

A 5 inch gauge 0-4-0T locomotive, built as a side tank variant of the popular "Sweet Pea" design.

This one has come to use from an experienced builder with several other locomotives to his credit - he is also a prolific builder of rolling stock and scale model bridges.

Unused for some years, we've given the boiler a twice working pressure hydraulic test and would warranty as sound; the chassis runs on air in both directions.

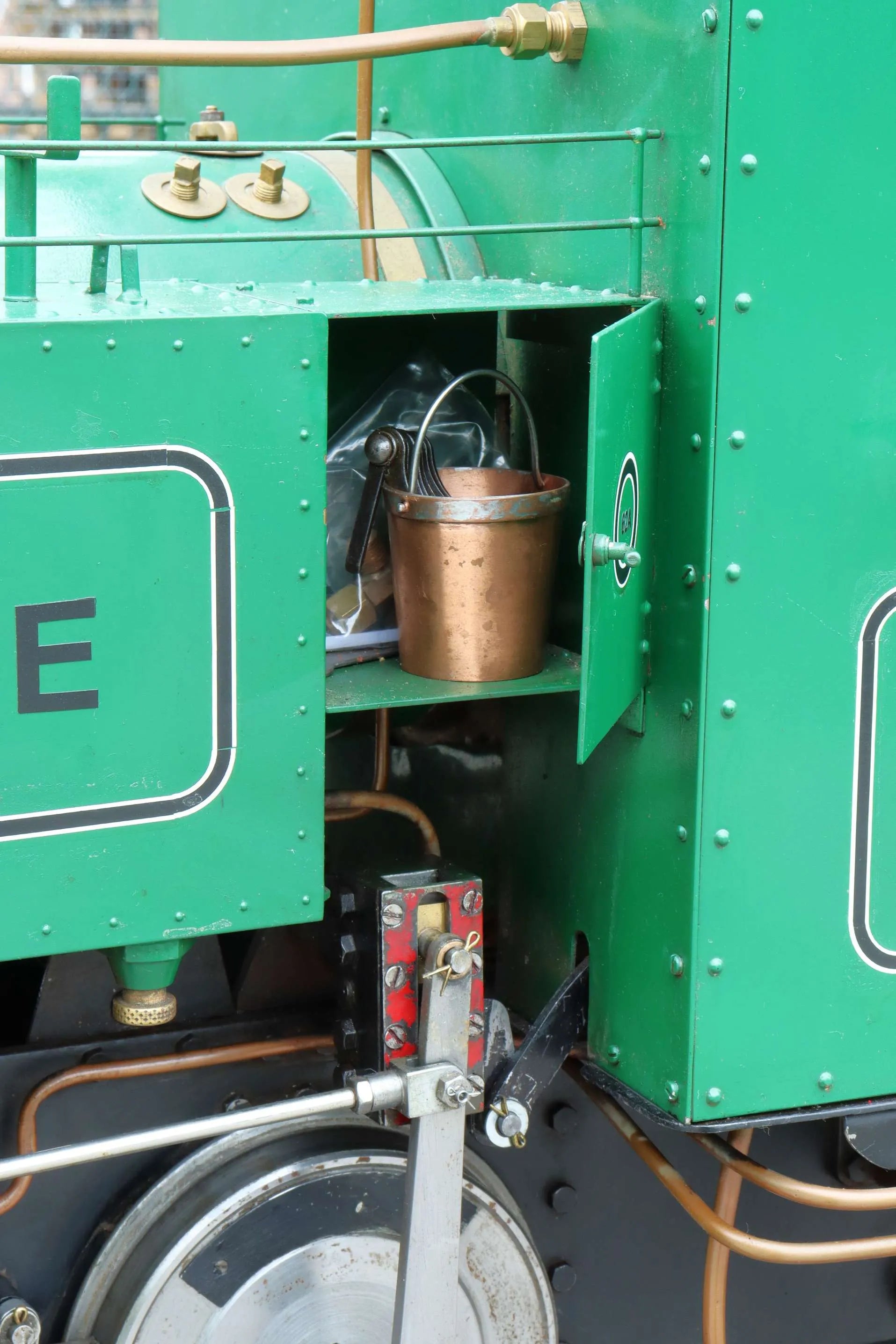

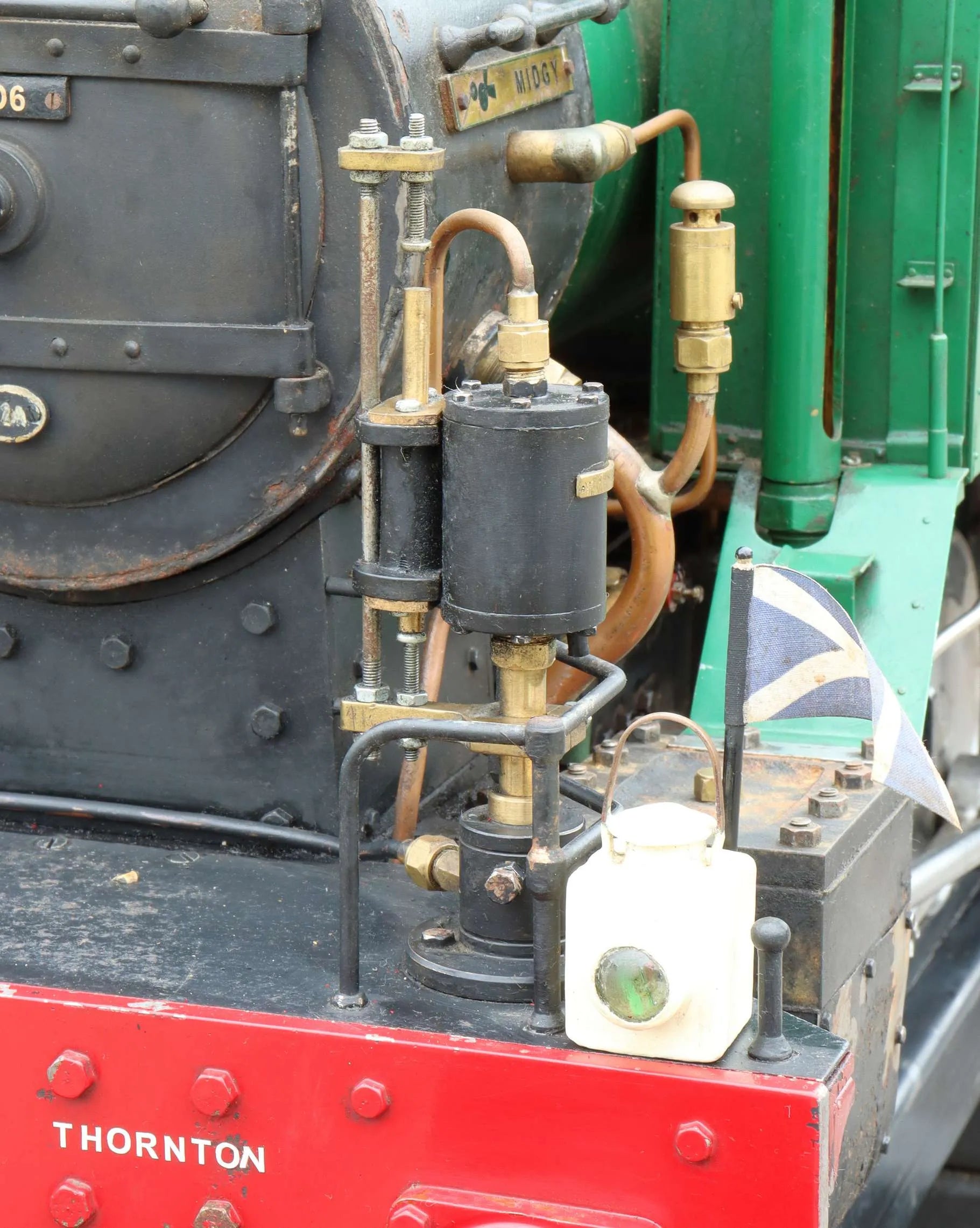

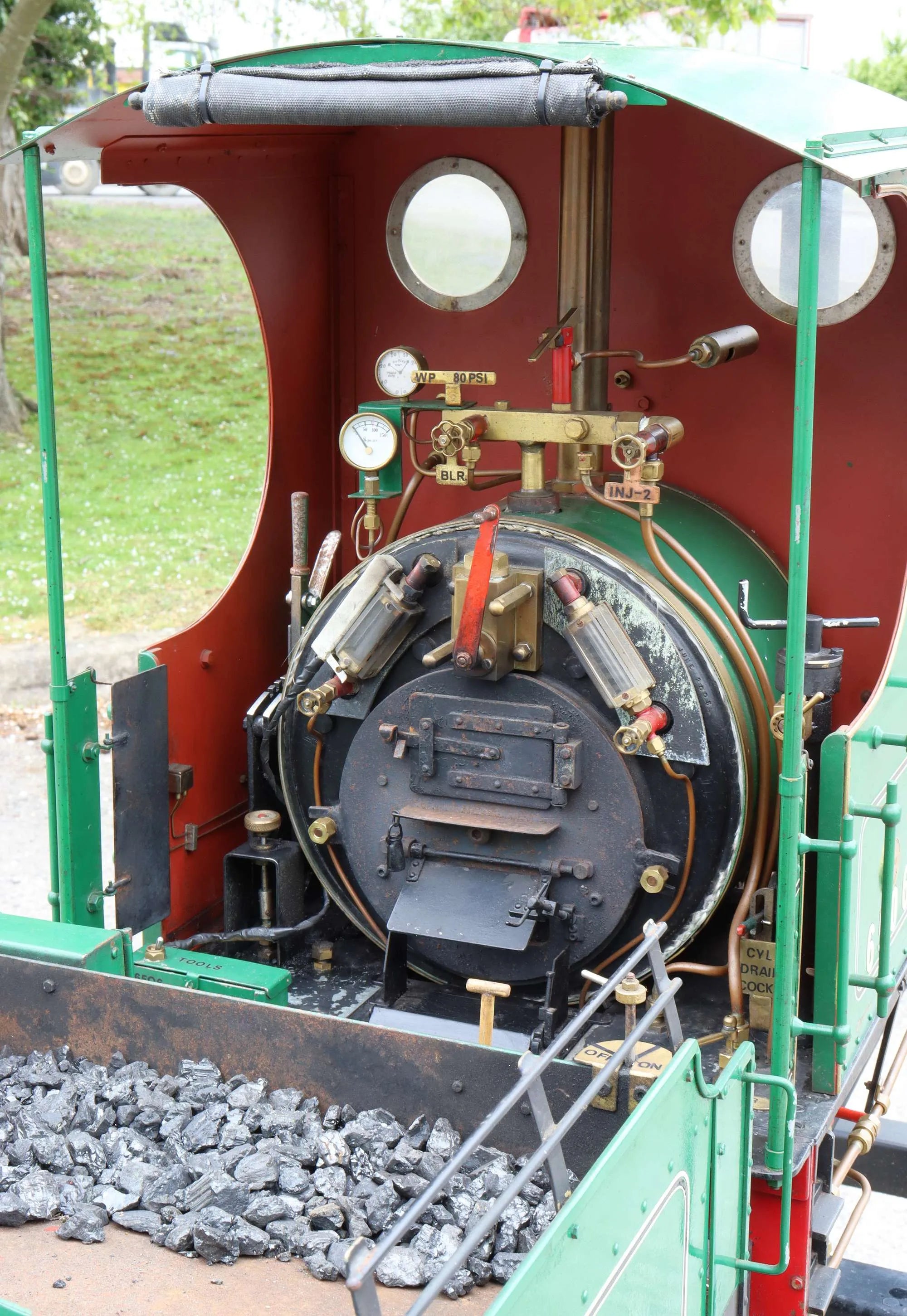

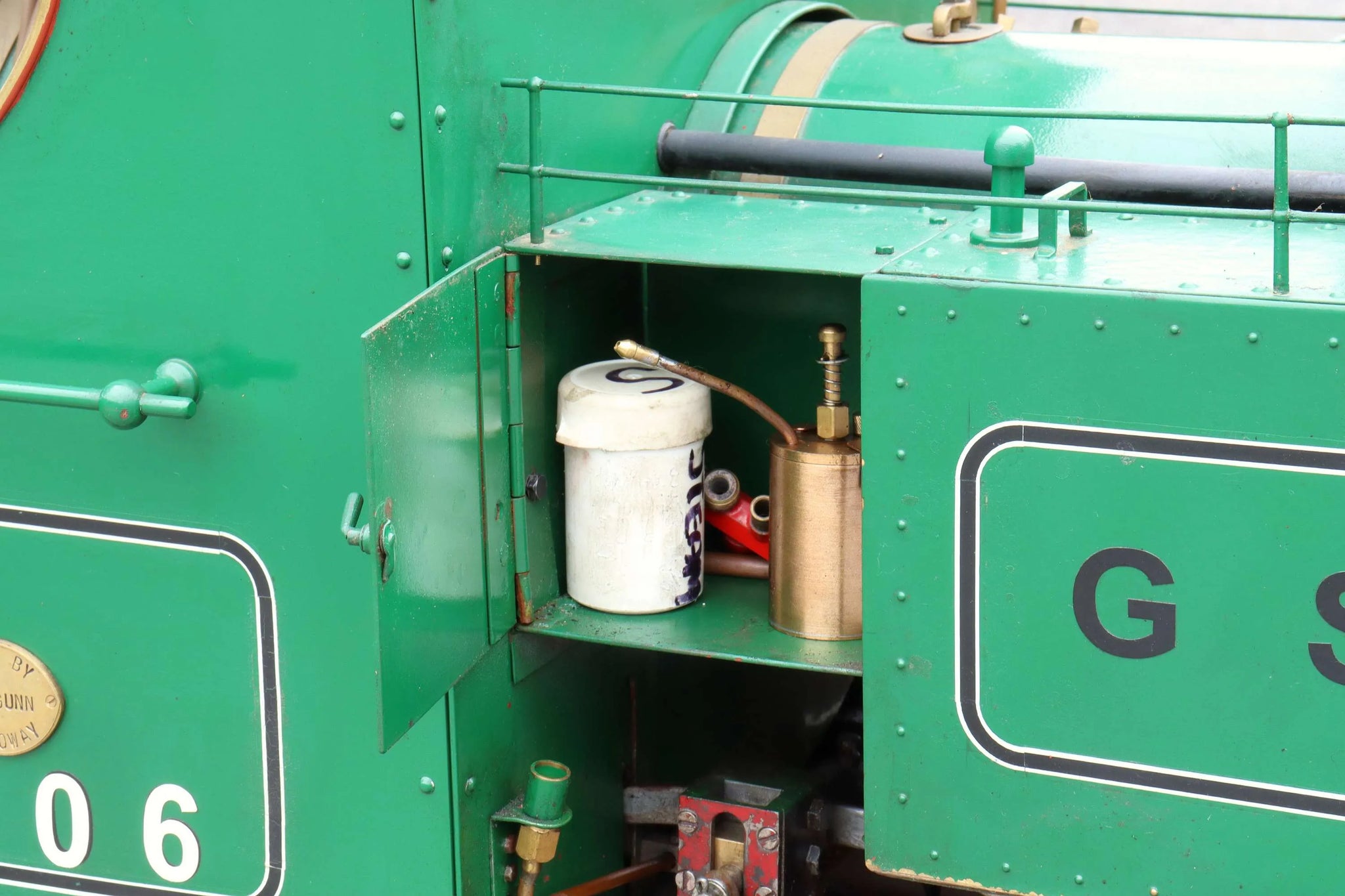

Some nice details on this one - there's a dummy steam pump mounted on the front running board, a tool locker in front of the cab containing a bucket, the cab roof has a furled sheet for running backwards in wet weather.

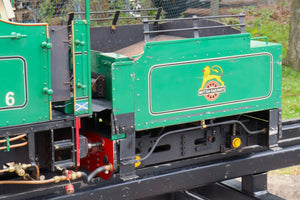

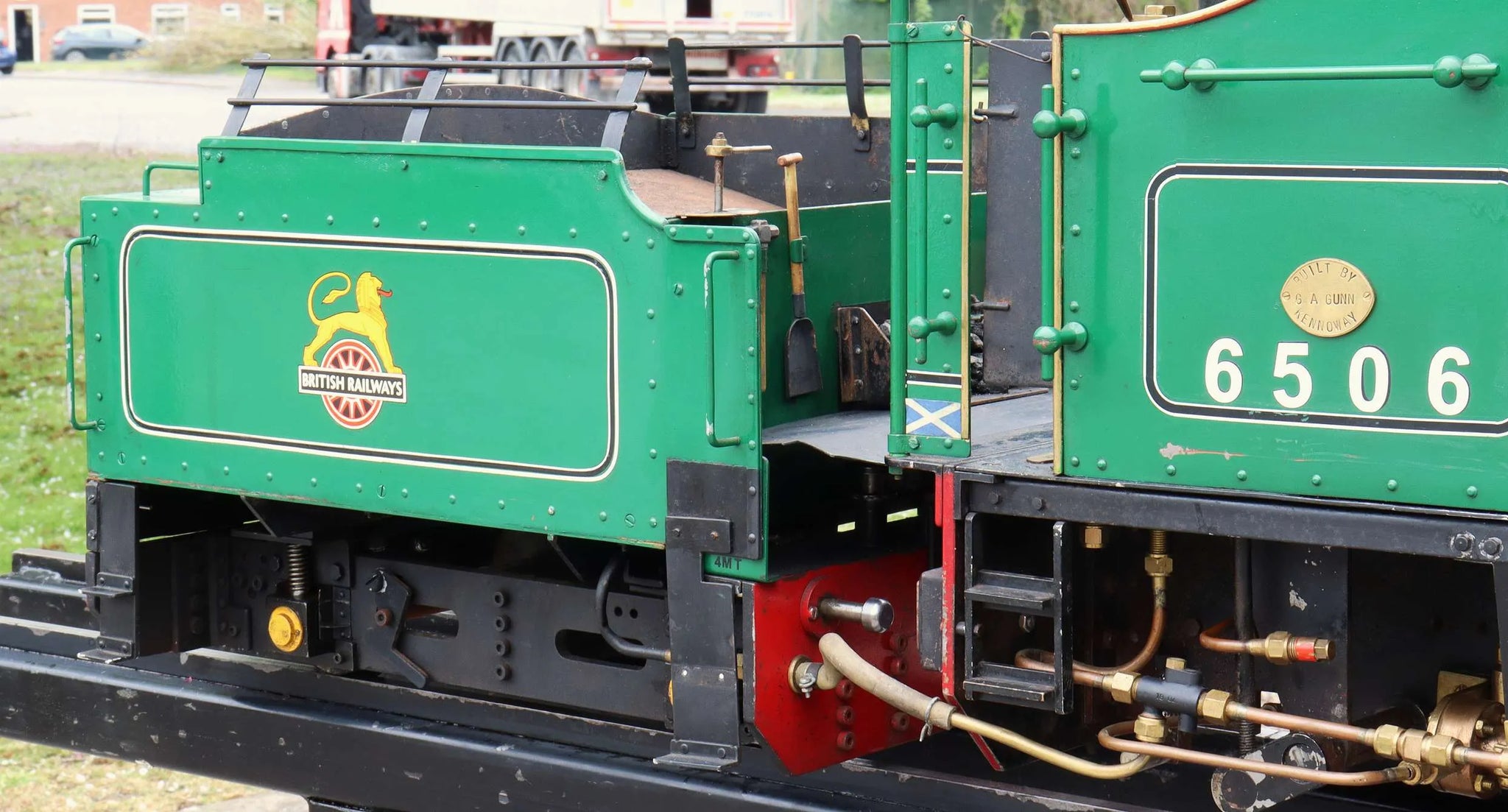

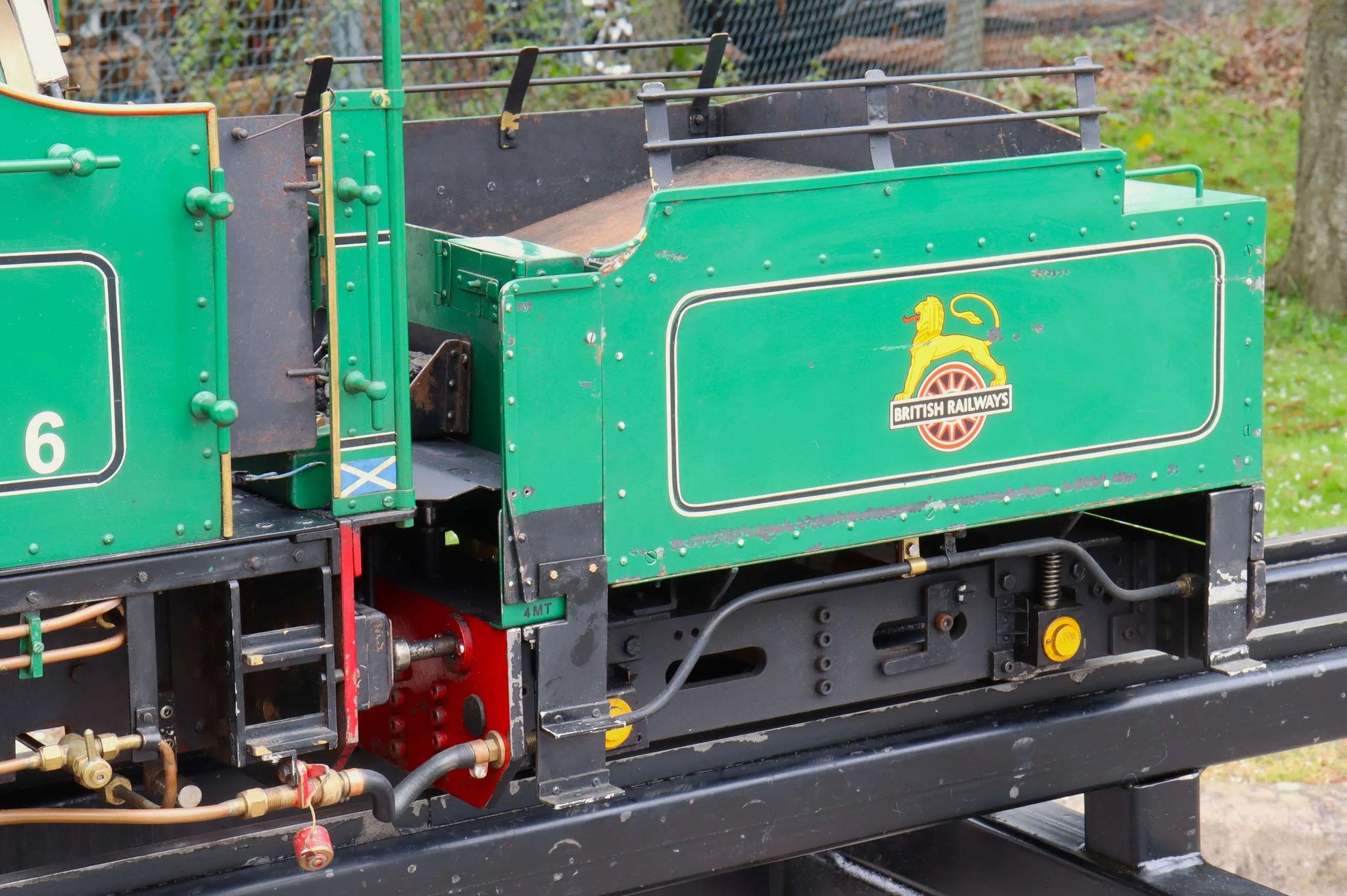

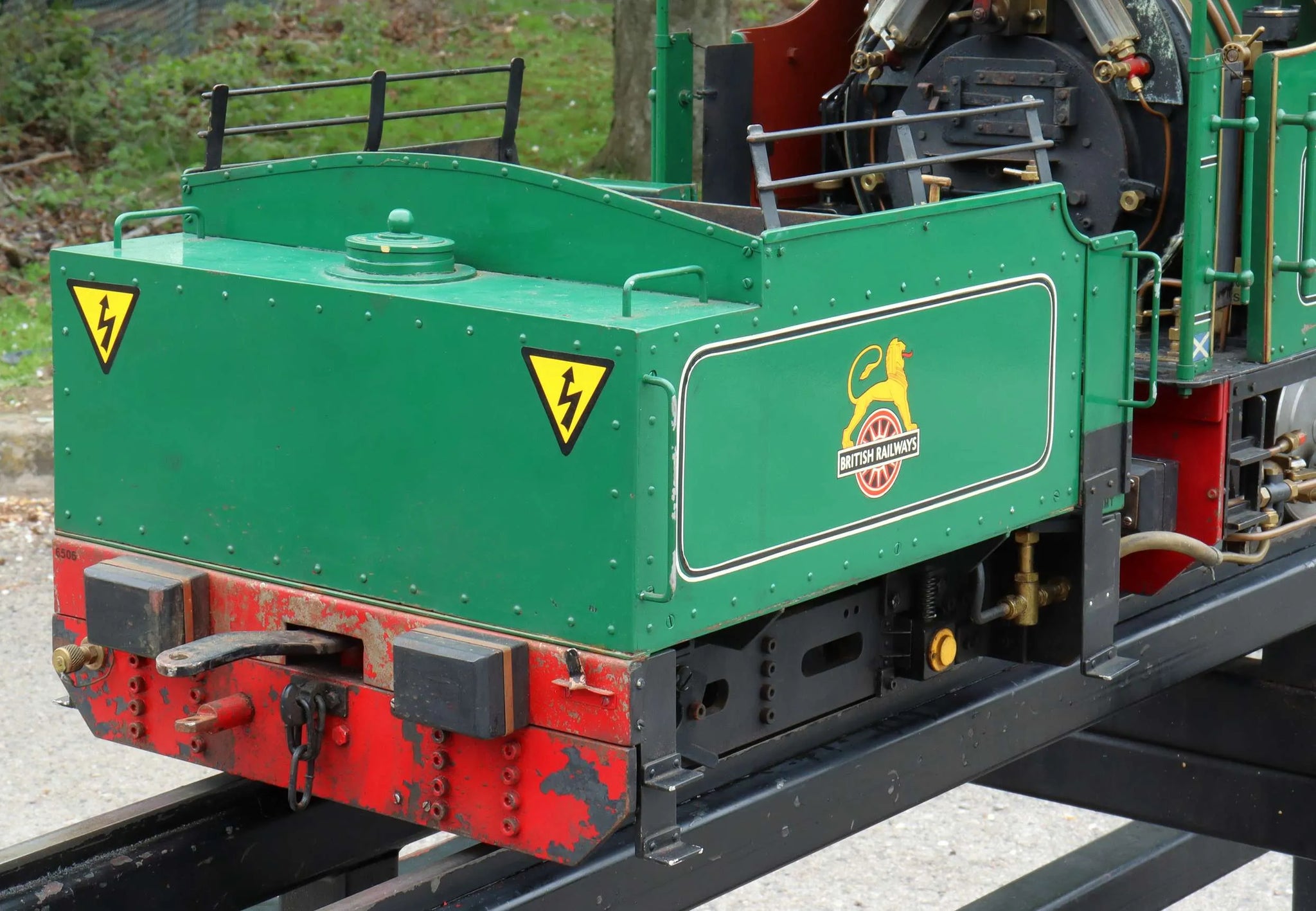

Complete with four wheel tender.

Technical information

Stock code

10260

Gauge

5 inch

Length/inches

34+15

Width/inches

13

Height/inches

22

Wheel material

steel

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

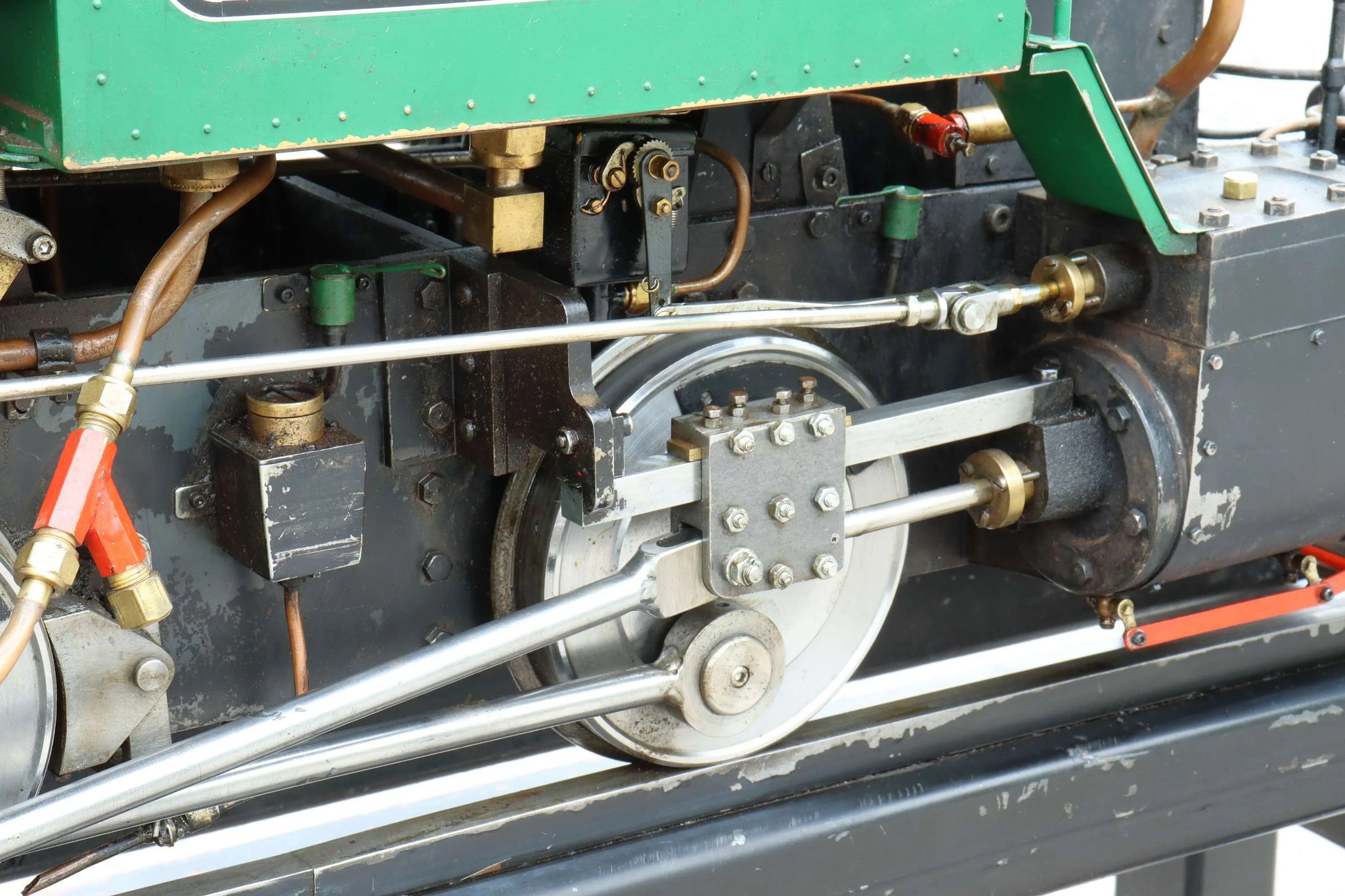

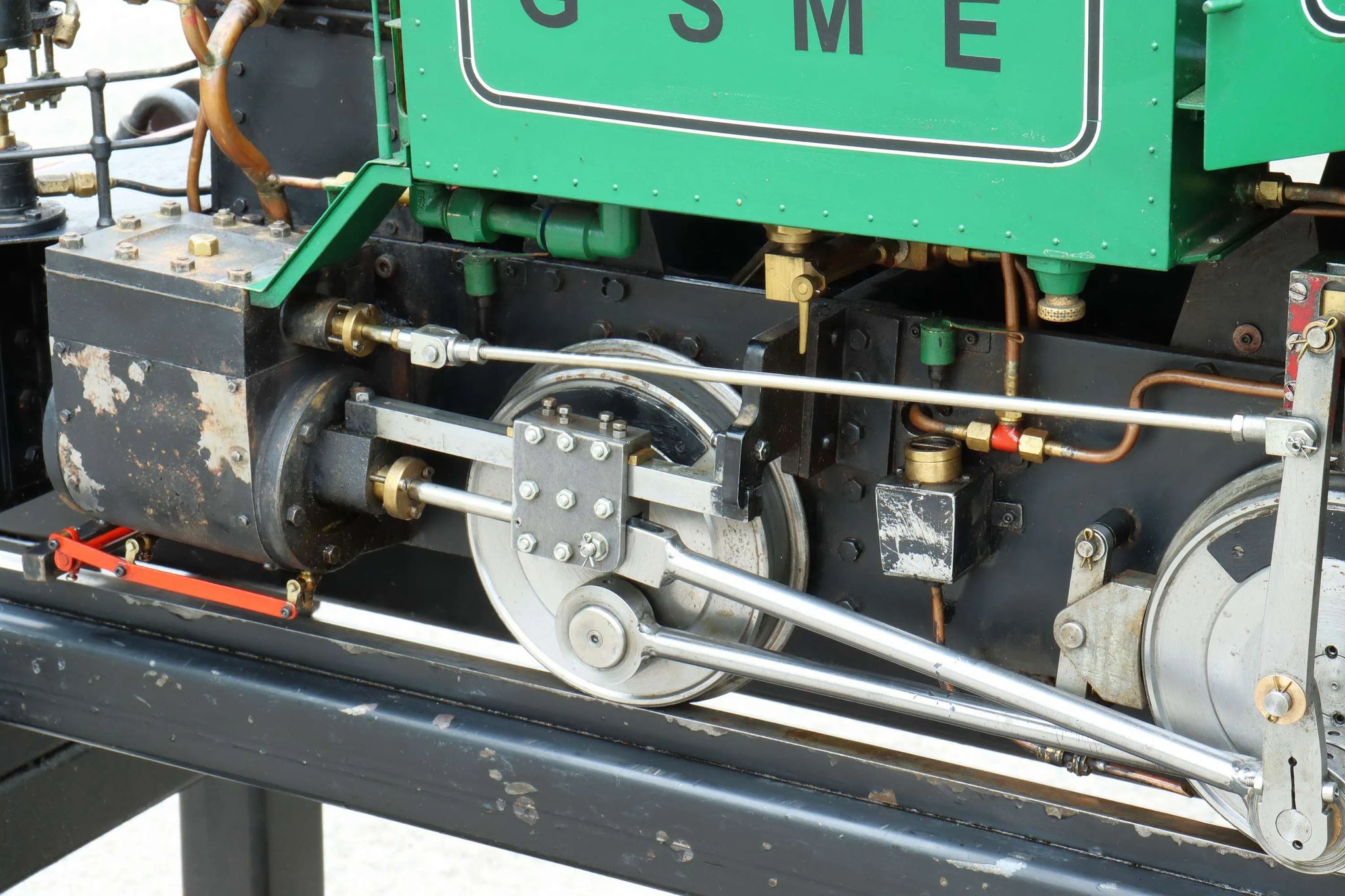

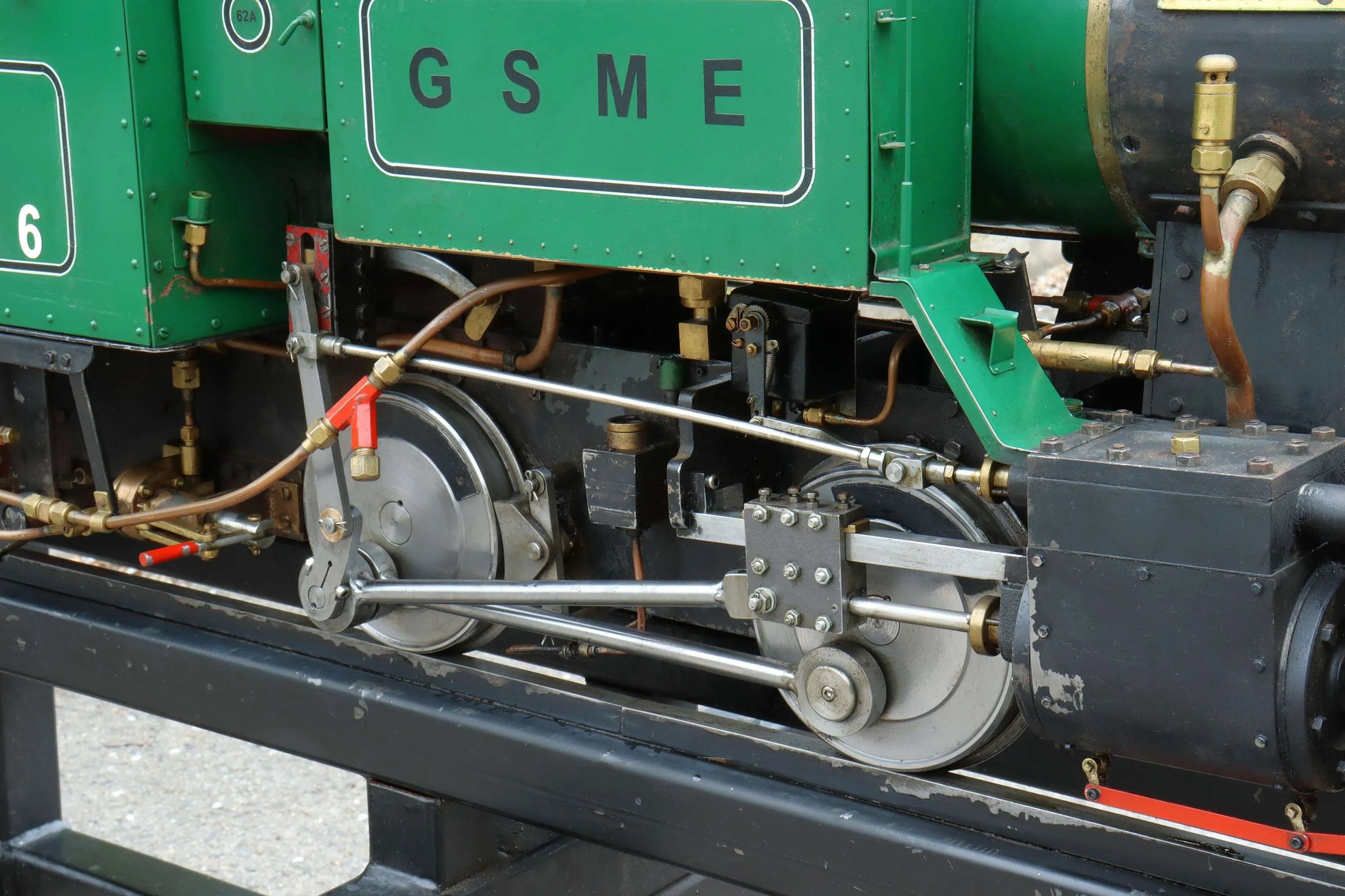

Valve gear

Hackworth

Reverser type

pole

Lubricator type

mechanical

Boiler type

marine

Boiler construction

silver soldered

Boiler material

copper

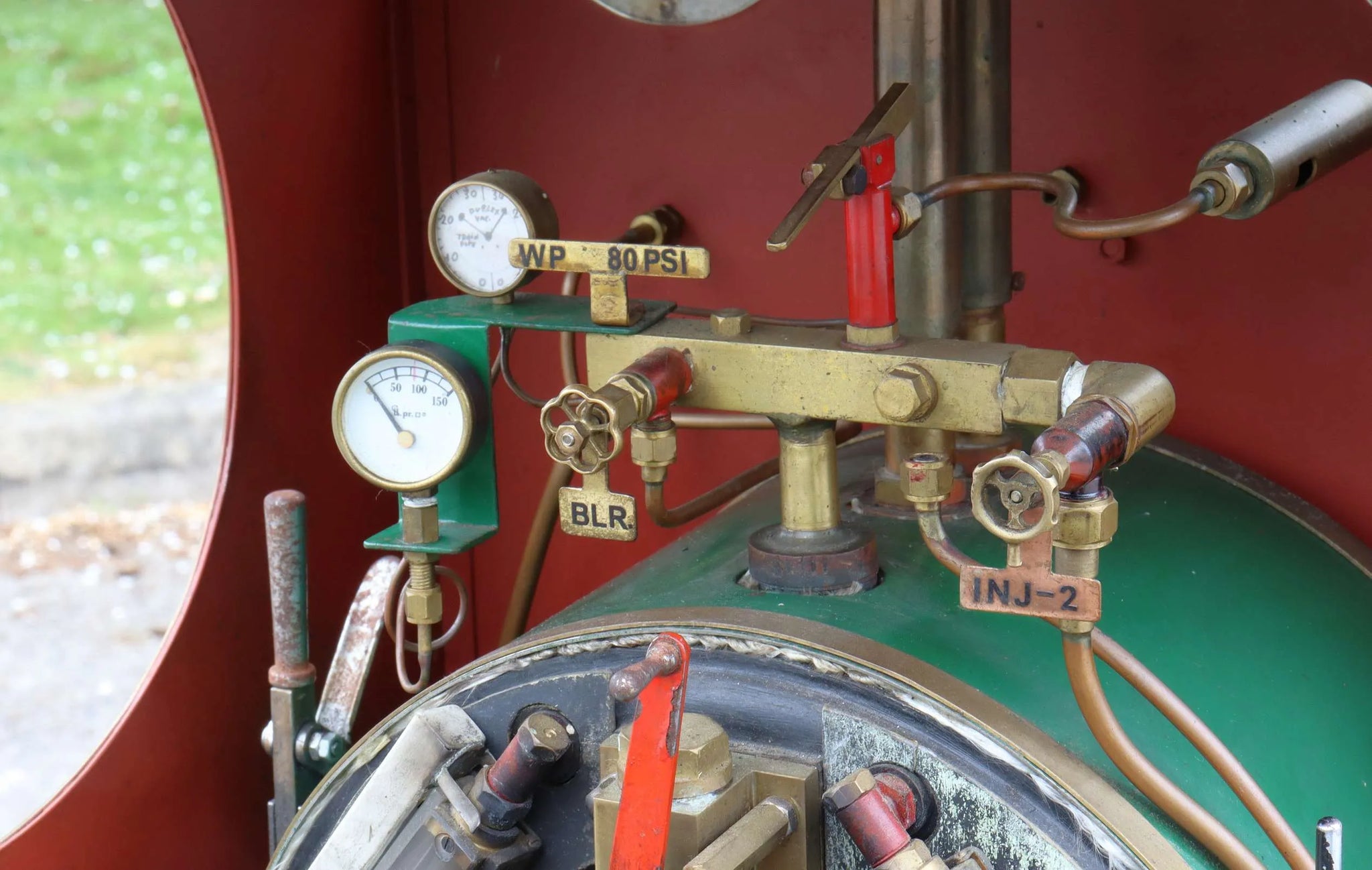

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Year built

2005

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Date out

May-22
