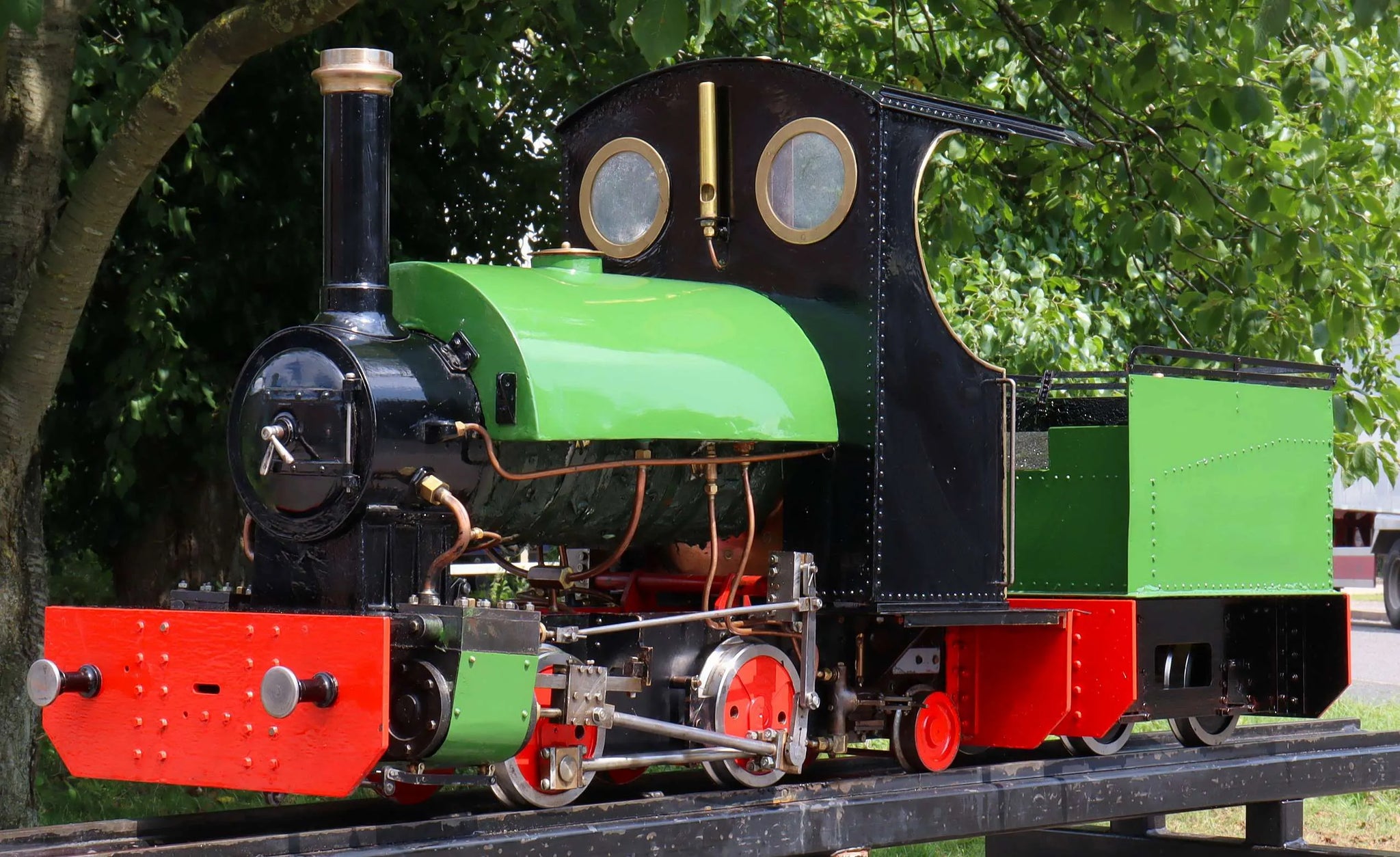

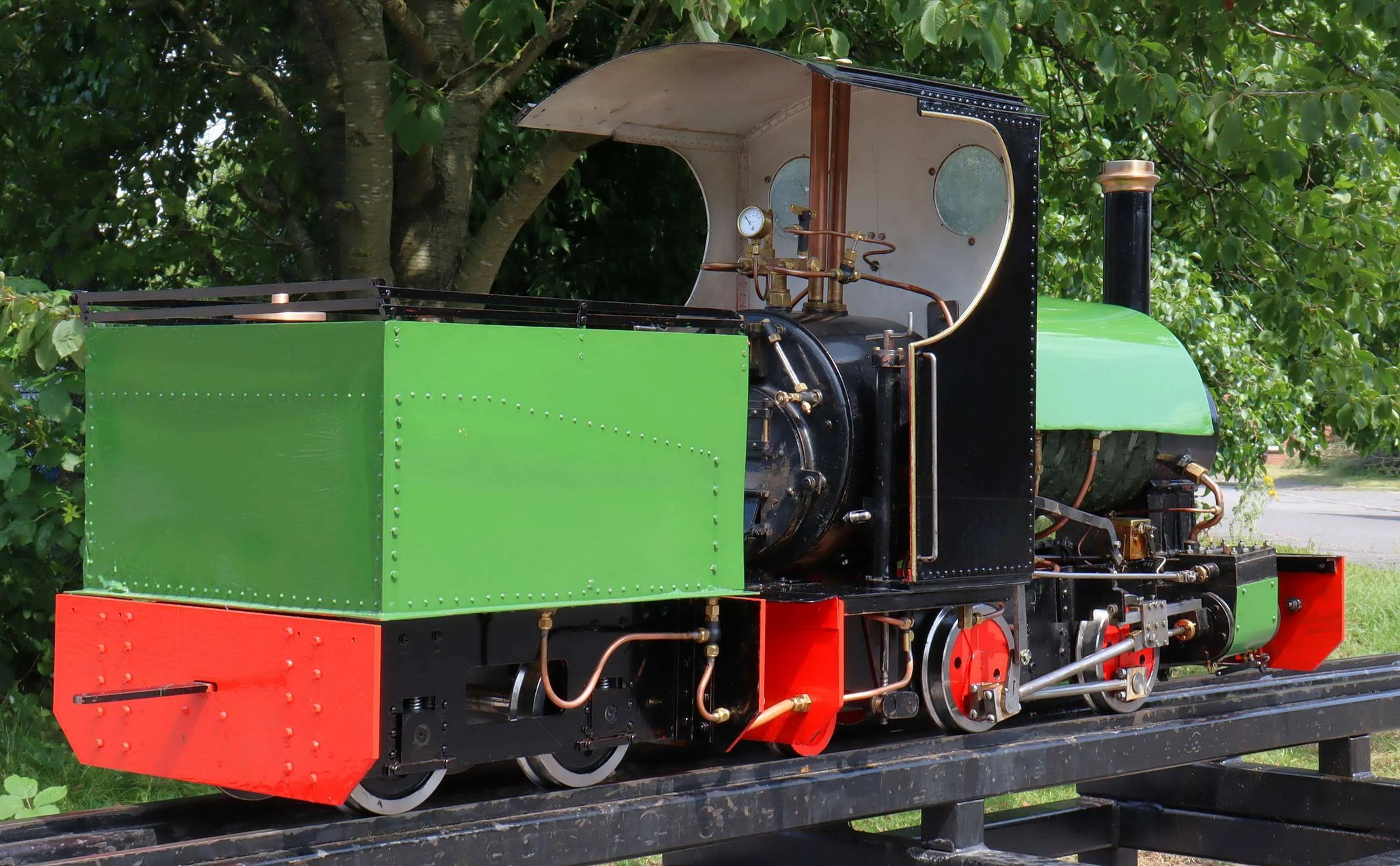

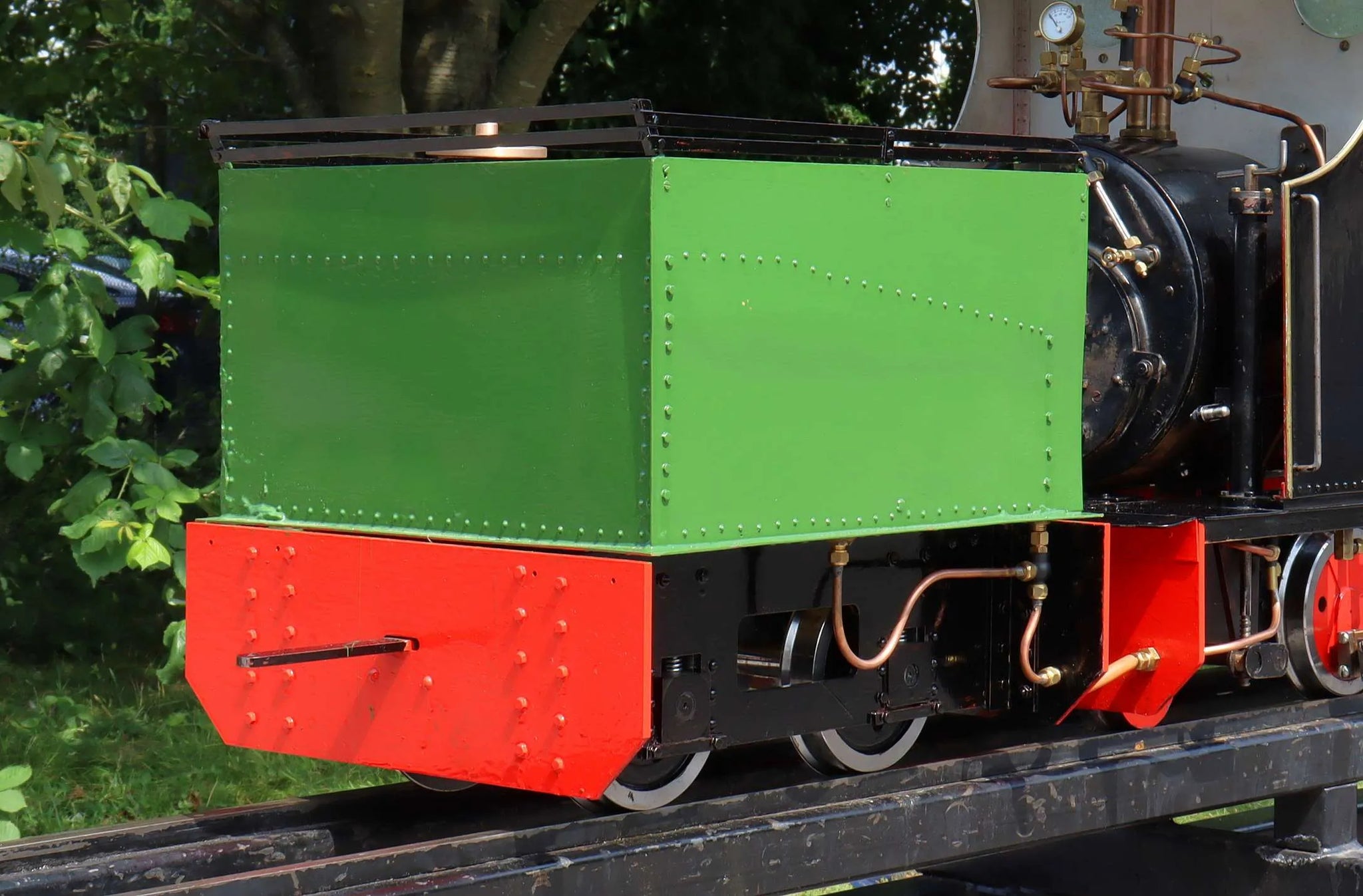

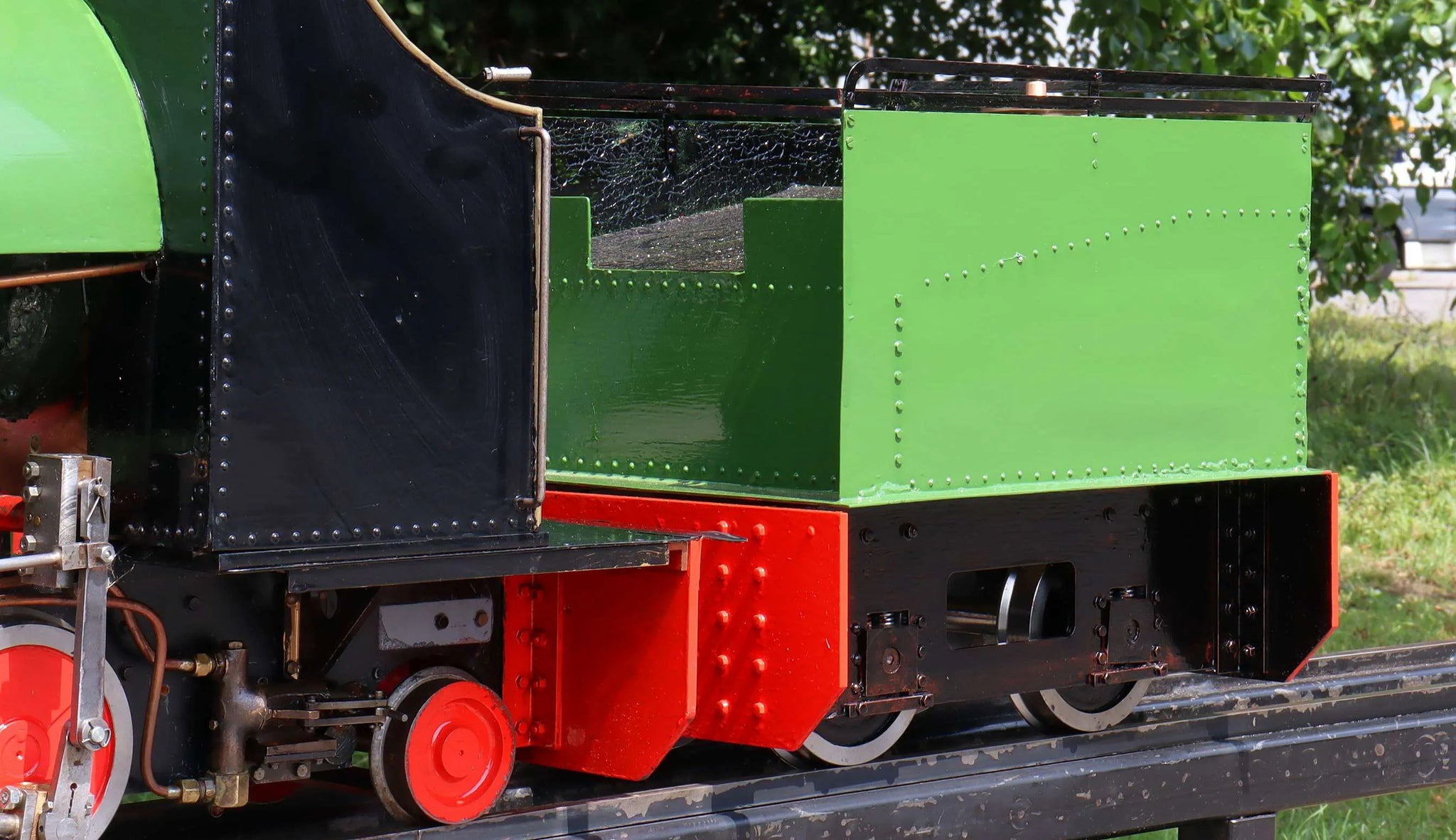

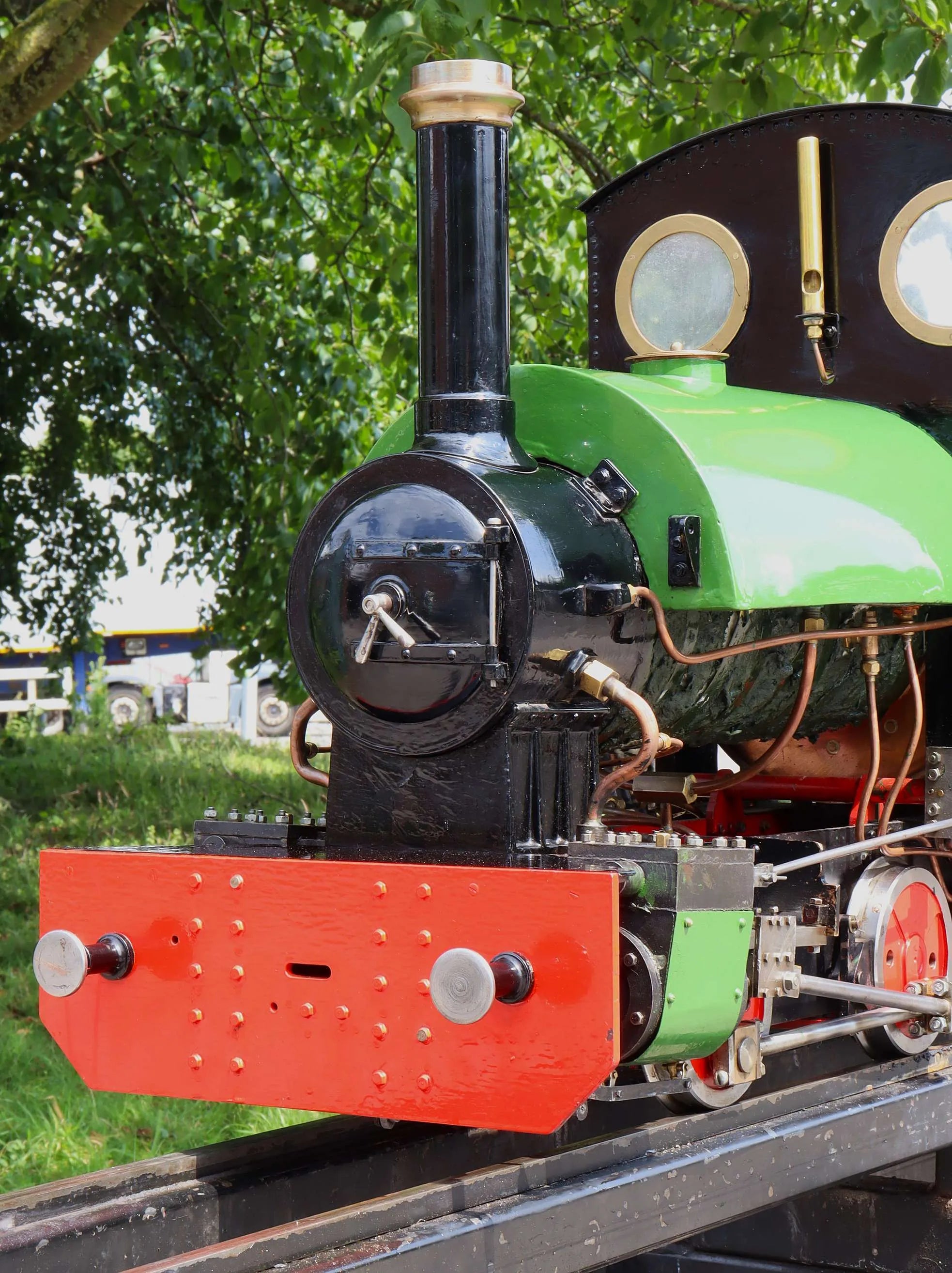

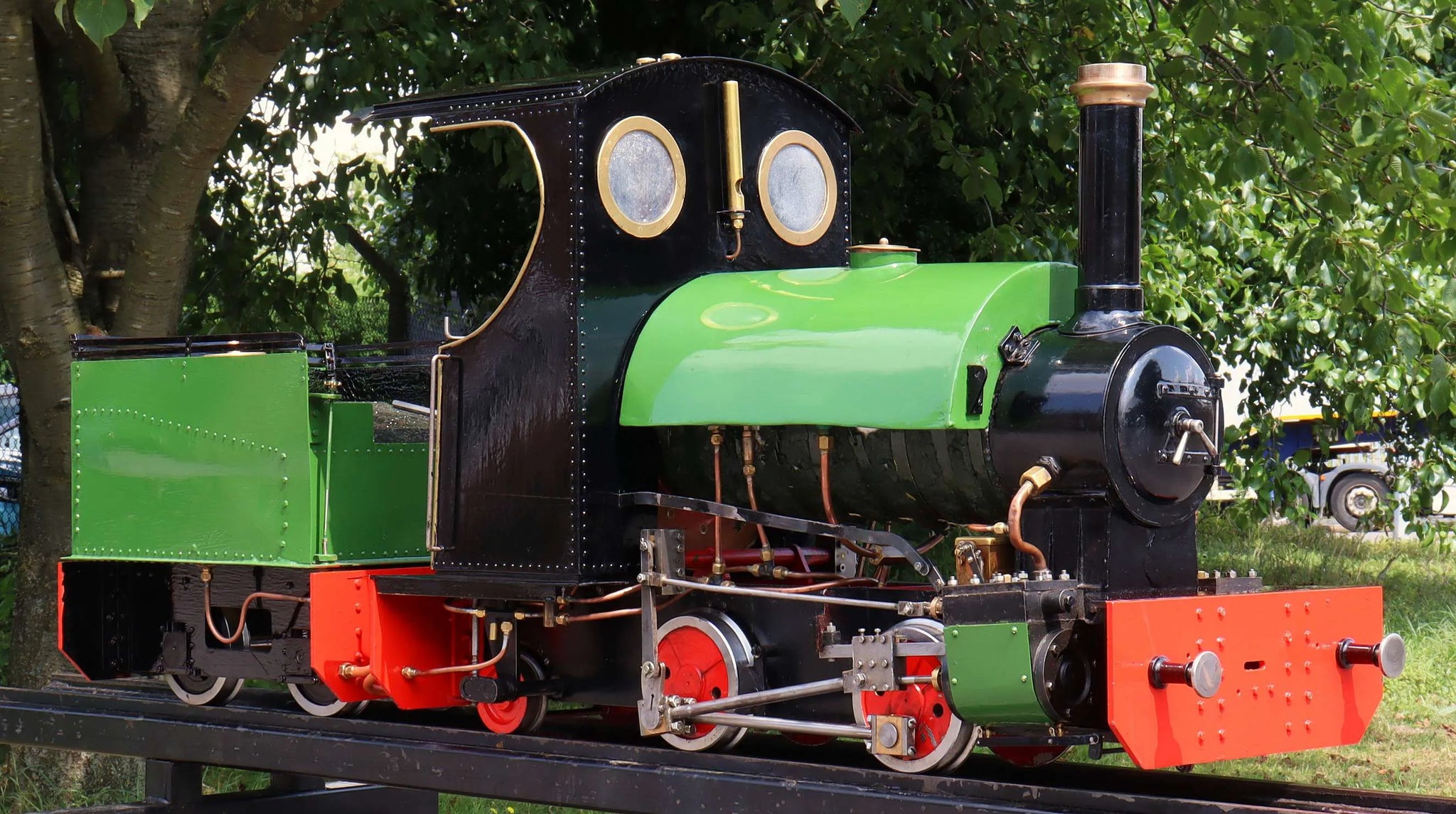

5 inch gauge ''Sweet Pea'' 0-4-2T and tender

A 5 inch gauge "Sweet Pea" 0-4-2ST with tender which we sold back in 2021 as a well-advanced project.

It's recently come back, now complete and running, after a fashion...

A brief run down of our workshop notes gives the following needing attention:

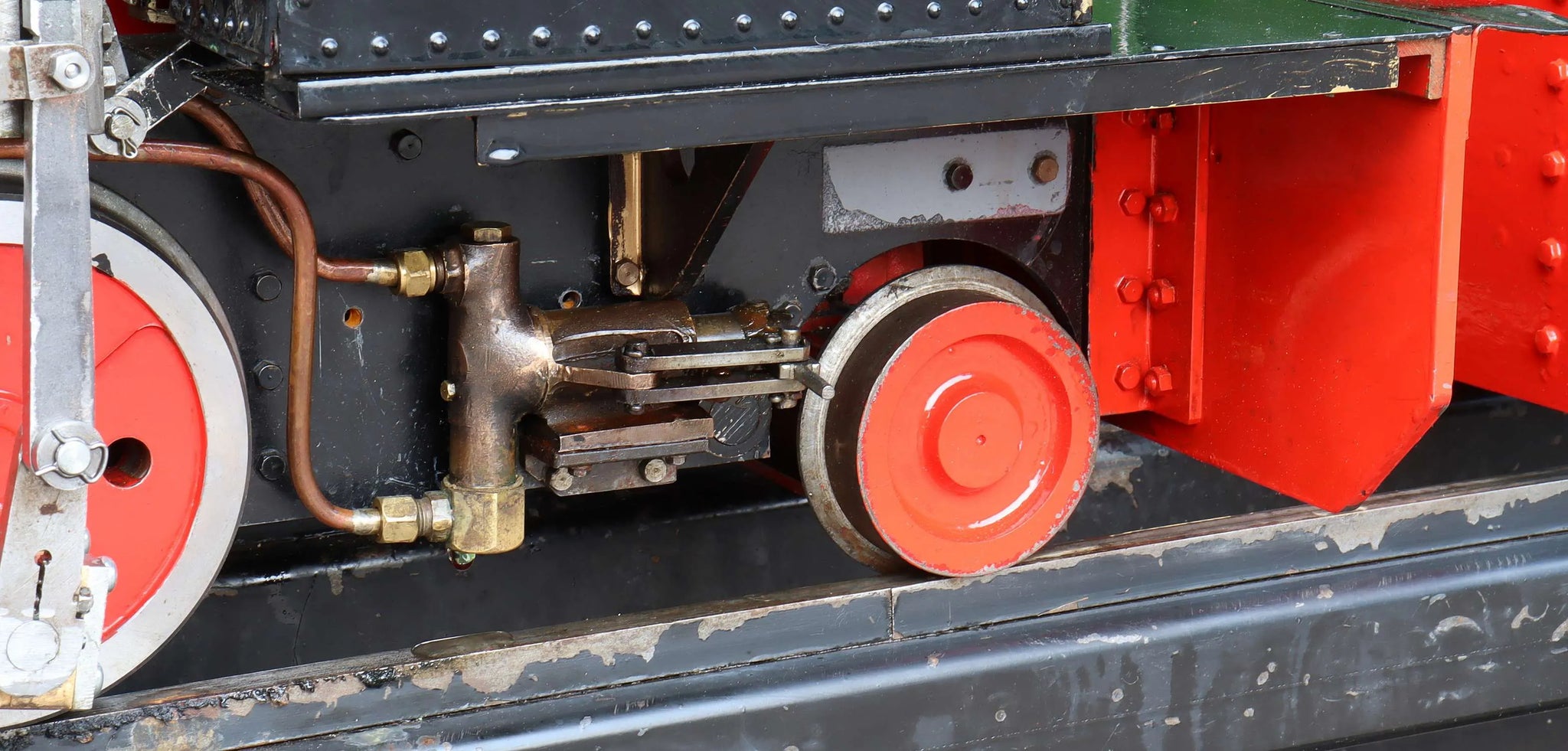

  • Injector is piped up for water and steam but not delivery

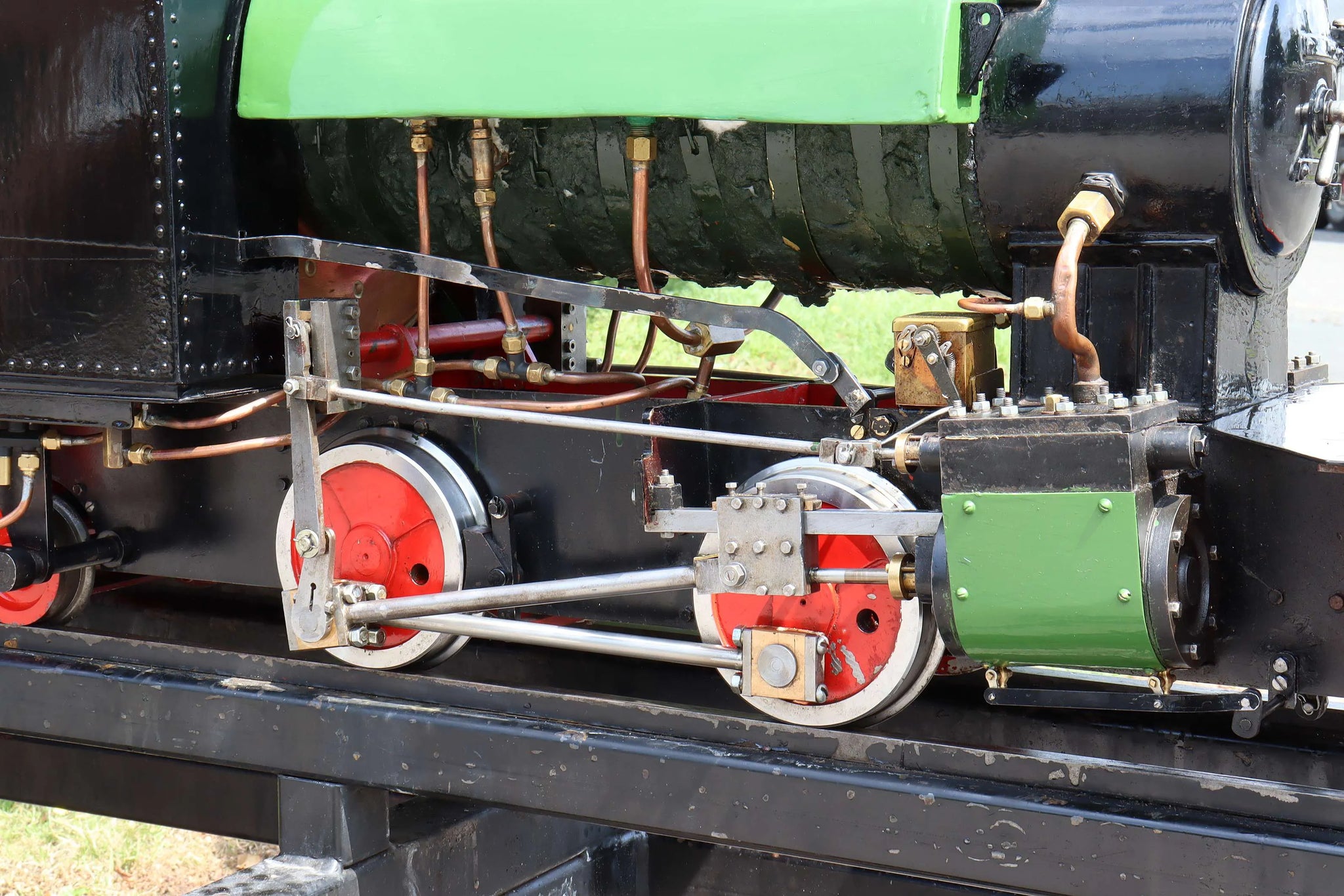

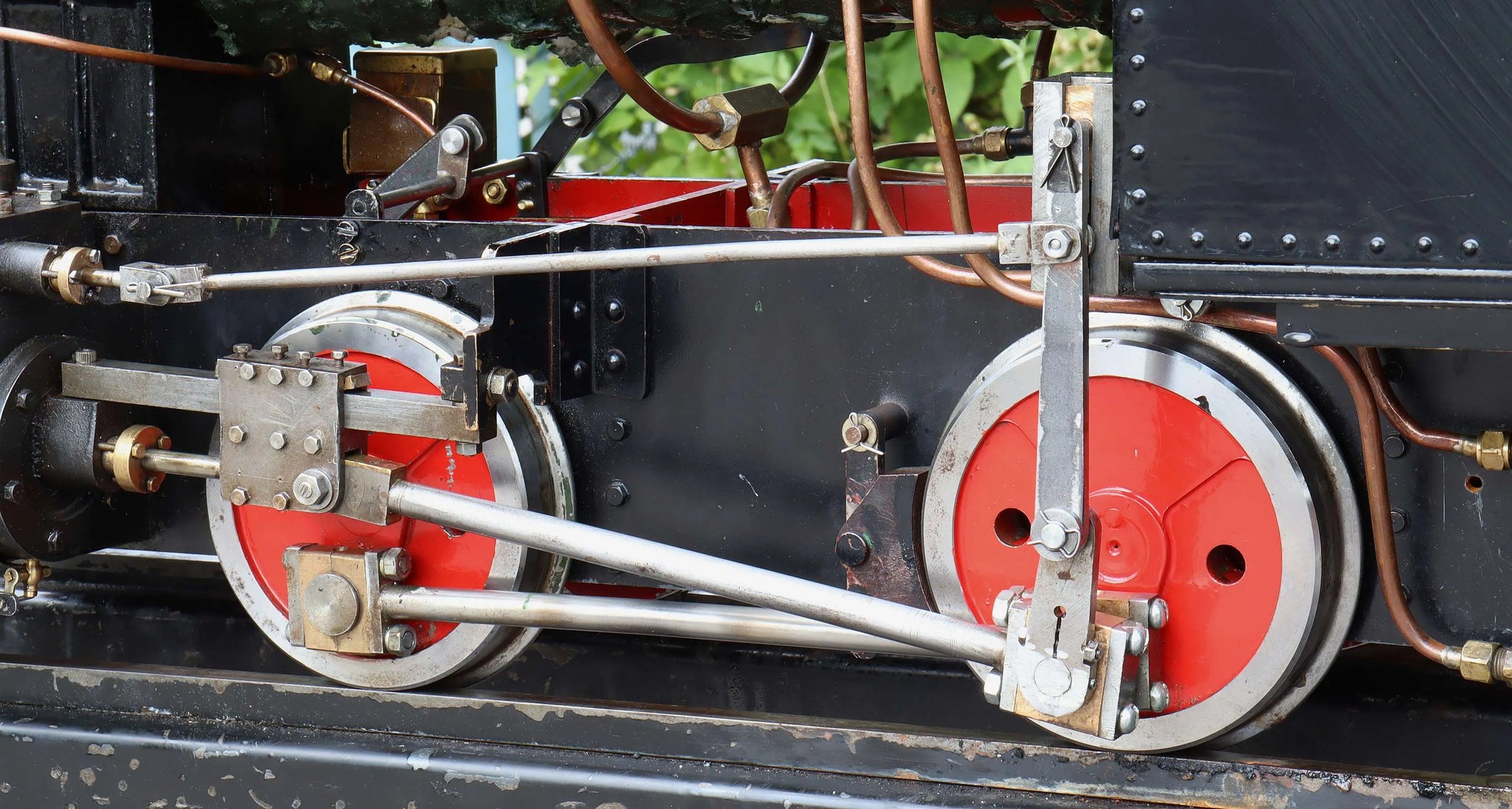

  • Coupling and connecting rods require rebushing

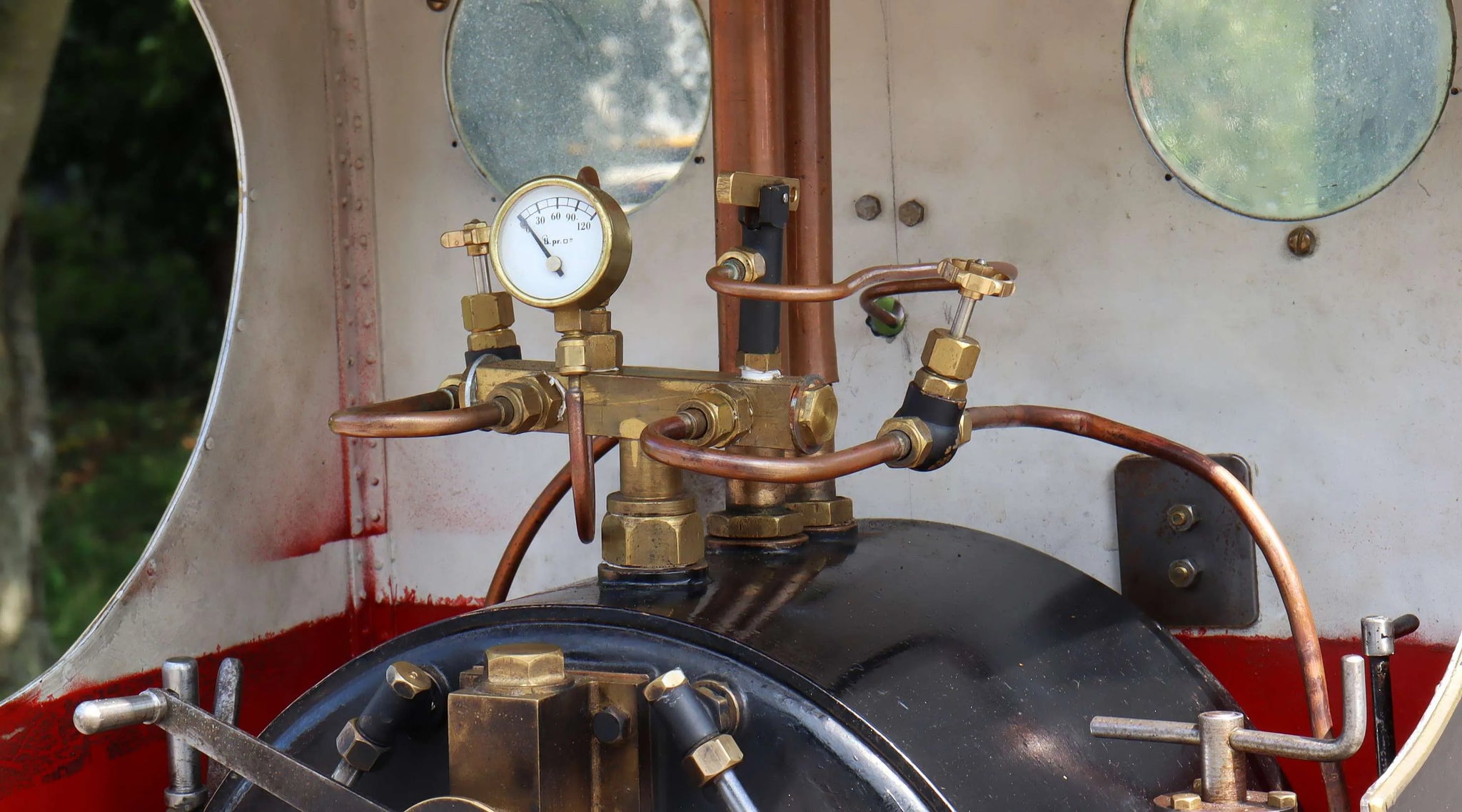

  • Safety valves accumulate
  • Chassis runs in forward gear, not in reverse

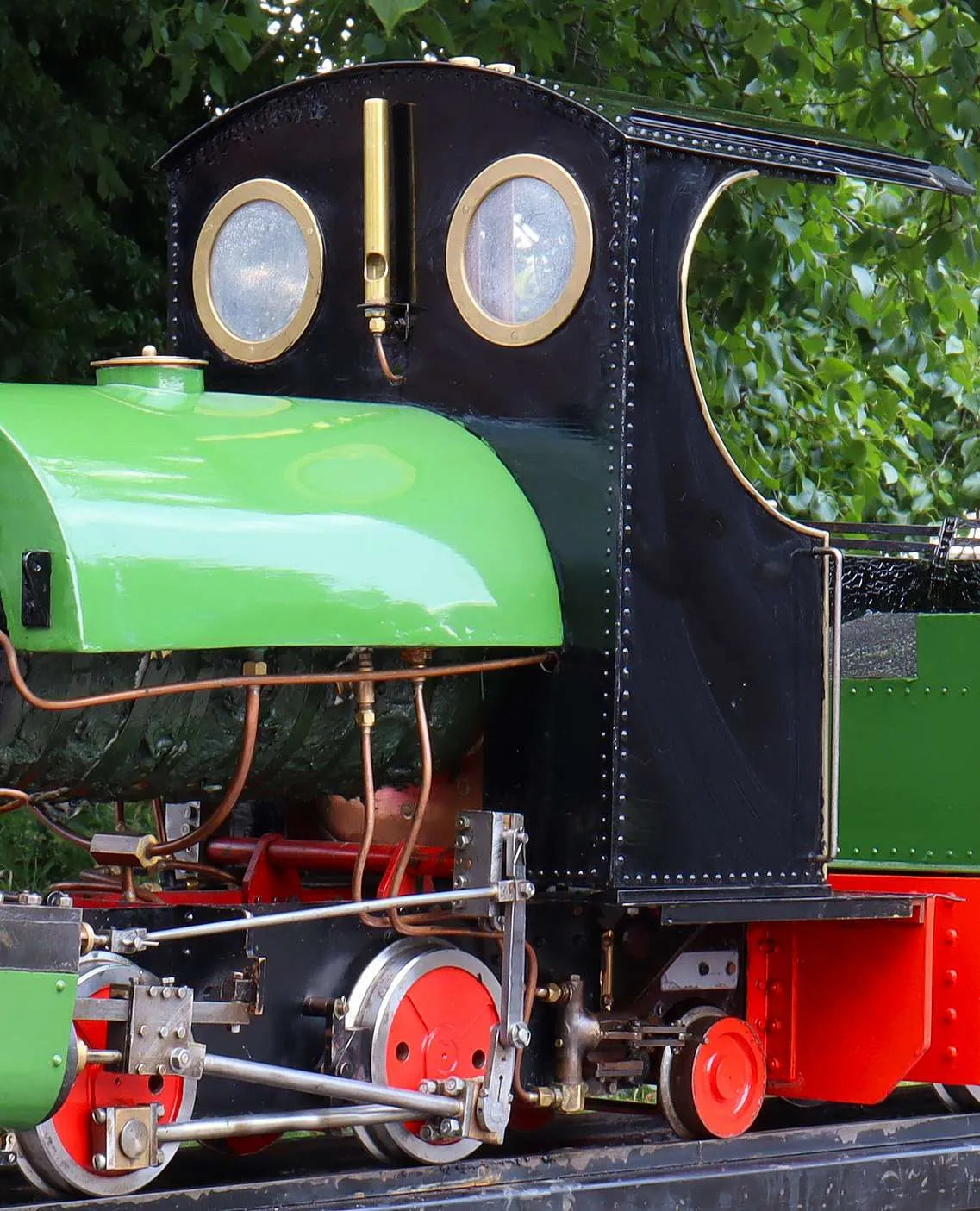

Paintwork - what there is of it - is to a uniformly drab standard (and included painting directly over the unclad boiler insulation, which is something we've not seen before).

On the plus side the engine has had little, if any use since completion - the CE-marked Blackgates boiler remaining in as-new condition, it was as tight as a drum on hydraulic test.

Work required is time-consuming rather than costly of parts or materials - there's the potential to make a decent engine from what, prima facie, appears a rather uninspiring start.

Technical information

Stock code

11406

Gauge

5 inch

Length/inches

33

Width/inches

13

Height/inches

22.5

Weight/Kg

63 + 19

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

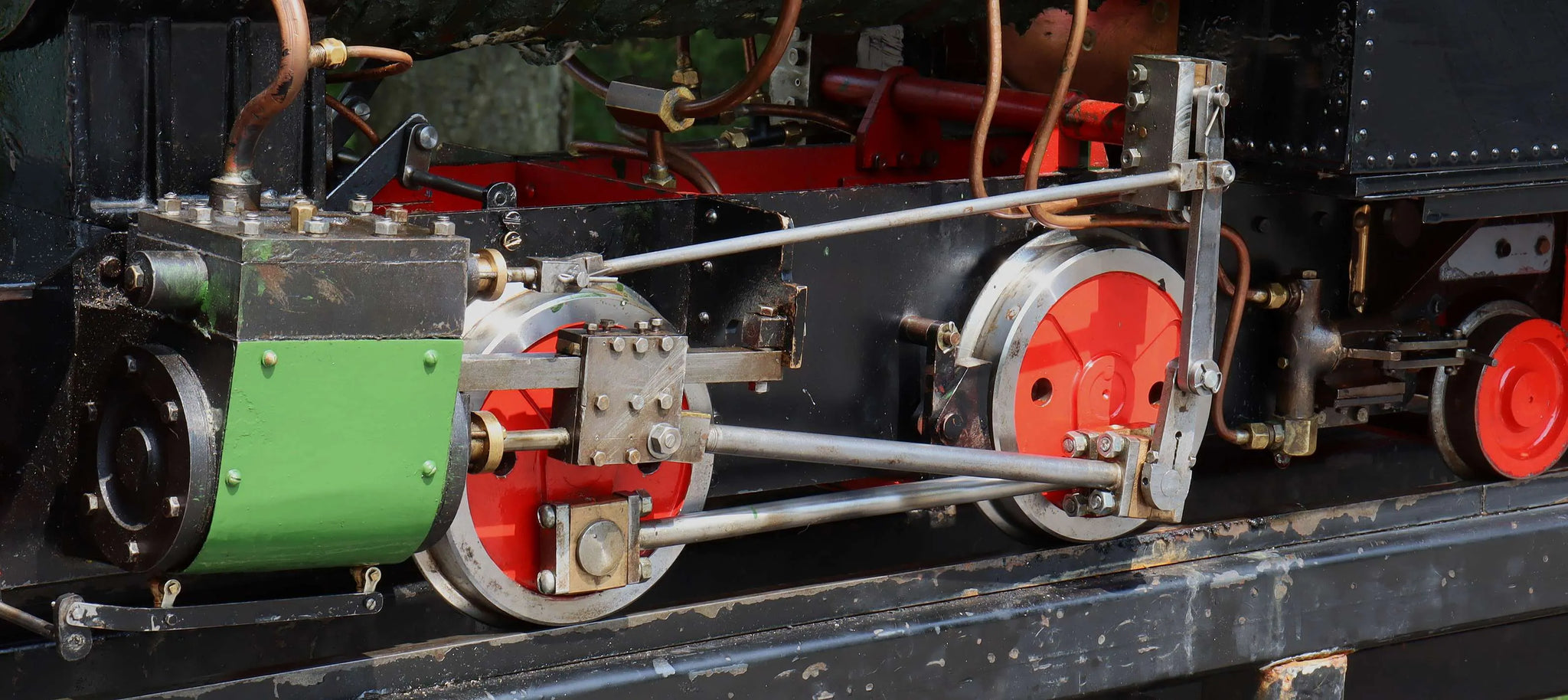

Valve gear

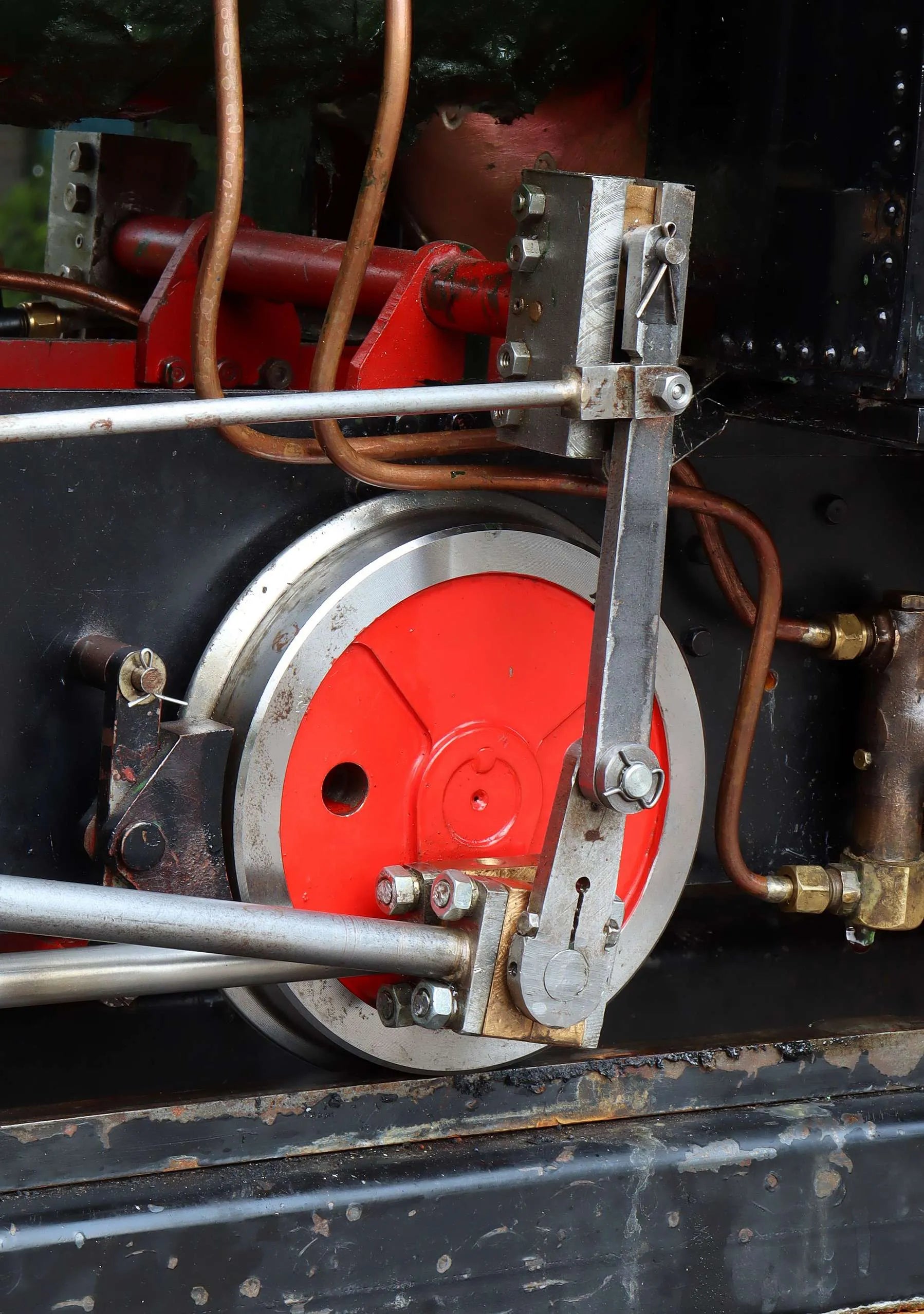

Hackworth

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Blackgates Engineering

Boiler type

marine

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

yes

Year built

2012

Boiler number

BG238

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Date out

Aug-23

Hydraulic test valid to

04-Jul-27
