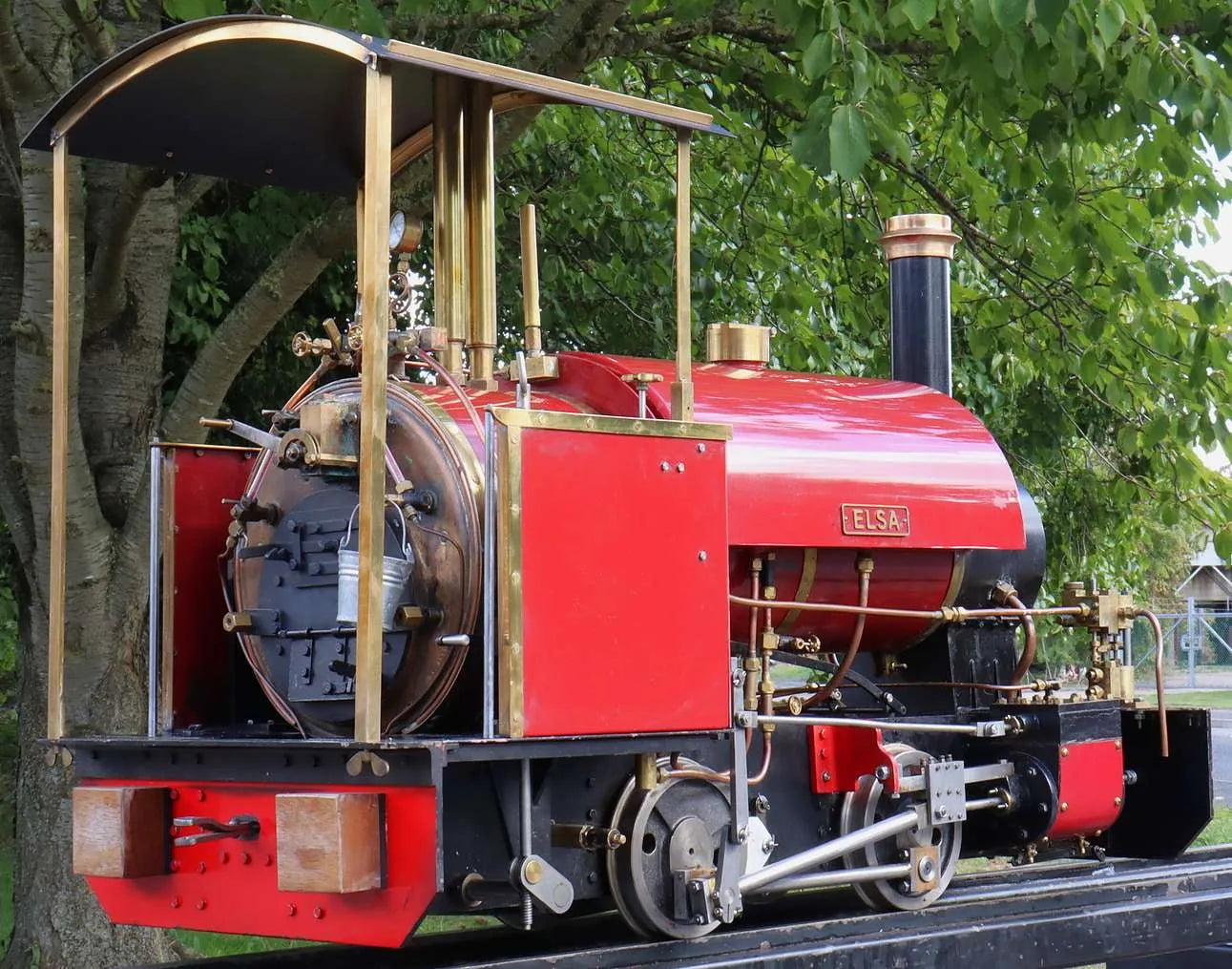

10801

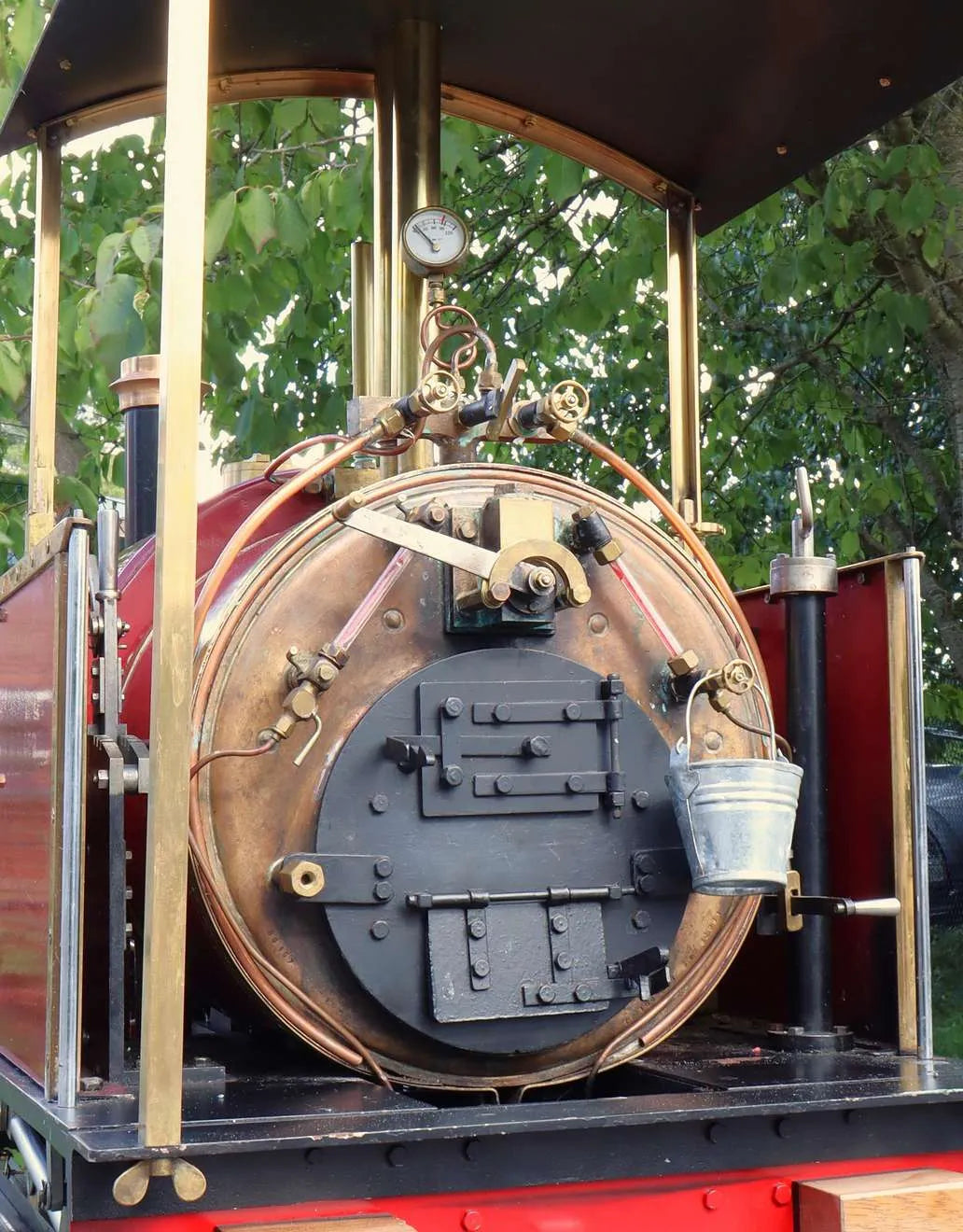

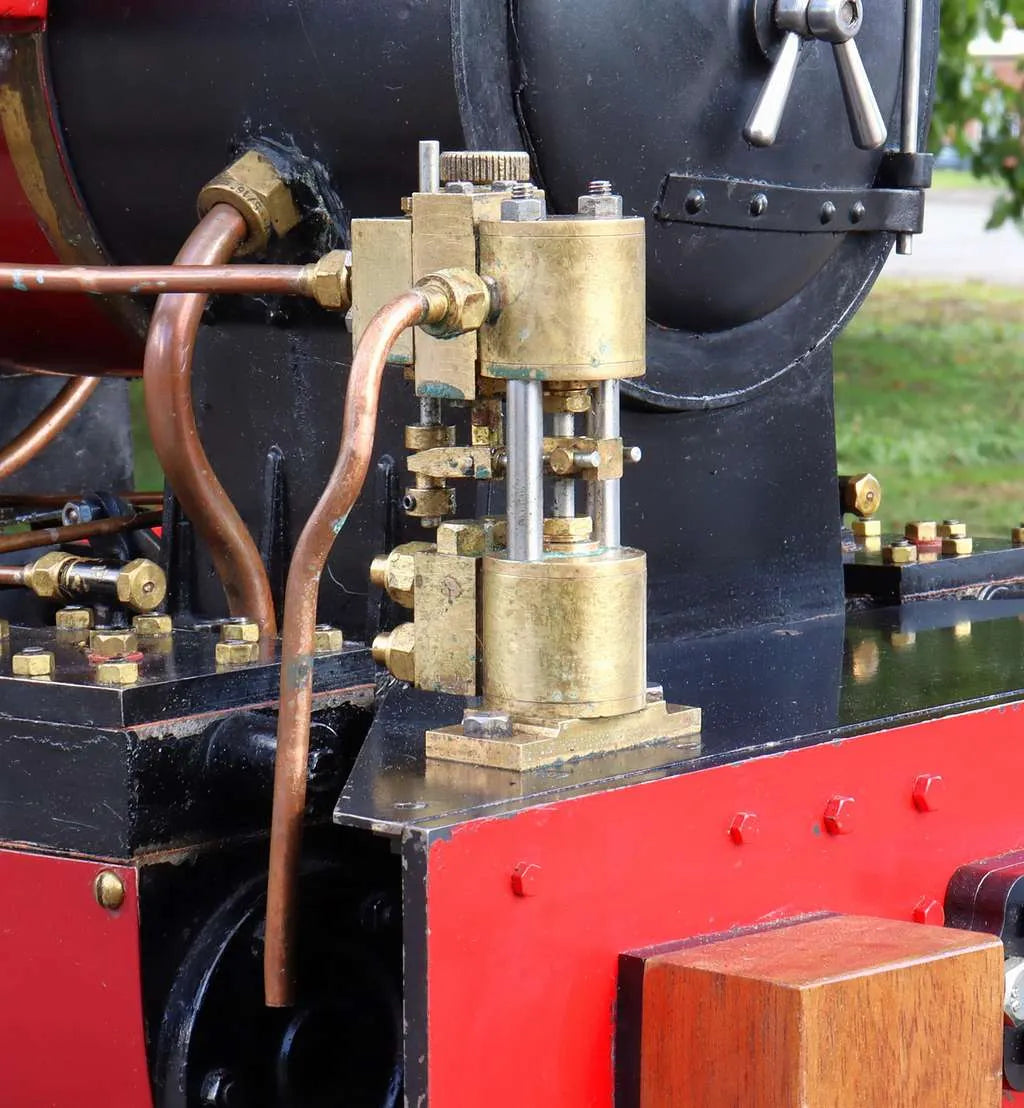

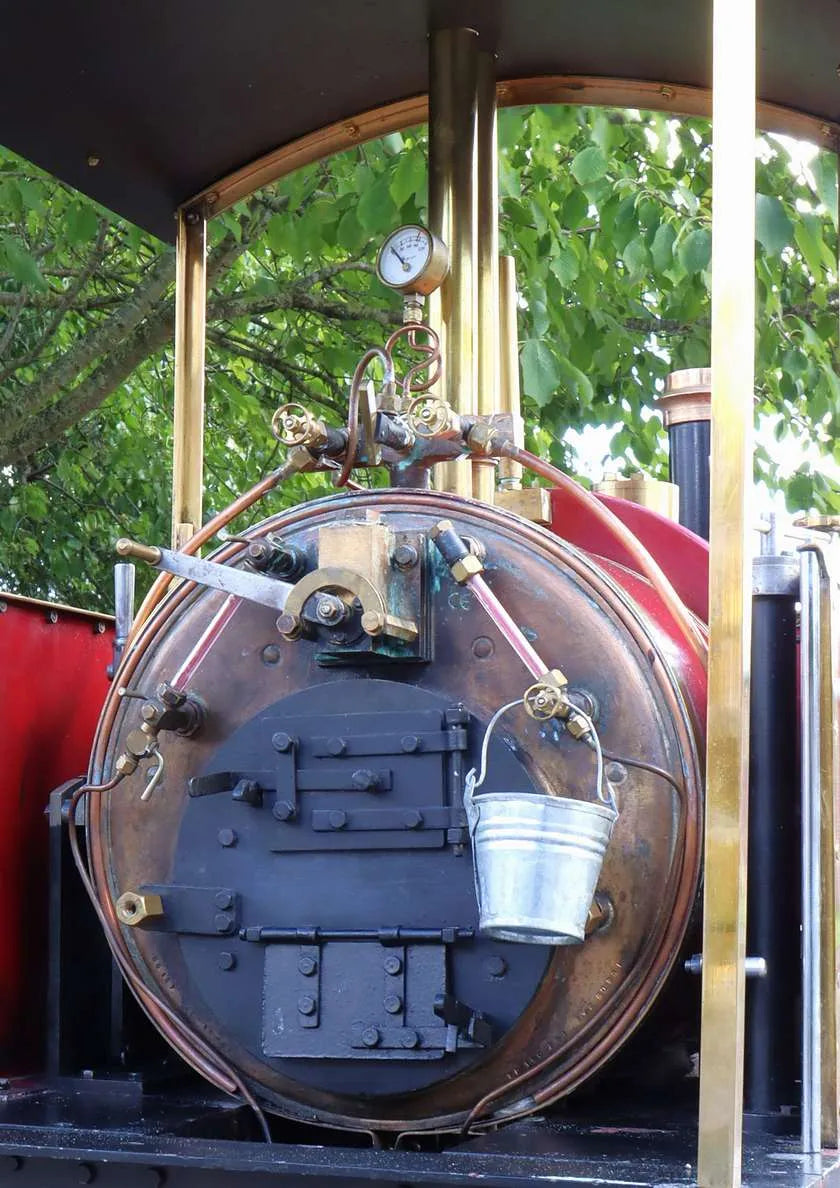

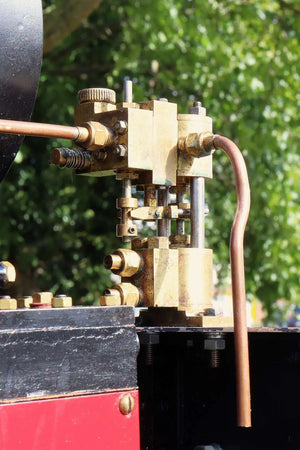

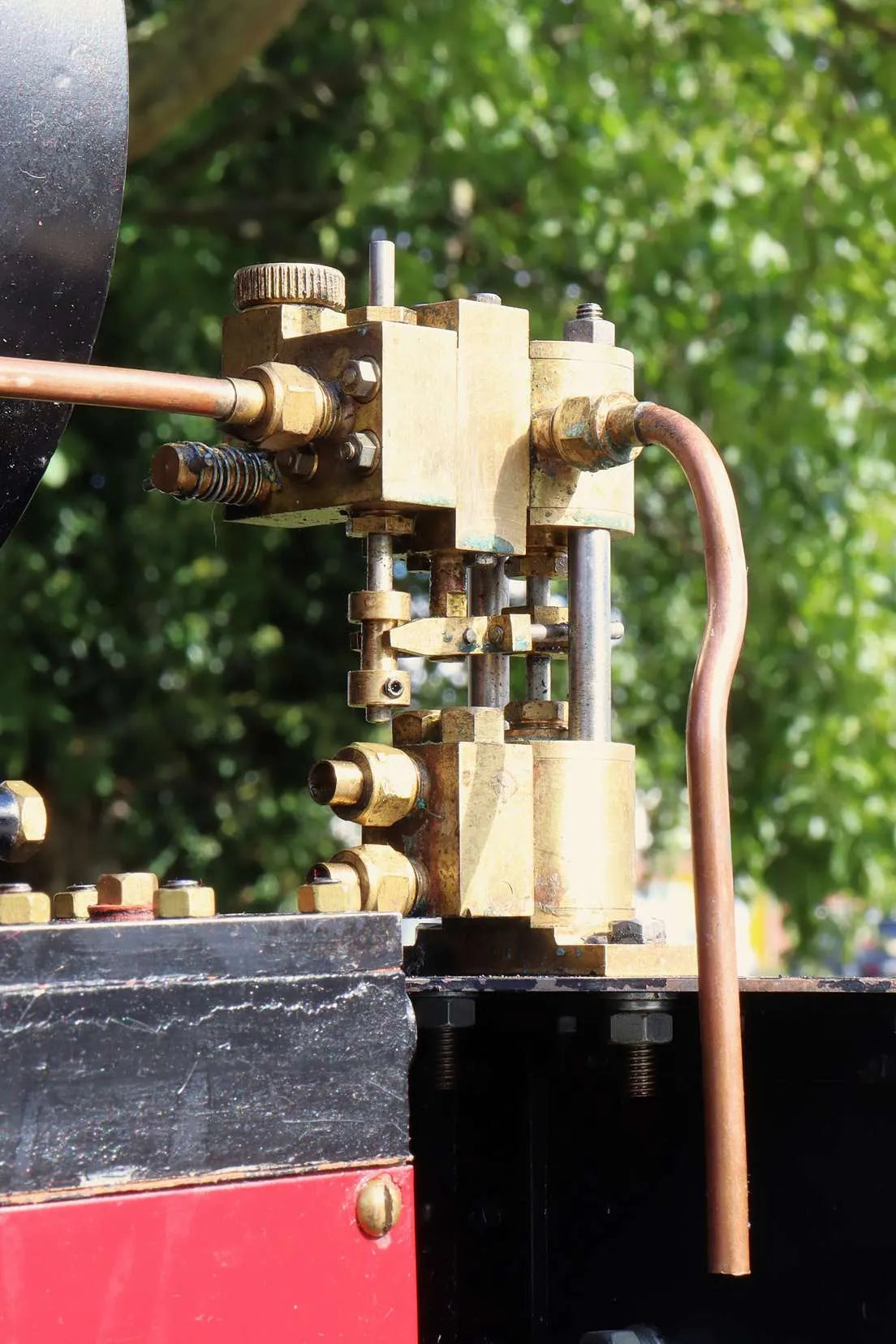

Commercially-made boiler by Blackgates Engineering, we've issued it with fresh hydraulic and steam certificates. The steam pump on the front running board isn't piped up to a water feed, but ticks over freely on steam.

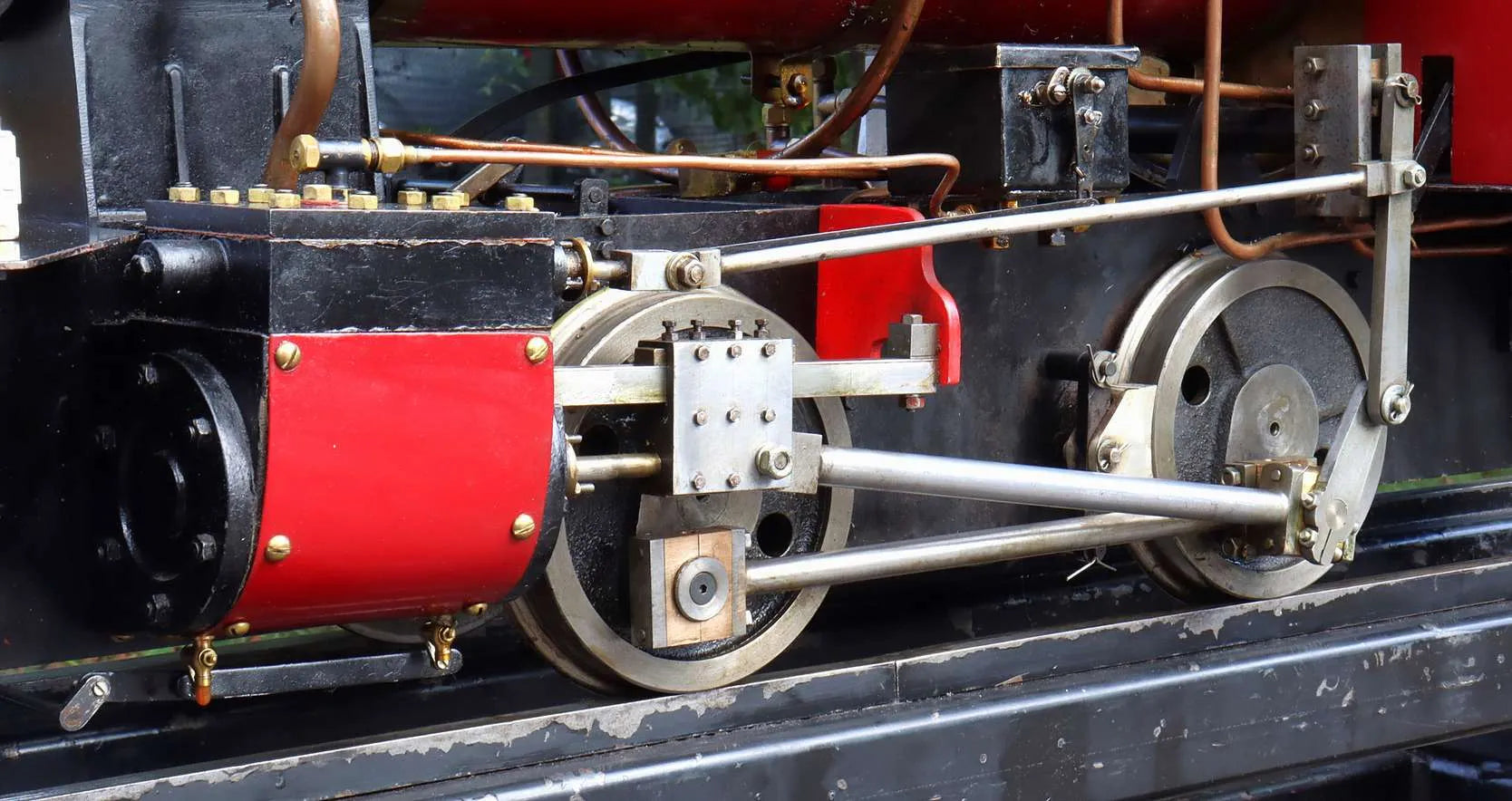

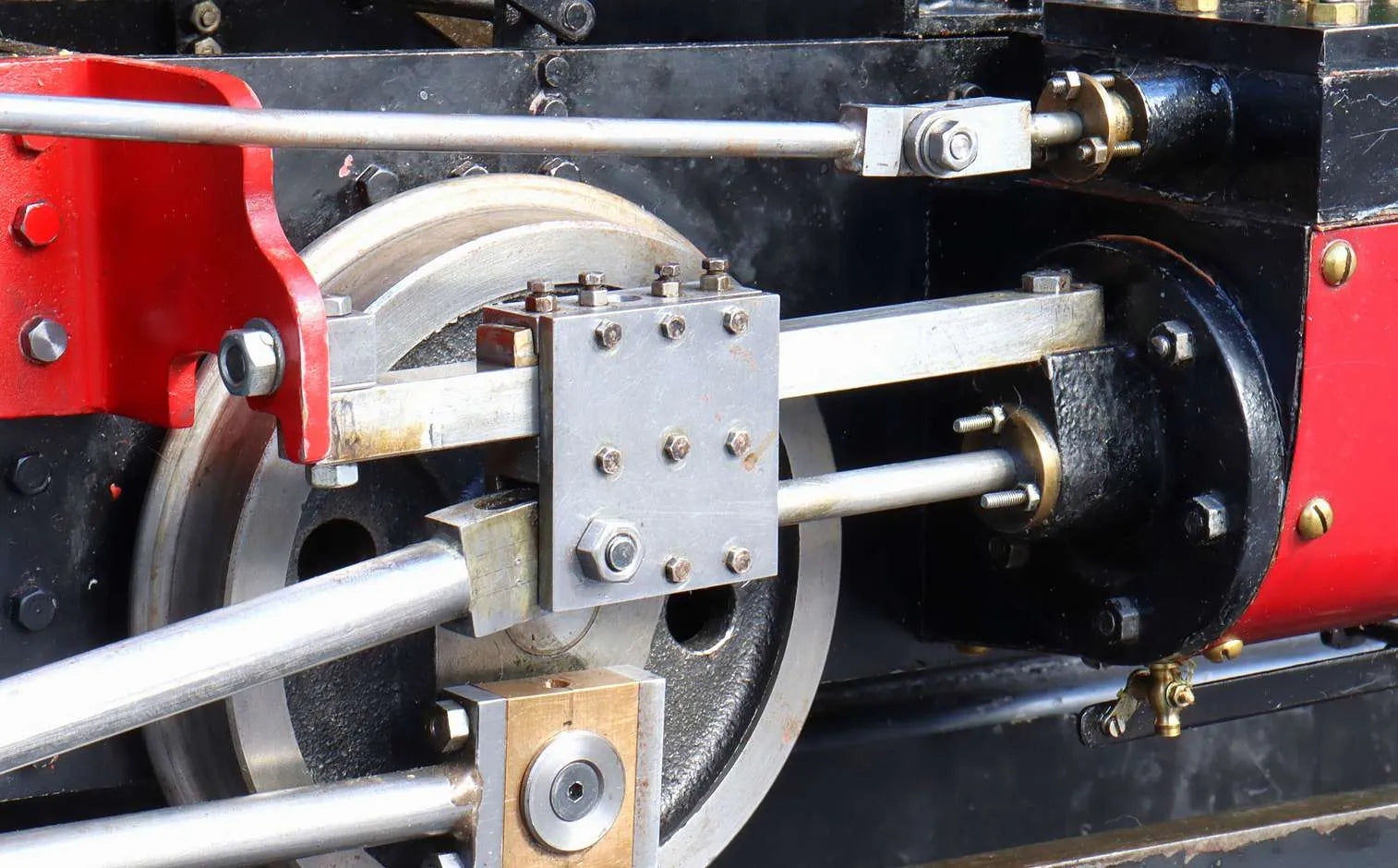

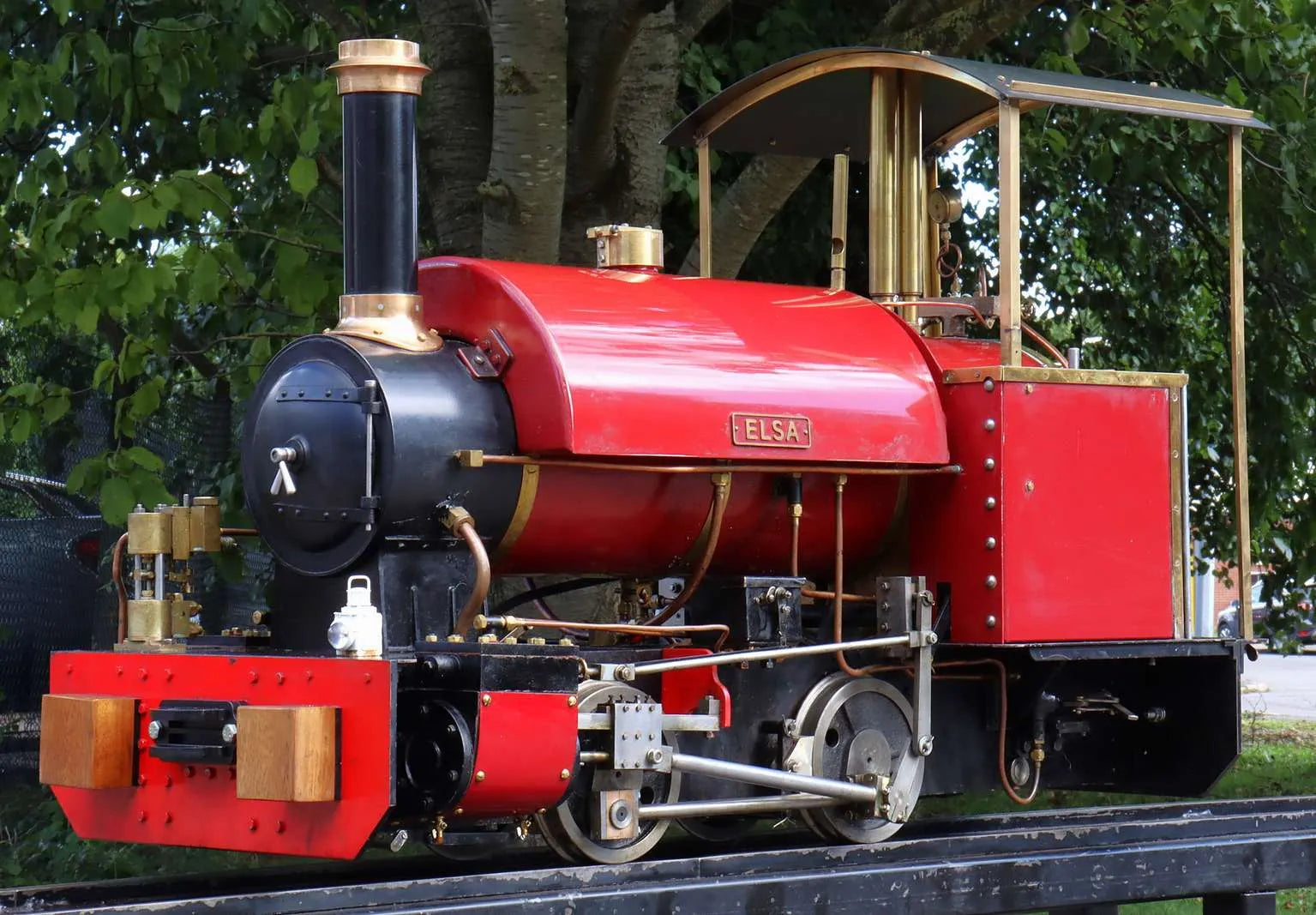

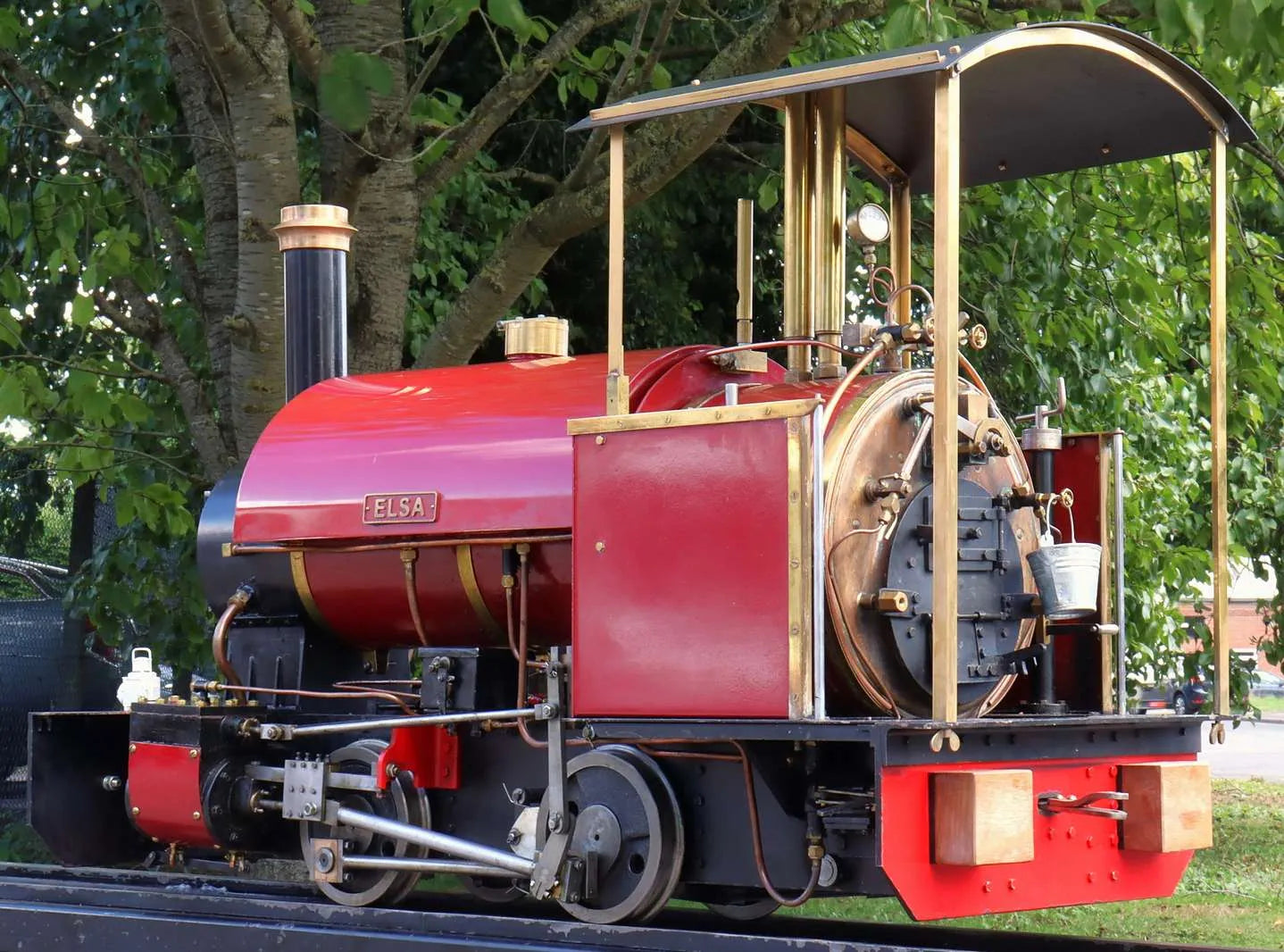

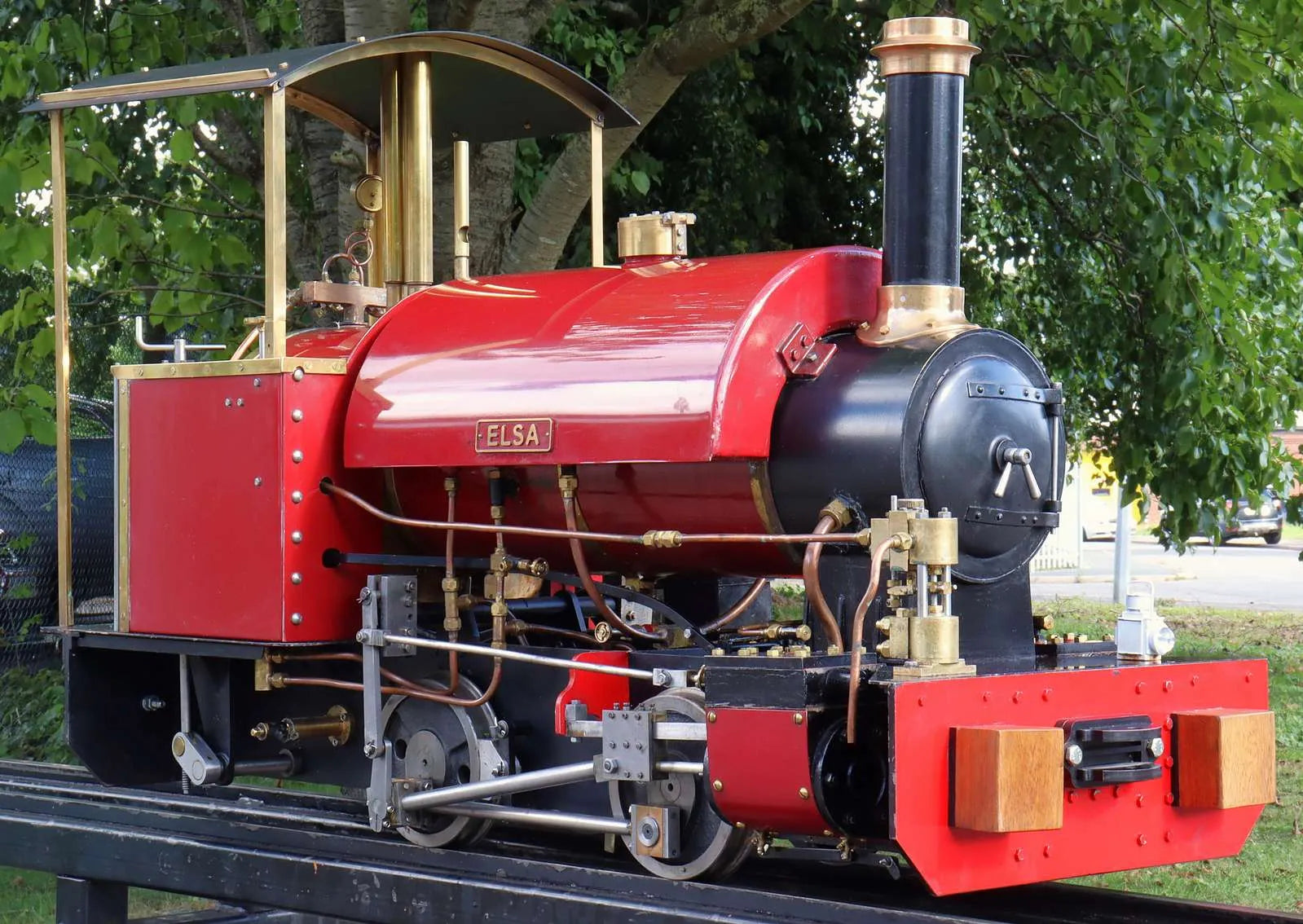

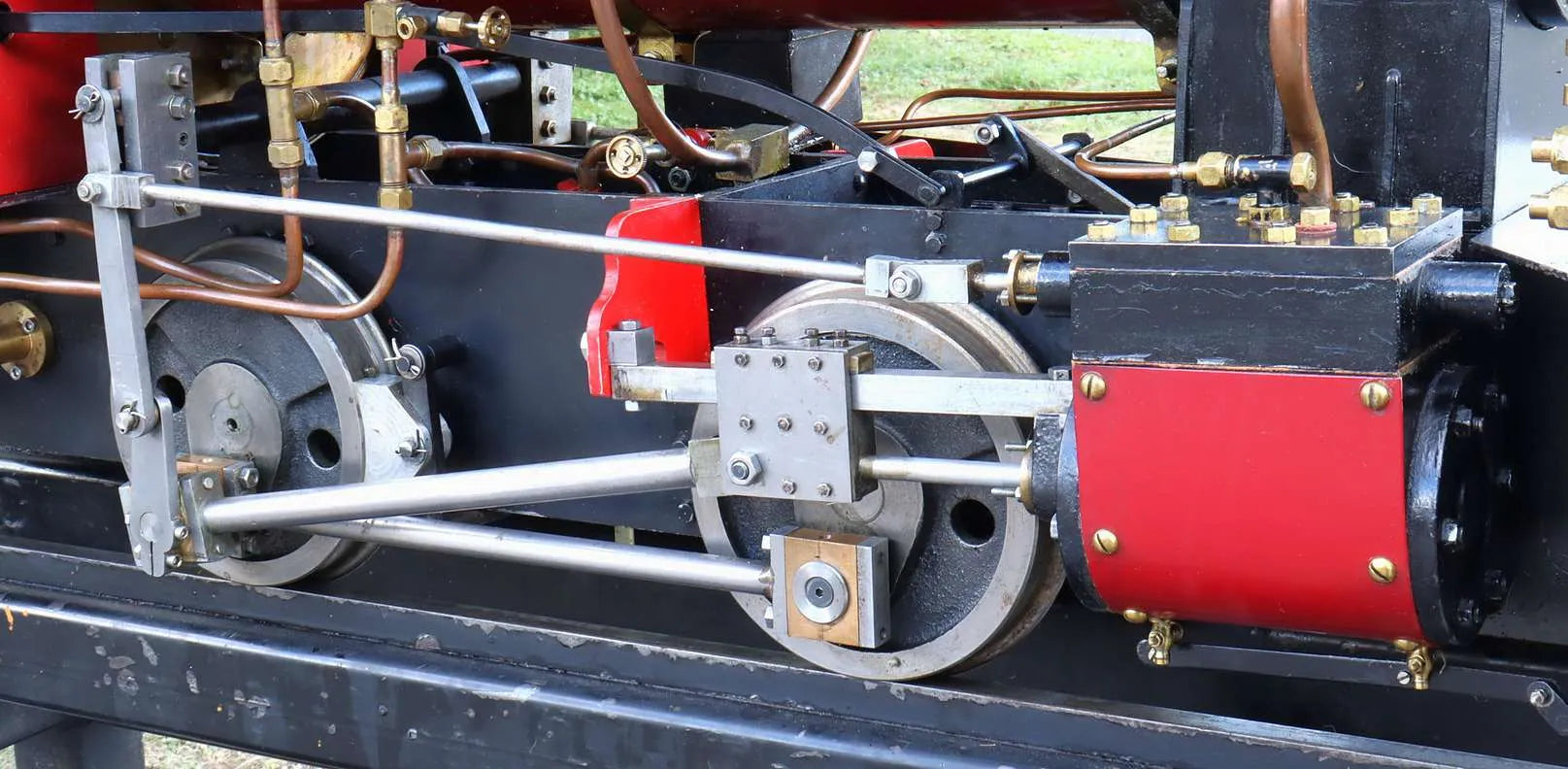

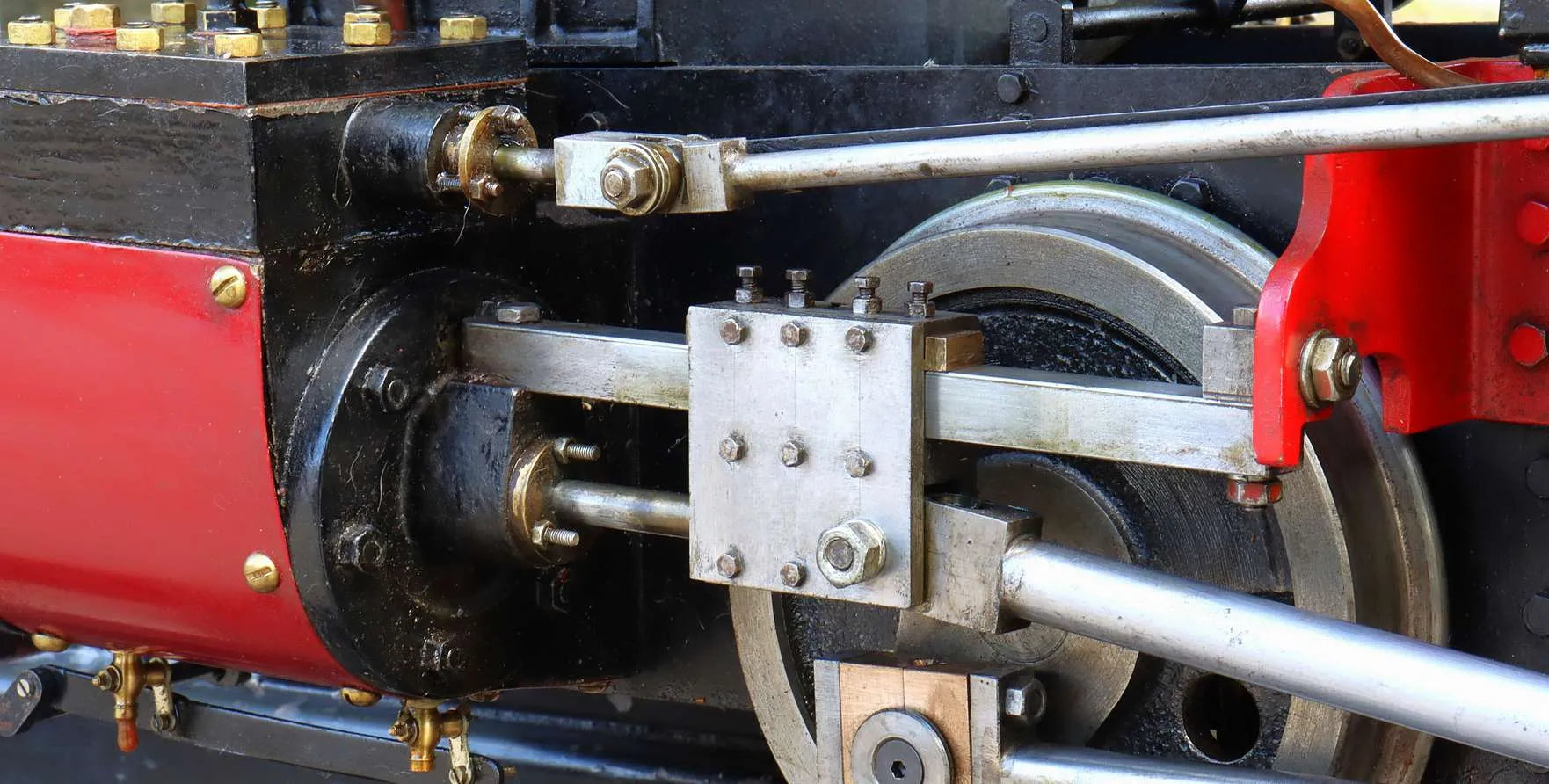

Some minor wear in the motionwork, the locomotive steams freely and runs well in both directions - there's some video of it on our YouTube channel here.
Stock code |
10801 |
Gauge |
5 inch |
Length/inches |
34 |
Width/inches |
13 |
Height/inches |
22 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
cast iron |
Valve type |
slide |

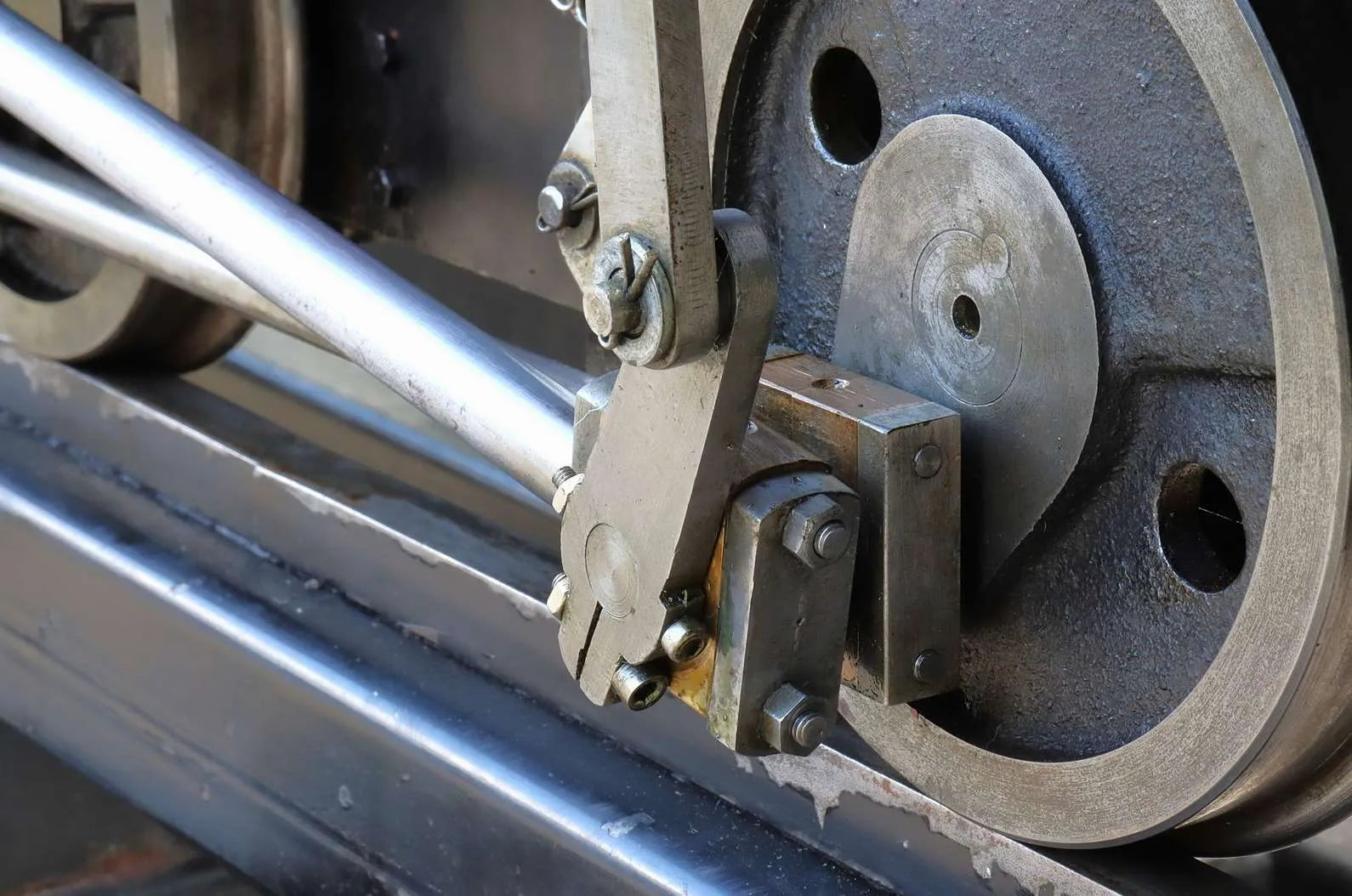

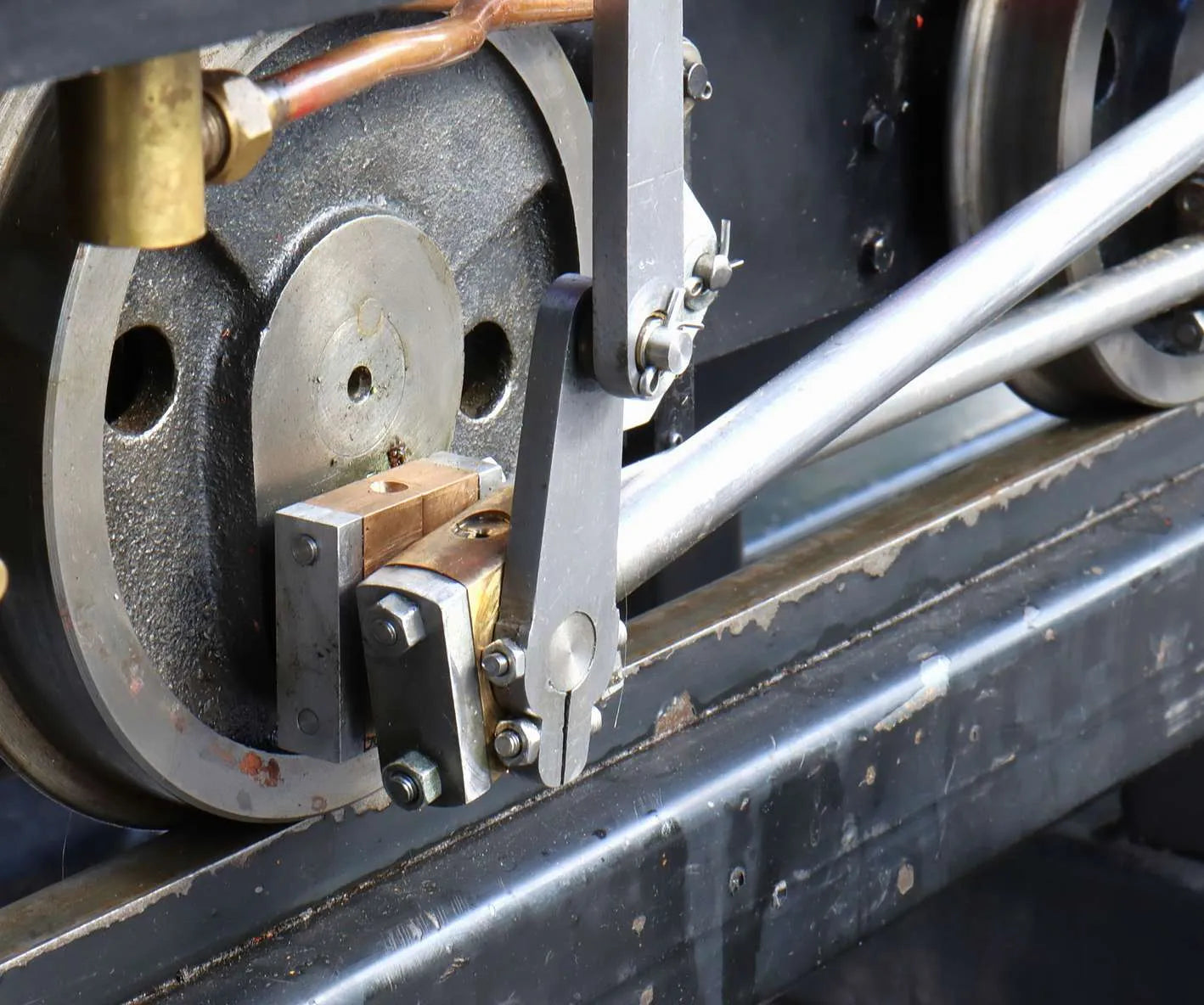

Valve gear |
Hackworth |
Reverser type |
pole |

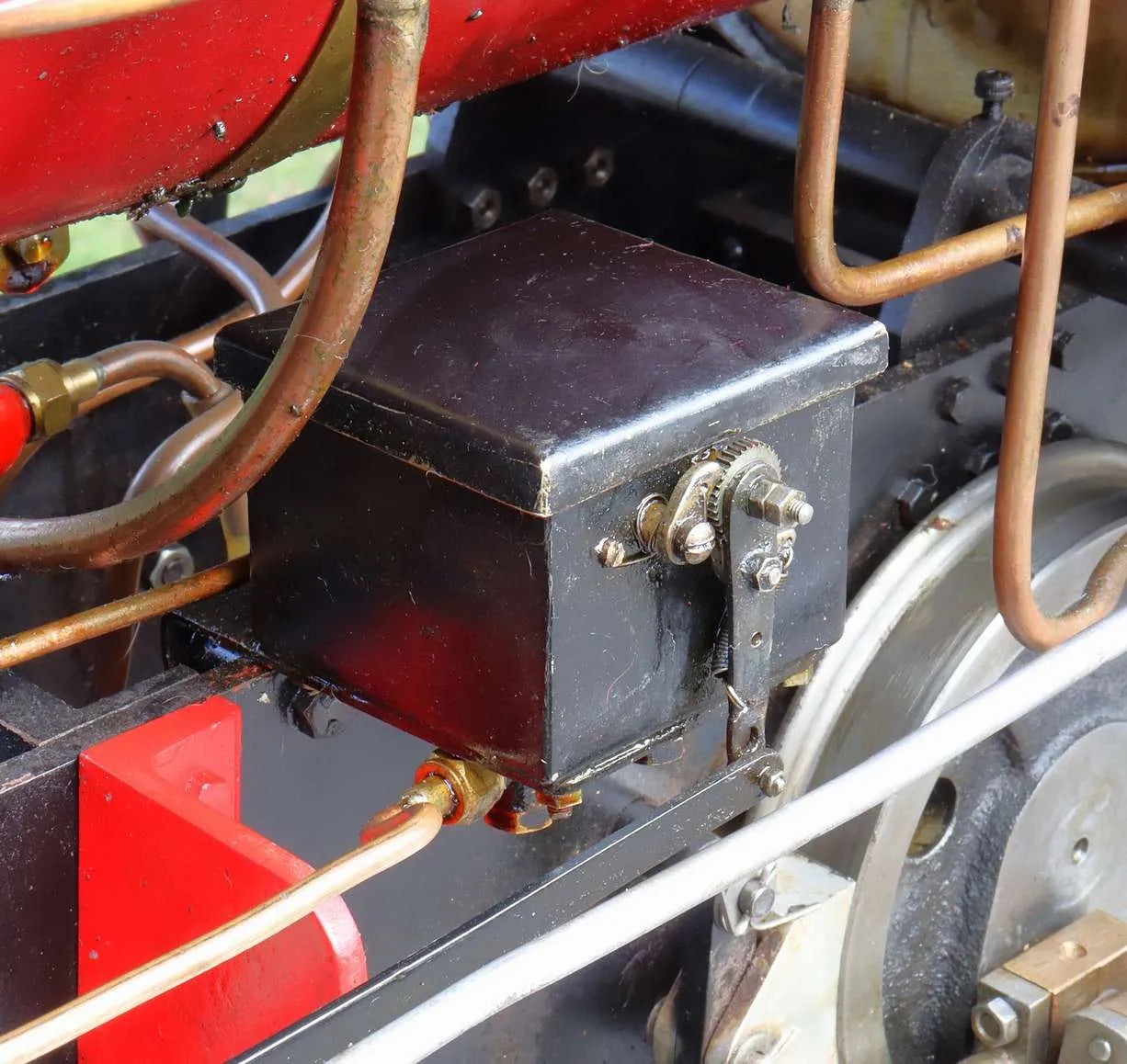

Lubricator type |
mechanical |
Boiler maker |
Blackgates Engineering |
Boiler type |
marine |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
yes |
Year built |
2008 |
Boiler number |
BG 157 |
Safety valve type |
spring |
Safety valve |
2 |
Fusible plug |
no |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Date out |
Oct-22 |
Hydraulic test valid to |
14-Sep-26 |
Steam test valid to |
28-Nov-23 |
