Sold

10068

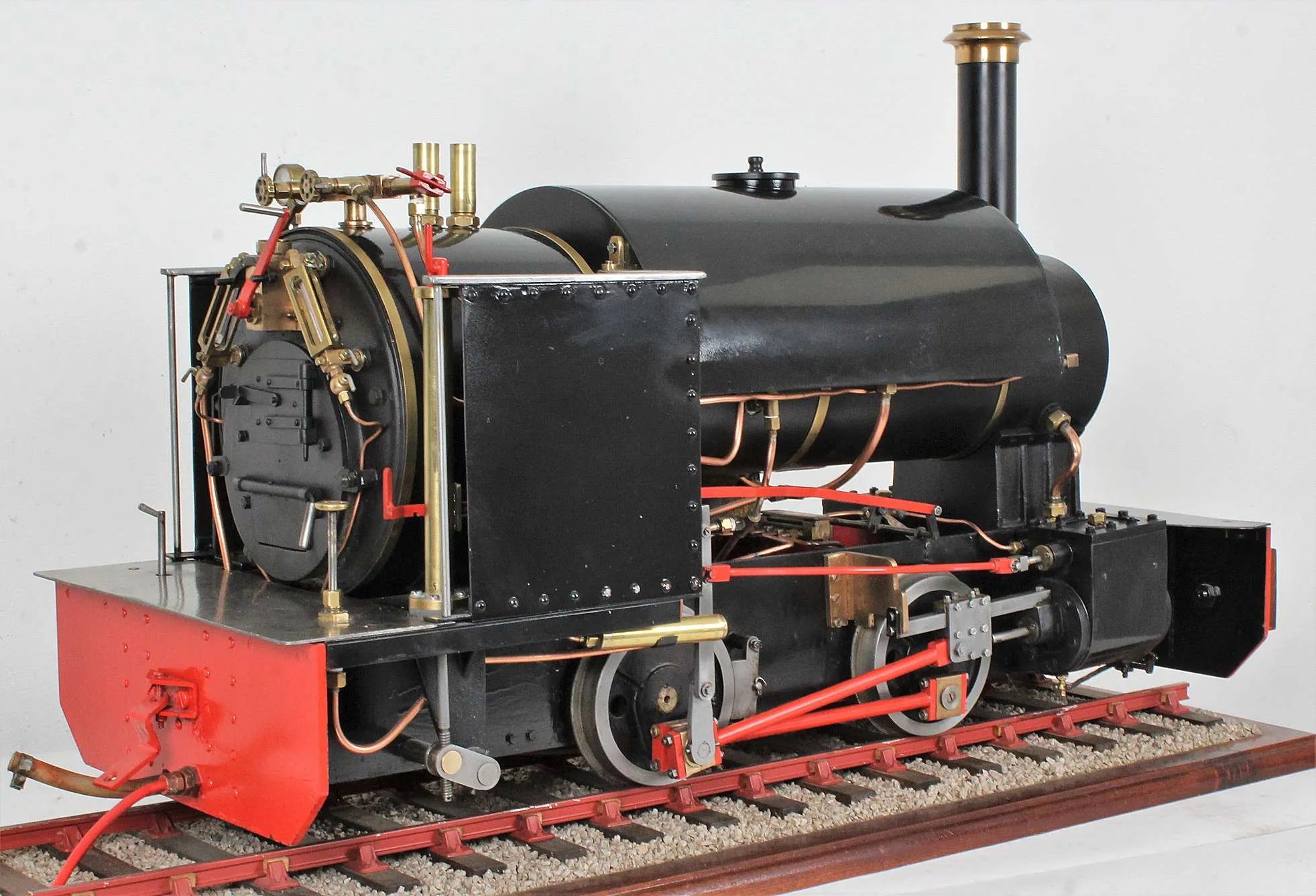

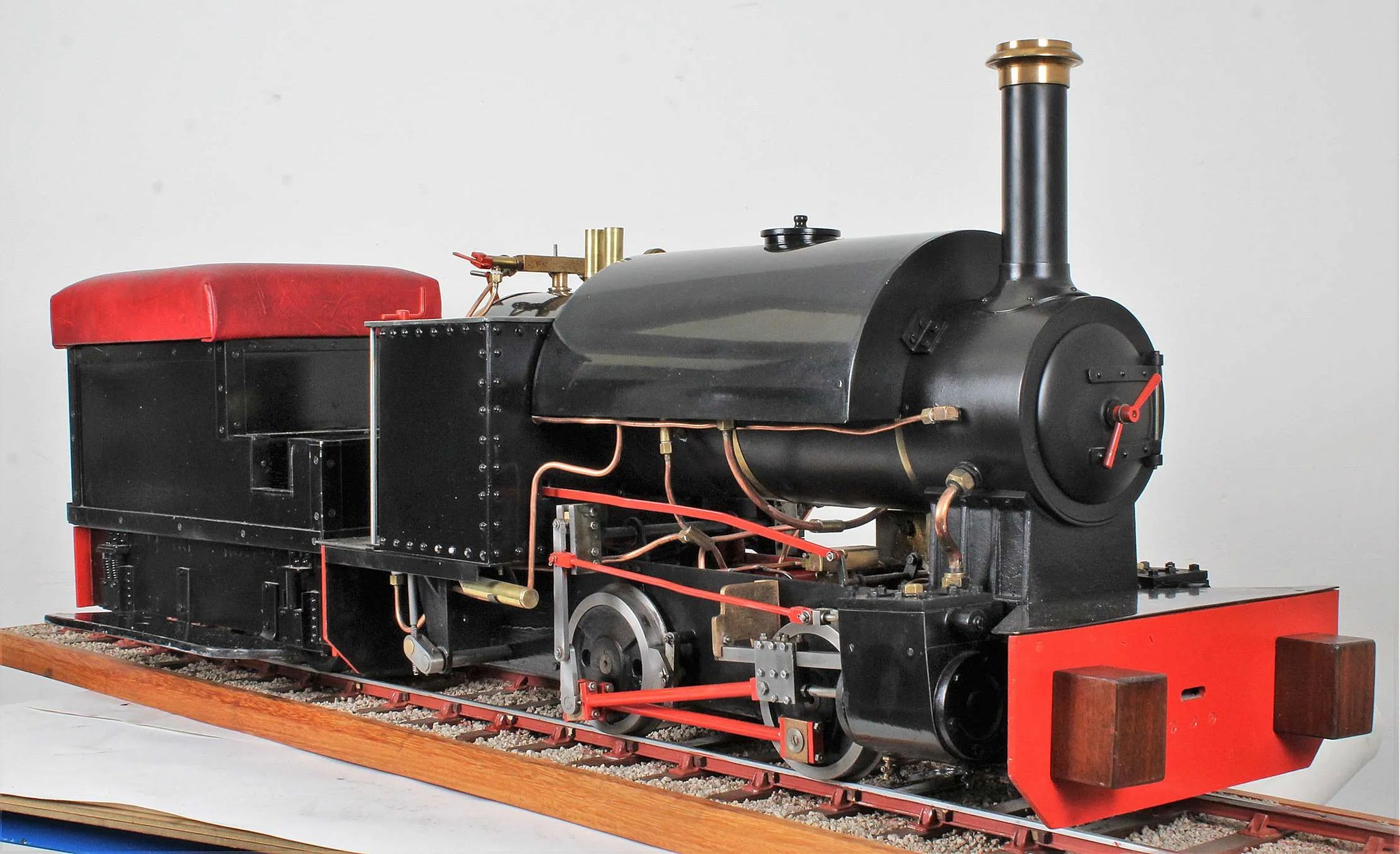

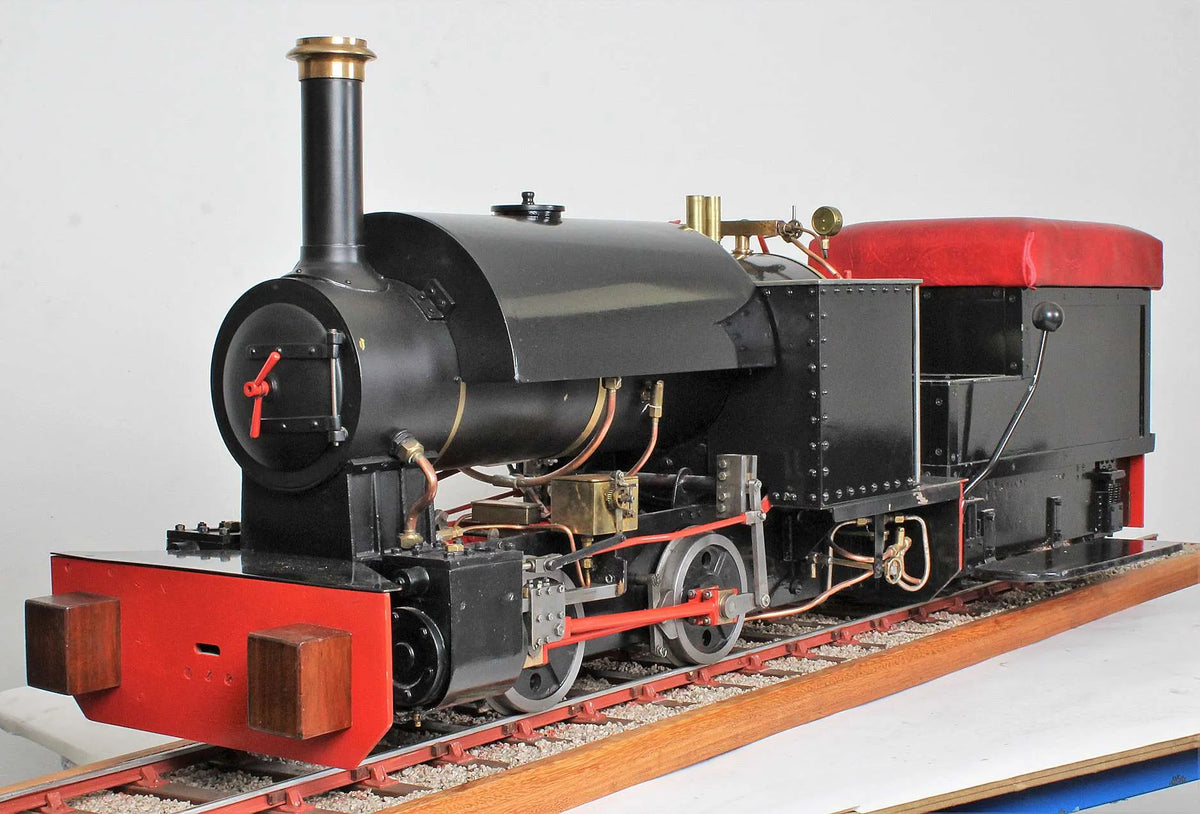

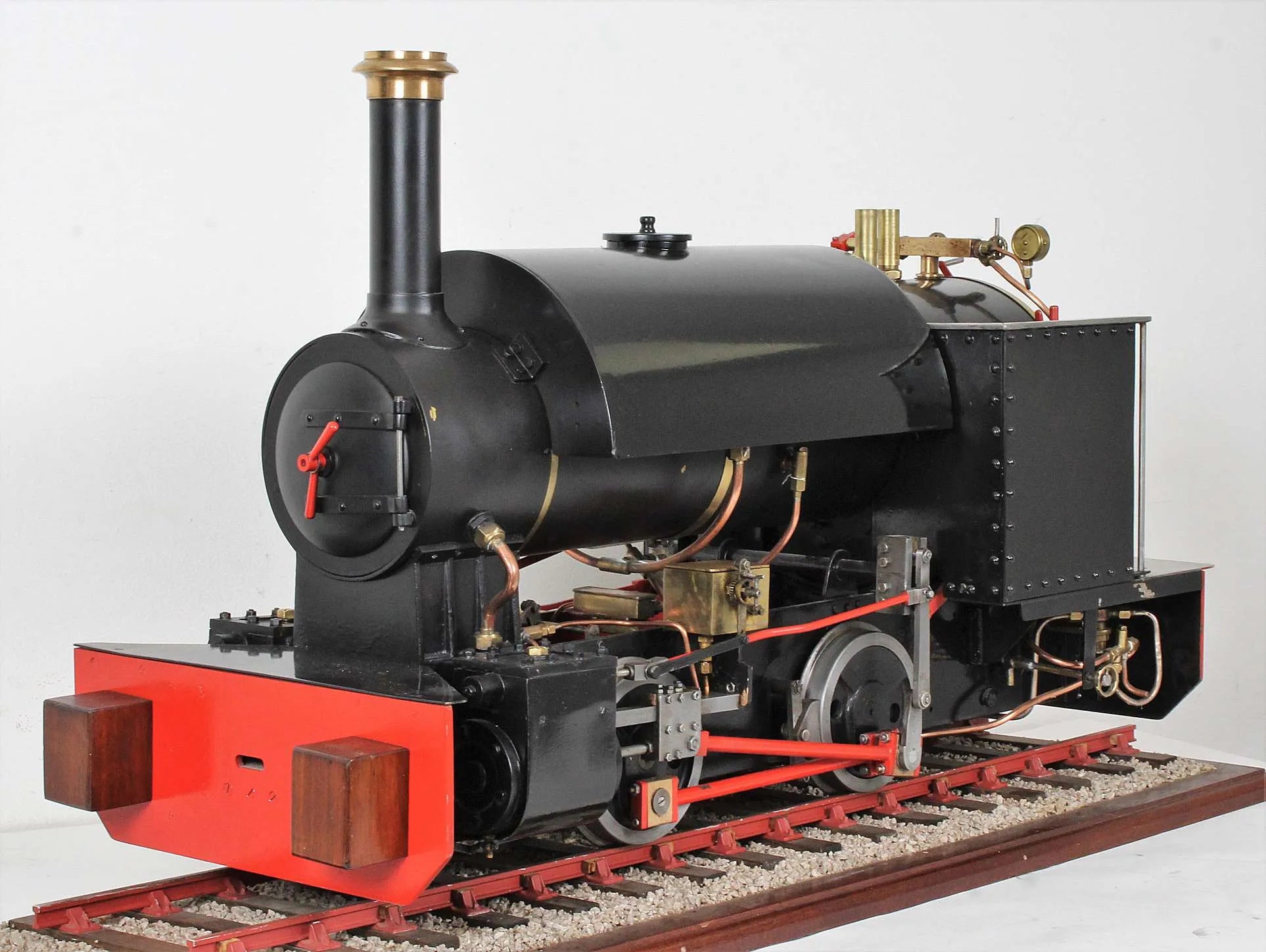

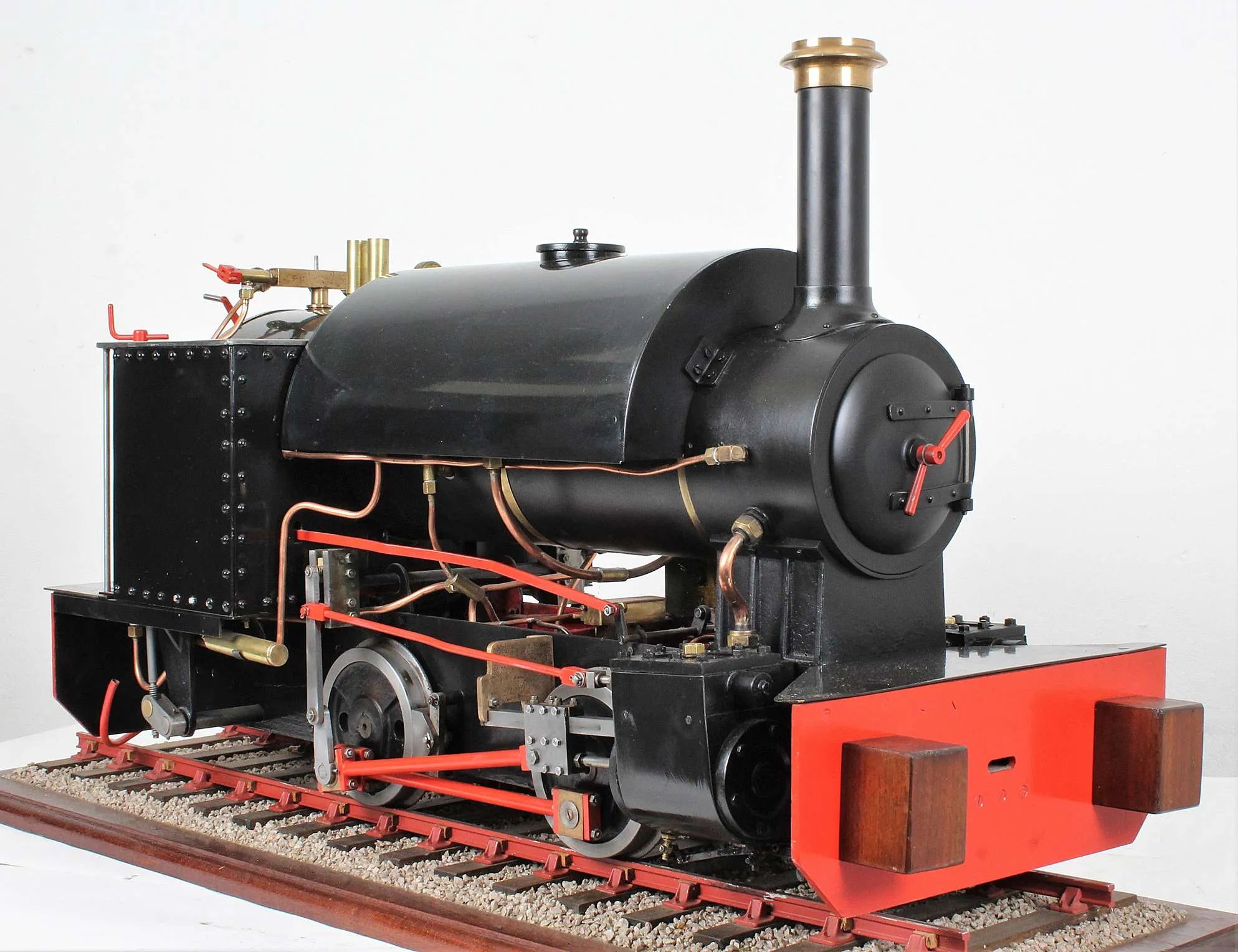

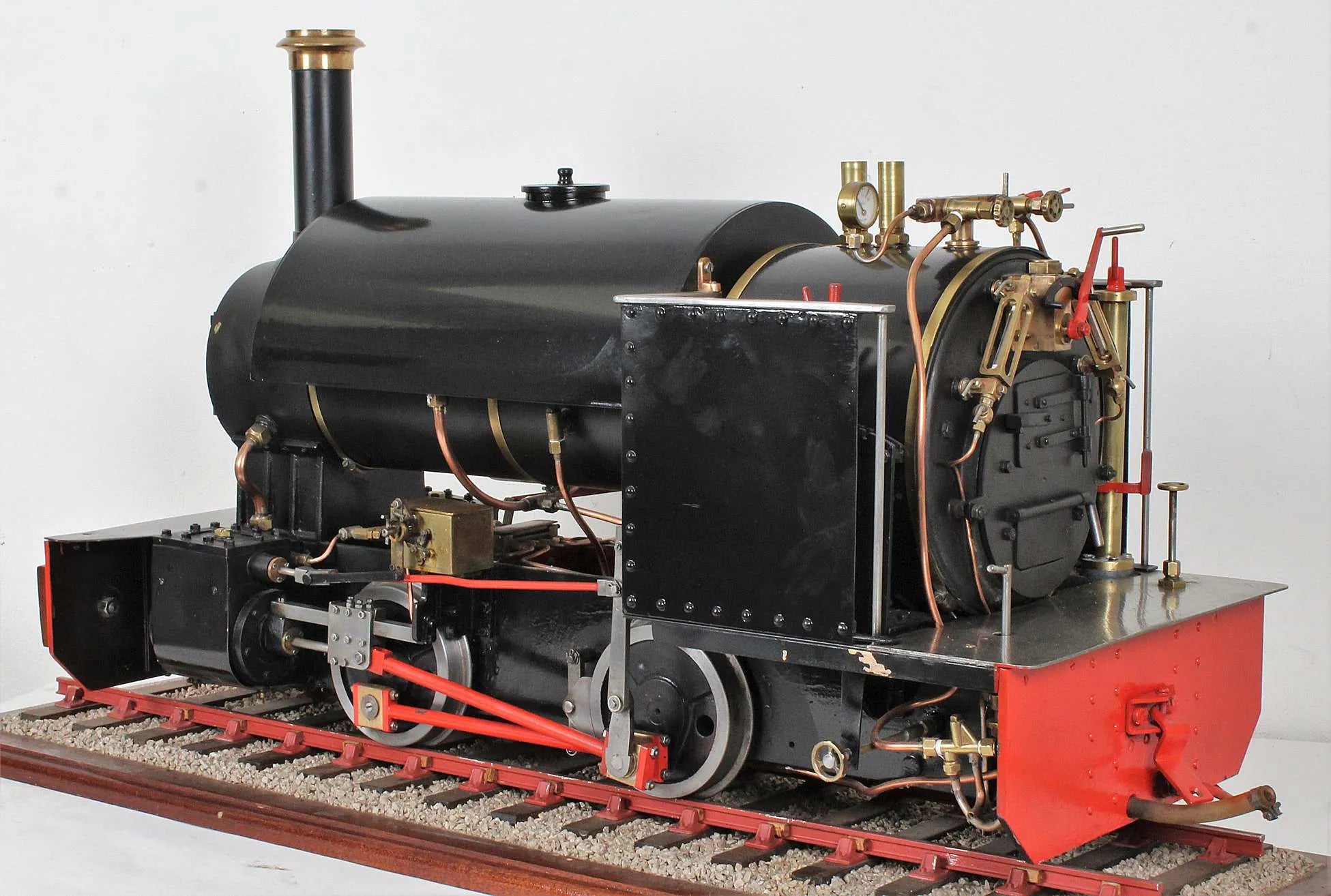

5 inch gauge "Sweet Pea" 0-4-0ST with driving truck

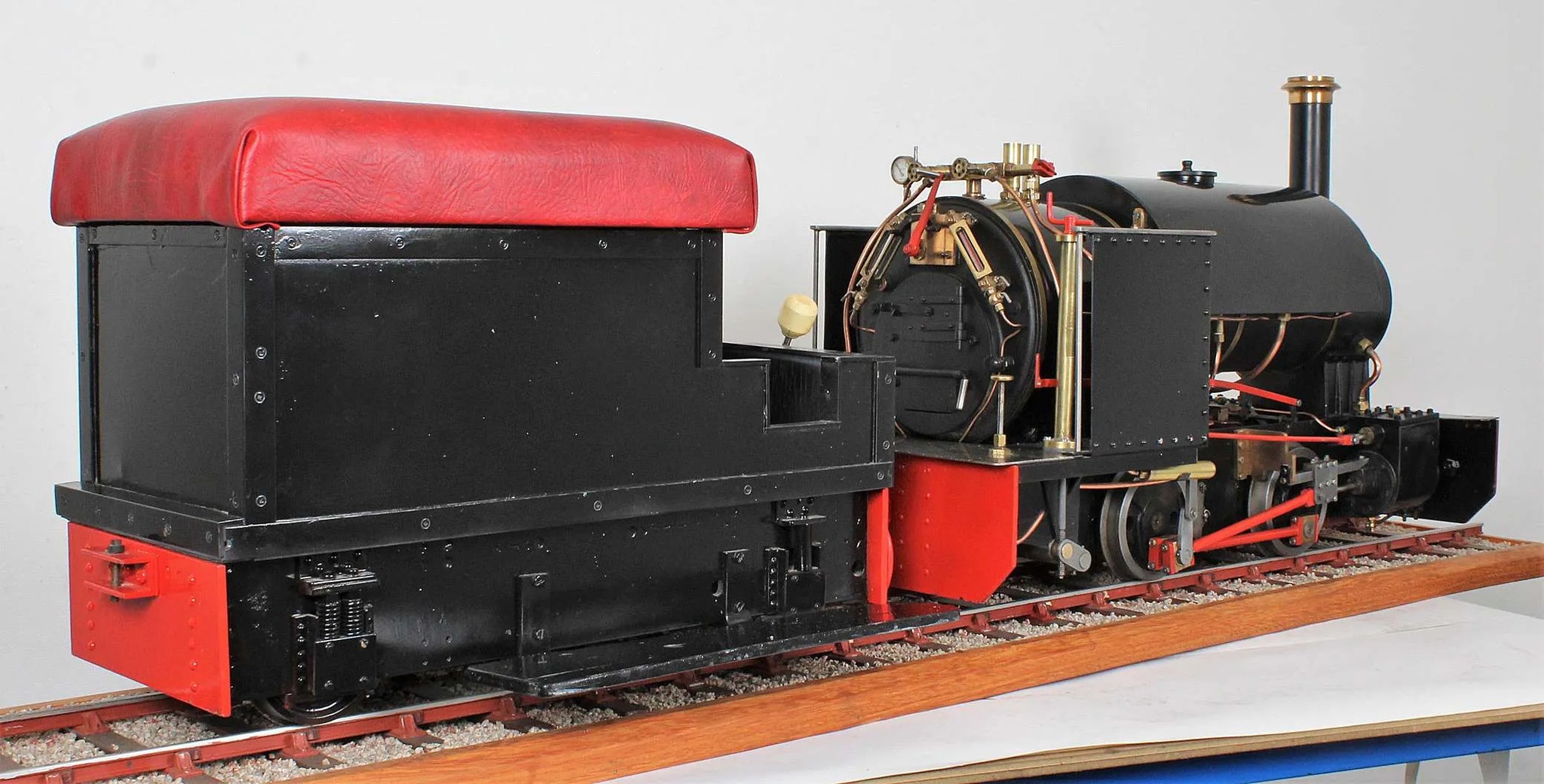

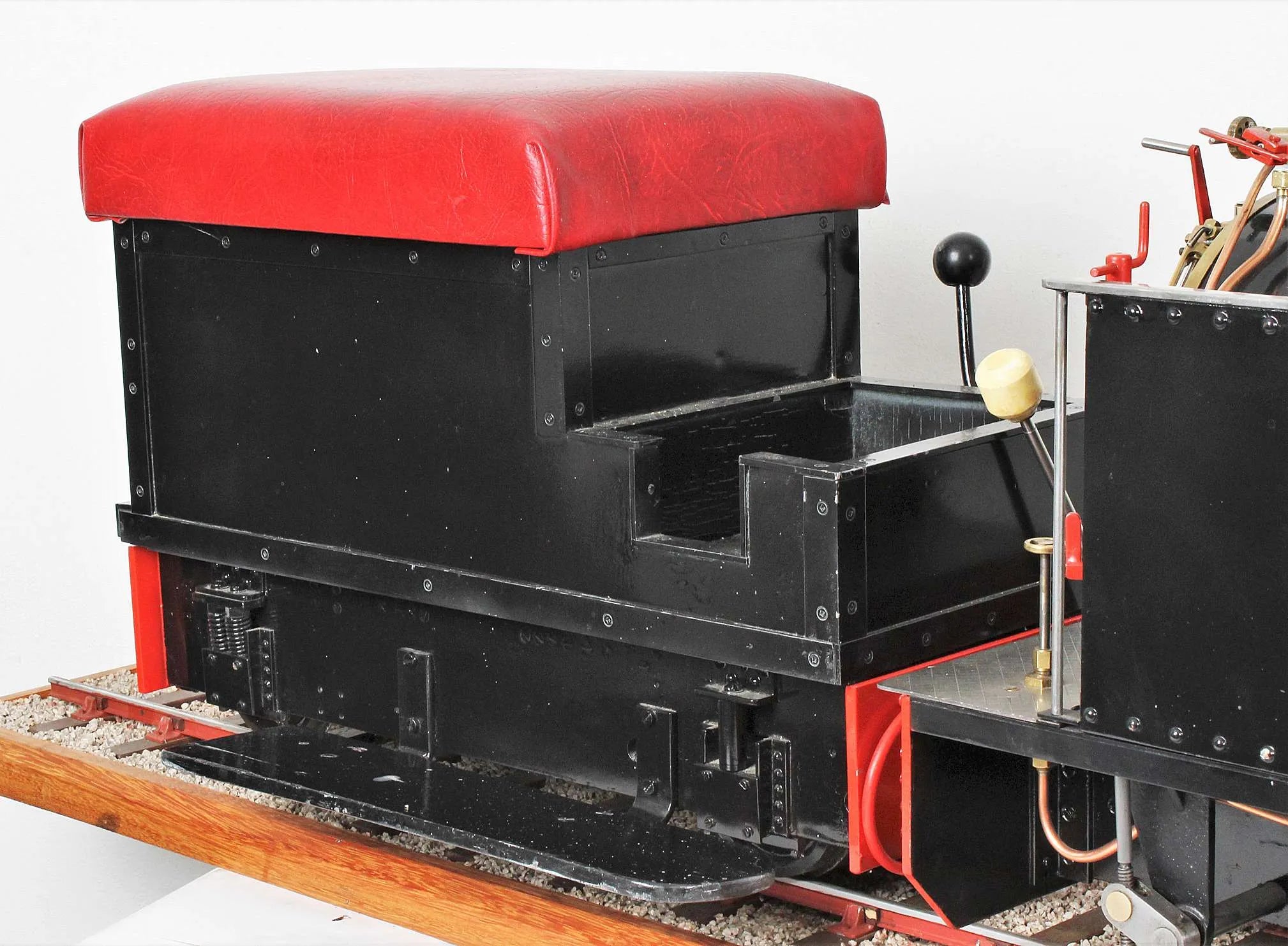

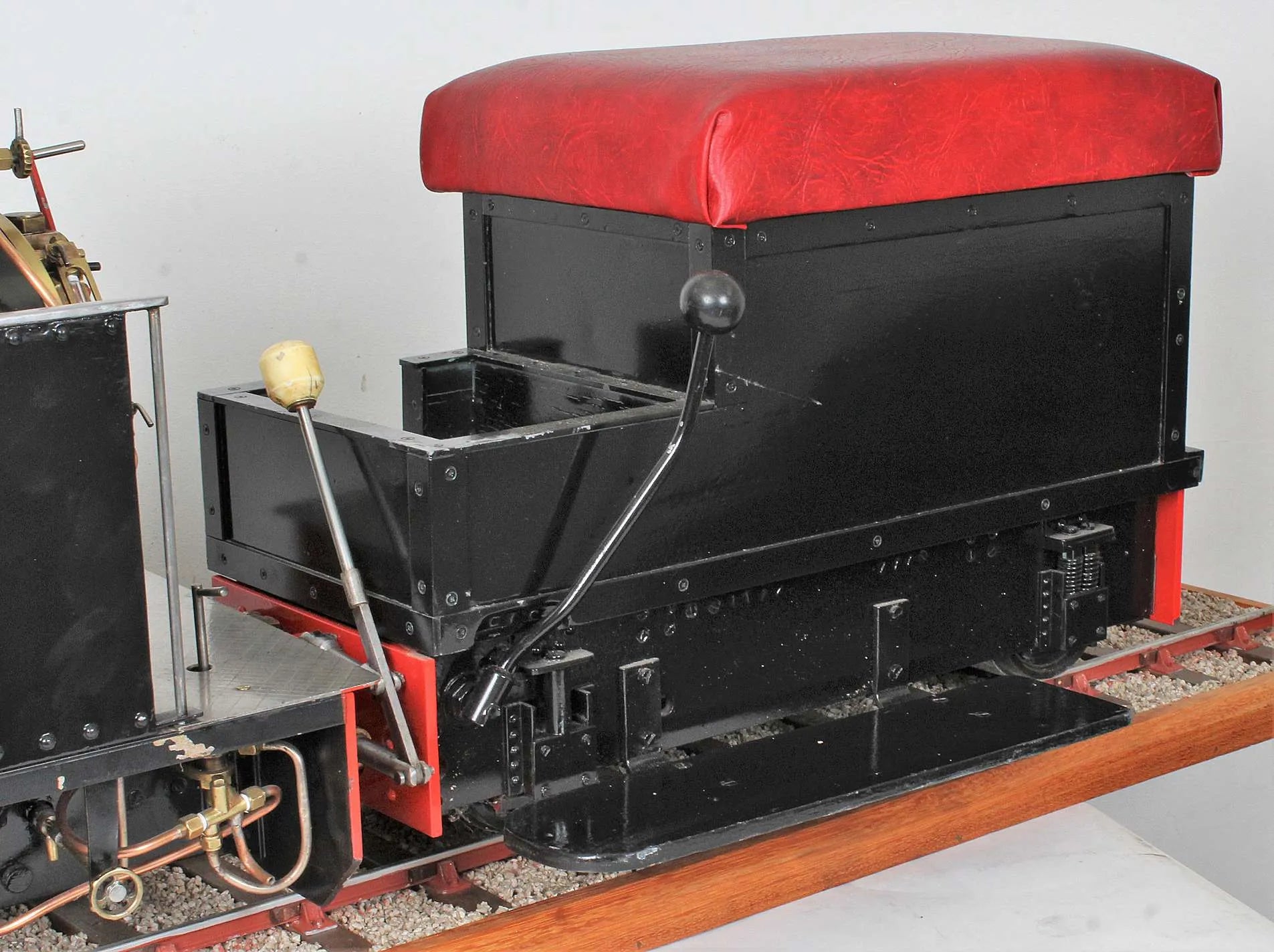

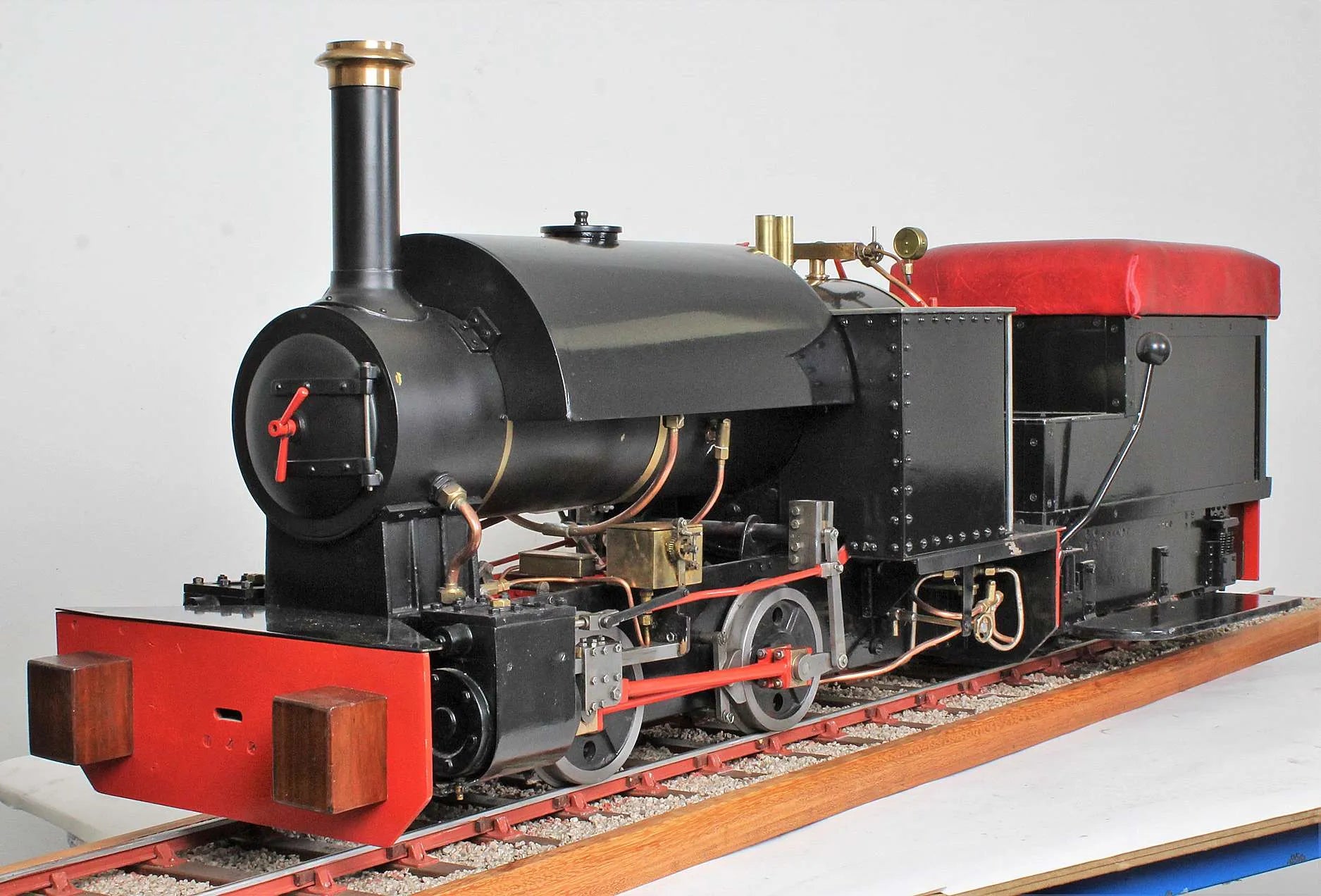

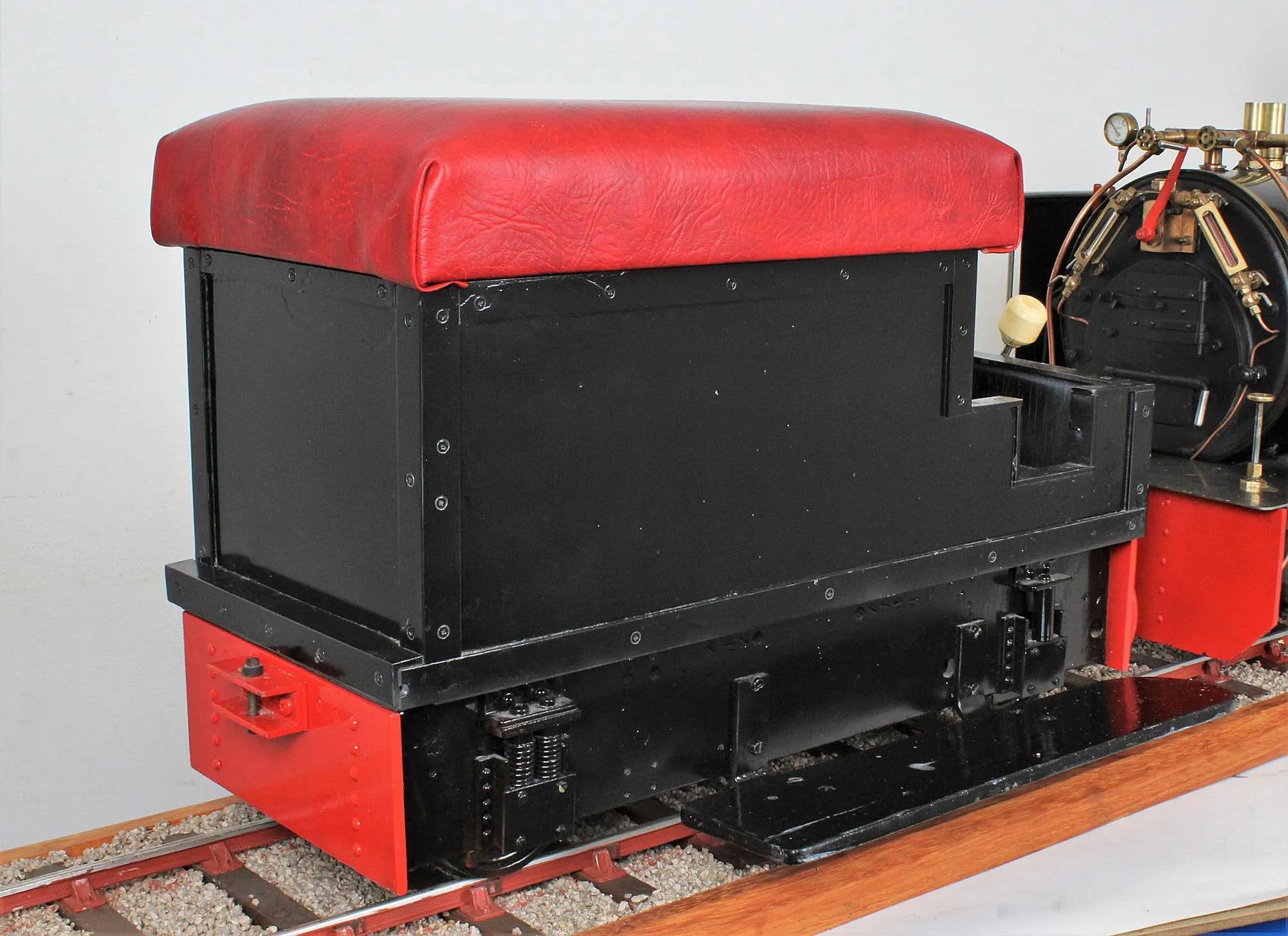

A 5 inch gauge "Sweet Pea", complete with braked driving truck.

This one has come to us from the late owner's son; unused in several years it was repainted shortly before being laid up.

The commercially built boiler was supplied by Blackgates Engineering, it's had recent hydraulic test with new certification issued.

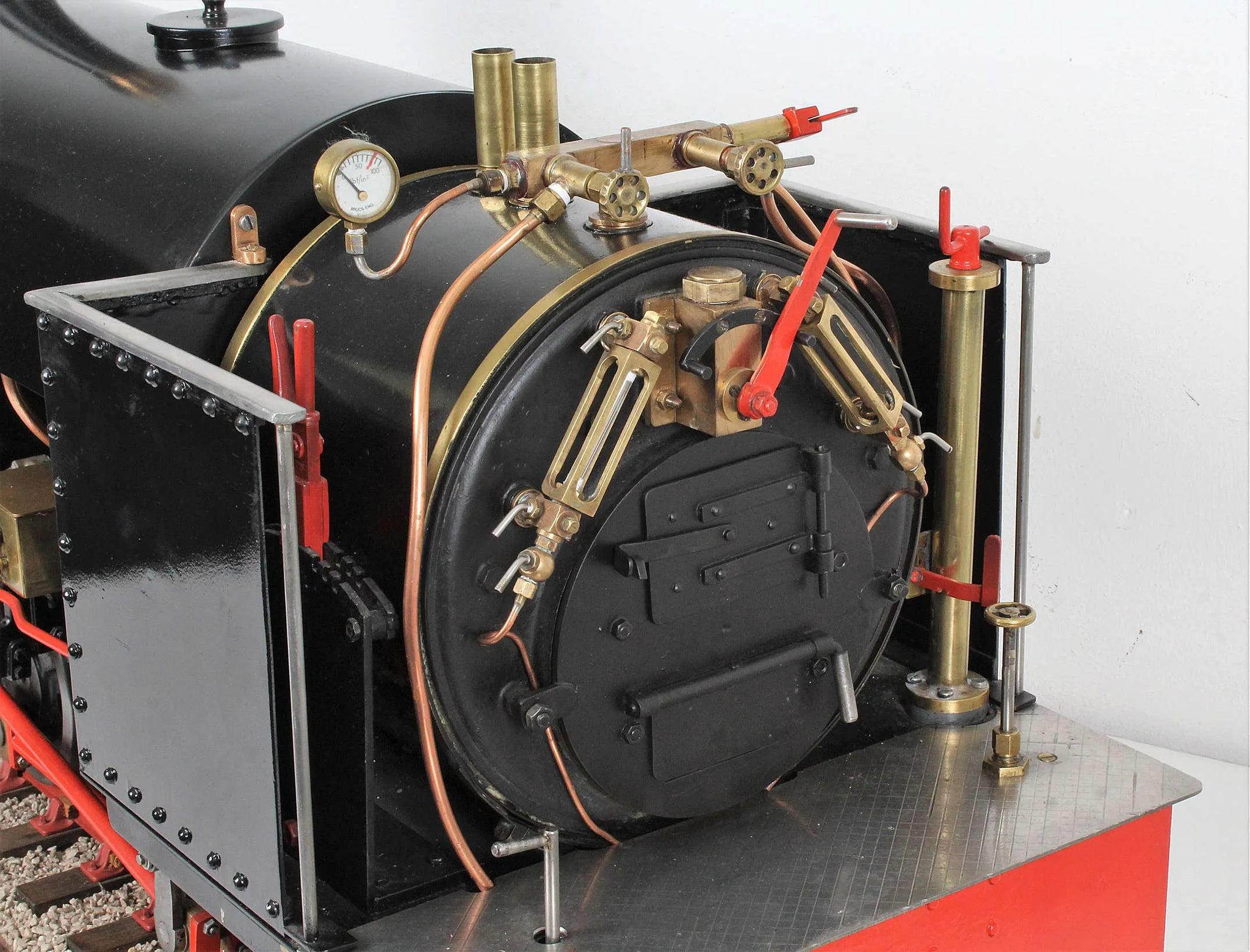

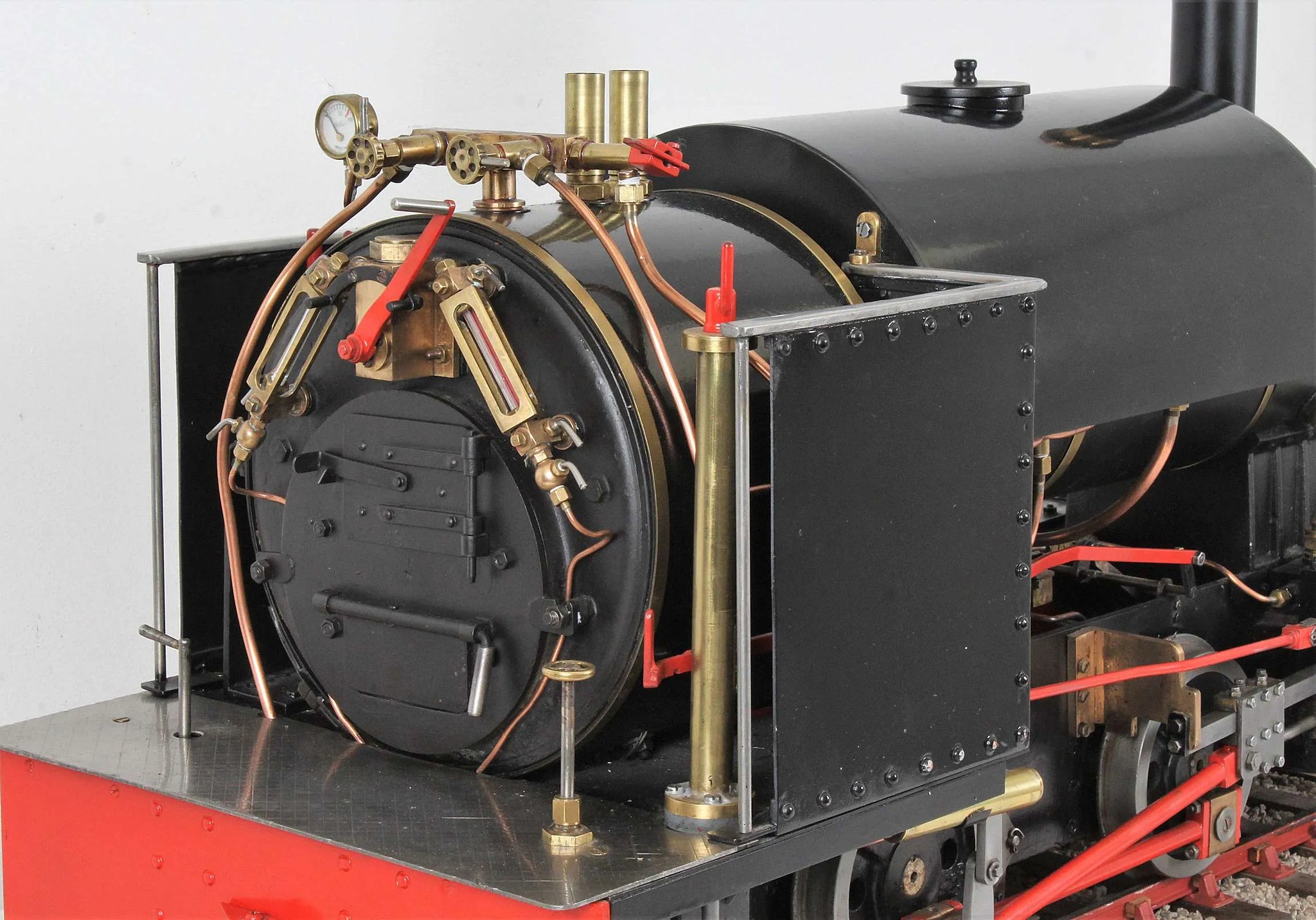

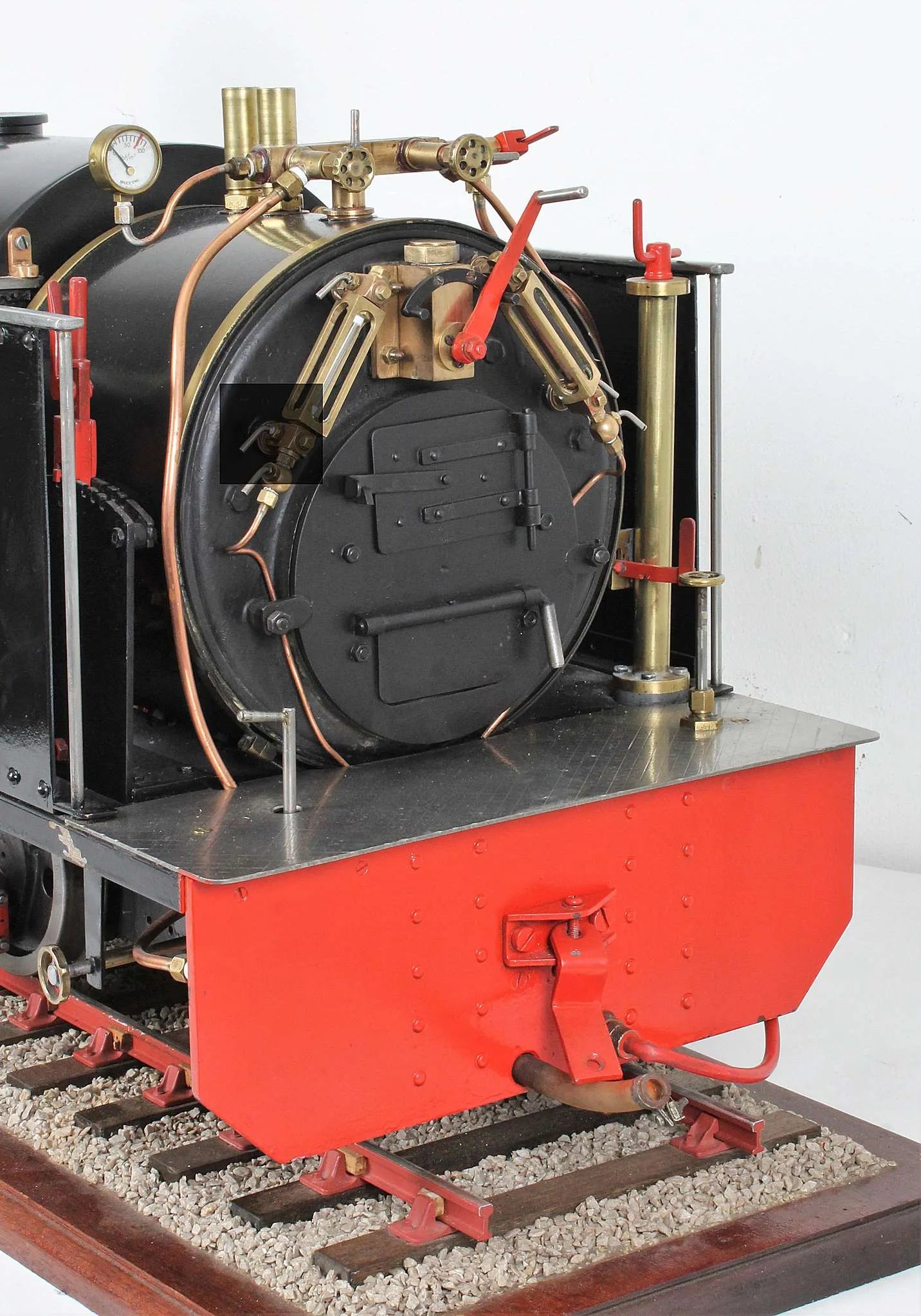

Injector clack, regulator and water gauges all leak and will need servicing or replacement before use.

Technical information

Stock code

10068

Gauge

5 inch

Length/inches

32.5 + 24

Width/inches

13

Height/inches

19.5

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

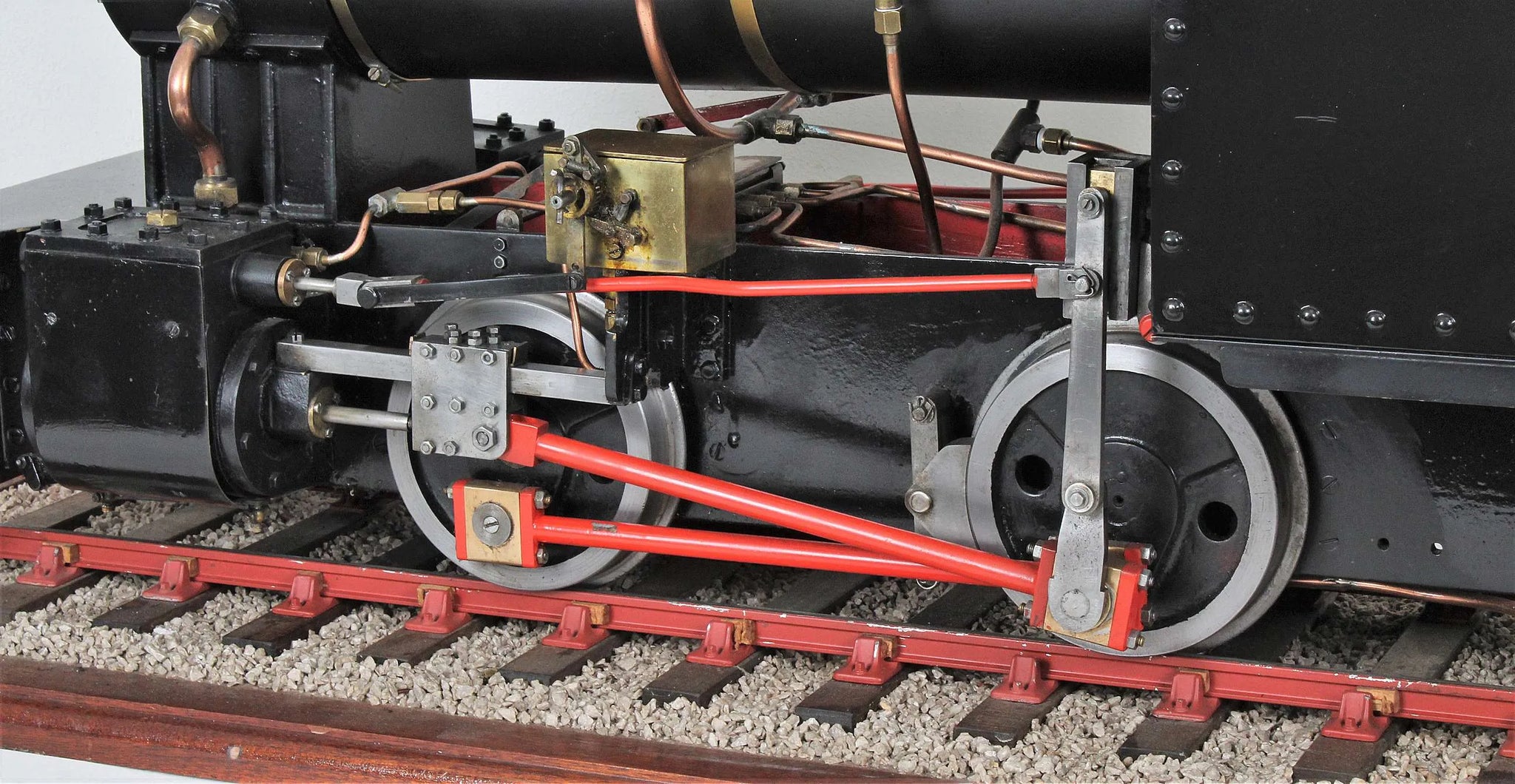

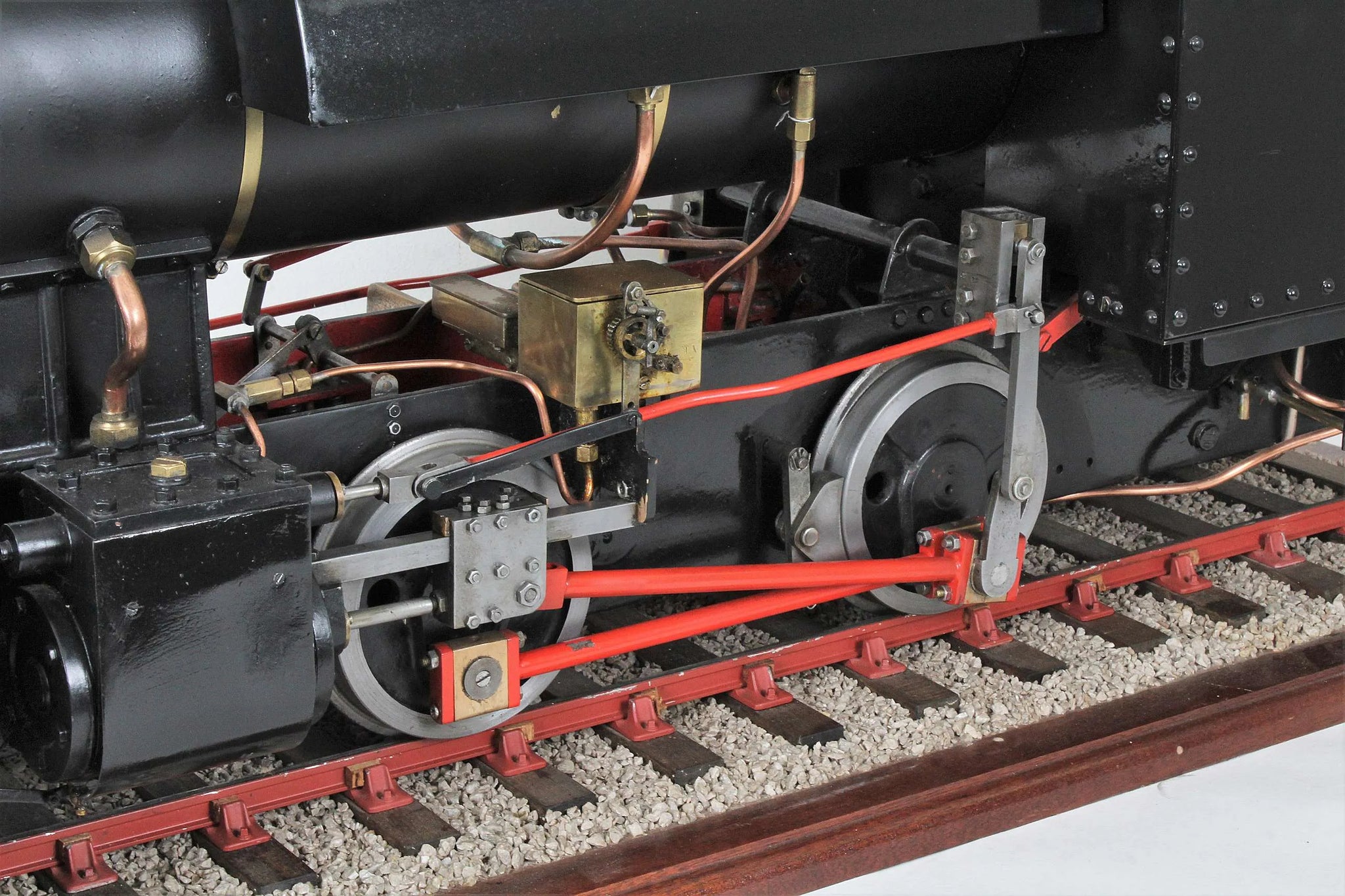

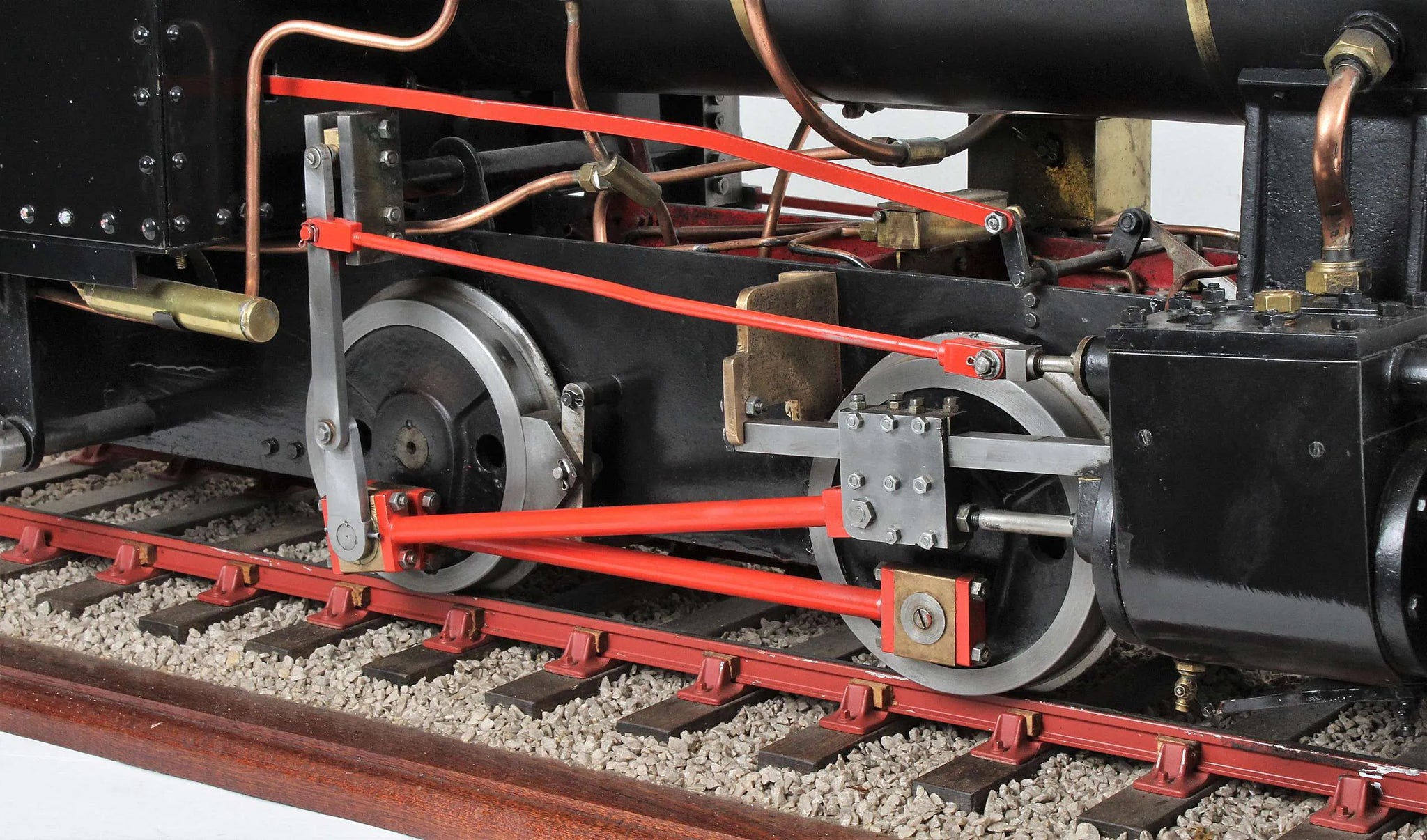

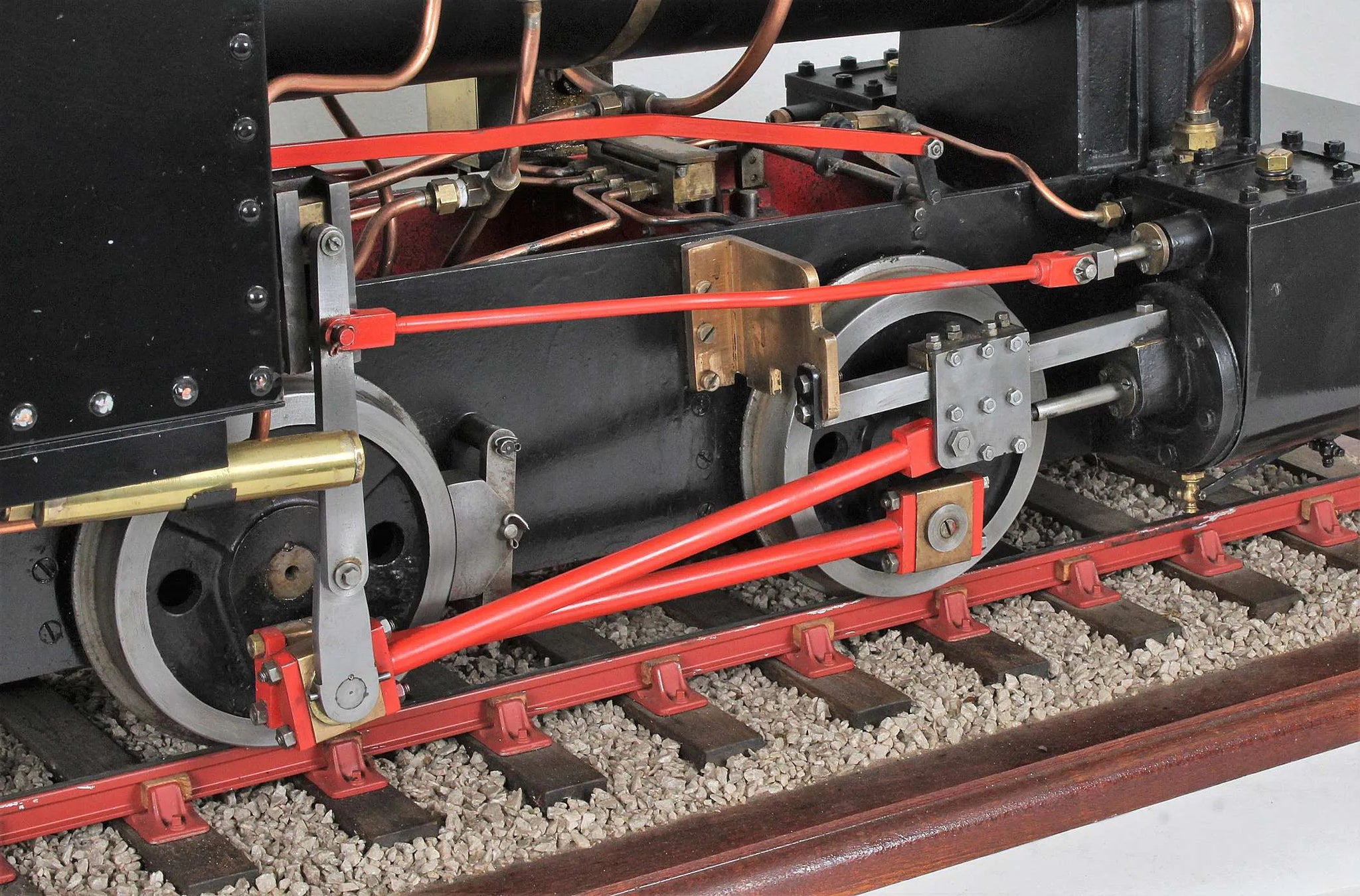

Valve gear

Hackworth

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Blackgates Engineering

Boiler type

marine

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

Year built

1994

Boiler number

5.9.94

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Date out

Feb-22

Hydraulic test valid to

16-Nov-25
