7443

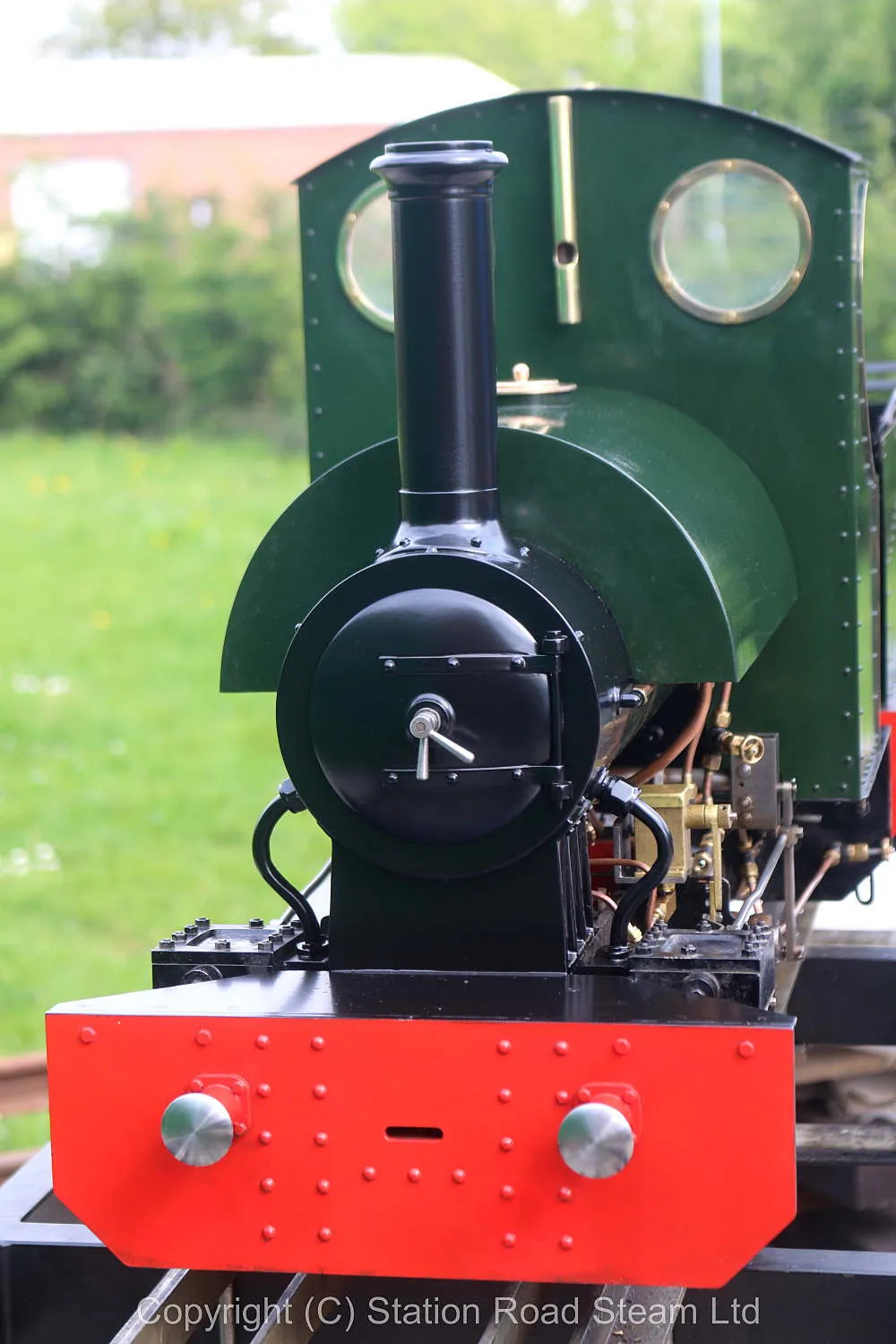

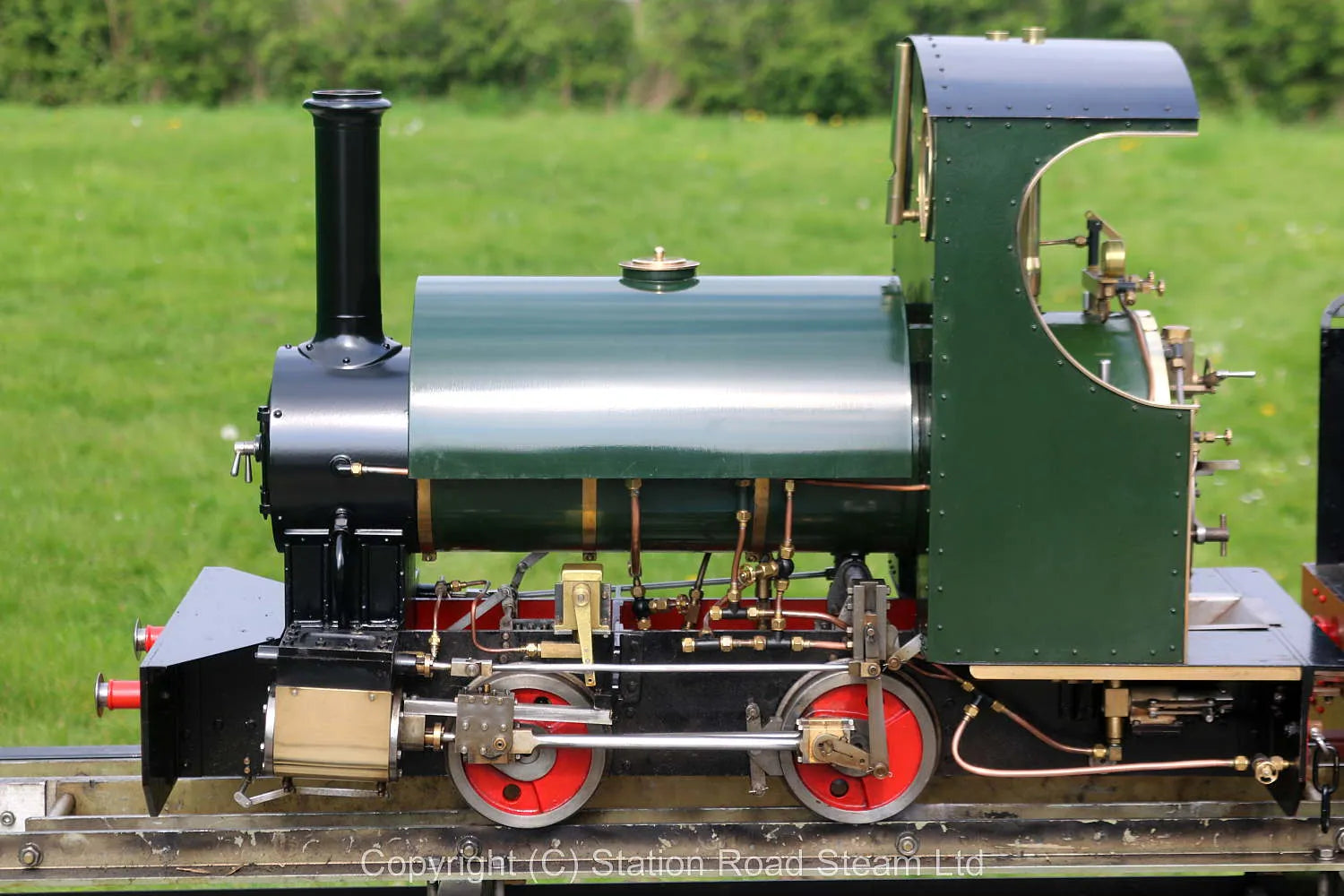

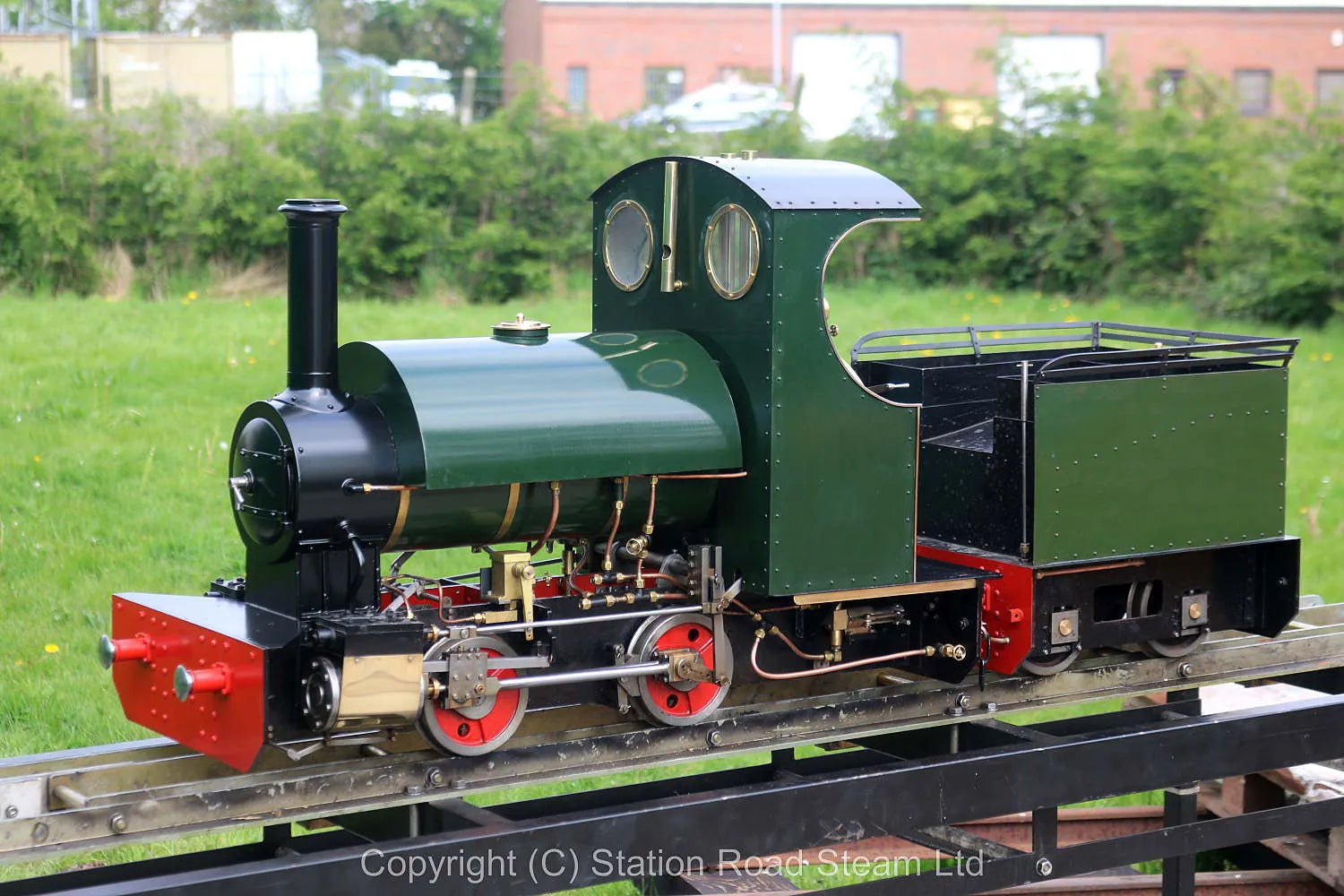

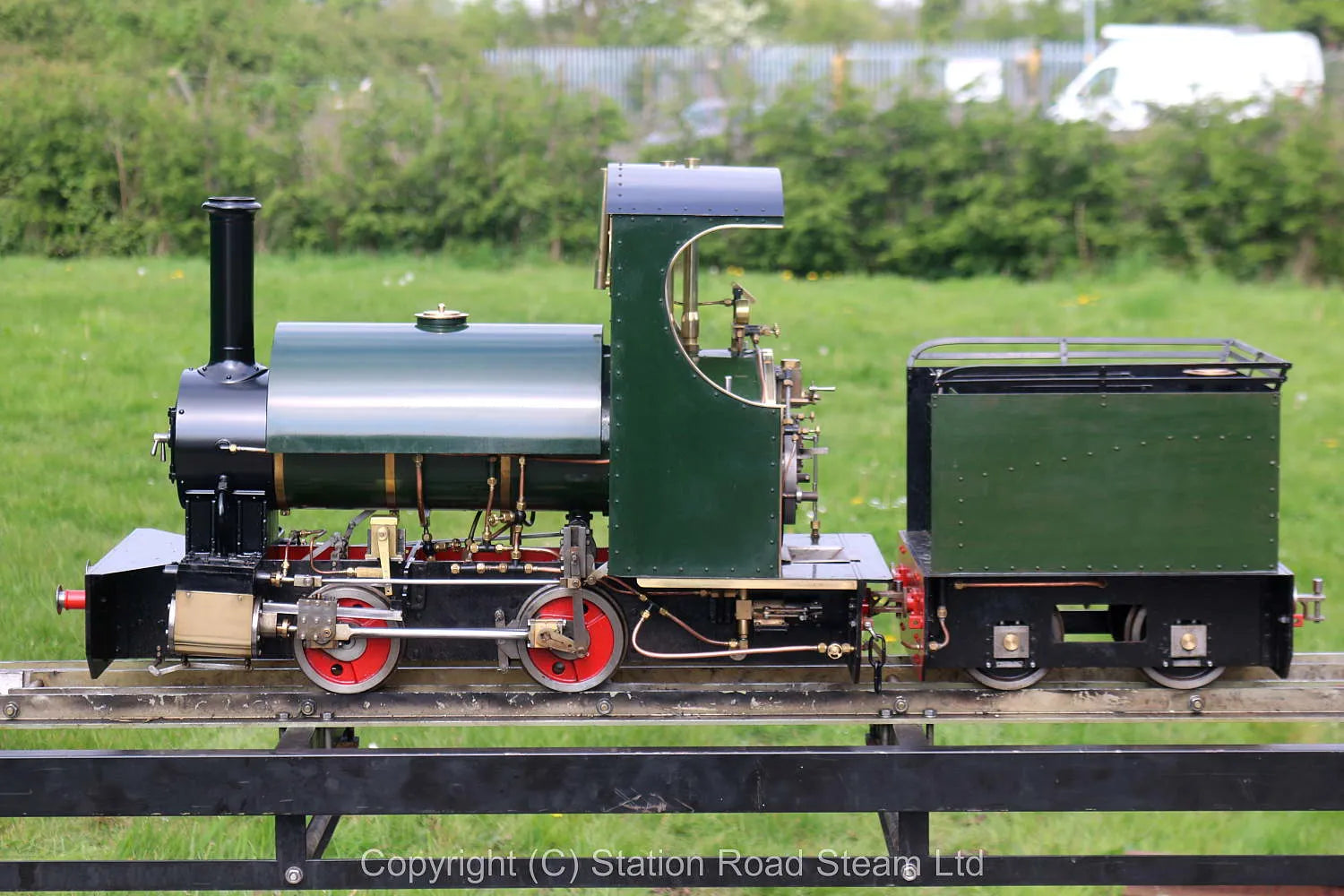

A well-built "Sweet Pea", complete with four wheel tender - it's in nice condition and runs well.

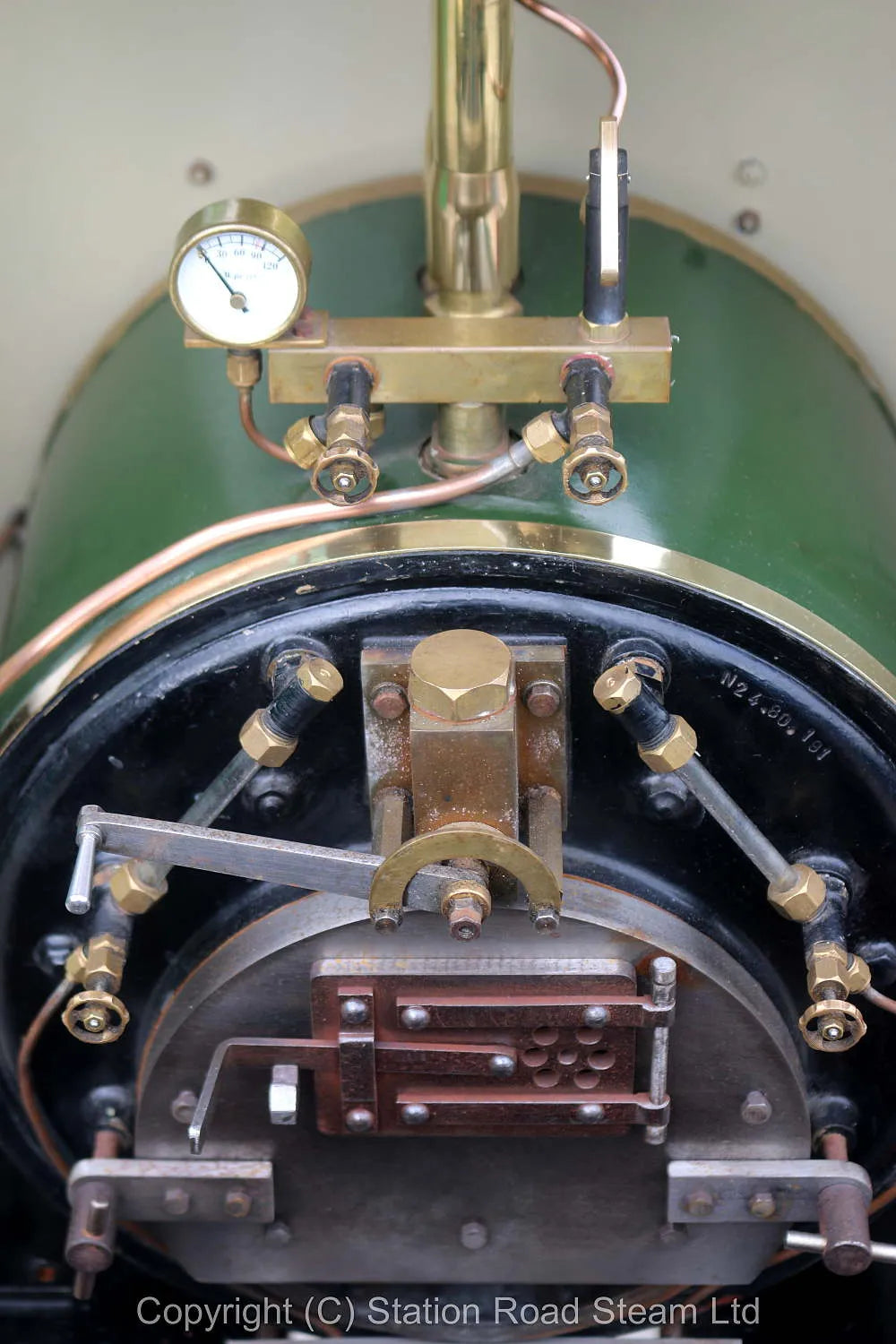

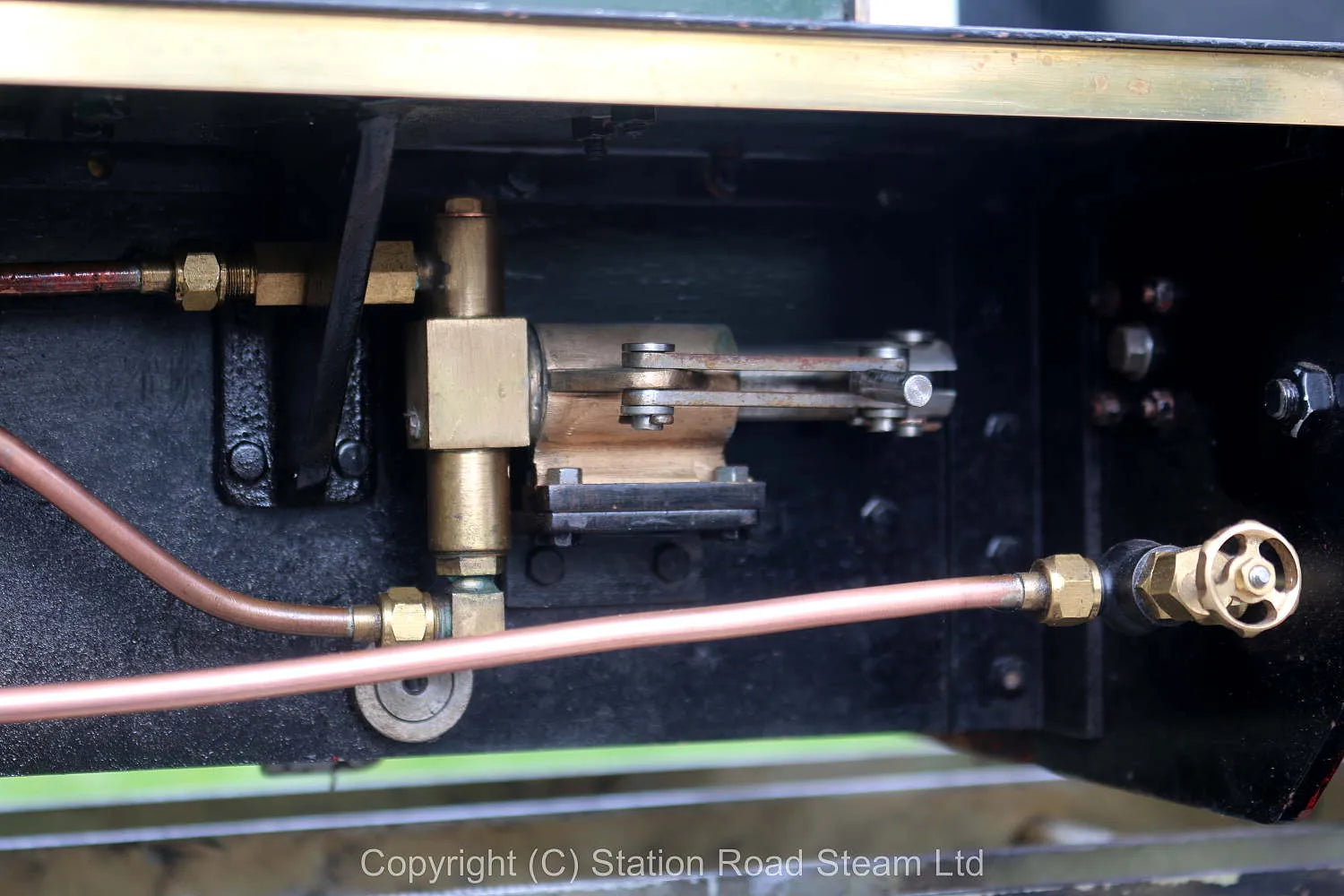

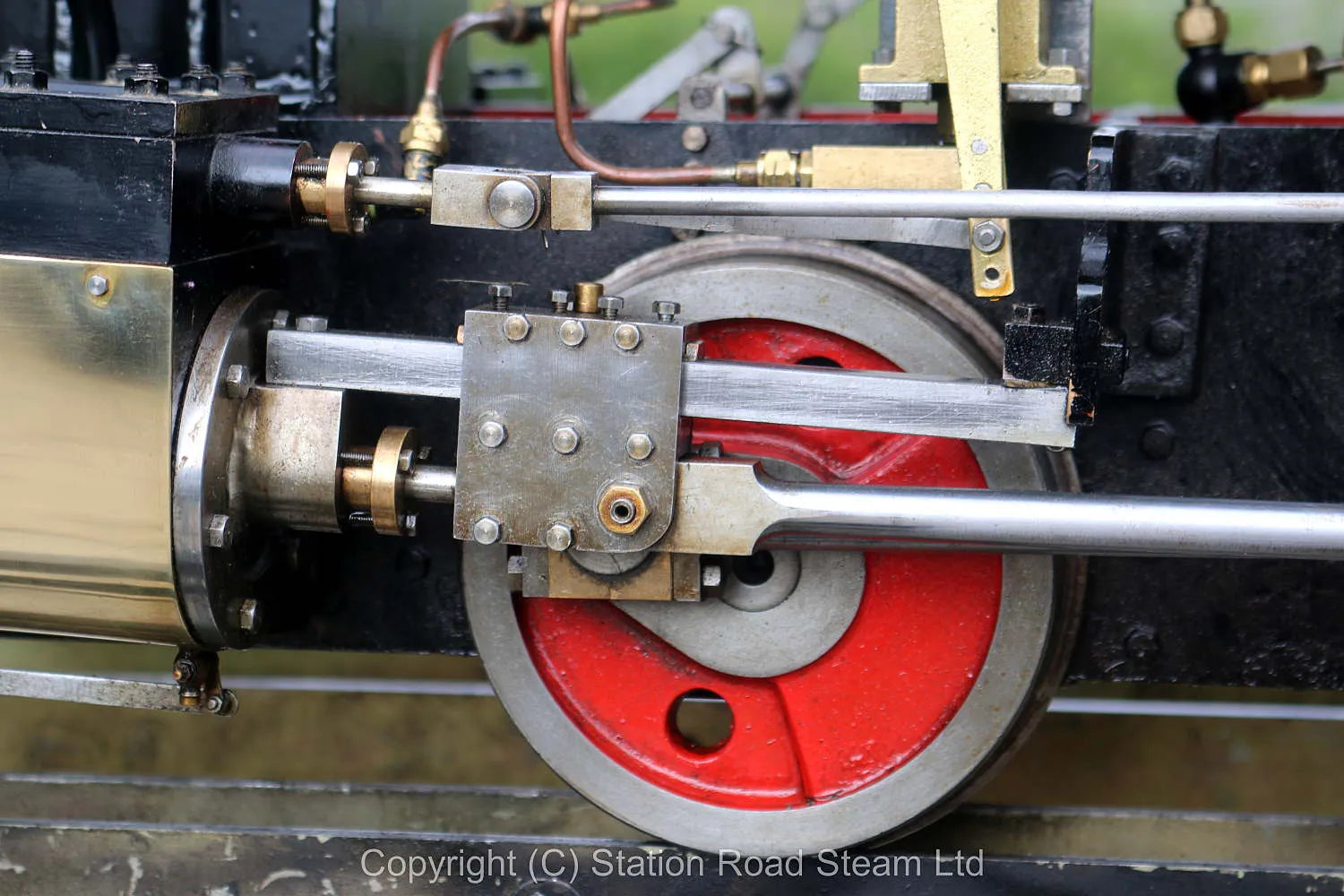

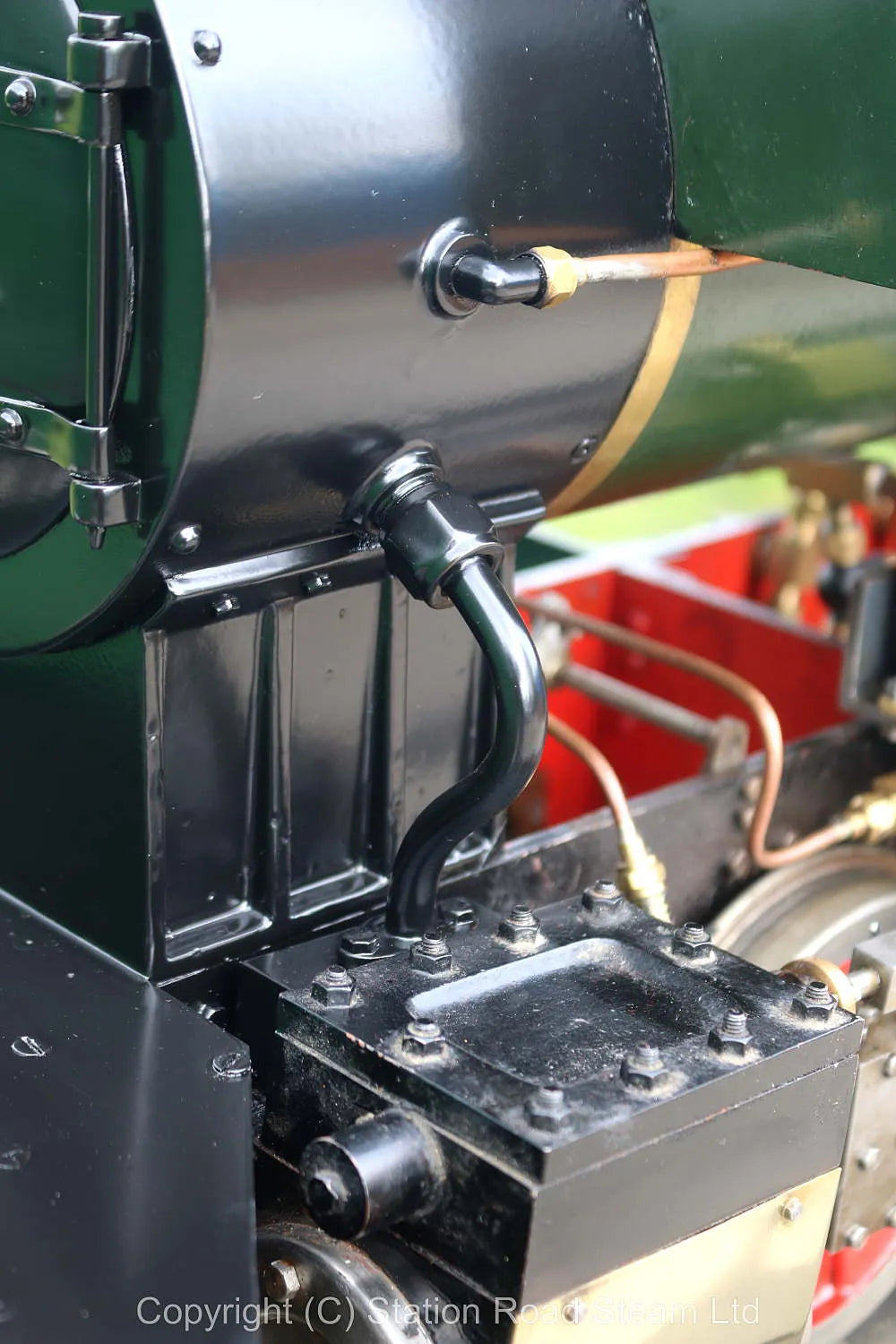

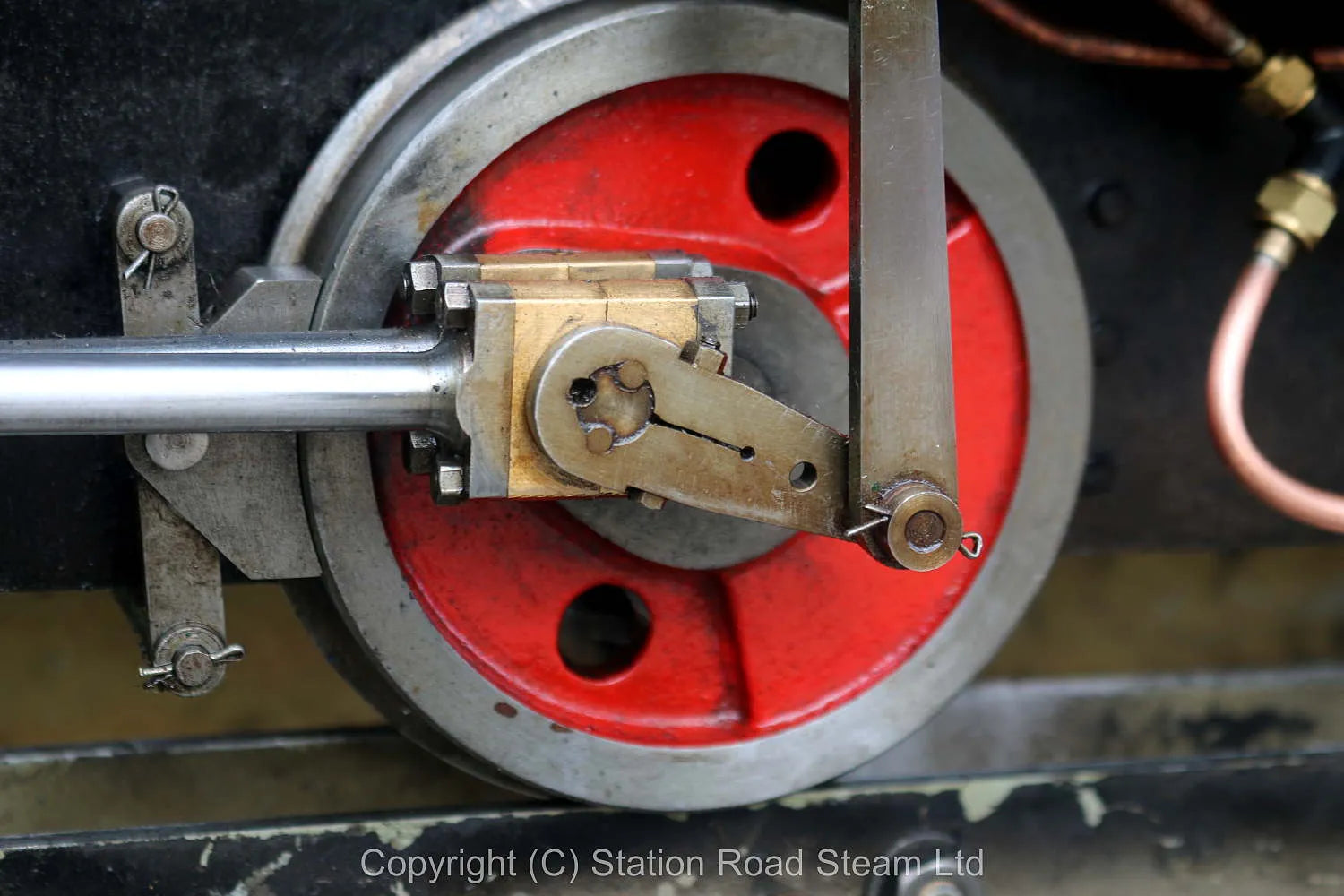

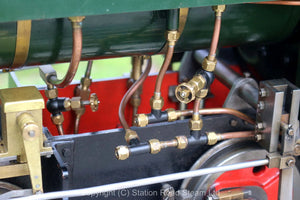

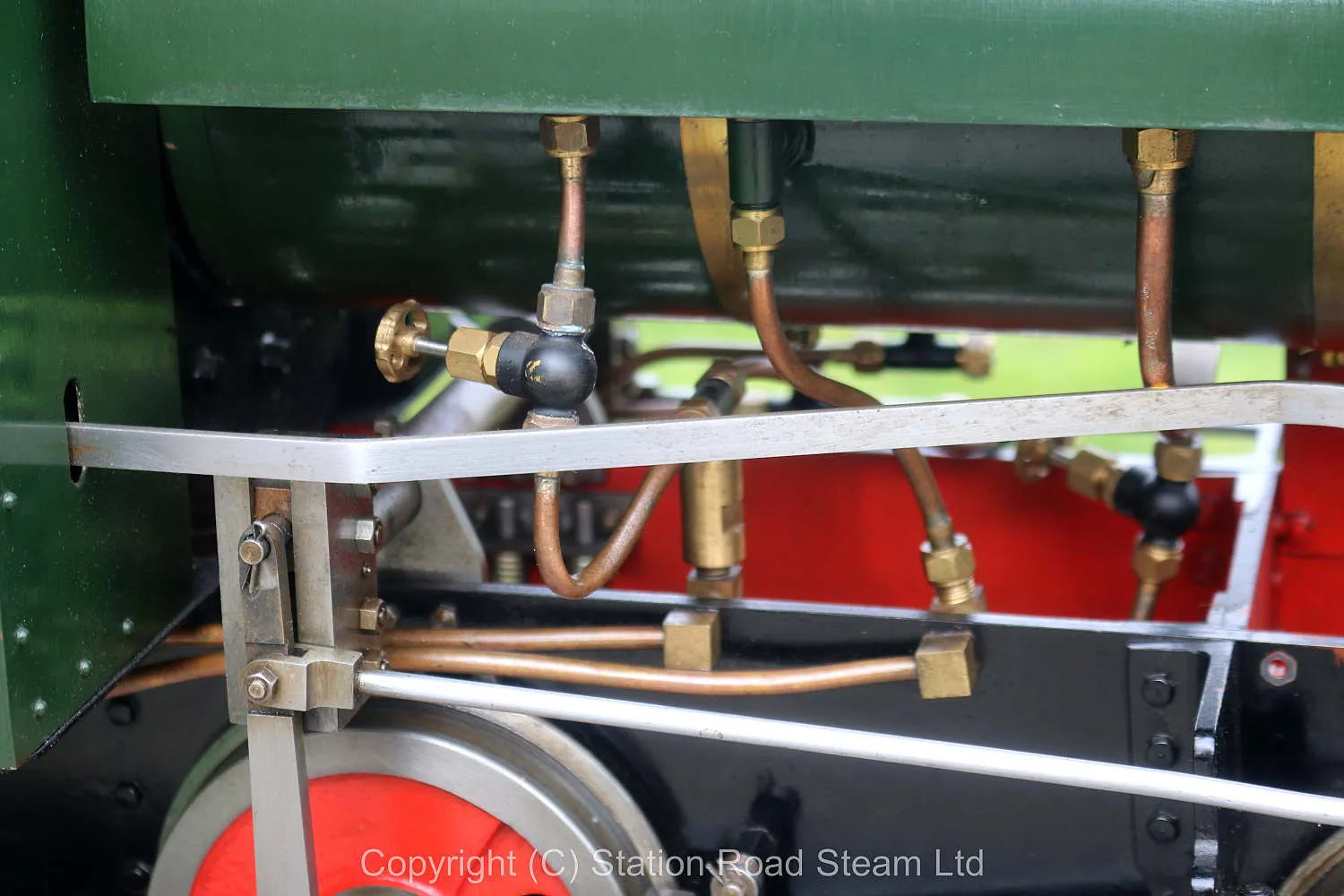

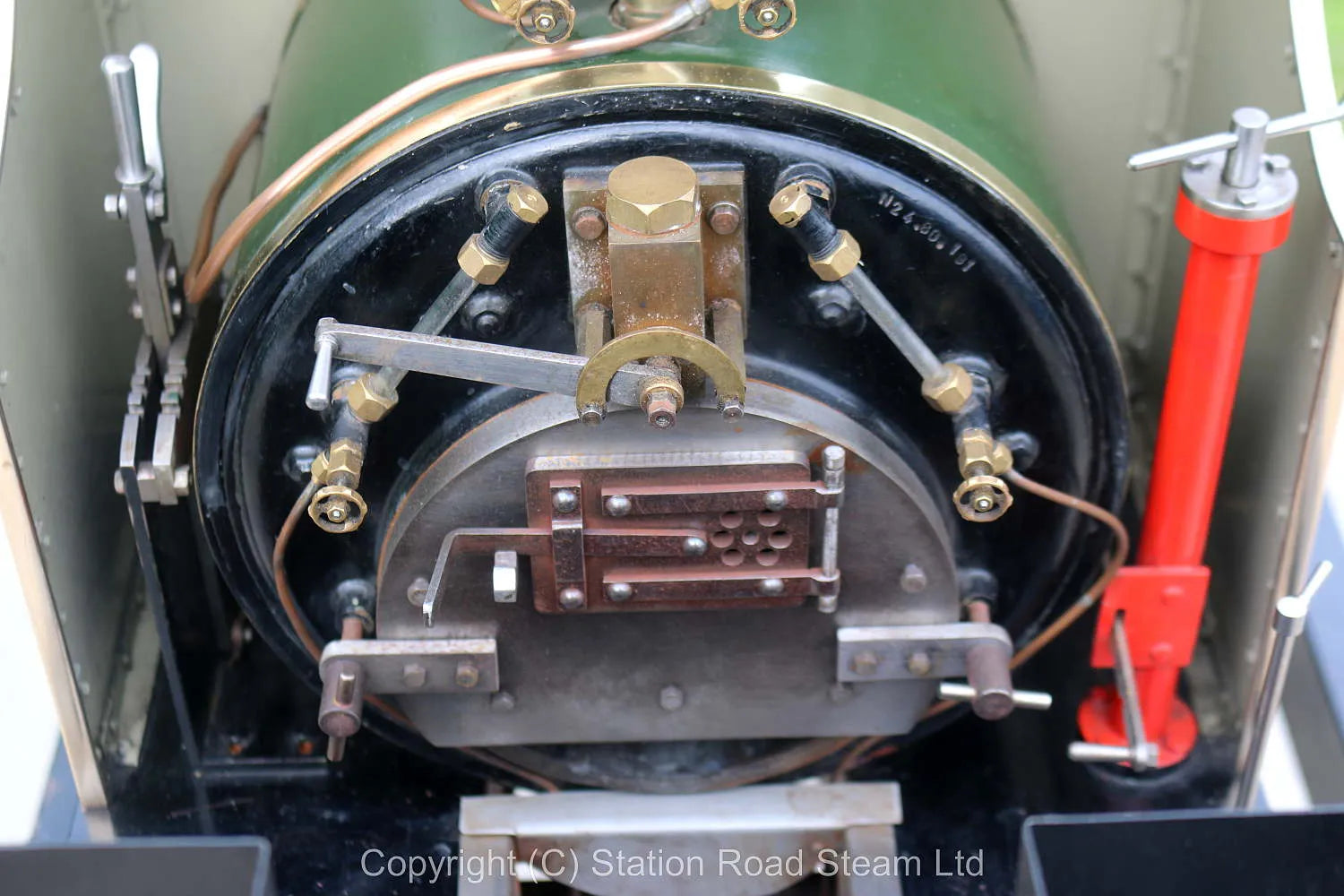

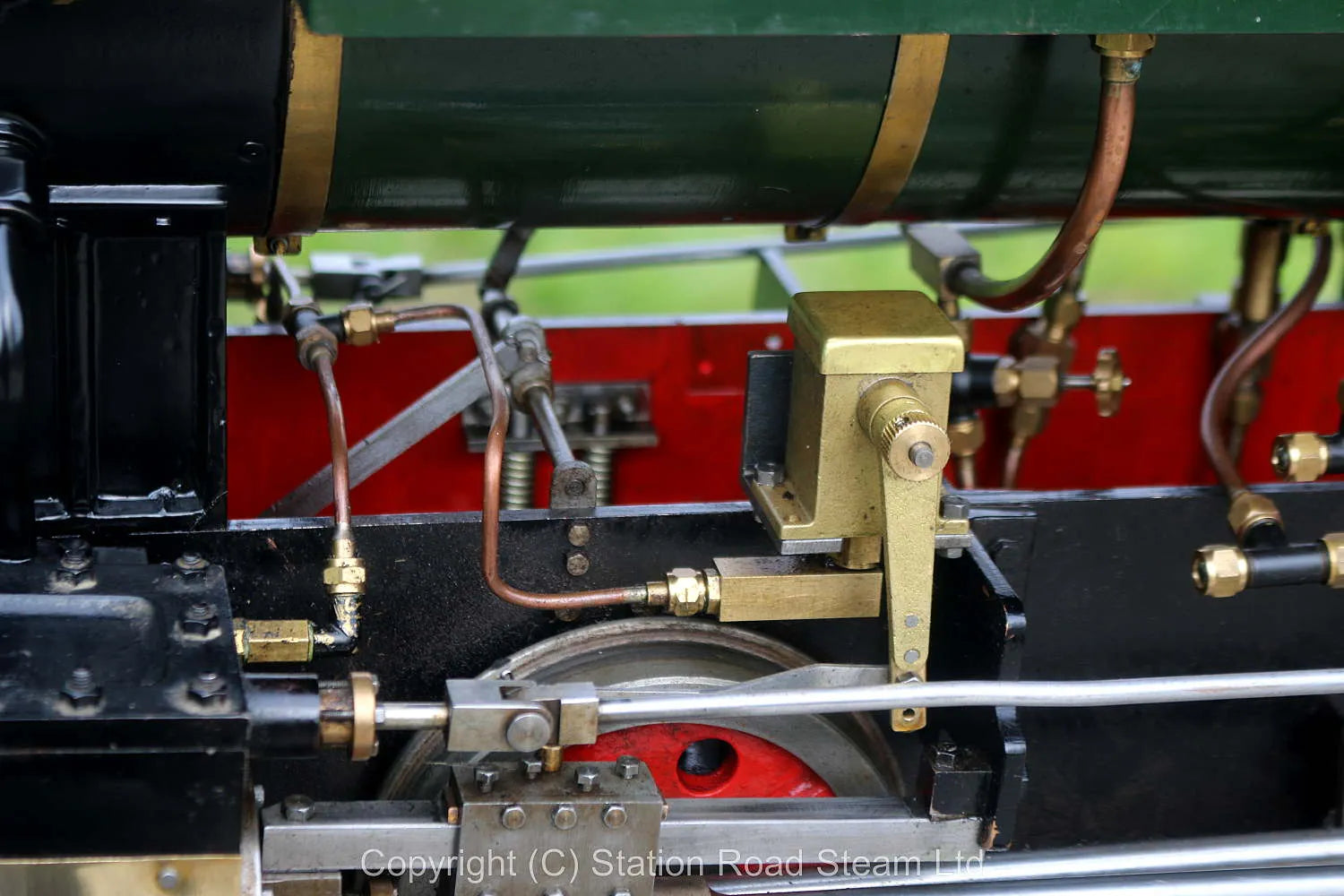

Silver soldered copper marine type boiler, 80psi working pressure. Feed by axle pump with auxiliary hand pump under the nearside footplate. Twin pop-type safety valves. Cast iron cylinders with slide valves actuated by Hackworth valve gear, rod operated drain cocks, mechanical lubricator.

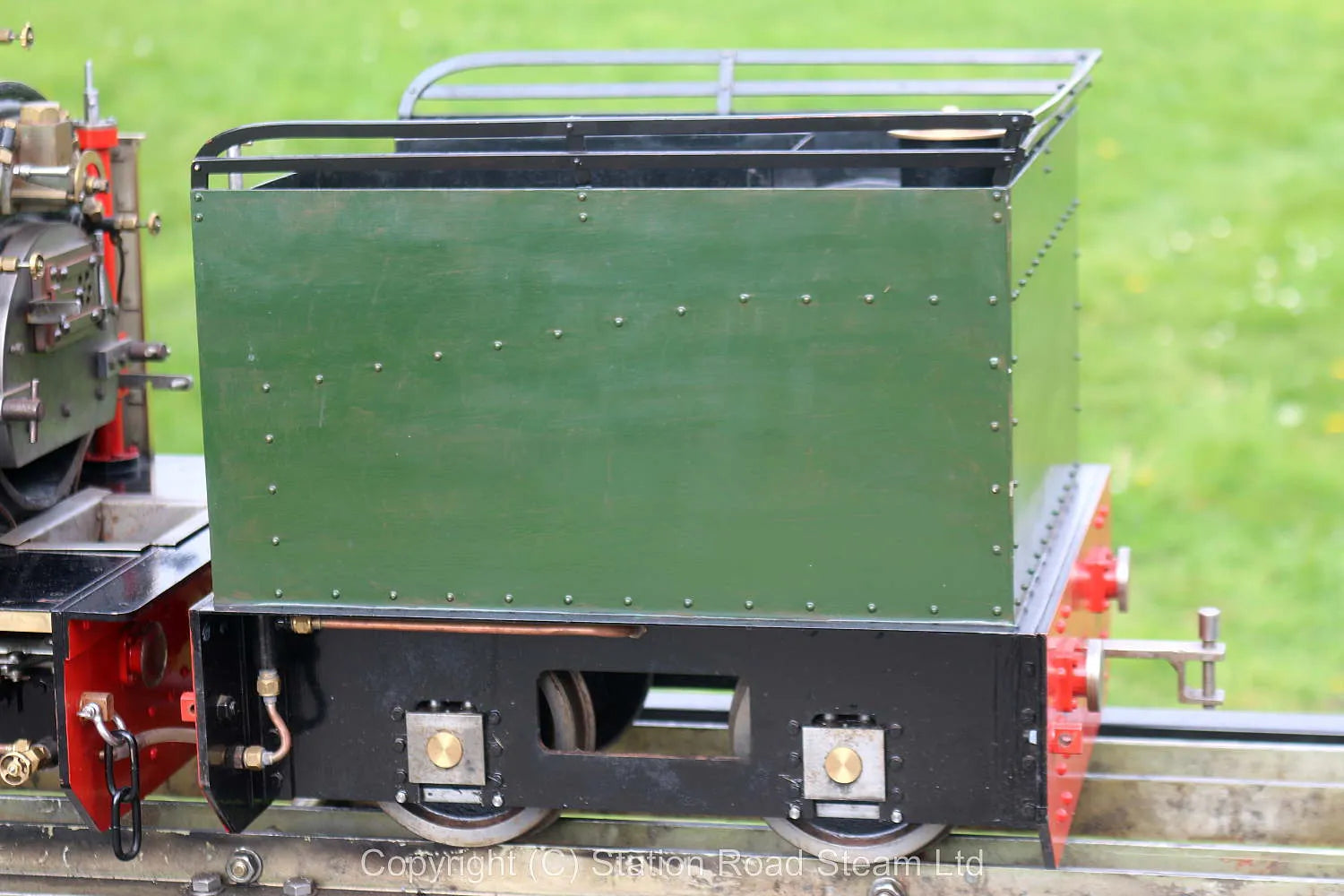

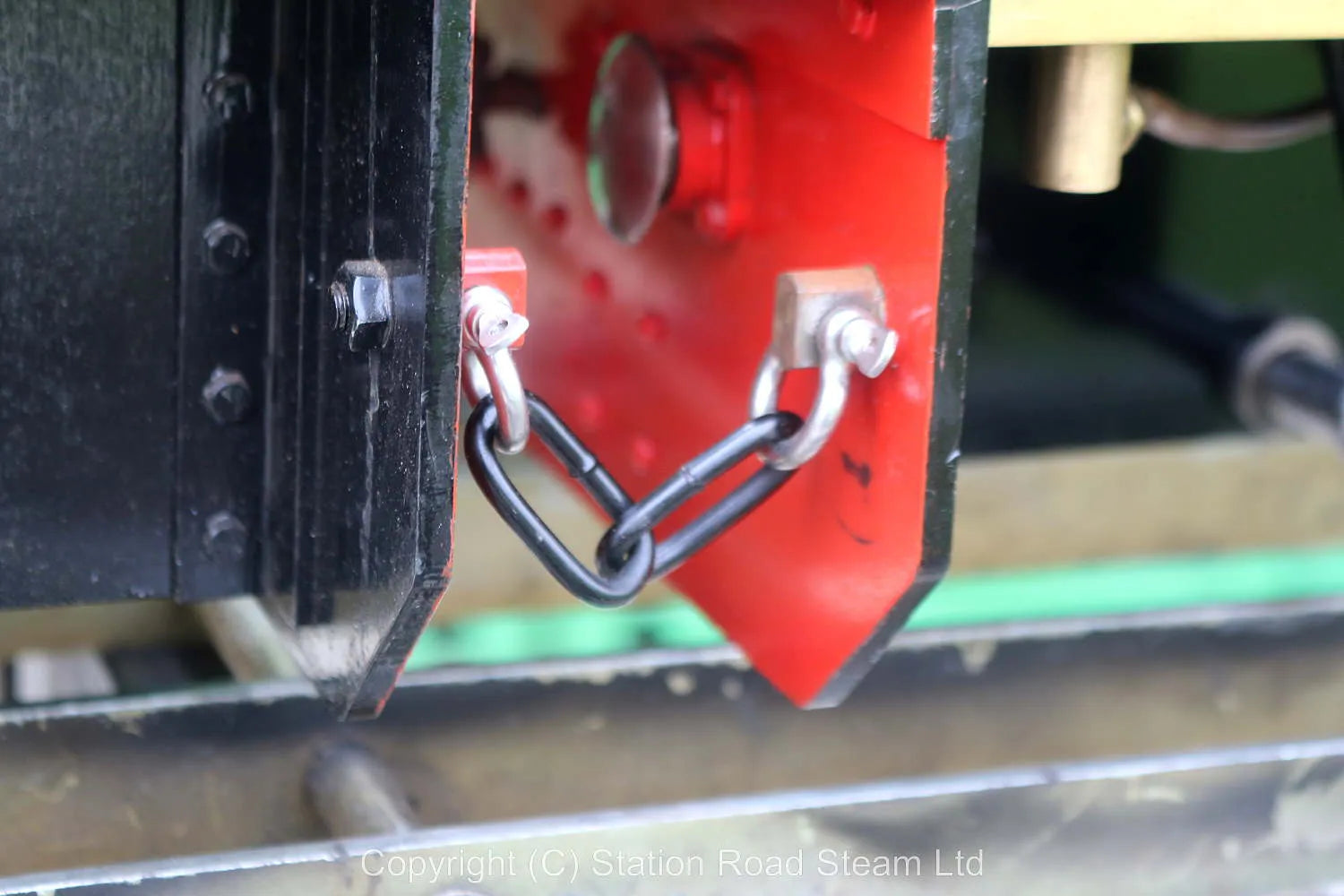

Tender tank is piped through to the locomotive and provides additional water capacity to the saddle tank, it's fitted with a check chain to the locomotive.
Complete with a spare "rosebud" type grate.
Type: Second hand
Tags: Locomotives
Stock code |
7443 |
Gauge |
5 inch |
Boiler type |
marine |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - non-commercial |
Boiler number |
N24-80-191 |
Safety valve type |
spring |
Safety valve |
2 |
Fusible plug |
no |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Date out |
Jul-17 |
