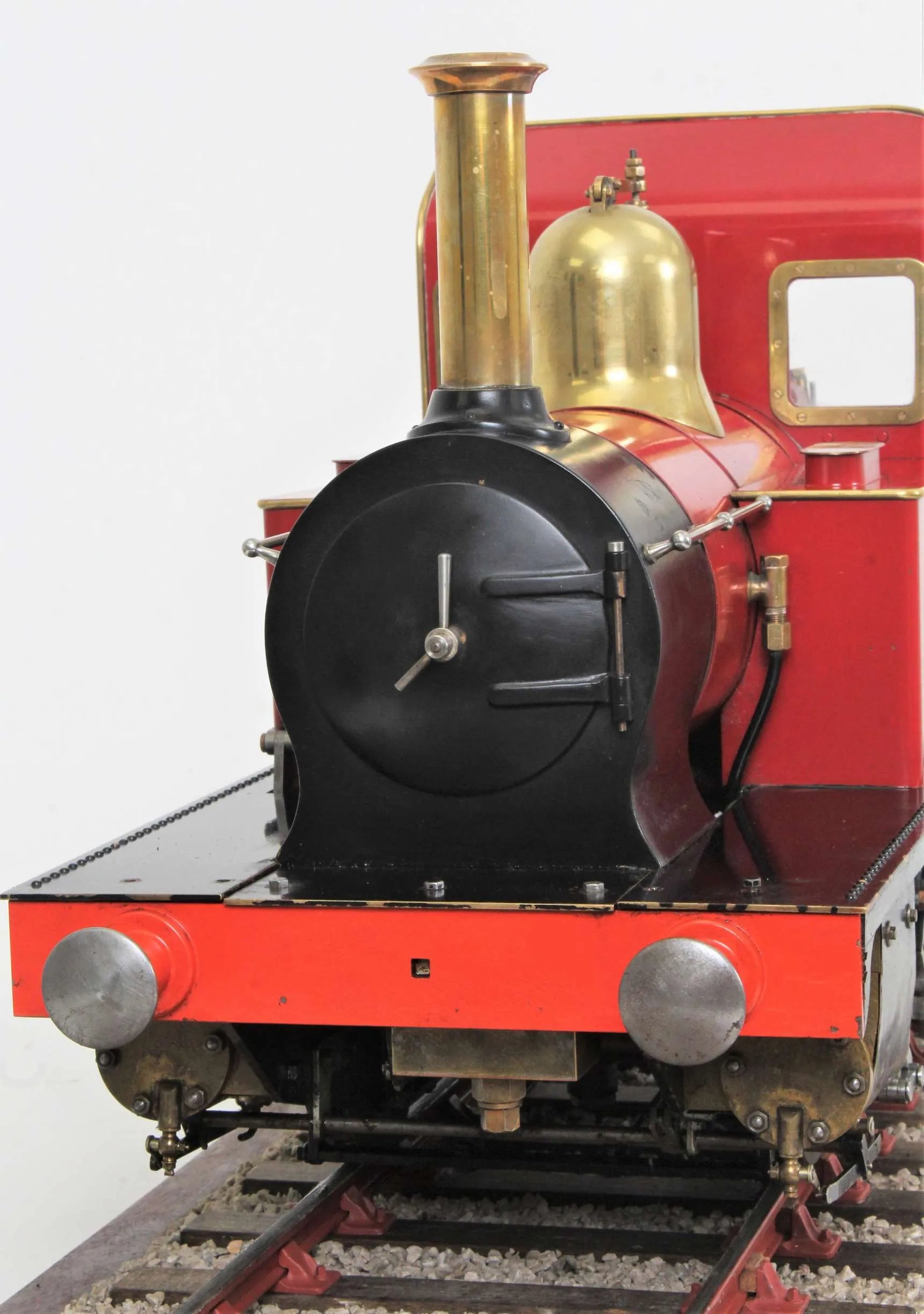

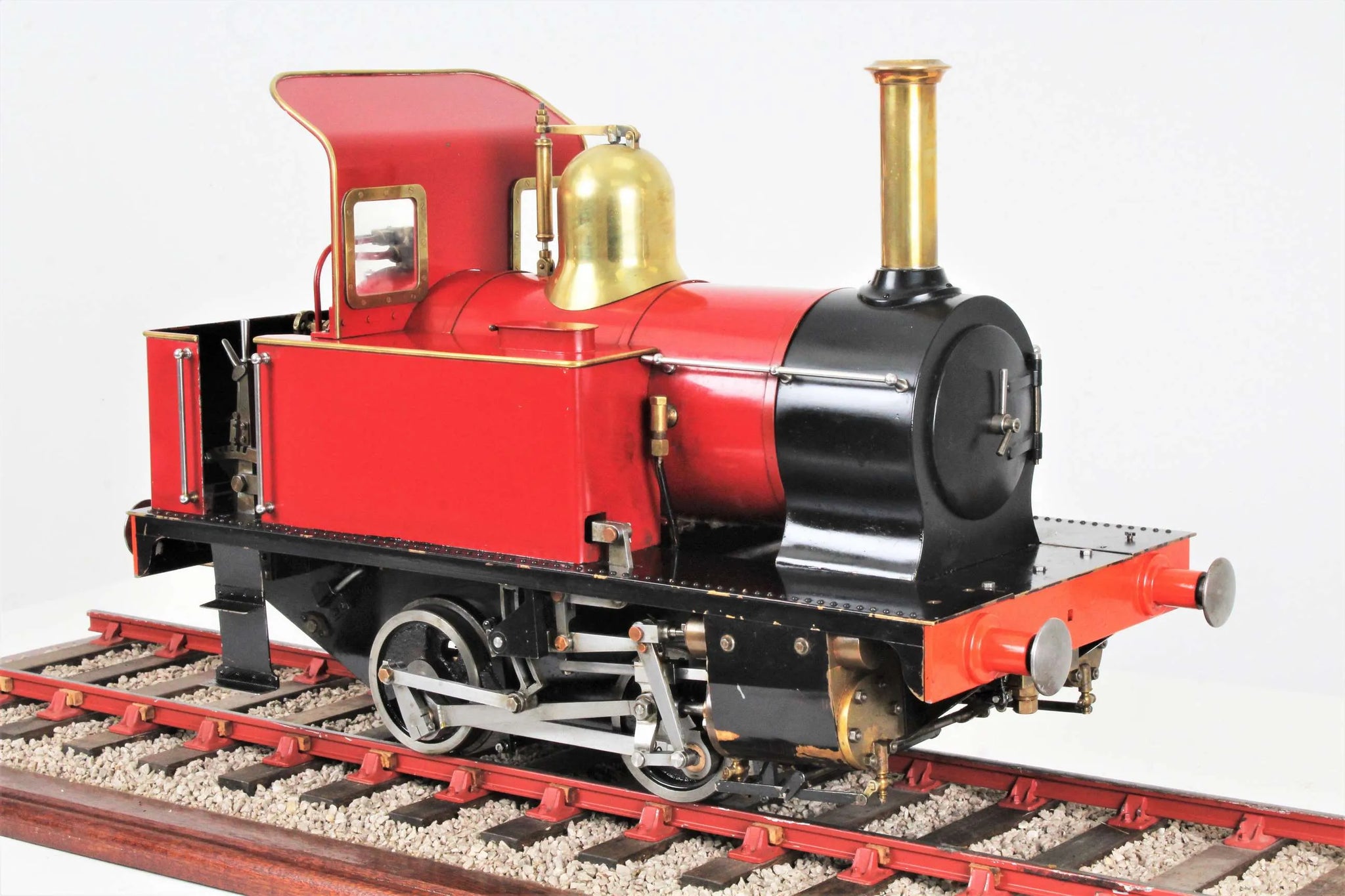

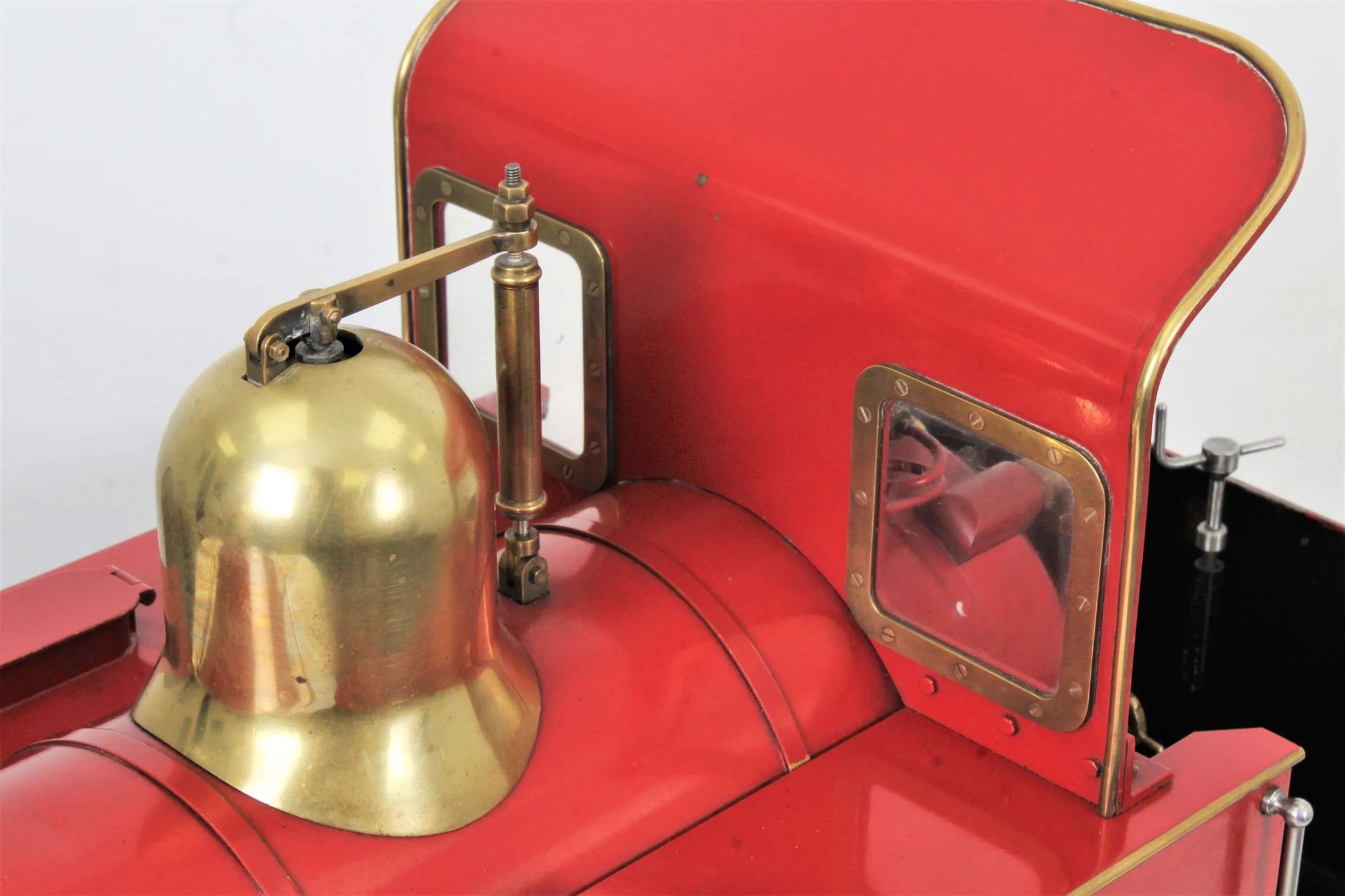

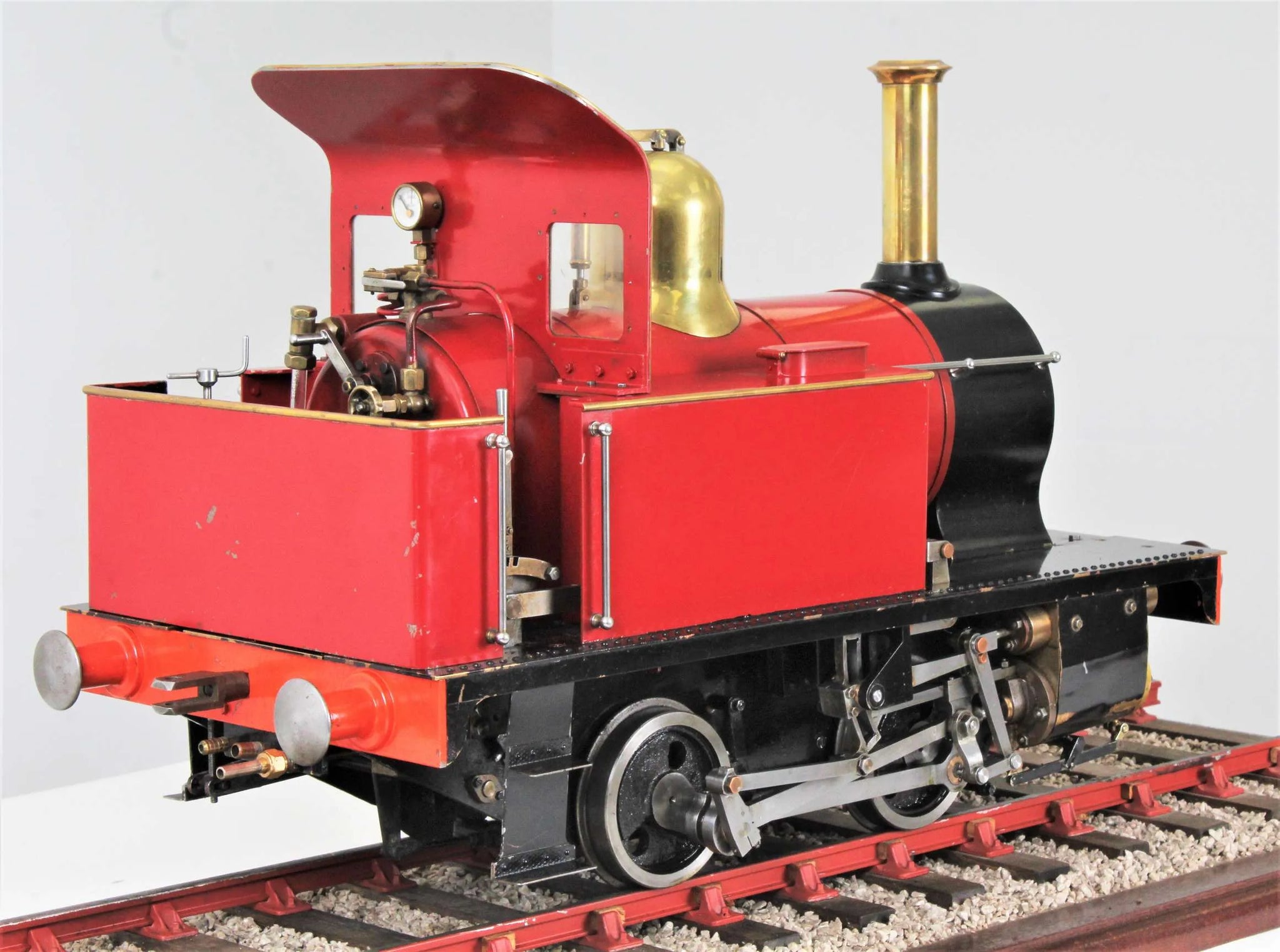

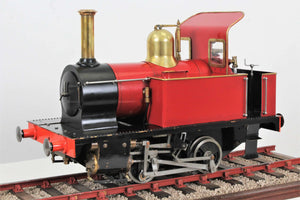

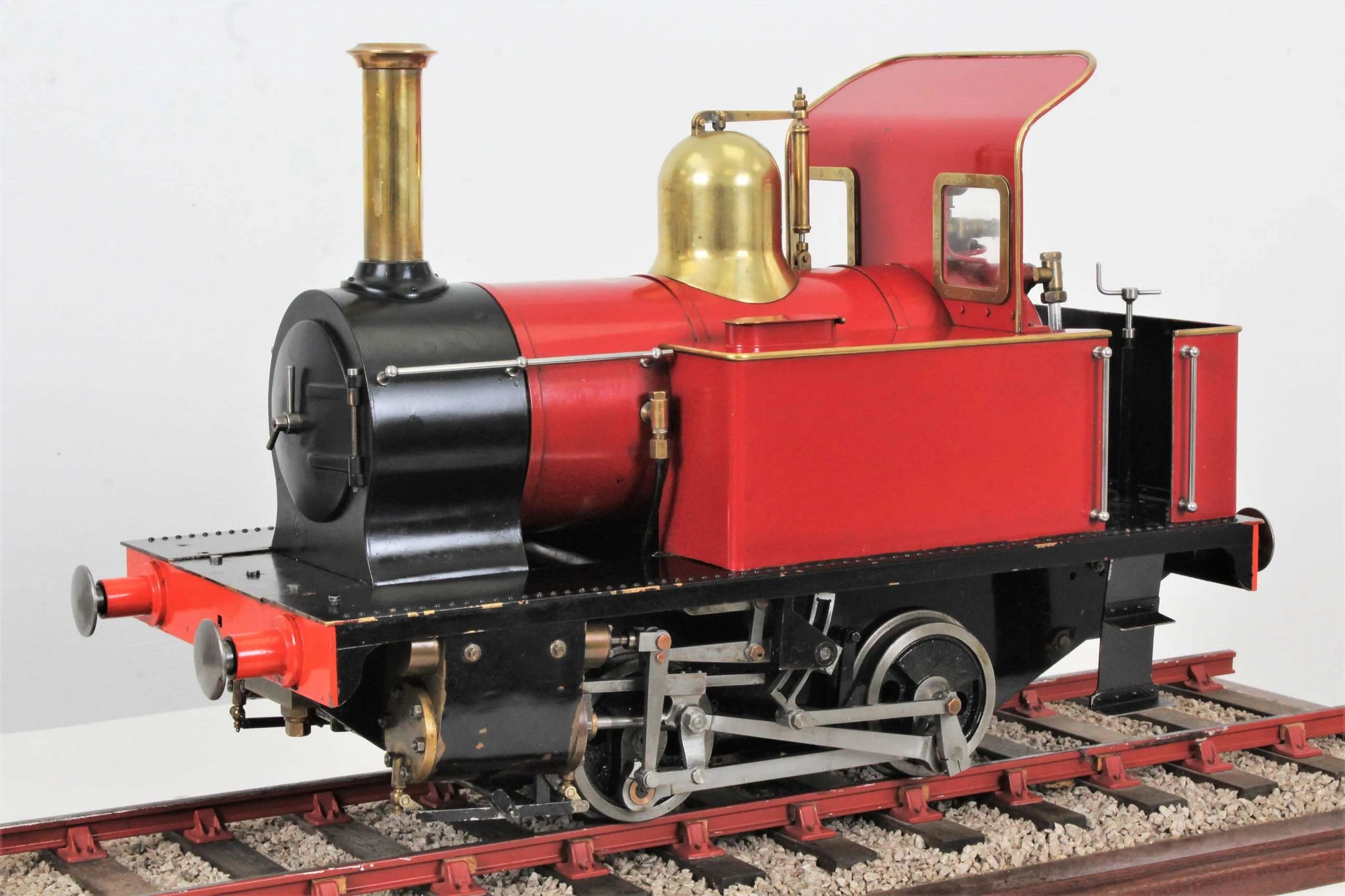

5 inch gauge "Tich" 0-4-0T

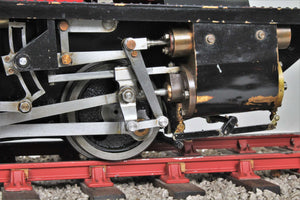

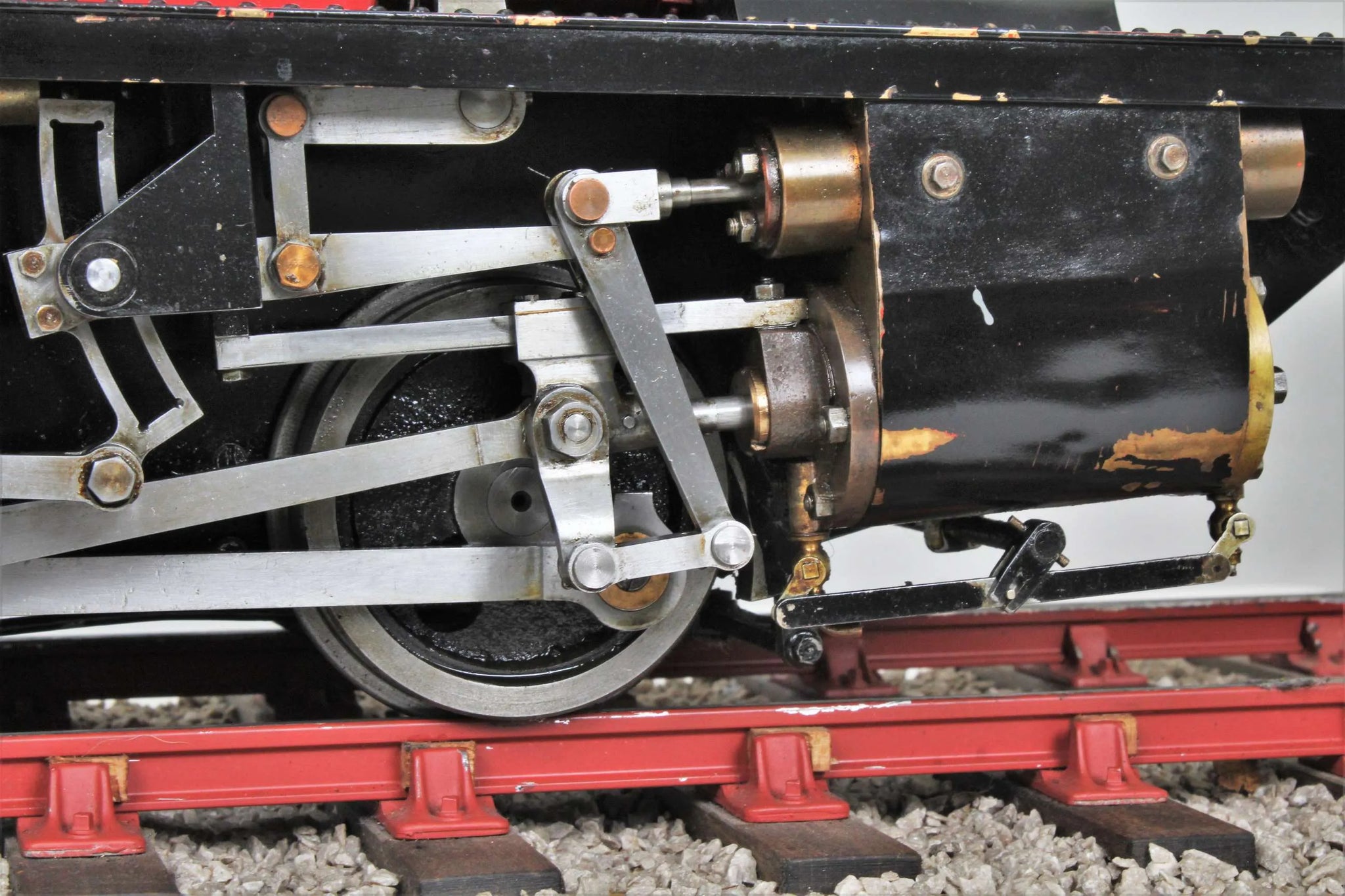

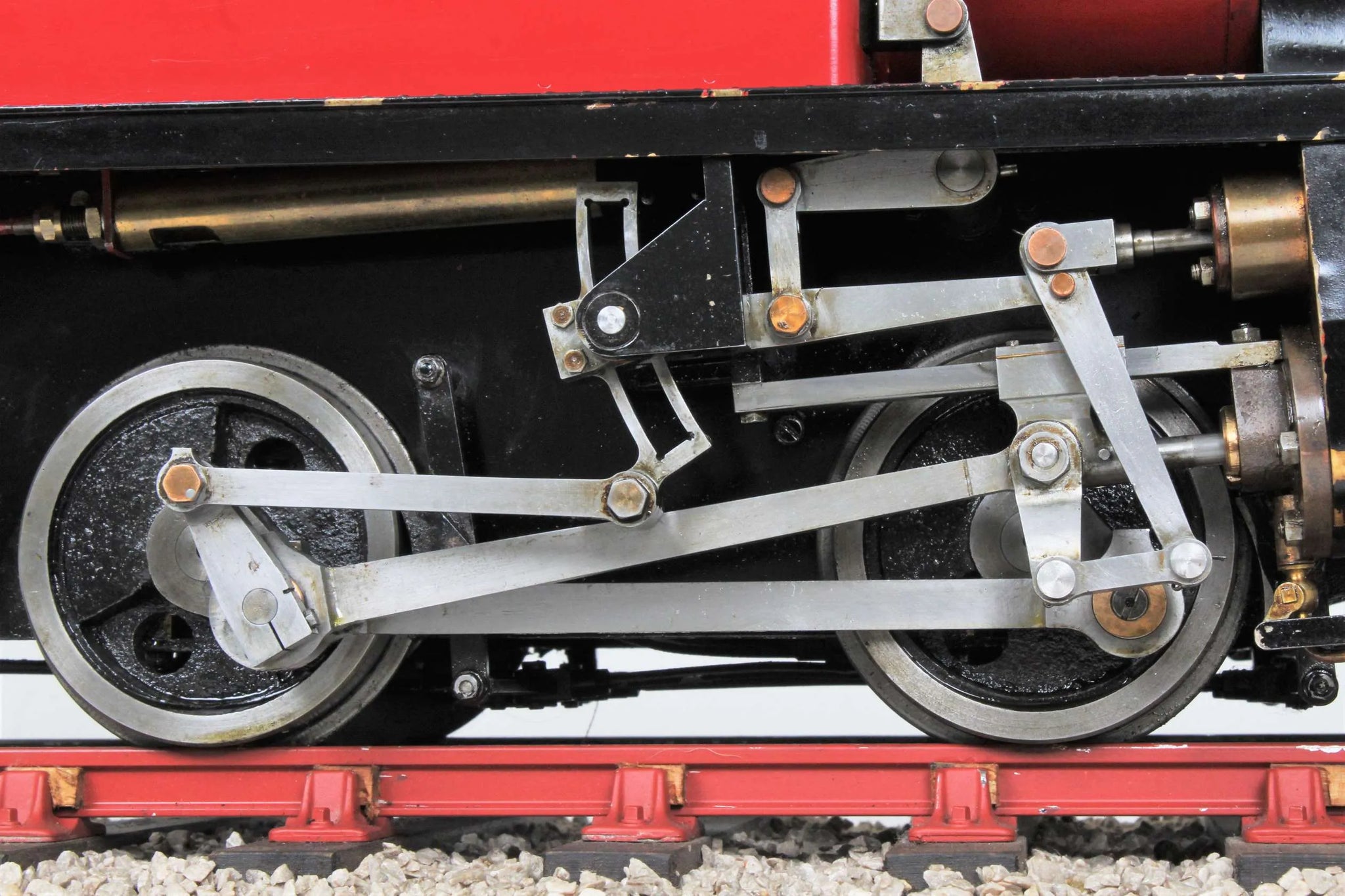

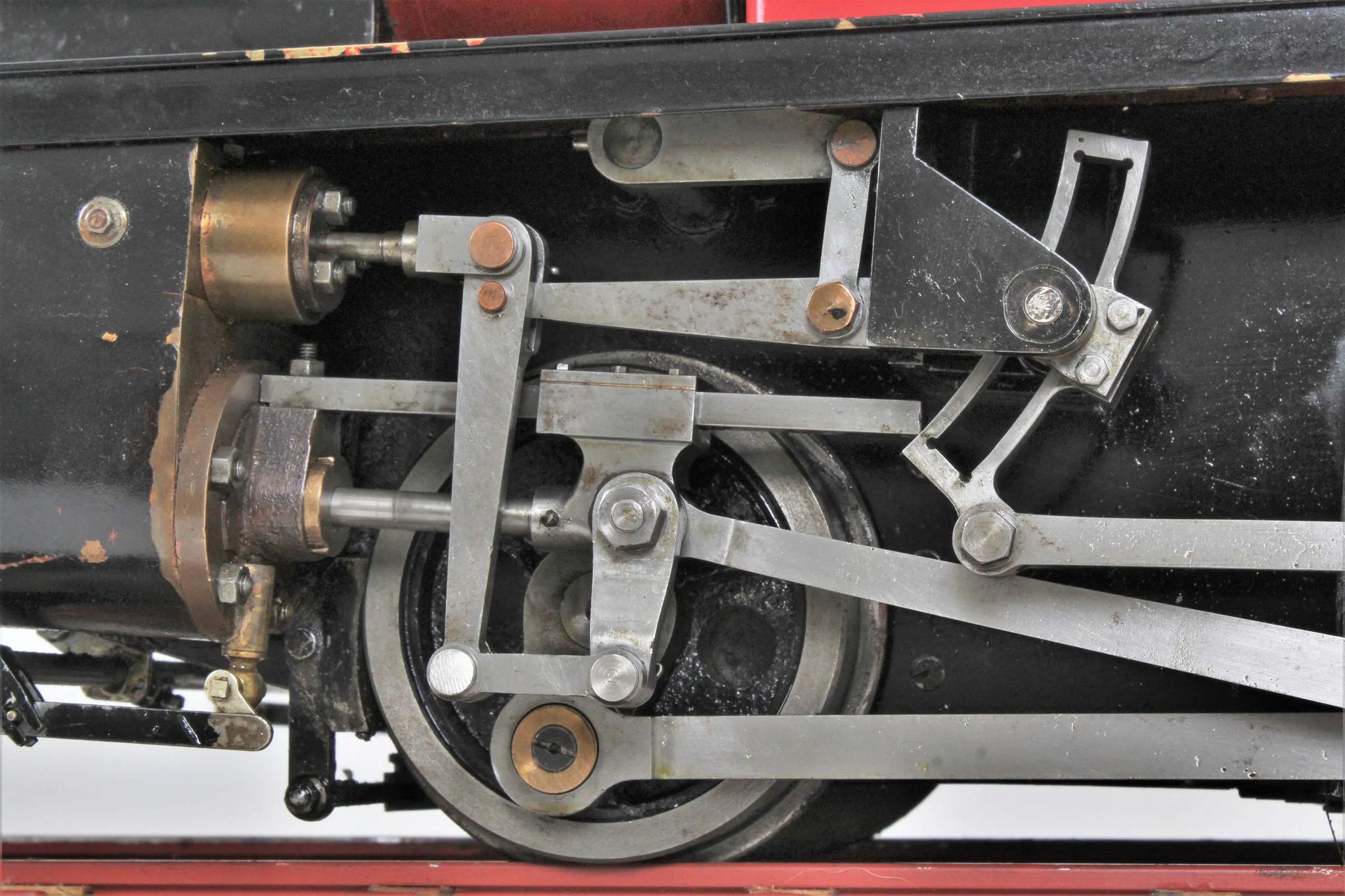

A 5 inch gauge "Tich", scaled up from LBSC's 3 1/2 inchgauge design in small boiler, Walschaert's gear variant.

Copper silver soldered boiler is a commercially made job by Kennions, it's had recent hydraulic test with certificate issued for same.

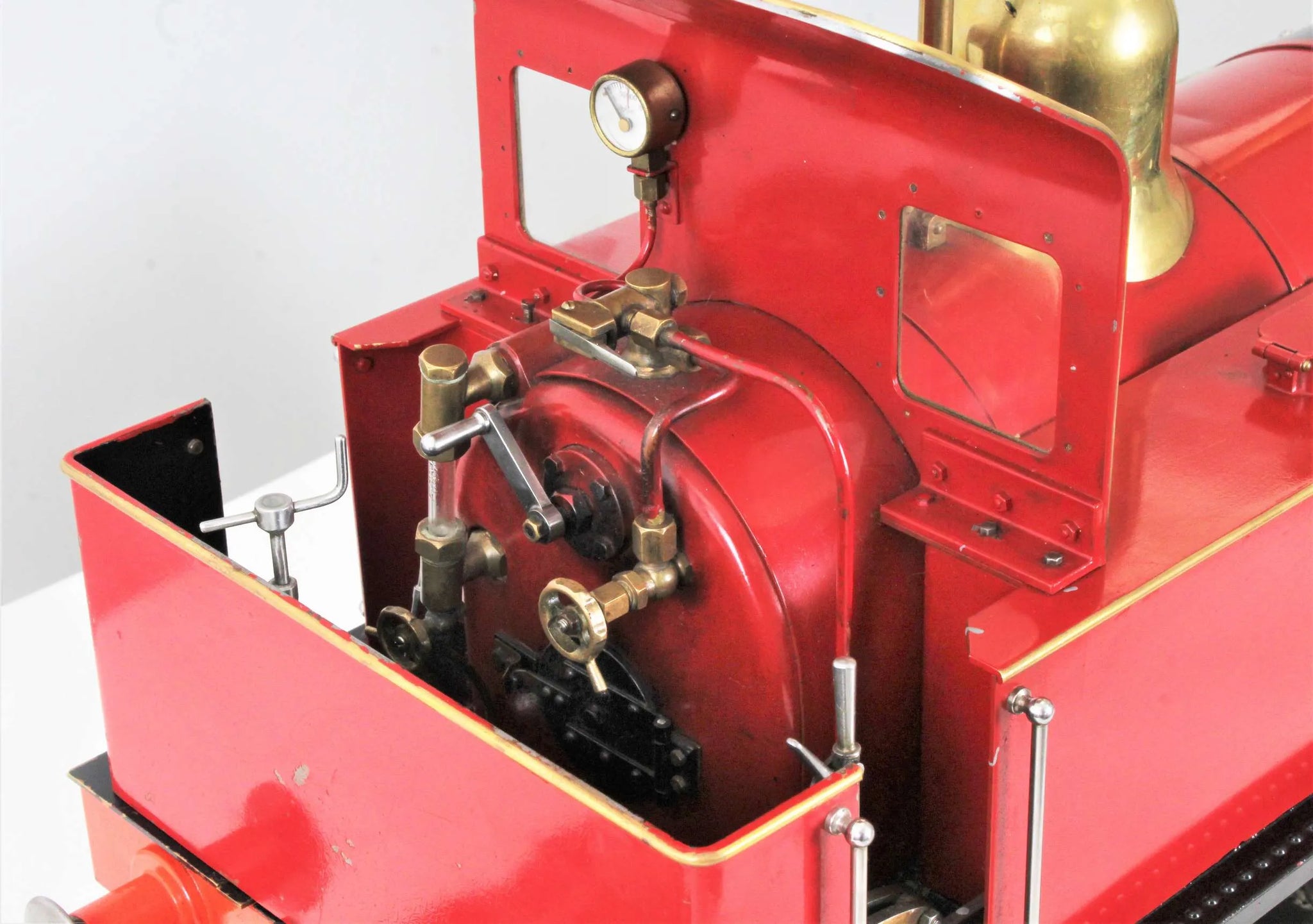

The engine runs on air in both directions, if somewhat desultorily. A running restoration, there are various jobs that will need attention, including:

  • Replacement pressure gauge
  • Service leaking clack valve

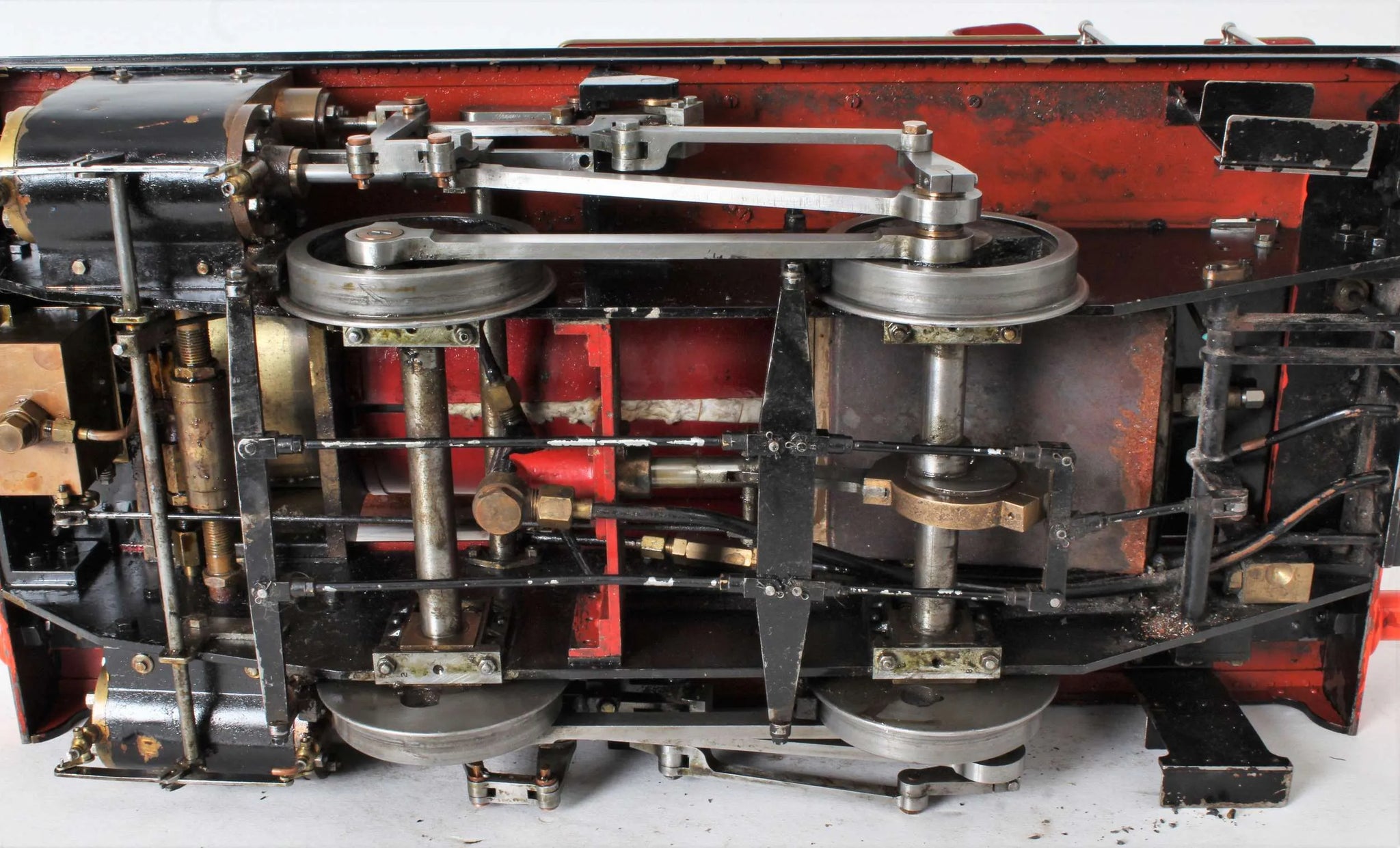

  • Service axle pump
  • Service leaky blower valve

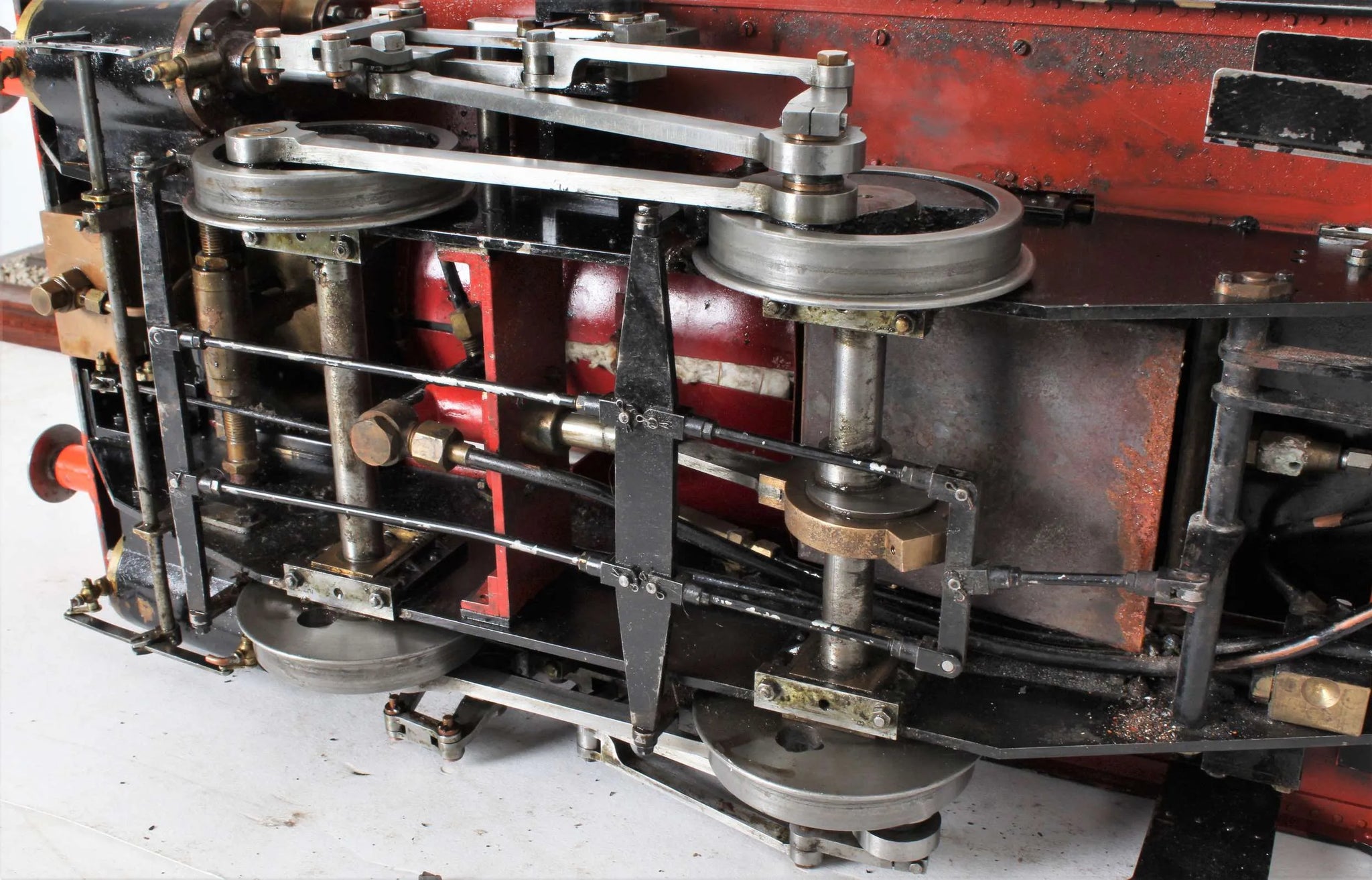

Originally set up to take water from a driving truck, the engine is piped up for feed/return for the axle pump and a screwed connection for a hand pump - side tanks are dummies.

Technical information

Stock code

9345

Length/inches

21

Width/inches

9

Height/inches

14

Wheel material

cast iron

Axlebox type

plain bearing

Valve type

slide

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Kennions

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a pre-2002

Boiler number

1035

Safety valve type

spring

Safety valve

1

Whistle

yes

Mechanical pump

axle pump

Date out

Oct-22

Hydraulic test valid to

01-Nov-24
