11727

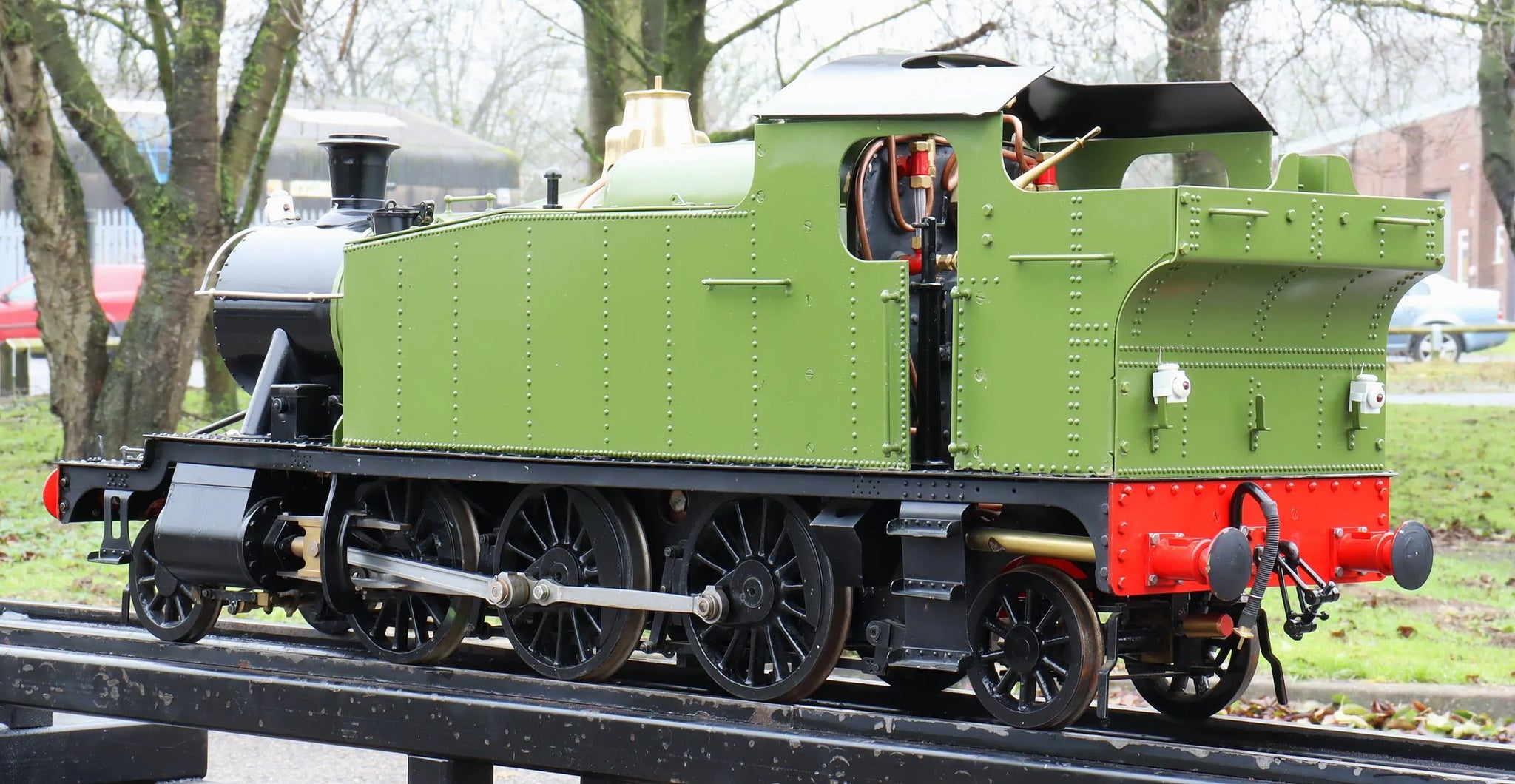

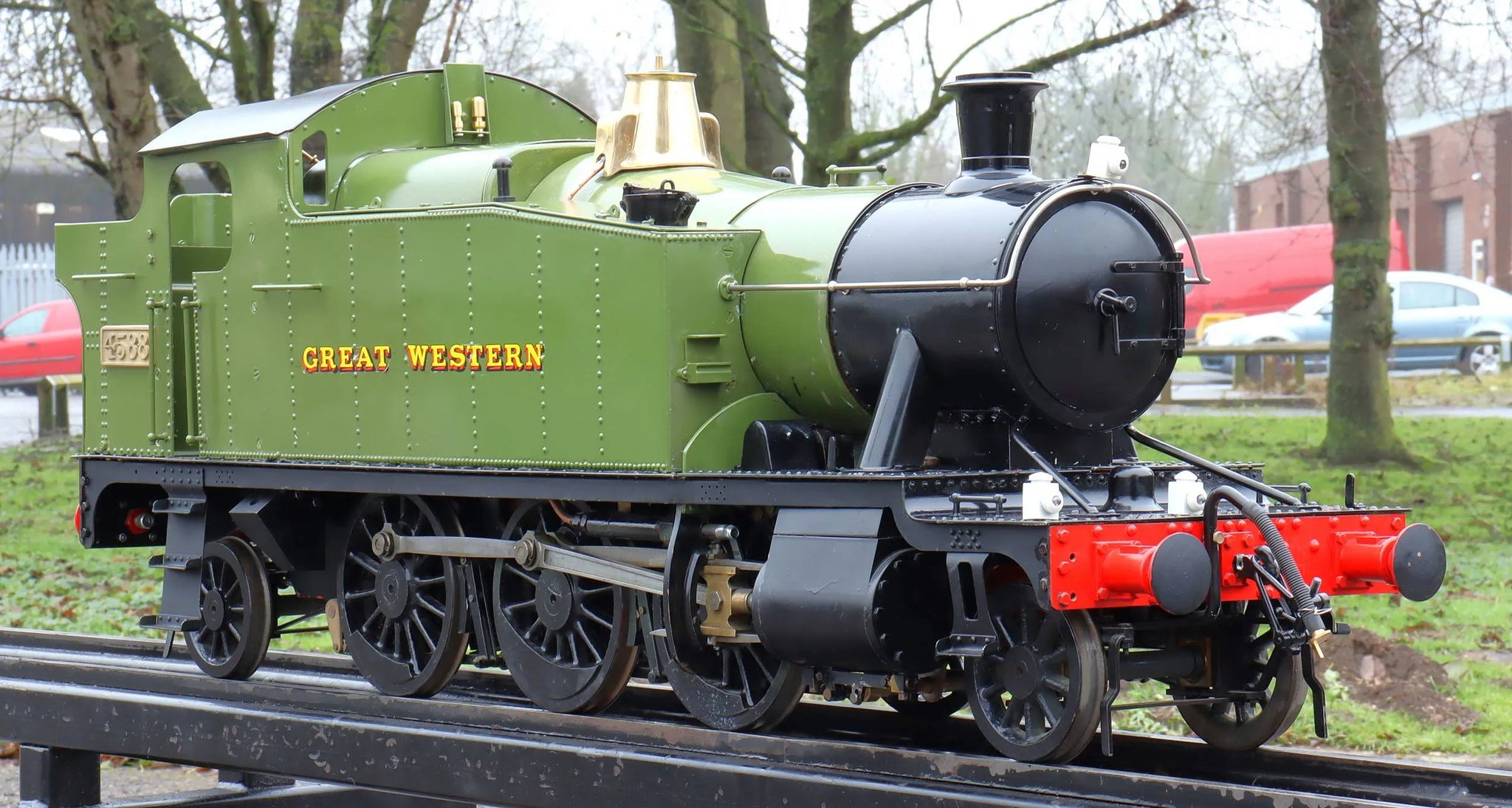

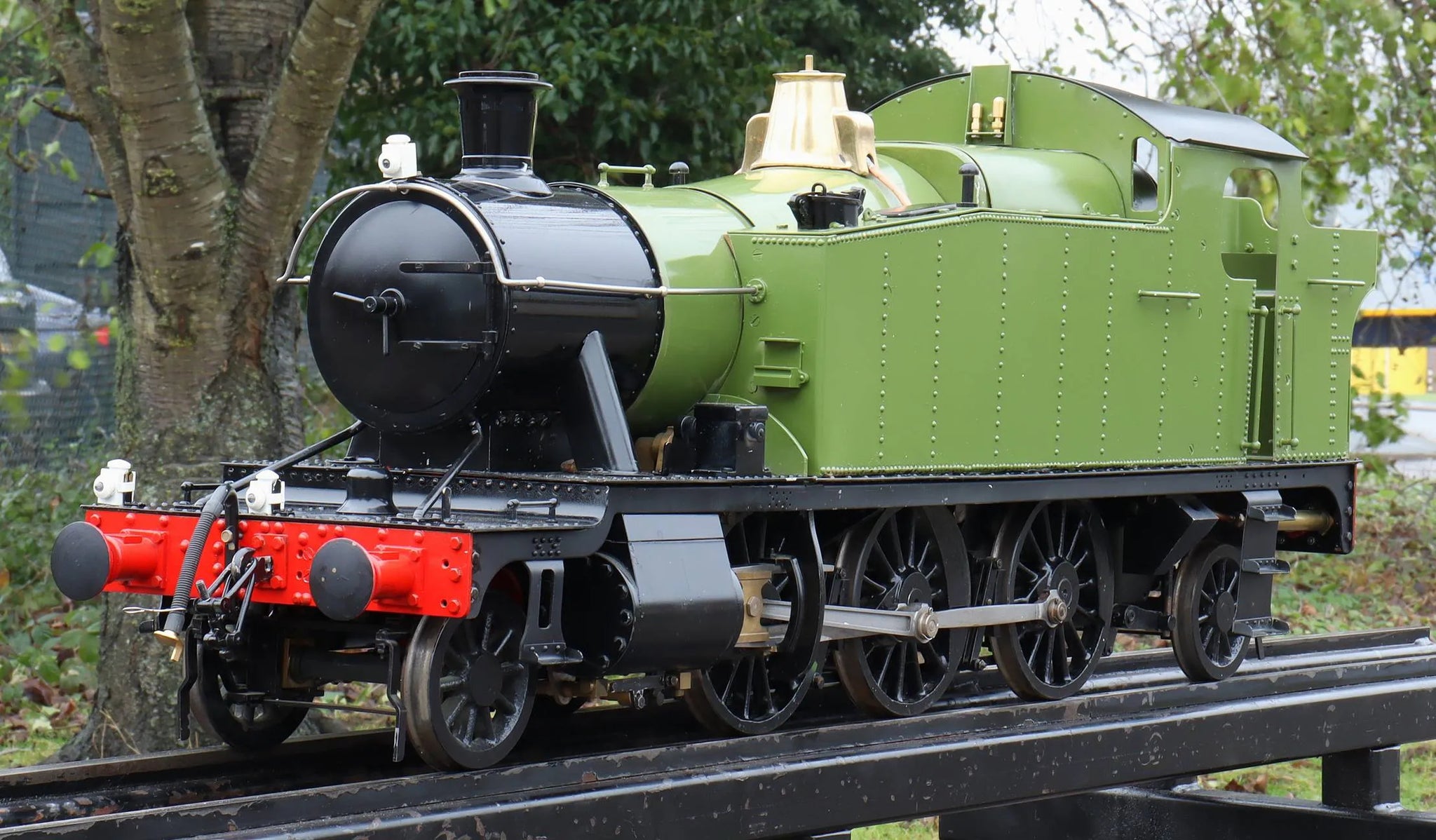

Unmodified, put together with the parts as they arrived from Winson, the locomotive is, predictably, stiff to turn over - it needs stripping and reassembling, checking for the fit and free movement of parts as the job proceeds.
The locomotive appears complete bar a missing fusible plug. The silver-soldered boiler, by Winson, is new and unsteamed.
Stock code |
11727 |
Gauge |
5 inch |
Length/inches |
40 |
Width/inches |
10 |
Height/inches |
14 |
Weight/Kg |
61 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
cast iron |
Valve type |
slide |
Valve gear |
Stephensons |
Reverser type |
pole |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
CE/UKCA mark |
n/a - pre-2002 |
Safety valve type |
spring |
Safety valve |
1 |
Fusible plug |
yes |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
2 |
Date out |
Apr-24 |
