Sold

8271

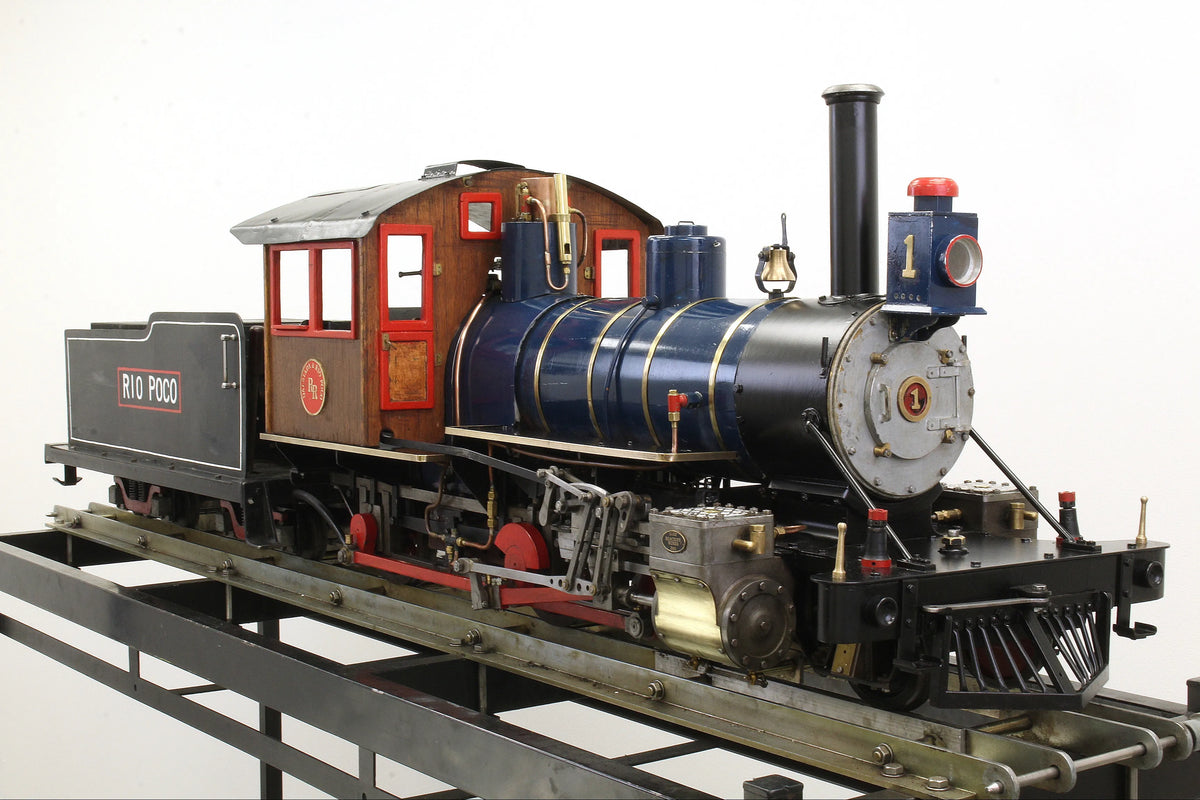

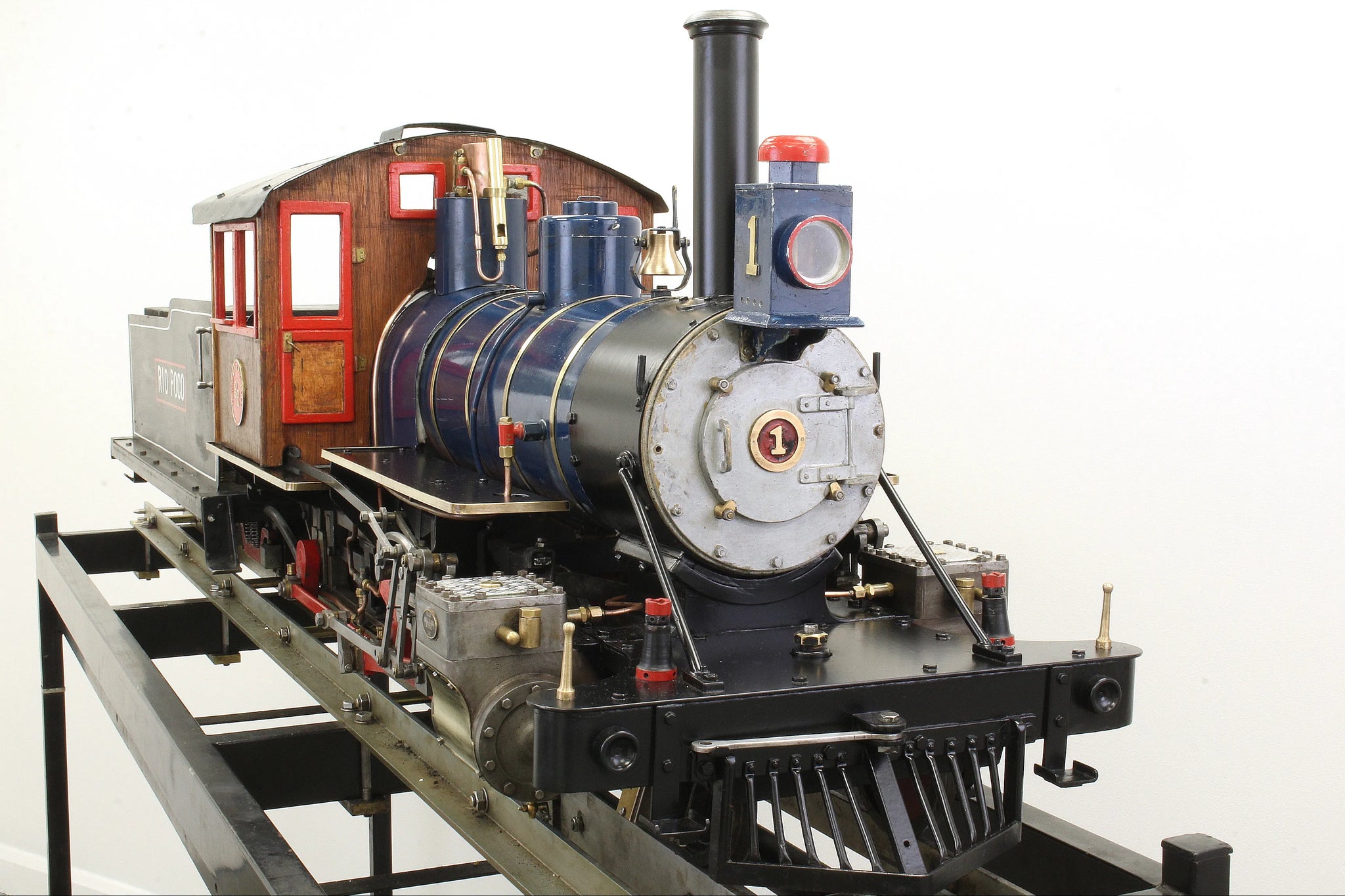

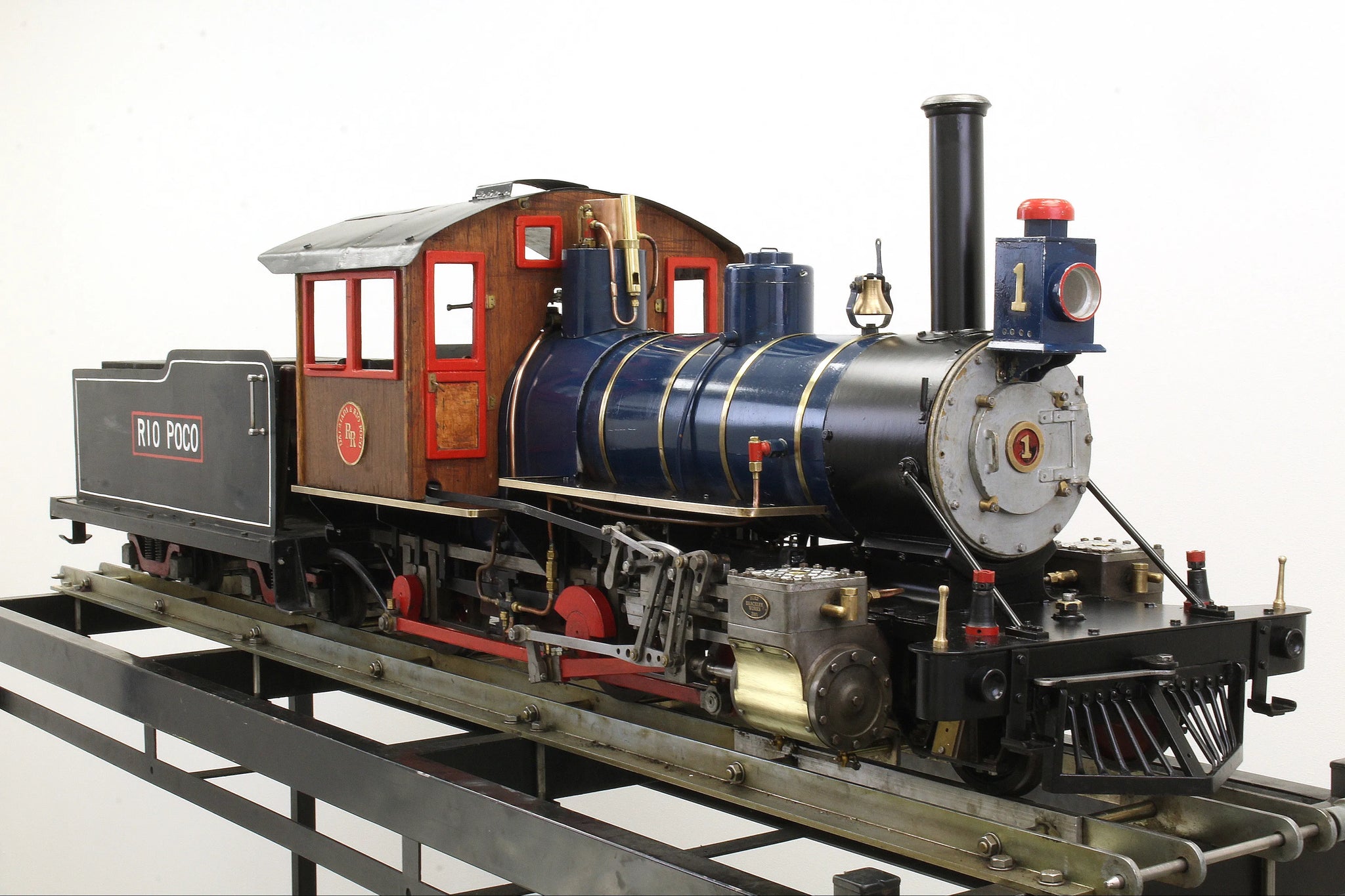

5 inch narrow gauge 2-6-0 tender locomotive

A 5 inch narrow gauge 2-6-0, conceived and started by Bob Smith of Comrie Railroad fame before being passed on to the man who completed it, a long time customer of ours - it recently came to us in part exchange for something smaller.

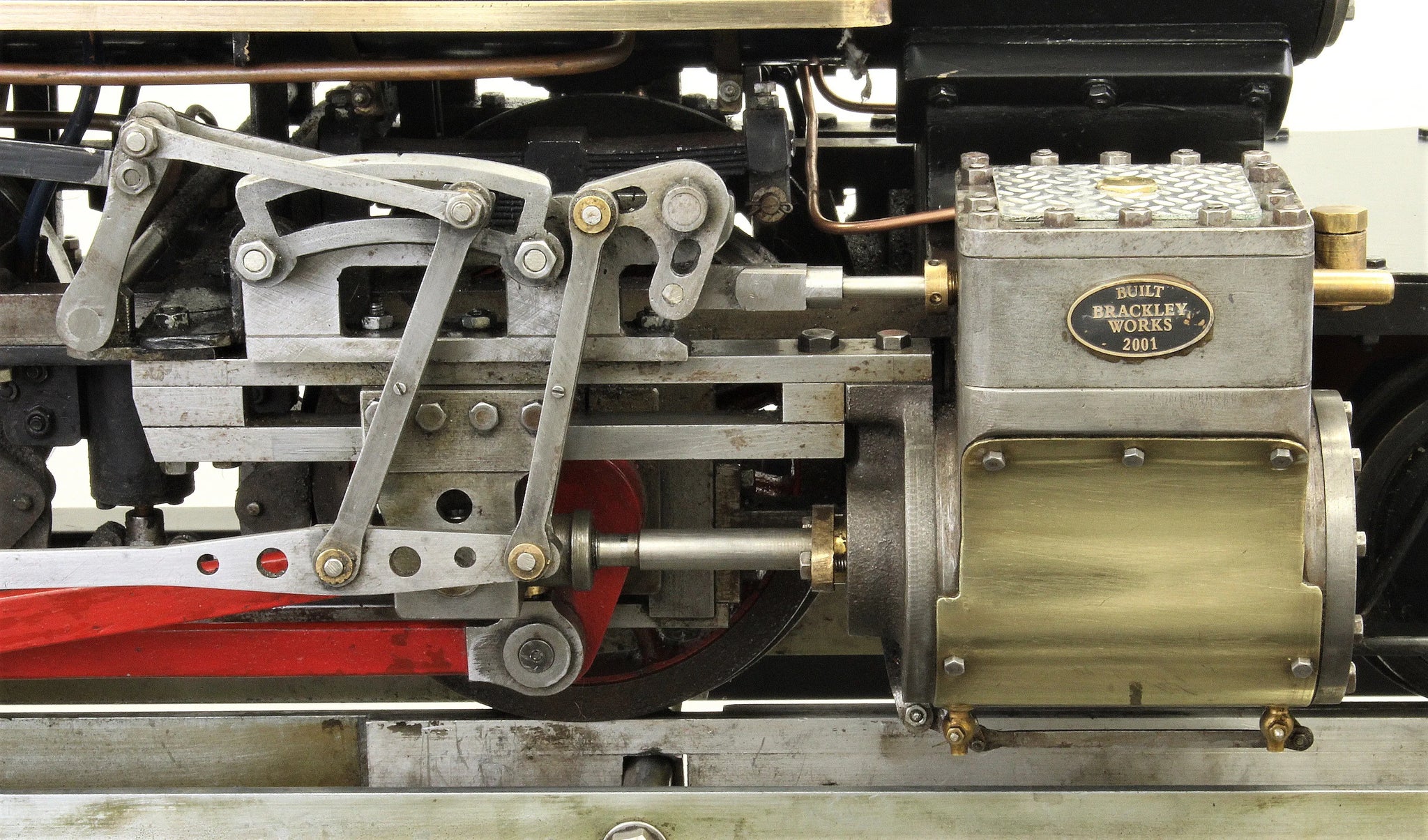

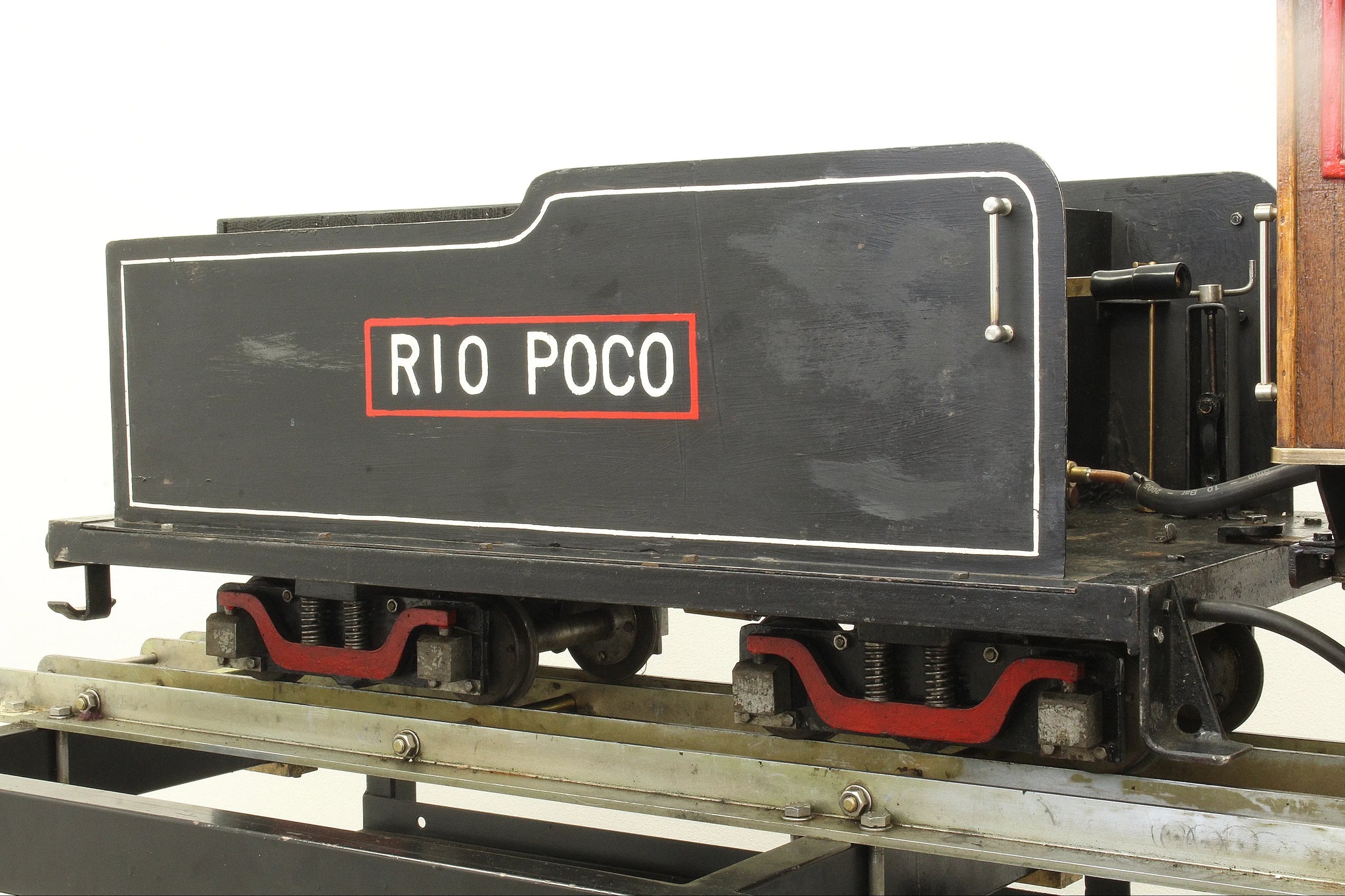

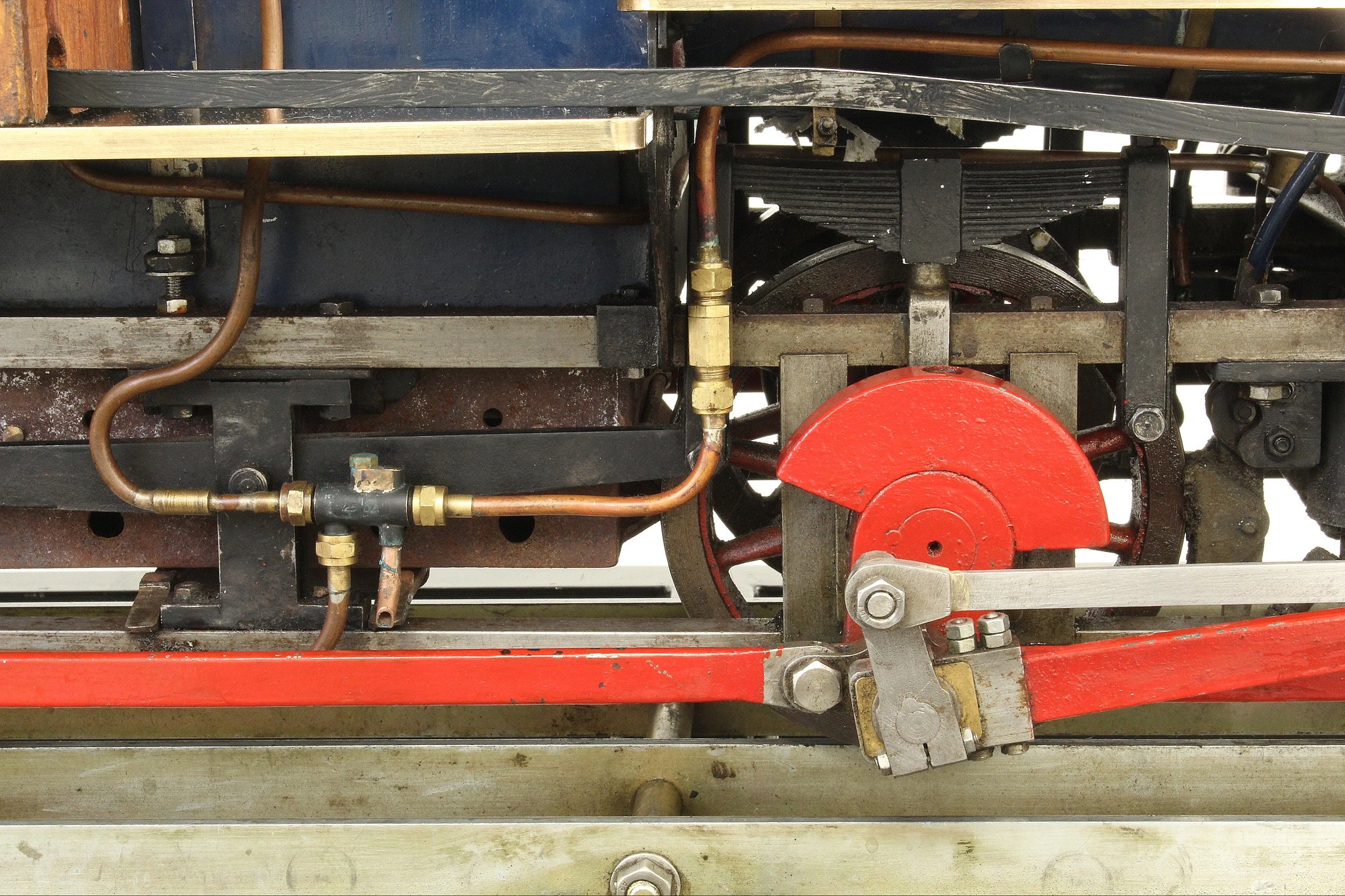

It's a large, well proportioned engine, over six feet with its bogie tender. Fitted with Southern valve gear - not something we see very often - it's free-steaming and runs particularly well. There's a clip of it running outside the works here.

We're rather taken with this one - it's a well sorted engine, similar in size, weight and style to Don Young's Edaville #7 although running on 5 inch gauge track.

Technical information

Stock code

8271

Gauge

5 inch

Length/inches

42 + 31

Width/inches

15

Height/inches

21.5

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

Southern

Reverser type

pole

Lubricator type

displacement with sight feed

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Year built

1990

Boiler number

PA308EU

Safety valve type

spring

Safety valve

2

Hand pump

1

Injector

2

Date out

Aug-20

Hydraulic test valid to

13-Jan-23

Steam test valid to

21-Jun-21
