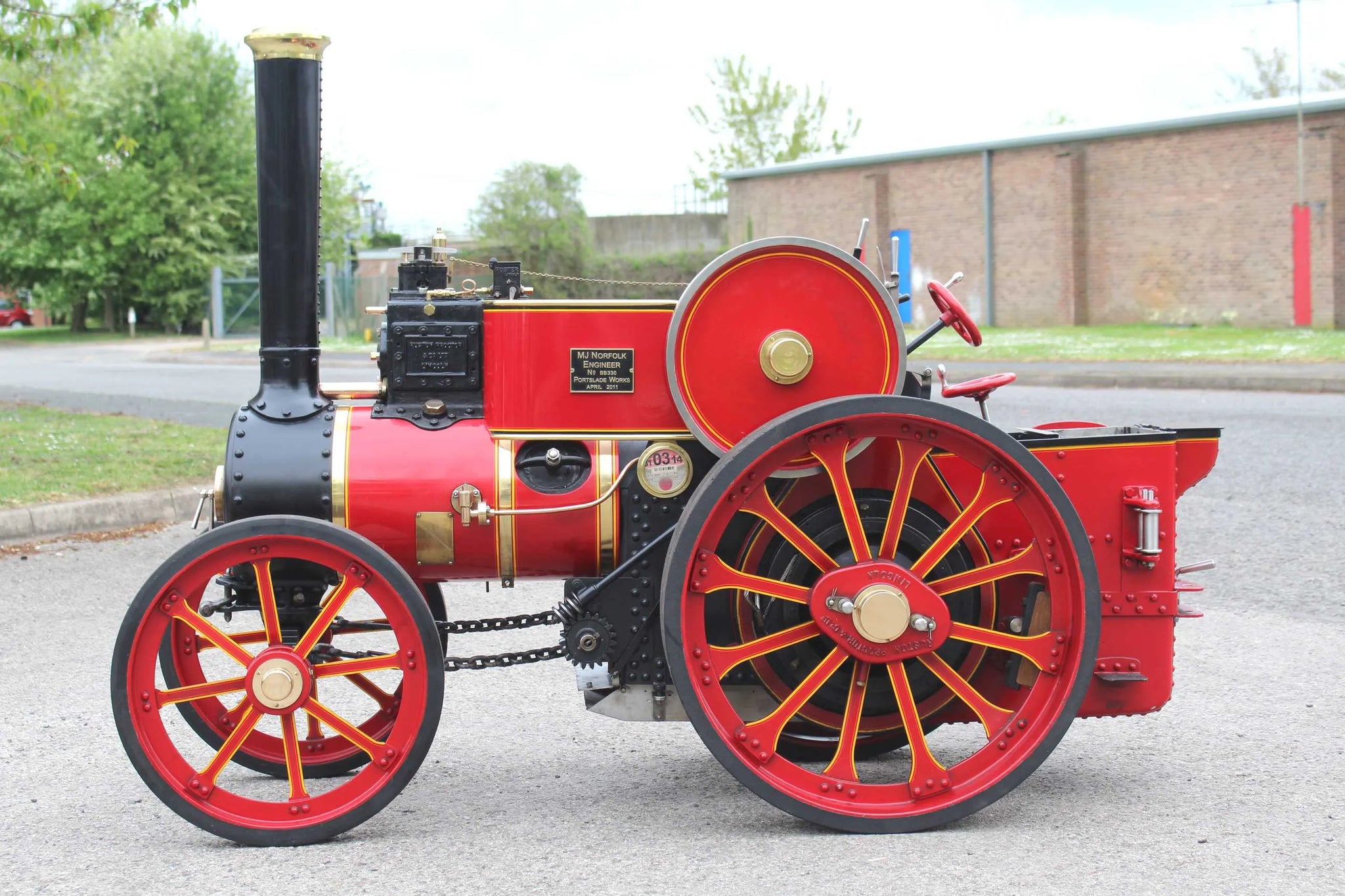

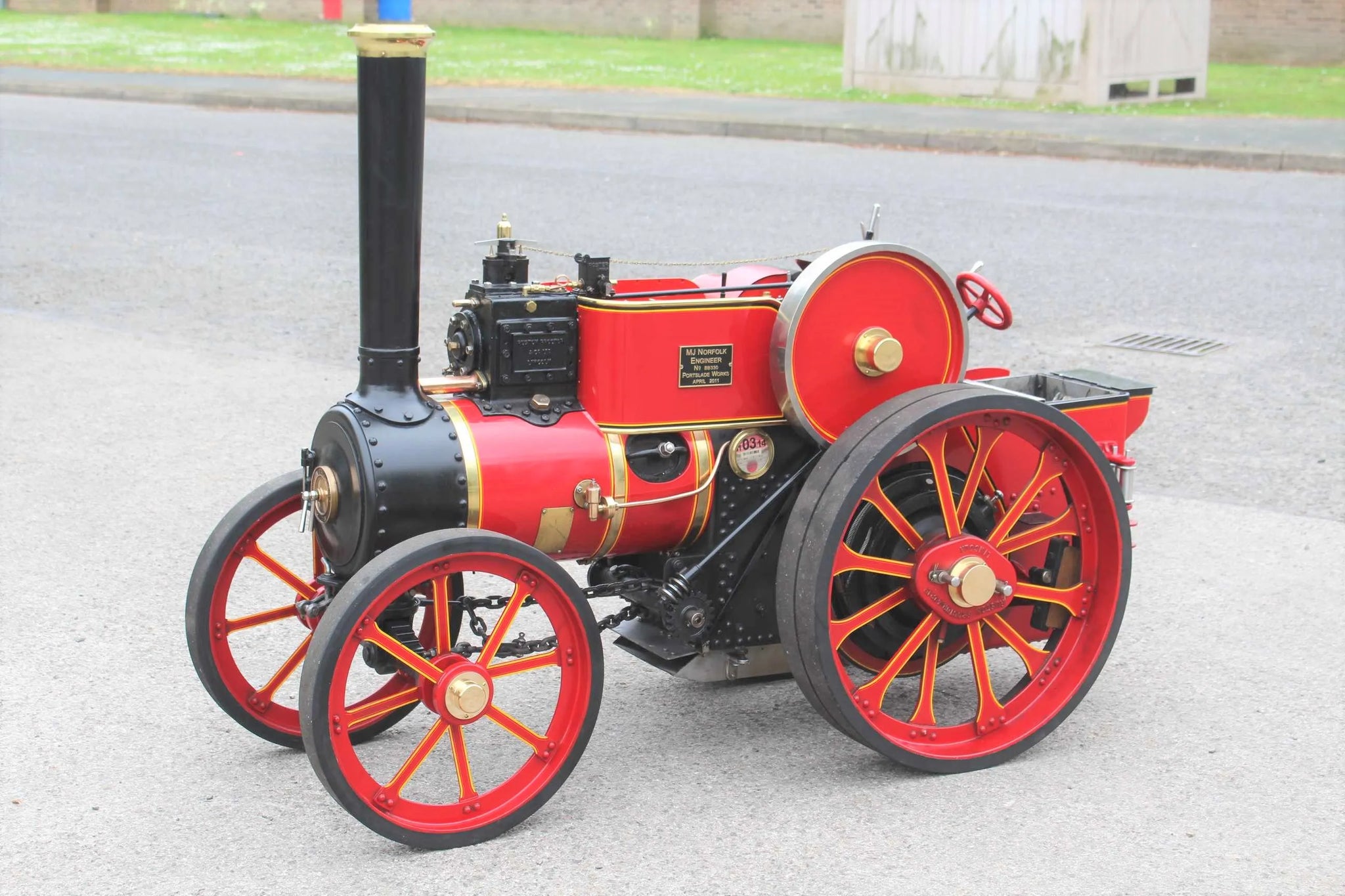

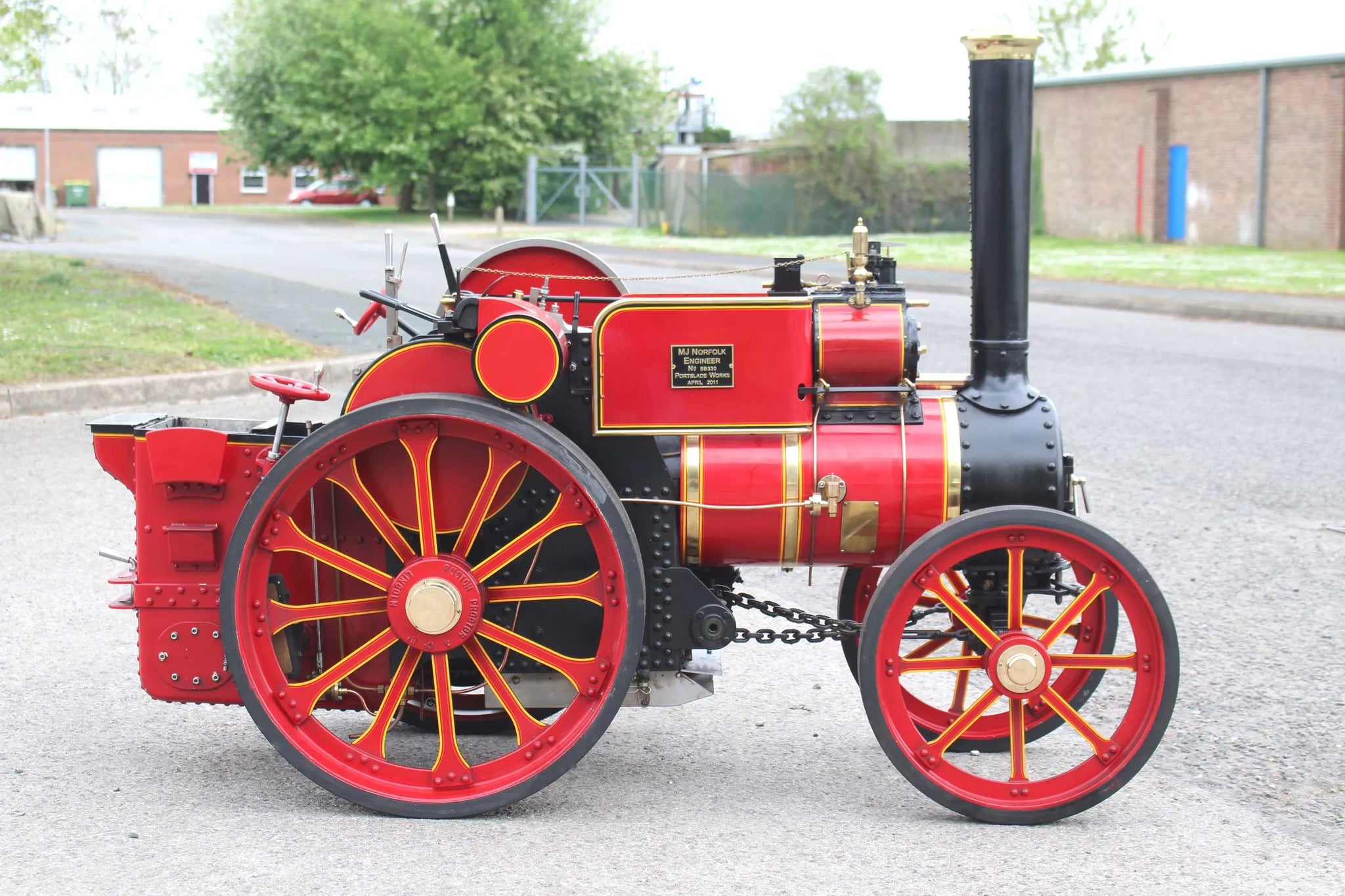

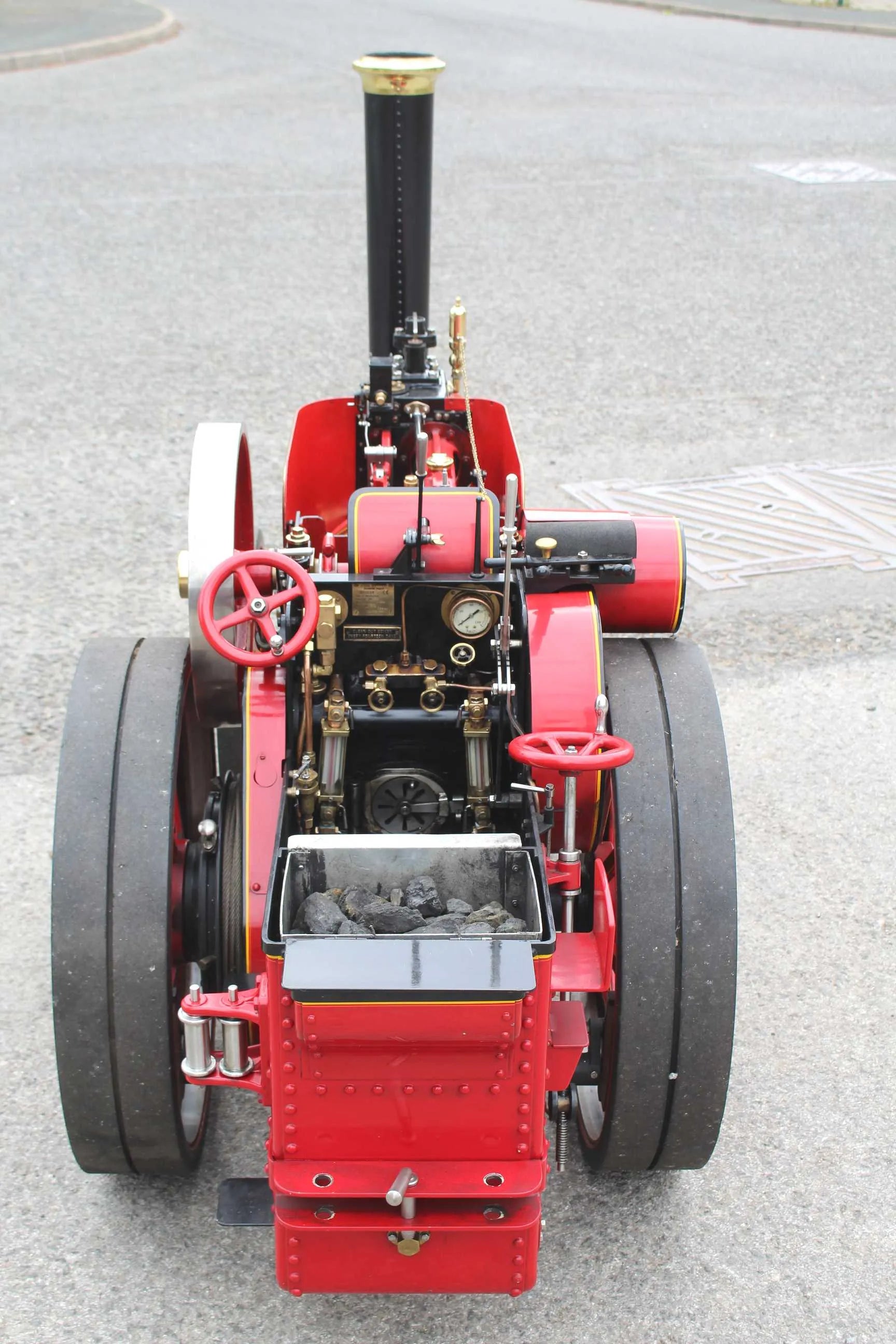

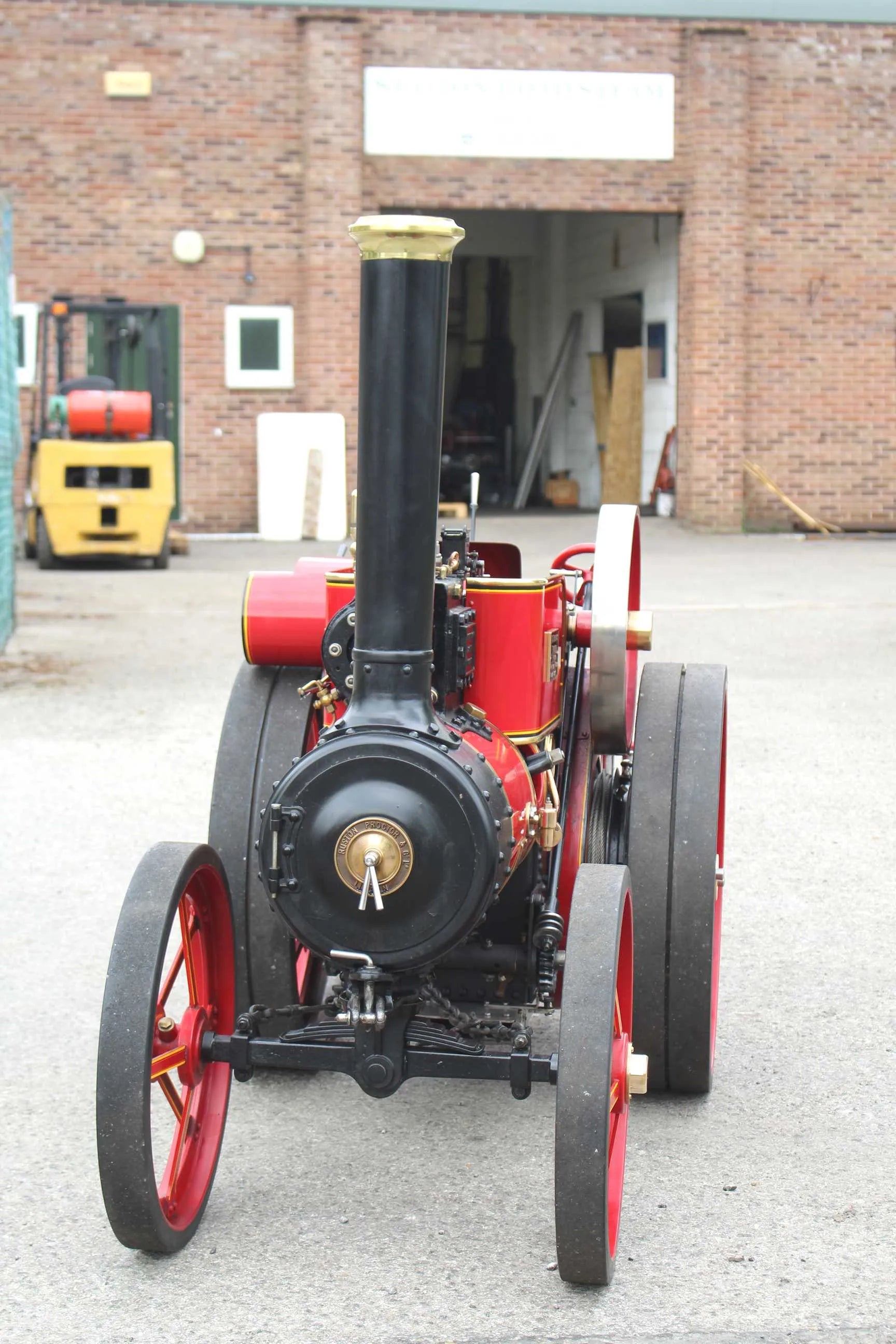

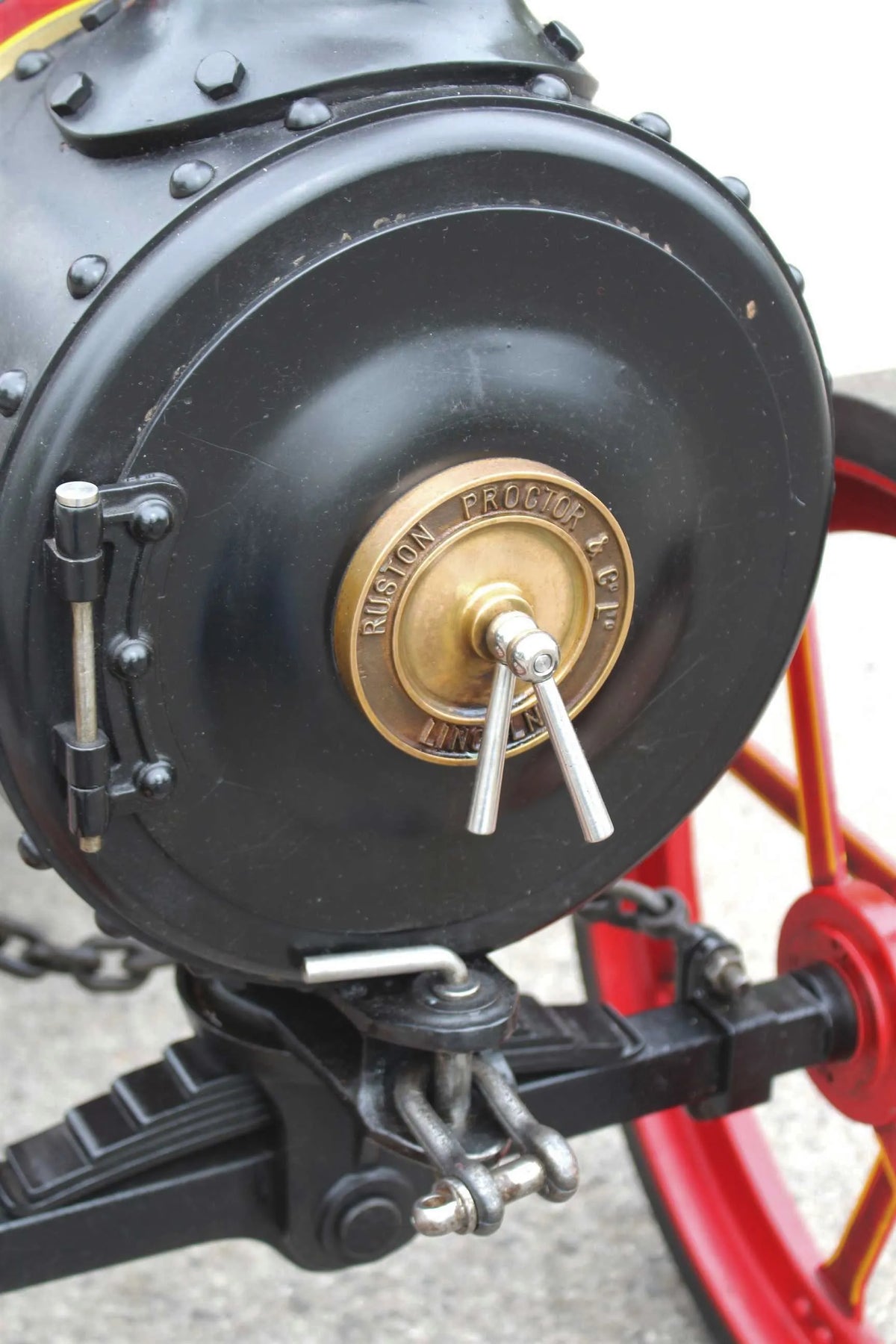

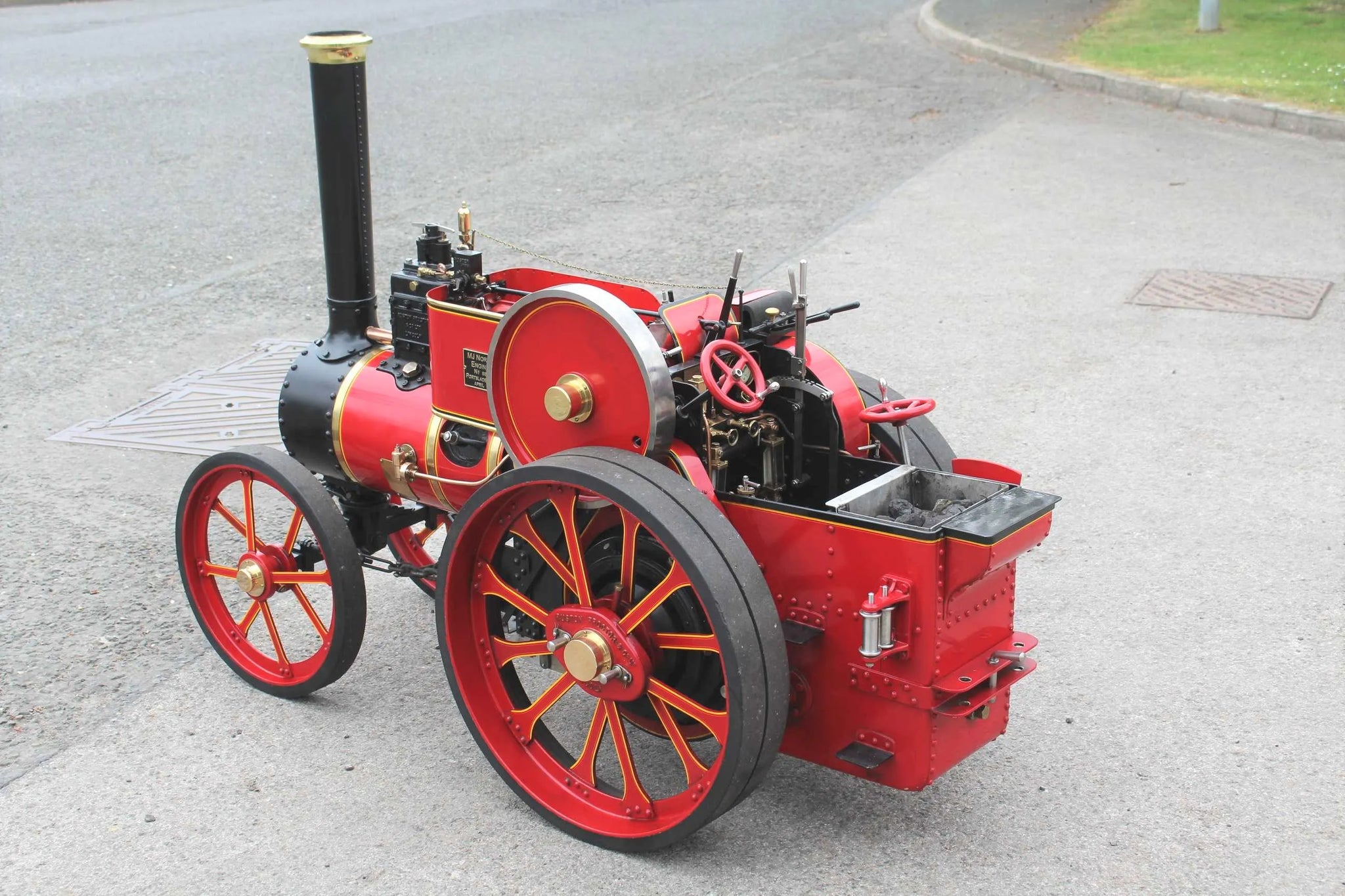

6 inch scale Ruston Proctor SD steam tractor

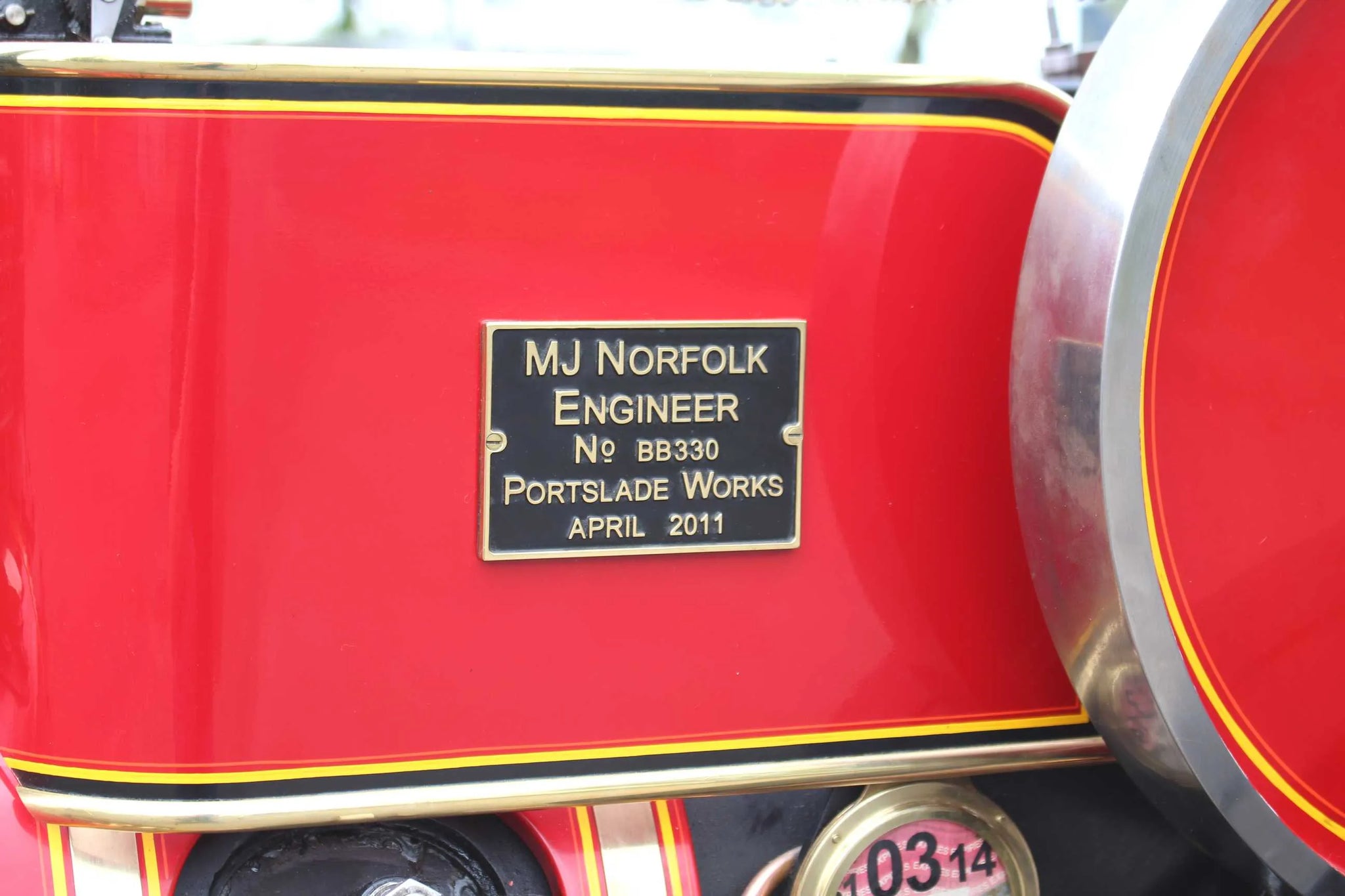

A finely built 6 inch scale Ruston Proctor SD 3 ton tractor, the work of a highly experienced engineer responsible for several top quality locomotives, including the 7 1/4 inch gauge GWR 14XX we sold back in 2016.

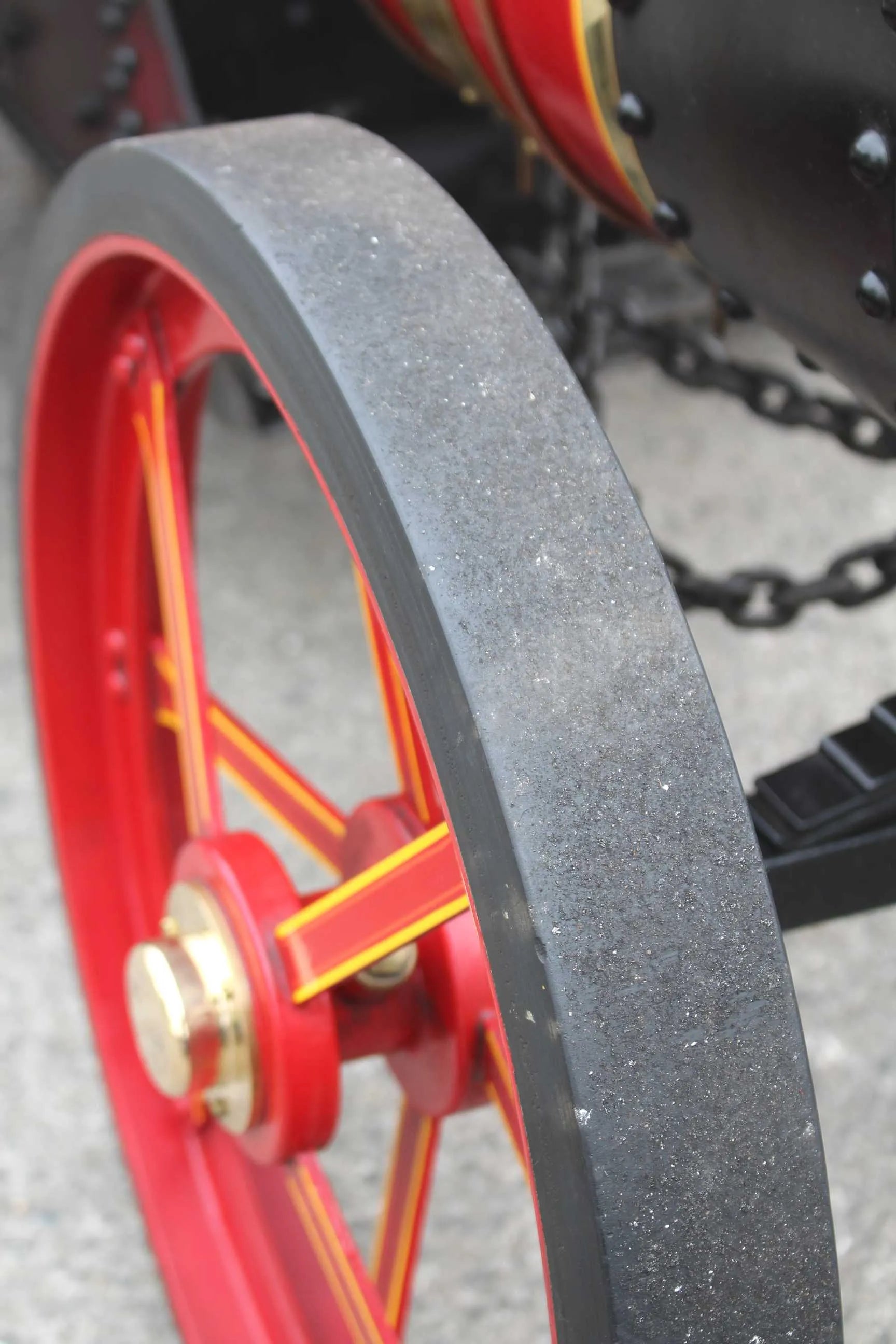

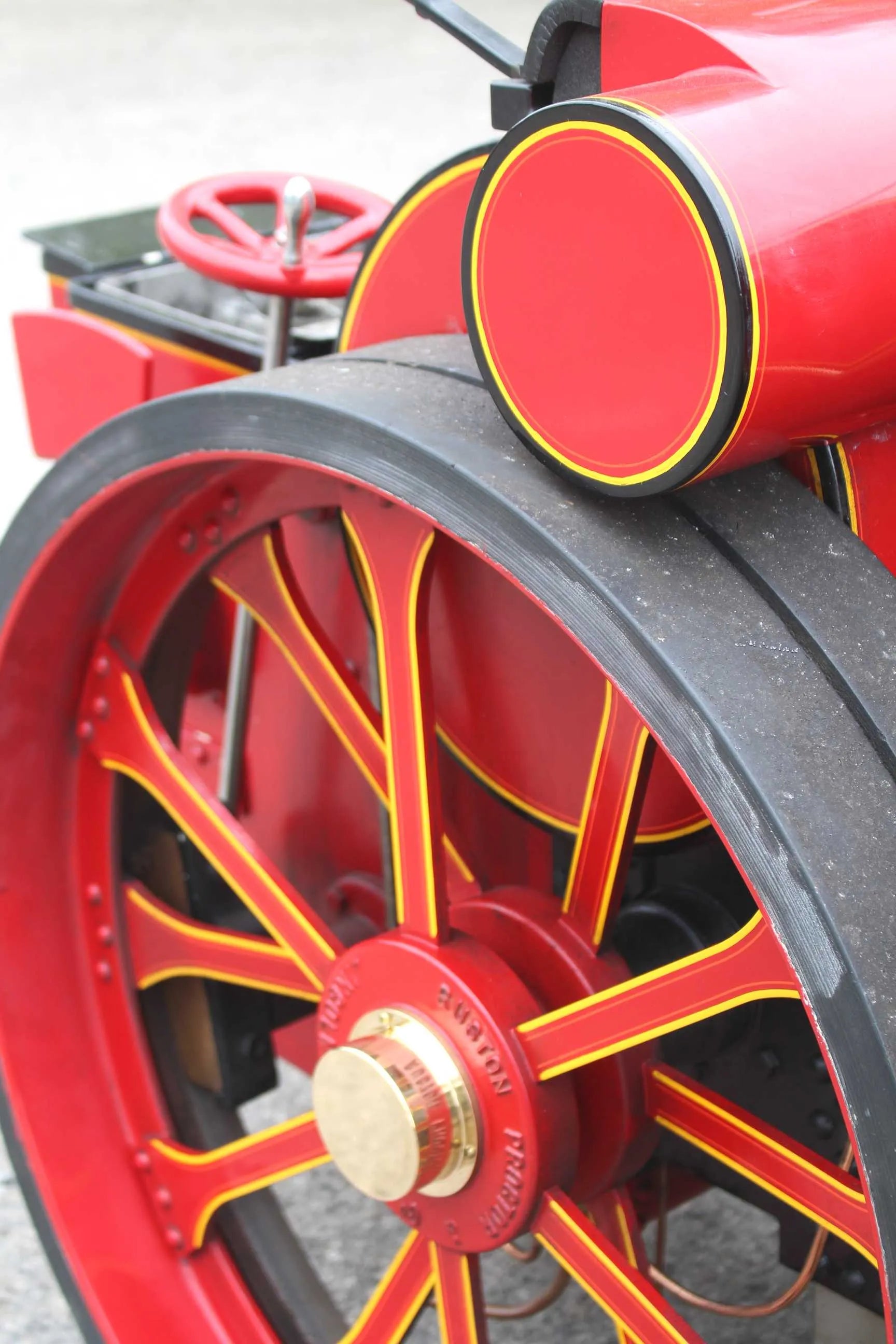

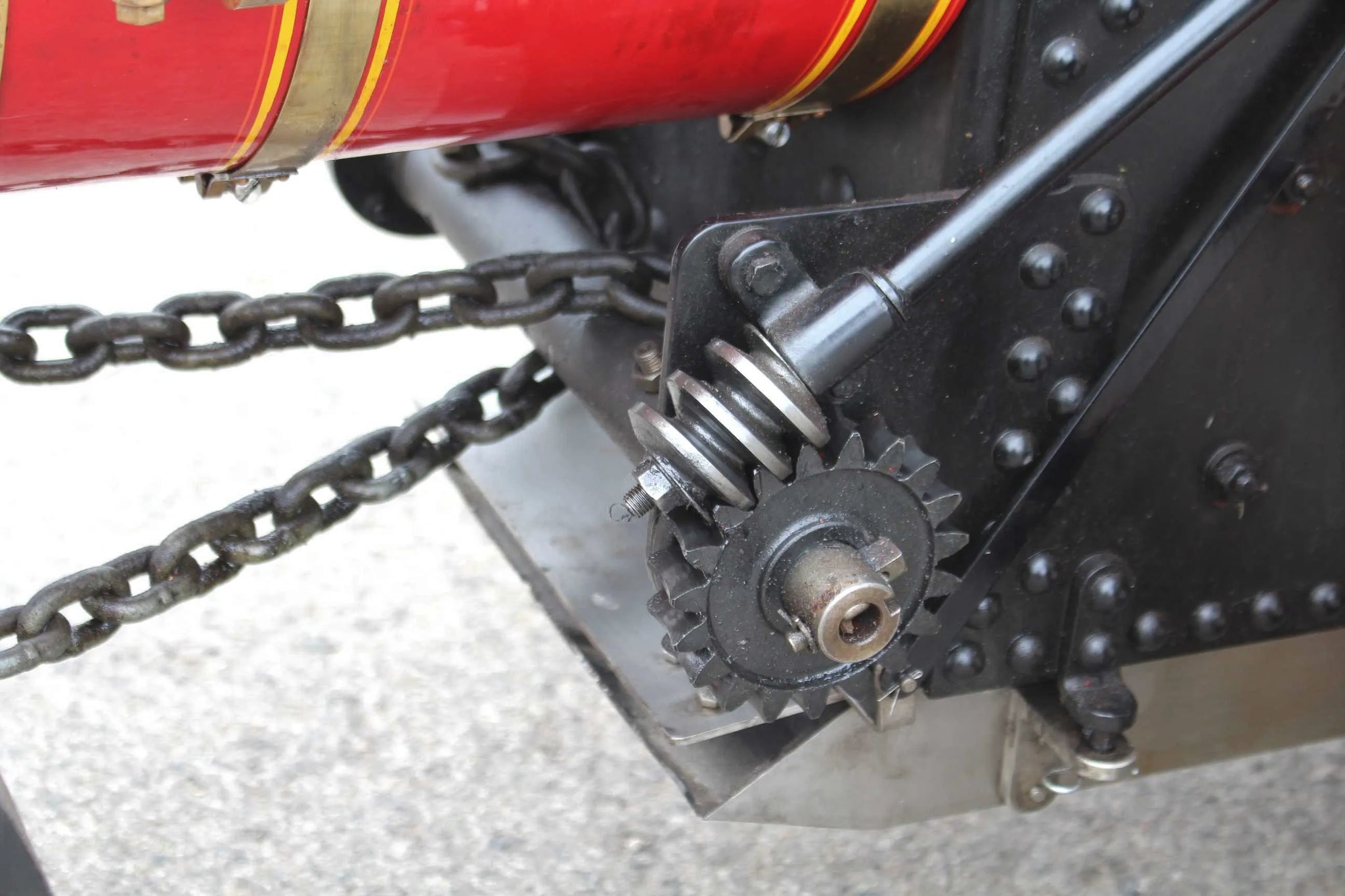

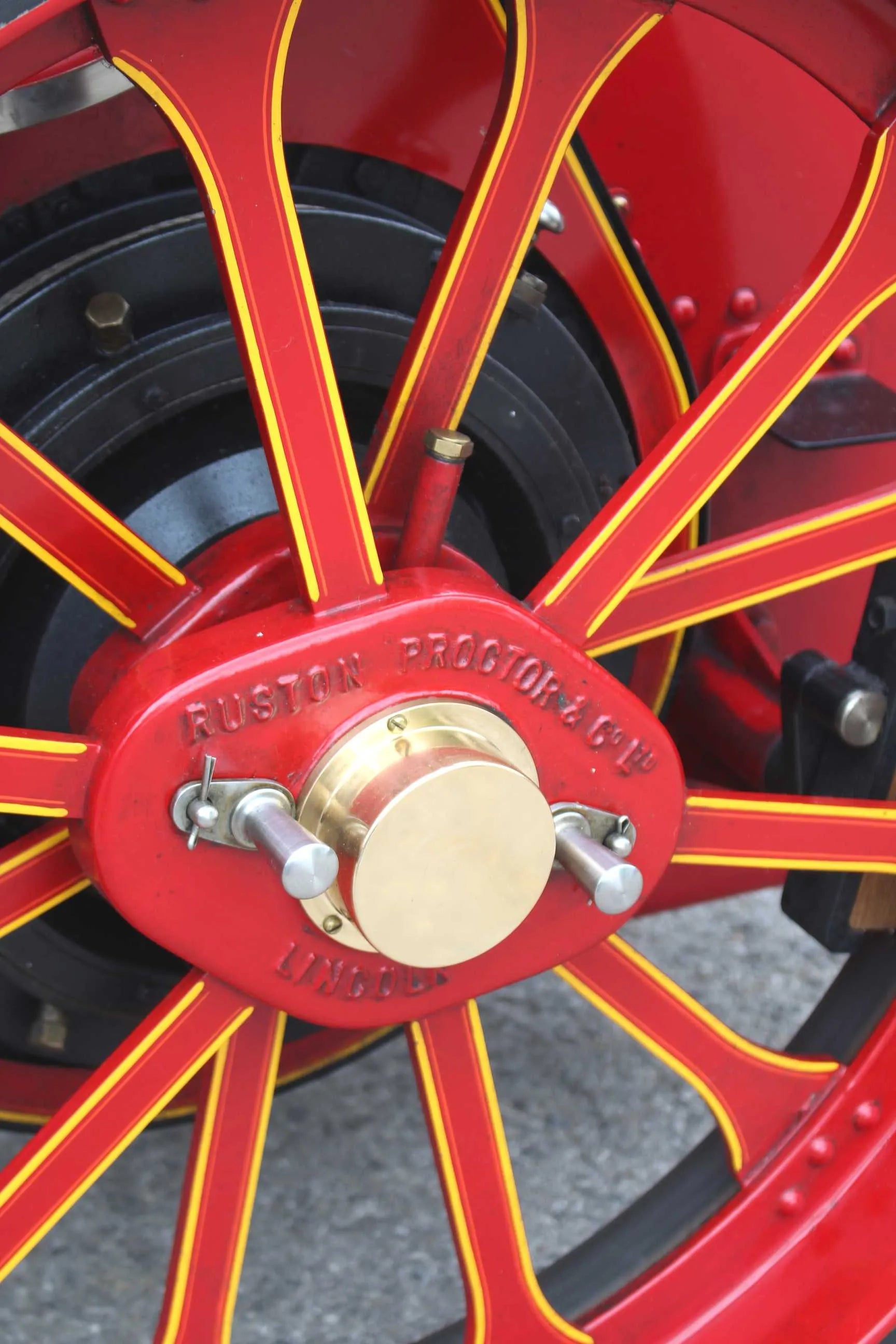

The engine is in excellent condition throughout - mechanically quiet, the steering light and silky smooth in operation; the rubber tyres show little sign of use, paintwork and lining are good.

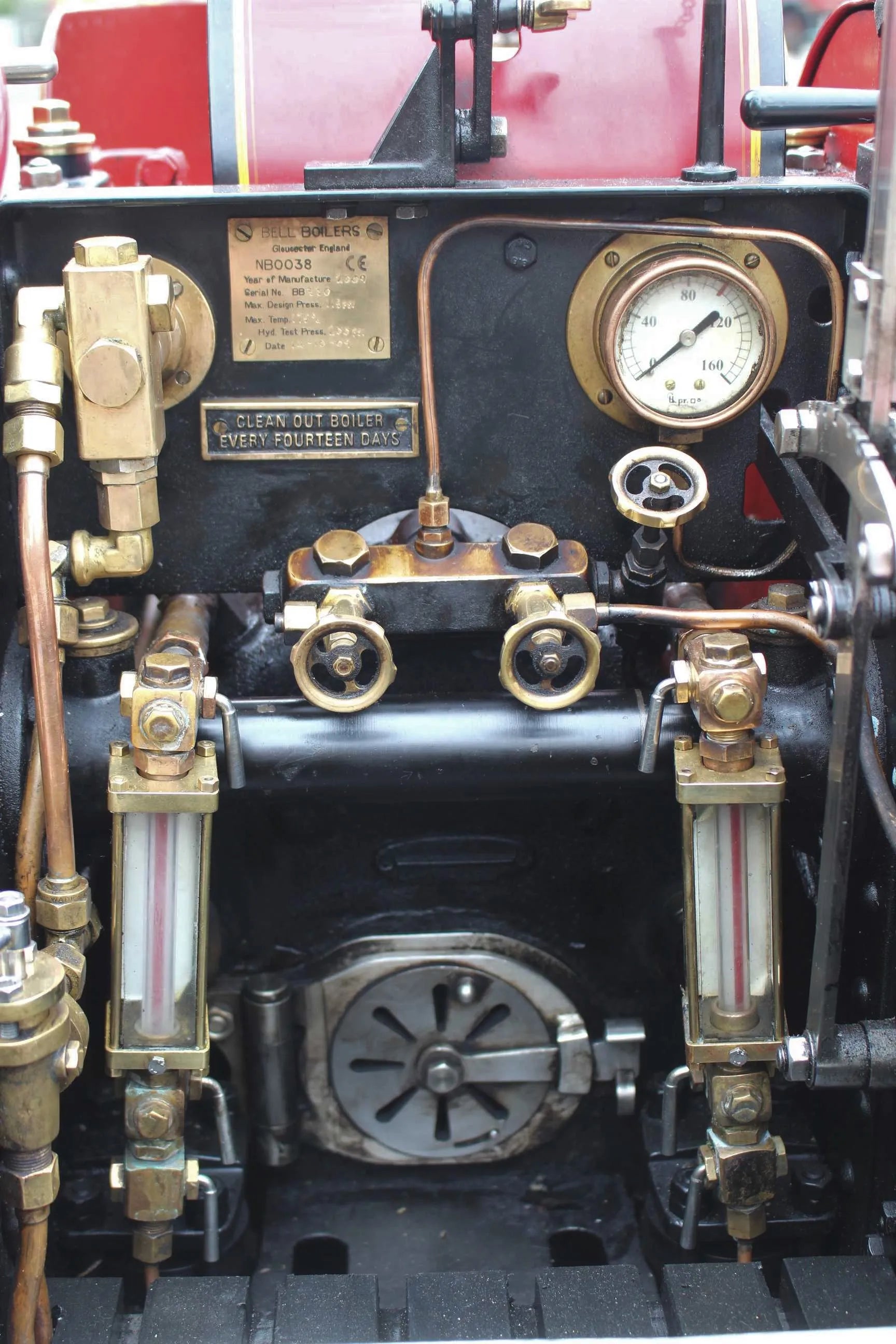

The commercially built CE marked boiler, by Bell Boilers, was hydraulic and steam tested in March of this year, with cladding removed for inspection at that time.

A manageable size - not much longer than a 4 inch scale agricultural and weighing in at around half a ton - however the bigger scale makes for a tall engine. With a vintage cast iron seat which mounts on the tender, it's a very comfortable driving position, particularly for those with over-long (or under-flexible) legs.

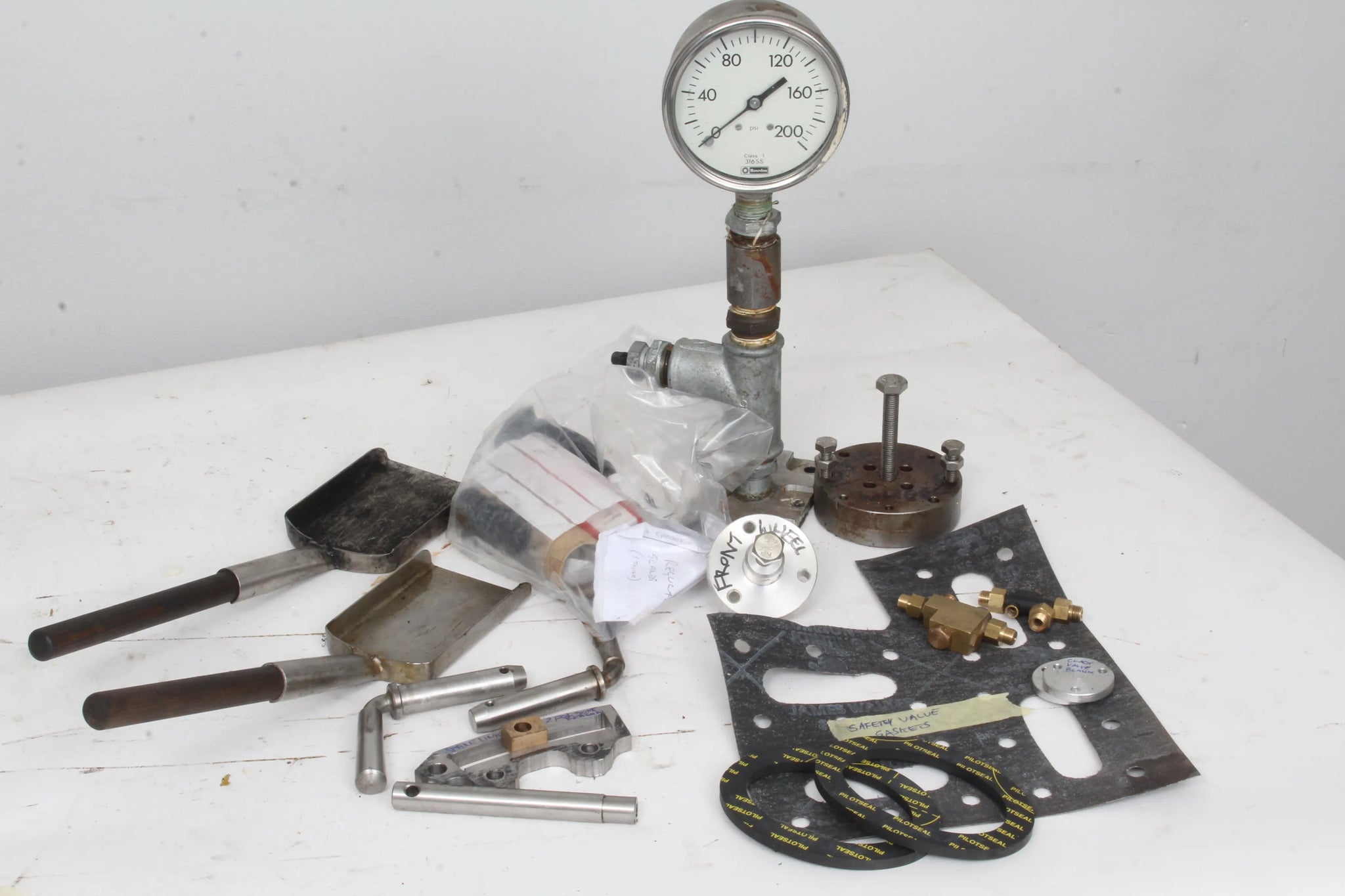

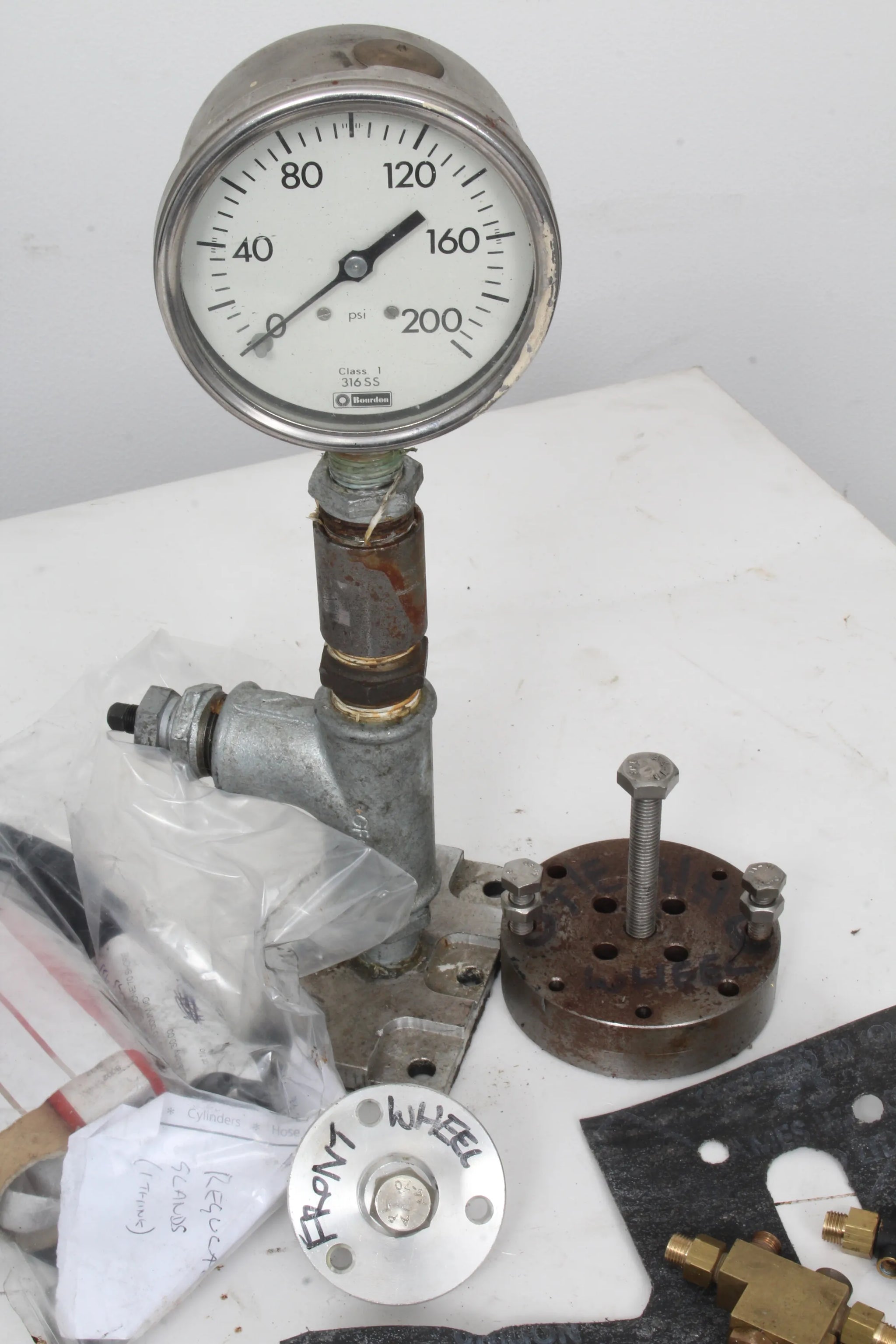

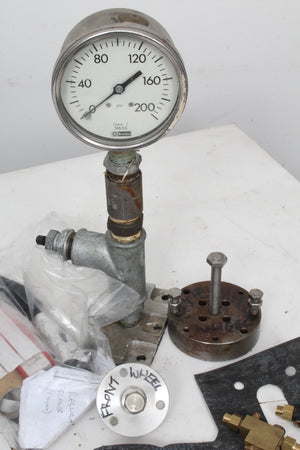

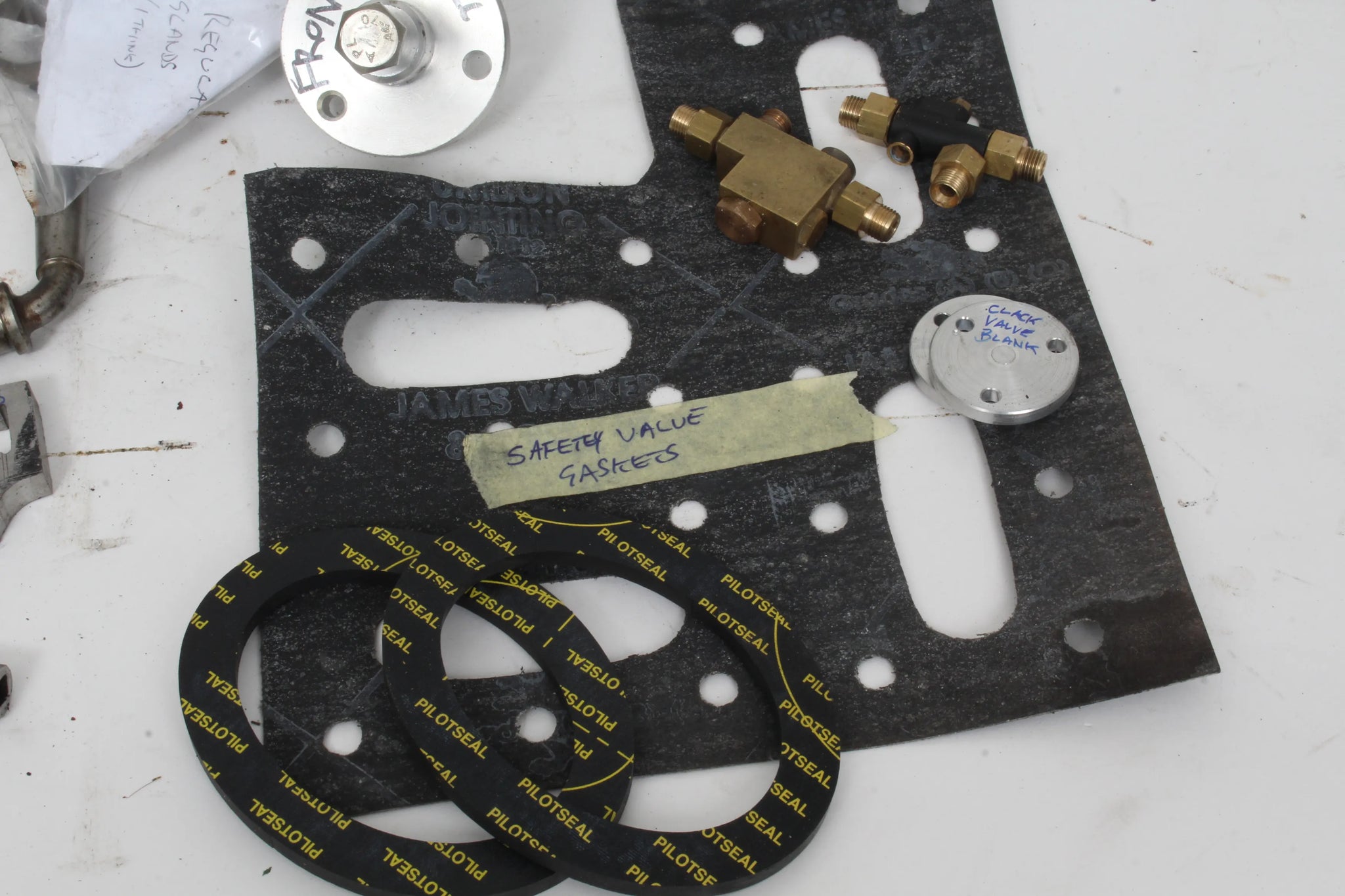

Road registered with V5 document, the engine comes with firing irons, a box of tools, touch-up paint and spares including manhole gaskets and injectors, gaskets and a test gauge with blanking plate for hydraulic testing the boiler.

Technical information

Stock code

8523

Scale

6 inch & larger

Length/inches

75

Width/inches

30

Height/inches

51

Weight/Kg

500

Cylinder material

cast iron

Valve type

slide

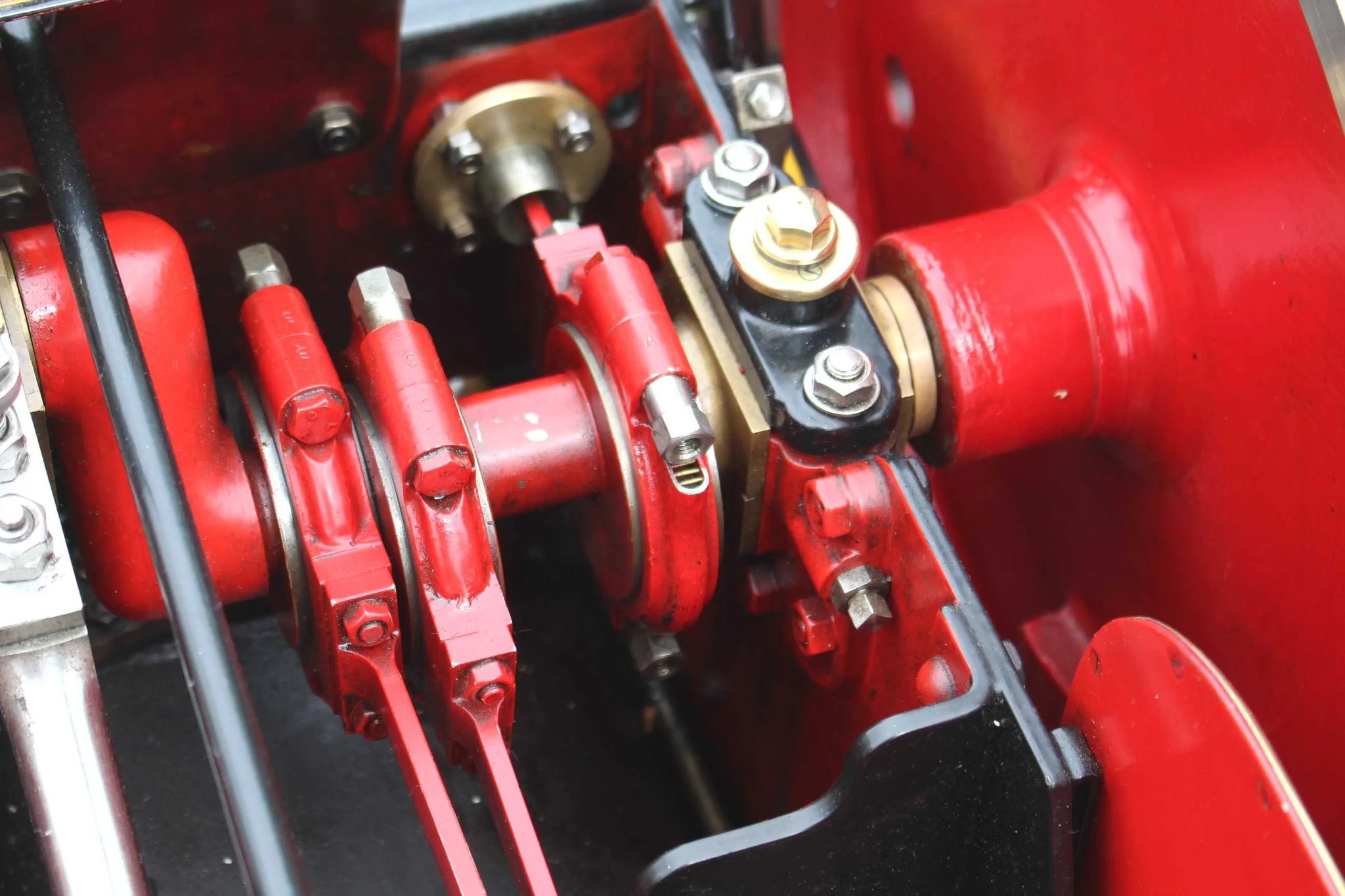

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Bell Boilers

Boiler type

locomotive

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

100

CE/UKCA mark

yes

Year built

2009

Boiler number

330

Safety valve

2

Differential

yes

Road speed

2

Whistle

yes

Mechanical pump

1

Injector

1

Date out

Aug-19

Hydraulic test valid to

29-Mar-21

Steam test valid to

28-Mar-20
