7 1/4" Hunslet 0-4-0ST with tender

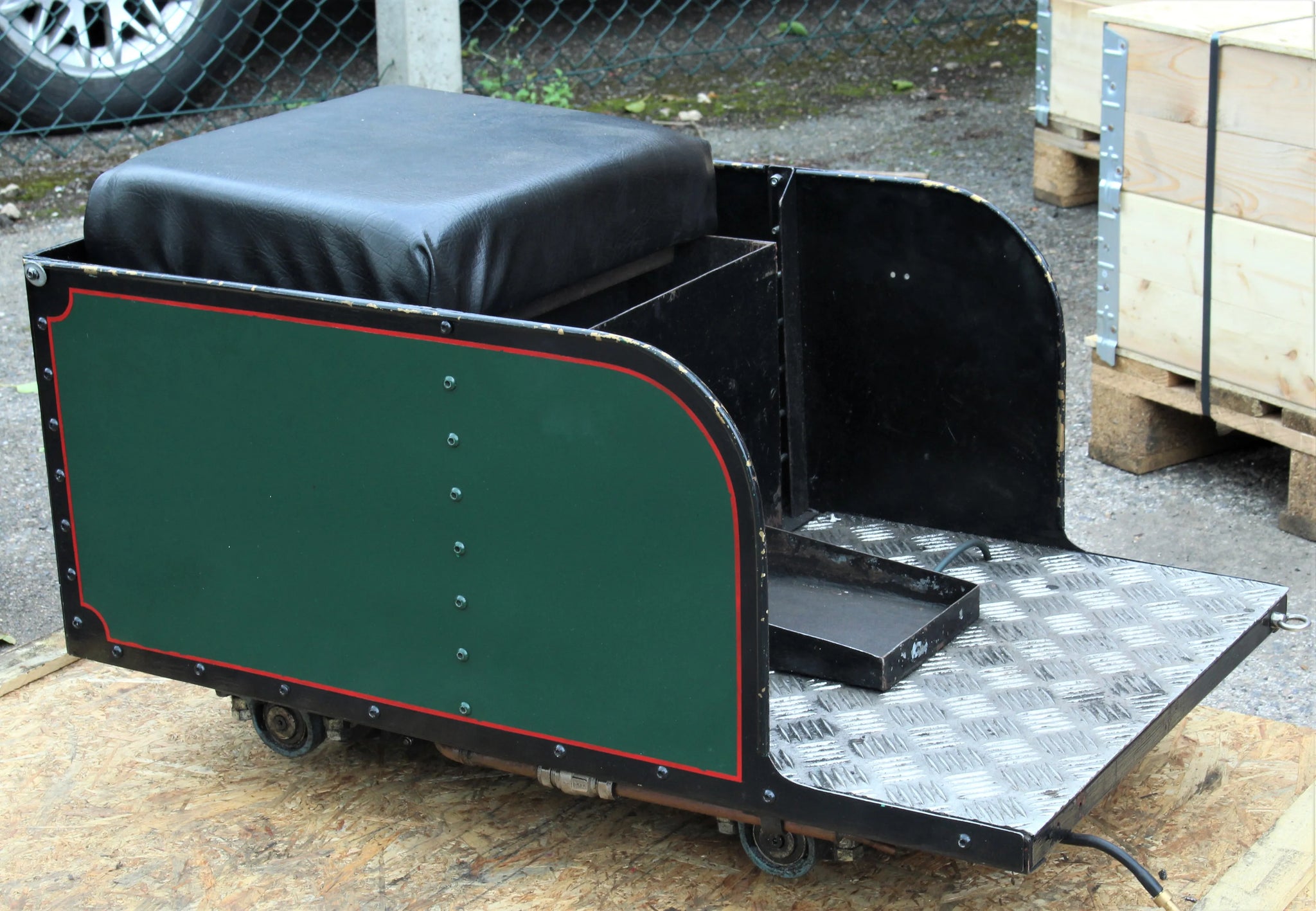

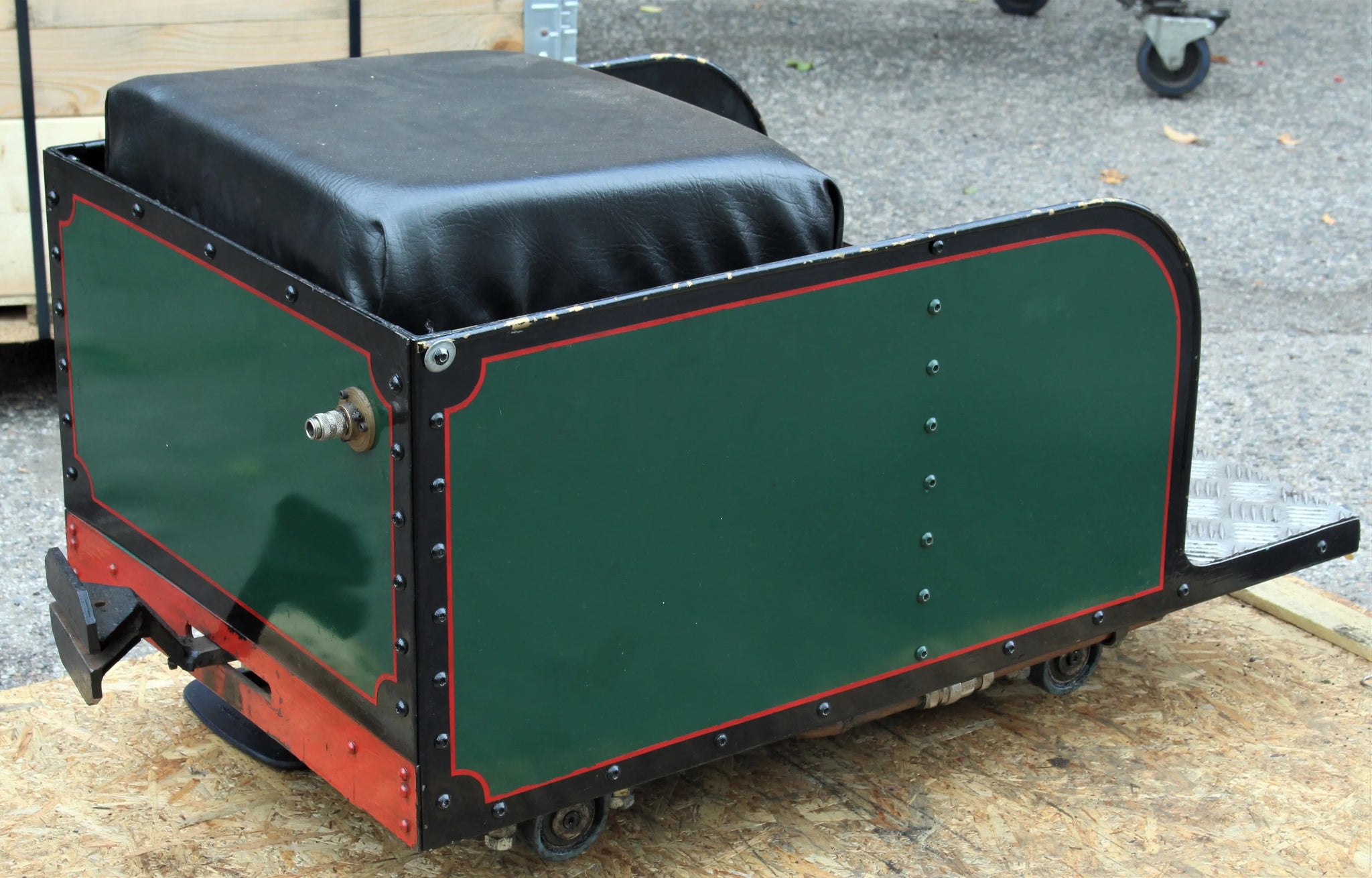

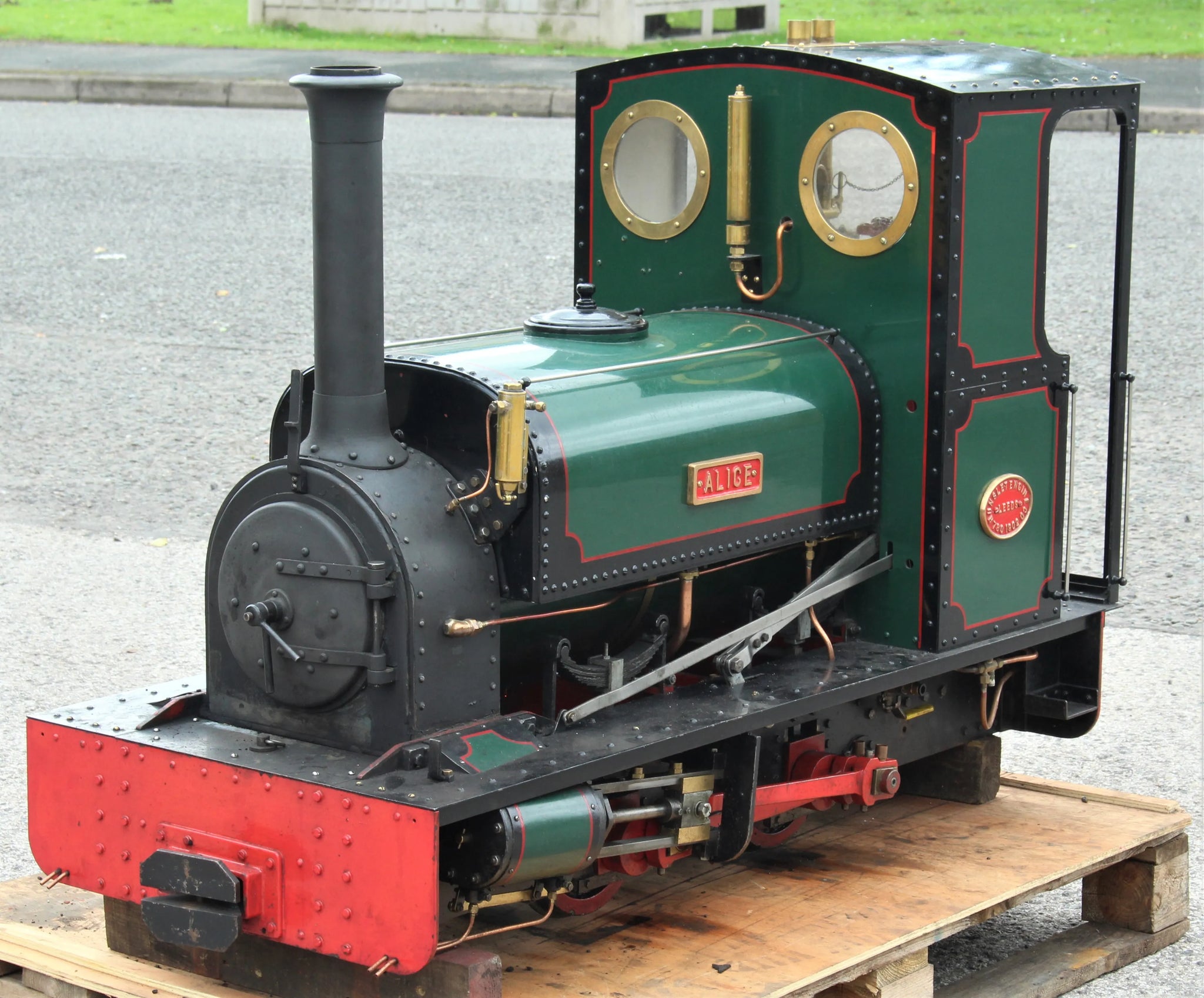

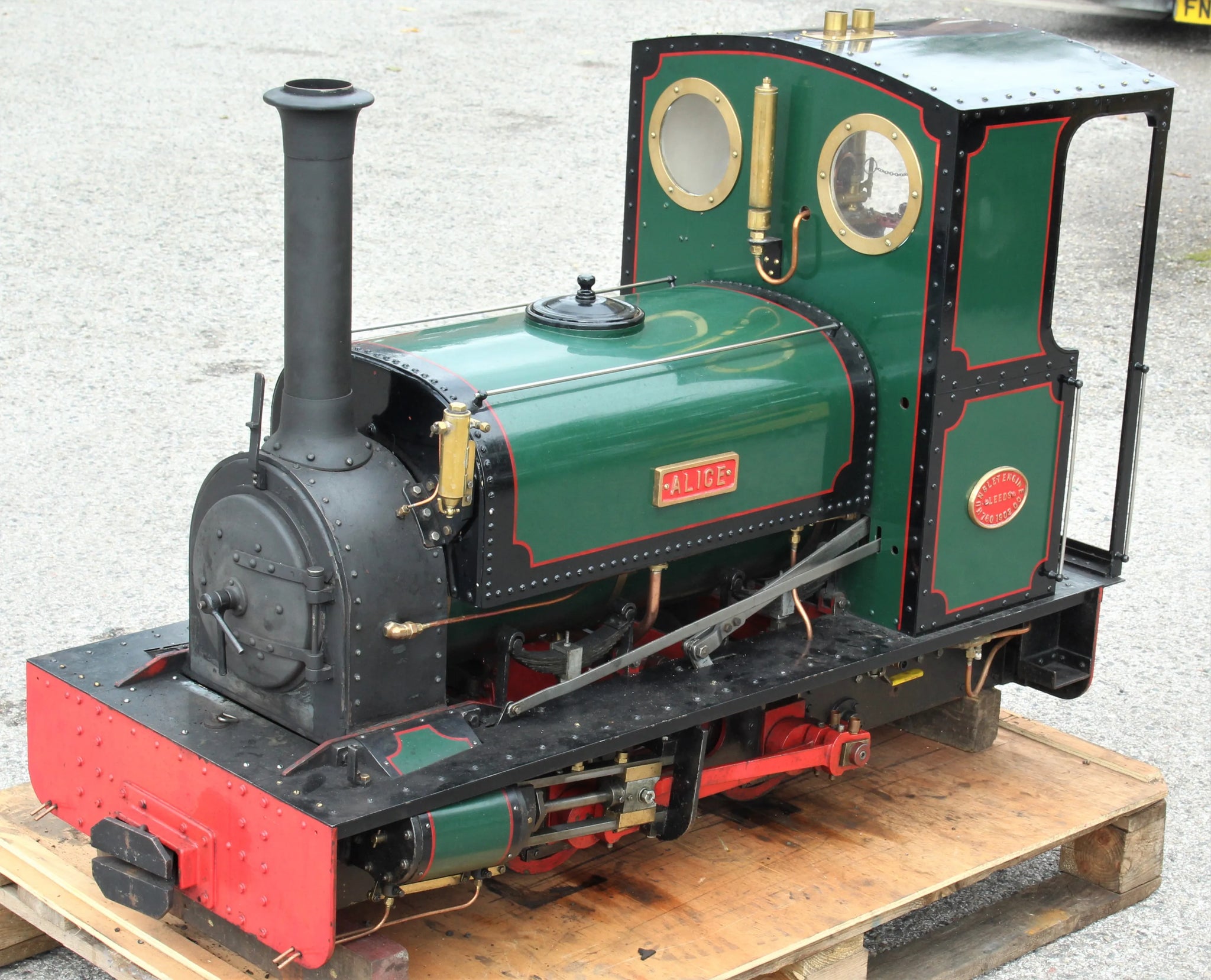

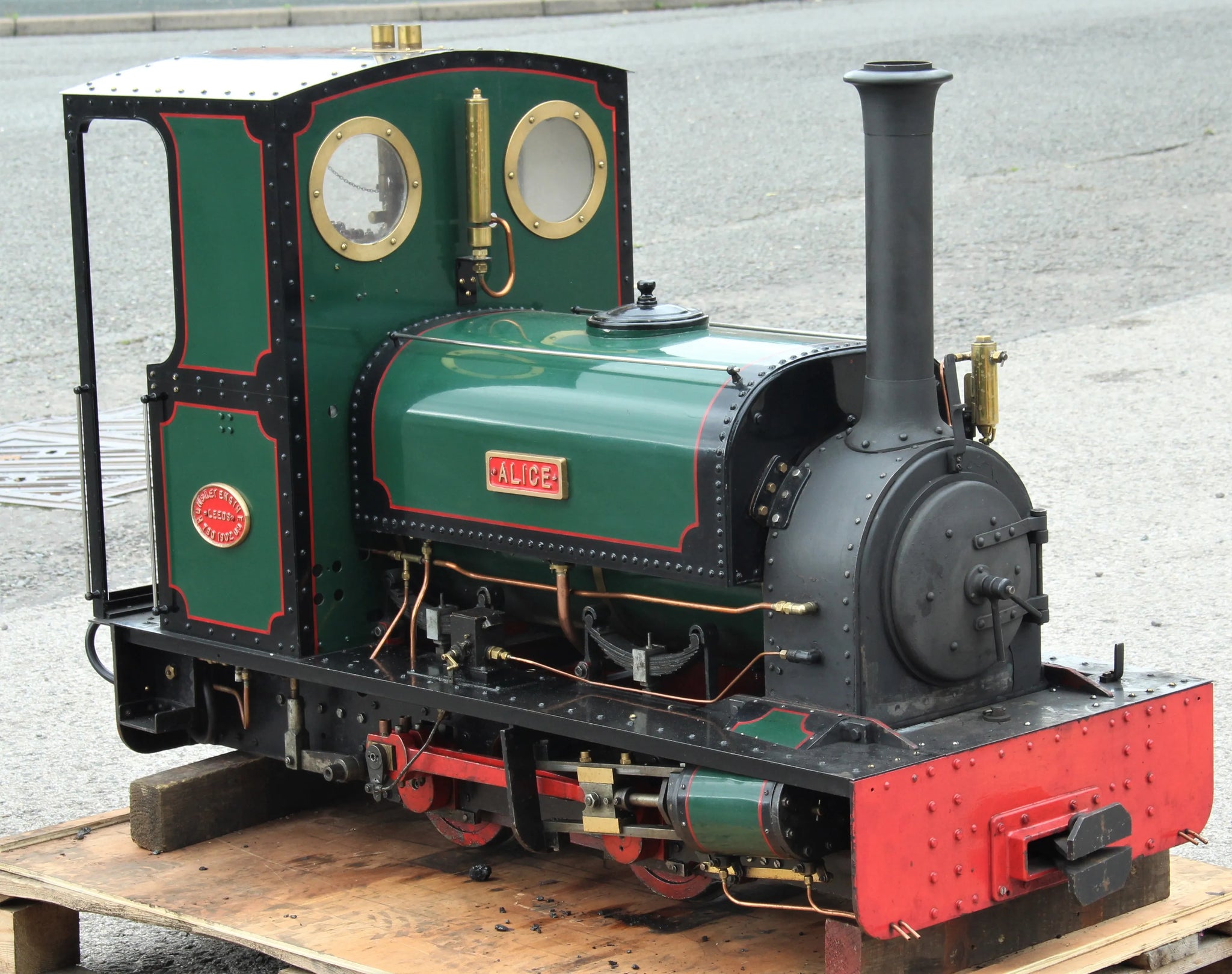

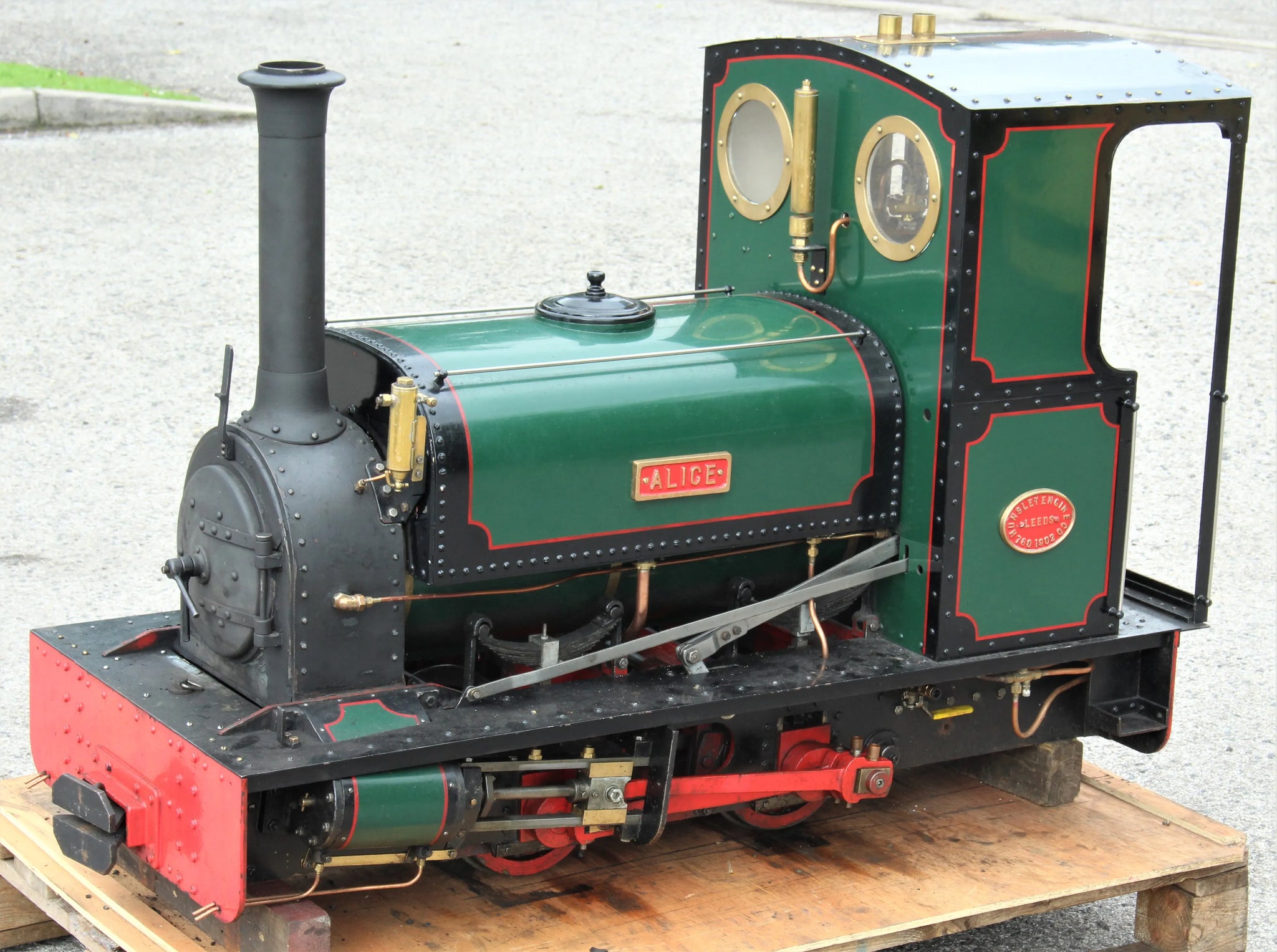

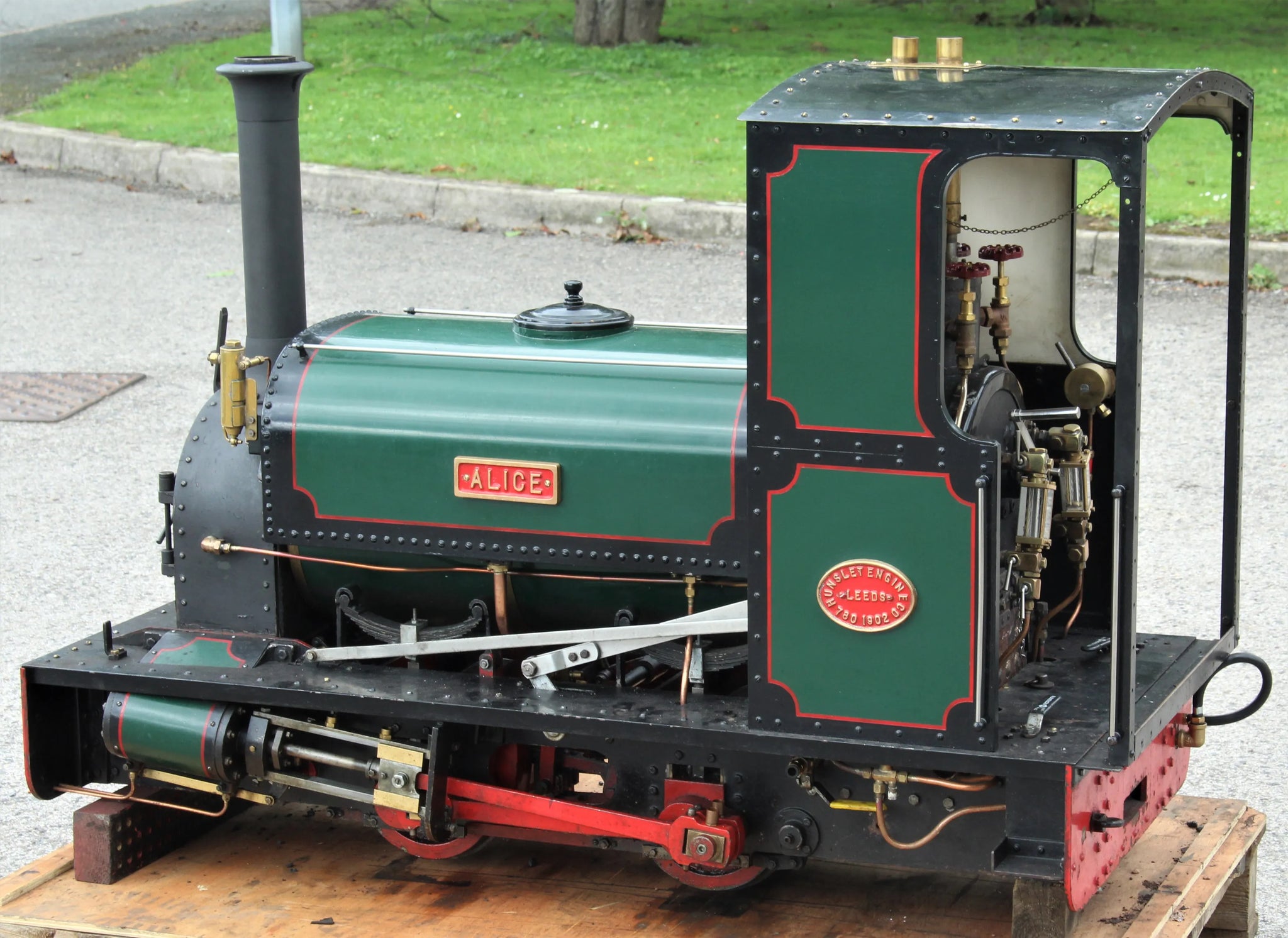

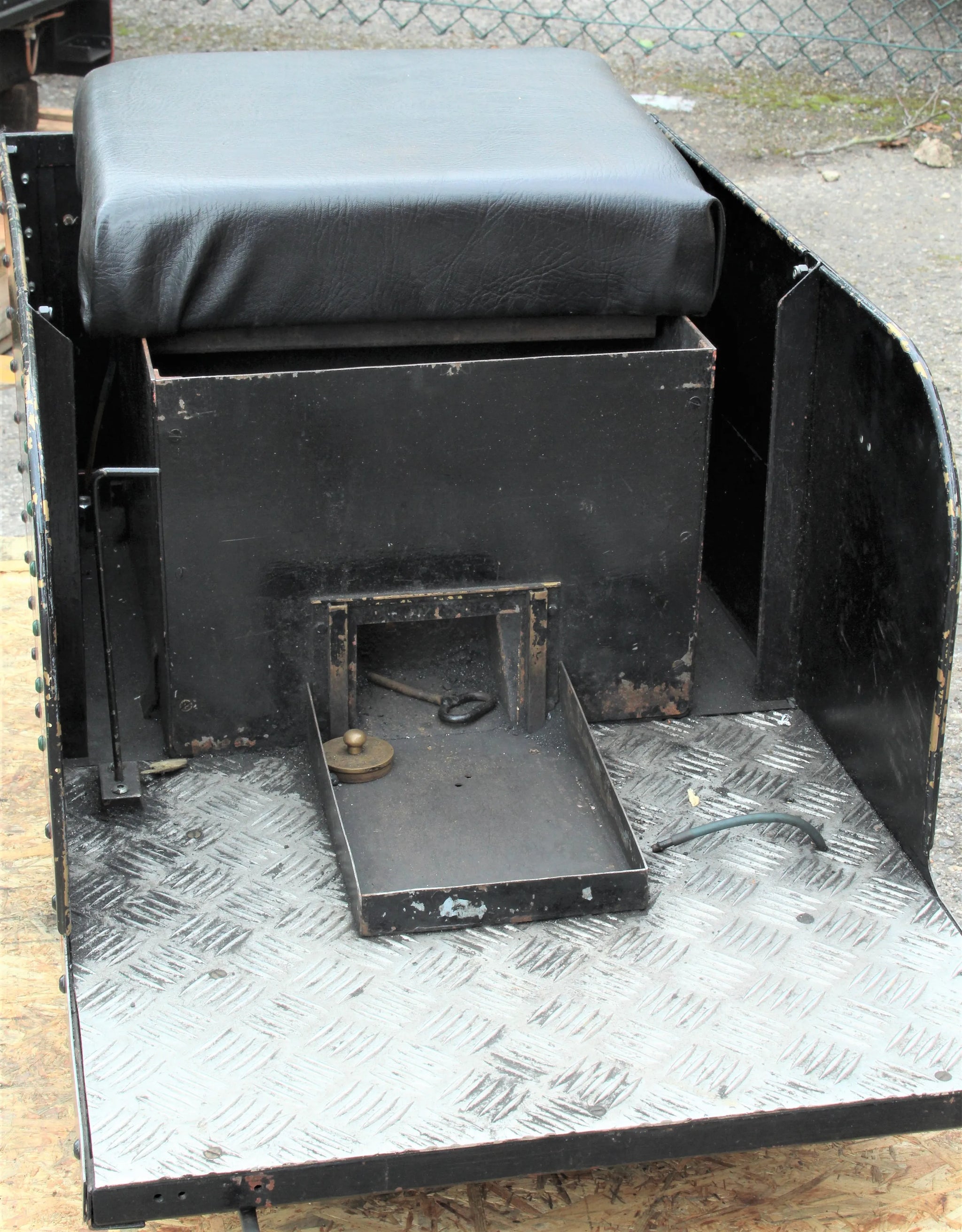

A 4 inch scale 7 1/4 inch gauge Hunslet 0-4-0ST with ride-in tender, an engine we sold back at the beginning of 2015.

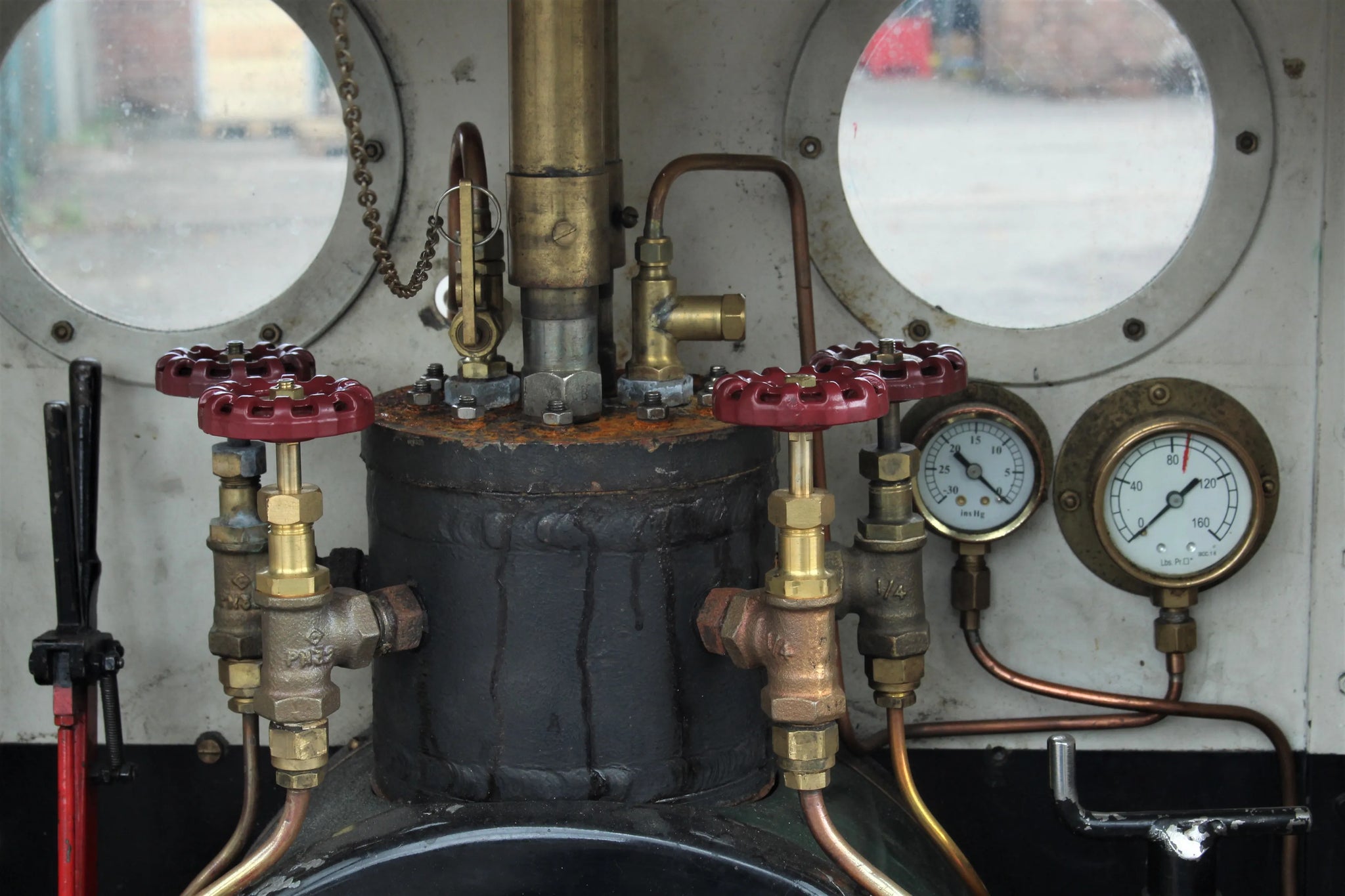

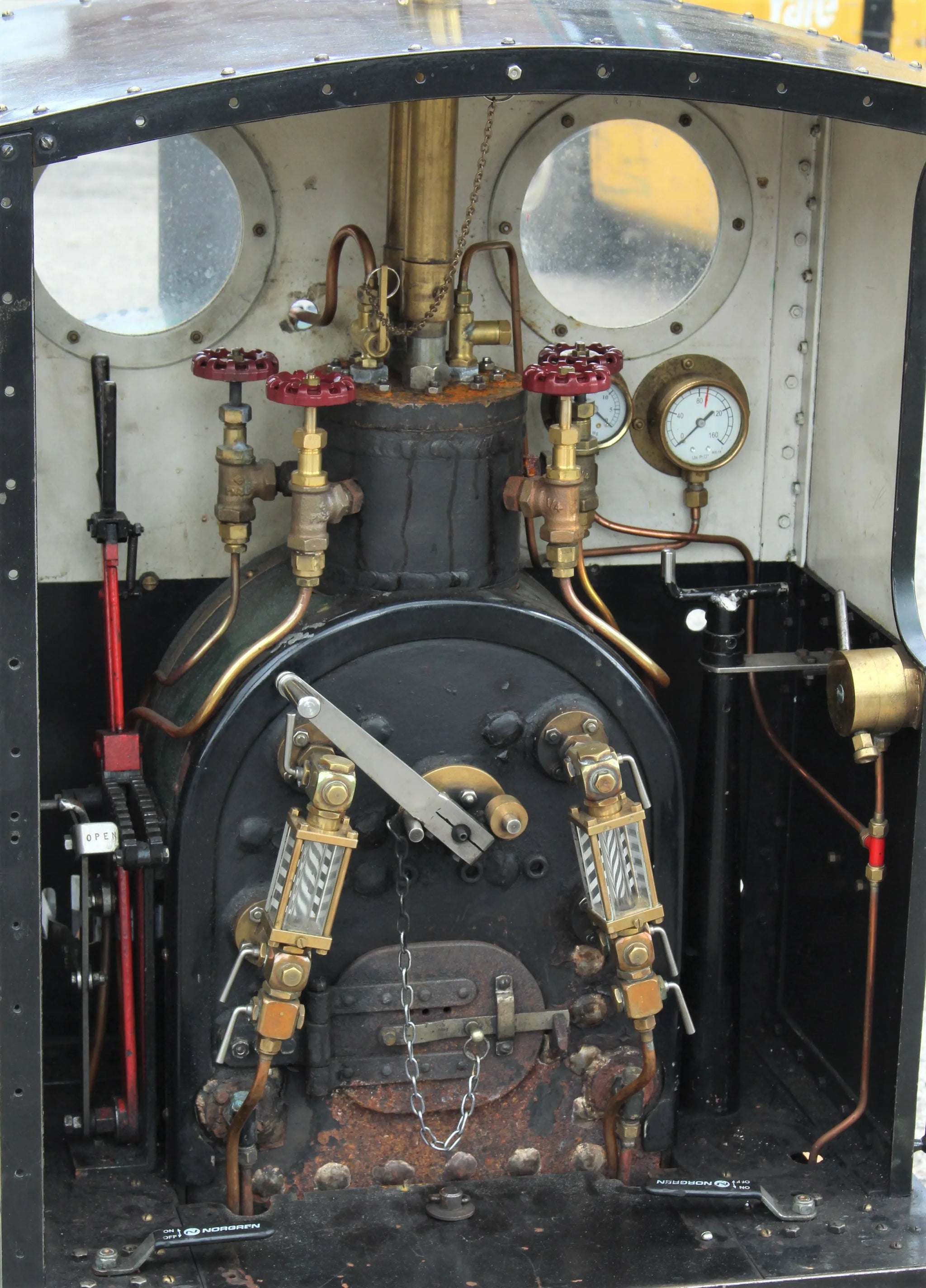

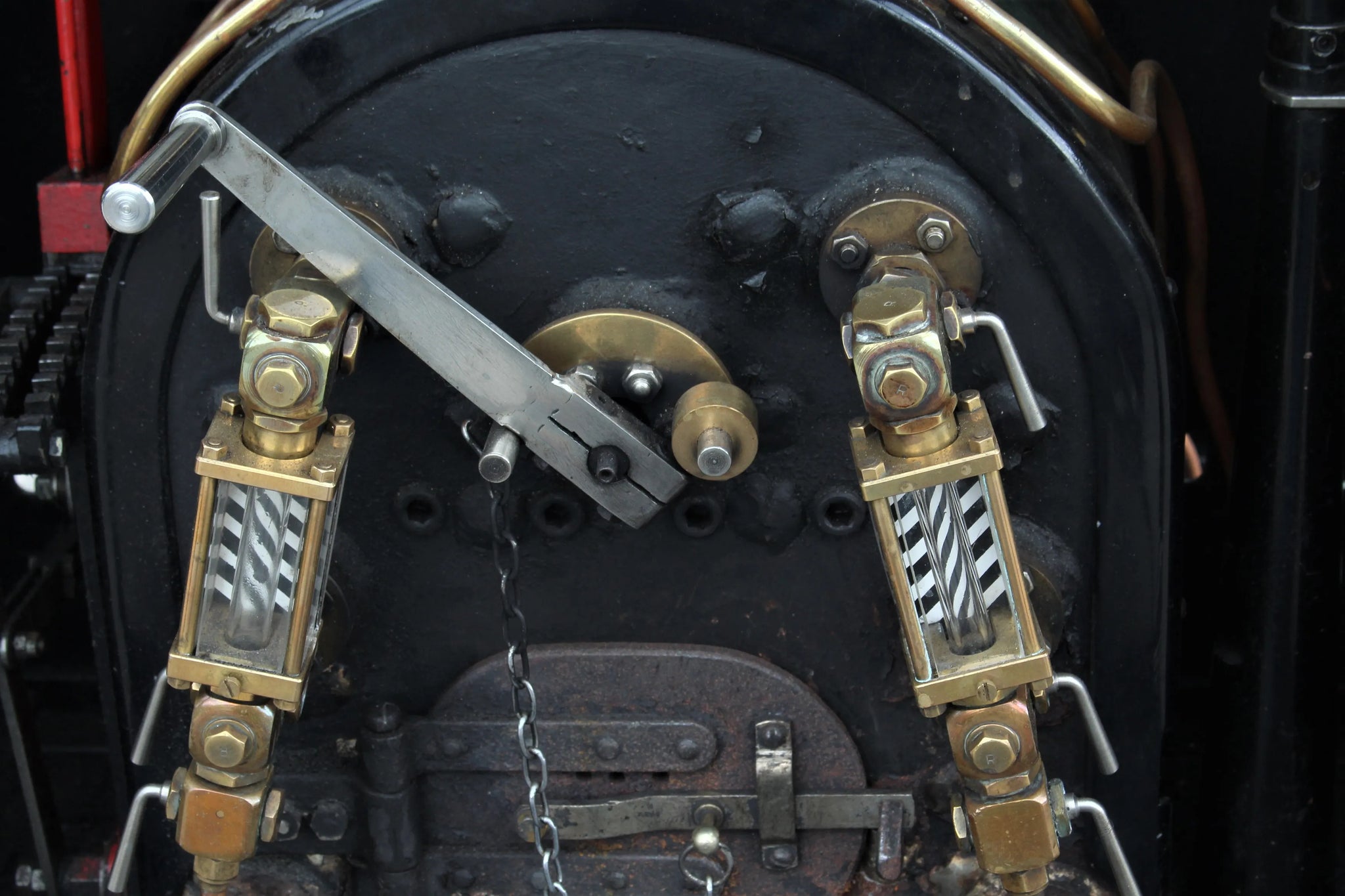

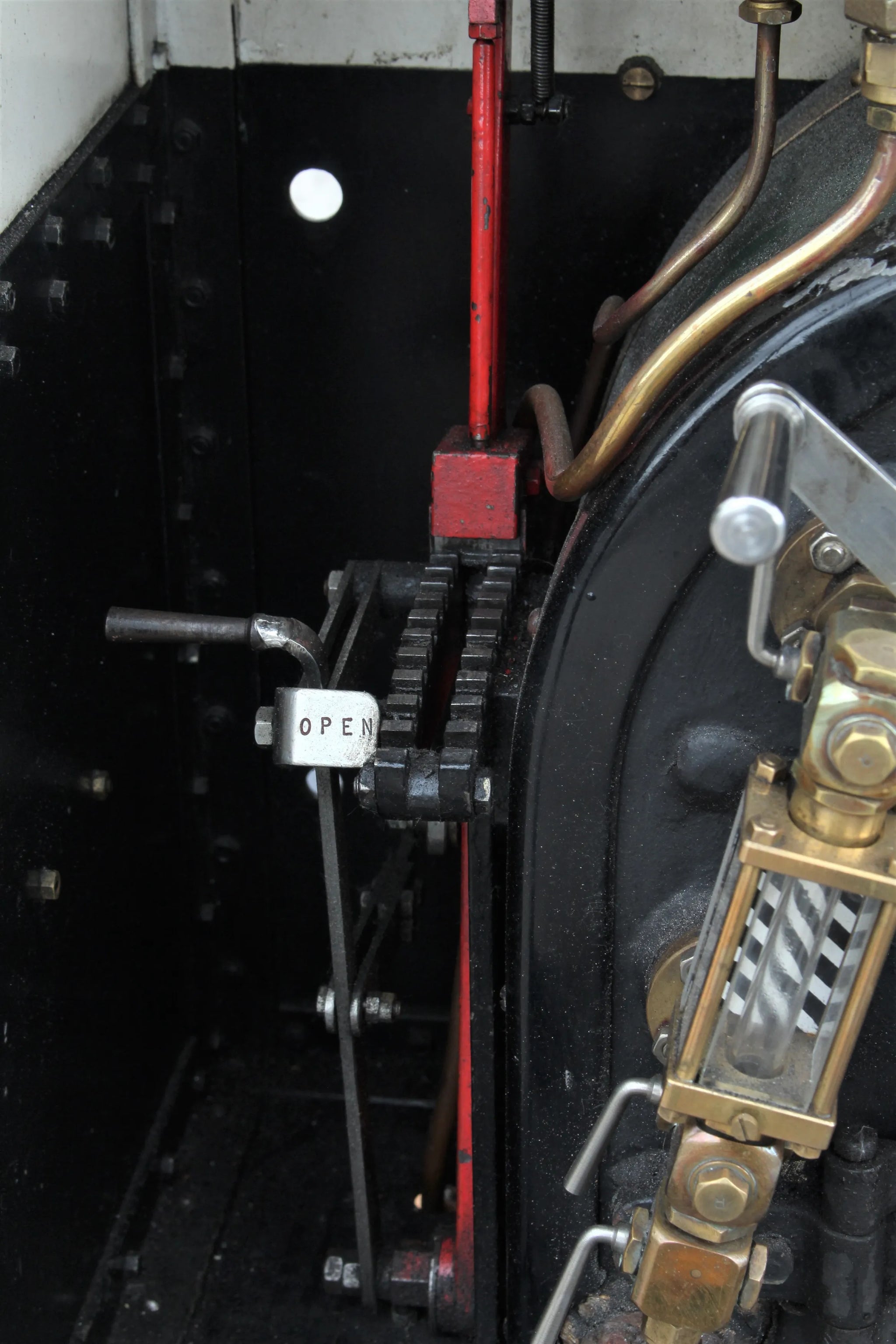

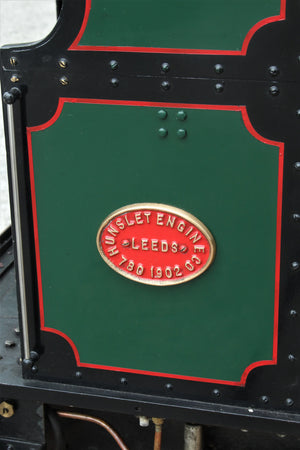

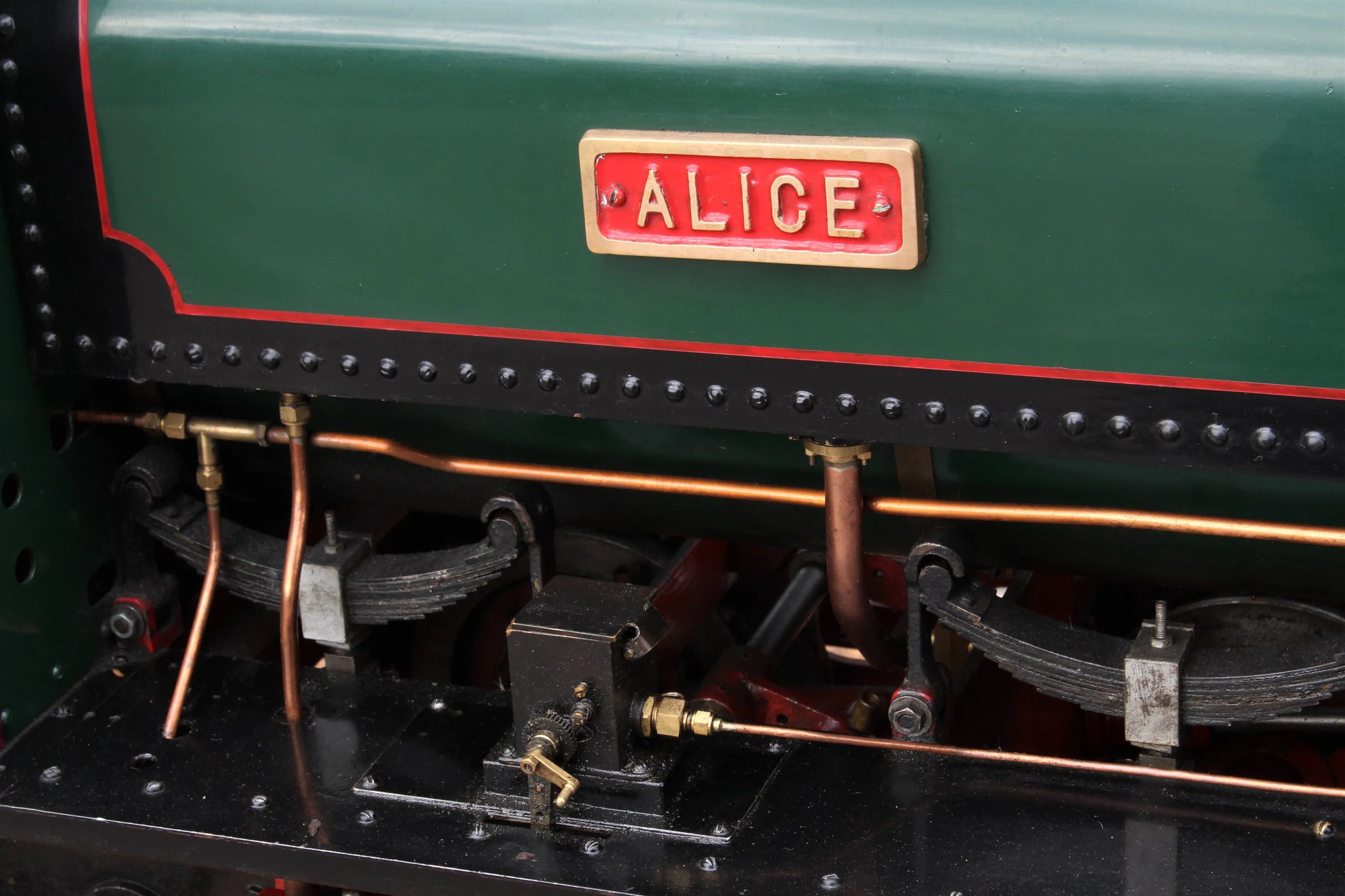

Since last here it's been repainted in an attractive 1970s era Ffestiniog green with red lining and had some rearrangement of the backhead fittings, with nicer steam valves and gauge protectors fitted.

The engine has been in use until recently when it developed various leaks around the firebox. Under hydraulic test it shows several leaking stays, internal inspection shows a build up of sediment in the water legs - narrow at the best of times in this design.

Whilst it may be possible to salvage the boiler by fitting a new firebox, a new boiler would be worth considering - the uplift in value would cover its cost.

There are pictures and some video of it running back in 2015 in the archive here.

Technical information

Stock code

8714

Gauge

7 1/4 inch

Length/inches

48 + 36

Width/inches

20

Height/inches

34

Weight/Kg

est 250

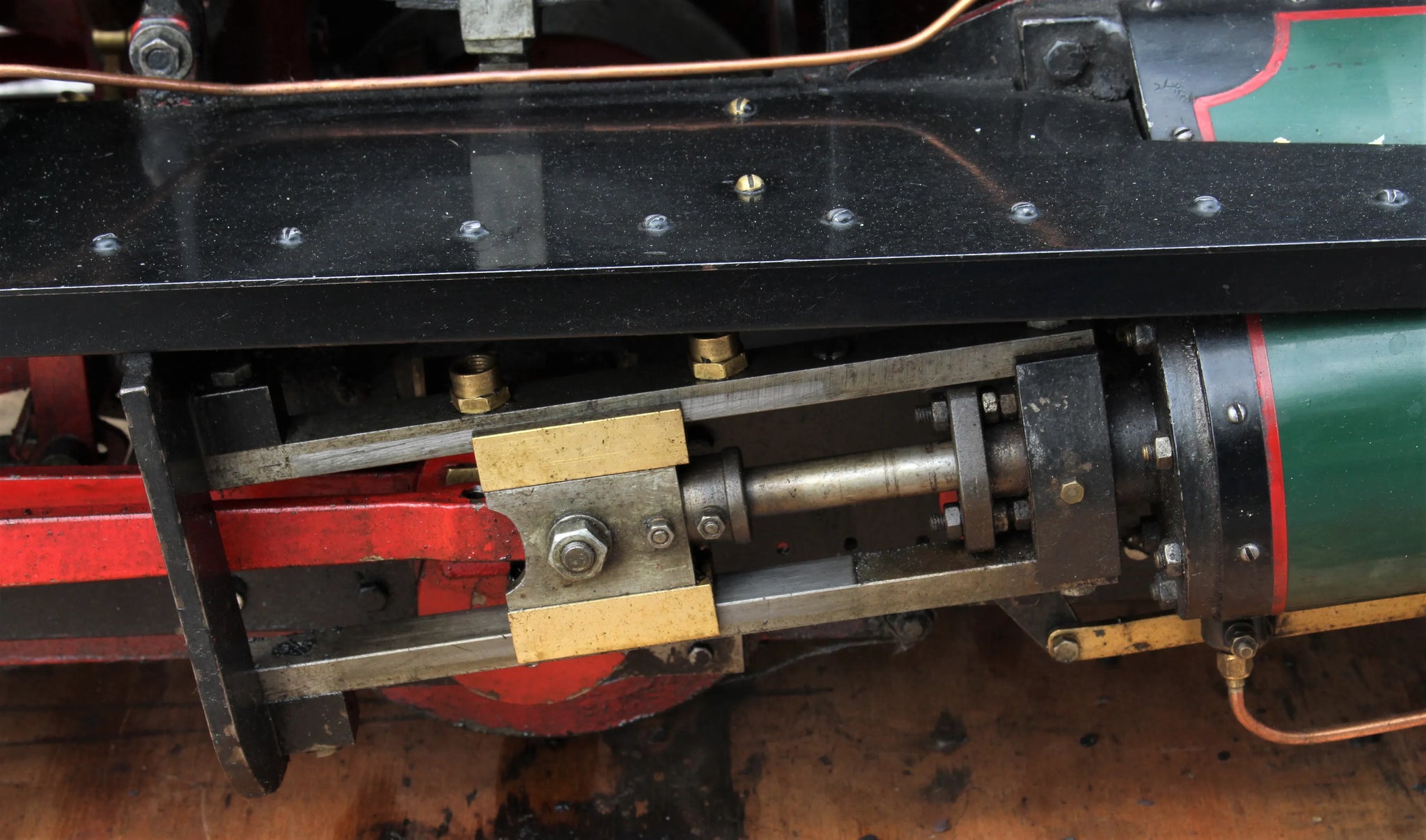

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

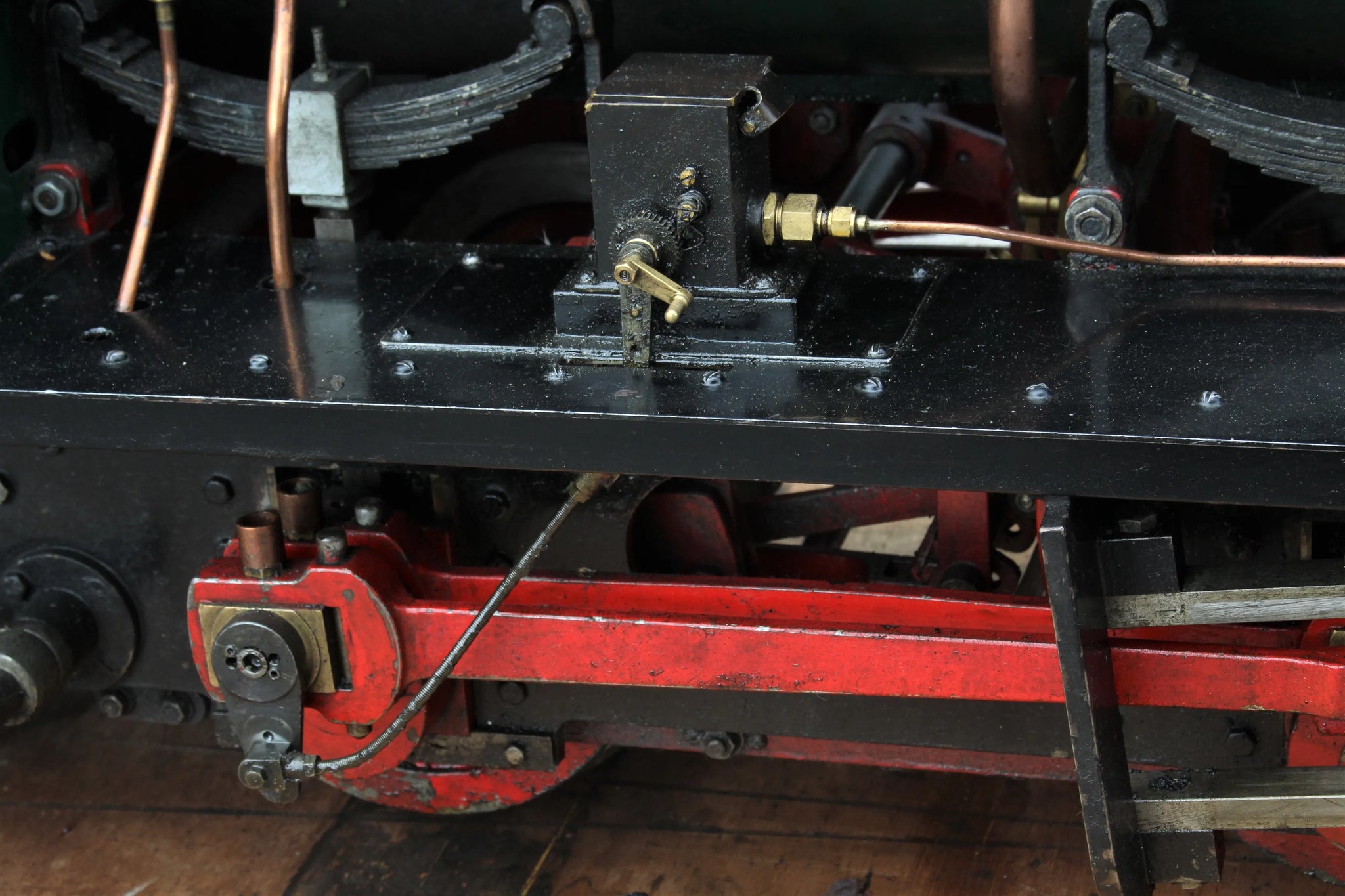

Lubricator type

mechanical, twin ram

Boiler type

locomotive

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

90

CE/UKCA mark

n/a, non-commercial

Year built

2000

Boiler number

N-192-90-5-5

Safety valve type

spring

Safety valve

2

Governor type

Pickering

Injector

2

Date out

Sep-19
