7 1/4 inch gauge 14XX 0-4-2T

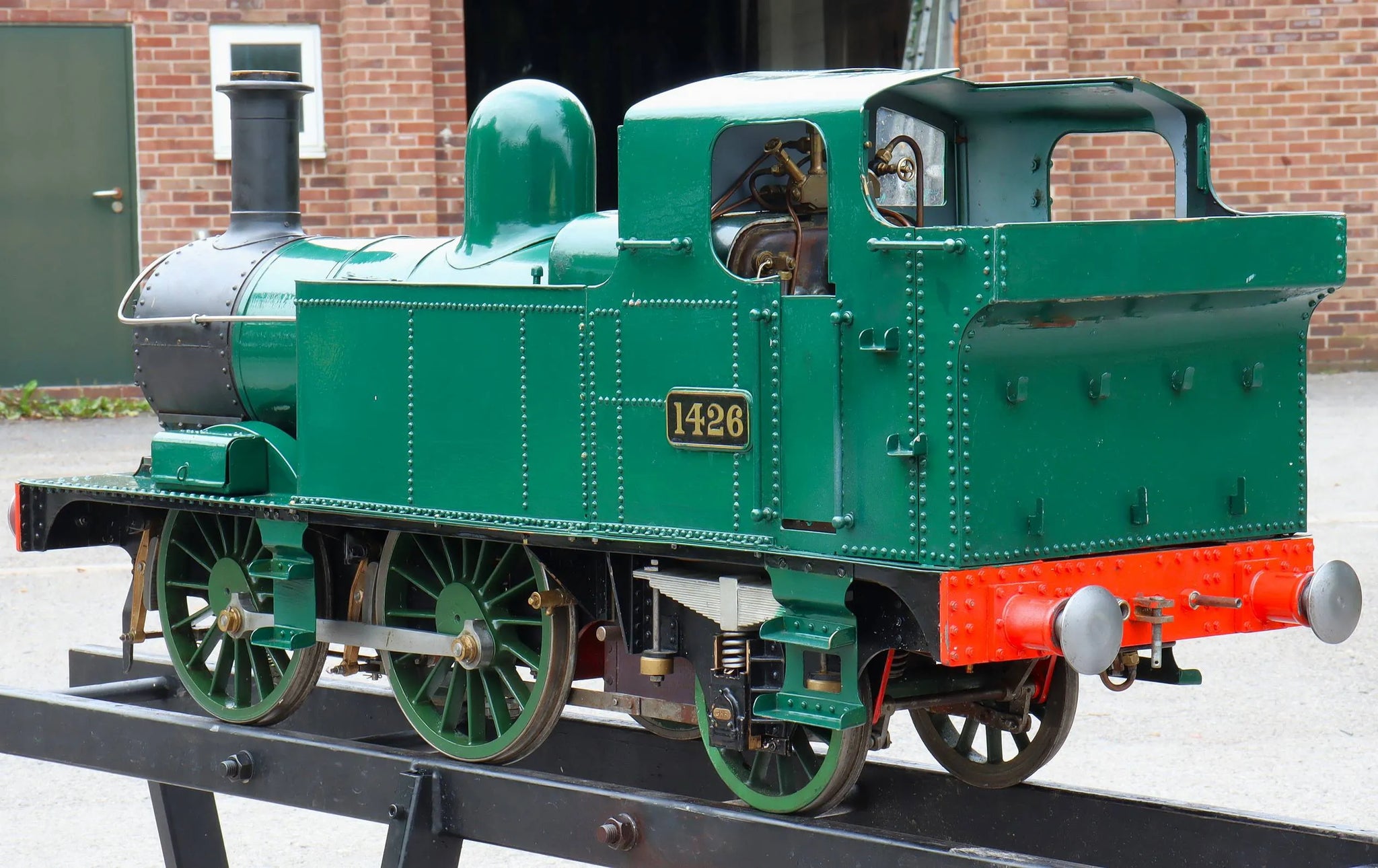

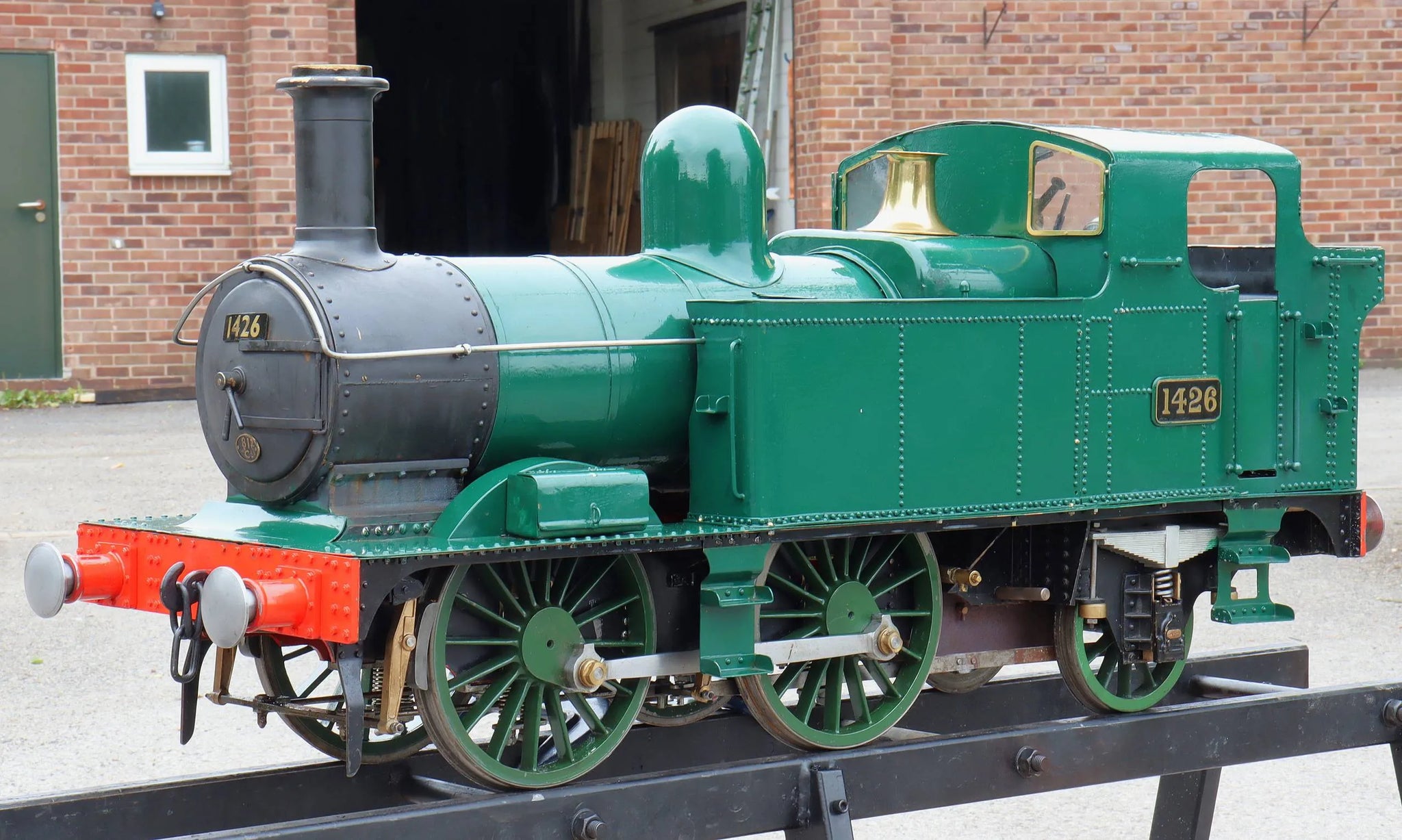

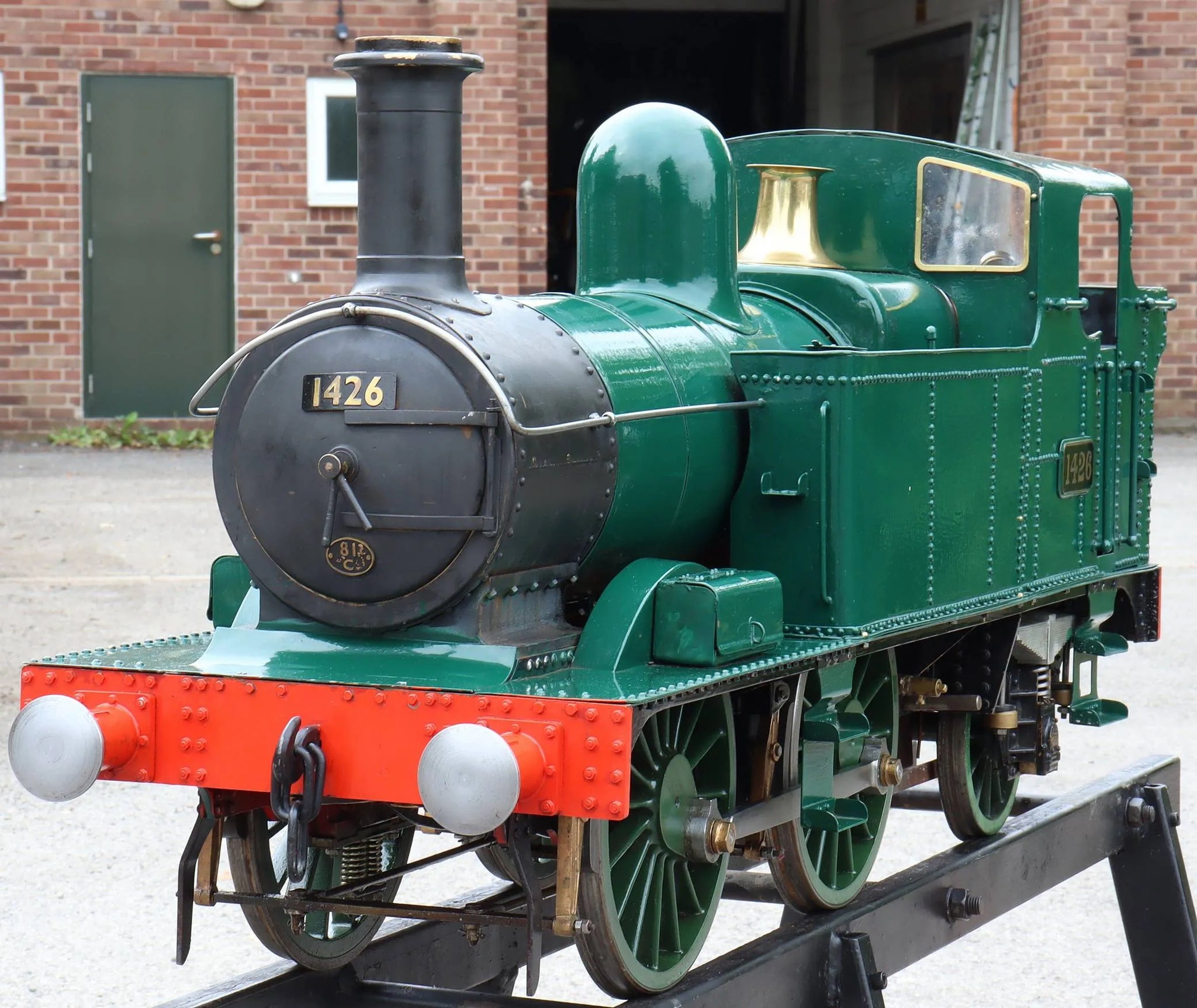

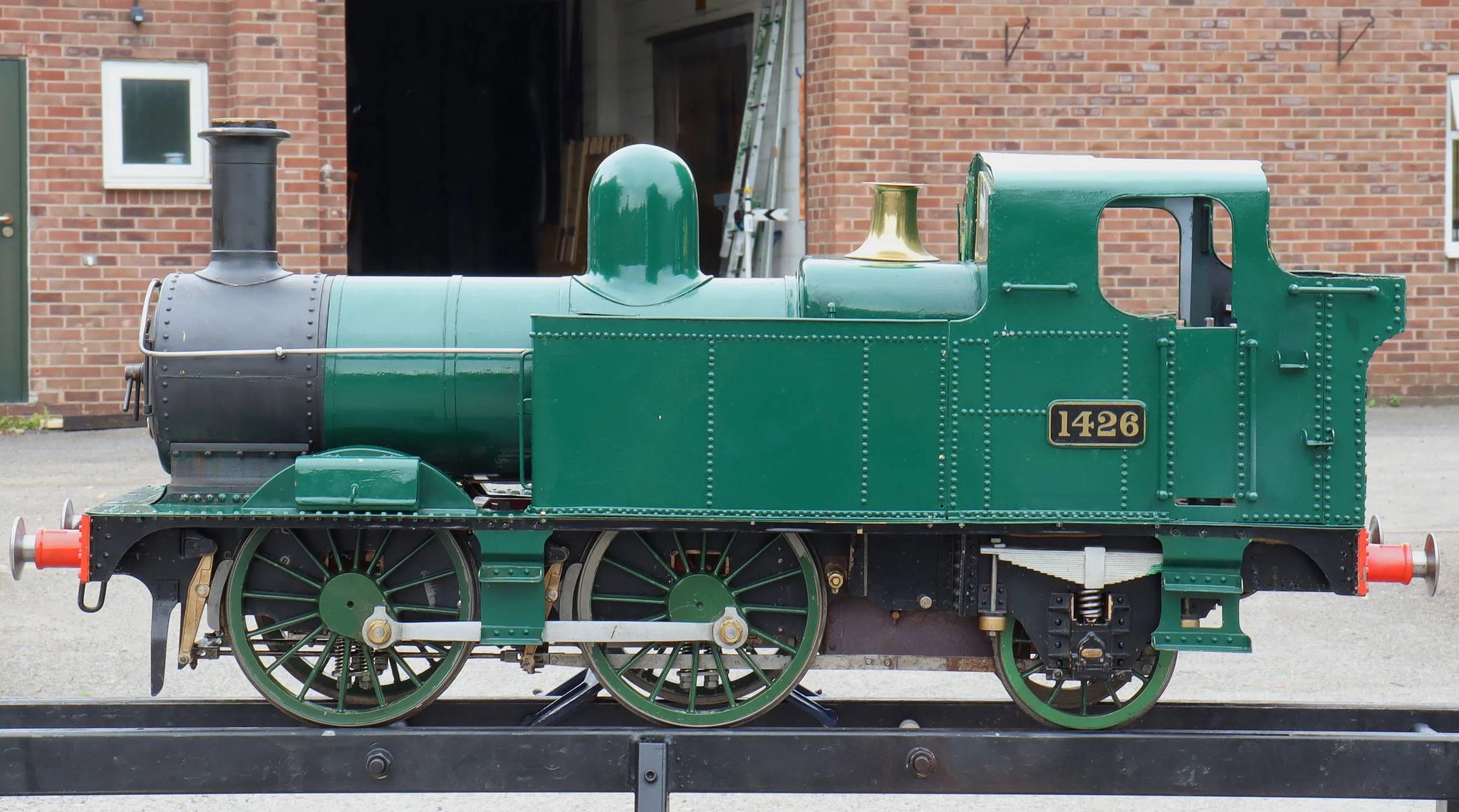

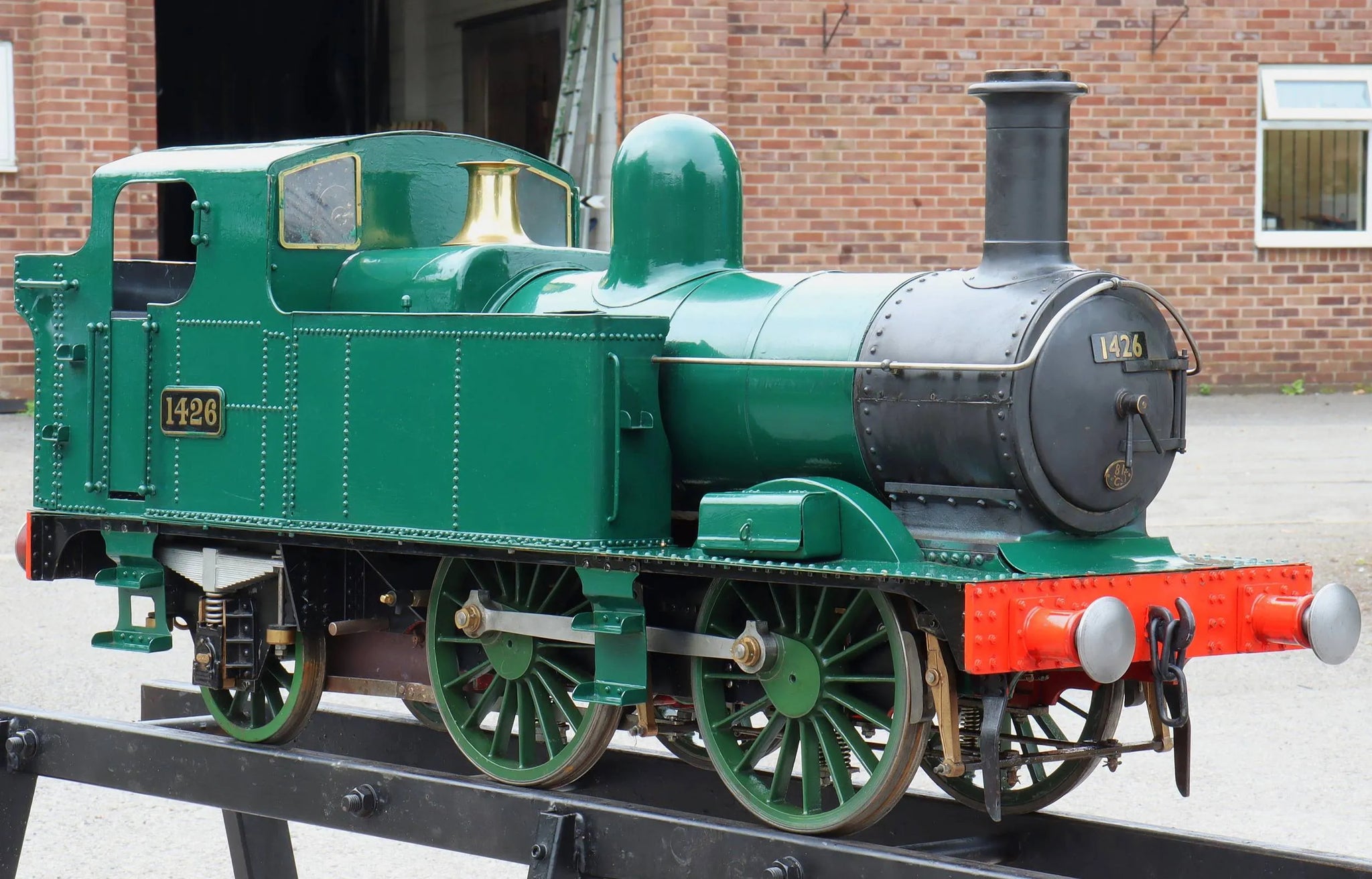

A 7 1/4 inch gauge GWR 14XX 0-4-2T, a running engine built to a fairly pedestrian standard, although "offering scope for improvement" as our estate agent friends would say*.

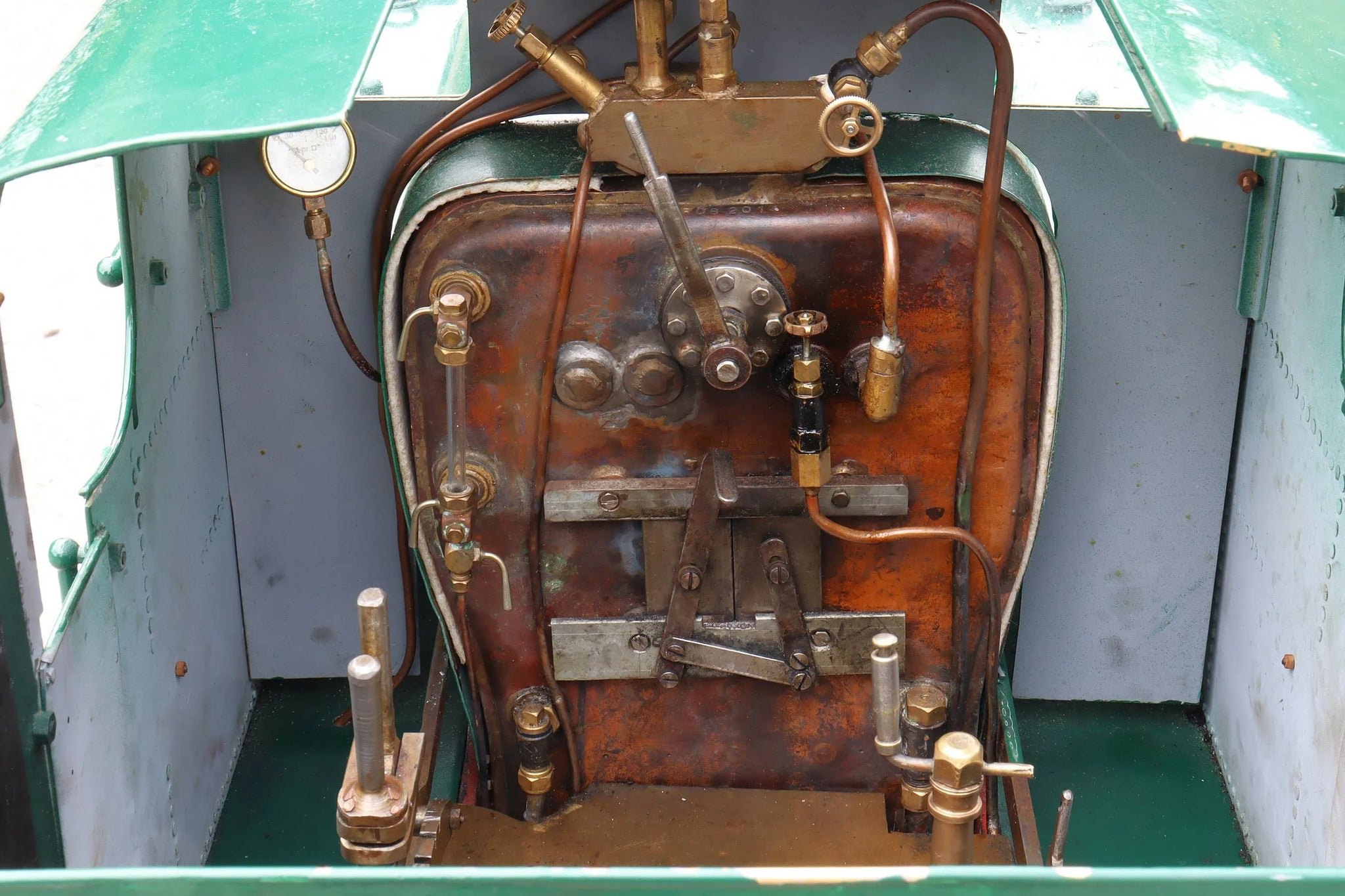

The boiler has had recent hydraulic and steam tests with new certification issued. The engine is fitted with one injector, piped up for water feed from the previous owner's driving truck, which also featured two pumps piped direct through to the clack valves. It will require either a similarly equipped truck or, alternatively, the installation of a hand pump and/or second injector on the engine itself, with new pipework for the currently unused water tanks.

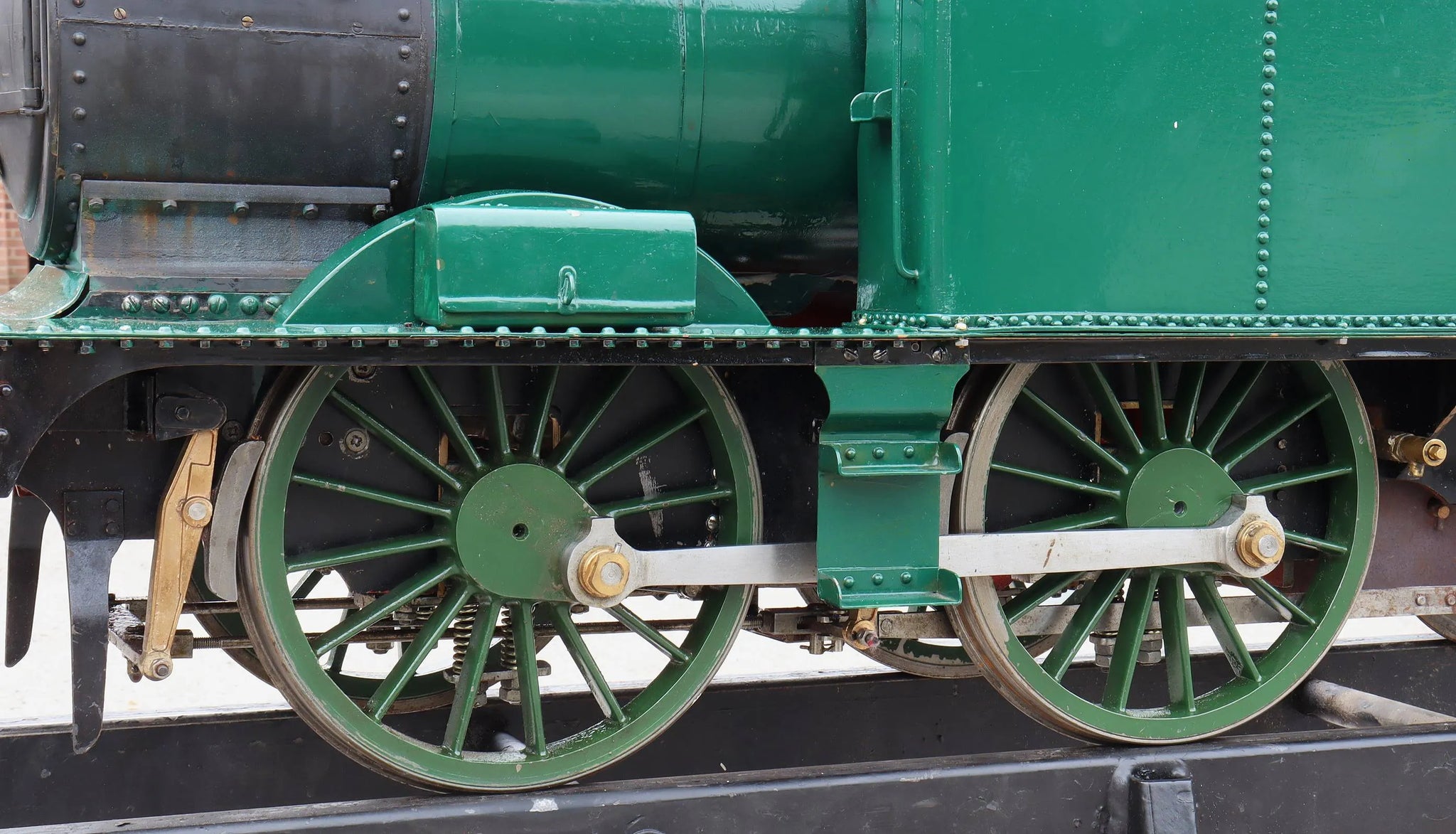

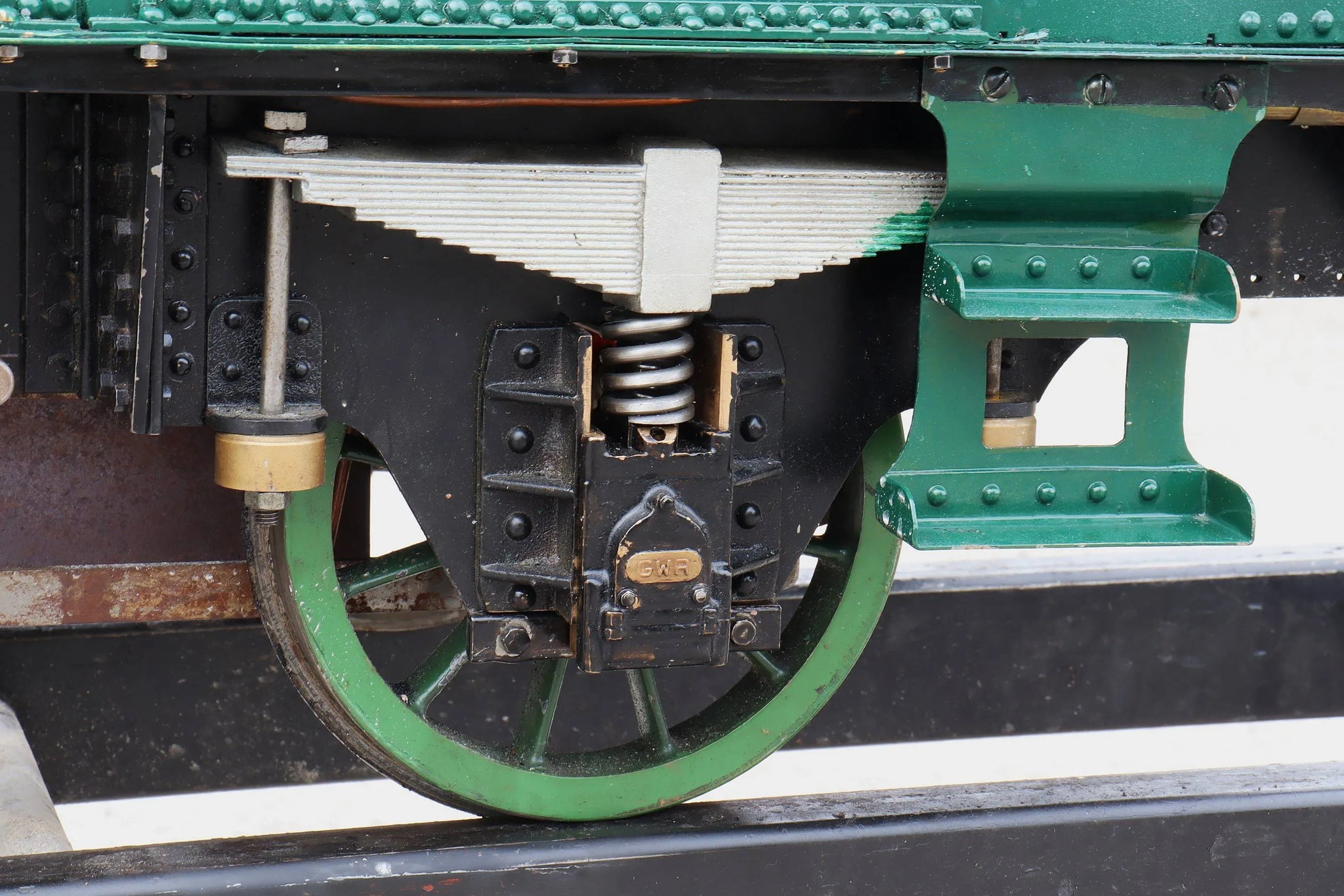

The chassis rolls freely and runs with even beats in forward gear, slightly off in reverse, with some blow by noted.

Paintwork is grim - thickly hand applied in various shades of green, with dribbles evident.

* for the avoidance of doubt, that was a joke. We don't number any estate agents among our friends...


Technical information

Stock code

11448

Gauge

7 1/4 inch

Length/inches

44

Width/inches

13

Height/inches

20

Weight/Kg

95

Wheel material

cast iron

Axlebox type

split bronze

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

displacement

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - non-commercial

Year built

2014

Boiler number

ROB2014

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Injector

1

Superheater type

radiant

Superheater

3

Date out

Feb-24

Hydraulic test valid to

27-Jul-27

Steam test valid to

23-Oct-24
