Sold

8891

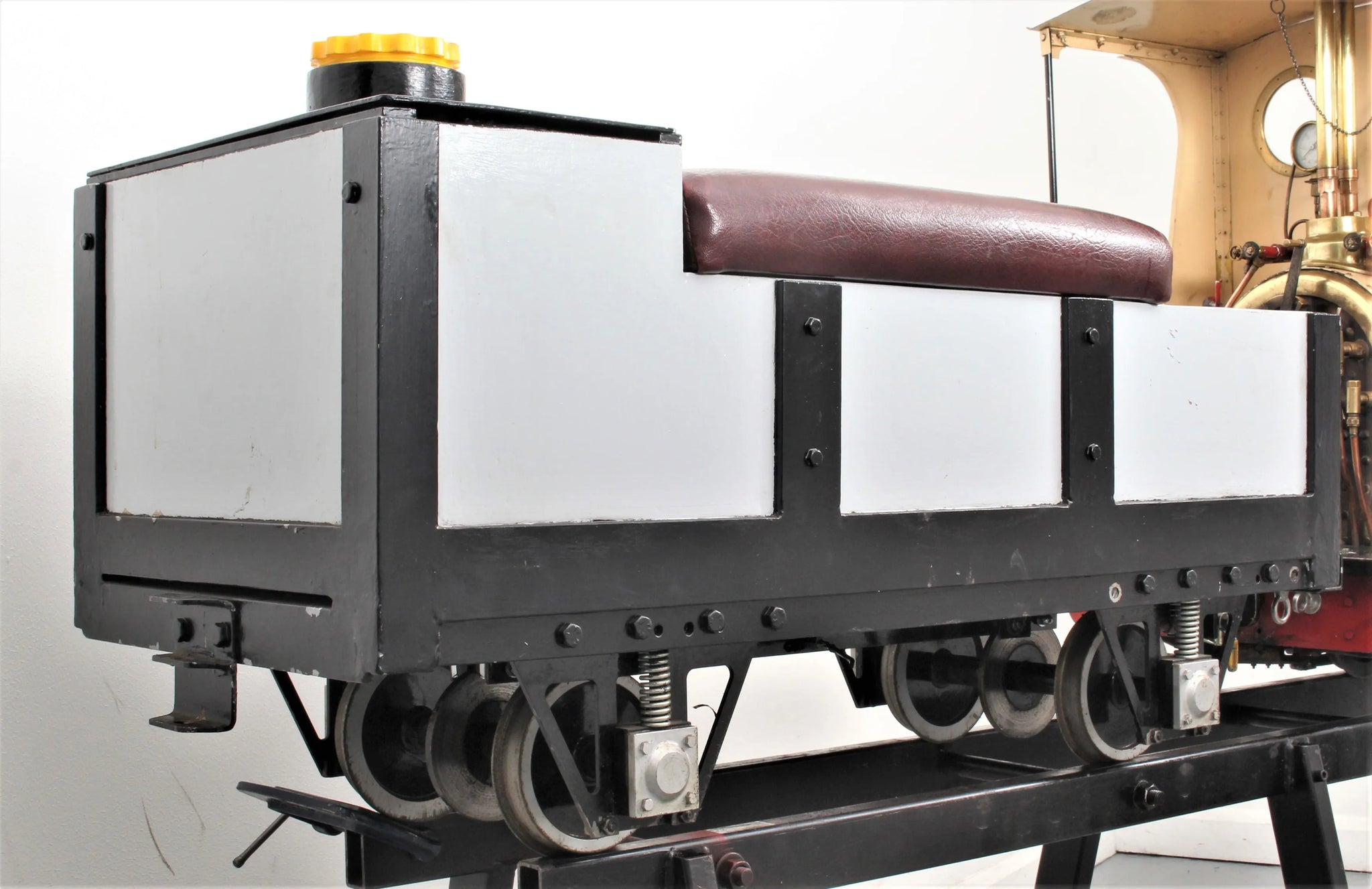

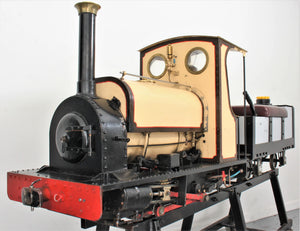

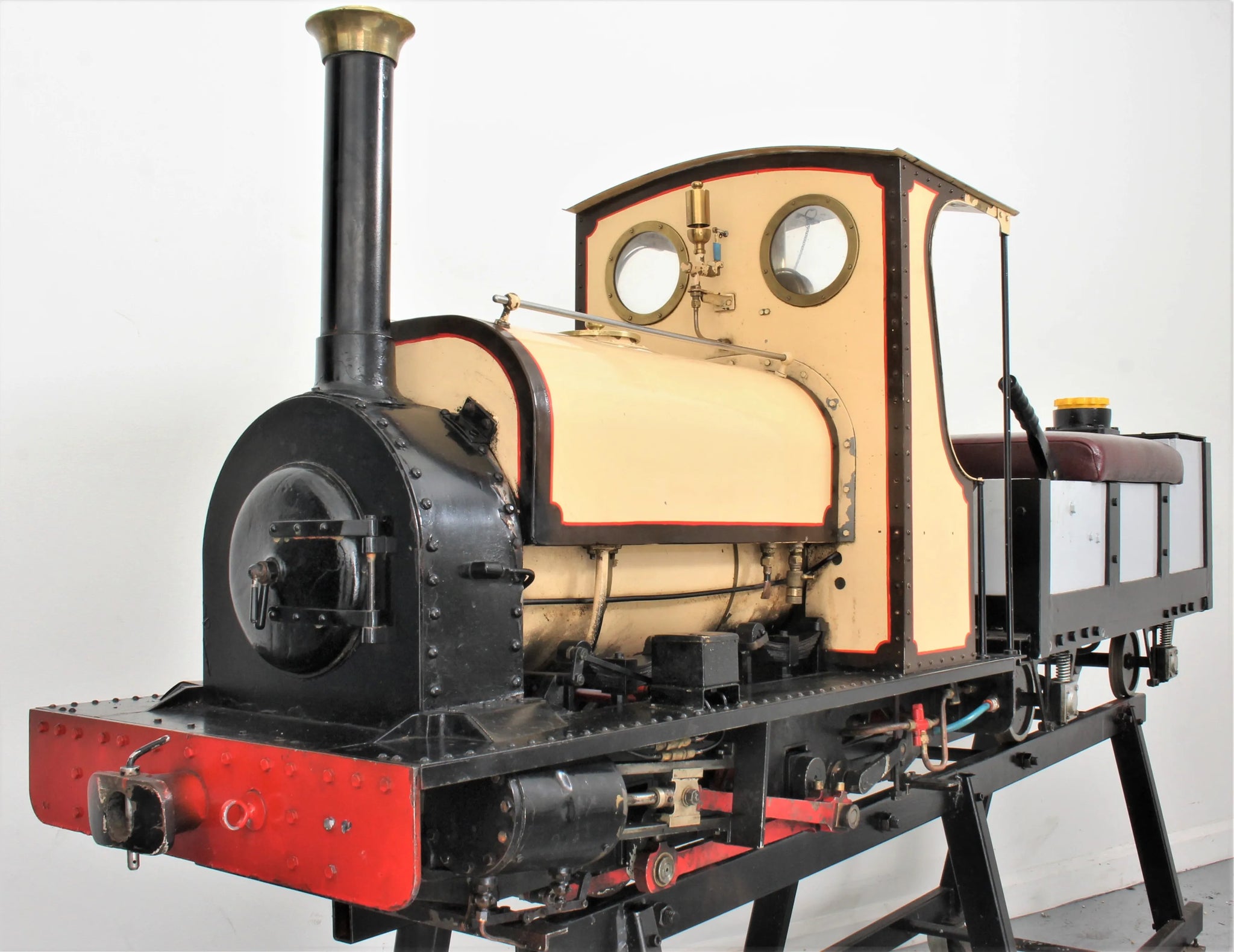

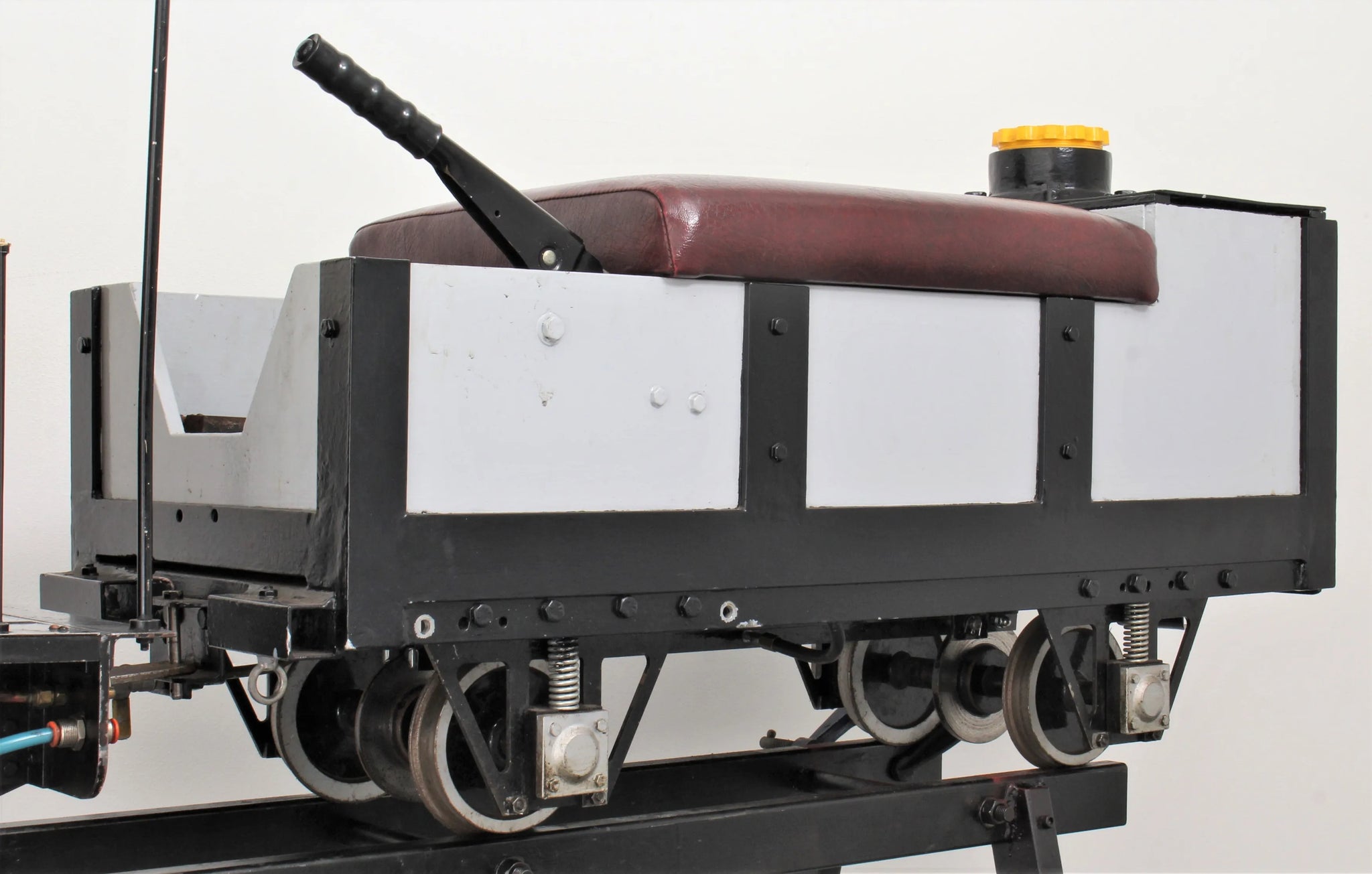

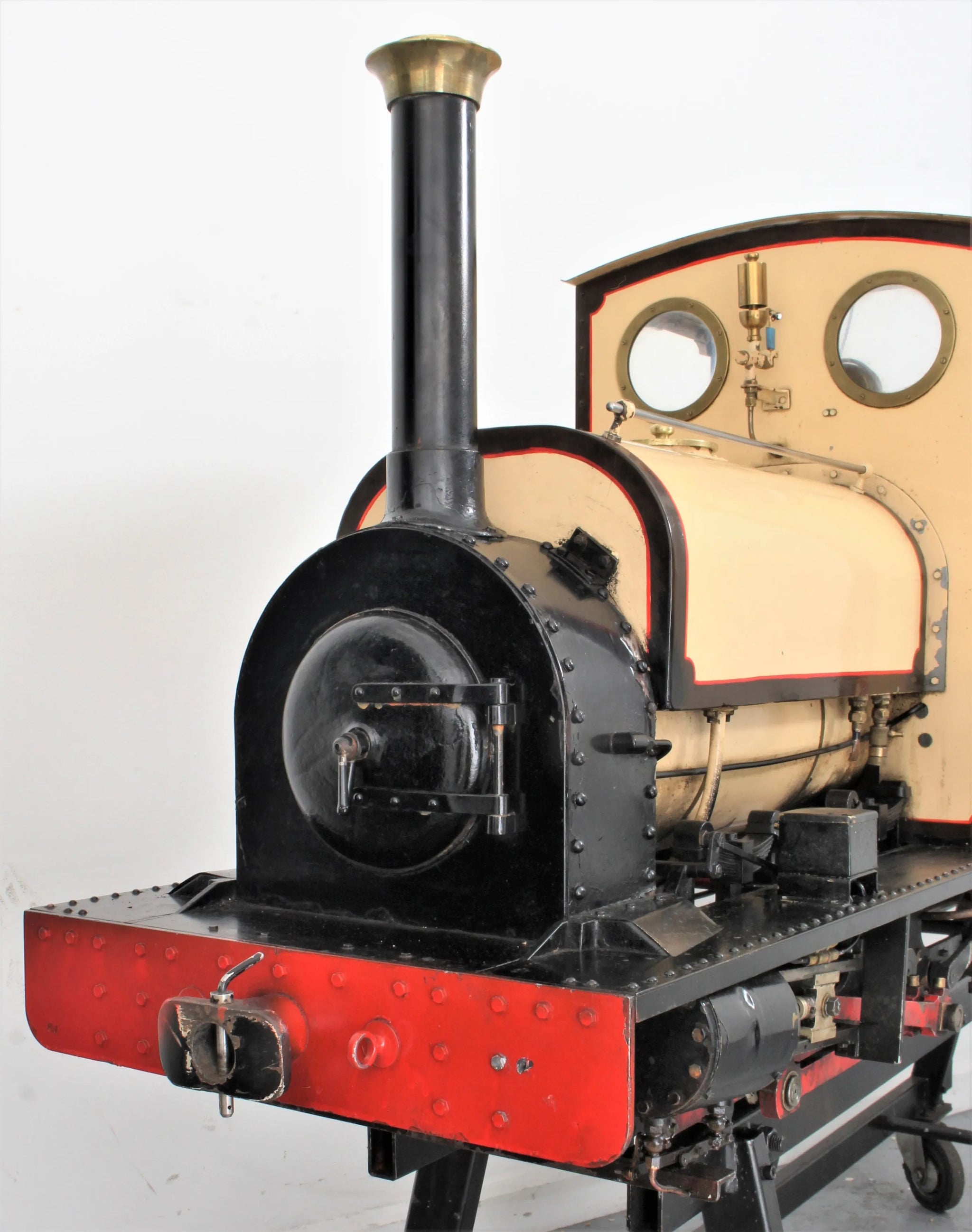

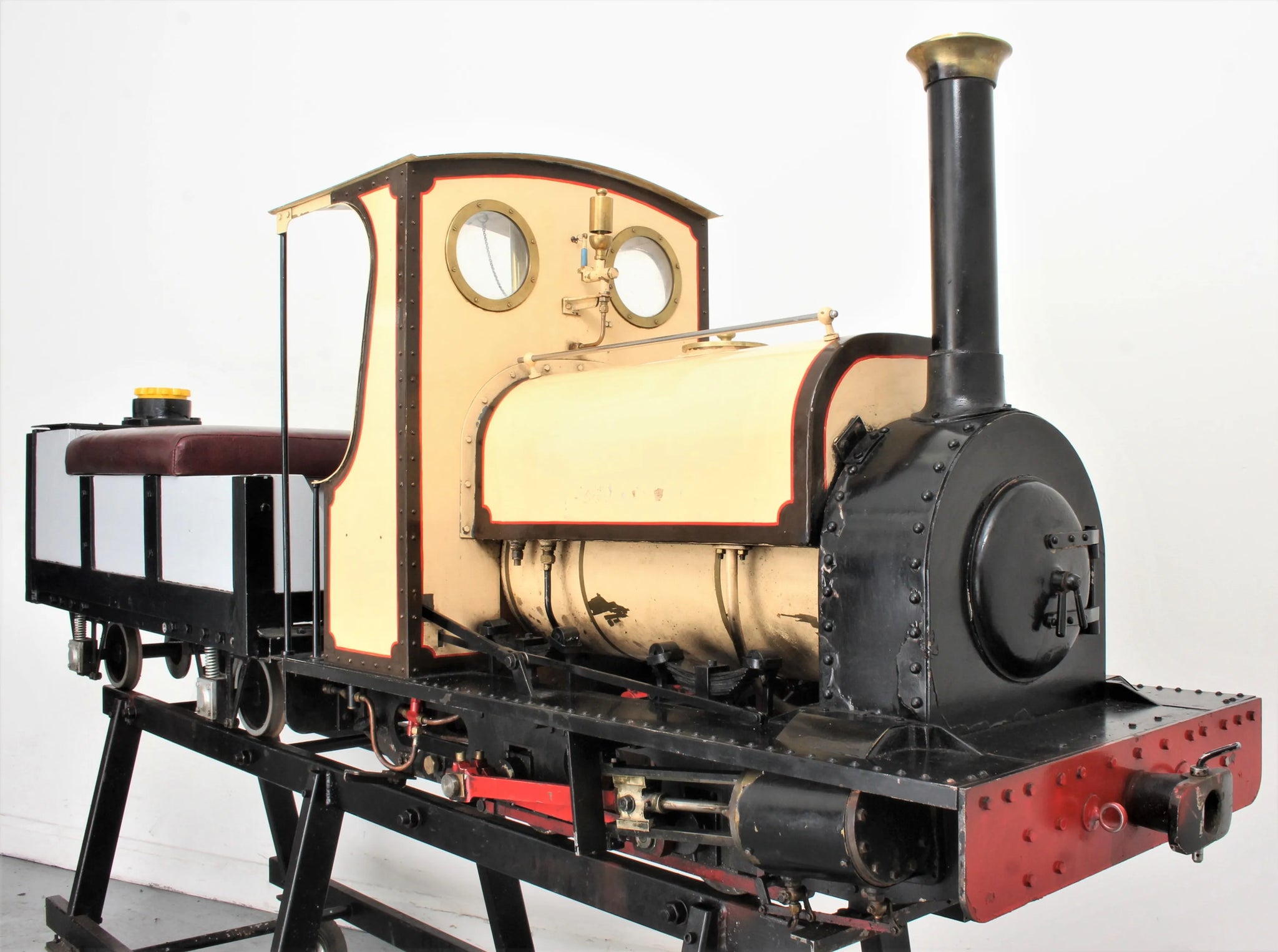

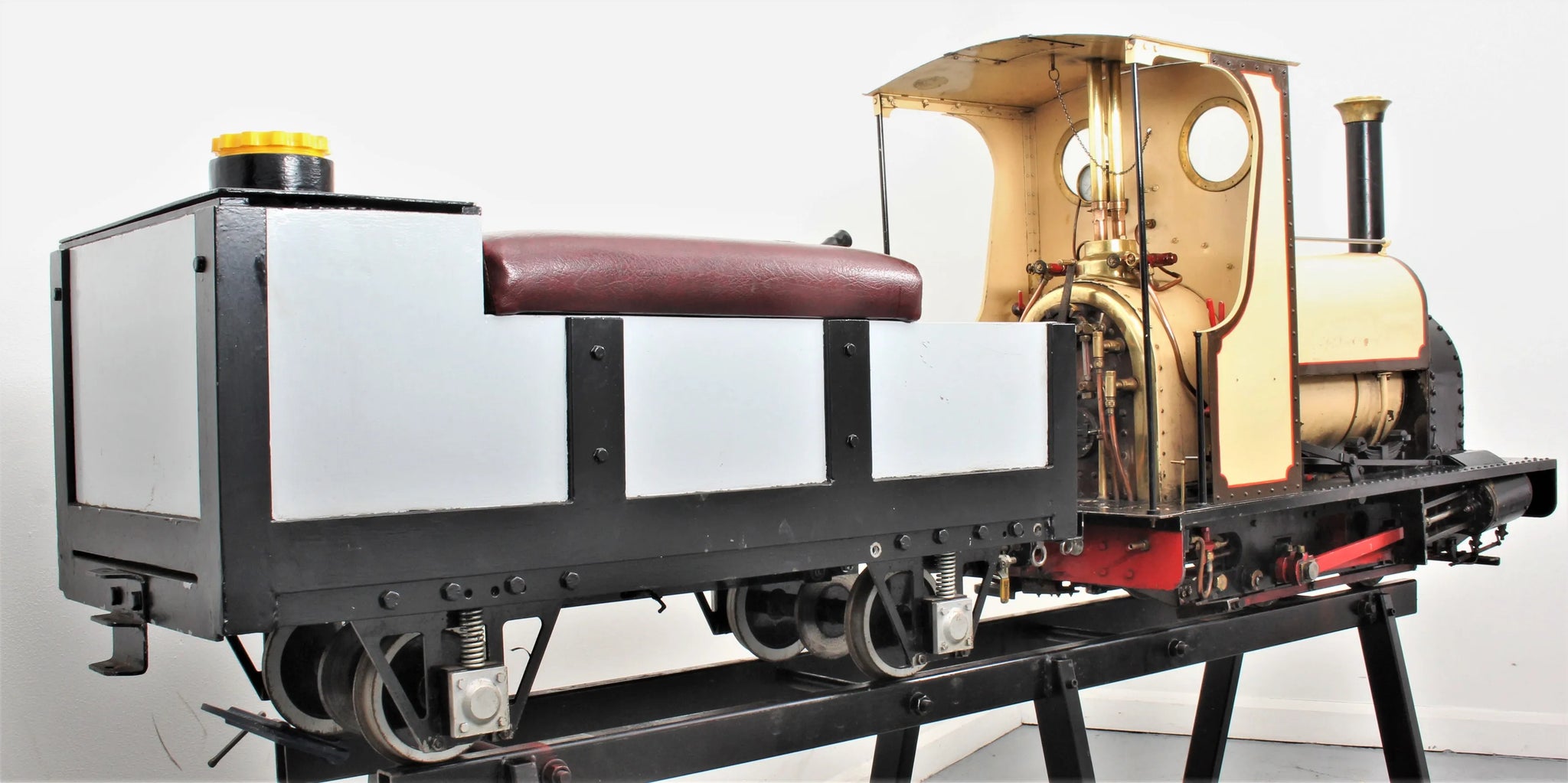

7 1/4 inch gauge 3 inch scale Hunslet 0-4-0ST with driving truck

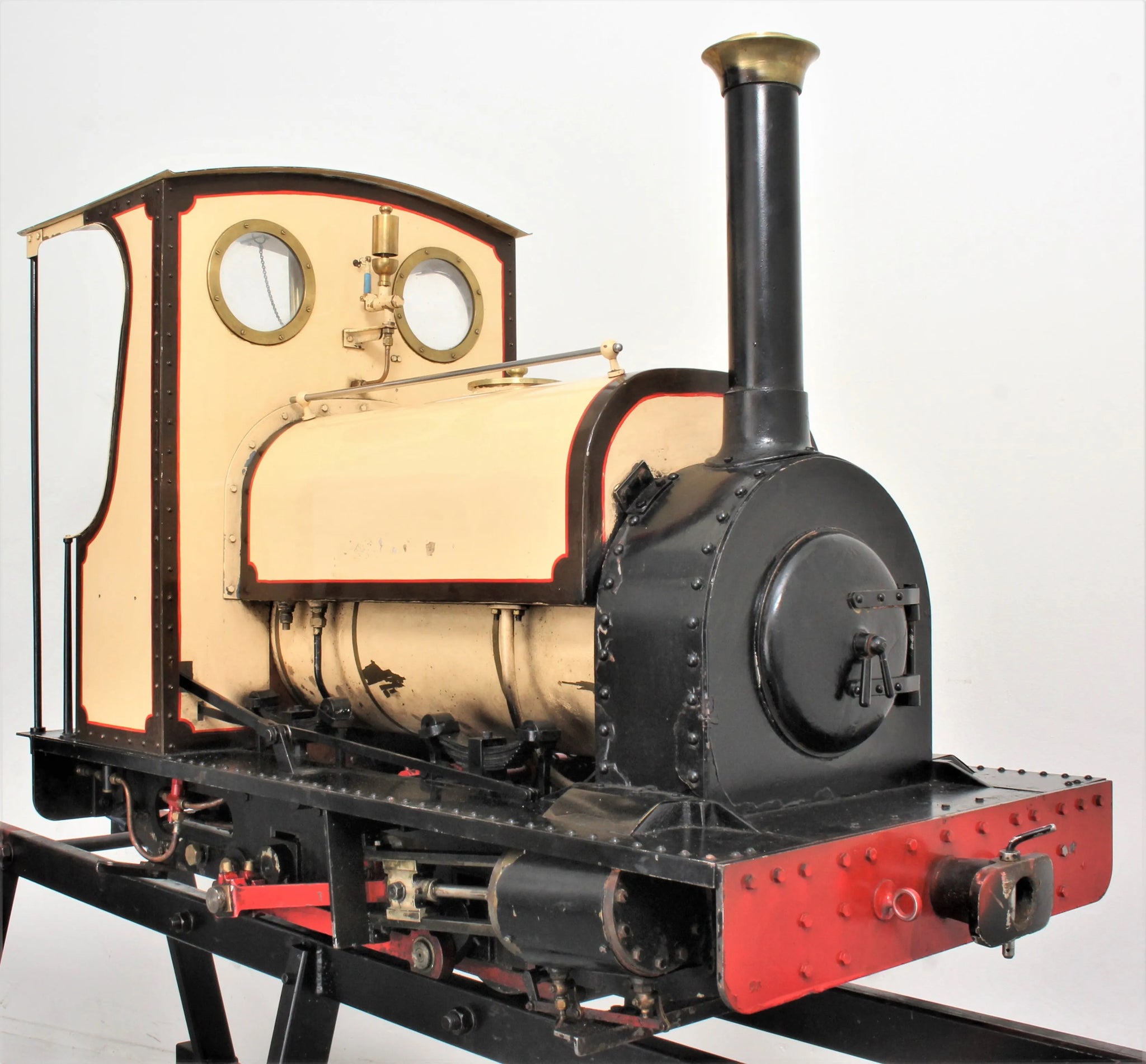

Professionally built as one of a pair in 1998, a
7 1/4 inch narrow gauge, 3 inch scale quarry Hunslet.

I first bought this engine fifteen years ago - a beautiful looking thing, there are pictures in the archive here showing it at the time in substantially ex-works condition.

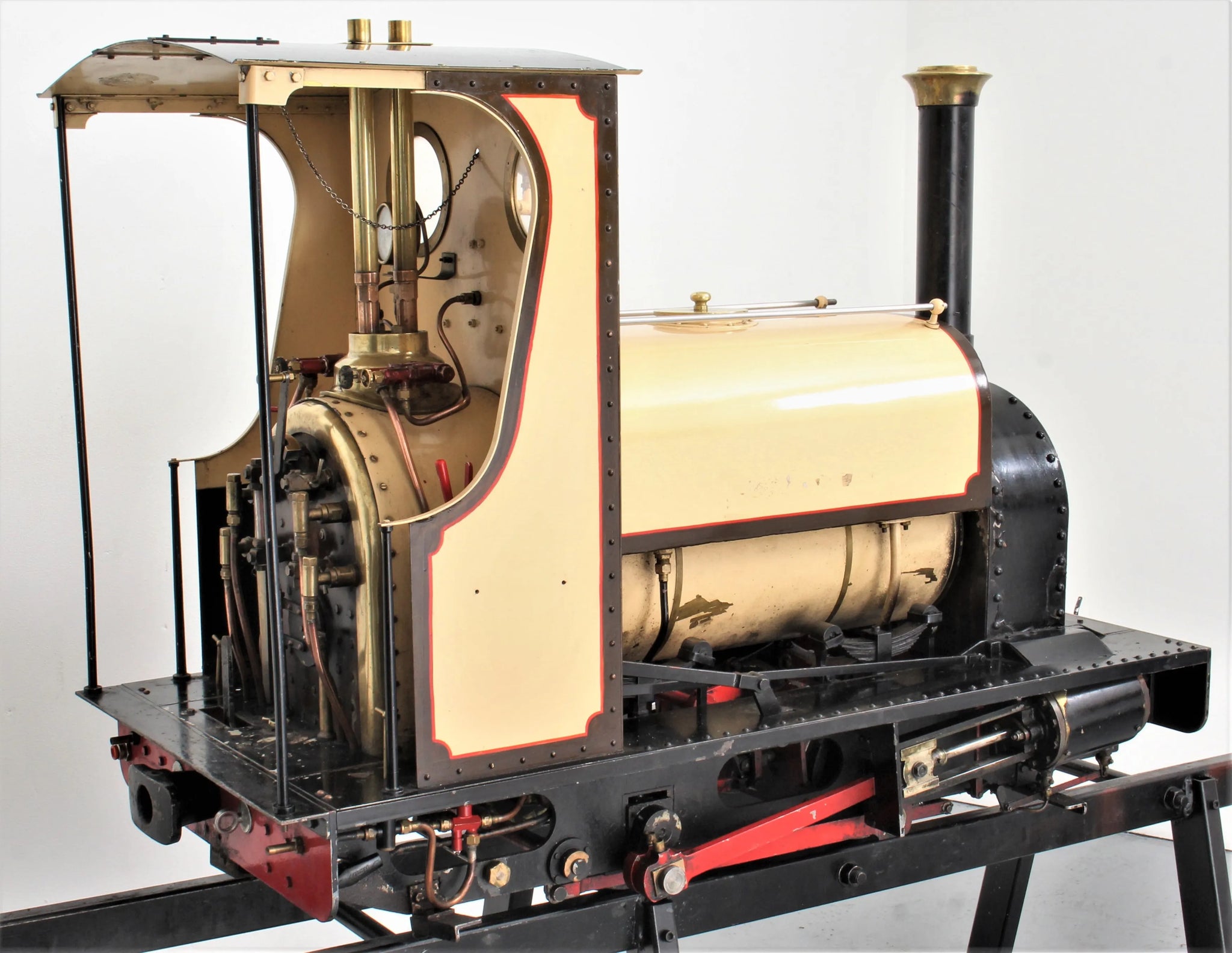

It's recently come back from the man who bought it in from us in 2005, apparently uncleaned since that time. It's rather sad to see such a nicely made engine fallen on hard times: very grubby, the paintwork is in poor condition, cylinder cladding sheets are dinged.

On a more positive note the boiler has been tested and remains in good condition, the engine steams freely and runs.

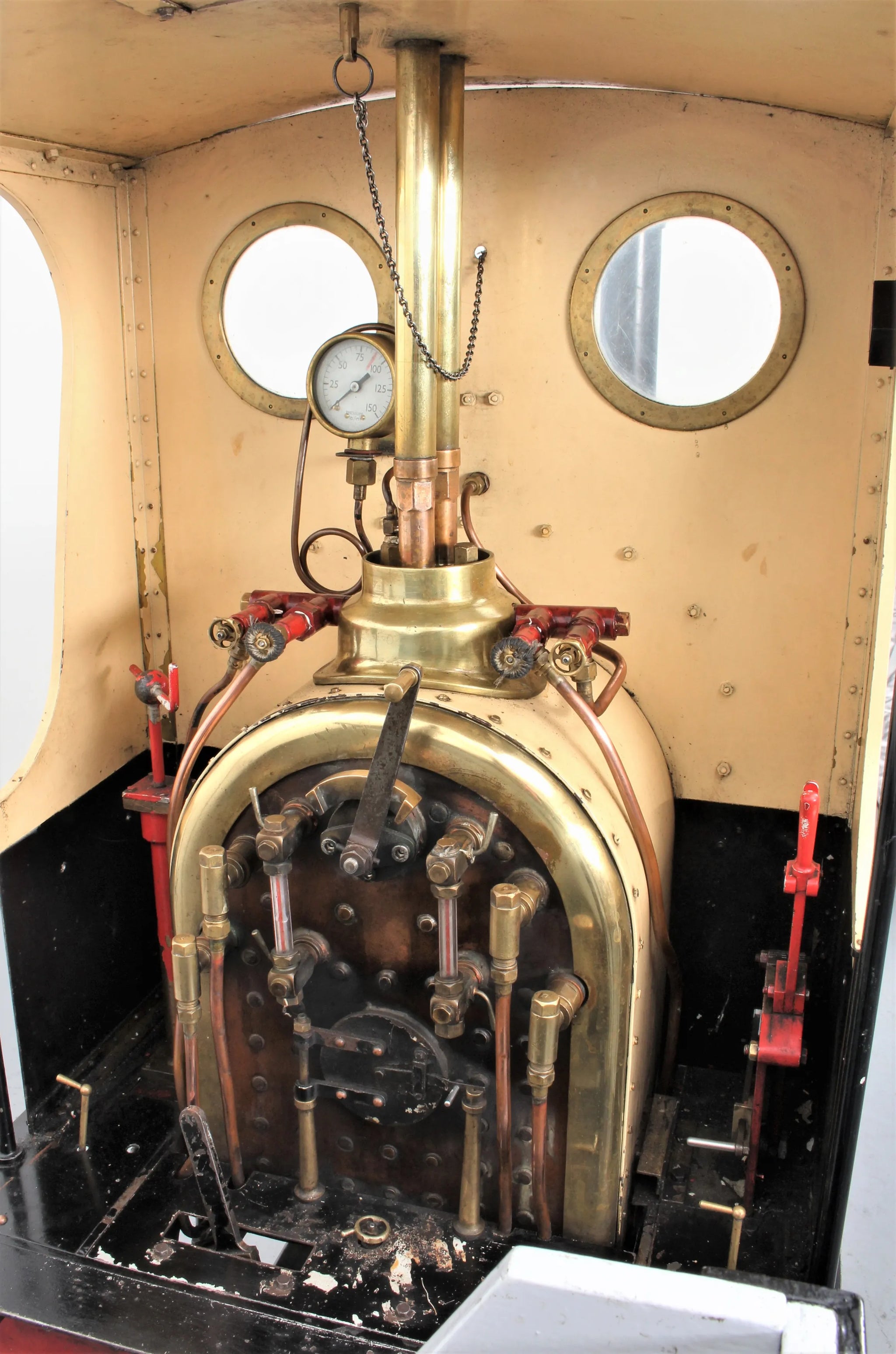

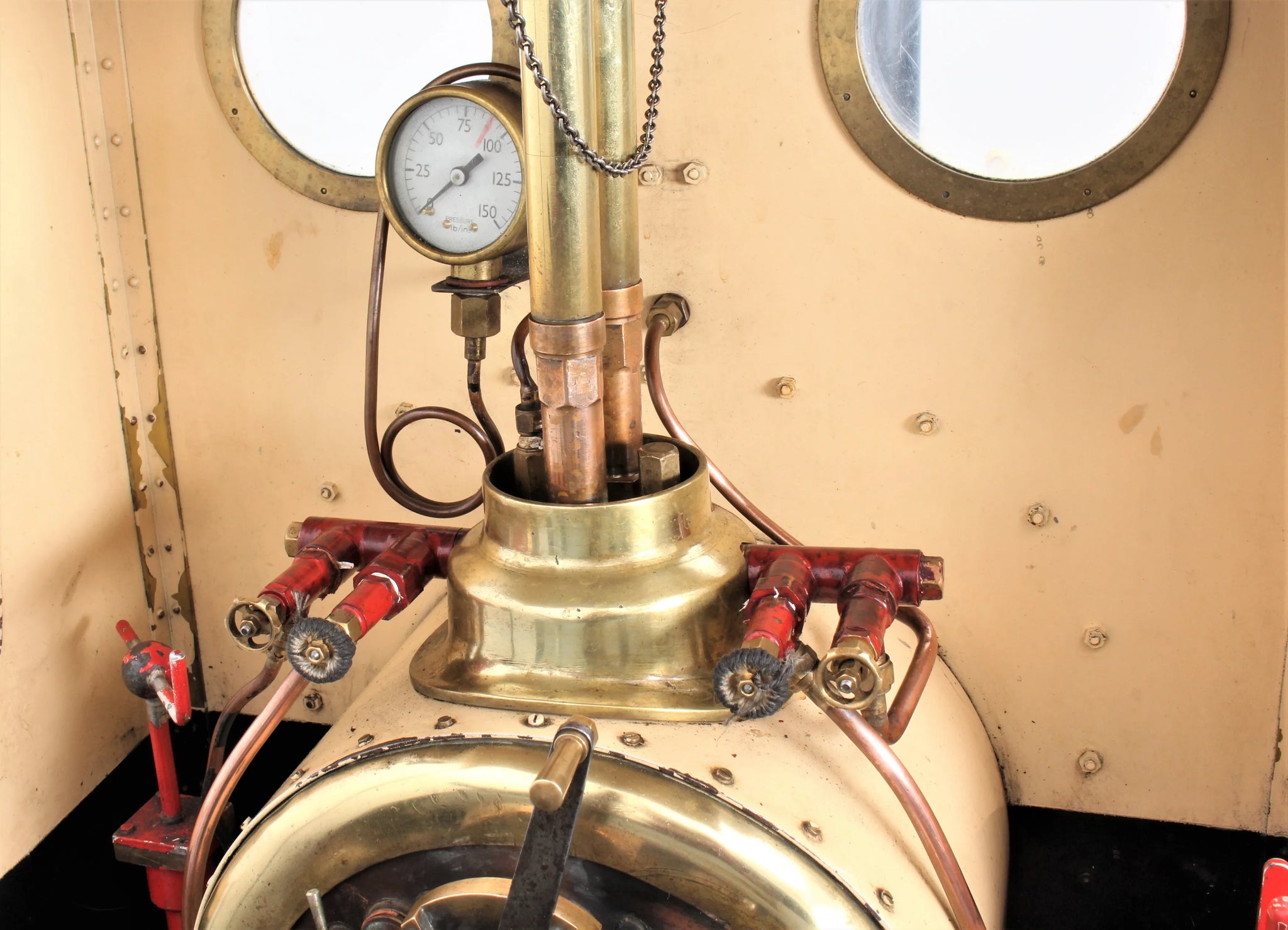

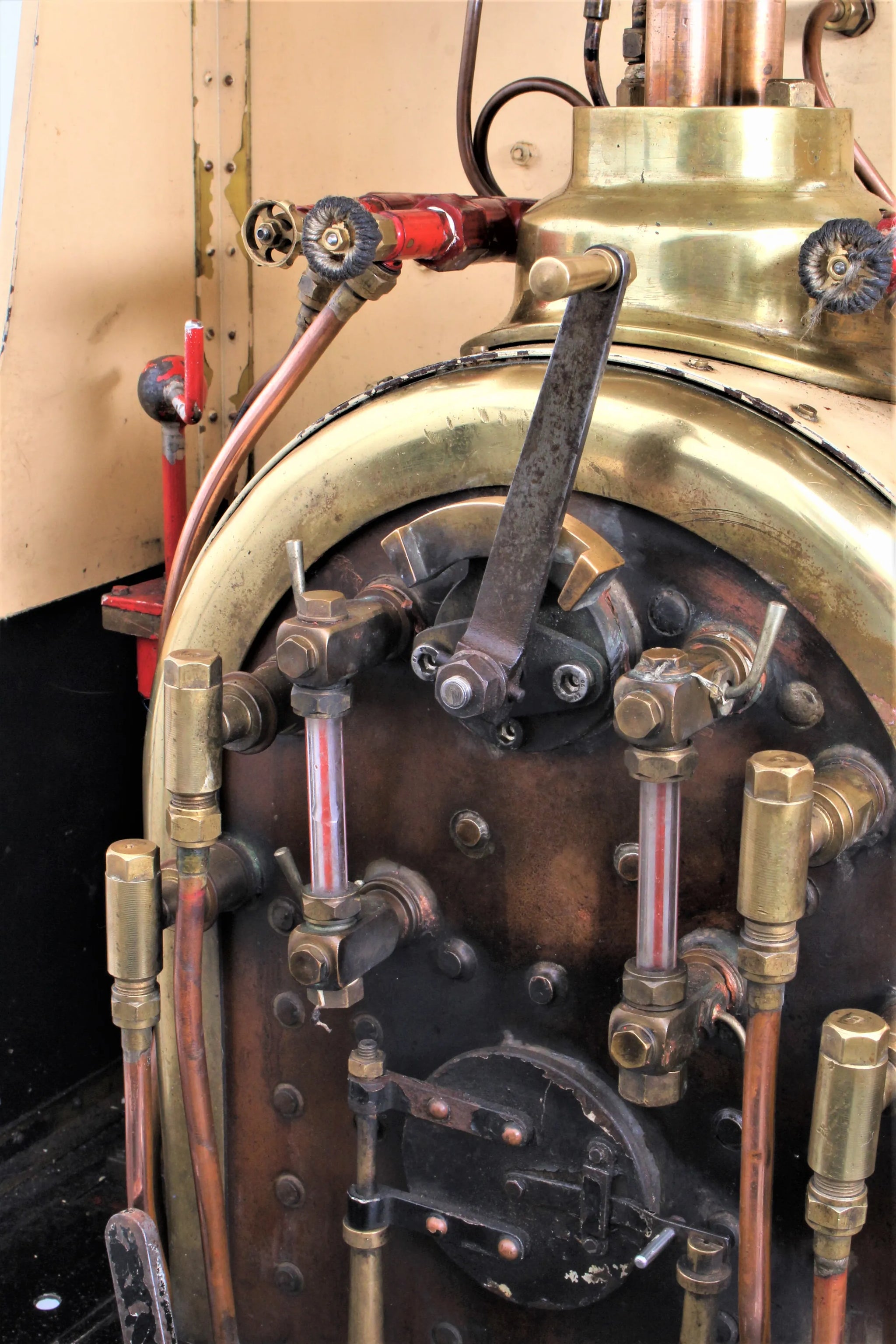

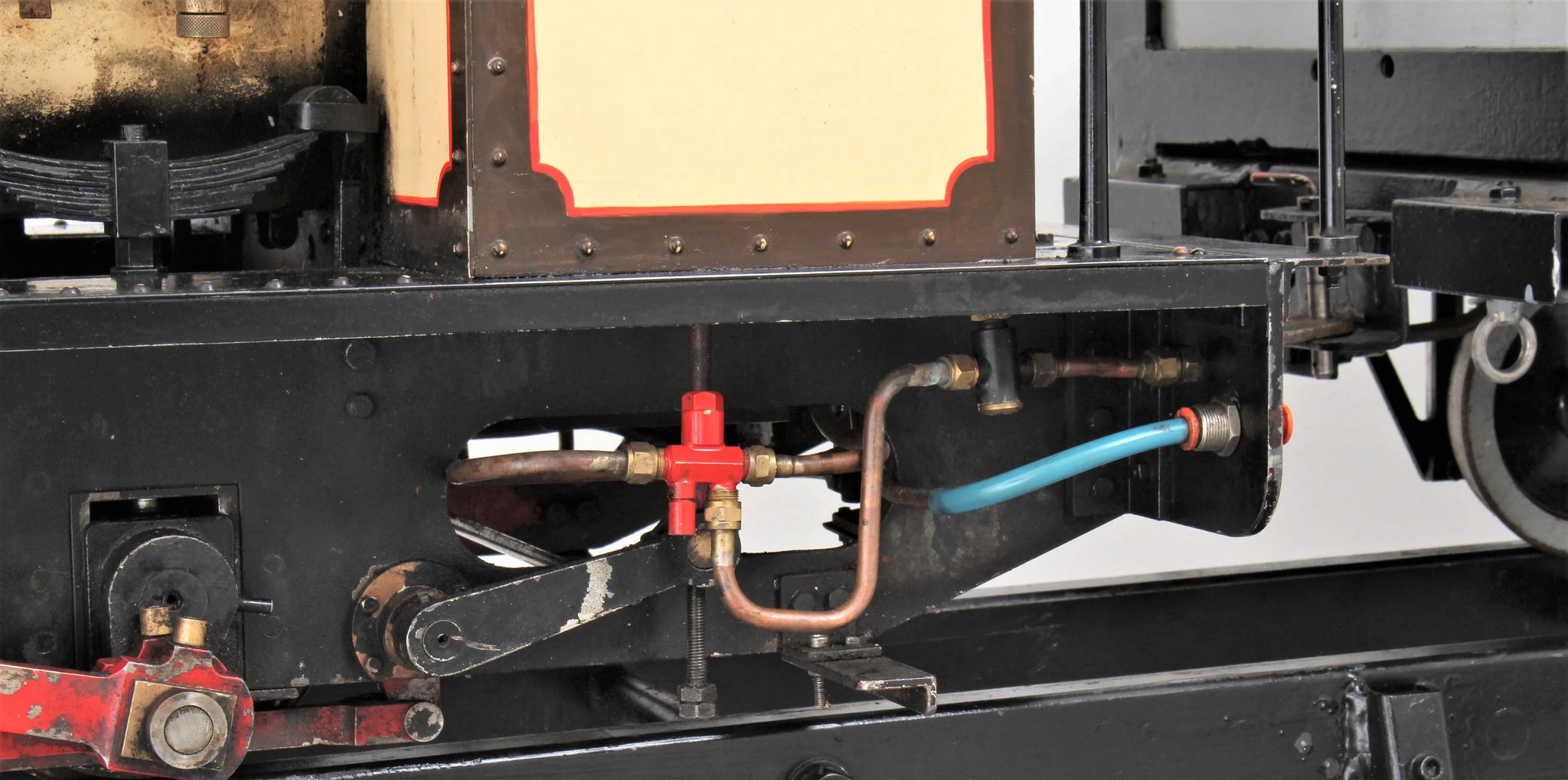

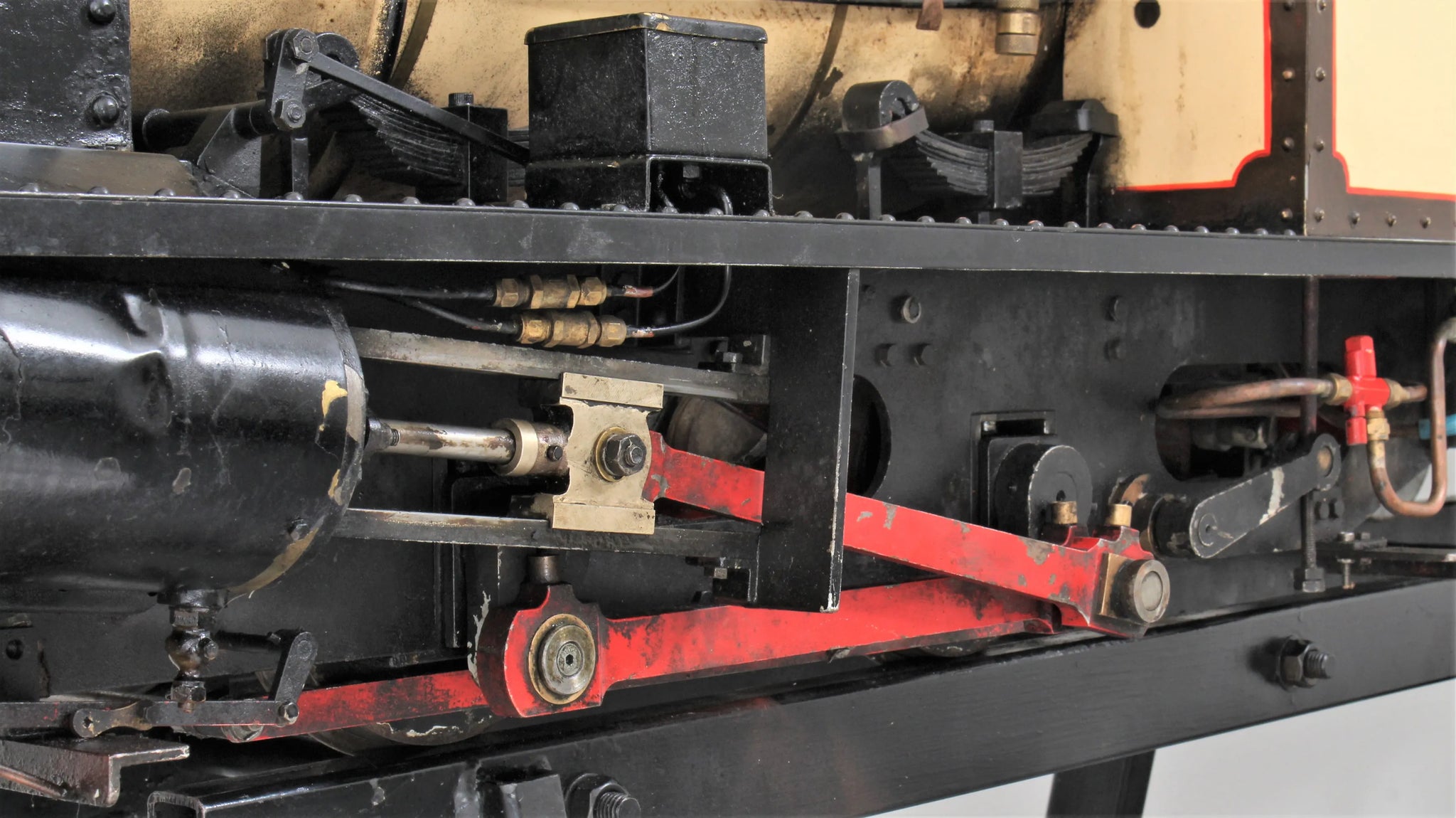

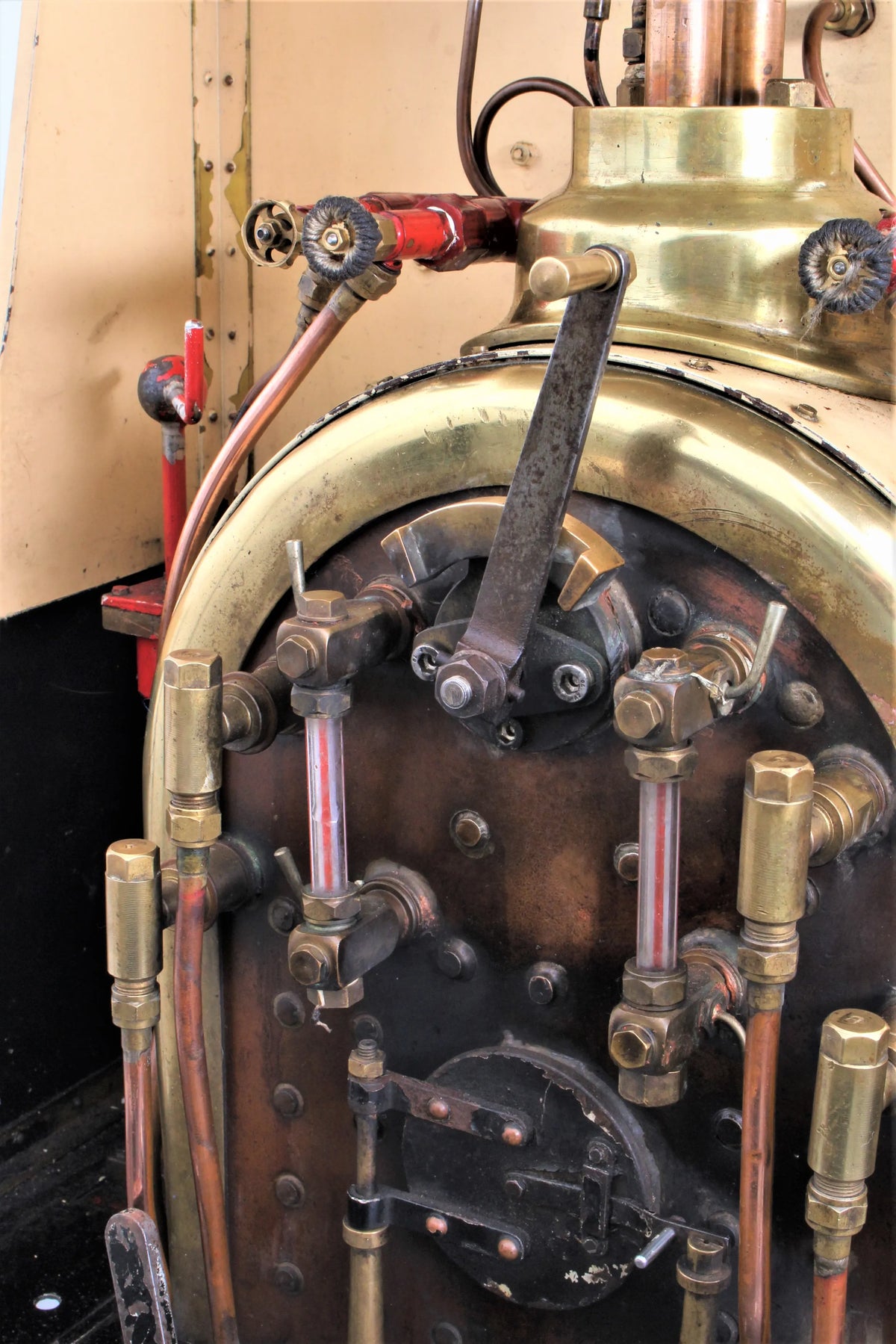

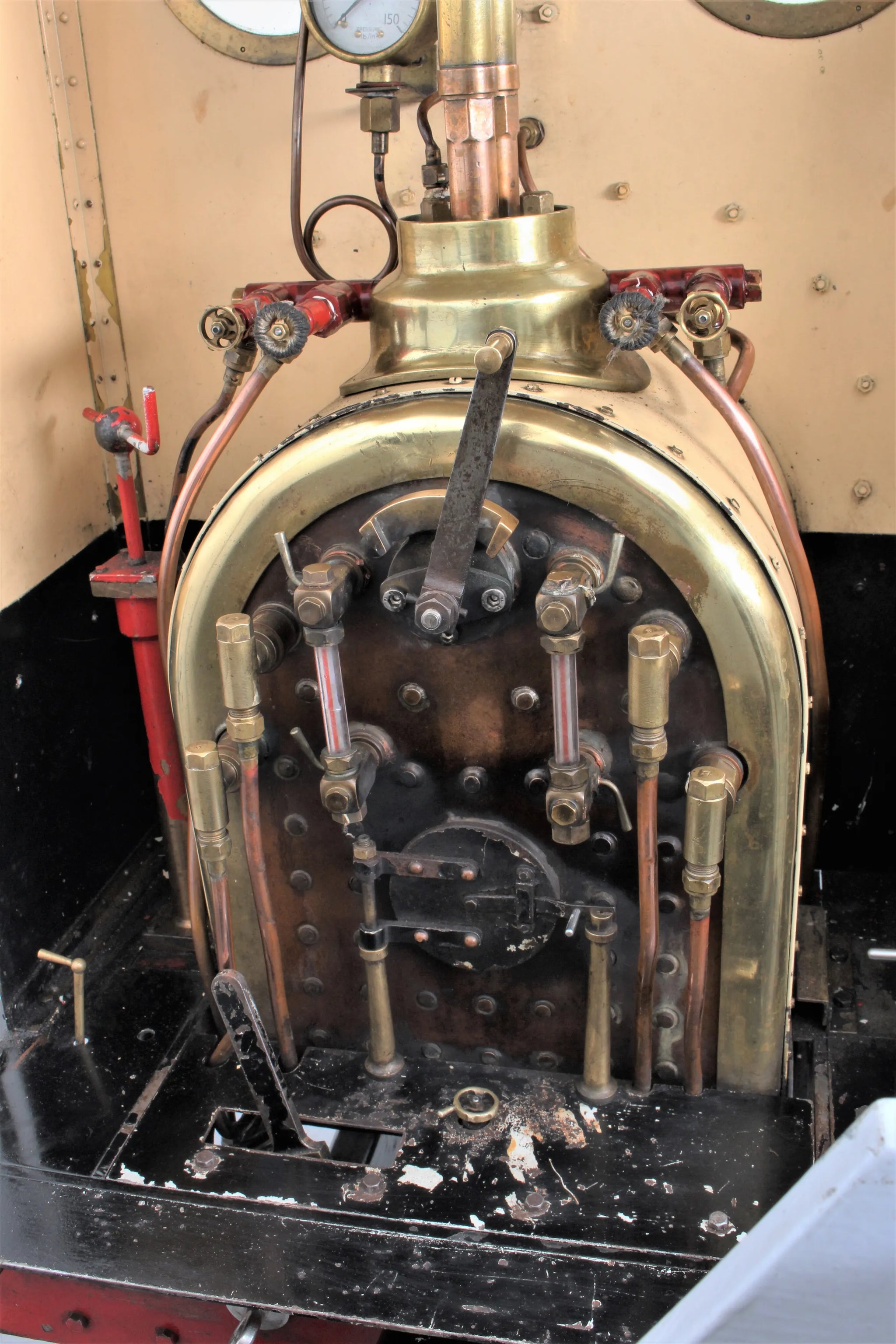

Feed is by twin injectors and hand pump fitted under the footplate. The engine is fitted with an axle pump and eccentric sheave, however there is no strap or rod for same. There is a push-fit connector fitted in the drag beam connected to the top left hand clack - this could be used for an auxiliary pump in the tender if required.

Sold as a running restoration, now would be the ideal time for a winter overhaul and repaint - there's a well-built Hunslet underneath just waiting to see the light of day again, it would be nice to see it restored to its former glory.

Technical information

Stock code

8891

Gauge

7 1/4 inch

Scale

3 inch

Length/inches

40+38

Width/inches

18

Height/inches

28

Wheel material

cast iron

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

Year built

1998

Boiler number

68-90-48

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

Injector

2

Date out

Dec-19

Hydraulic test valid to

02-Dec-23
