Sold

9130

7 1/4 inch gauge American Mogul

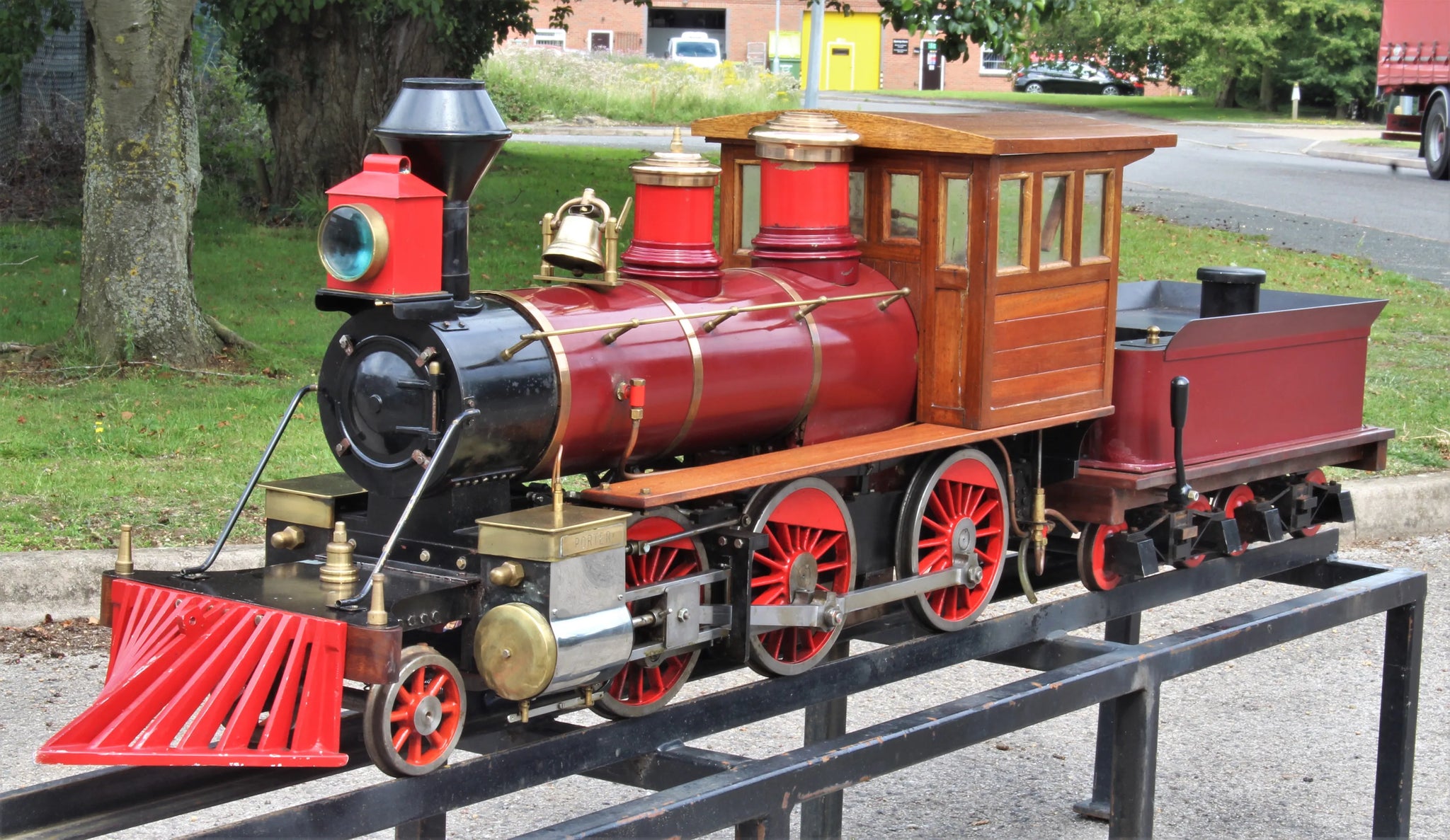

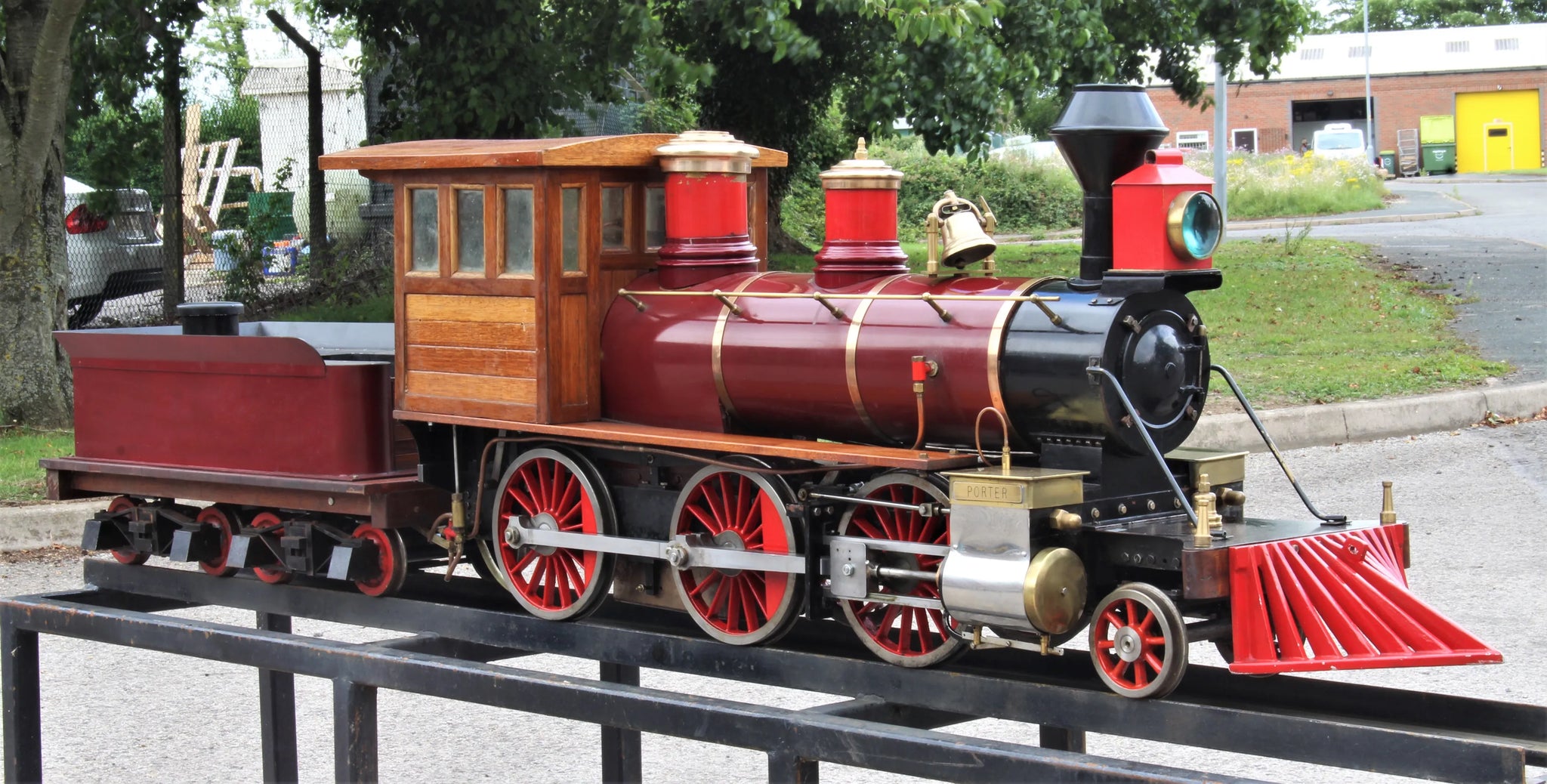

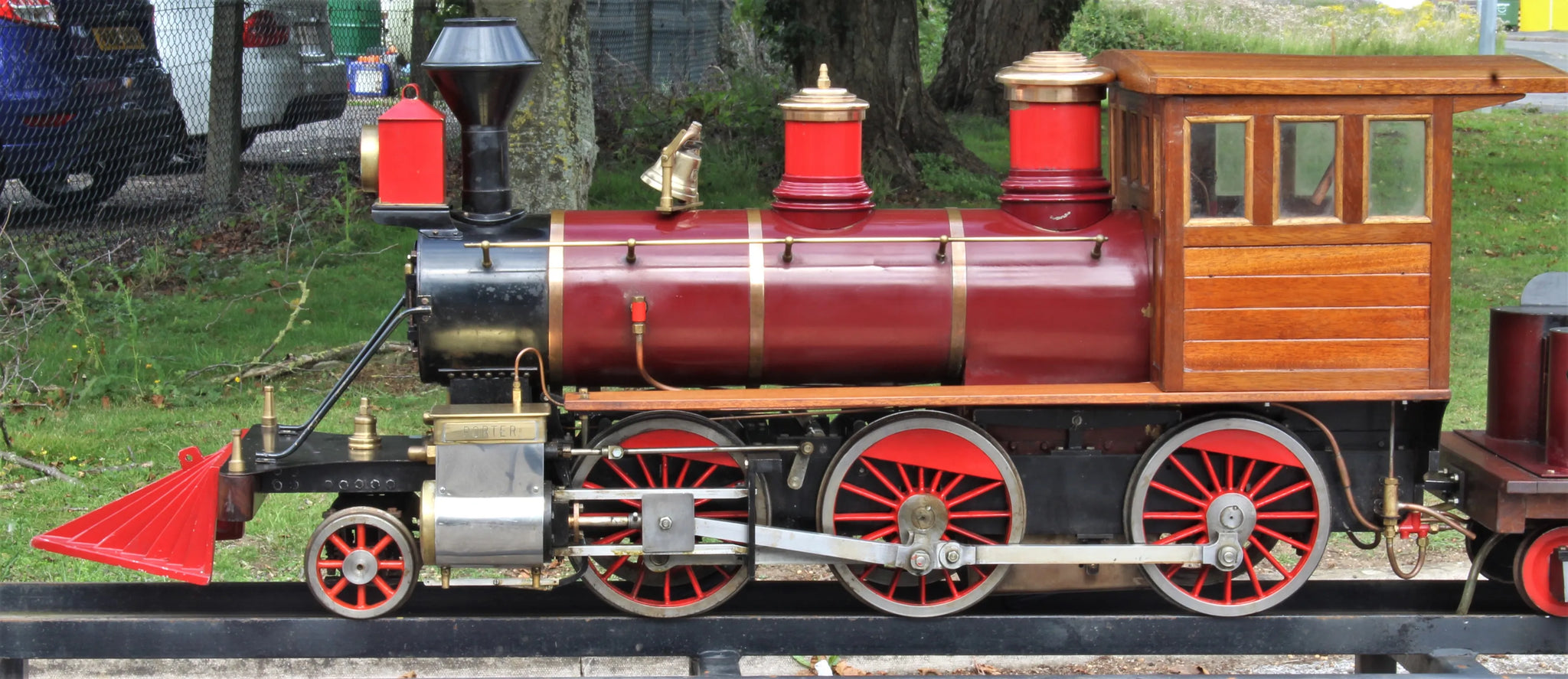

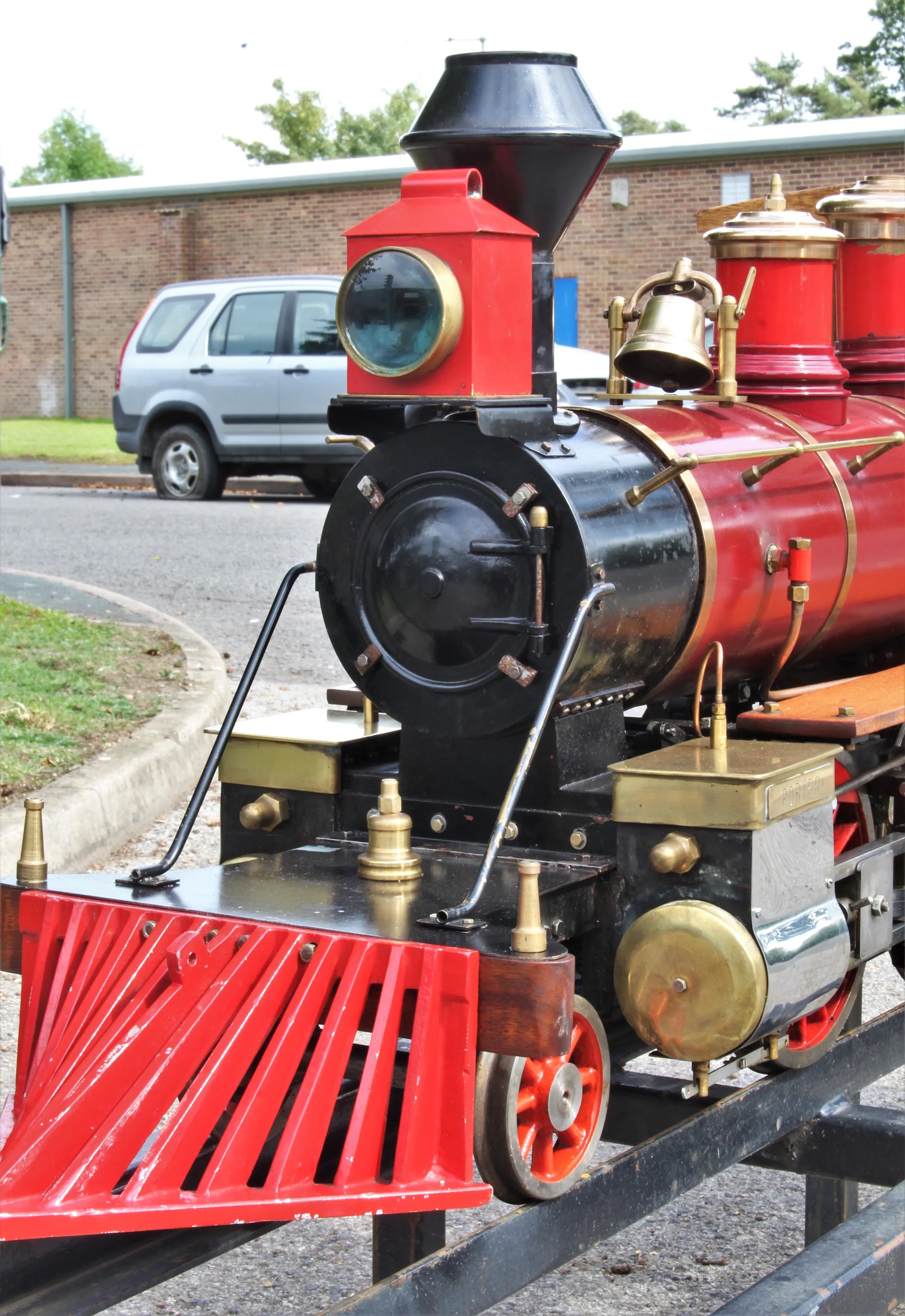

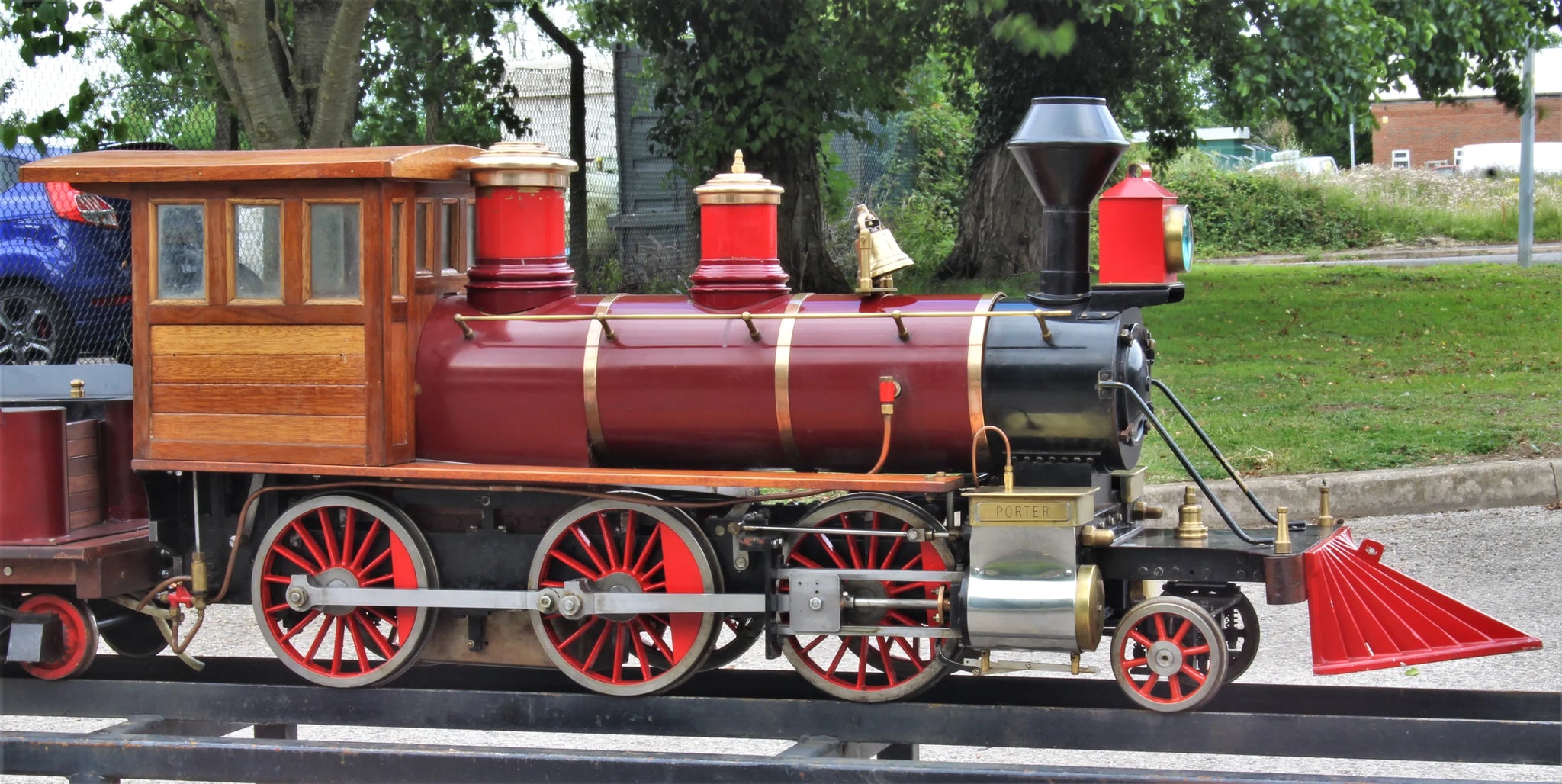

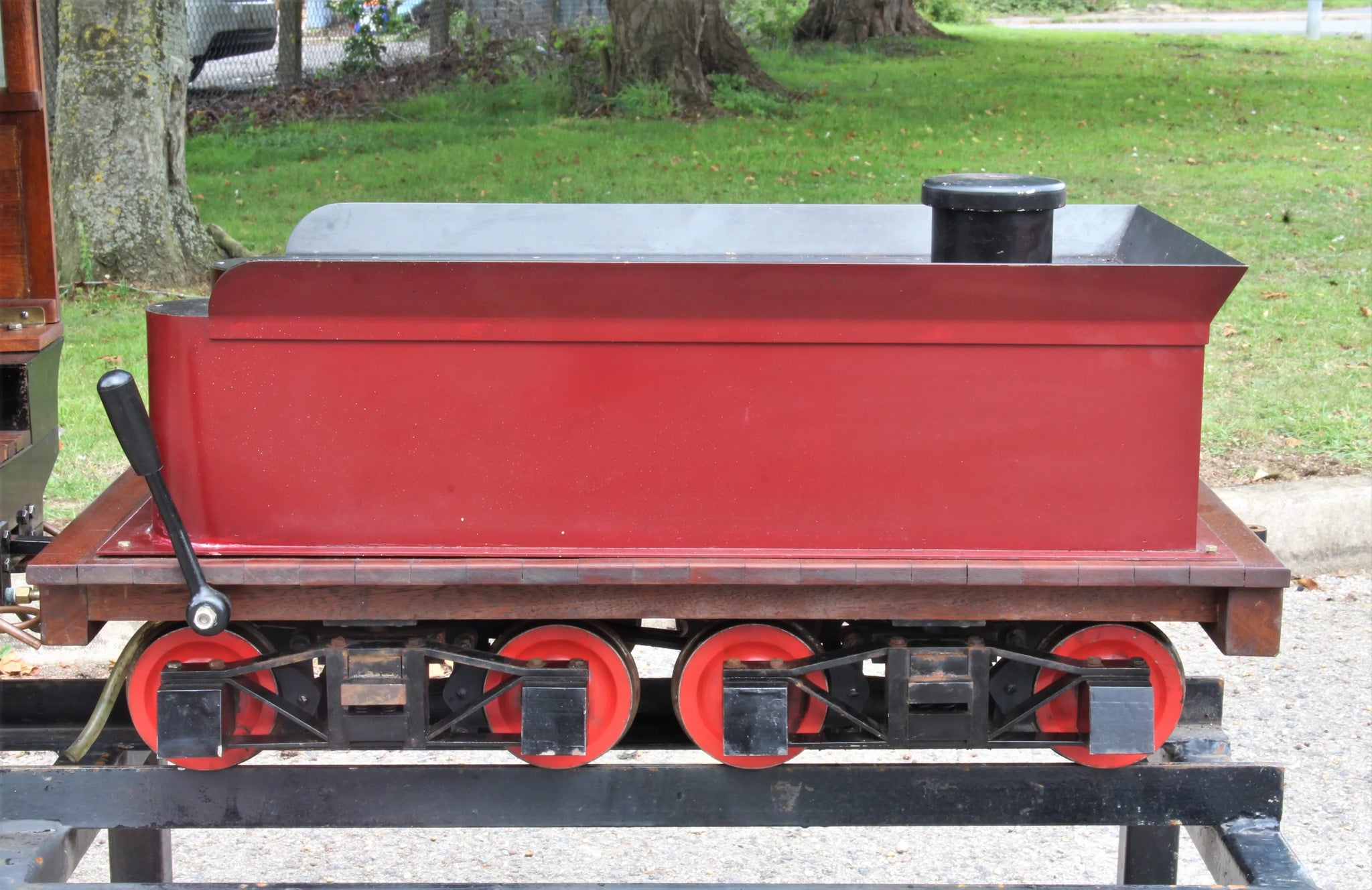

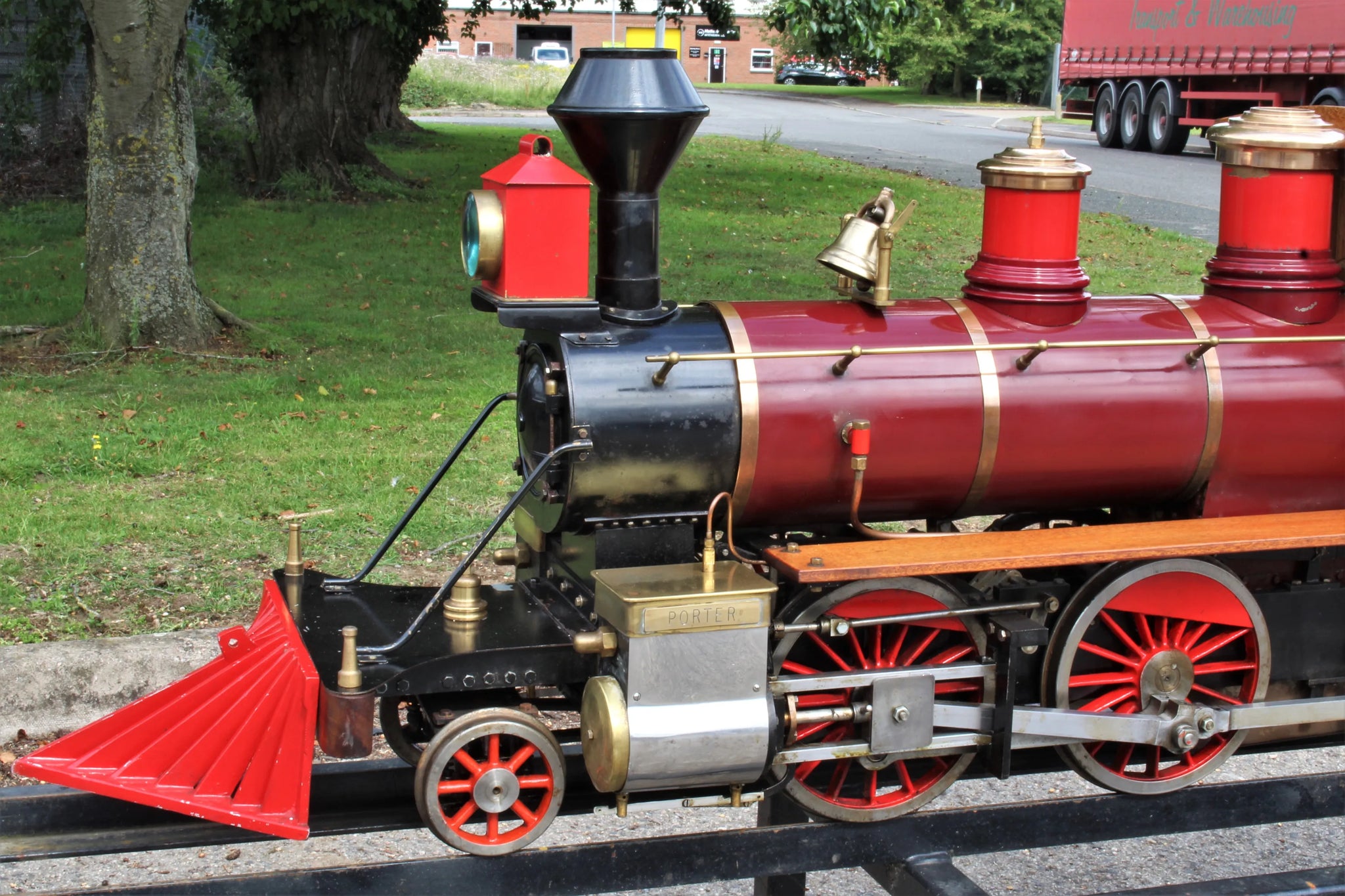

A well-built 7 1/4 inch gauge American Mogul - a large, handsomely proportioned engine, nearly eight feet long with tender.

The boiler dates from 1990 although documentation suggests that the engine wasn't finished until some years later - it remains in good condition.

The engine steams freely and runs well - there's a clip of it in steam outside the workshop here.

We have past club history for the boiler dating back to 1996 - overall it's in good order and structurally sound on hydraulic test.

We've put an advisory on the latest certificate, noting a scarcely visible damp patch showing at the end of one tube which is dry under steam. It's been expanded in the workshop and re-tested, we're happy to offer a 12 month warranty on the boiler in addition to our normal warranty on the rest of the locomotive.

Technical information

Stock code

9130

Gauge

7 1/4 inch

Length/inches

59+30

Width/inches

16

Height/inches

23

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

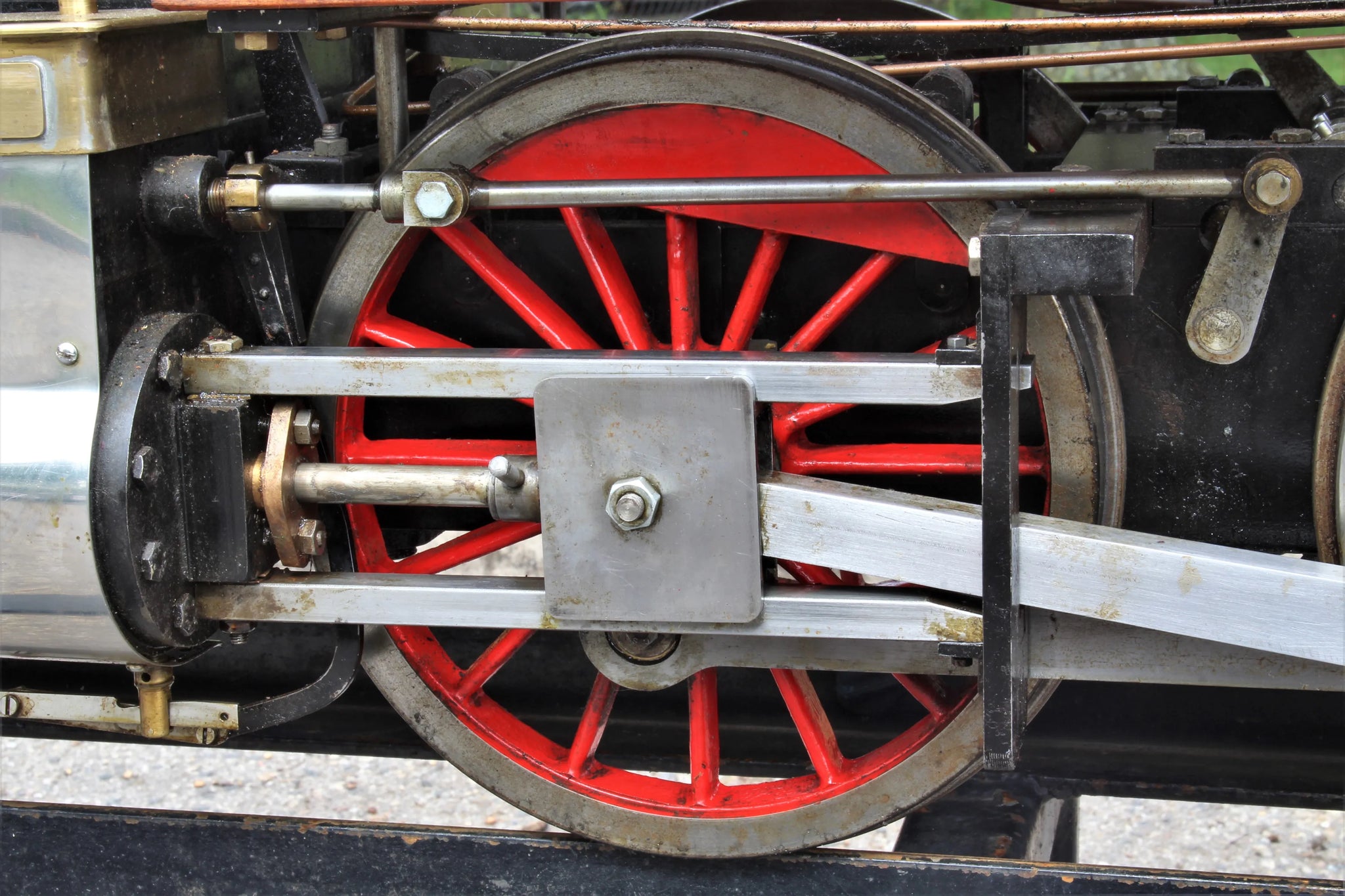

Valve type

slide

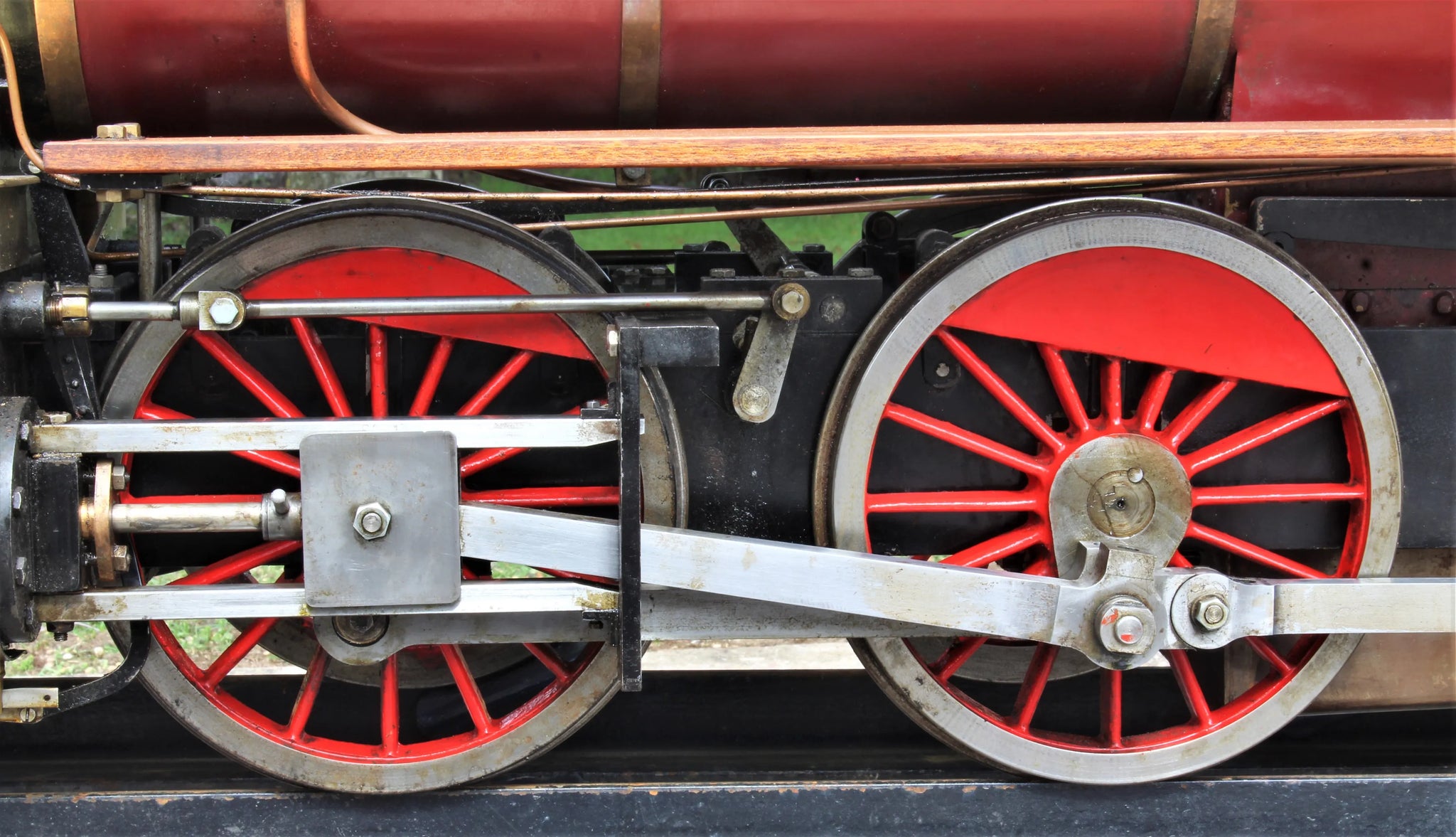

Valve gear

Stephensons

Reverser type

pole

Lubricator type

displacement with sight feed

Boiler maker

B Lee

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

n/a pre-2002

Year built

1990

Boiler number

N4-100-250

Safety valve type

spring

Safety valve

2

Hand pump

1

Injector

2

Date out

Jul-20

Hydraulic test valid to

23-Jun-24

Steam test valid to

31-Aug-21
