Sold

12785

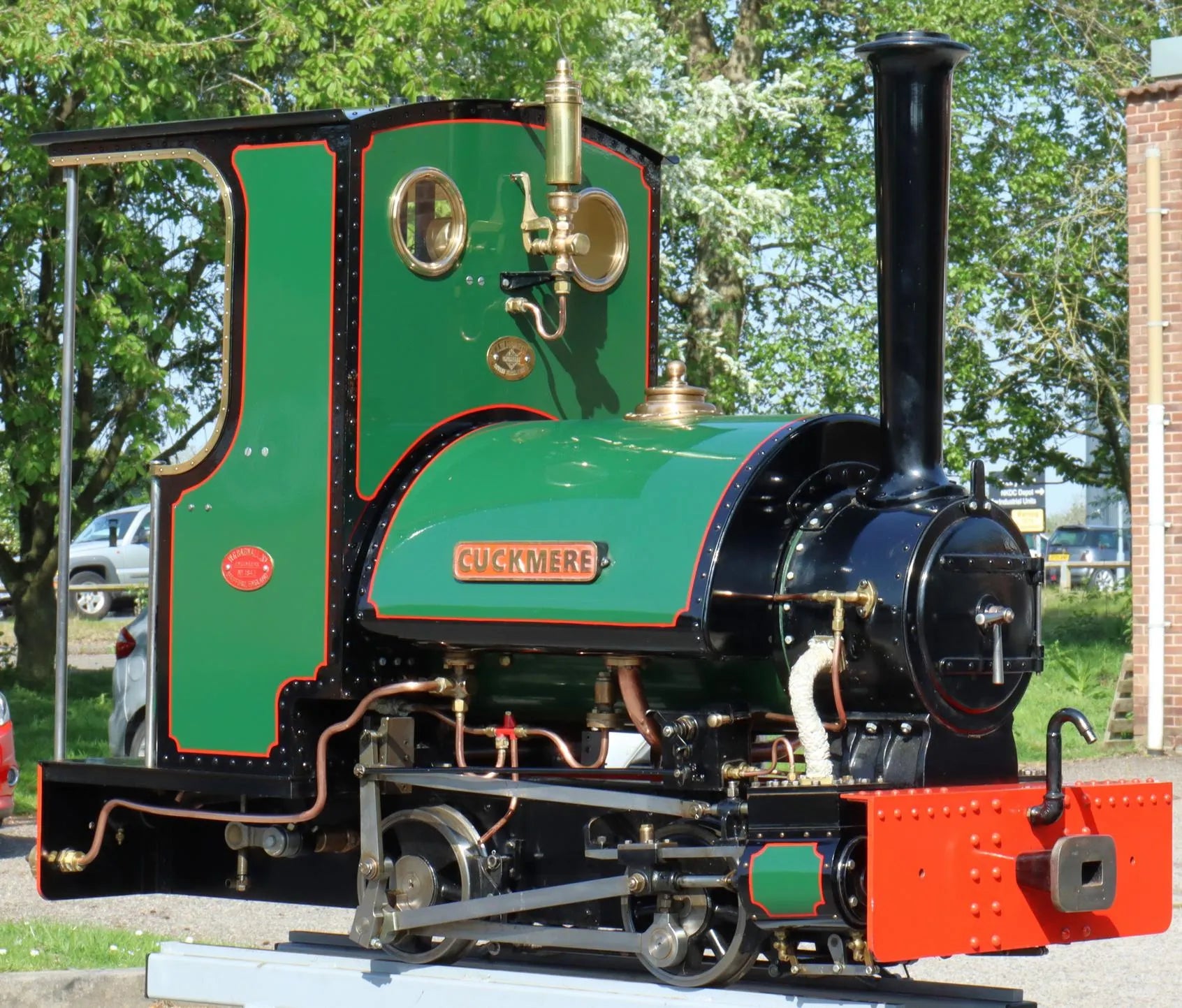

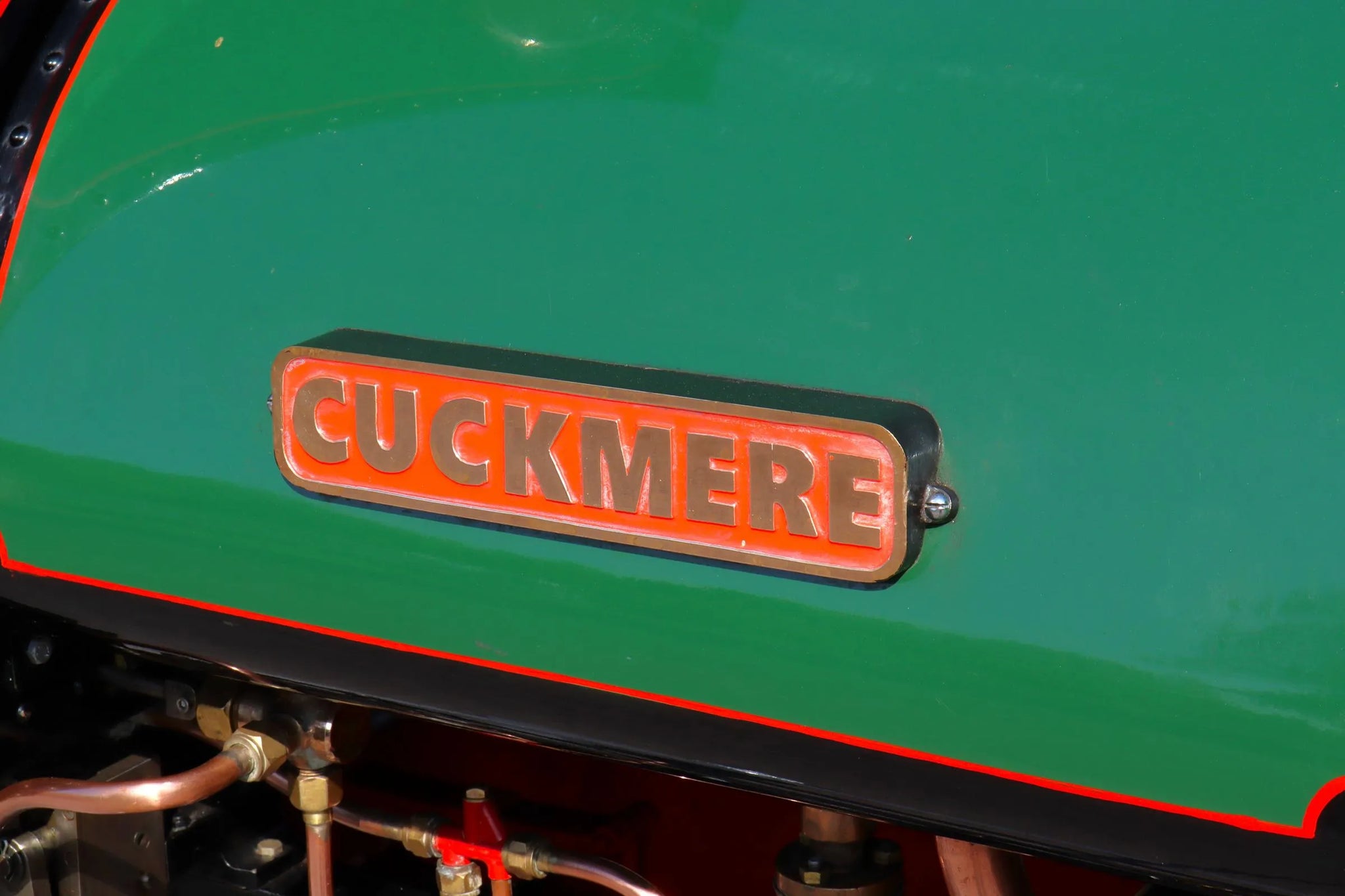

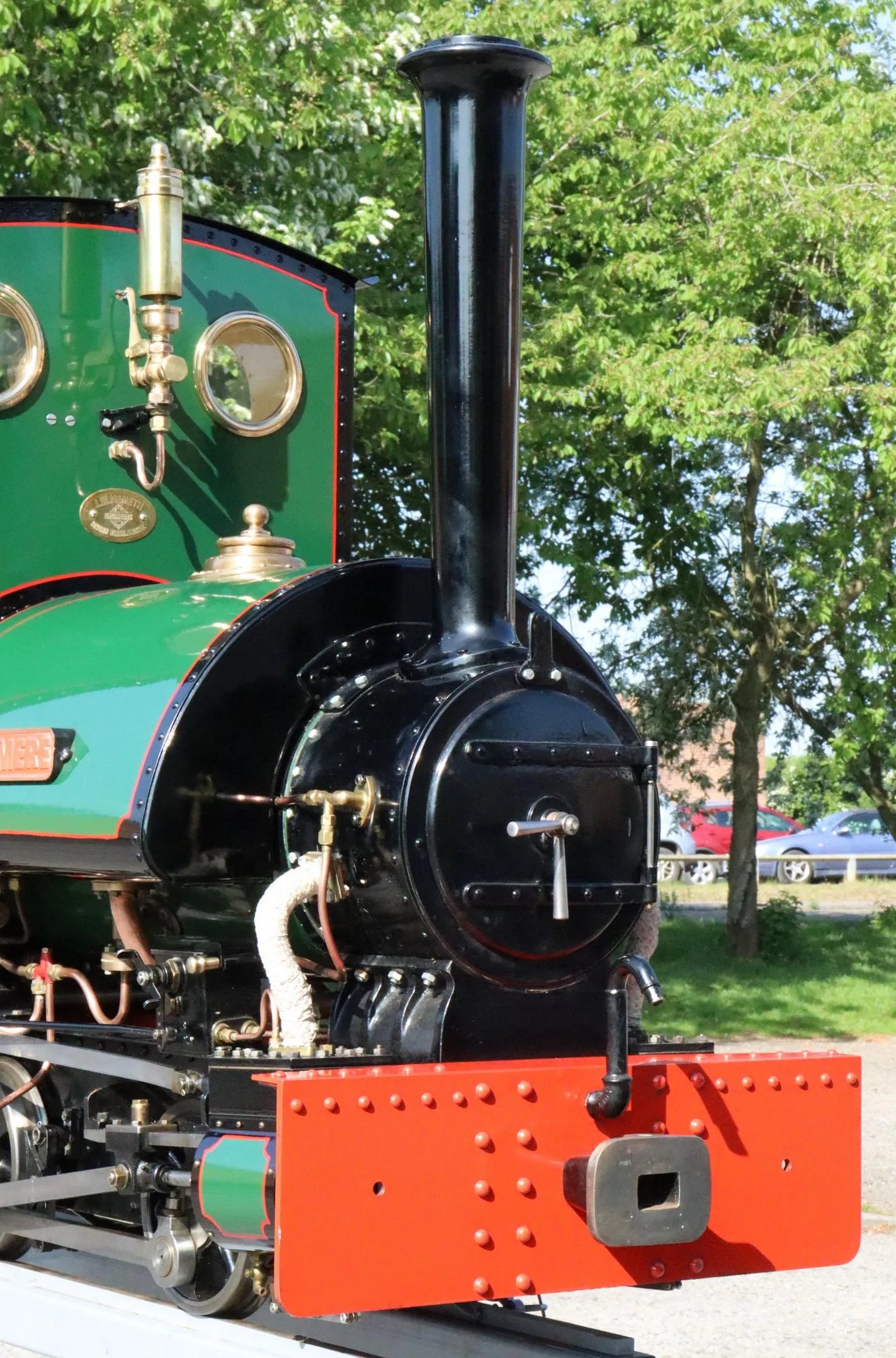

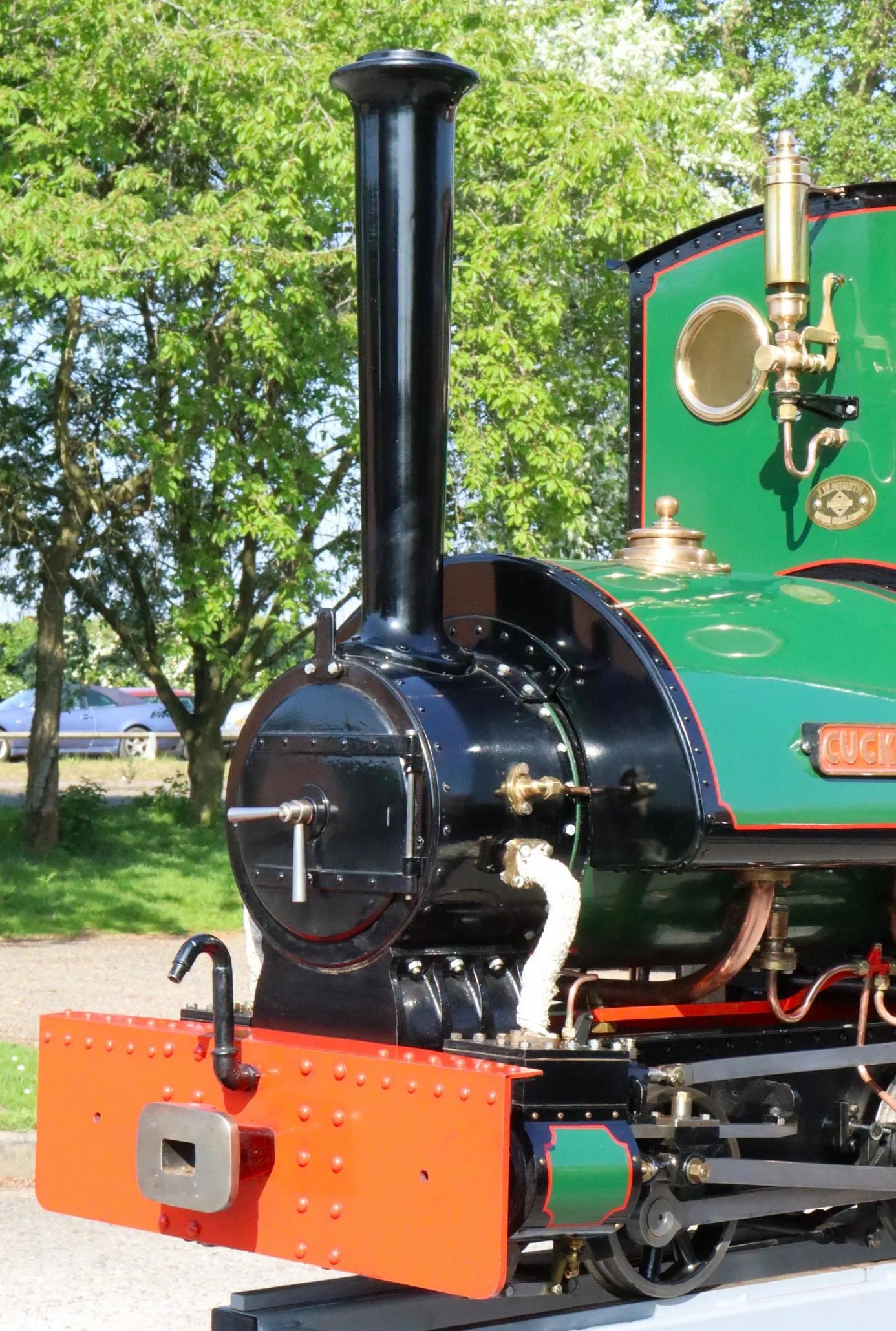

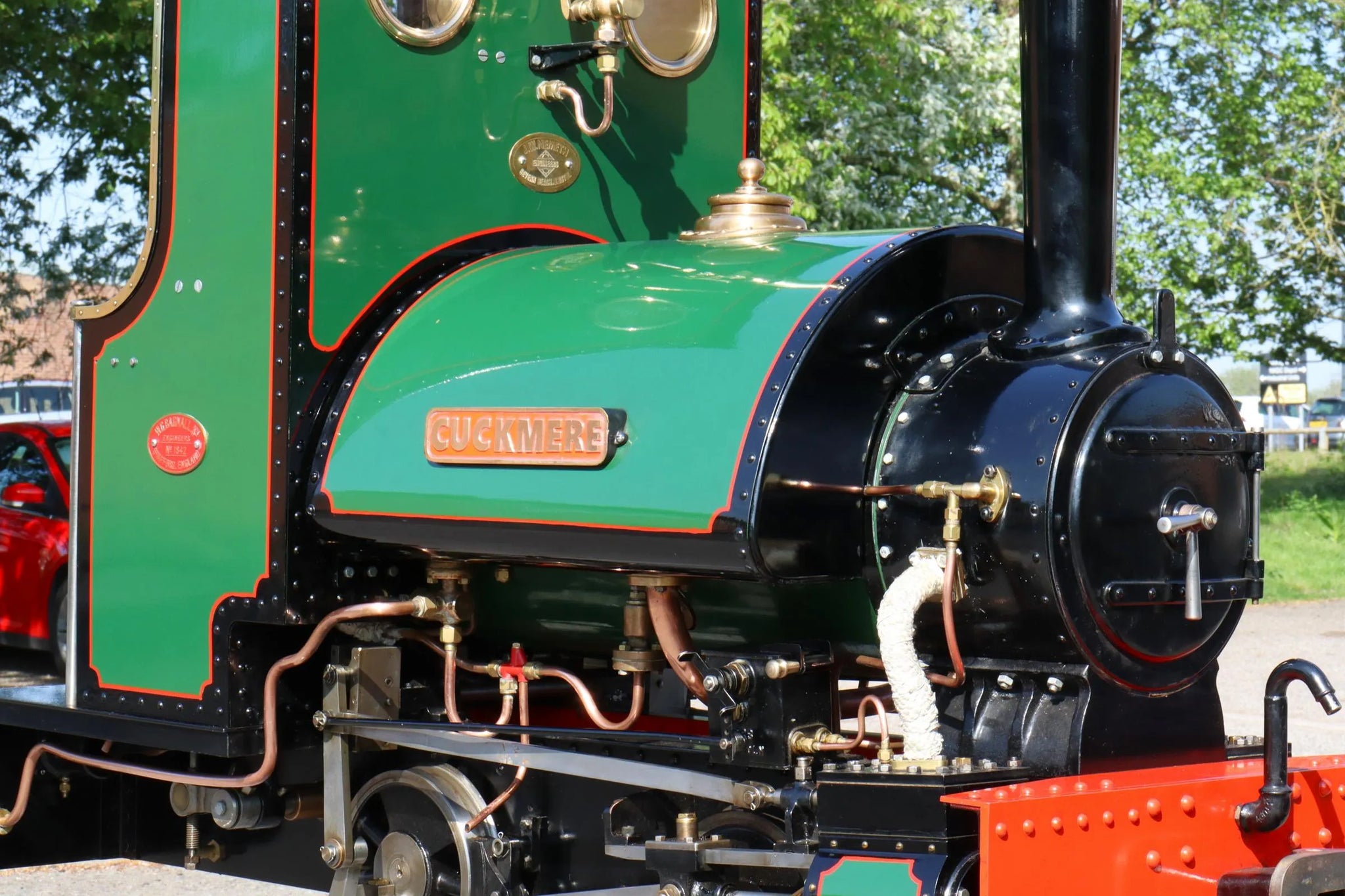

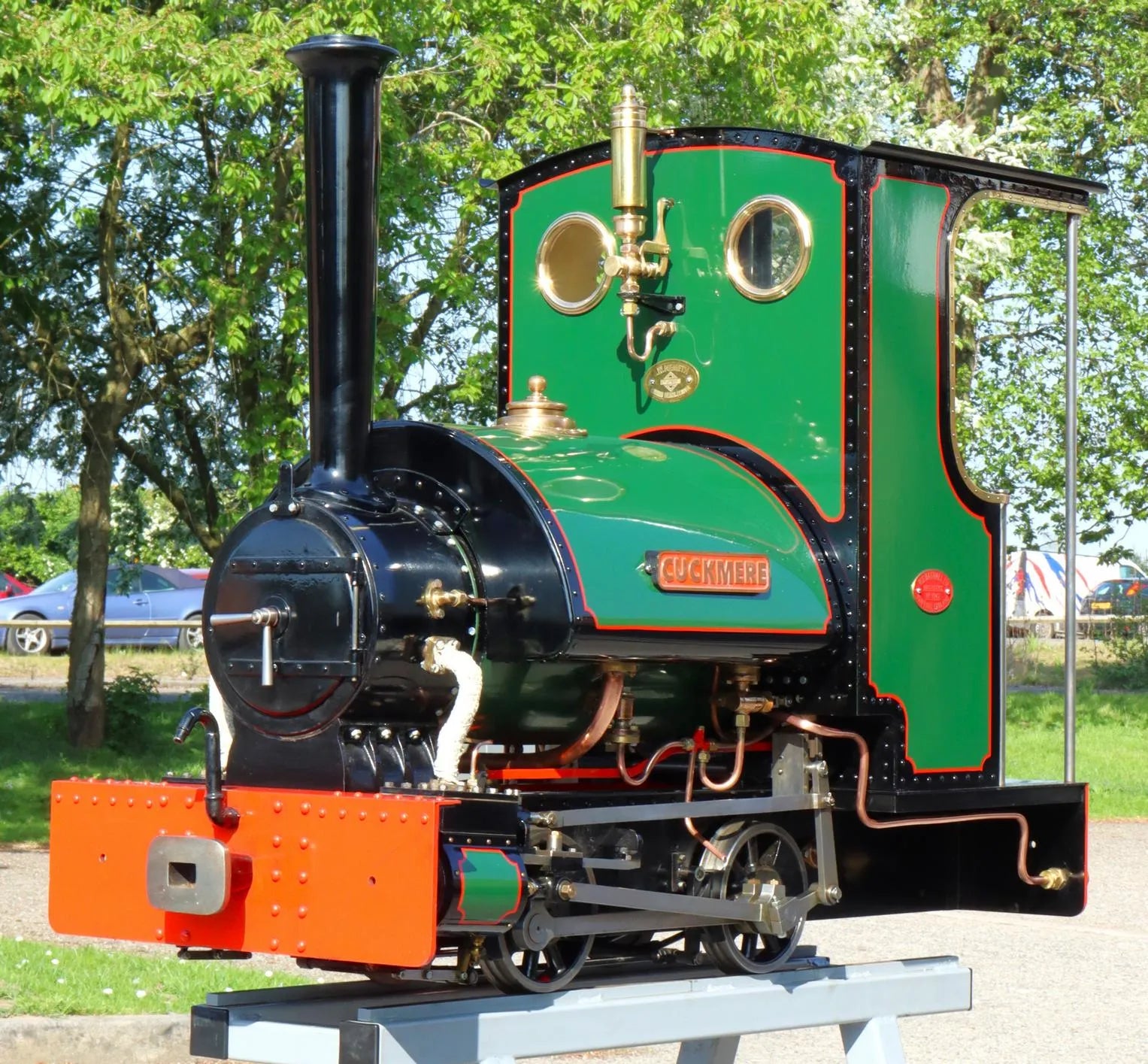

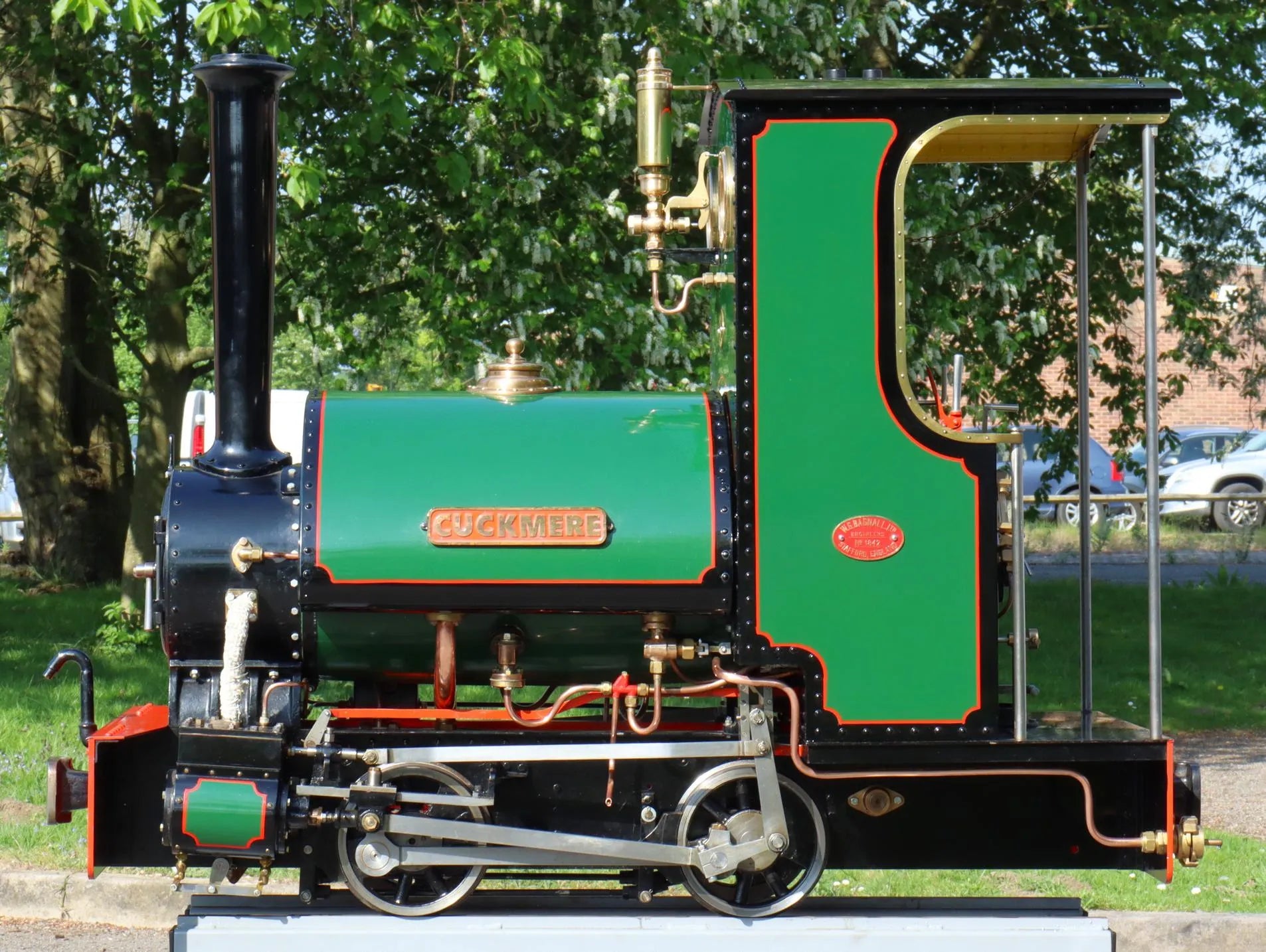

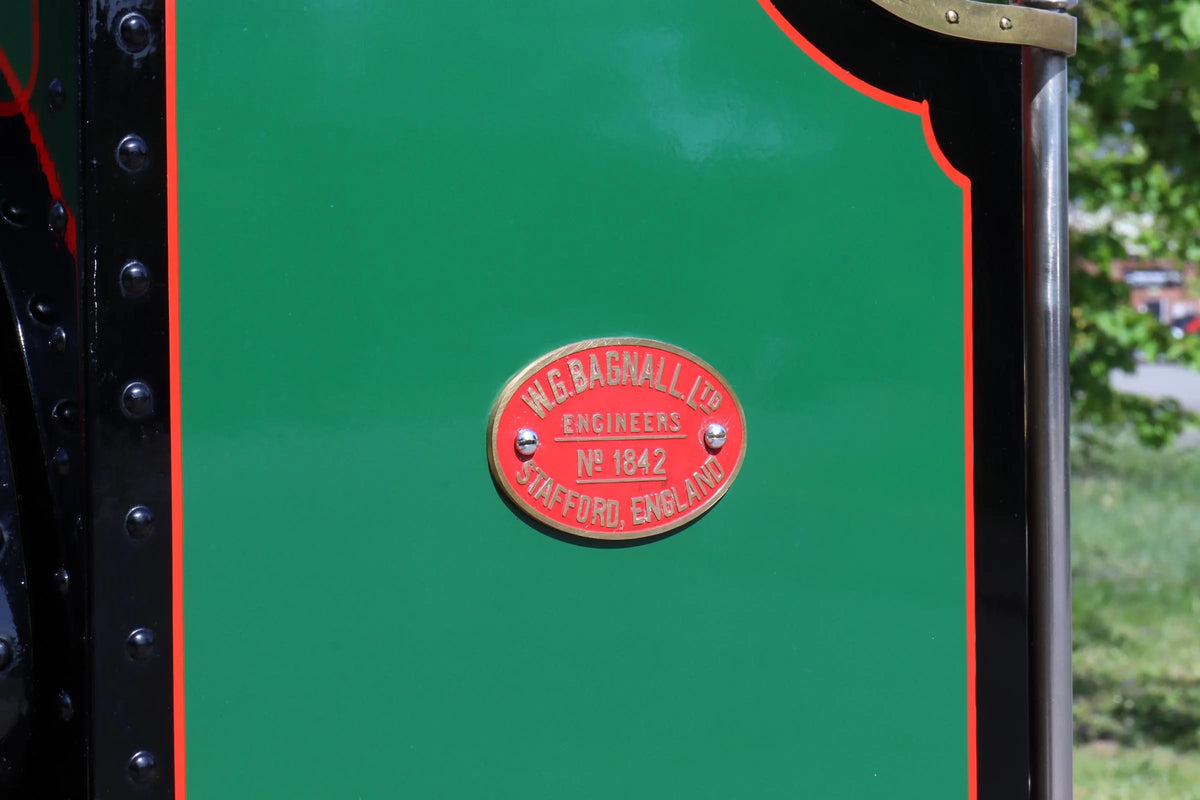

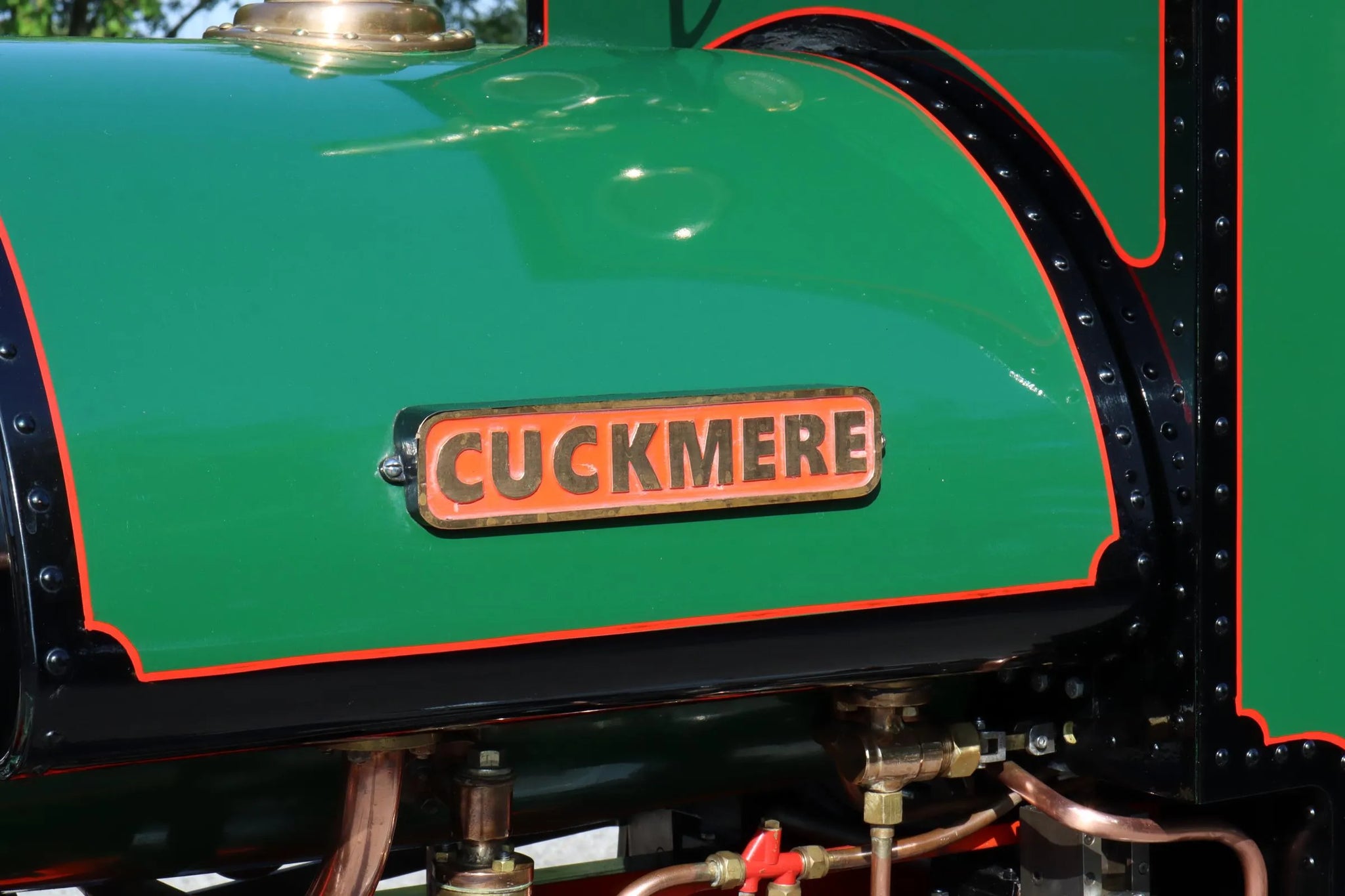

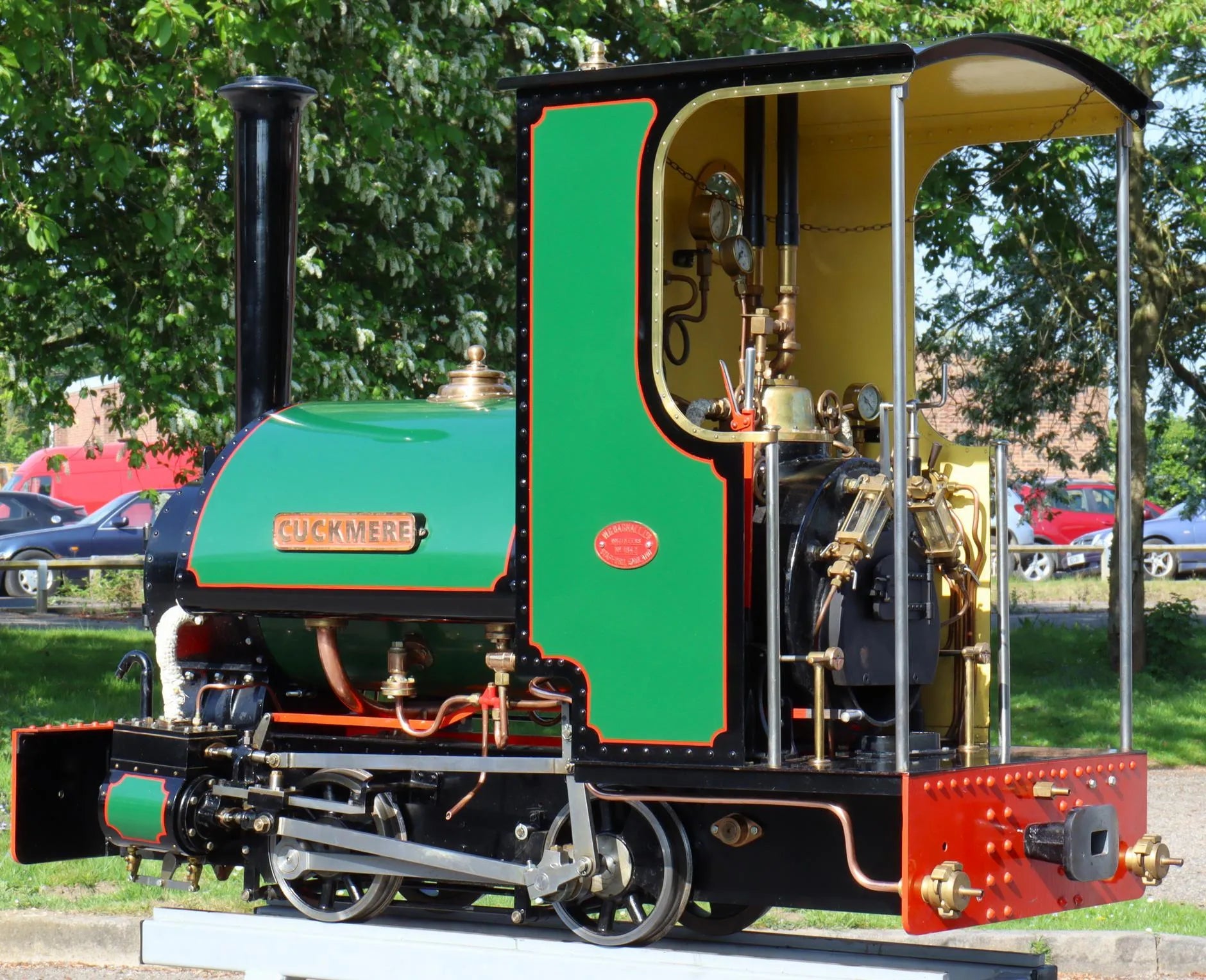

7 1/4 inch narrow gauge Bagnall 0-4-0ST "Cuckmere"

A 7 1/4 inch narrow gauge Bagnall 0-4-0ST to the MJ Engineering design. We sold this one back in 2008 as a well-advanced part-built engine.

The new owner had the engine professionally finished and painted to a high standard, since when it remained in his possession, only occasionally used in recent years.

The boiler has had hydraulic and steam tests with new certification issued. The engine is in good condition throughout - it steams freely and runs very well, the paintwork remains in excellent condition.

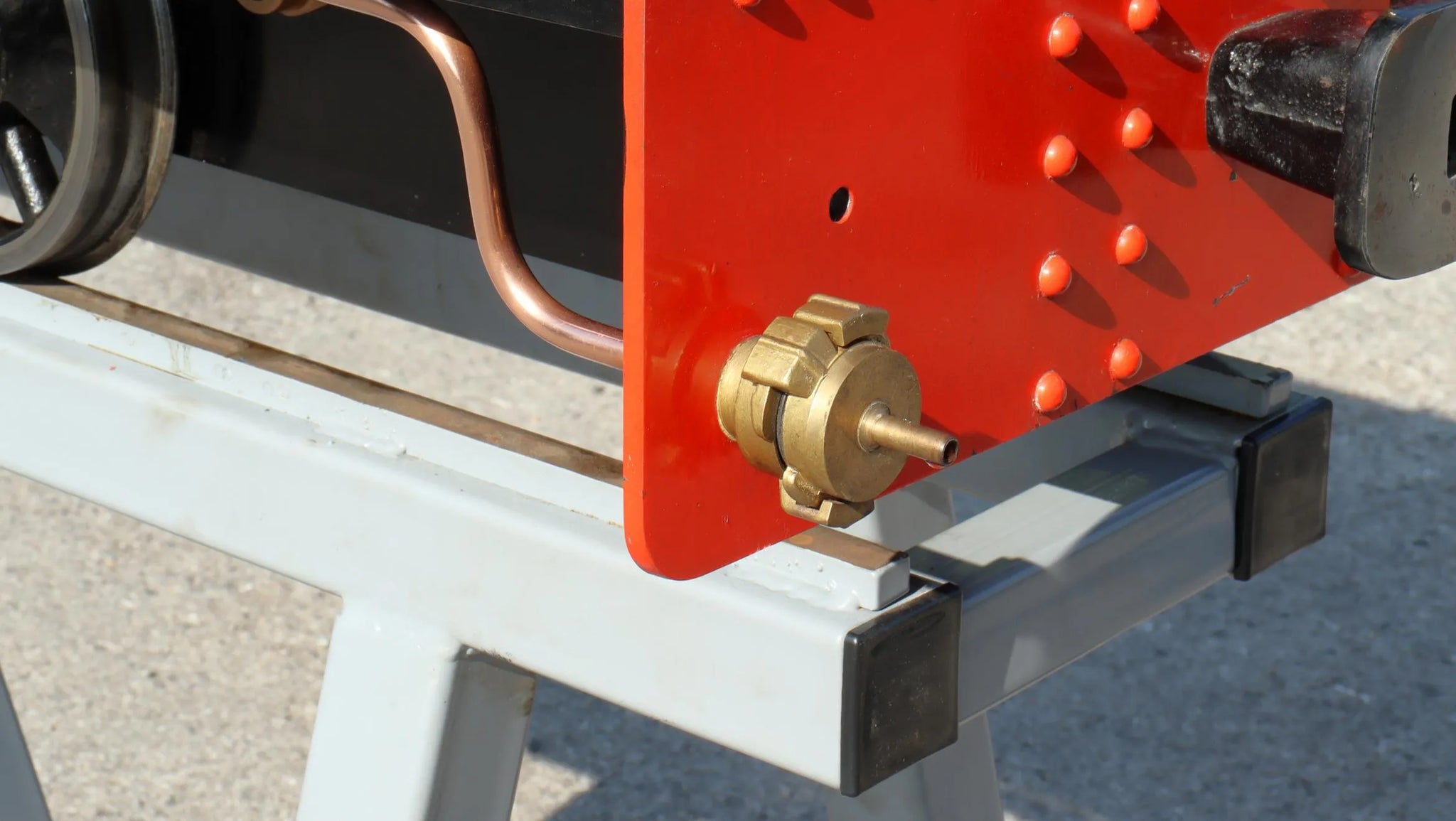

The locomotive is fitted with steam brakes, with vacuum braking for the train.

Supplied with handbook, 12 months warranty, firing irons and starter kit of coal and oil.

If required we would be more than happy to include training at our works on the firing, driving and disposal of the engine for a new owner.


Technical information

Stock code

12785

Gauge

7 1/4 inch

Length/inches

49

Width/inches

20.5

Height/inches

39

Weight/Kg

261

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

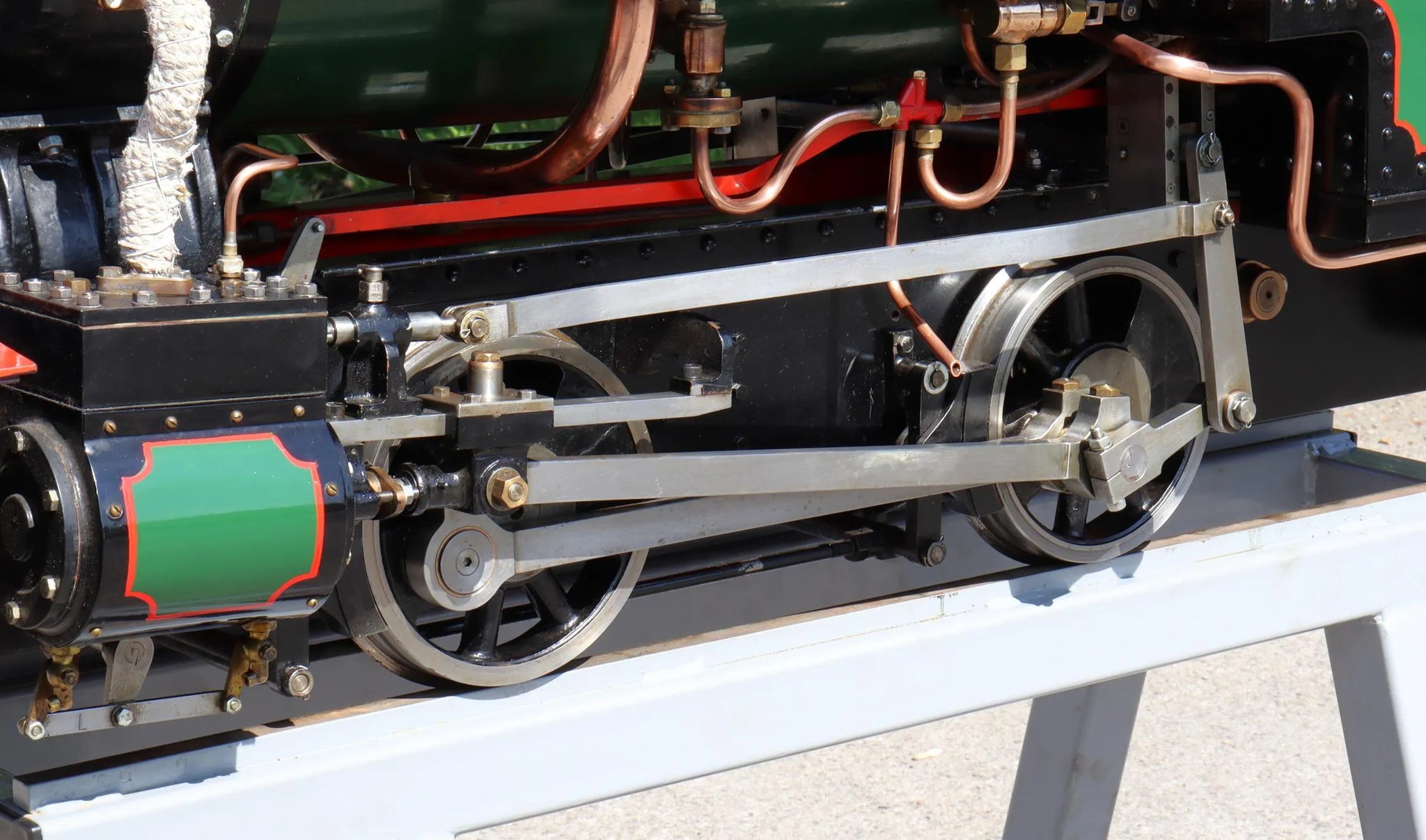

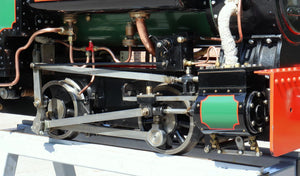

Valve gear

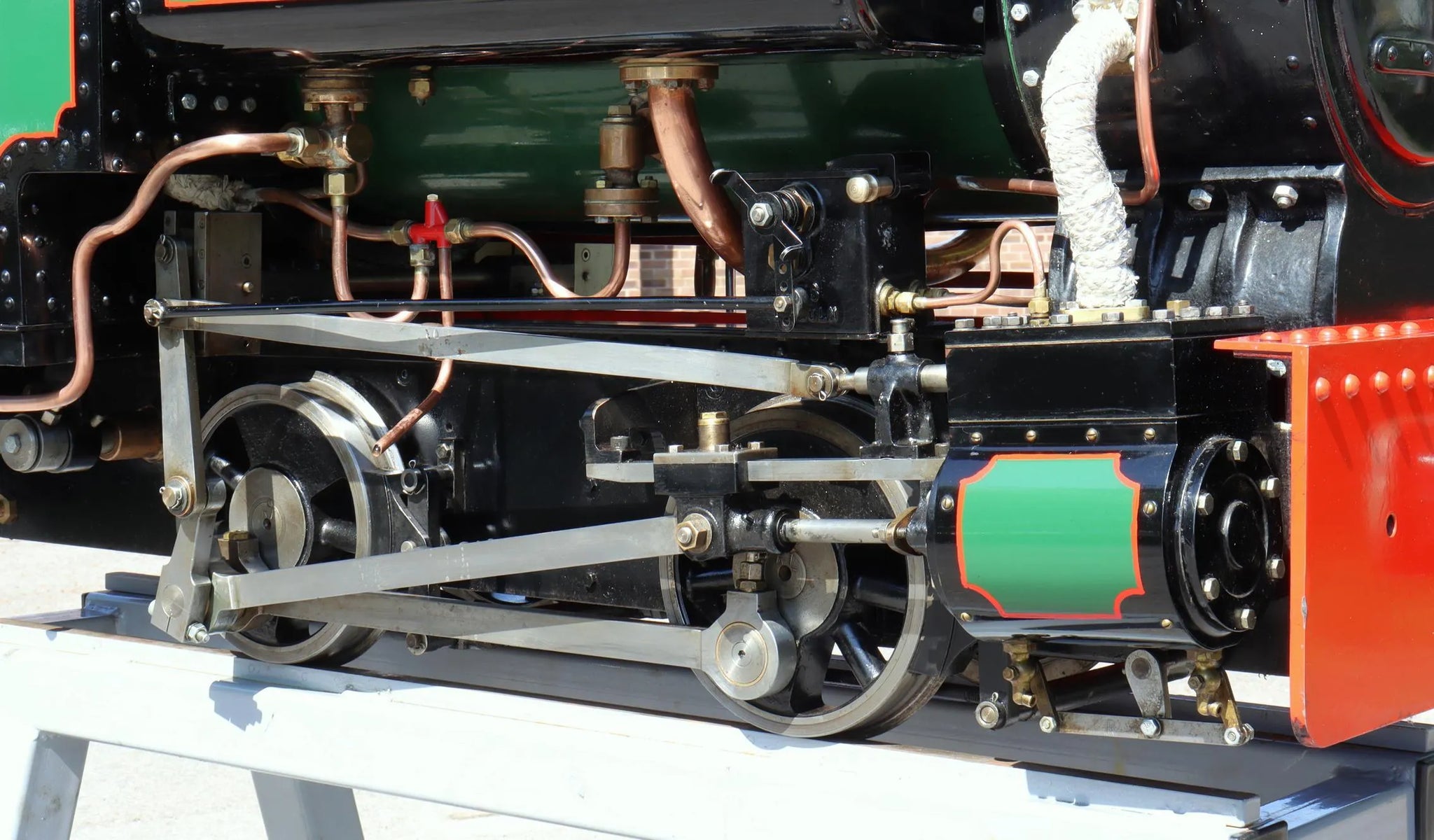

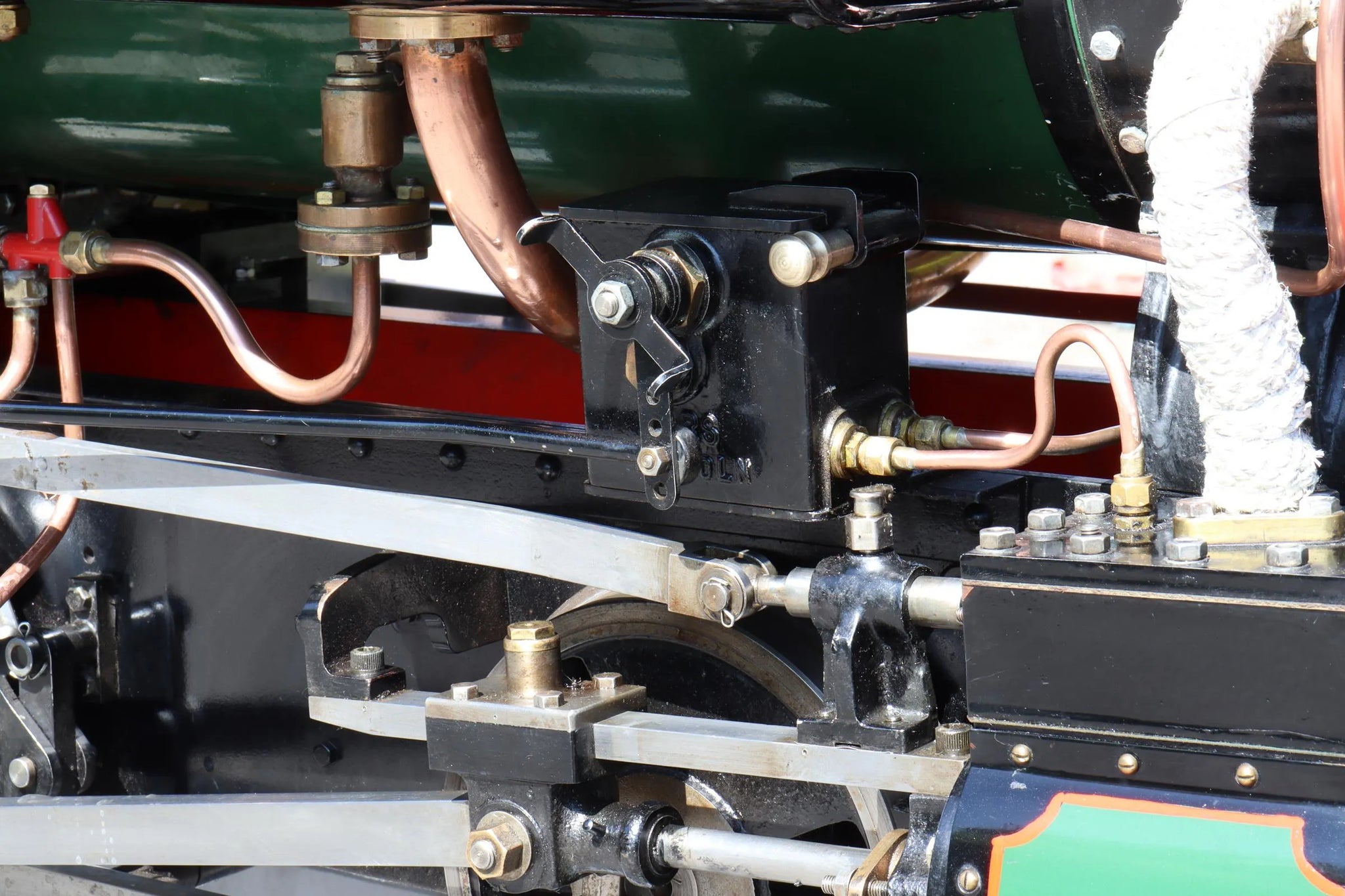

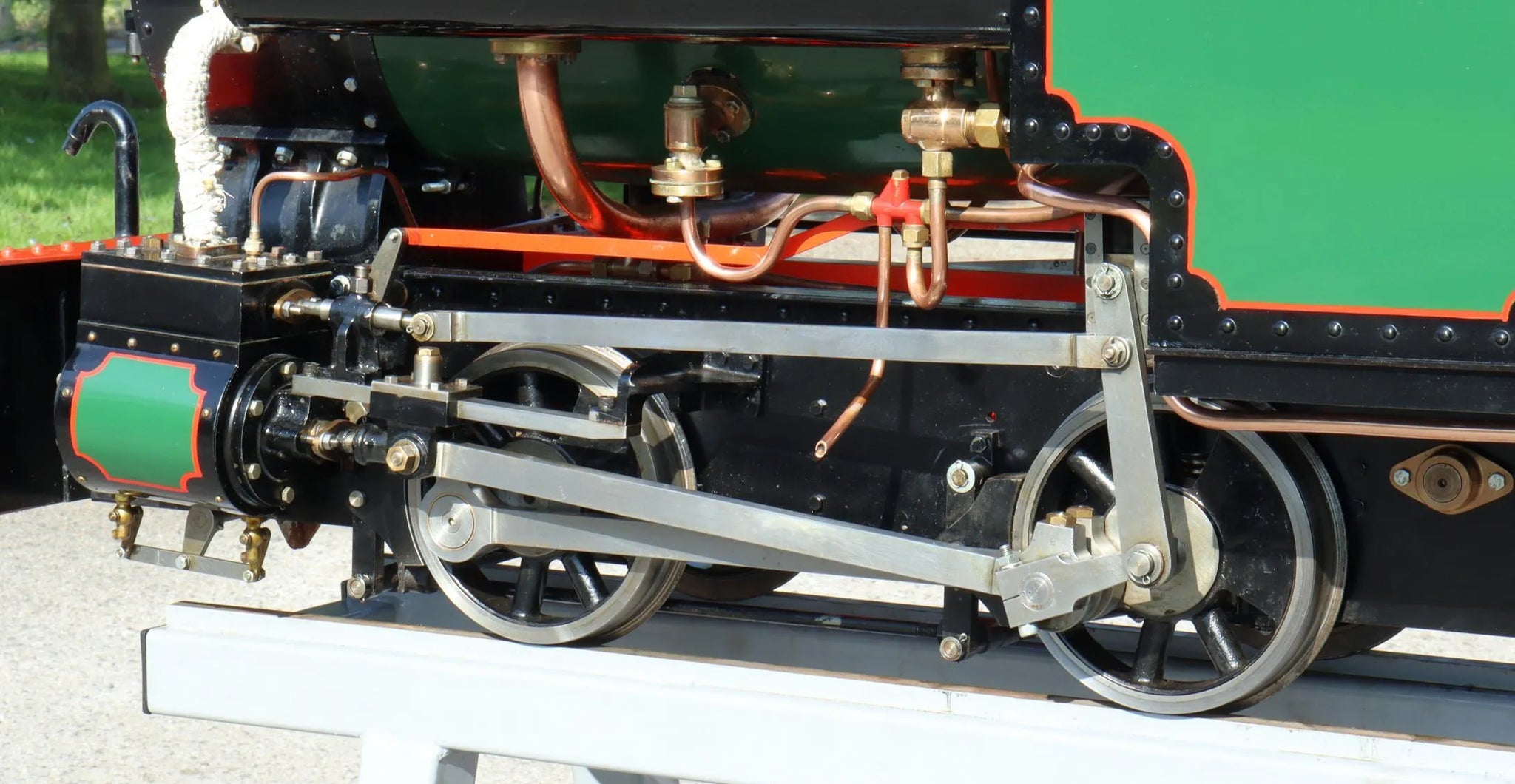

Hackworth

Reverser type

pole

Boiler maker

non-commercial

Boiler type

marine

Boiler construction

all welded

Boiler material

steel

CE/UKCA mark

n/a - non-commercial

Year built

unknown

Boiler number

KNB106

Safety valve type

spring

Safety valve

2

Fusible plug

yes

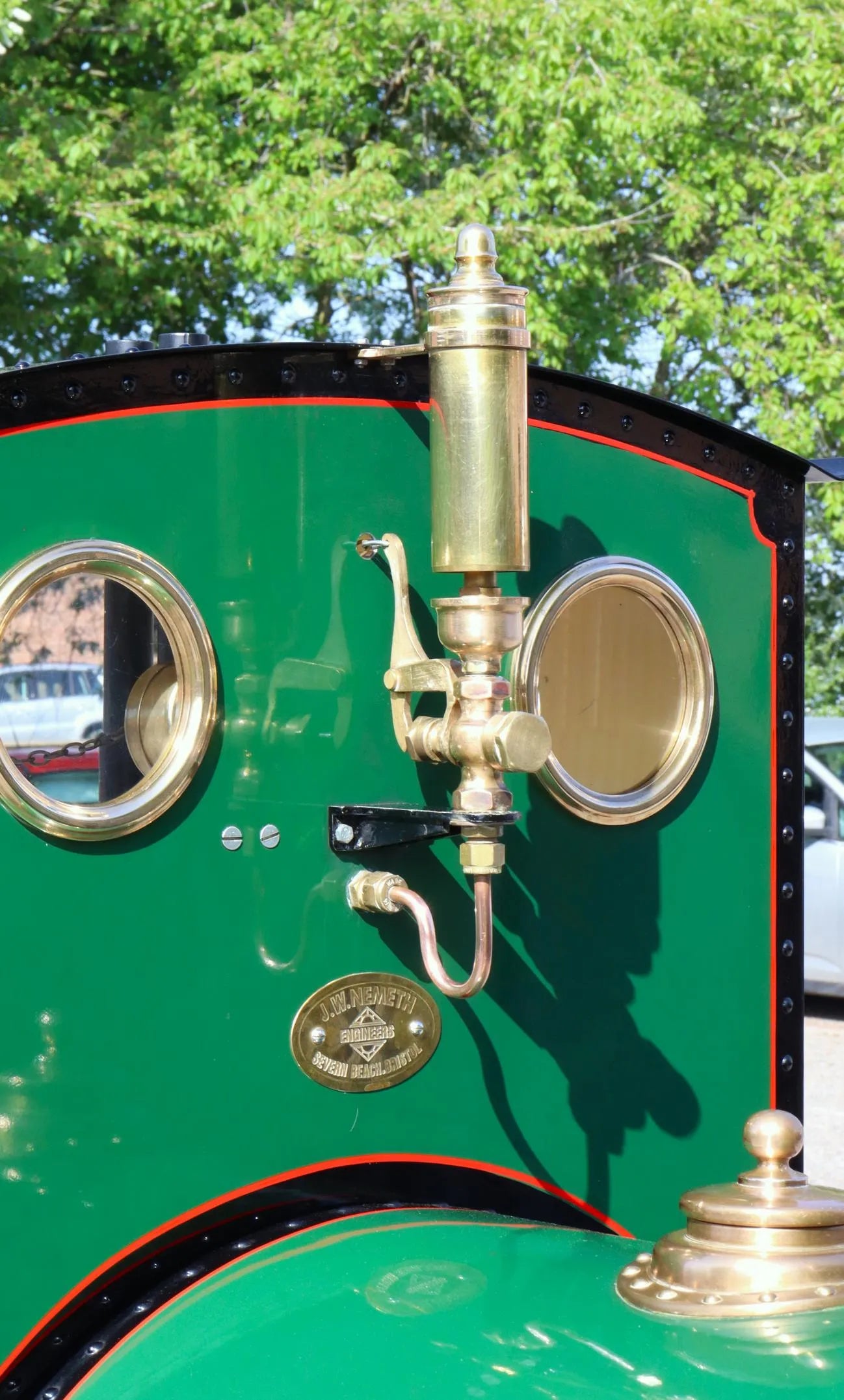

Whistle

yes

Injector

2

Date out

Sep-25

Hydraulic test valid to

06-Apr-27
