Sold

7947

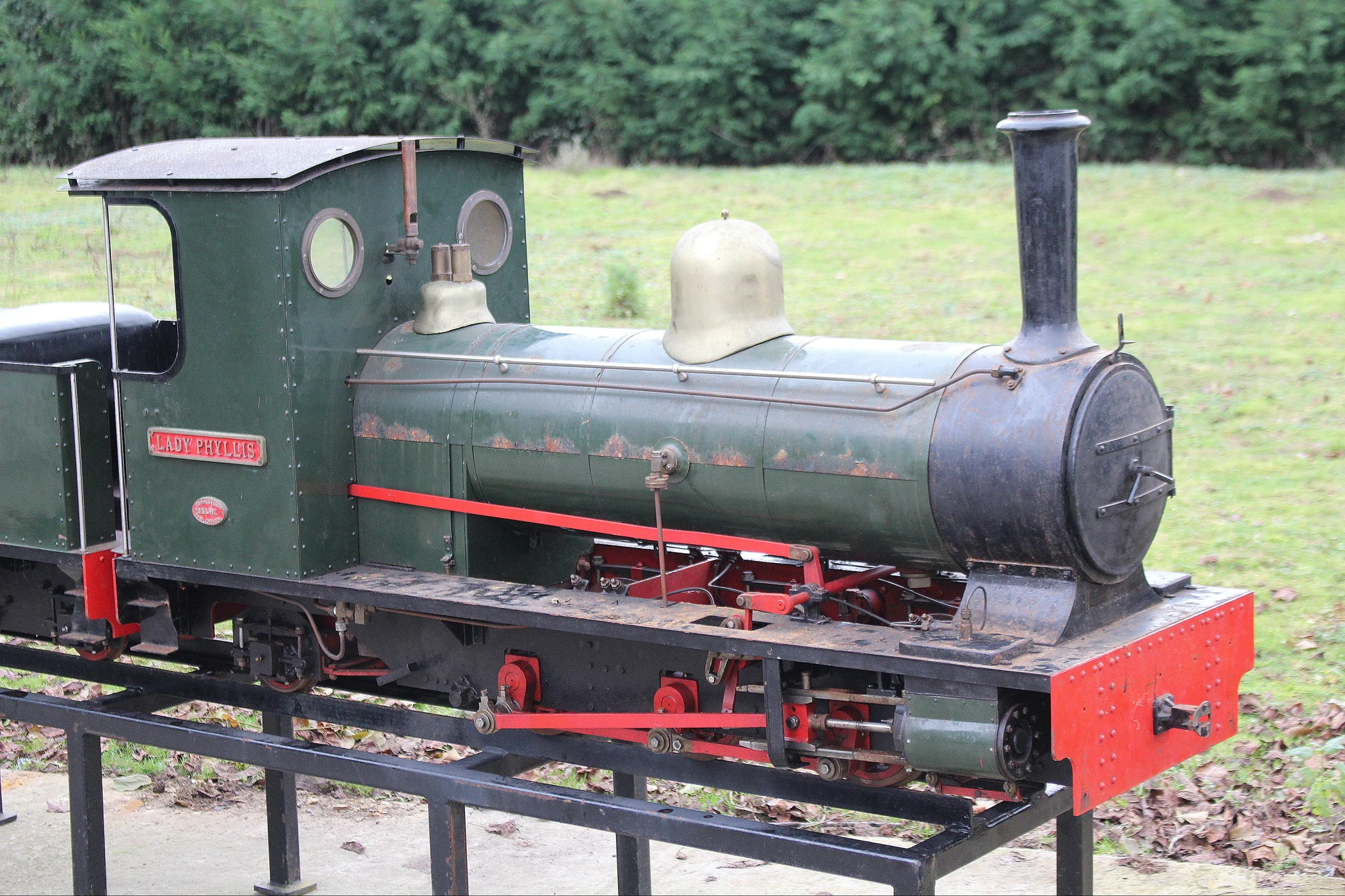

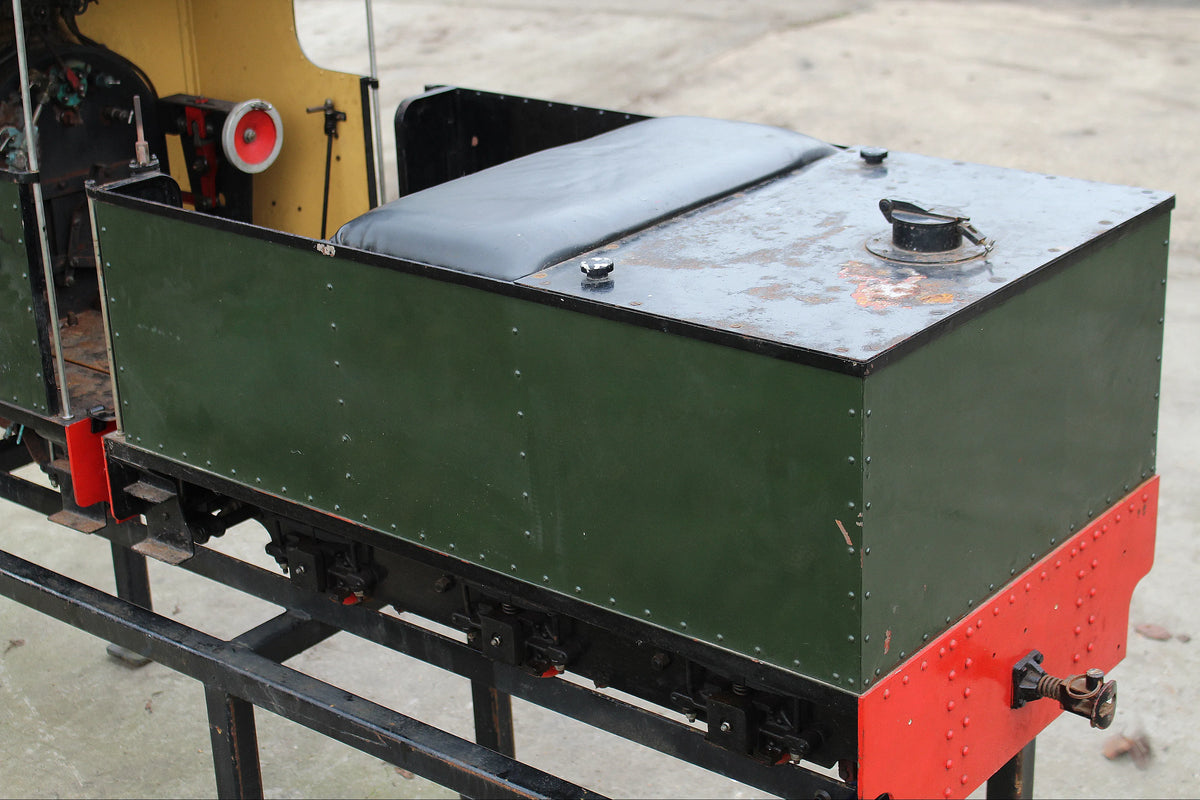

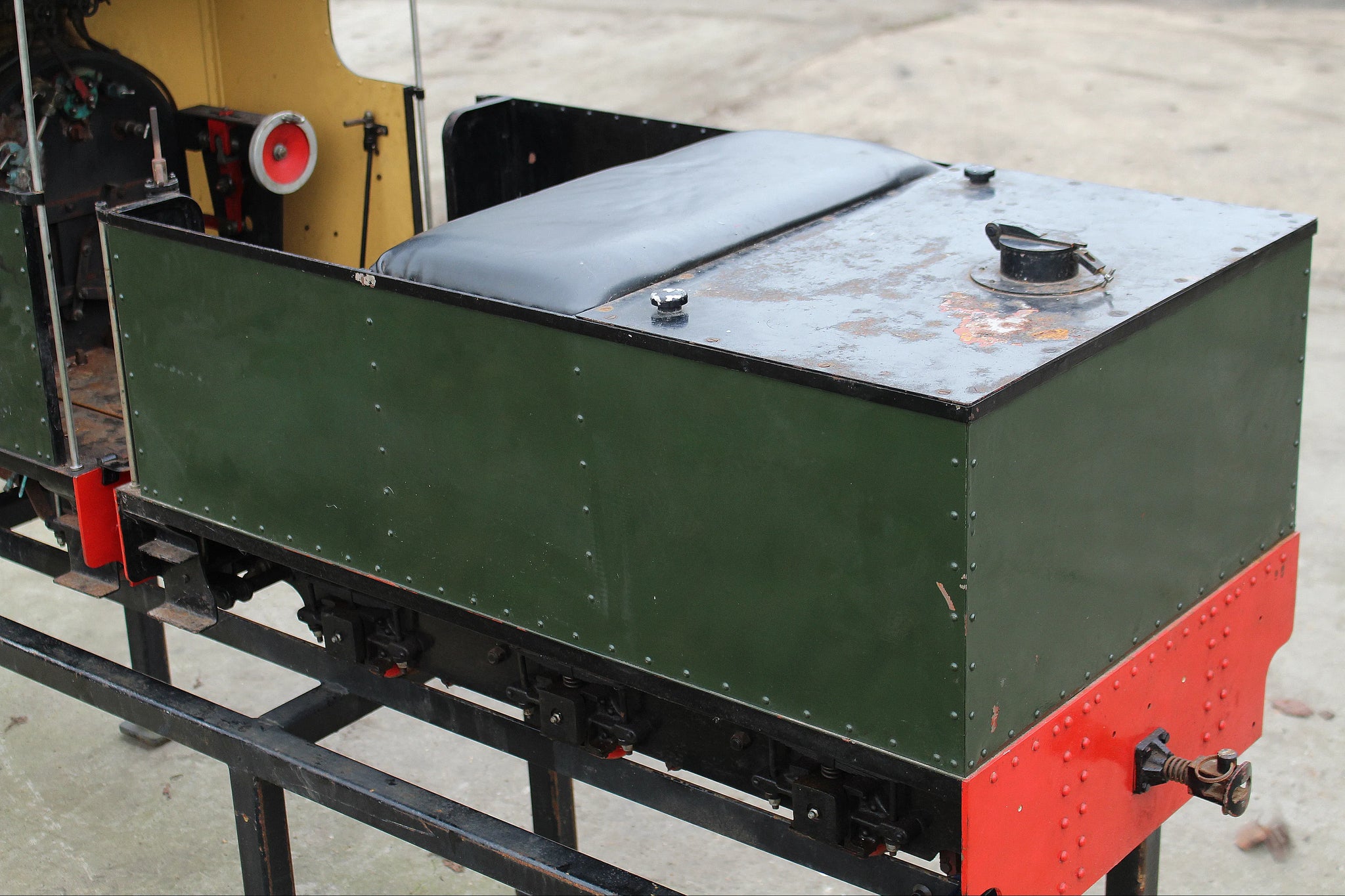

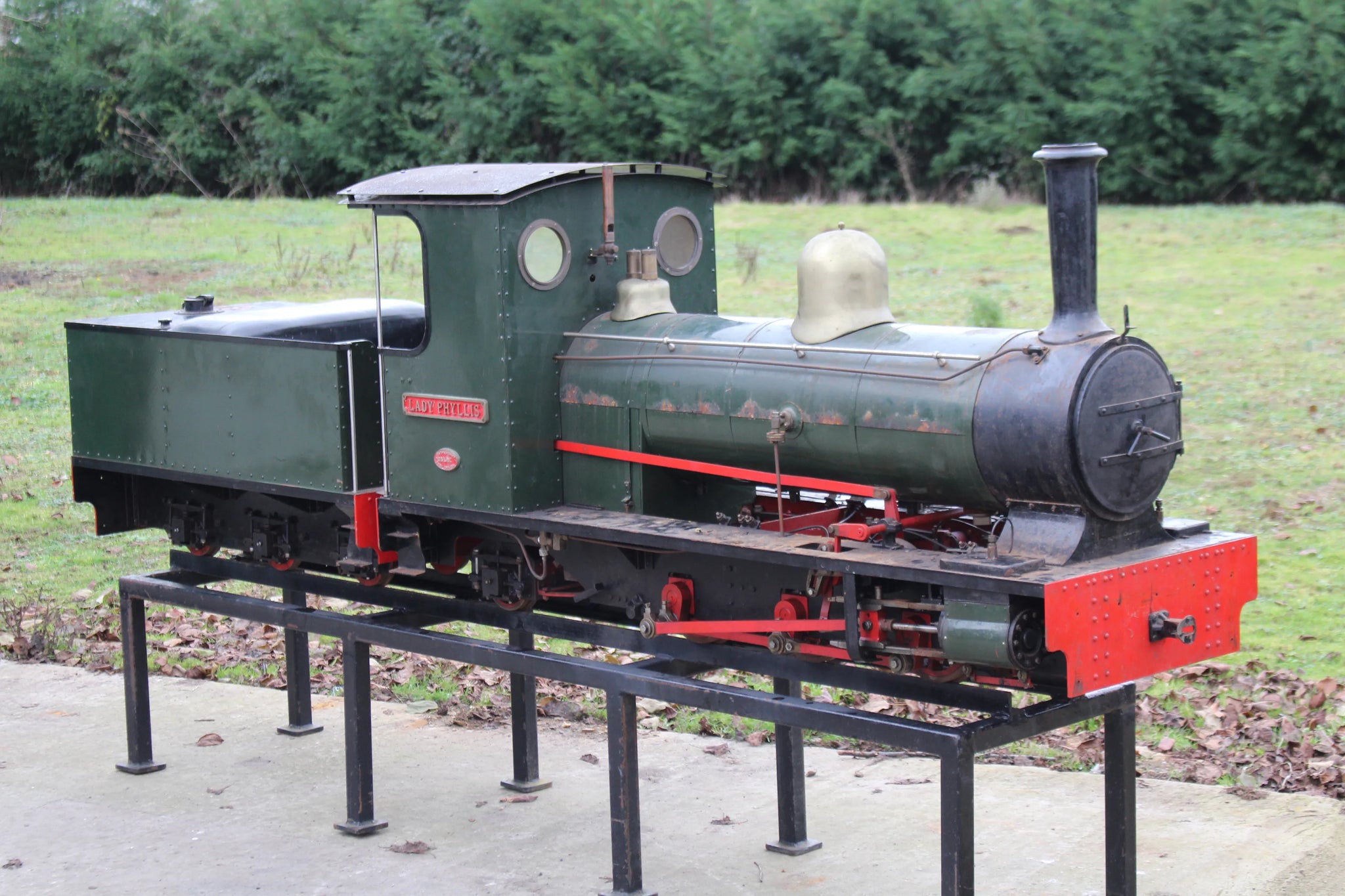

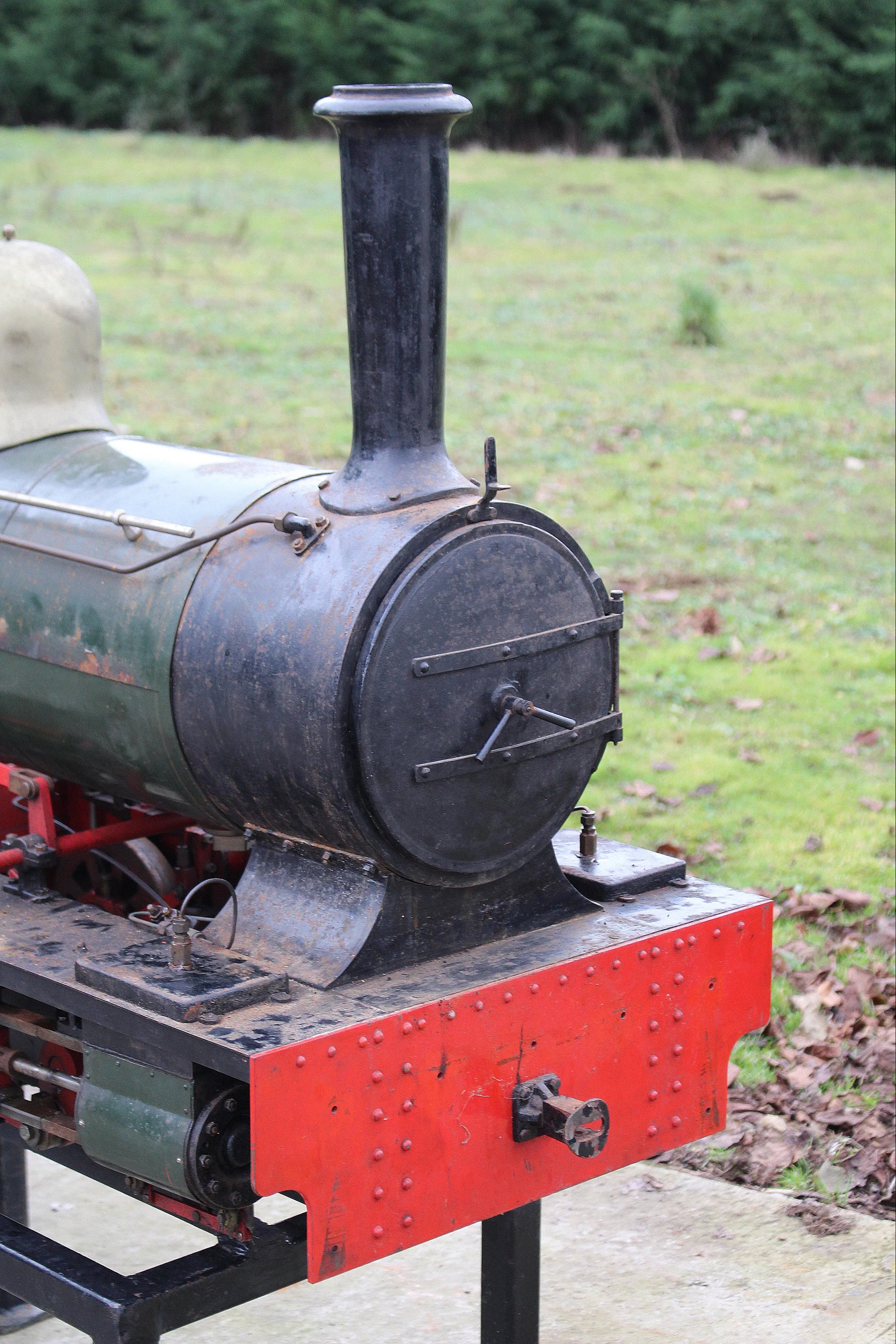

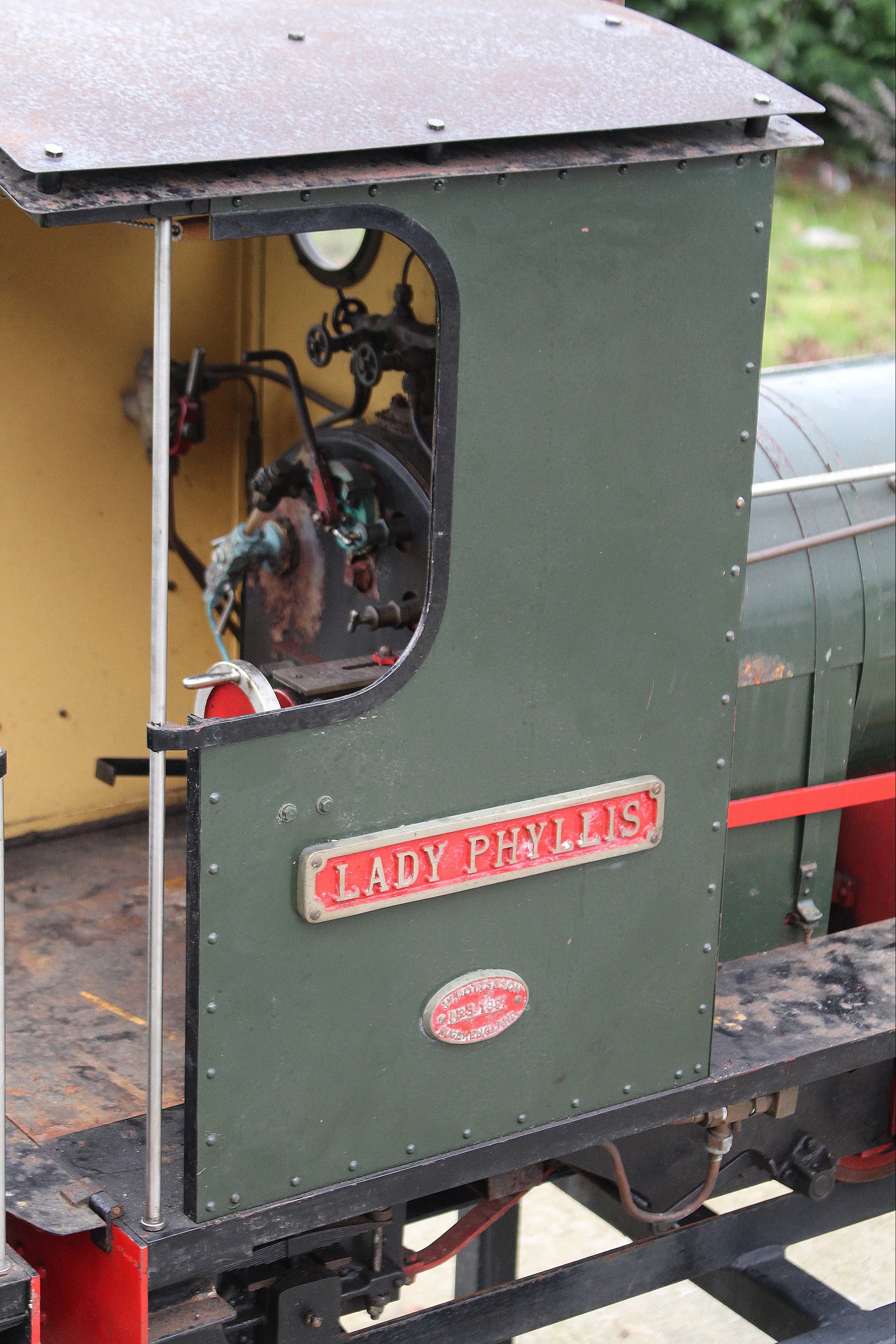

7 1/4 inch gauge Bagnall 0-6-2 + tender "Lady Phyllis"

One of a pair of "barn find Bagnalls" which ran at a railway on Guernsey until recent years.

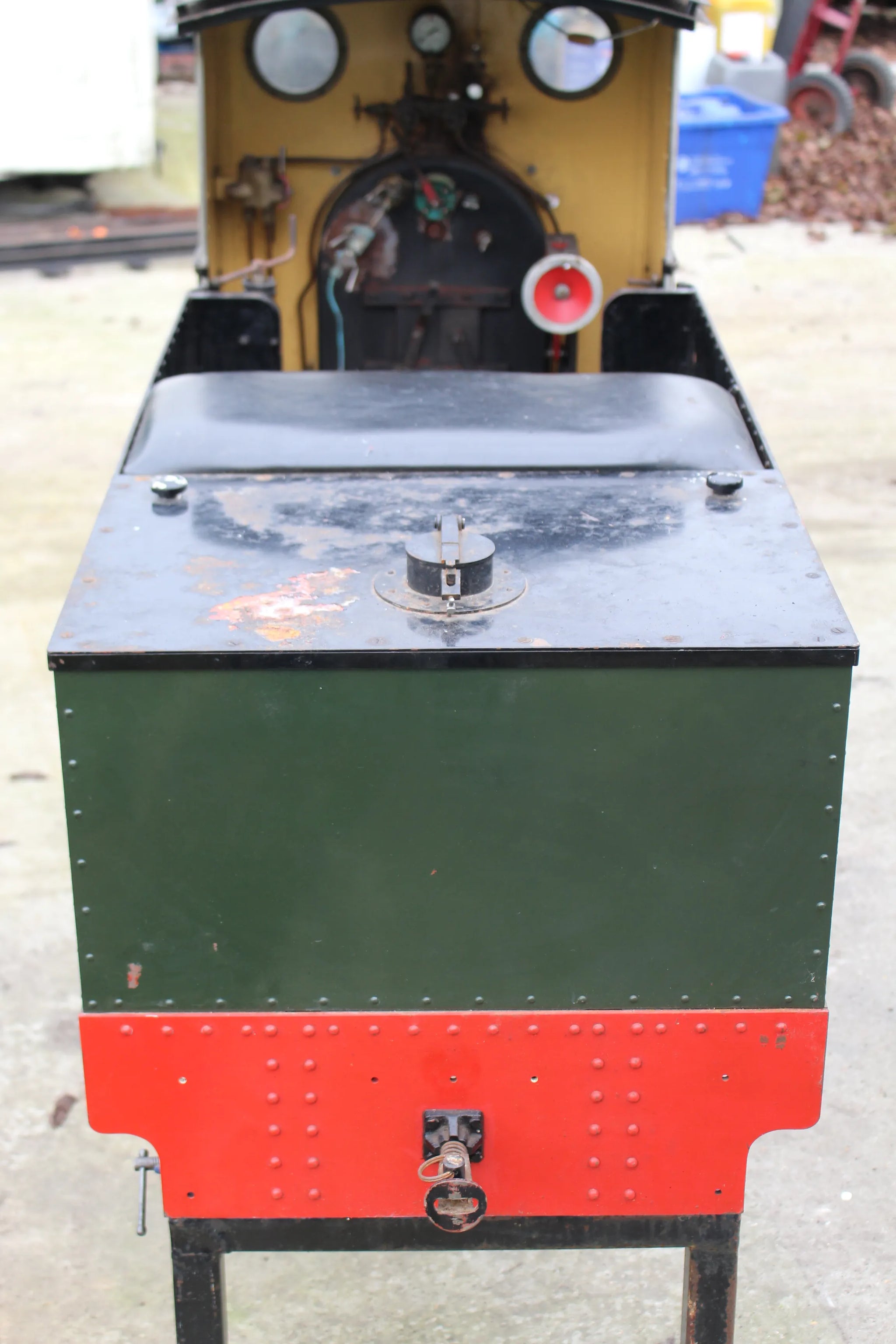

The first one of the pair, "Robert Wynn", built in 1980 was based on an original Bagnall 0-4-2T prototype. "Lady Phyllis" was built in 1997 on similar lines and in detail closely follows the tank engine design, although finished as an 0-6-2 narrow gauge tender locomotive.

Neither engine has run in some years, both have suffered in storage. Paintwork is poor, brightwork has a good covering of surface rust.

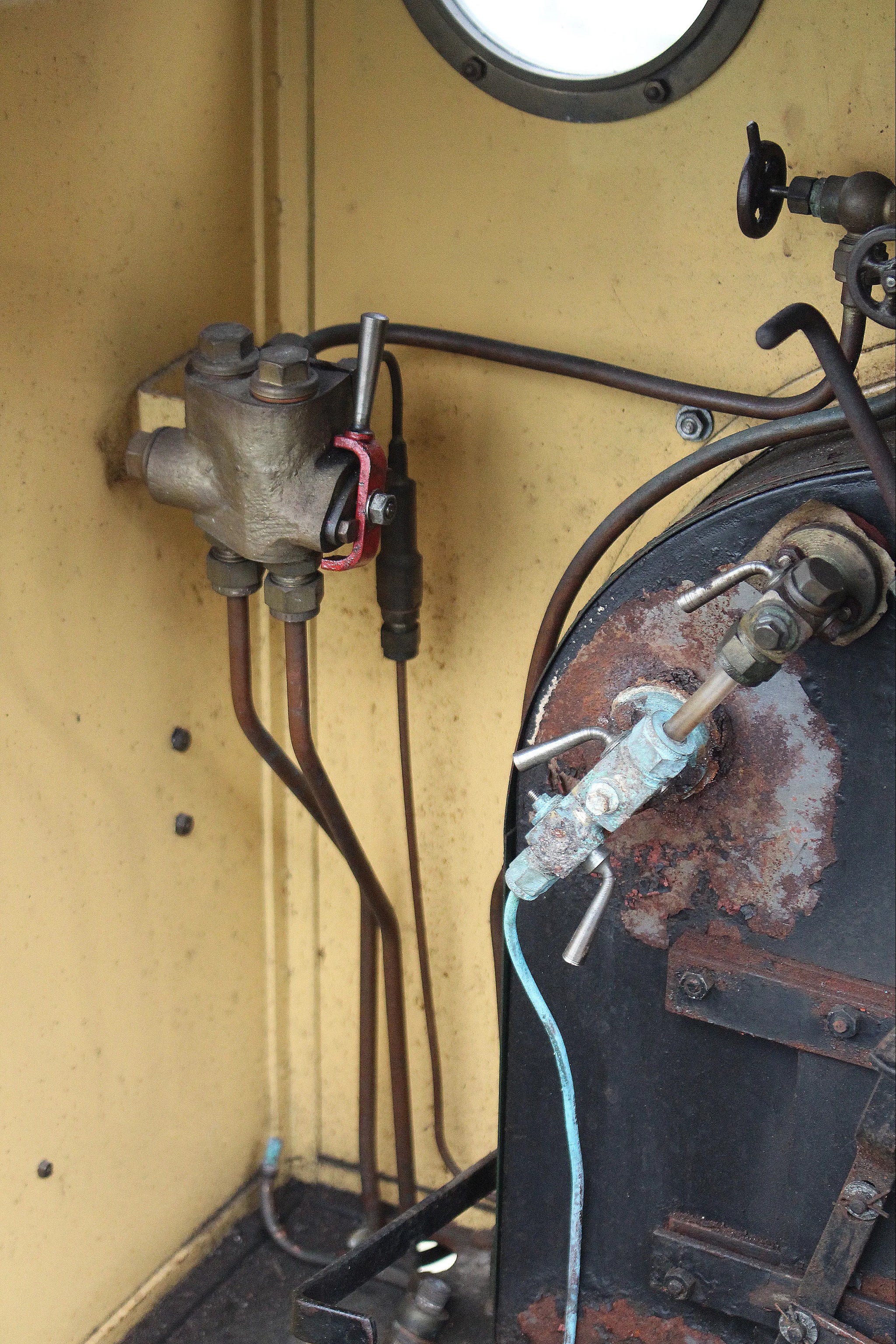

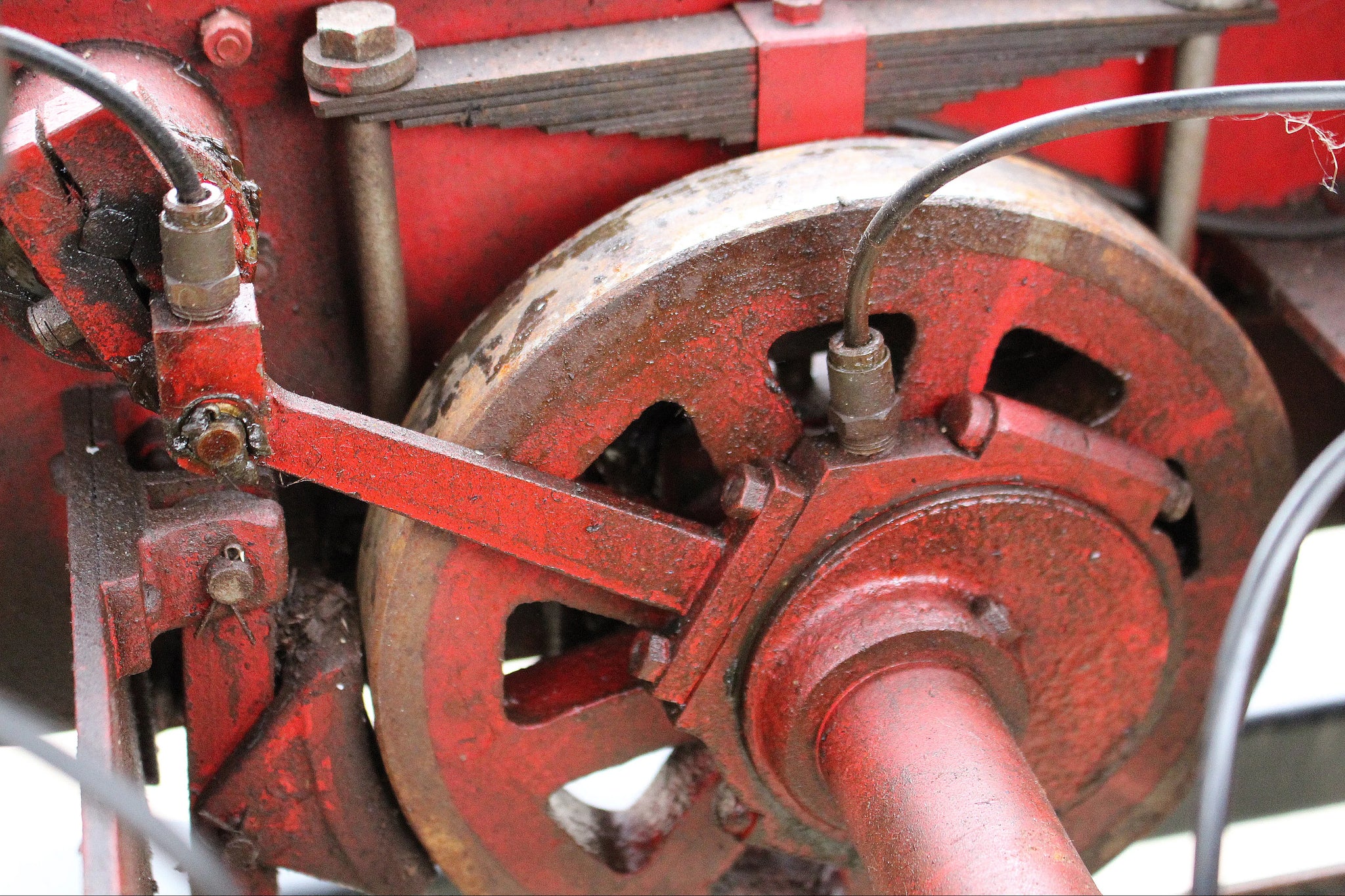

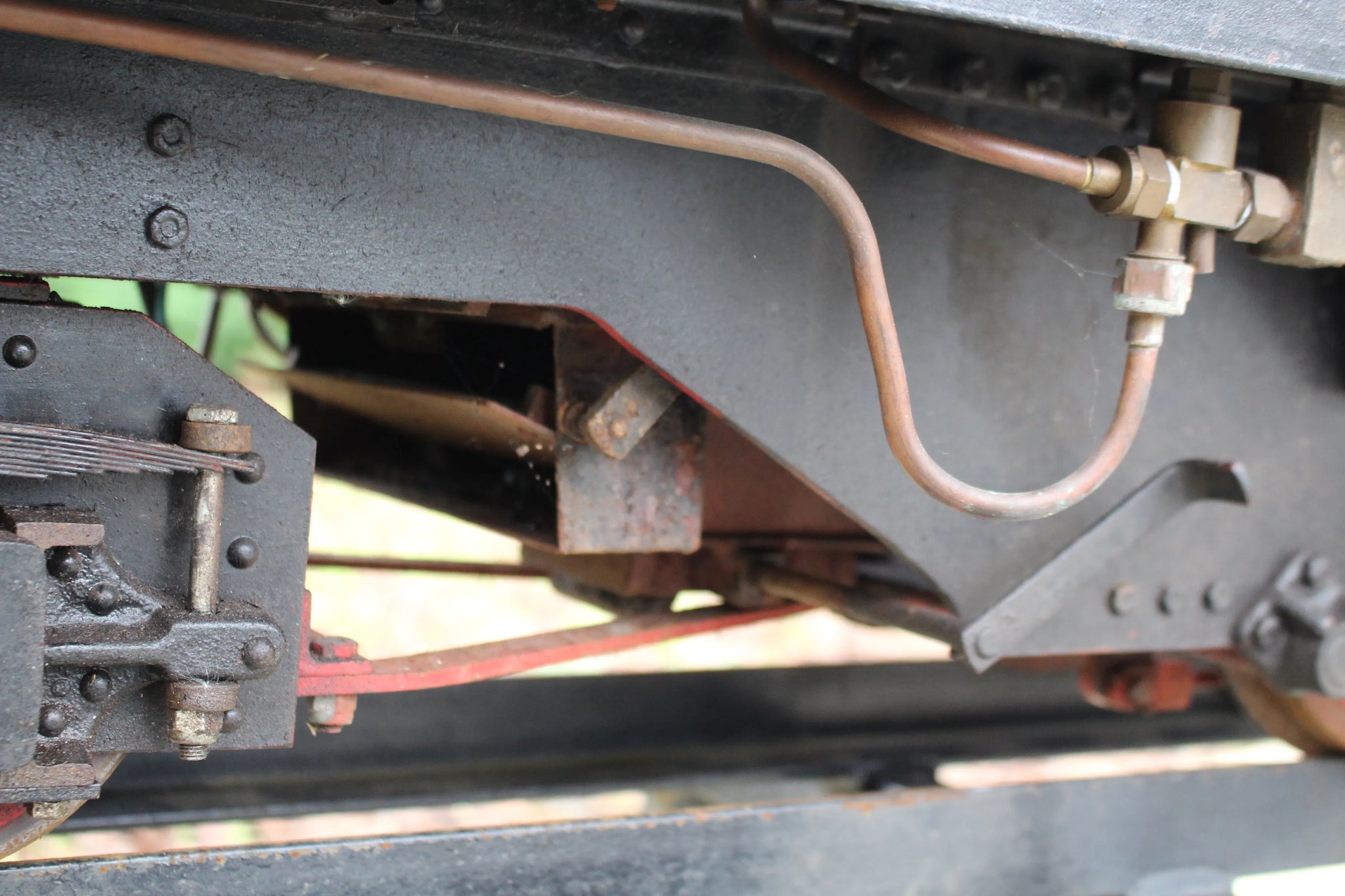

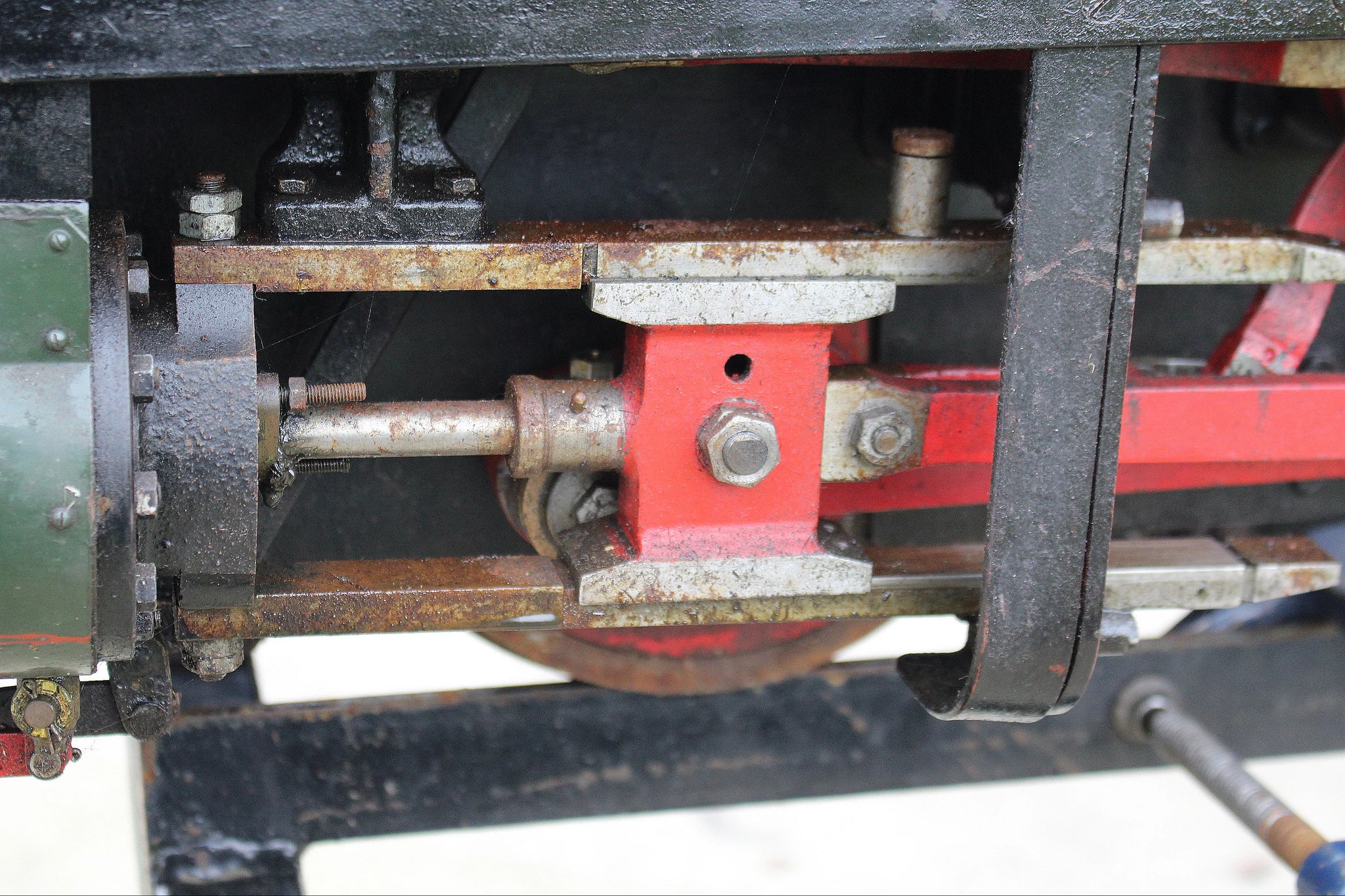

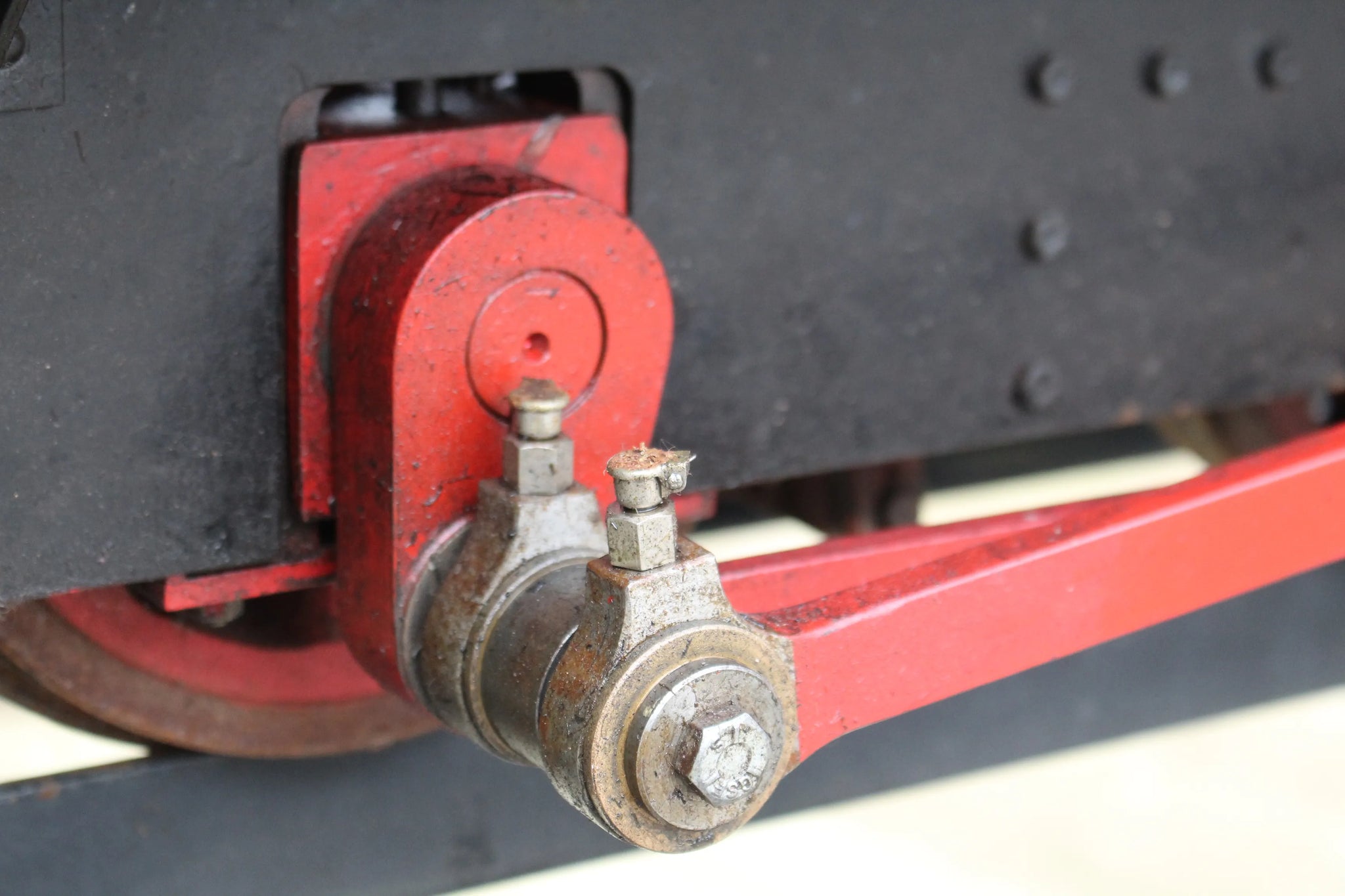

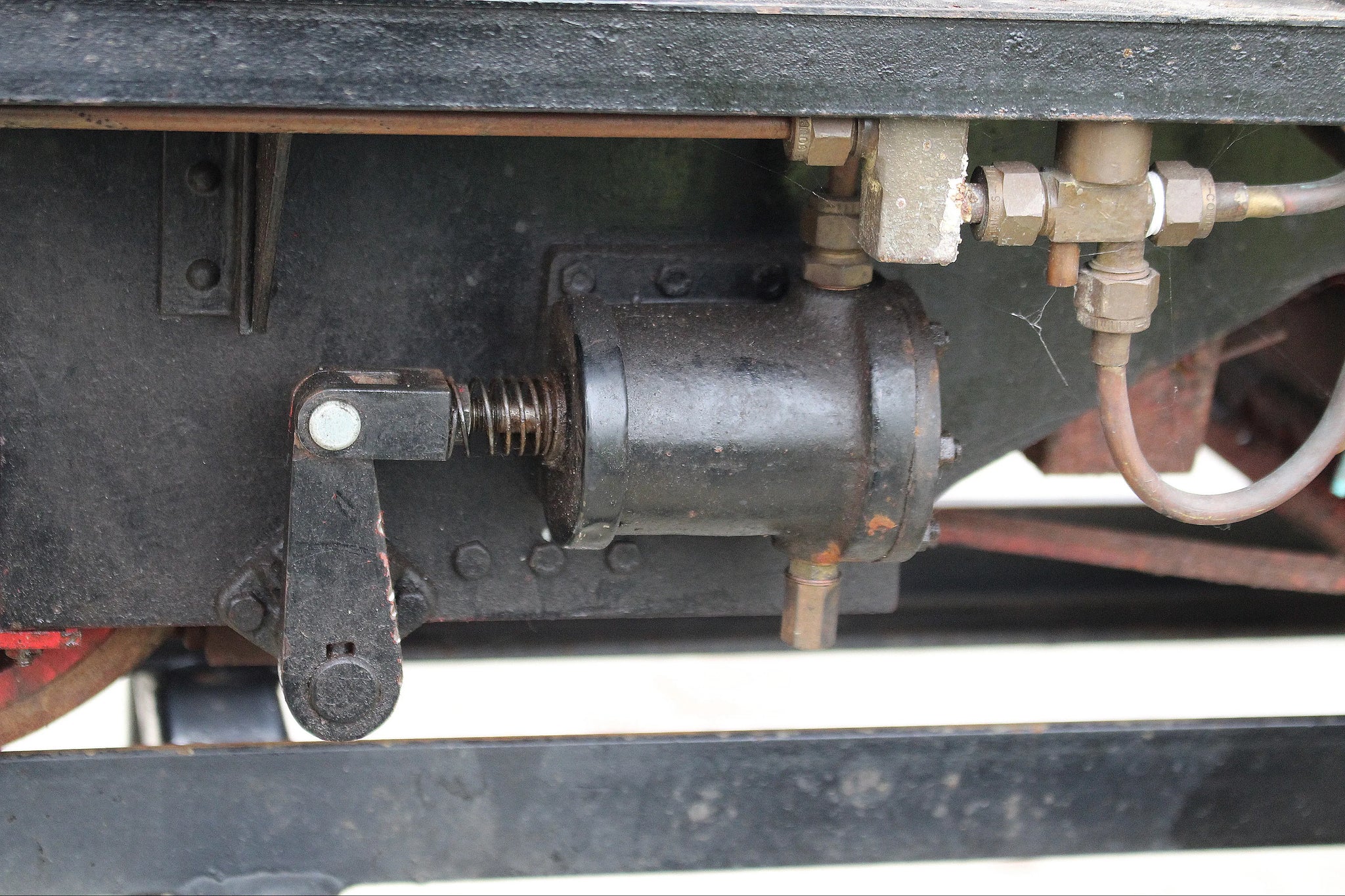

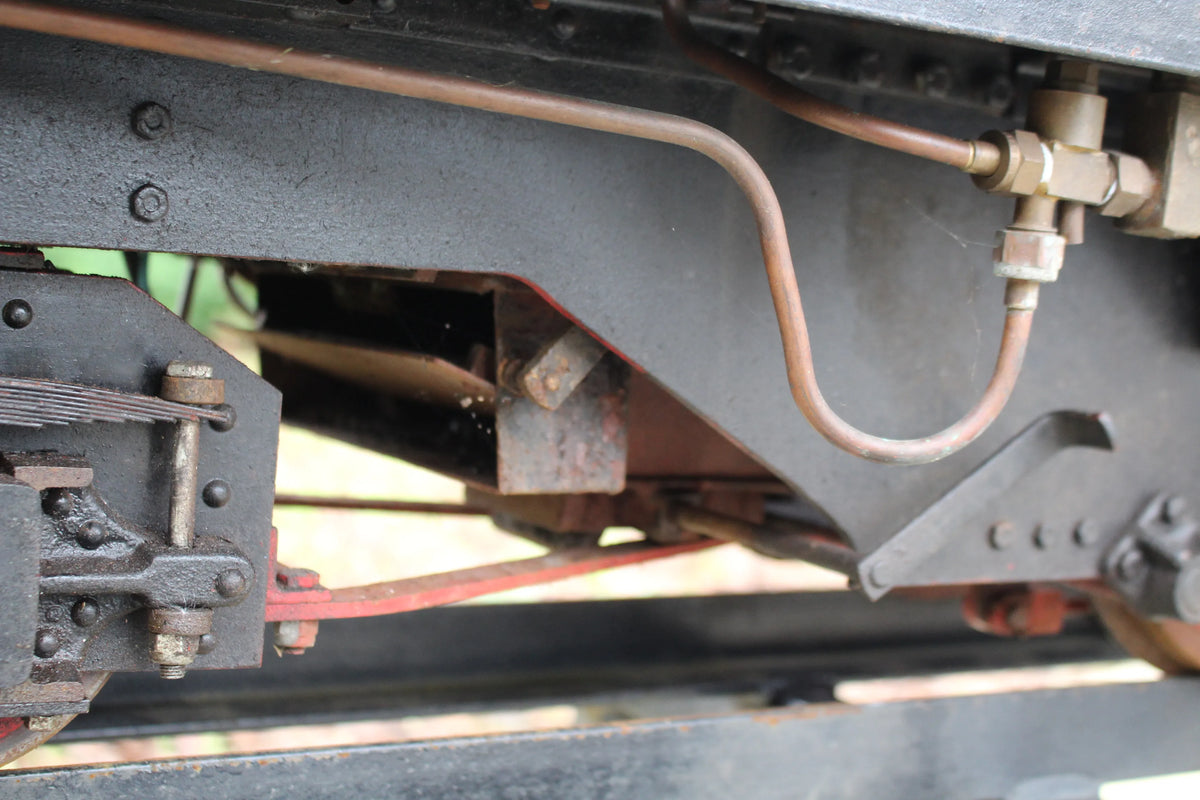

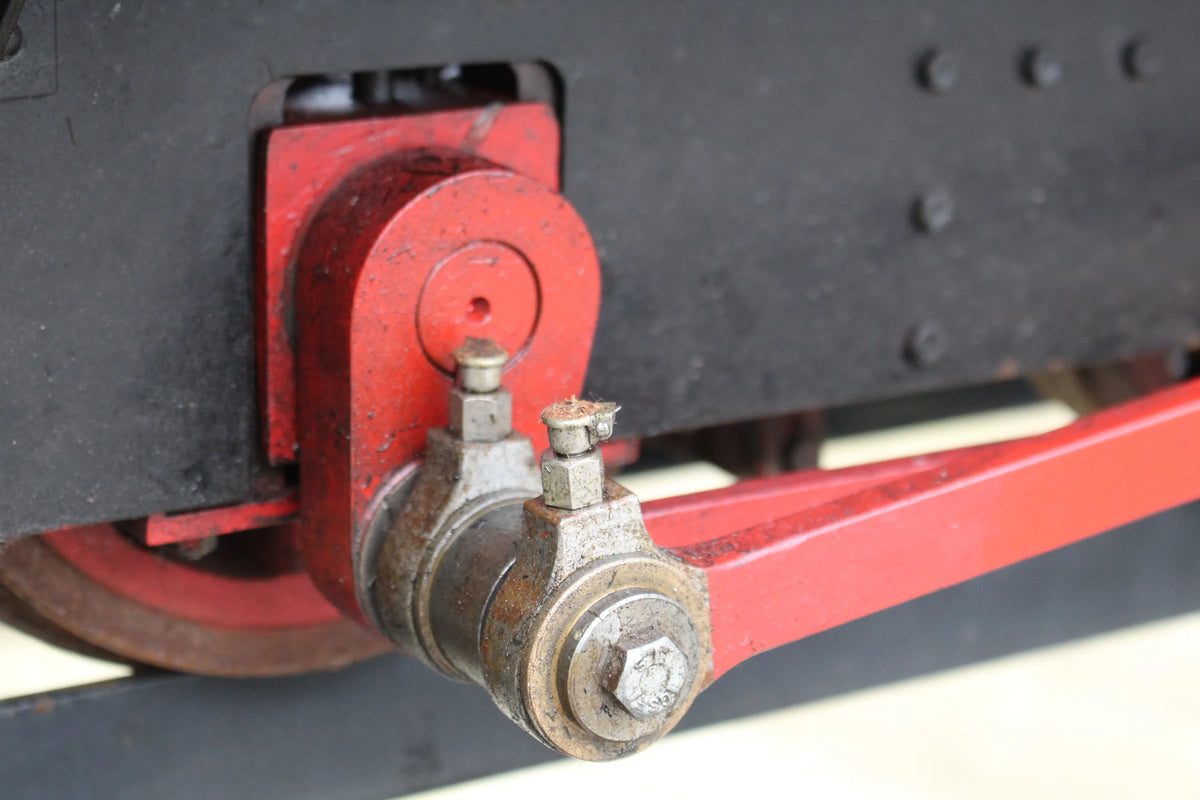

Underneath is a very well-built locomotive, obviously designed for sustained passenger hauling with generous bearing surfaces and piped lubrication to just about every moving part. The locomotive is fitted with a steam brake.

We've done an ultrasonic survey of exposed parts of the boiler, it shows no sign of leak or deflection under twice working pressure hydraulic test.

Technical information

Stock code

7947

Gauge

7 1/4 inch

Length/inches

66 + 41

Width/inches

21

Height/inches

35

Wheel material

cast iron

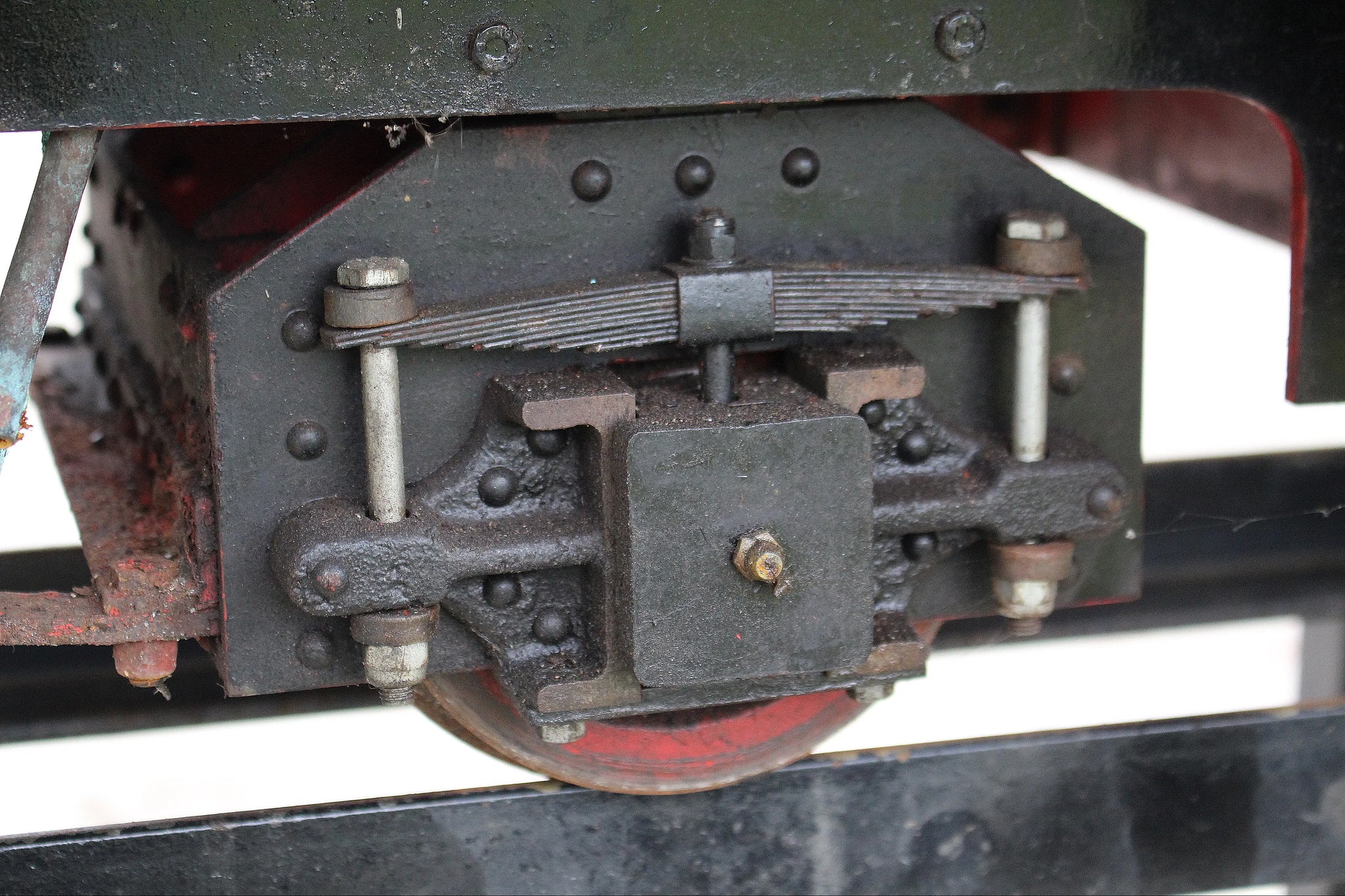

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

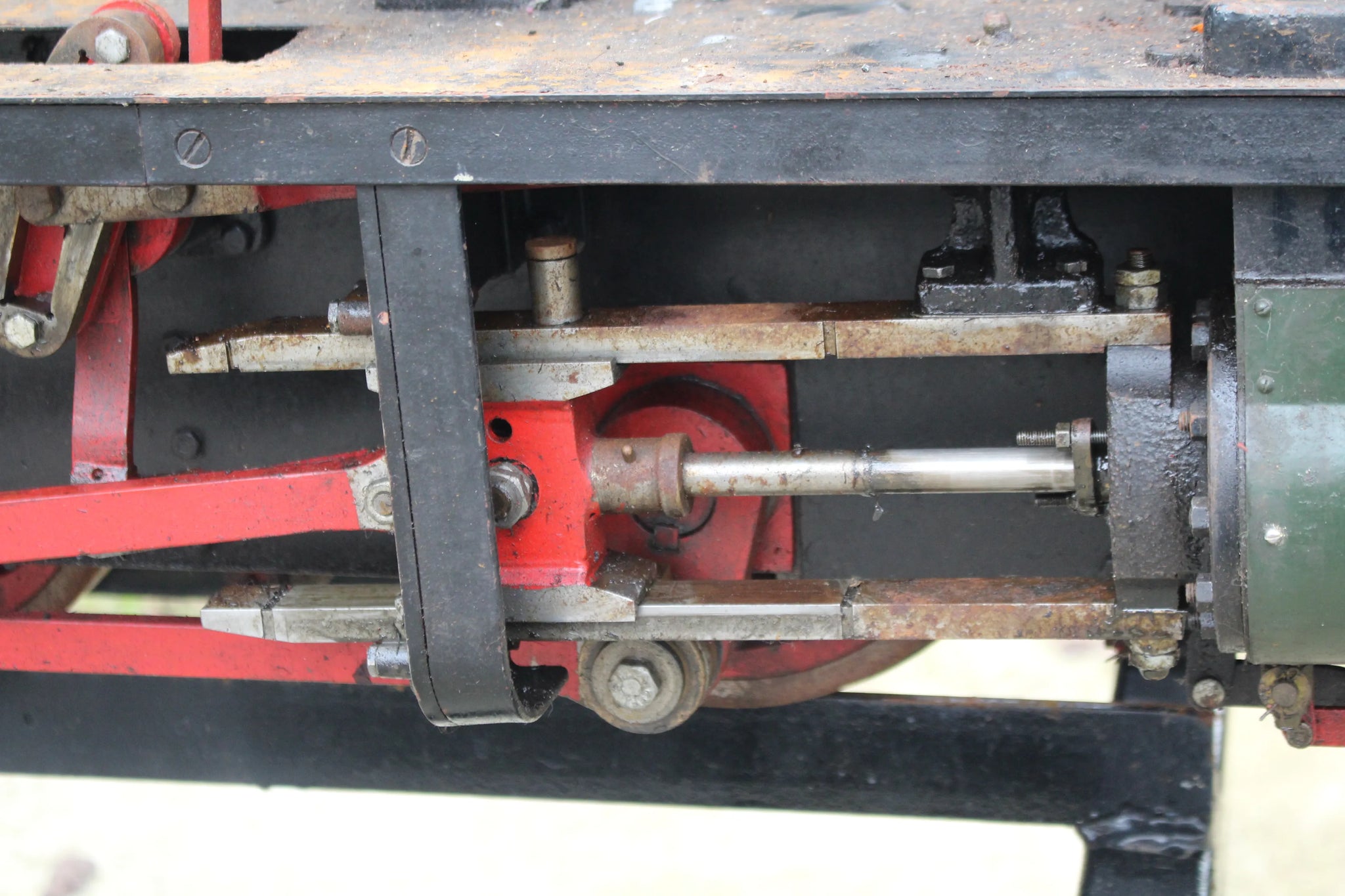

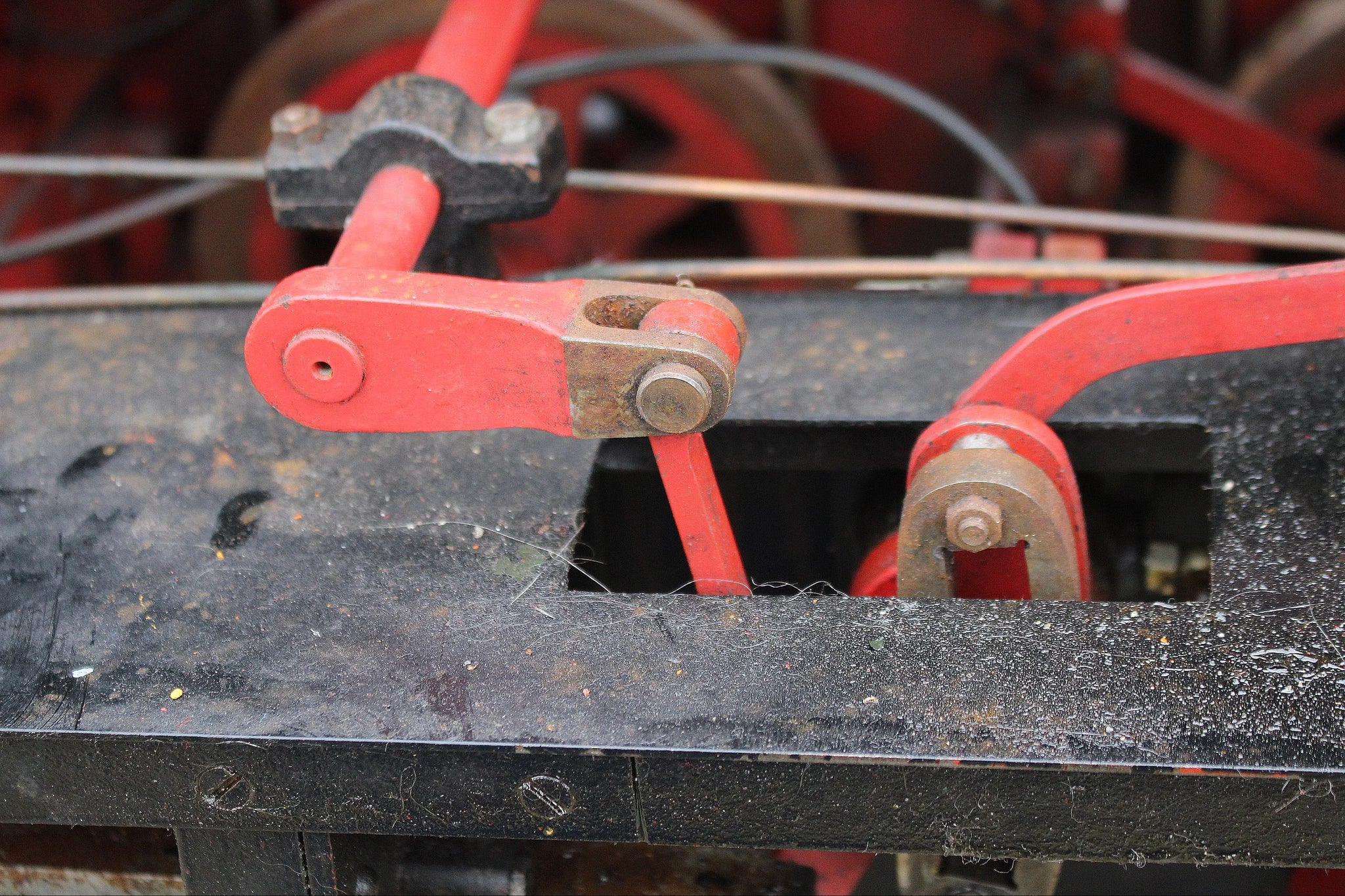

Valve gear

Stephensons

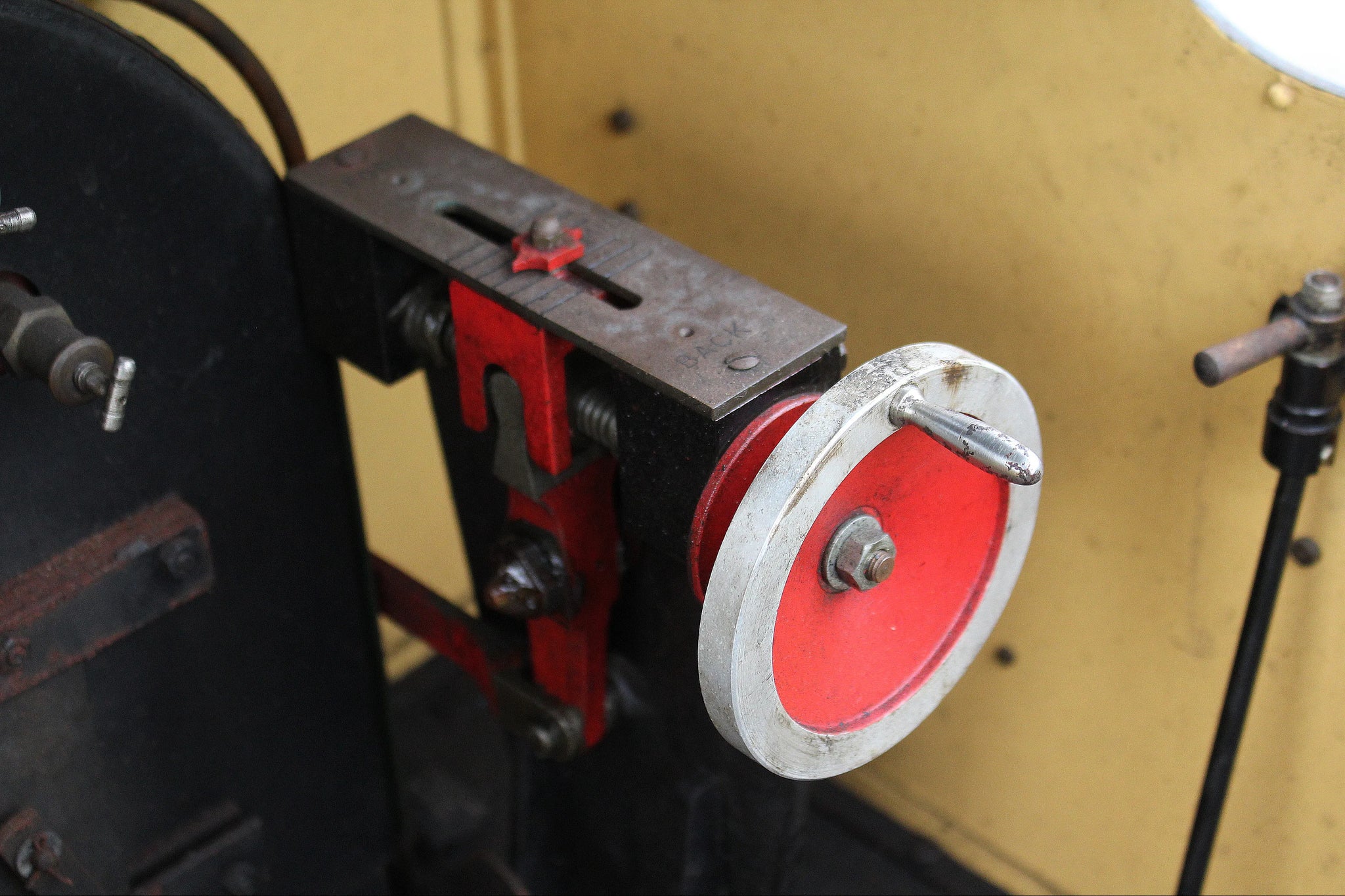

Reverser type

screw

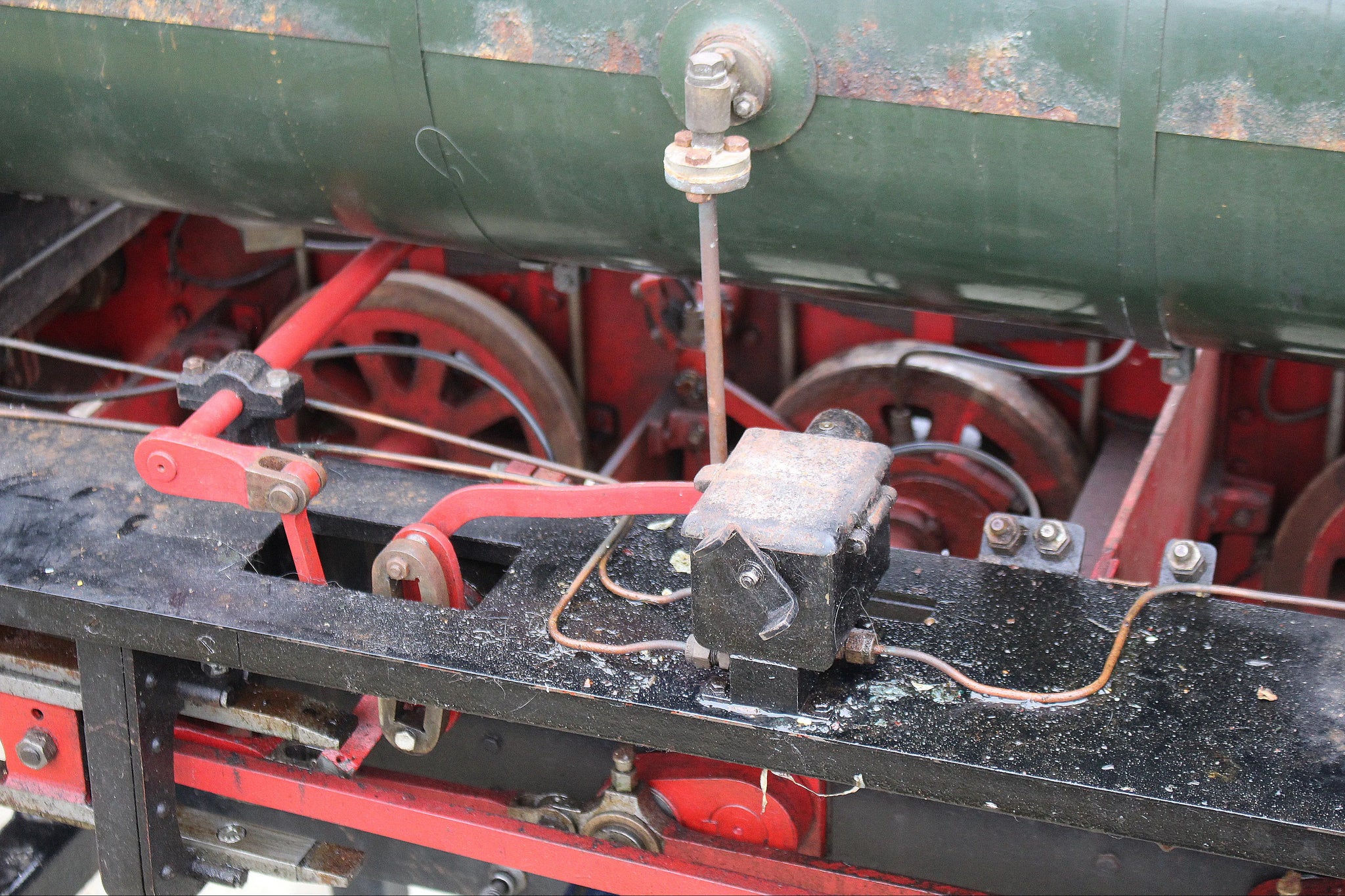

Lubricator type

mechanical

Boiler type

locomotive

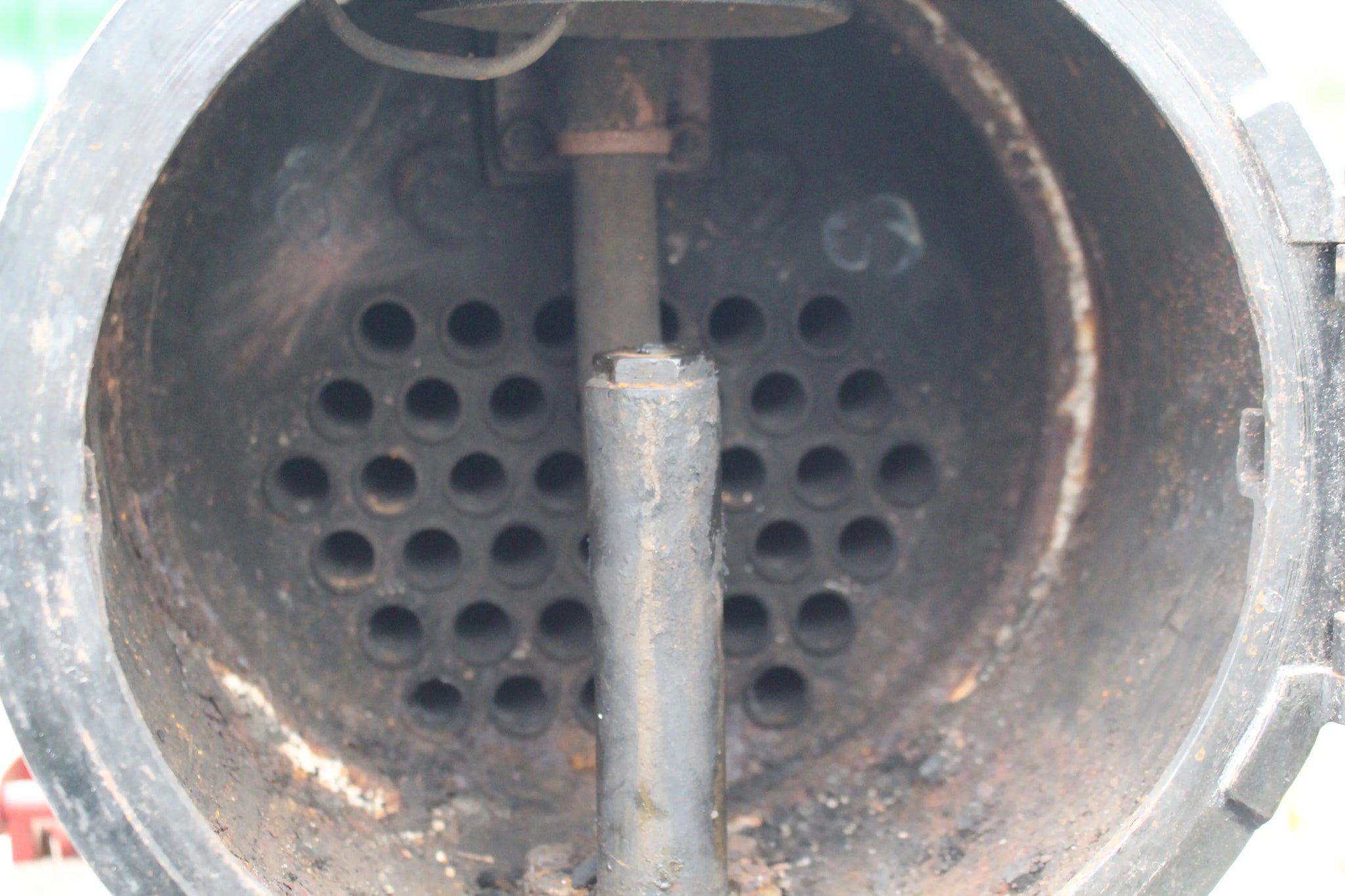

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

100

Year built

1997

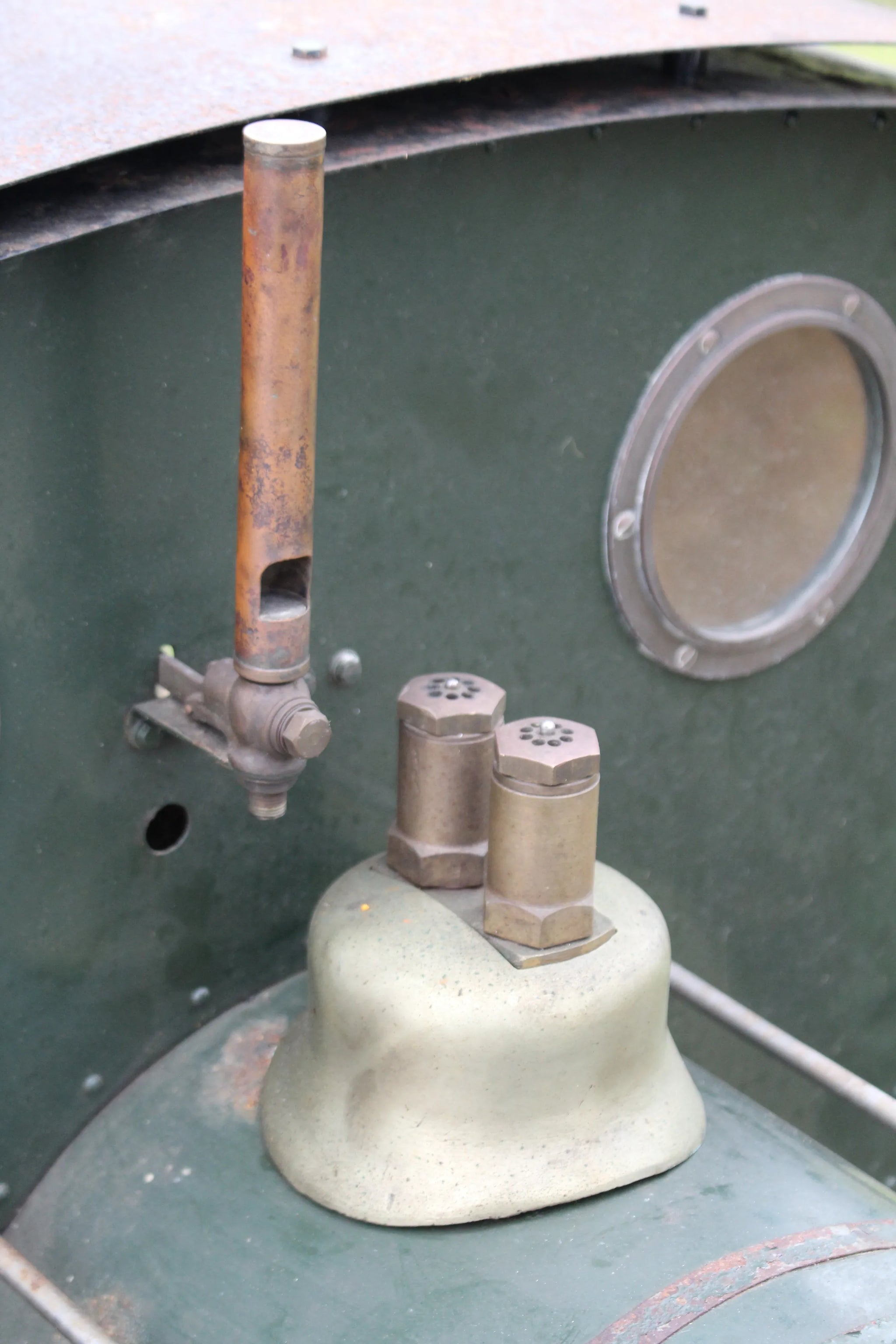

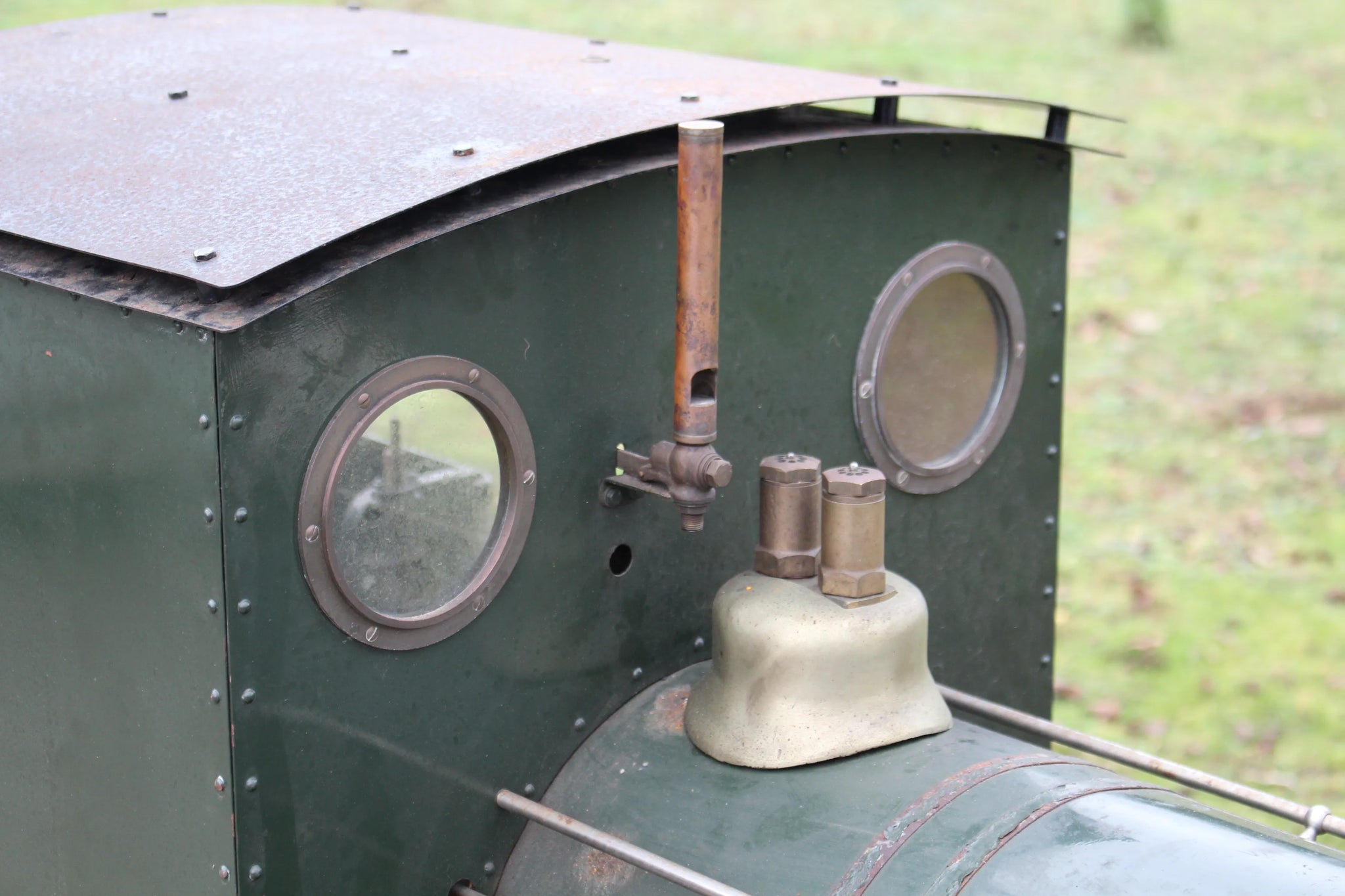

Safety valve type

spring

Safety valve

2

Whistle

yes

Injector

2

Date out

Jan-19
