Sold

12908

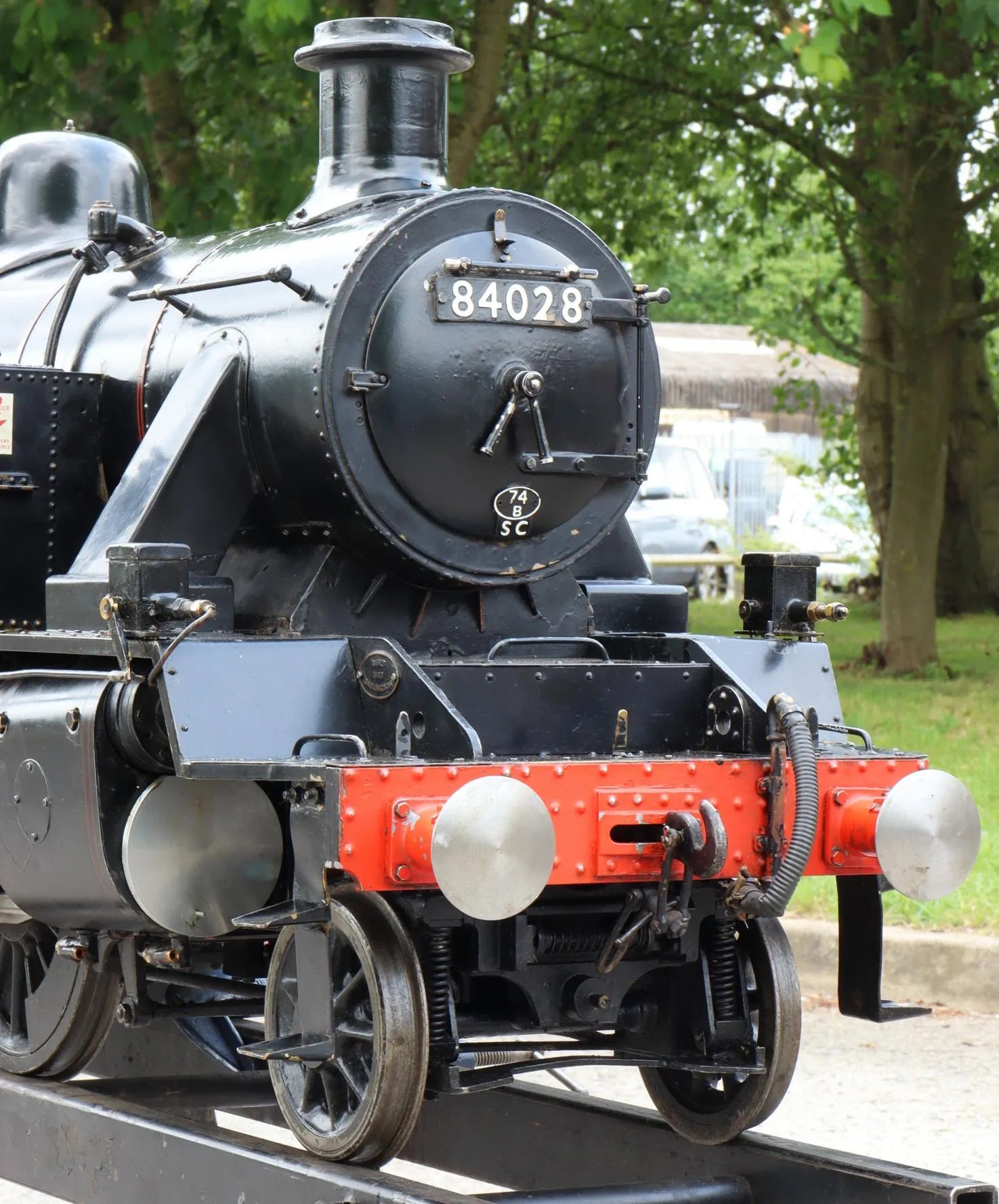

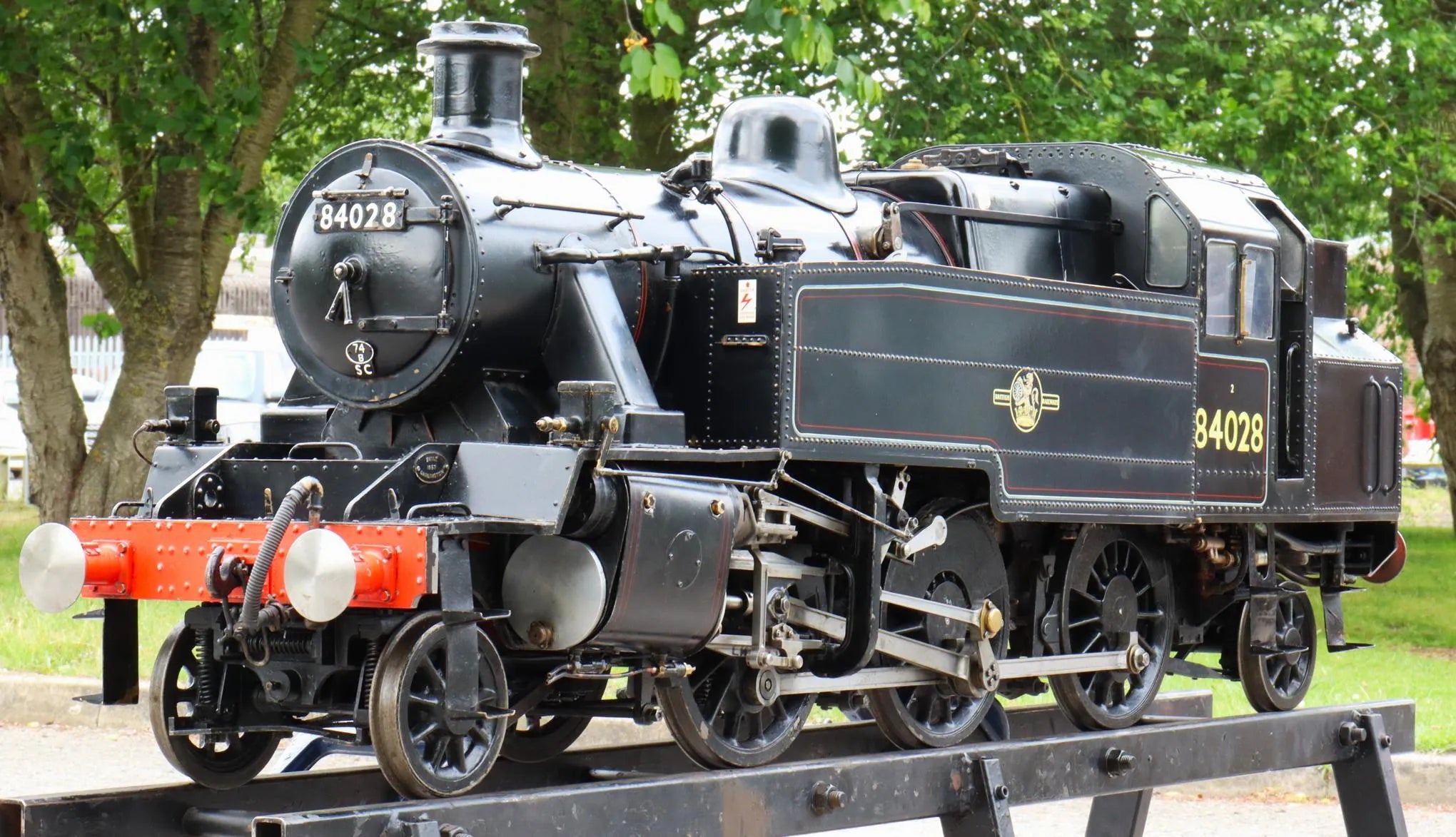

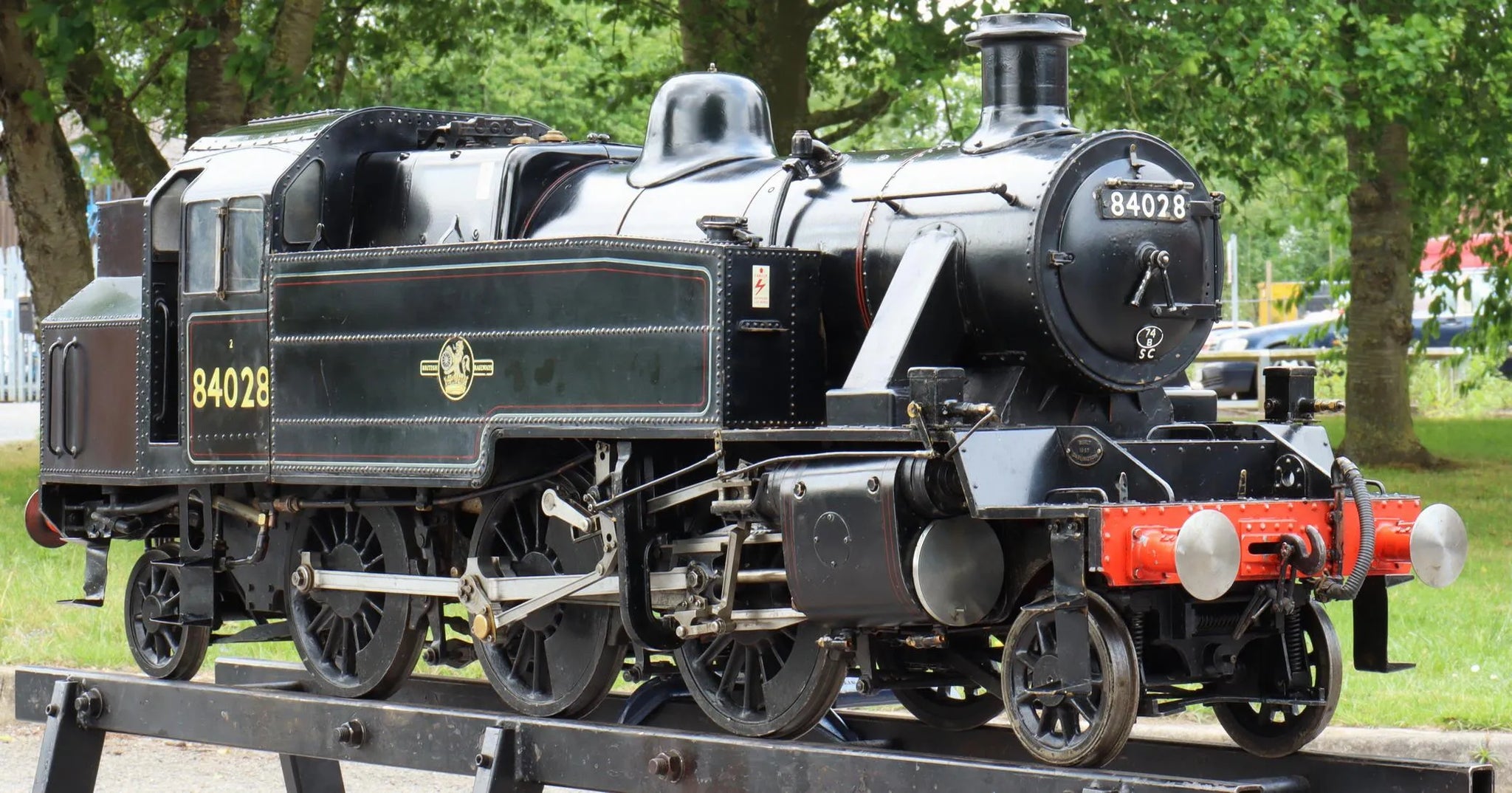

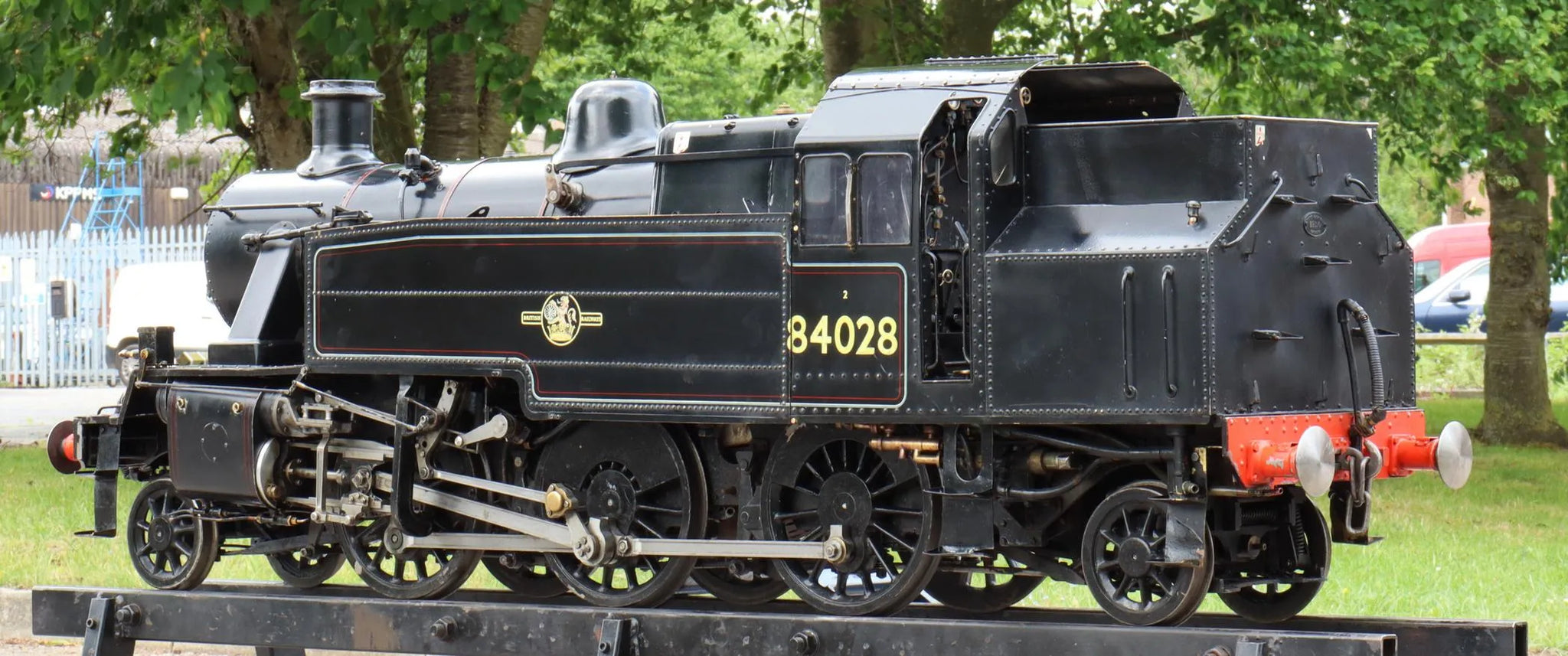

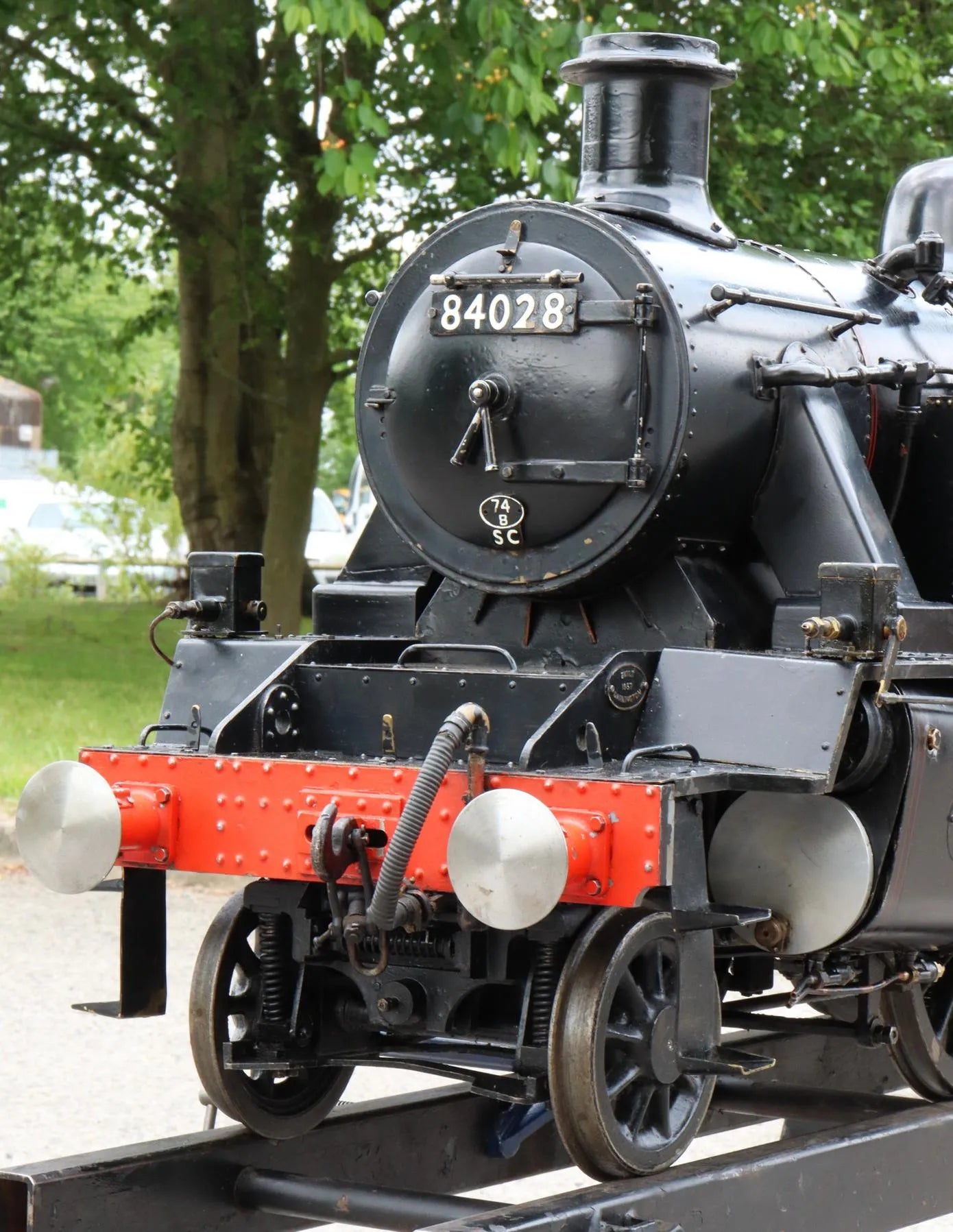

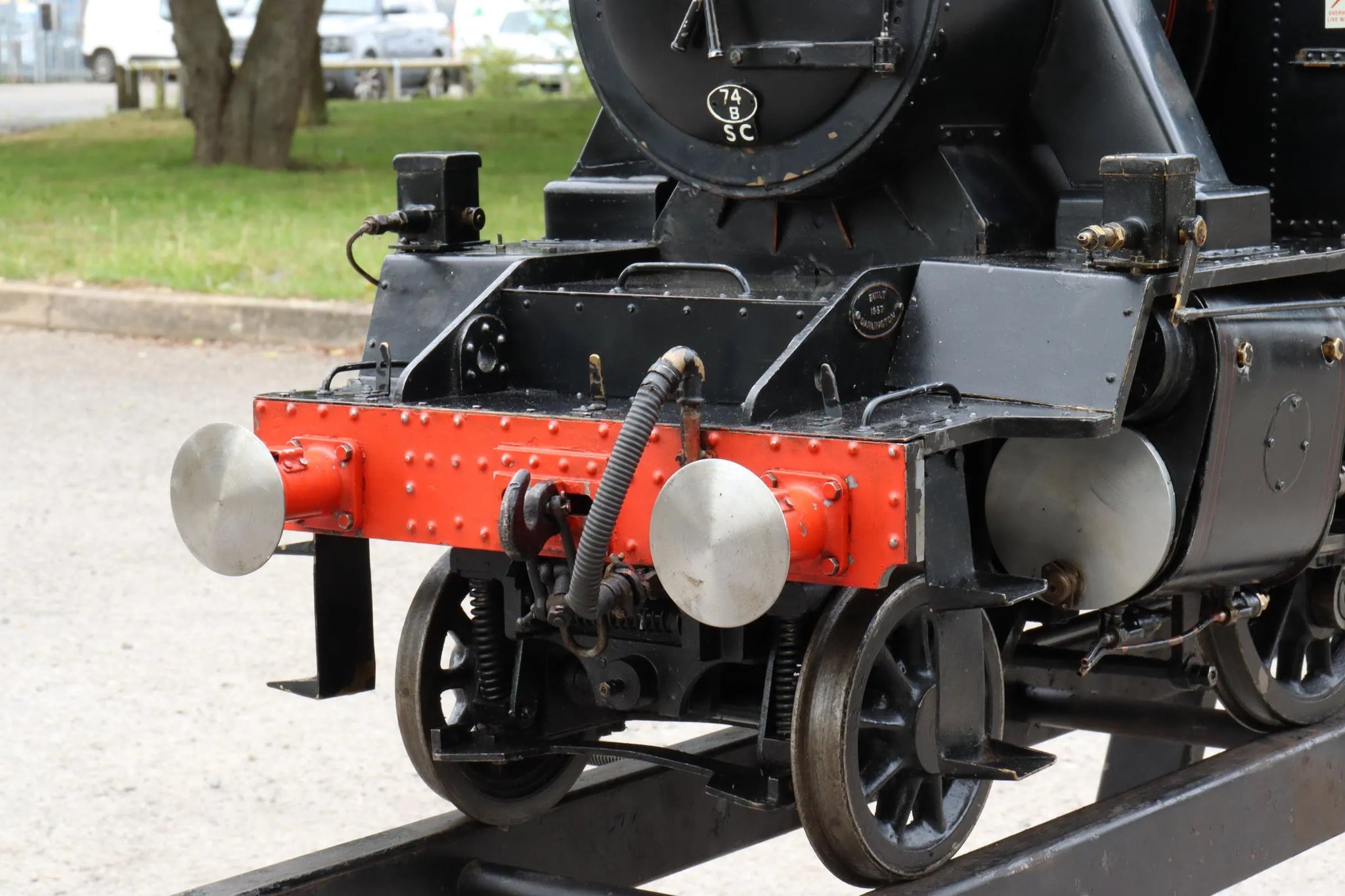

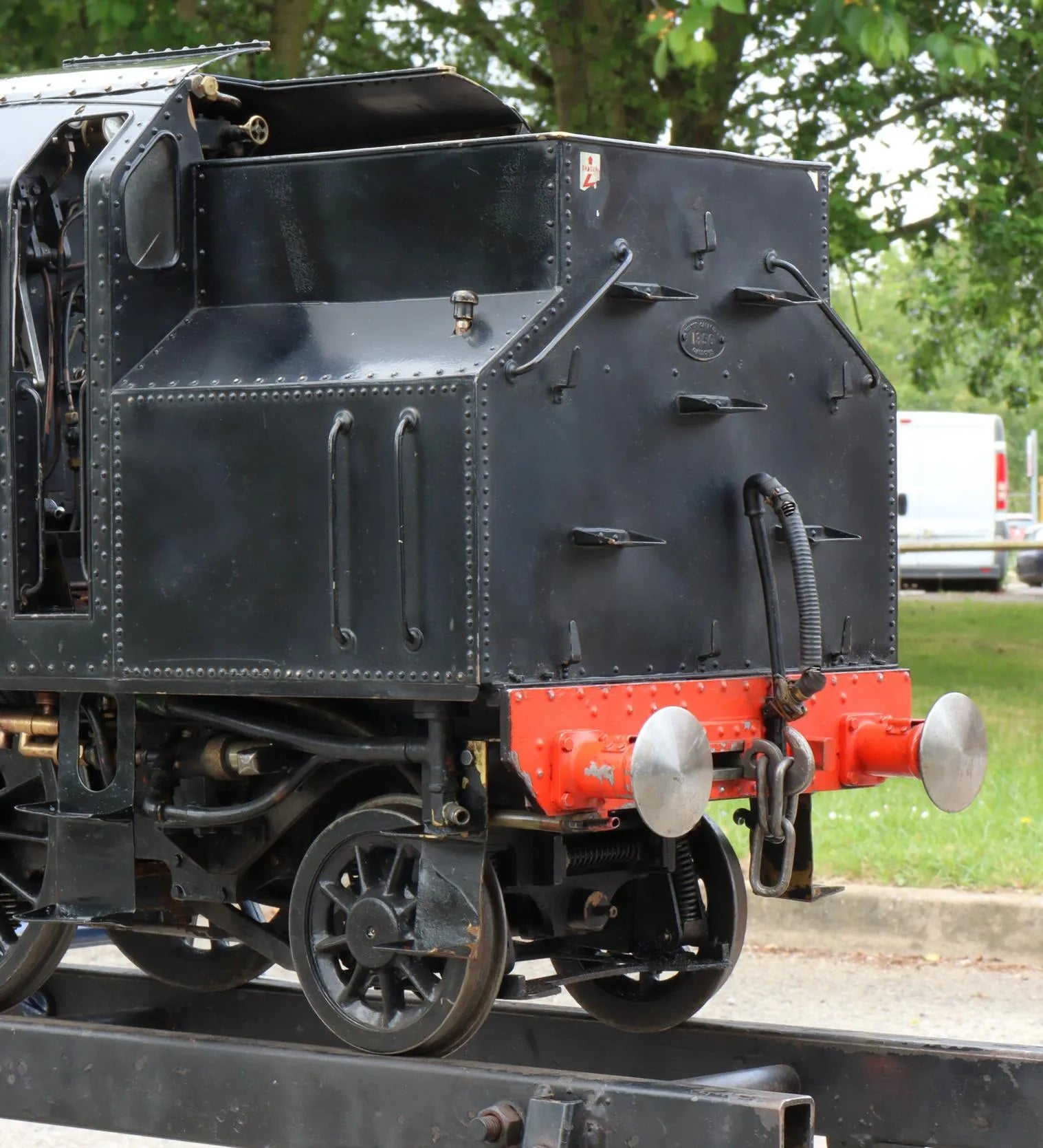

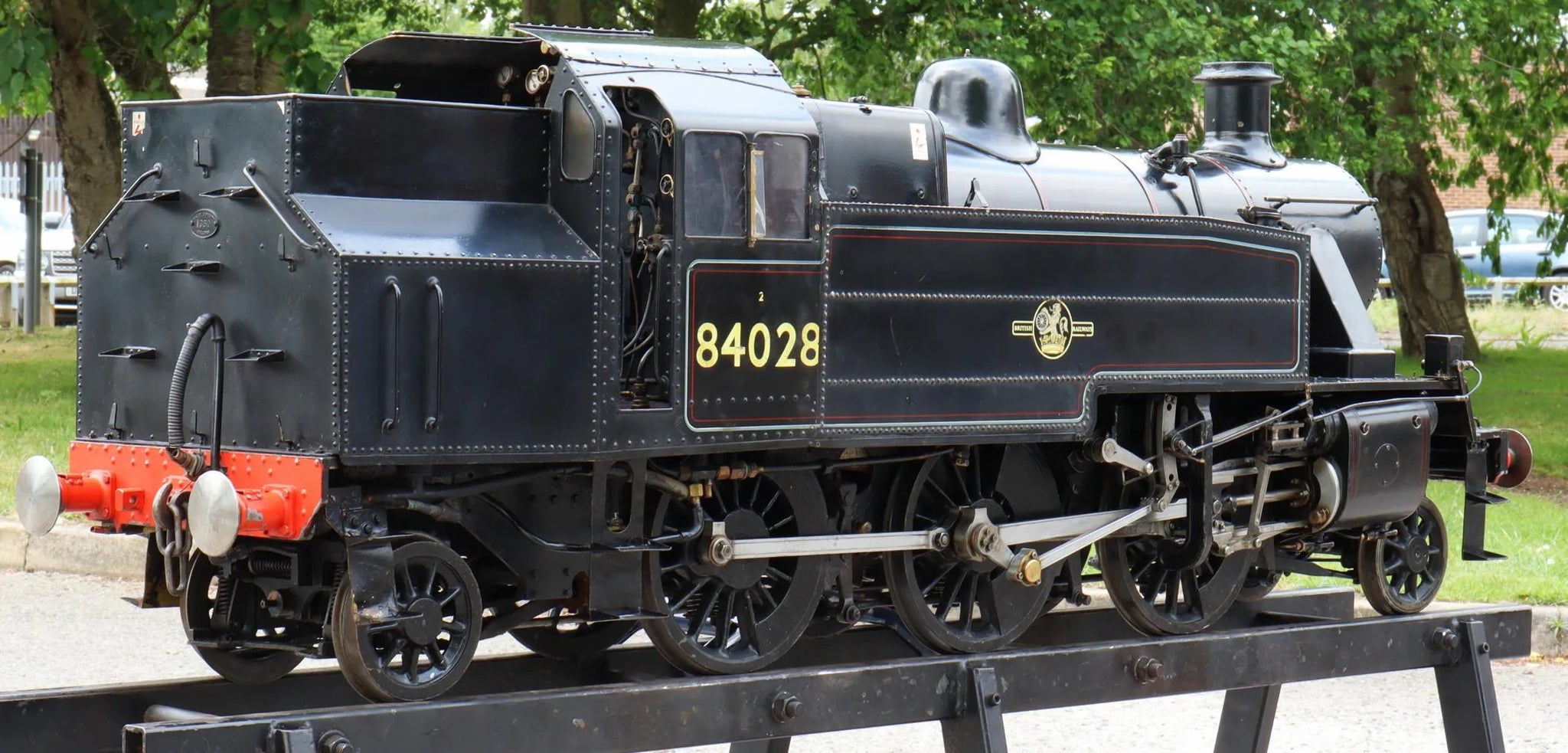

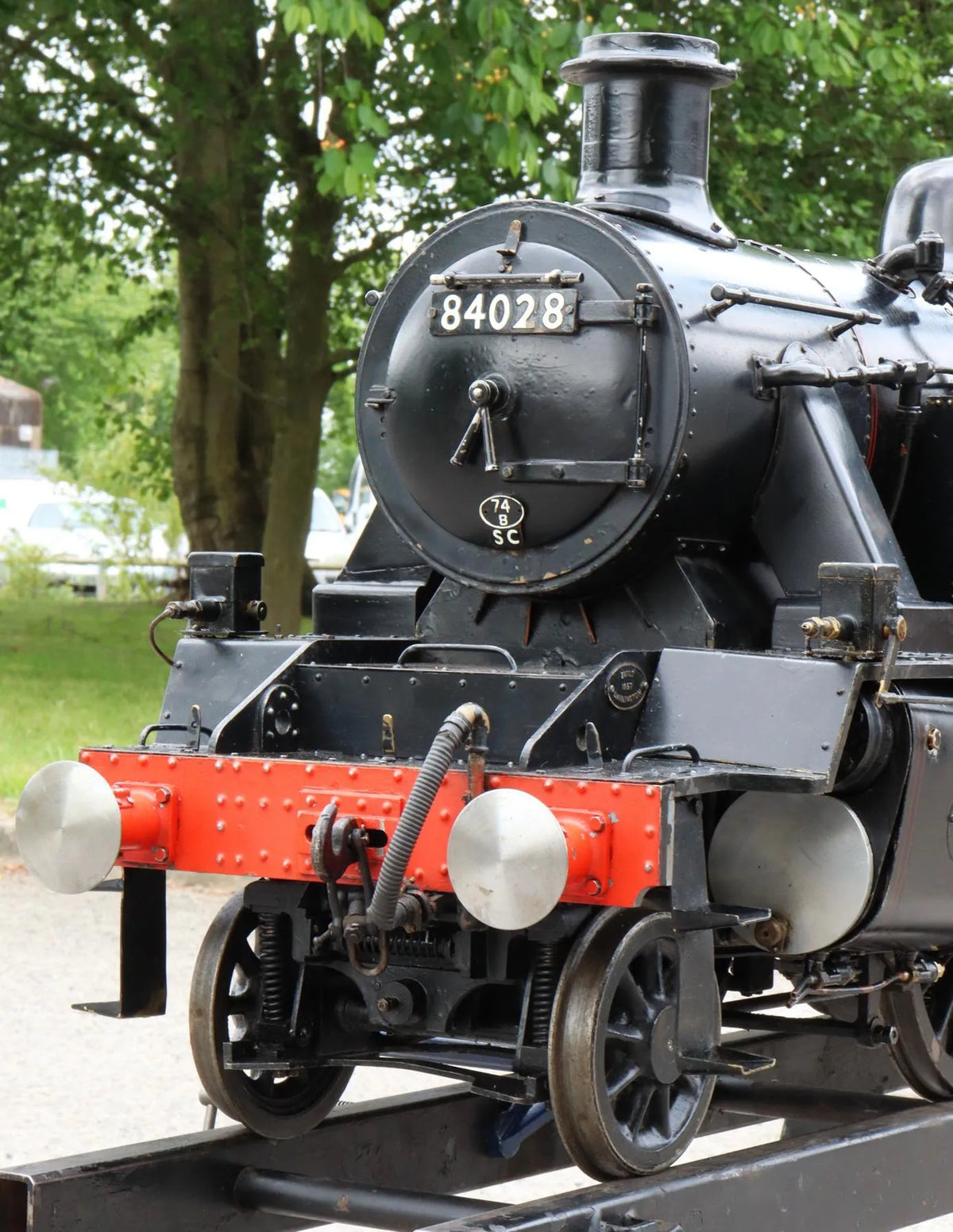

7 1/4 inch gauge BR Standard Class 2 2-6-2T

A 7 1/4 inch gauge BR Standard Class 2 tank; built in 1993 it was featured in the 7 1/4 inch gauge society journal in 2006 when attending a rally with classmate 84029.

We first saw the engine running at an Echills Wood Standard Gauge gala some years ago (I think that it was the year that we took Ron Martin's fabulous 9F) - at the time it had recently had a new firebox and set of tubes.

The engine has been unused since 2017 when it was stripped to have the cylinders honed and new pistons fitted - the honing was done professionally, new pistons were still on the job list when the work stalled.

The boiler has a good deal of historic paperwork with it, both from its original club and the last owner's, the last test expiring in 2018.

We've done a preliminary hydraulic test which showed no signs of leaks or distortion, we would warranty as sound. It looks to be in good condition, although will need to be lifted from the frames for a cladding off inspection before certification.

Technical information

Stock code

12908

Gauge

7 1/4 inch

Length/inches

59

Width/inches

14.5

Height/inches

20

Weight/Kg

164

Wheel material

cast iron

Cylinder material

cast iron

Valve type

piston

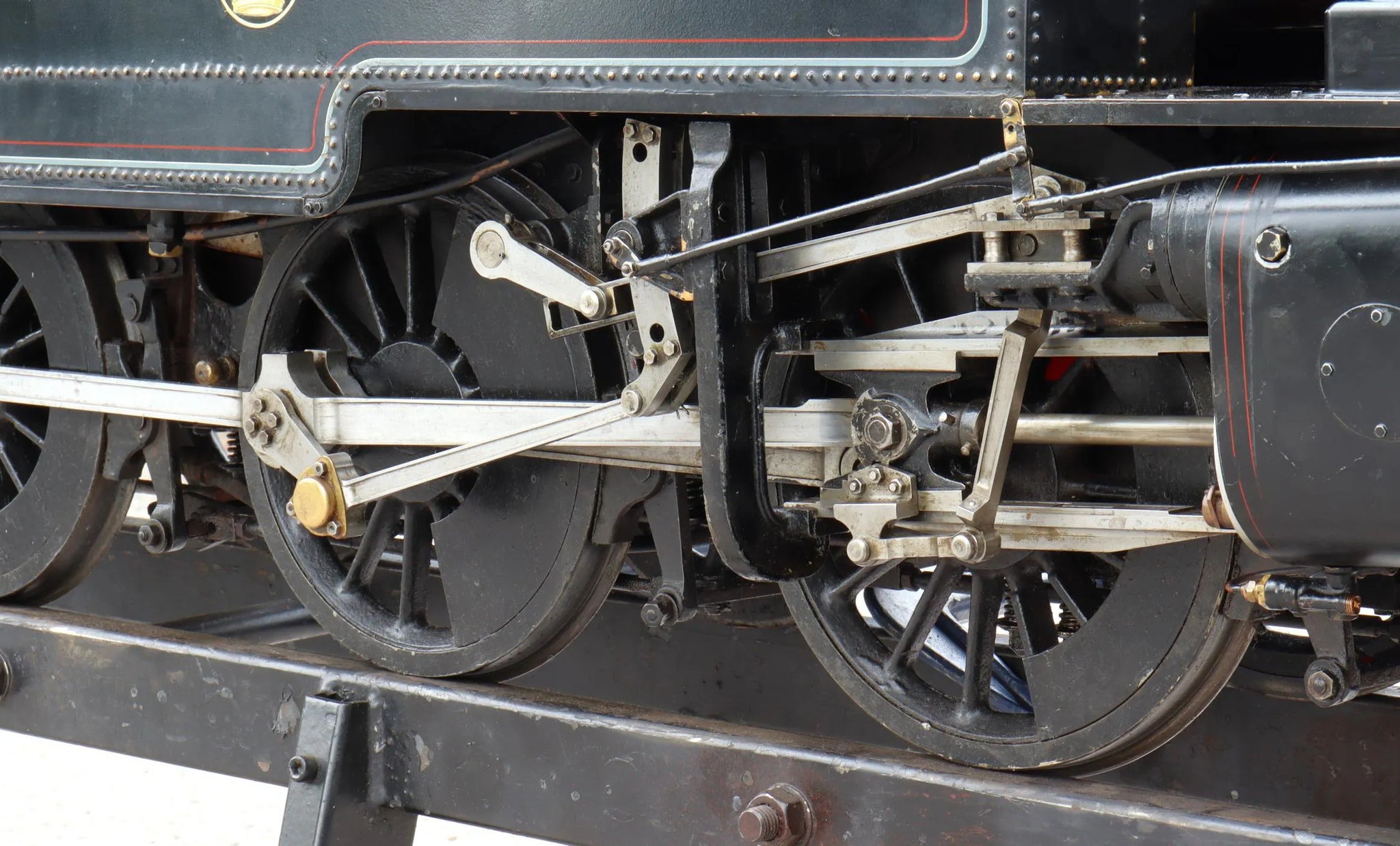

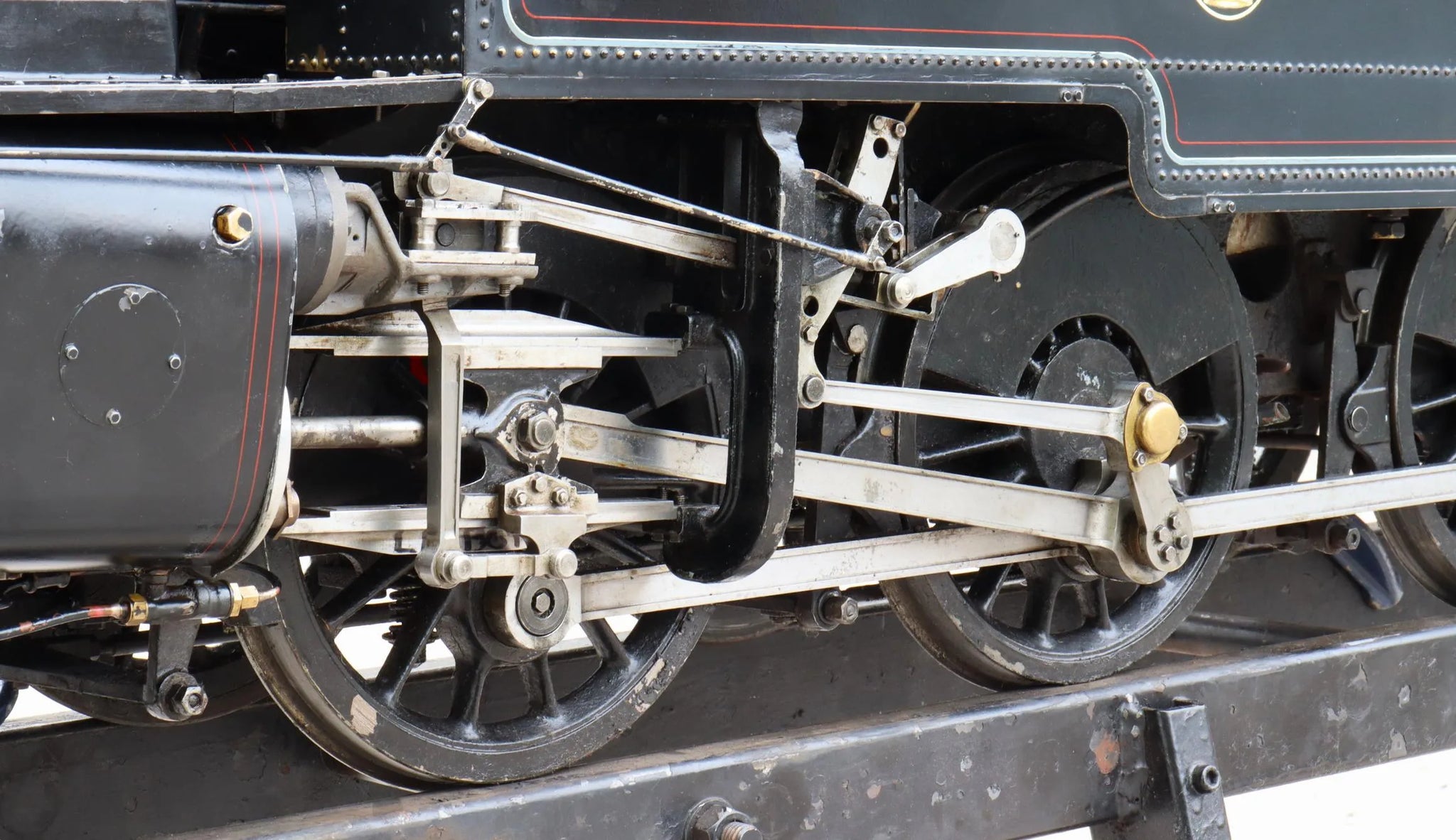

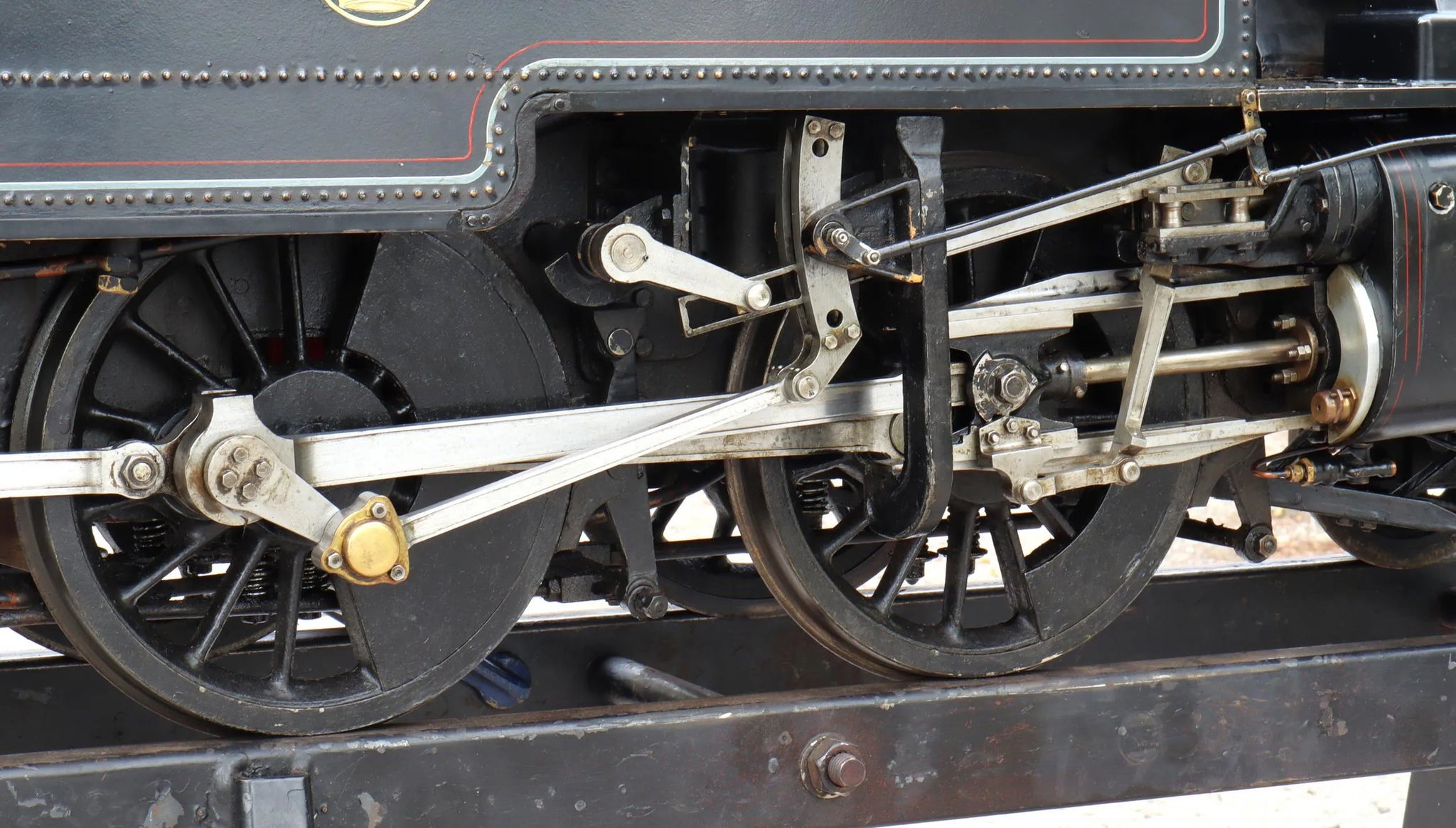

Valve gear

Walschaerts

Reverser type

screw

Boiler maker

P Taylor

Boiler type

locomotive

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

100

CE/UKCA mark

n/a non-commercial

Year built

193

Safety valve type

pop

Safety valve

2

Hand pump

1

Injector

2

Superheater type

radiant

Superheater

4

Date out

Jul-25
