Sold

11125

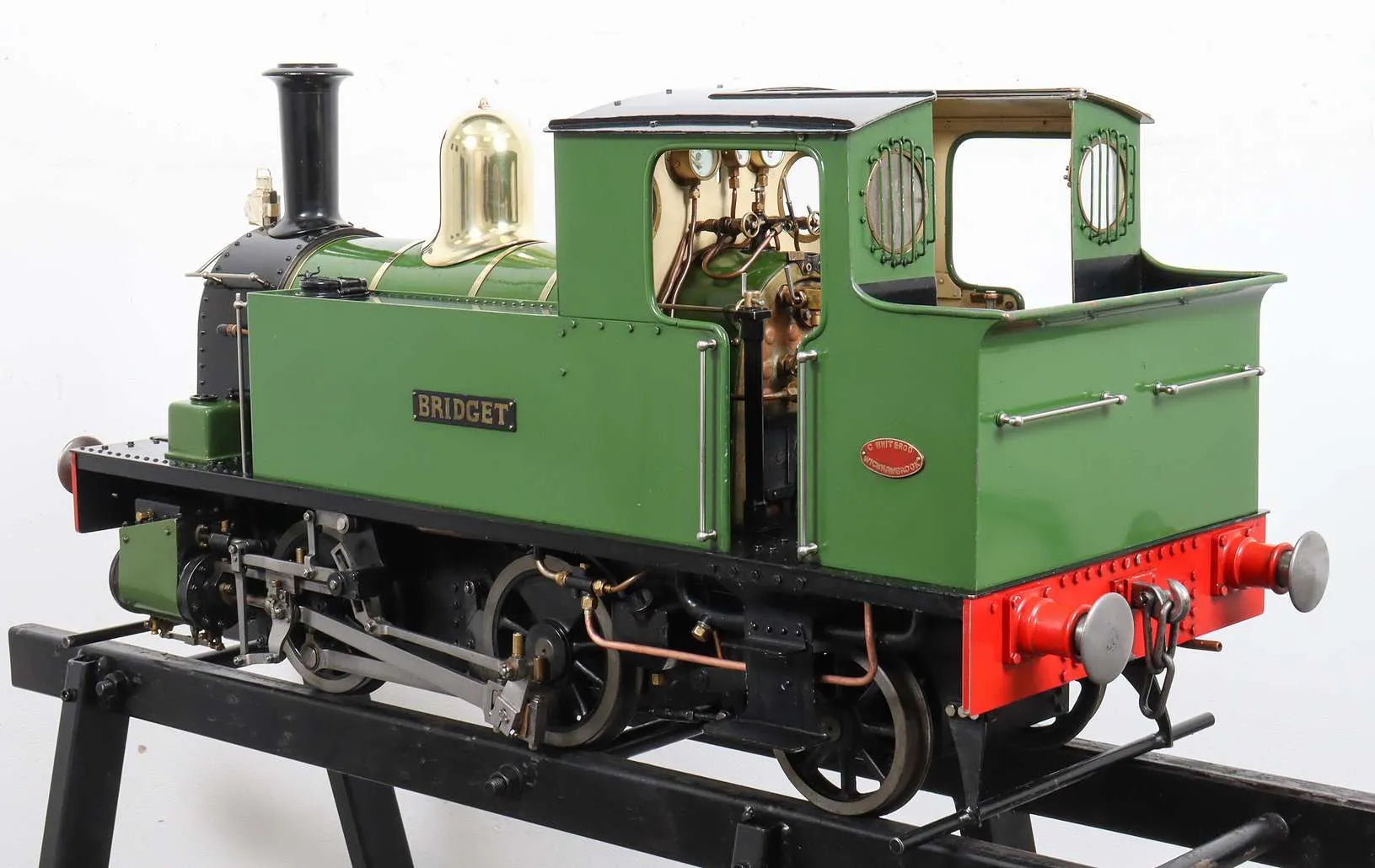

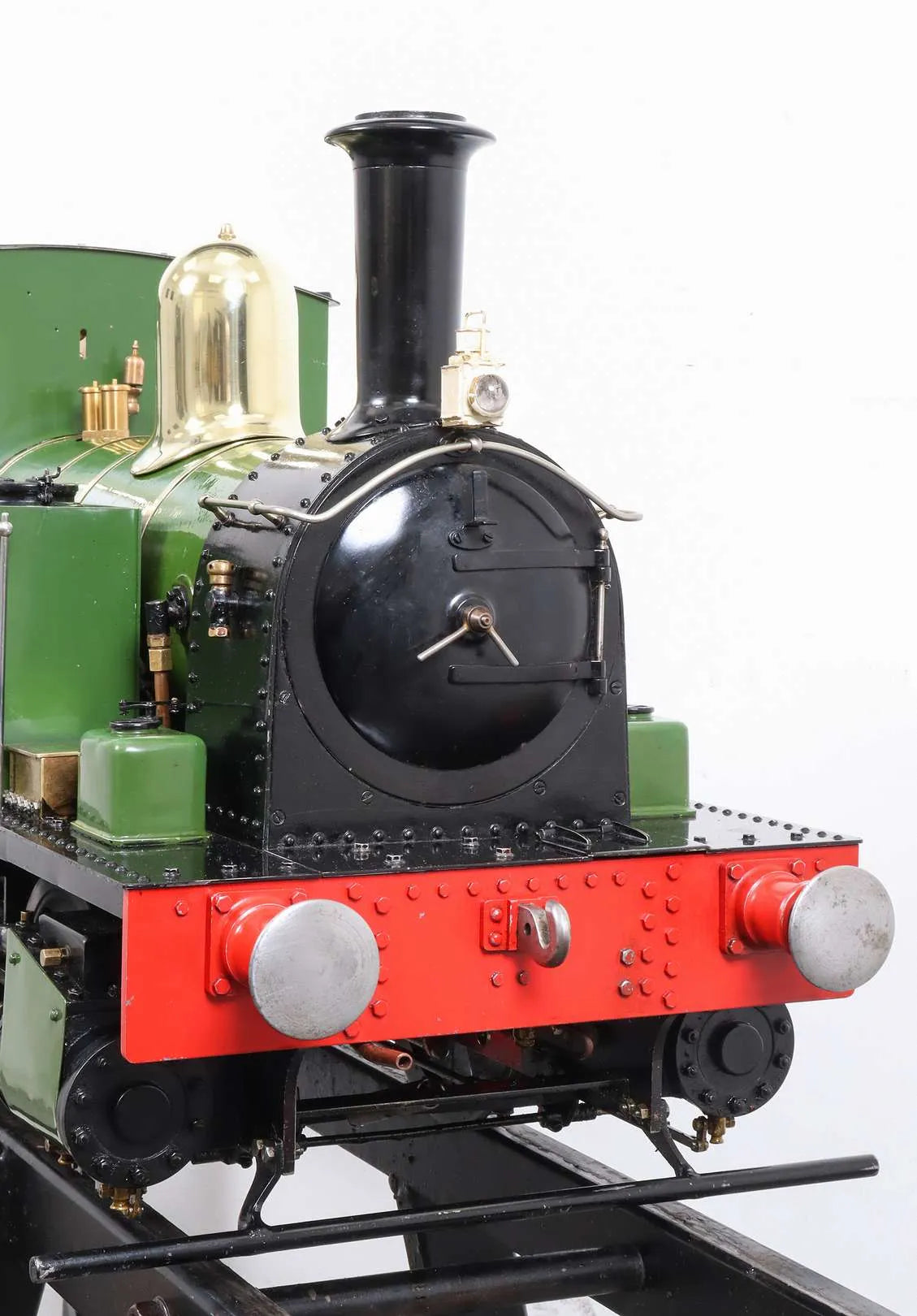

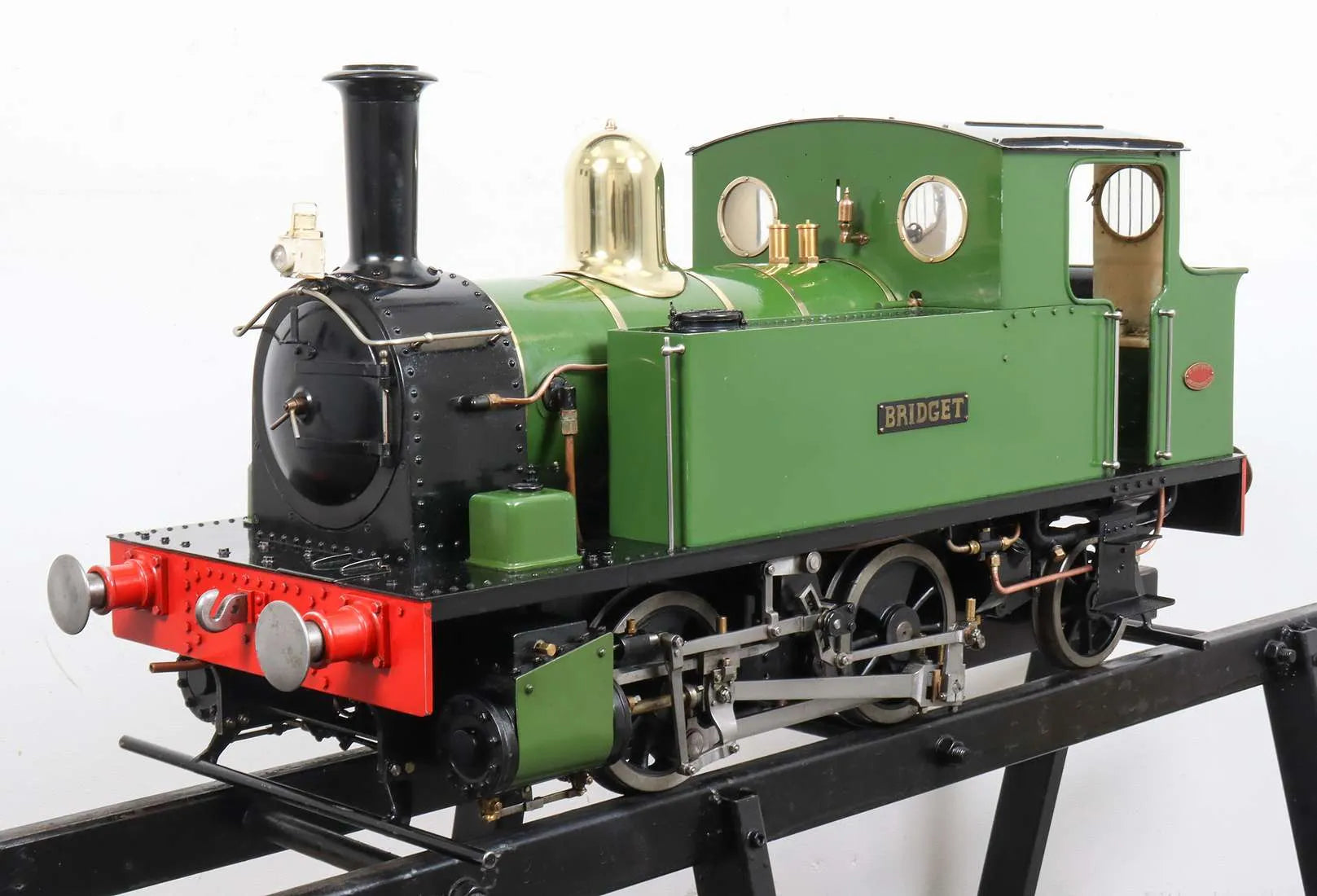

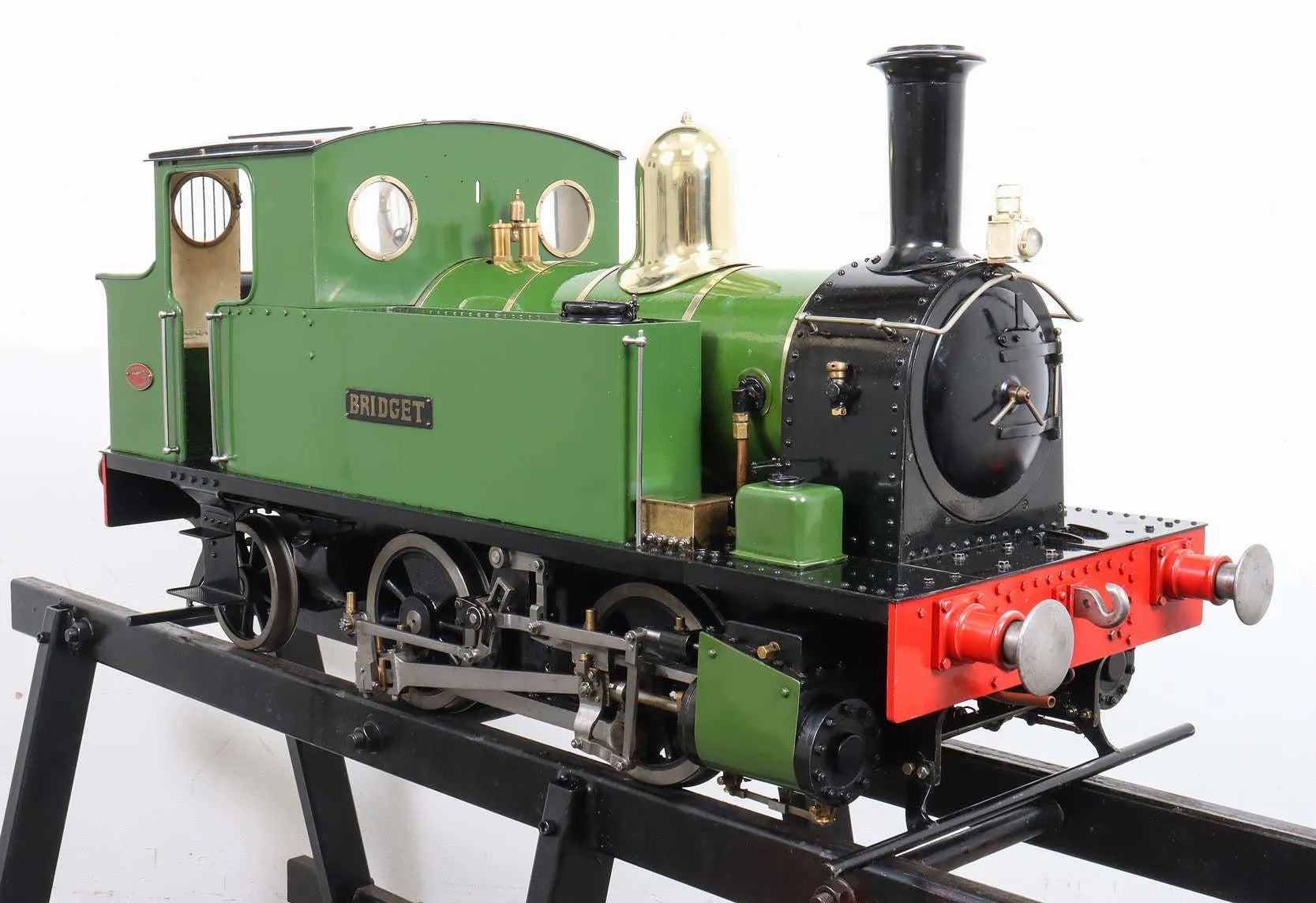

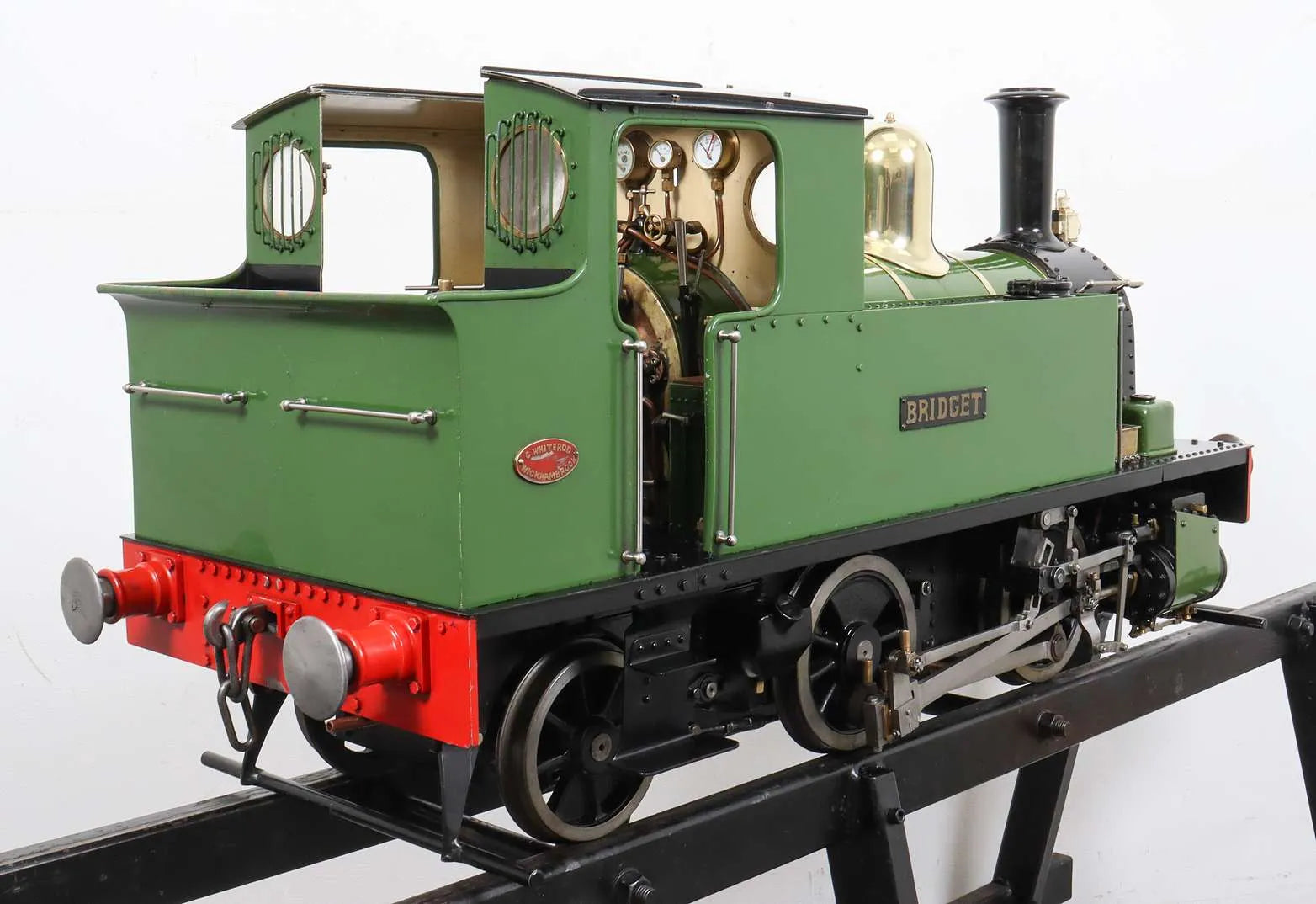

7 1/4 inch gauge "Bridget" 0-4-2T

A 7 1/4 inch gauge "Bridget" built to Ken Swan's popular design, a well-built locomotive fitted with a new commercially-built boiler in 2016 since when it has had little use.

The locomotive was originally built around 25 years ago and was sold - still unsteamed from new - in 2013 to a gentleman who had it commissioned, following which it was used until 2015 at his local club.

In 2016 a leak was discovered on the front tubeplate of the original boiler, whereupon a new TIG-welded copper boiler was ordered from Steam Technology and fitted by a fellow club member, a highly capable model engineer.

Following reassembly the engine had occasional use until the end of 2019. With the arrival of COVID the following year it was put into storage and had not been steamed since then when it arrived with us.

The engine is in good condition throughout, with a boiler that has been steamed on a handful of occasions from new. On test it steamed freely and ran well, there's some video of it on our YouTube channel here.

Technical information

Stock code

11125

Gauge

7 1/4 inch

Length/inches

37

Width/inches

13

Height/inches

18

Weight/Kg

86

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

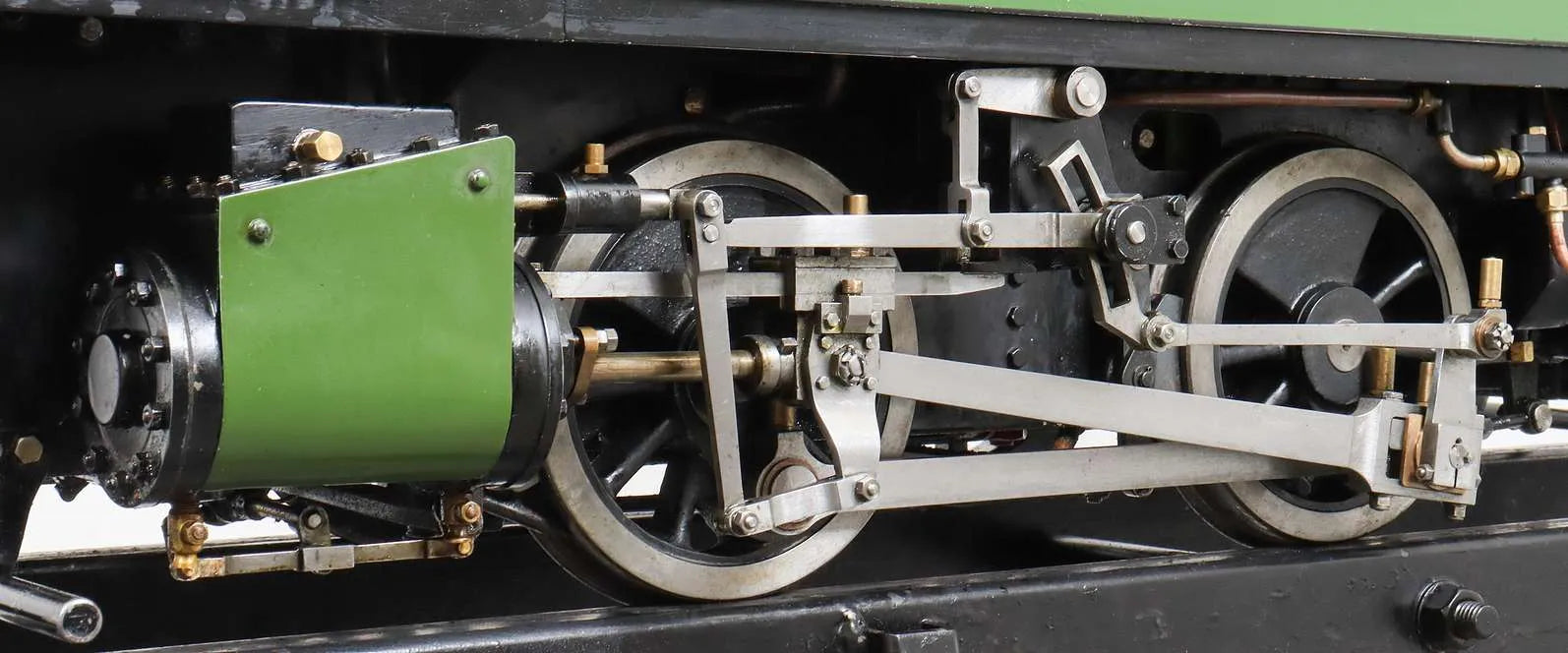

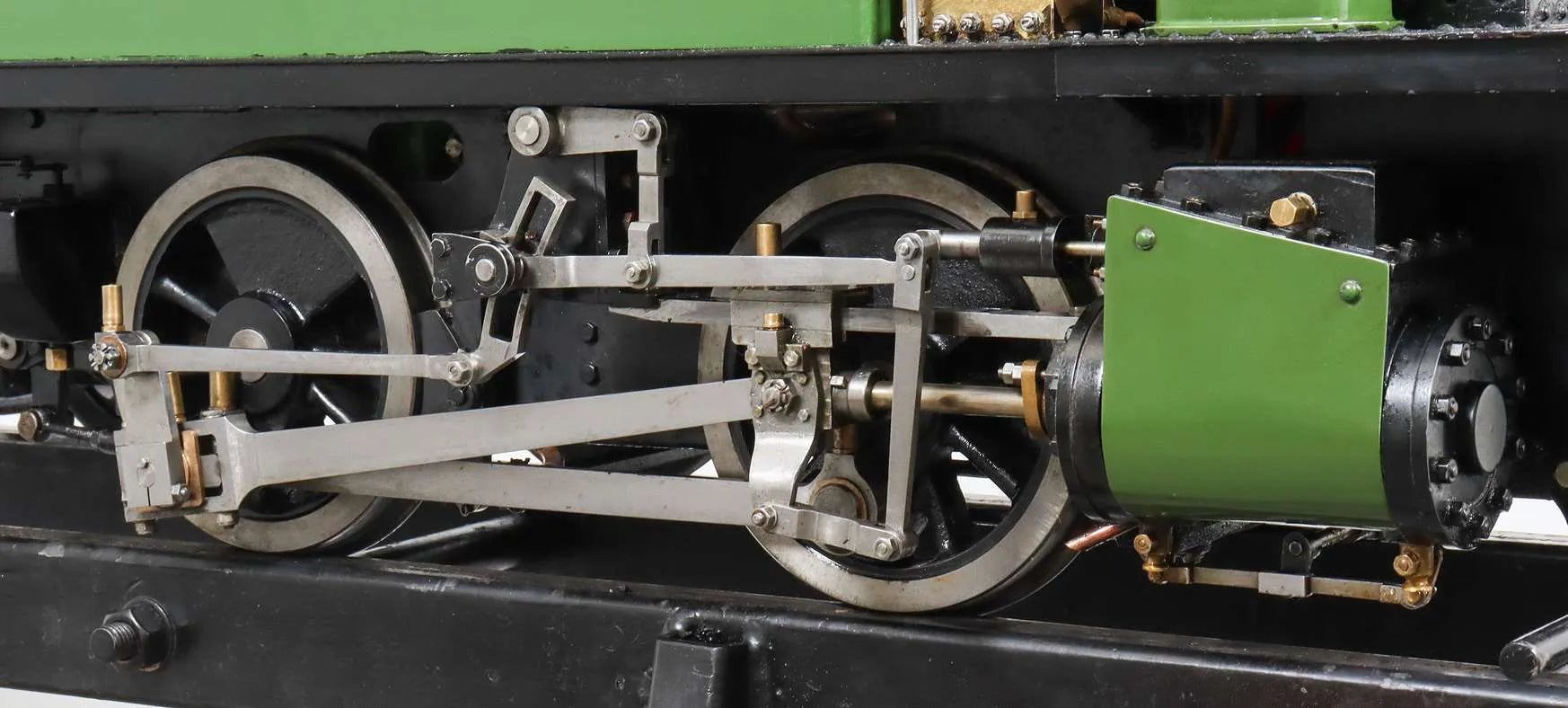

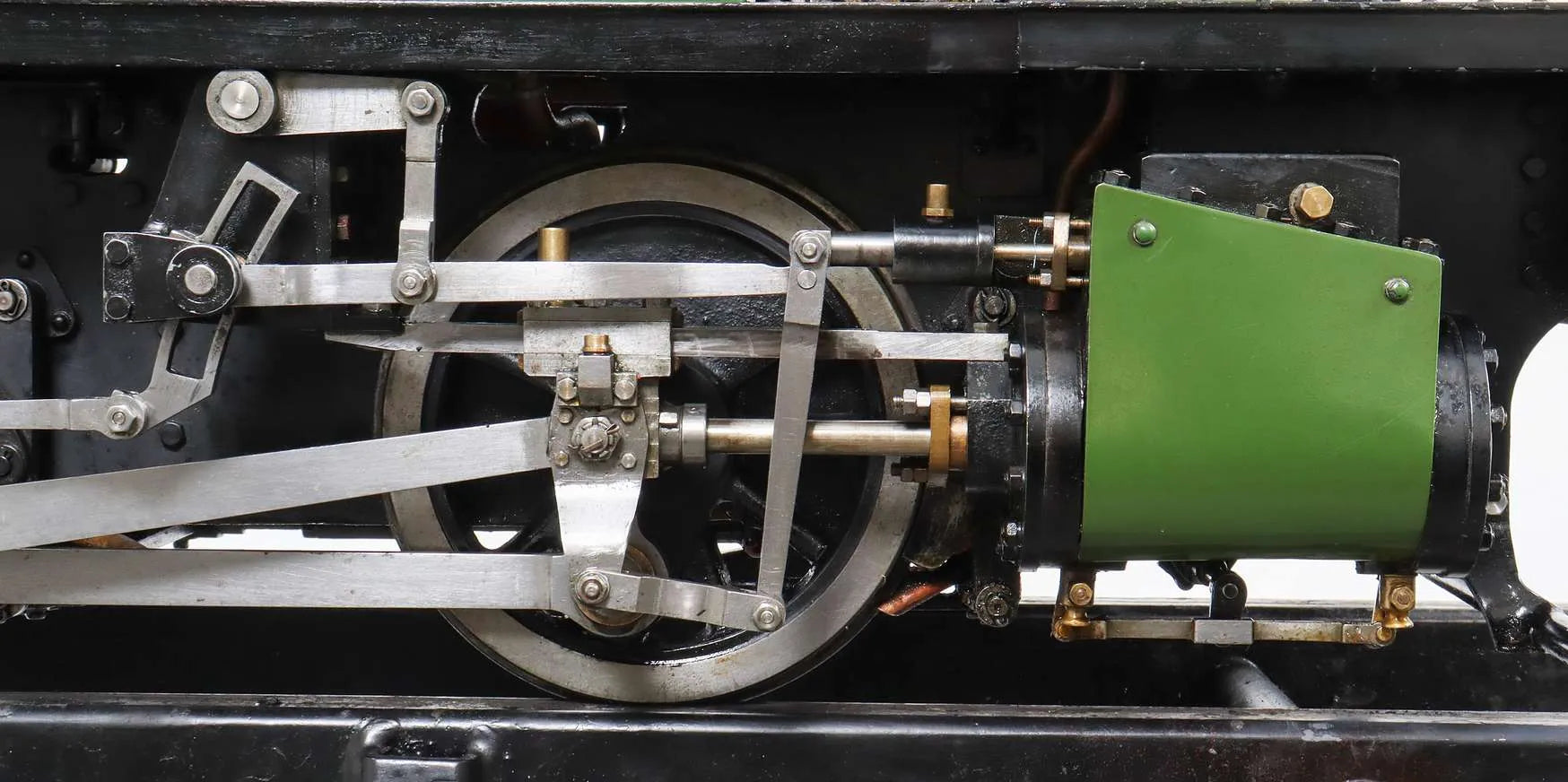

Valve gear

Walschaerts

Reverser type

pole

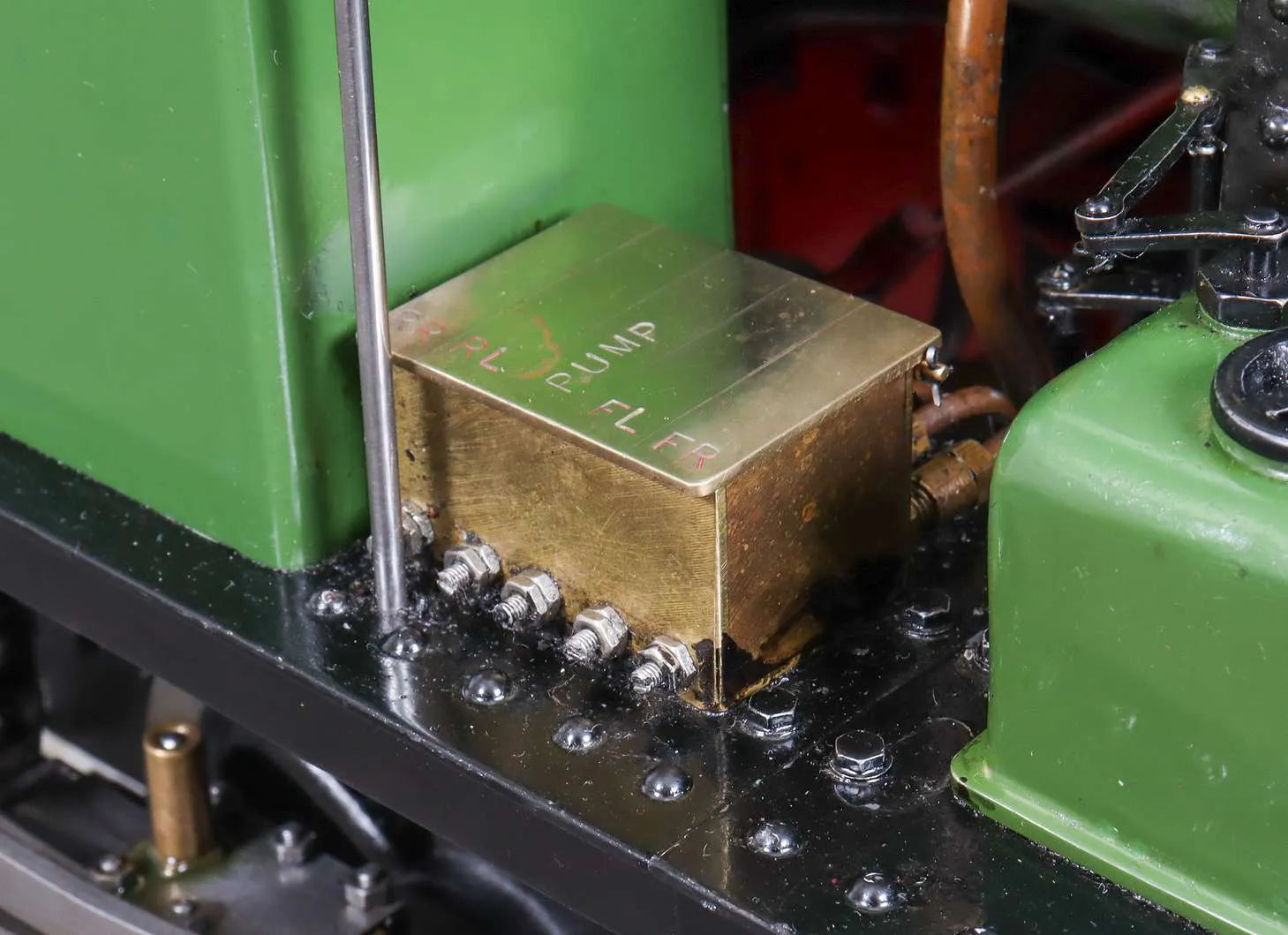

Lubricator type

mechanical

Boiler maker

Steam Technology

Boiler type

locomotive

Boiler construction

TIG-welded/silver soldered

Boiler material

copper

Working pressure

120

CE/UKCA mark

yes

Year built

2016

Boiler number

ST1252.05.16

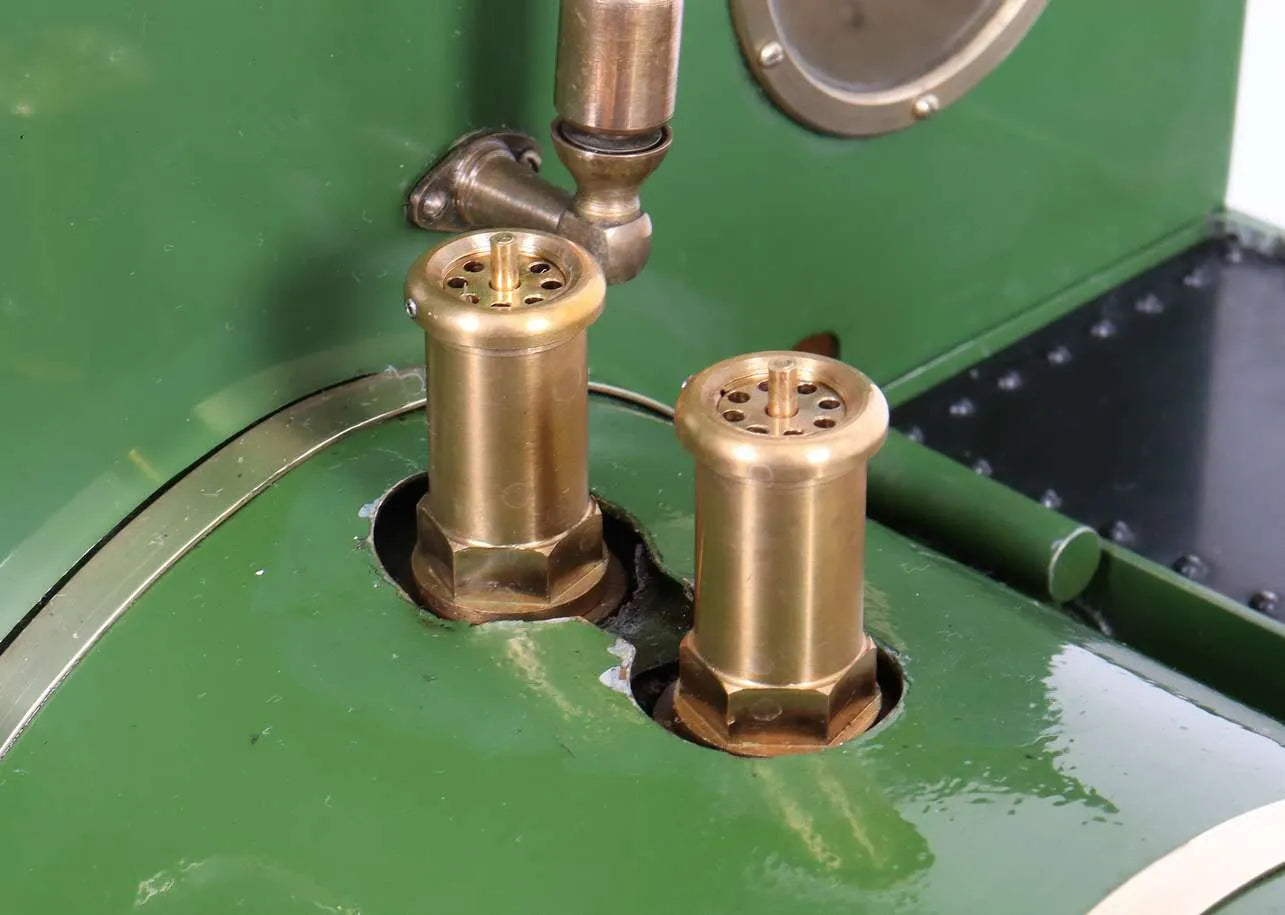

Safety valve type

spring

Safety valve

2

Fusible plug

no

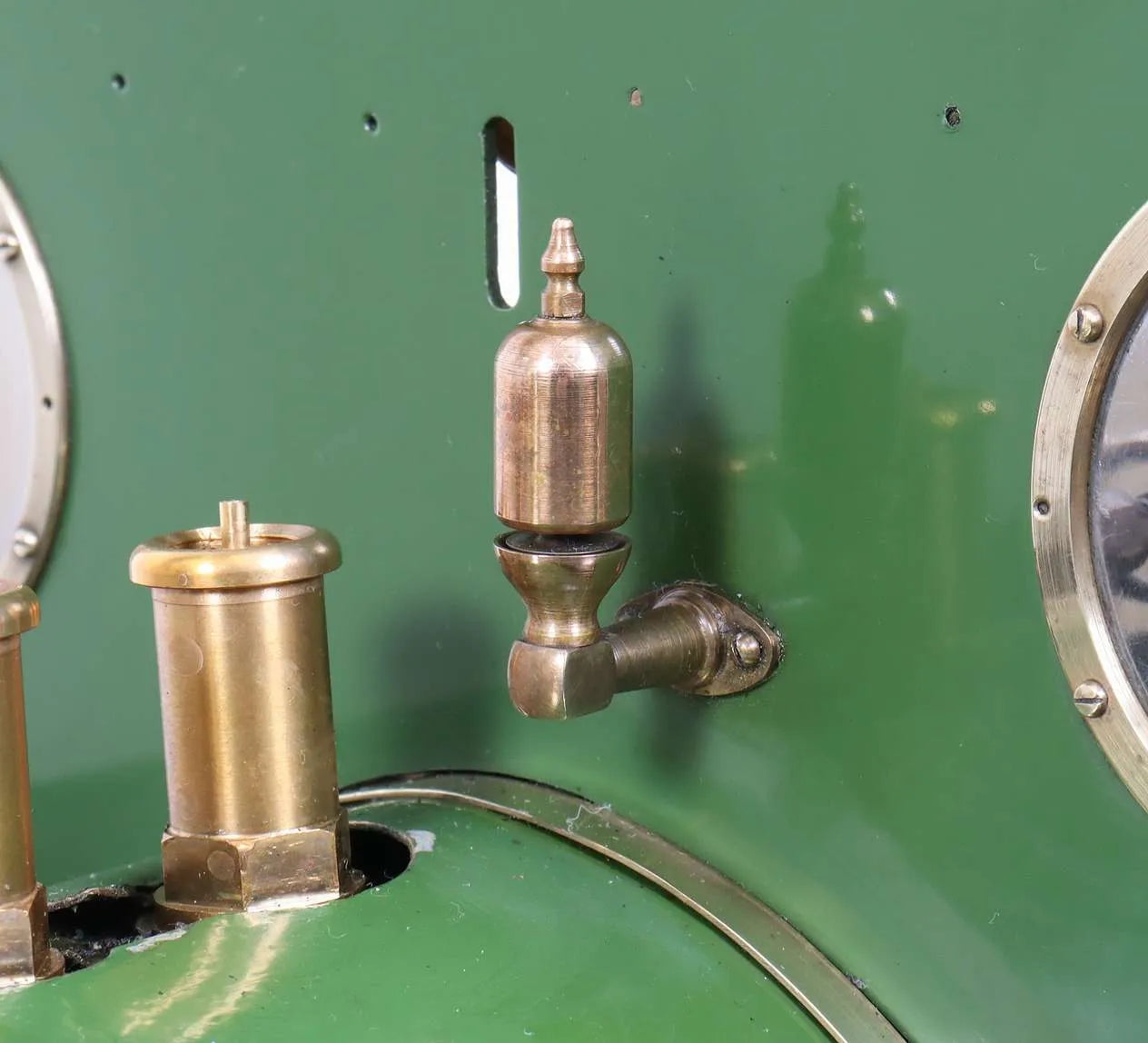

Whistle

yes

Hand pump

1

Mechanical pump

1

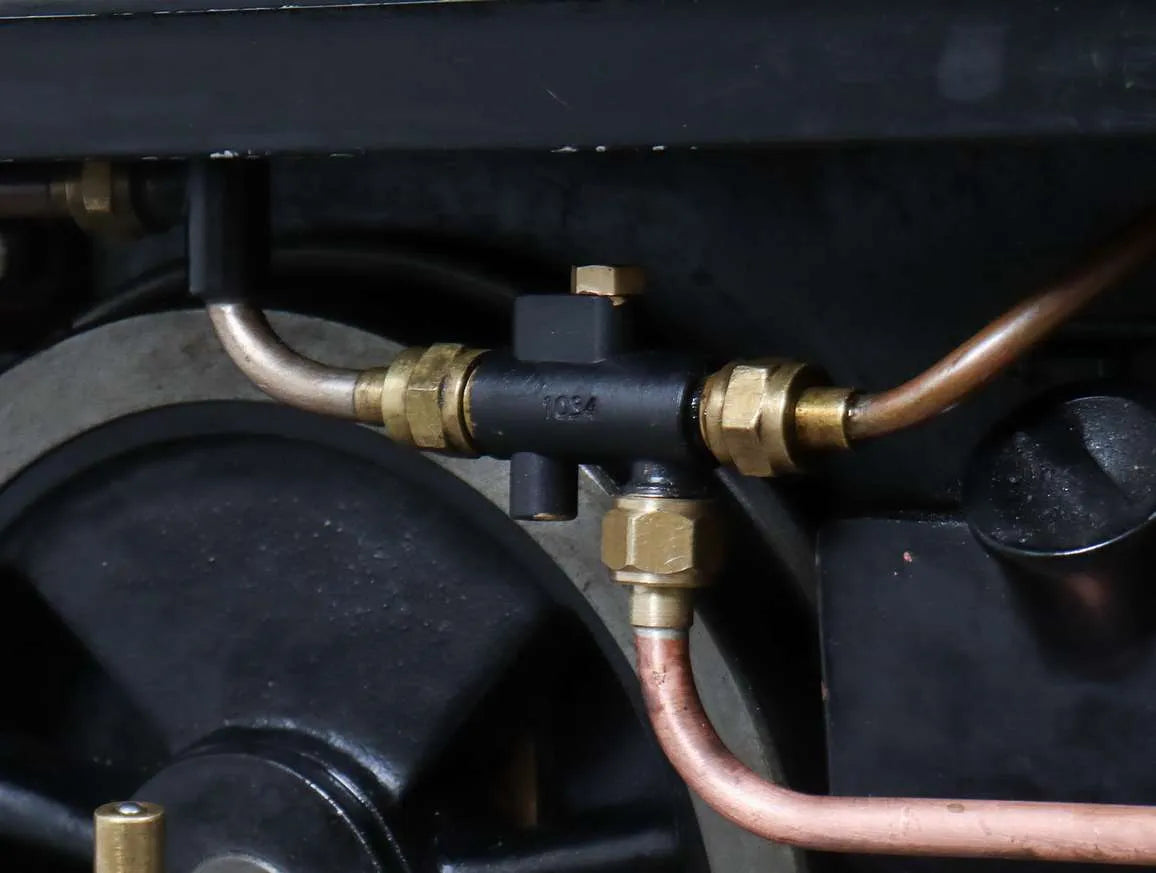

Injector

1

Superheater type

radiant

Superheater

3

Date out

Jul-23

Hydraulic test valid to

30-Jan-27

Steam test valid to

09-Apr-24
