Sold

10418

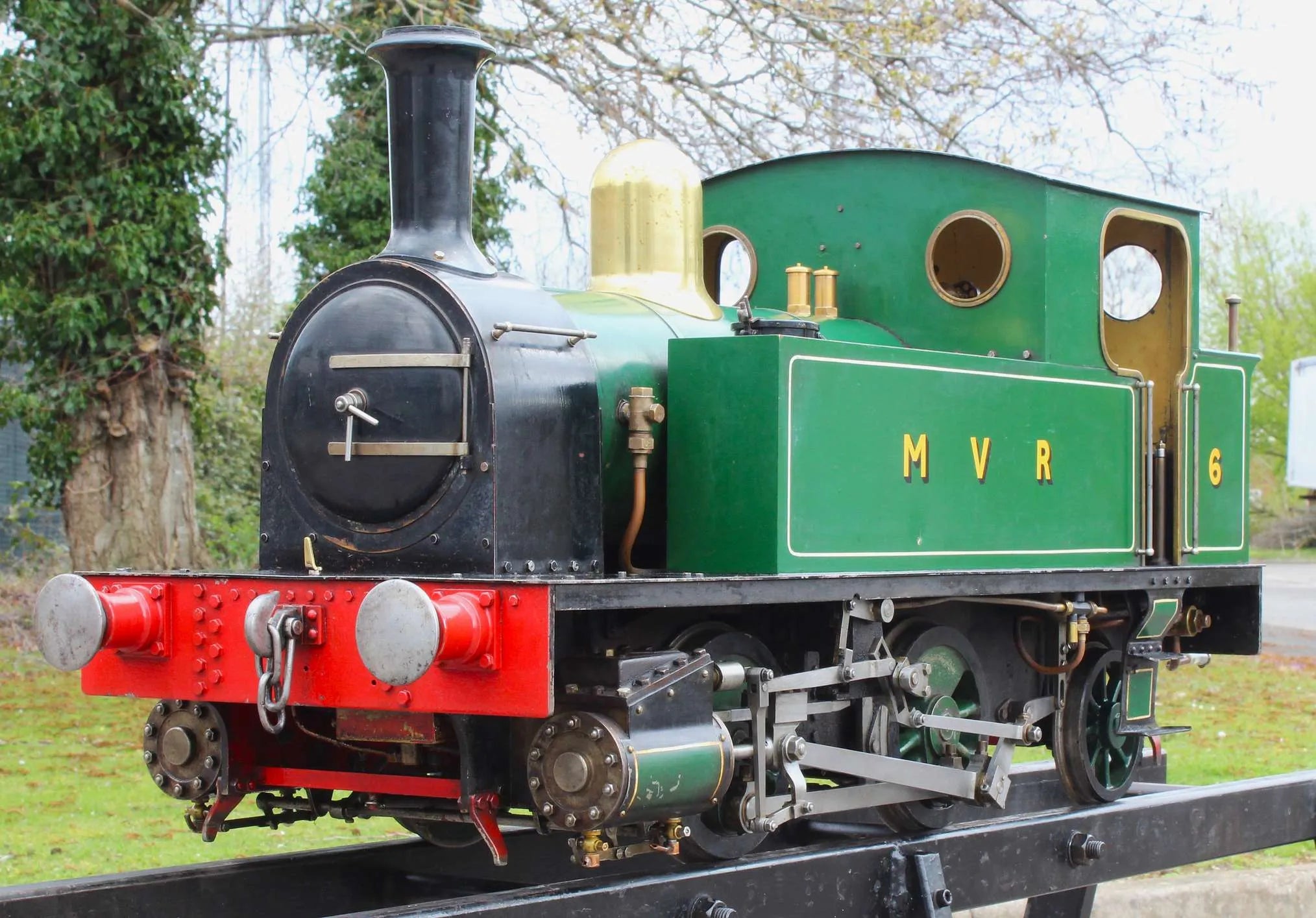

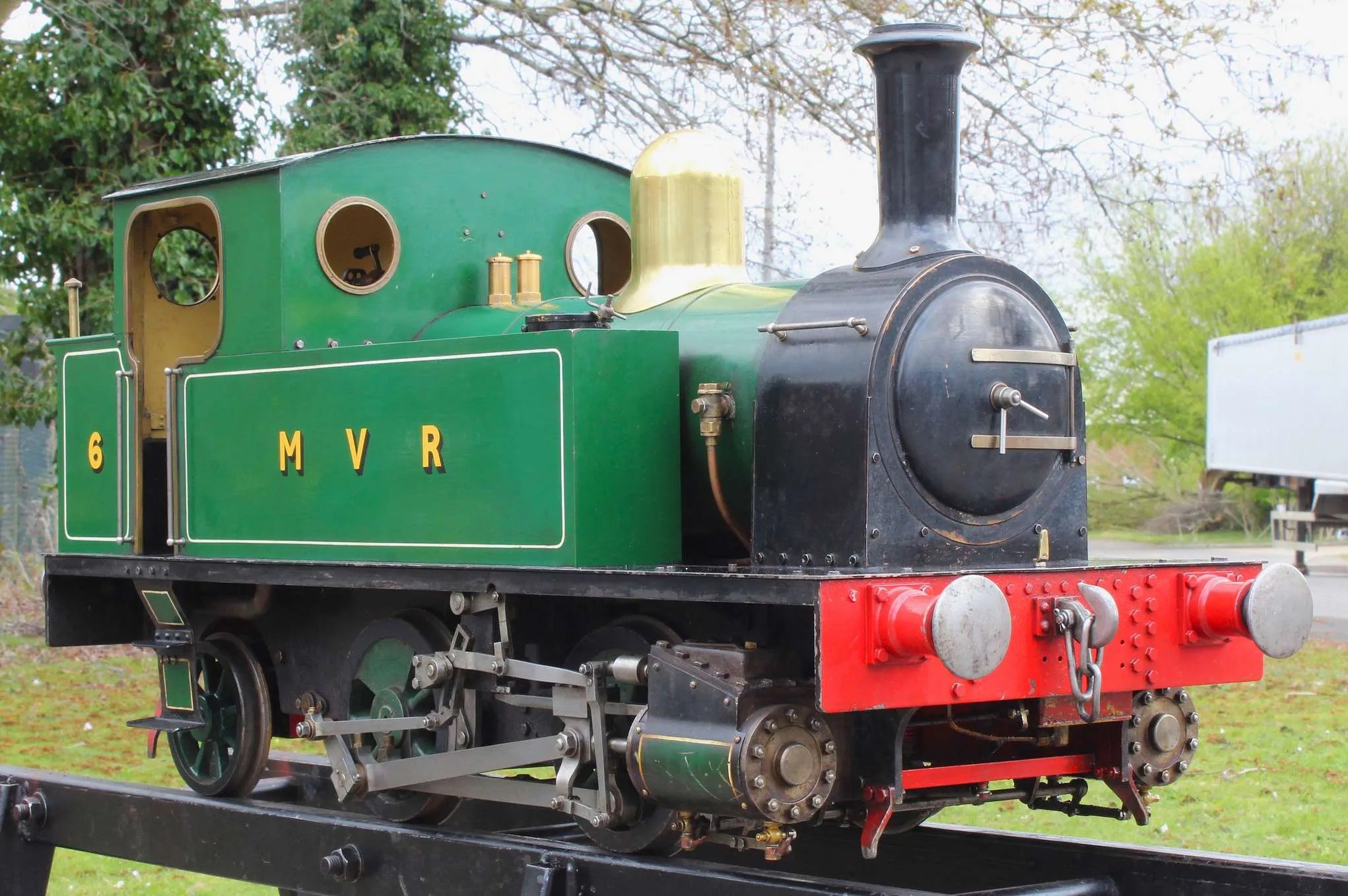

7 1/4 inch gauge "Bridget" 0-4-2T

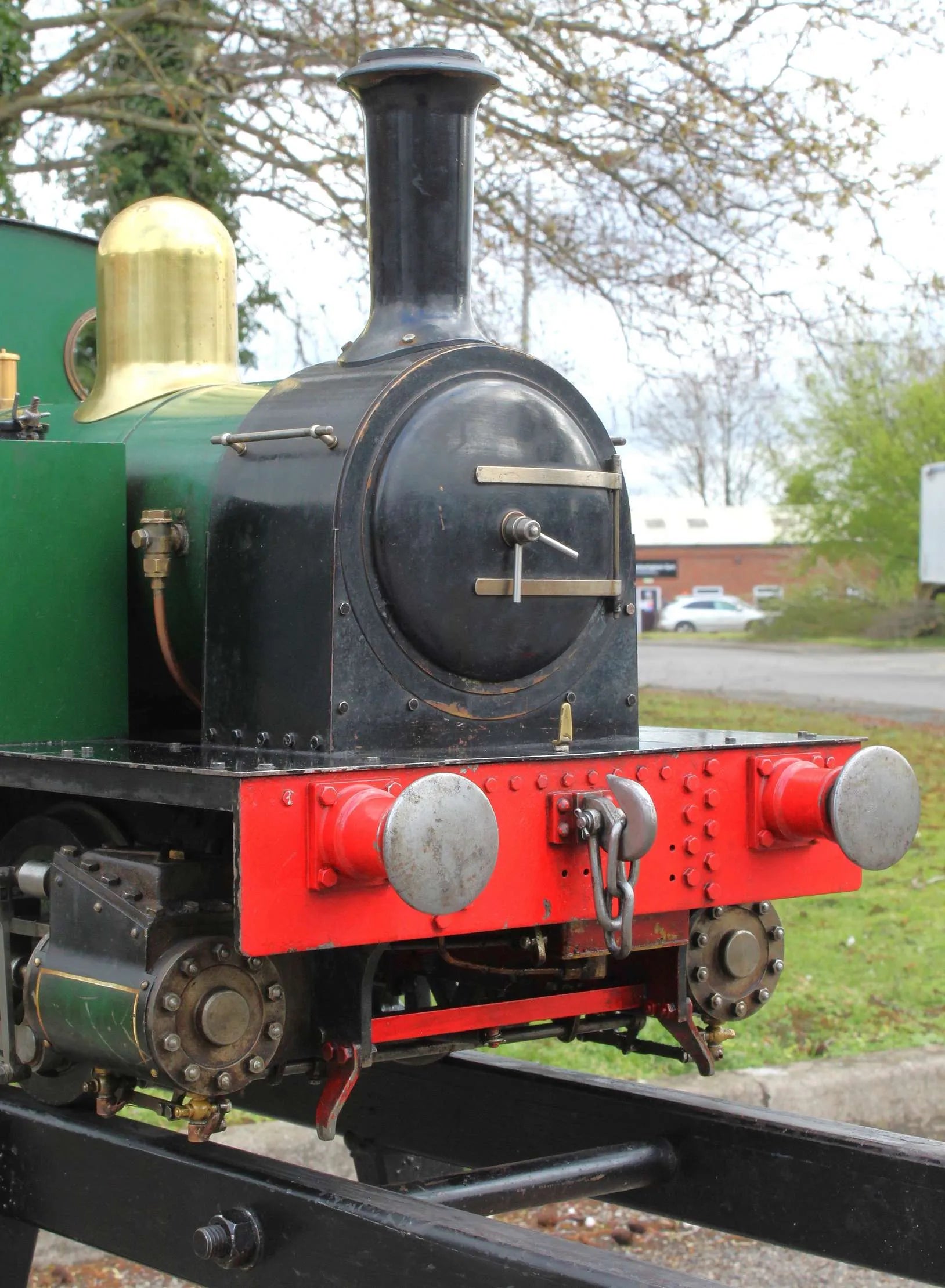

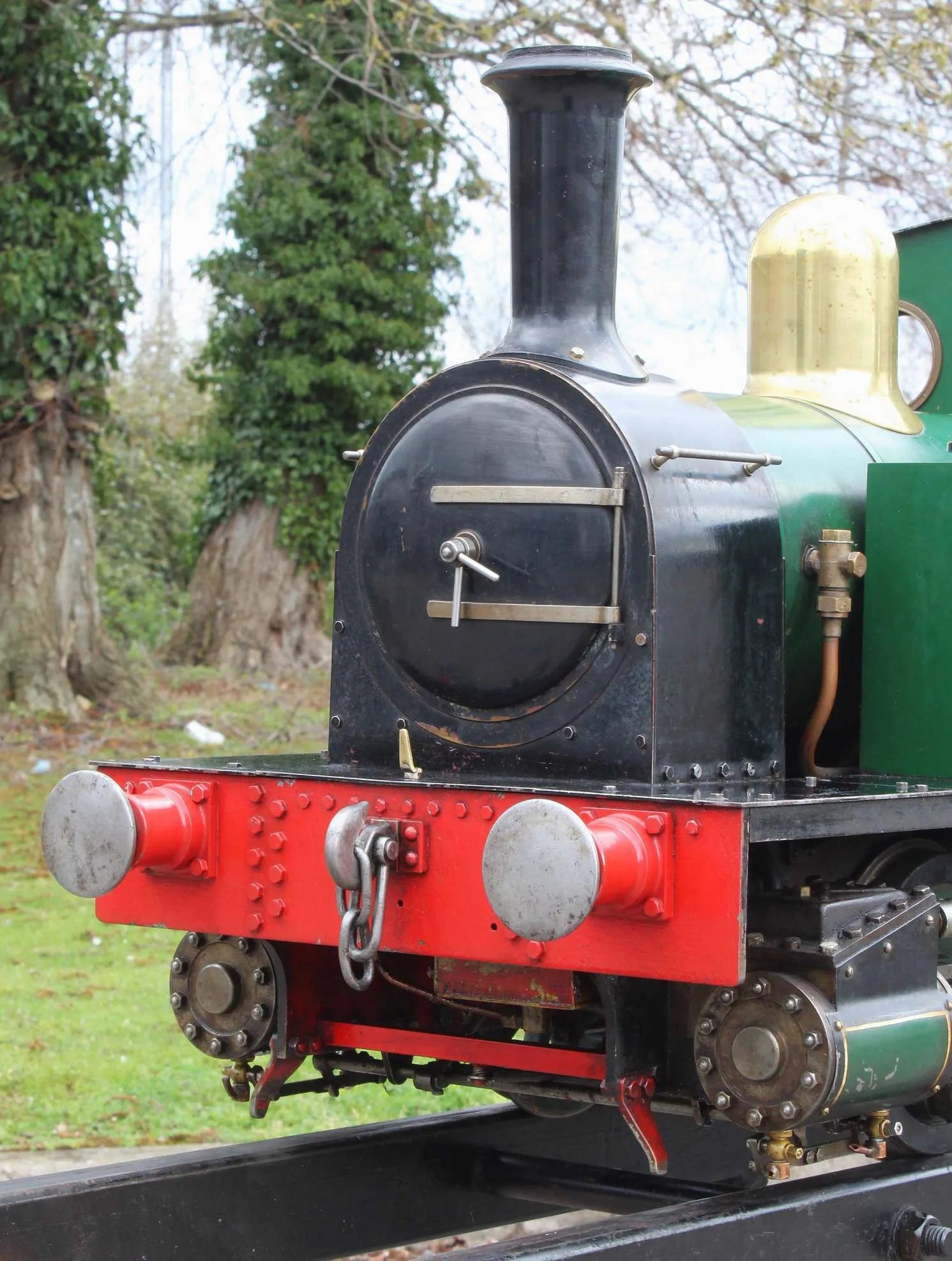

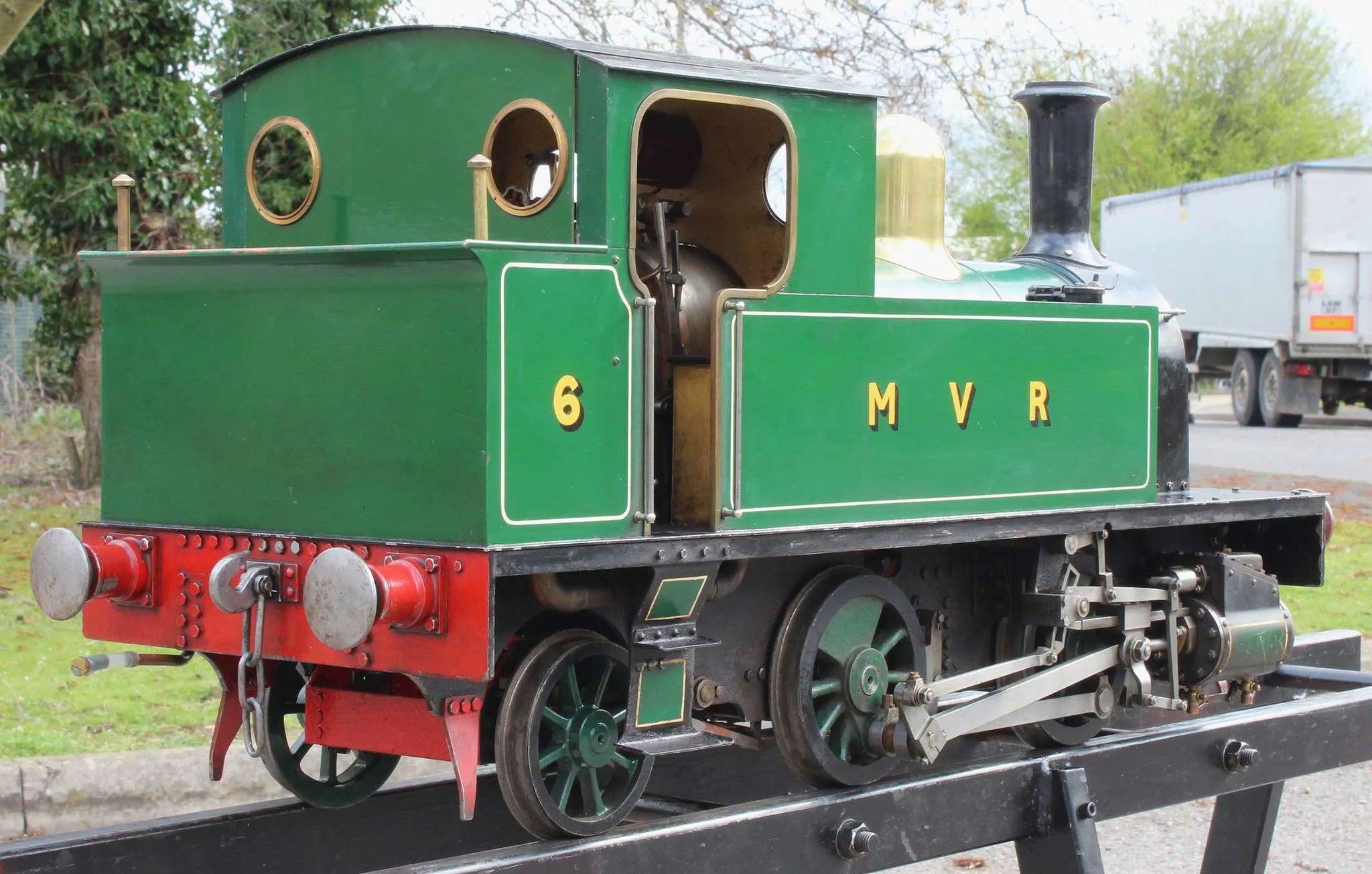

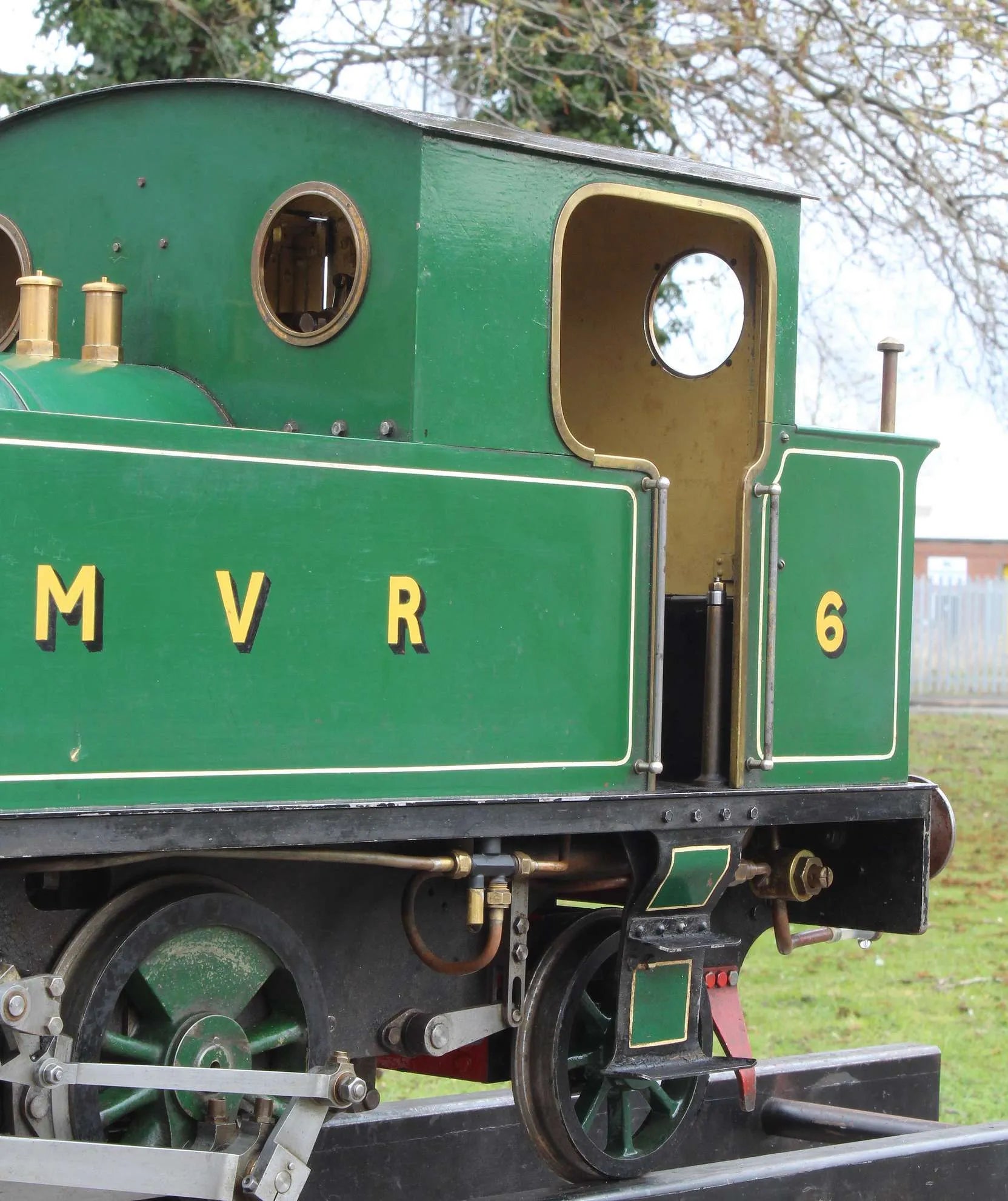

A well-built 7 1/4 inch gauge 0-4-2T to Ken Swan's excellent "Bridget" design, an older engine which, whilst having some wear to the paintwork, is one of the nicest running examples we've driven - there's some video of it running outside the works here.

It's recently come to us in part exchange for a traction engine. The boiler has club history, it's had recent hydraulic and steam tests in the workshop here with new certification issued, with little work required other than a new, red-lined pressure gauge and pair of safety valves - the originals were marginal on accumulation.

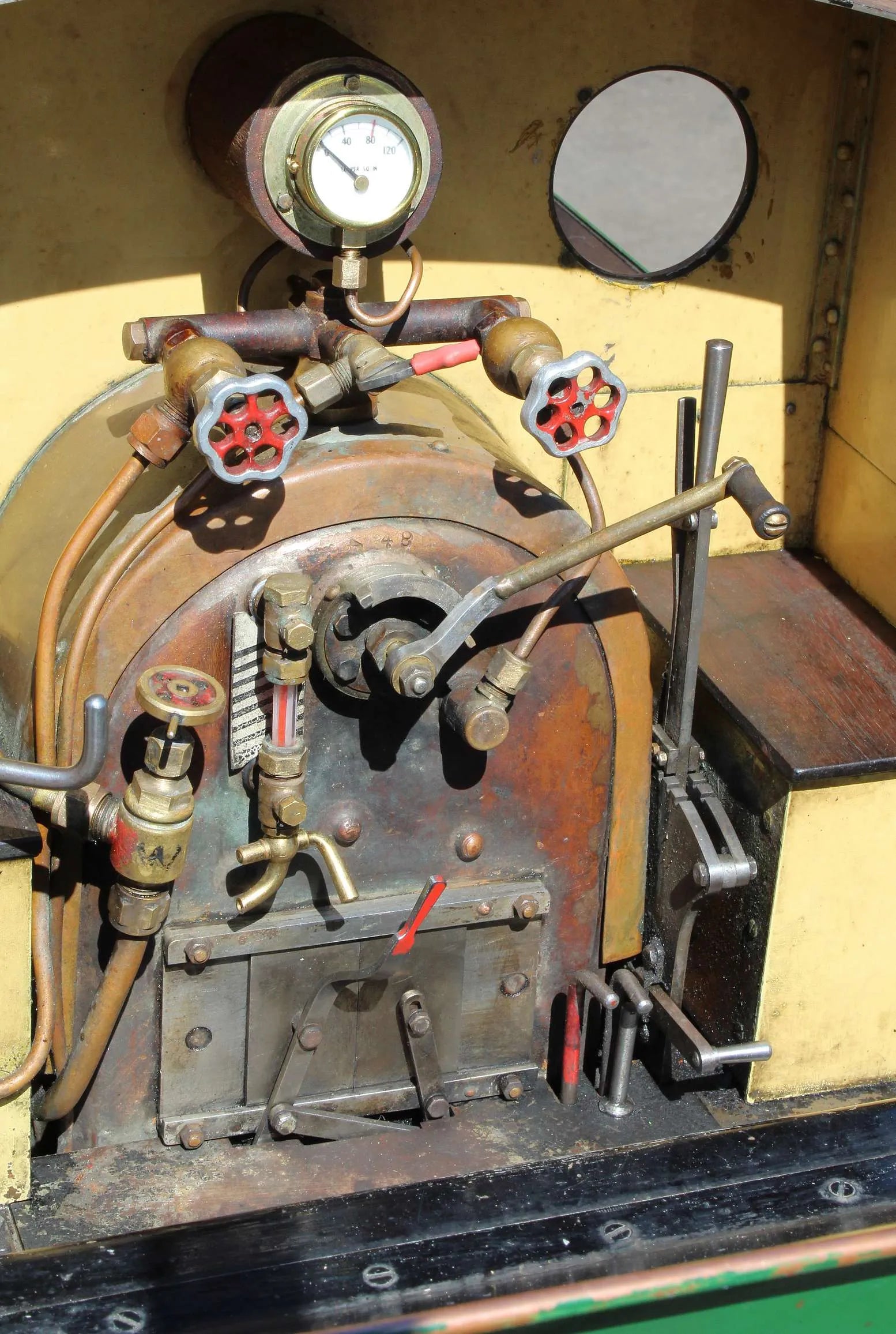

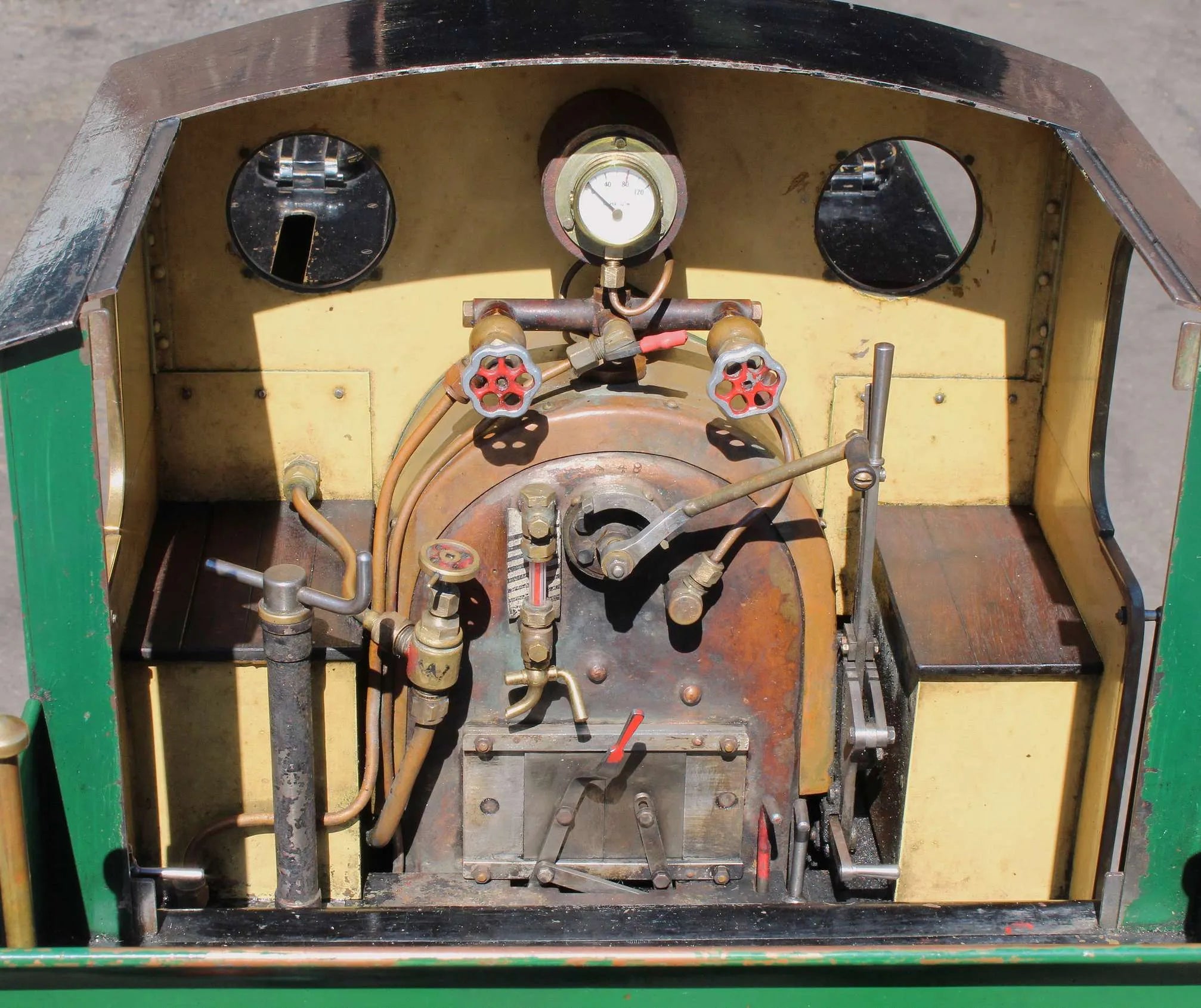

The engine is free-steaming, runs quietly - the loudest thing is the clicking of the lubricator ratchet - and notches up close to mid gear.

Technical information

Stock code

10418

Gauge

7 1/4 inch

Length/inches

38

Width/inches

12.5

Height/inches

18

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

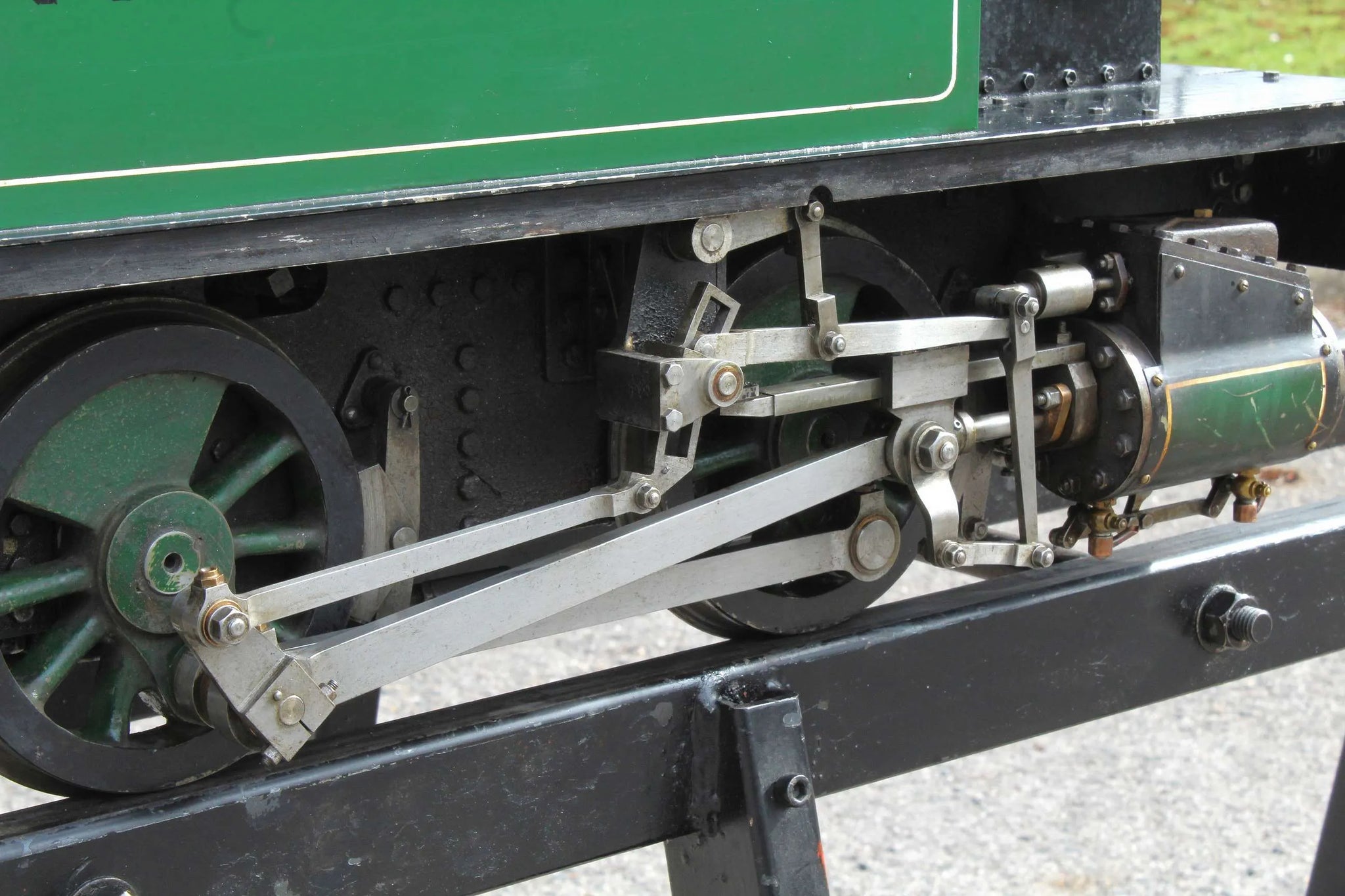

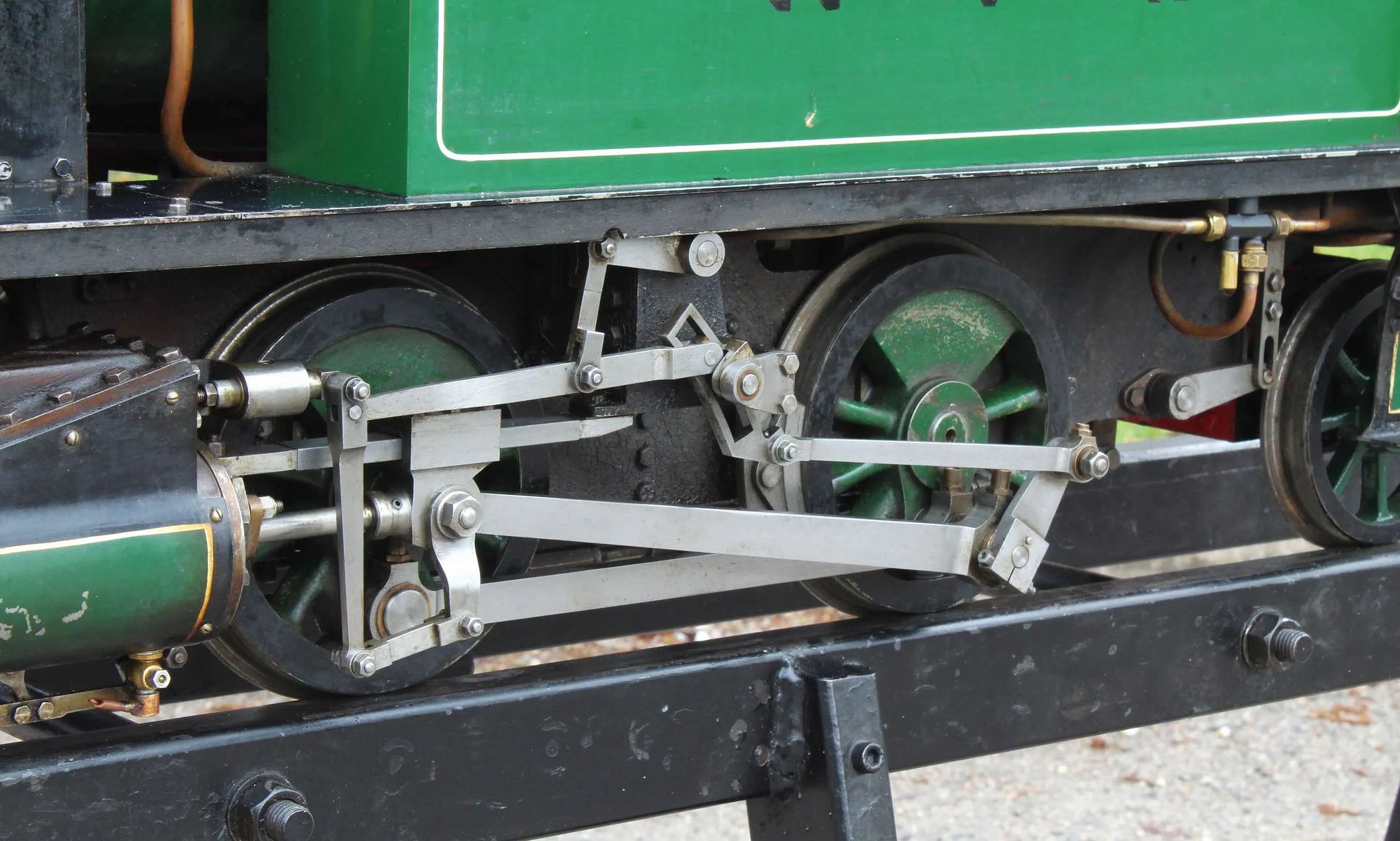

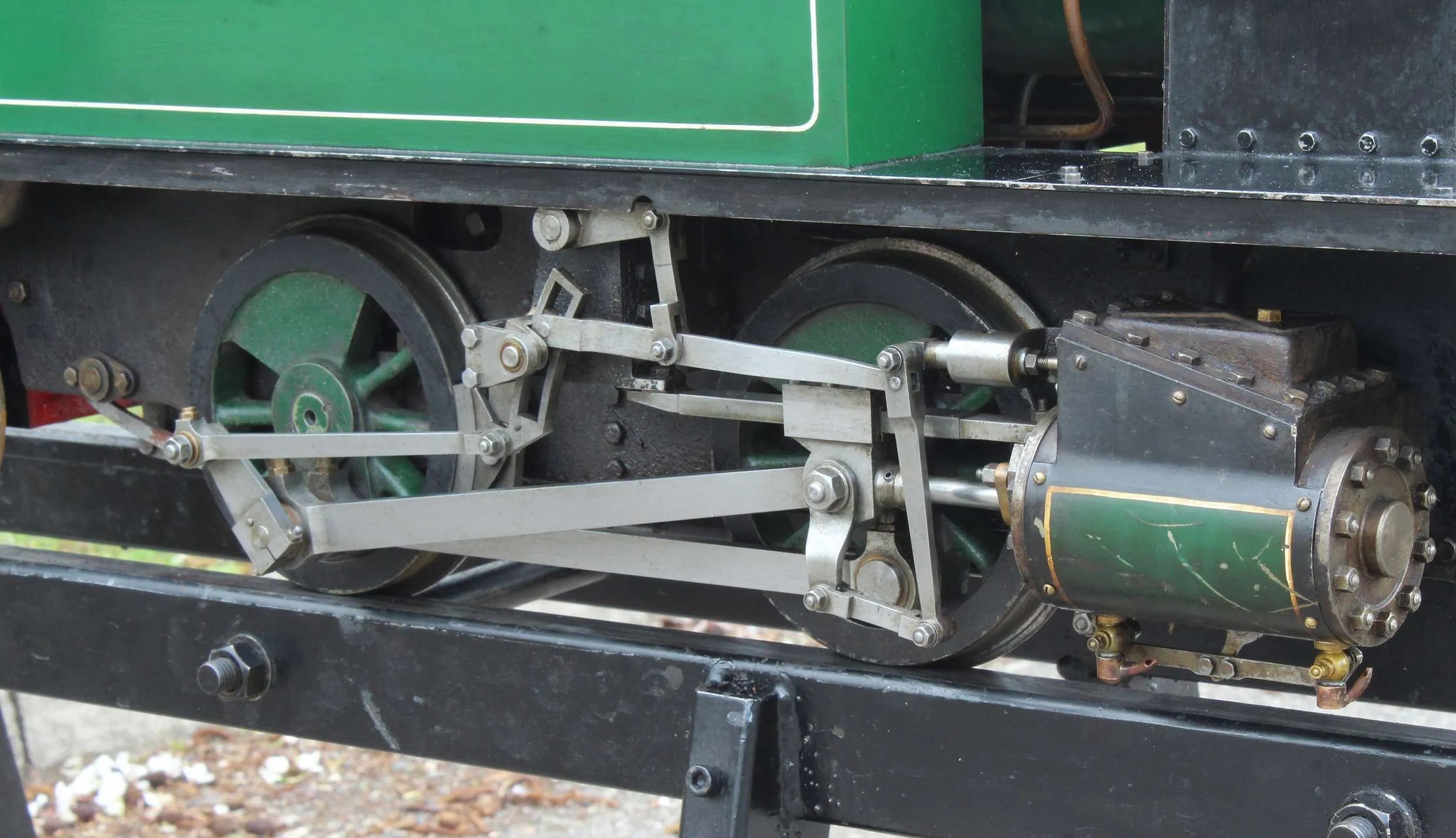

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Year built

1981

Boiler number

XL18

Safety valve type

pop

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

3

Date out

May-22

Hydraulic test valid to

04-Apr-26

Steam test valid to

05-Jun-23
