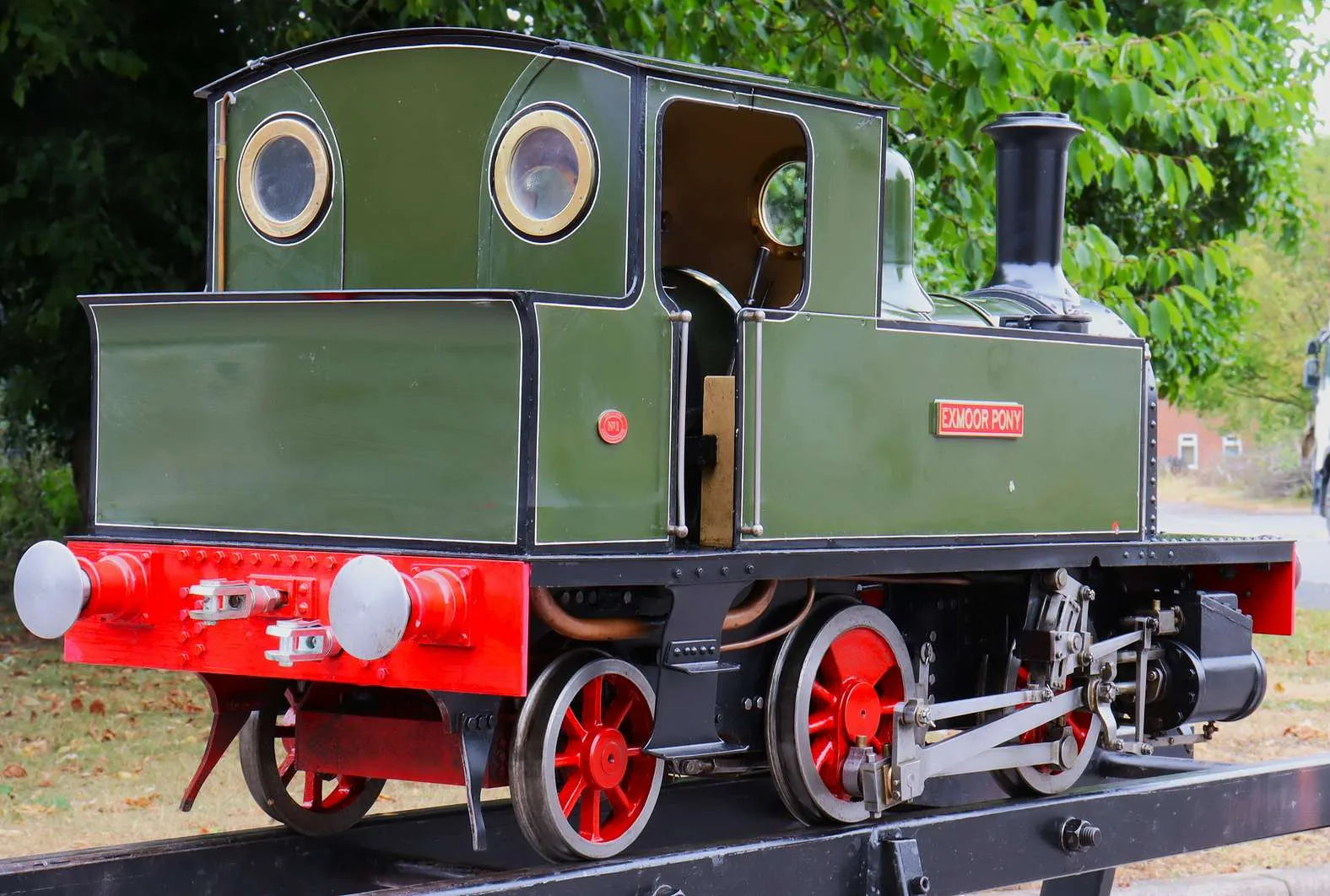

10688
The engine has been serviced, we've fitted new safety valves and replaced the little end bushes, boiler has had hydraulic and steam test with new certification issued.
It steams freely and runs very well in either direction.
Stock code |
10688 |
Gauge |
7 1/4 inch |
Length/inches |
38 |
Width/inches |
12.5 |
Height/inches |
18 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |

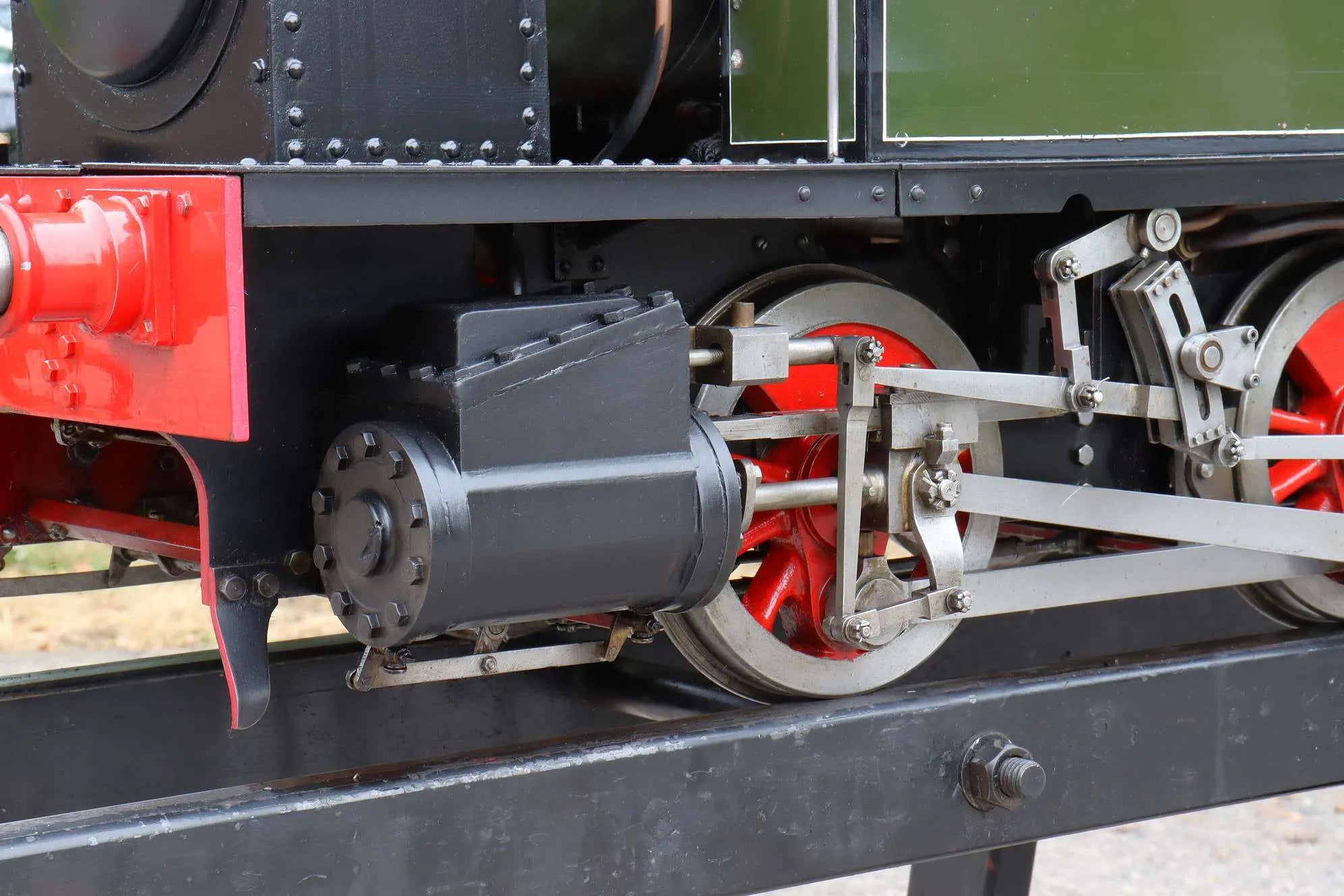

Cylinder material |
cast iron |
Valve type |
slide |

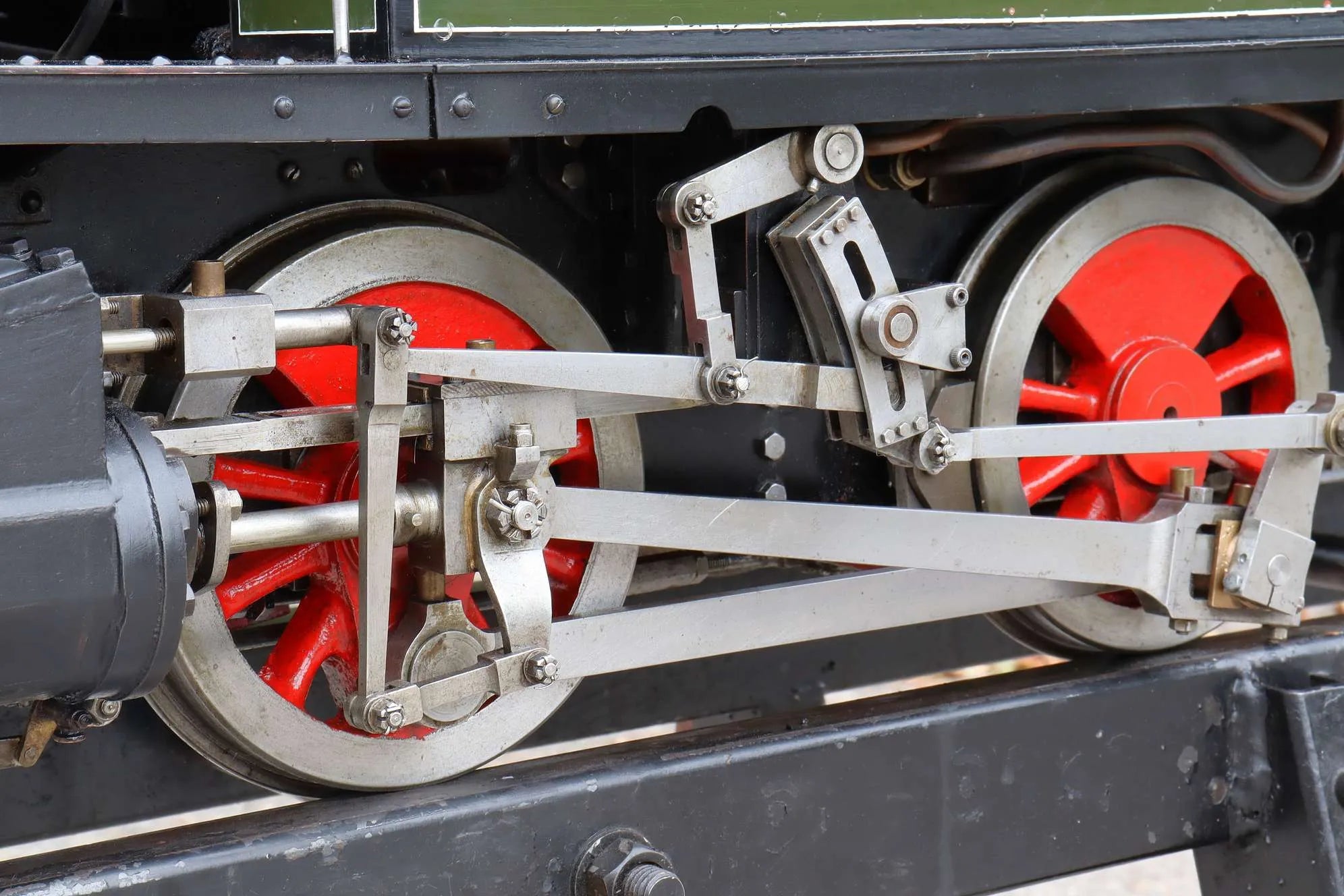

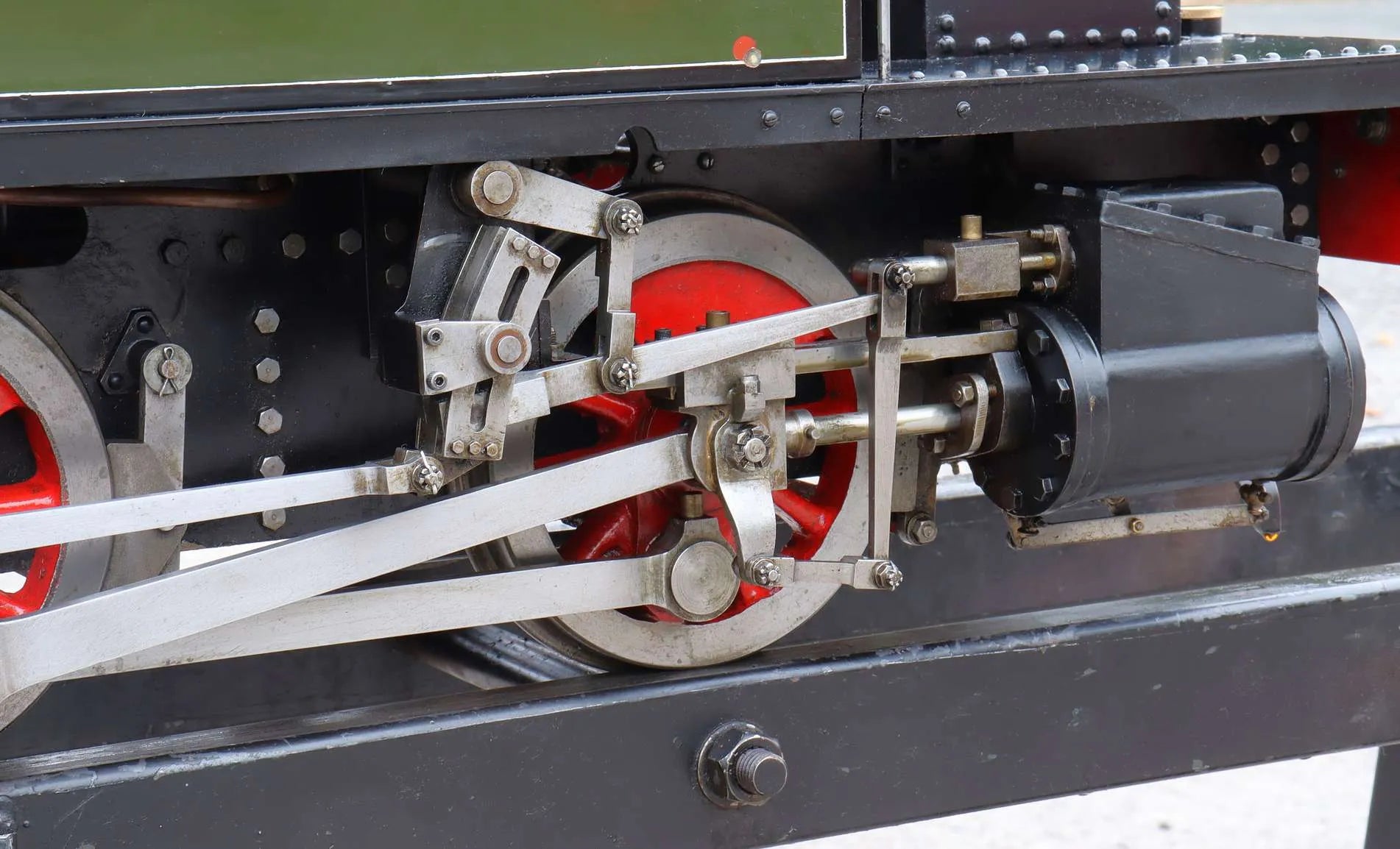

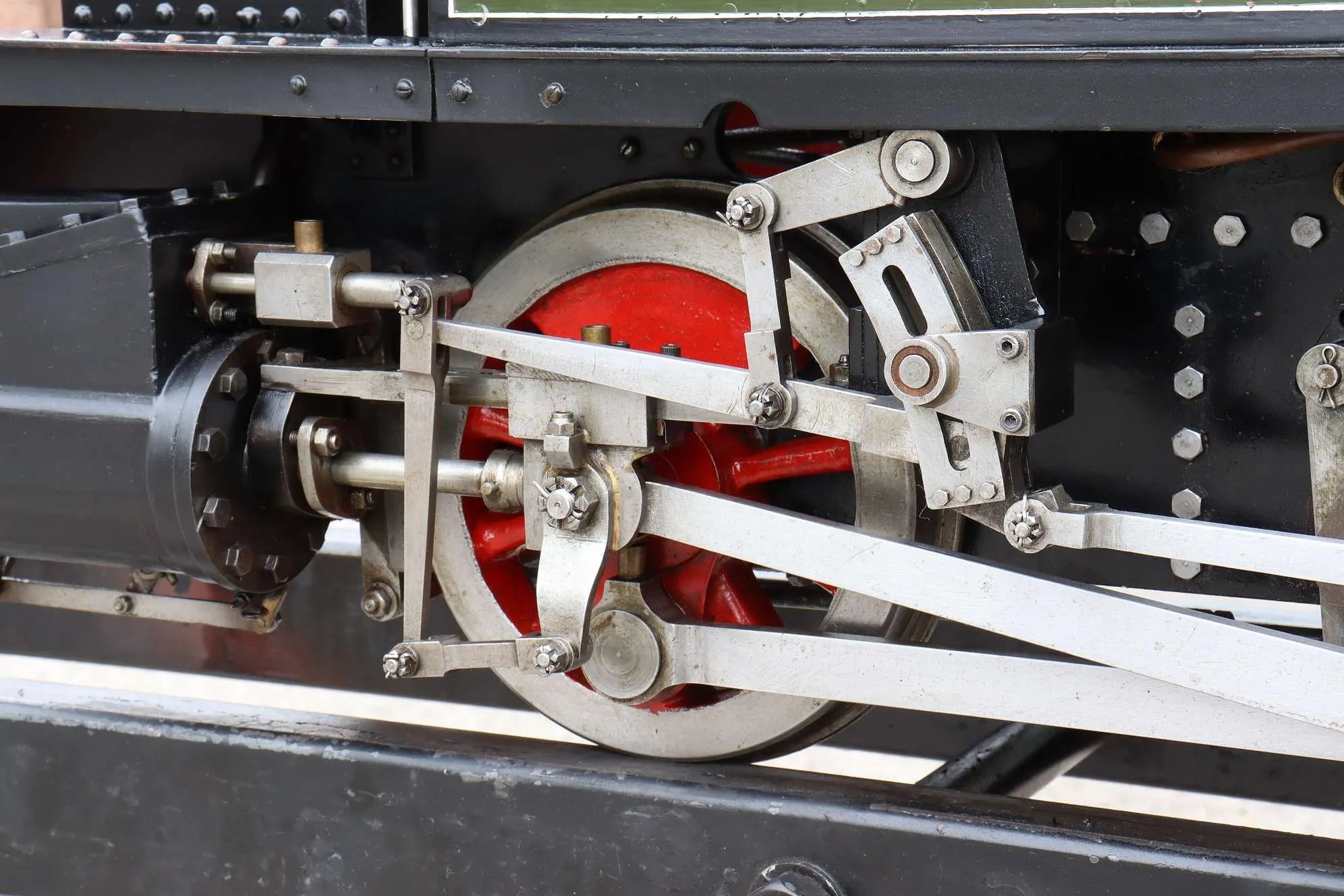

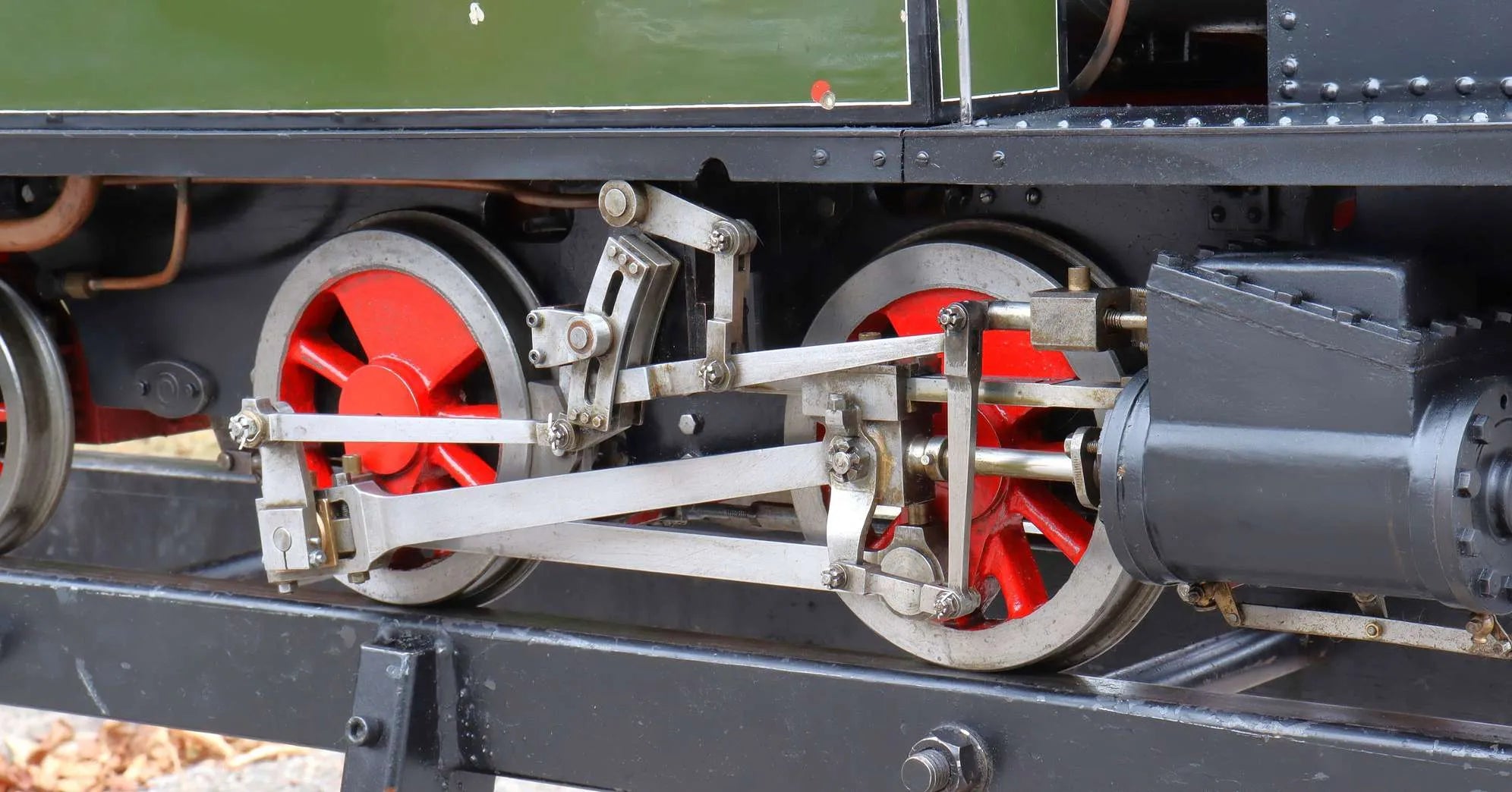

Valve gear |
Walschaerts |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - non-commercial |
Boiler number |
SF597 72219 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater |
4 |
Date out |
Oct-22 |
Hydraulic test valid to |
05-Jul-26 |
Steam test valid to |
07-Sep-23 |
