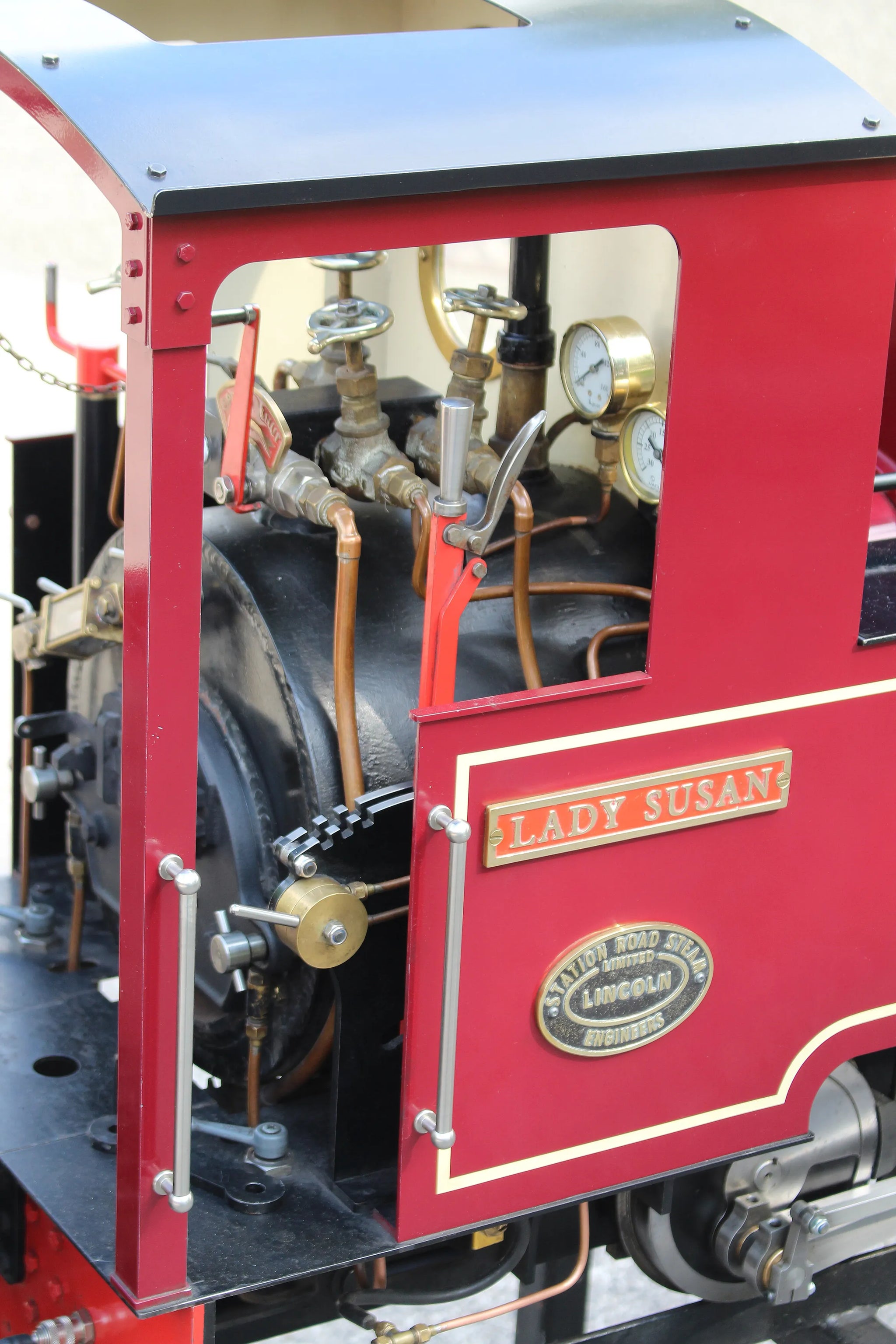

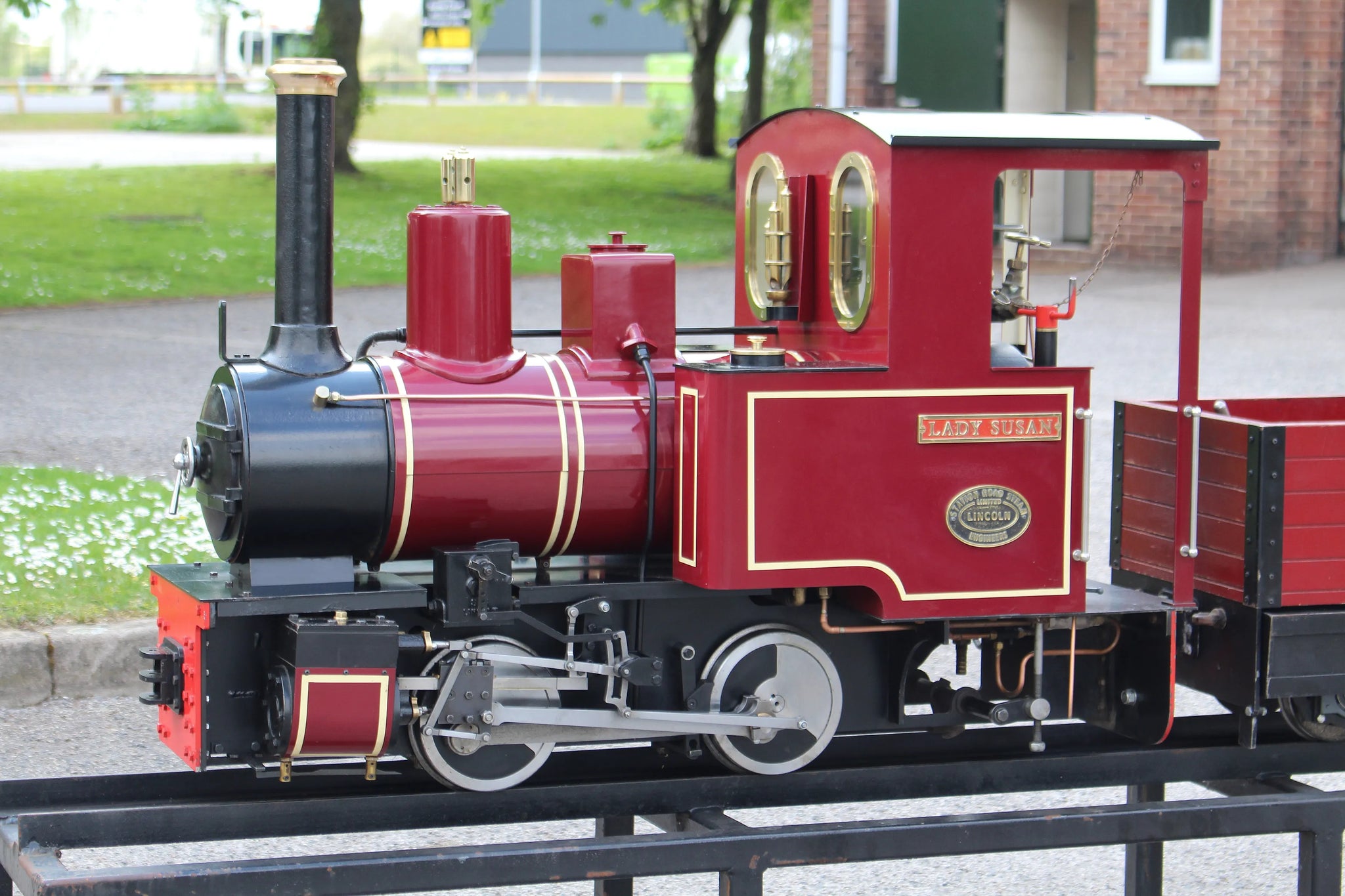

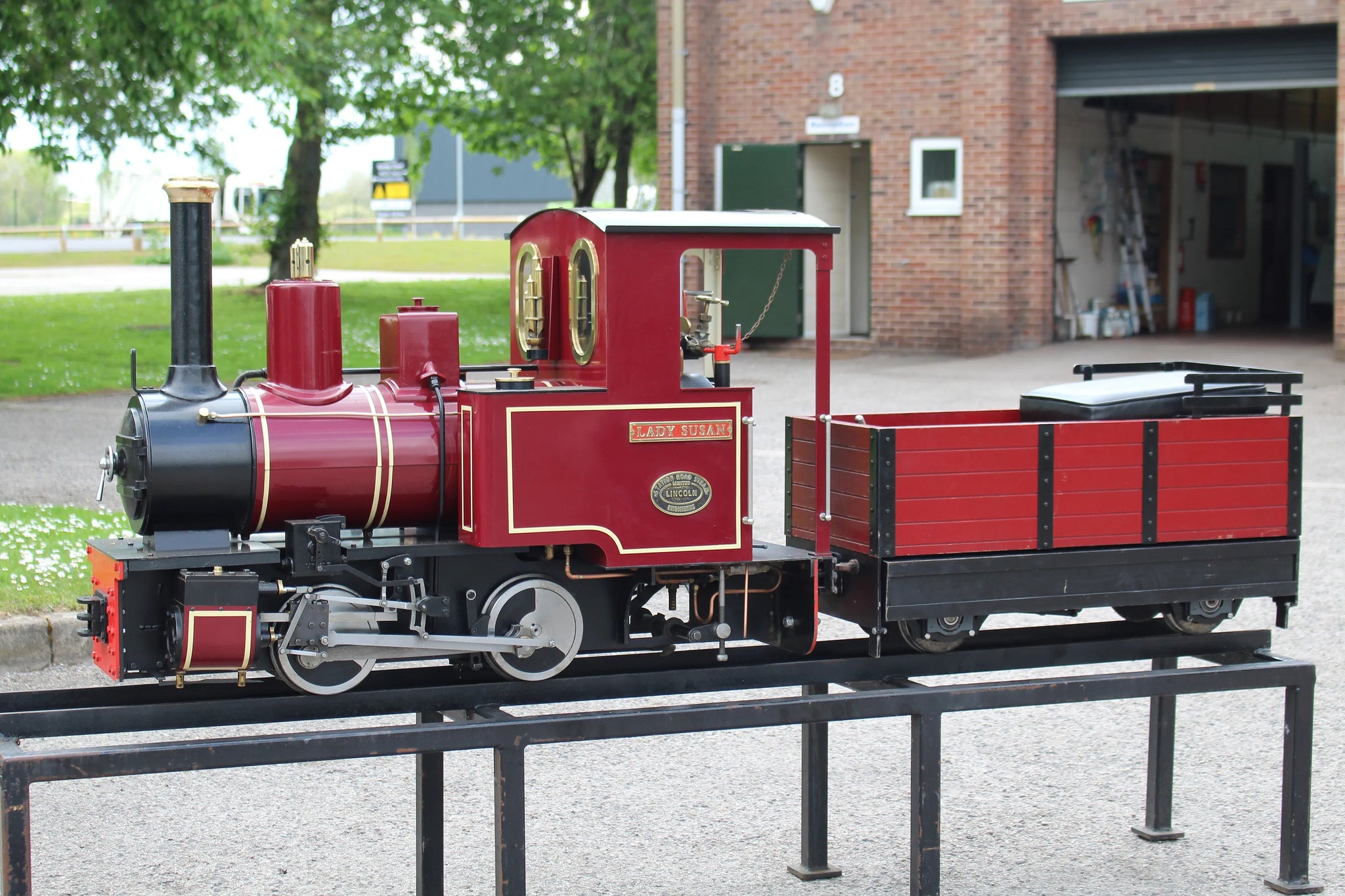

7 1/4 inch gauge Feldbahn 0-4-0 "Lady Susan" with driving truck

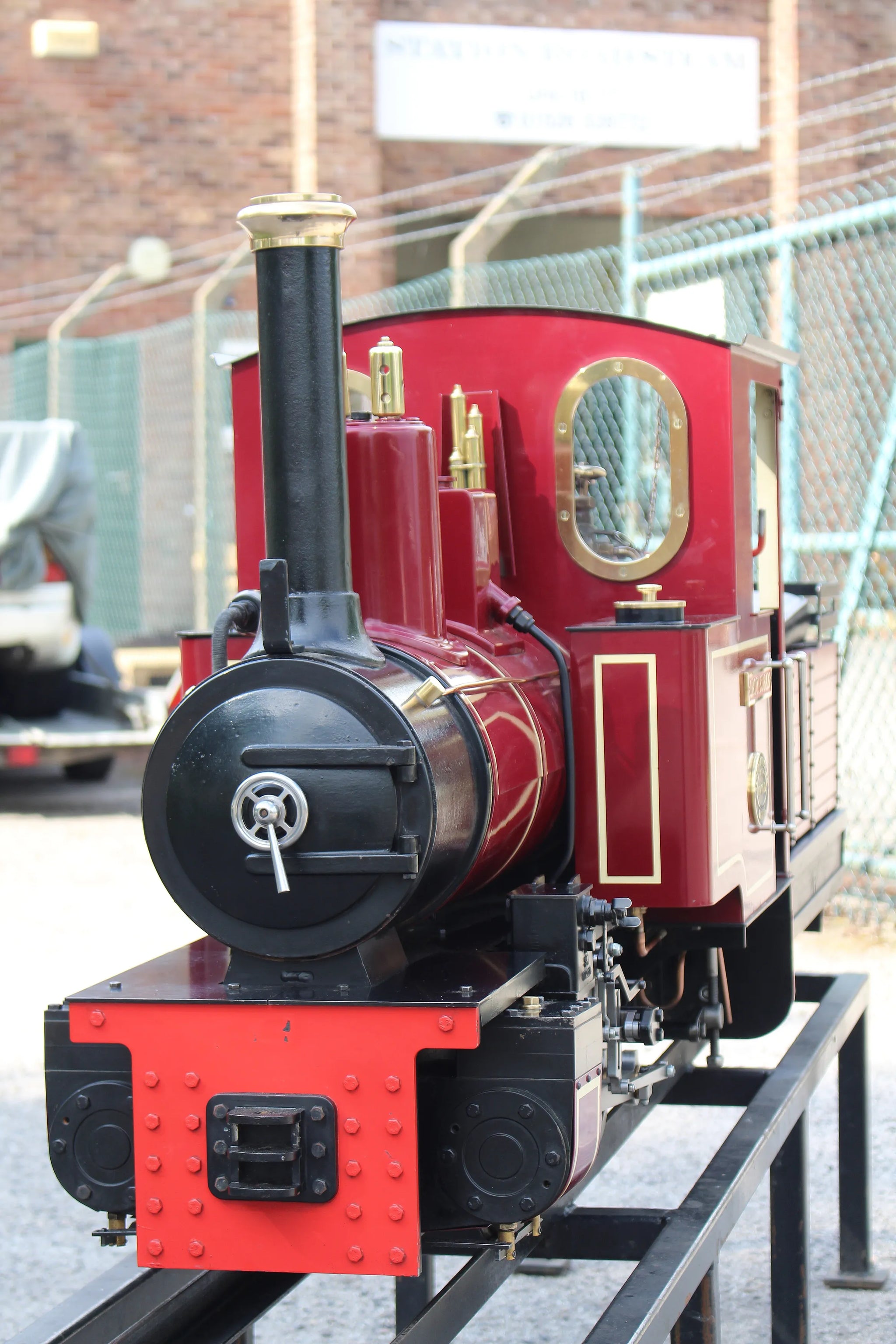

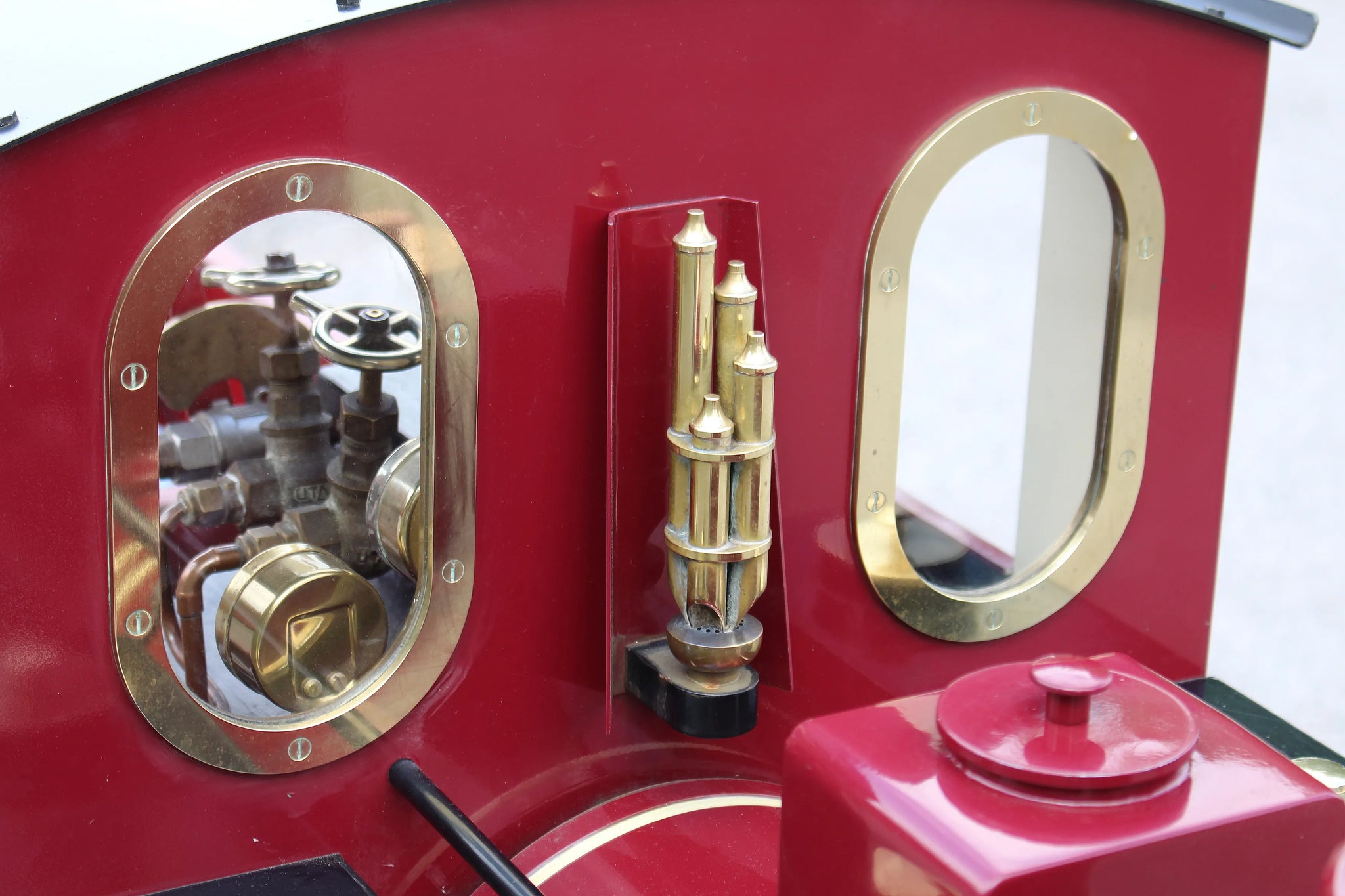

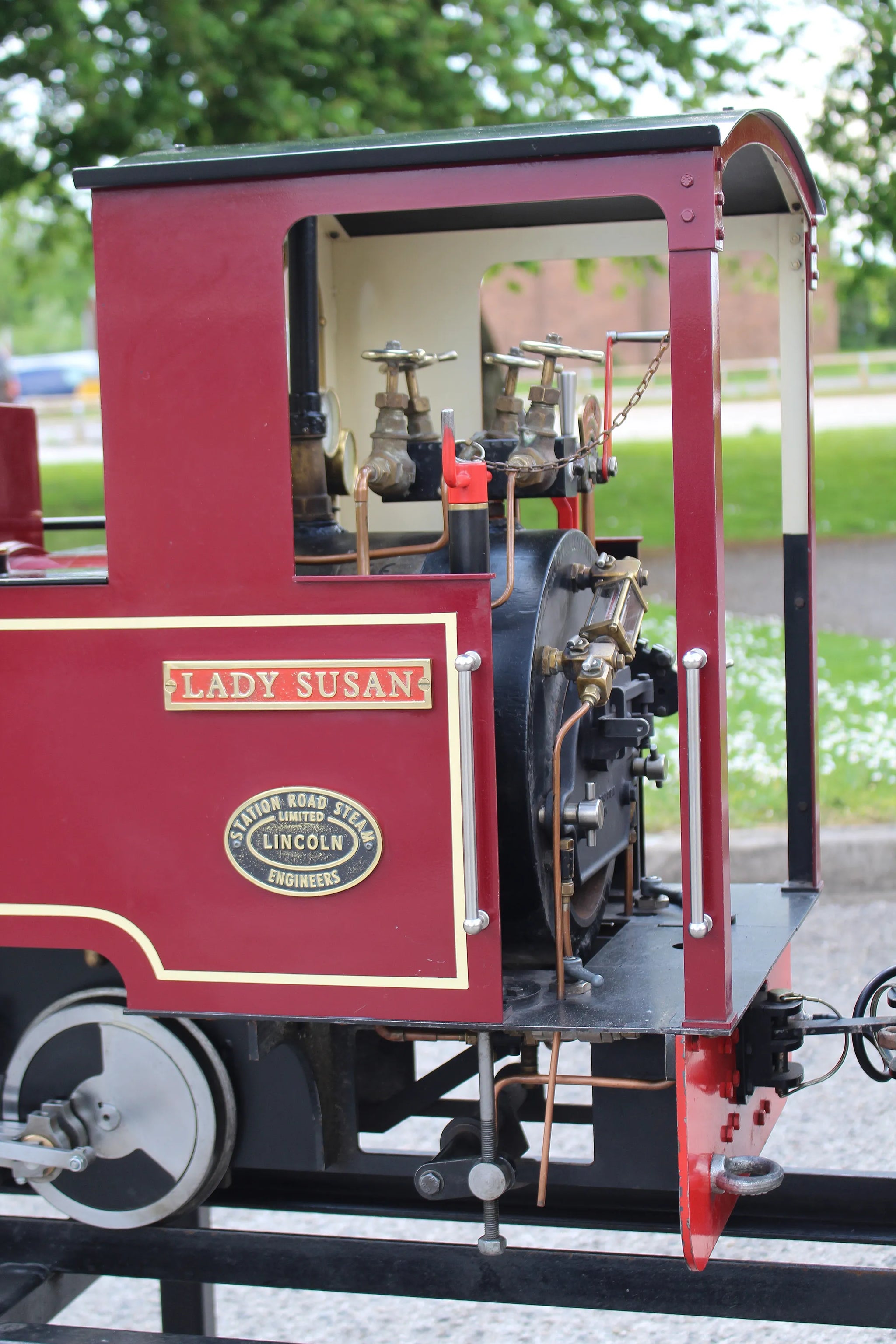

A 7 1/4 inch gauge "Feldbahn" 0-4-0, works number 1339. Delivered new in 2013, the locomotive has been fitted with vacuum brake equipment and chime whistle as well as a brass-capped parallel chimney and smaller, more buffable valve handles.

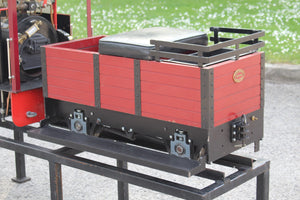

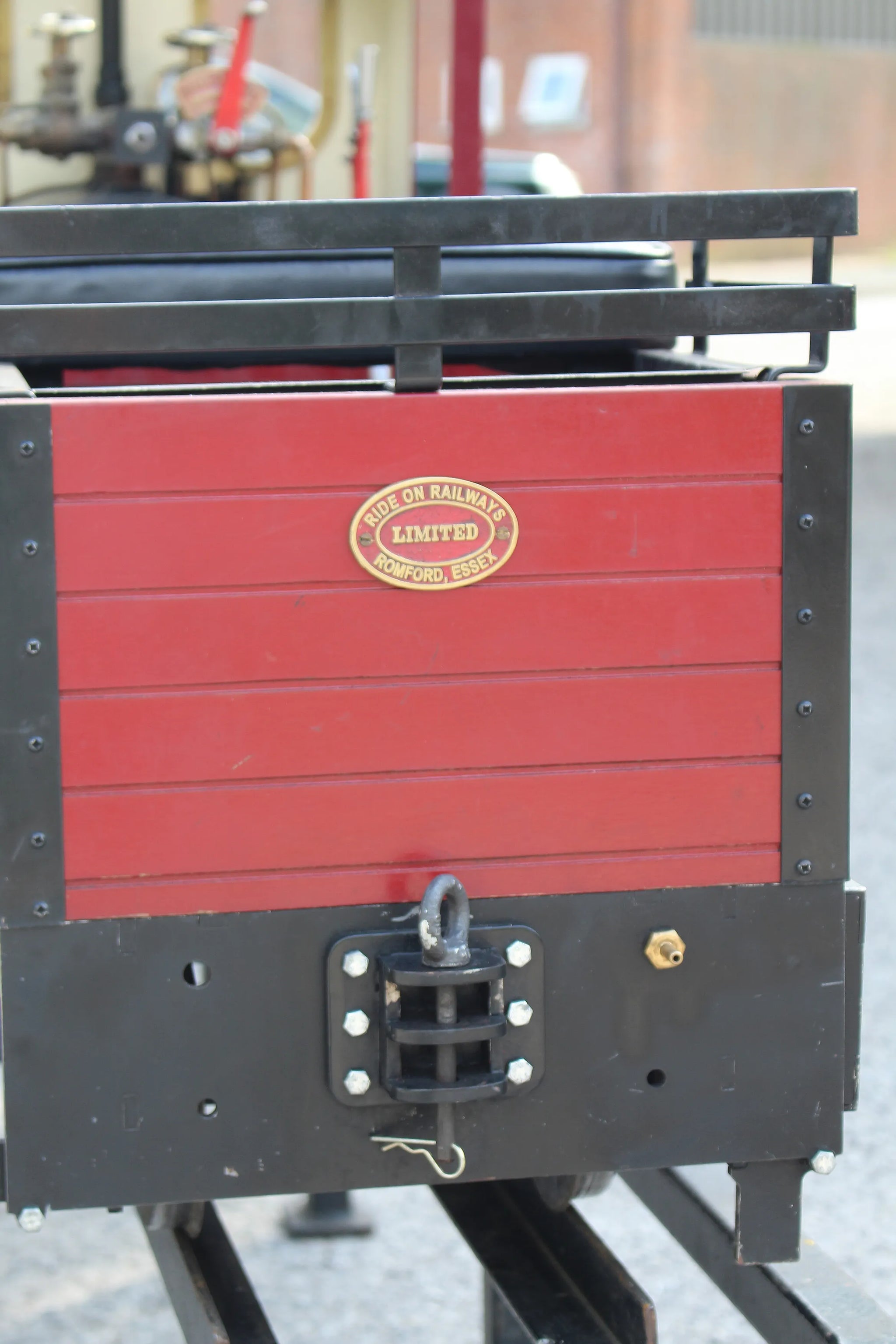

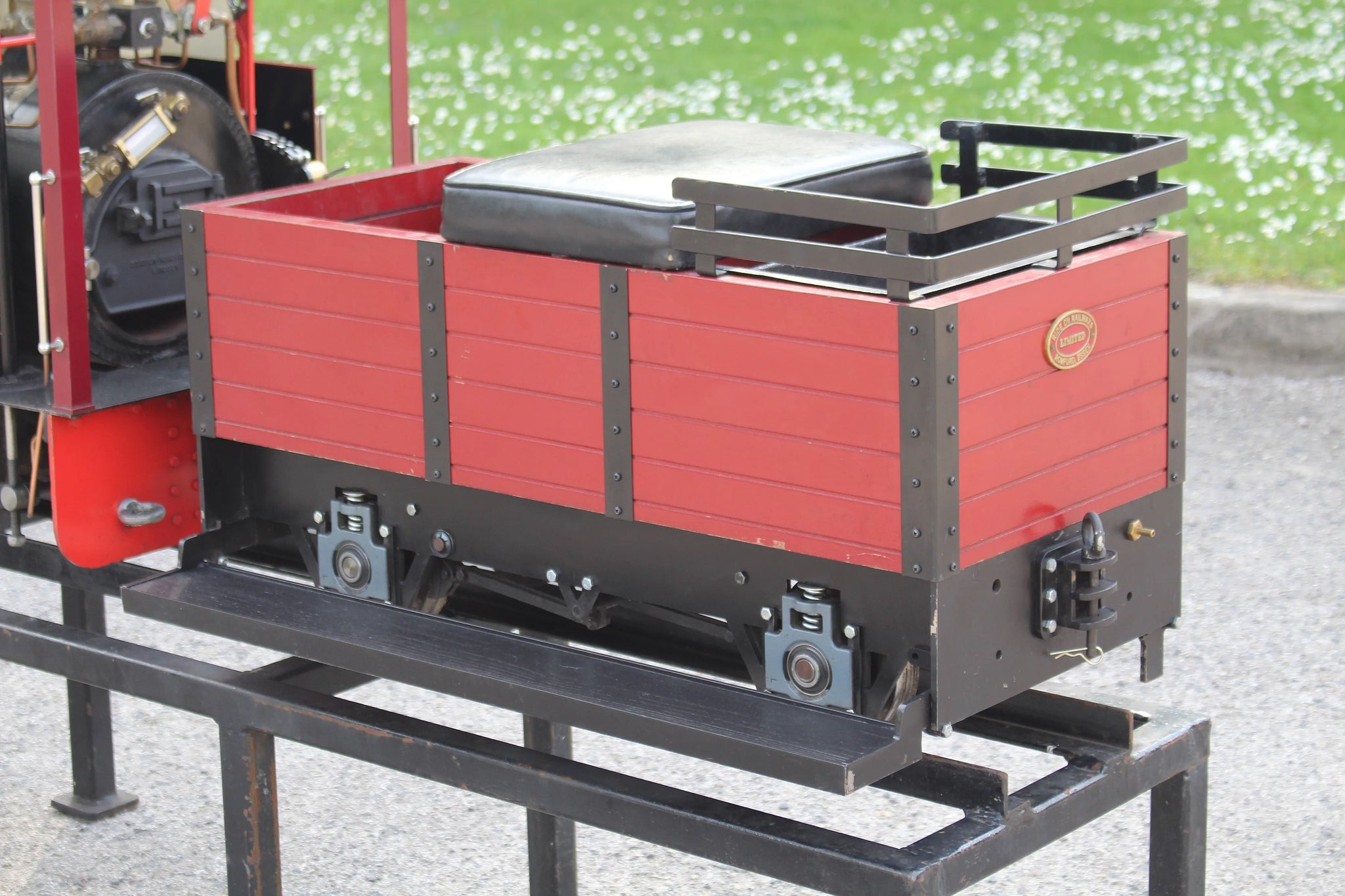

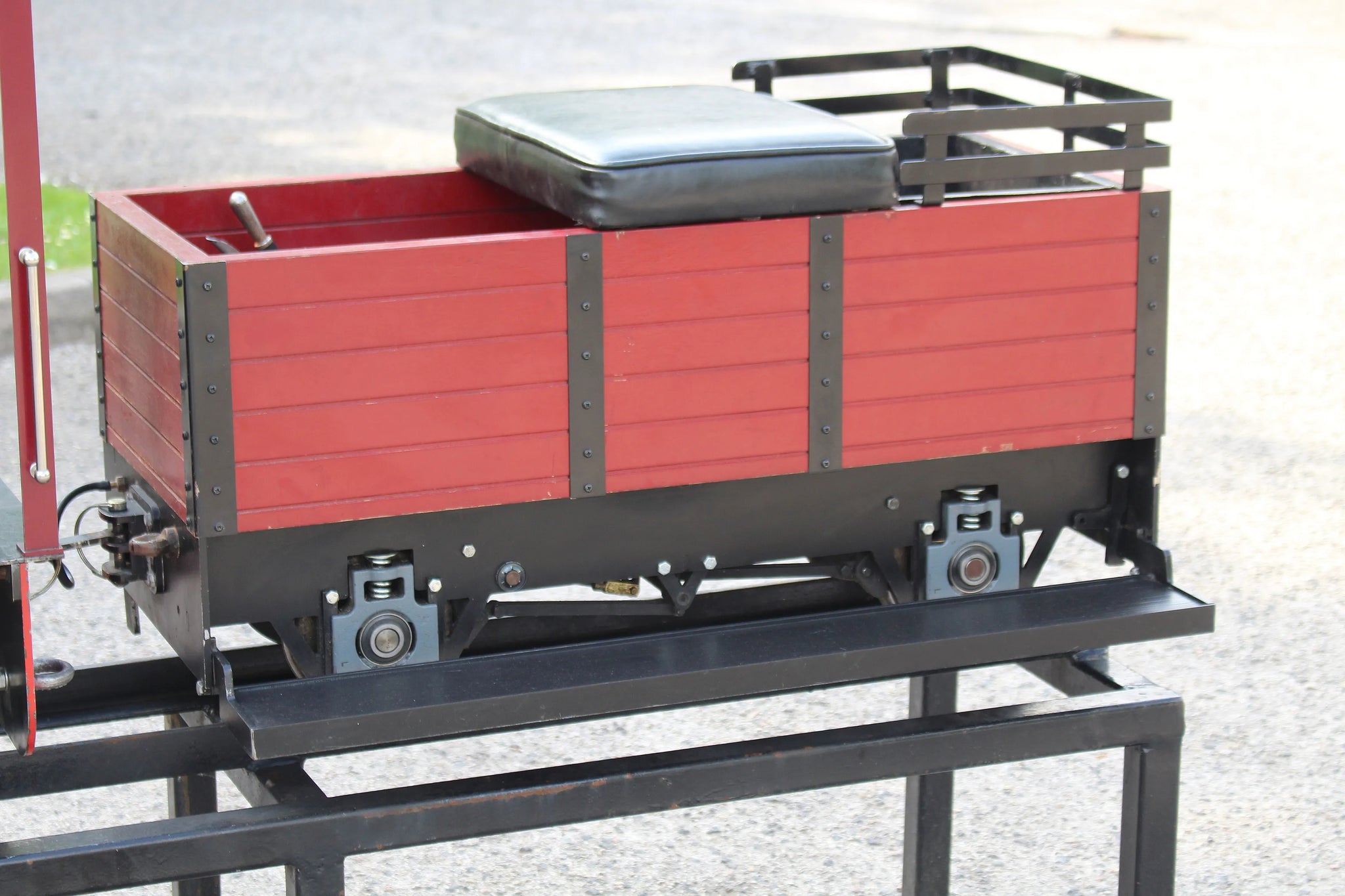

The engine is in excellent condition throughout, having recently come back to us from a year doing commercial service at a railway in Scotland as part exchange for the MVR Tinkerbell "Robert Snooks" - an enclosed cab being something of a selling point north of the border.). Driving truck is a characteristically robust specimen from Ride on Railways.

The engine has been serviced in the workshop here and is supplied with new boiler certificate, handbook, starter kit and 12 months warranty - exactly the same as a new engine.

Technical information

Stock code

8488

Gauge

7 1/4 inch

Length/inches

47+34

Width/inches

19

Height/inches

32

Weight/Kg

210 + 60

Wheel material

EN8 steel

Axlebox type

roller bearing

Cylinder material

cast iron

Valve type

slide

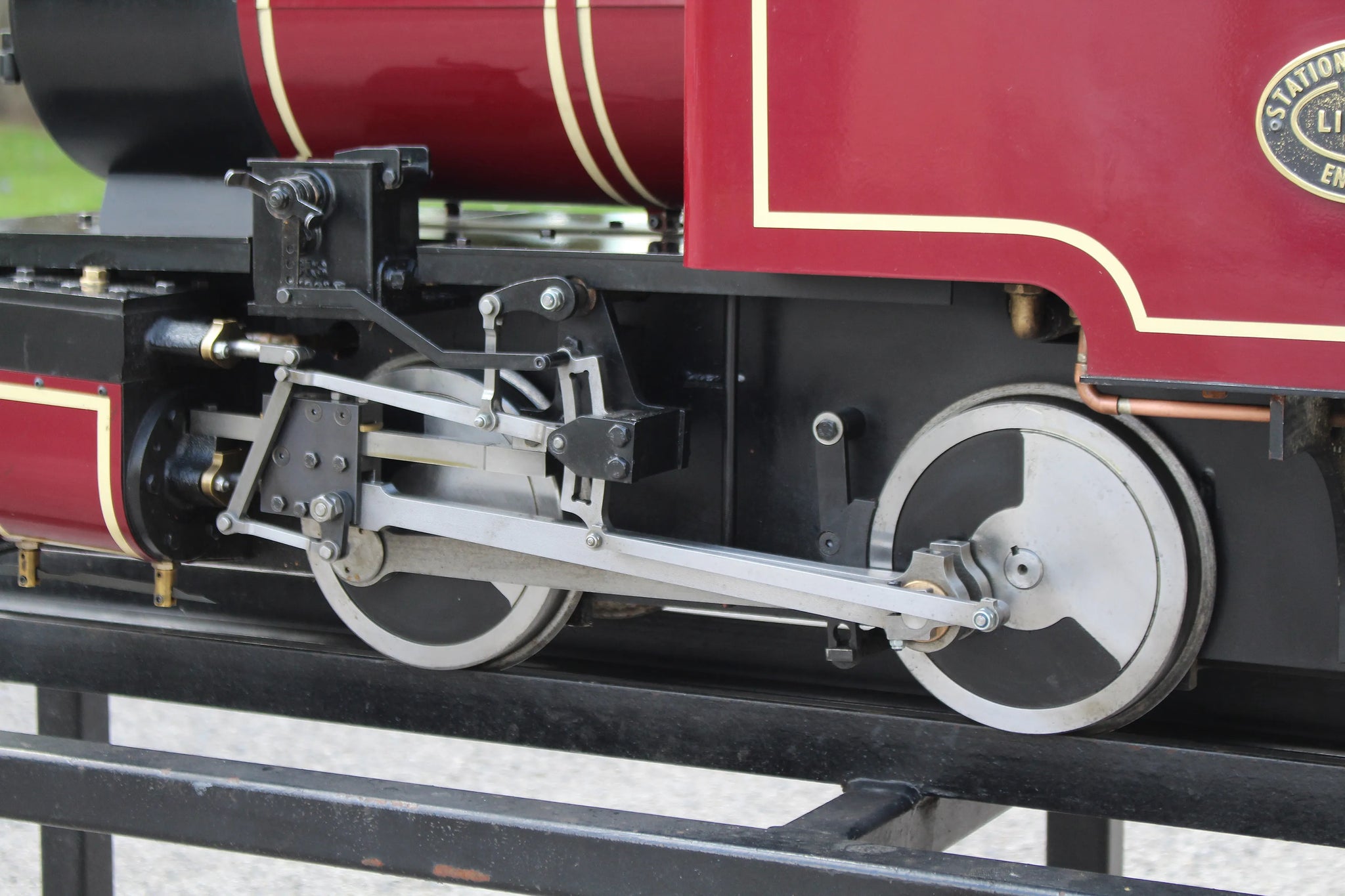

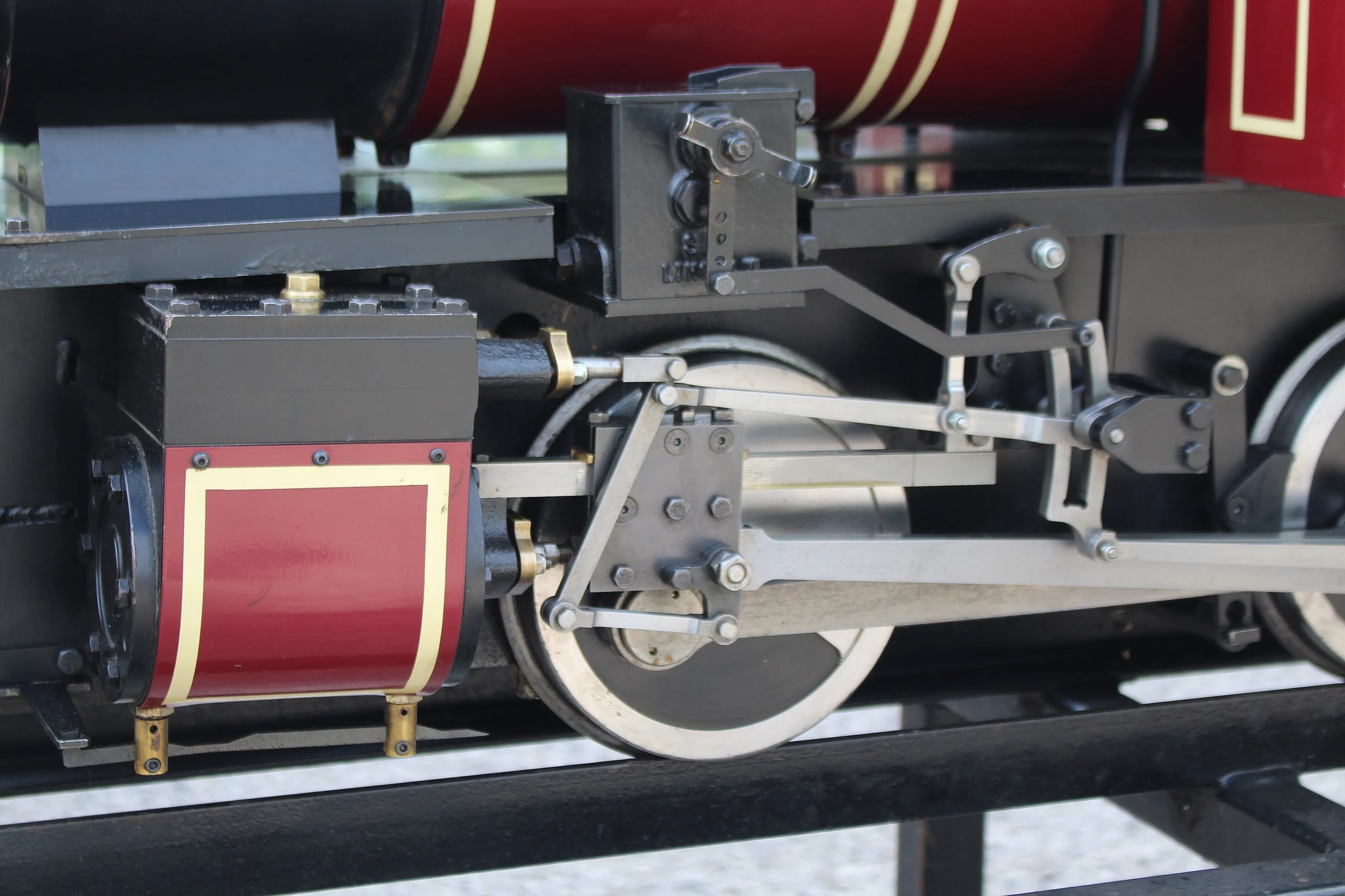

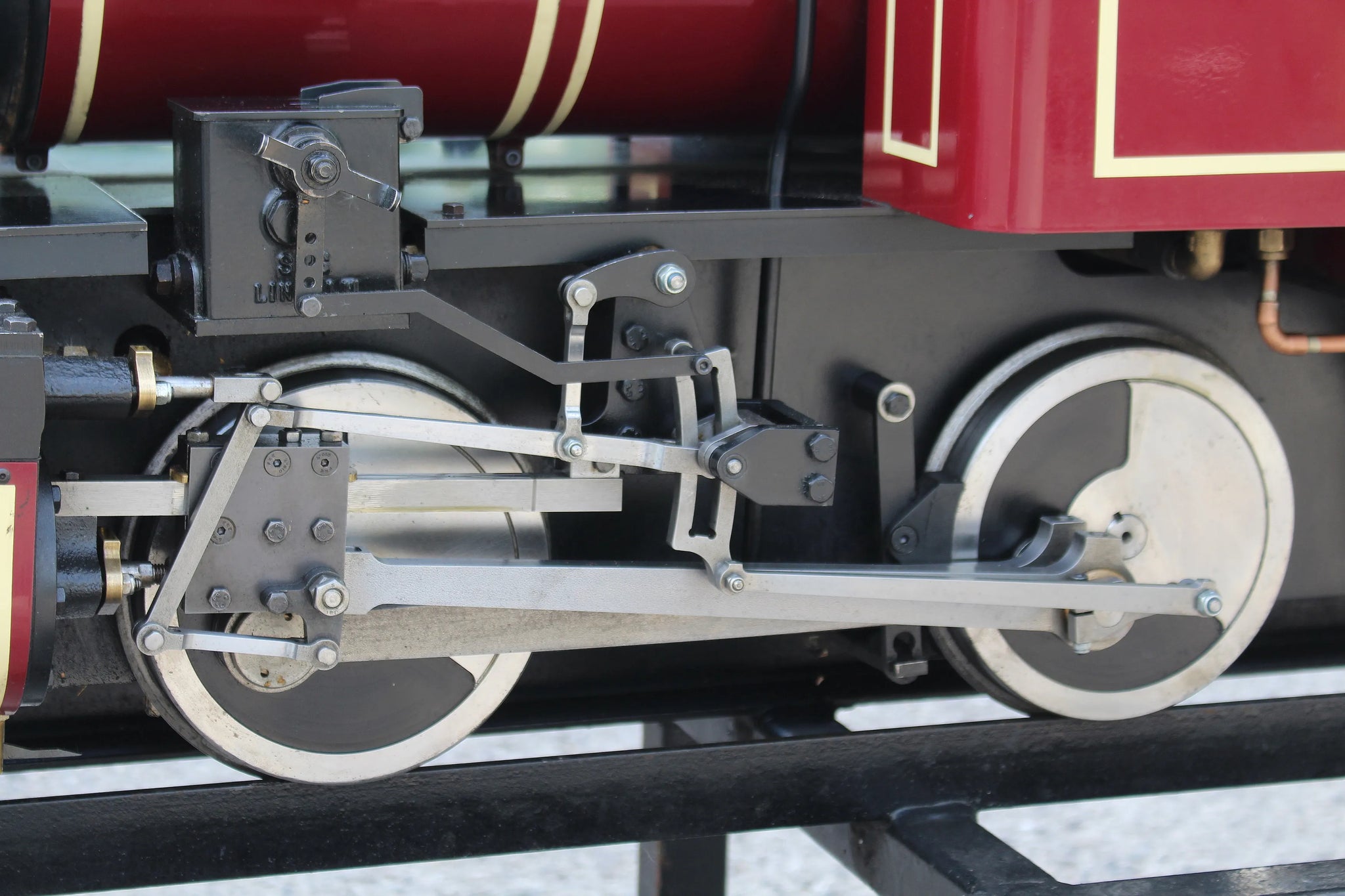

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Station Road Steam

Boiler type

marine

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

CE/UKCA mark

yes

Year built

2013

Boiler number

76

Safety valve type

spring

Safety valve

1

Fusible plug

yes

Bore x stroke

2 1/4 x 3

Whistle

yes

Injector

2 x 2.6 pint/min

Nominal traction

2 1/4 x 3

Pack

Double half pallet

Minimum radius

20

Date out

Jul-19
