Sold

11668

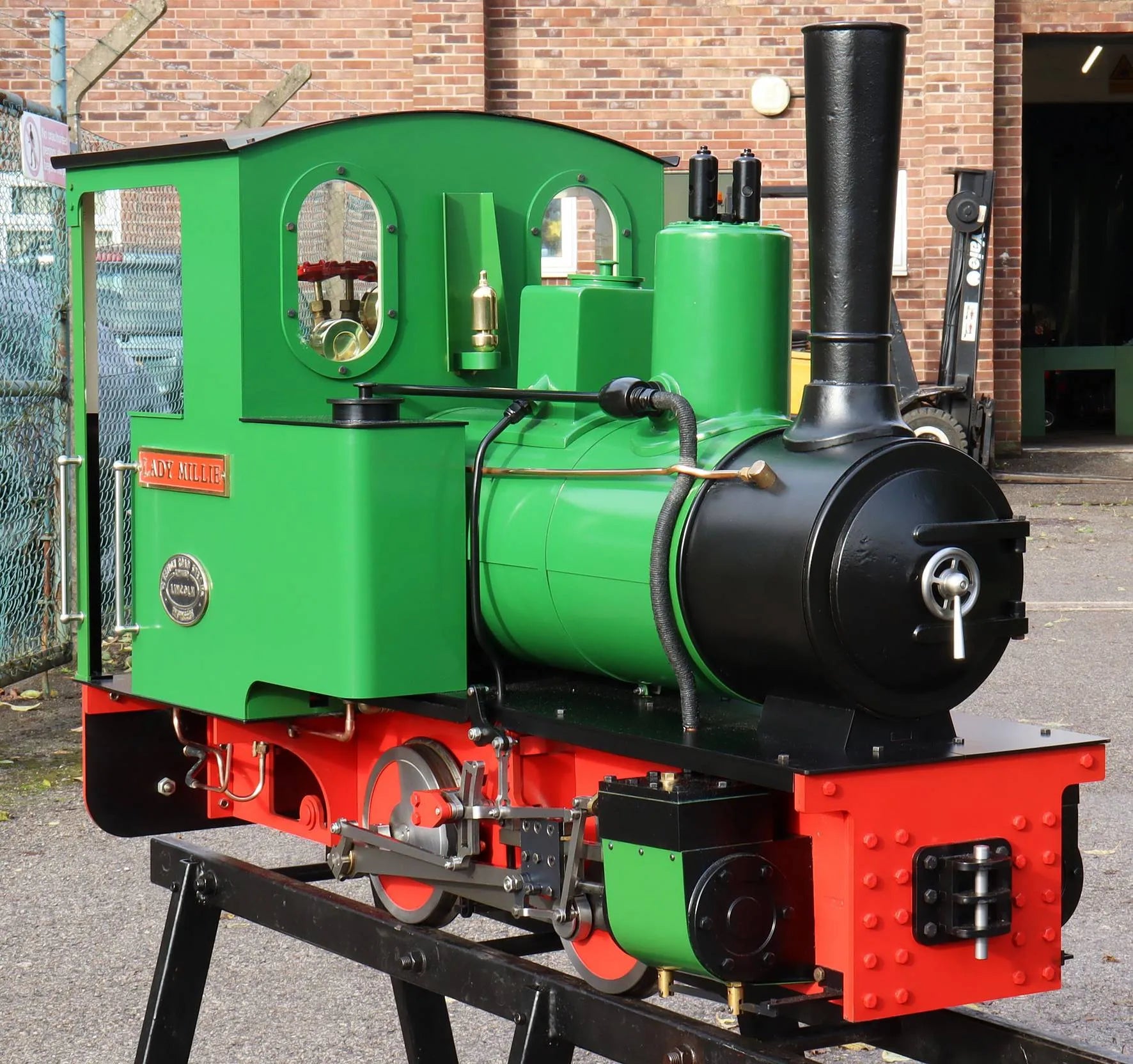

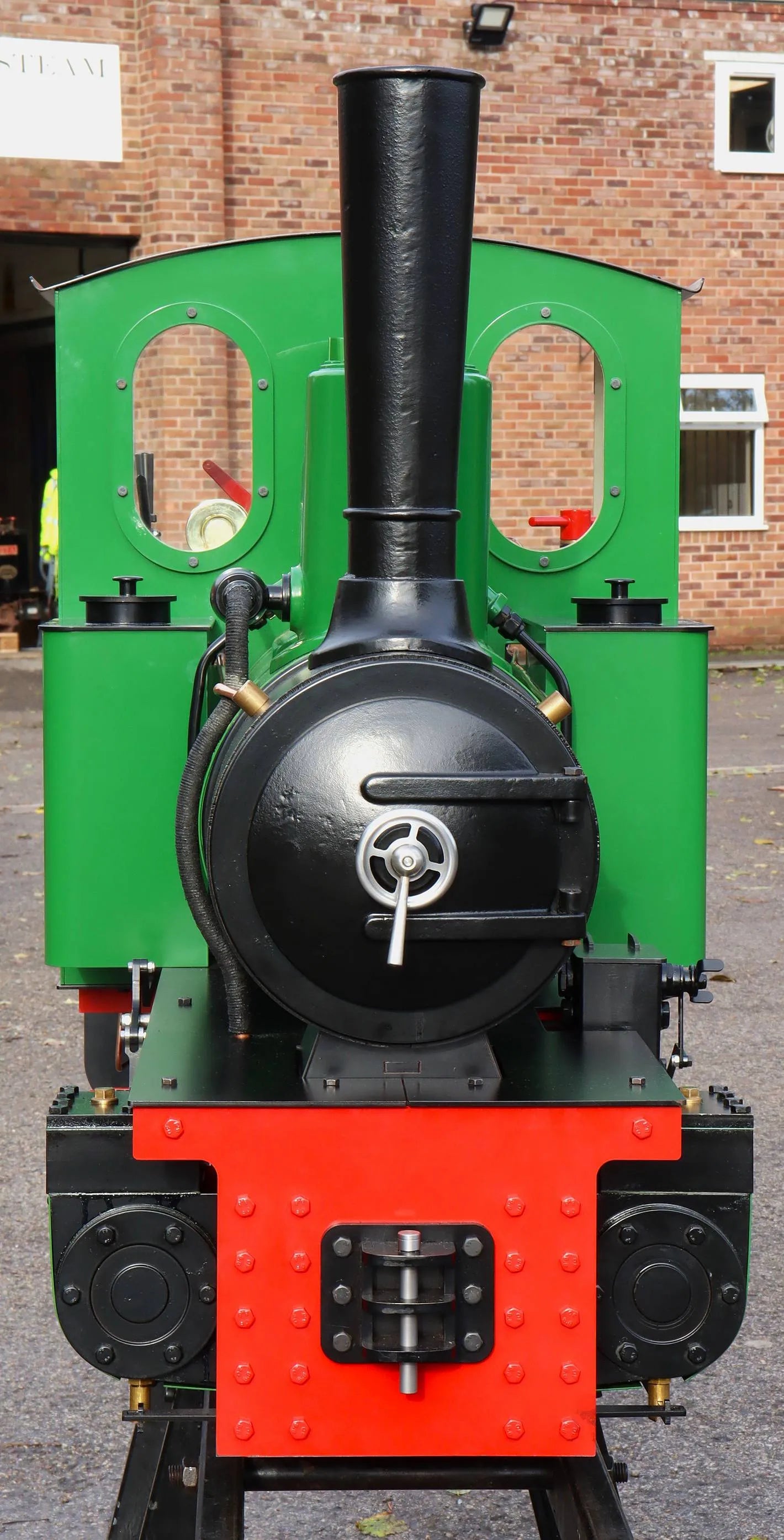

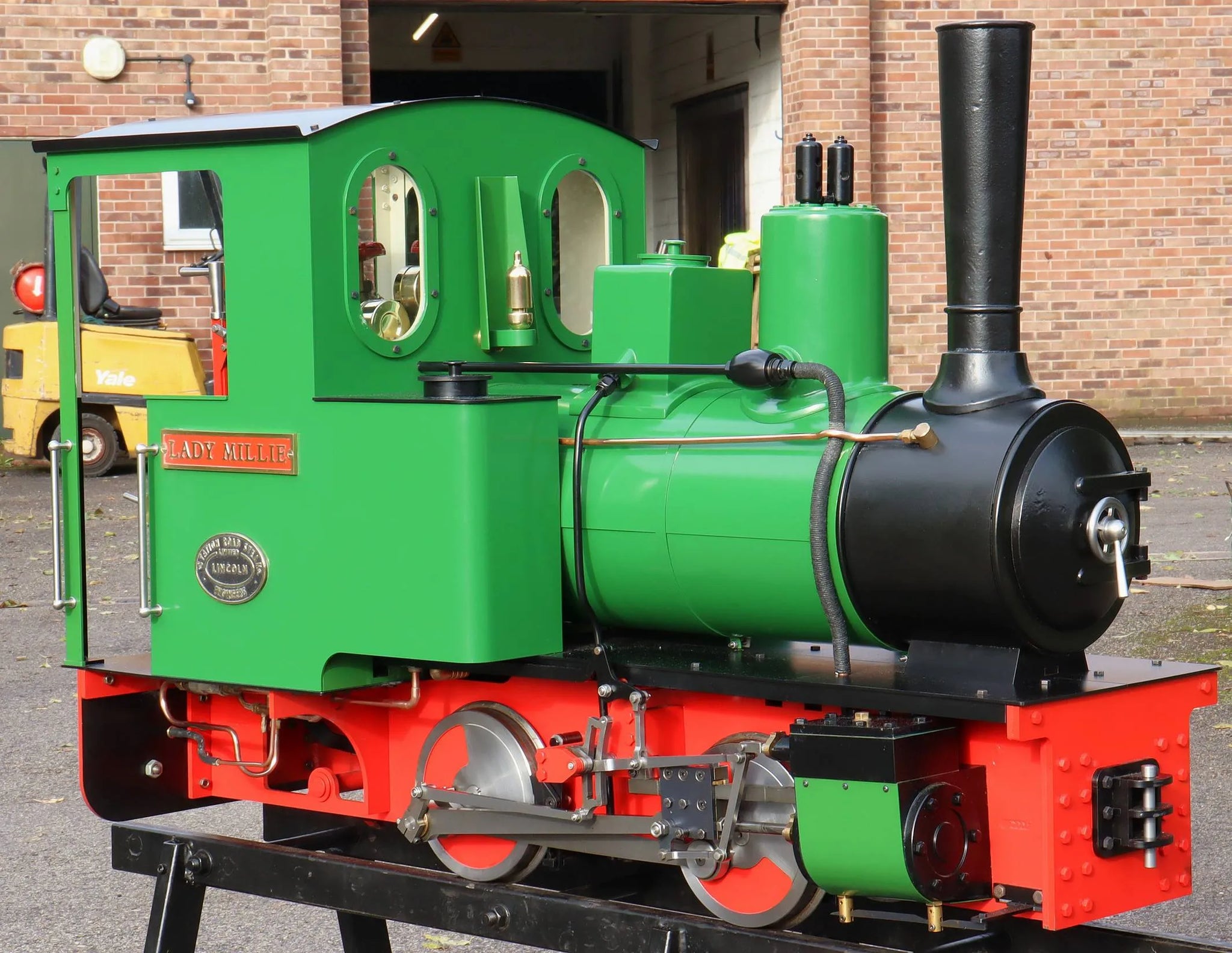

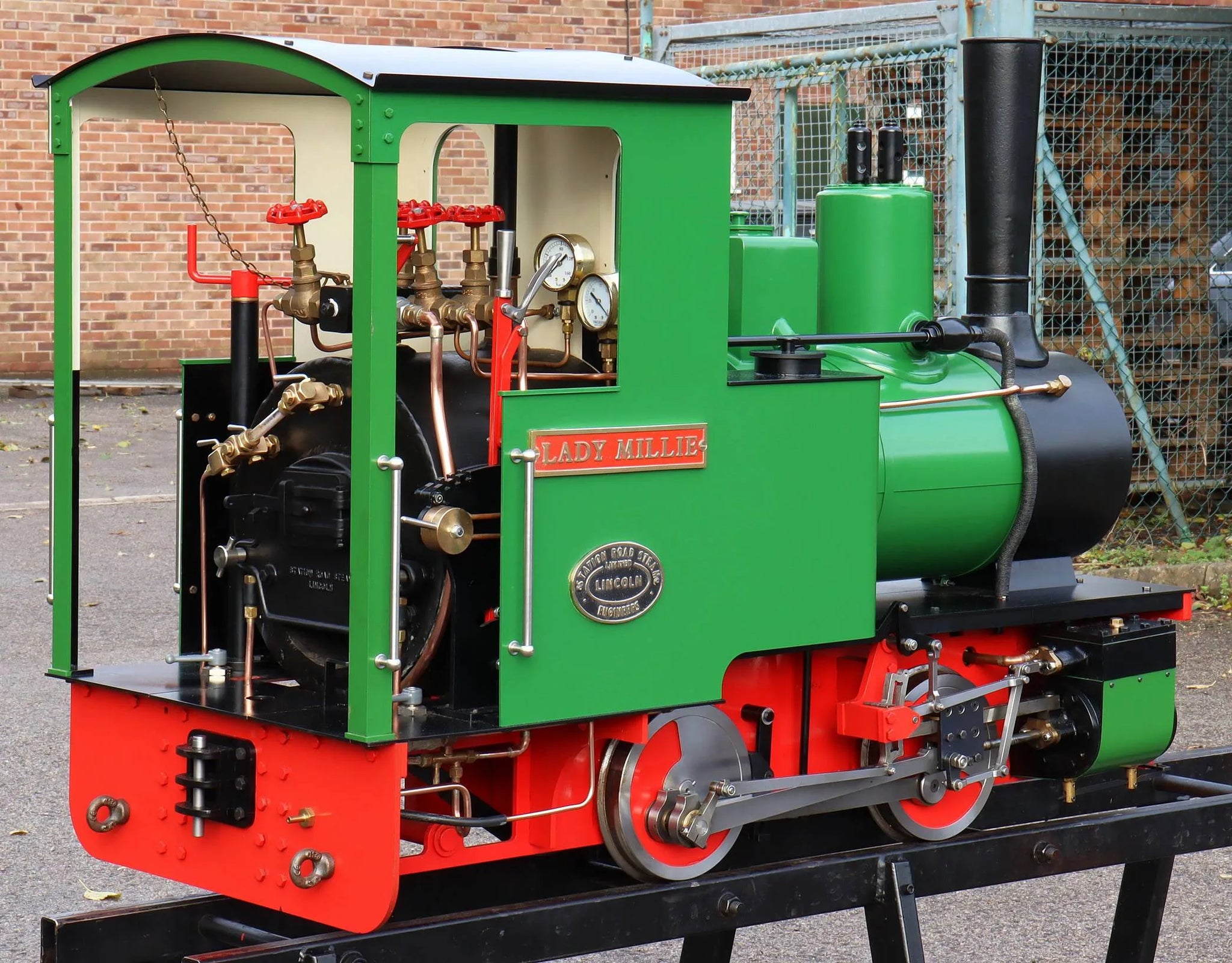

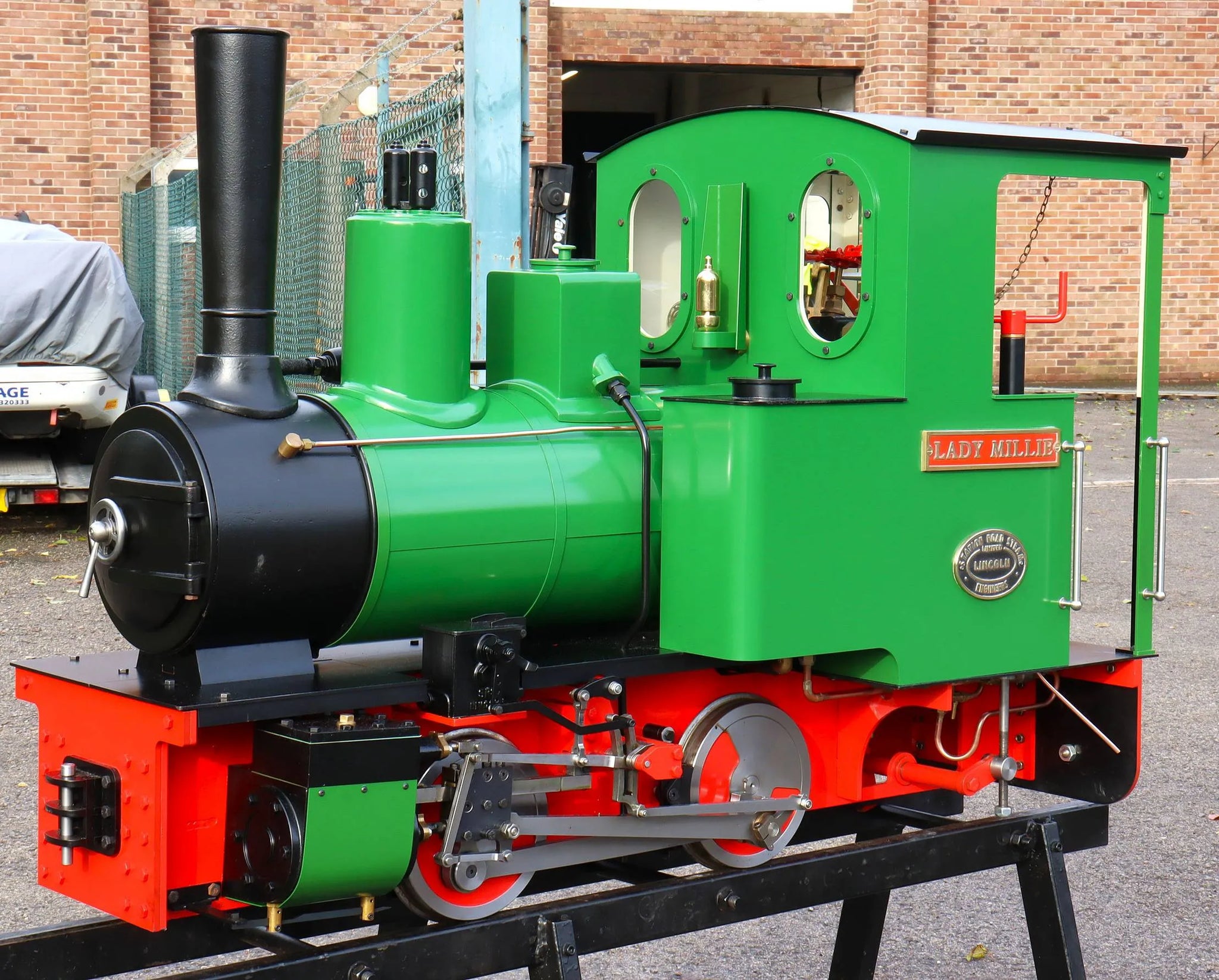

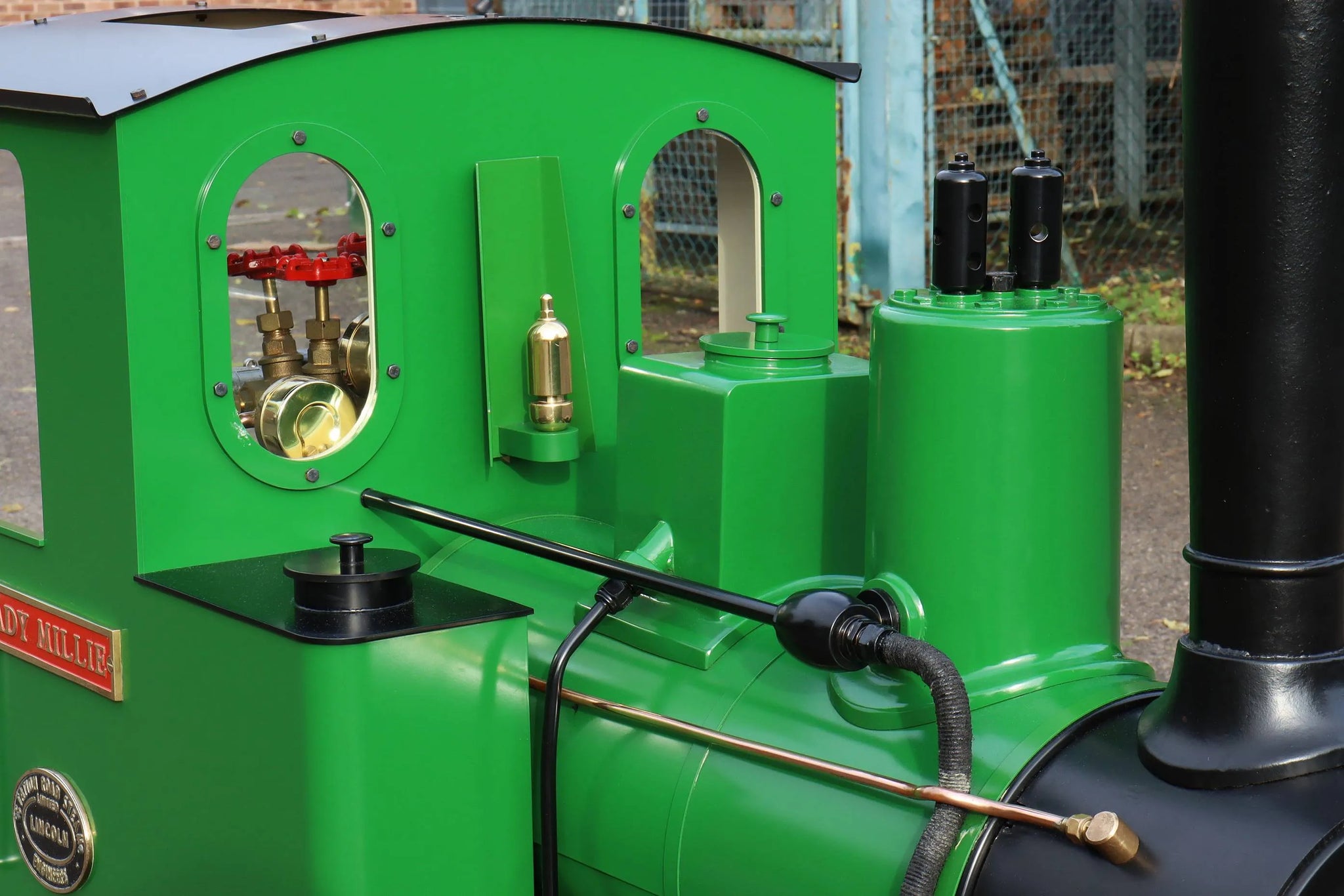

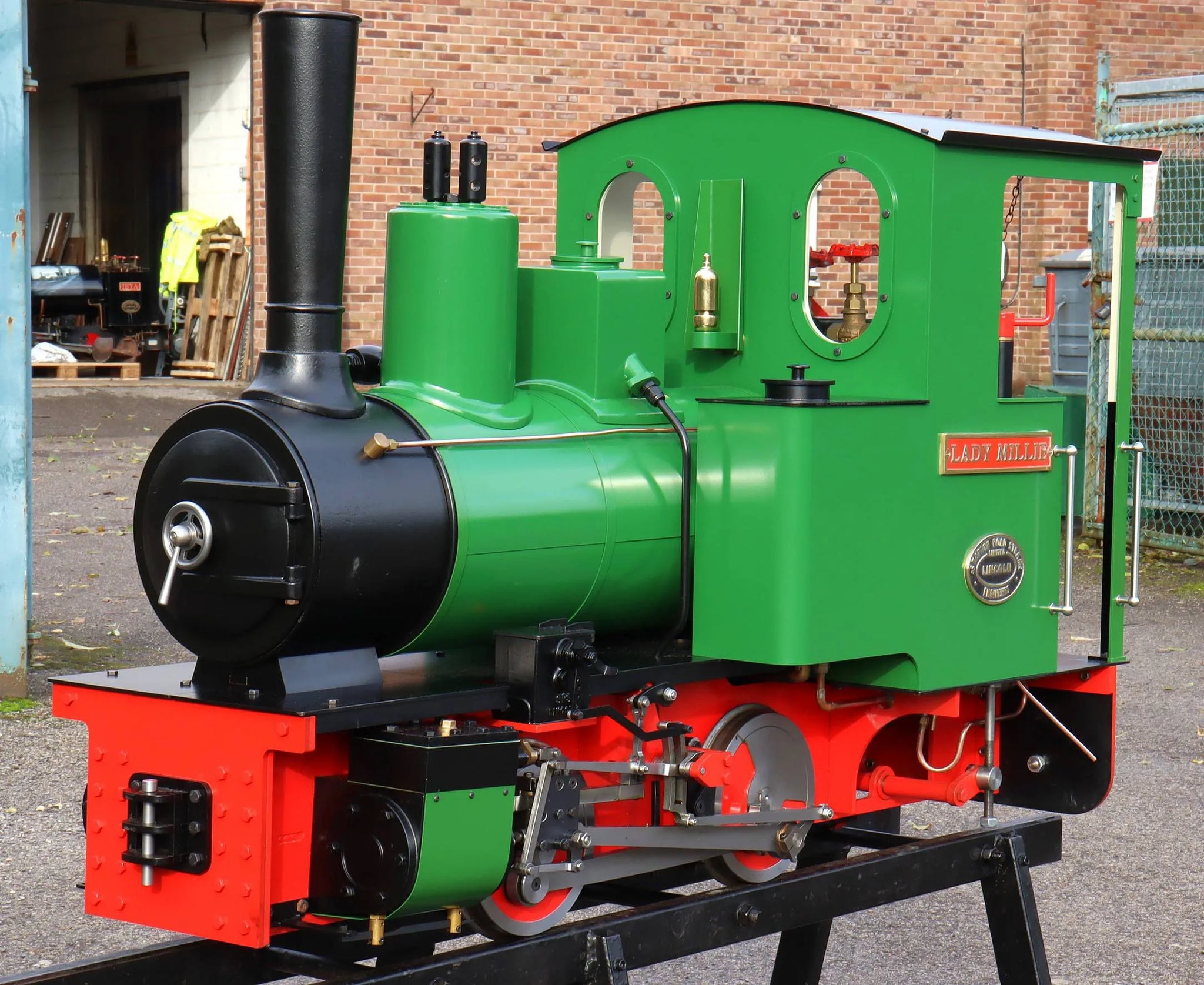

7 1/4 inch gauge Feldbahn 0-4-0, works number 1365

A "time capsule" Feldbahn 0-4-0, a factory-built engine we delivered new in 2014 to a gentleman who, sadly, lived to see it steamed only twice. Bequeathed to a friend who has never steamed it, the engine came back to us recently in as close to ex-works condition as you can get - it looked brand new when we got it out of the van.

The boiler has had ultrasonic survey and internal inspection (unsurprisingly it looks like new inside), followed by hydraulic and steam tests with new certification issued.

The engine runs as well today as it did nine years ago when Ashley set the valves, filled it with water and put a fire in it for its pre-delivery steam test.

Supplied with handbook, 12 months warranty and starter kit of coal, oil and water treatment - exactly the same as we offer with our new engines.


Technical information

Stock code

11668

Gauge

7 1/4 inch

Length/inches

47

Width/inches

19

Height/inches

32

Weight/Kg

210

Wheel material

EN8 steel

Axlebox type

roller bearing

Cylinder material

cast iron

Valve type

slide

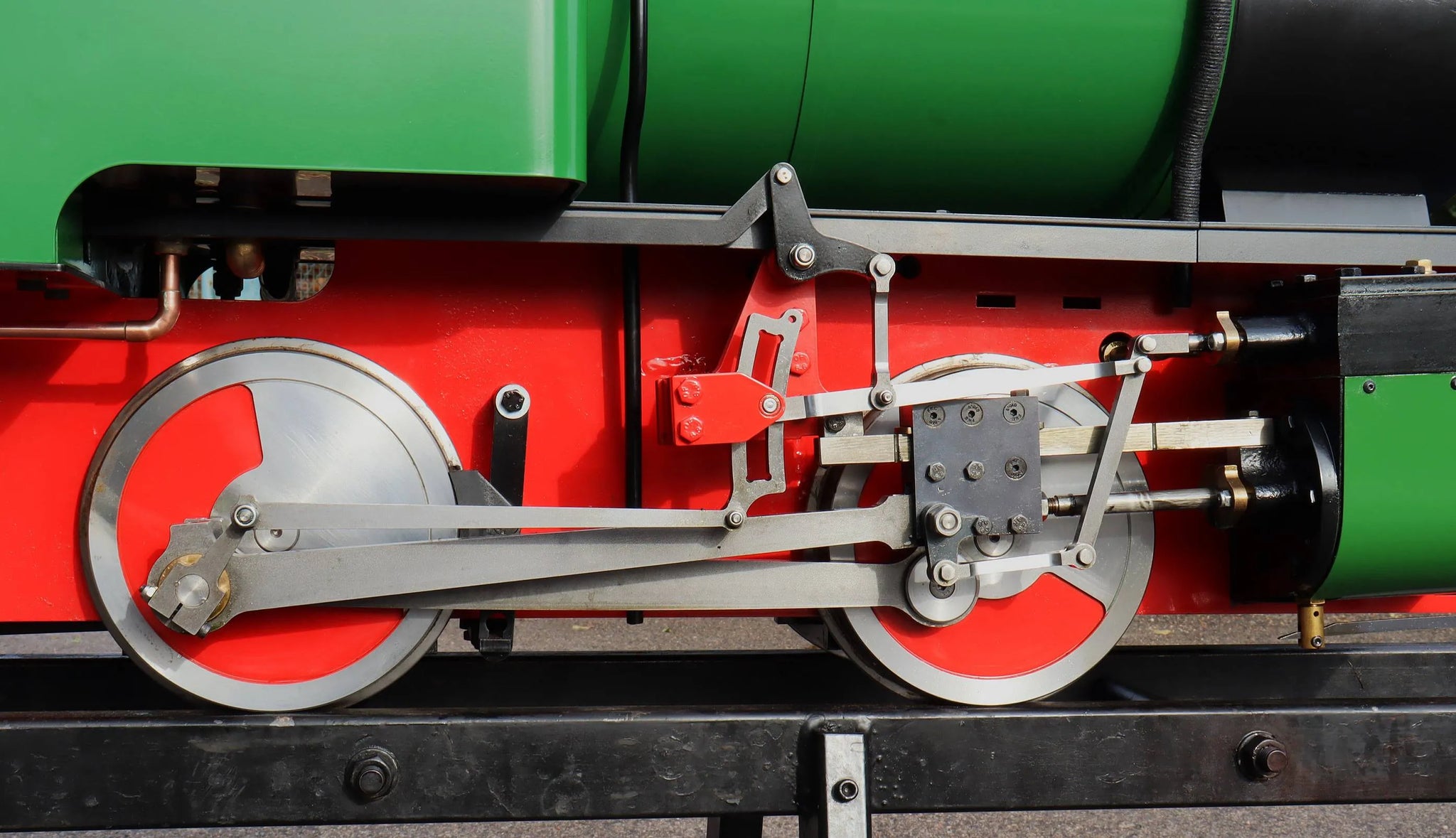

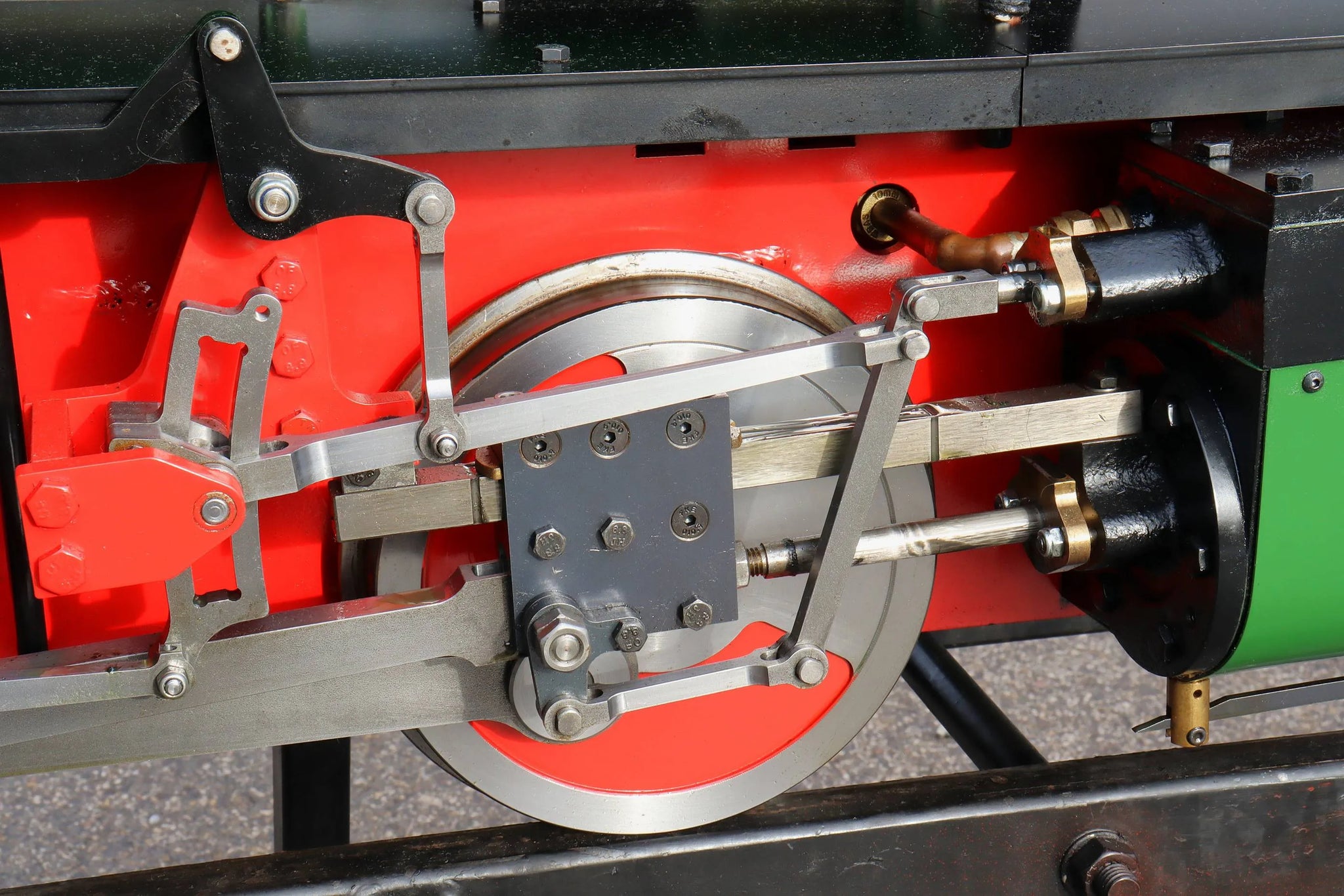

Valve gear

Walschaerts

Reverser type

pole

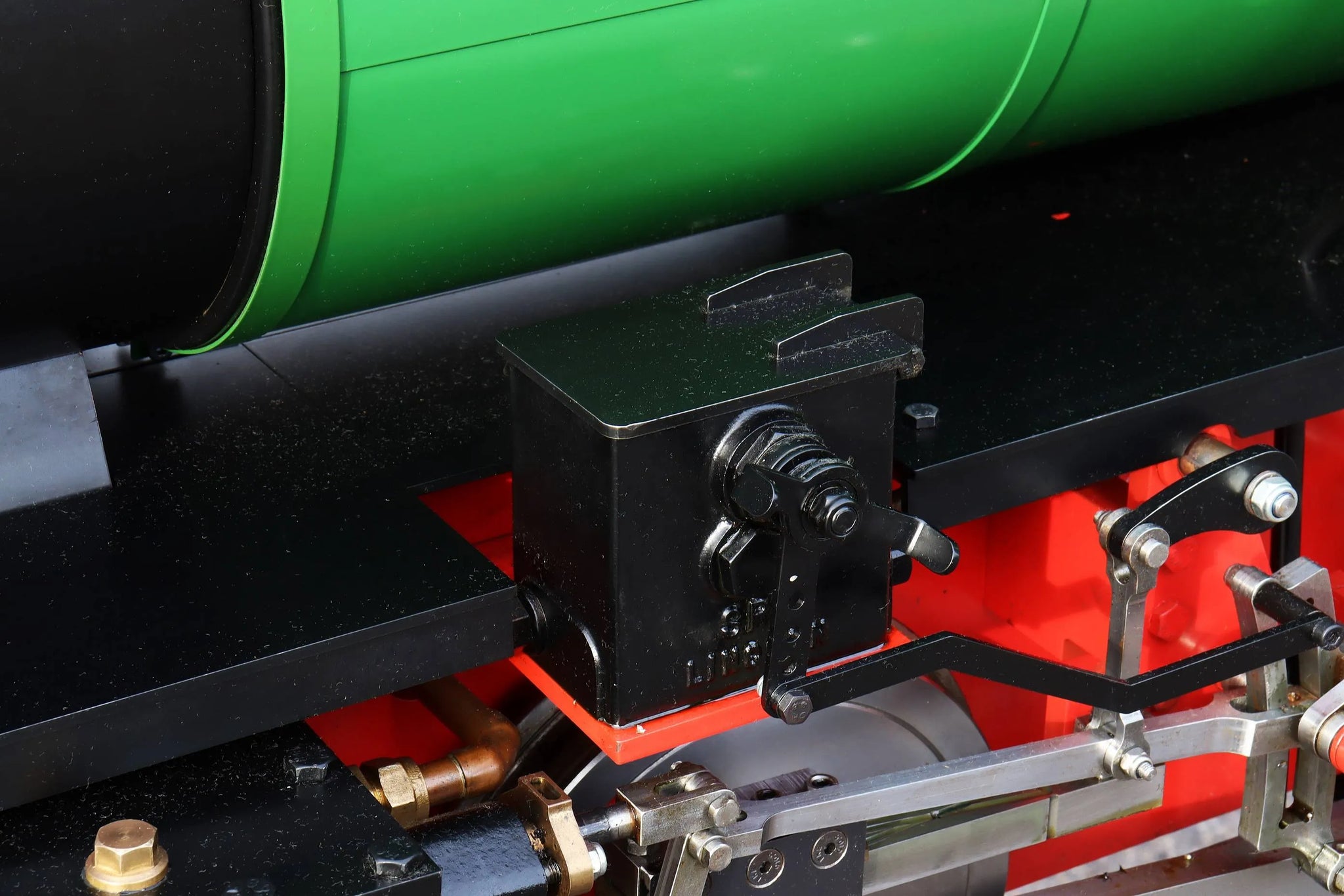

Lubricator type

mechanical

Boiler maker

Station Road Steam

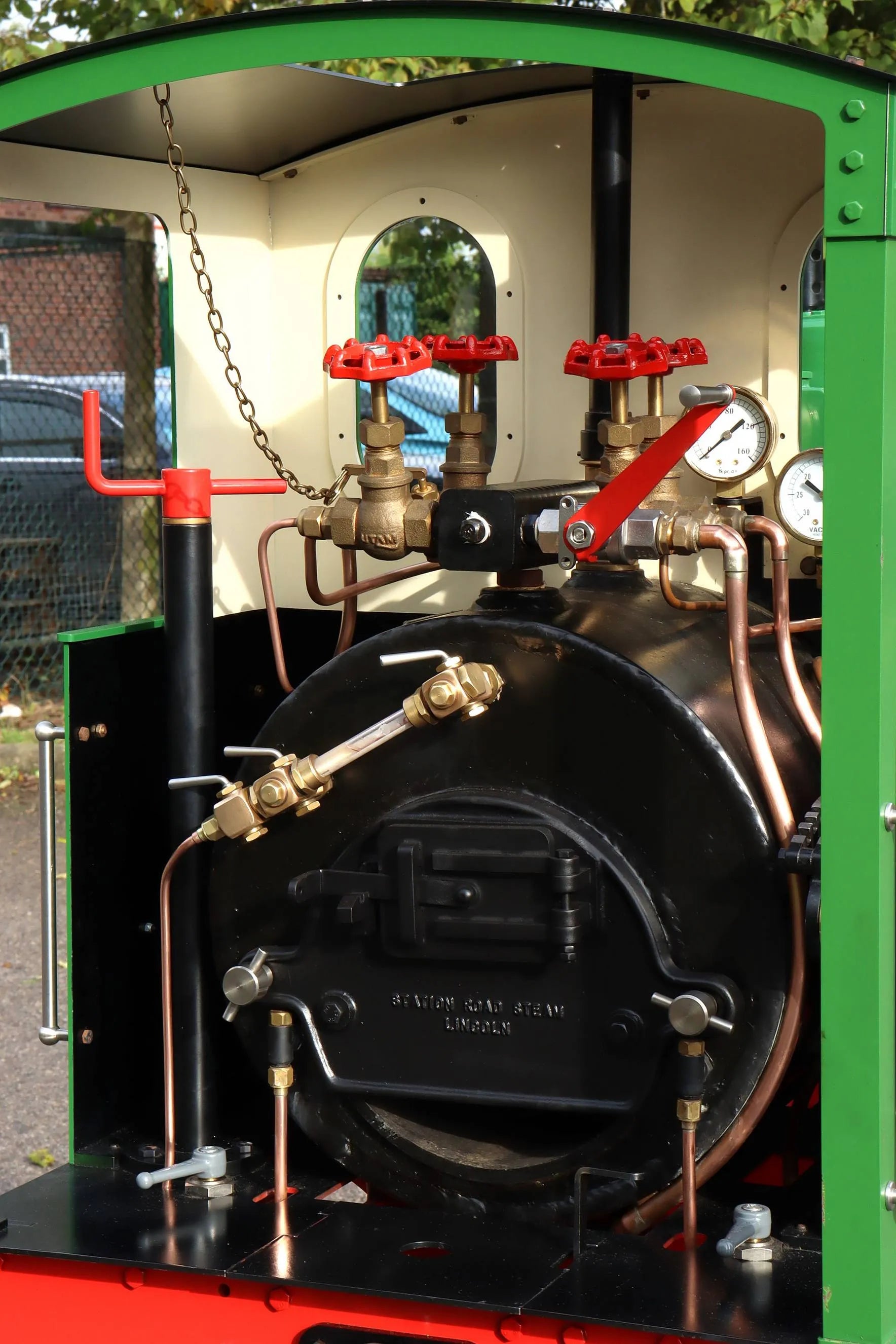

Boiler type

marine

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

CE/UKCA mark

yes

Year built

2014

Boiler number

85

Safety valve type

progressive pop

Safety valve

1

Fusible plug

yes

Bore x stroke

2 1/4 x 3

Whistle

yes

Injector

2 x 2.6 pint/min

Minimum radius

20

Date out

Dec-23

Hydraulic test valid to

31-Oct-25

Steam test valid to

01-Jan-25
