7 1/4 inch gauge Feldbahn 0-4-0T works number 1329

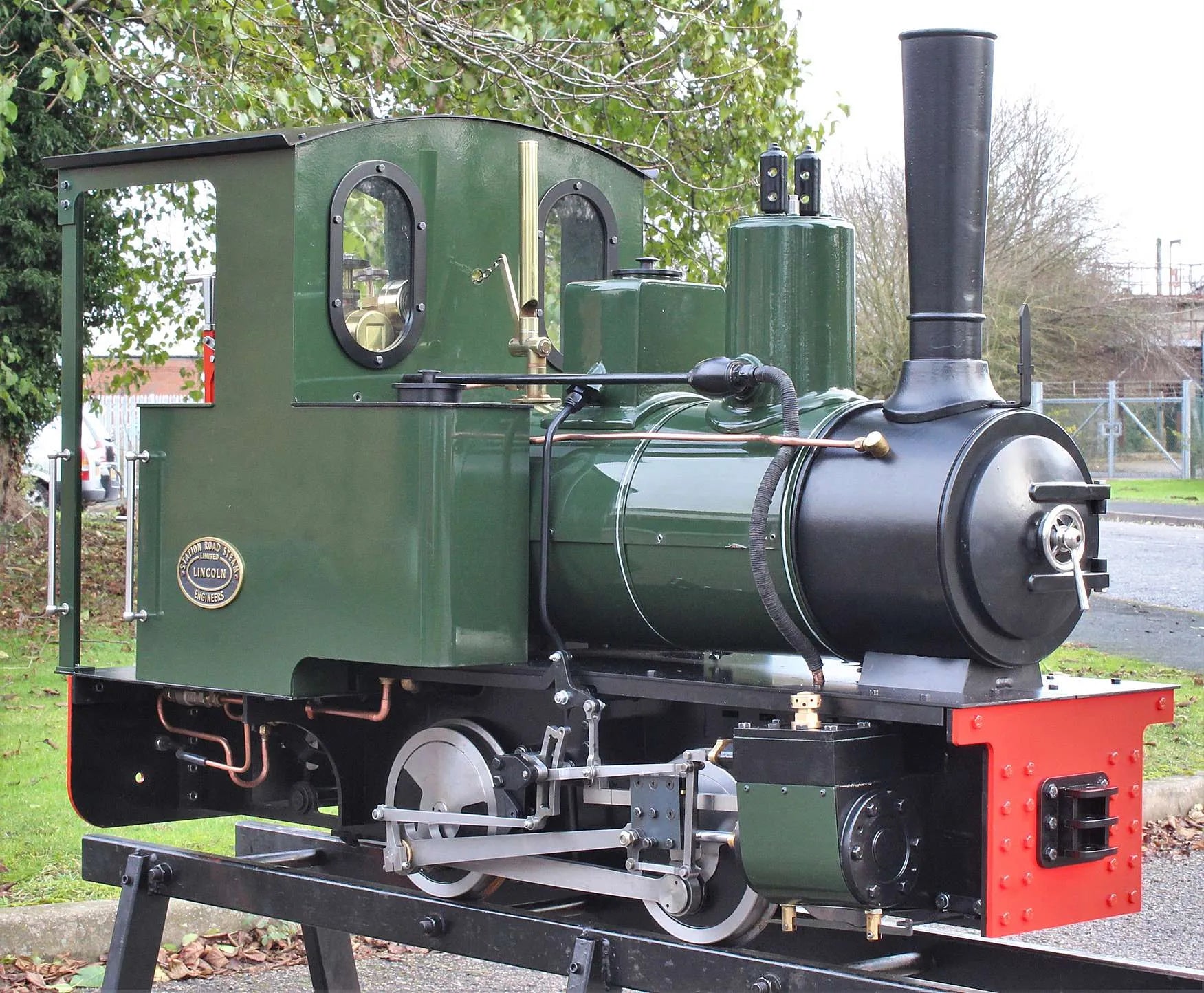

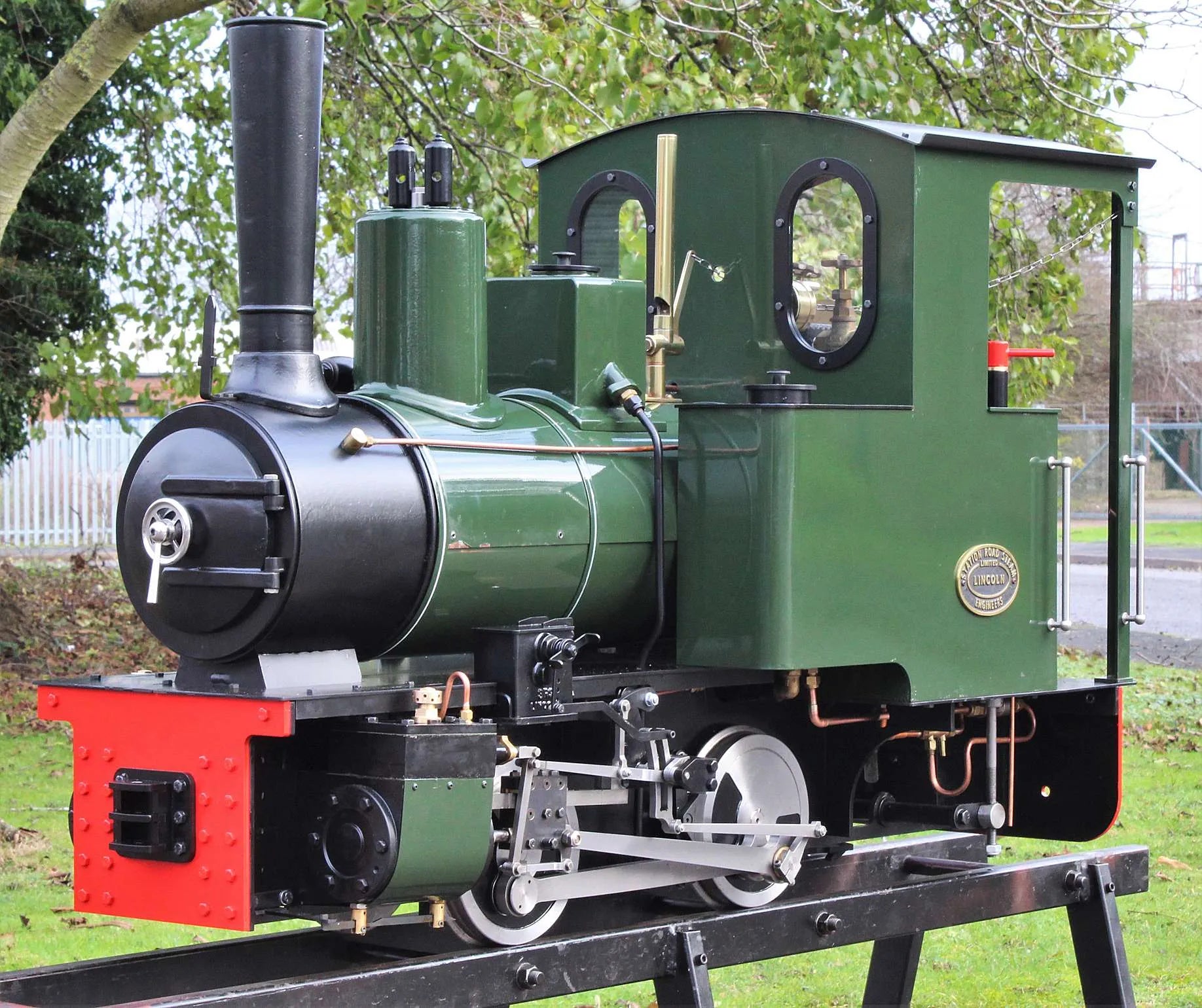

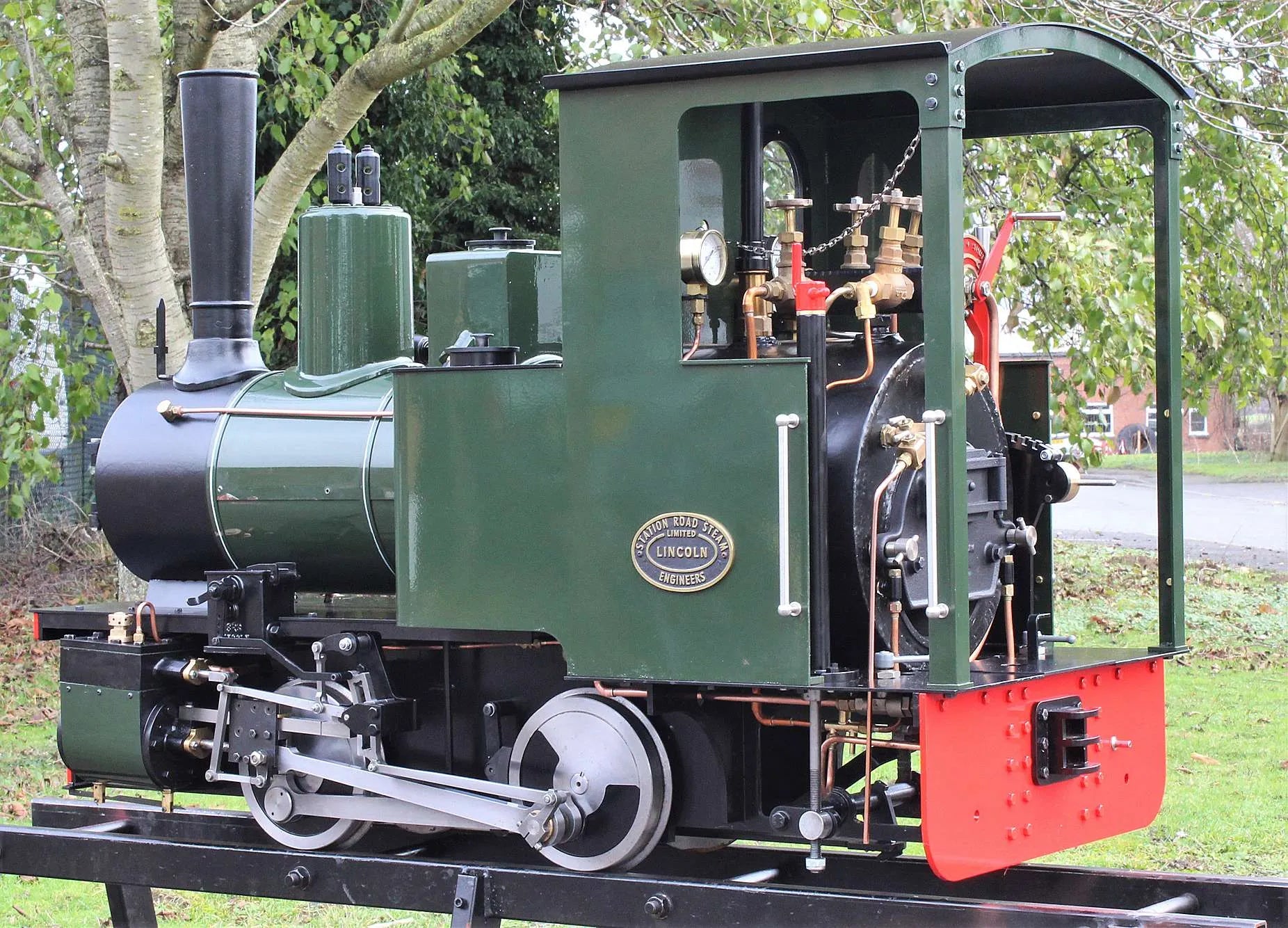

A "Feldbahn" 0-4-0, works number 1342 supplied new as a kit-build engine in 2013. Completed some years later, the builder's ill health meant that it had little use once finished - it spent much of its time in his workshop in company with several other narrow gauge locomotives including the Bagnall 0-4-0ST and part-built 0-4-2T "Bicton" we've sold recently.

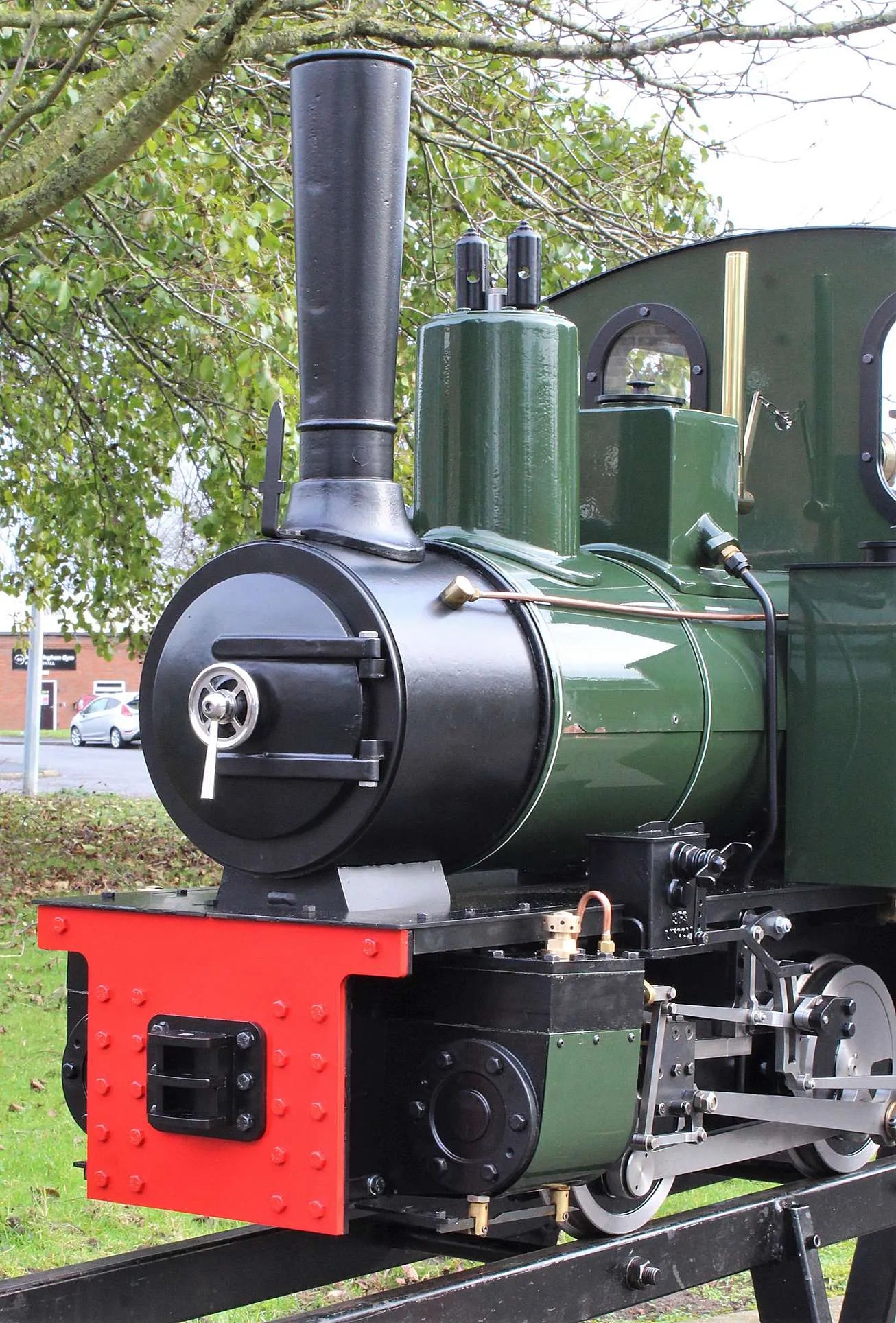

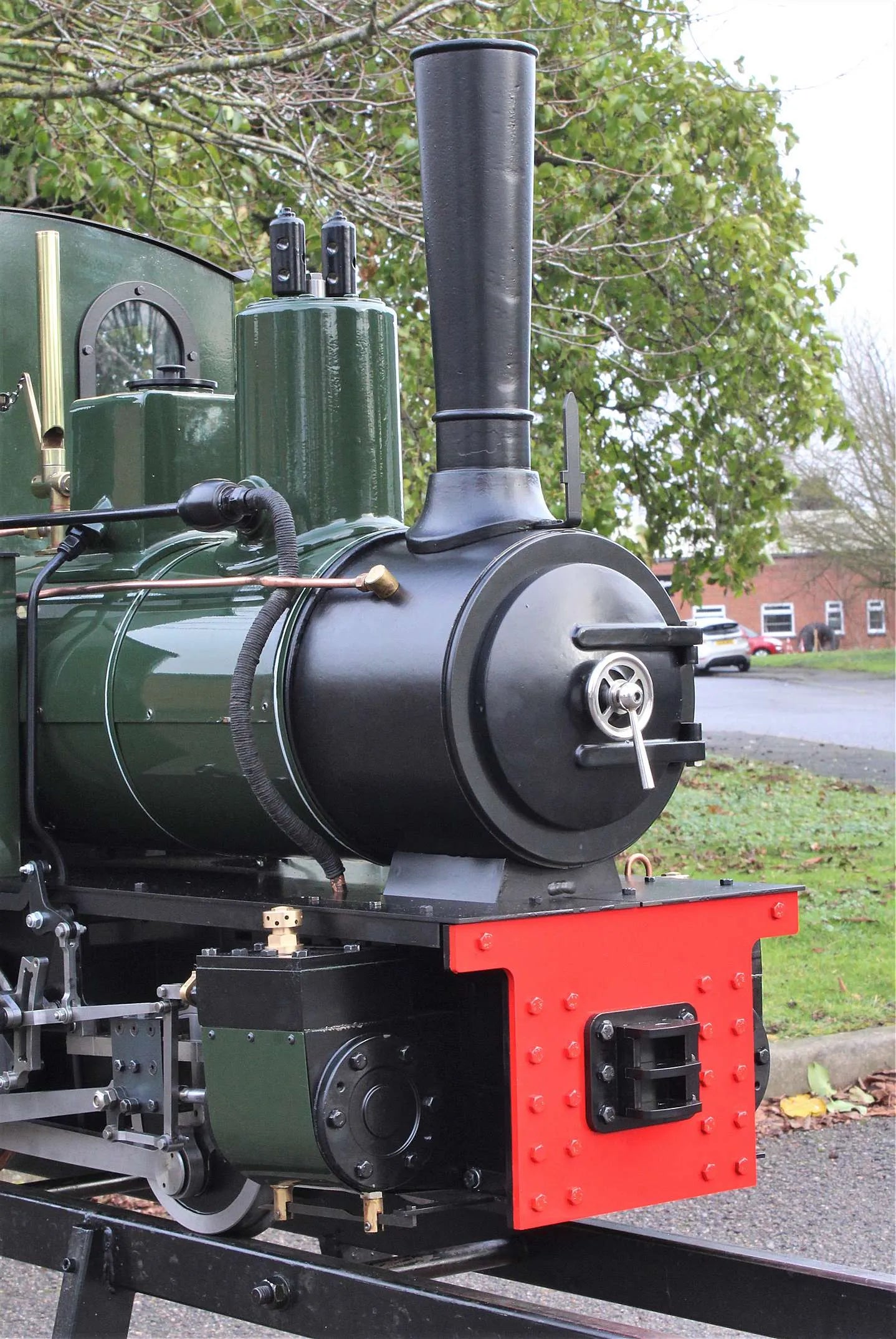

Since arriving back with us the engine has been stripped back to bare frames, the chassis, boiler and smokebox repainted, then reassembled with latest specification slide valves - it runs exactly like a 2021-spec factory built engine.

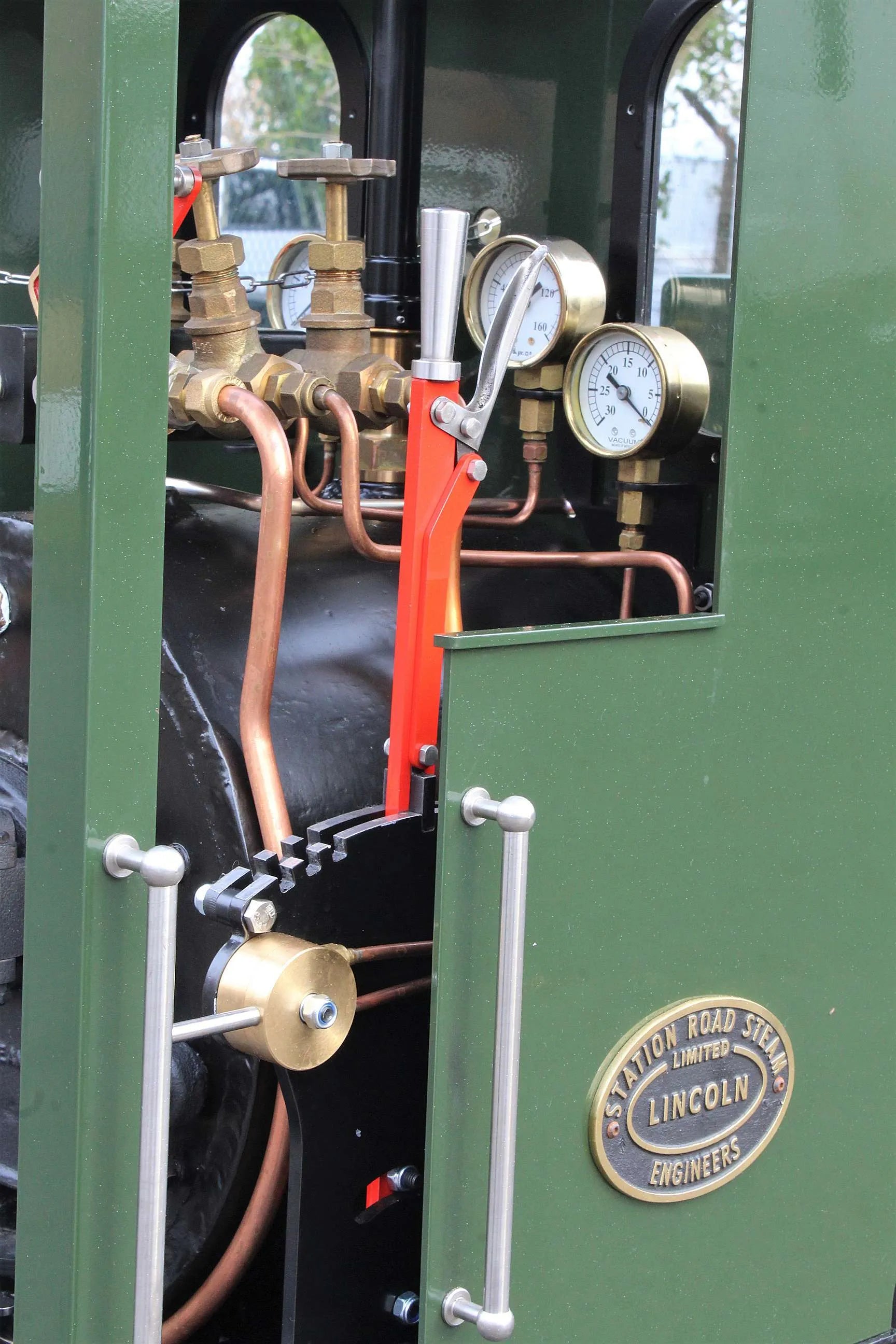

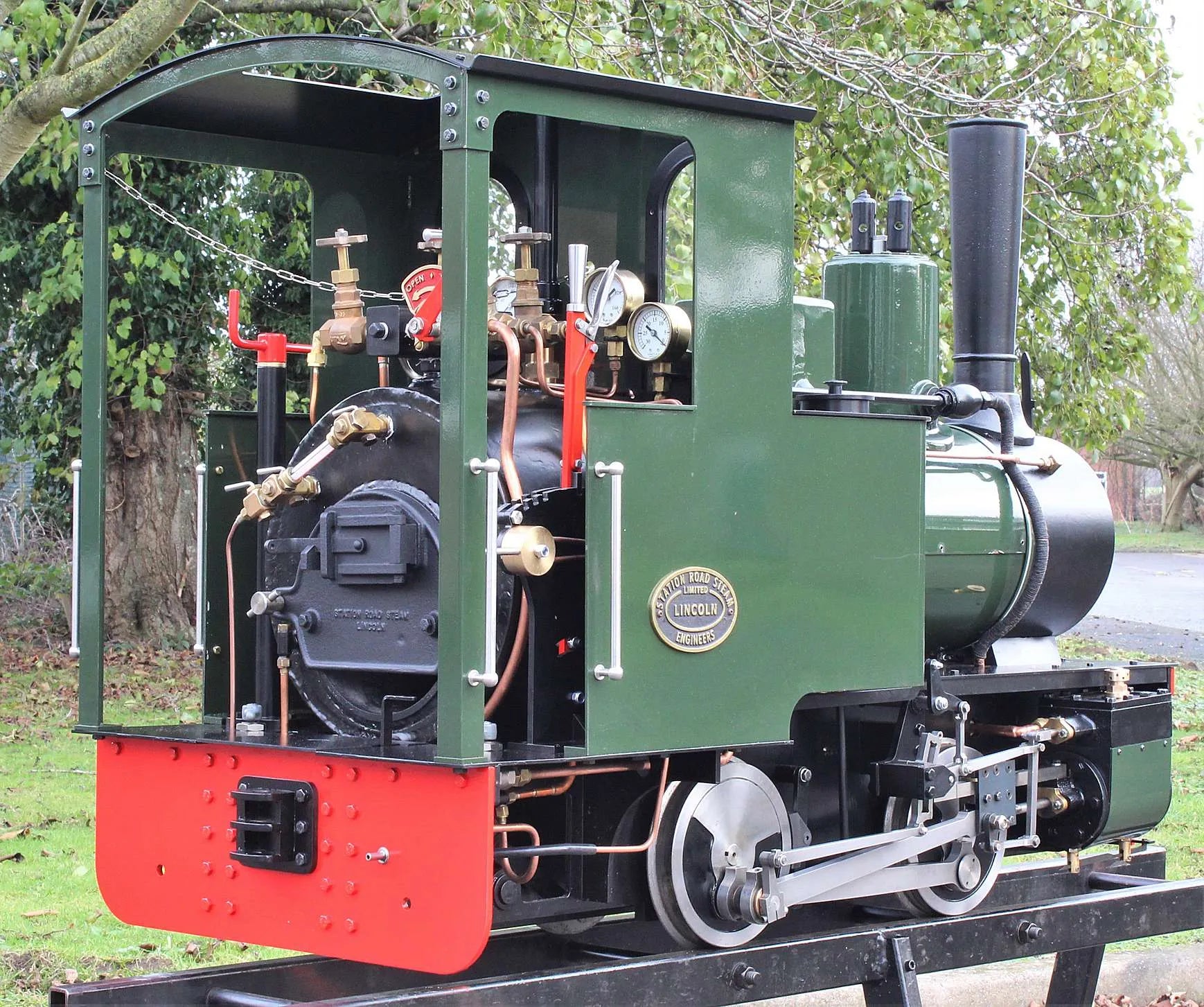

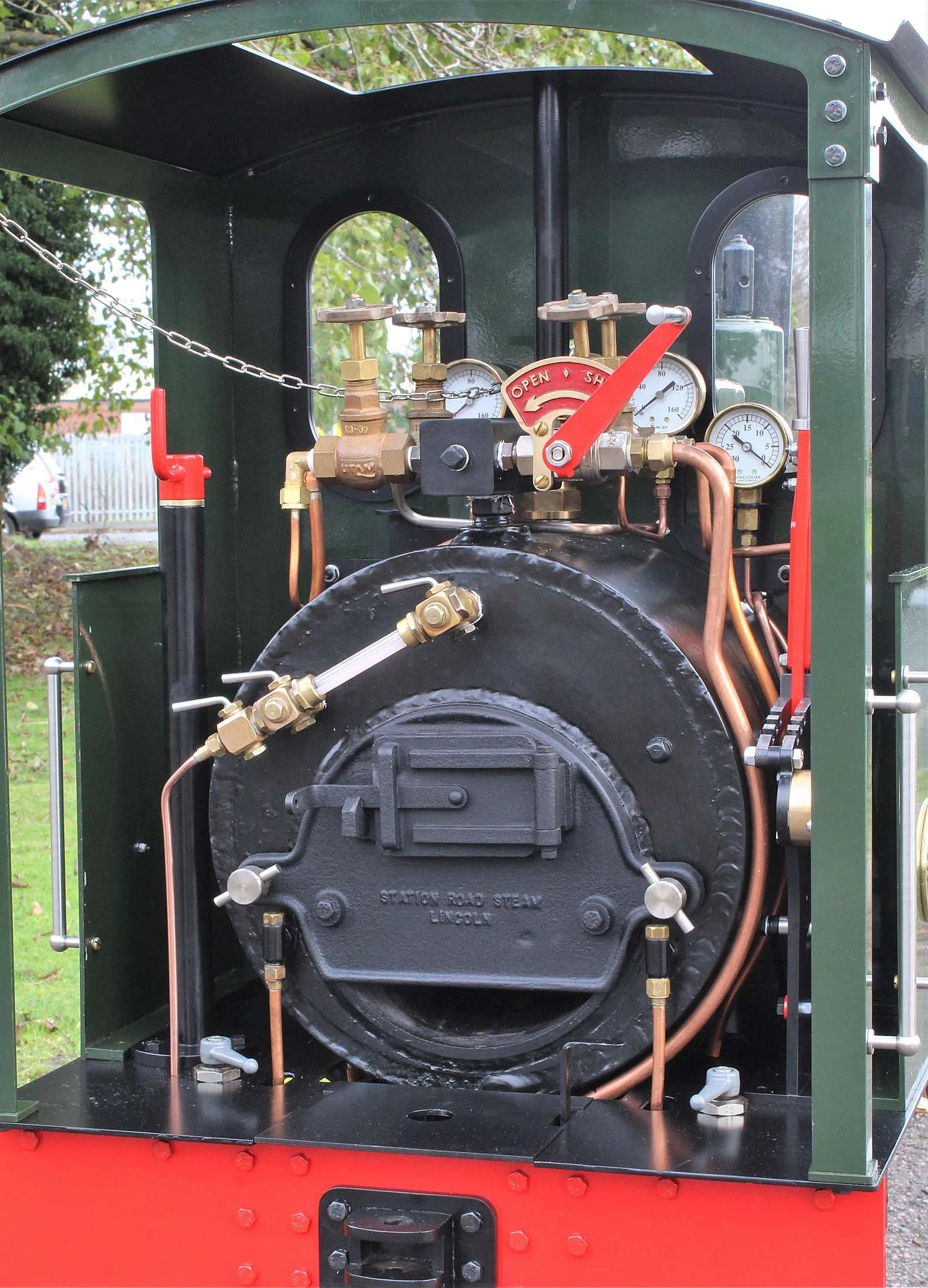

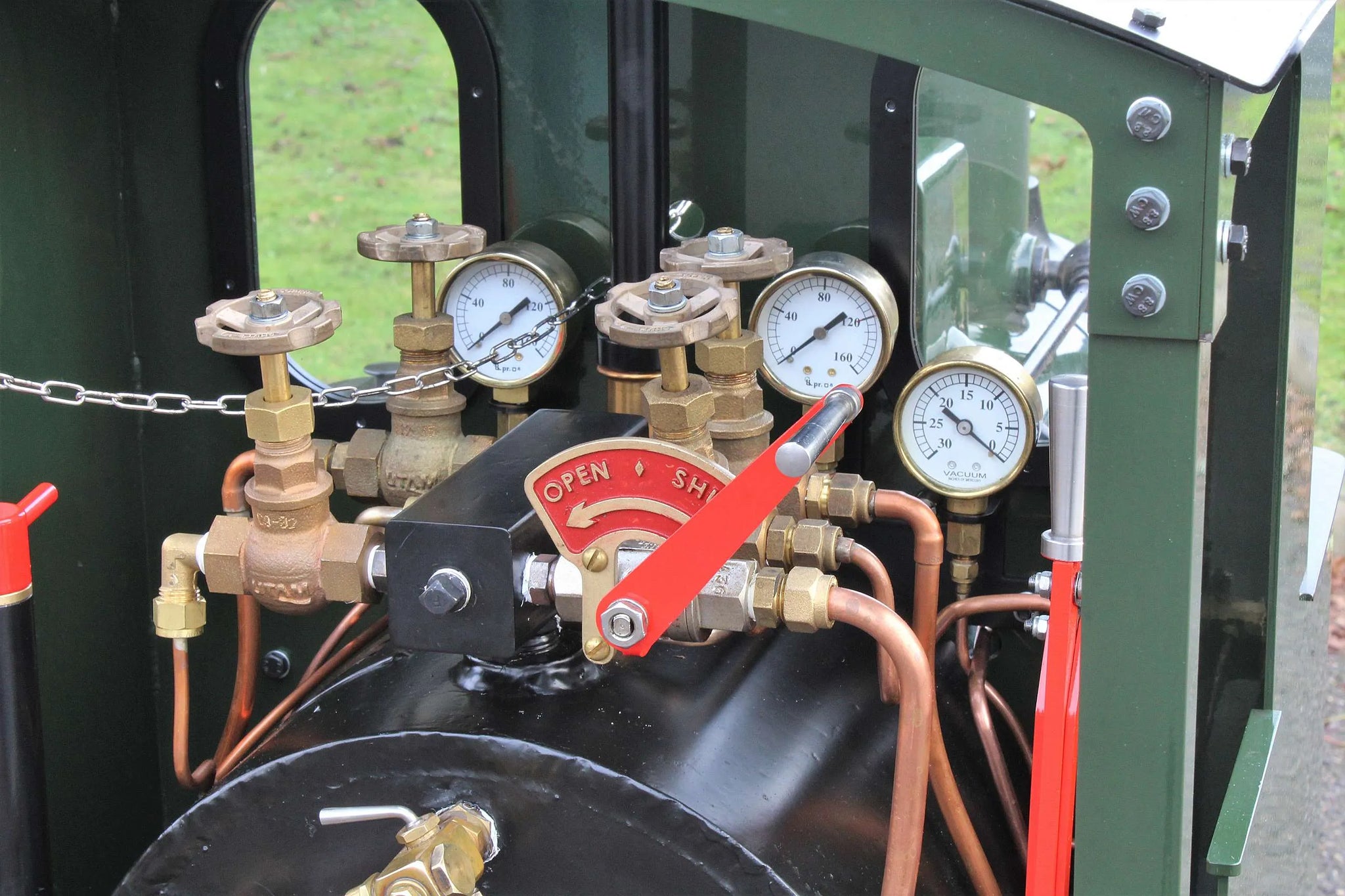

Supplied new with vaccum brake equipment, the engine has been upgraded with snifting valves, detent-type vacuum brake valve and valve chest pressure gauge.

There is minor paint loss on the boiler cladding sheets, paintwork is otherwise in good condition.

Supplied with handbook, 12 months warranty and starter kit of coal, oil and water treatment - exactly the same as we offer with our new engines.

Technical information

Stock code

9765

Gauge

7 1/4 inch

Length/inches

47

Width/inches

19

Height/inches

32

Weight/Kg

210

Wheel material

EN8 steel

Axlebox type

roller bearing

Cylinder material

cast iron

Valve type

slide

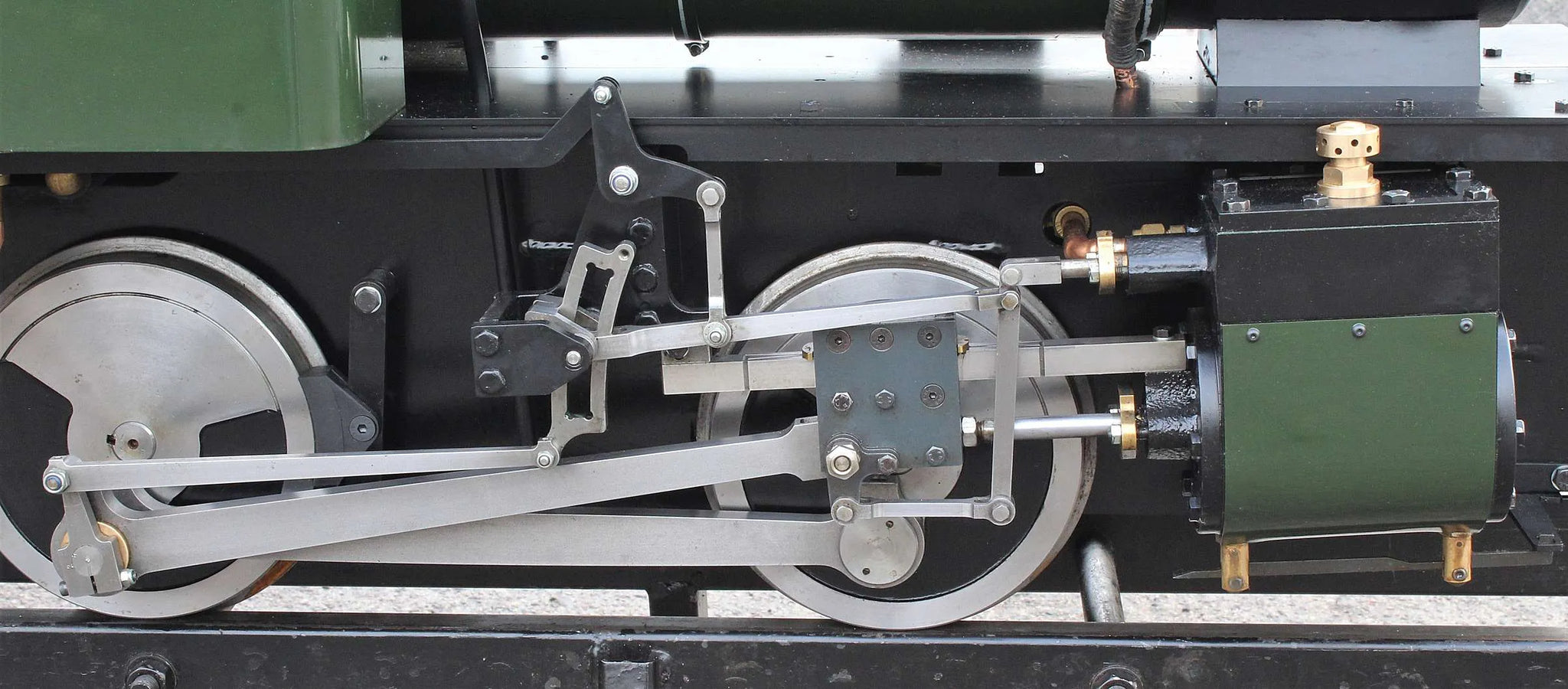

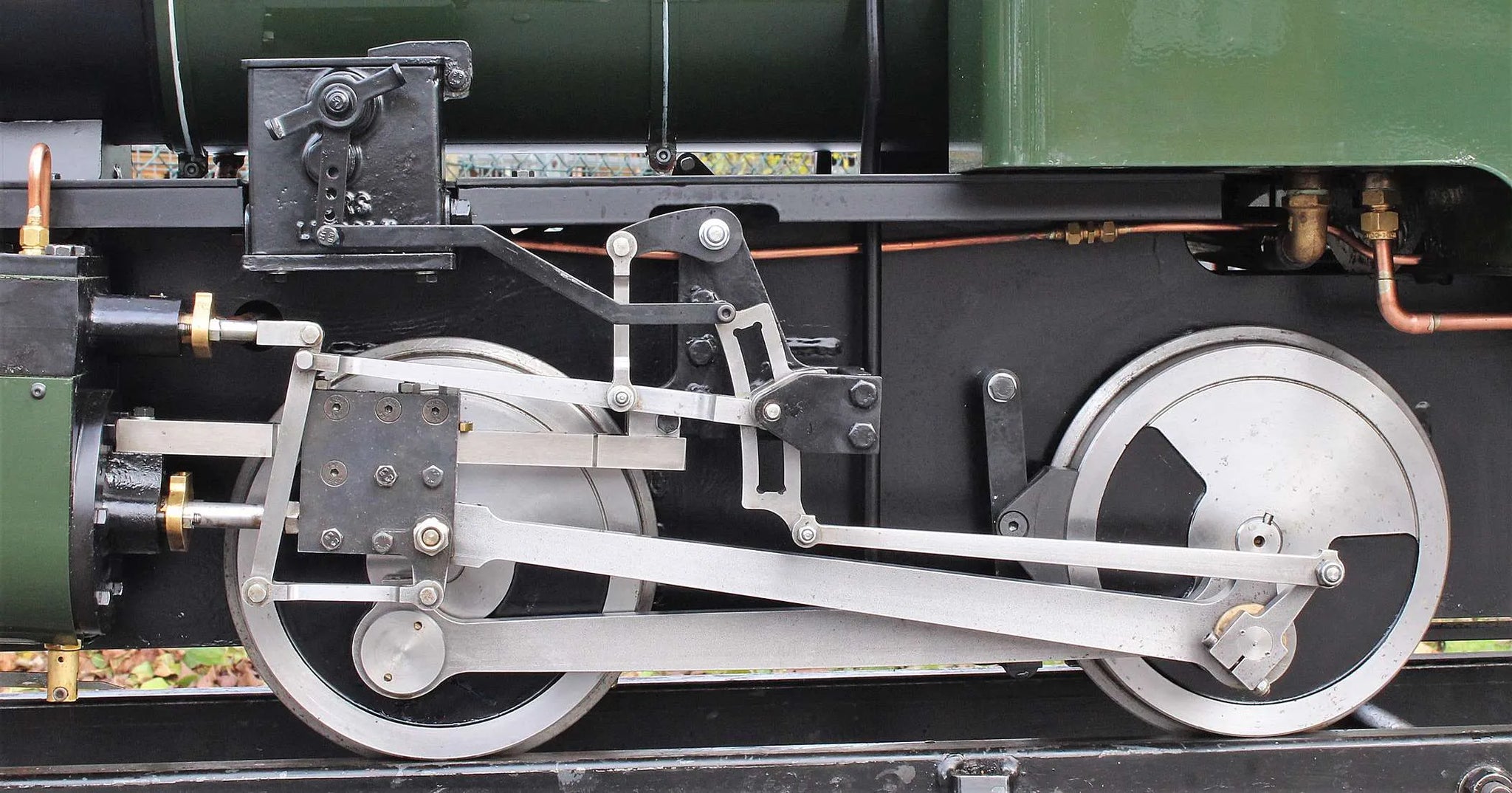

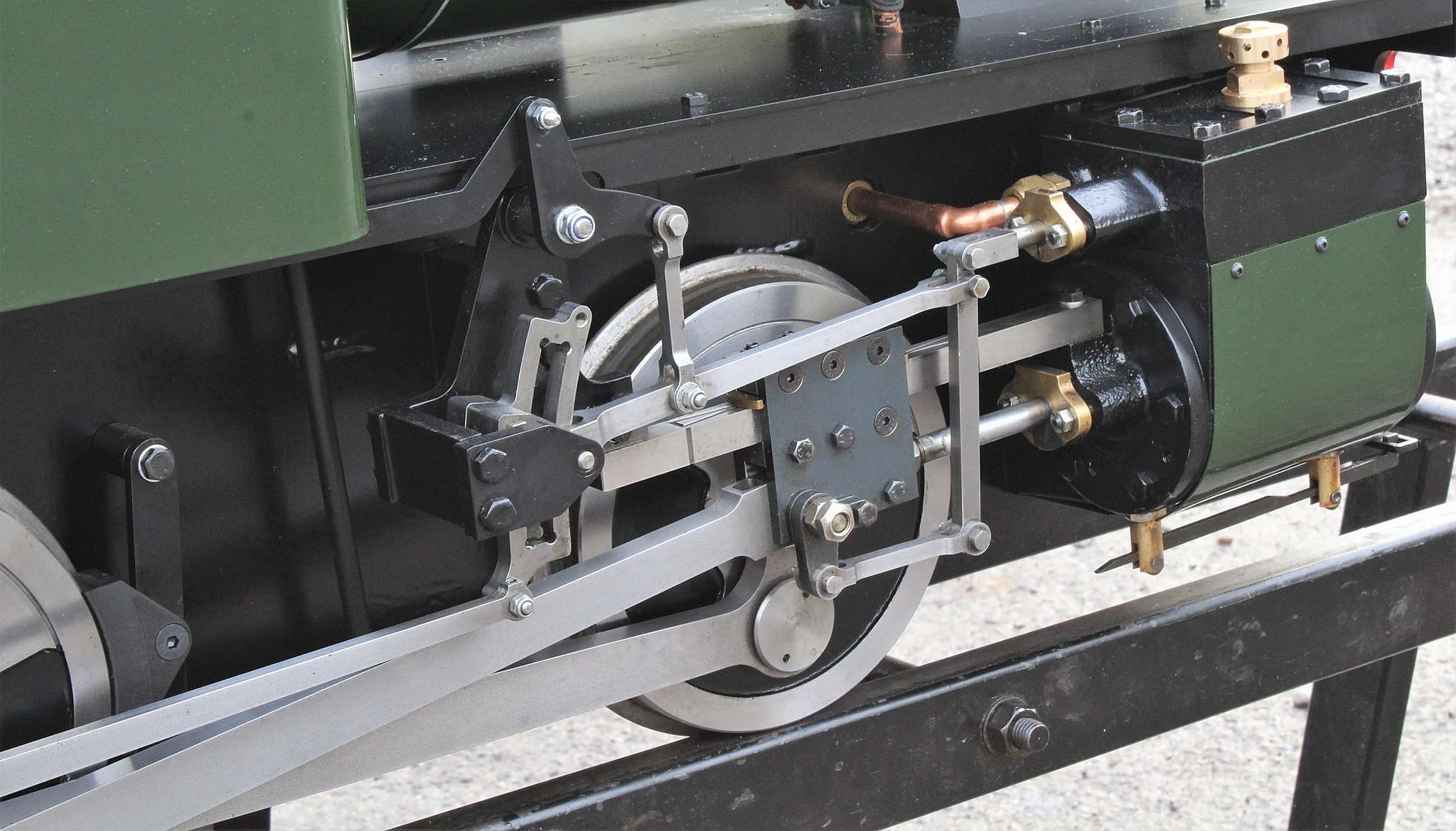

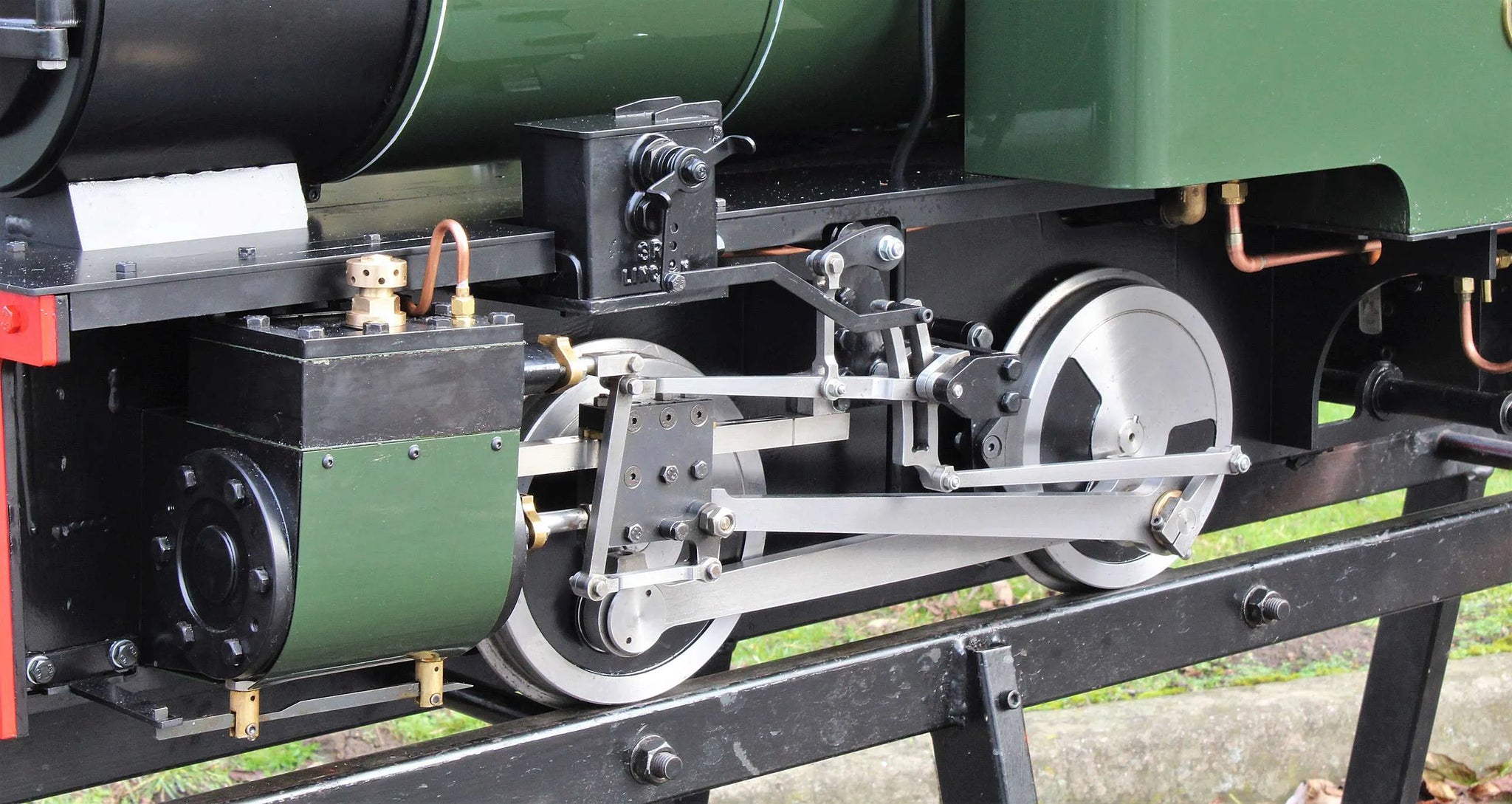

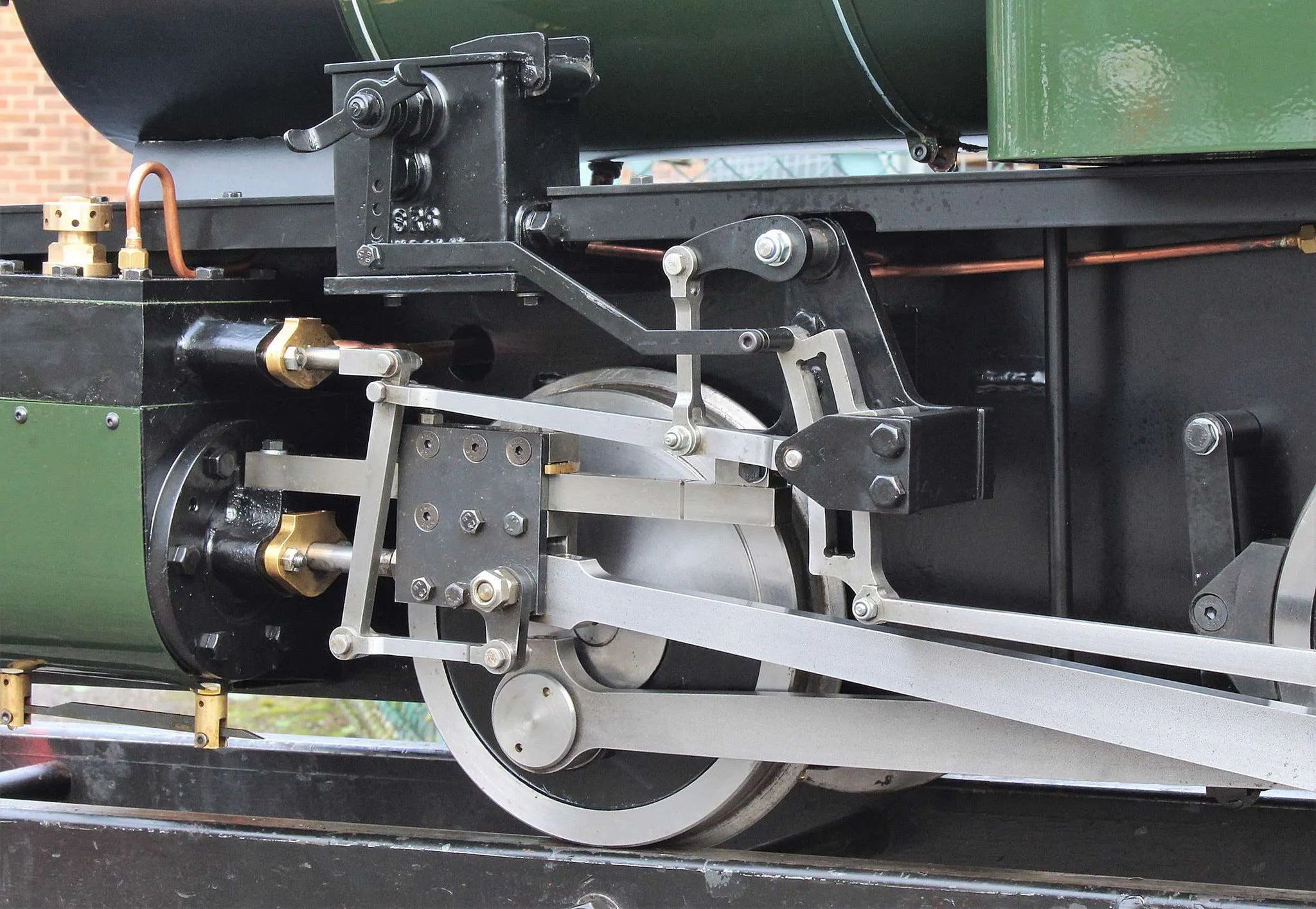

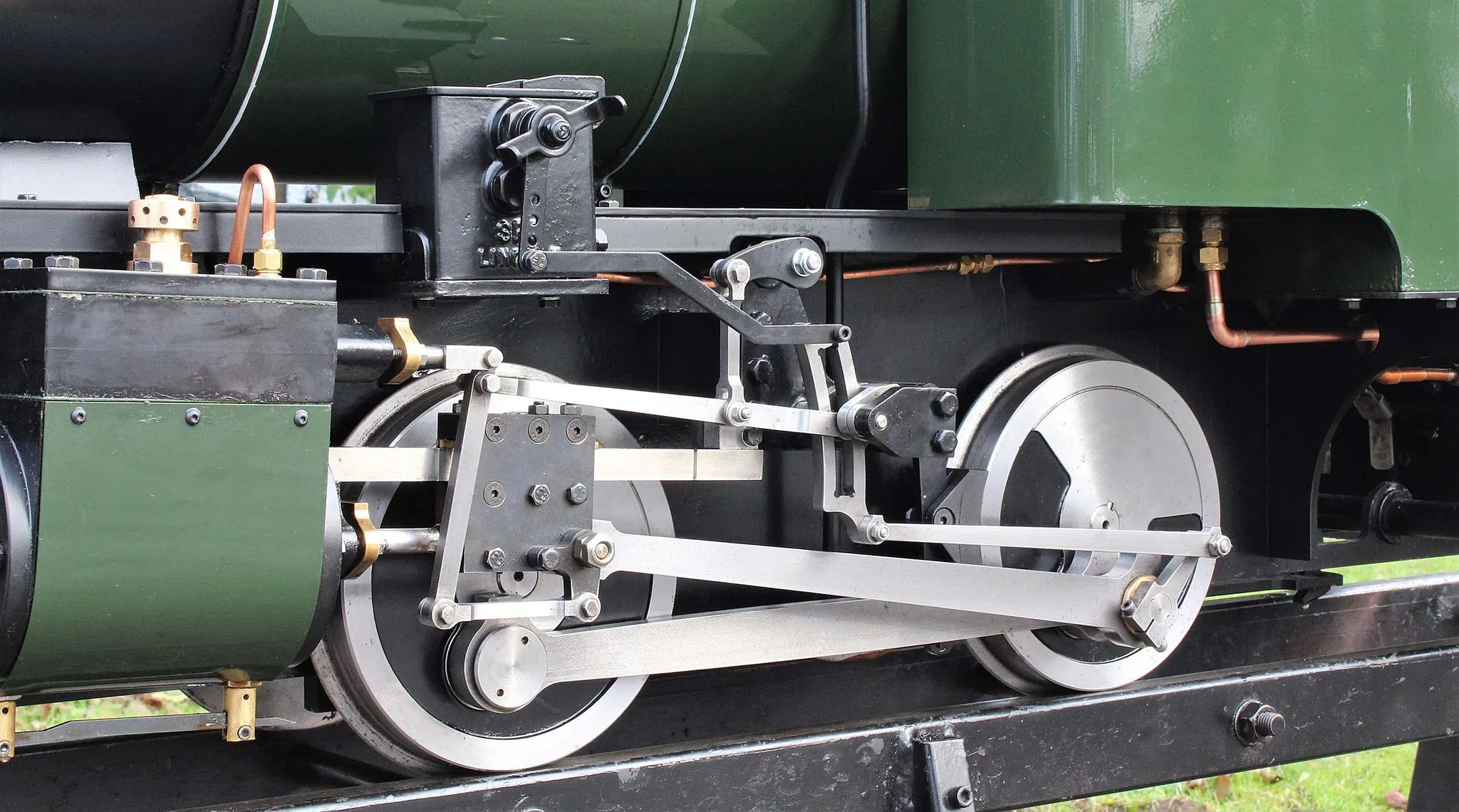

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Station Road Steam

Boiler type

marine

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

CE/UKCA mark

yes

Year built

2013

Boiler number

63

Safety valve type

progressive pop

Safety valve

1

Fusible plug

yes

Bore x stroke

2 1/4 x 3

Whistle

yes

Injector

2

Nominal traction

238

Minimum radius

20

Date out

Dec-21

Hydraulic test valid to

08-Dec-23

Steam test valid to

09-Feb-23
