Stock code |
8364 |
Gauge |
7 1/4 inch |
Length/inches |
47 + 36 |
Width/inches |
20.5 |
Height/inches |
33 |
Weight/Kg |
220 + 70 |
Wheel material |
EN8 steel |
Axlebox type |
sealed roller bearing |

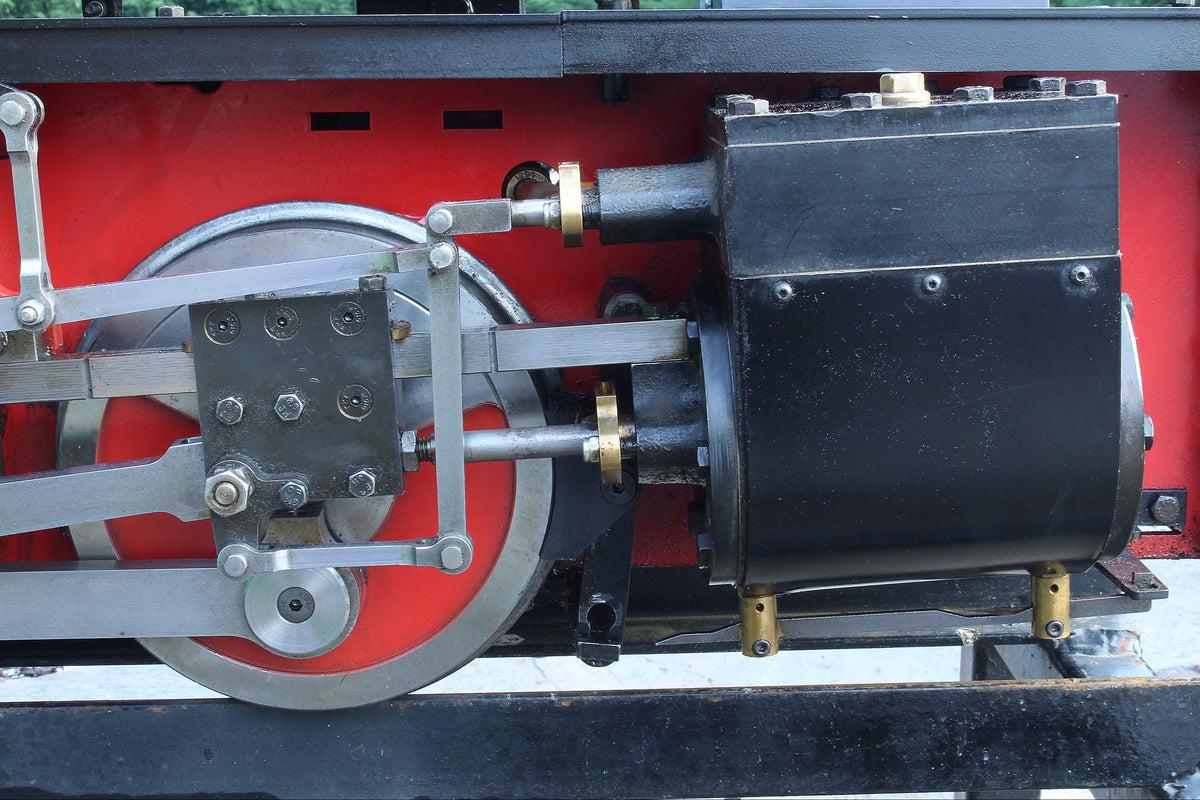

Cylinder material |
cast iron |
Valve type |
slide |

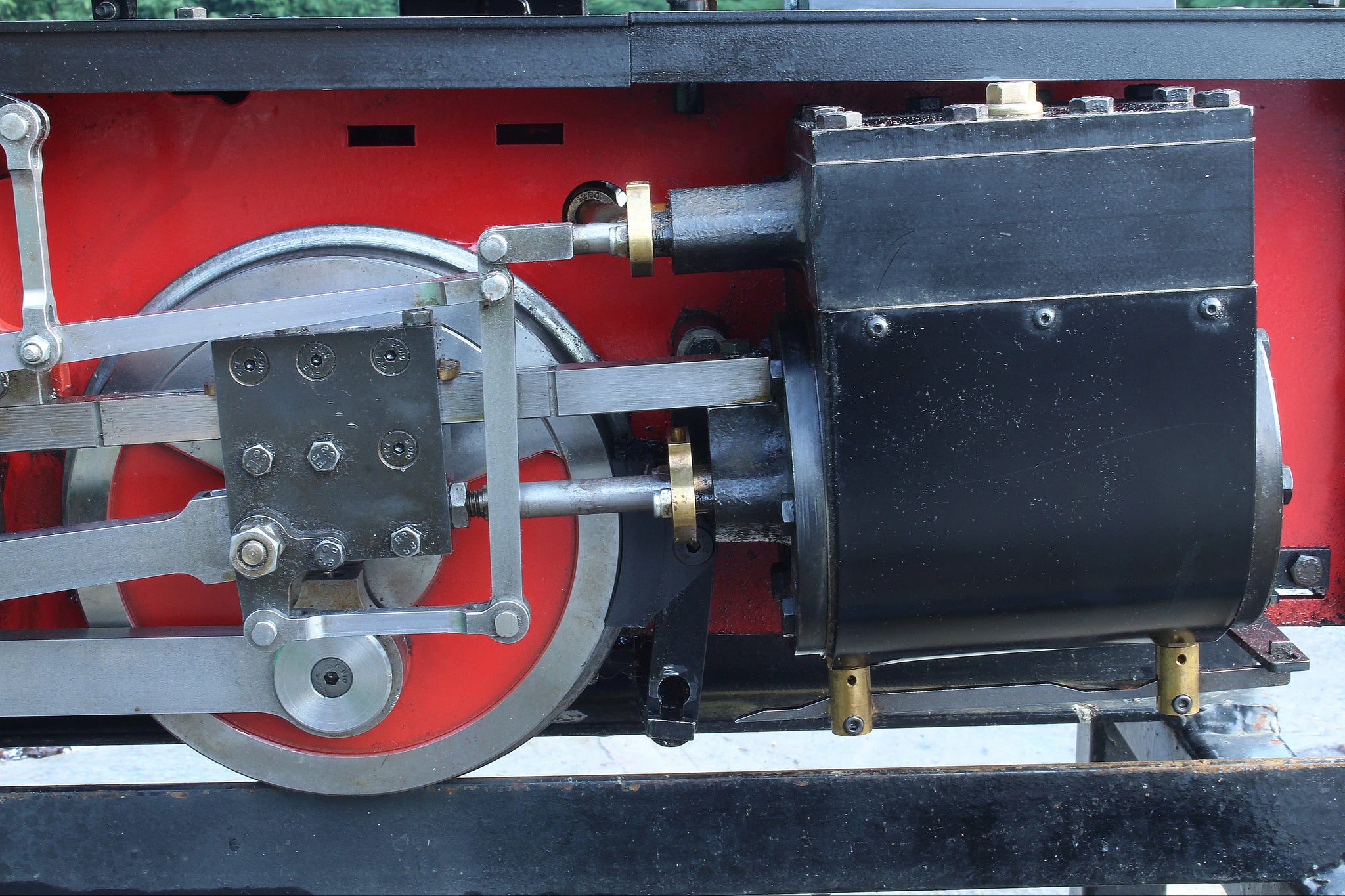

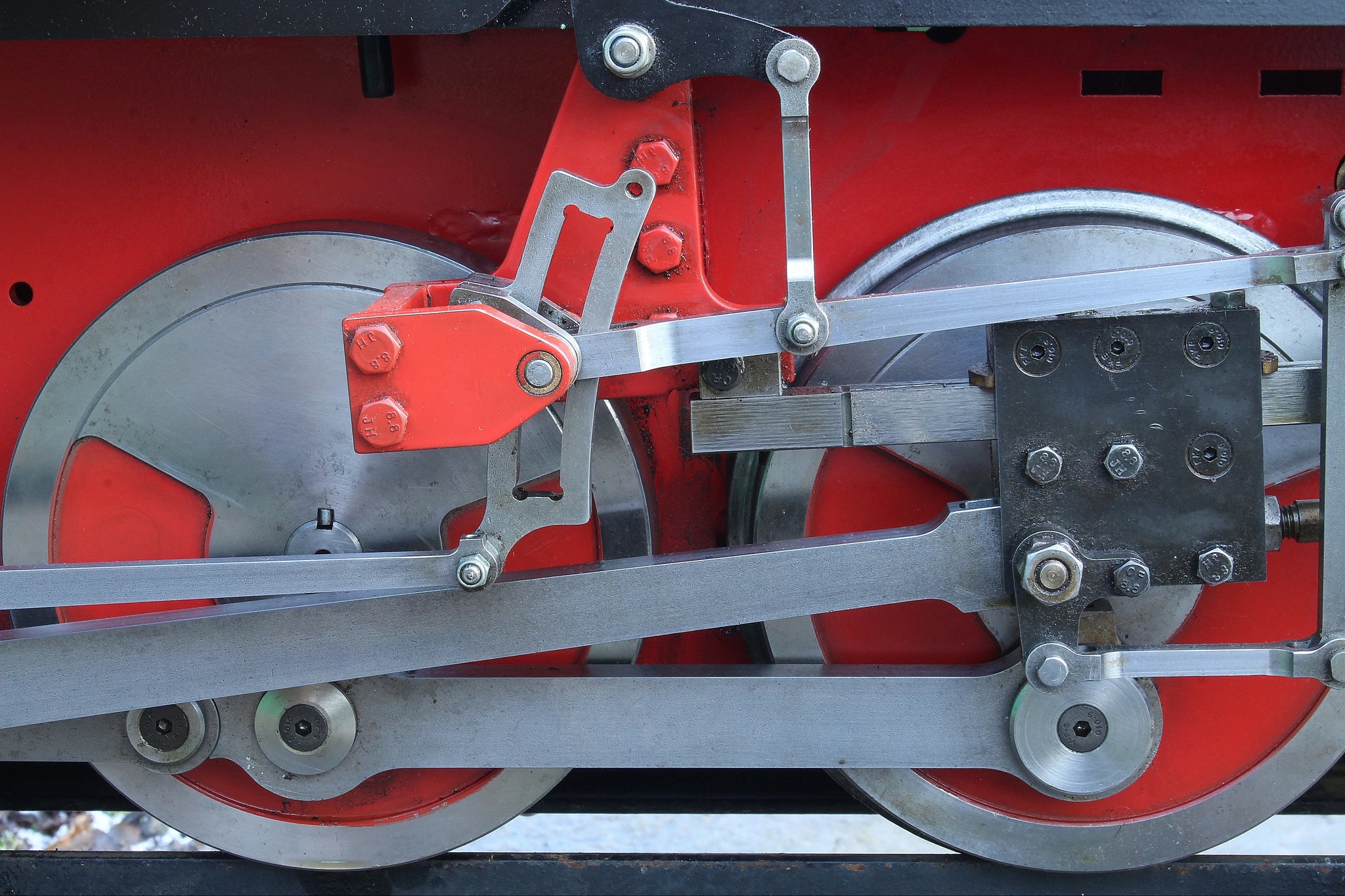

Valve gear |
Walschaerts |
Reverser type |
pole |
Lubricator type |
mechanical |

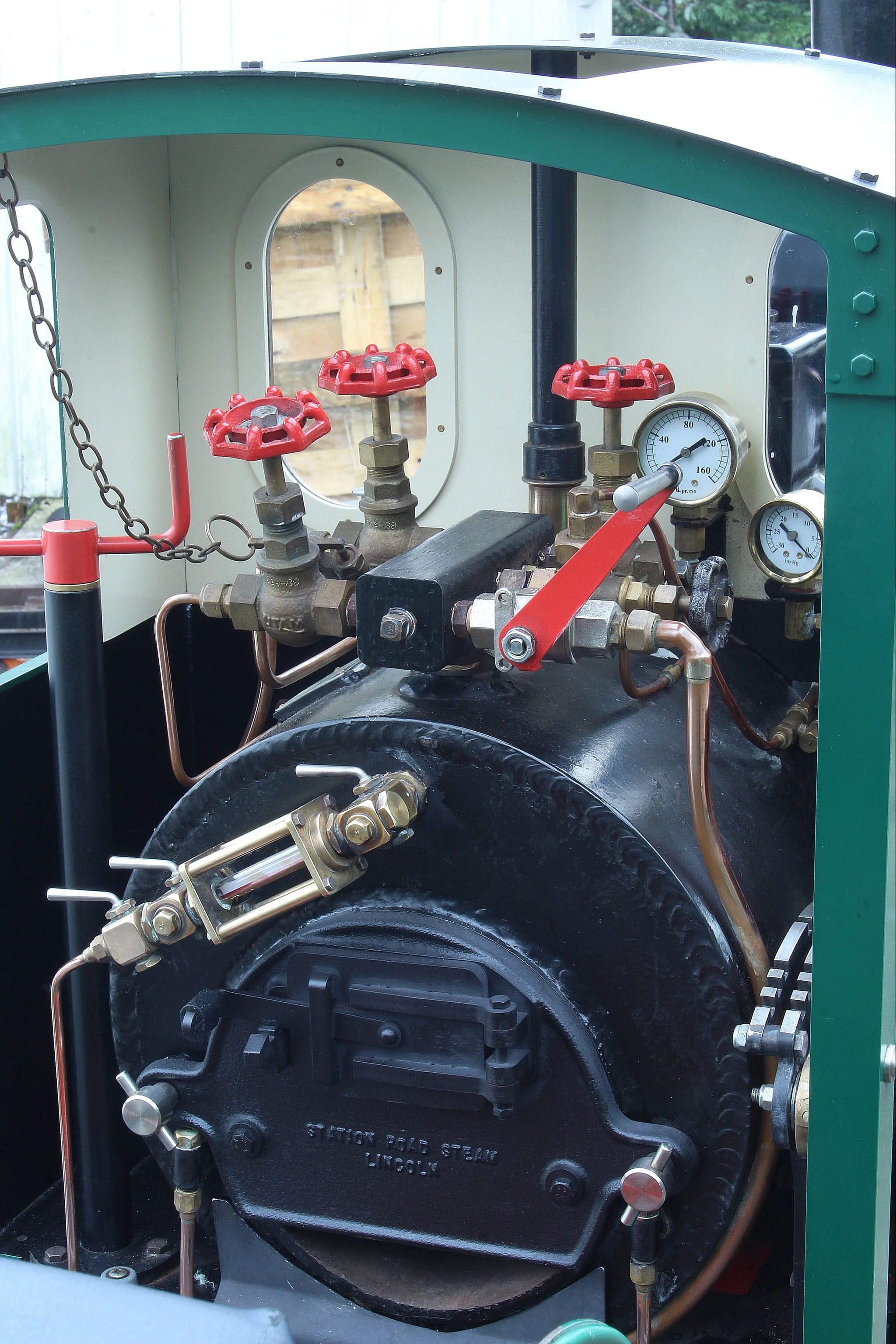

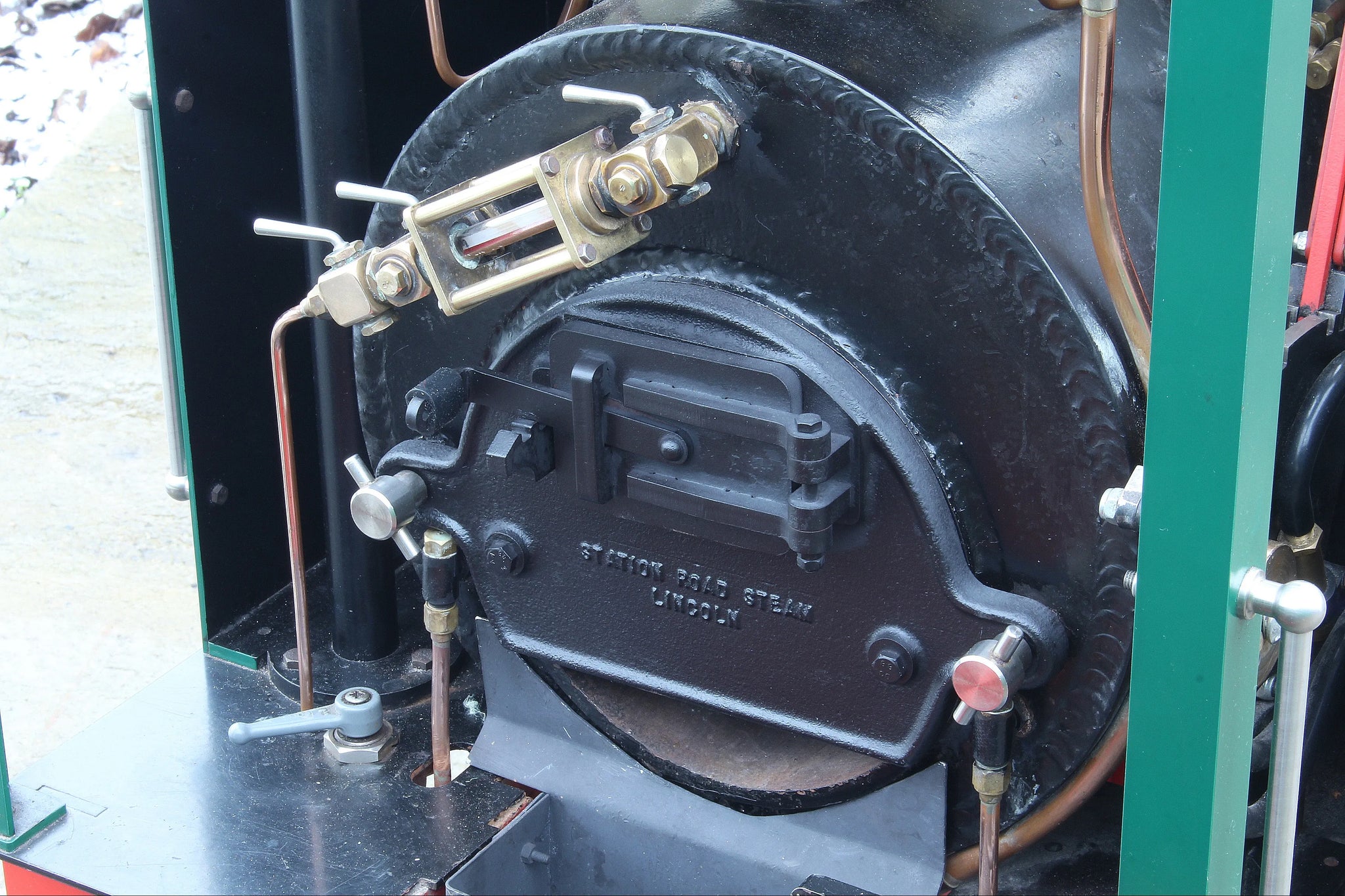

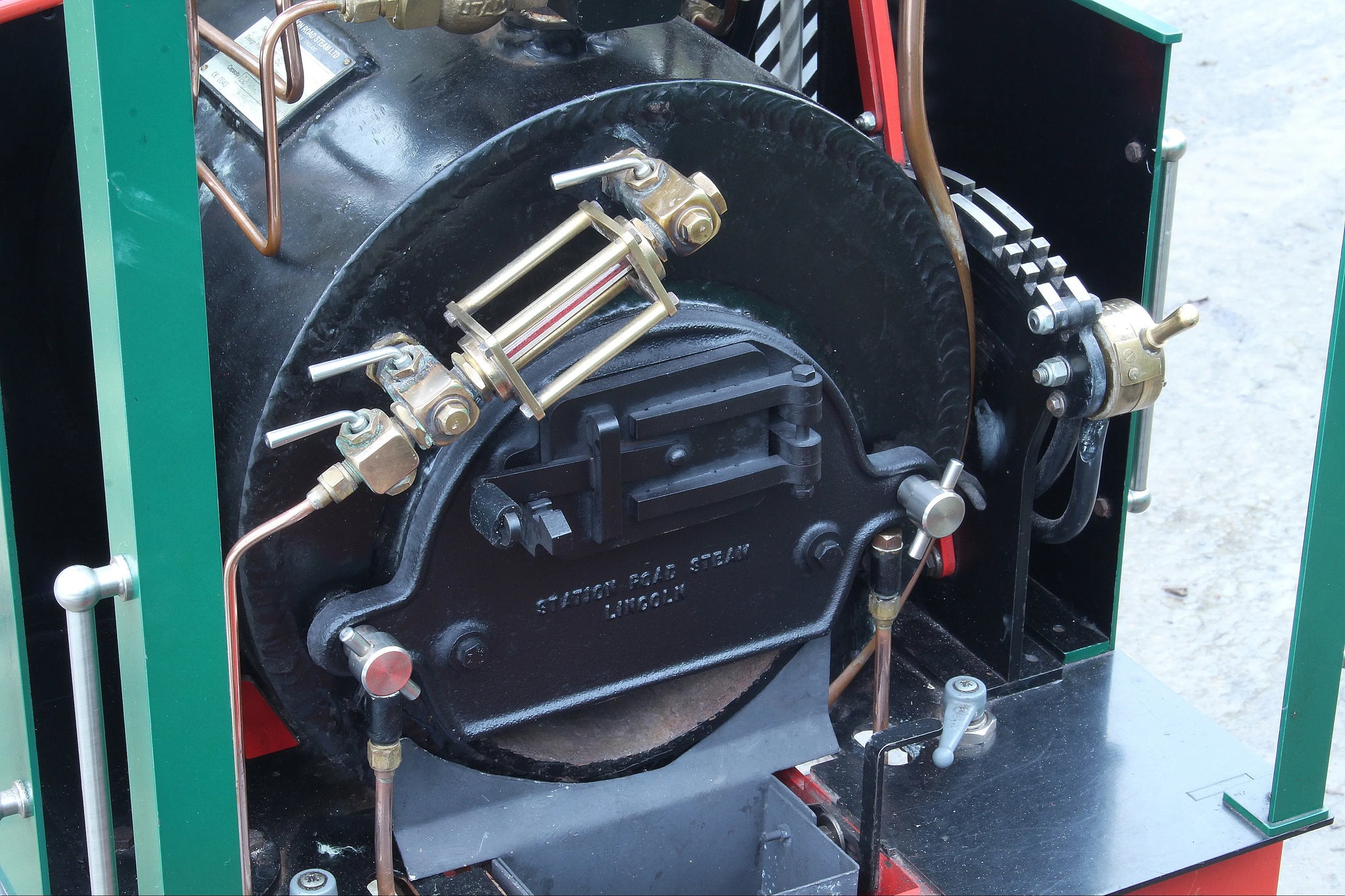

Boiler maker |
Station Road Steam |
Boiler type |
marine |
Boiler construction |
welded, expanded tubes |
Boiler material |
steel |
Working pressure |
120 |
CE/UKCA mark |
yes |
Year built |
2014 |
Boiler number |
97 |
Safety valve type |
progressive pop |
Safety valve |
1 |
Fusible plug |
yes |
Bore x stroke |
2 1/4 x 3 |

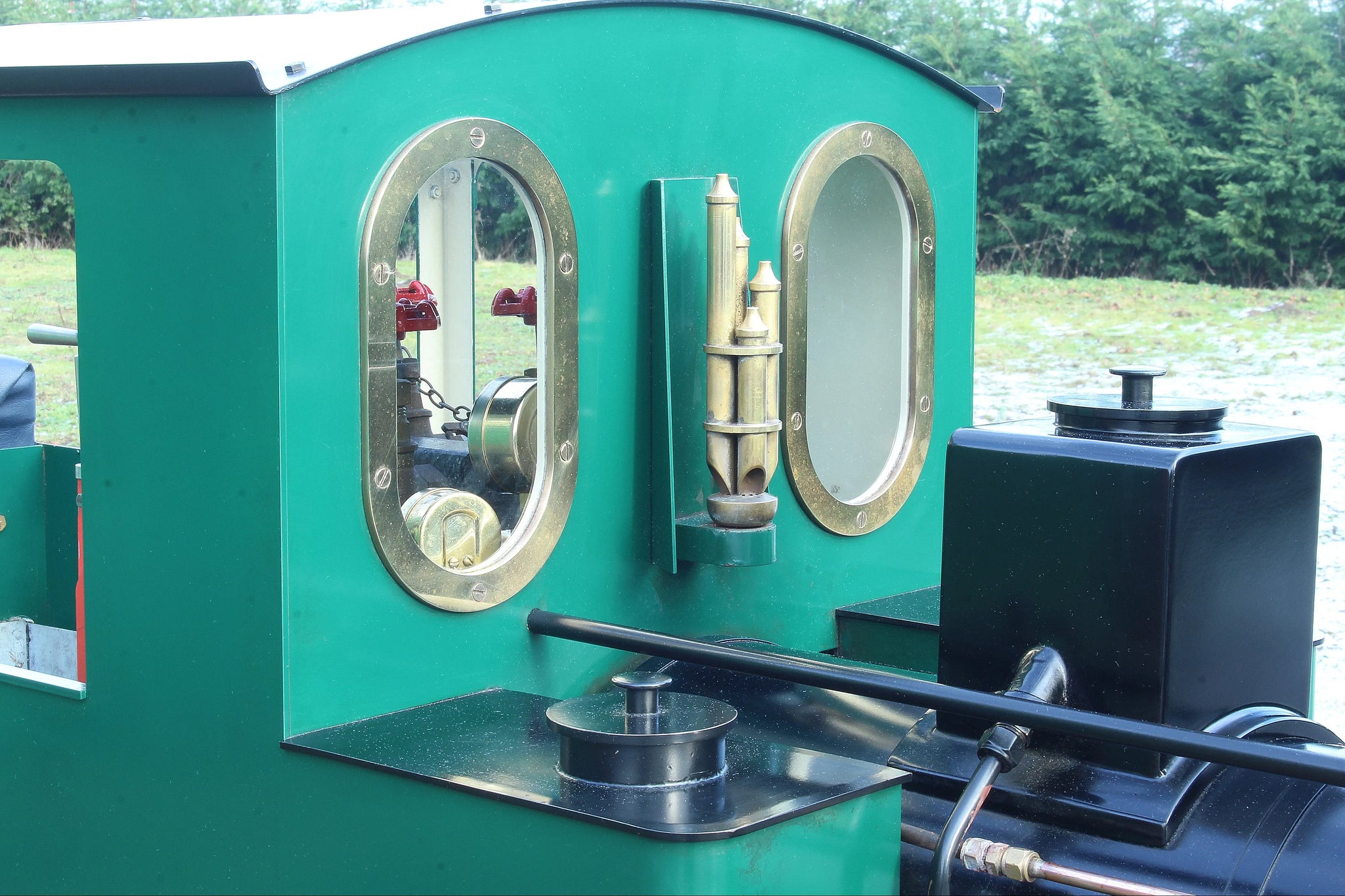

Whistle |
6 inch chime |

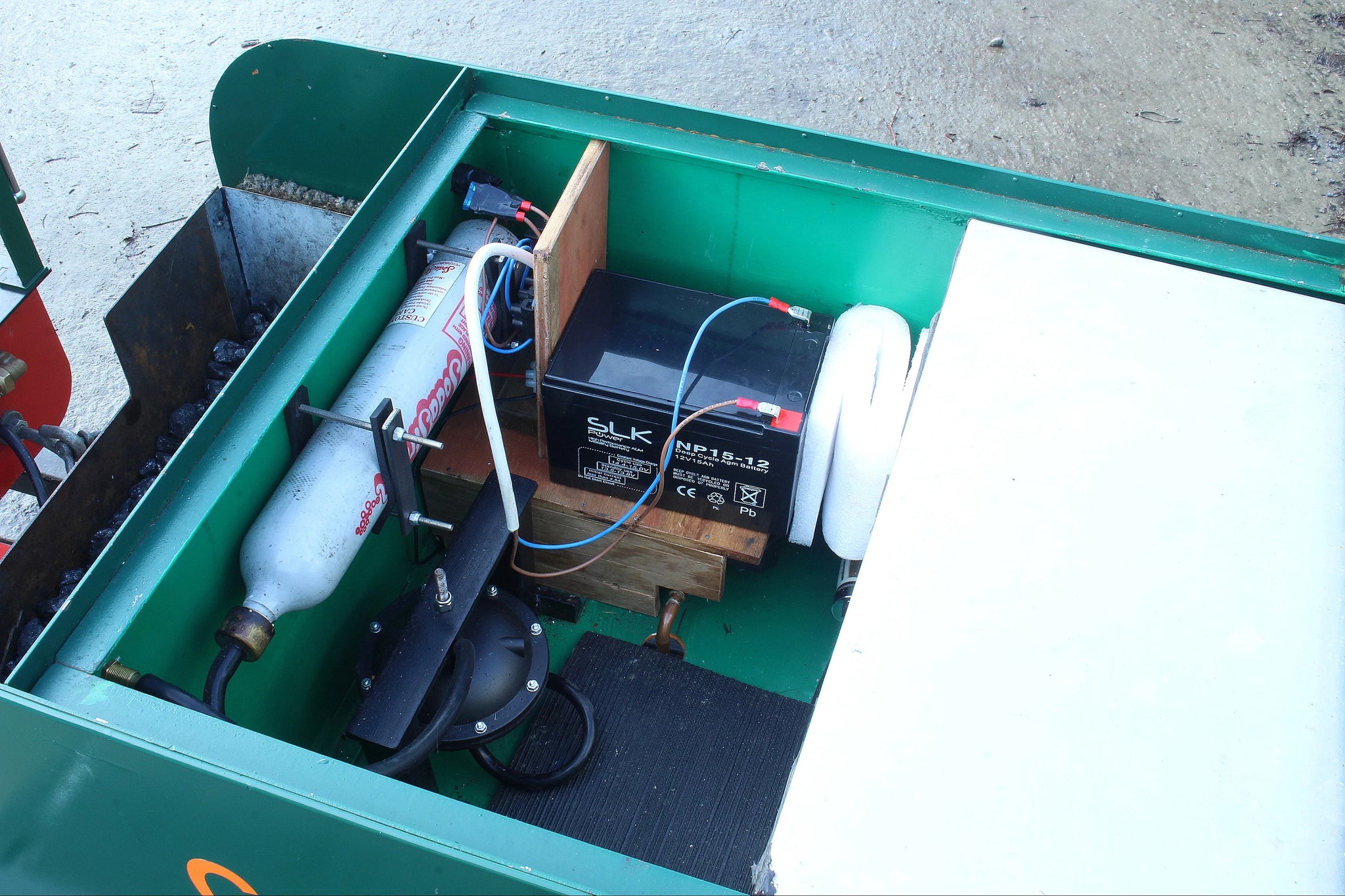

Mechanical pump |
electric pump in tender |
Injector |
1 |
Nominal traction |
238 |
Date out |
Feb-19 |
Hydraulic test valid to |
08-Jan-21 |
Steam test valid to |
09-Mar-20 |
