7 1/4 inch gauge GWR 11XX 0-4-0T

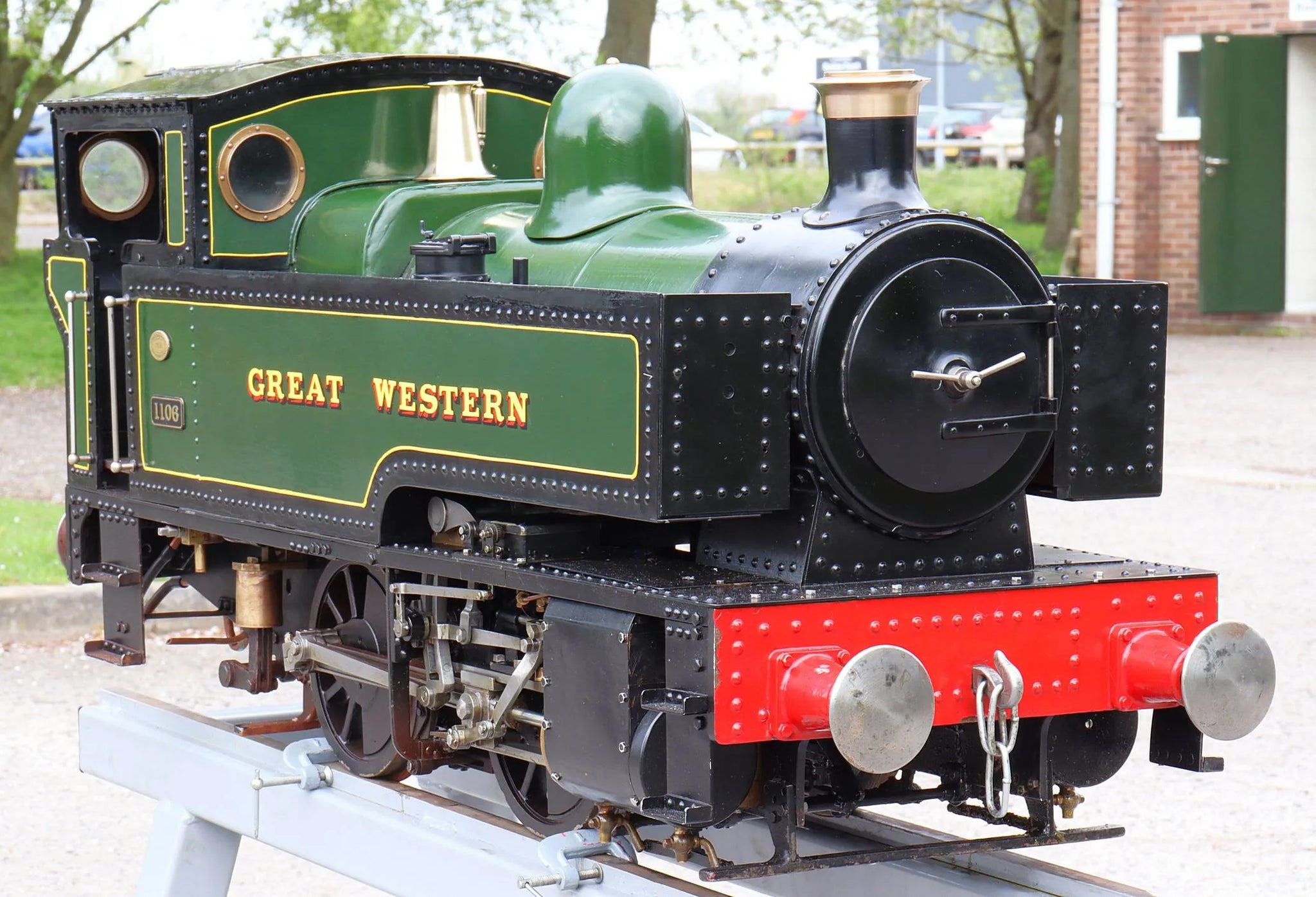

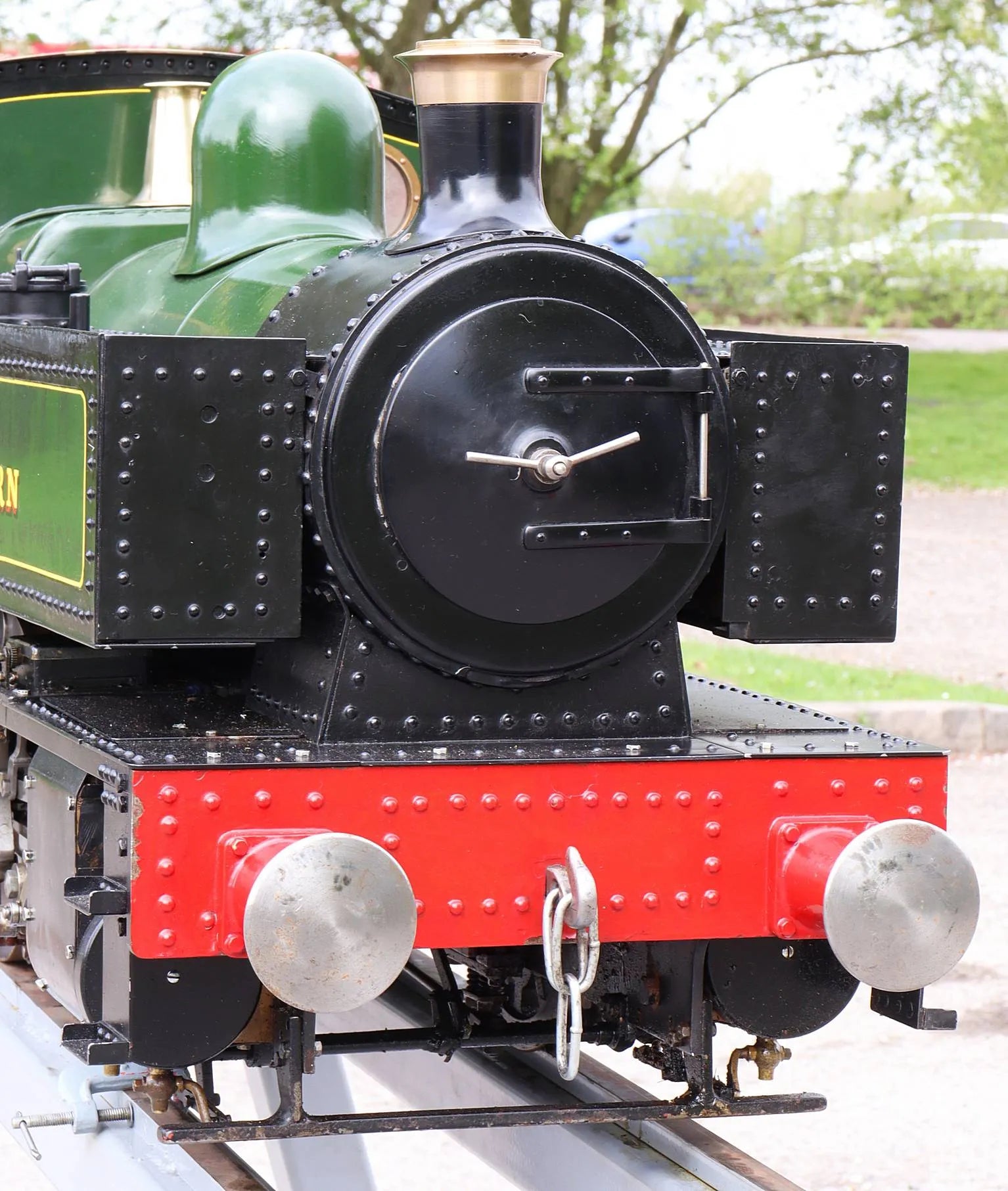

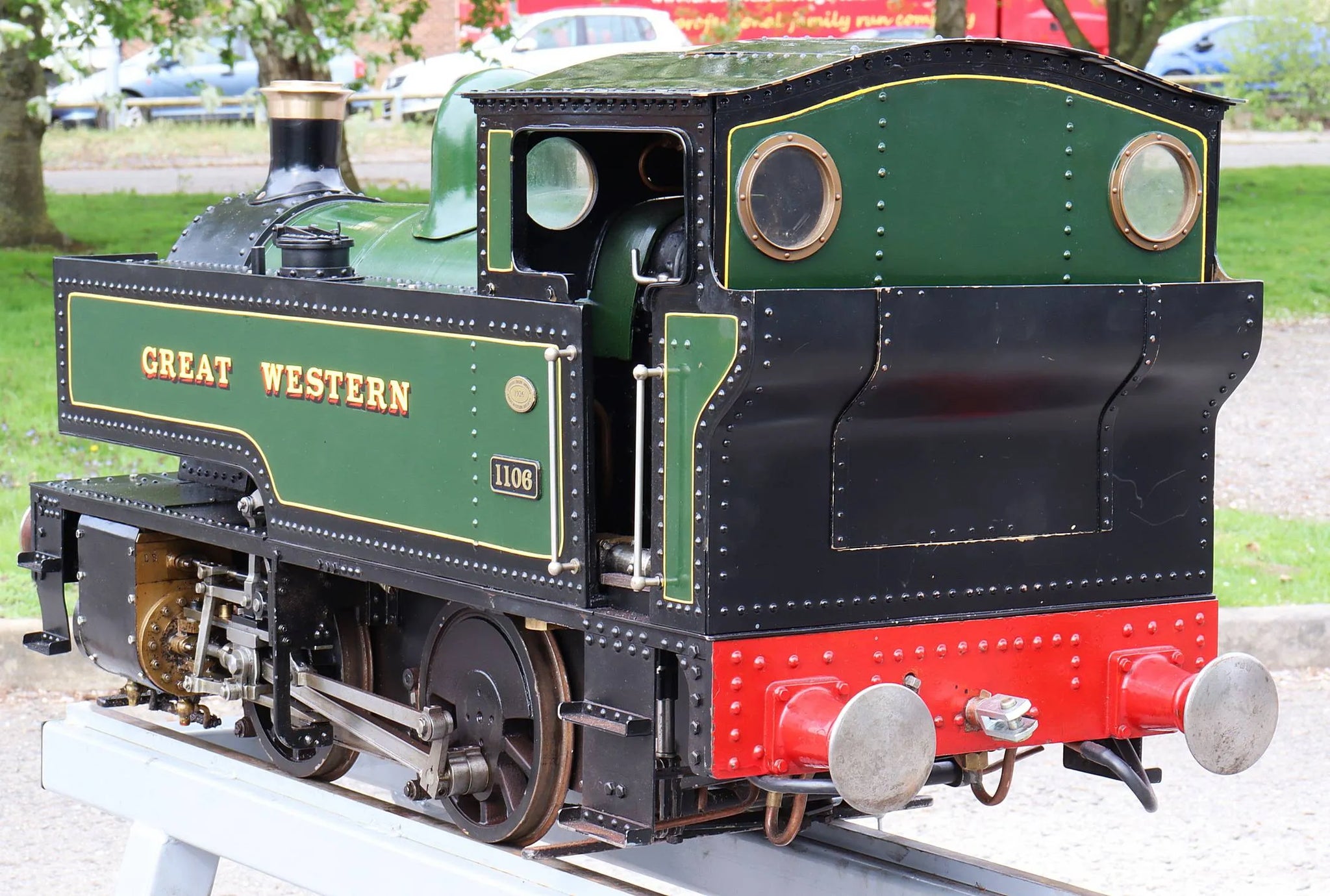

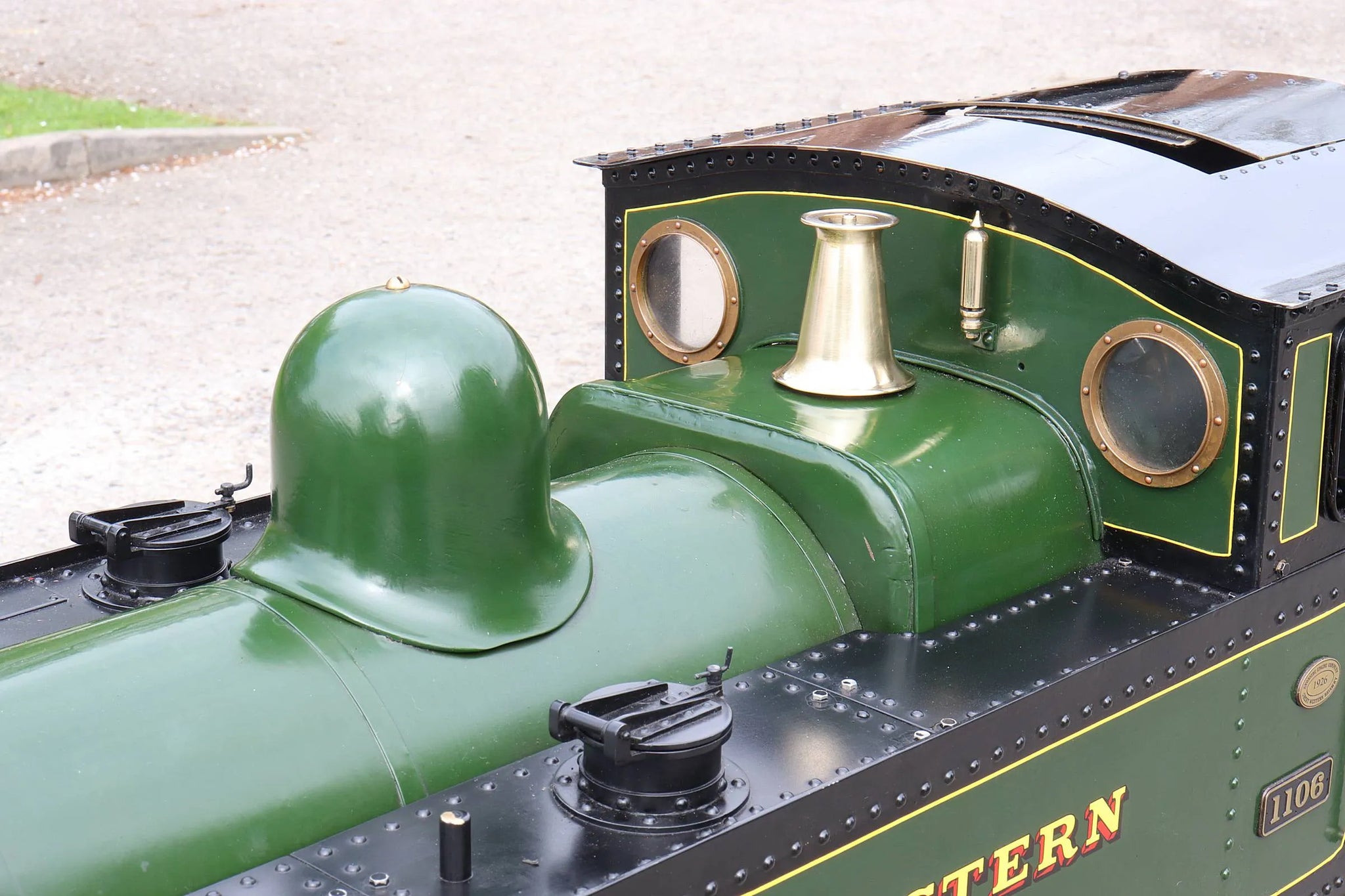

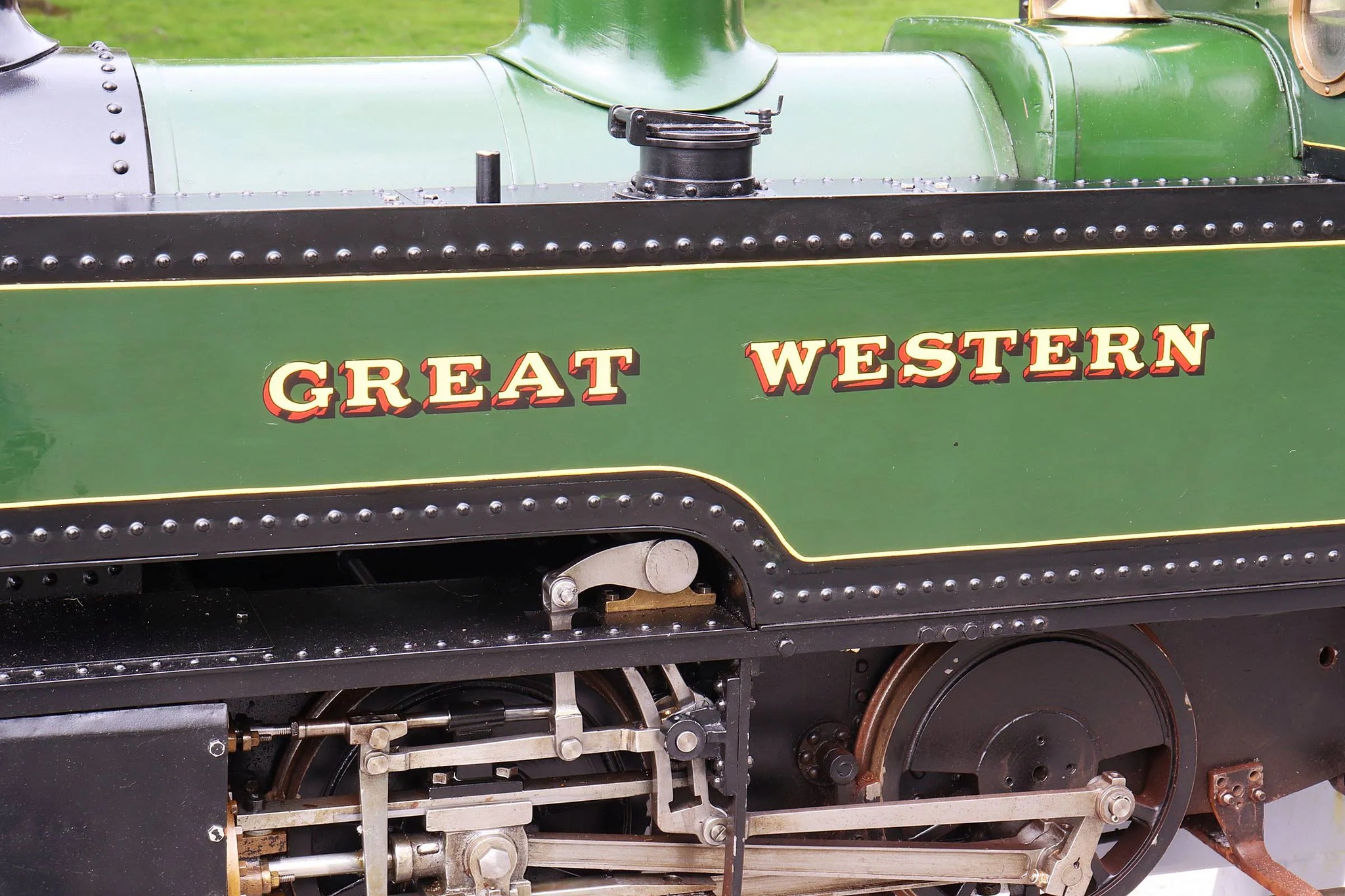

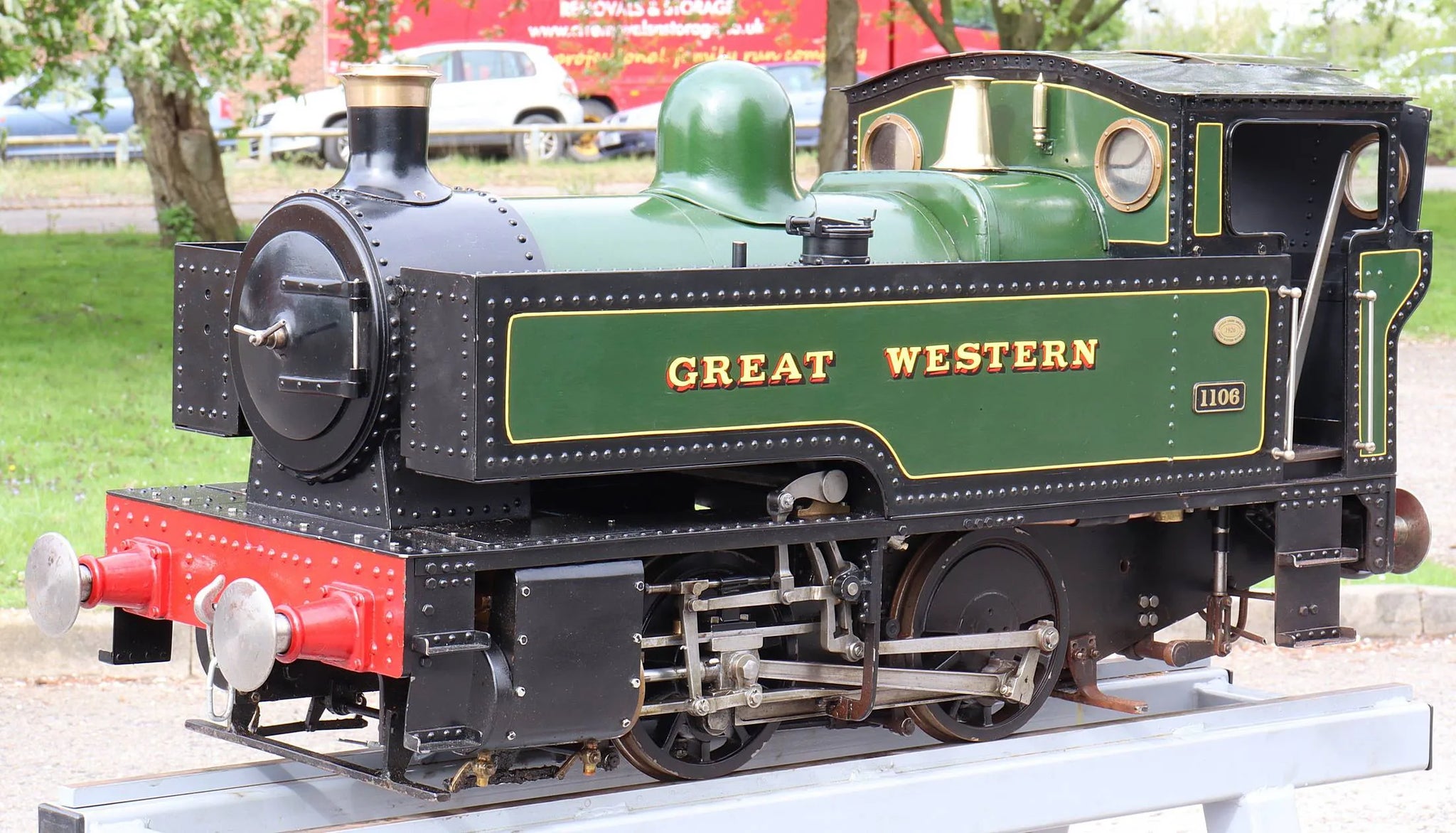

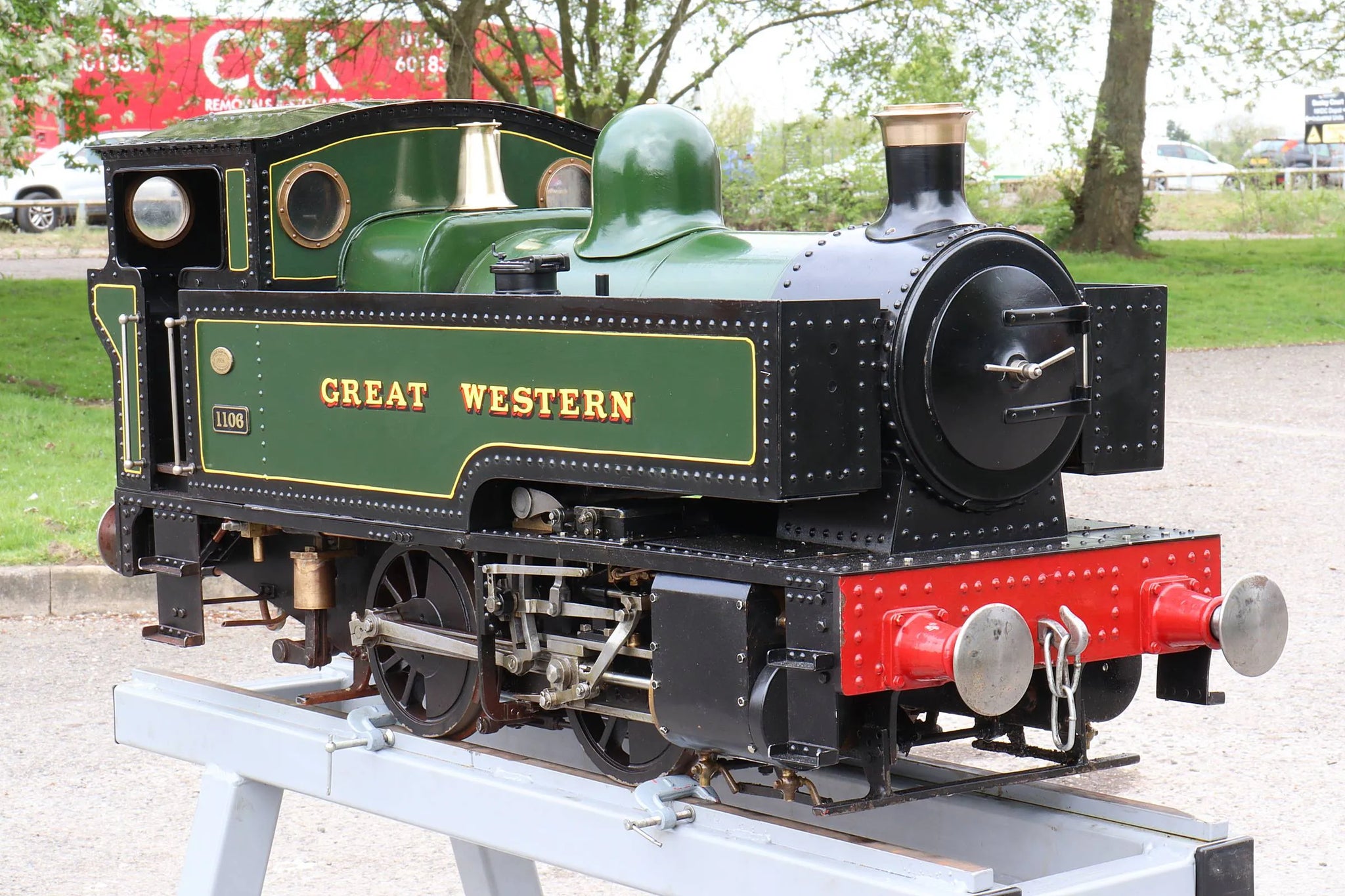

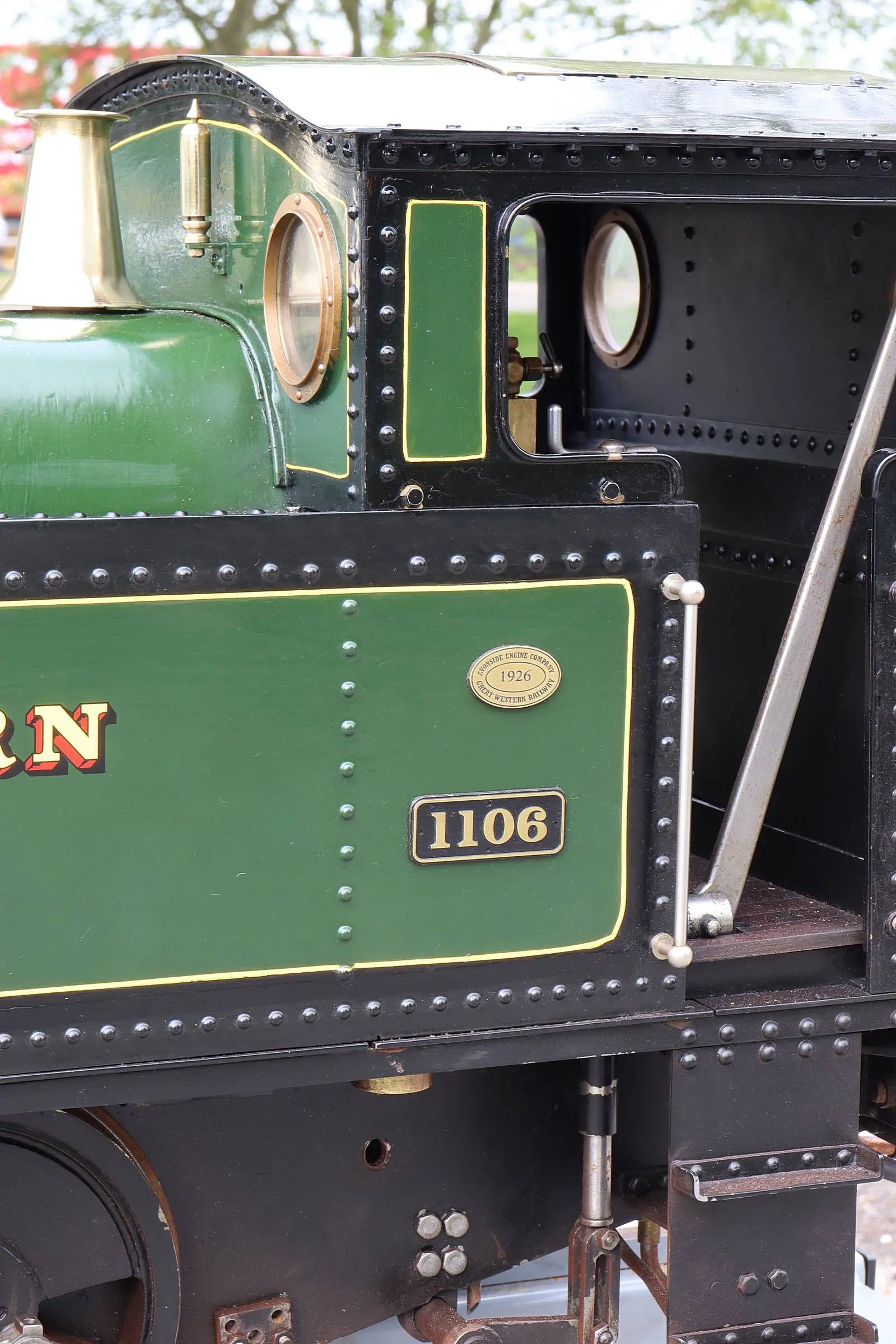

A 7 1/4 inch gauge GWR 11XX 0-4-0T, we sold this one back in 2021 (there's a listing and video of it running in the archive here). A finely built engine, the work of a Fellow of the Institute of Mechanical Engineers who built it in 1960 to run on his private railway.

It's recently come back in as part exchange against a "Mazeppa", the customer already having built a "General Gordon" from a kit.

In regular use over the last four years, whilst still in club test the boiler has finally reached the end of its useful life after 66 years! There are a multiplicity of pinhole leaks from stays, with several others from flanged seams.

Technical information

Stock code

12792

Gauge

7 1/4 inch

Length/inches

41

Width/inches

14.5

Height/inches

19.5

Weight/Kg

106

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

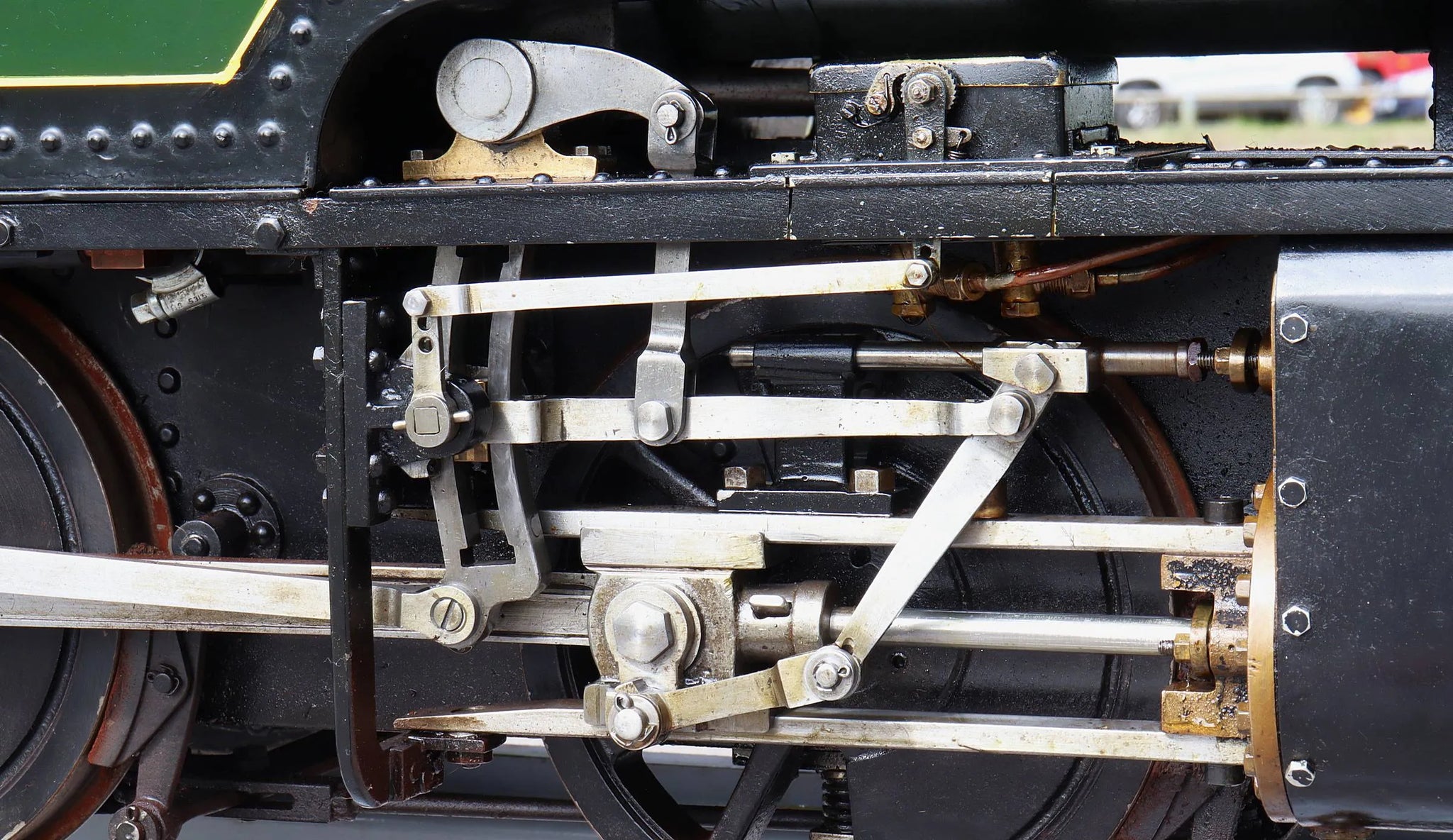

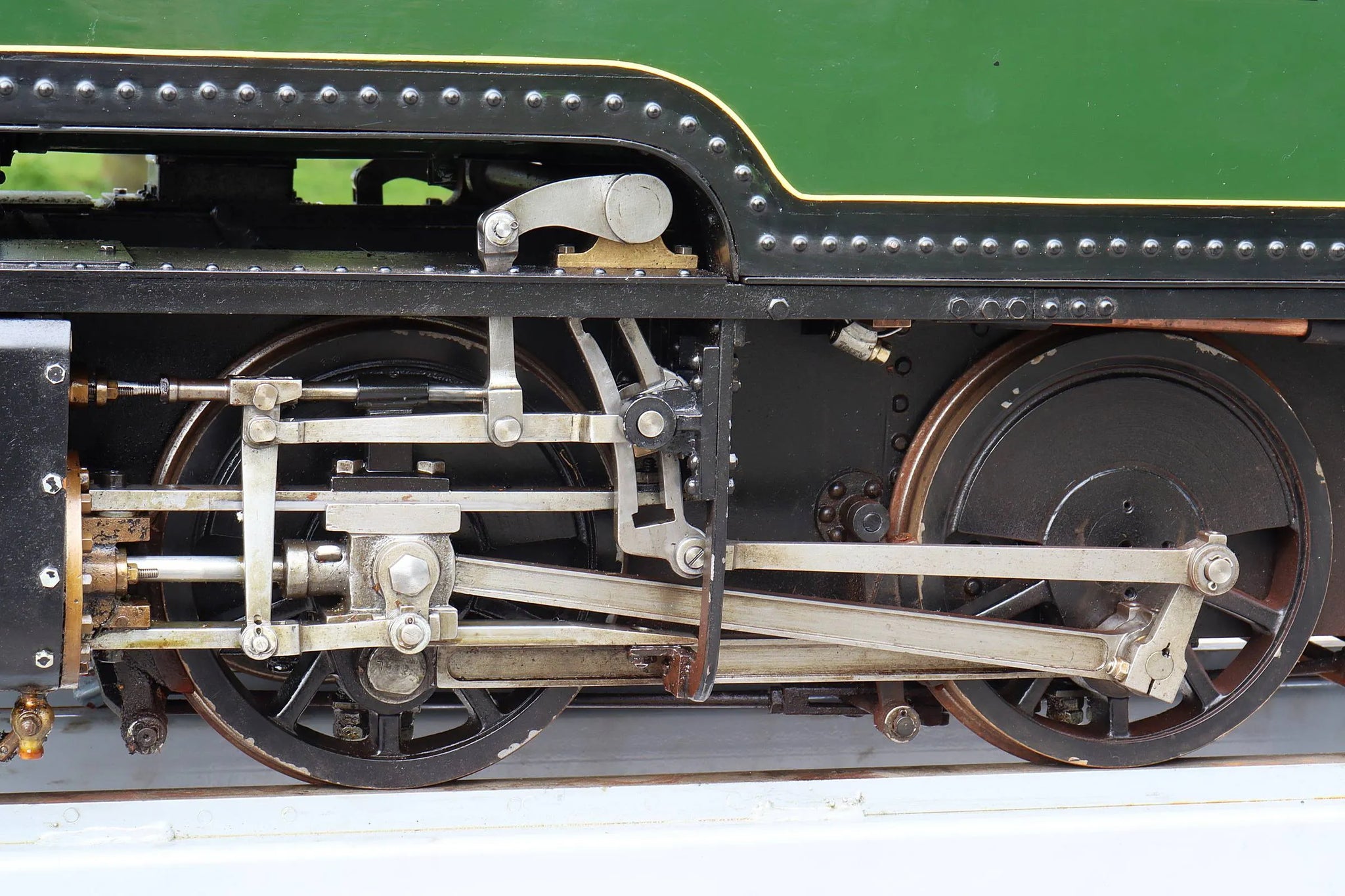

Valve gear

Walschaerts

Reverser type

pole

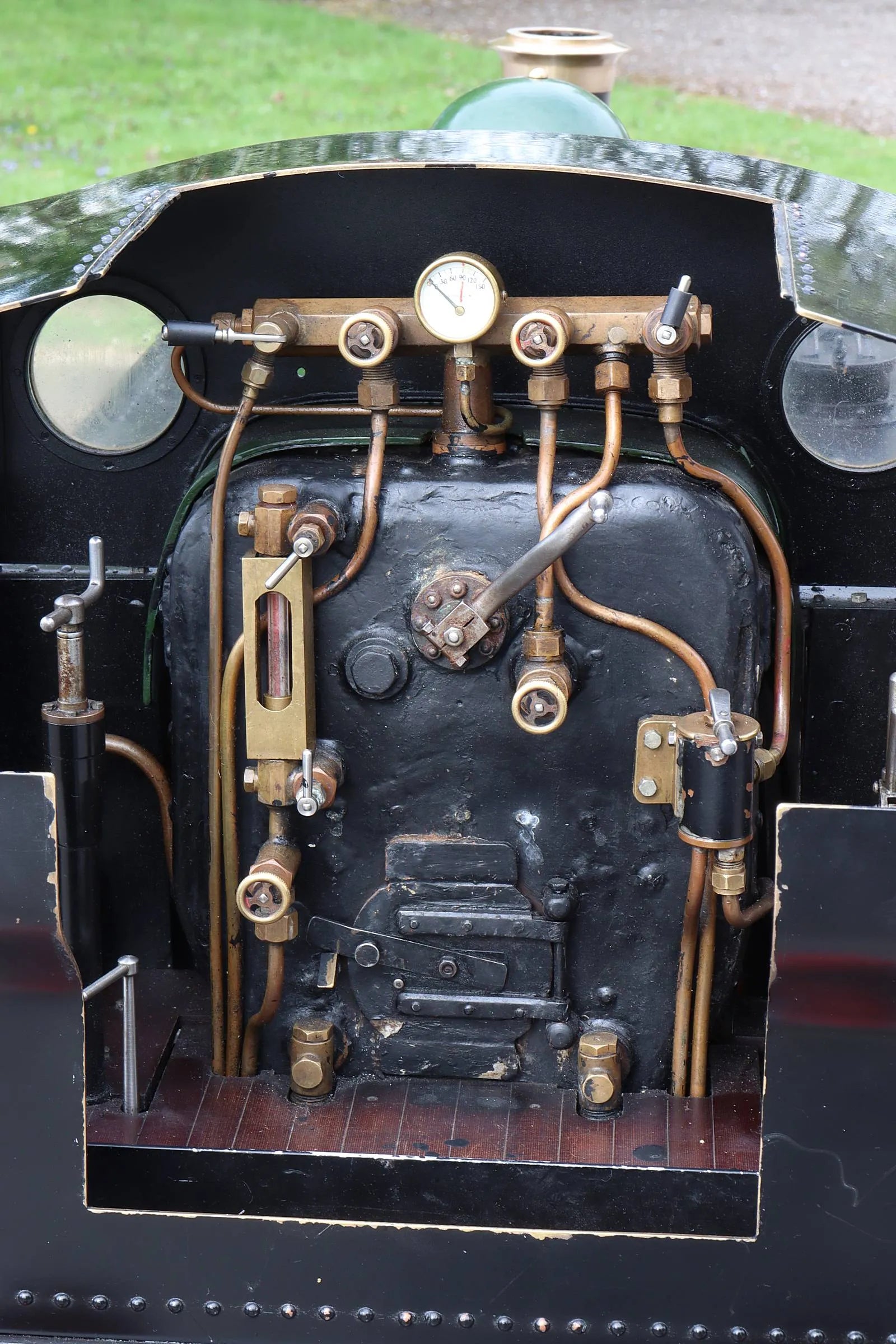

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n.a - pre-2002

Year built

1960

Boiler number

C1960

Safety valve type

spring

Safety valve

1

Whistle

yes

Hand pump

1

Injector

2

Date out

Aug-25
