7 1/4 inch gauge GWR 14XX 0-4-2T

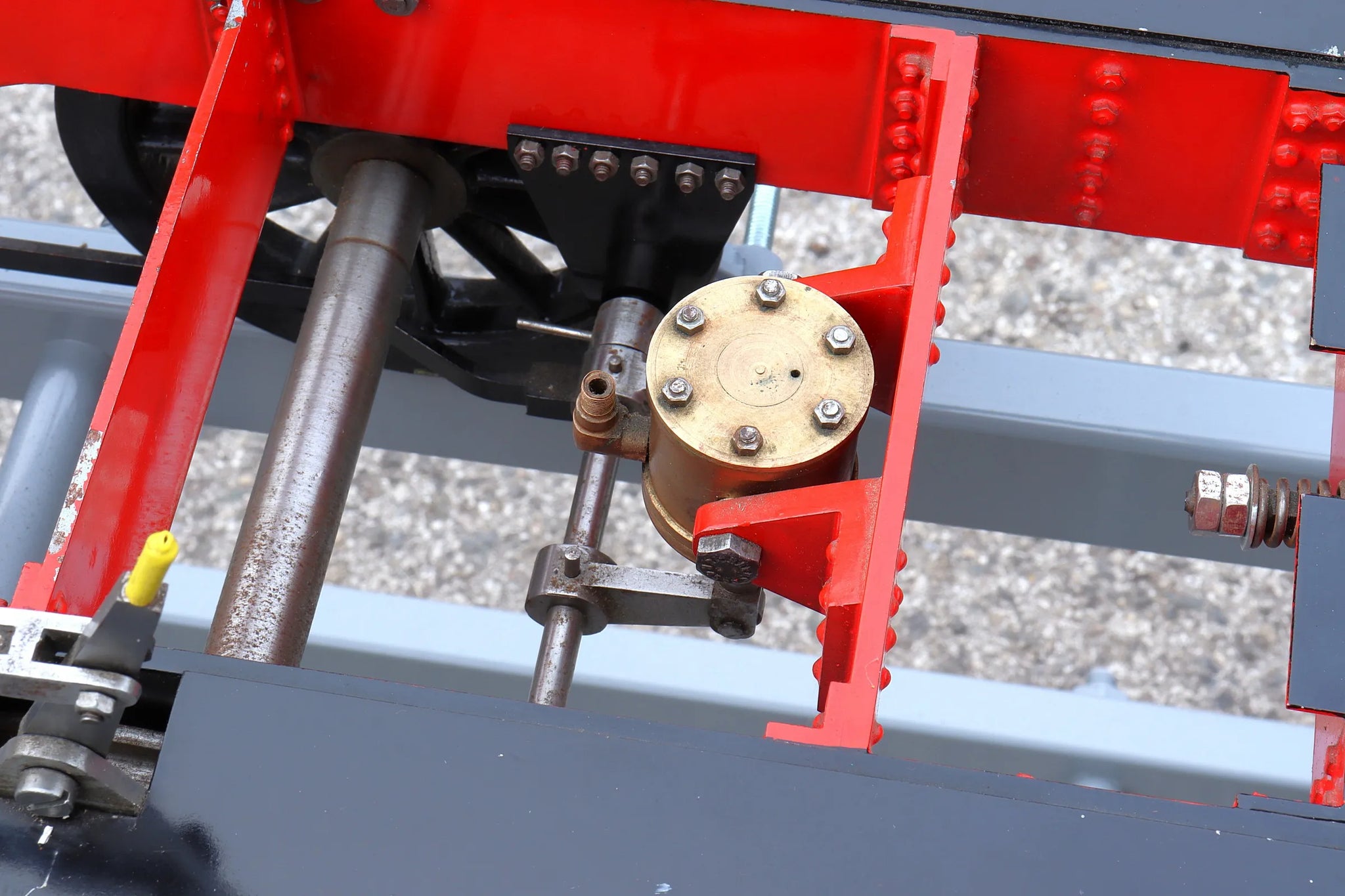

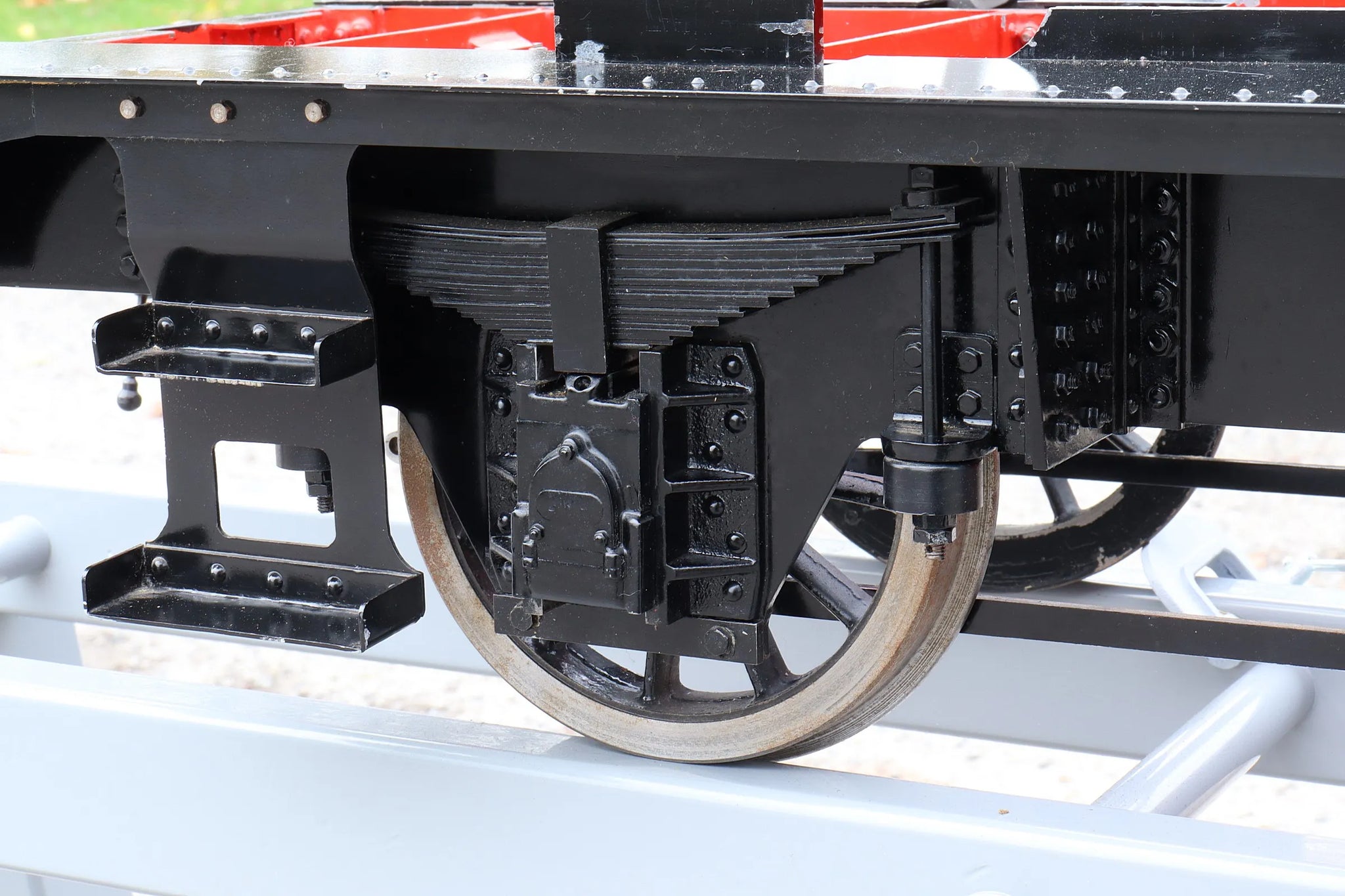

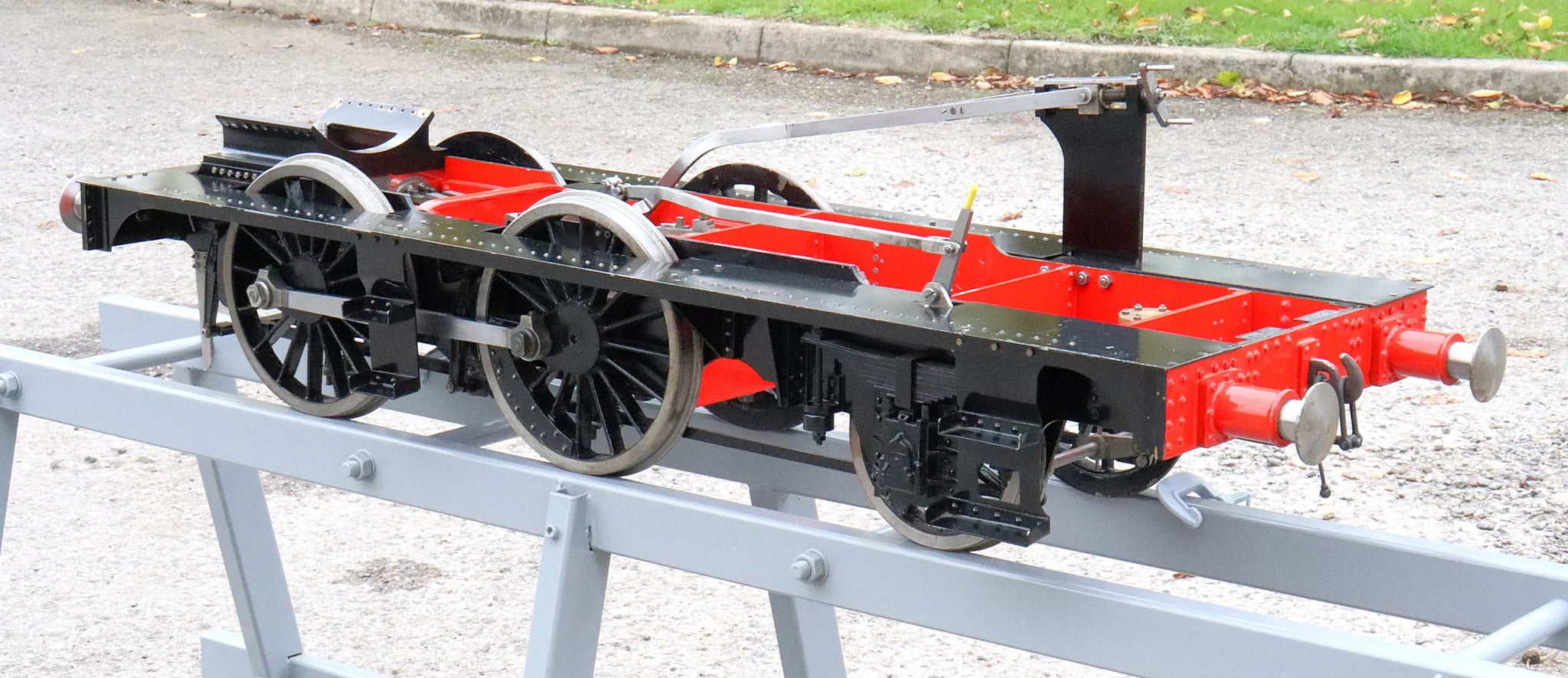

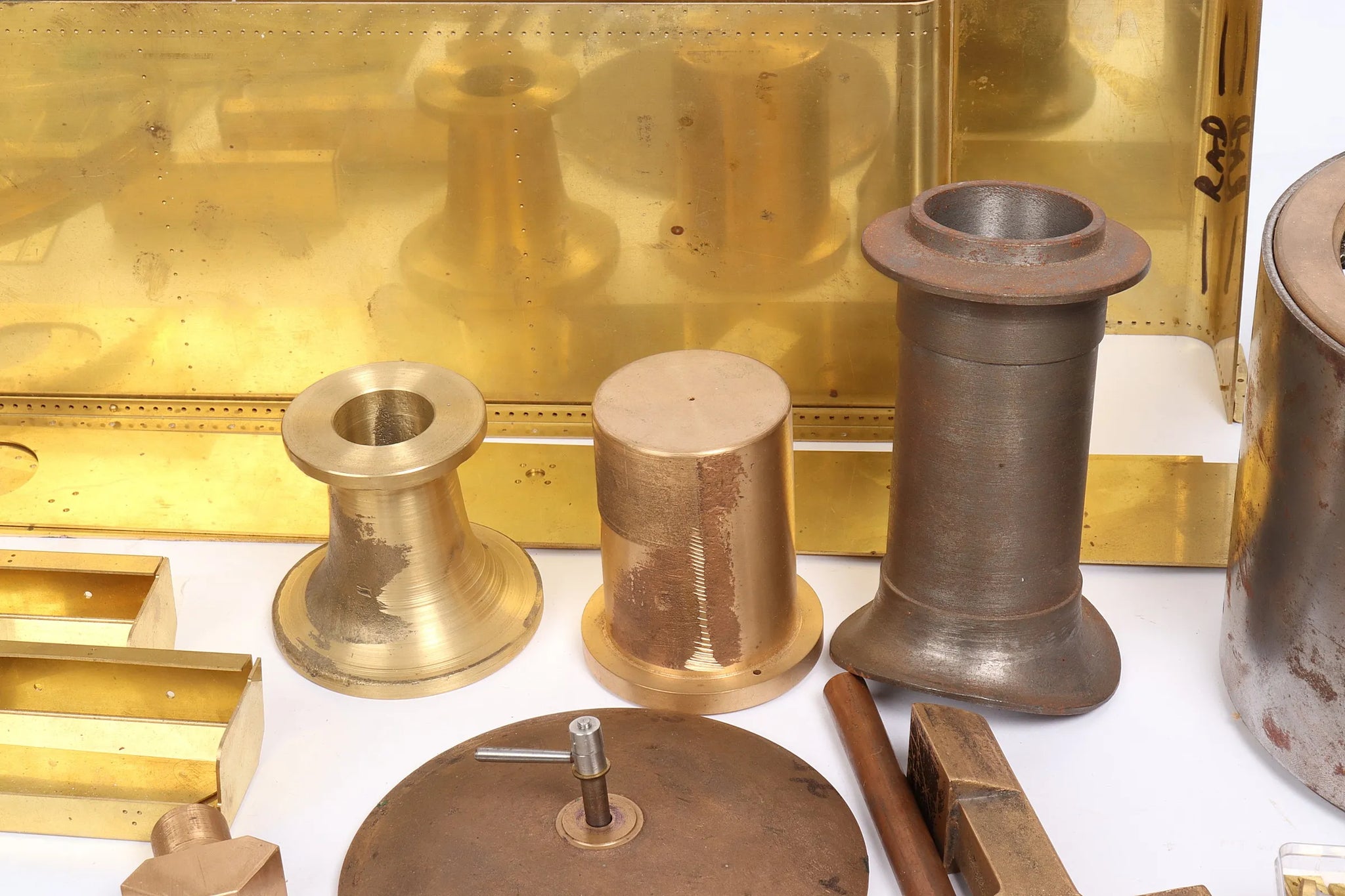

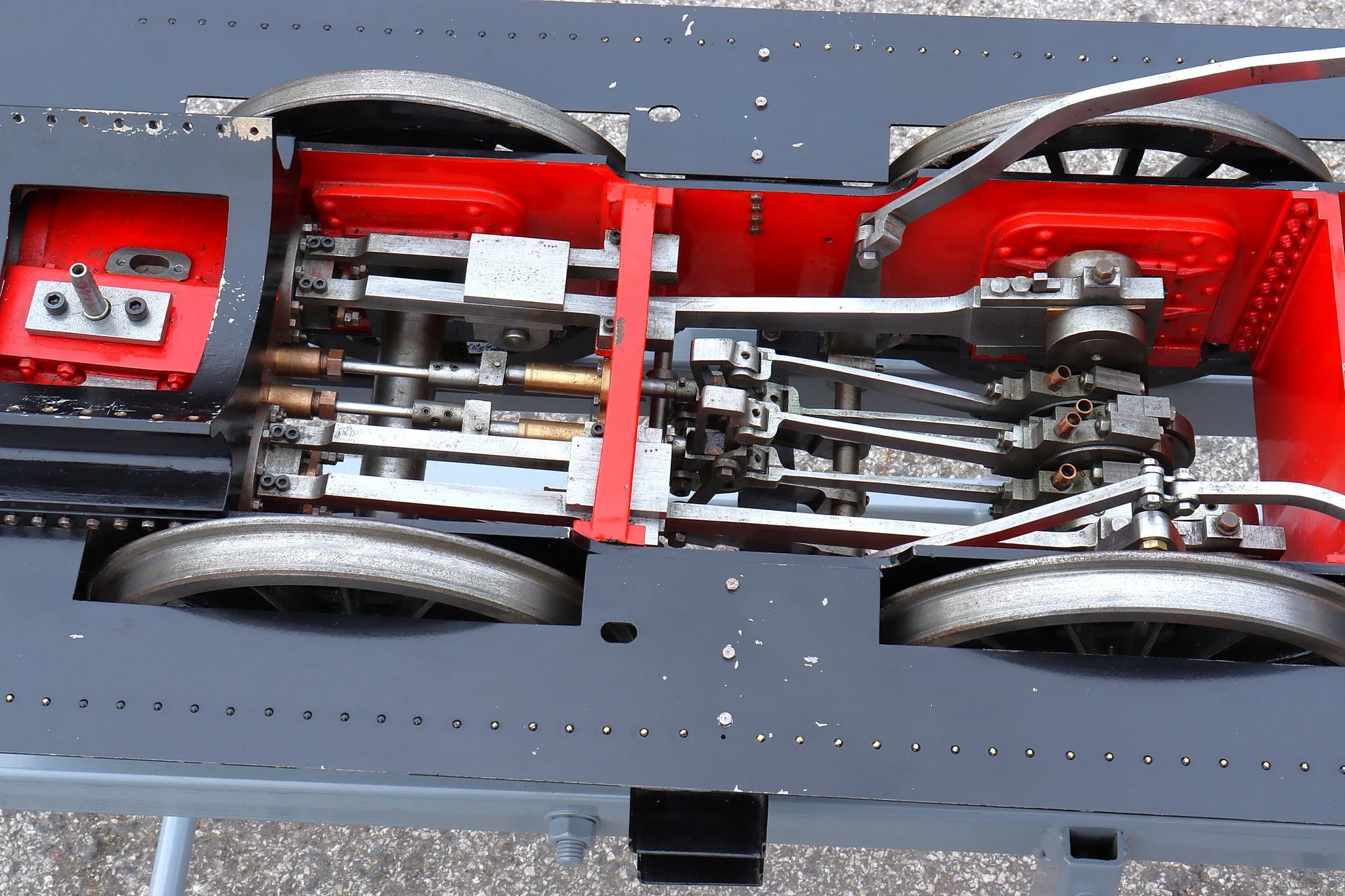

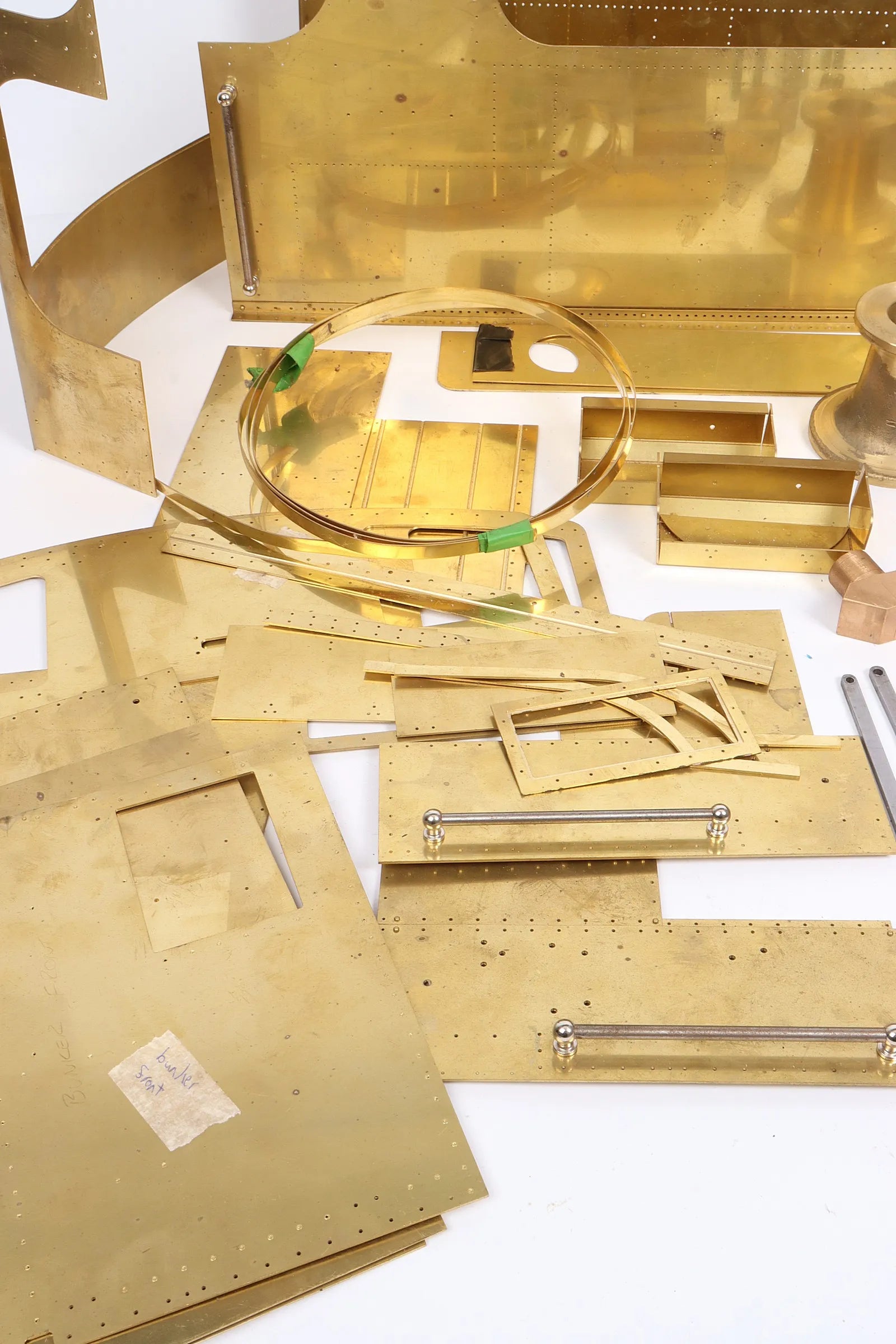

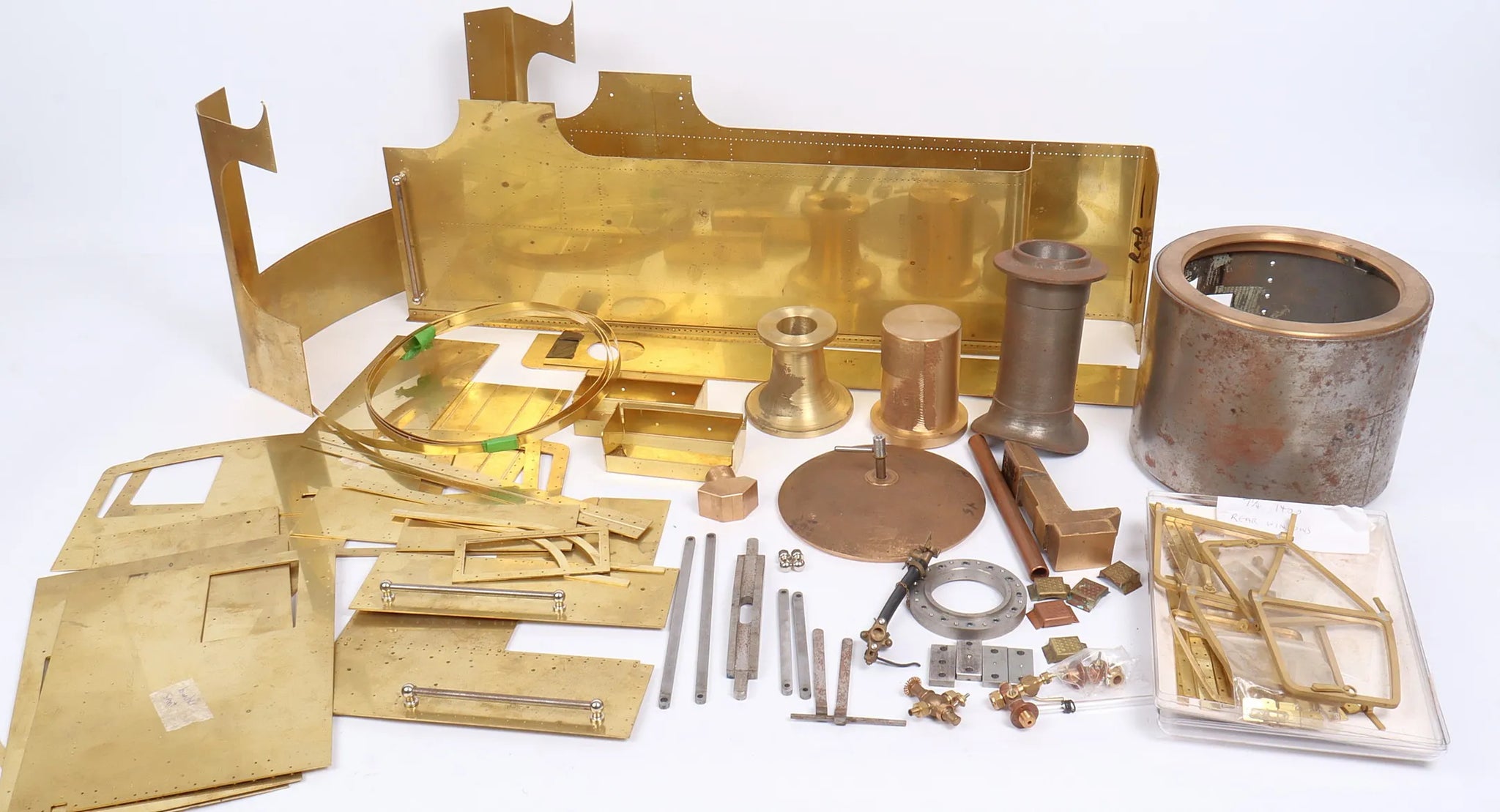

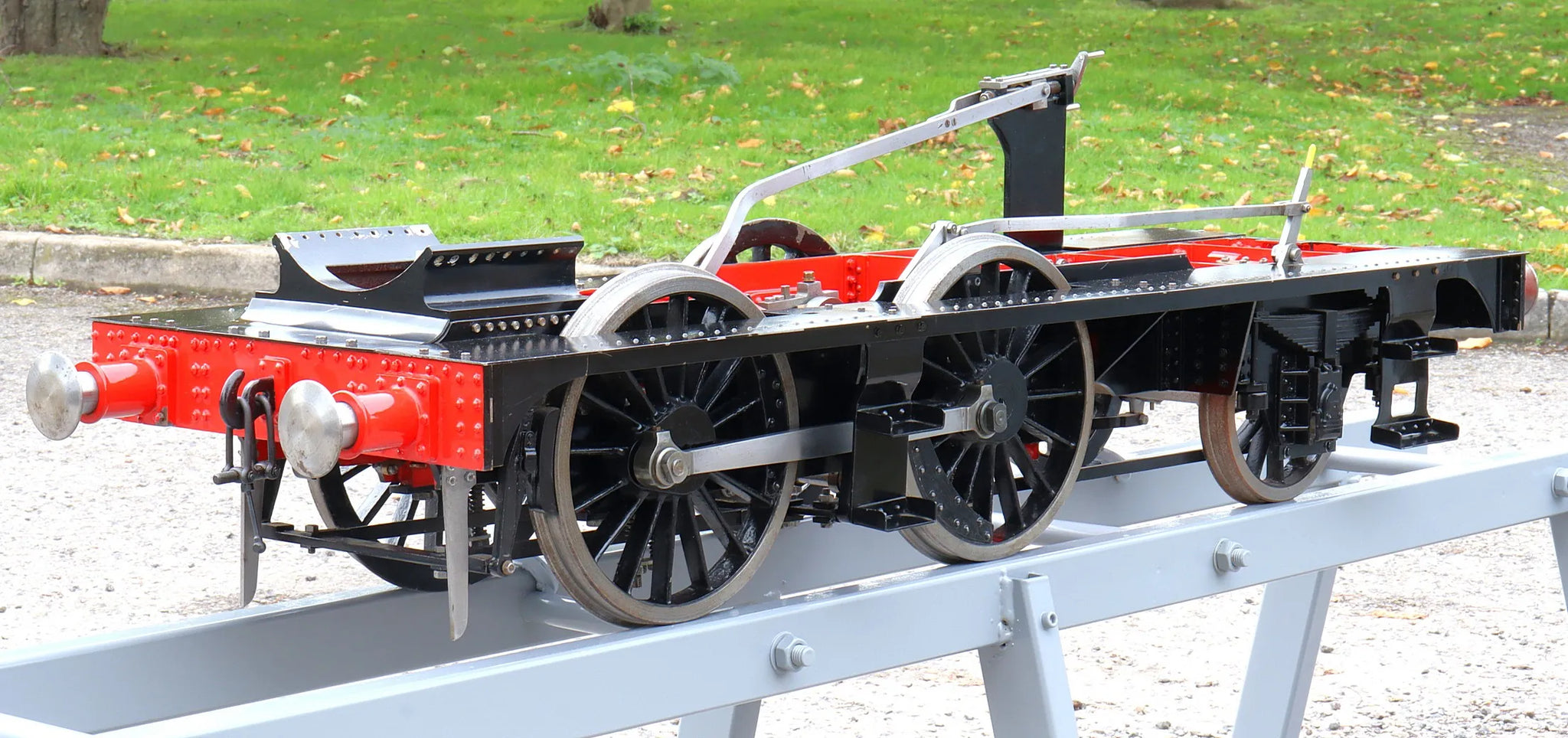

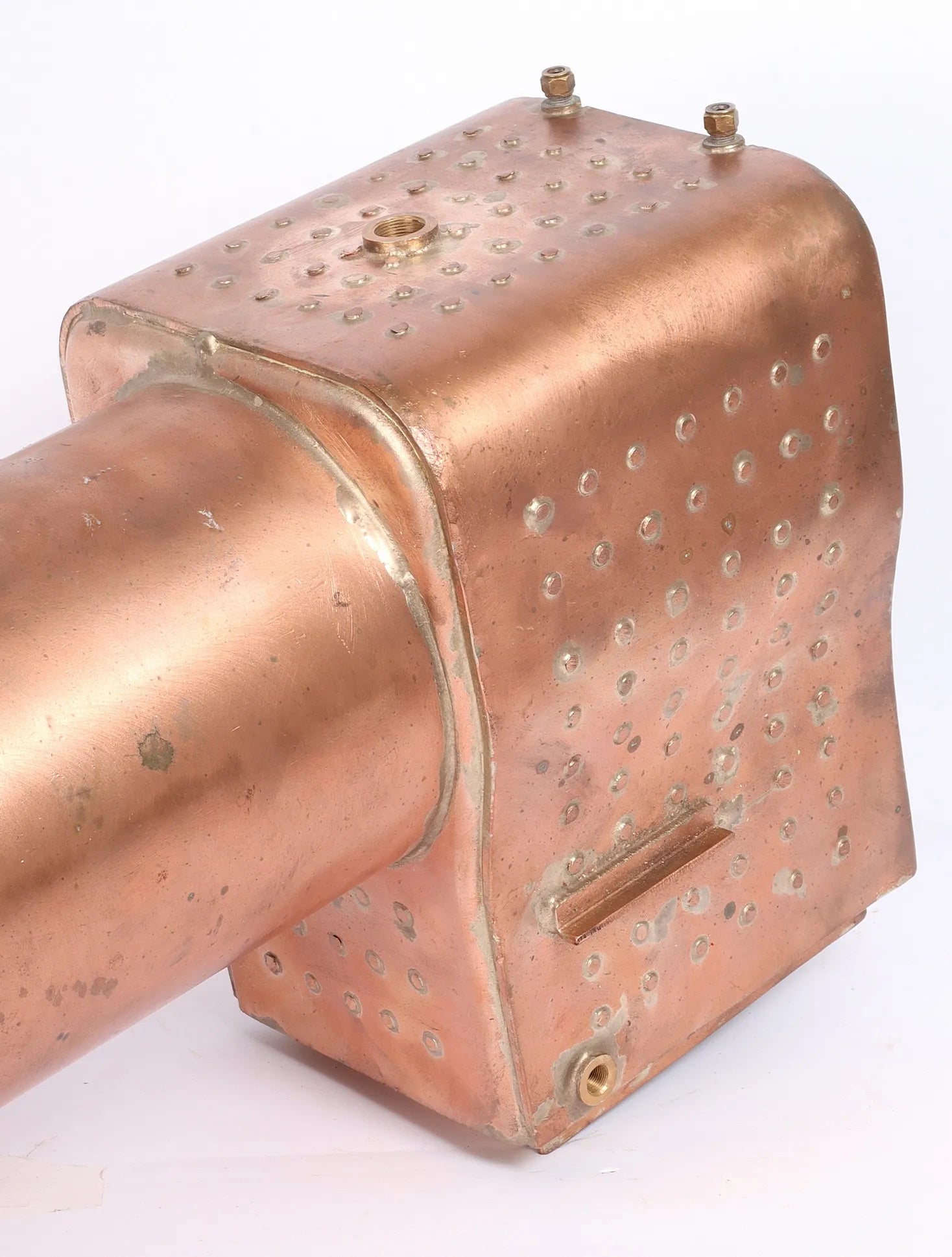

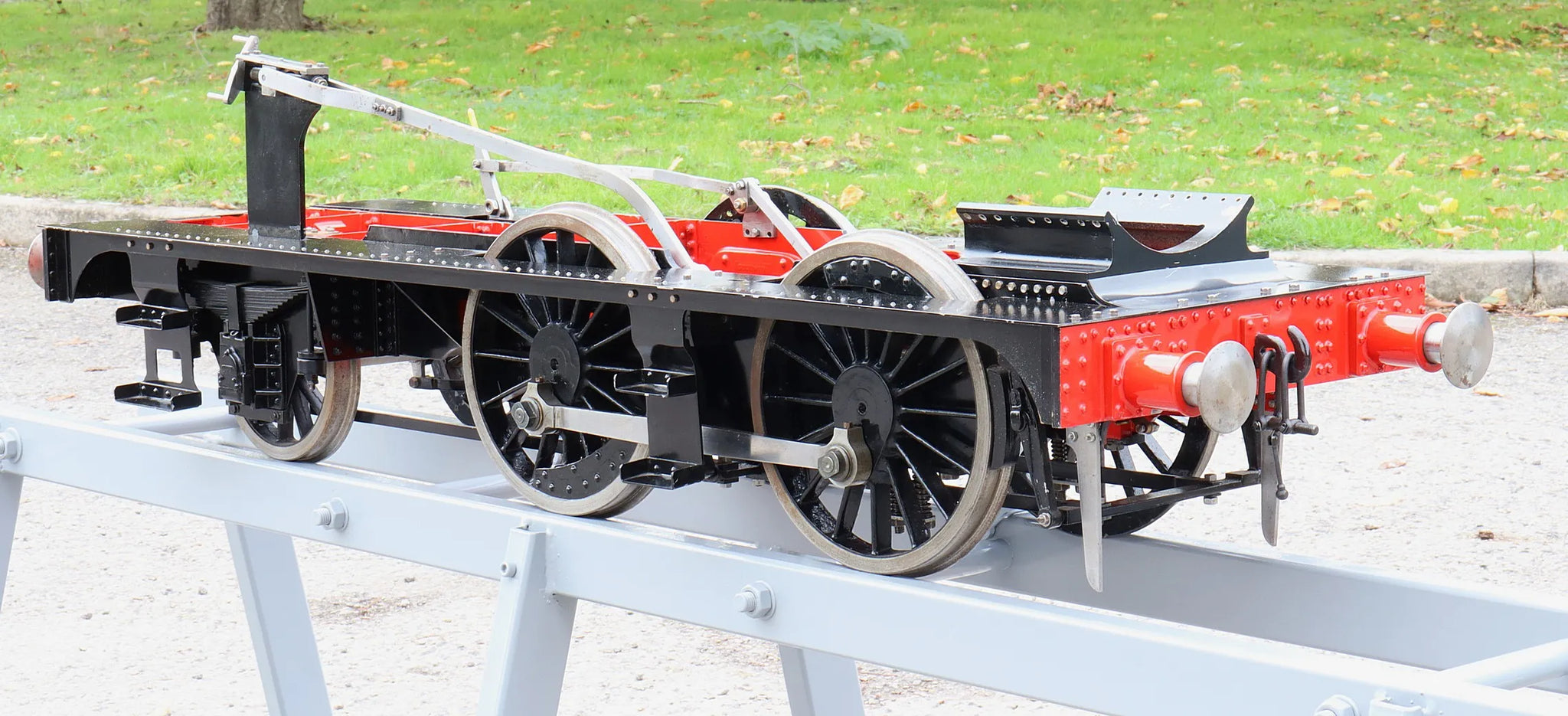

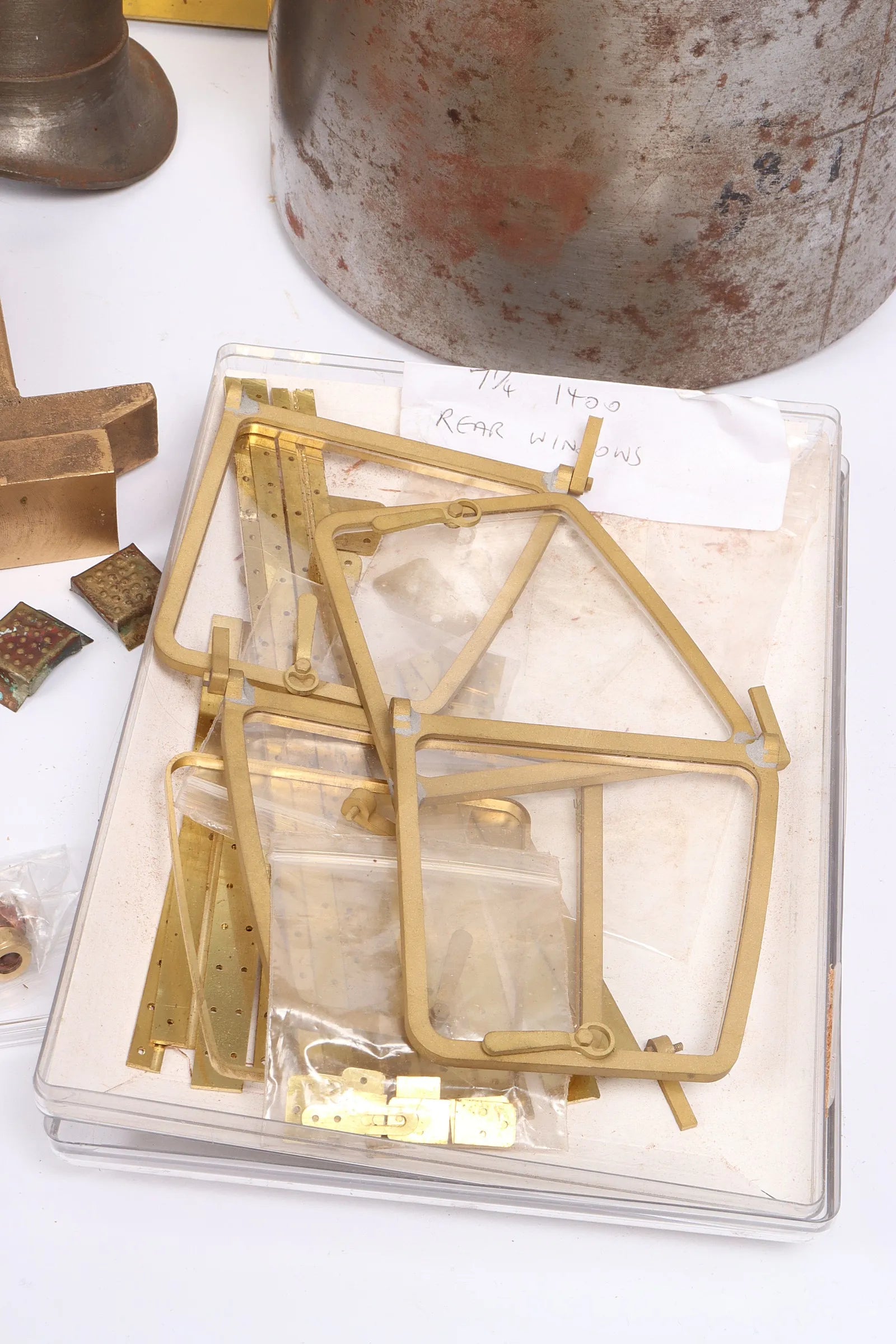

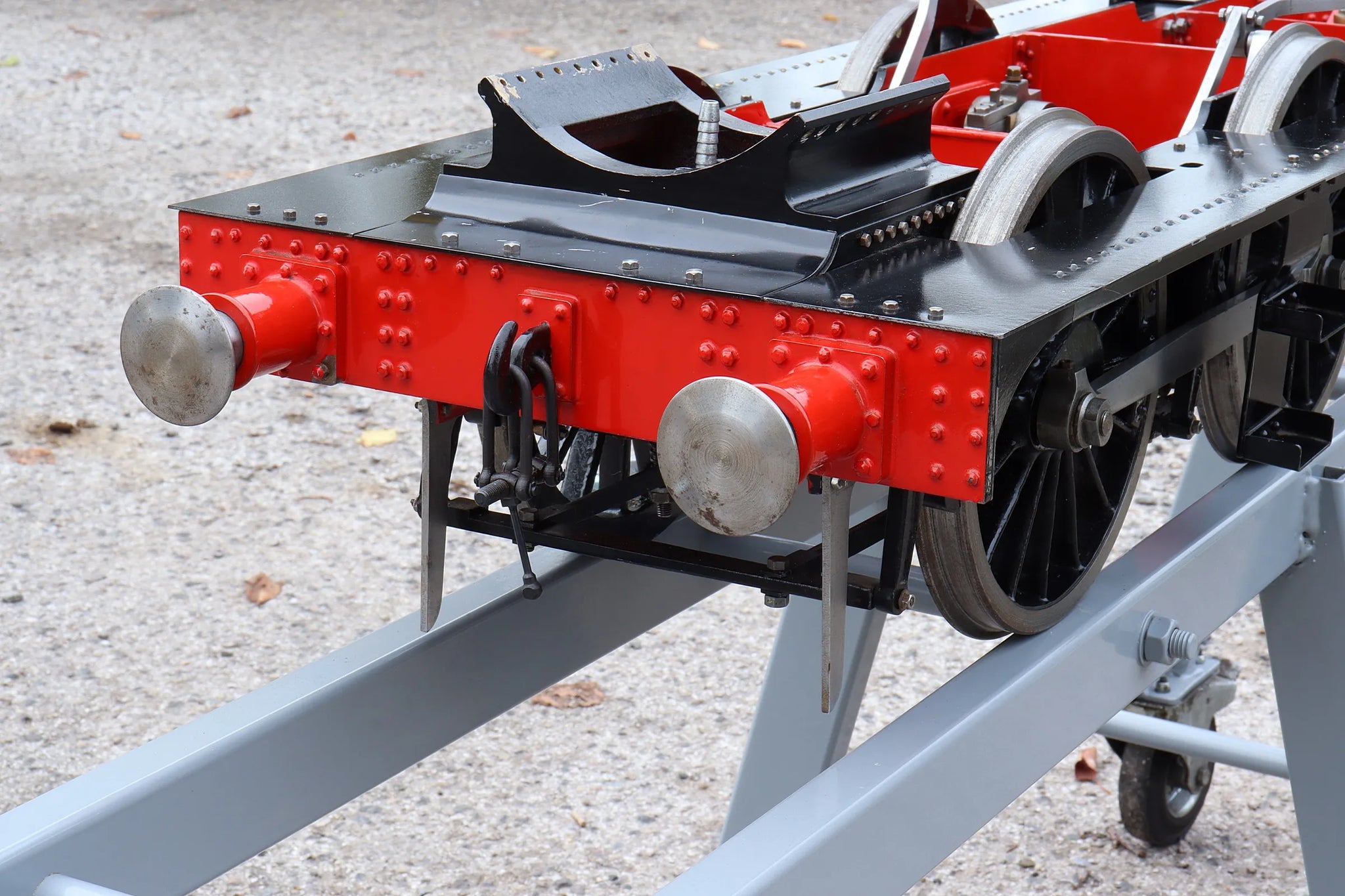

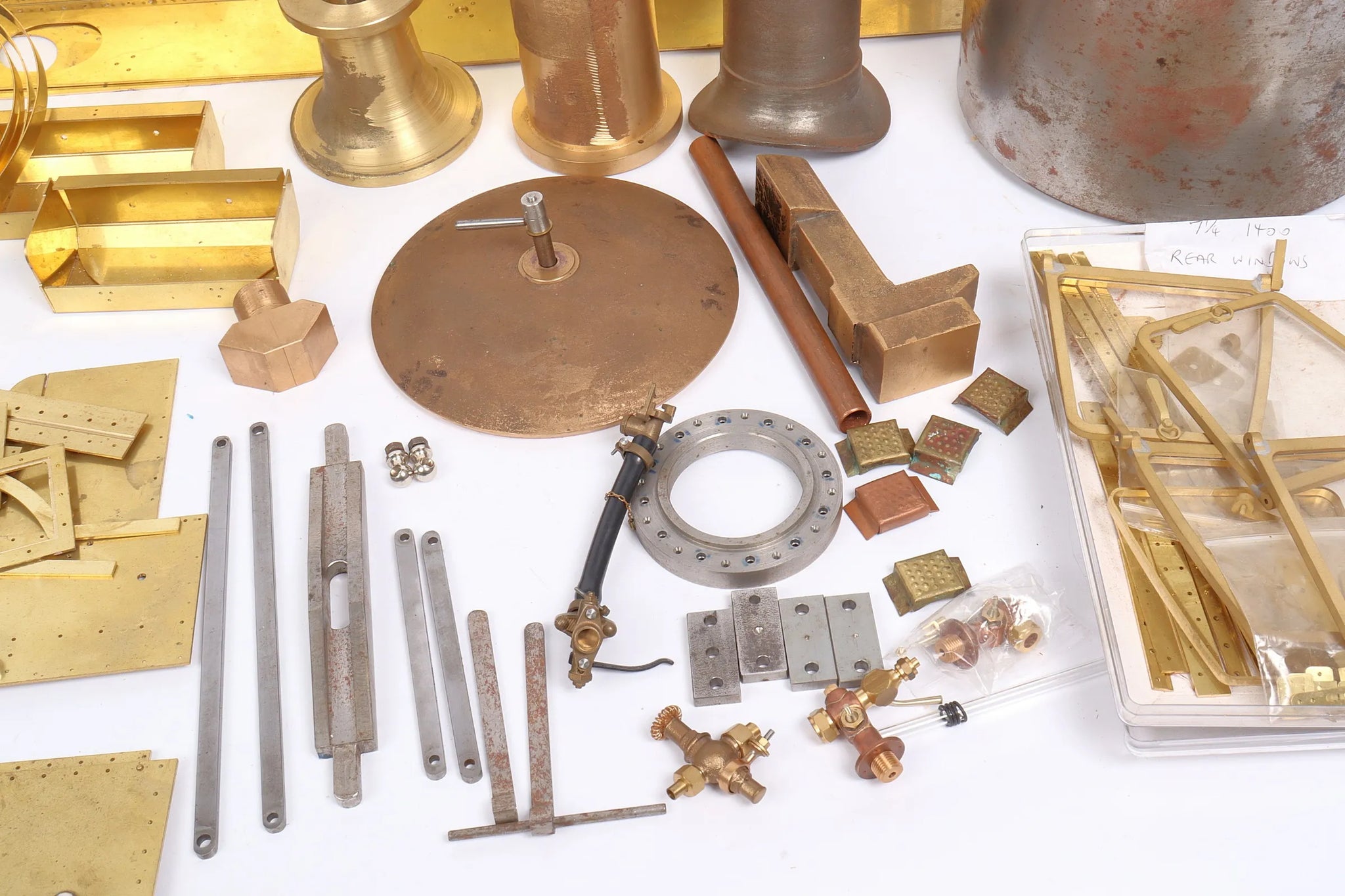

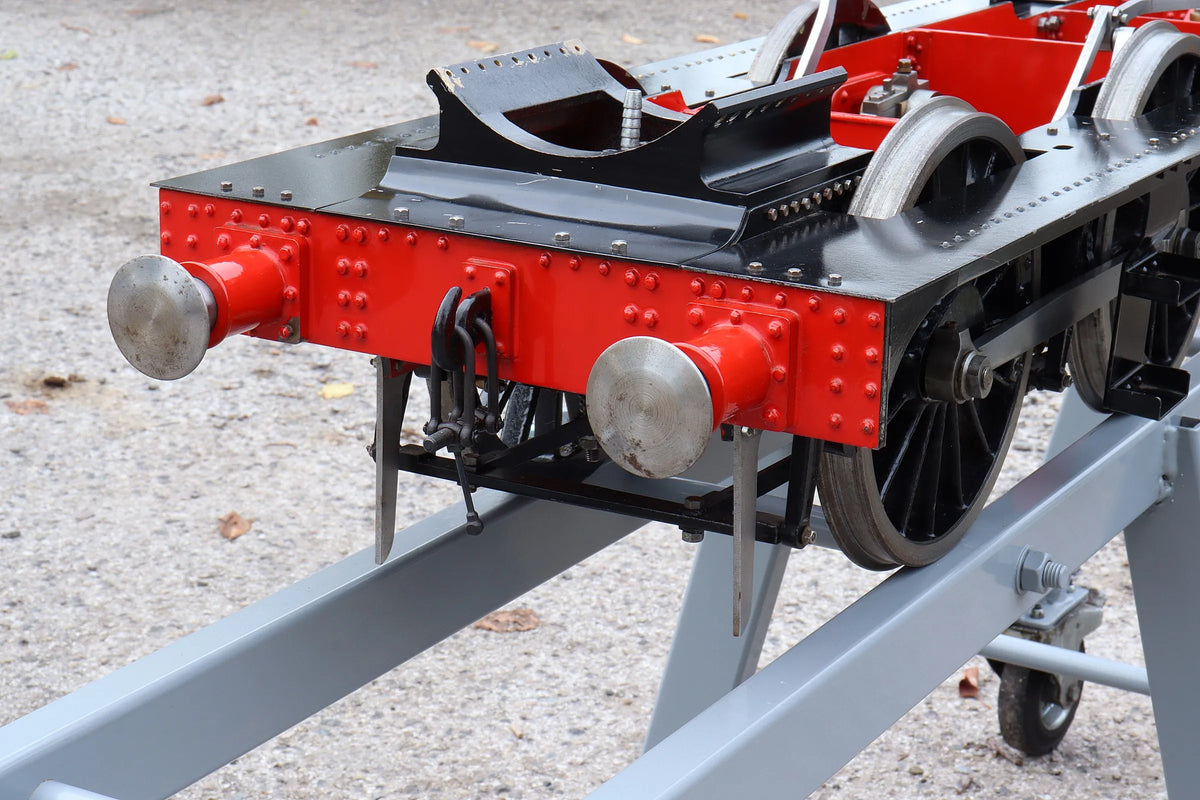

An air-running chassis, commercially built CE-marked boiler by John Ellis, profiled platework and a quantity of machined parts for a 7 1/4 inch gauge GWR 14XX 0-4-2T to Martin Evans' "Dart" design.

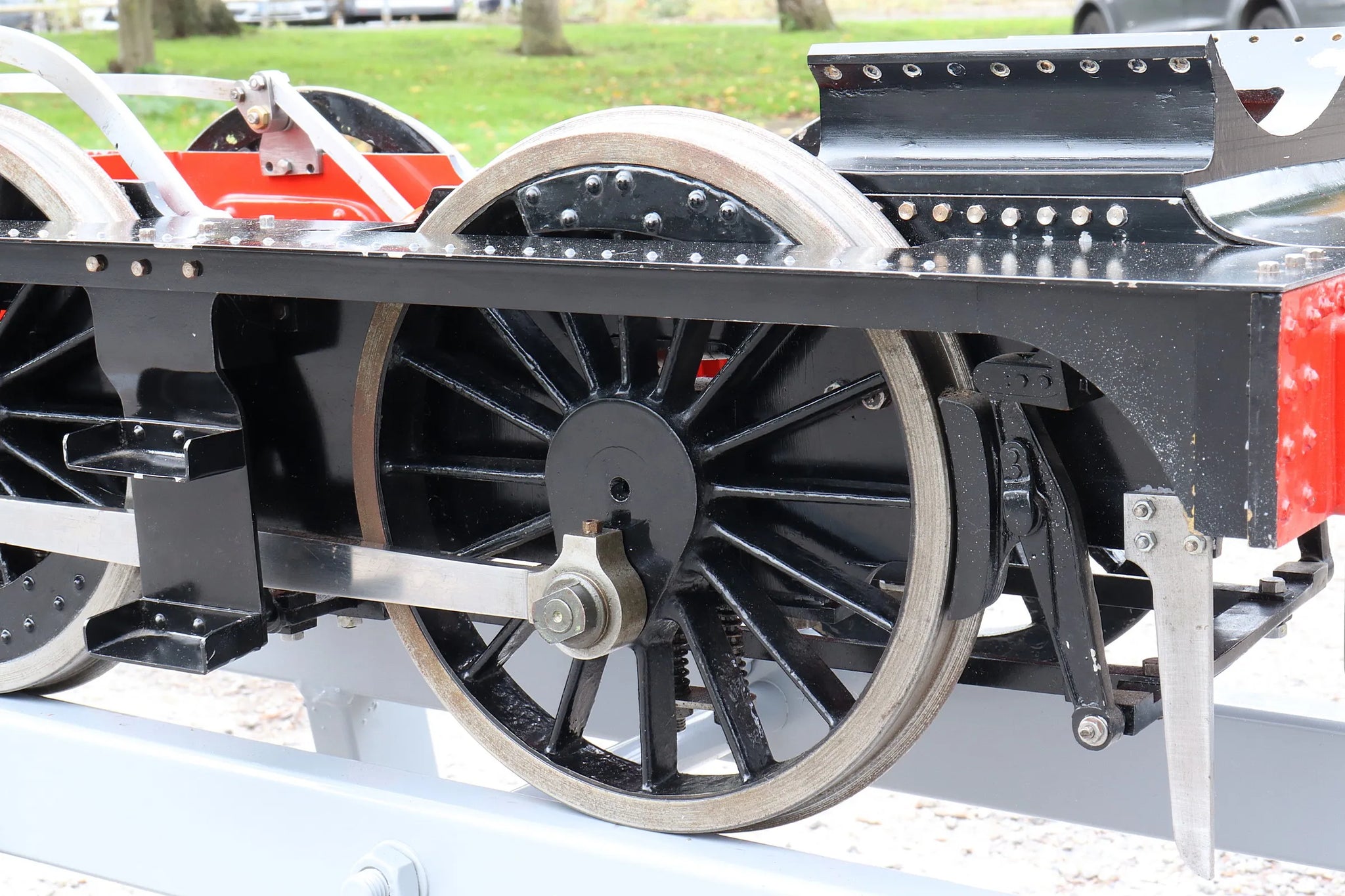

Runs nicely on air in both directions, the left hand driving wheel balance weight rivets catch slightly on the running boards, which need relieving.


Technical information

Stock code

13187

Gauge

7 1/4 inch

Length/inches

45

Width/inches

13

Height/inches

13

Weight/Kg

86.5

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

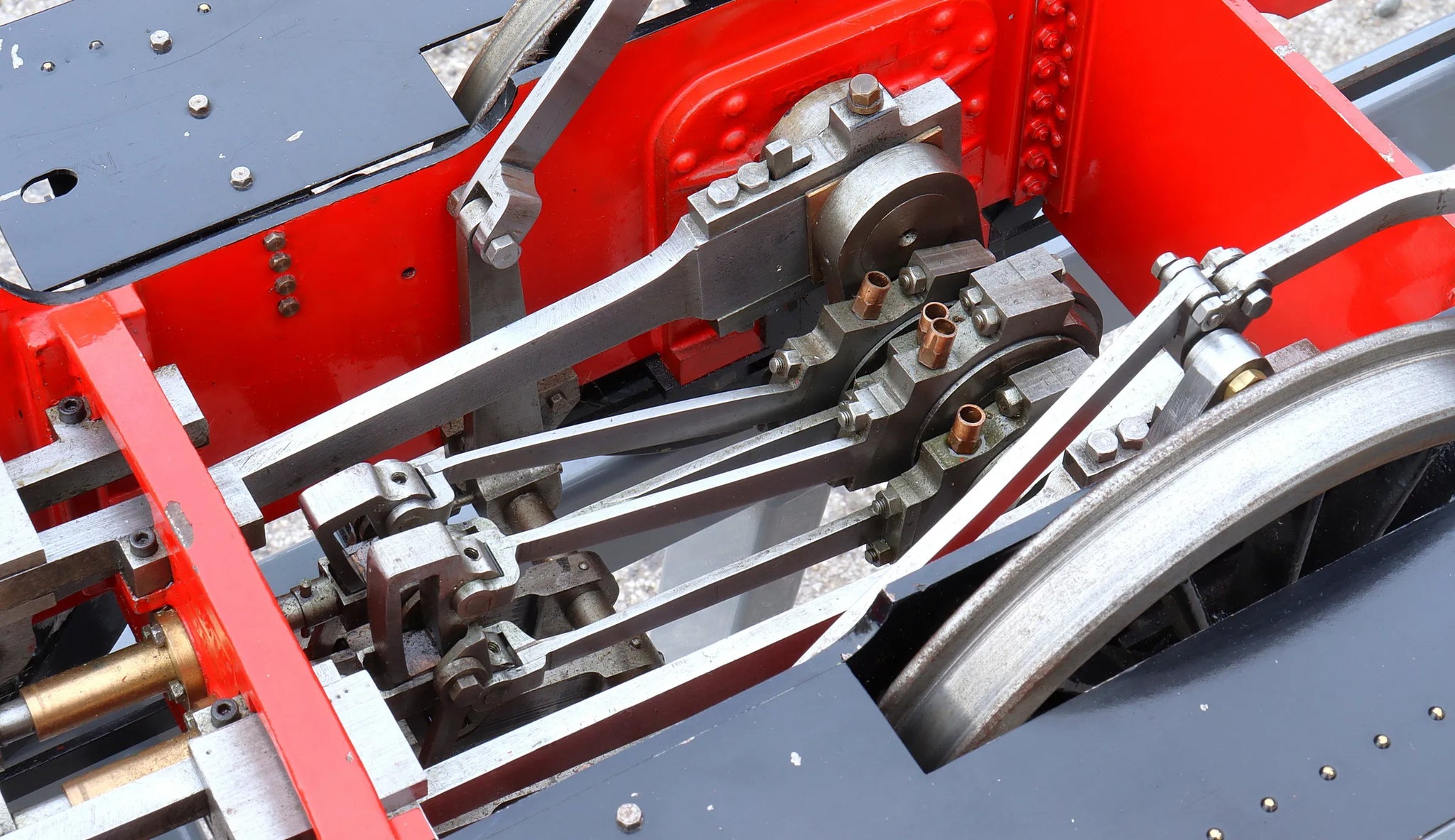

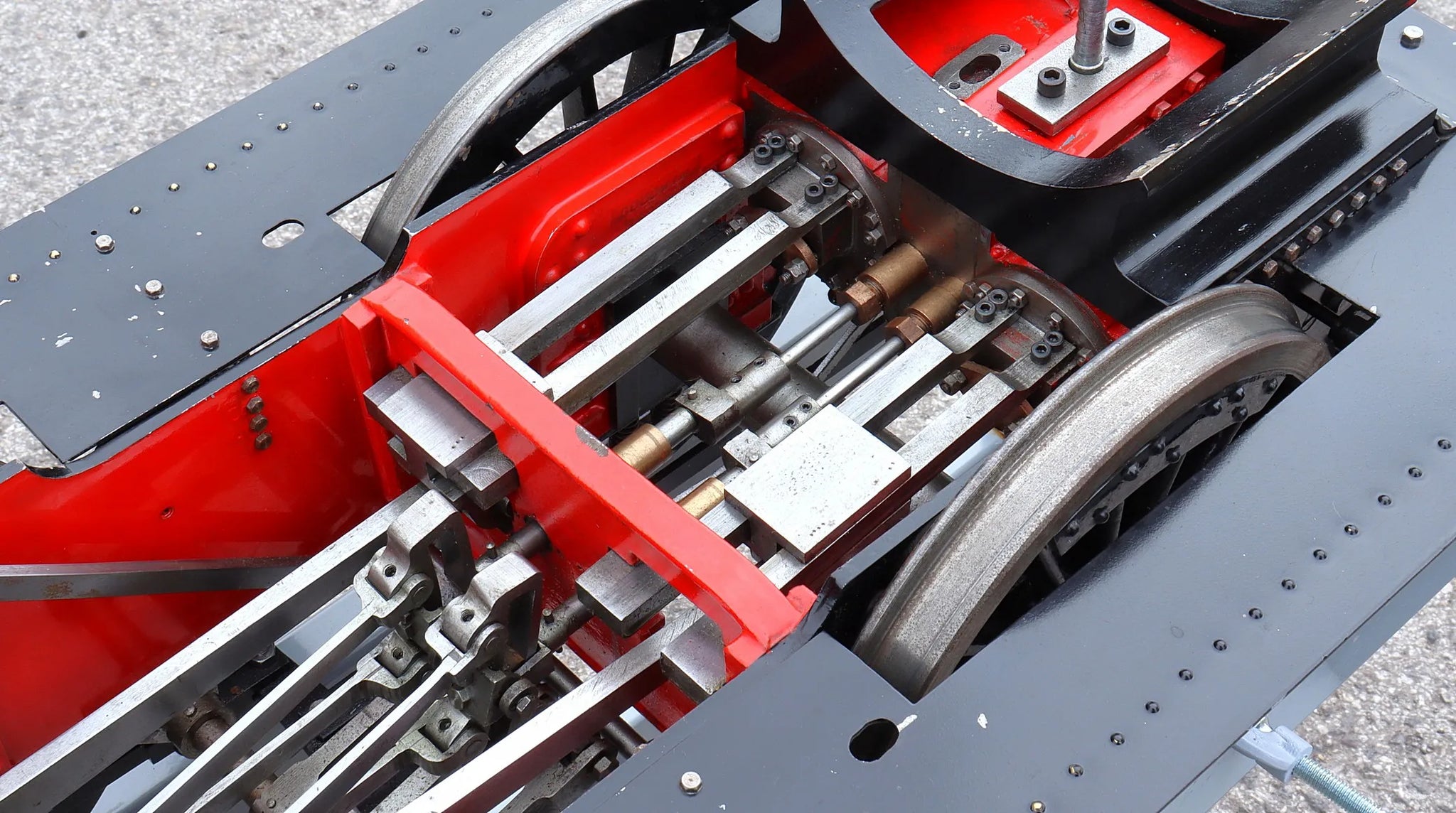

Valve gear

Stephensons

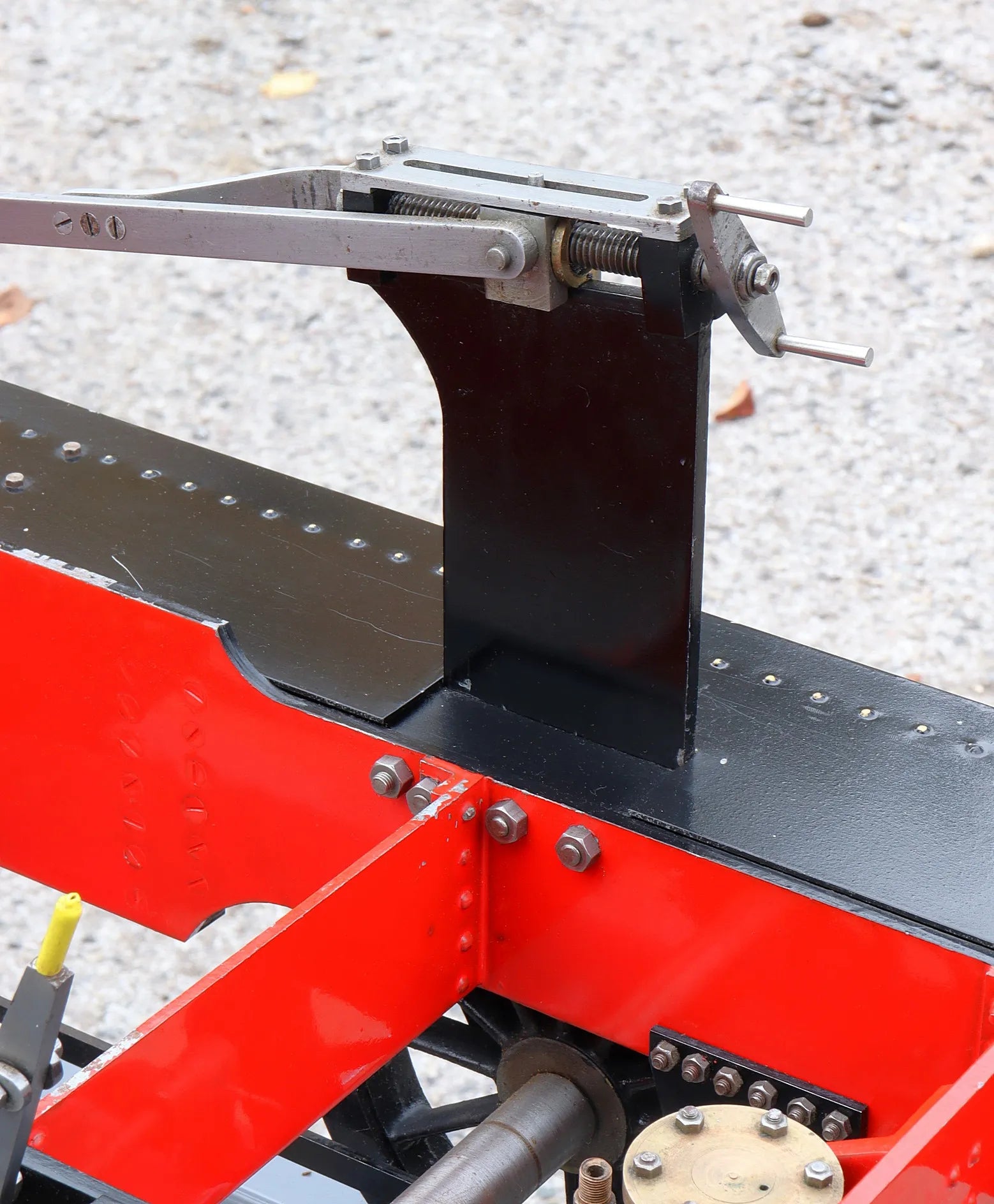

Reverser type

screw

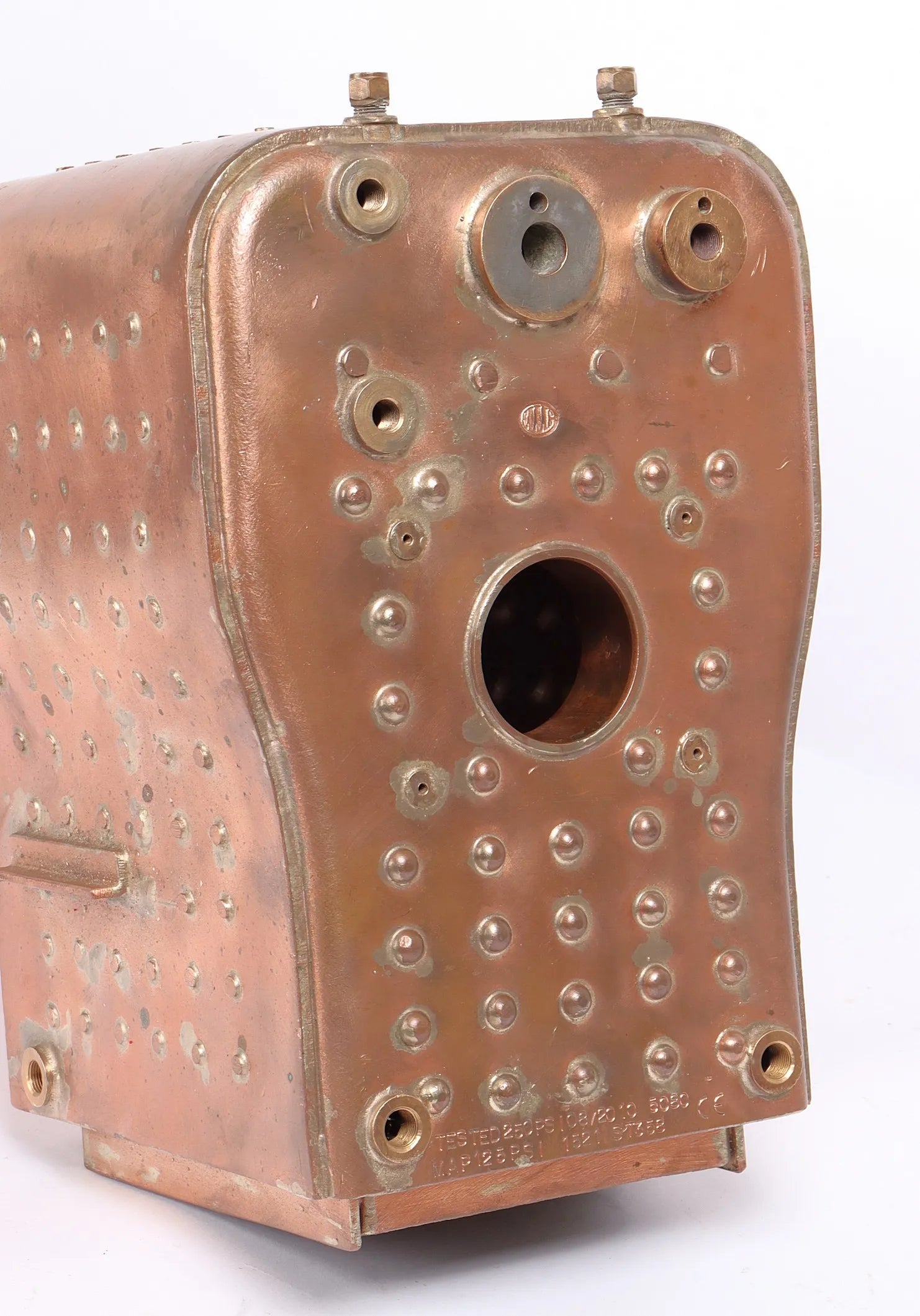

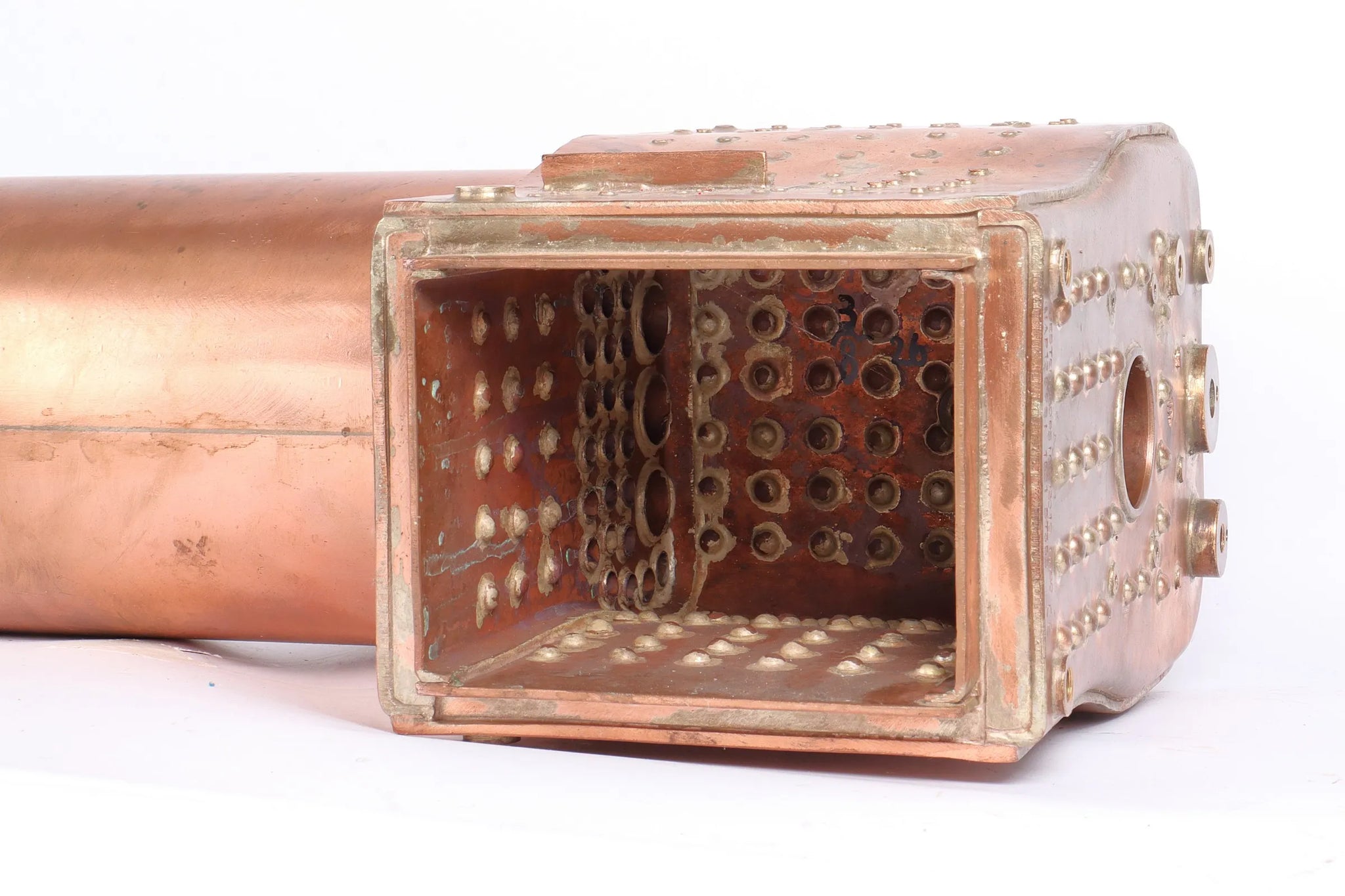

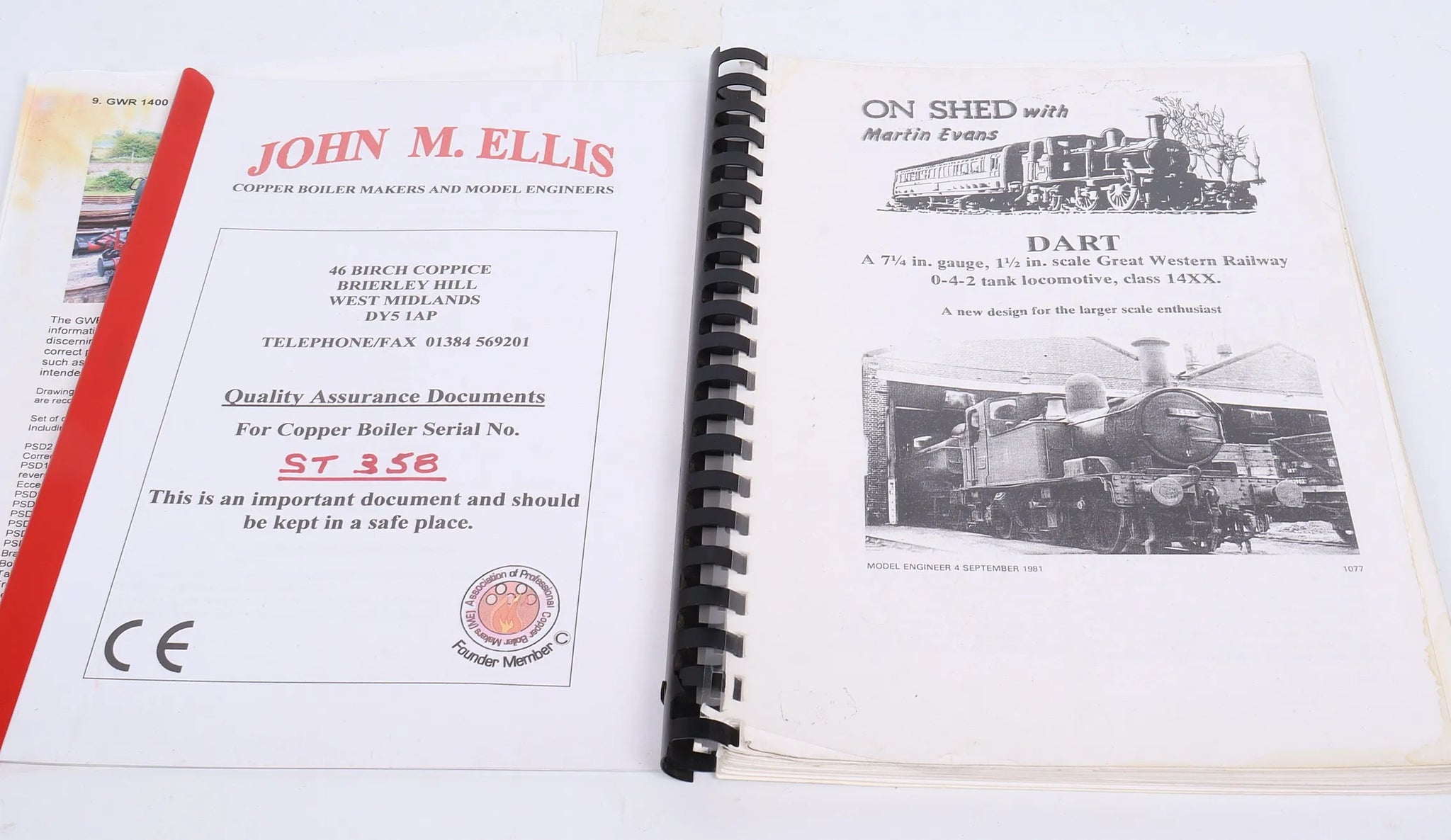

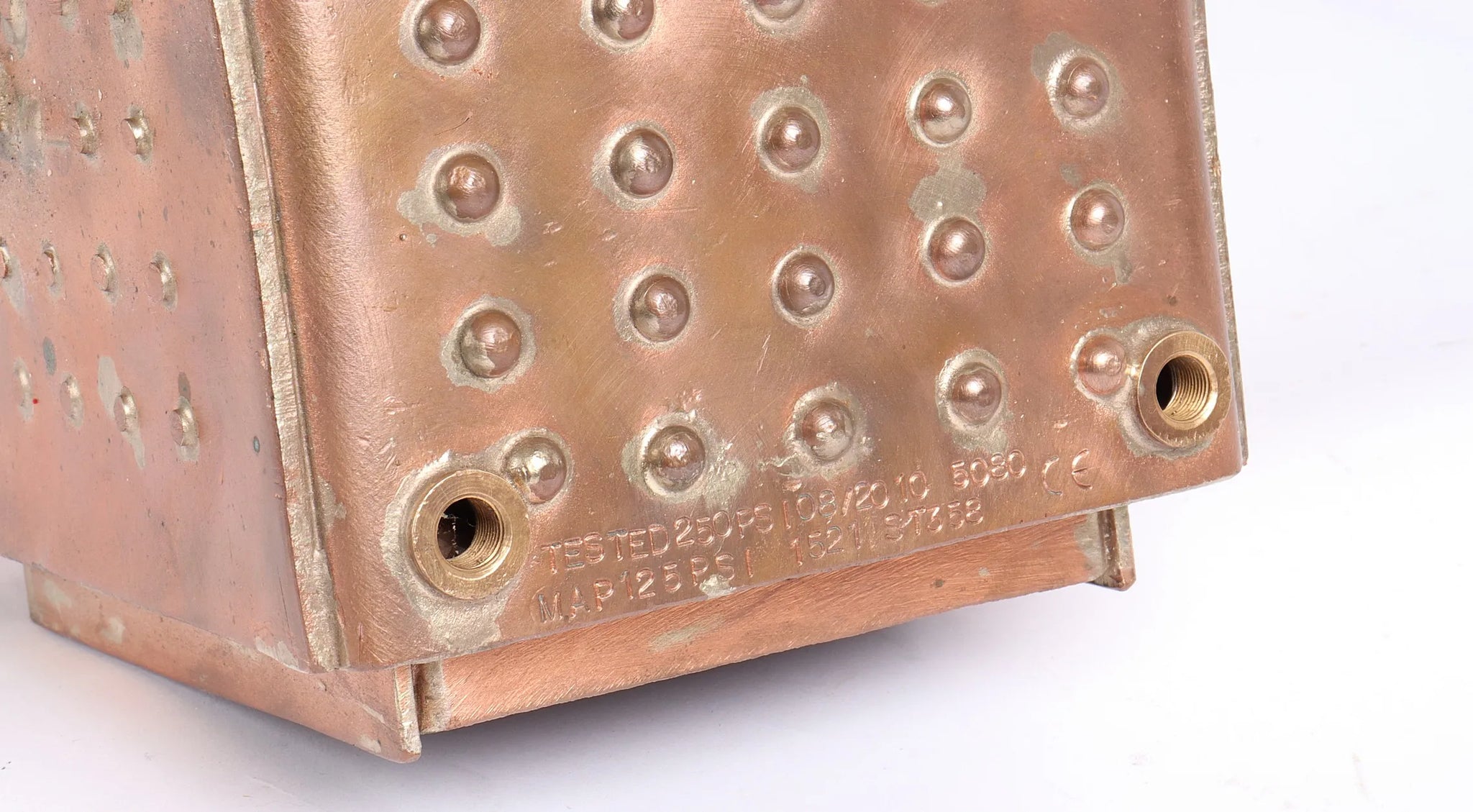

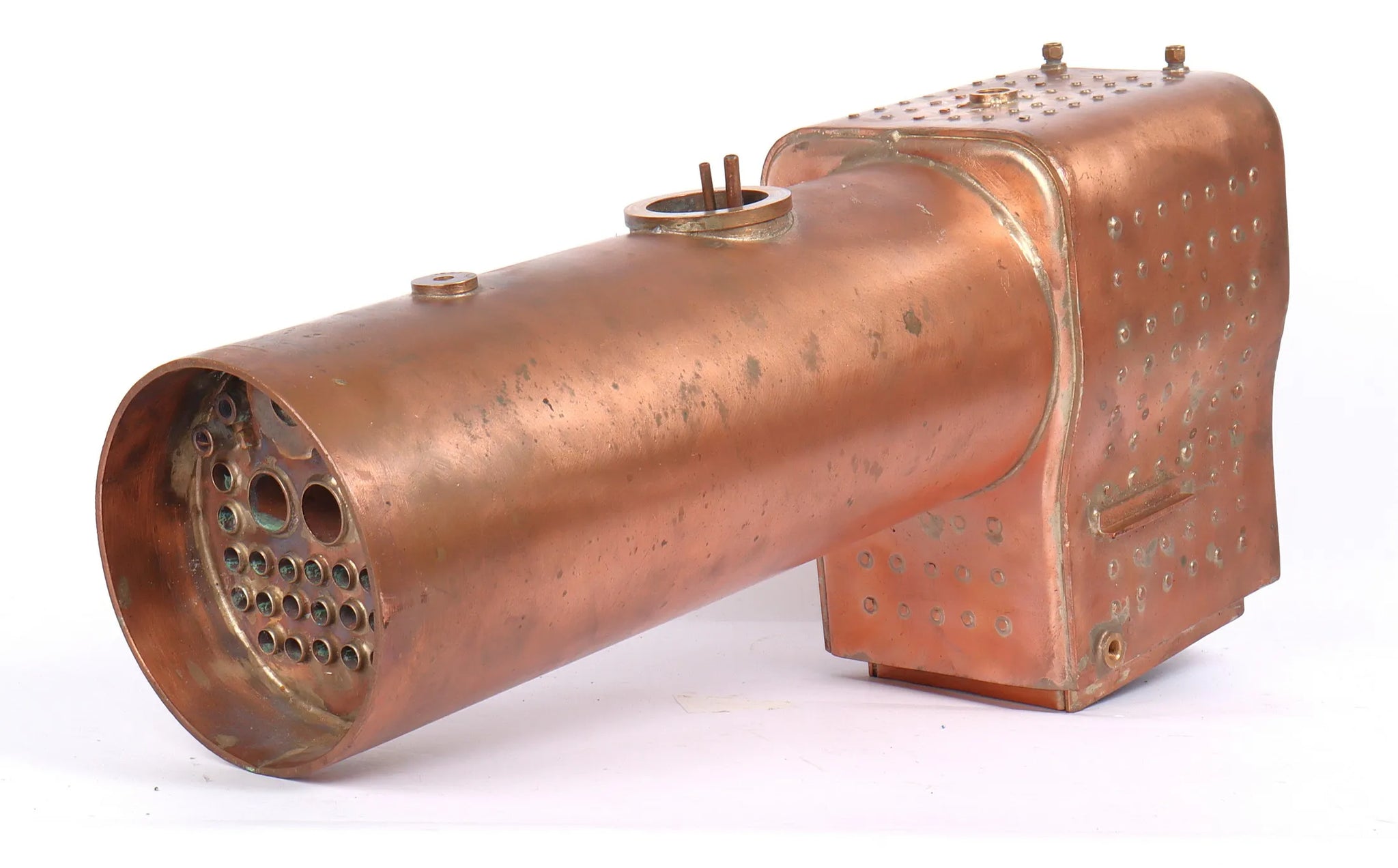

Boiler maker

John Ellis

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

yes

Year built

2010

Boiler number

ST358

Date out

Nov-25
