7 1/4 inch gauge GWR 45XX 2-6-2T

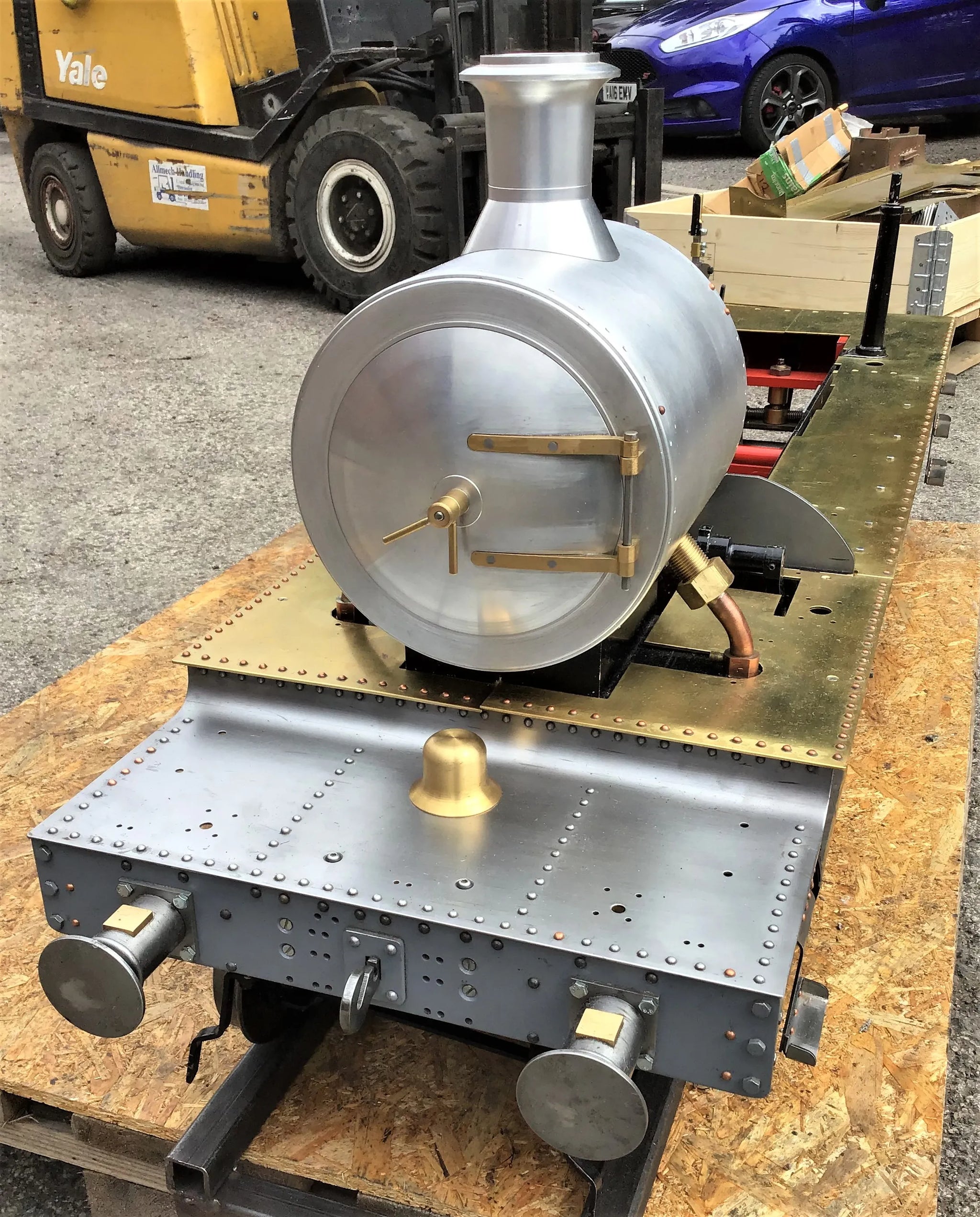

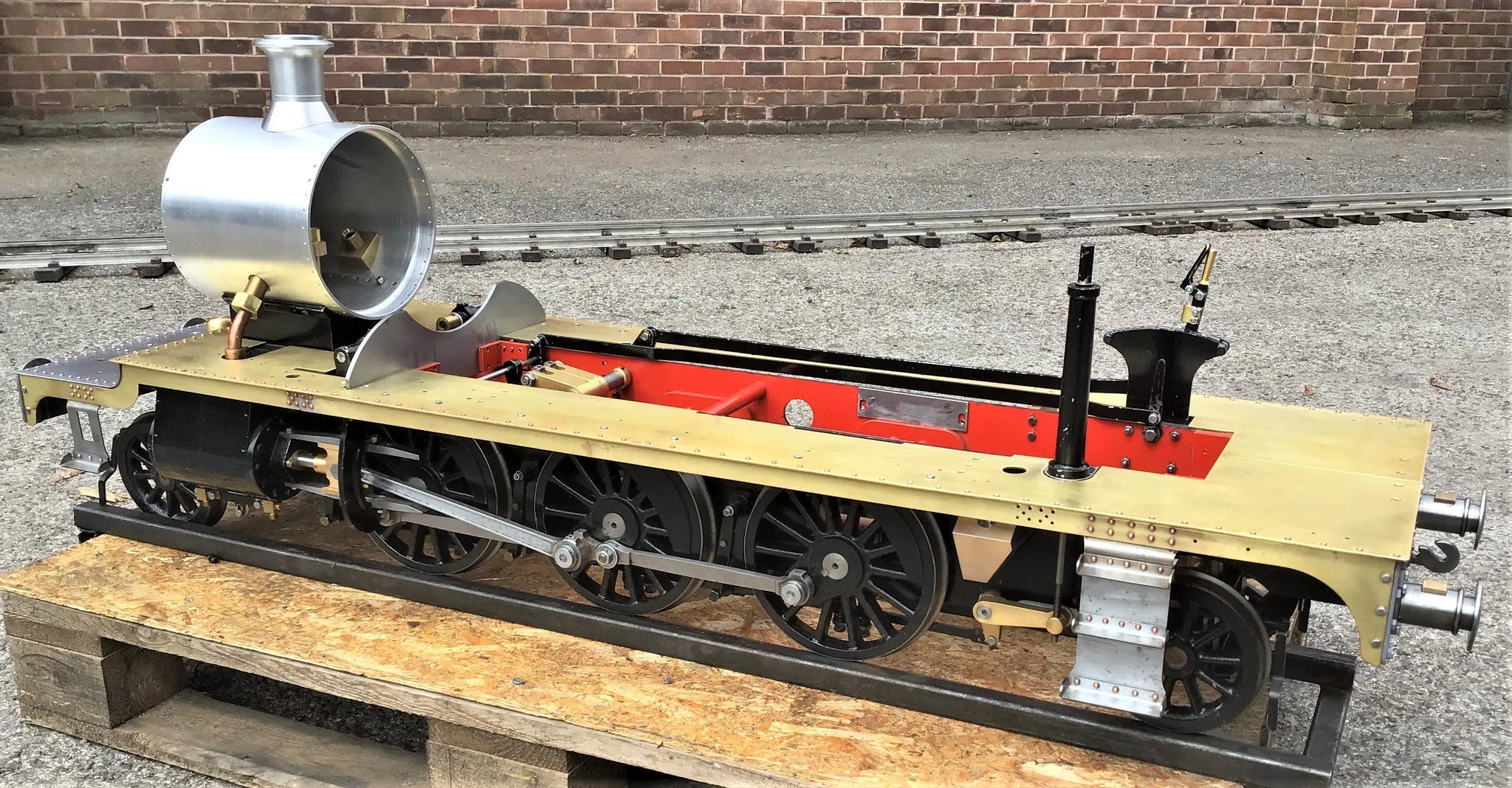

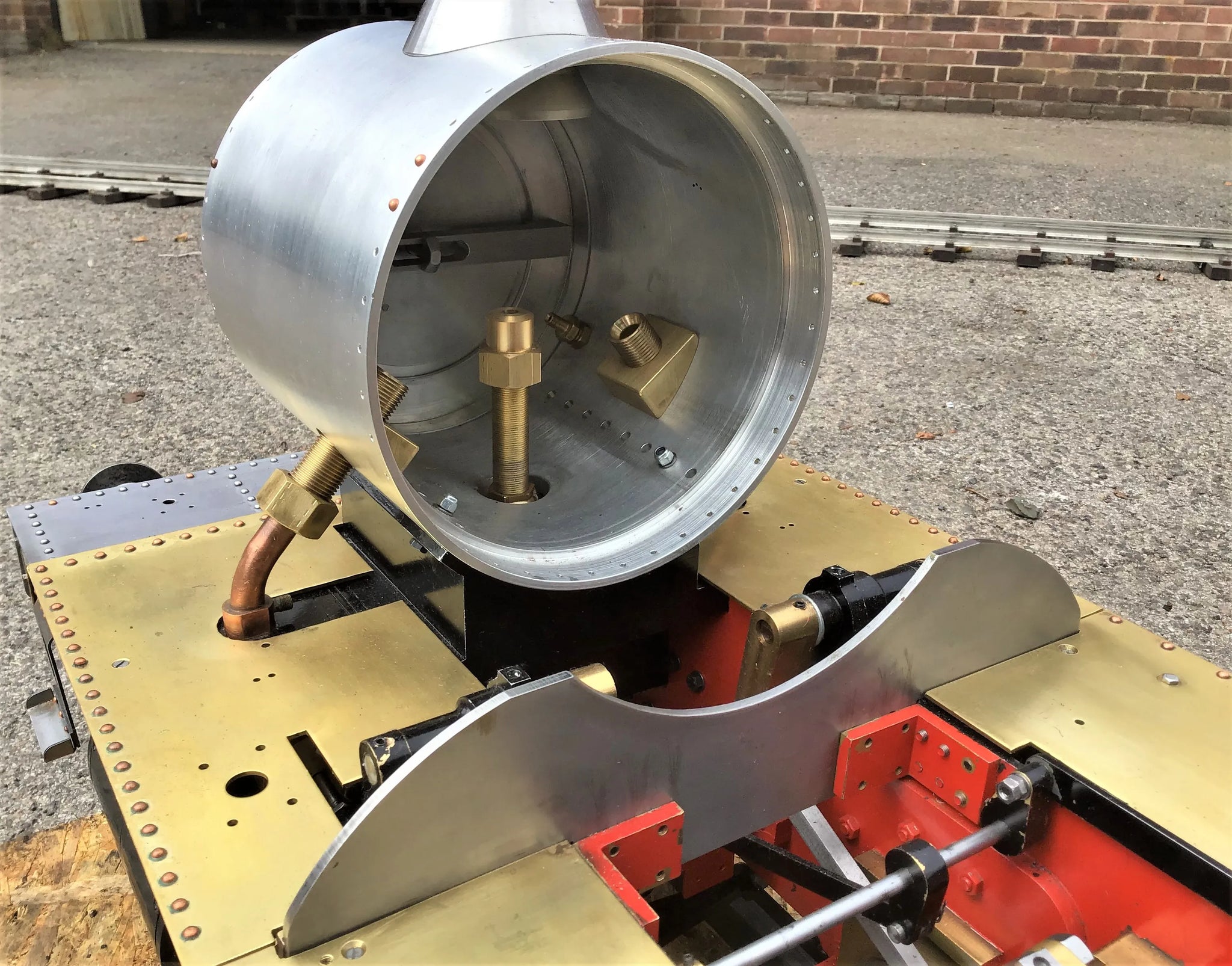

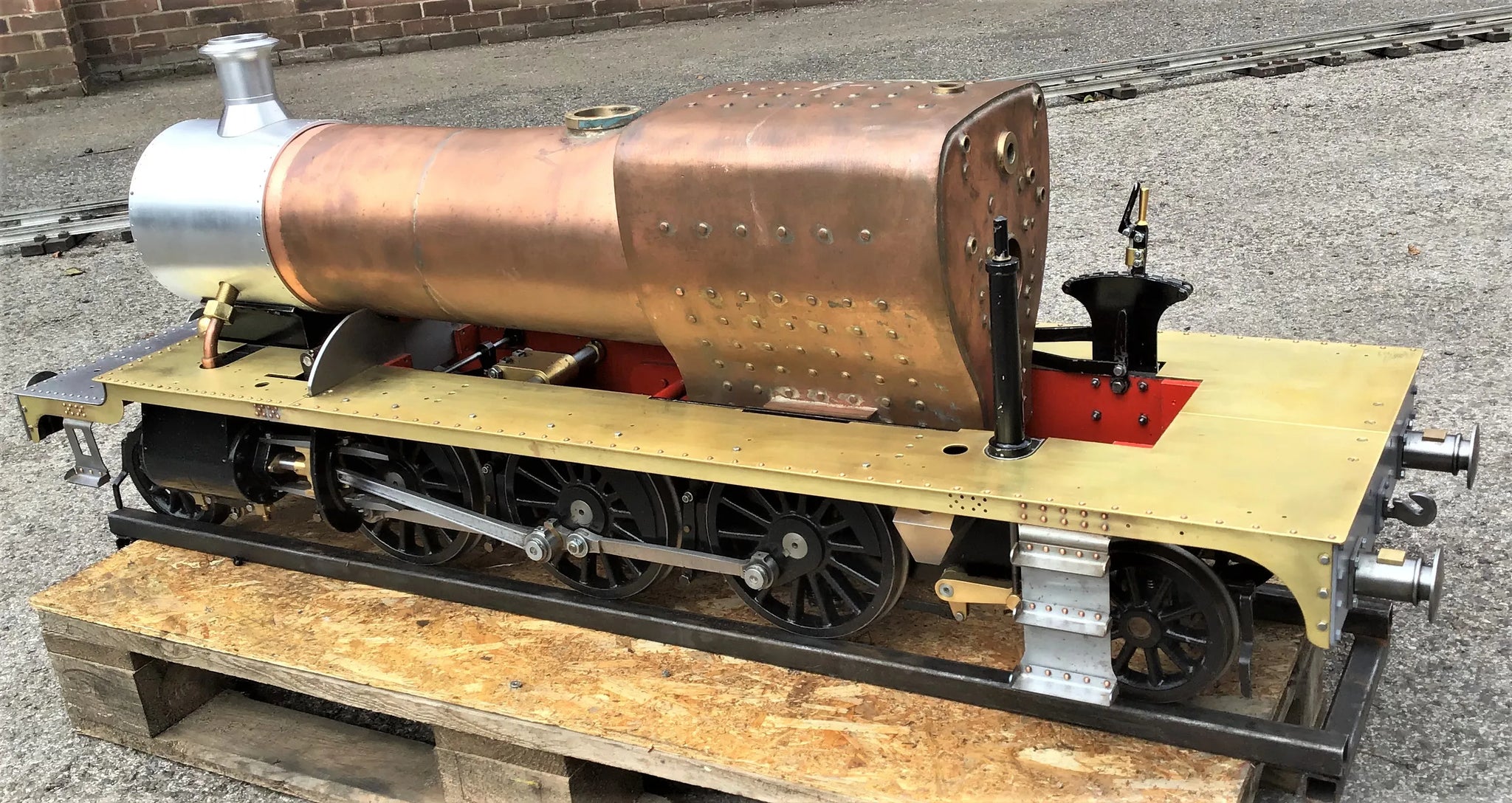

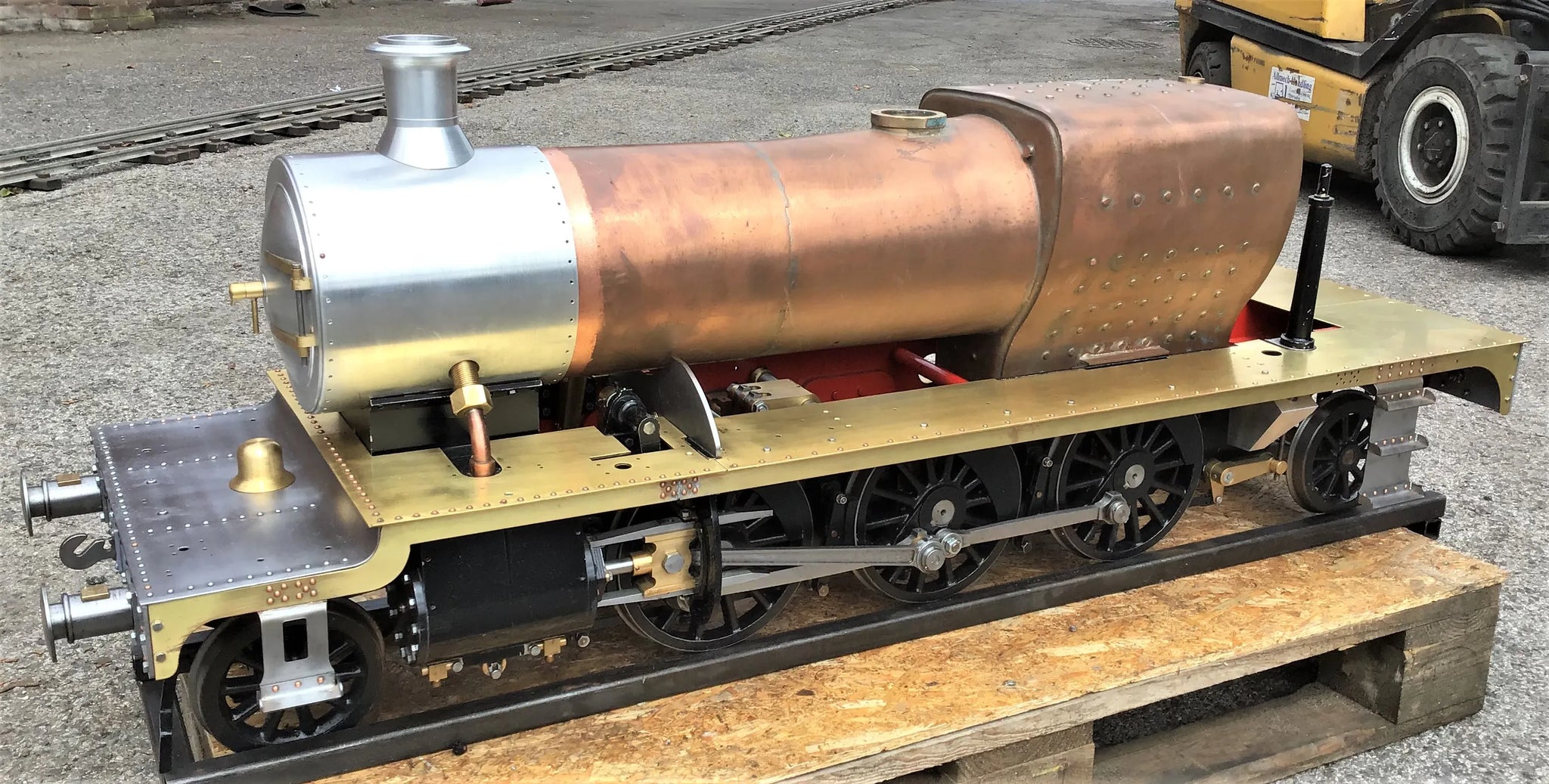

A 7 1/4 inch gauge GWR Prairie, part assembled from a Winson/ModelWorks kit.

It's recently arrived from a gentleman who, with the passing of time, had found its increasing size and weight more than he cared to handle. It shared a workshop with a beautifully built 5 inch gauge Polly - finished 16 years ago and still in immaculate condition - which he's decided is a more sensible size engine to play with in his autumn years!

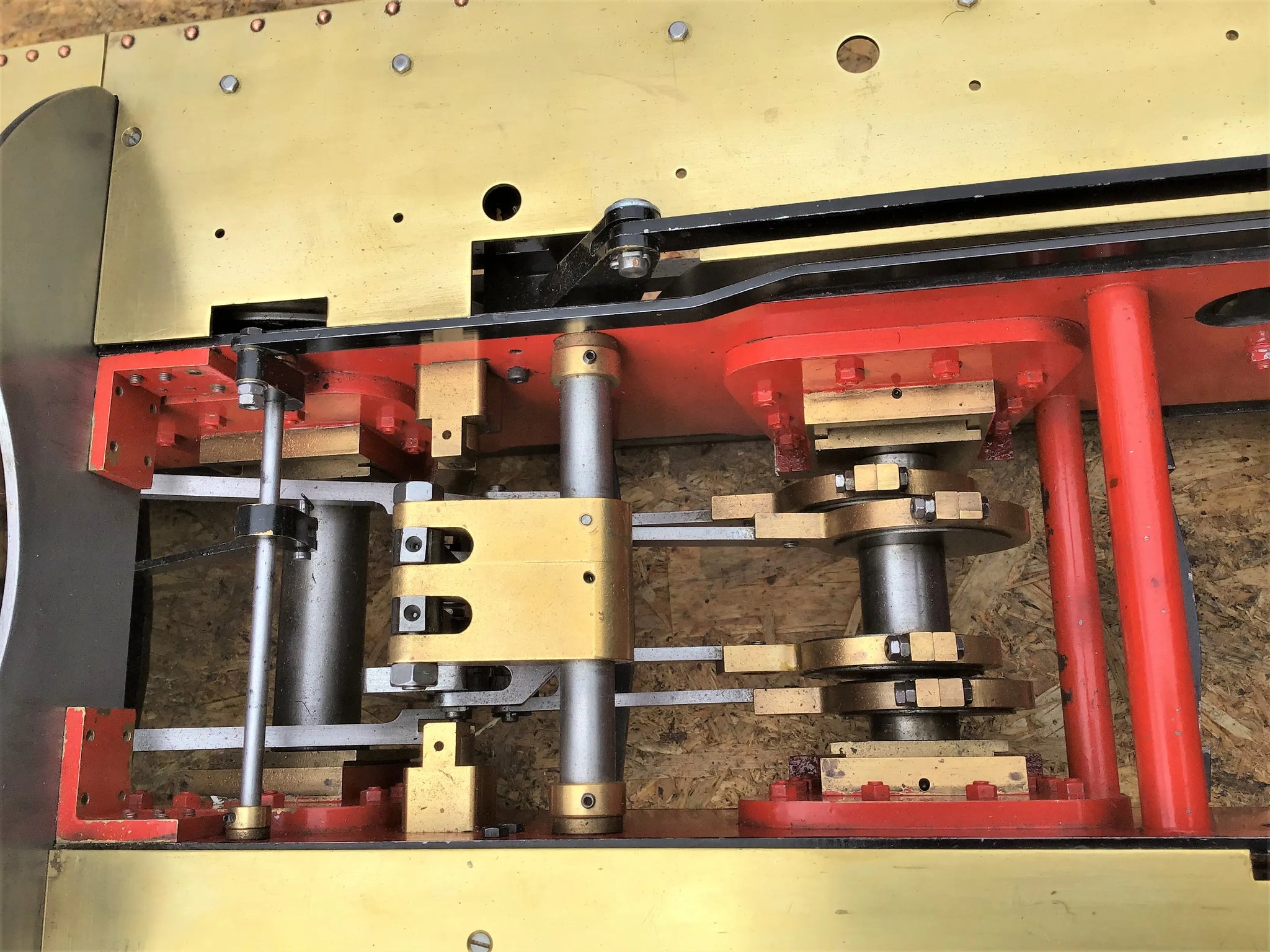

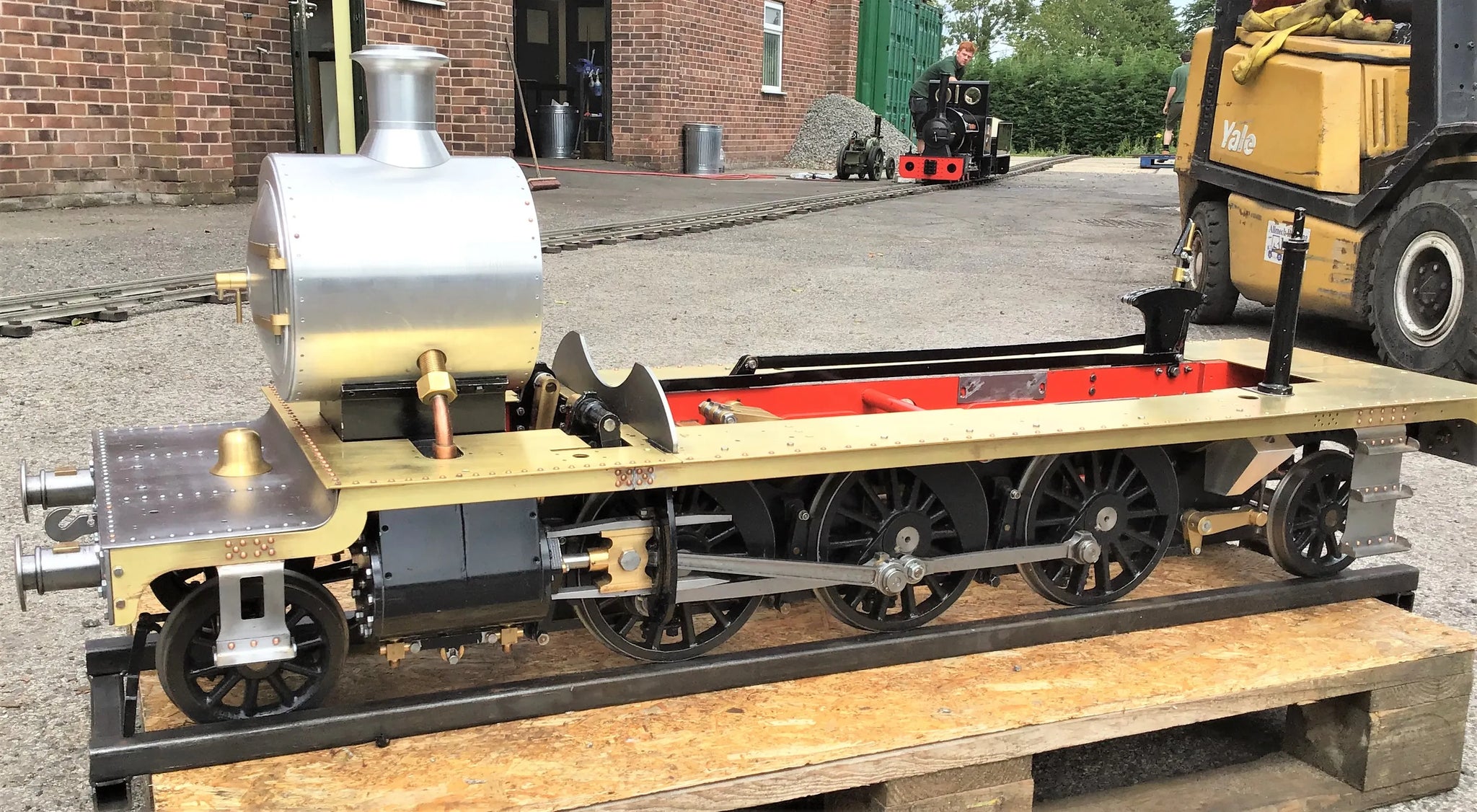

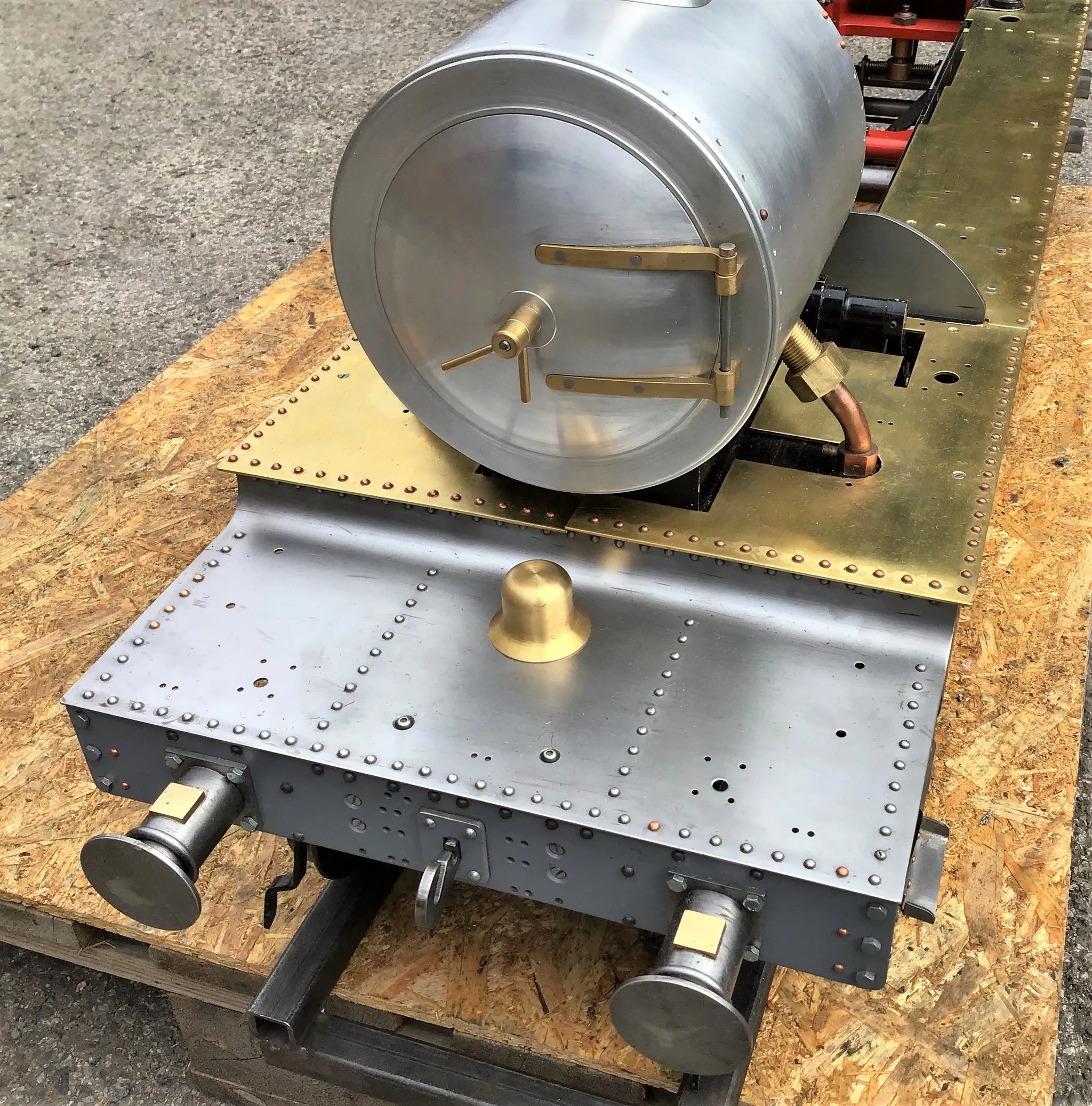

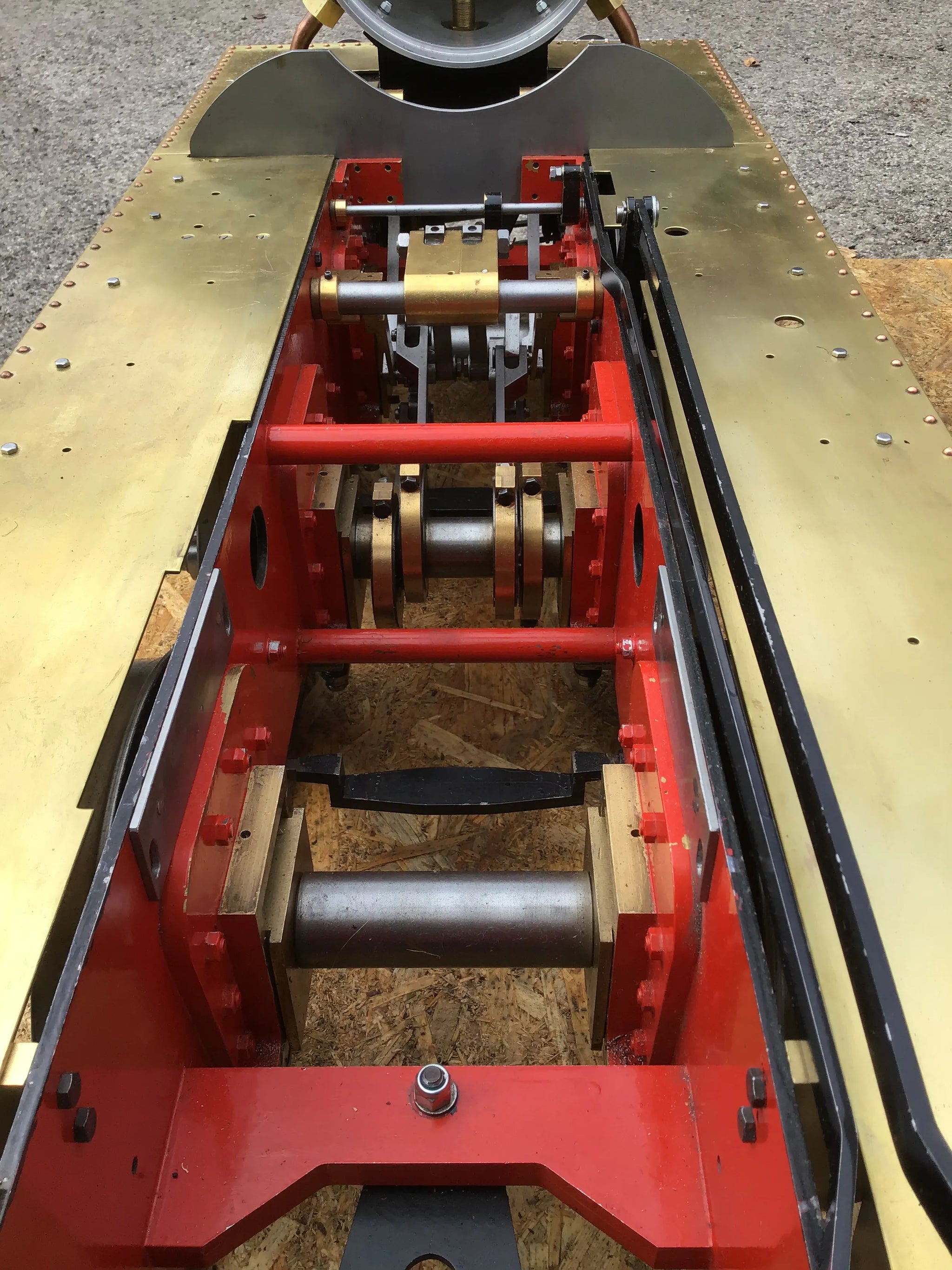

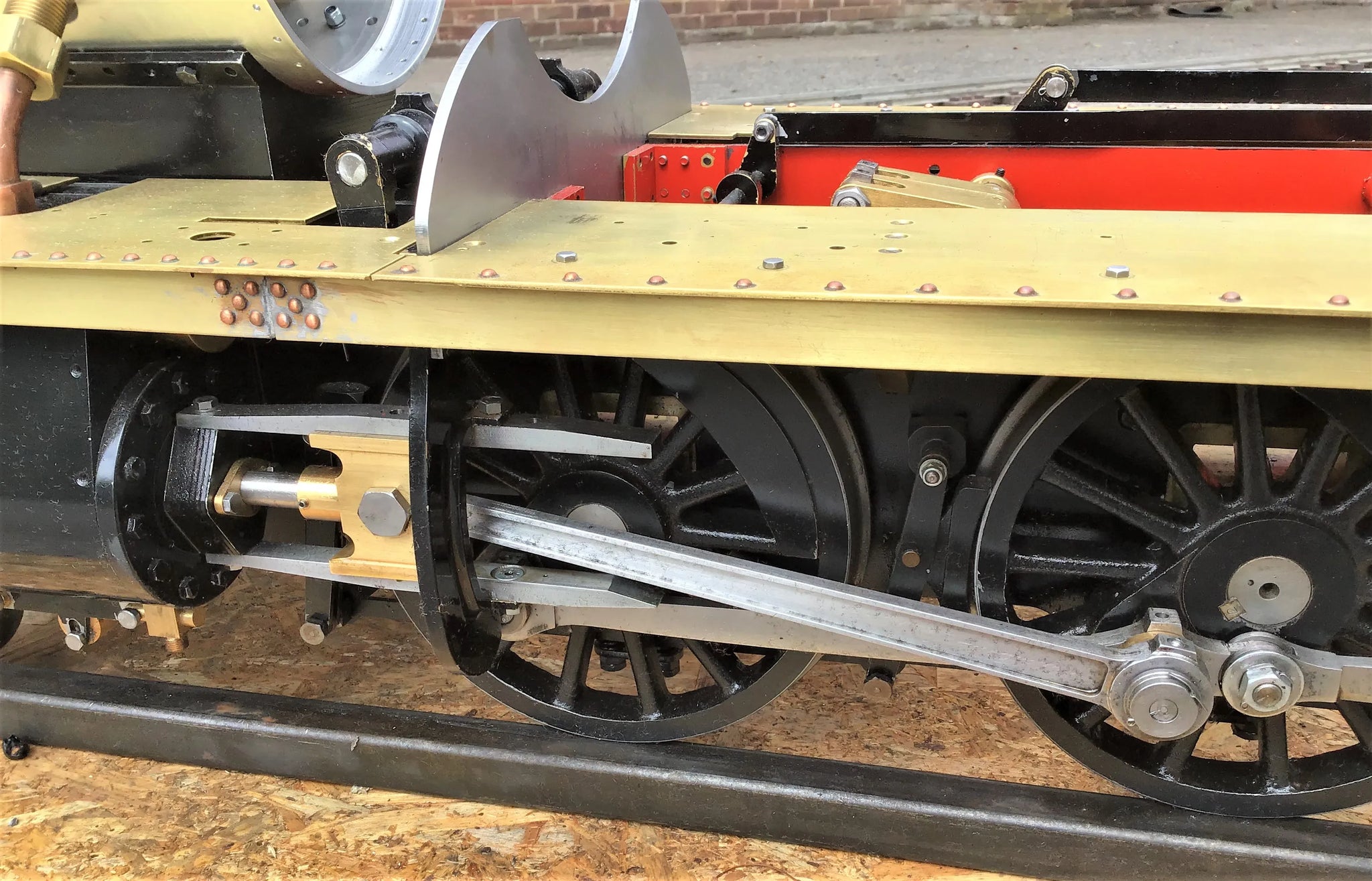

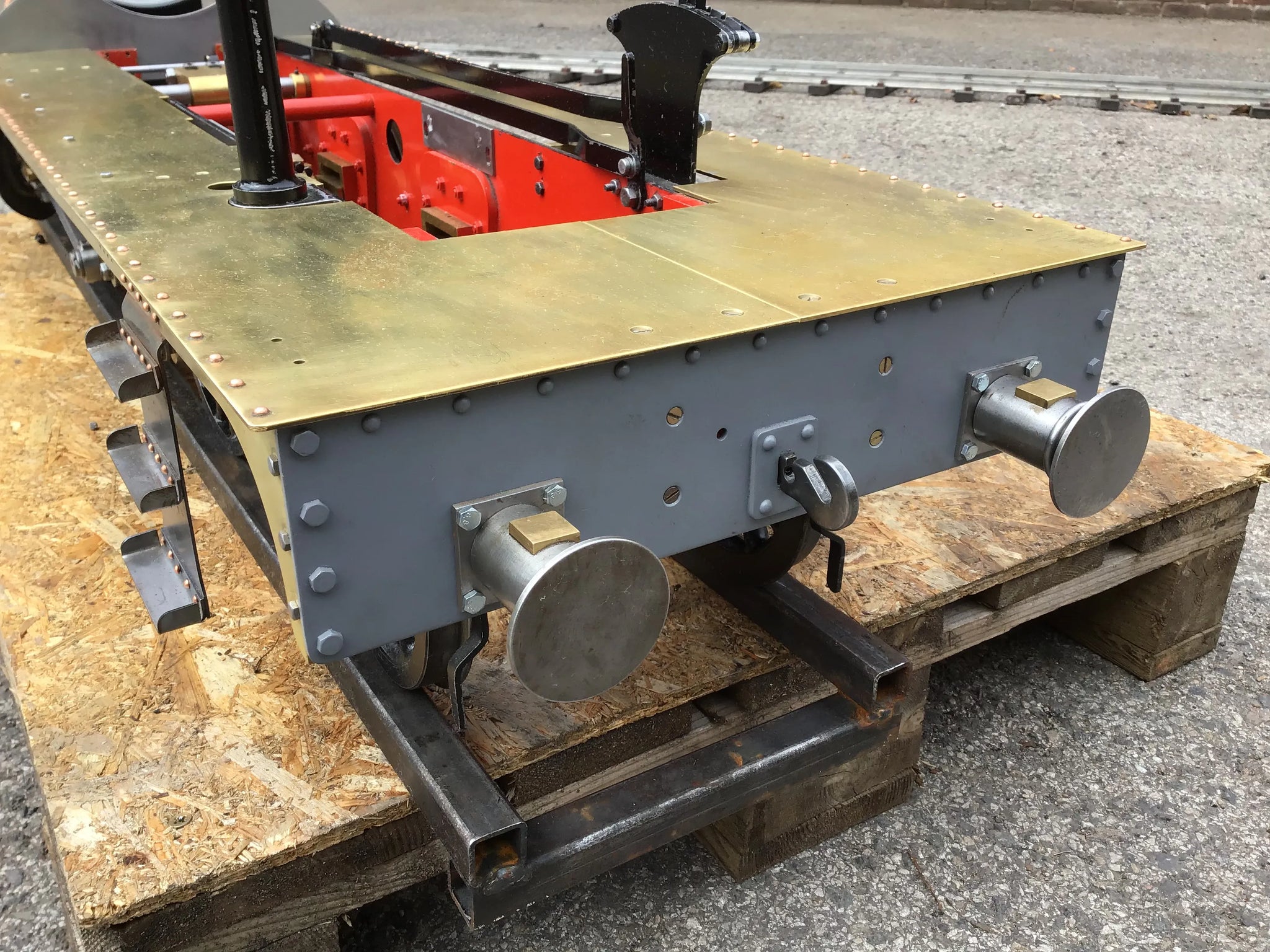

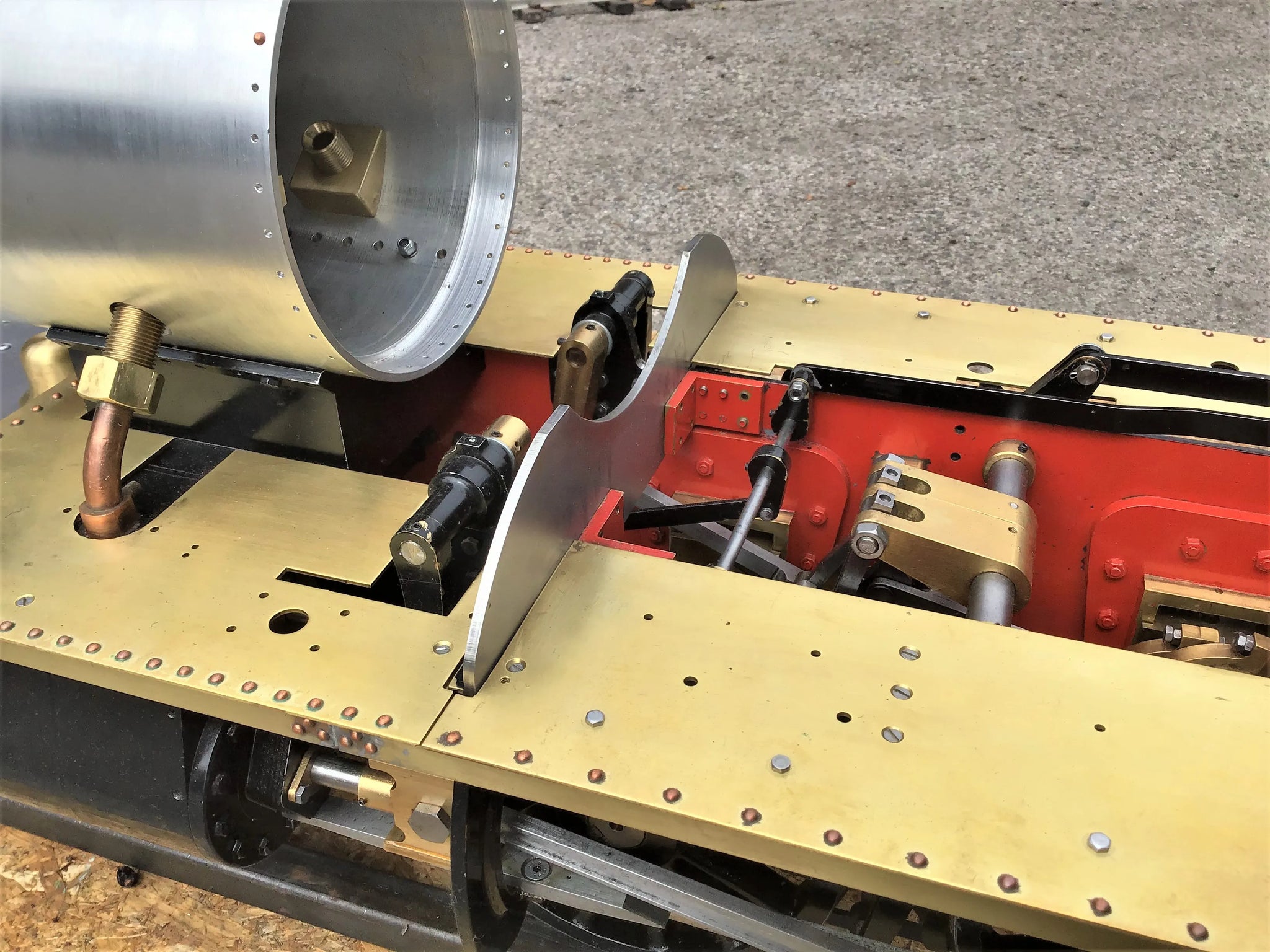

Chassis is largely assembled to a good standard - parts have been carefully cleaned and fettled before assembly.

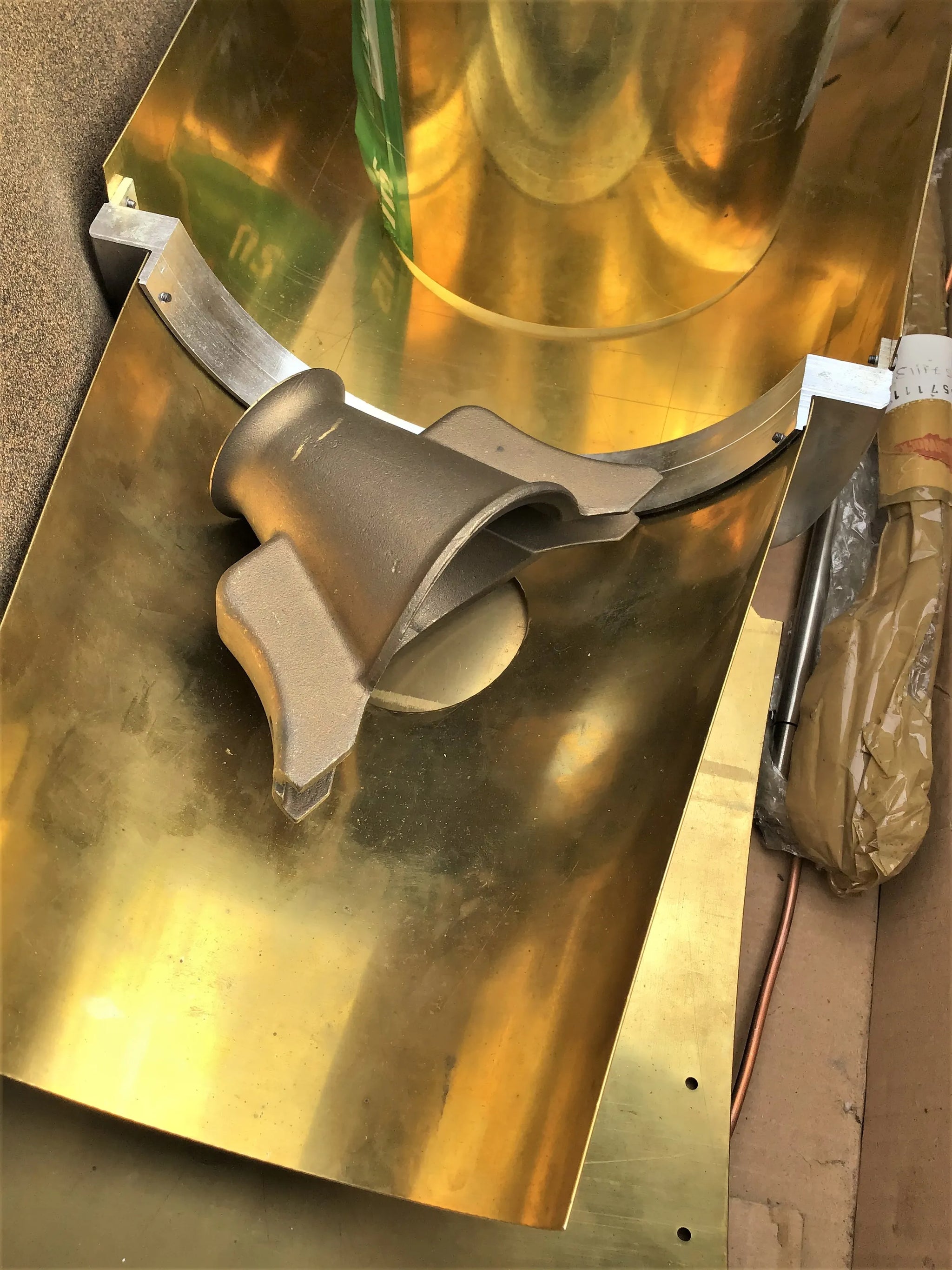

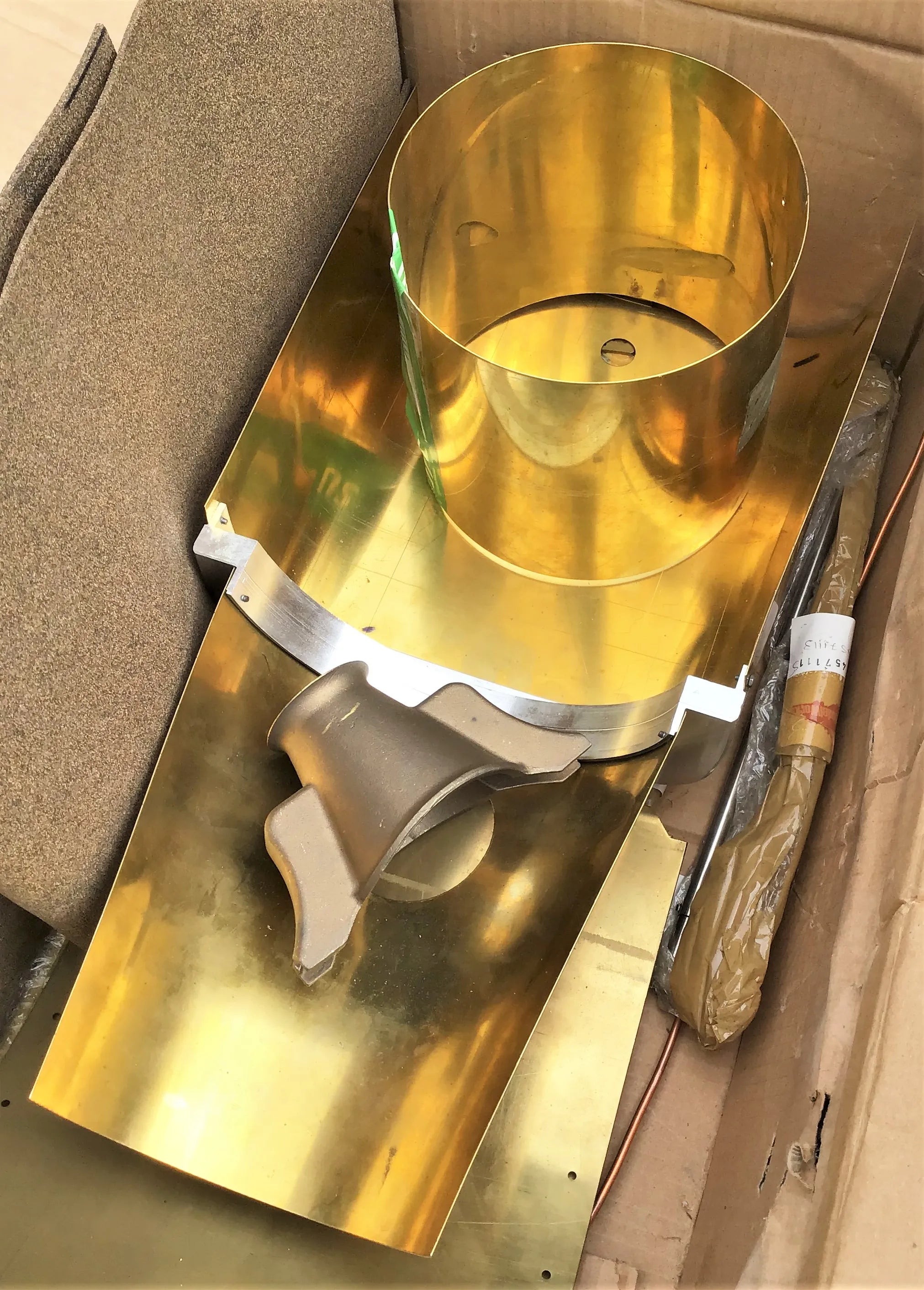

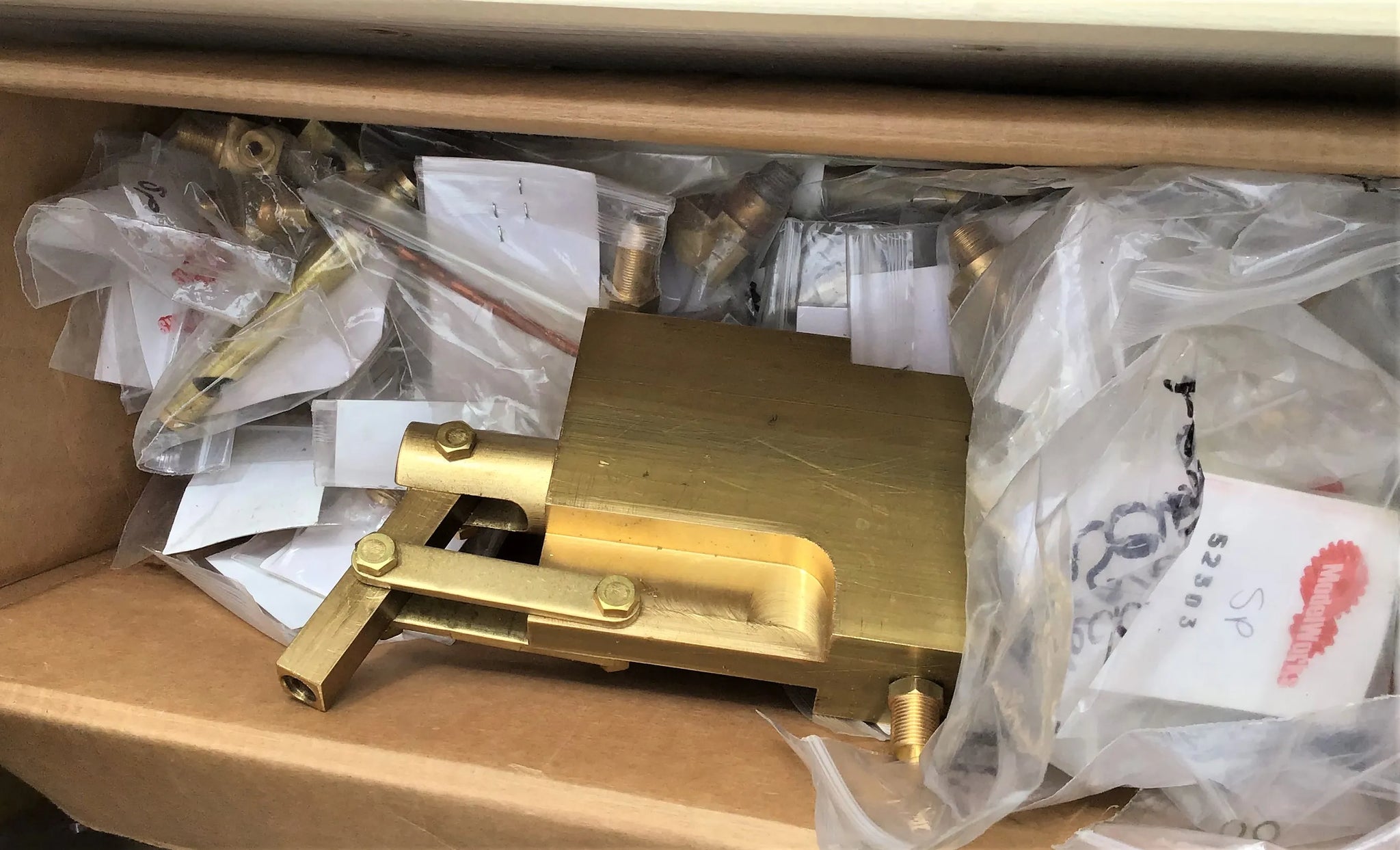

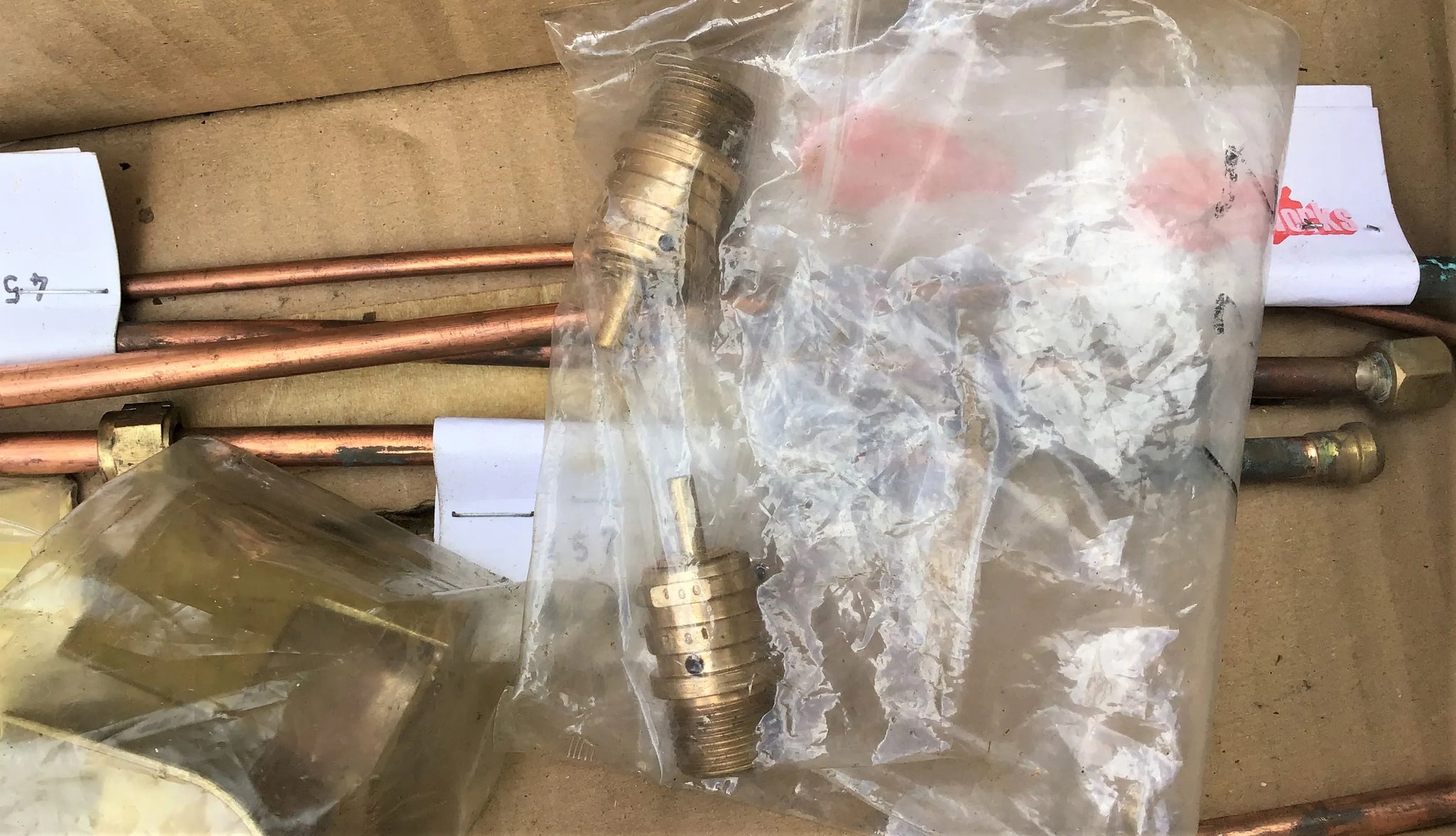

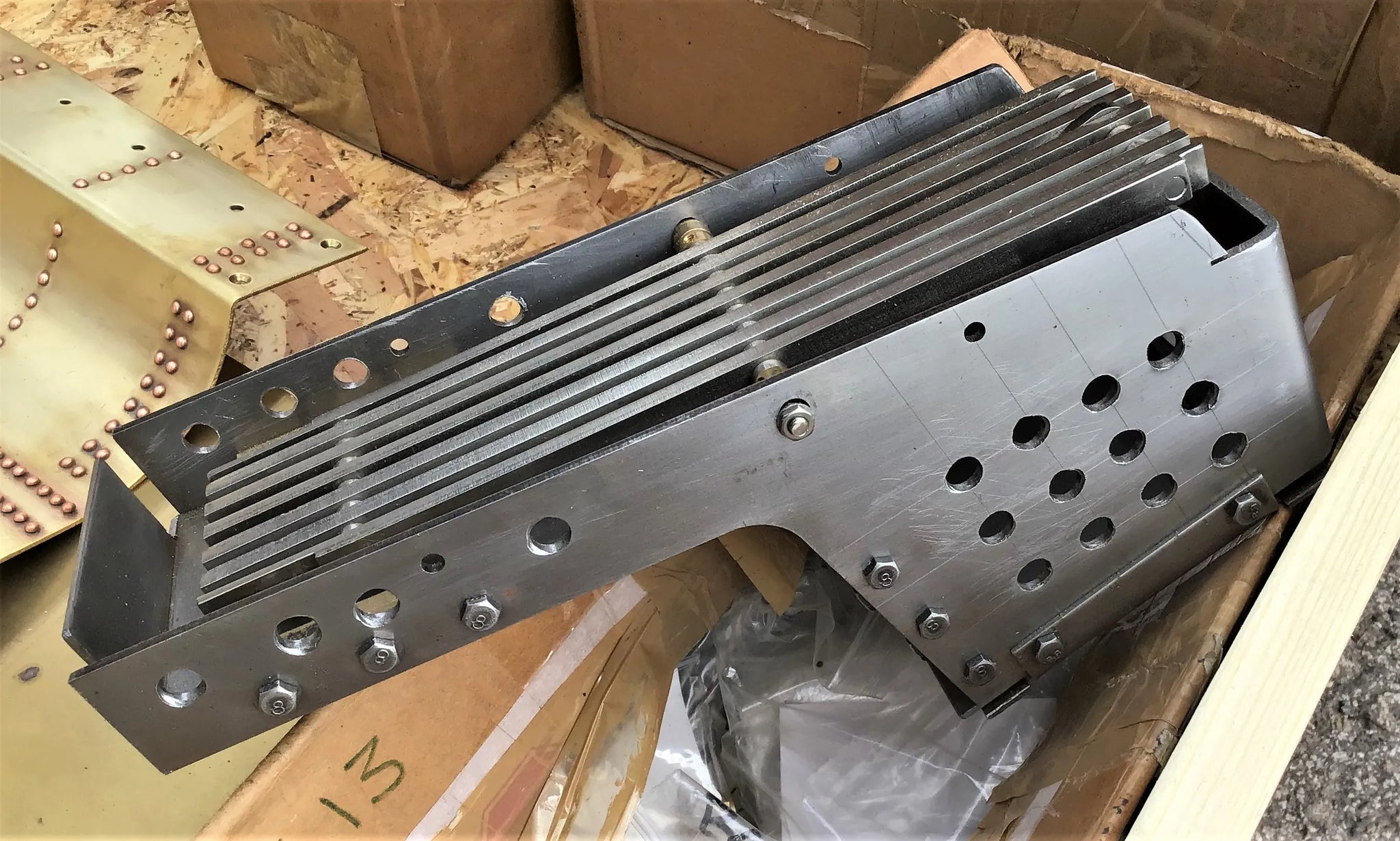

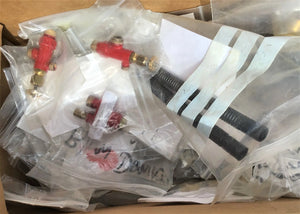

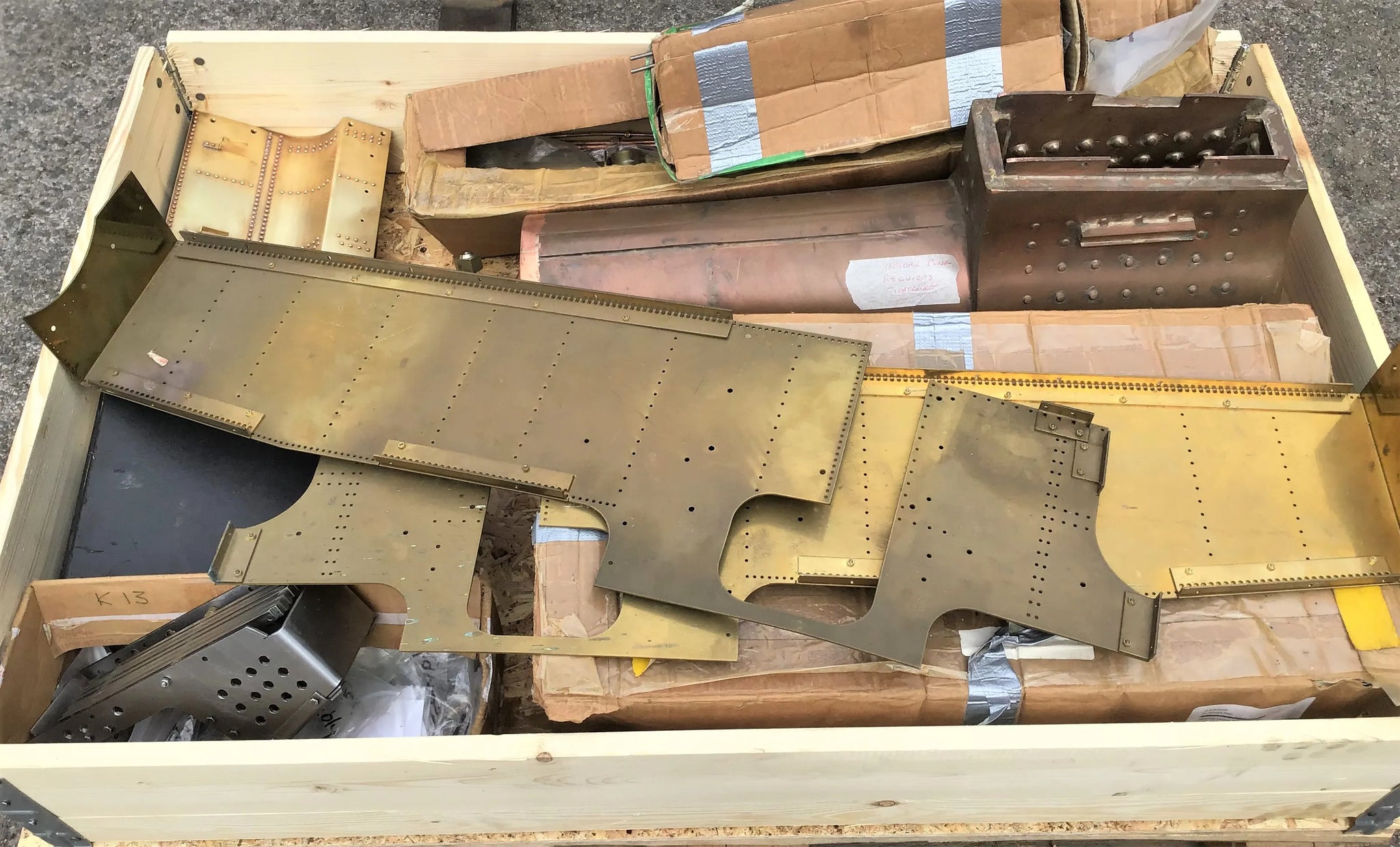

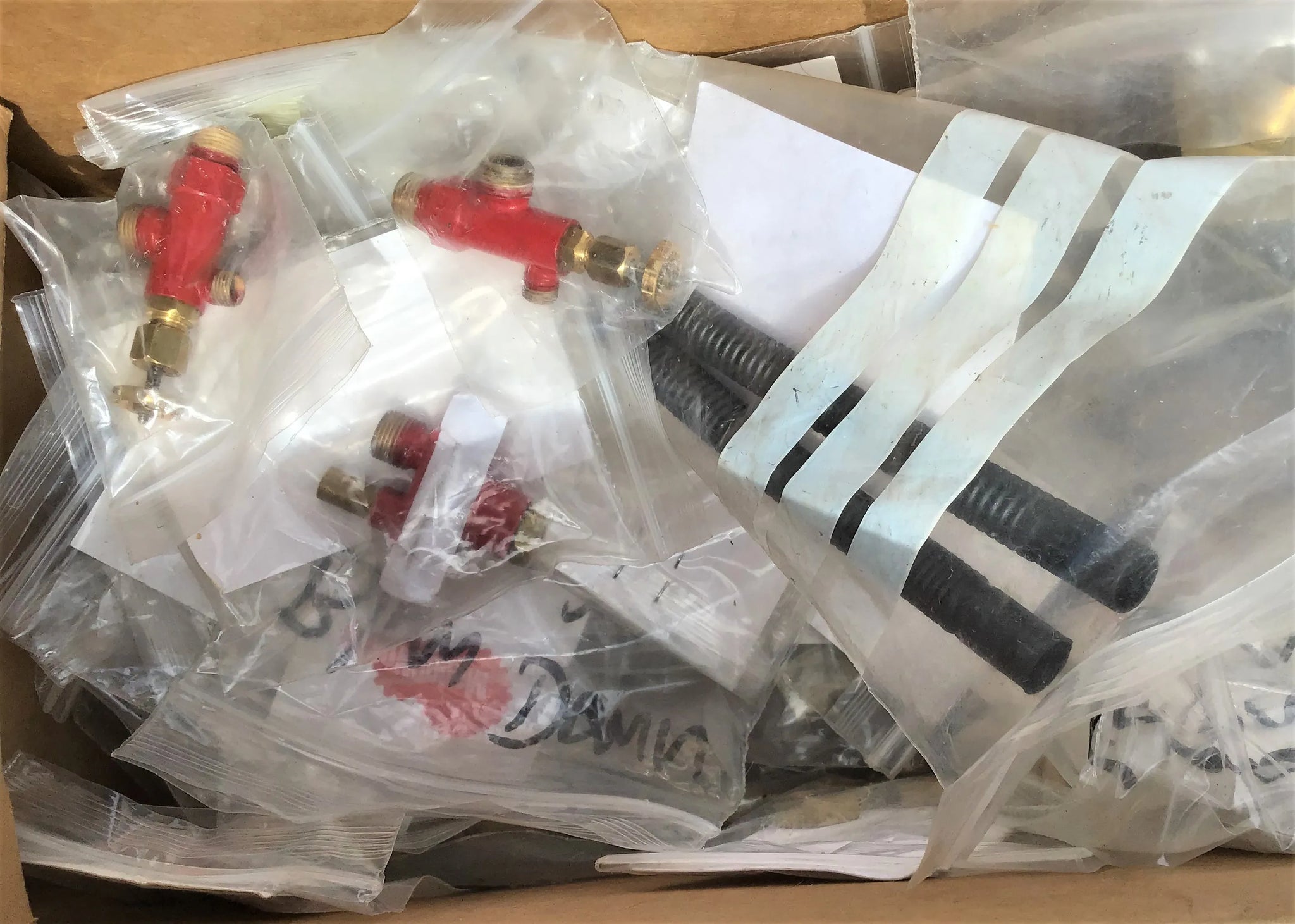

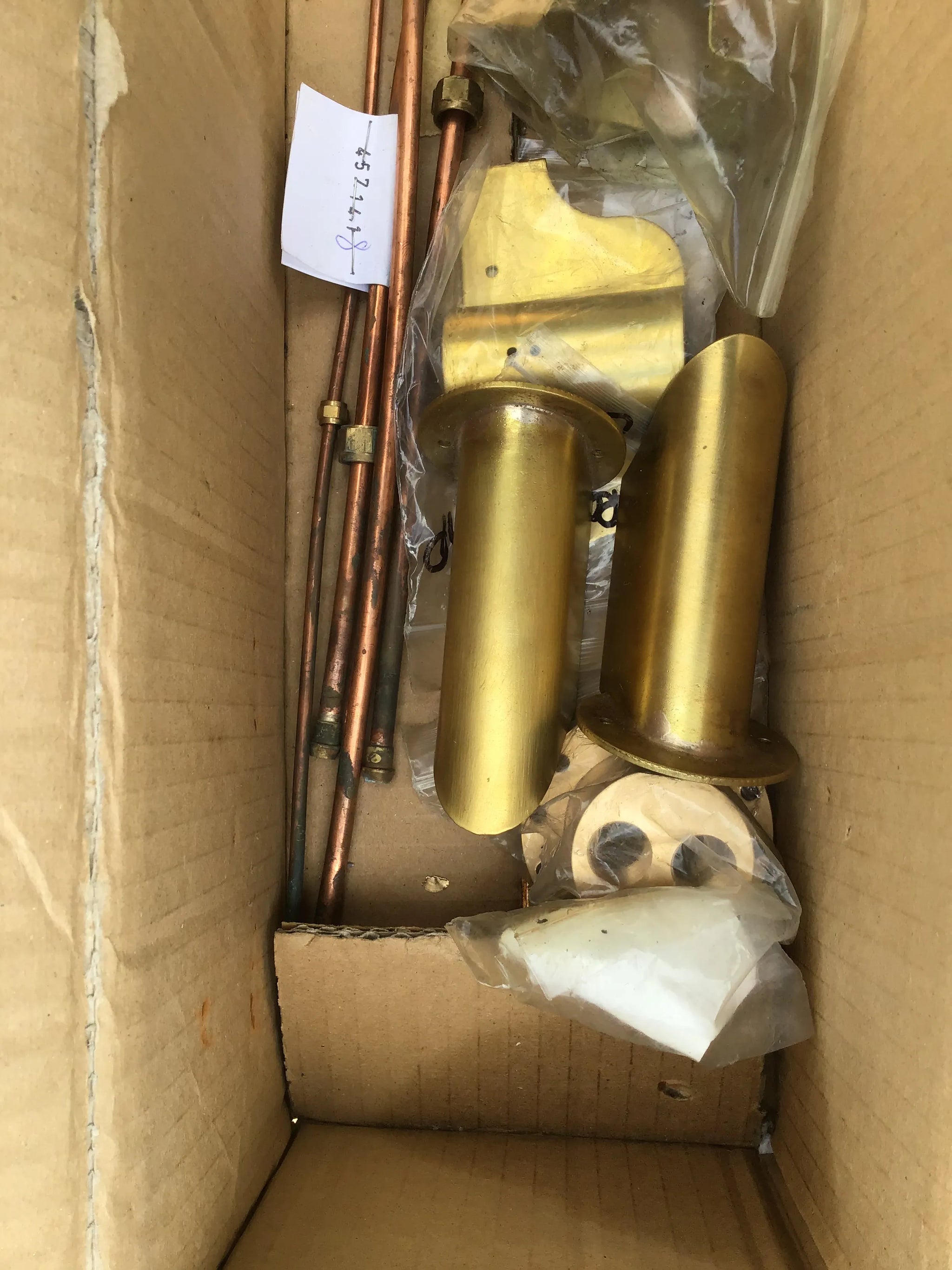

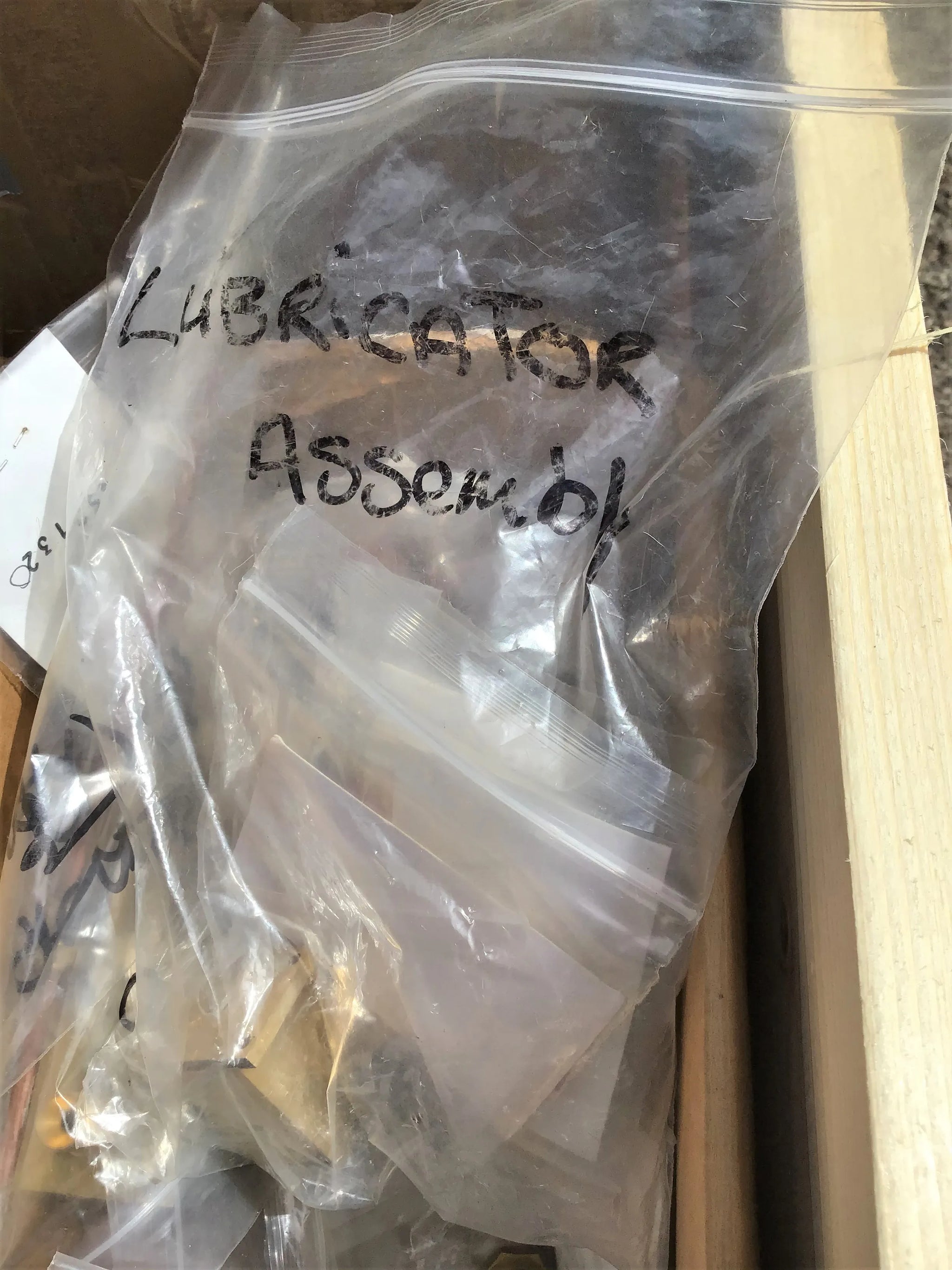

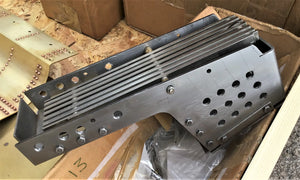

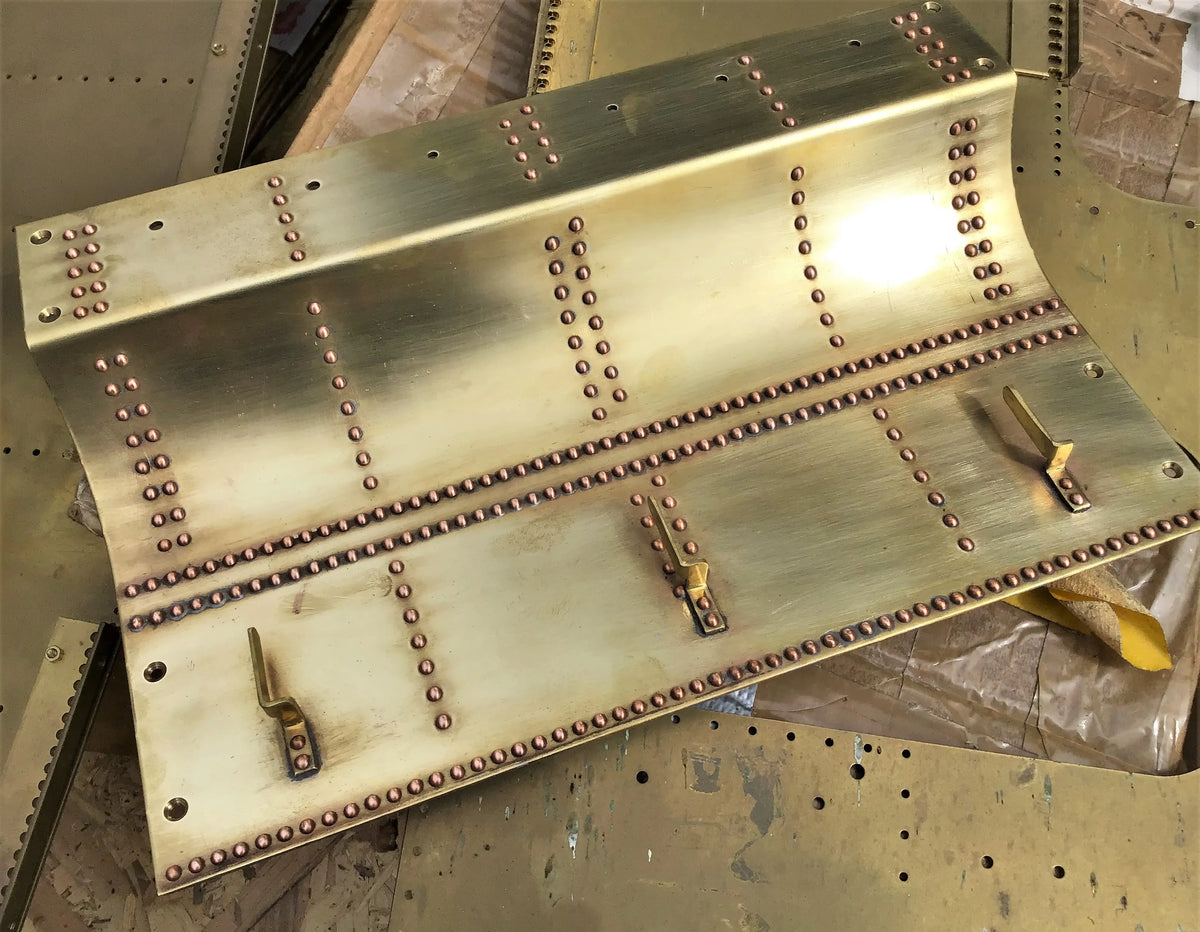

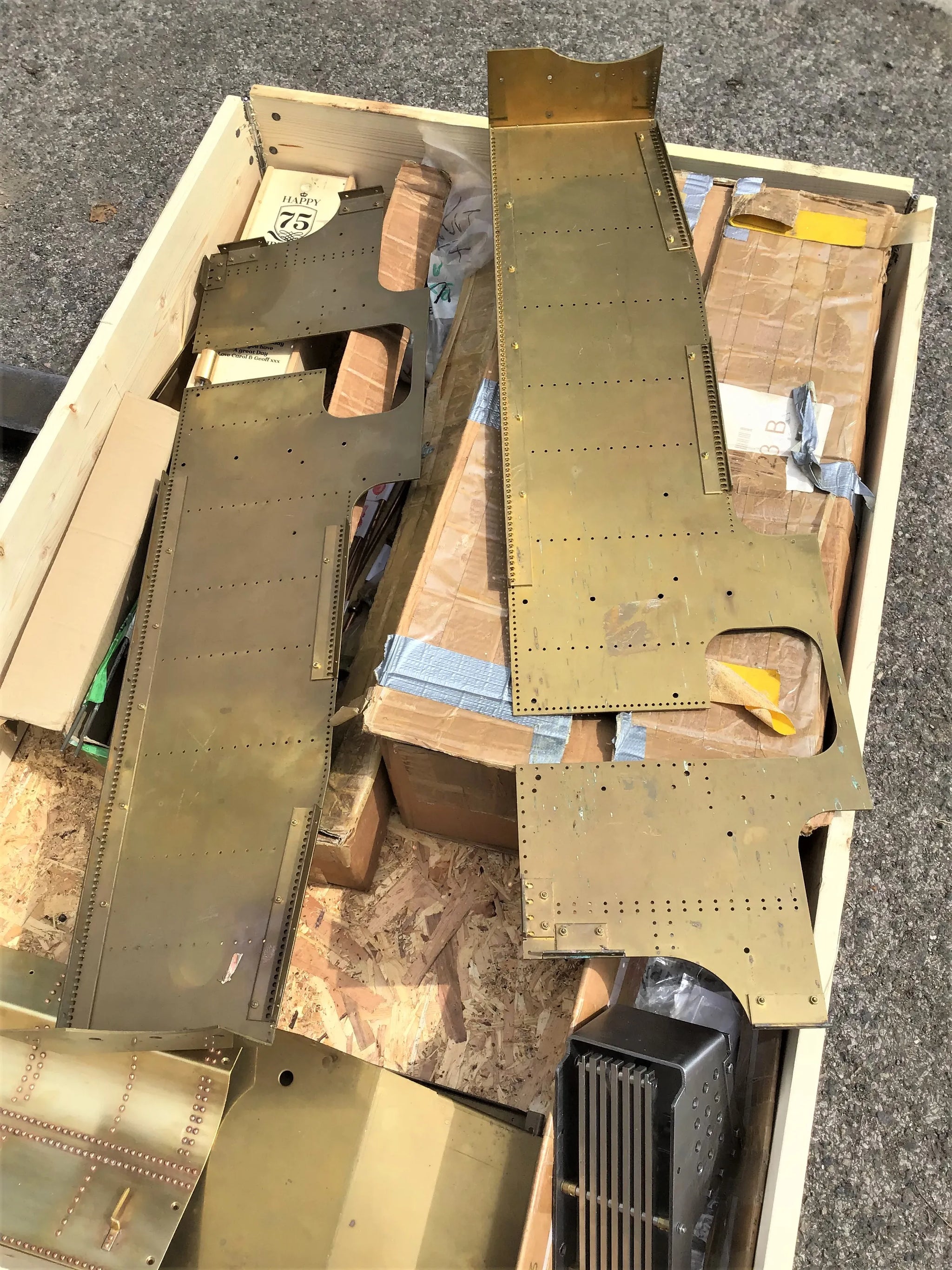

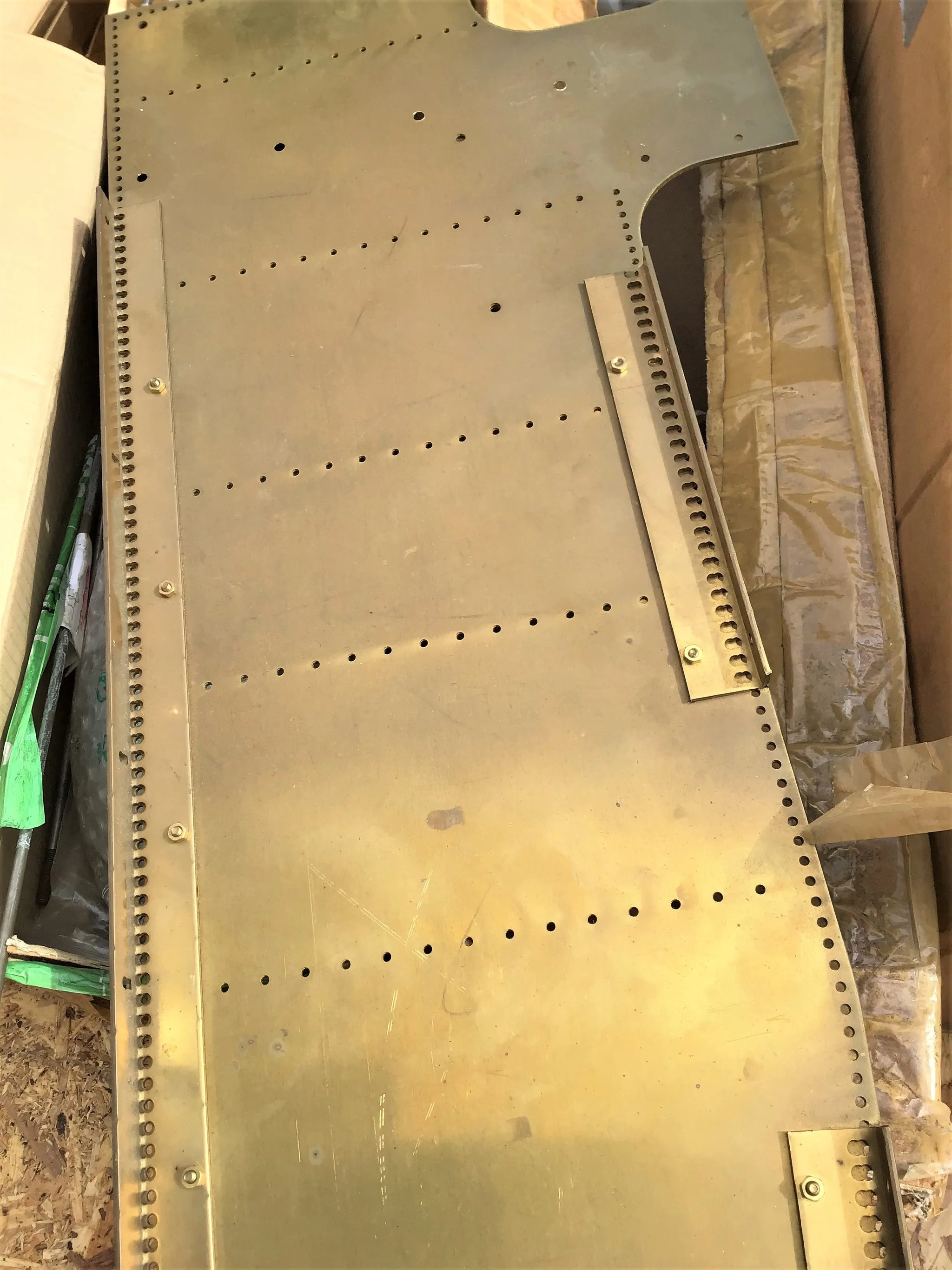

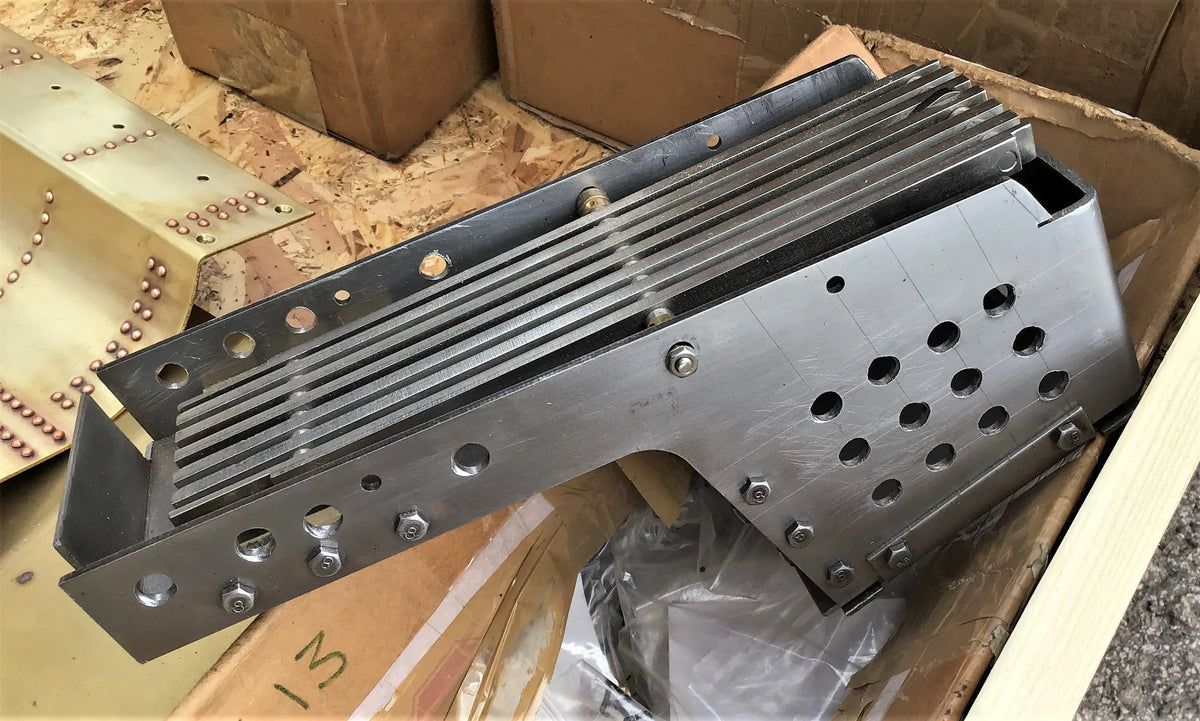

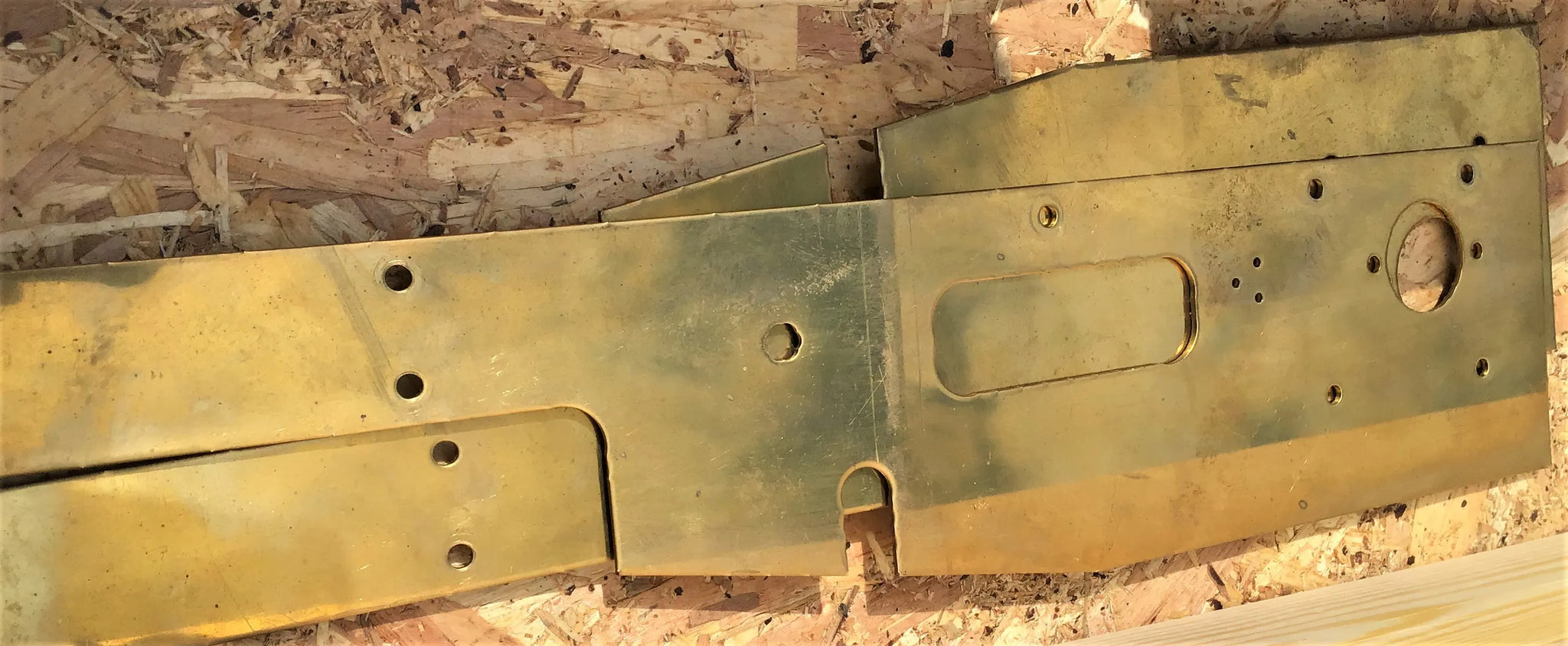

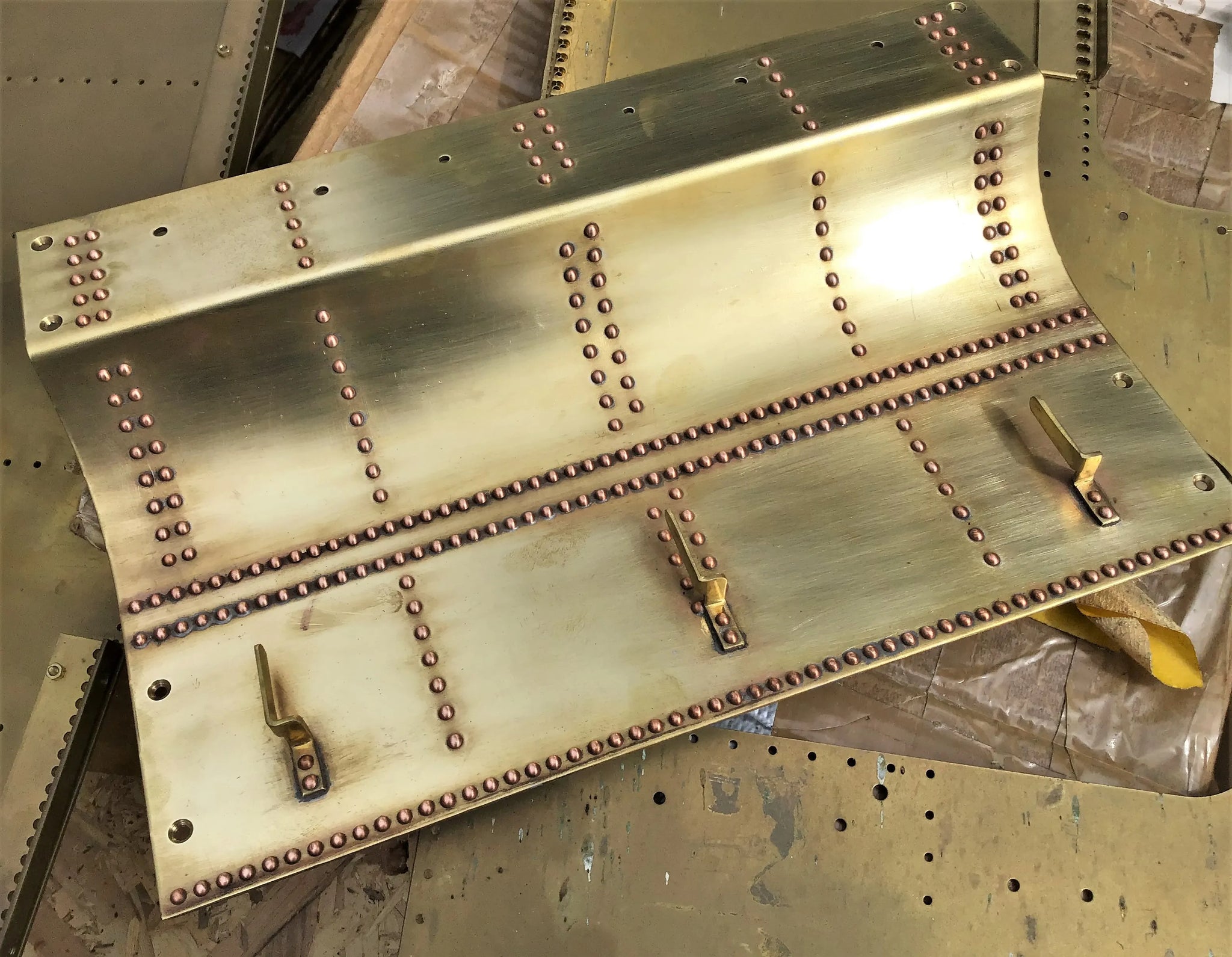

What appears to be the rest of the parts to complete - less, according to the builder, the firehole door - is contained in several boxes of parts. We haven't been through every bag and box, however it appears that all the more important bits are present.

We had one of these in last year, at a slightly more advanced stage - there are some pictures of it in the archive here.

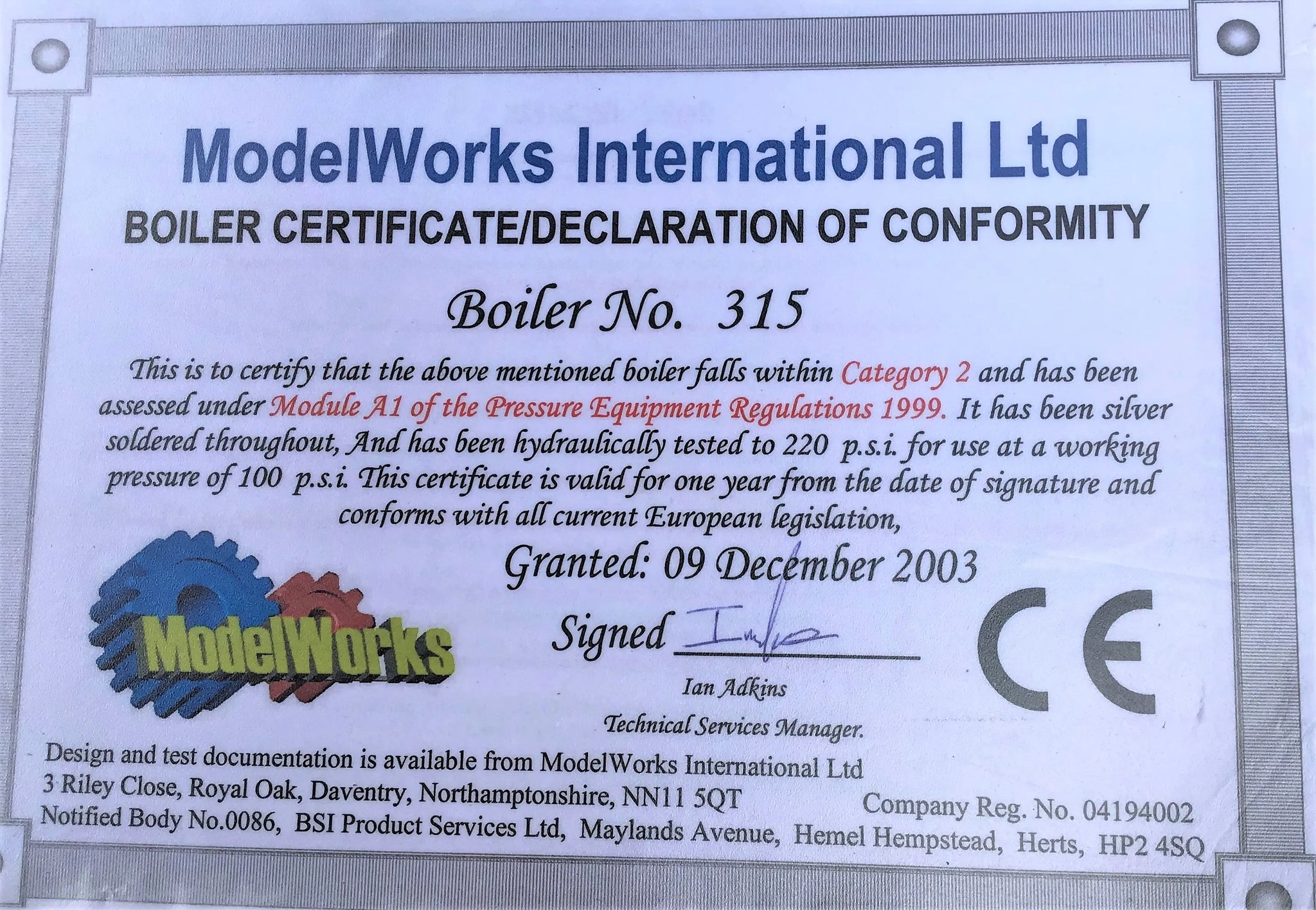

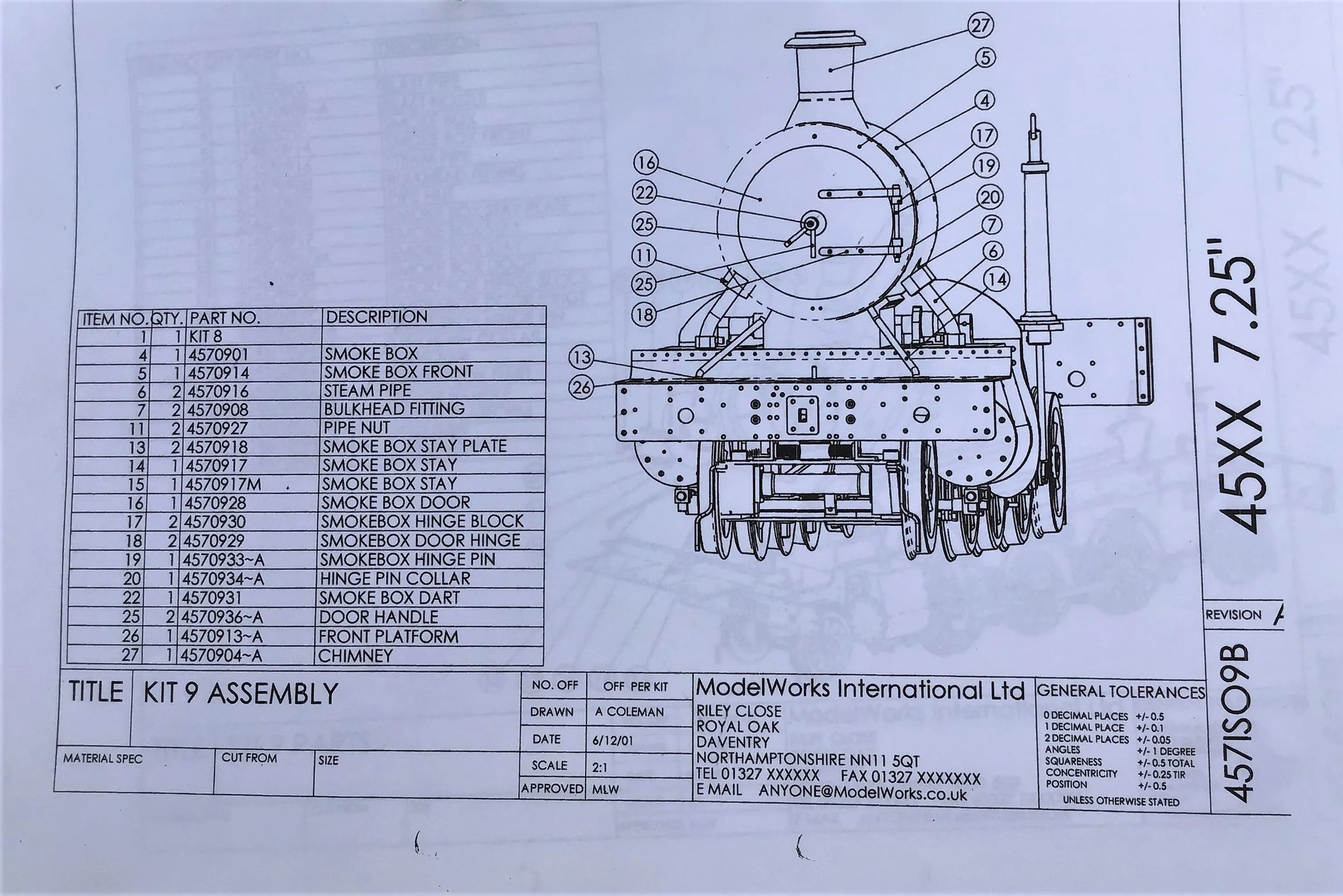

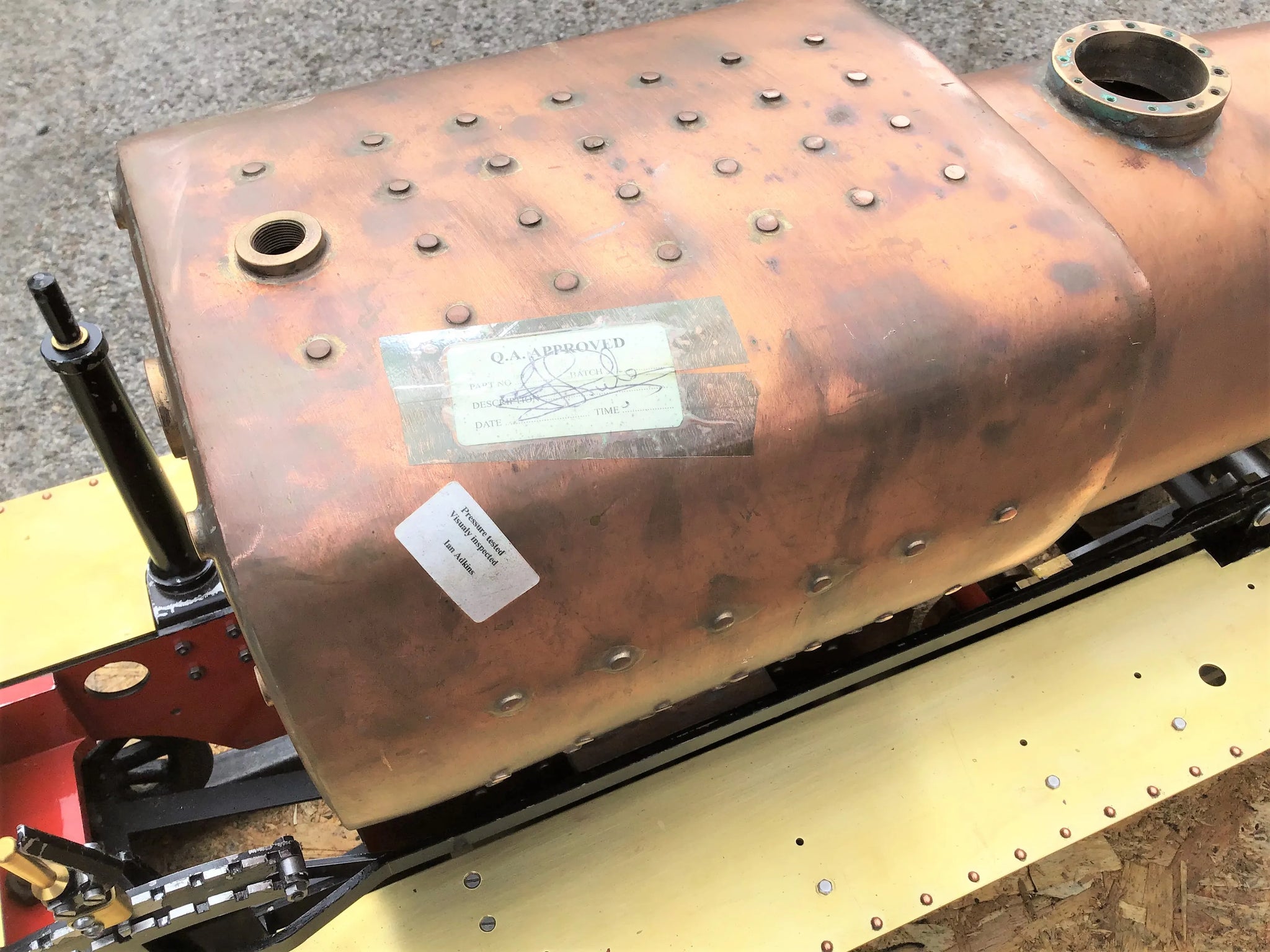

Complete with original manufacturer's boiler certificate, assembly instructions and copies of articles about the full-size engines.

Technical information

Stock code

9200

Gauge

7 1/4 inch

Length/inches

57

Width/inches

13

Height/inches

20

Weight/Kg

manufacturer quotes 152

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

ModelWorks International

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

yes

Year built

2003

Boiler number

315

Safety valve type

spring

Safety valve

2

Fusible plug

yes

Bore x stroke

2.175 x 4.1

Hand pump

yes

Superheater type

radiant

Superheater

2

Date out

Oct-20
