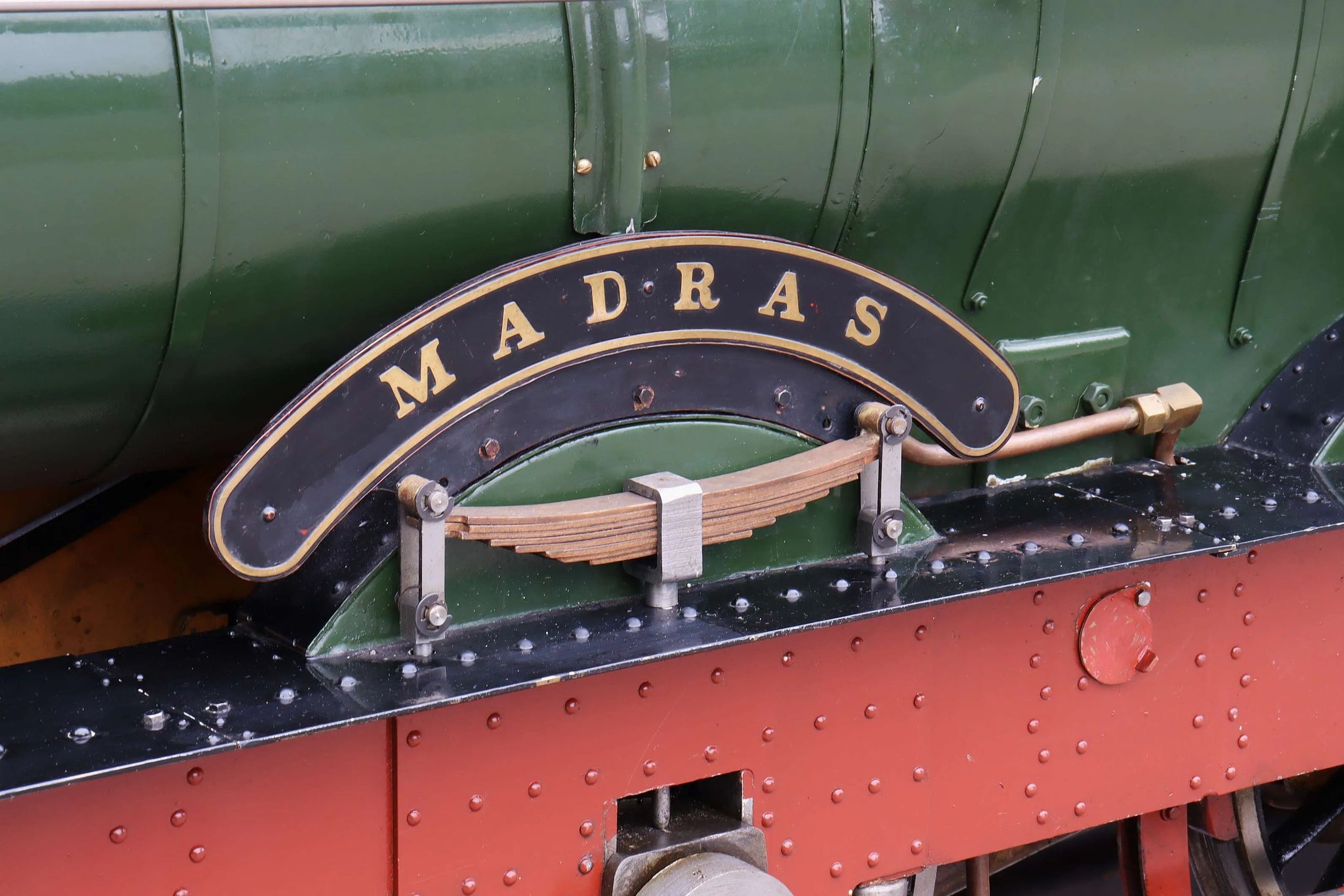

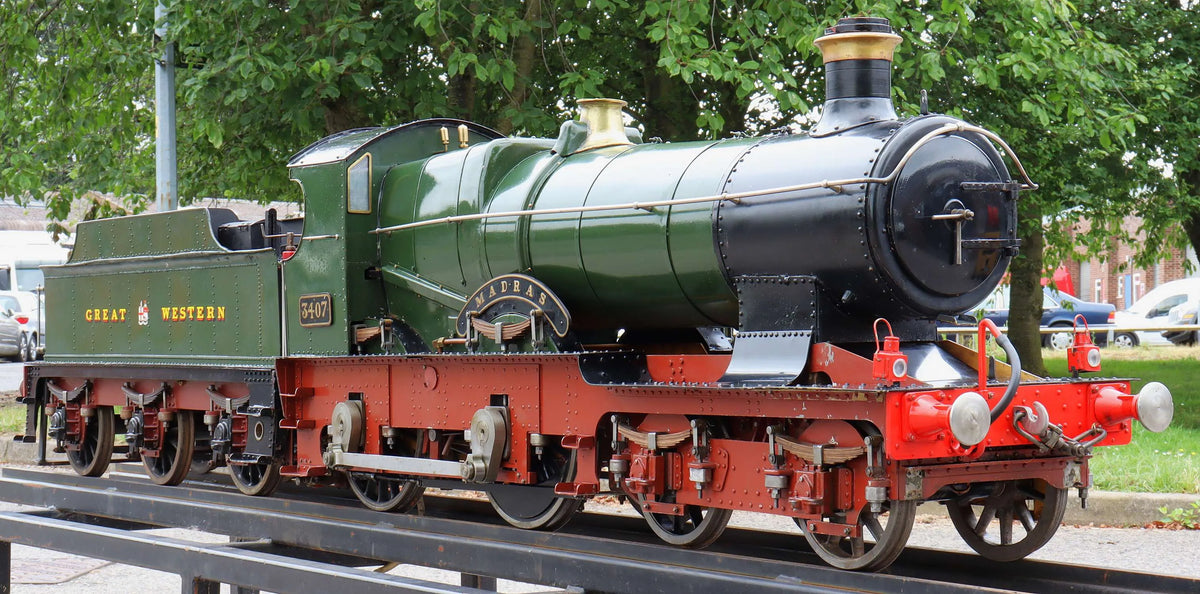

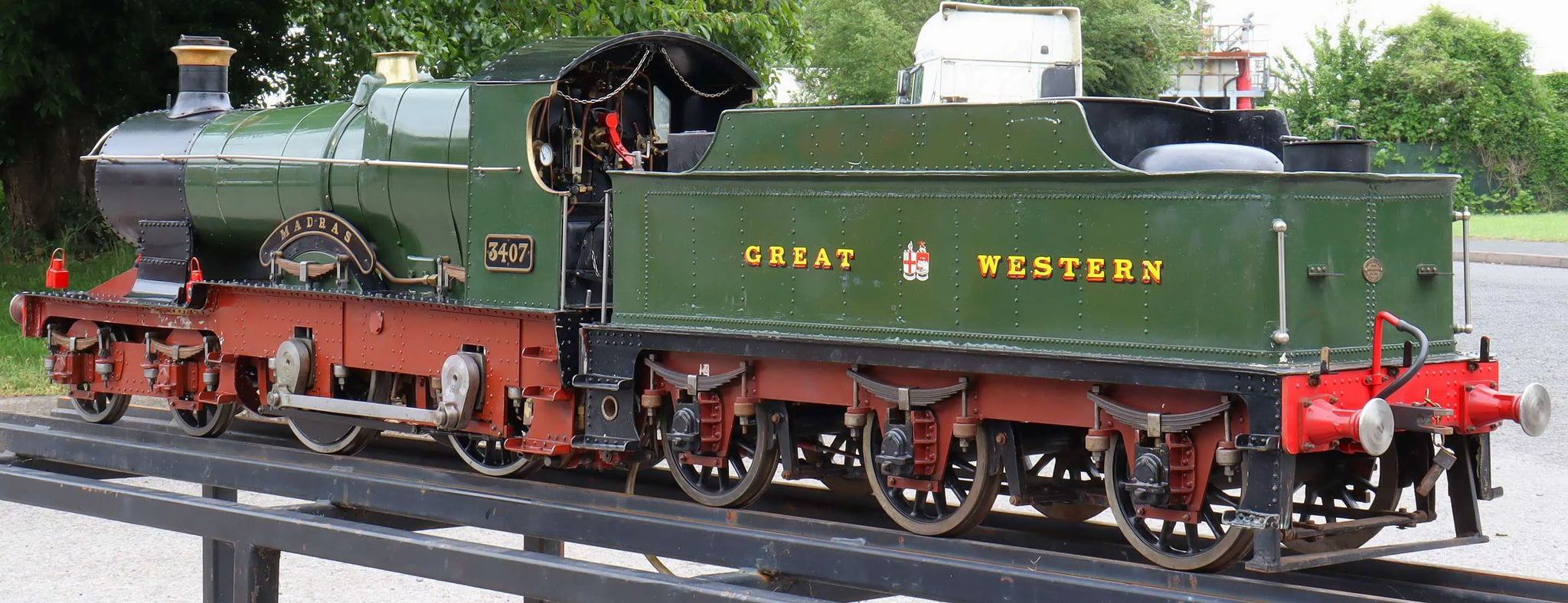

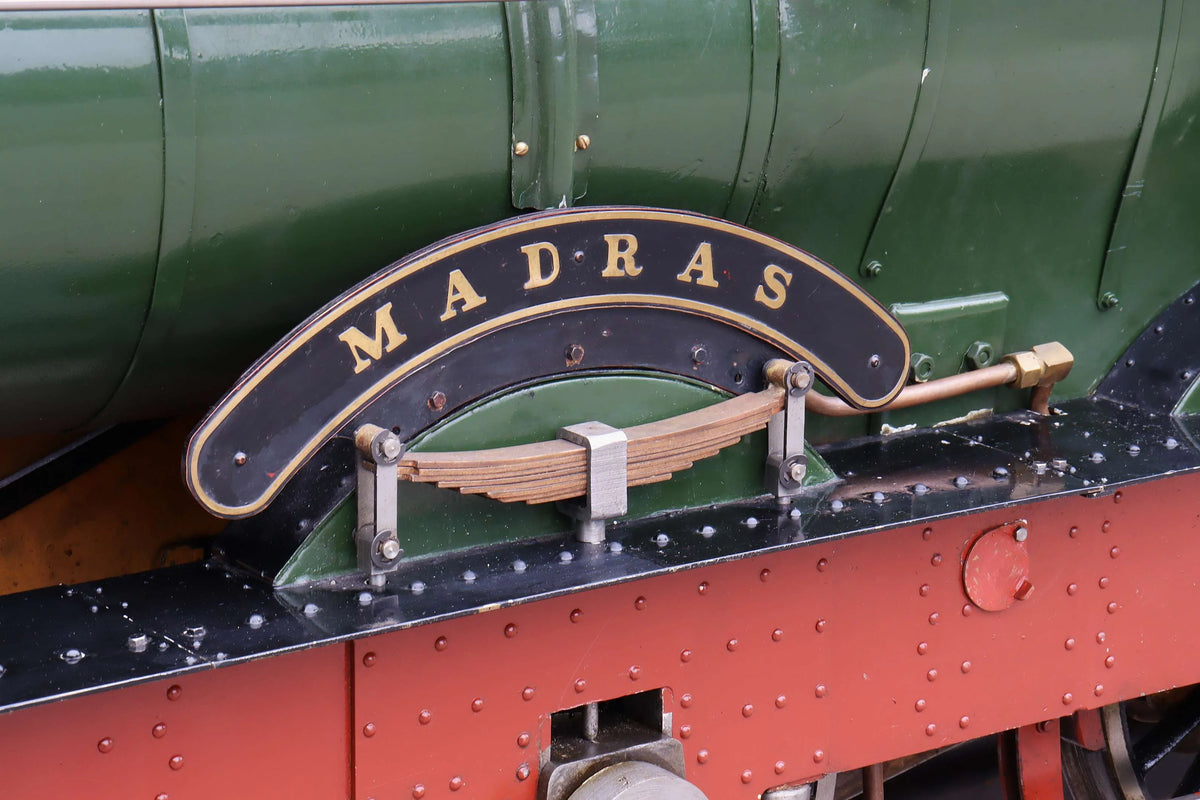

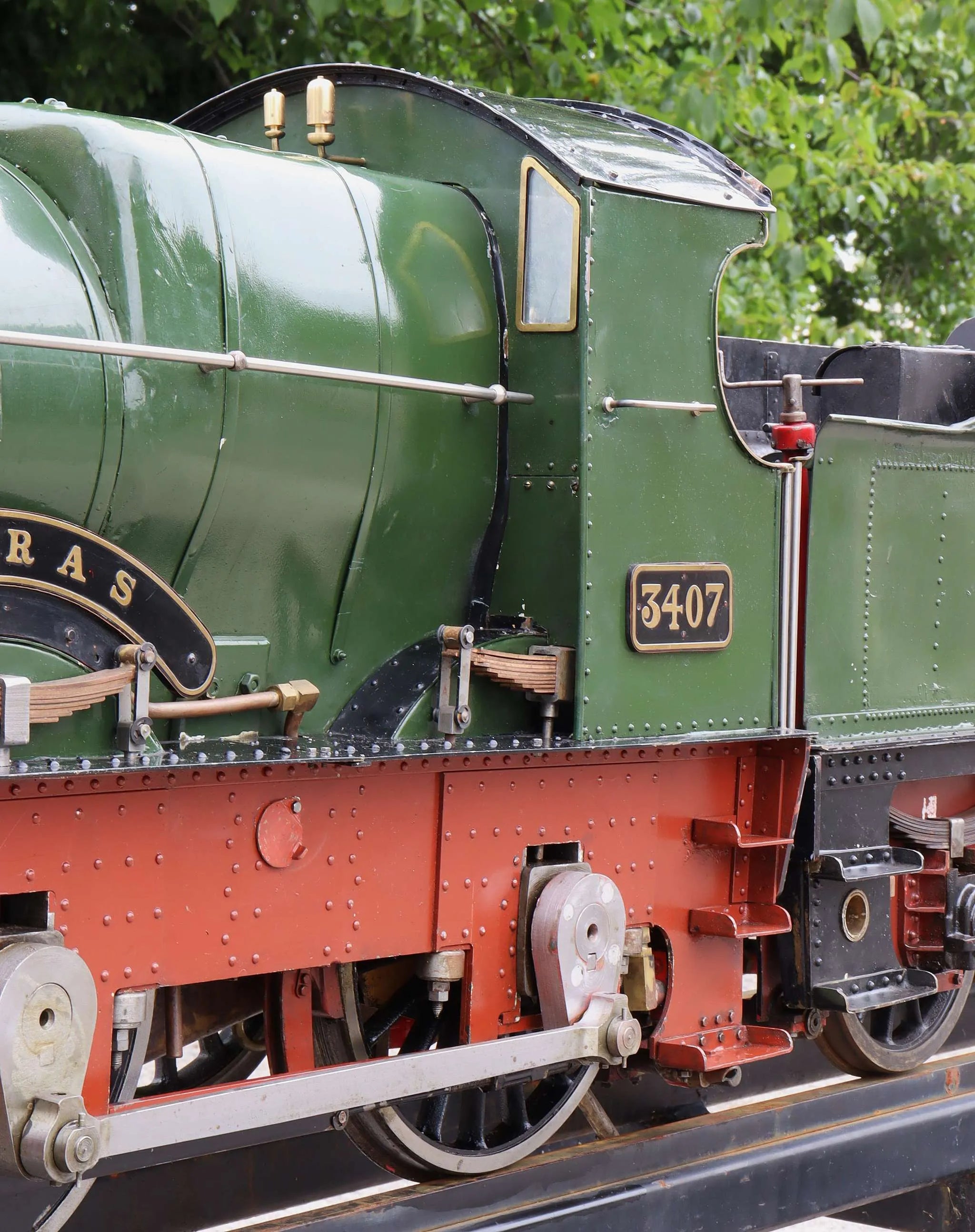

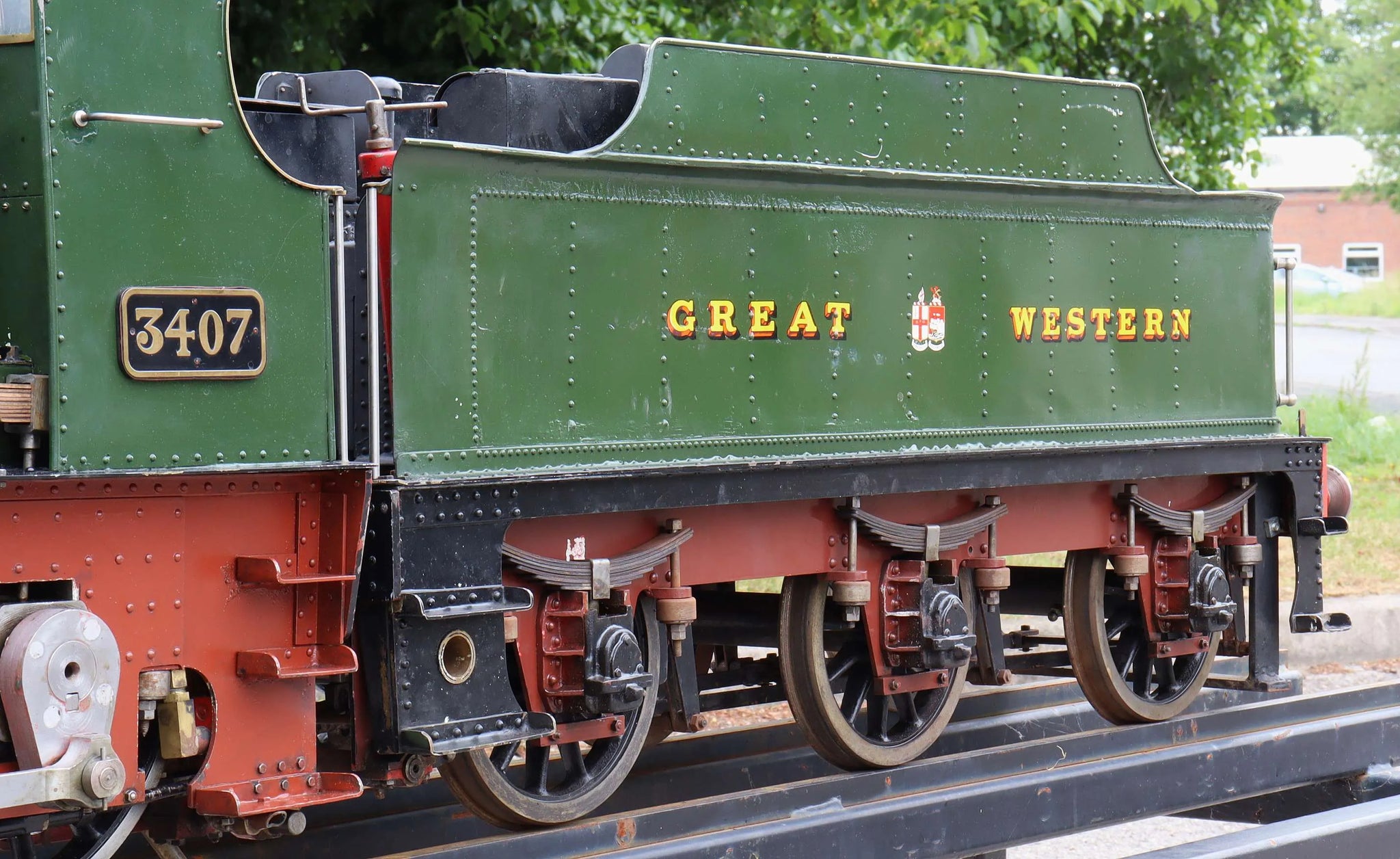

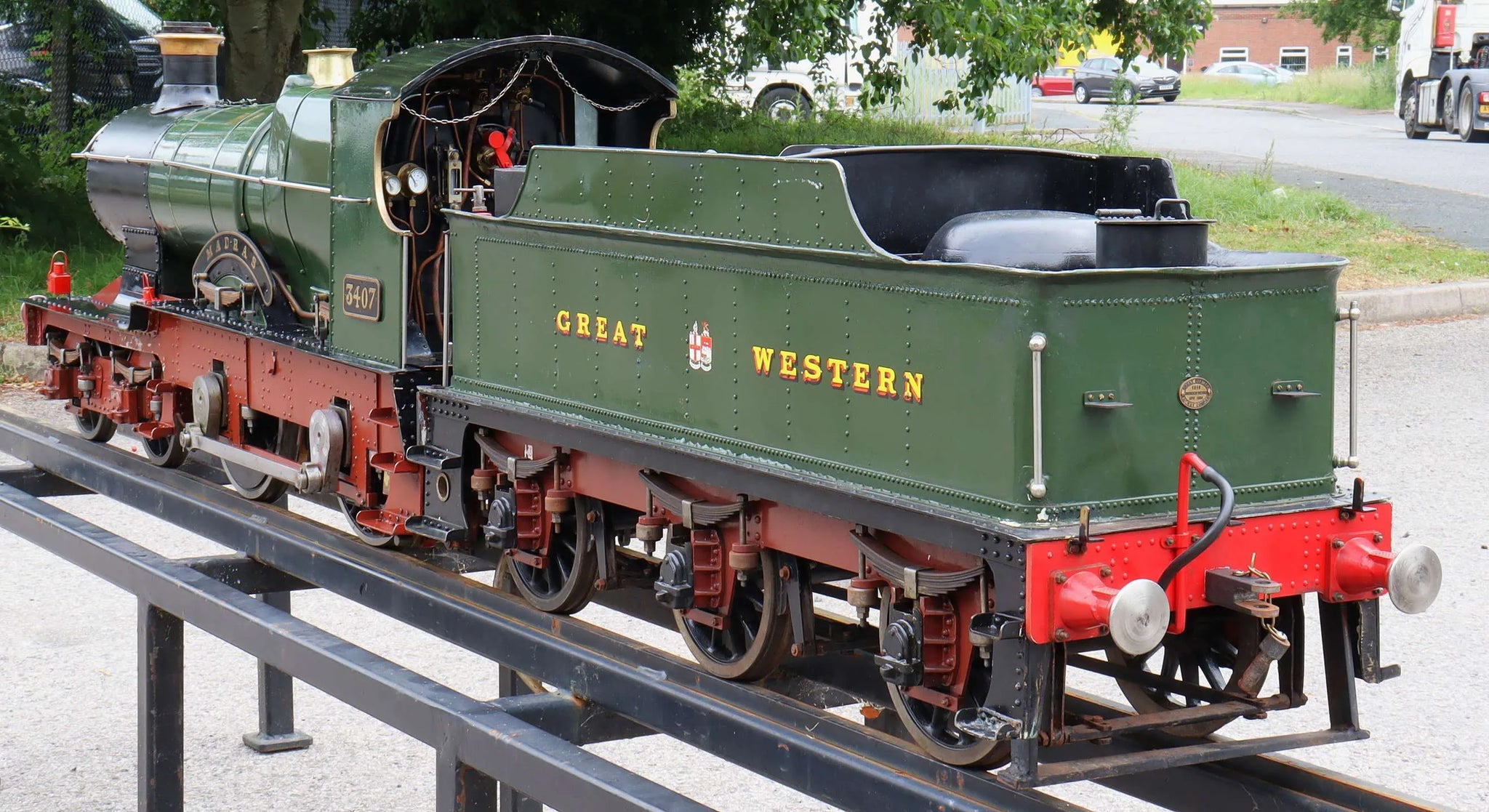

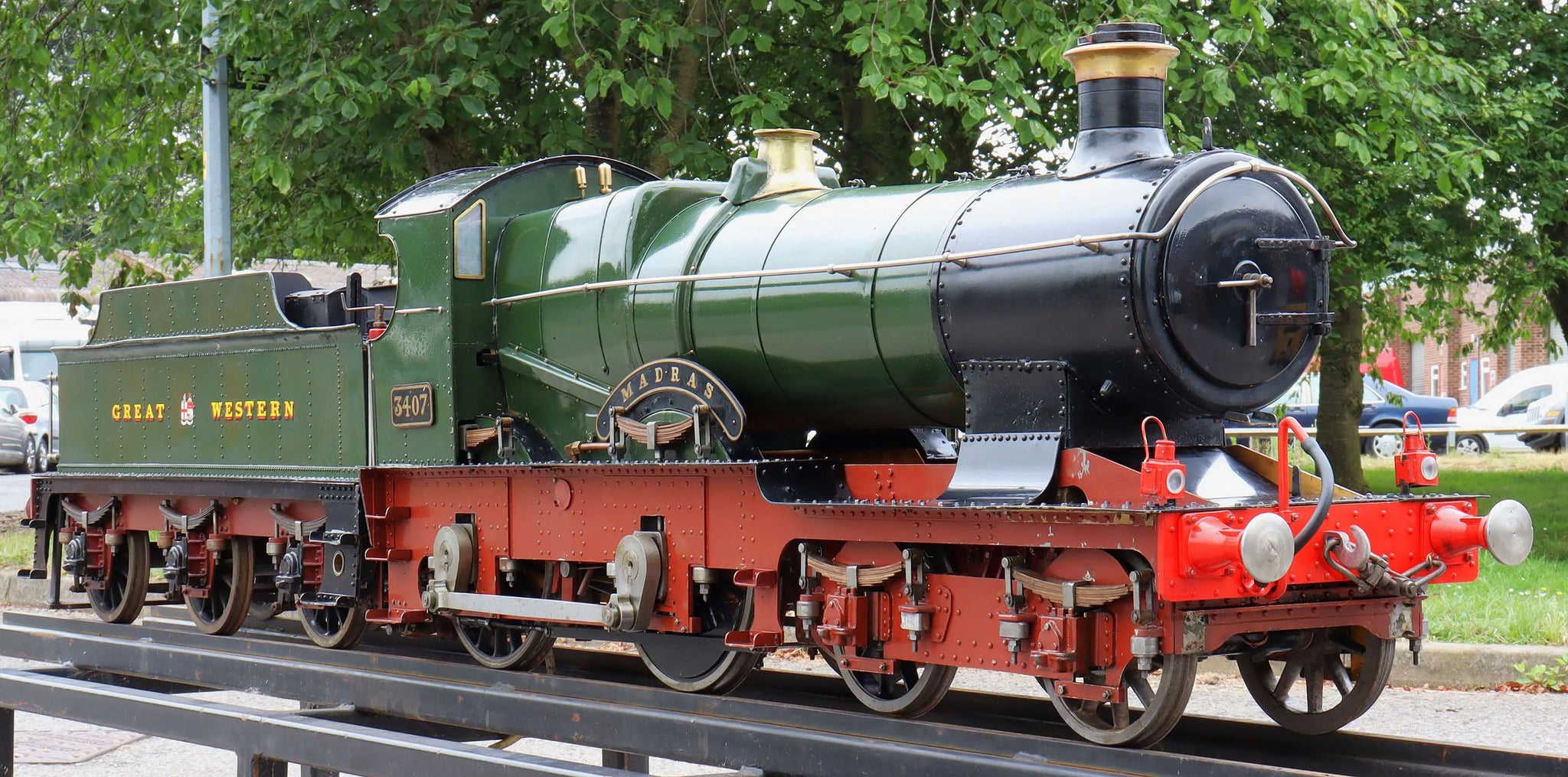

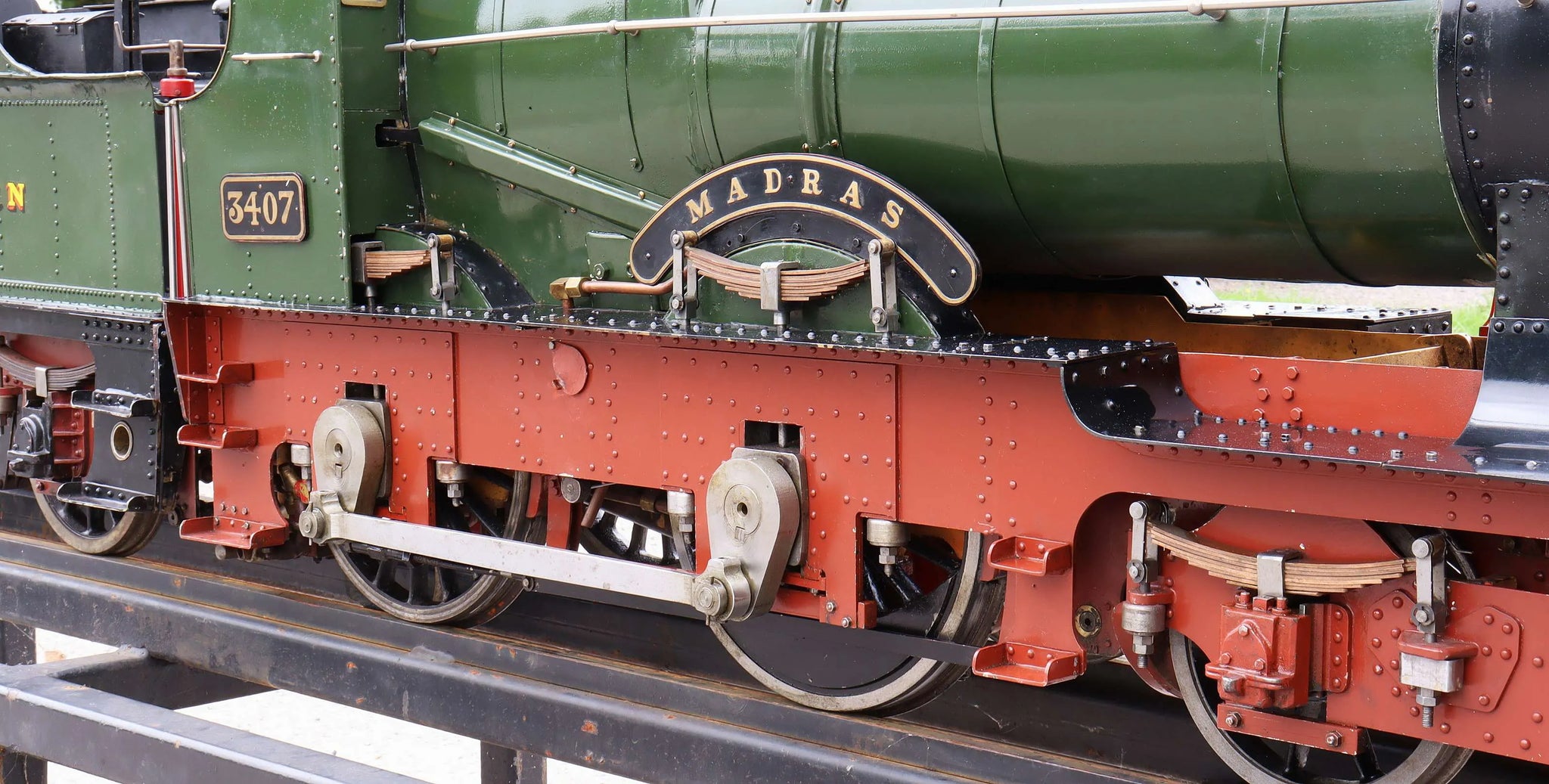

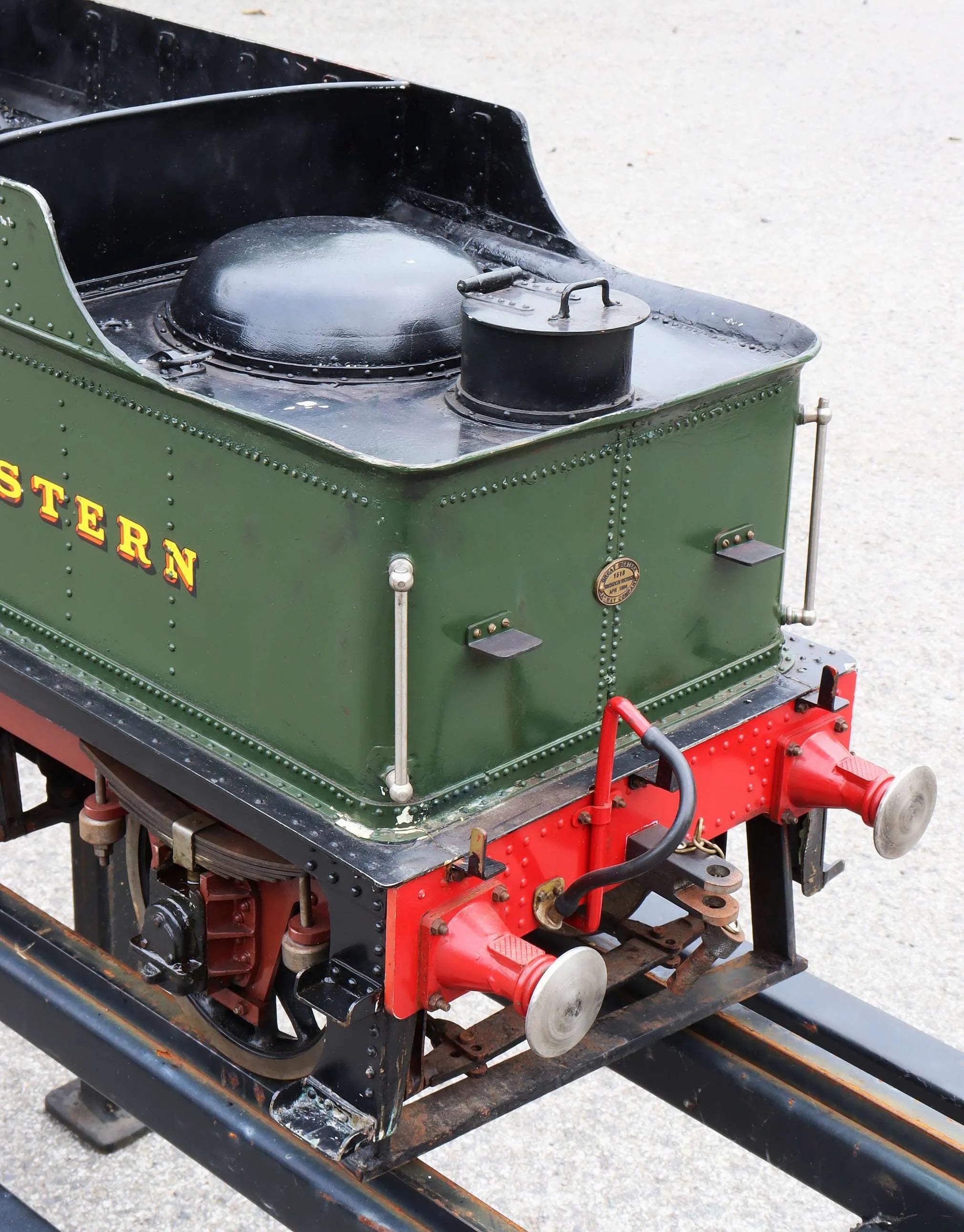

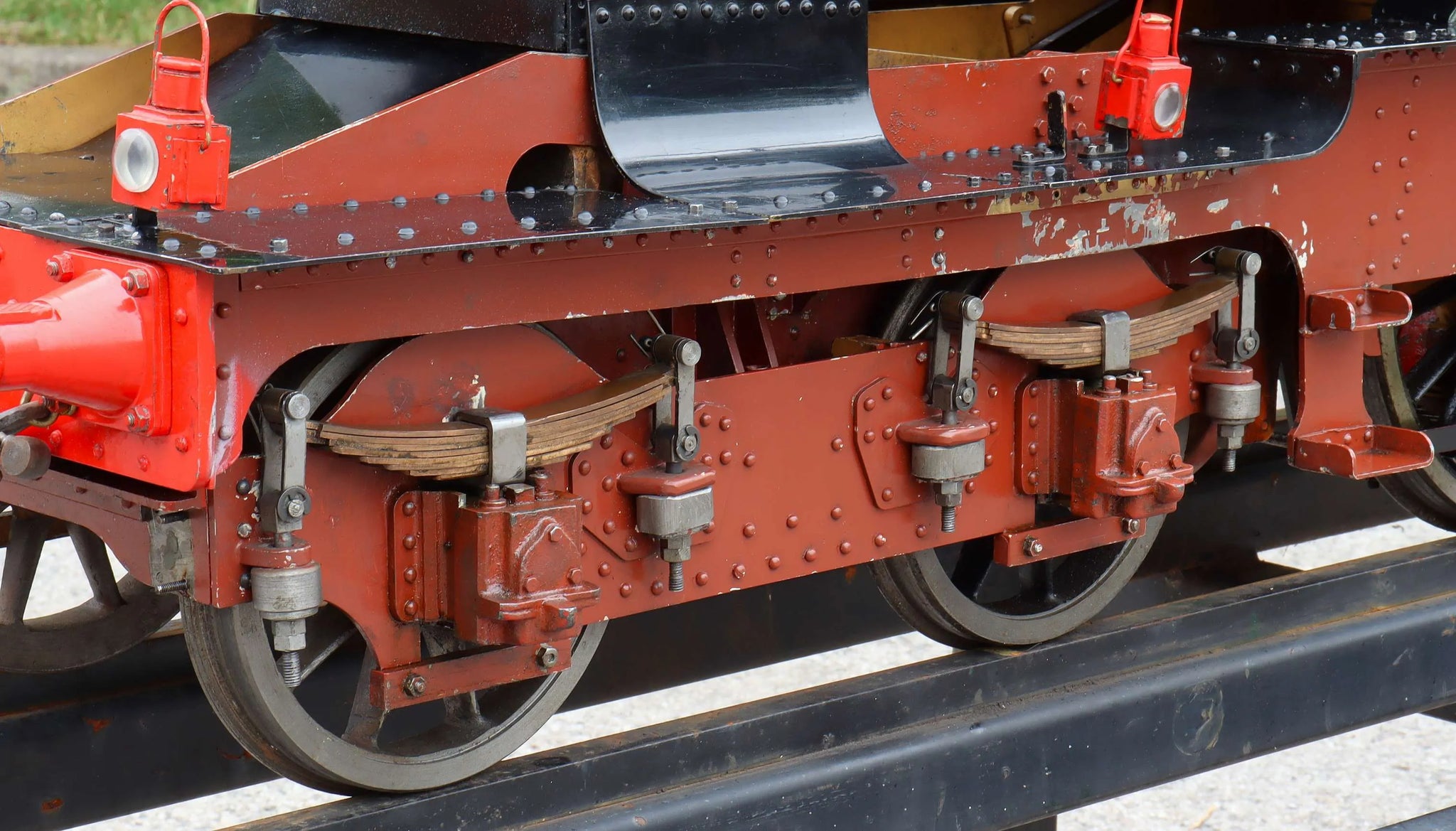

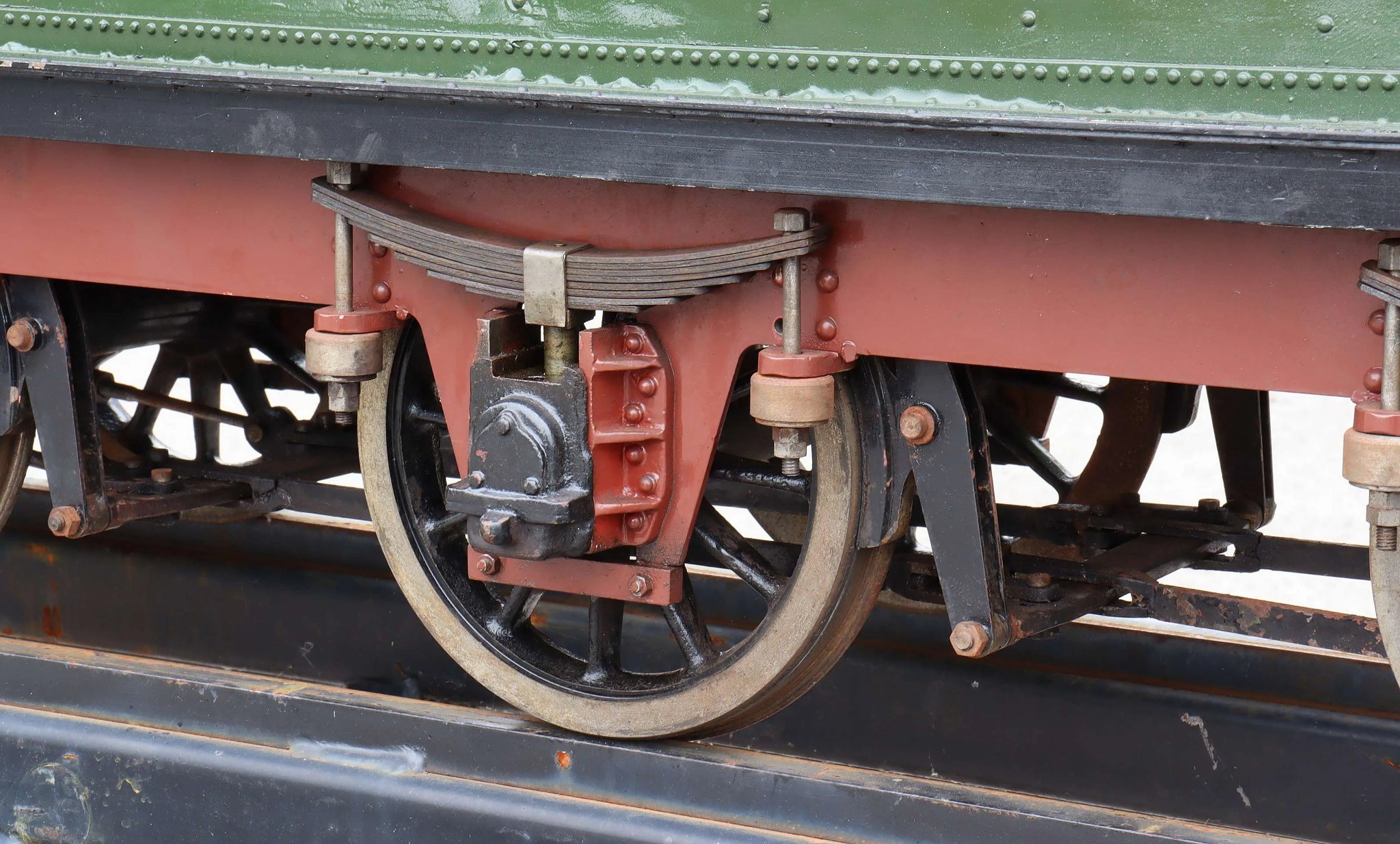

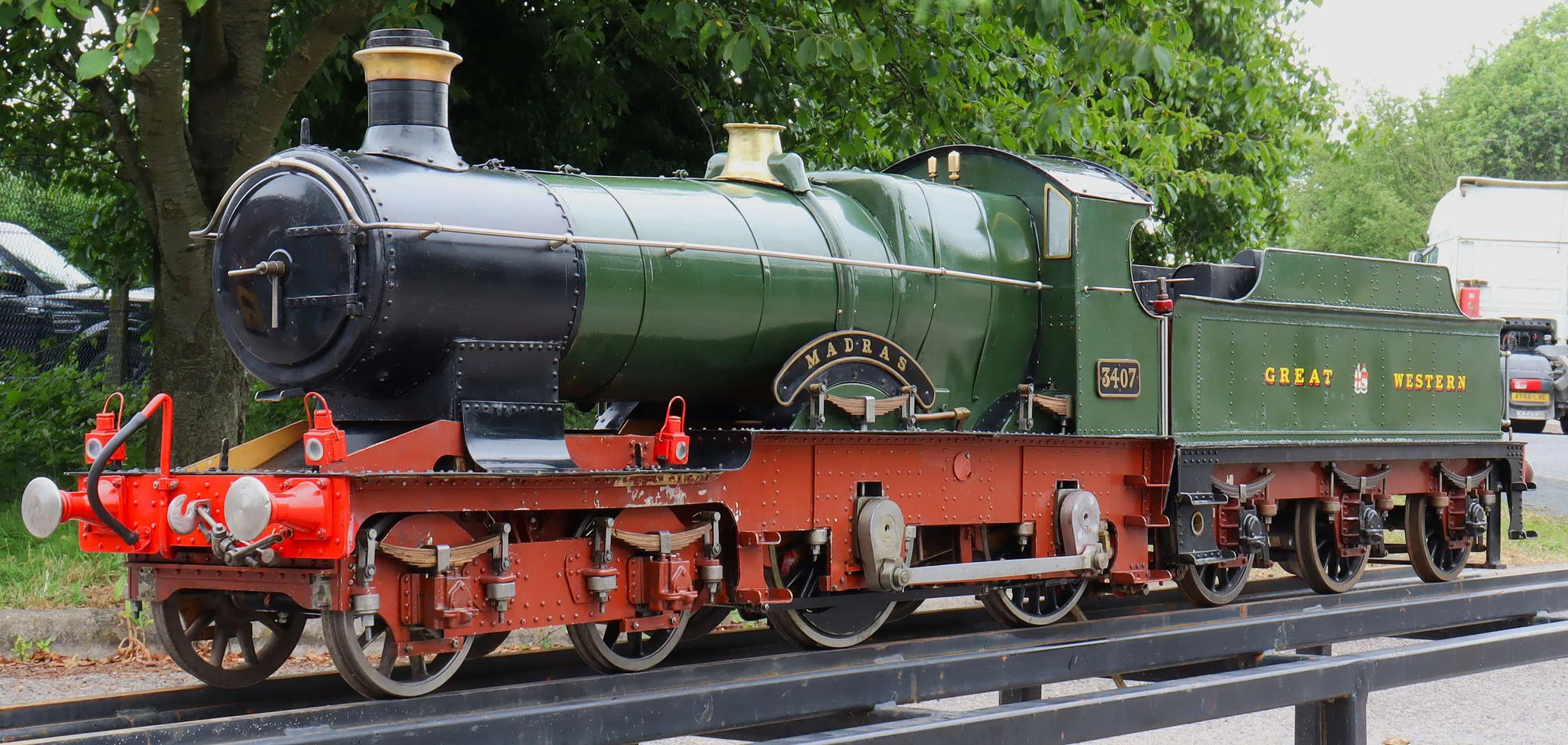

7 1/4 inch gauge GWR Bulldog 4-4-0 "Madras"

A 7 1/4 inch gauge GWR "Bulldog", it's come to us from the son of one of the best known builders of Great Western engines in this gauge - a designer and author of repute, his son has continued building locomotives and rolling stock in both this and 5 inch gauge.

A supremely elegant design by William Dean, a class of 136 engines were built between 1899 and 1911, with a further 20 locomotives rebuilt from earlier "Duke" class engine.

The boiler has had recent hydraulic and steam tests with new certification issued, both injectors work well.

The regulator leaks on hydraulic test when cold, taking up considerably under steam. The engine runs on air with crisp exhaust beats, it steams well, running slightly better in reverse than forwards - this could be improved by careful attention to eccentric and valve settings.

Technical information

Stock code

11369

Gauge

7 1/4 inch

Length/inches

48+38

Width/inches

13

Height/inches

19

Weight/Kg

185

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

screw

Lubricator type

mechanical

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

n/a - non-commercial

Year built

2004

Boiler number

N11-100-360

Safety valve type

Salter

Safety valve

2

Whistle

yes

Injector

2

Superheater type

radiant

Superheater

4

Date out

Nov-23

Hydraulic test valid to

11-Jun-27

Steam test valid to

27-Aug-24
