7 1/4 inch gauge GWR Class 1366 Pannier Tank 0-6-0

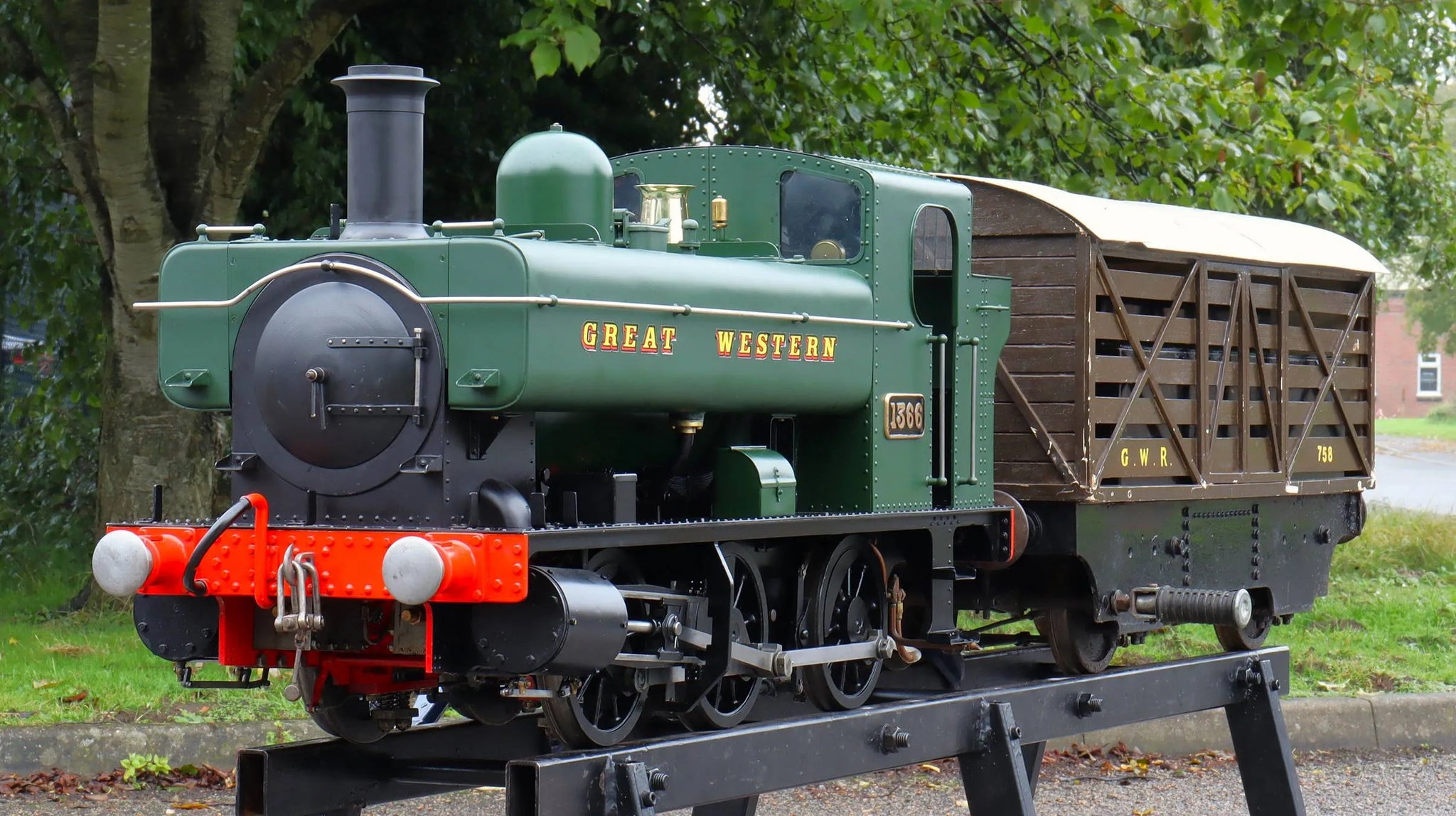

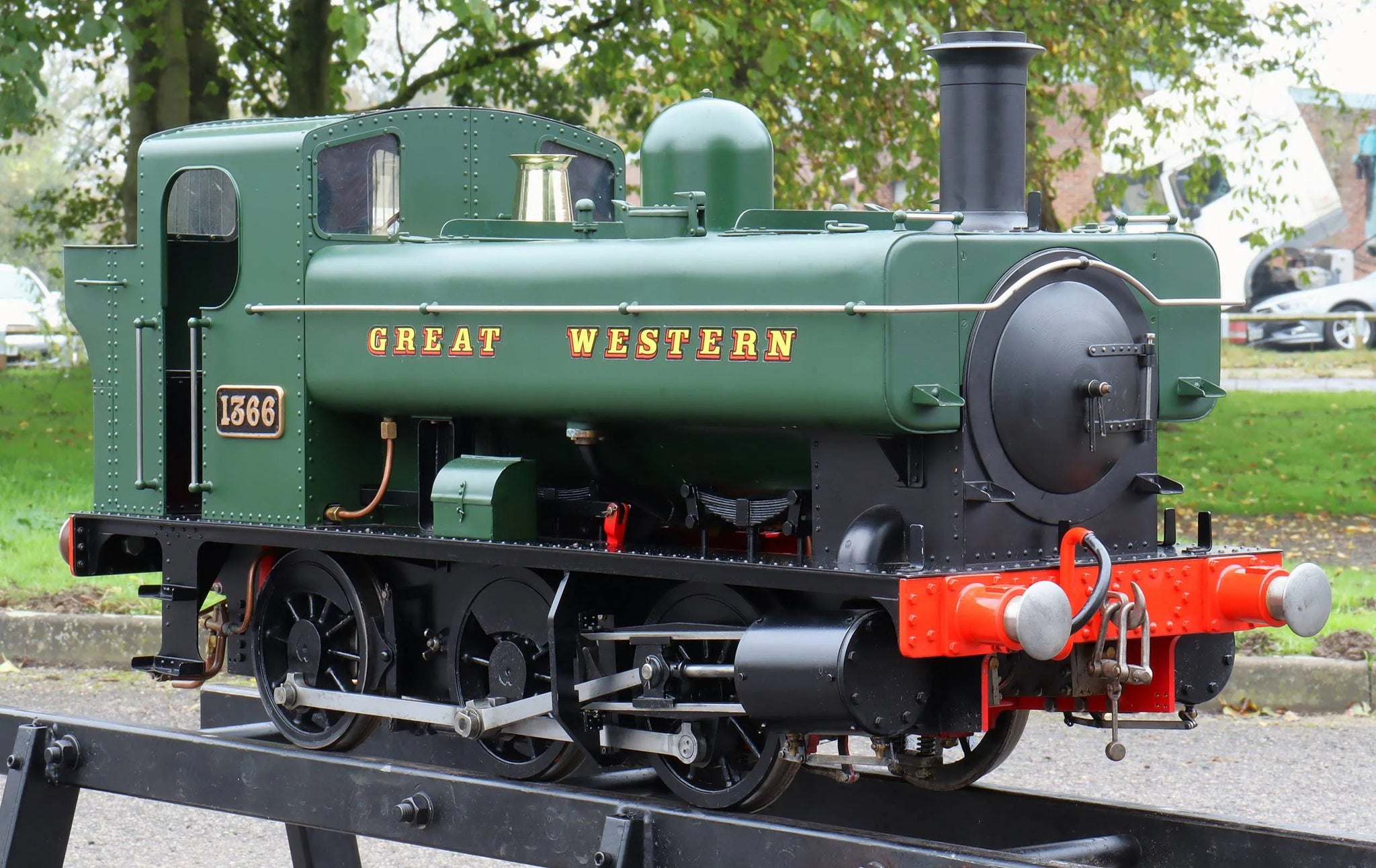

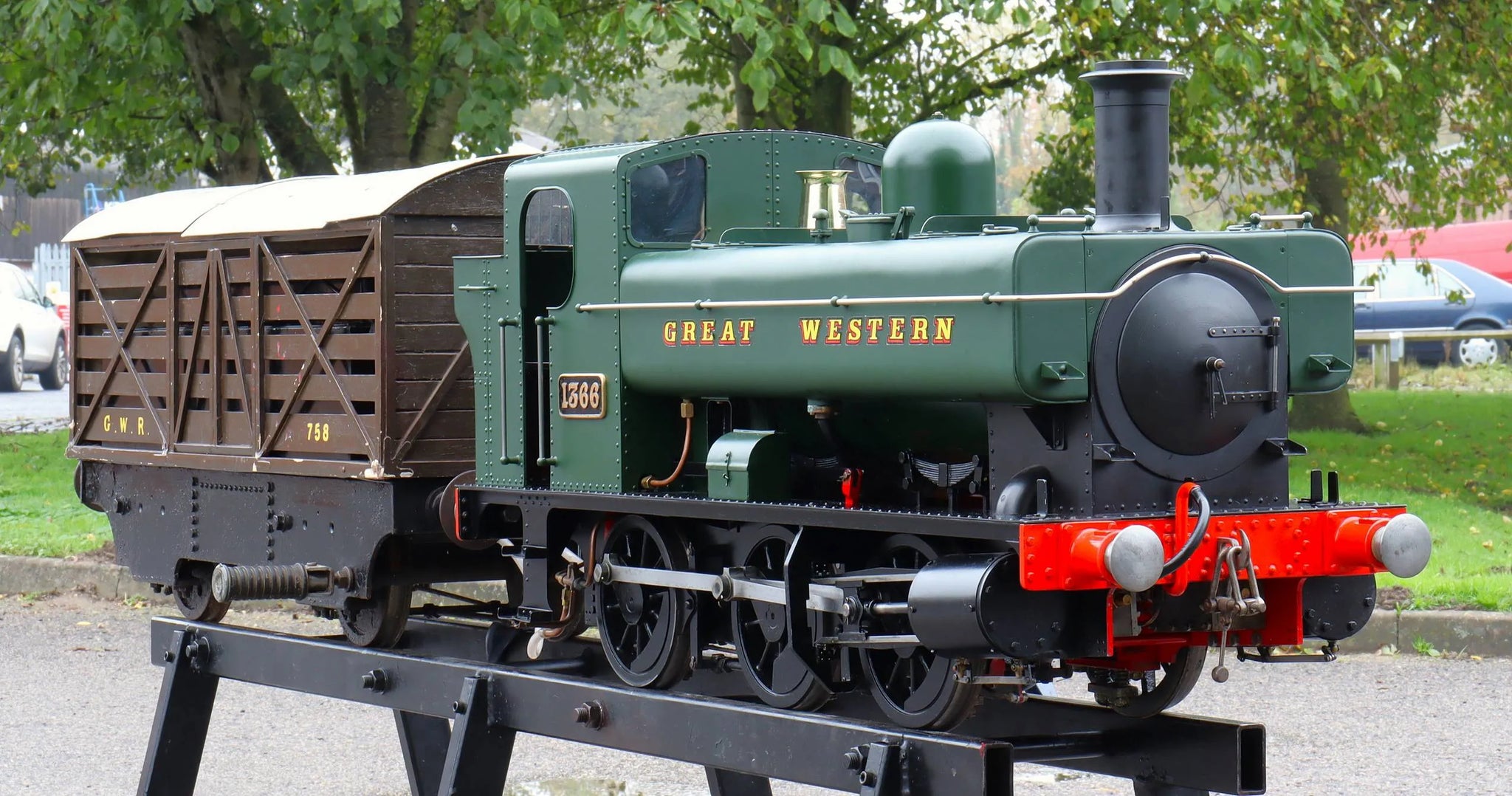

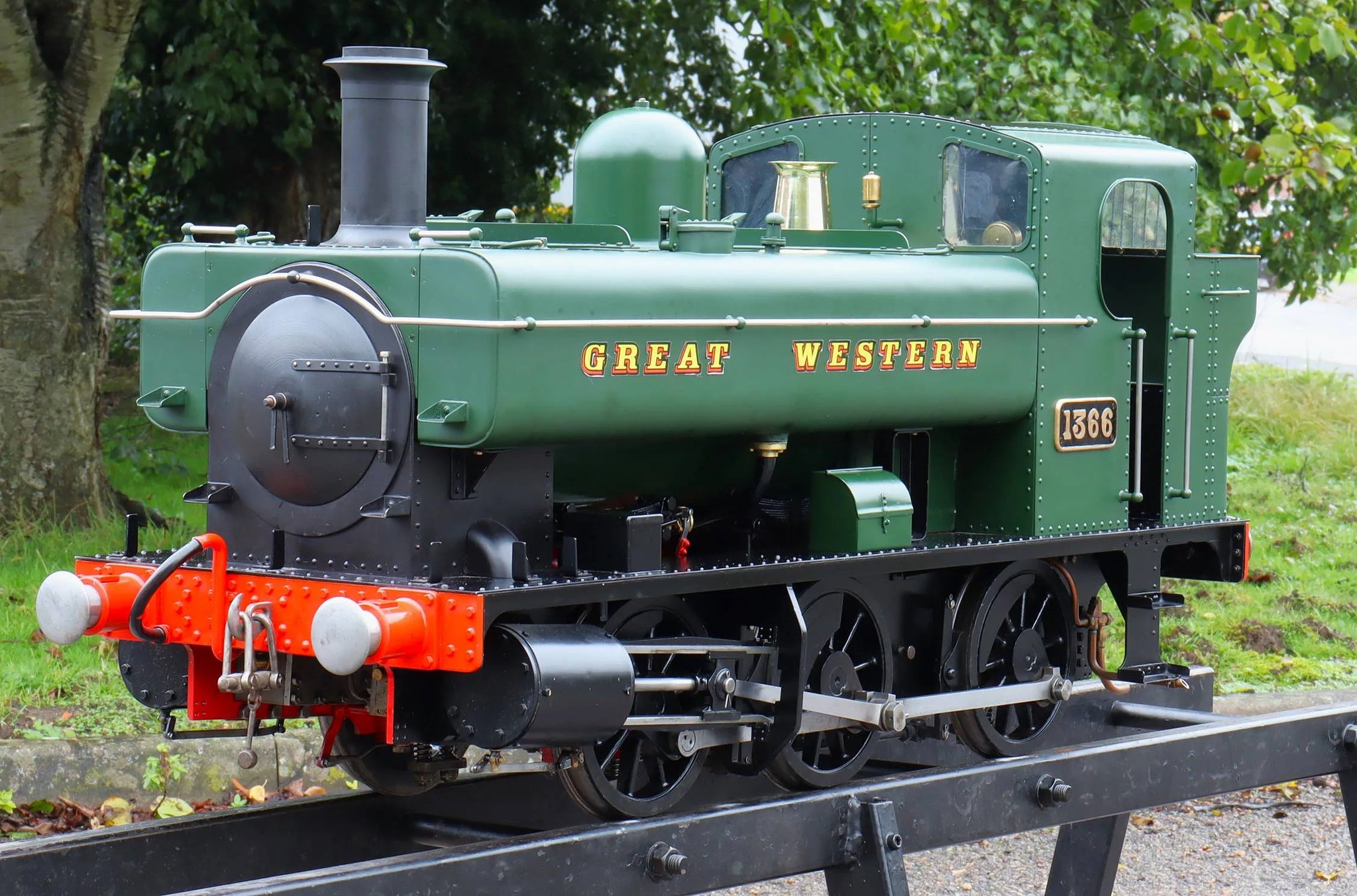

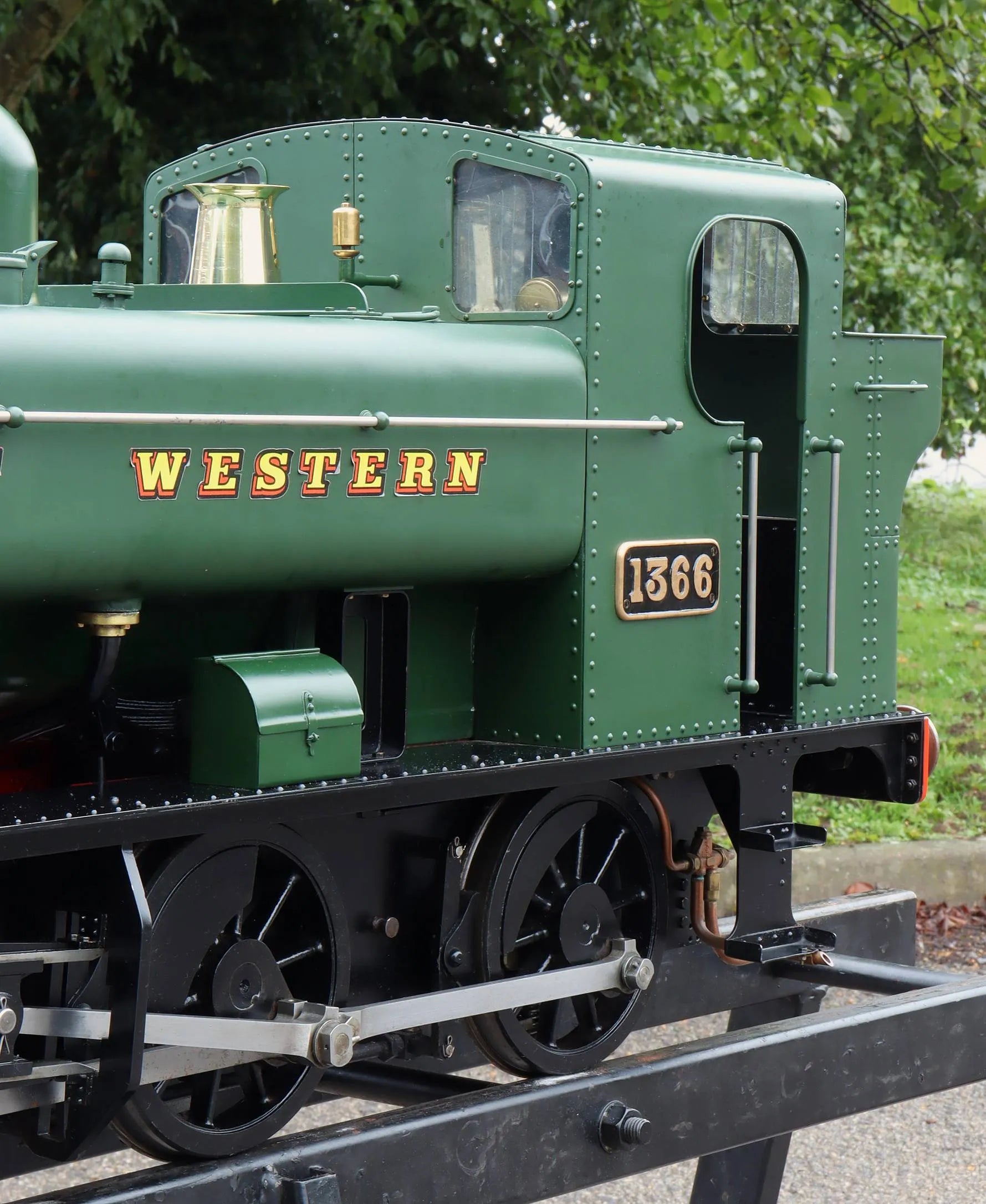

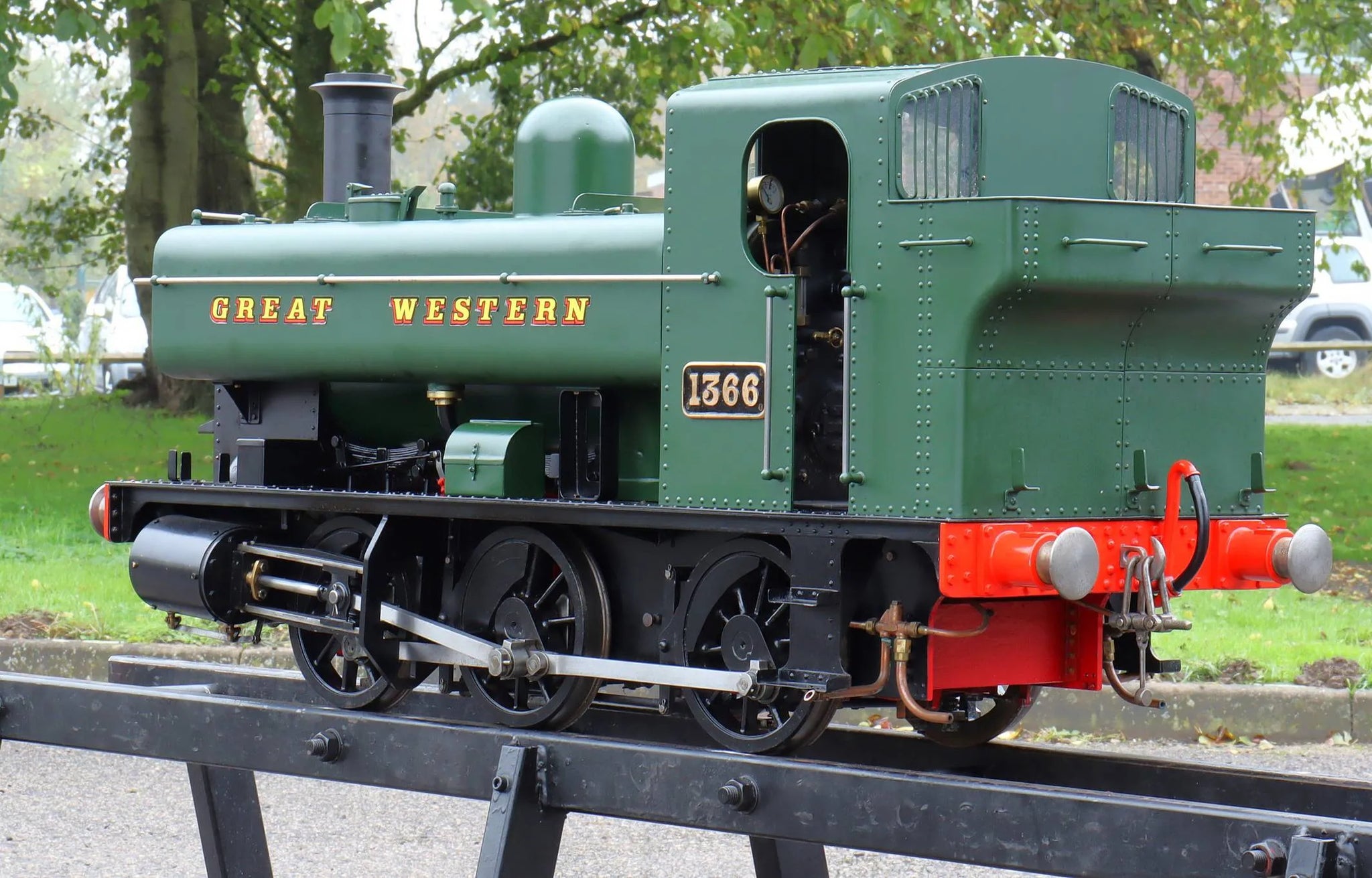

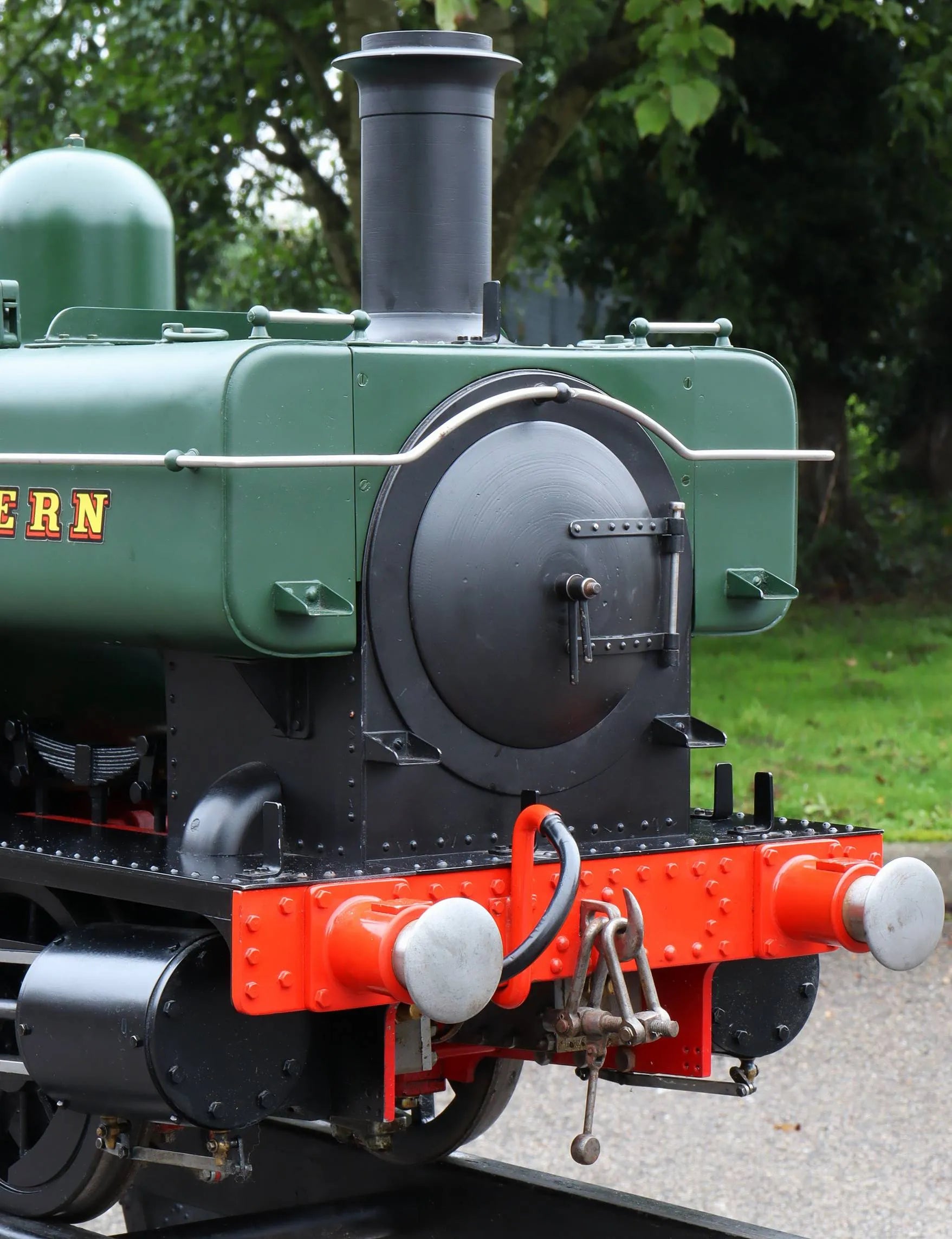

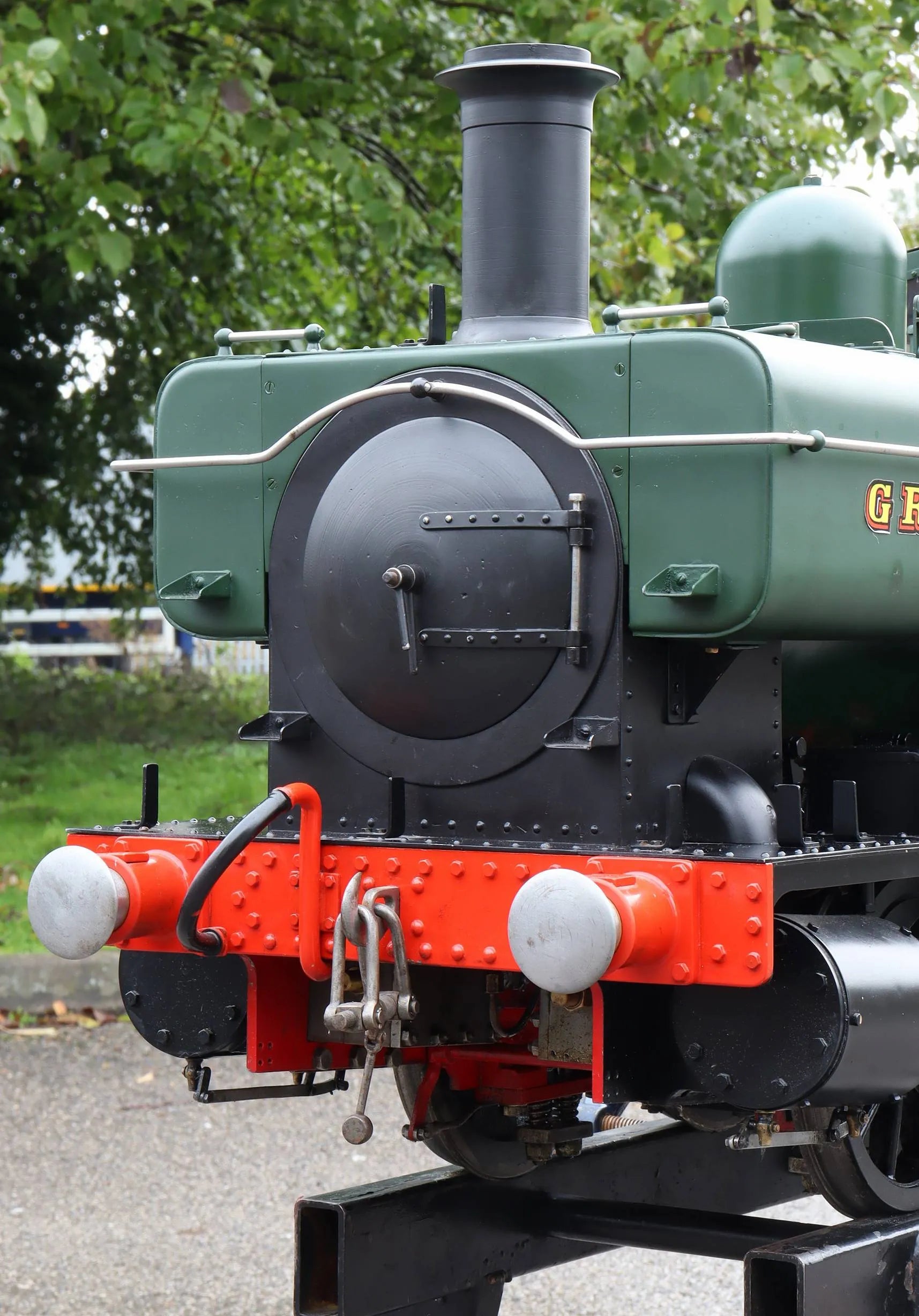

A 7 1/4 inch gauge GWR 1366 0-6-0PT to the Keith Wilson design.

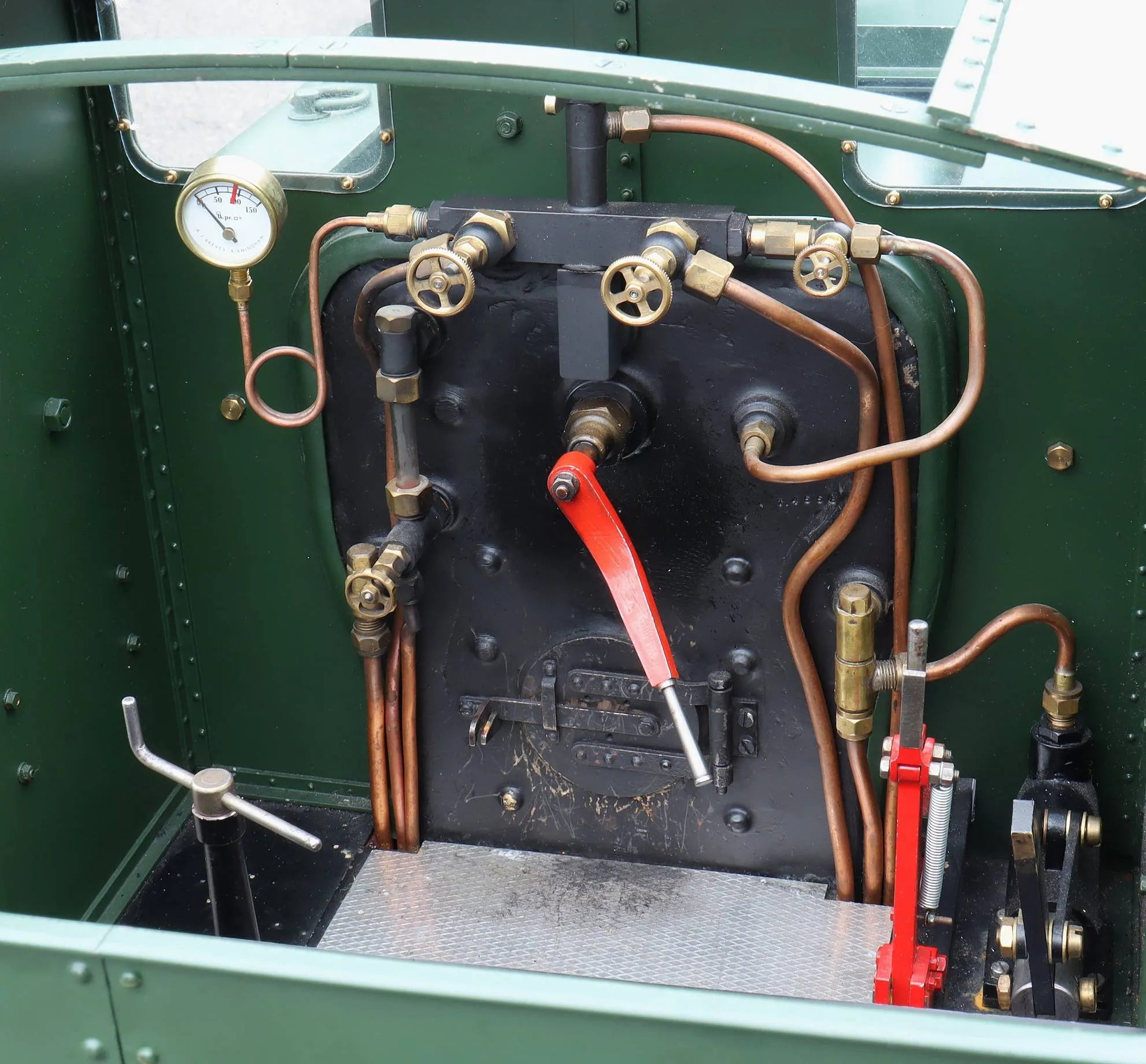

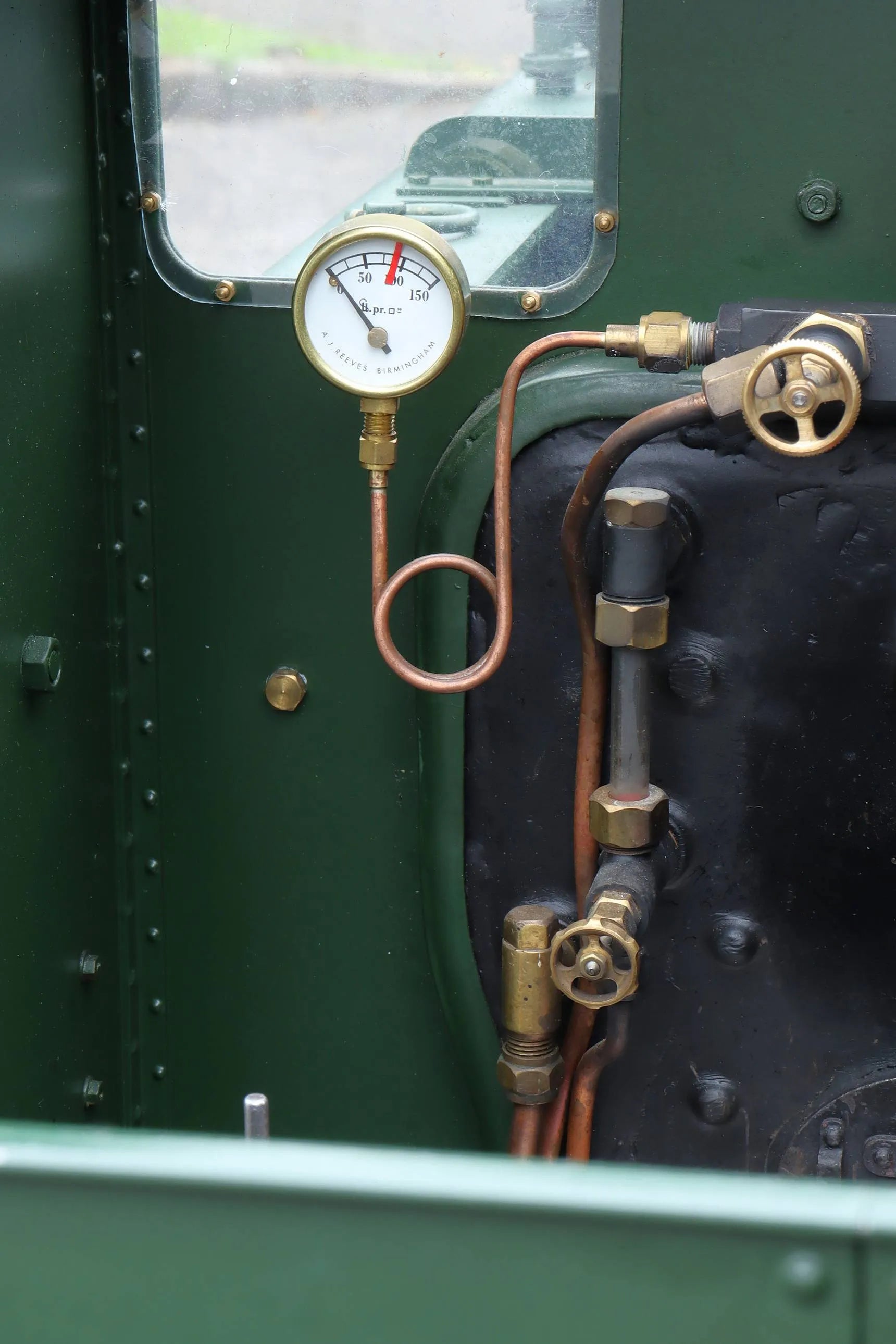

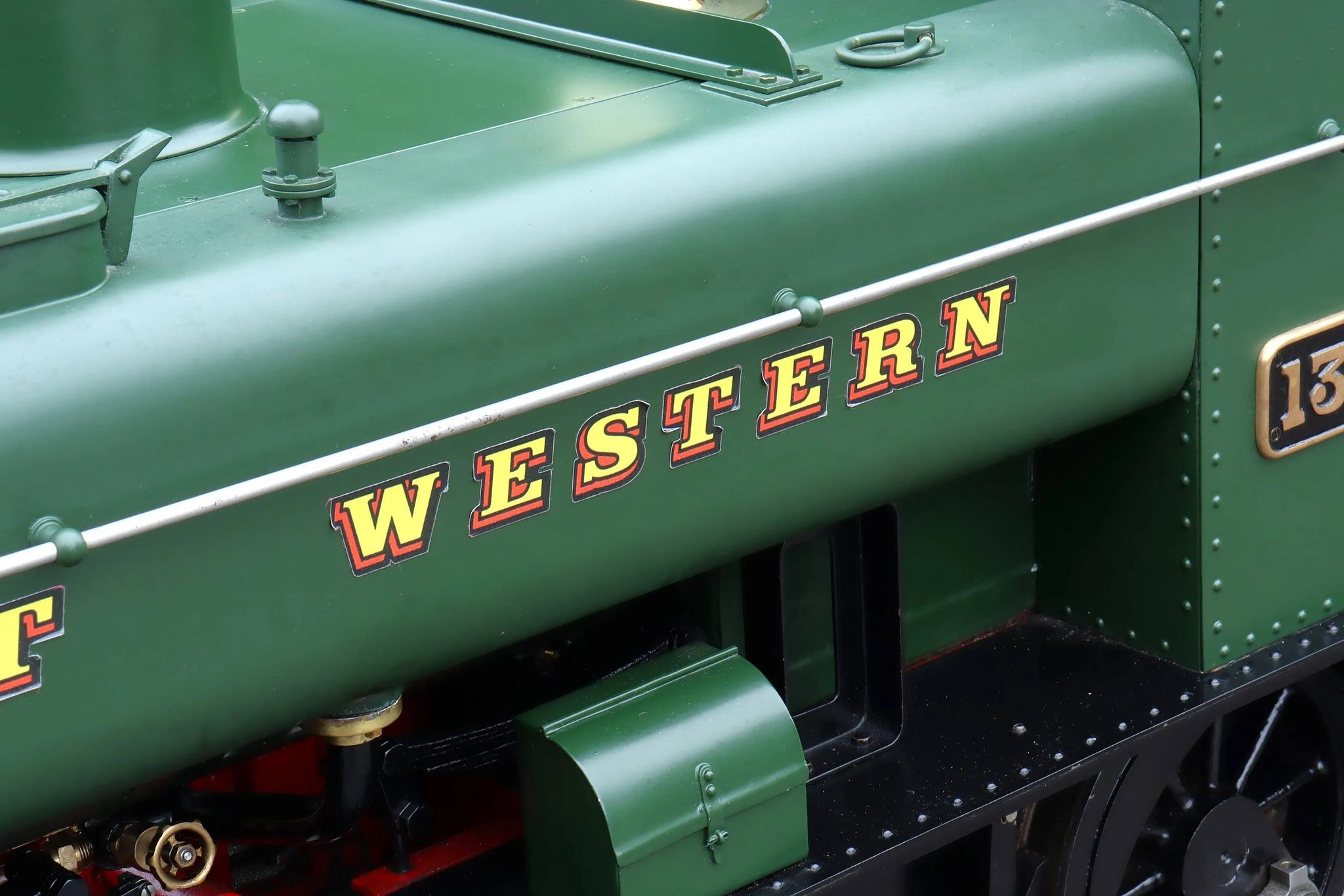

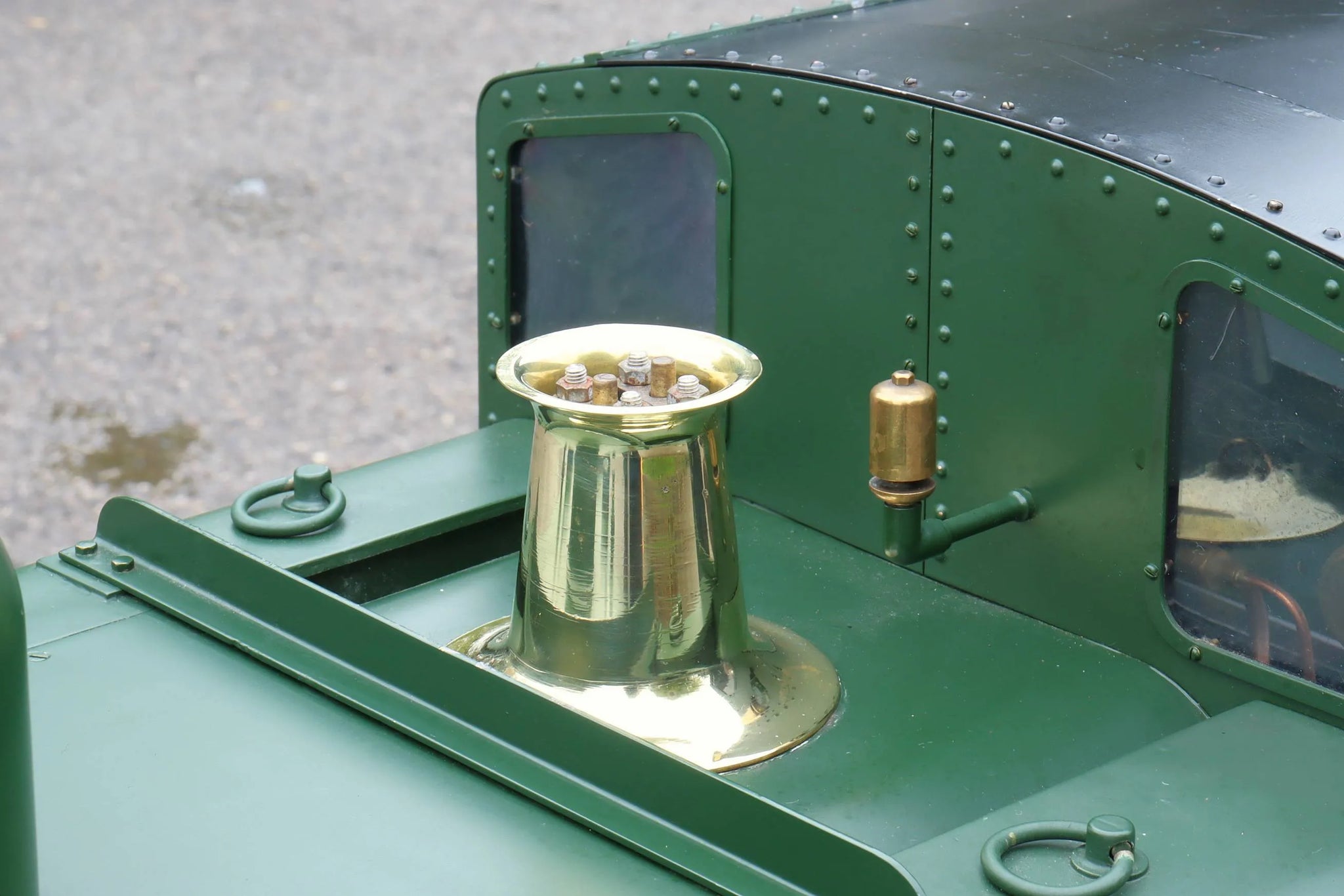

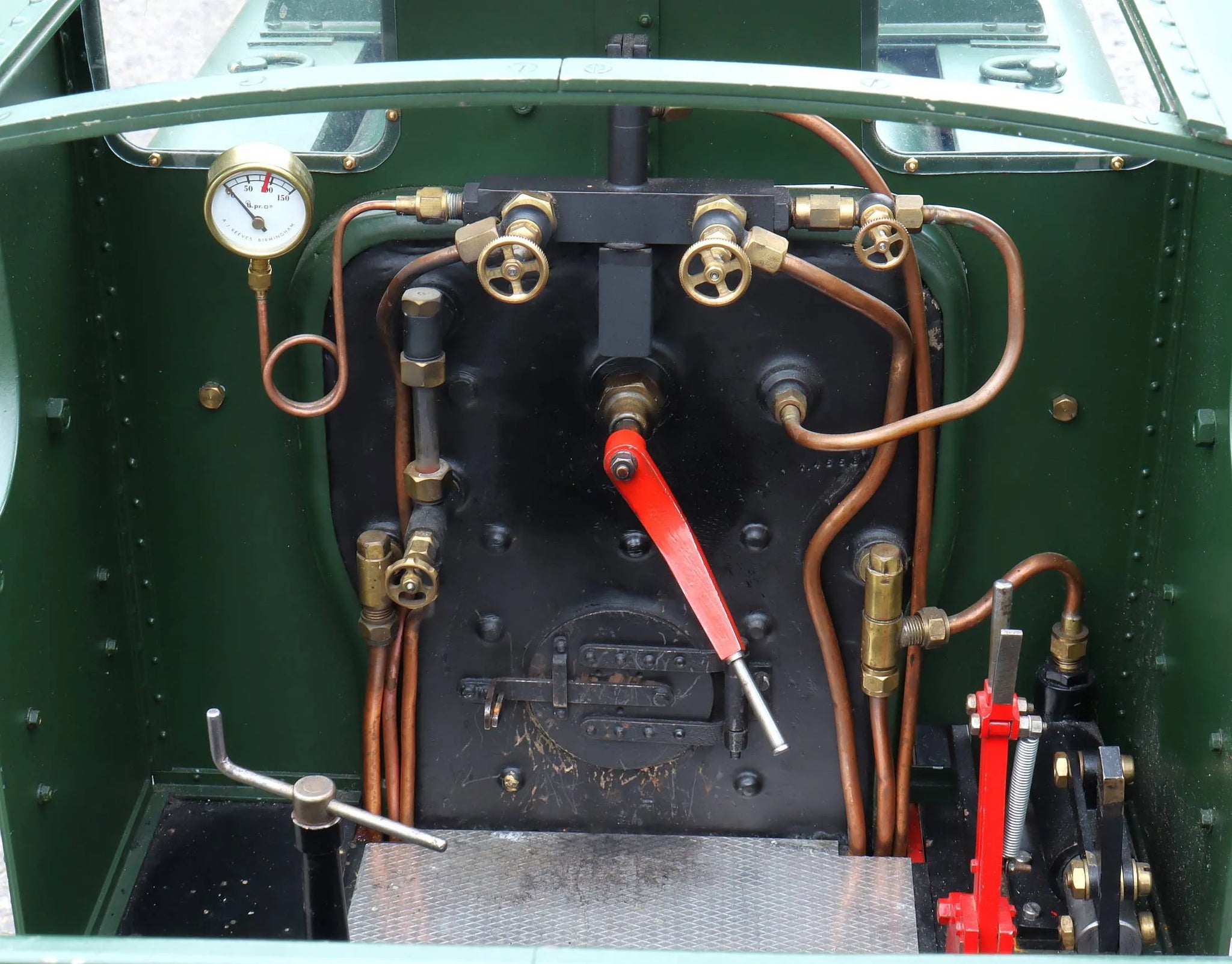

This one has come to us with current club certification, with steam test through until May 2024. Well built, it's had recent work by a professional model engineer whose abilities we esteem; the engine presents well, with bright paintwork and neatly laid out backhead.

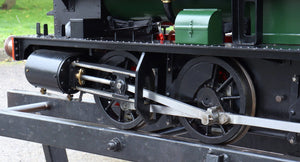

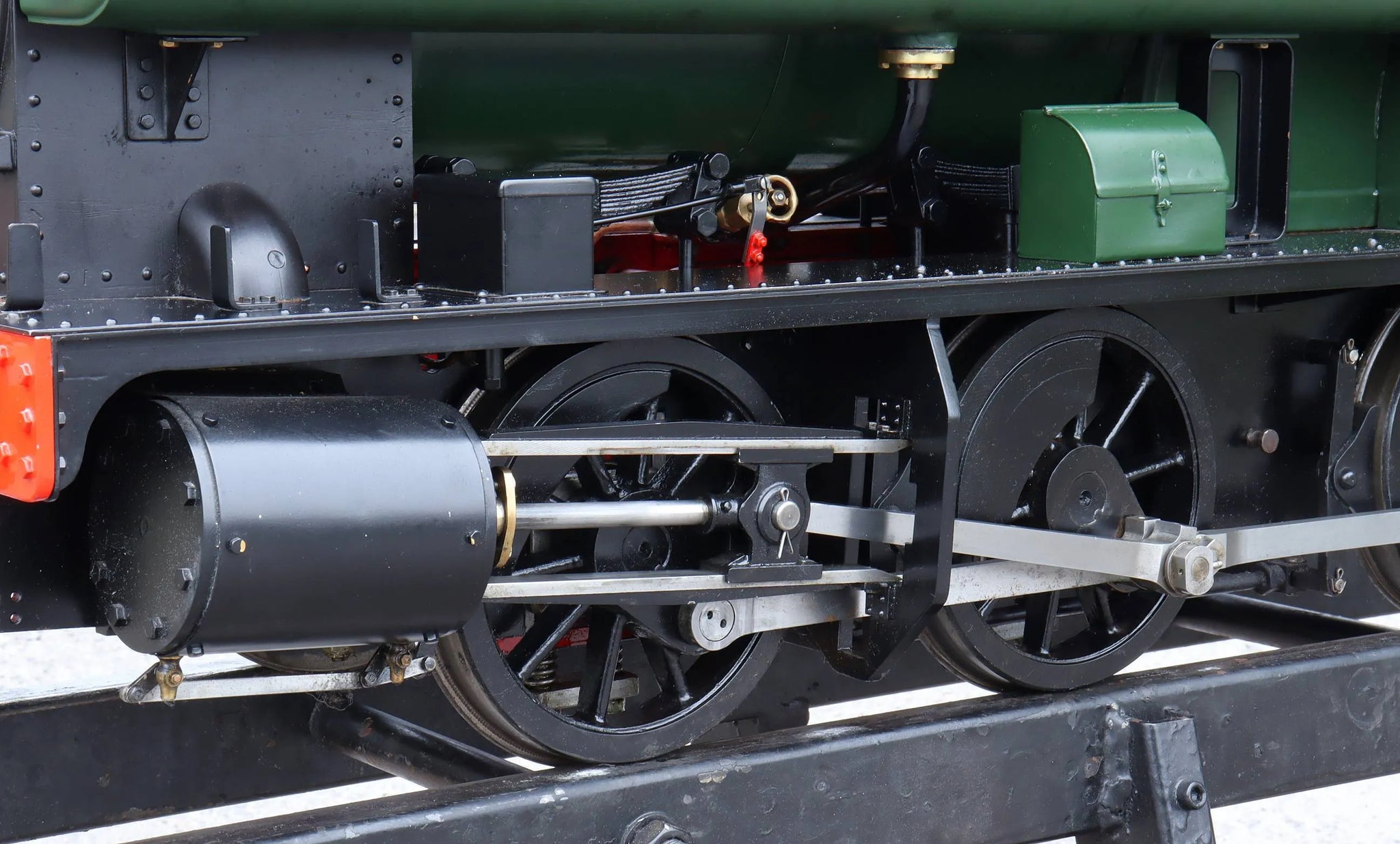

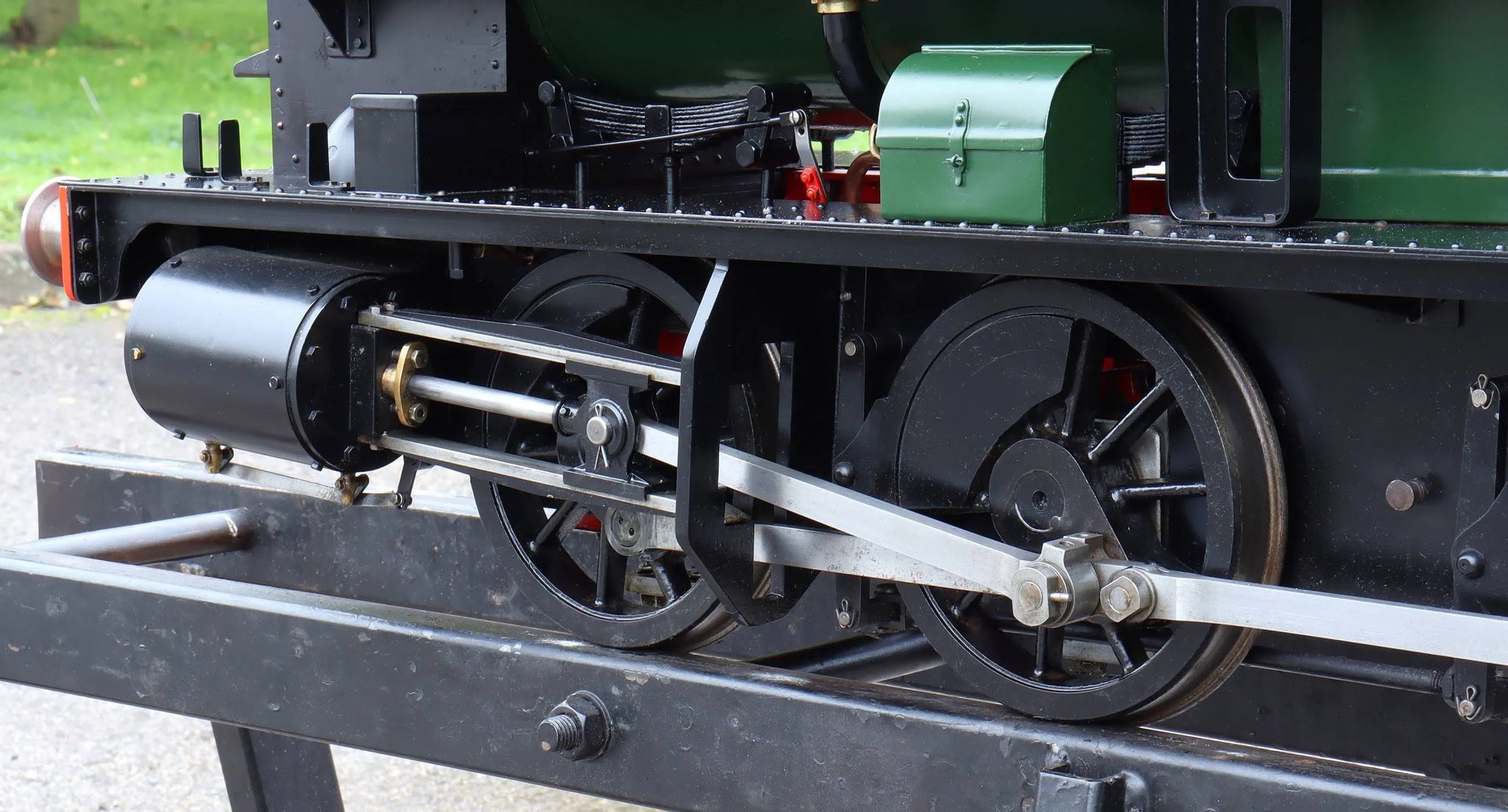

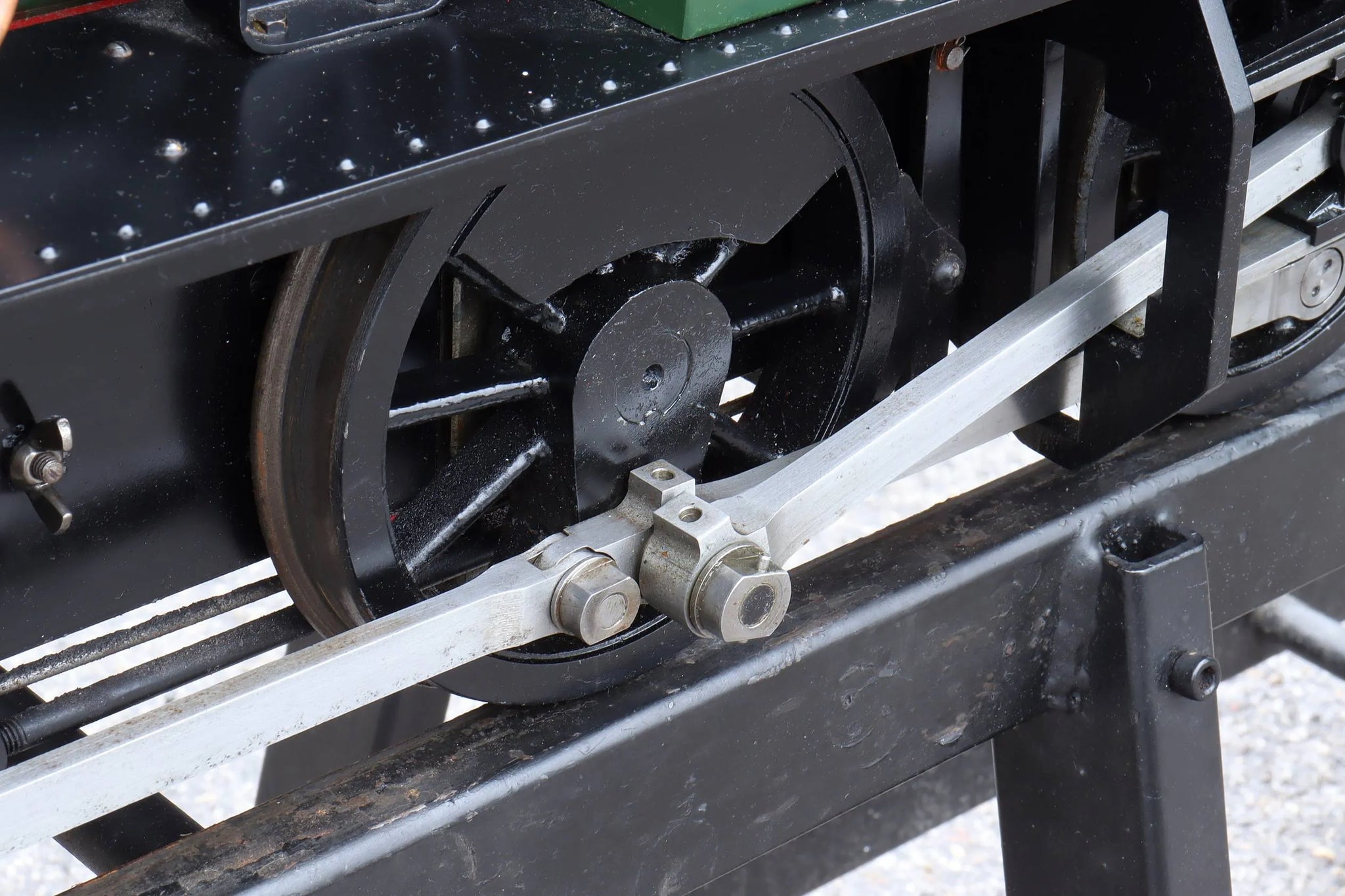

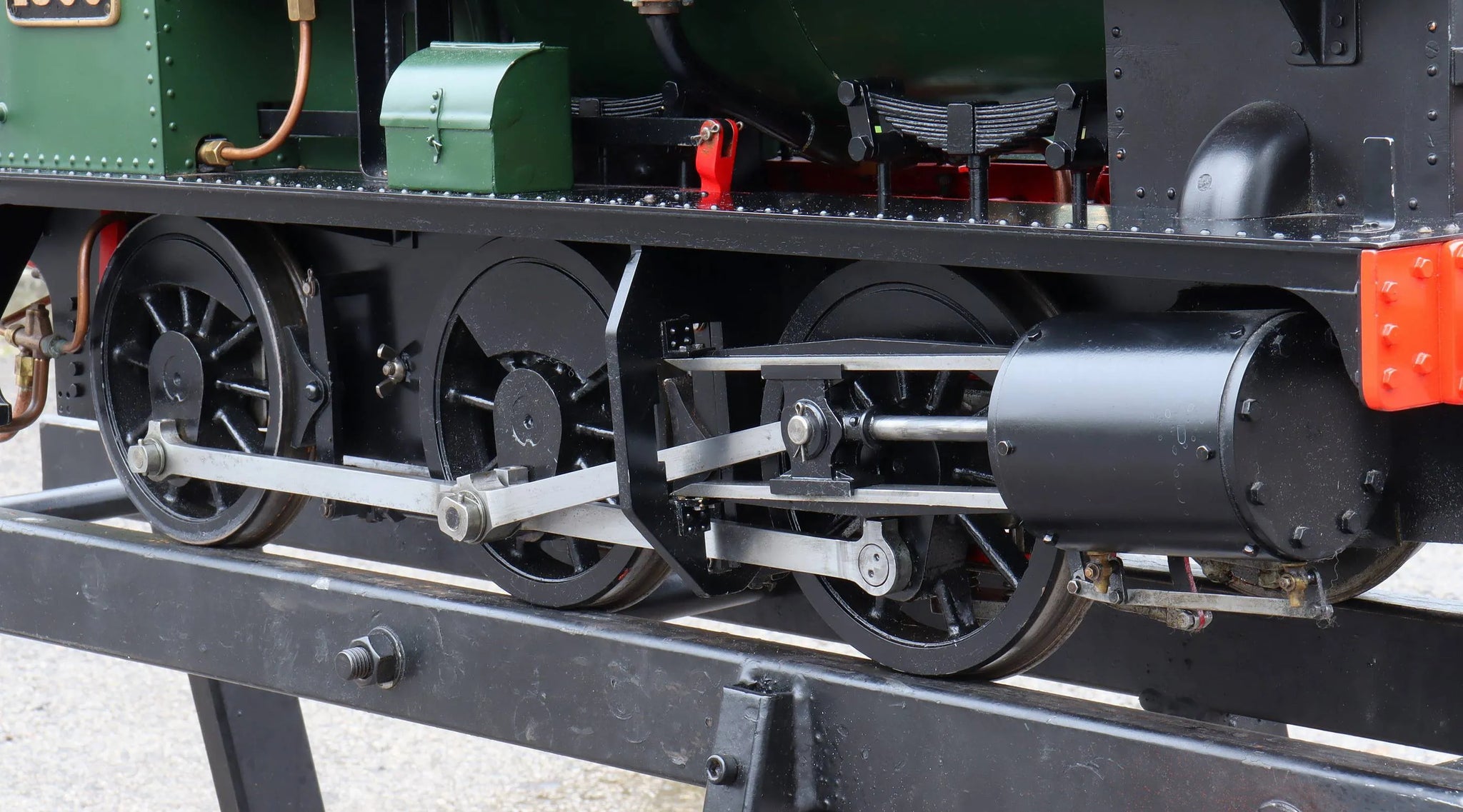

We've hydraulic tested the boiler and issued new certification for same; the chassis runs on air in both directions with some blow by - we would expect it to improve under steam.

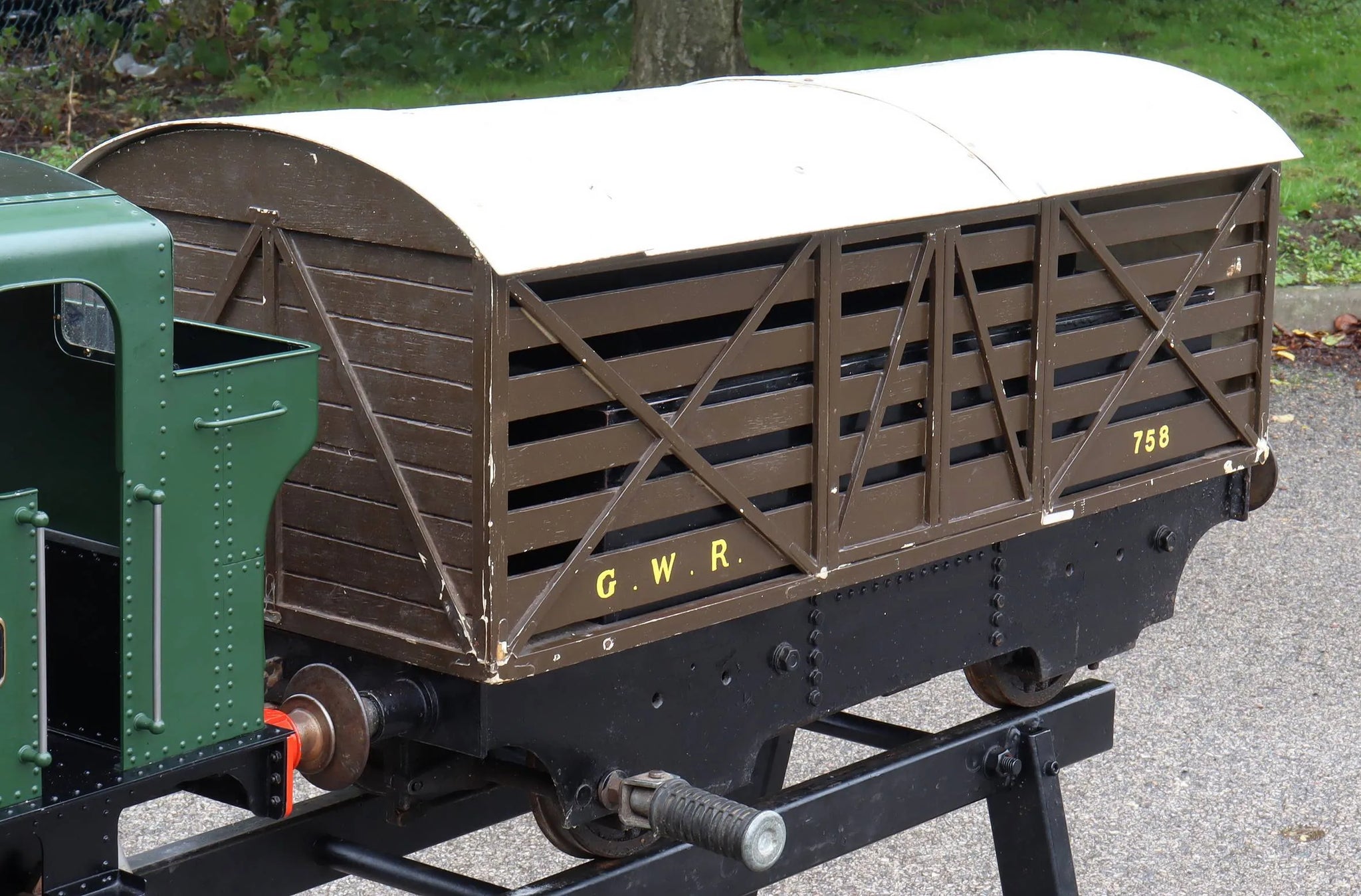

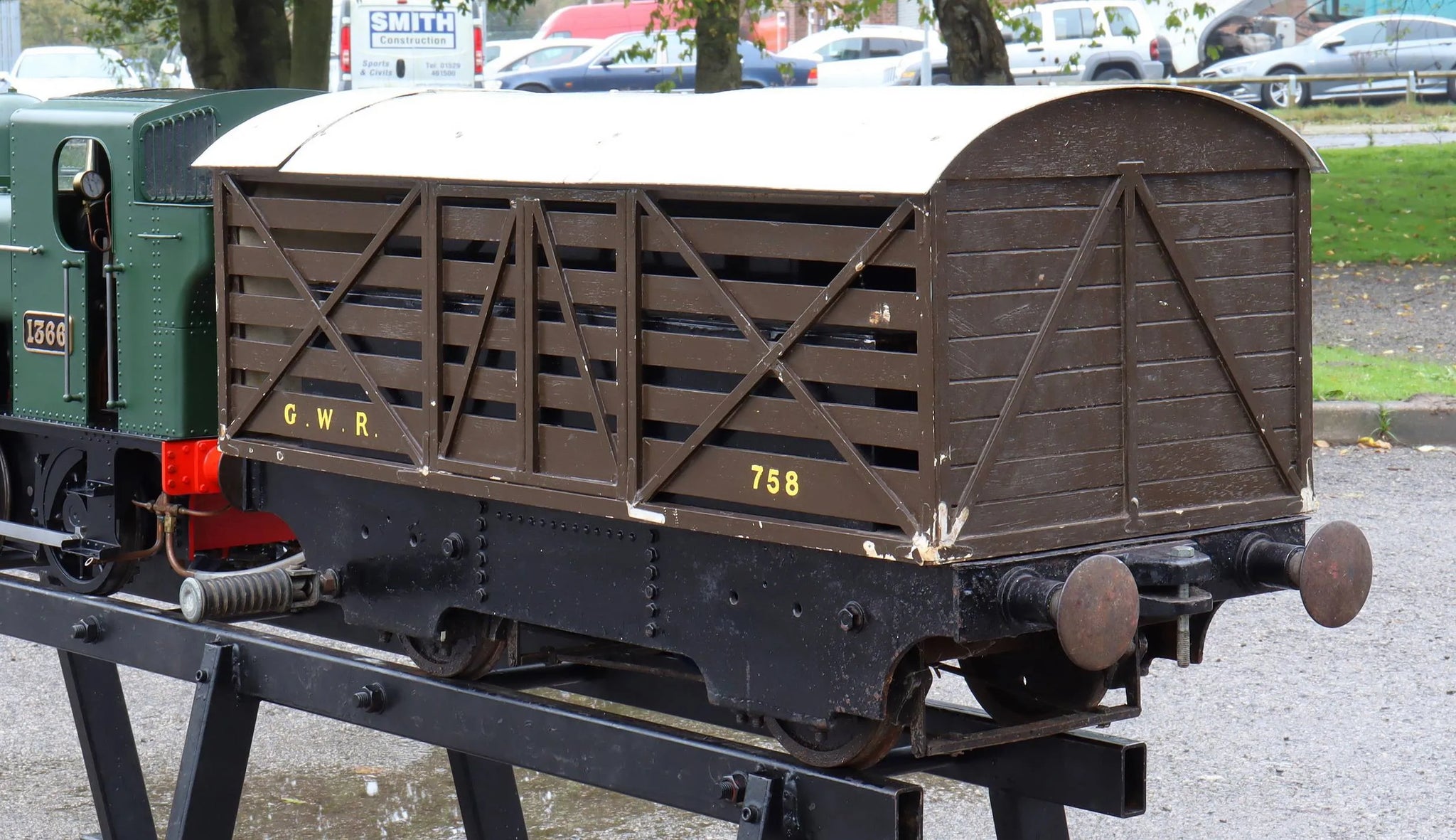

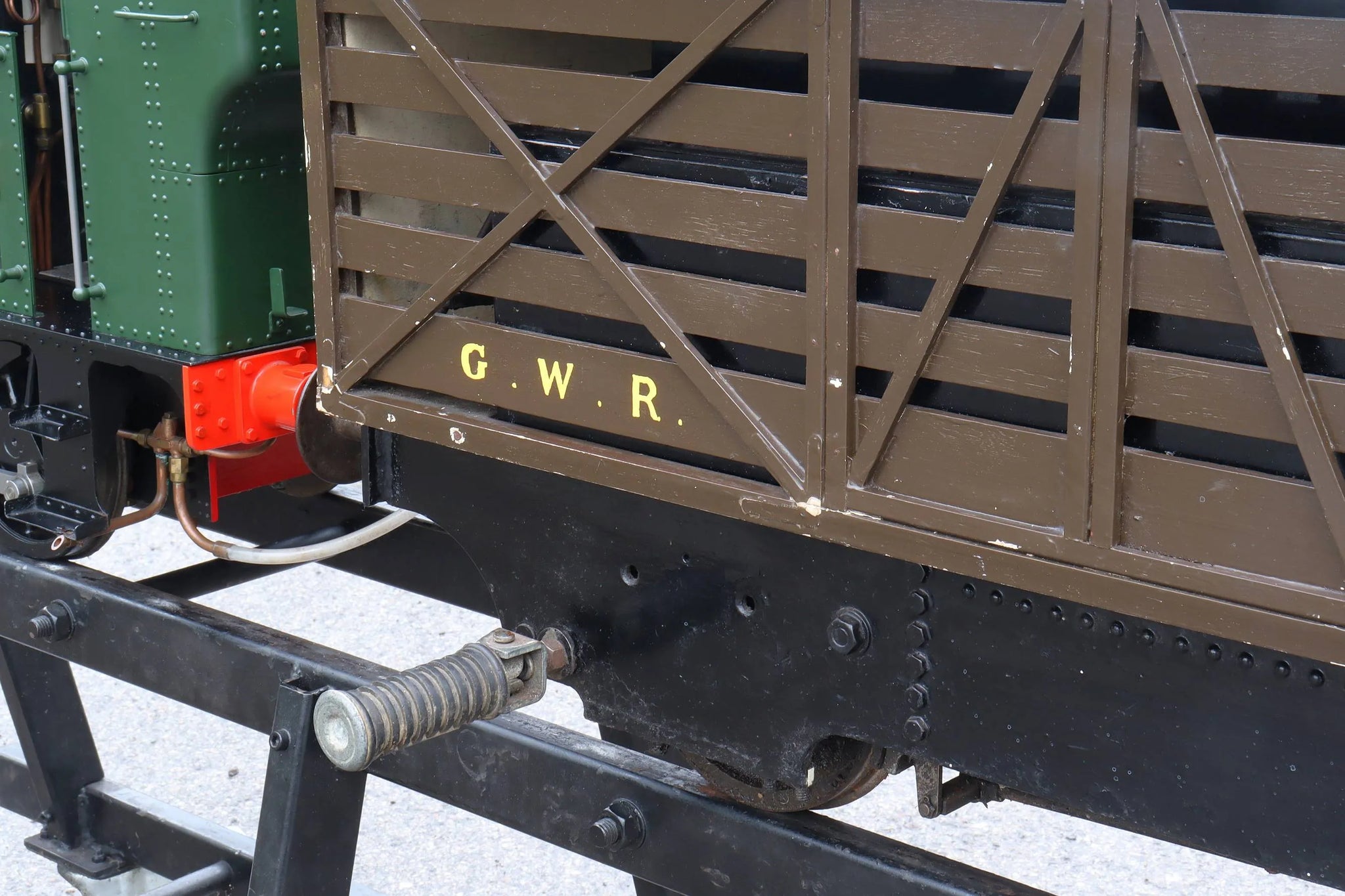

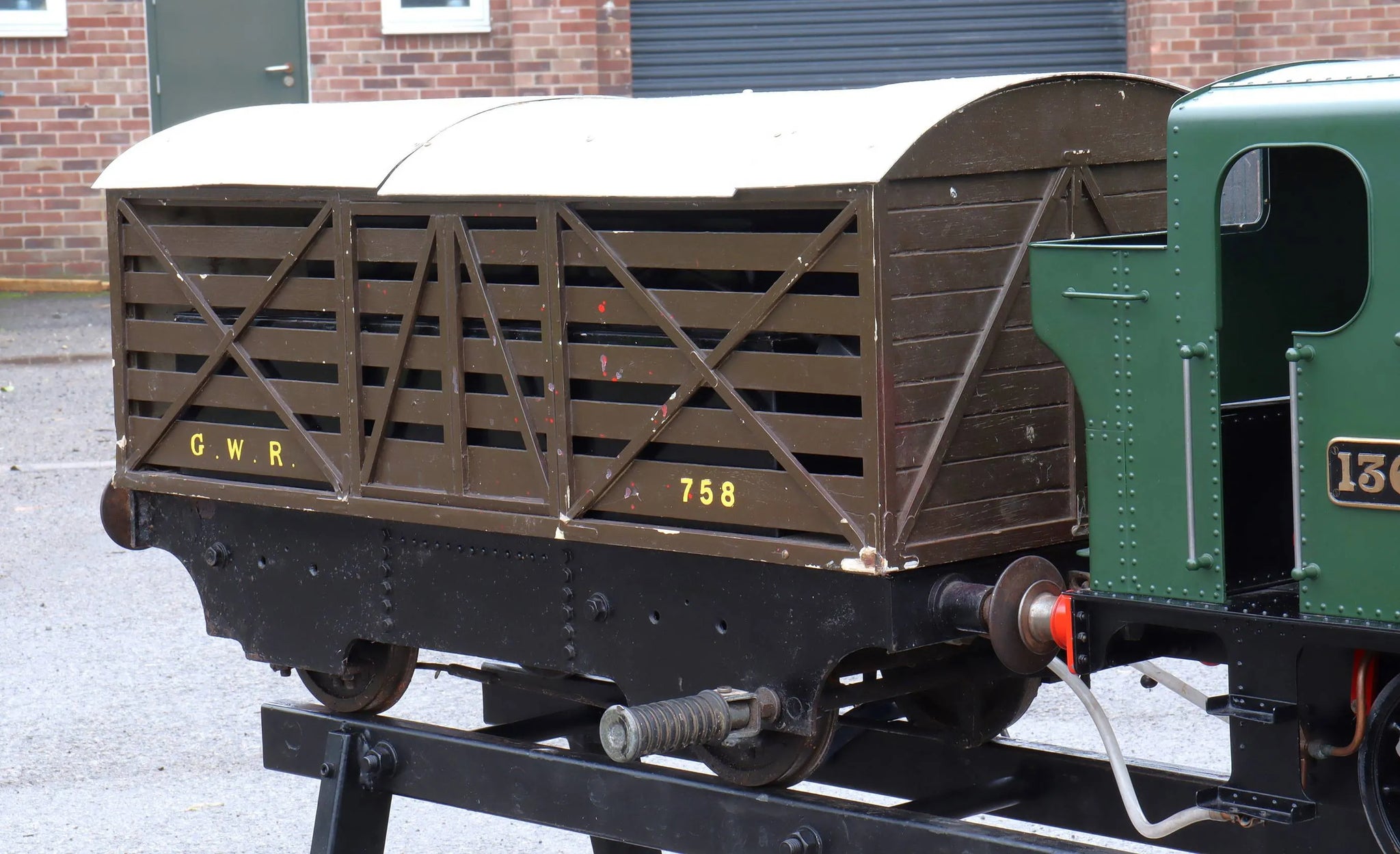

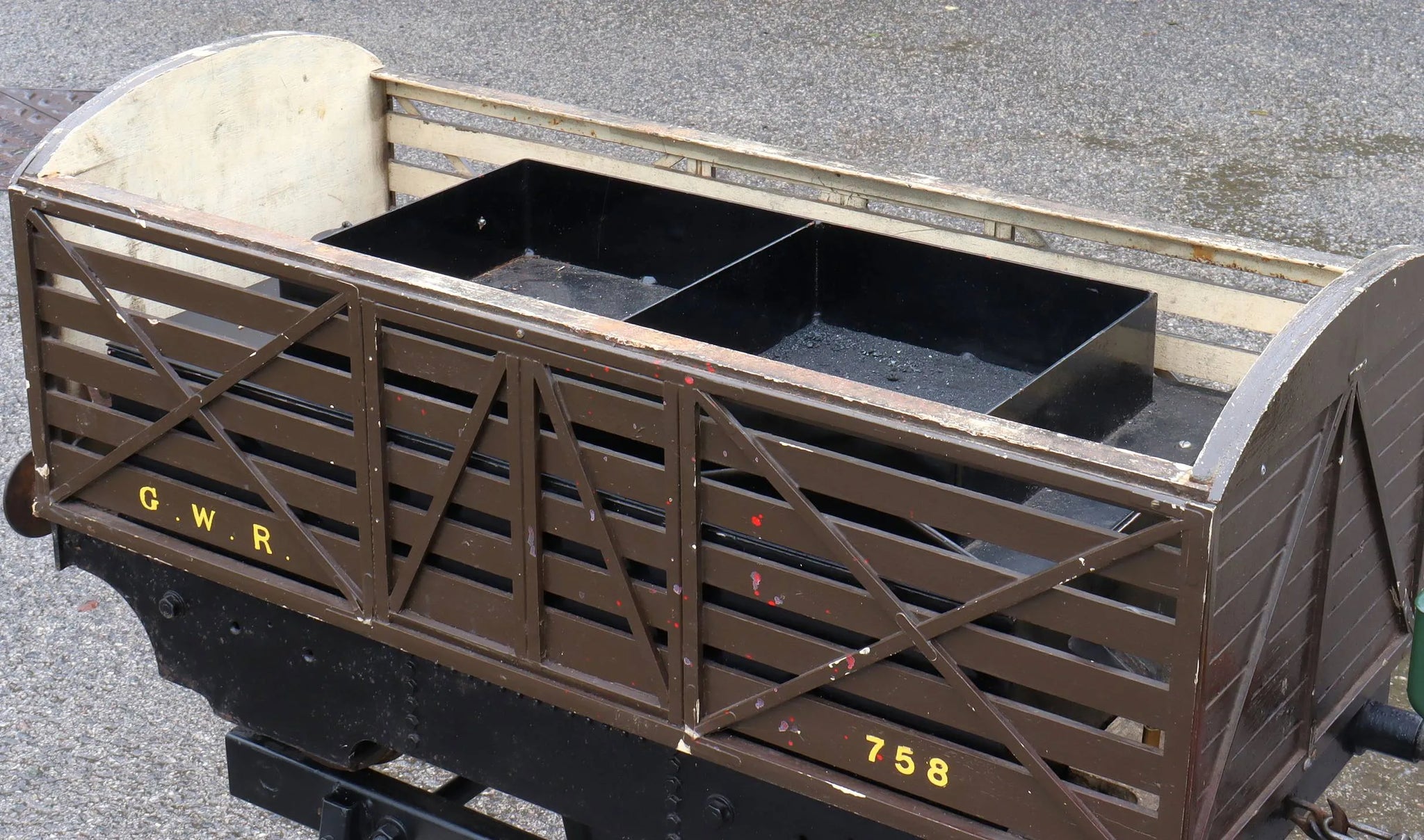

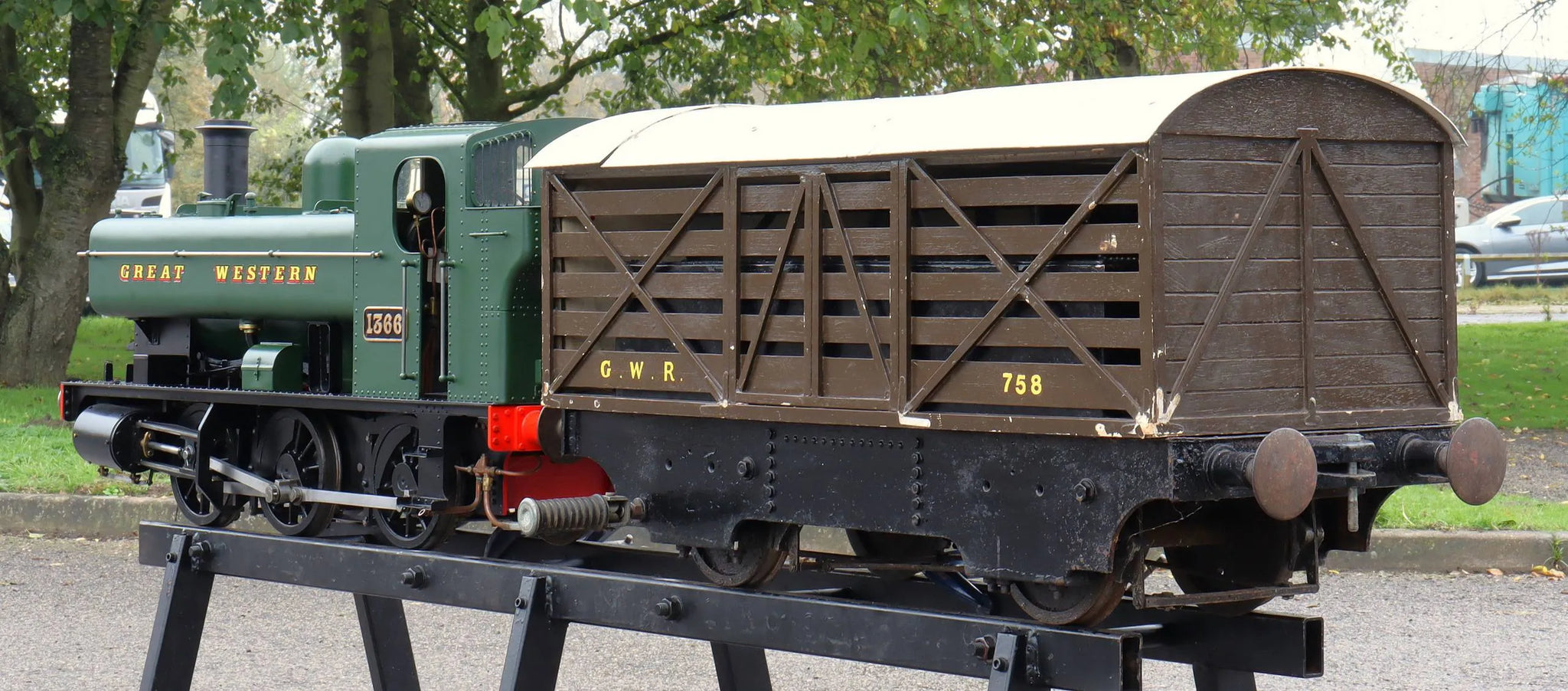

The driving truck, in the form of a GWR cattle wagon, is fitted with brakes and water tank, with feed to the injectors.

Technical information

Stock code

11666

Gauge

7 1/4 inch

Length/inches

39 + 38

Width/inches

13 + 14

Height/inches

19 + 18

Weight/Kg

89 + 53

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

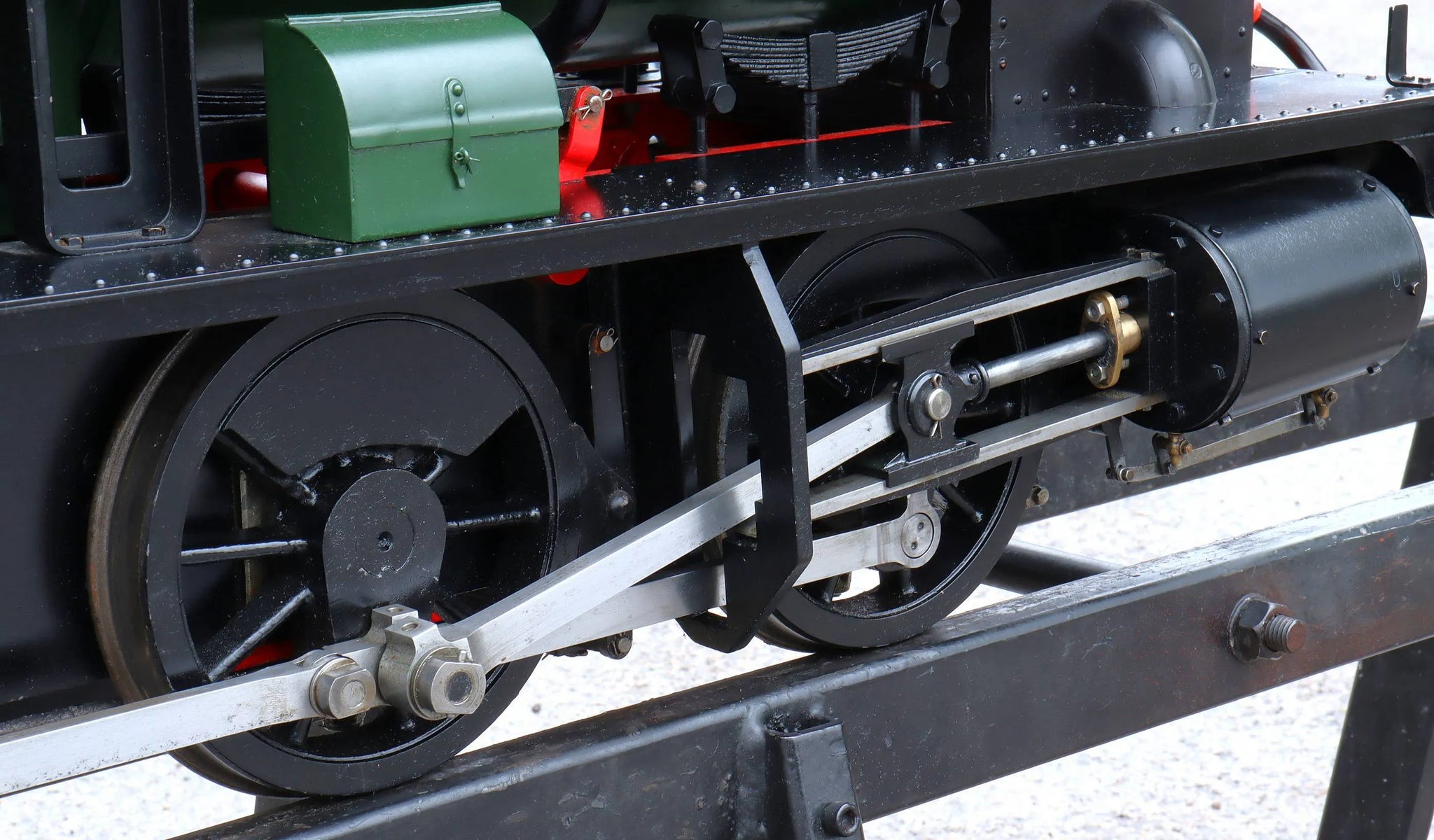

Stephensons

Reverser type

pole

Boiler type

locomotive

Boiler construction

copper silver soldered

Year built

unknown

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Injector

2

Superheater type

flue tube

Superheater

2

Date out

Jan-24

Hydraulic test valid to

24-Mar-2027 (club) 26-Oct-2023 (SRS)

Steam test valid to

25-May-24
