Sold

8217

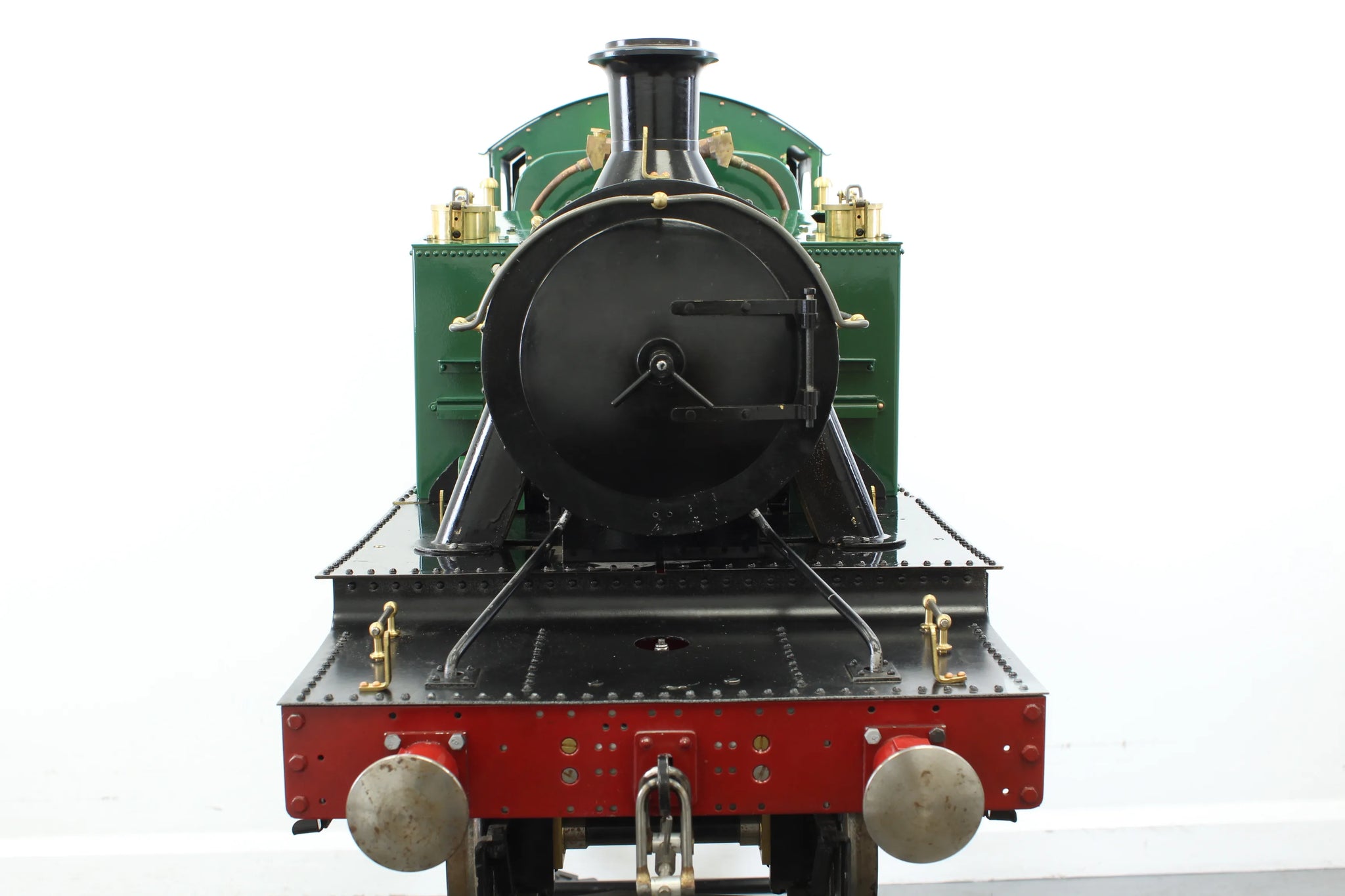

7 1/4 inch gauge GWR Prairie

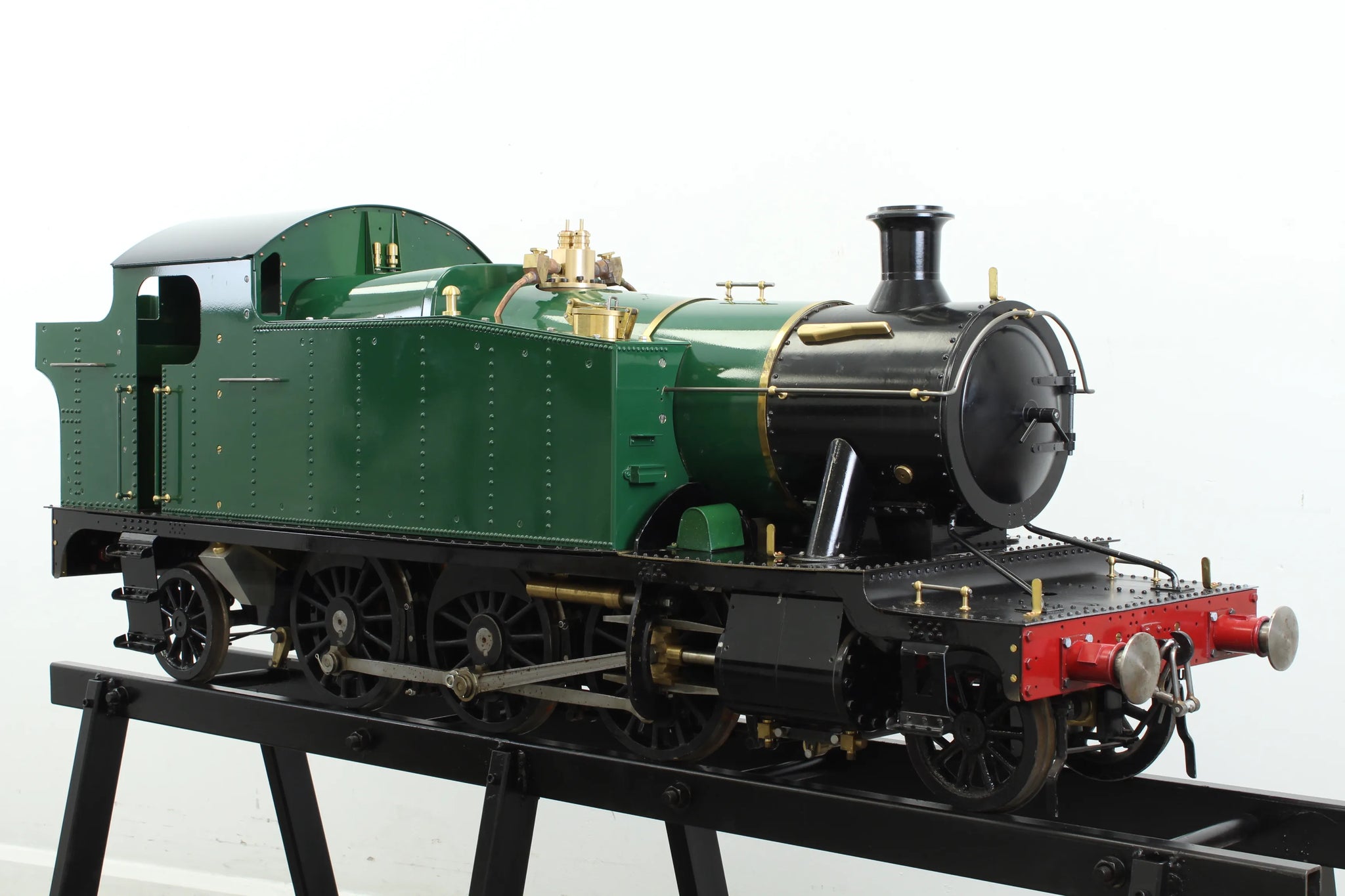

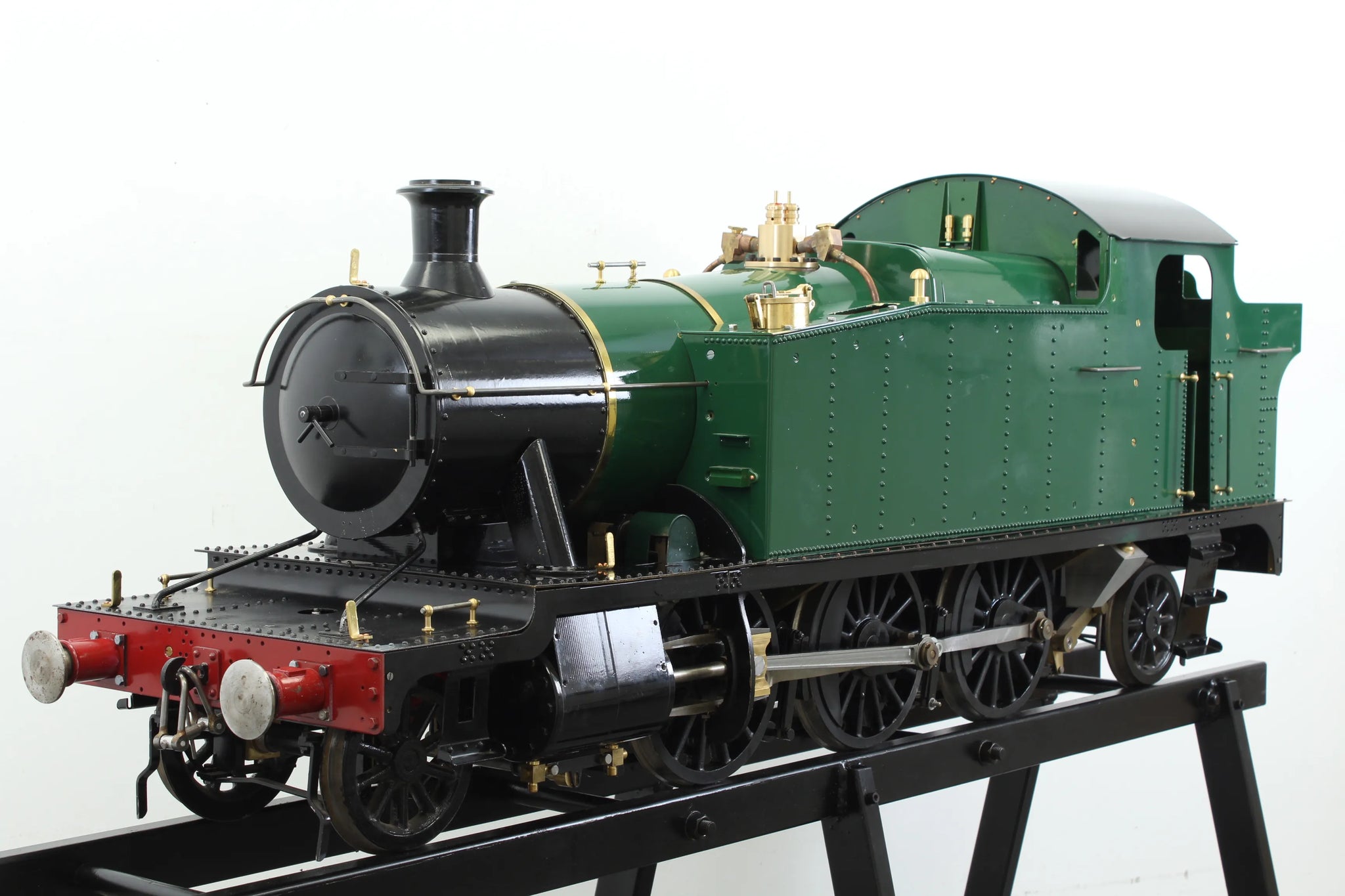

A ModelWorks 7 1/4 inch gauge GWR Prairie, bought new as a retirement project by a garage owner, a motor mechanic in his working life.

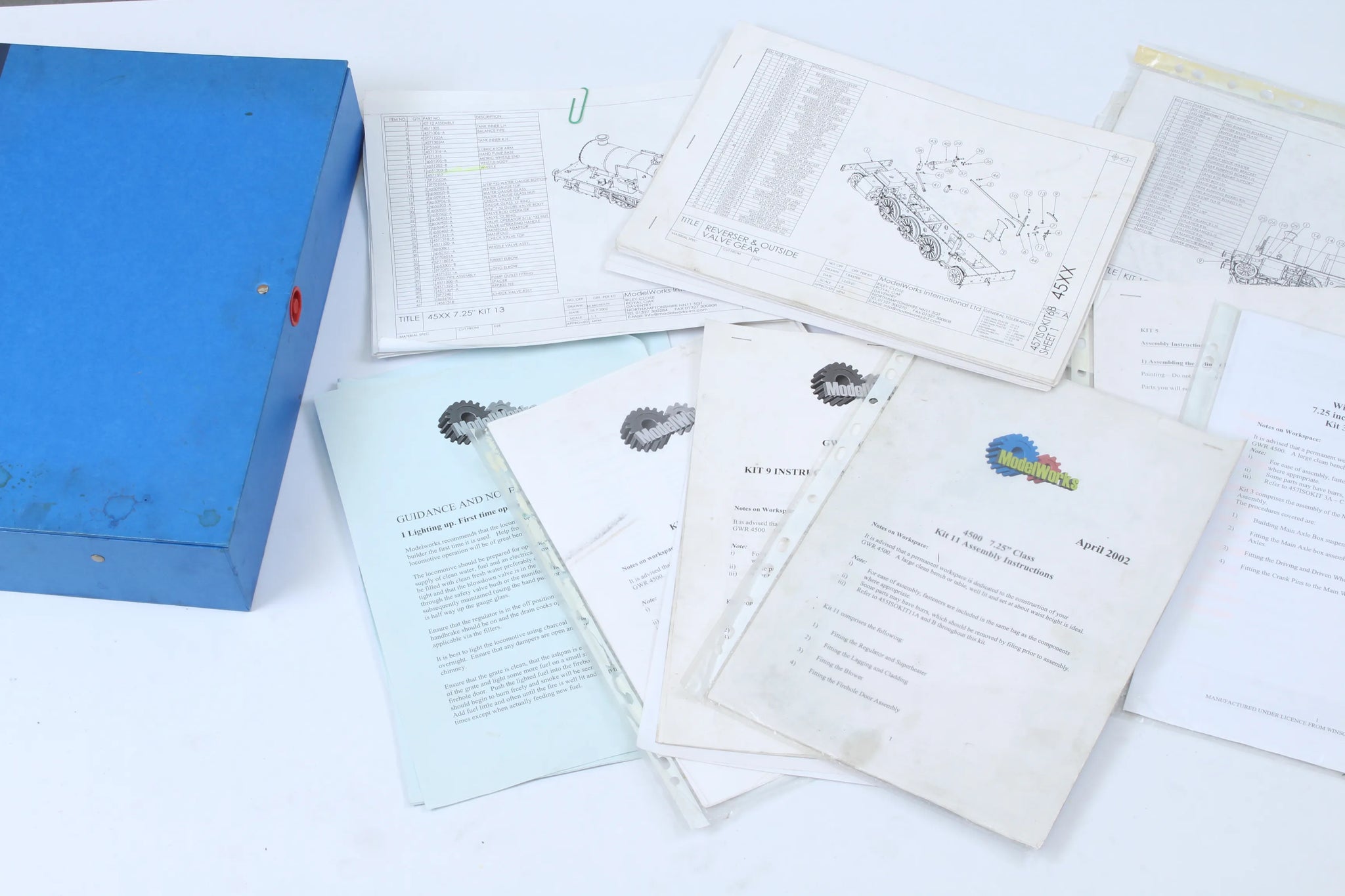

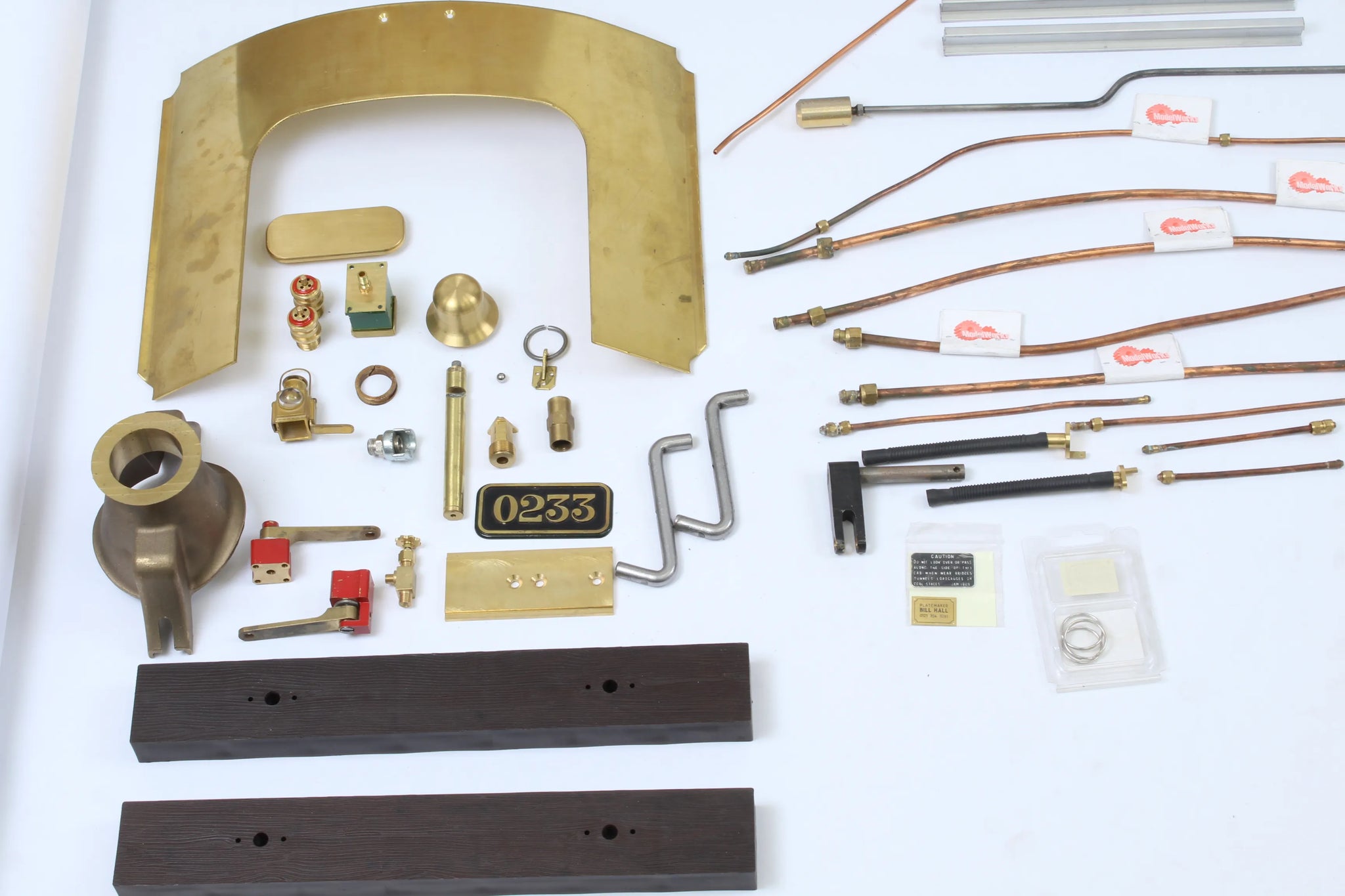

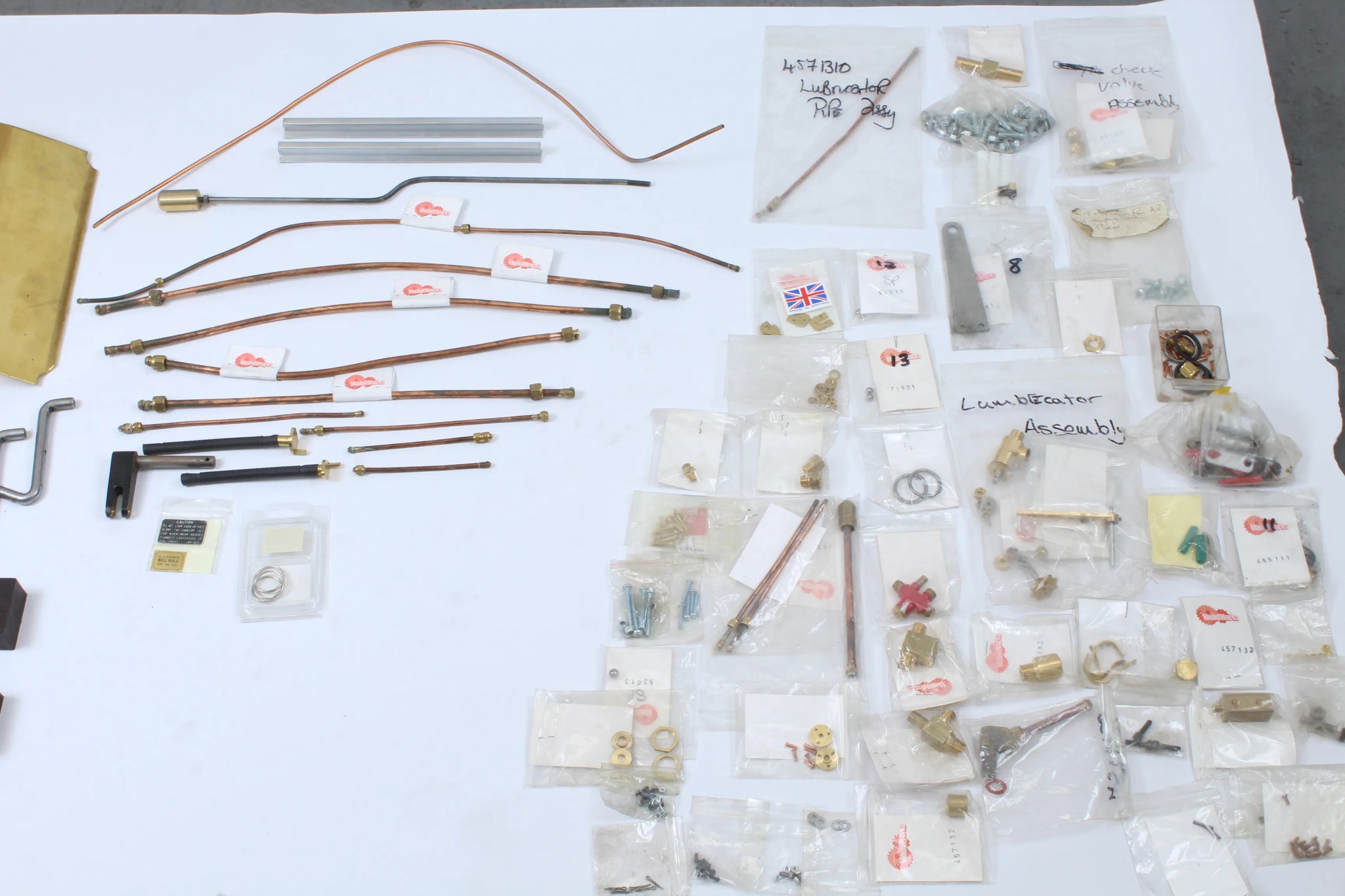

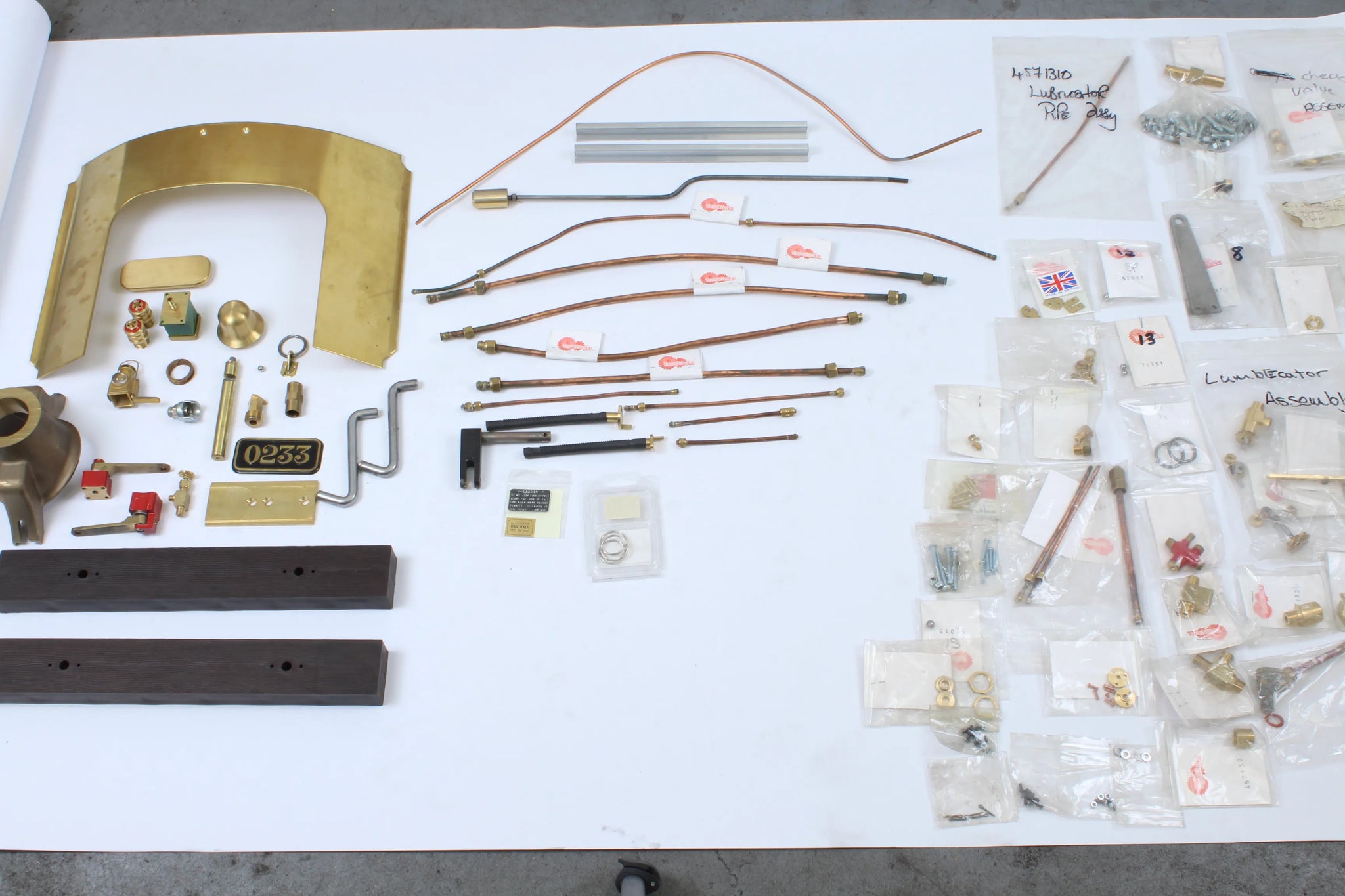

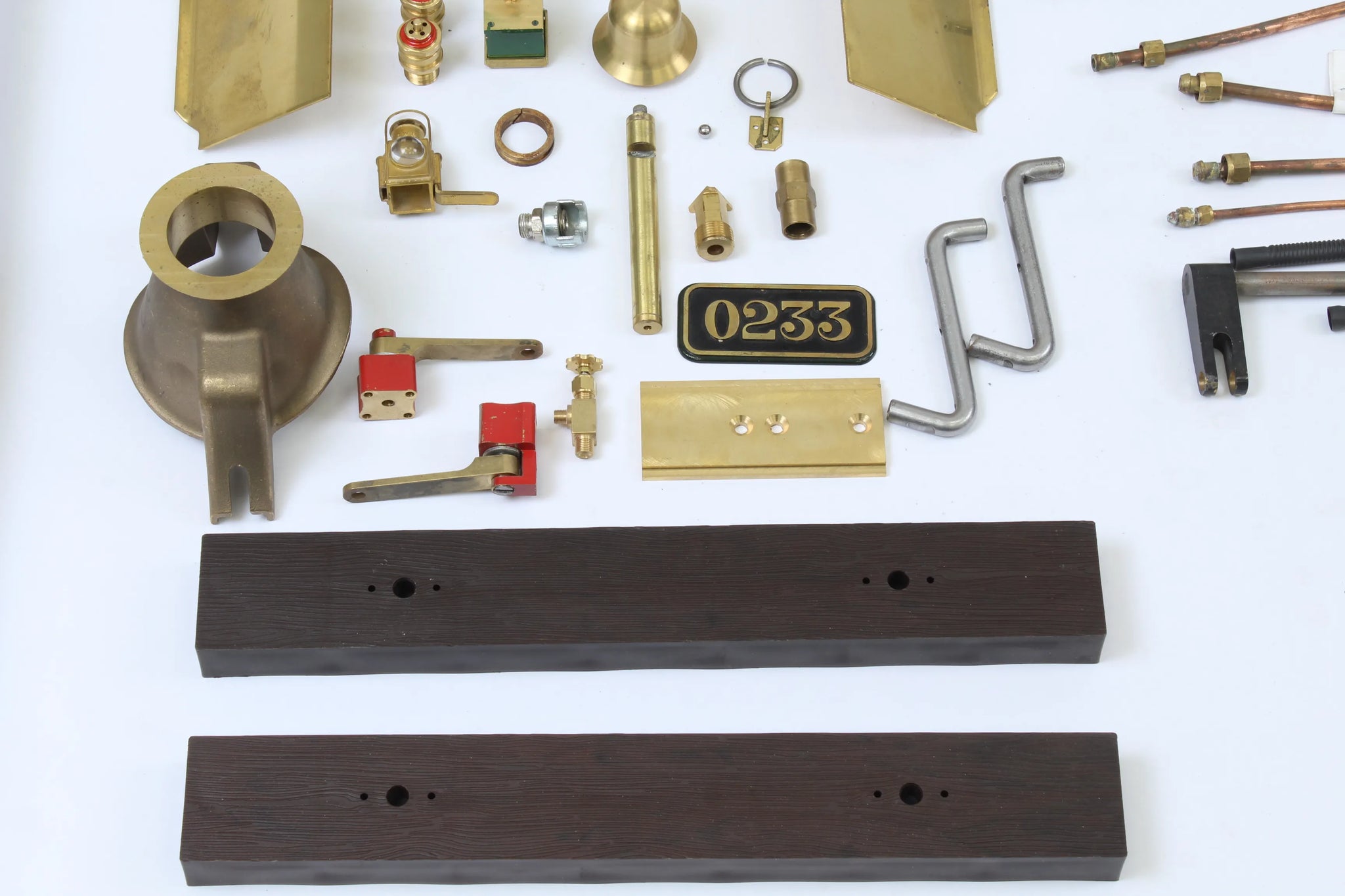

Quite a lot of work was done until anno domini caught up with him - the engine has come to us from his son. It's about 90% assembled and comes with manufacturer's assembly instructions, boiler certificate and a box of parts to complete.

The engine has been stood on a (substantial) bookcase for some years since the builder's demise, chassis is unsurprisingly seized and will require a degree of work before use.

Better known for their 5 inch gauge locomotives, we occasionally see the ModelWorks 7 1/4 inch Britannias and even one A4 which we sold a couple of years ago - I suspect the larger sized engines were made in small numbers.

We've had one other Prairie at an earlier stage than this which sold some years ago - there are pictures in the archive - when it came in as part exchange against a Feldbahn.


Technical information

Stock code

8217

Gauge

7 1/4 inch

Length/inches

58

Width/inches

15

Height/inches

21

Weight/Kg

est 250

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

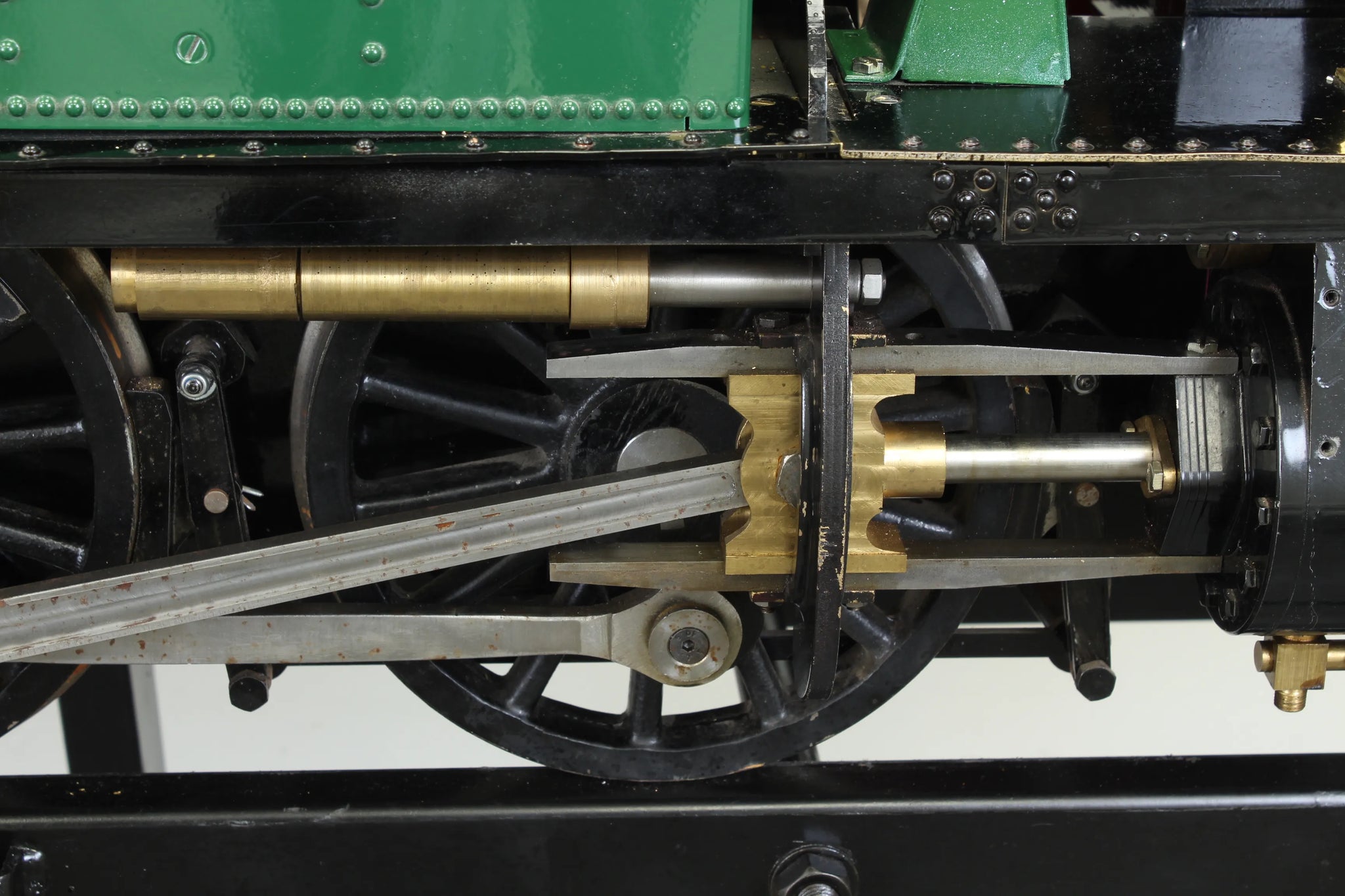

Valve gear

Stephensons

Reverser type

screw

Lubricator type

mechanical

Boiler maker

ModelWorks International

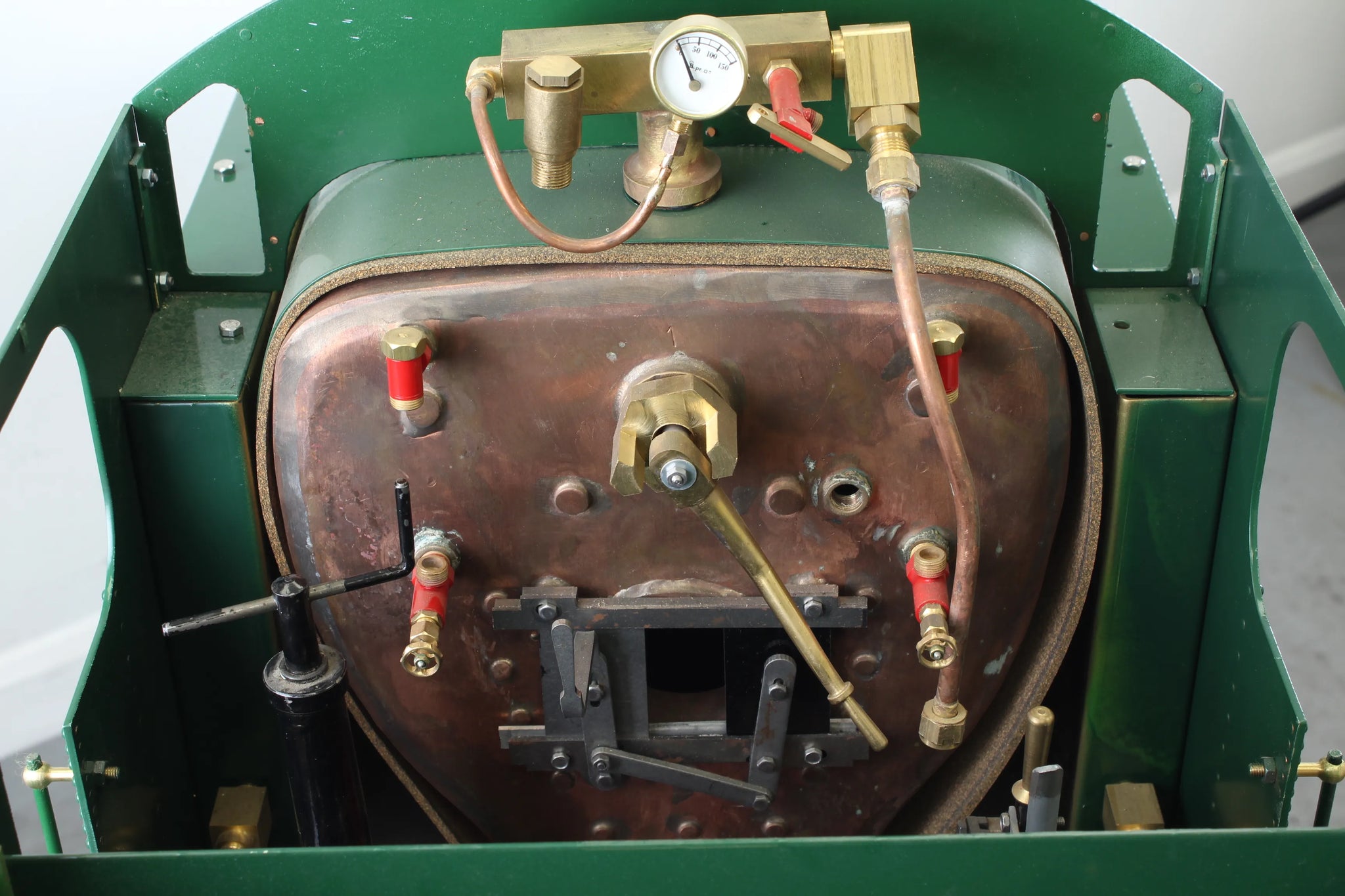

Boiler type

locomotive

Boiler construction

silver-soldered

Boiler material

copper

CE/UKCA mark

yes

Year built

2003

Boiler number

01/11/2000 00:00

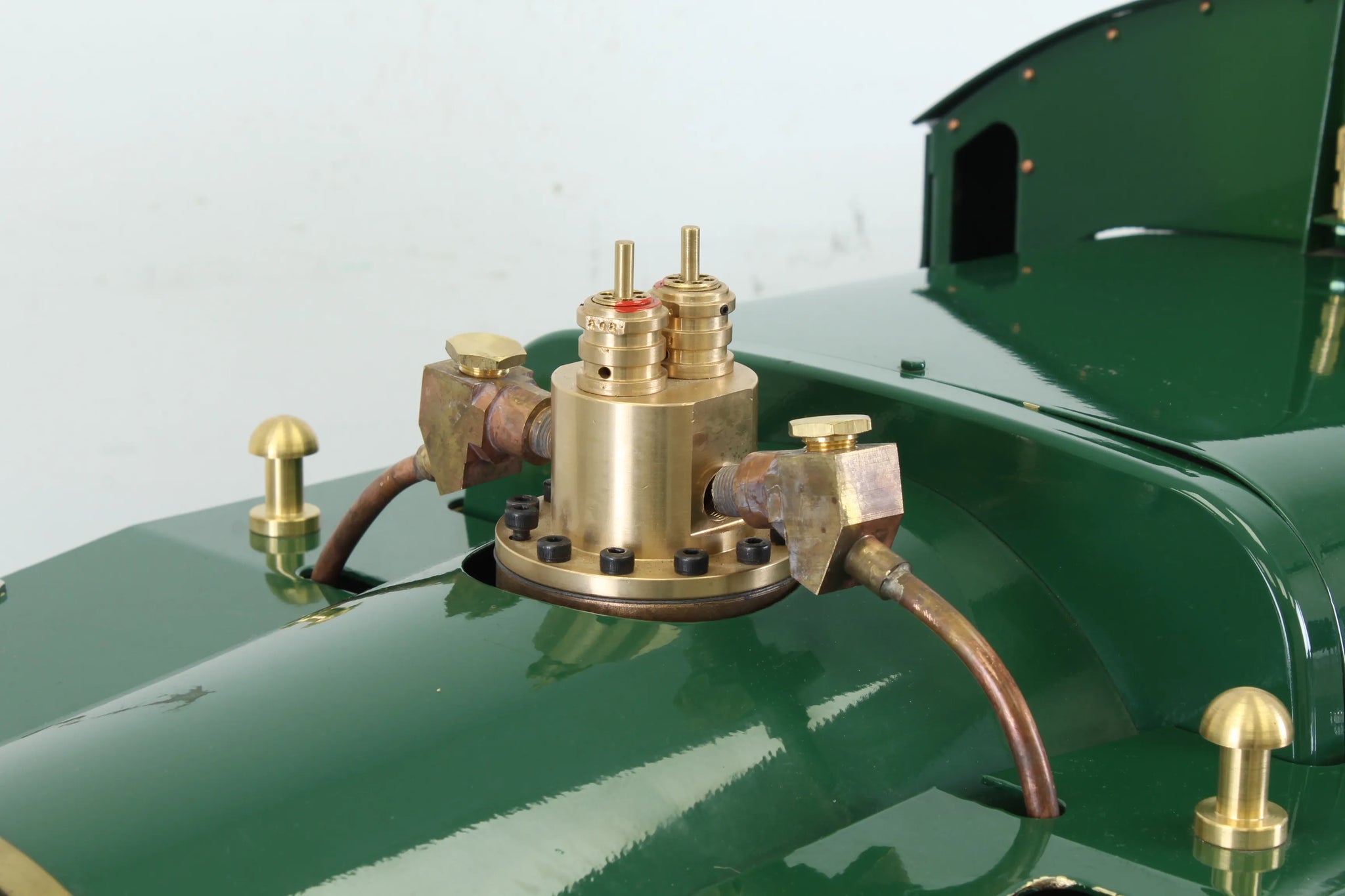

Safety valve type

spring

Safety valve

1

Date out

Feb-19
