Sold

8010

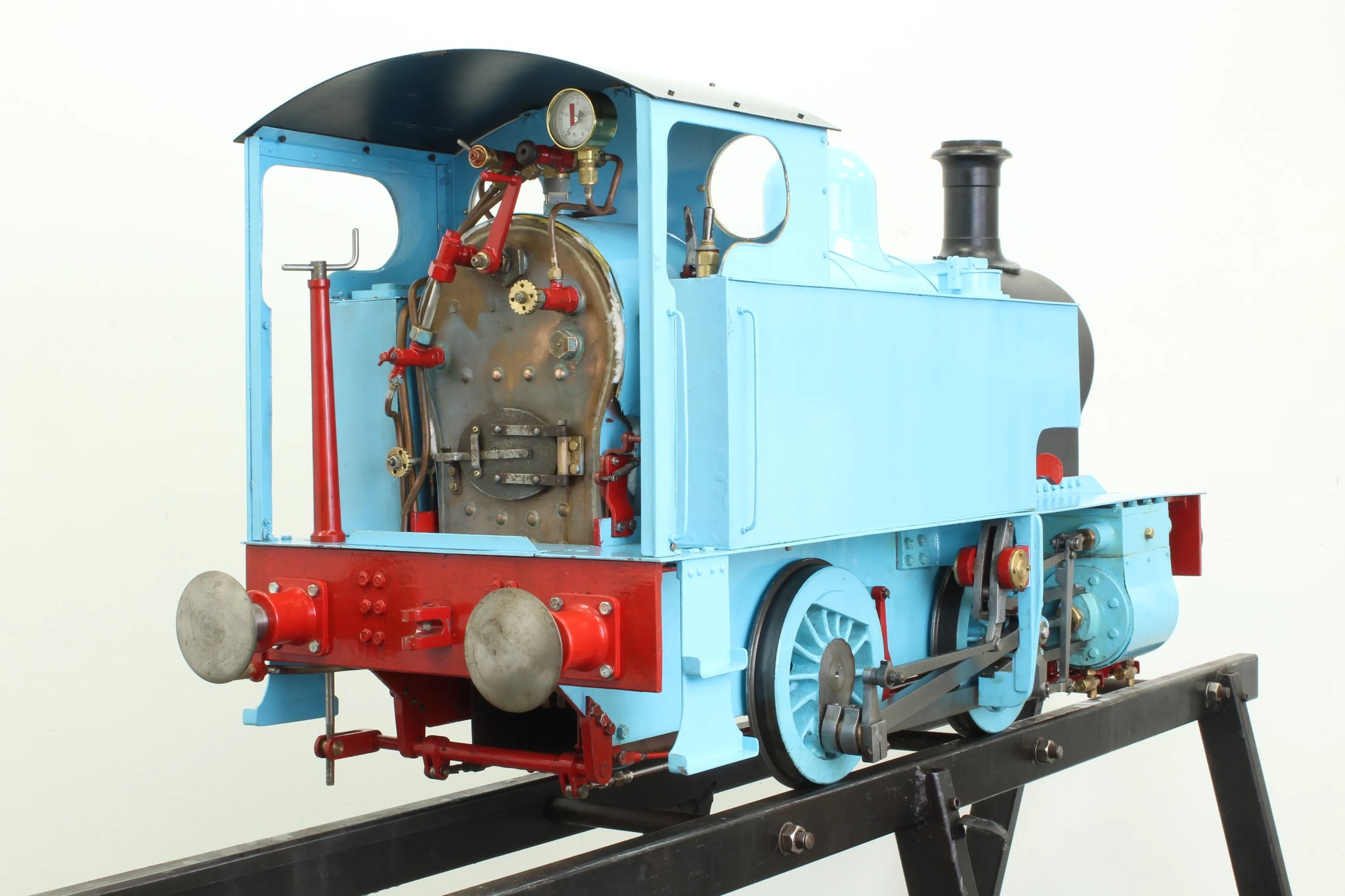

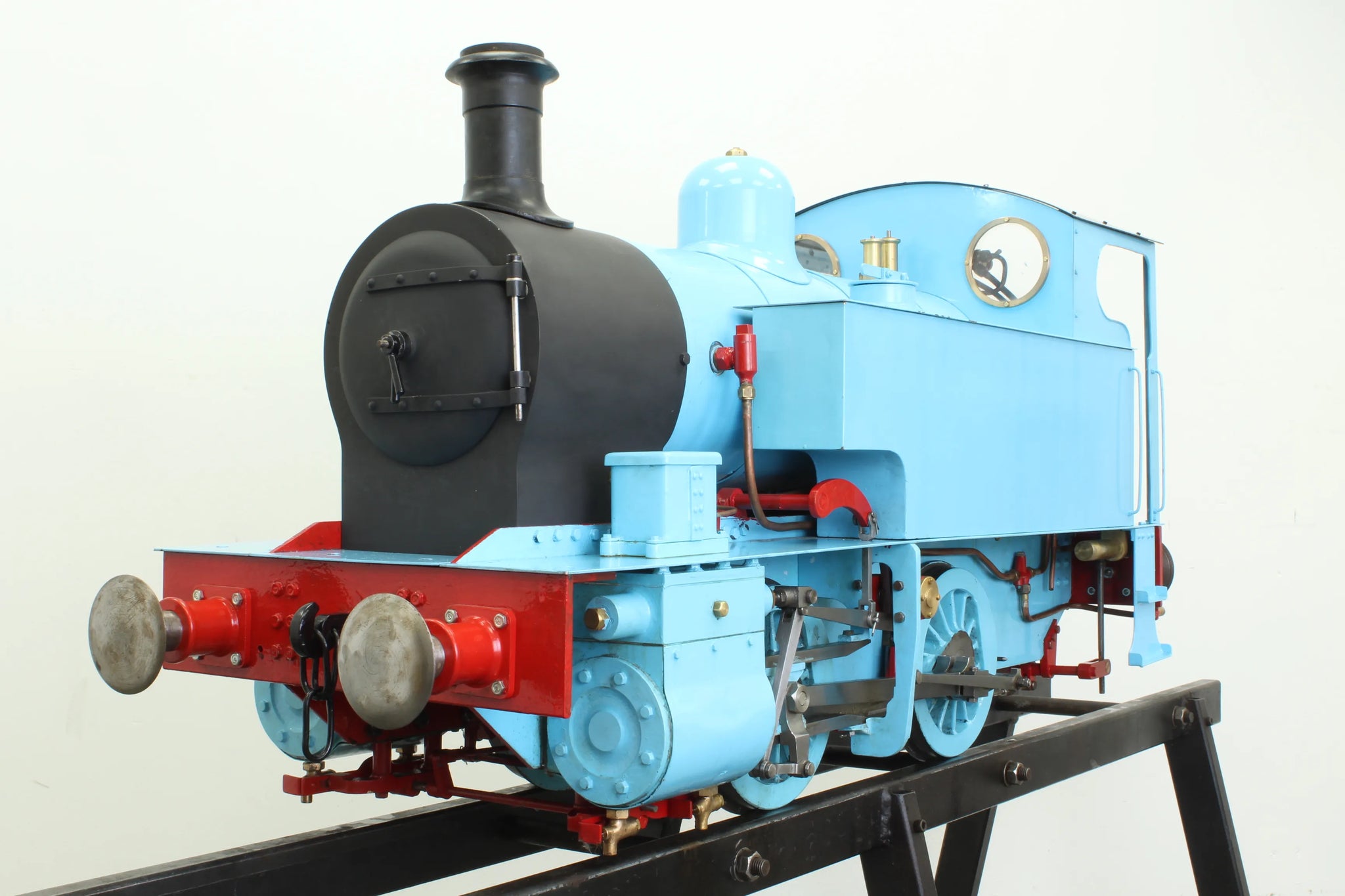

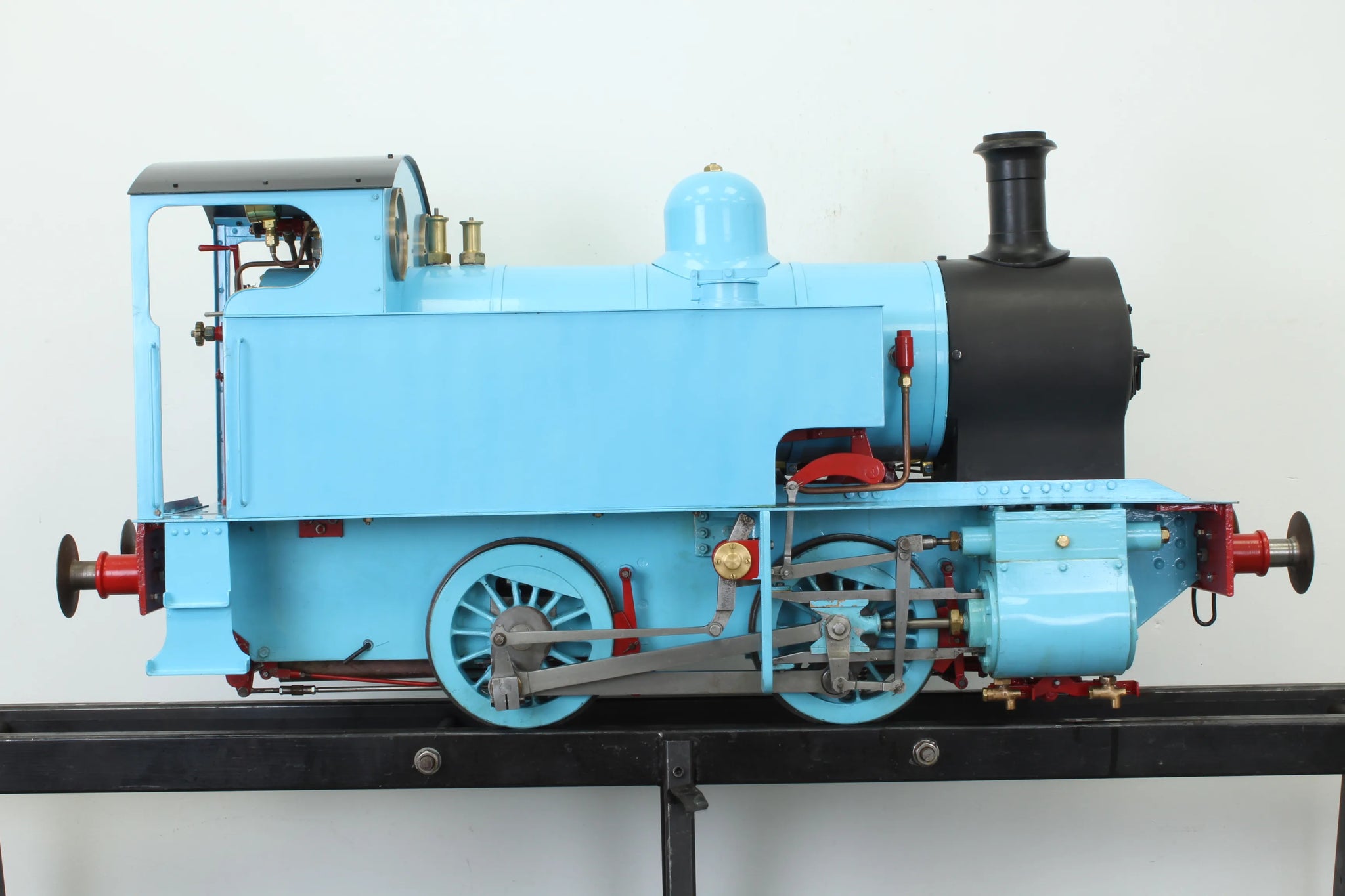

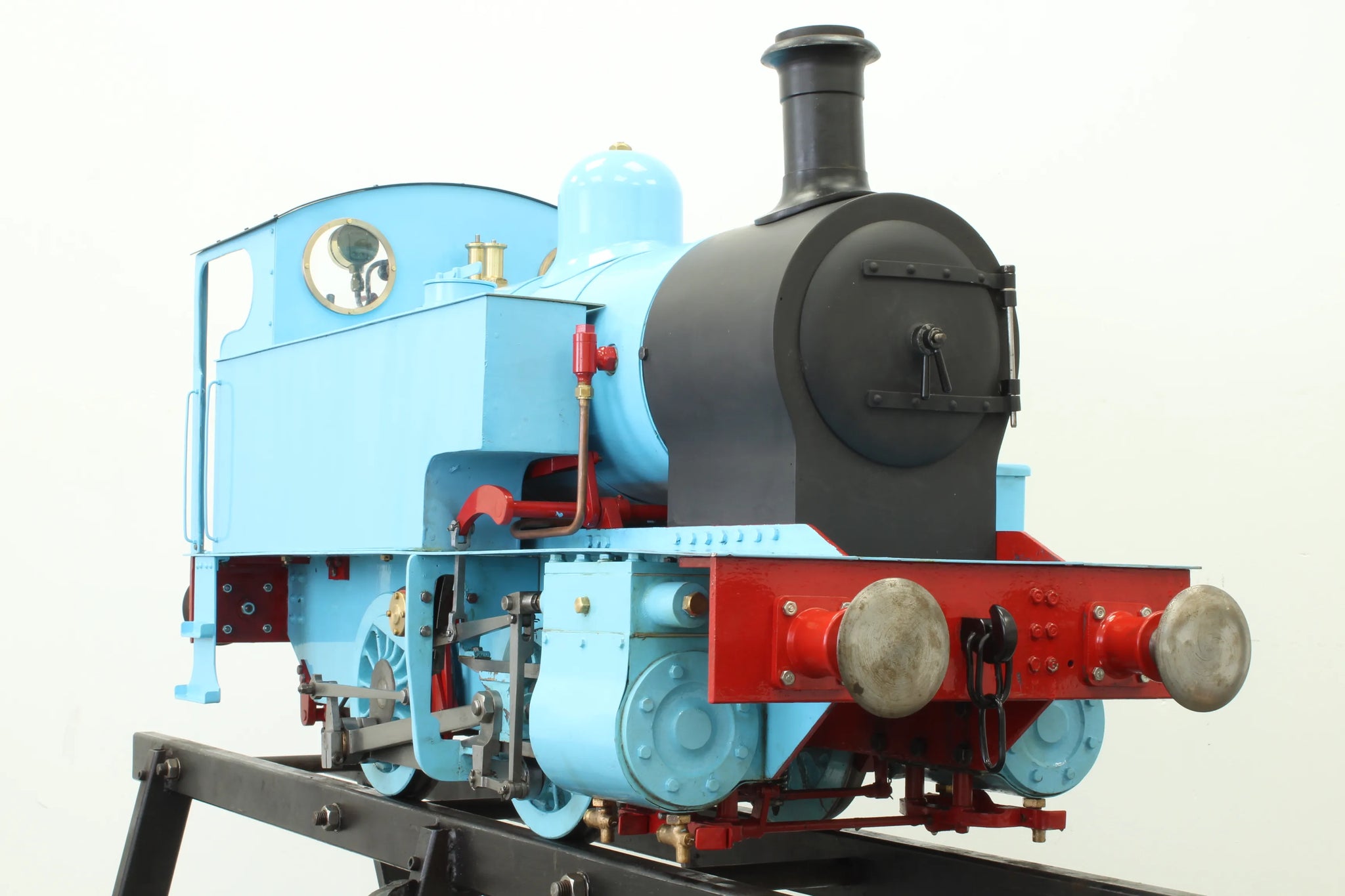

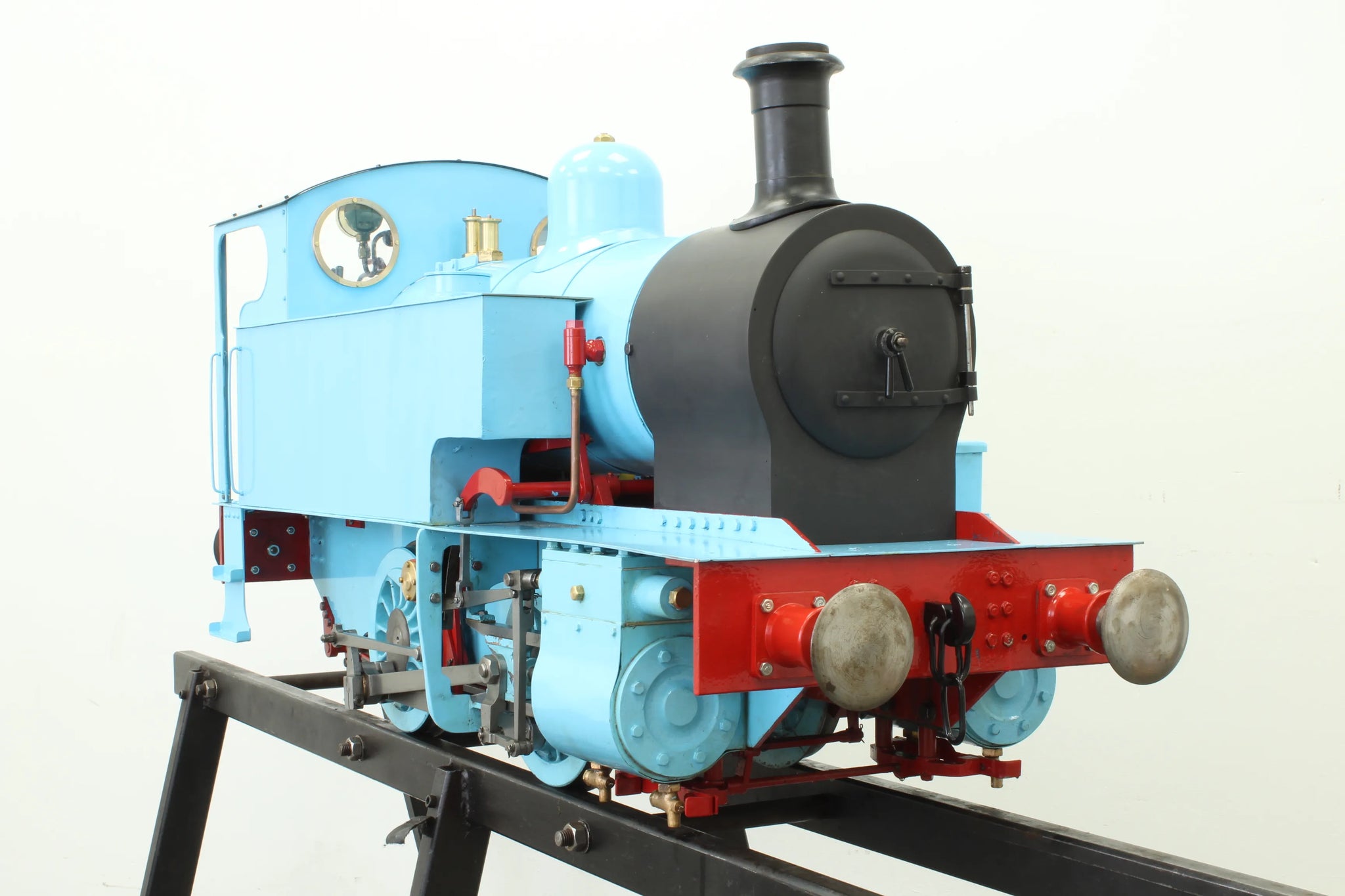

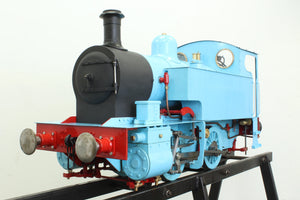

7 1/4 inch gauge "Hercules" 0-6-0T with driving truck

A 7 1/4 inch gauge "Hercules" to the Dick Simmonds design - parts and drawings are still available from Reeves, they describe it as suitable for "heavy and continuous service". Certainly the ones we've had in the past would bear this out, it's a large, powerful design with generous bearing surfaces.


This one appears to have been little used from new. It's been well-built, if somewhat flamboyantly painted in a rather eye-popping shade of "Thomas" blue.

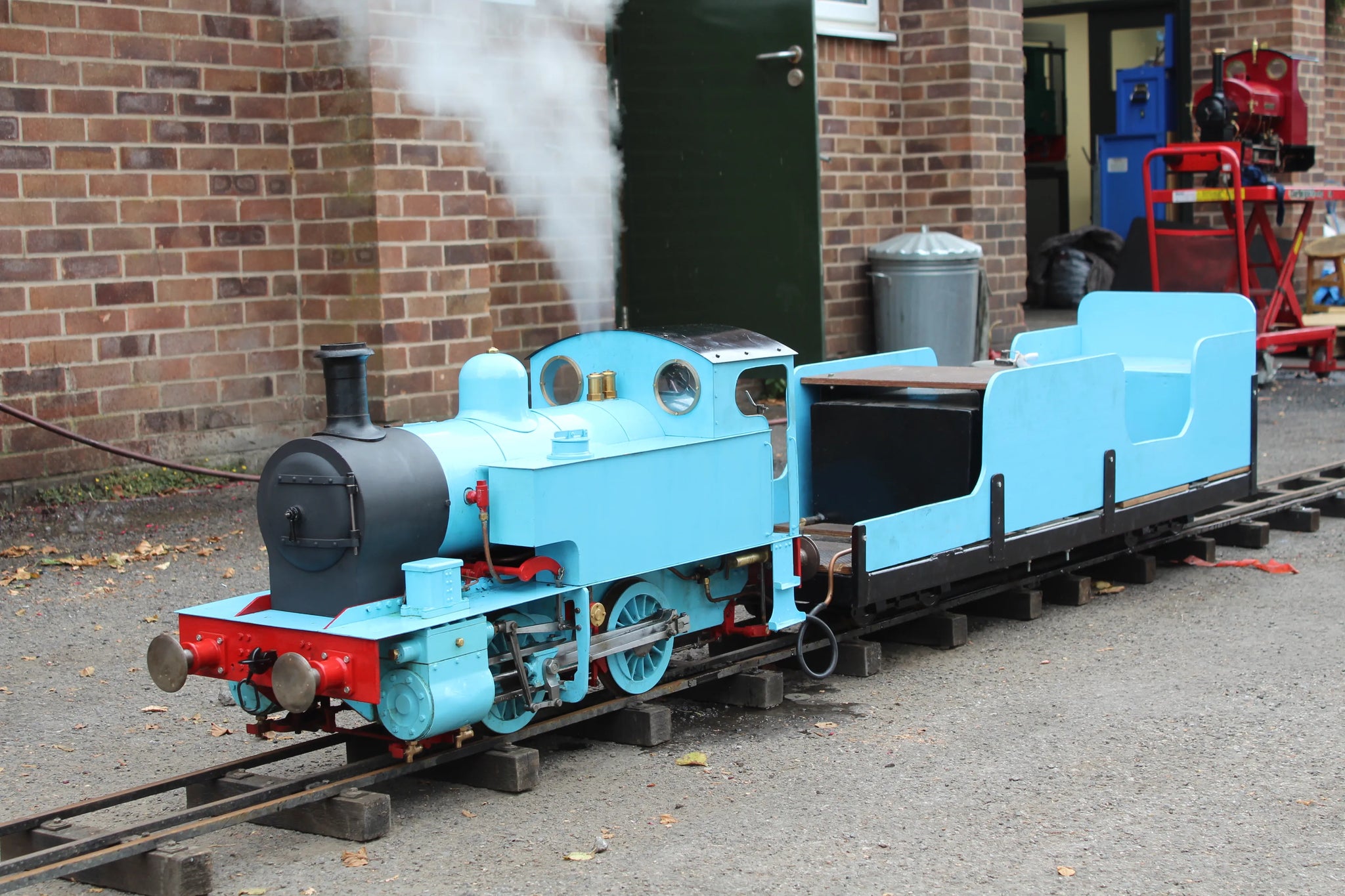

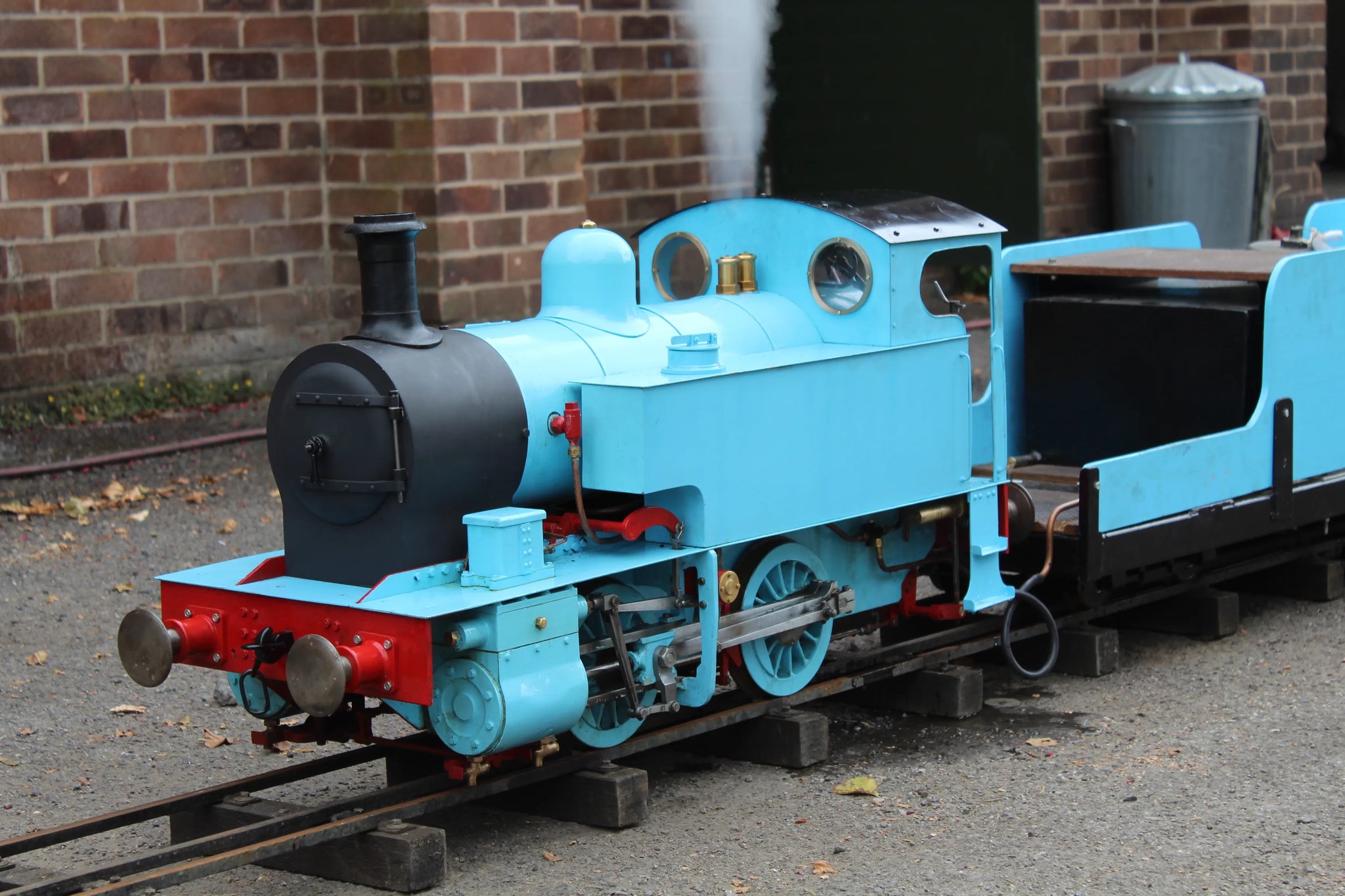

It has a commercially-built, CE-marked boiler by Western Steam in excellent condition, we had the engine running up and down outside the works last week. Steams well and runs quietly - if somewhat asthmatically - with some blow-by on the valves.

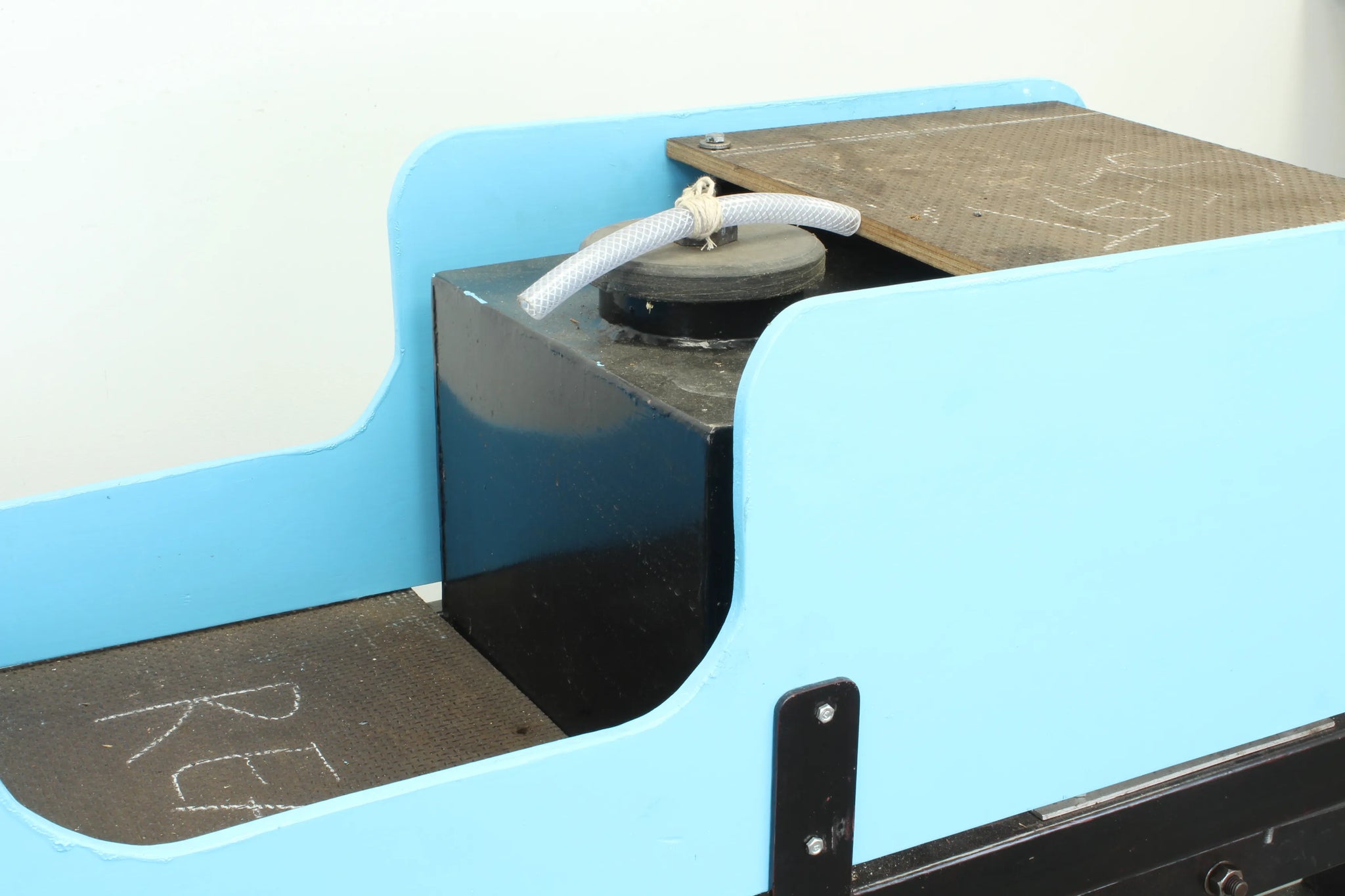

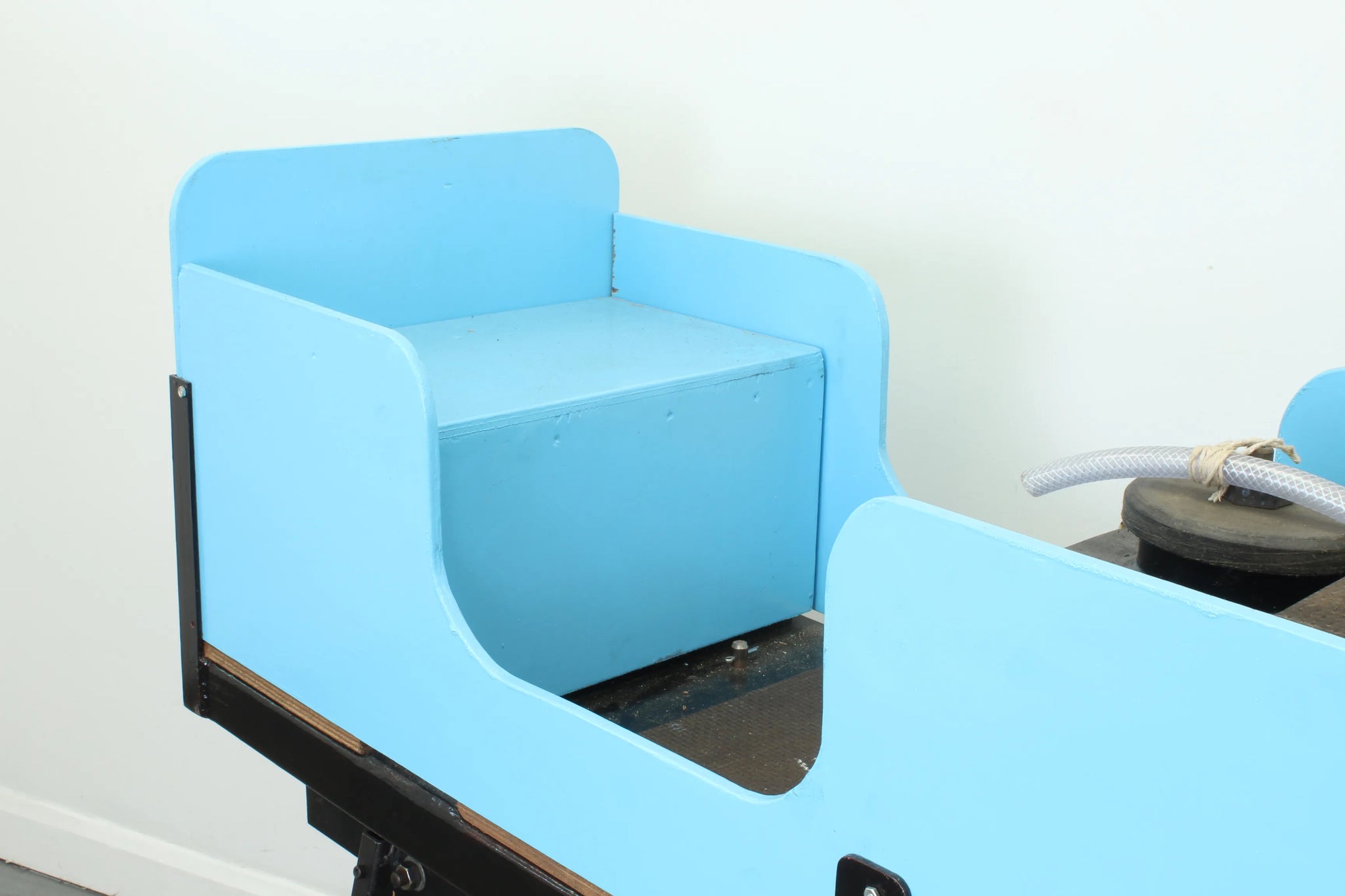

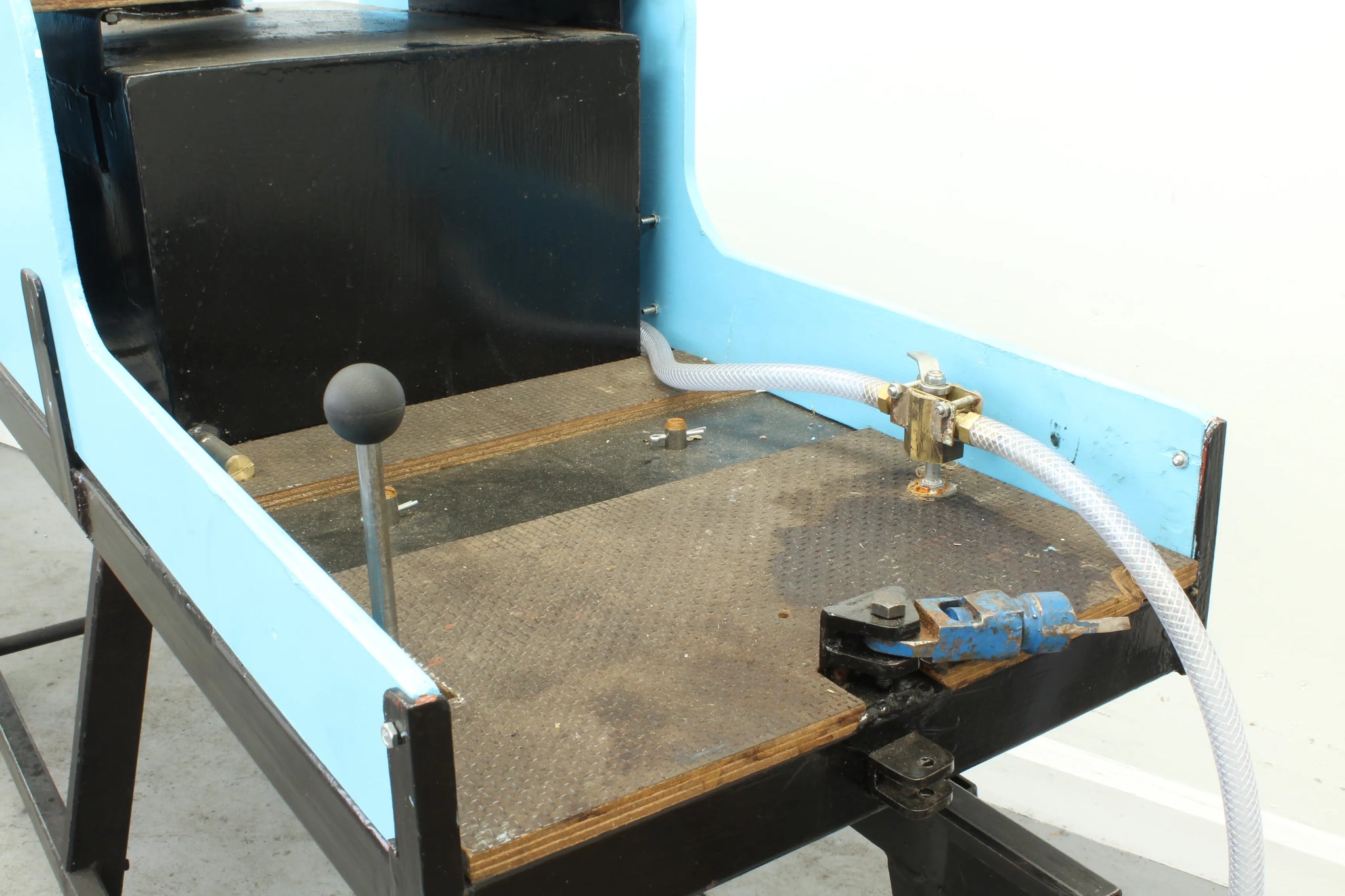

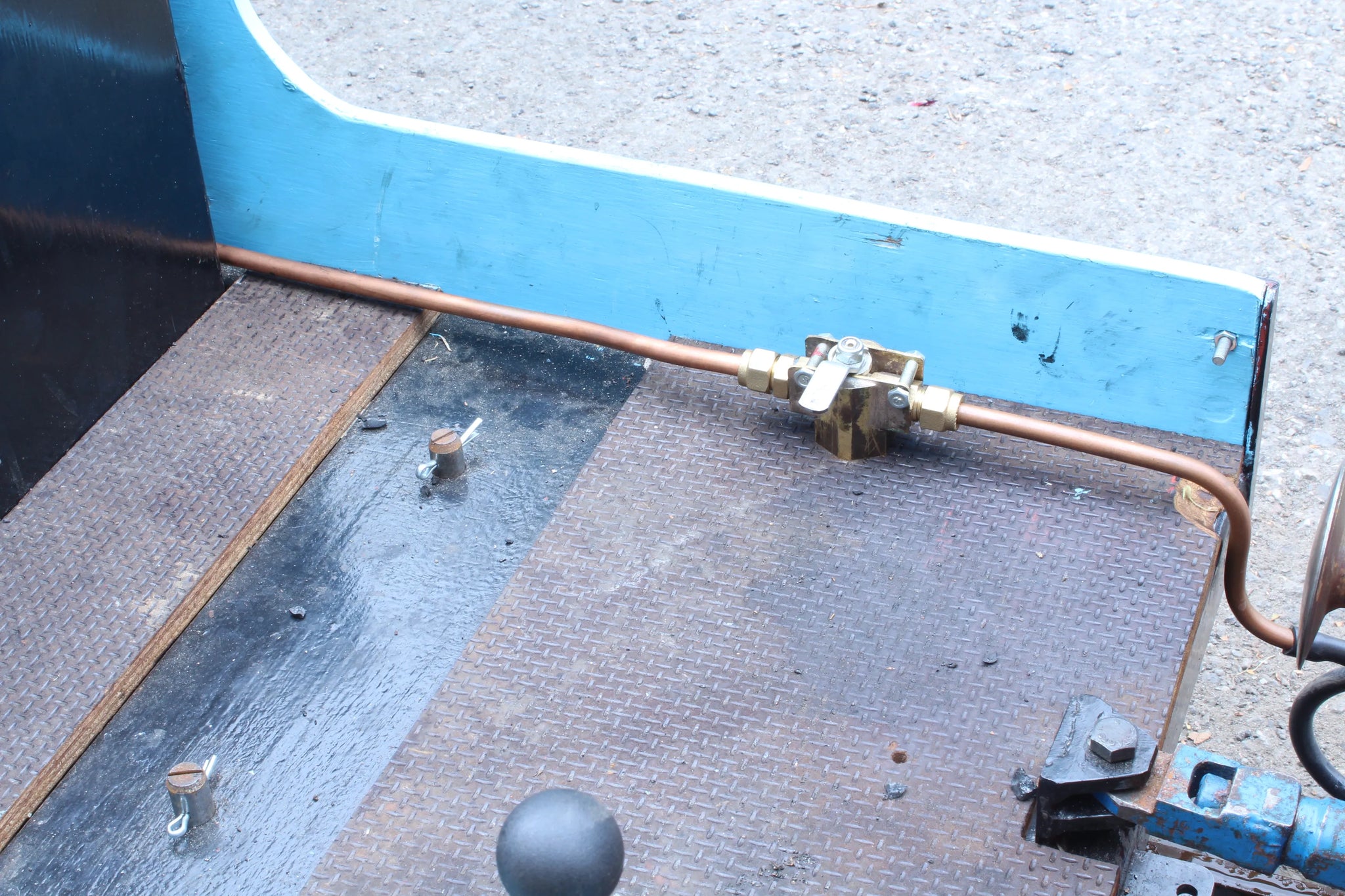

Complete with a large bogie passenger/driving truck.


Technical information

Stock code

8010

Length/inches

43 + 63

Width/inches

14

Height/inches

22

Weight/Kg

140

Wheel material

cast iron

Axlebox type

plain bearing

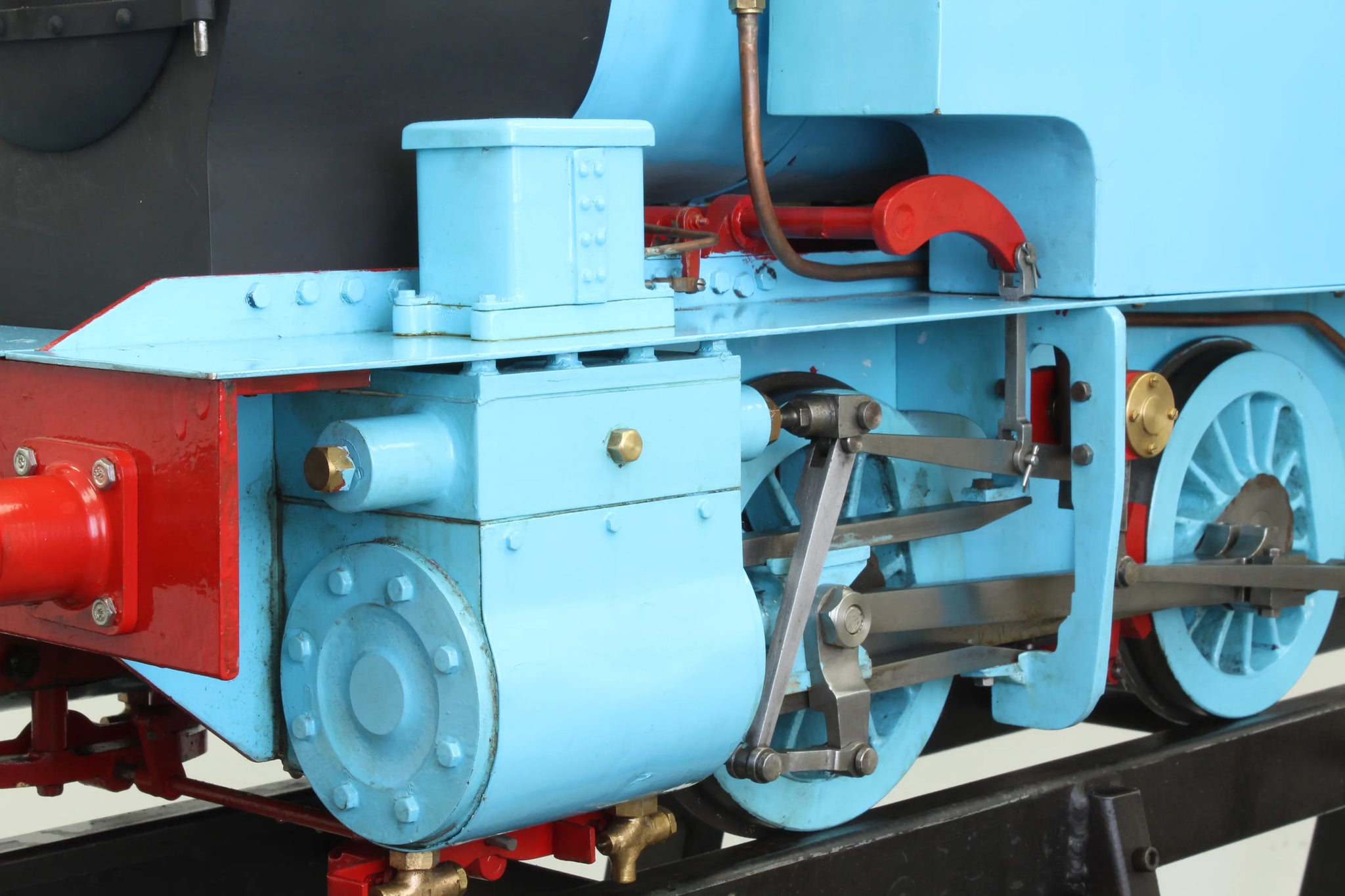

Cylinder material

cast iron

Valve type

slide

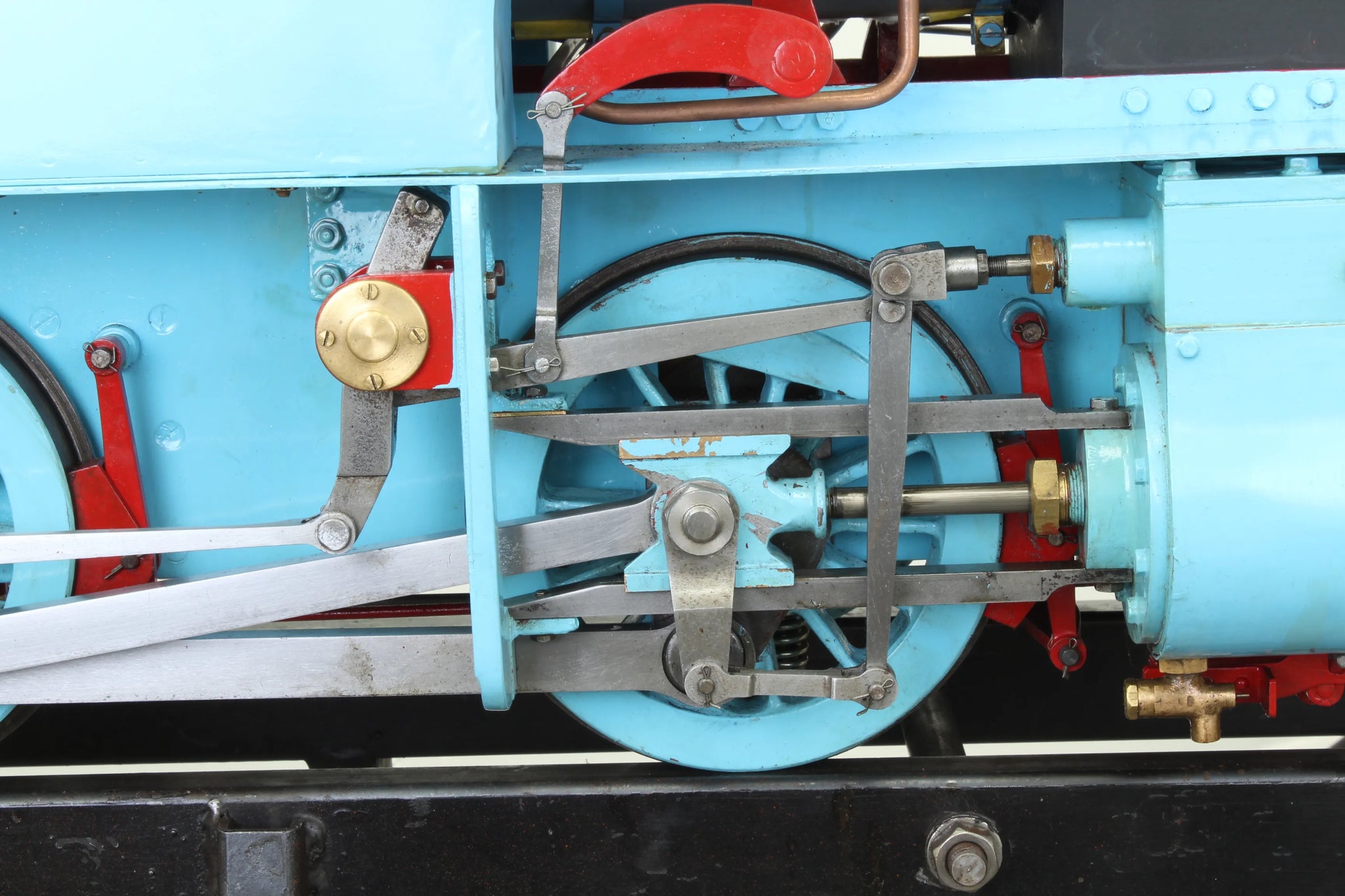

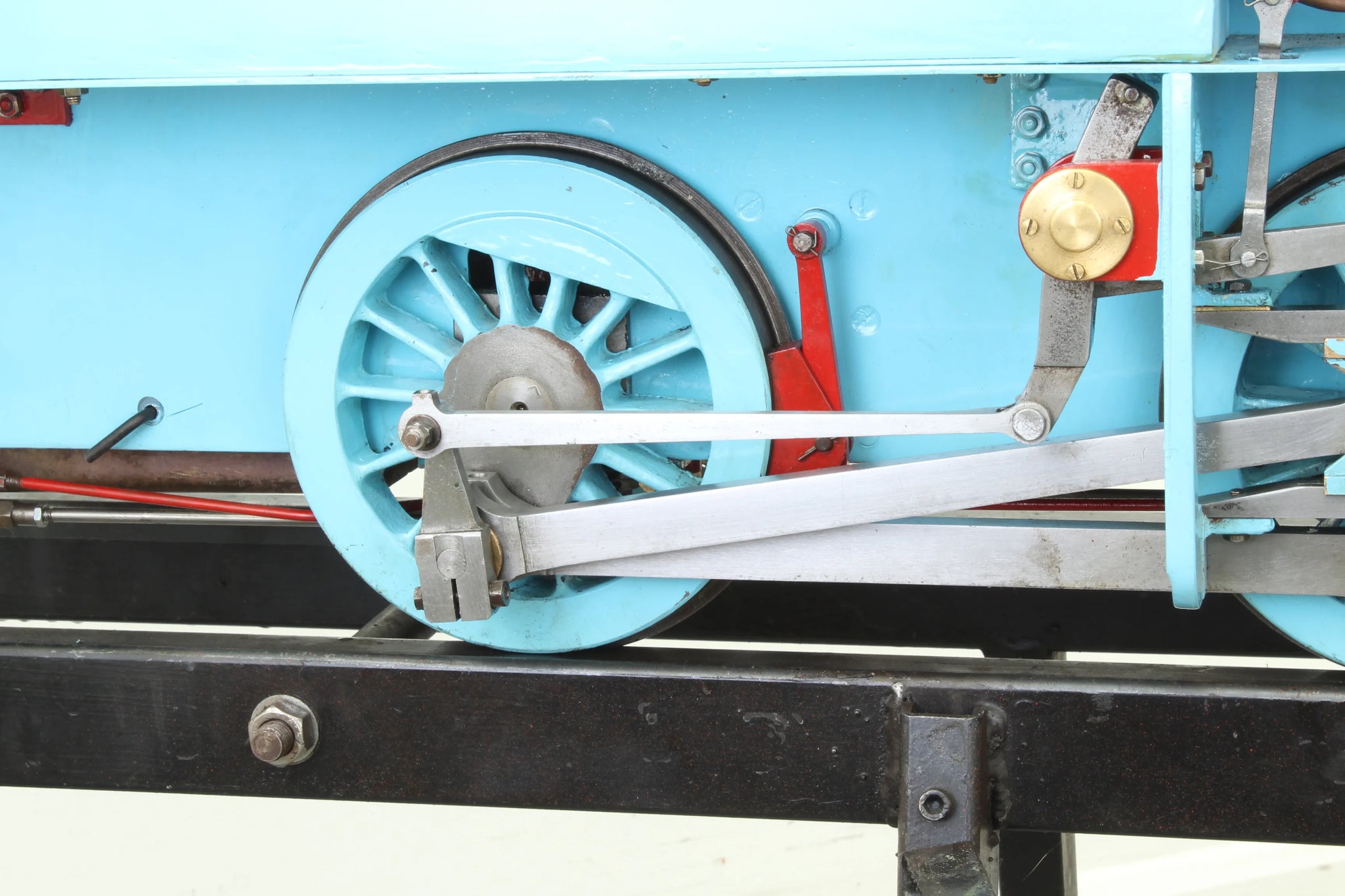

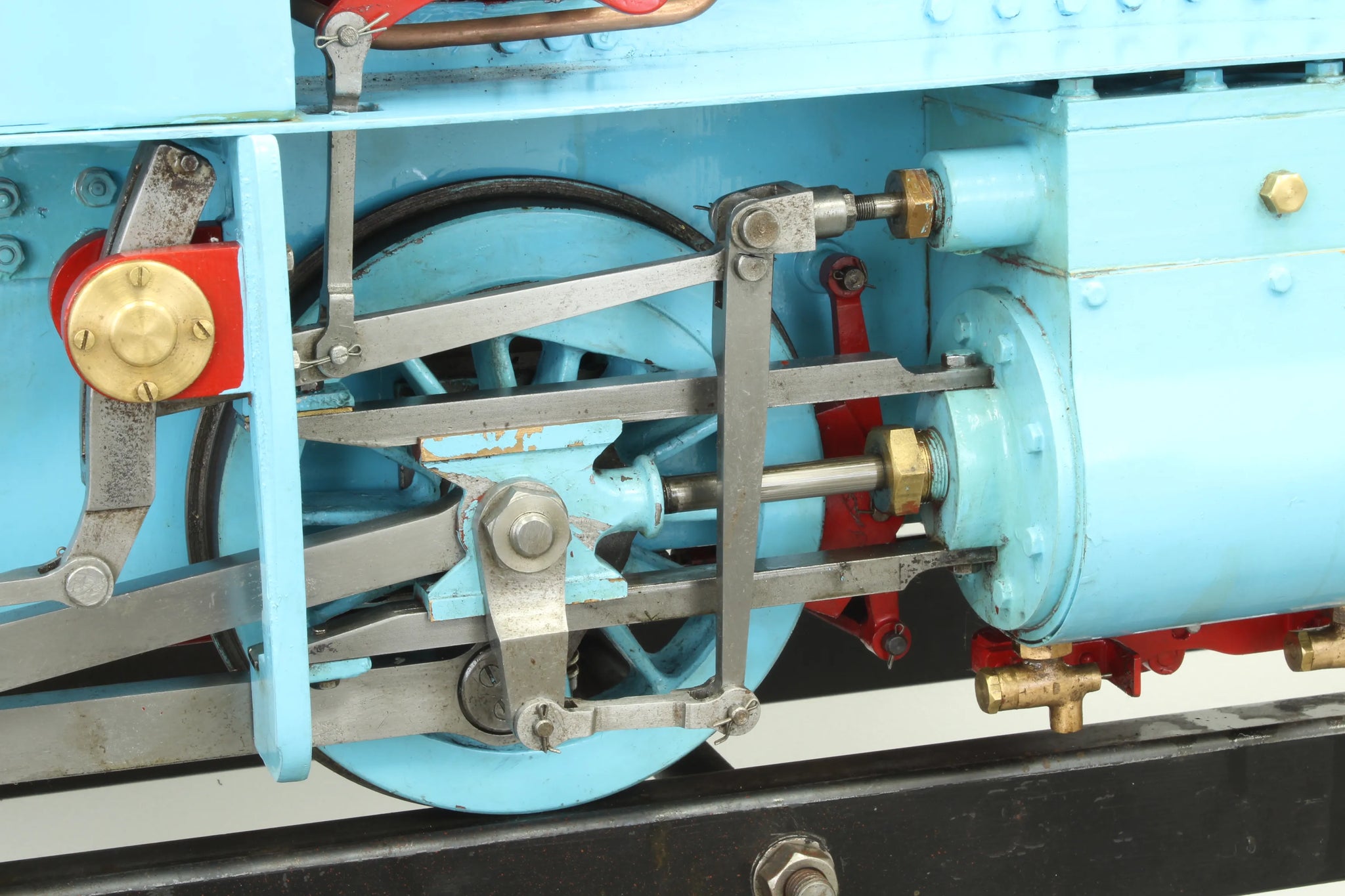

Valve gear

Walschaerts

Reverser type

pole

Boiler maker

Cheddar Valley Steam

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

yes

Year built

2007

Boiler number

CVS132

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

3

Pack

Single half pallet

Date out

Nov-18

Hydraulic test valid to

10-Jul-22

Steam test valid to

16-Sep-19
