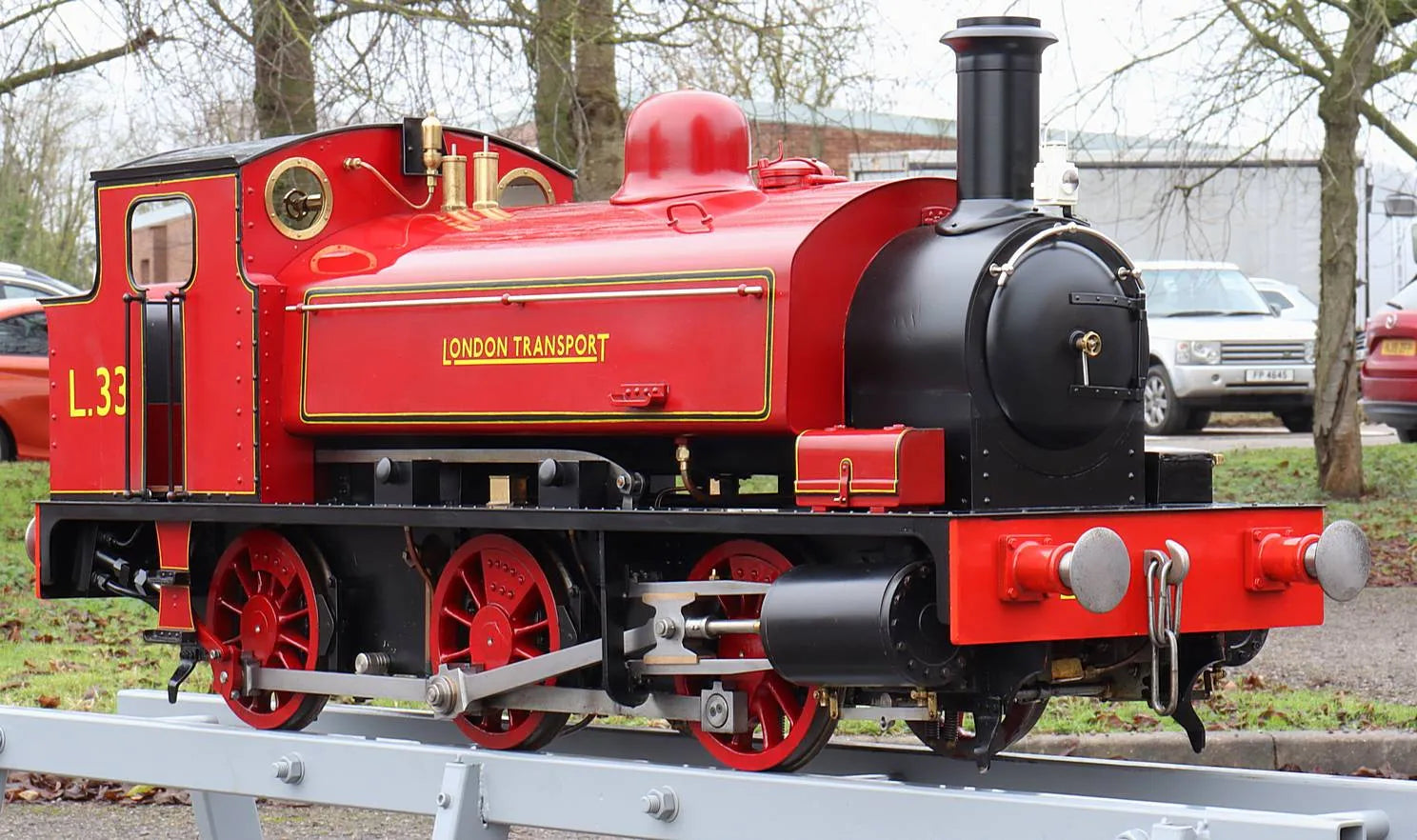

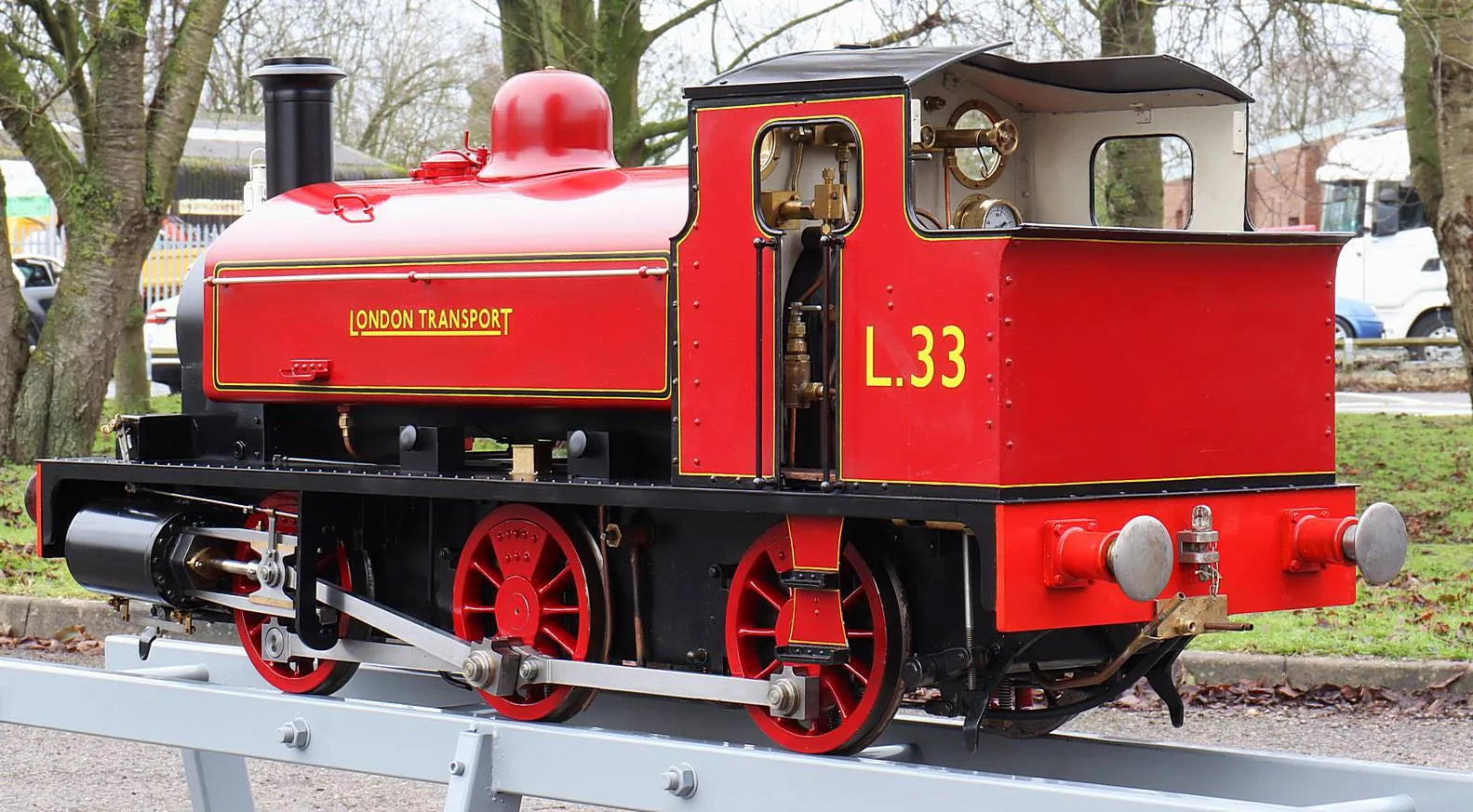

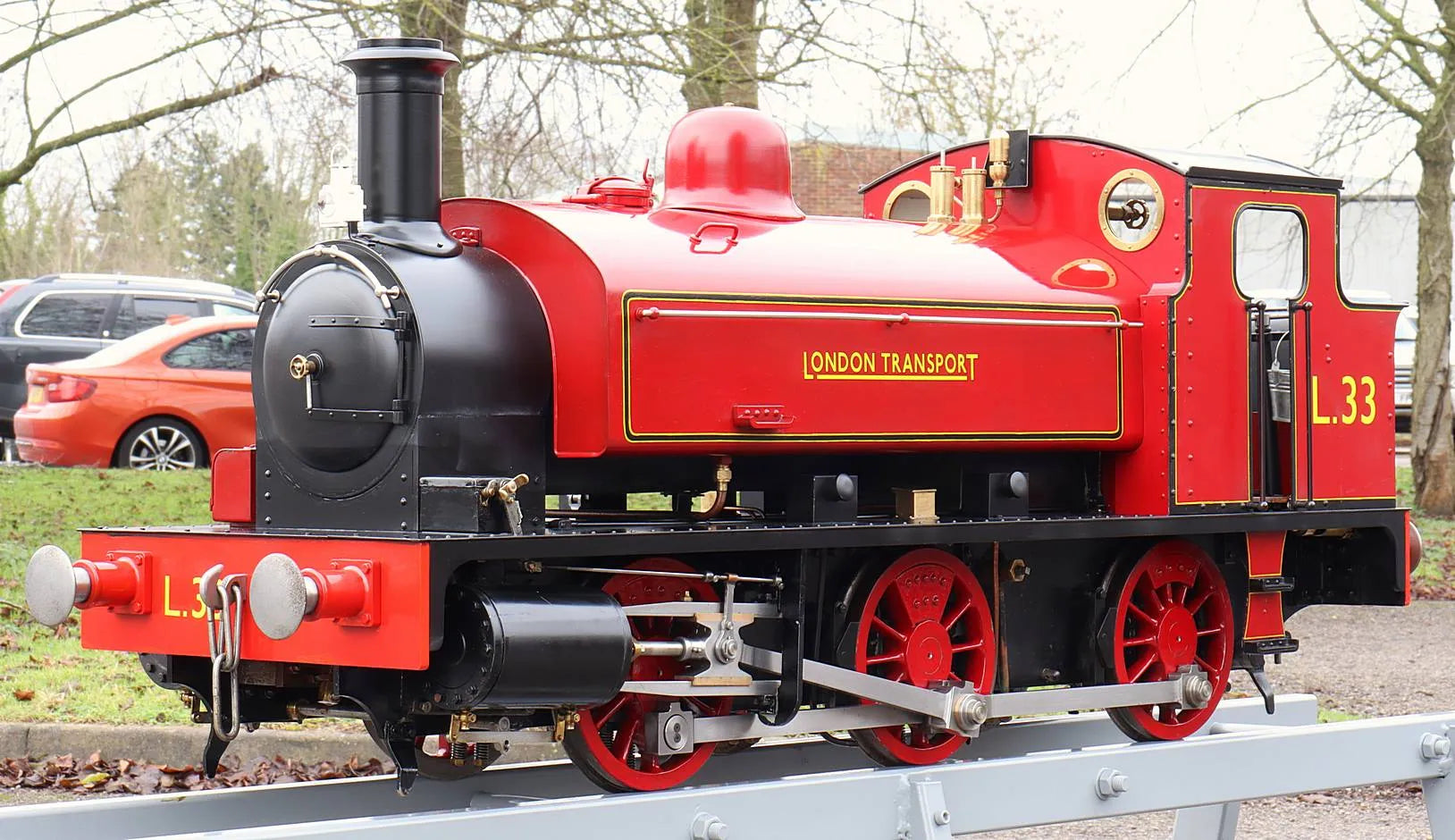

7 1/4 inch gauge "Holmside" 0-6-0ST

A well-built 7 1/4 inch gauge Coal Board 0-6-0T to Martin Evans' powerful, popular "Holmside" design.

The commercially built CE-marked boiler by Blackgates Engineering has had hydraulic and steam tests with new certification issued.

On test the engine proved free-steaming and ran well in either direction, the axle pump keeping up with the demands of the boiler.

Done to a good standard originally, the paintwork remains in good, bright condition with minor wear consistent with normal use.

Technical information

Stock code

13220

Gauge

7 1/4 inch

Length/inches

47

Width/inches

13.5

Height/inches

19

Weight/Kg

105

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

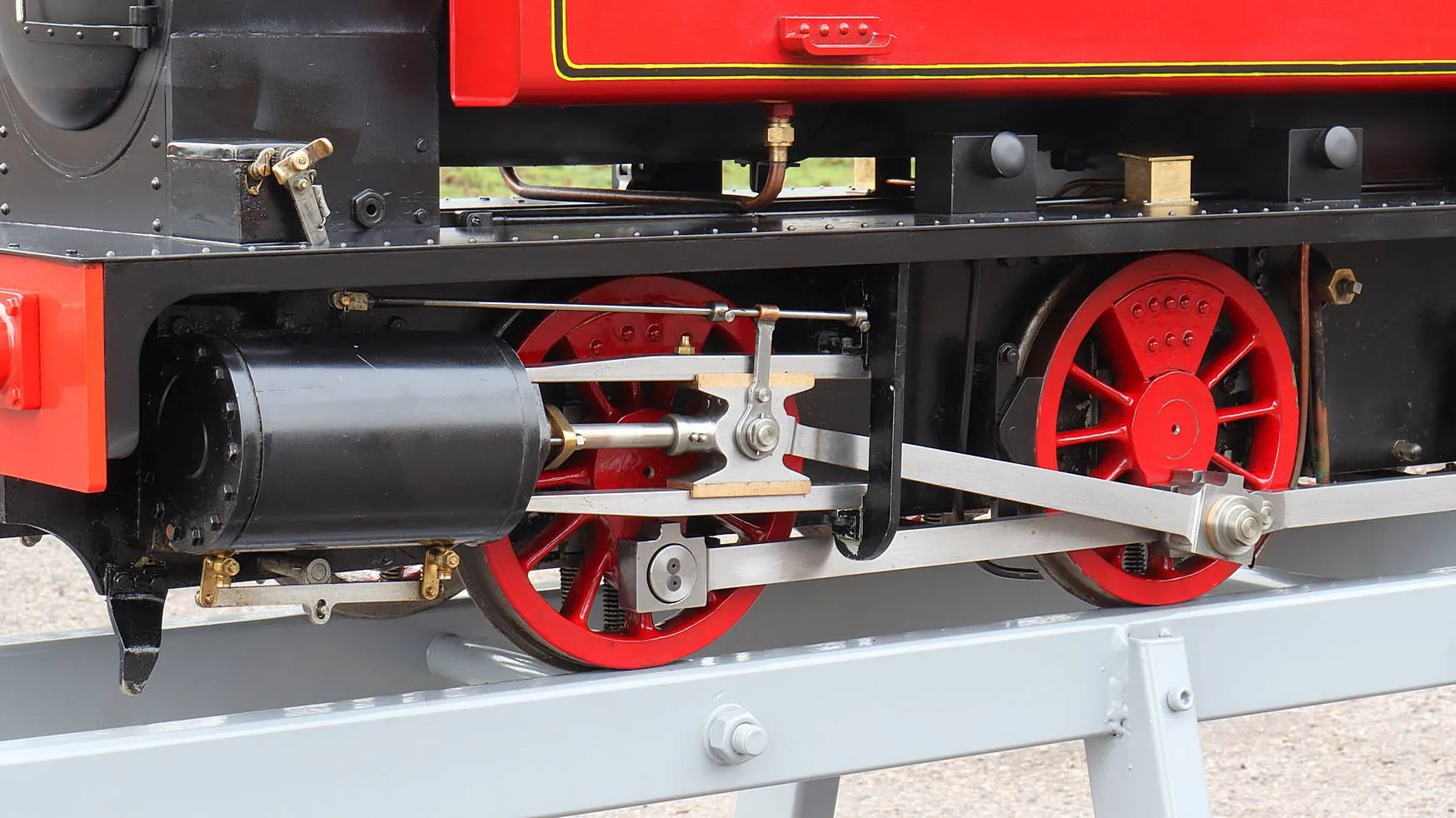

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Blackgates Engineering

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

yes

Year built

2009

Boiler number

BG175

Safety valve type

spring

Safety valve

2

Mechanical pump

1

Injector

1

Superheater type

radiant

Superheater

4

Date out

Feb-26

Hydraulic test valid to

24-Nov-29

Steam test valid to

09-Feb-27
