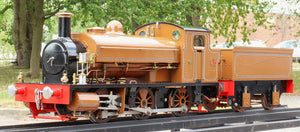

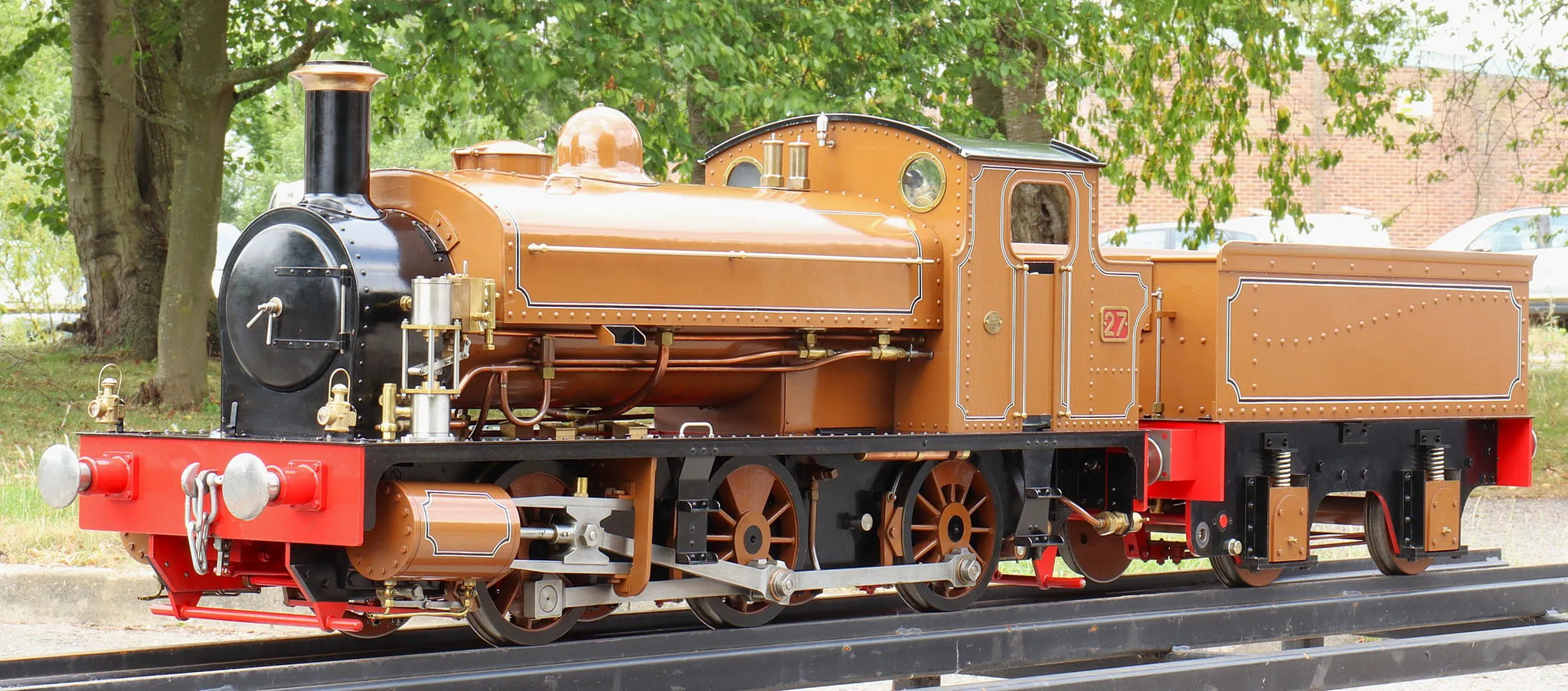

7 1/4 inch gauge "Holmside" 0-6-0ST with tender

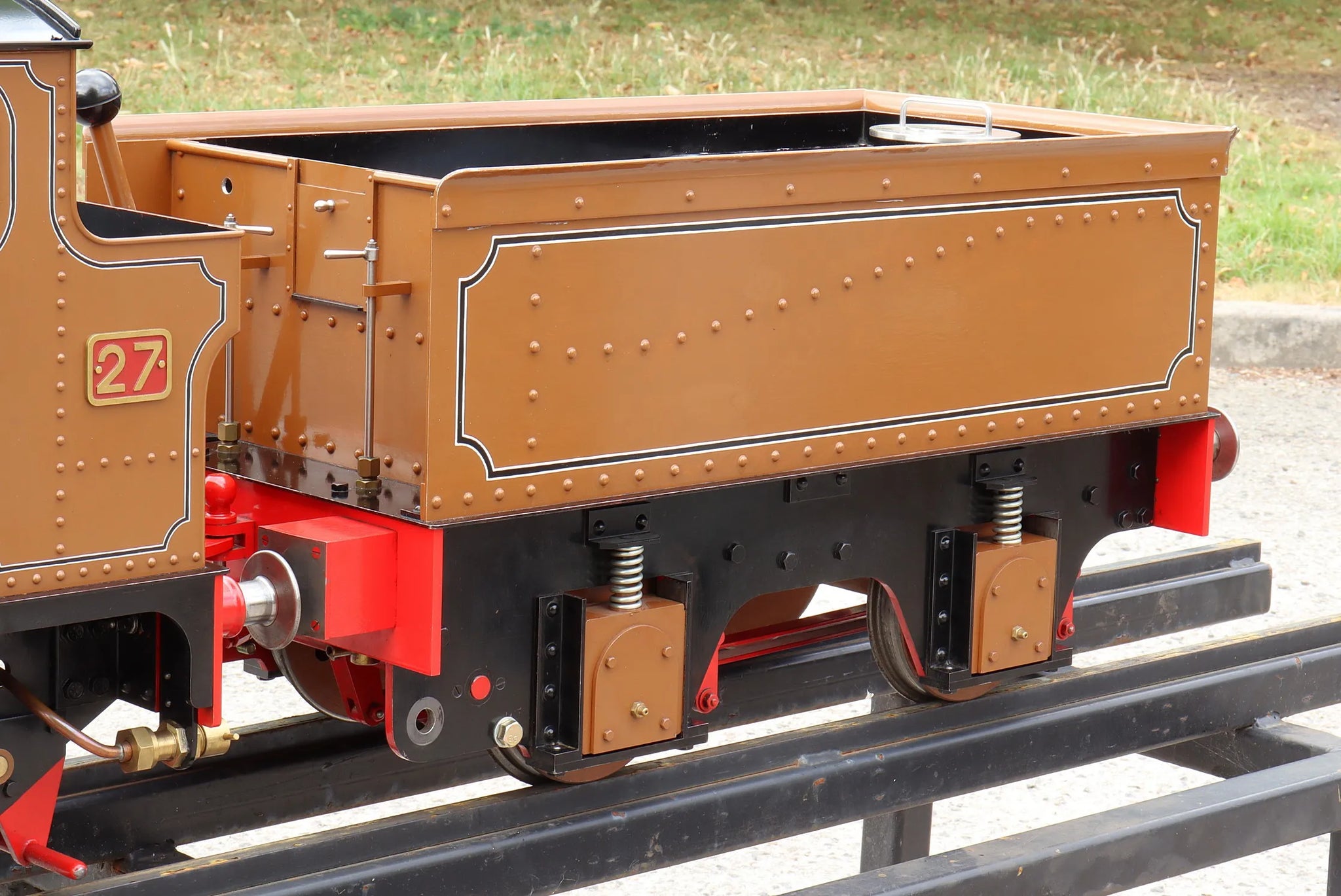

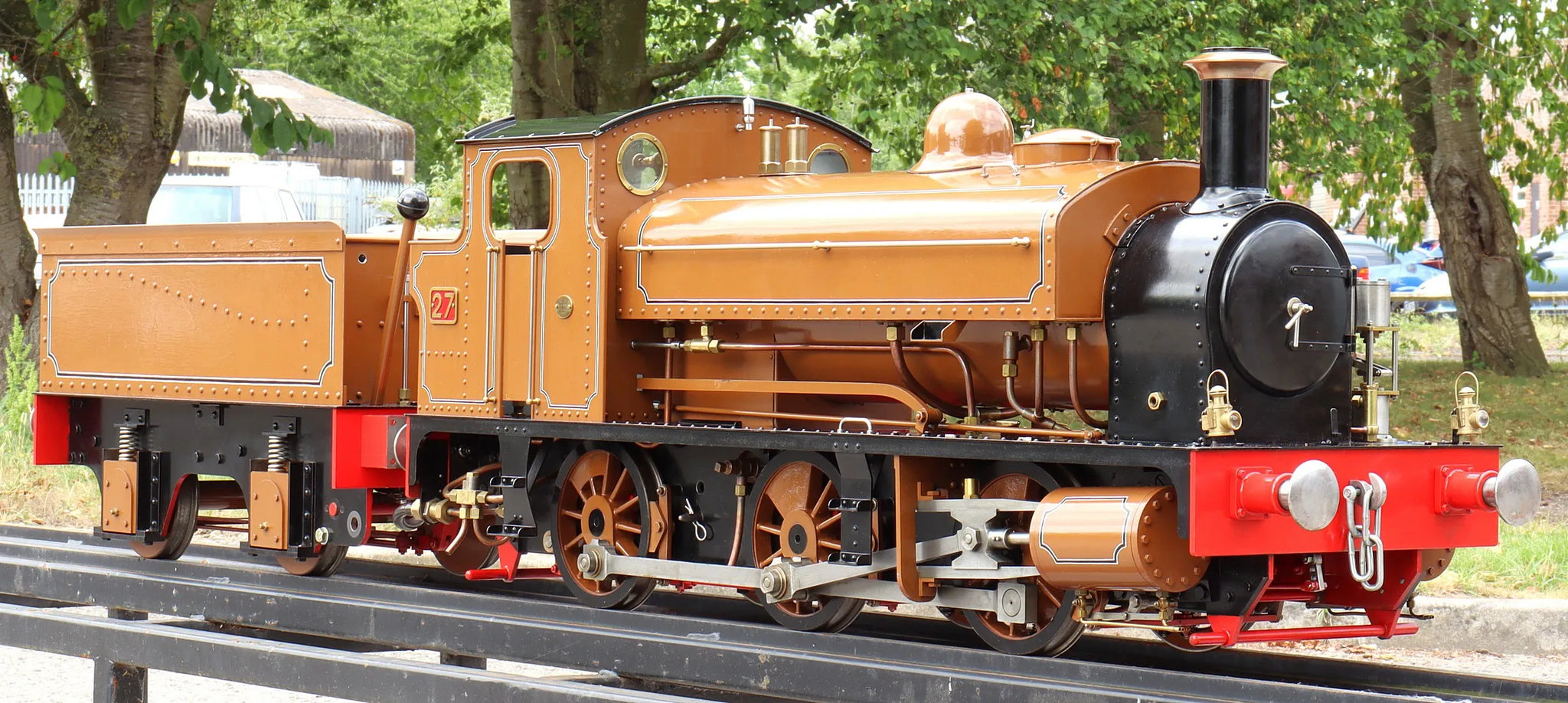

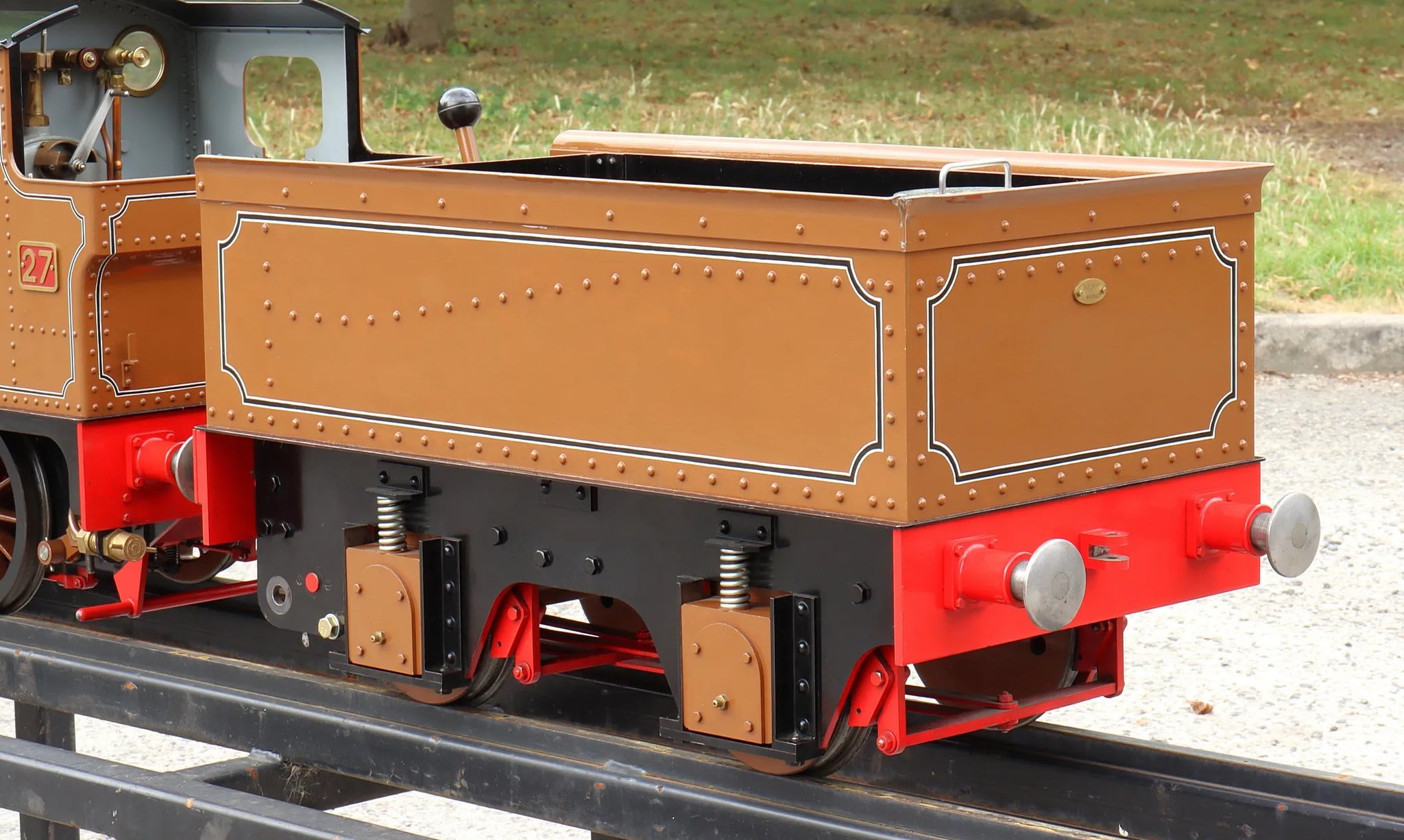

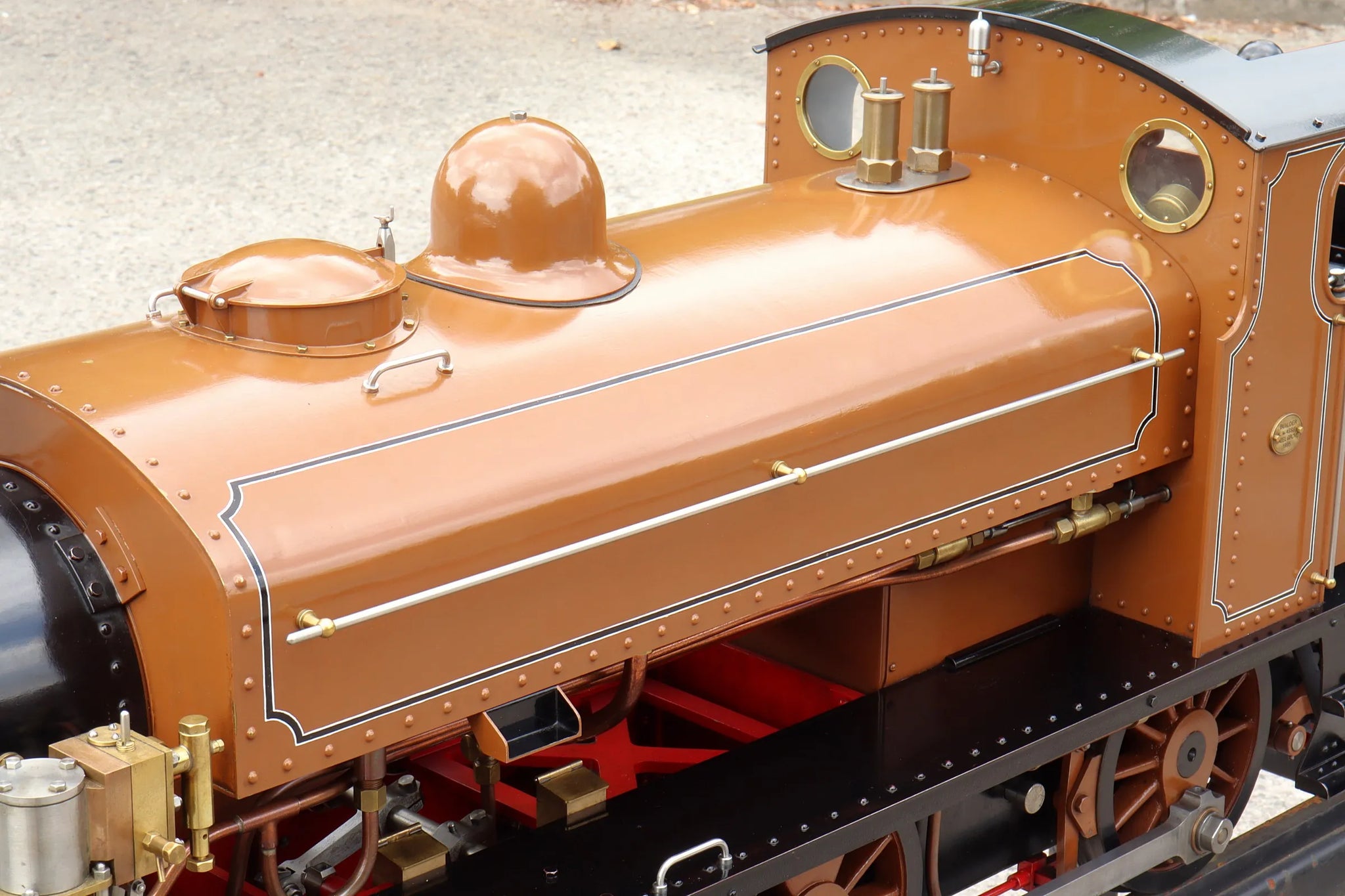

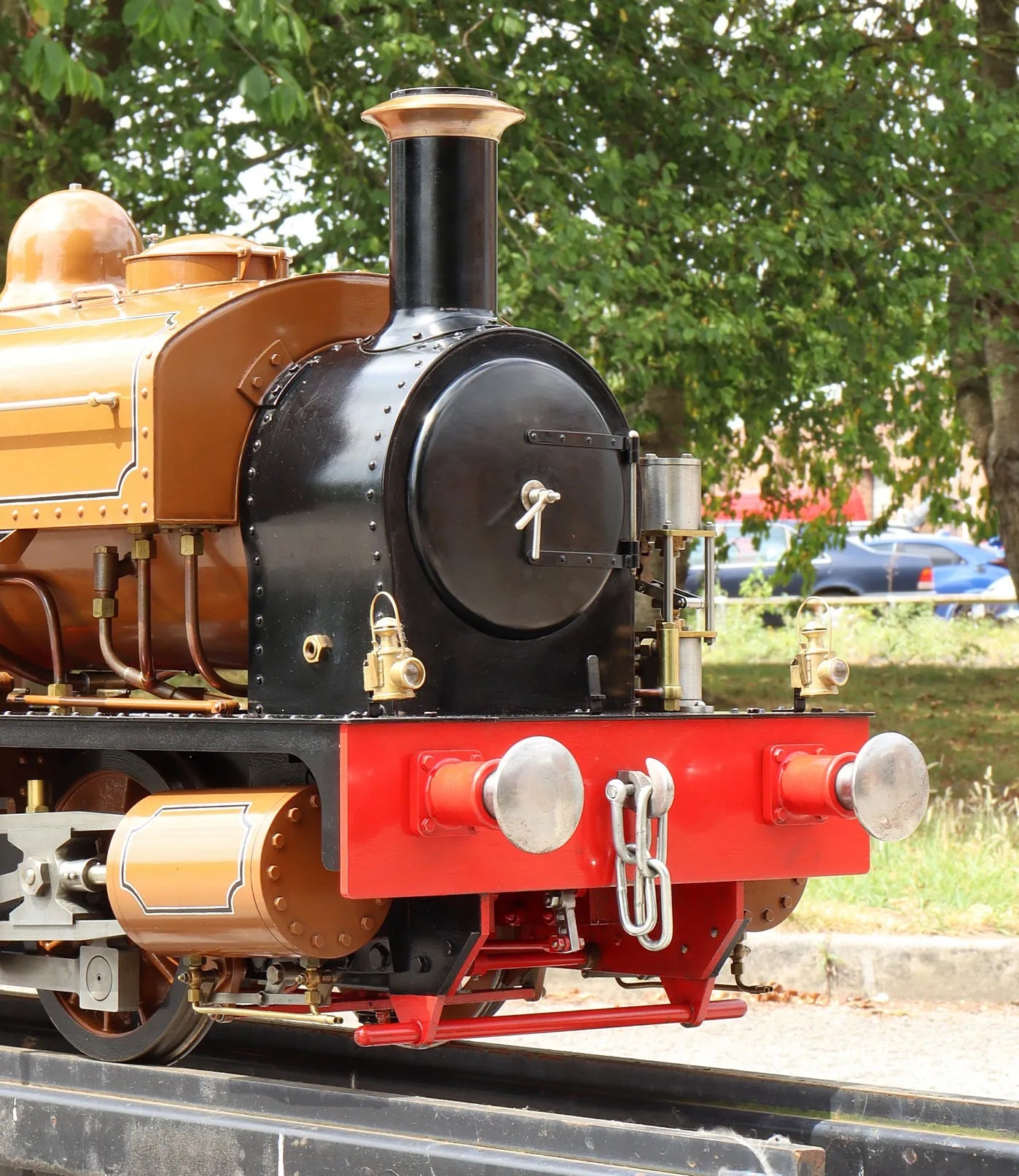

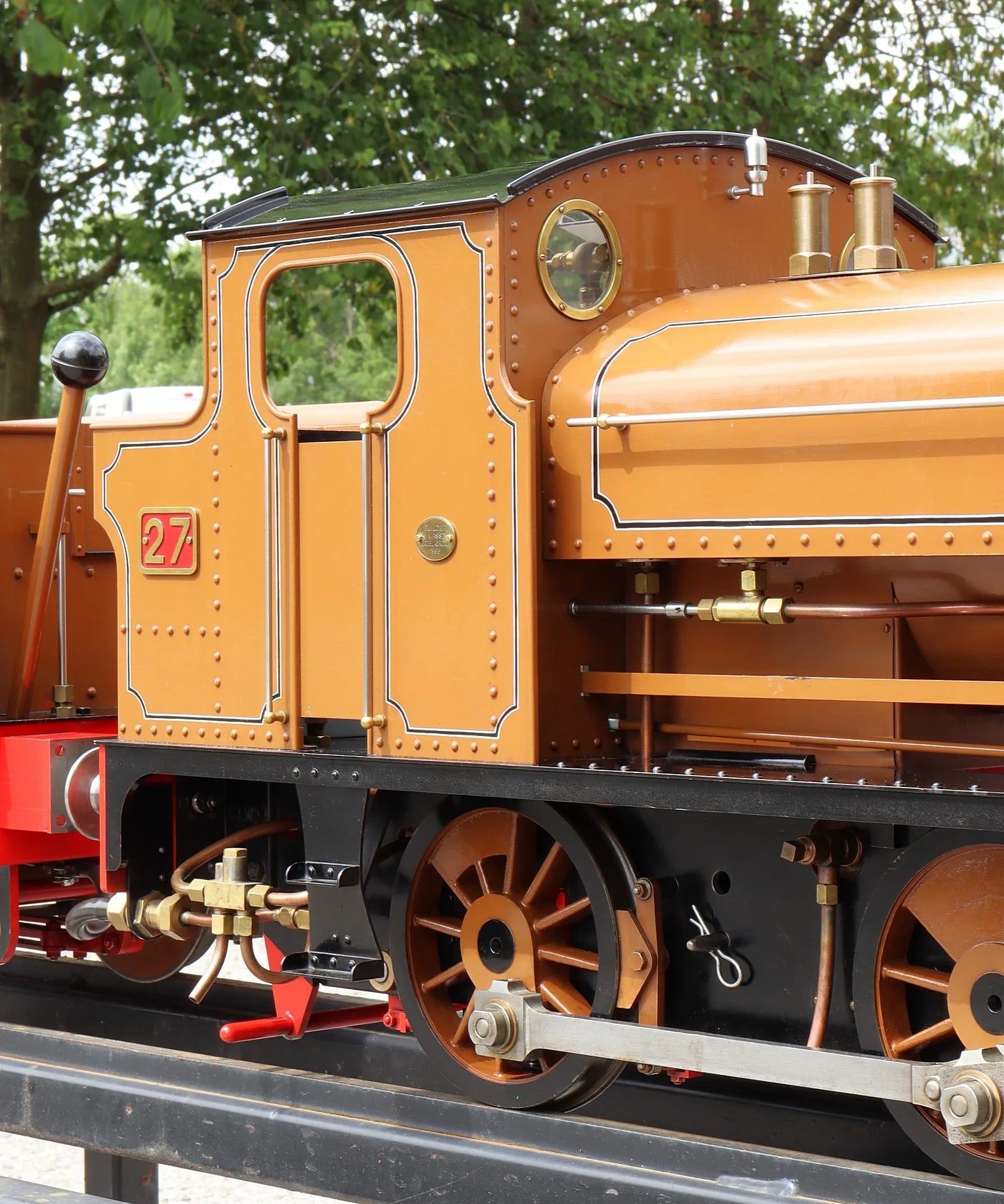

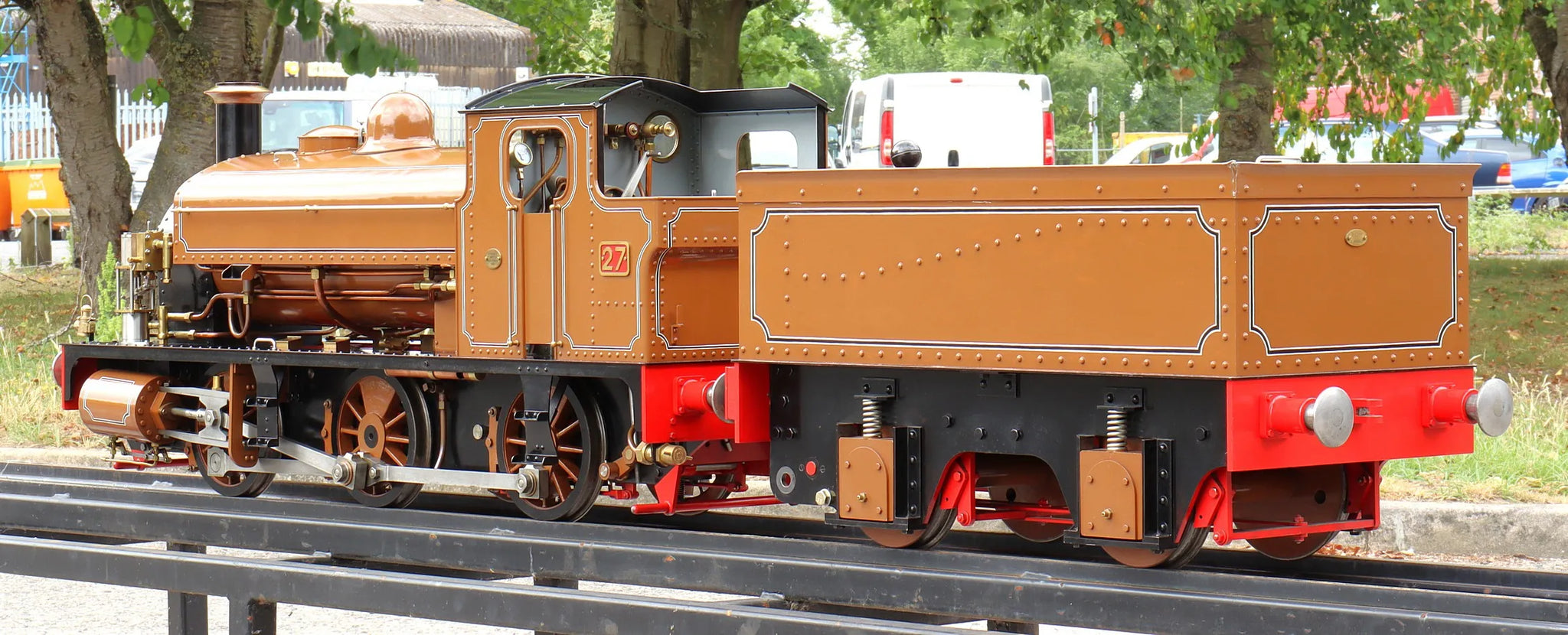

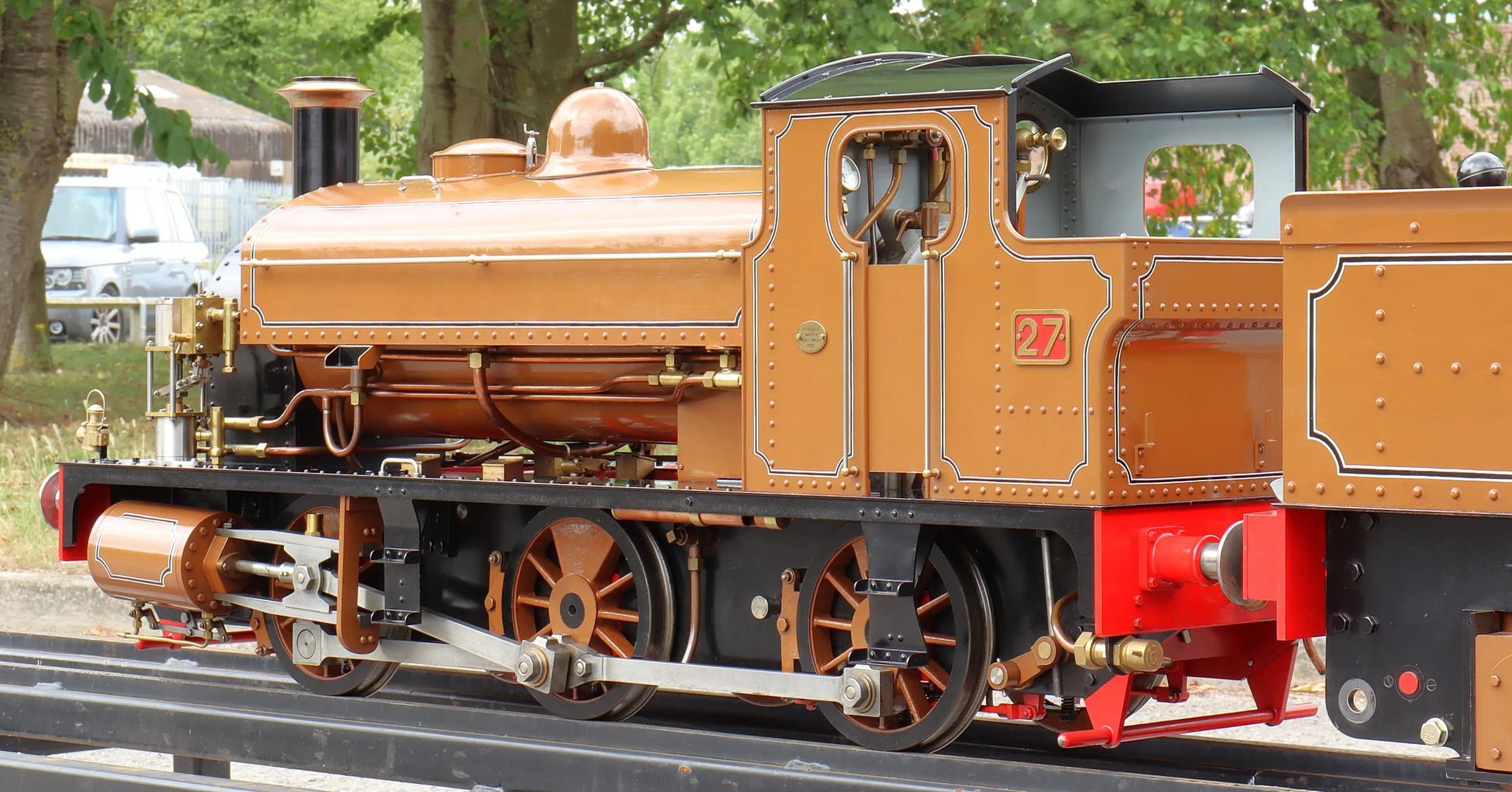

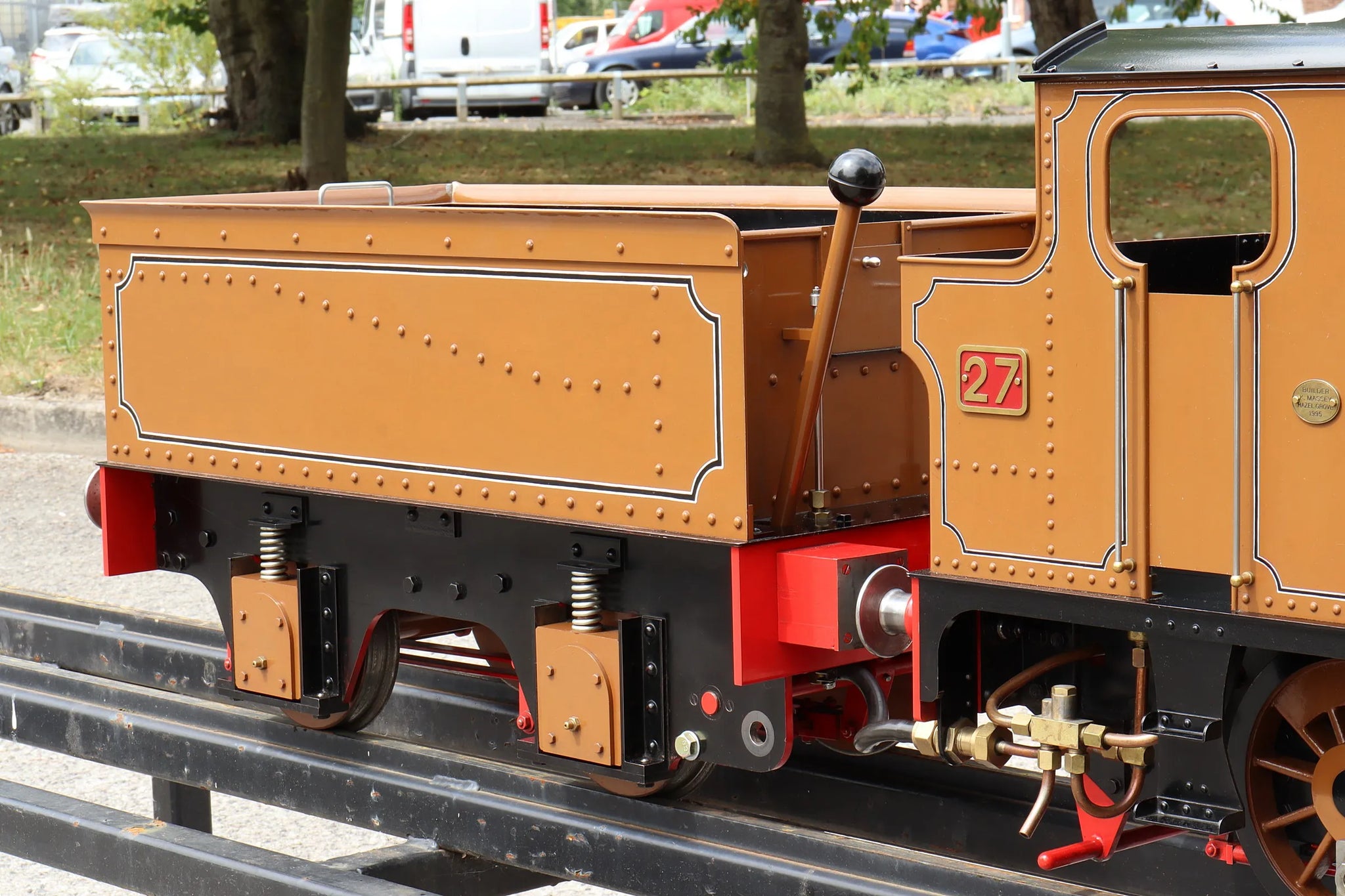

A 7 1/4 inch gauge 0-6-0T to Martin Evans' "Holmside" design, complete with ride-on tender; the work of a preternaturally gifted model engineer, a man whose work has appeared many times on these pages.

I bought this engine from the builder - the first and only time I ever met him - in 2009. Brand new at that time, it had been test-steamed once to check the valve setting - there's a write-up and pictures in the archive here.

We last sold the engine in 2011 to a local man, a long time customer of ours, himself a formidably talented engineer (with what most be the tidiest workshop we've ever seen!) His main interest is in 7 1/4 inch narrow gauge - he built a highly modified Romulus, complete with booster tender, which sees regular use - with the Holmside spending much of the last sixteen years on a shelf in his workshop, rarely used. It remains in much the same condition as when I bought it from the builder.

The boiler has had hydraulic and steam tests with new certification issued. The engine runs beautifully on the rolling road - the hallmark of all of this builder's models (indeed, so well did they go that years ago we dismantled a 3 inch scale Burrell he'd built to find out what hidden tricks lay within. None, as it turned out - just a lot of very accurately made and finely fitted parts).

If you're not familiar with the late Keith Massey's work, there is a writeup here with details of this most remarkable of builders.


Technical information

Stock code

12946

Gauge

7 1/4 inch

Length/inches

48 + 30

Width/inches

14

Height/inches

20

Weight/Kg

190 including tender

Wheel material

cast iron

Axlebox type

plain bearing

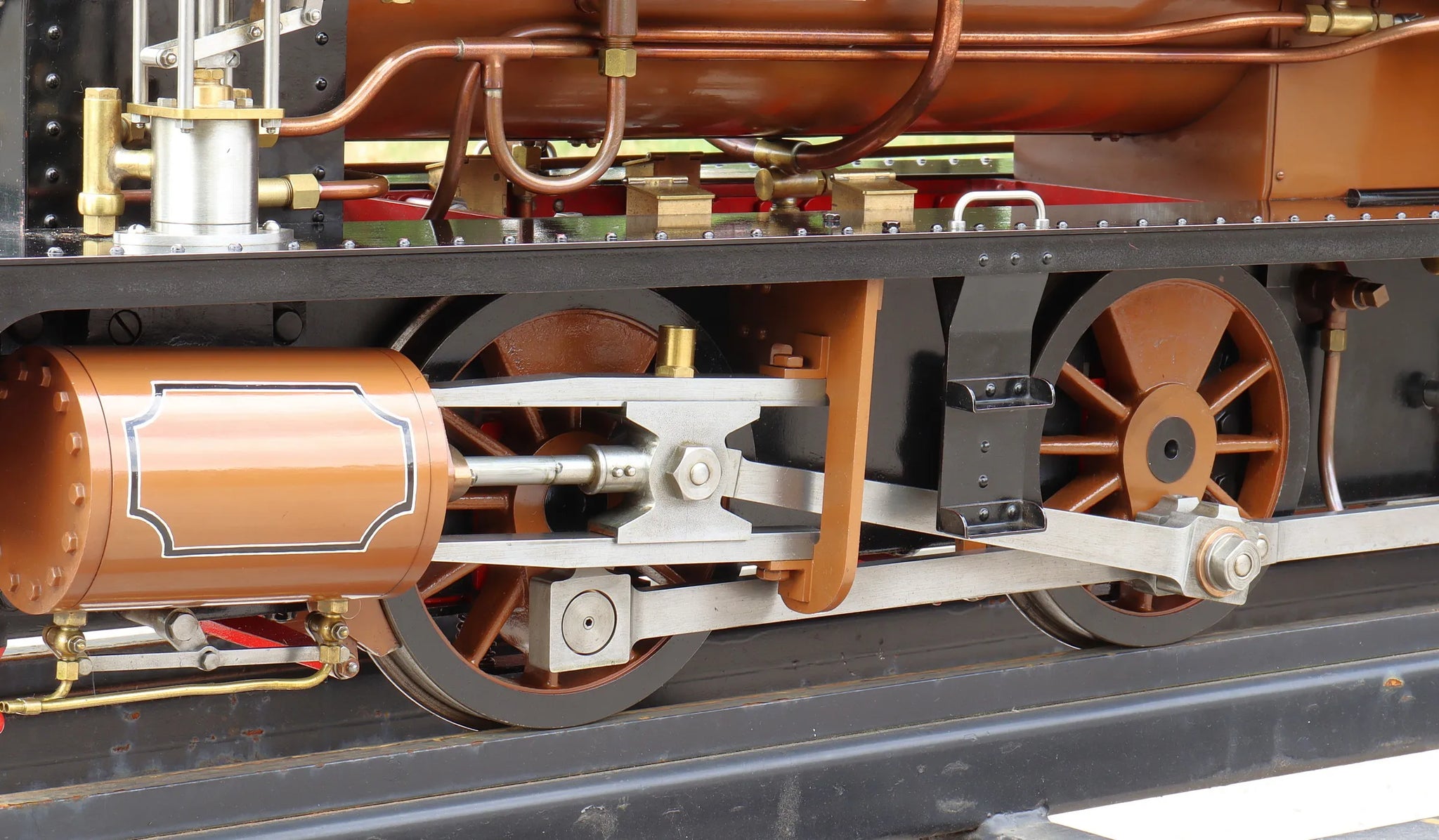

Cylinder material

cast iron

Valve type

slide

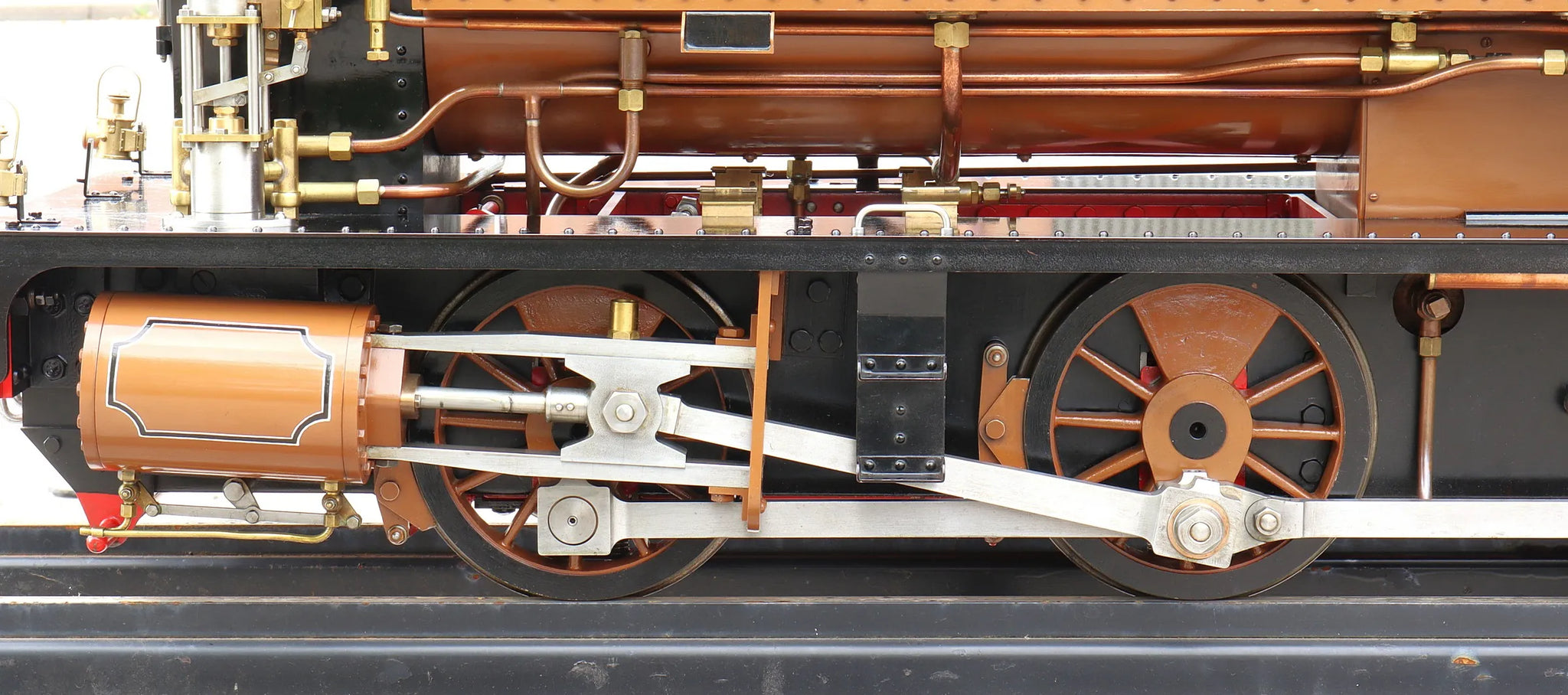

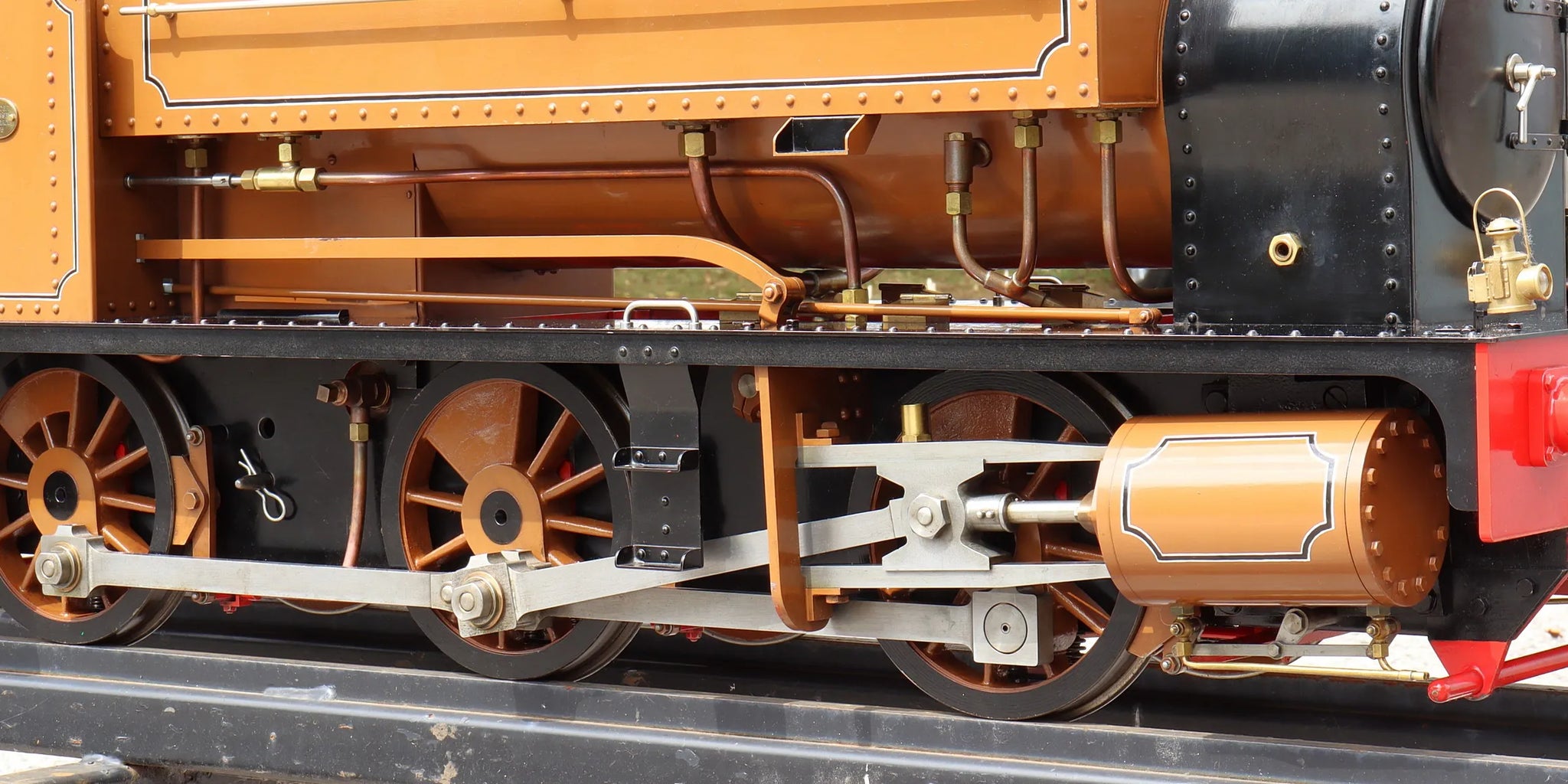

Valve gear

Stephensons

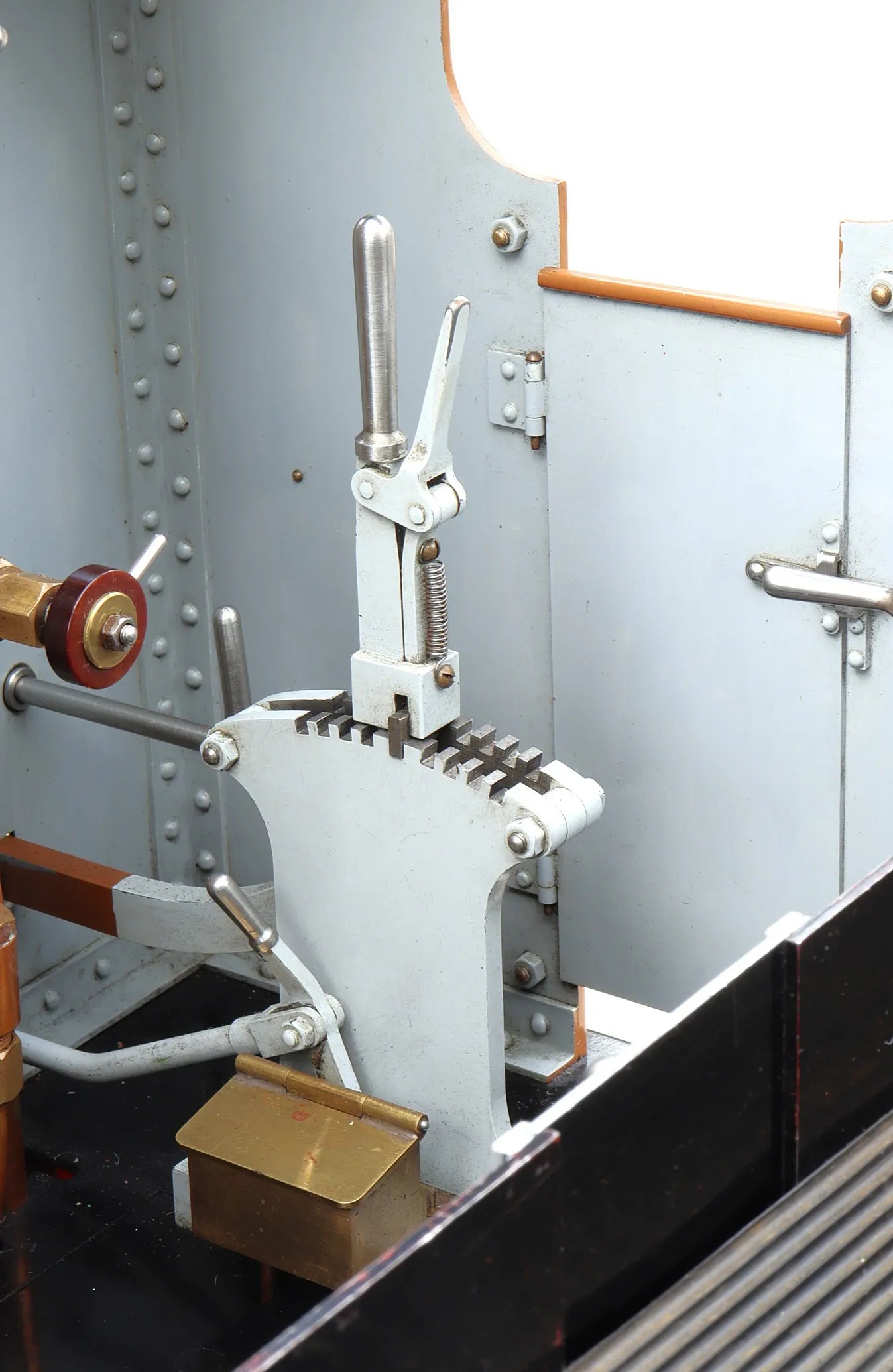

Reverser type

pole.

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

n/a - non-commercial

Year built

1995

Boiler number

3994

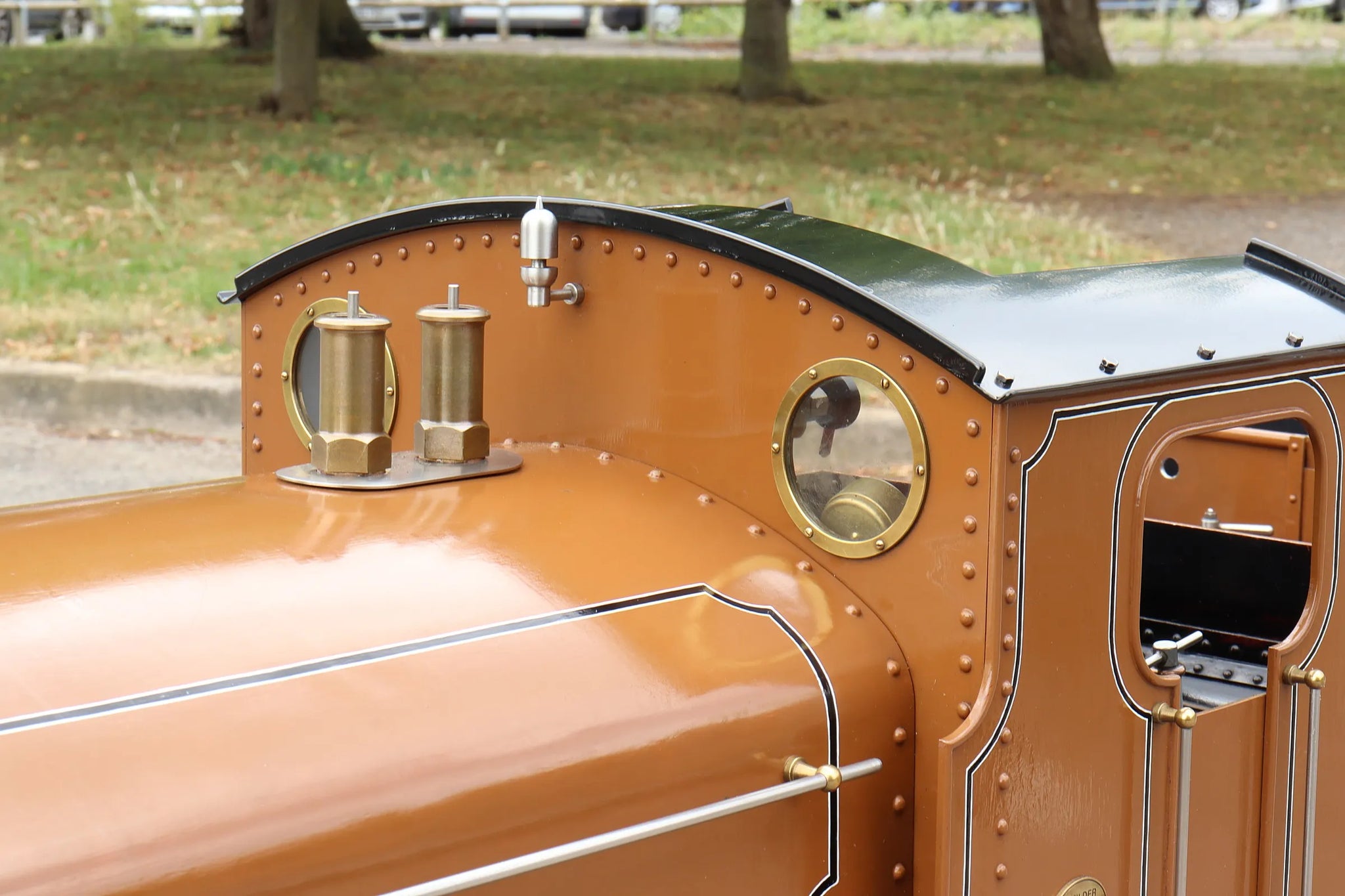

Safety valve type

spring

Safety valve

2

Whistle

yes

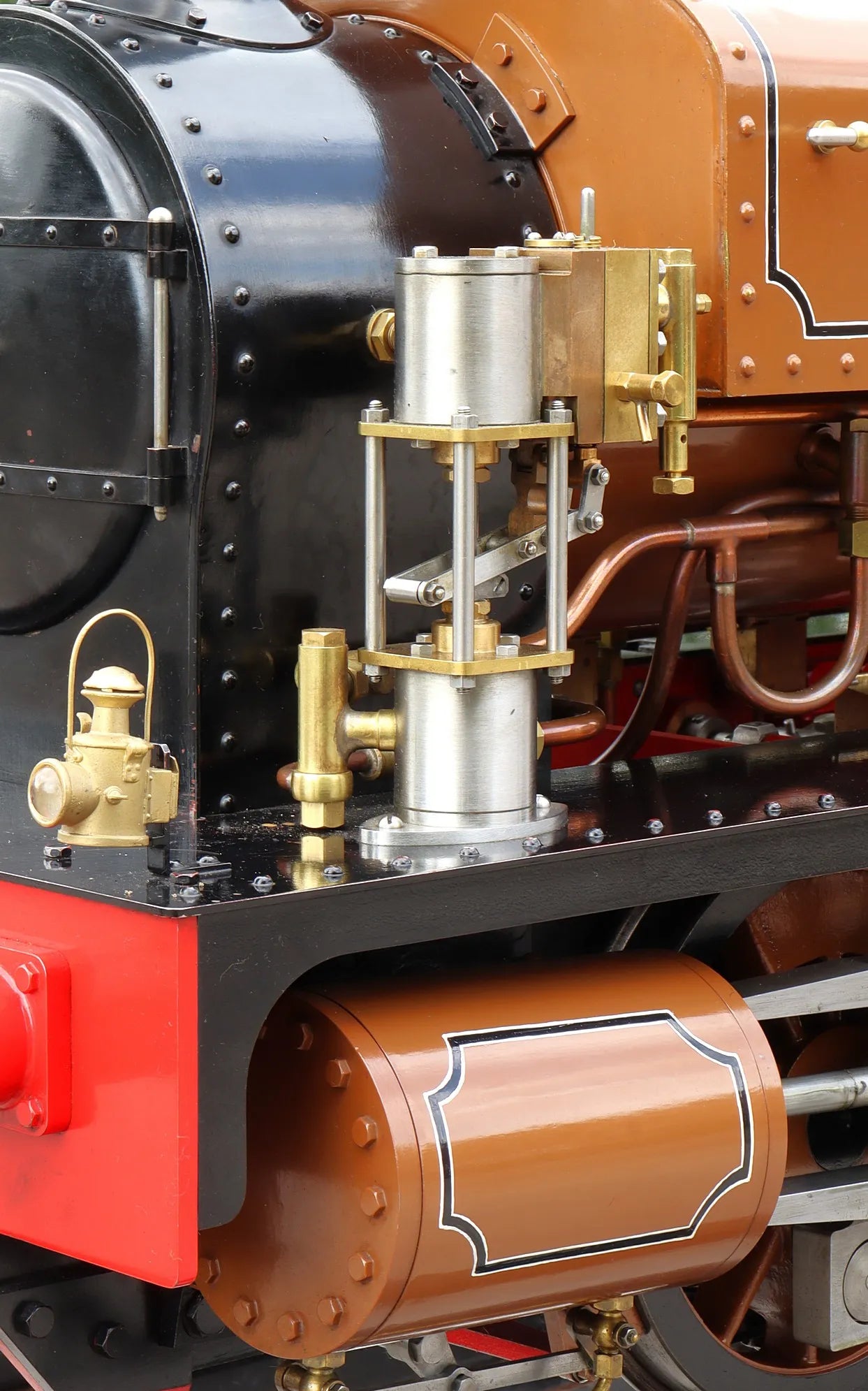

Steam pump

1

Hand pump

1

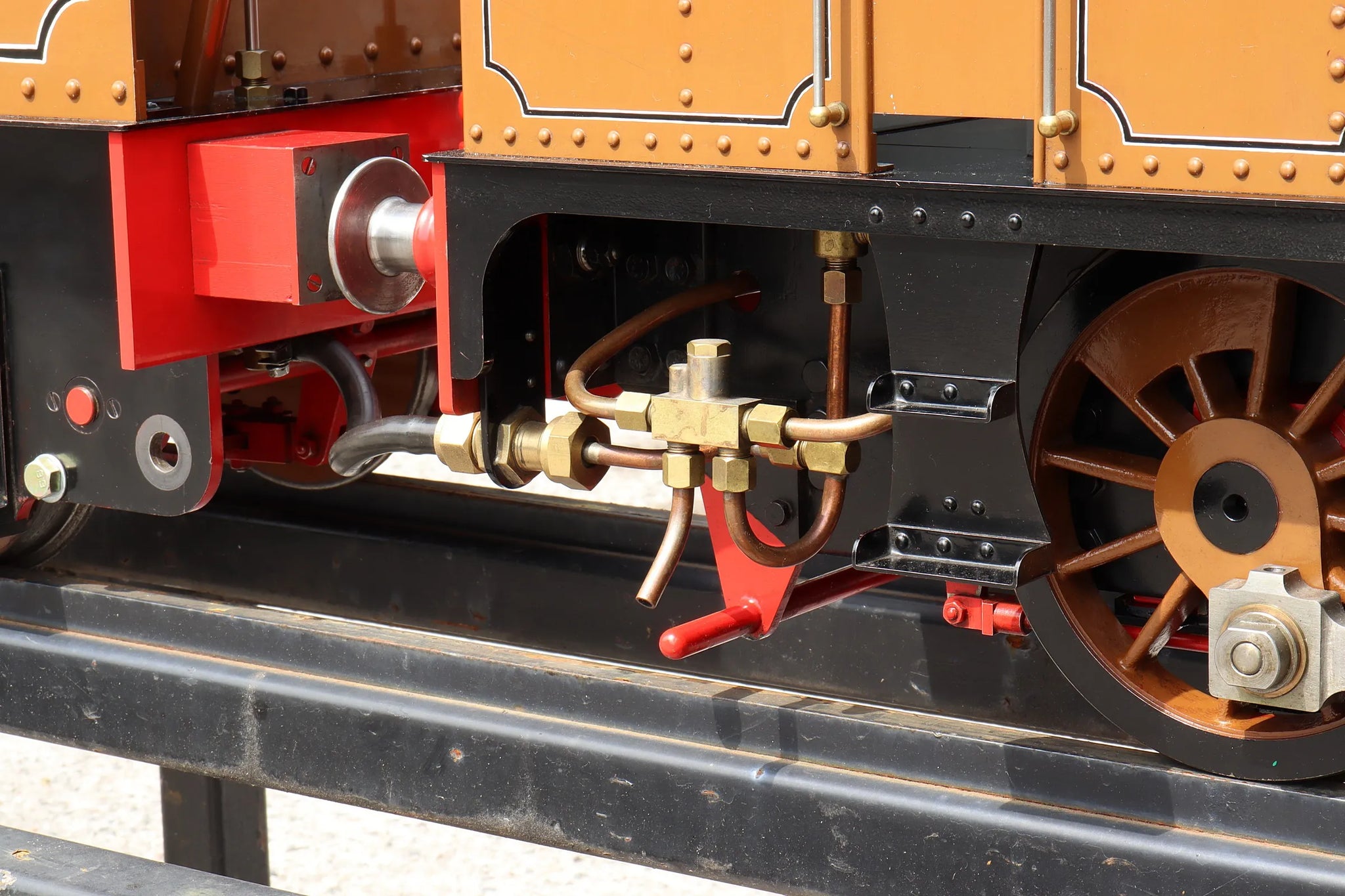

Mechanical pump

1

Injector

1

Date out

Sep-25

Hydraulic test valid to

25-Jun-29

Steam test valid to

03-Sep-26
