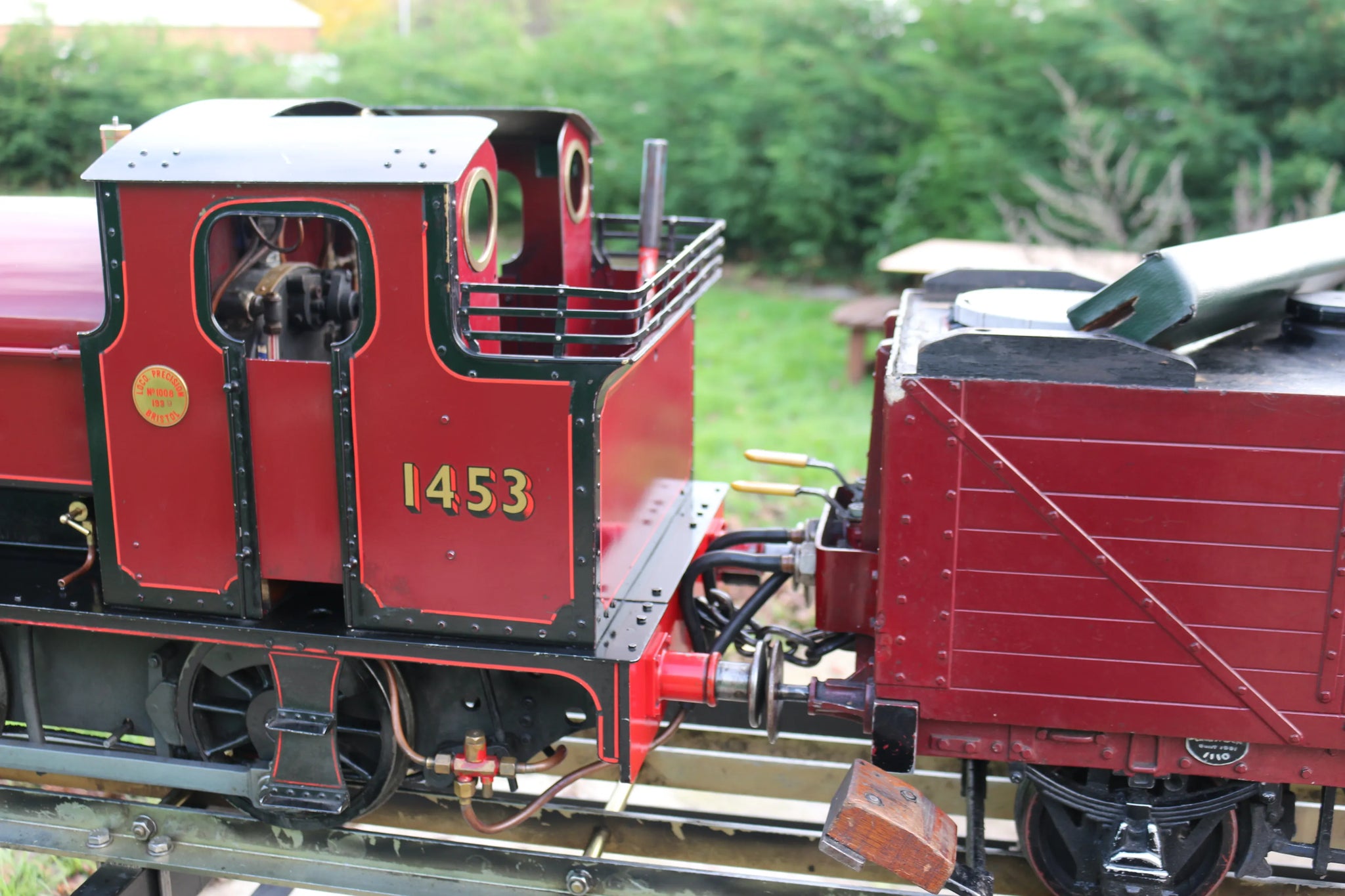

7 1/4 inch gauge "Holmside" 0-6-0T with driving truck

Name: 7 1/4 inch gauge "Holmside" 0-6-0T with driving truck
Brand: Station Road Steam
SKU: 7790
Price: 8750.0 GBP
Availability: OutOfStock

Sold

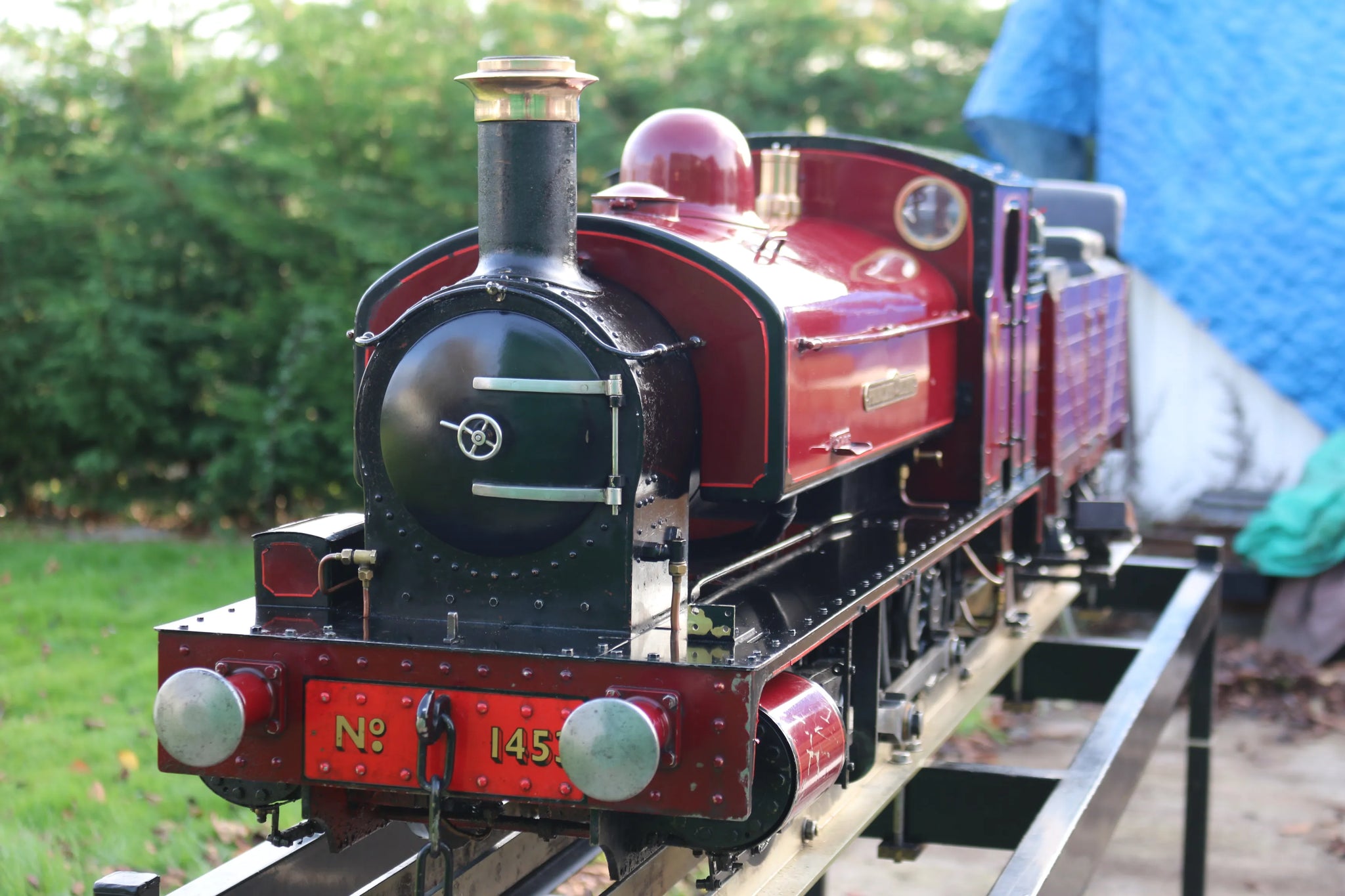

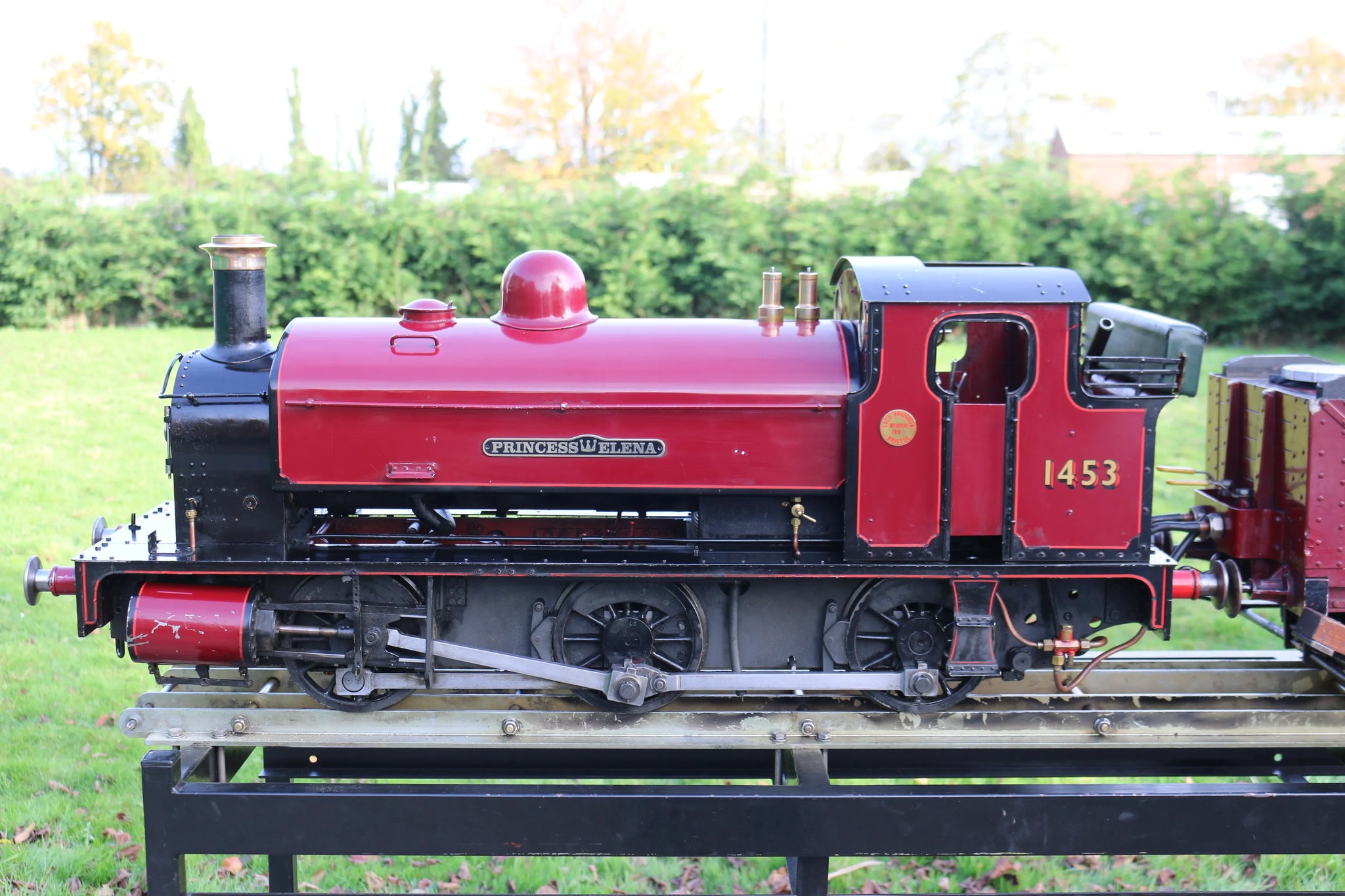

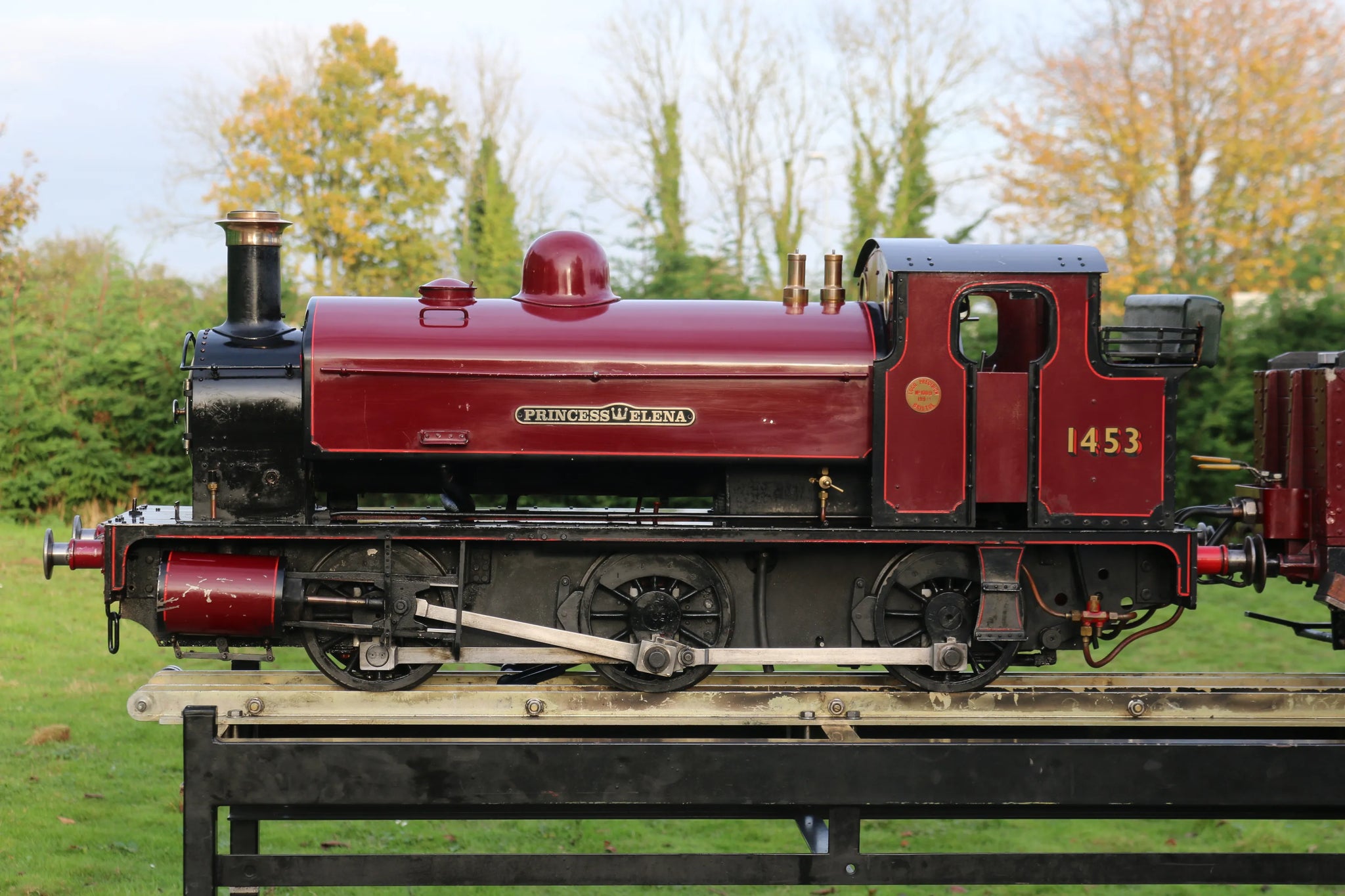

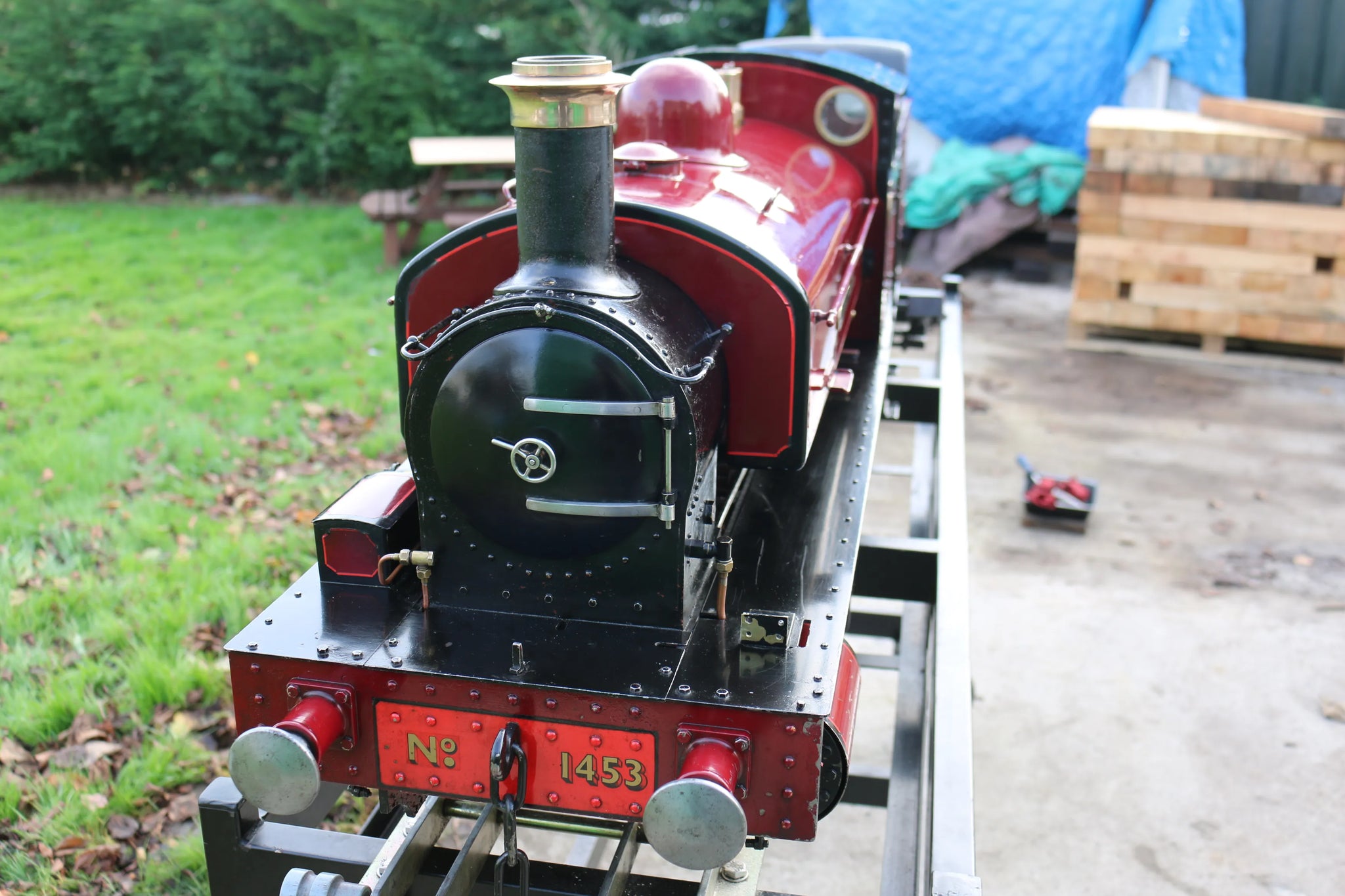

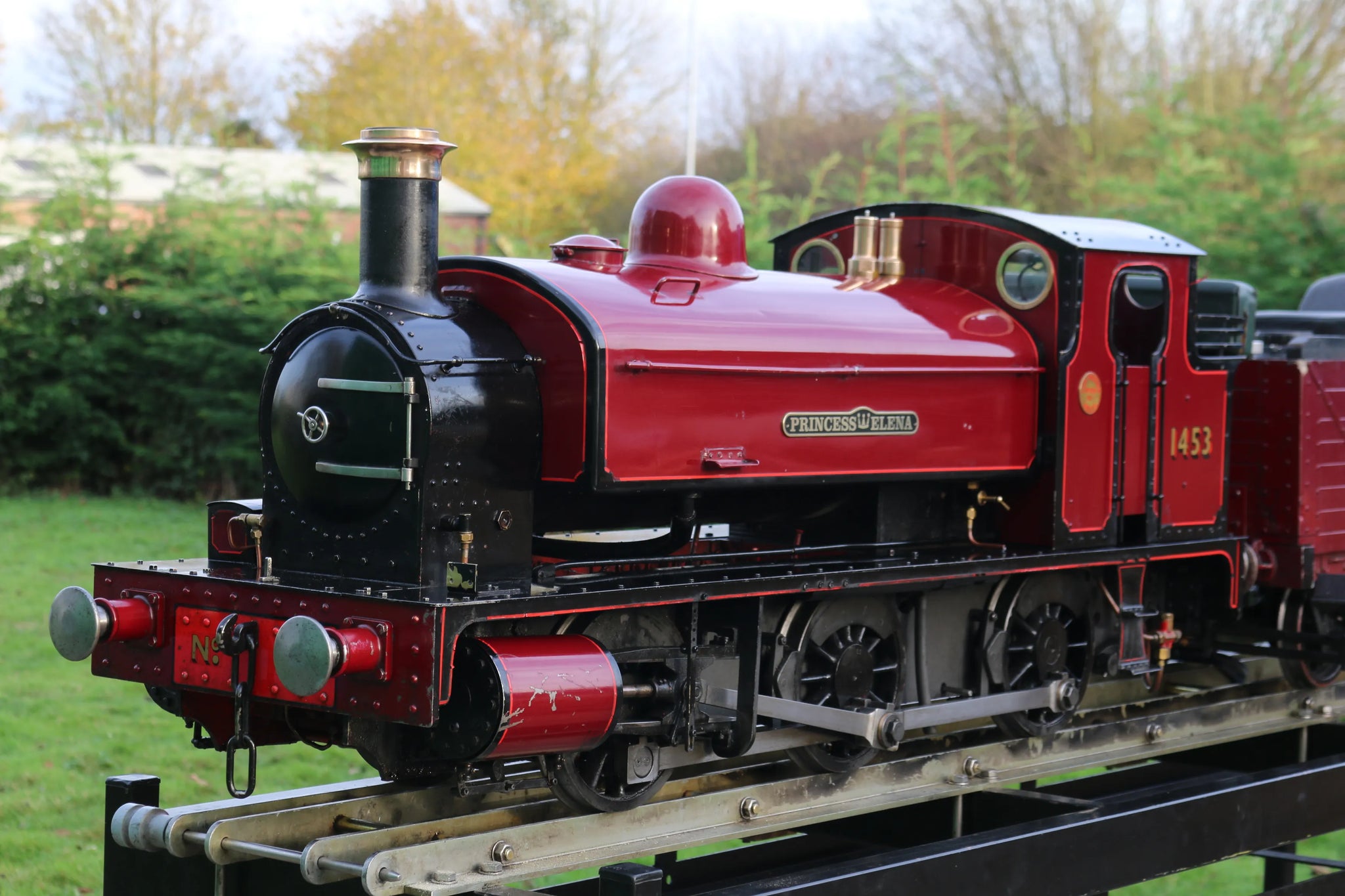

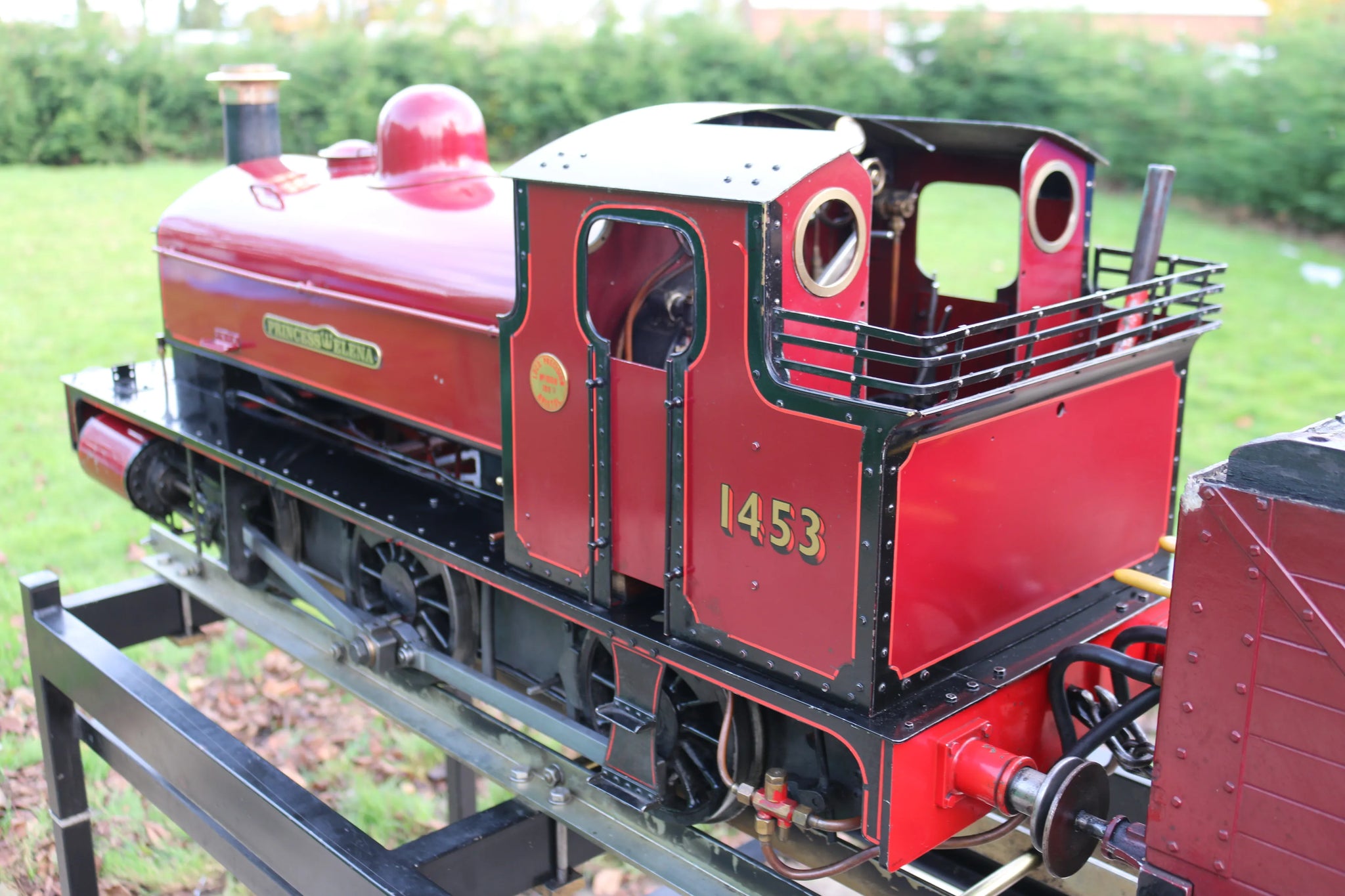

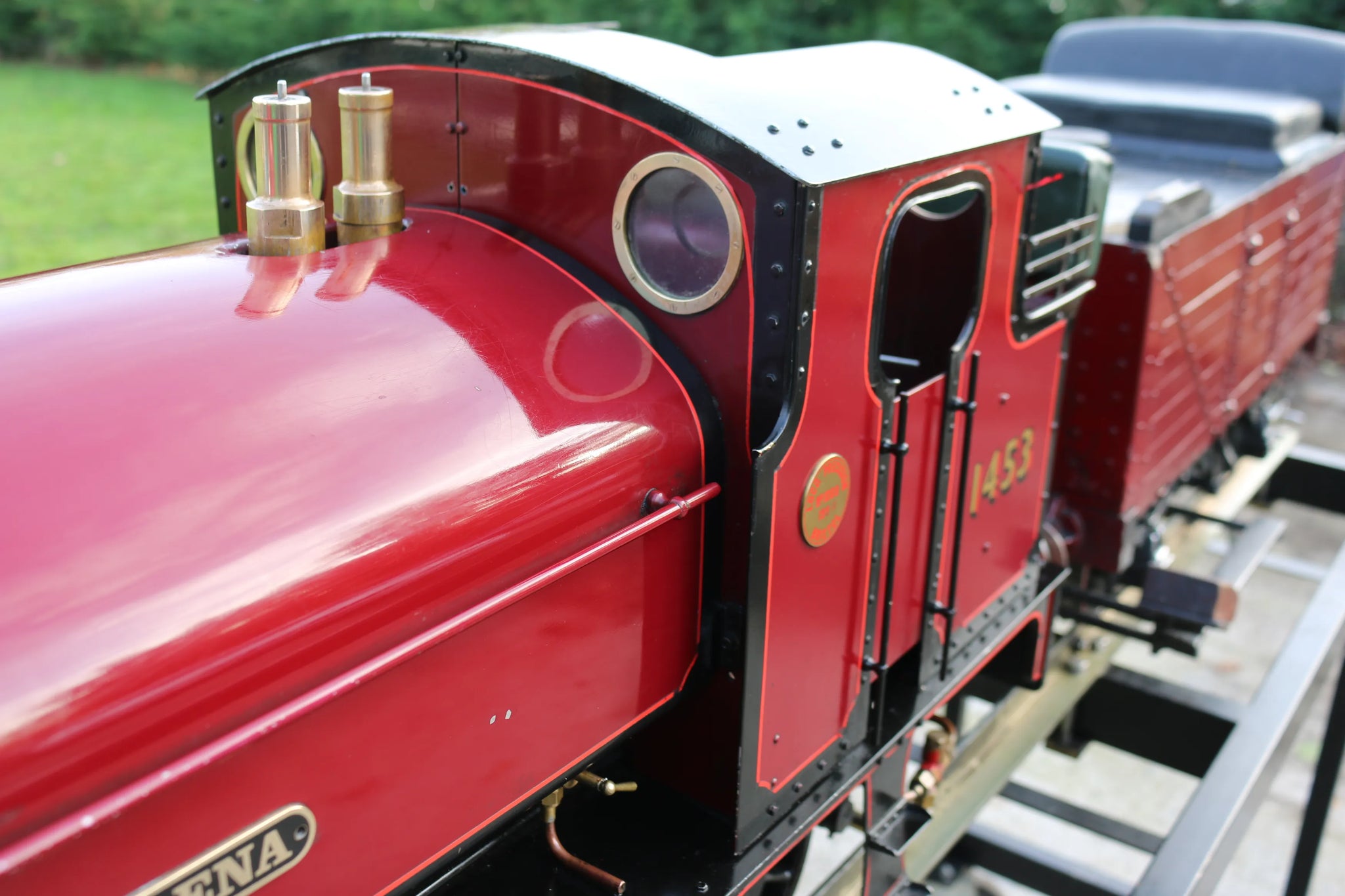

A finely made example of Martin Evans "Holmside", one of a batch produced by award-winning model engineer Ron Martin, the man responsible, amongst other thing, for a legendary pair of 7 1/4 inch gauge 9Fs (you can see pictures of one of them in the archive here).

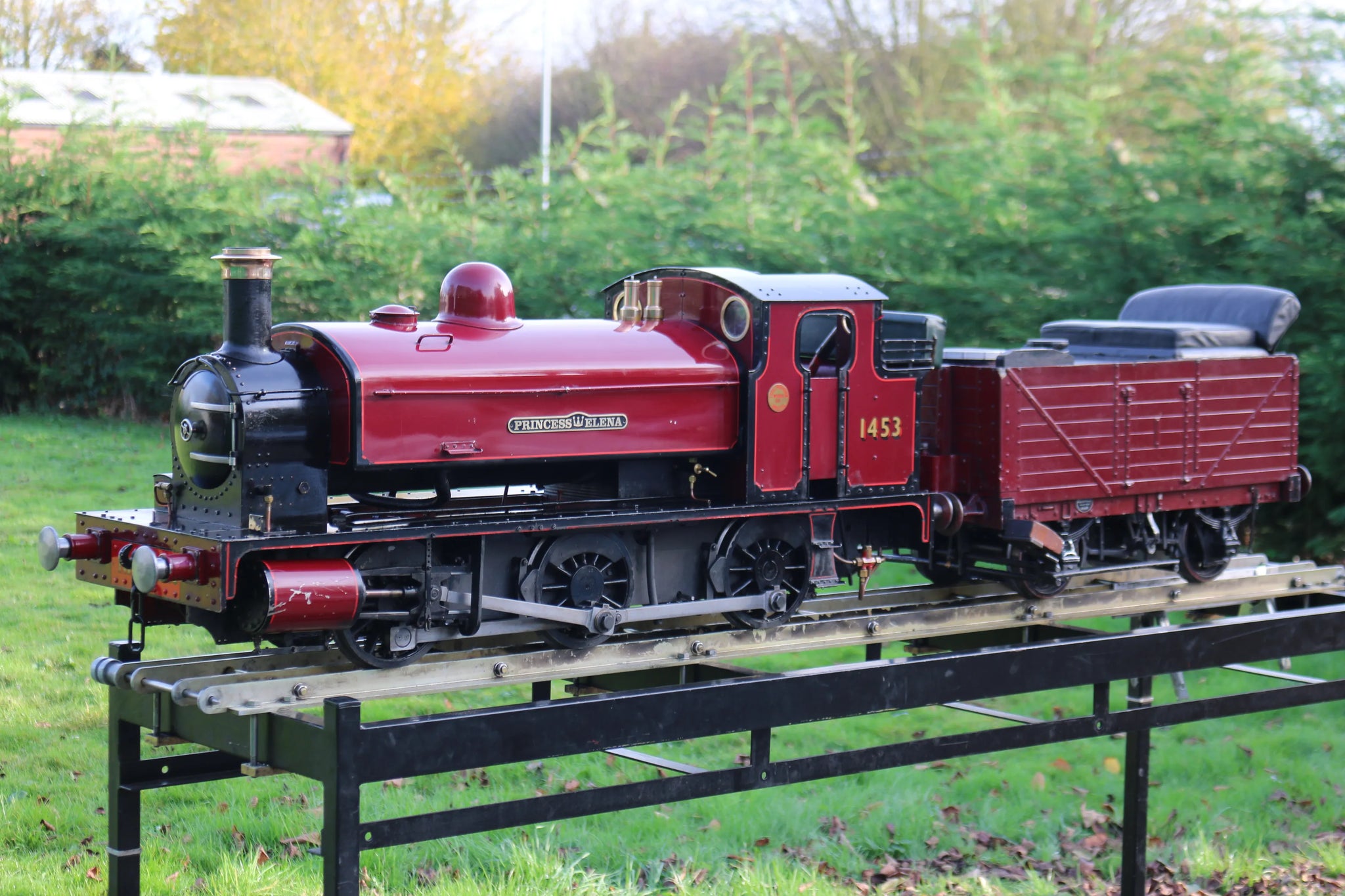

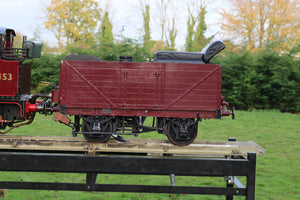

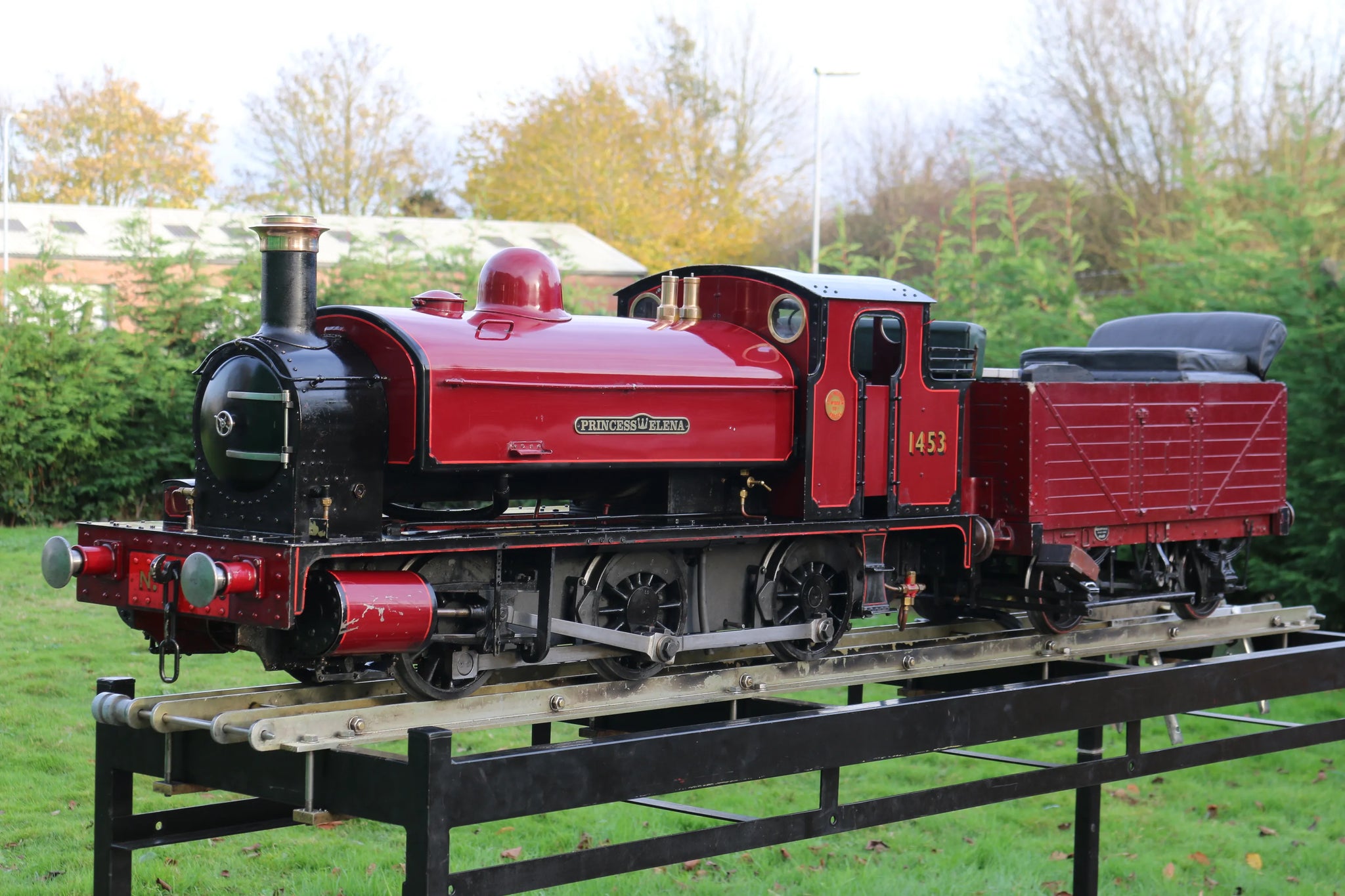

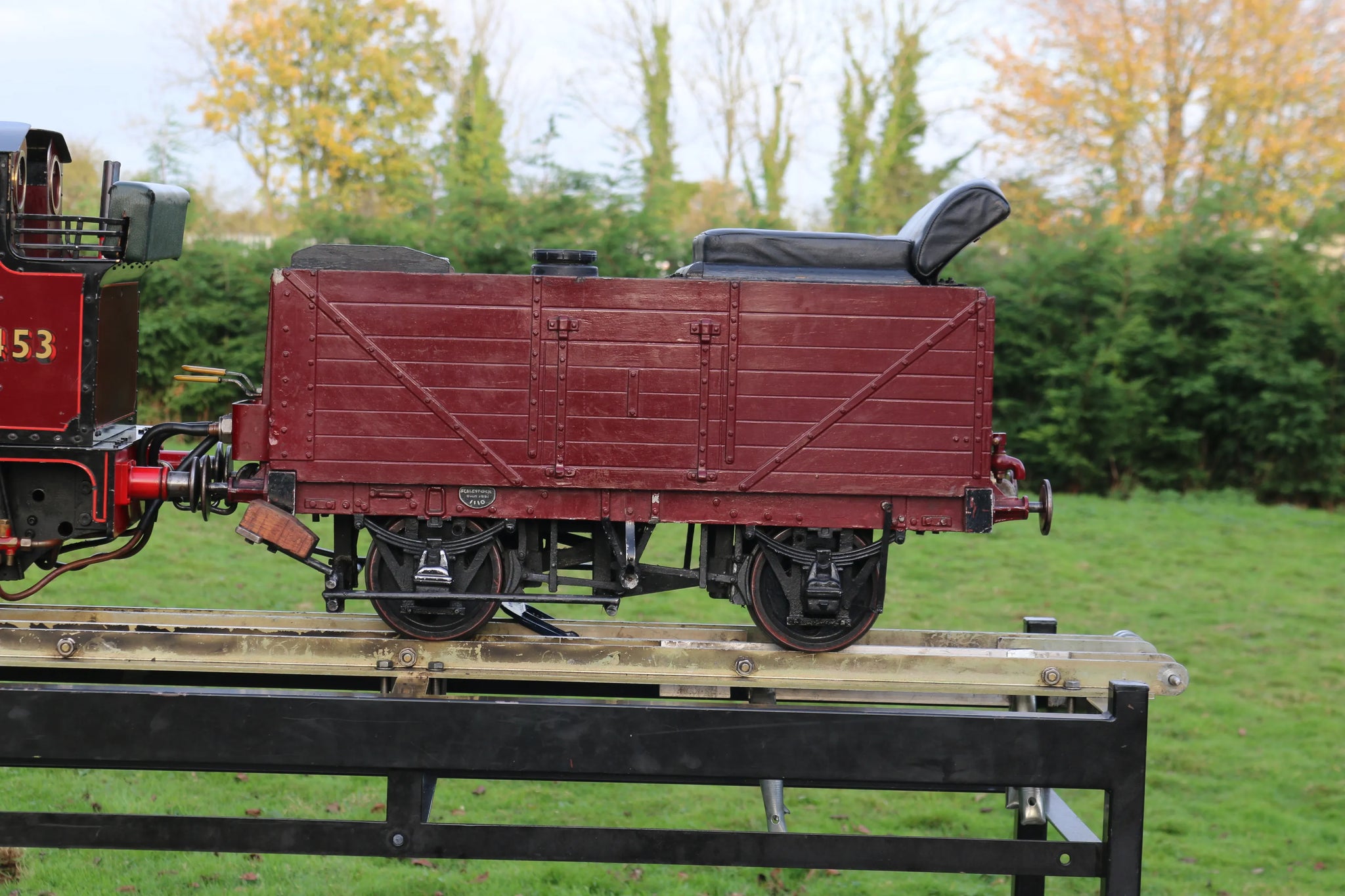

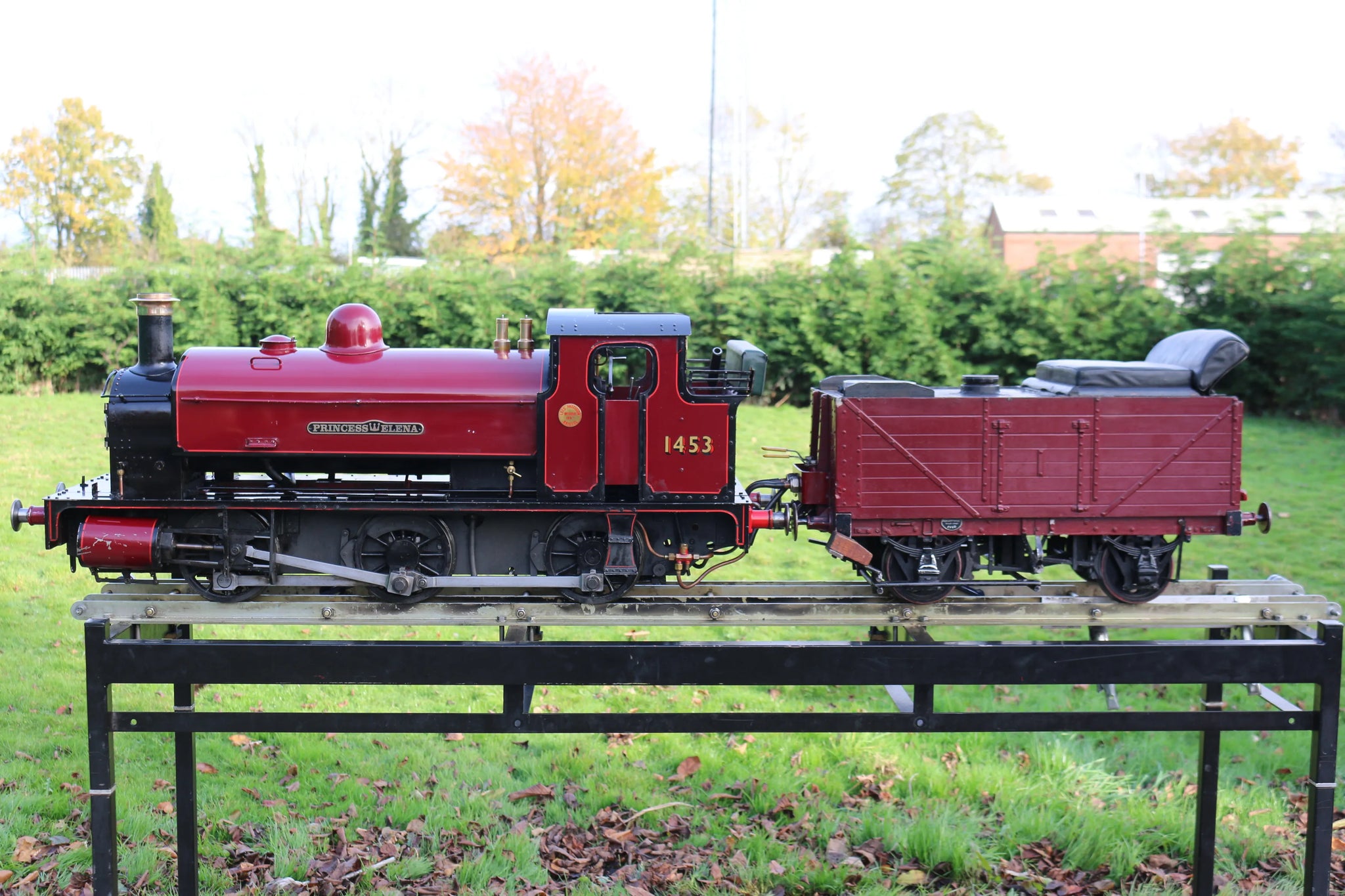

Complete with a ride on plank wagon driving truck, the engine runs very well - we'd have expected no less. It's been in regular use for club running, paintwork is presentable if getting a little battle-scarred in places, mechanically it's in good order. Boiler has had hydraulic and steam tests recently, full information on the "details" tab above.

Type: Second hand

Tags: Locomotives

Technical information

Stock code	7790
Gauge	7 1/4 inch
Length/inches	47+28
Width/inches	13
Height/inches	19
Wheel material	cast iron
Cylinder material	cast iron
Valve type	slide
Valve gear	Stephensons
Reverser type	pole
Lubricator type	mechanical
Boiler maker	non-commercial
Boiler type	locomotive
Boiler construction	silver-soldered
Boiler material	copper
Working pressure	100
CE/UKCA mark	n/a - pre-2002
Year built	1999
Boiler number	N138/100/218
Safety valve type	spring
Safety valve	2
Fusible plug	no
Hand pump	1
Injector	2
Superheater type	radiant
Superheater	2
Pack	Single half pallet
Date out	Jan-18
Hydraulic test valid to	07-Nov-21
Steam test valid to	07-Jan-19
