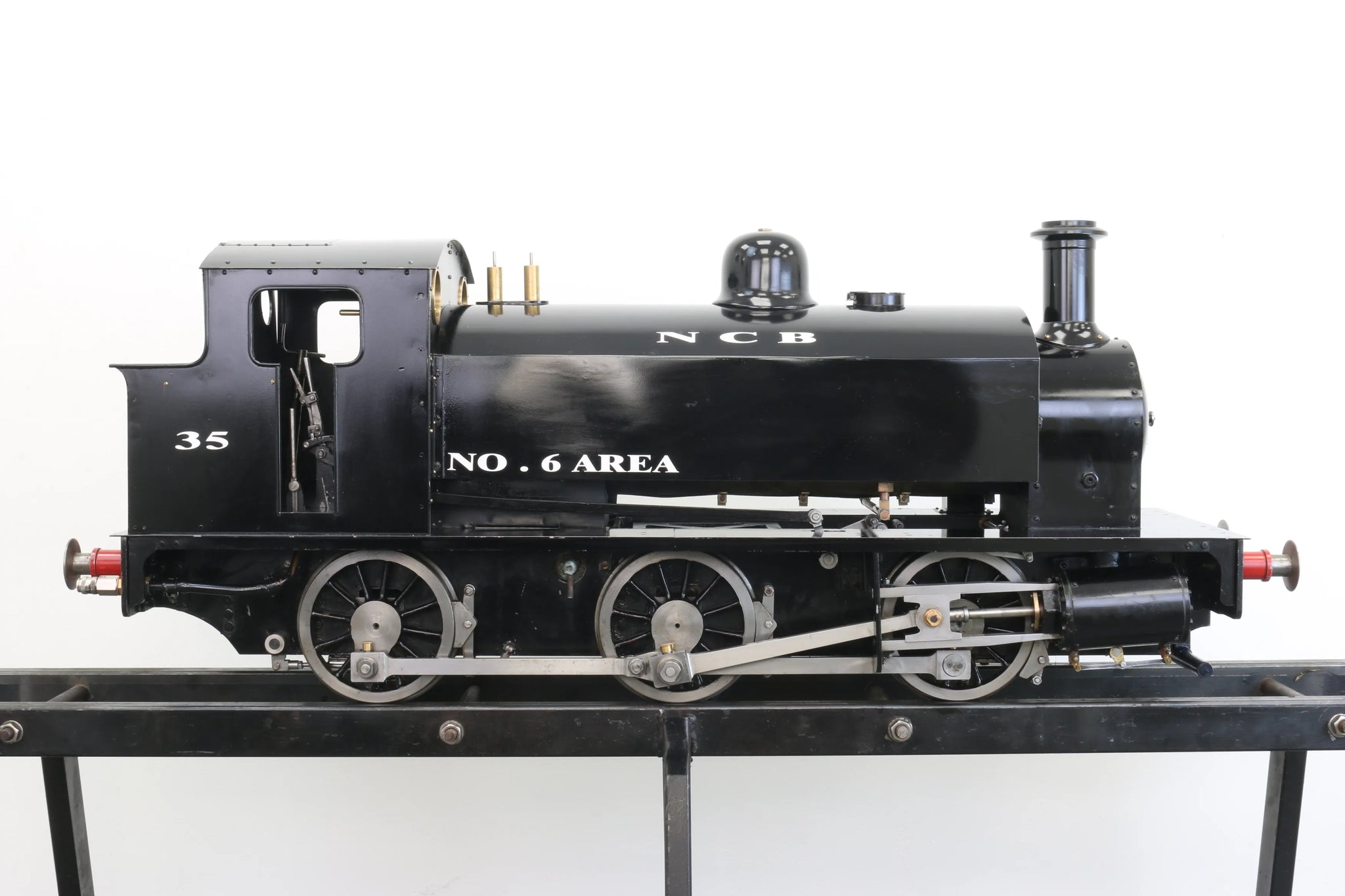

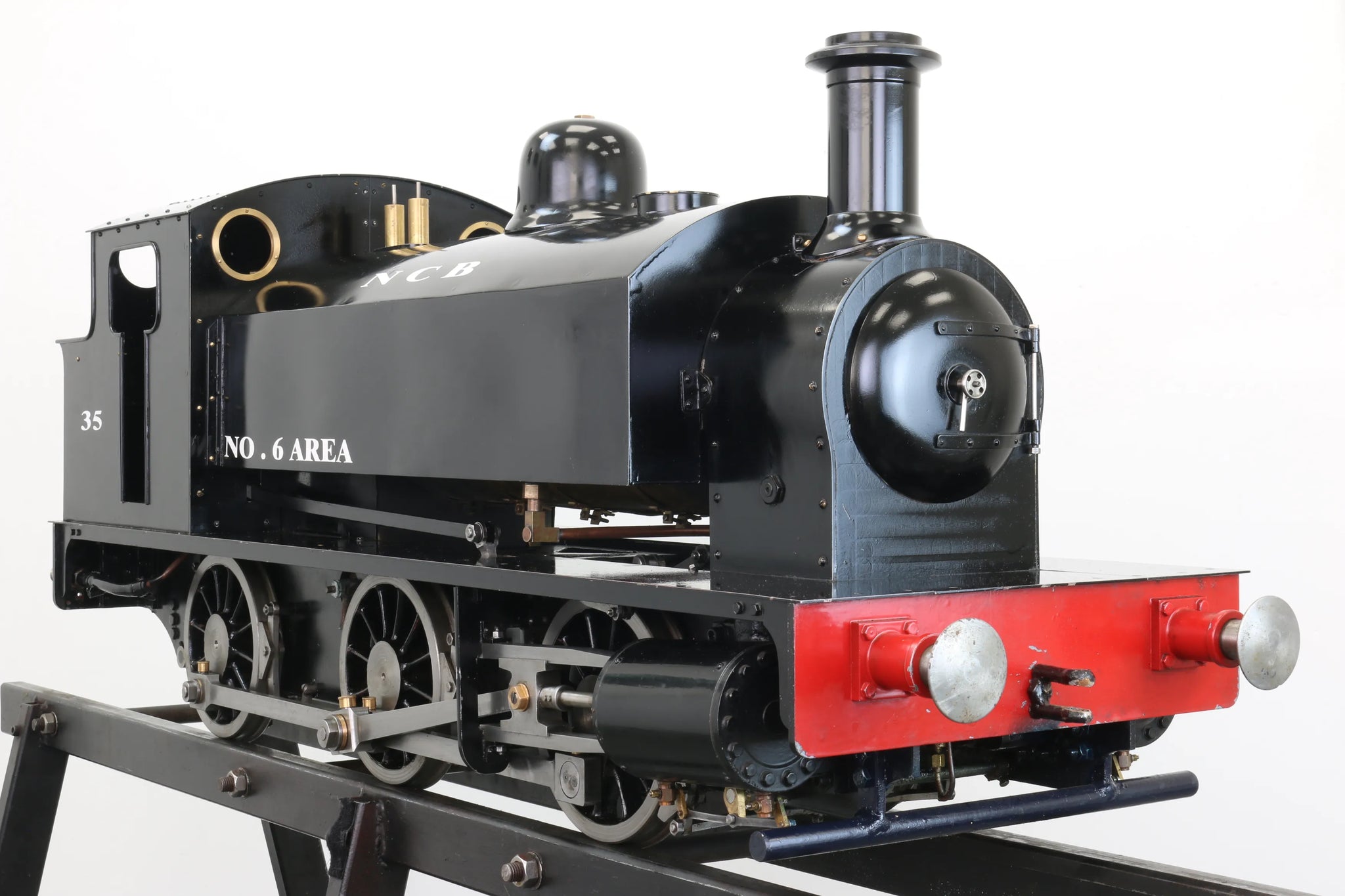

7 1/4 inch gauge "Holmside" 0-6-0T with driving truck

A 7 1/4 inch gauge Coal Board tank engine, built to Martin Evans' popular "Holmside" design, serialised in "Model Engineer" back in 1977. A large, powerful engine - it makes an ideal entry level club hauler in this gauge for those favouring a standard gauge prototype.

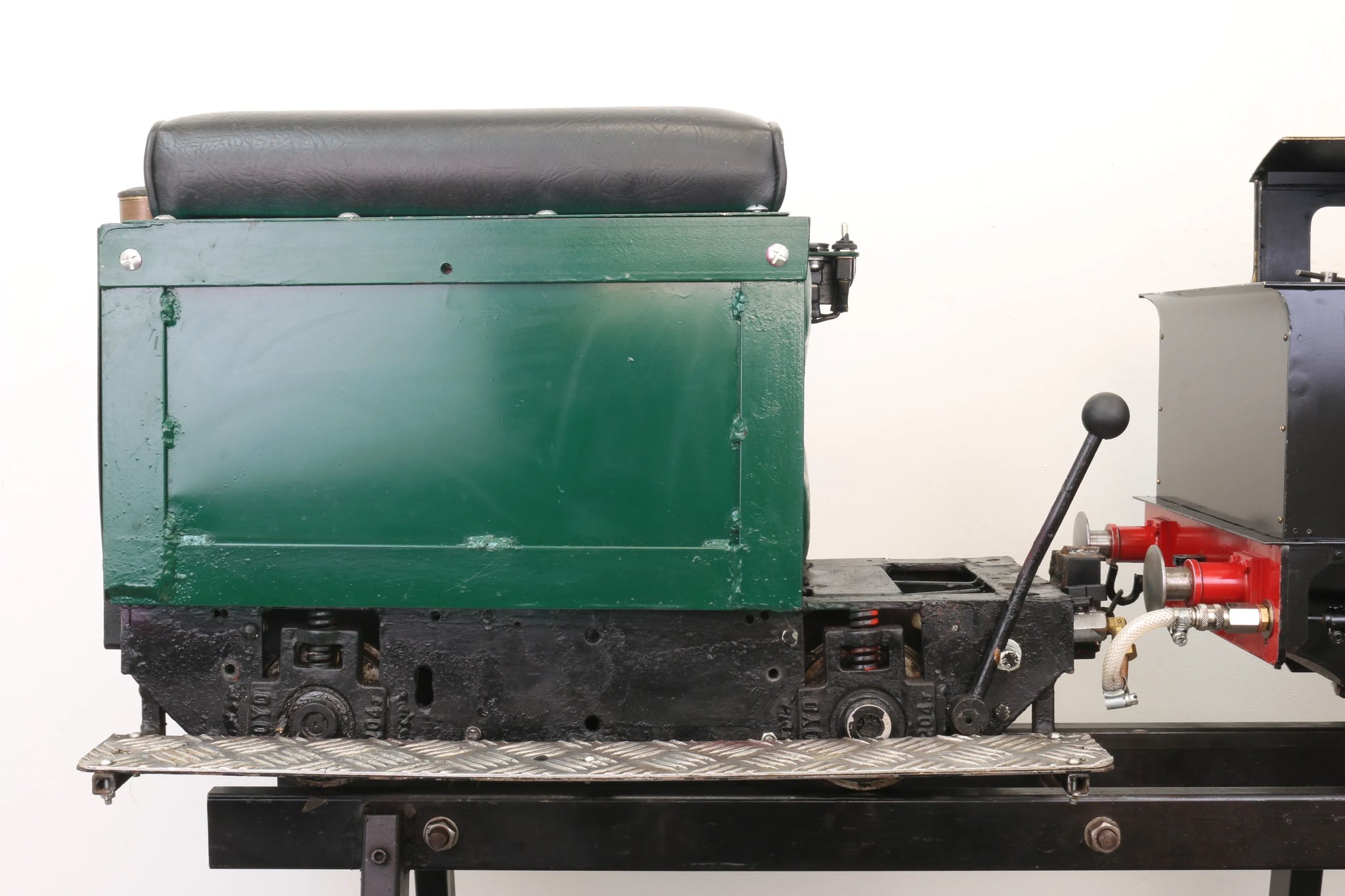

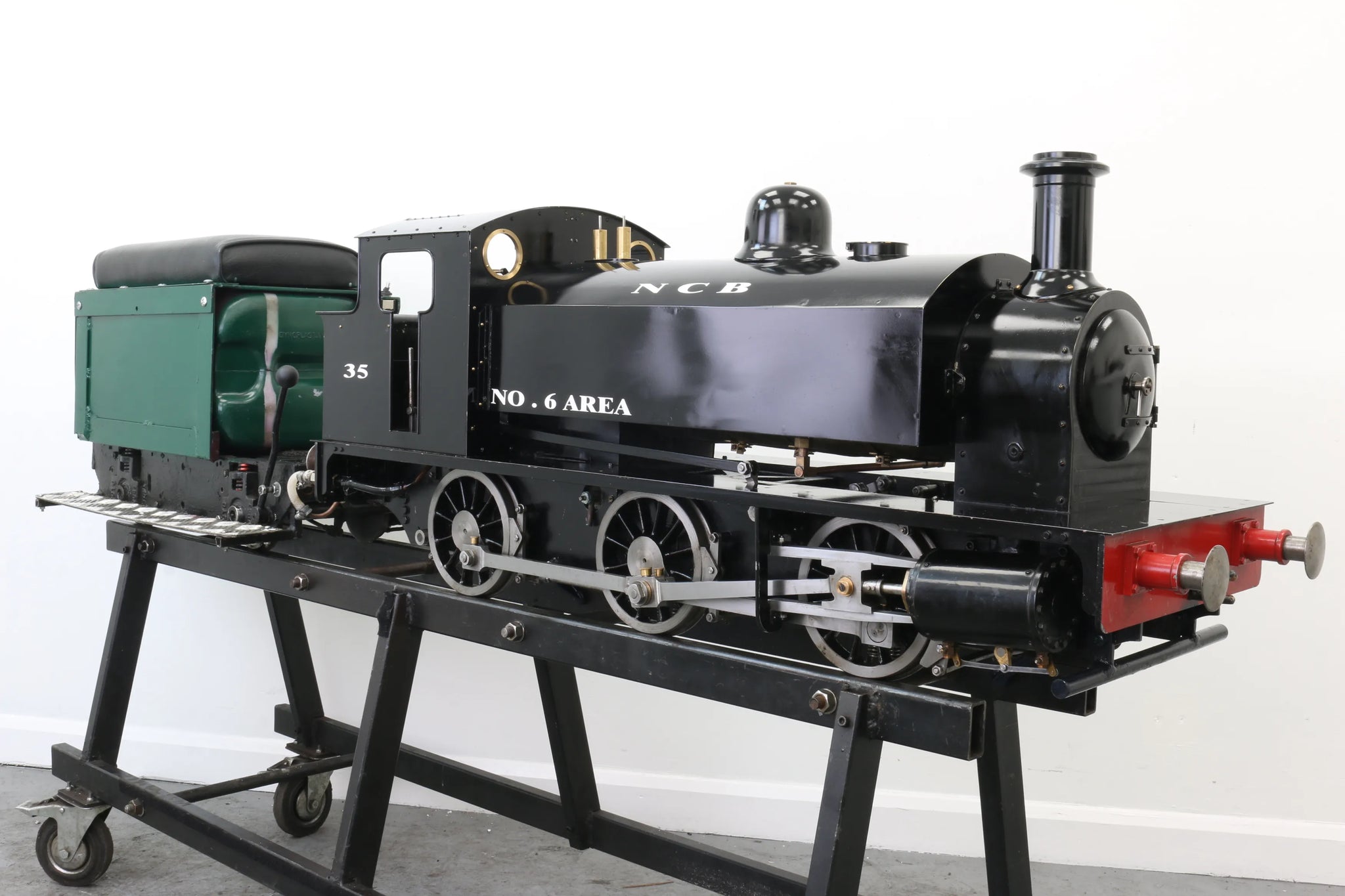

This one has come from a long-time customer of ours - normally a narrow gauge man. Complete with a driving truck fitted with electric feed pump.

Technical information

Stock code

7861

Gauge

7 1/4 inch

Length/inches

74

Width/inches

18

Height/inches

20

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

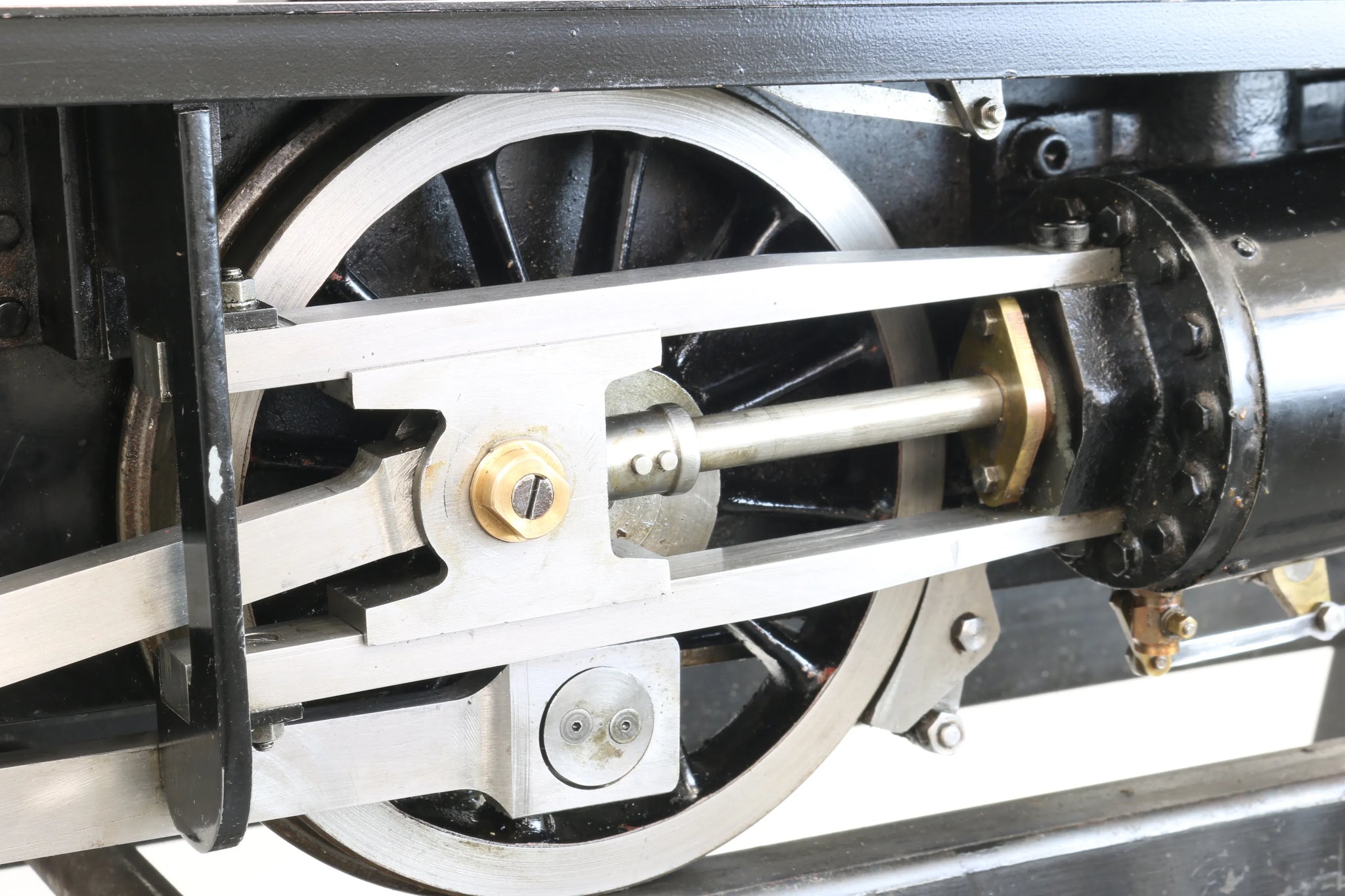

Valve type

slide

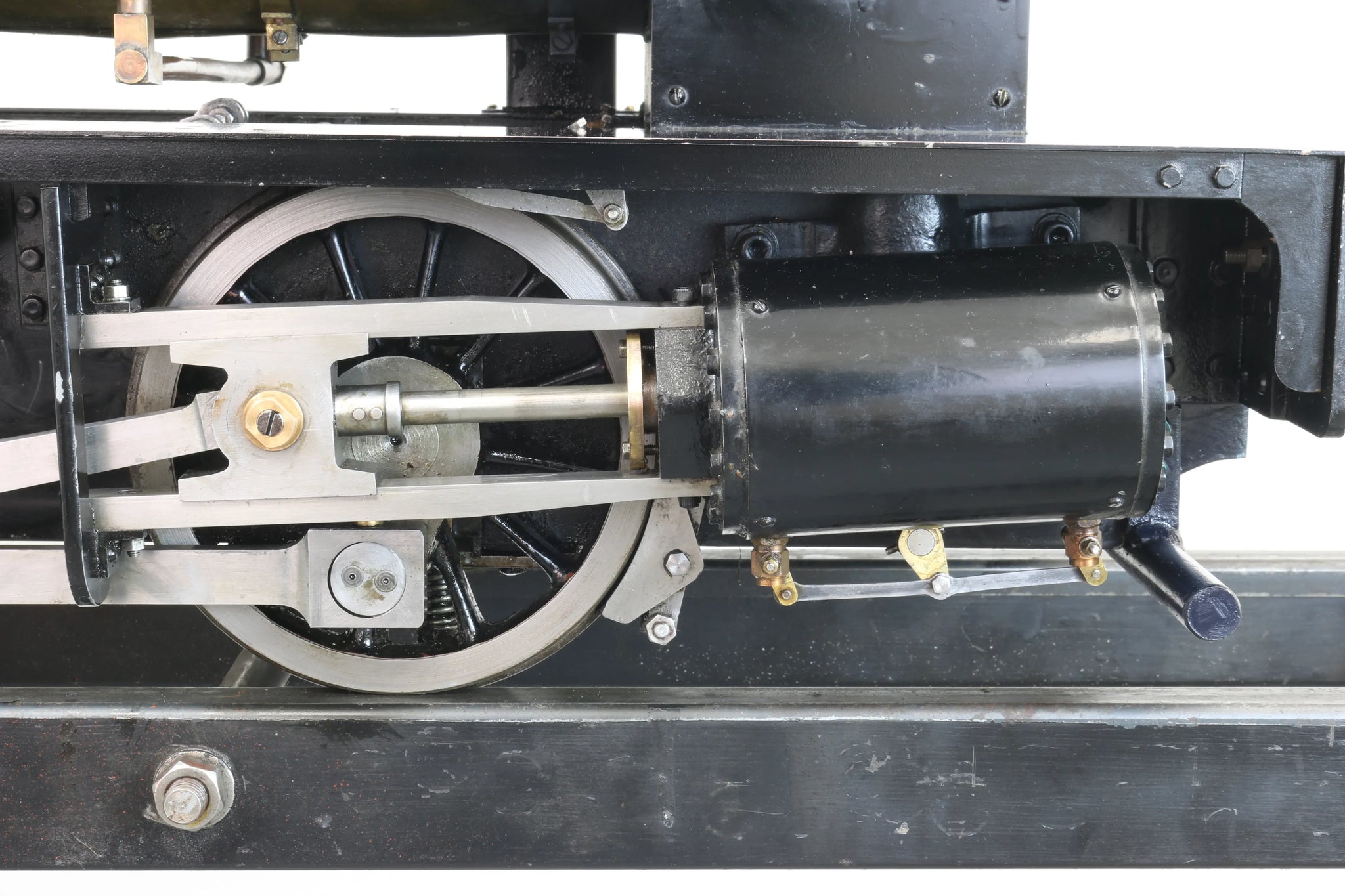

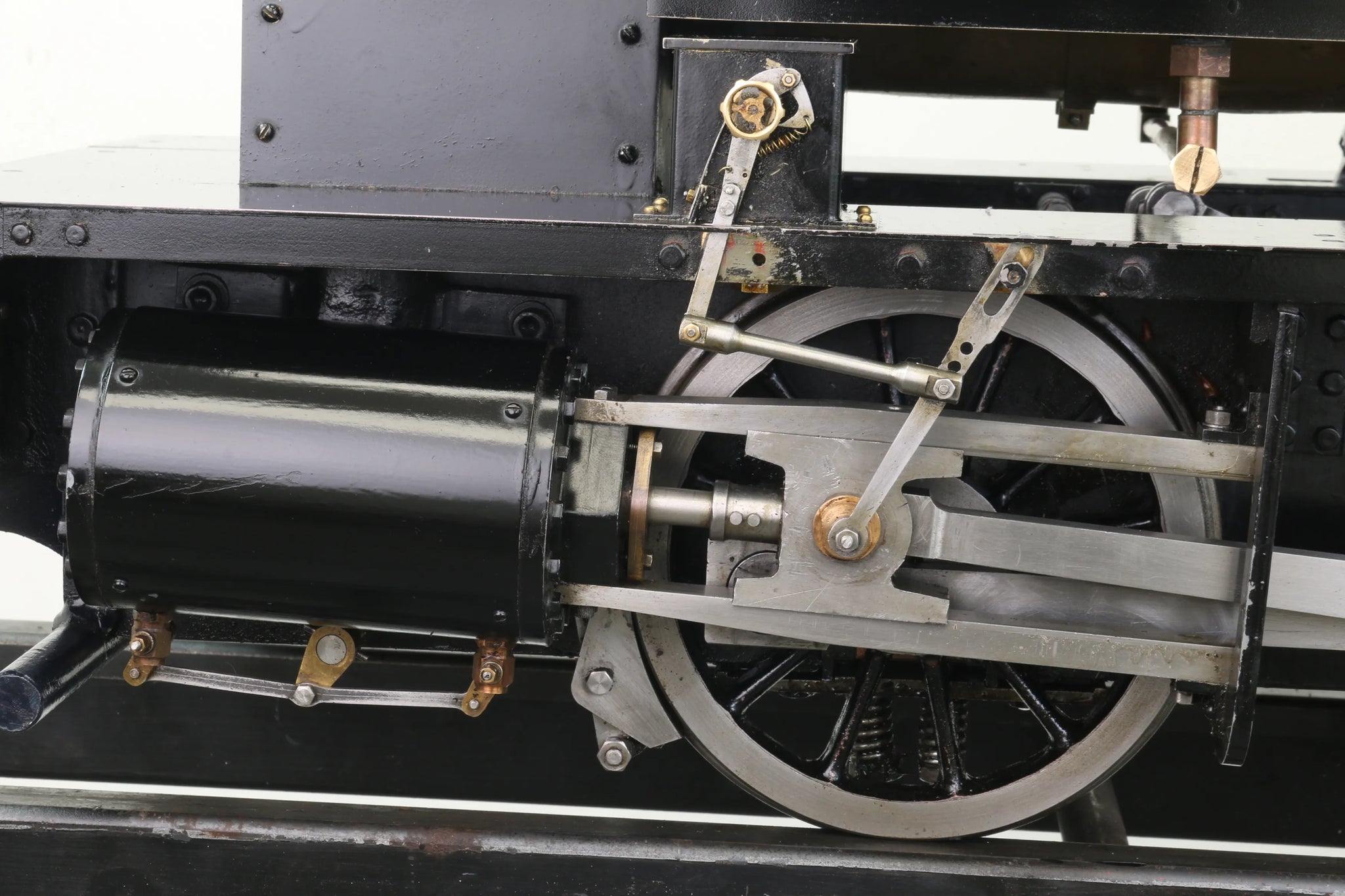

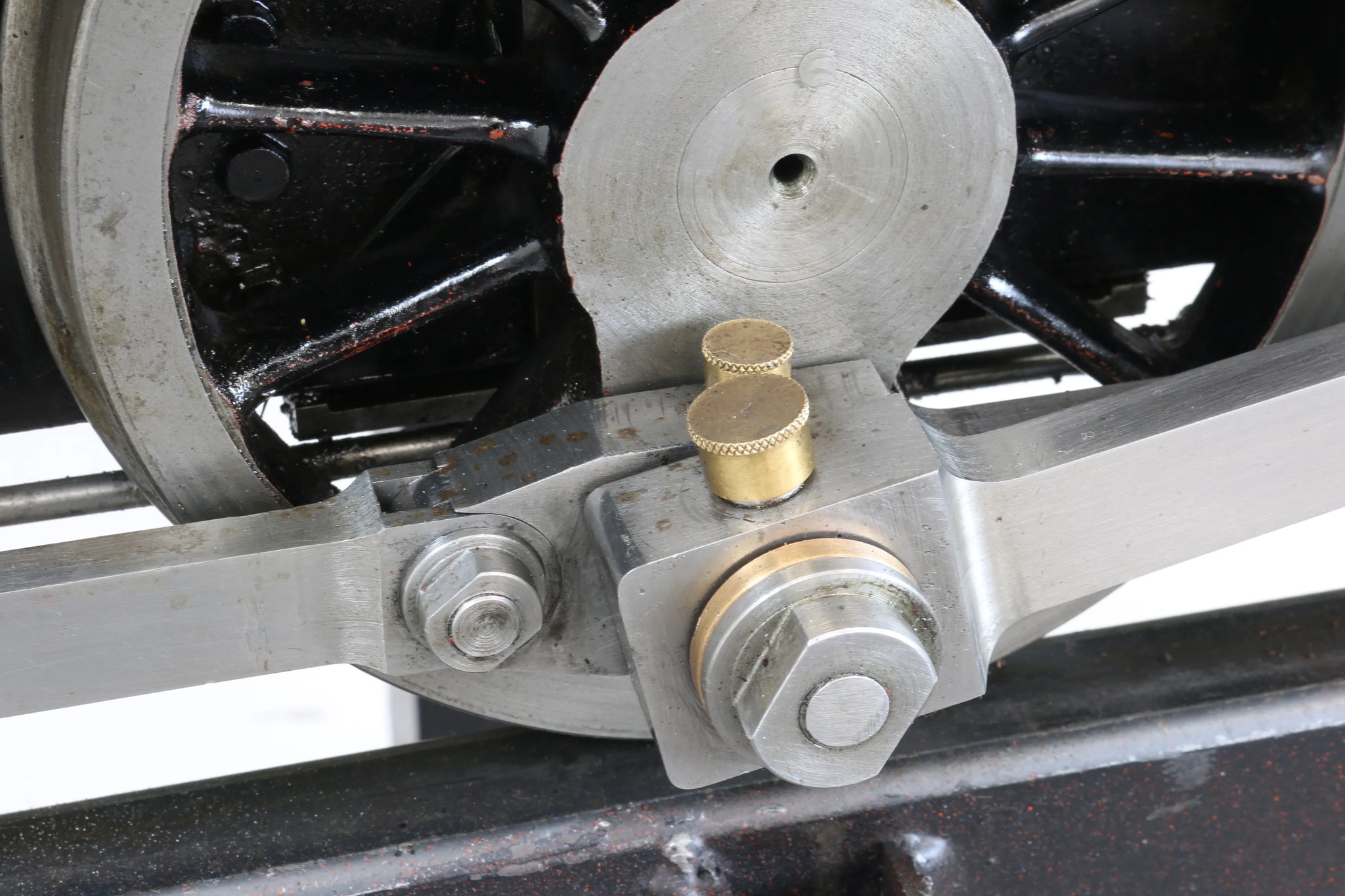

Valve gear

Stephensons

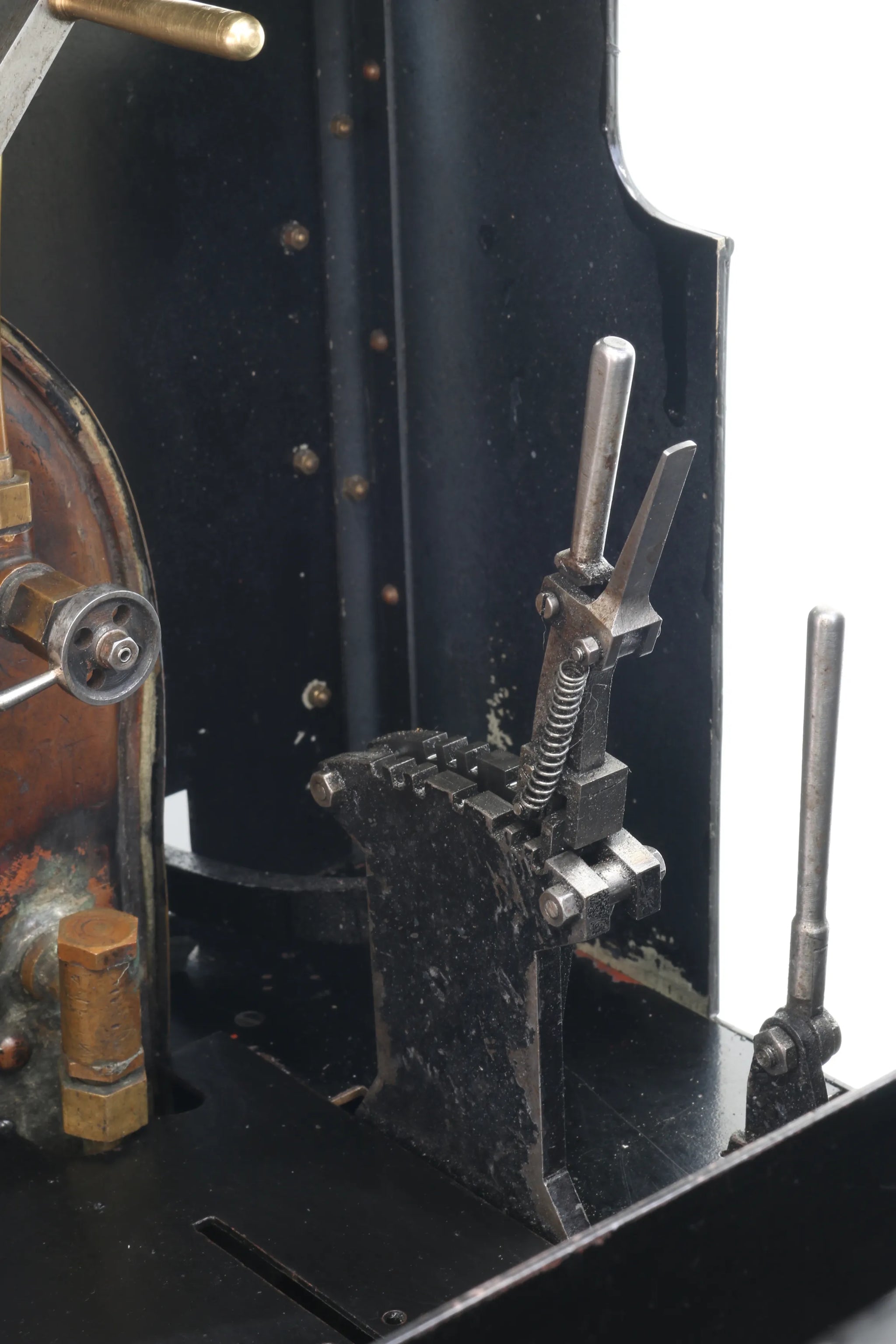

Reverser type

pole

Lubricator type

mechanical

Boiler maker

non-commercial

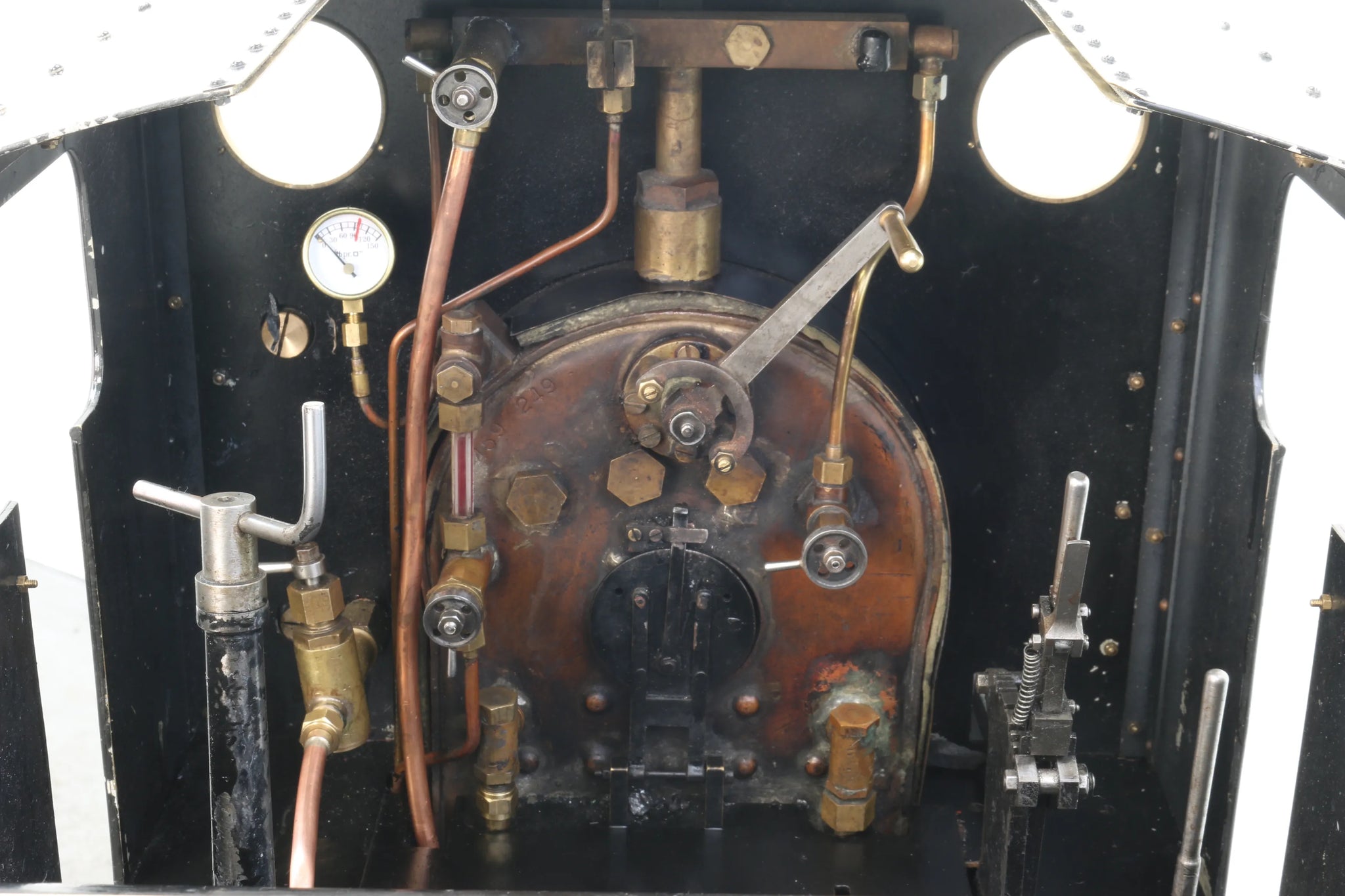

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

n/a - non-commercial

Year built

2002

Boiler number

459 249

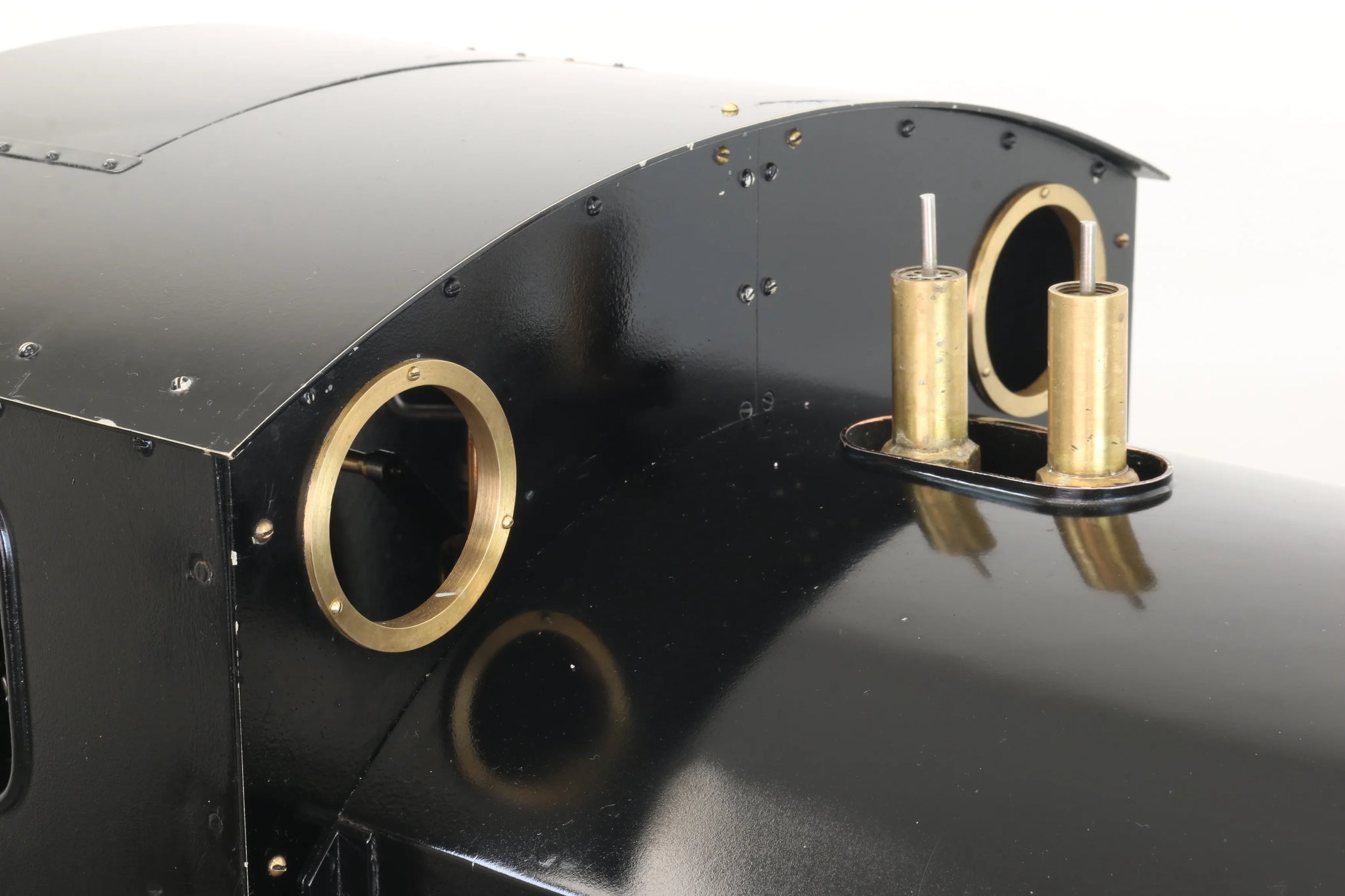

Safety valve type

spring

Safety valve

2

Fusible plug

no

Mechanical pump

electric pump in tender

Injector

1

Pack

Single half pallet

Date out

Mar-18

Hydraulic test valid to

05-Feb-22

Steam test valid to

08-Apr-19
