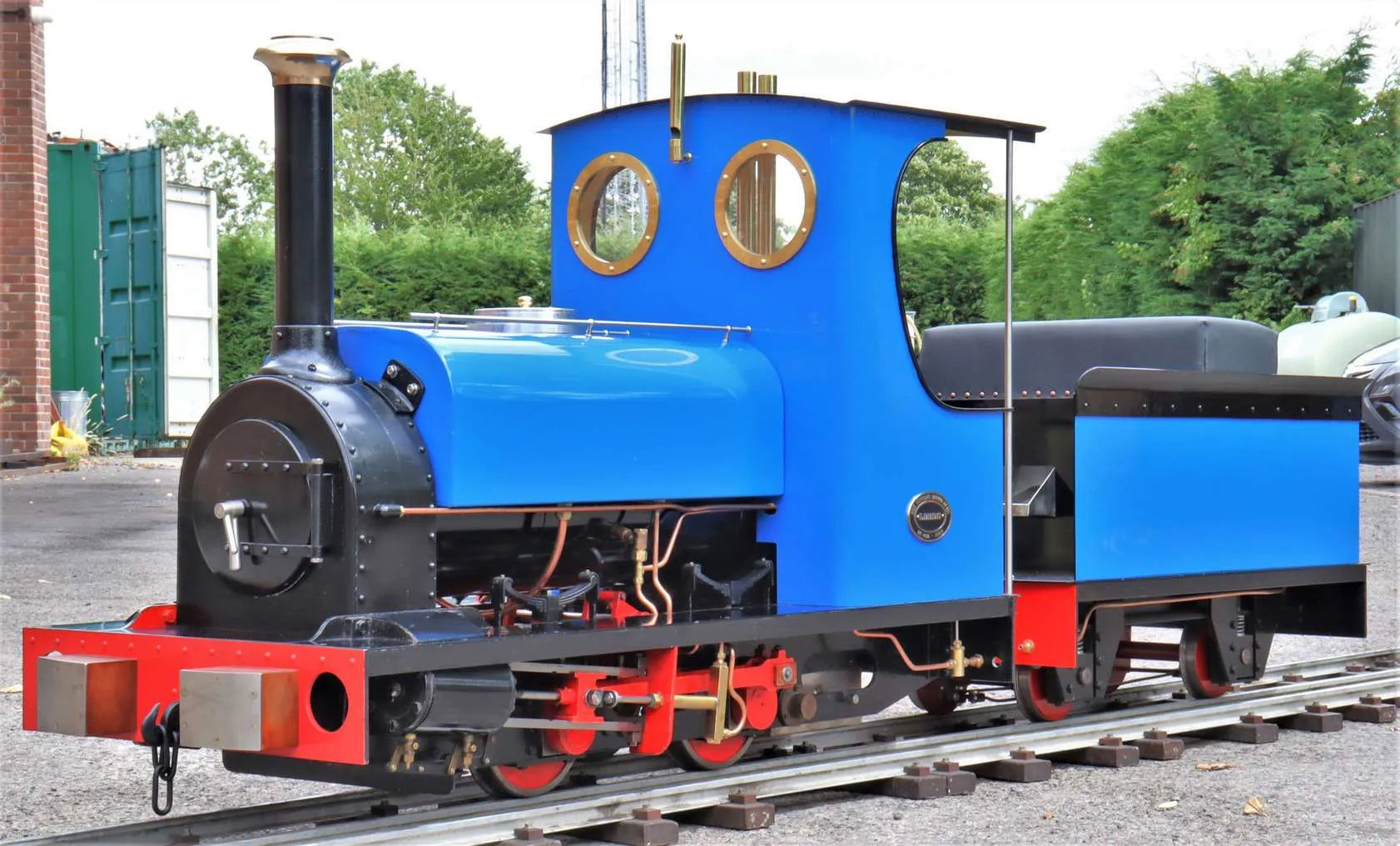

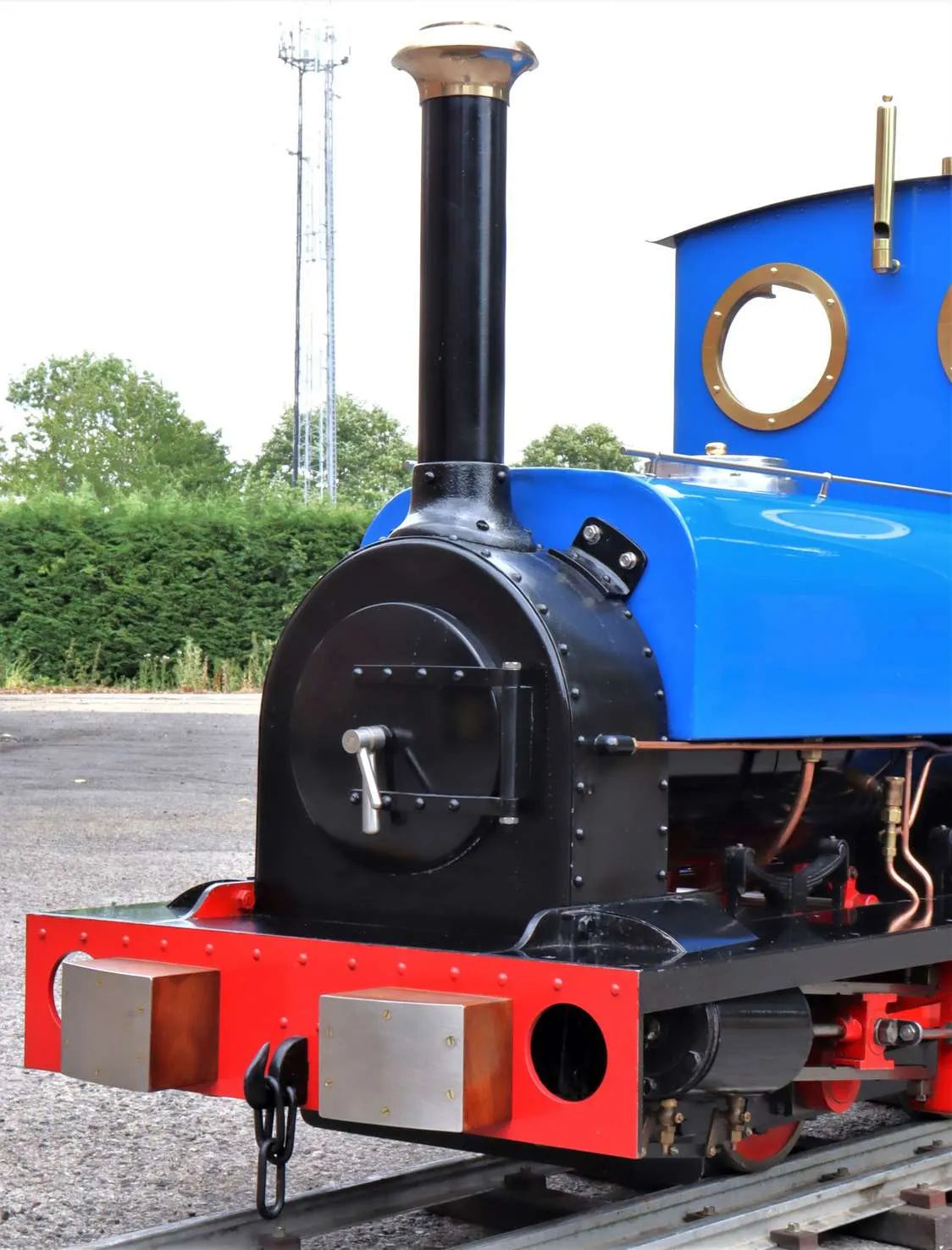

7 1/4 inch gauge Hunslet 0-4-0ST

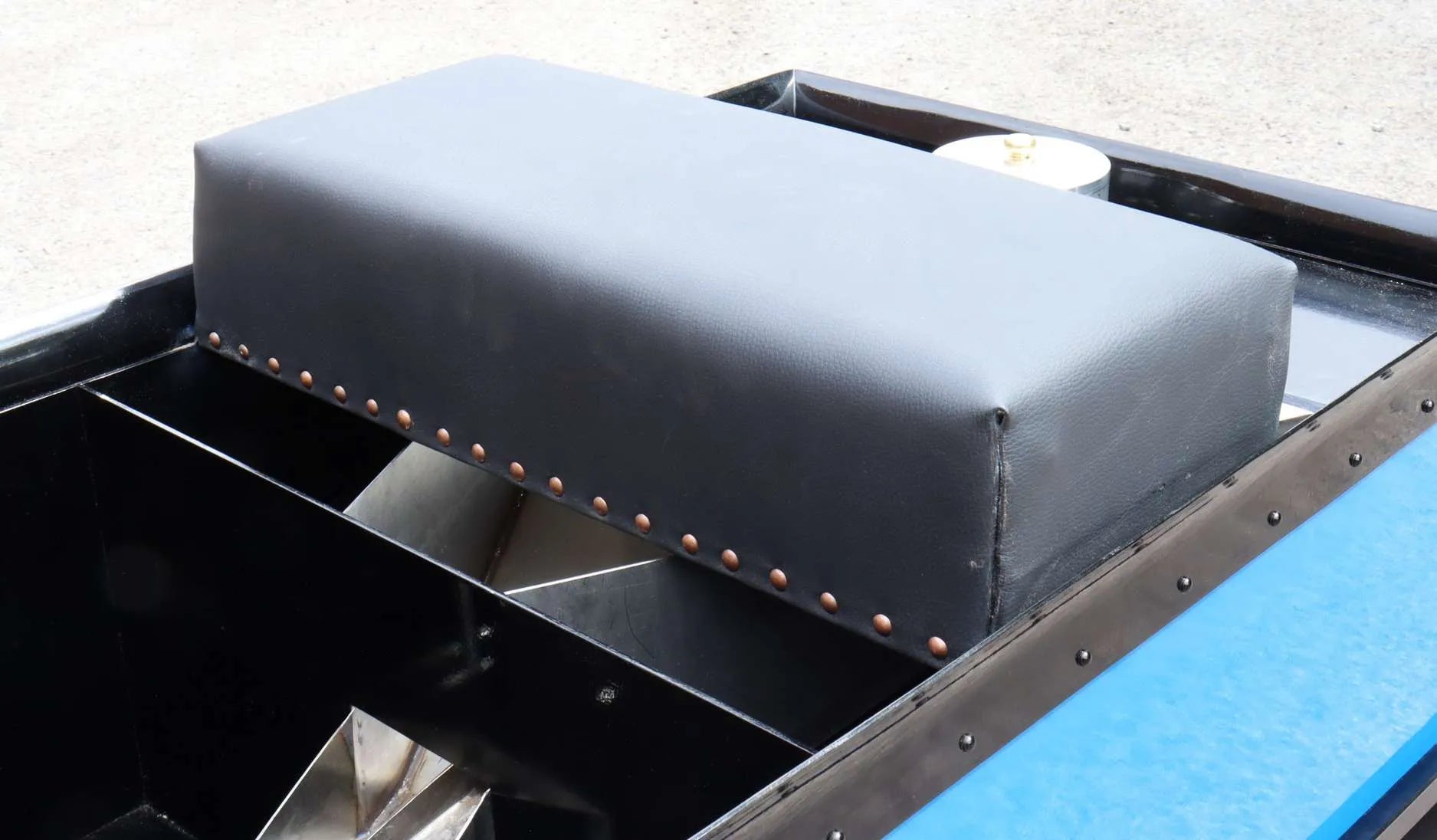

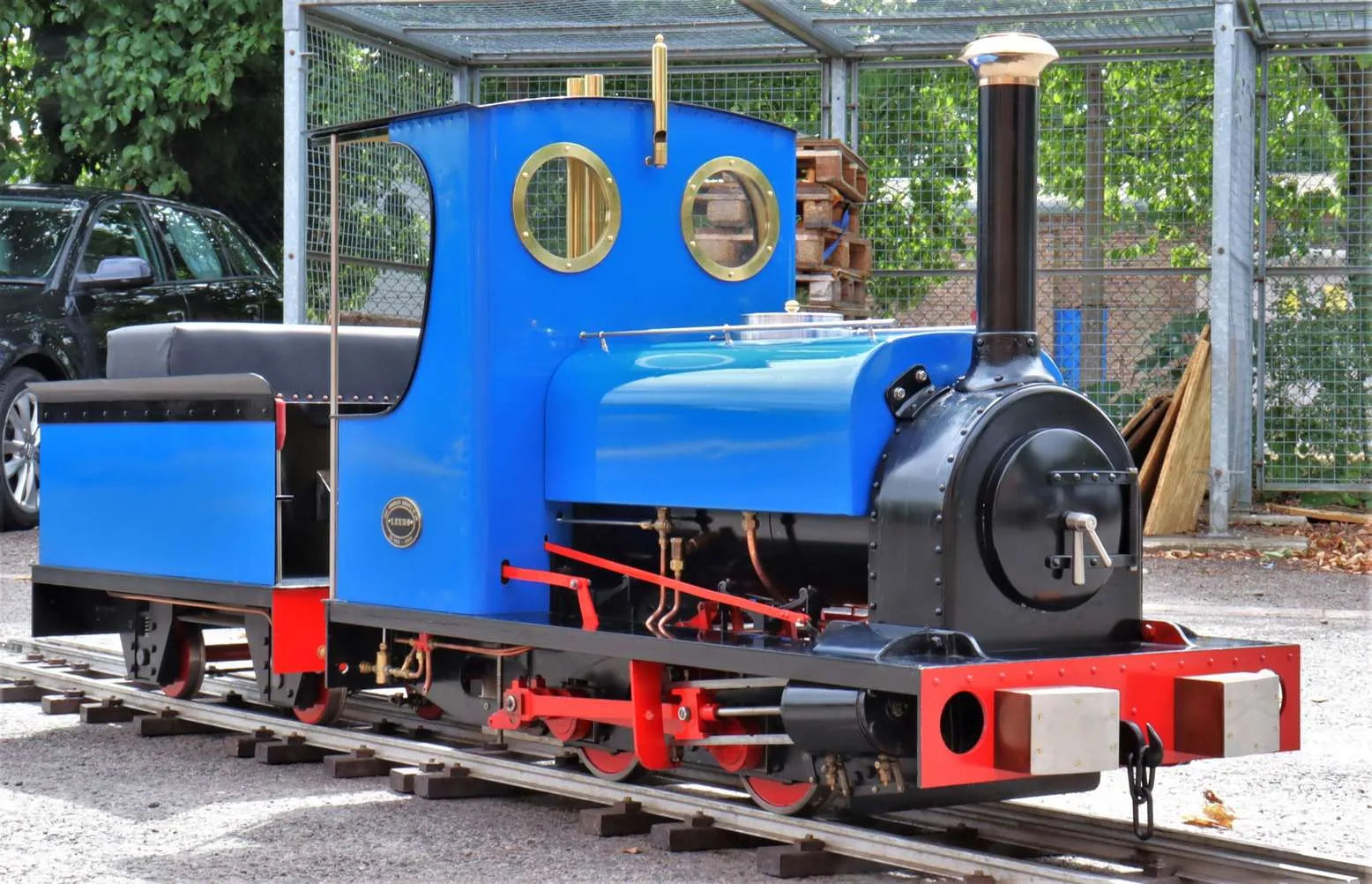

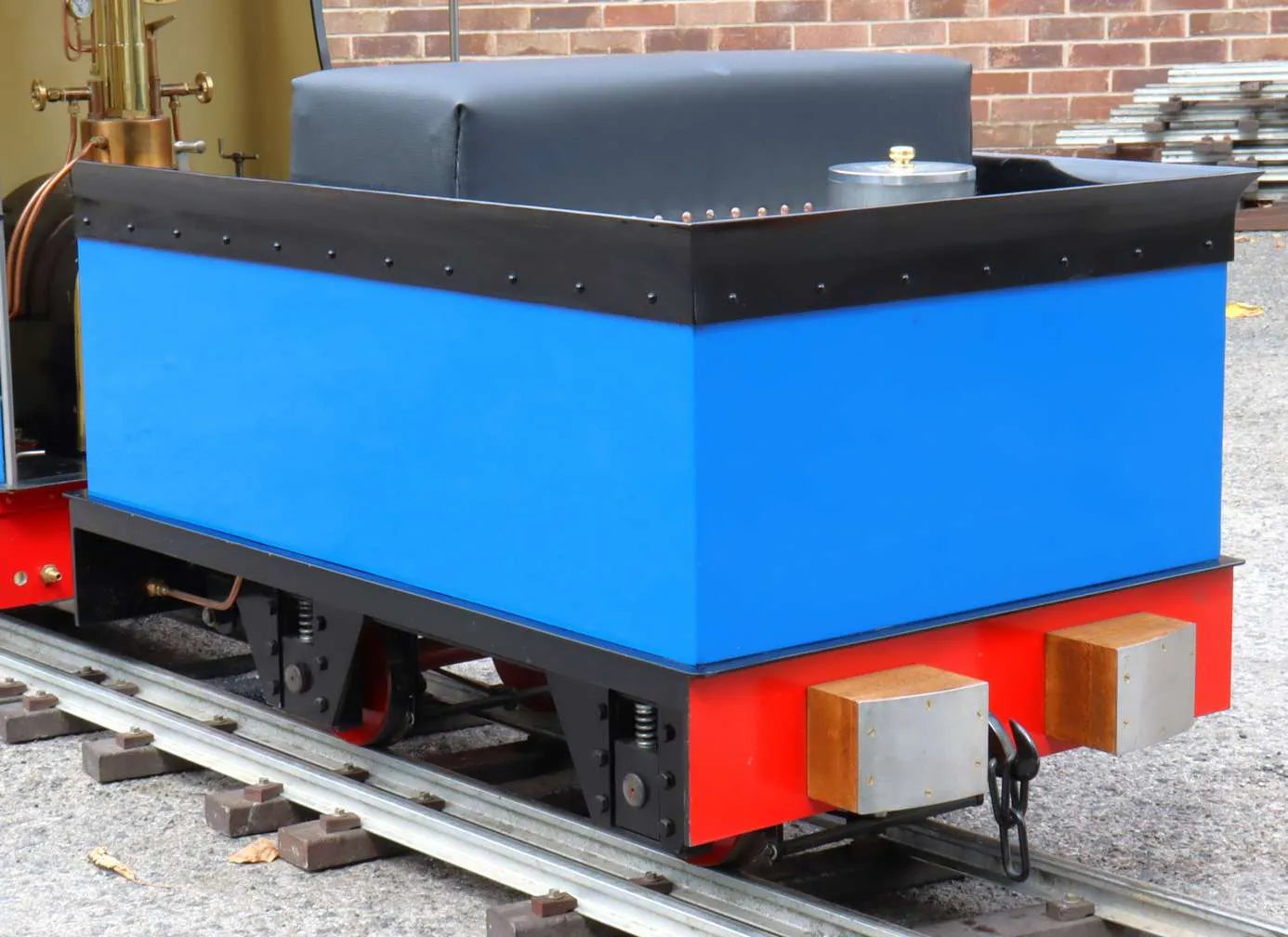

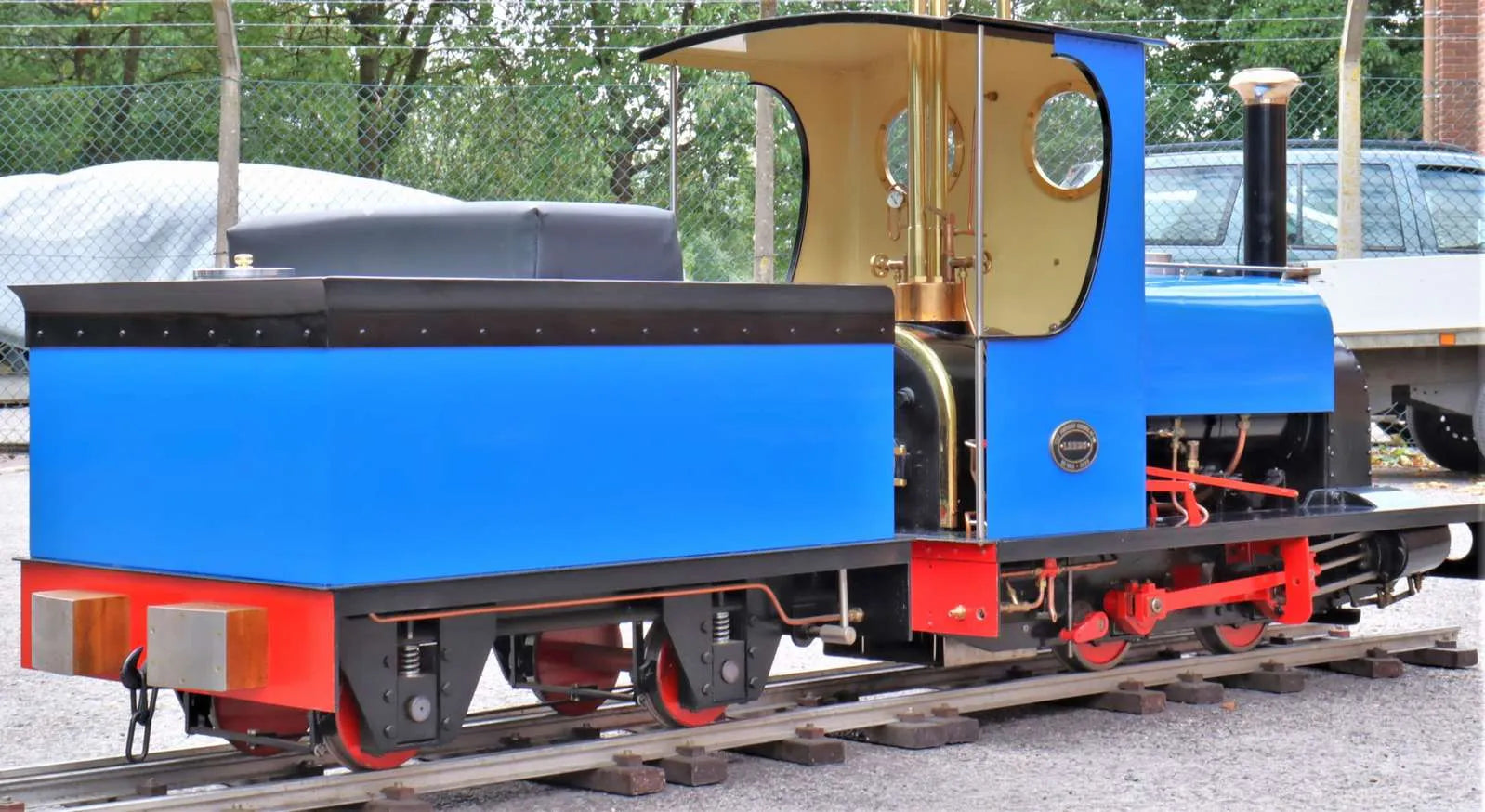

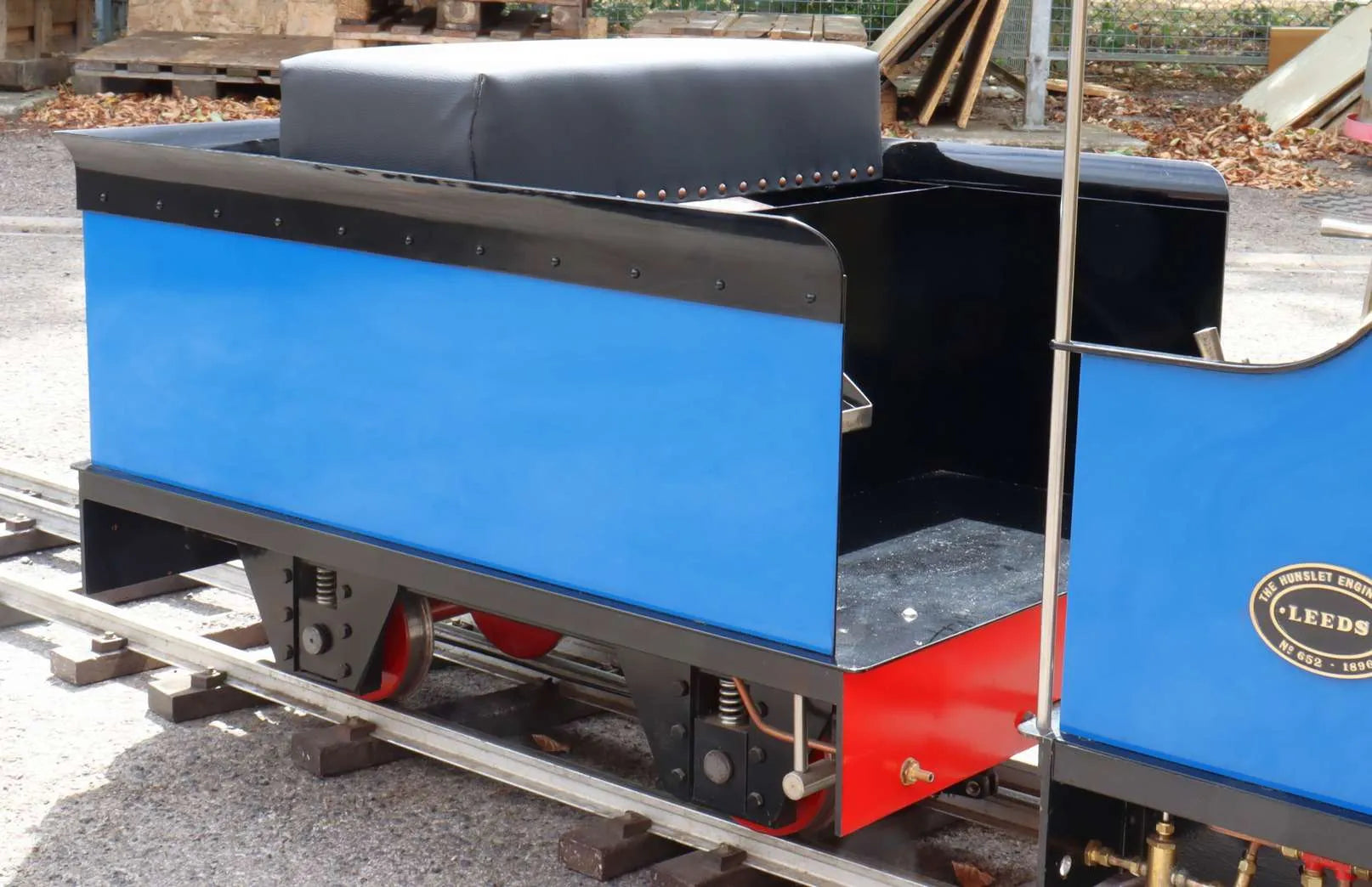

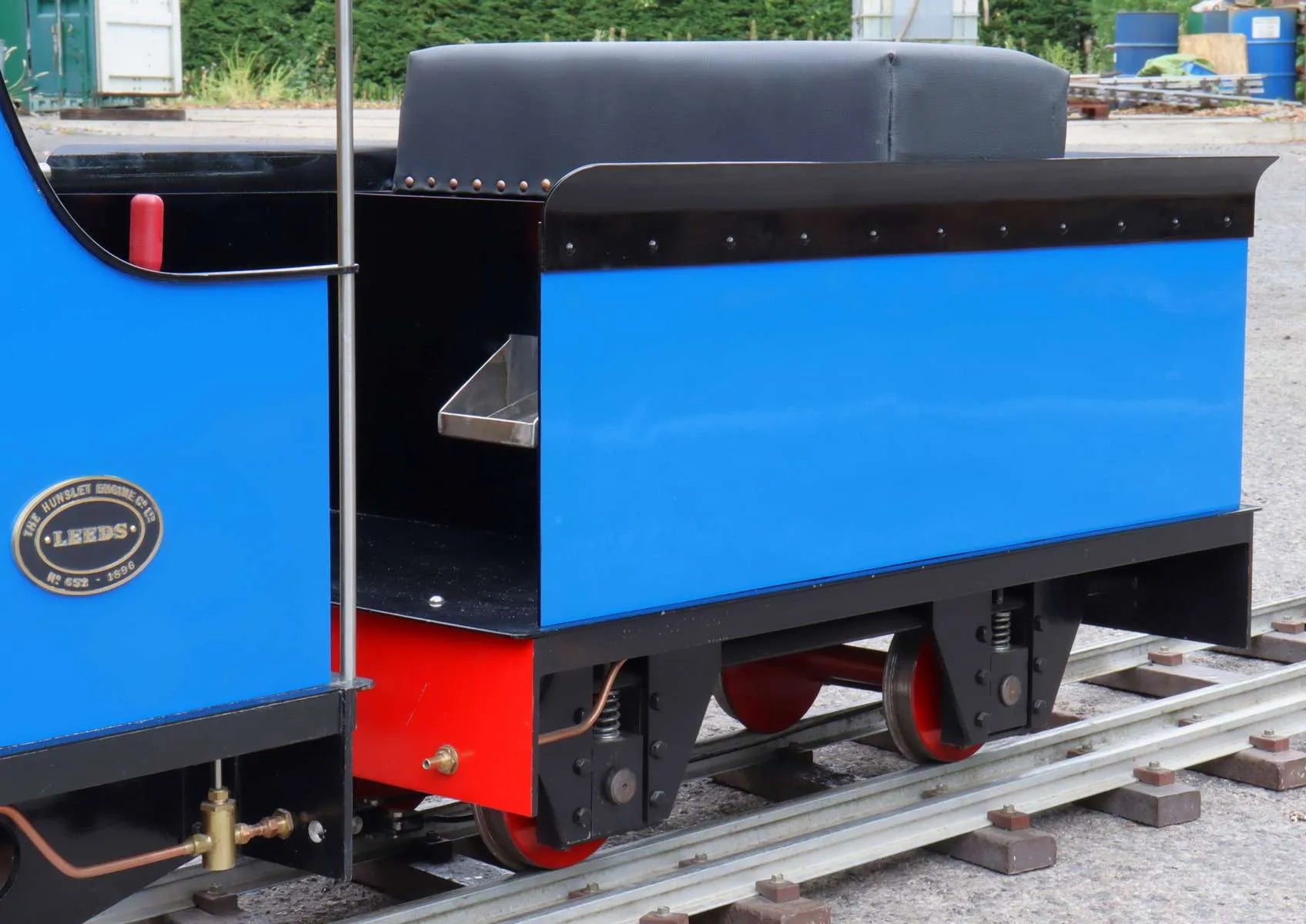

A 7 1/4 inch gauge, 4 inch scale Hunslet 0-4-0ST with ride-in tender; recently completed to the Milner design and steamed once from new for its boiler test last year, it remains in "ex-works" condition.

The work of an experienced engineer, the engine had a long gestation period, first started over twenty years ago. In the intervening years, time out from the project saw two LNER B1s and a super 5 inch gauge Stirling Single completed, with a Sharp, Stewart "Asia" currently on the bench.

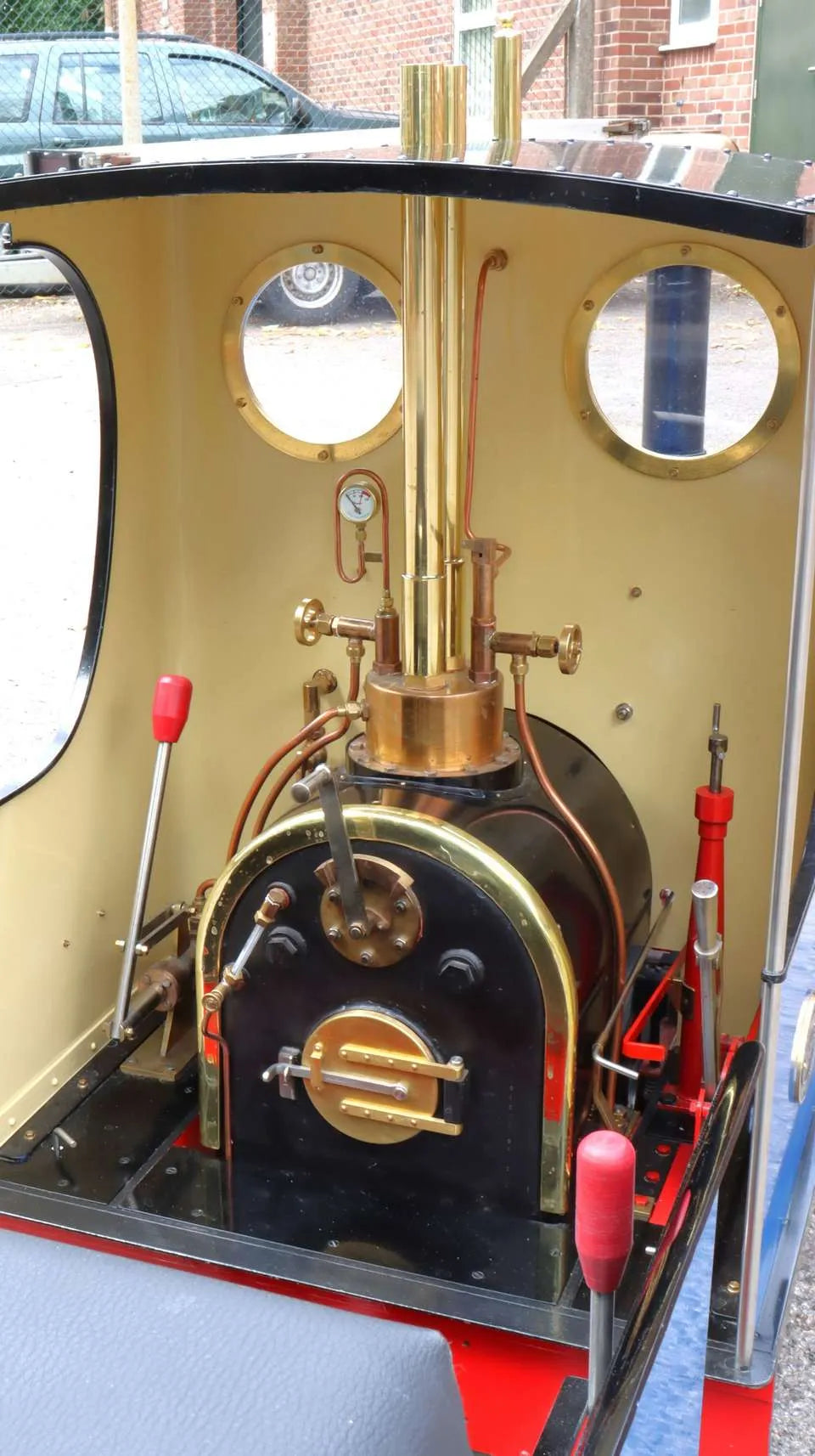

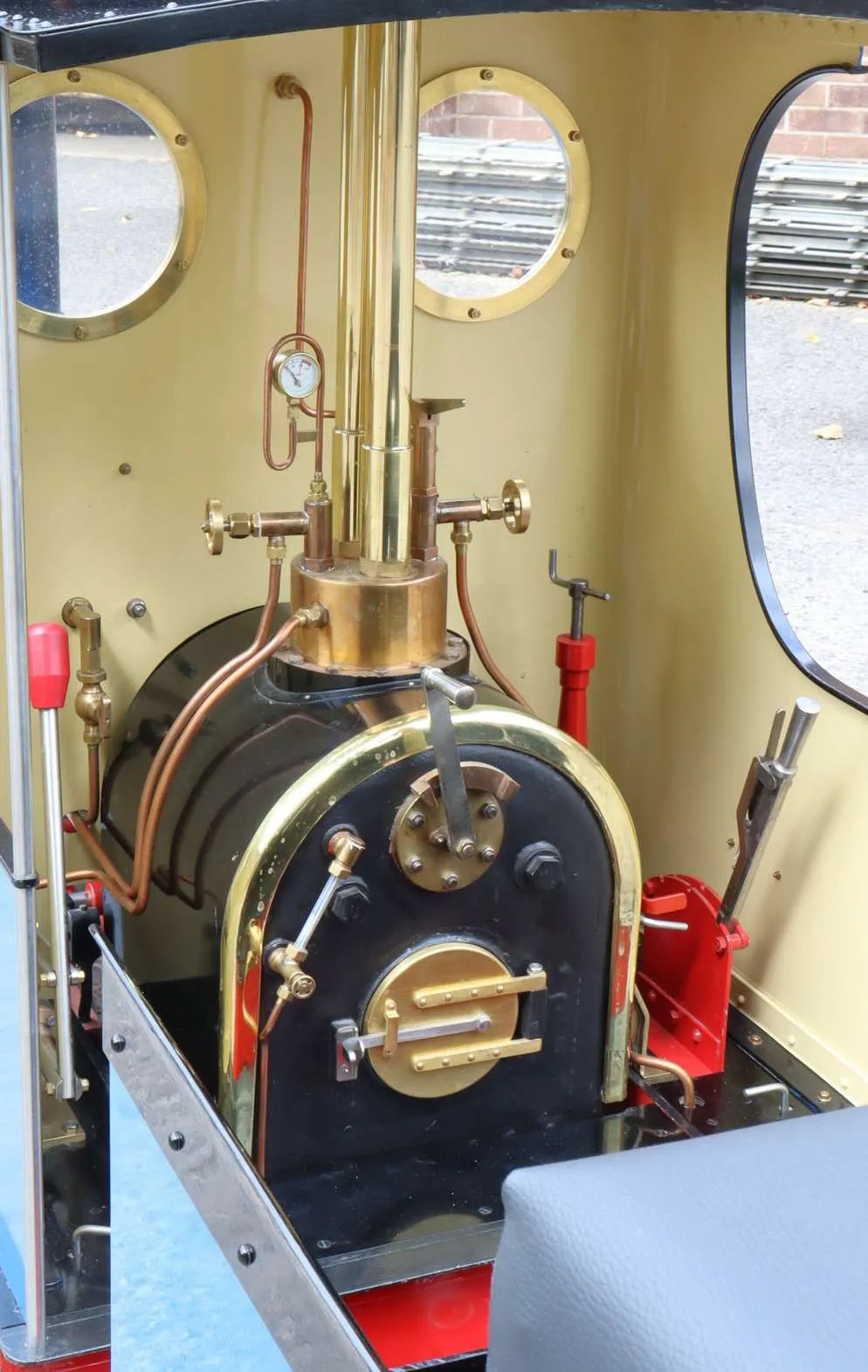

The silver soldered copper boiler had its initial club shell test in 2018, with certification issued at that time. On completion last year it was tested and had club certification issued for hydraulic and steam tests expiring April 2026 and 2023 respectively - however on test in the workshop on arrival we noted a pinhole leak at the firehole door ring; not a structural issue and likely to seal up under steam, it will however require attention at some stage.

Technical information

Stock code

10719

Gauge

7 1/4 inch

Scale

4 inch

Length/inches

50 + 36

Width/inches

21.5

Height/inches

36

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

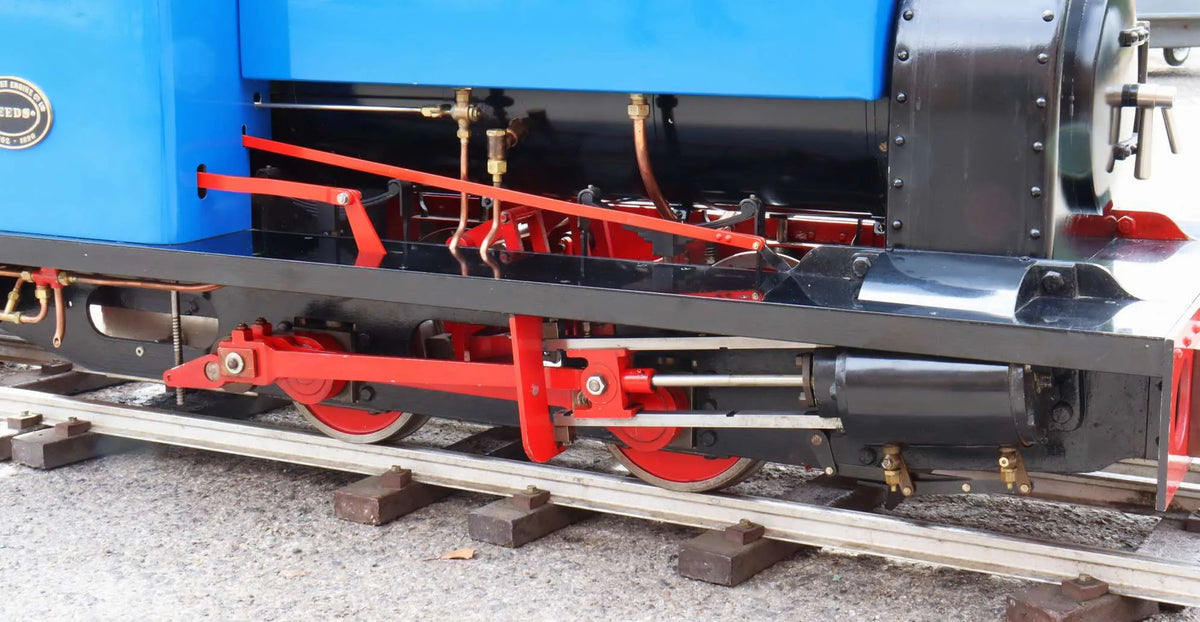

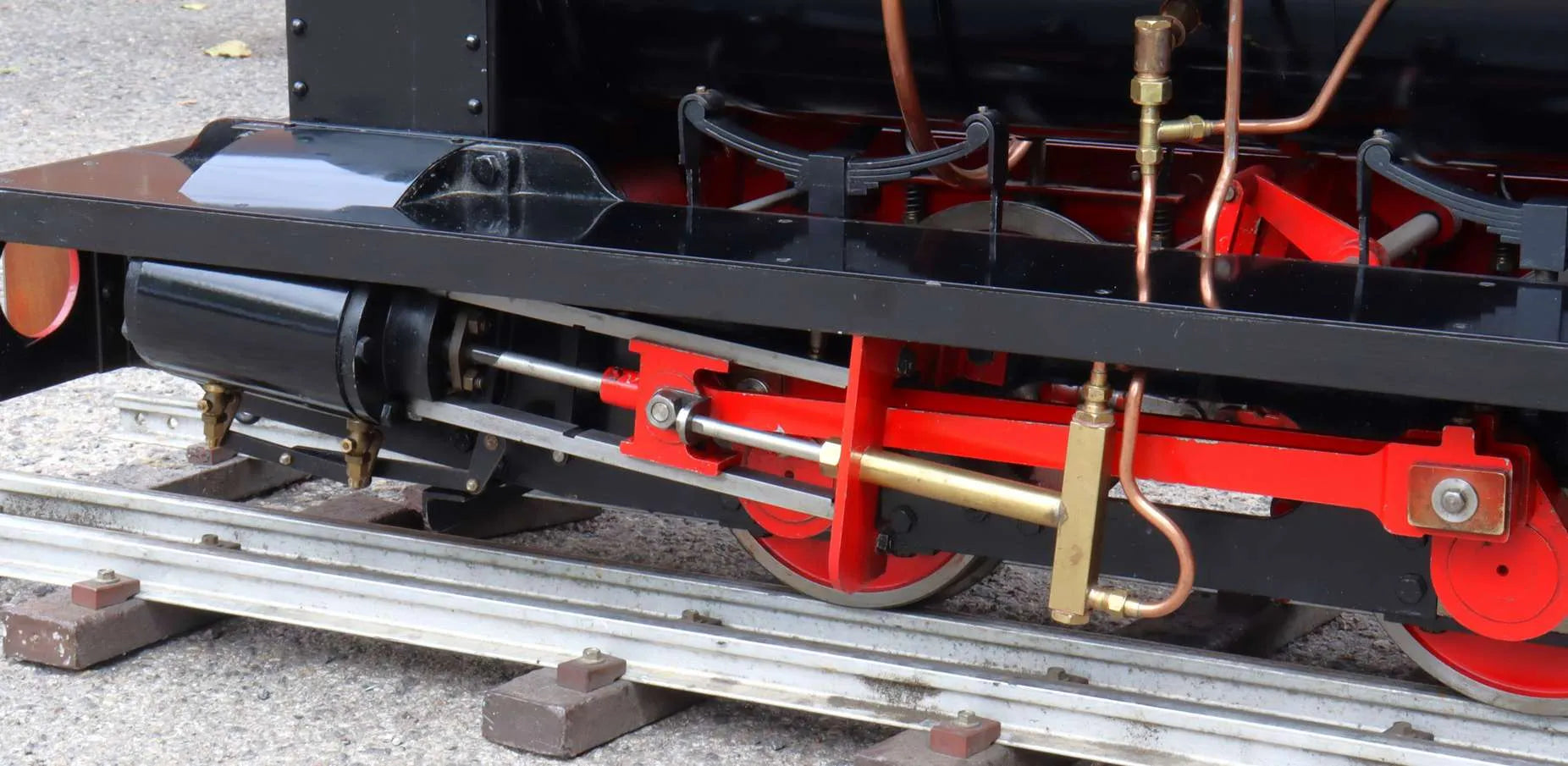

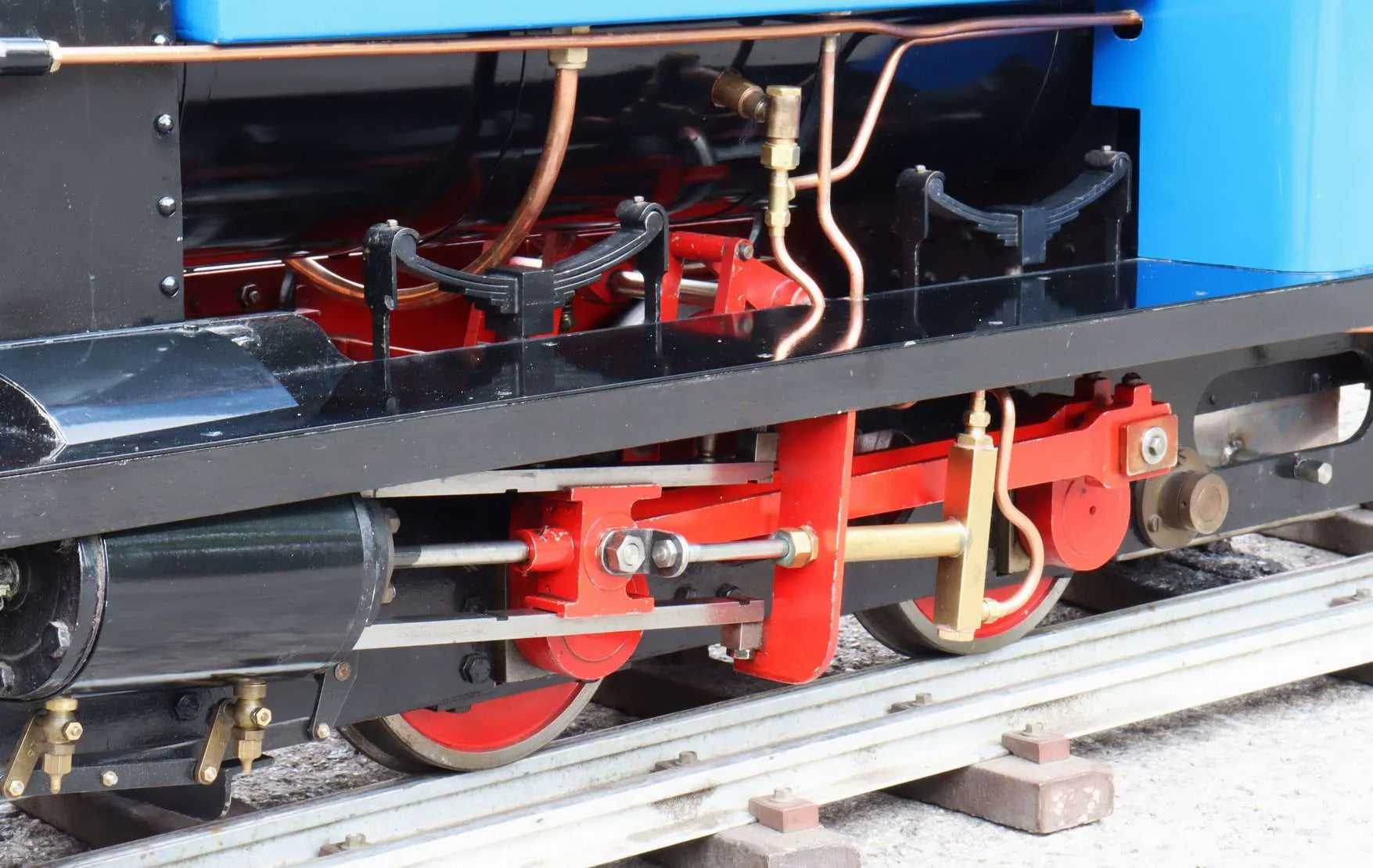

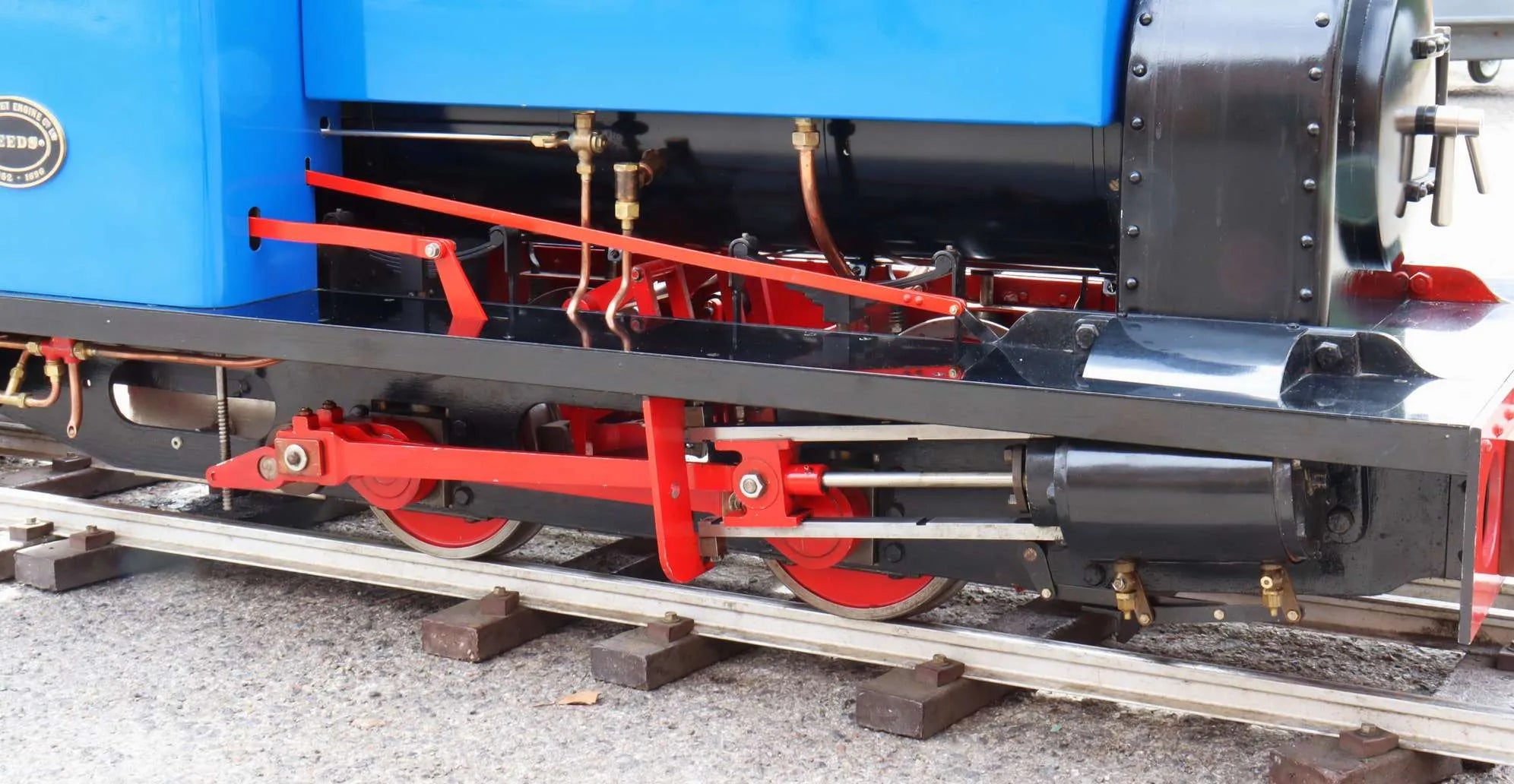

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

A.Roberts

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a non-commercial

Safety valve type

spring

Safety valve

2

Whistle

yes

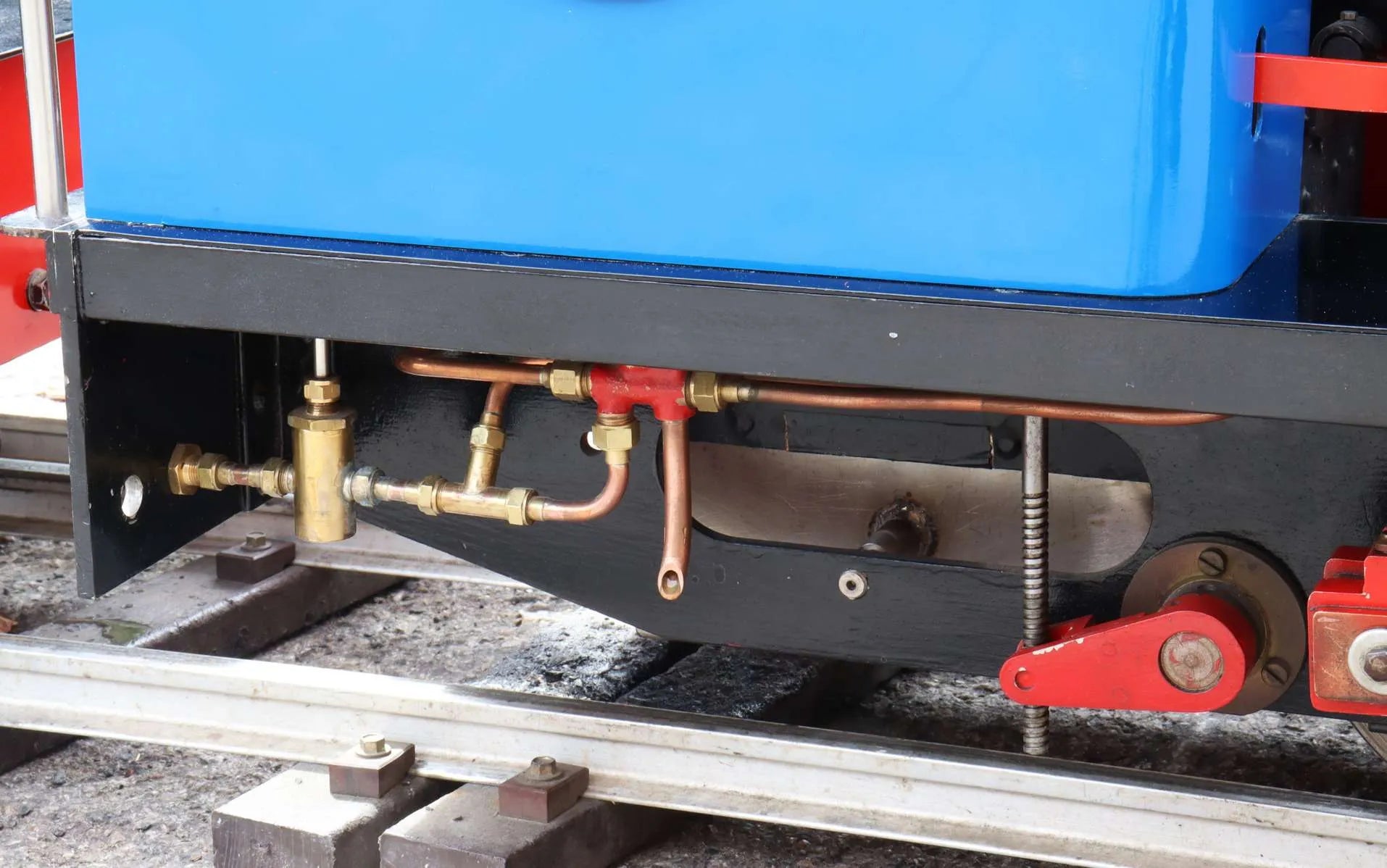

Hand pump

1

Mechanical pump

1

Injector

1

Date out

Jul-22

Hydraulic test valid to

04-Apr-26

Steam test valid to

04-Apr-23
