Sold

11053

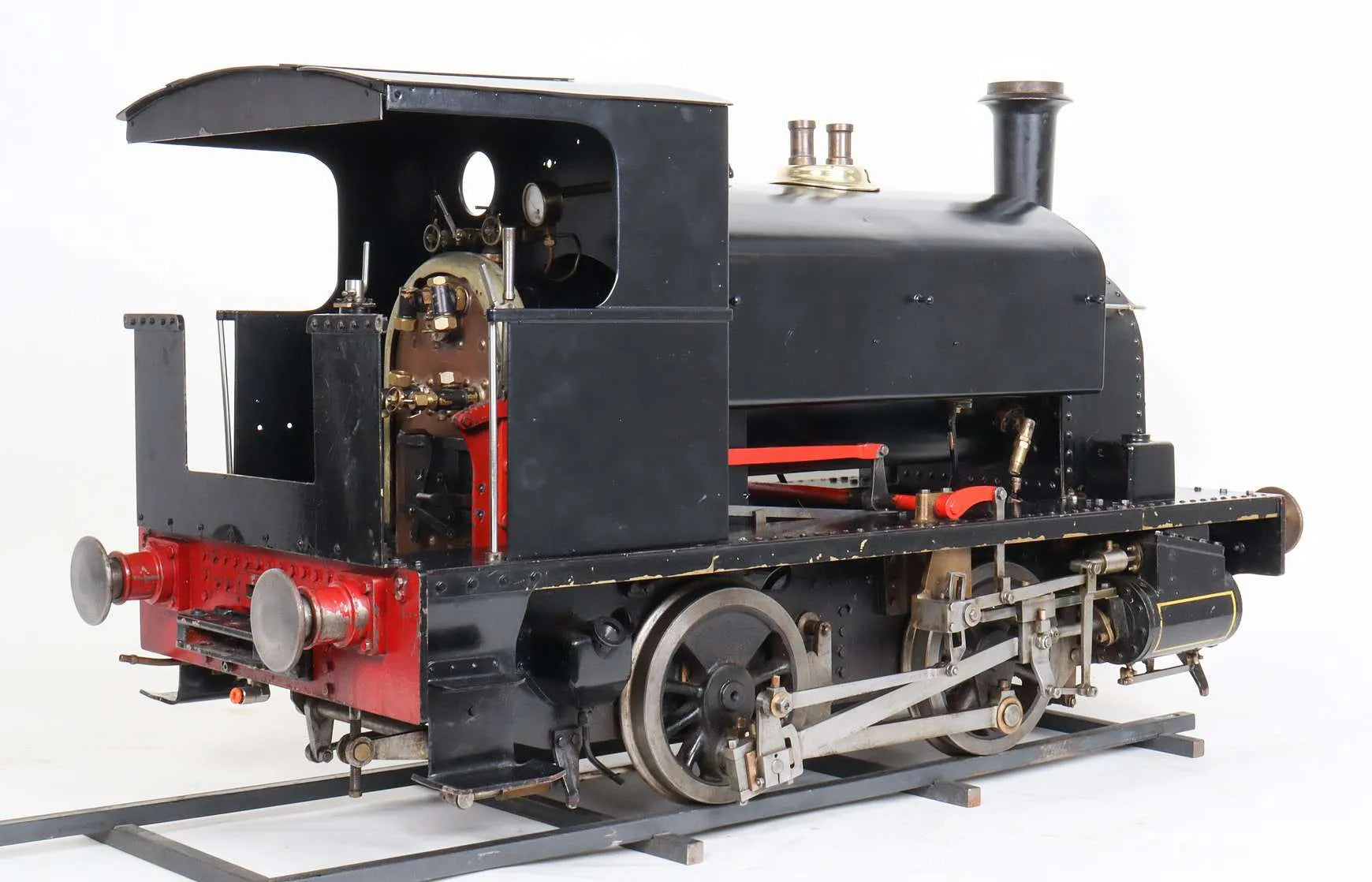

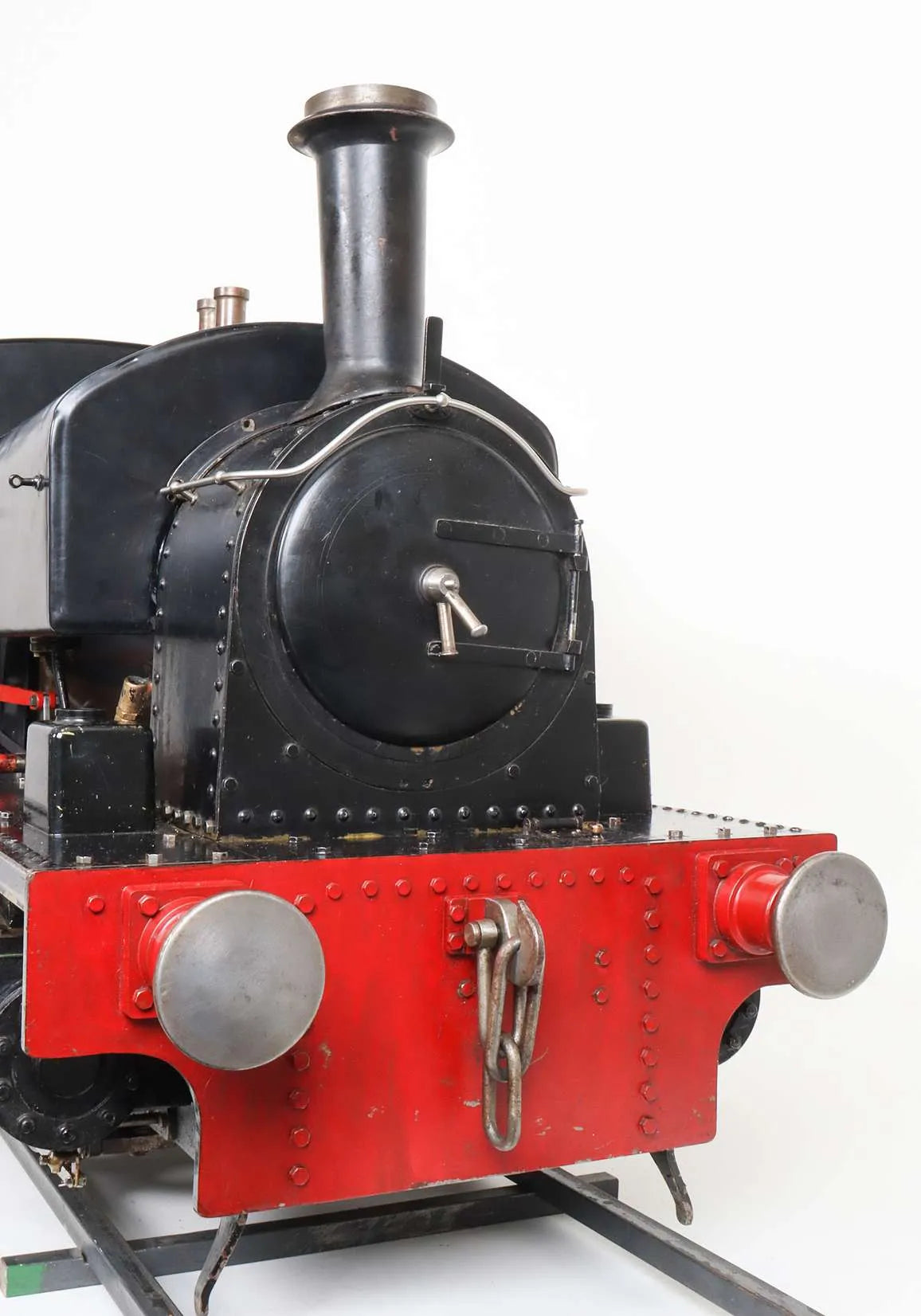

7 1/4 inch gauge "Jessie" 0-4-0T with new commercial boiler

A 7 1/4 inch gauge "Jessie" 0-4-0ST, the sister engine to Ken Swan's excellent "Bridget" 0-4-2T design.

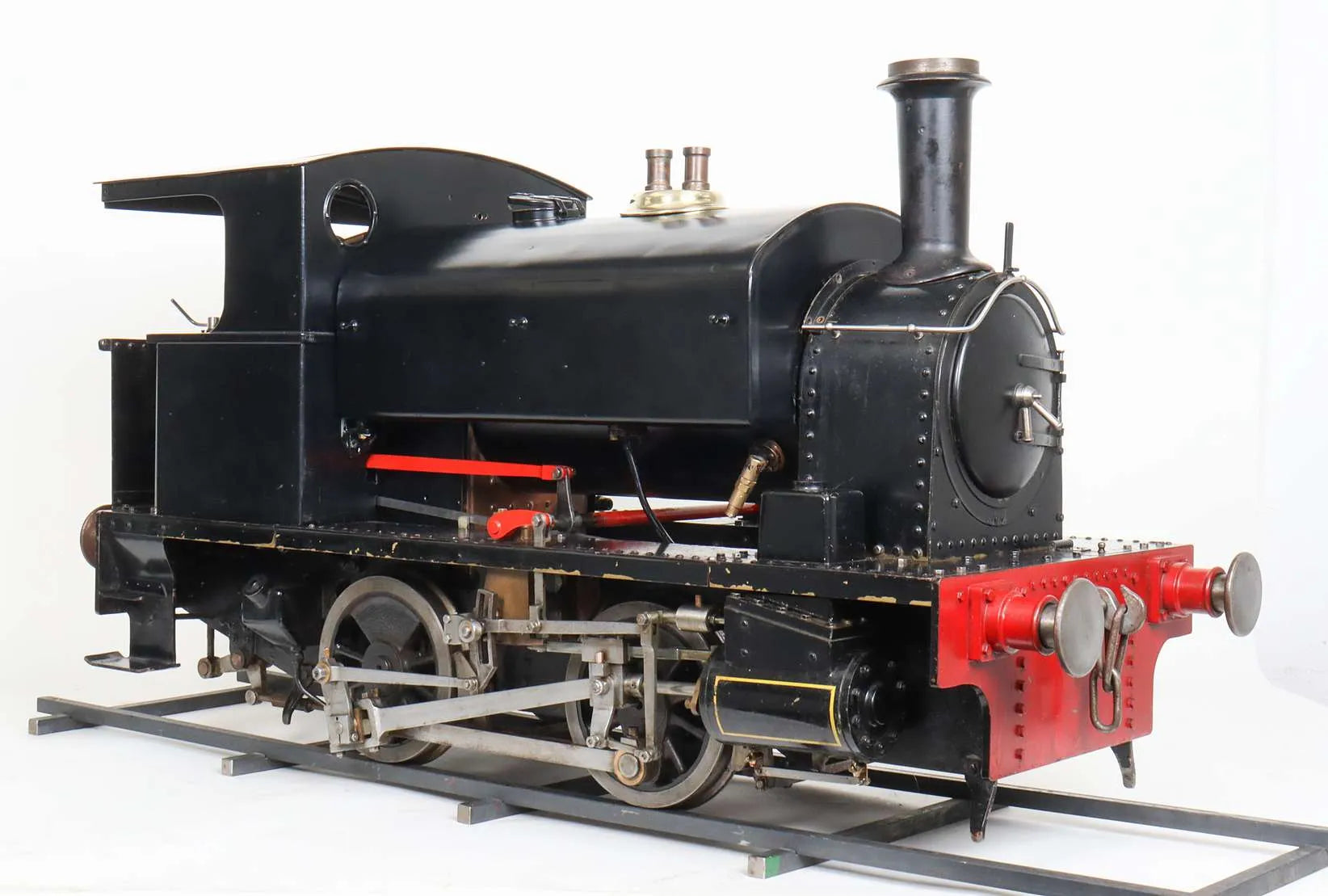

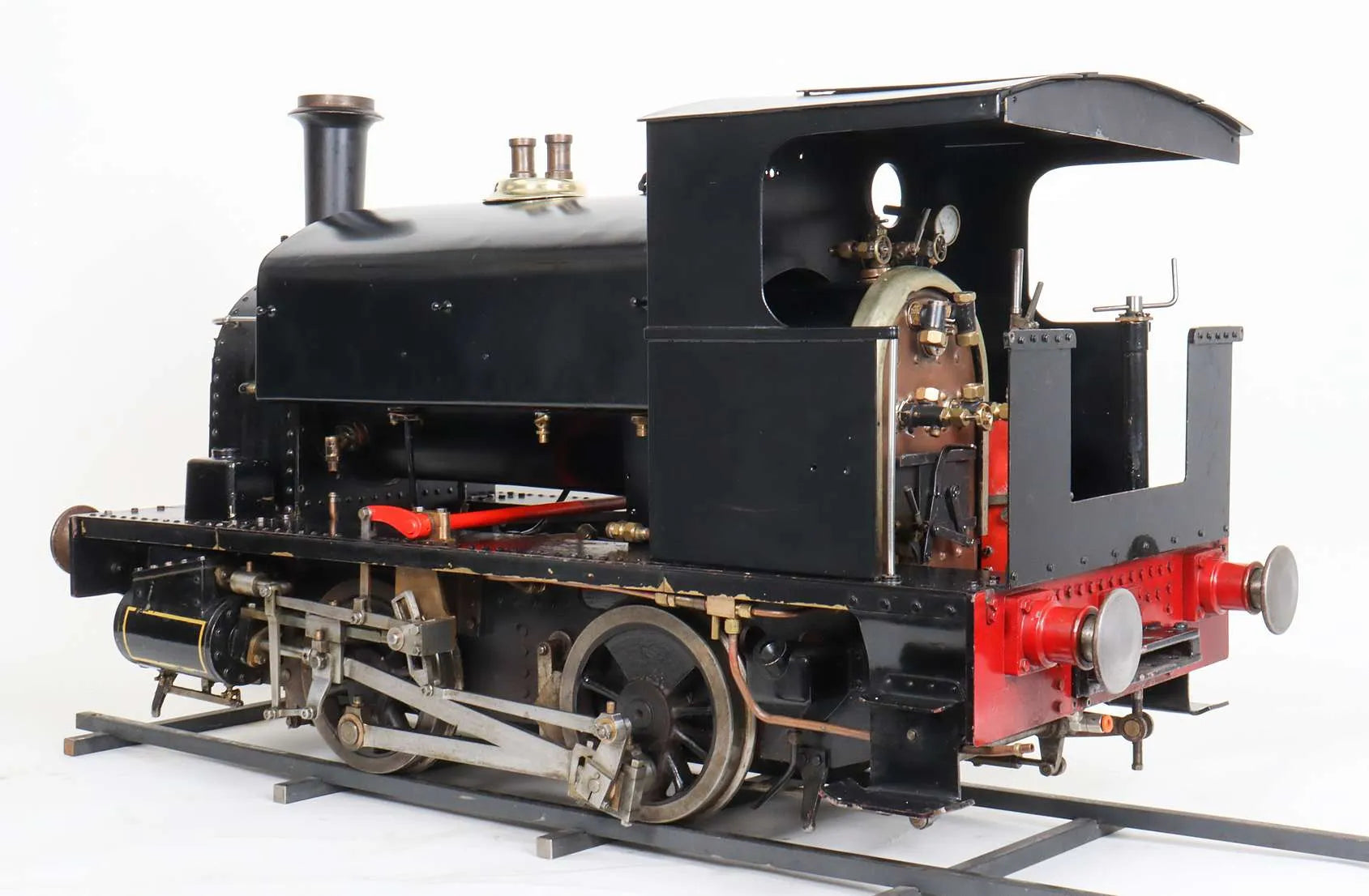

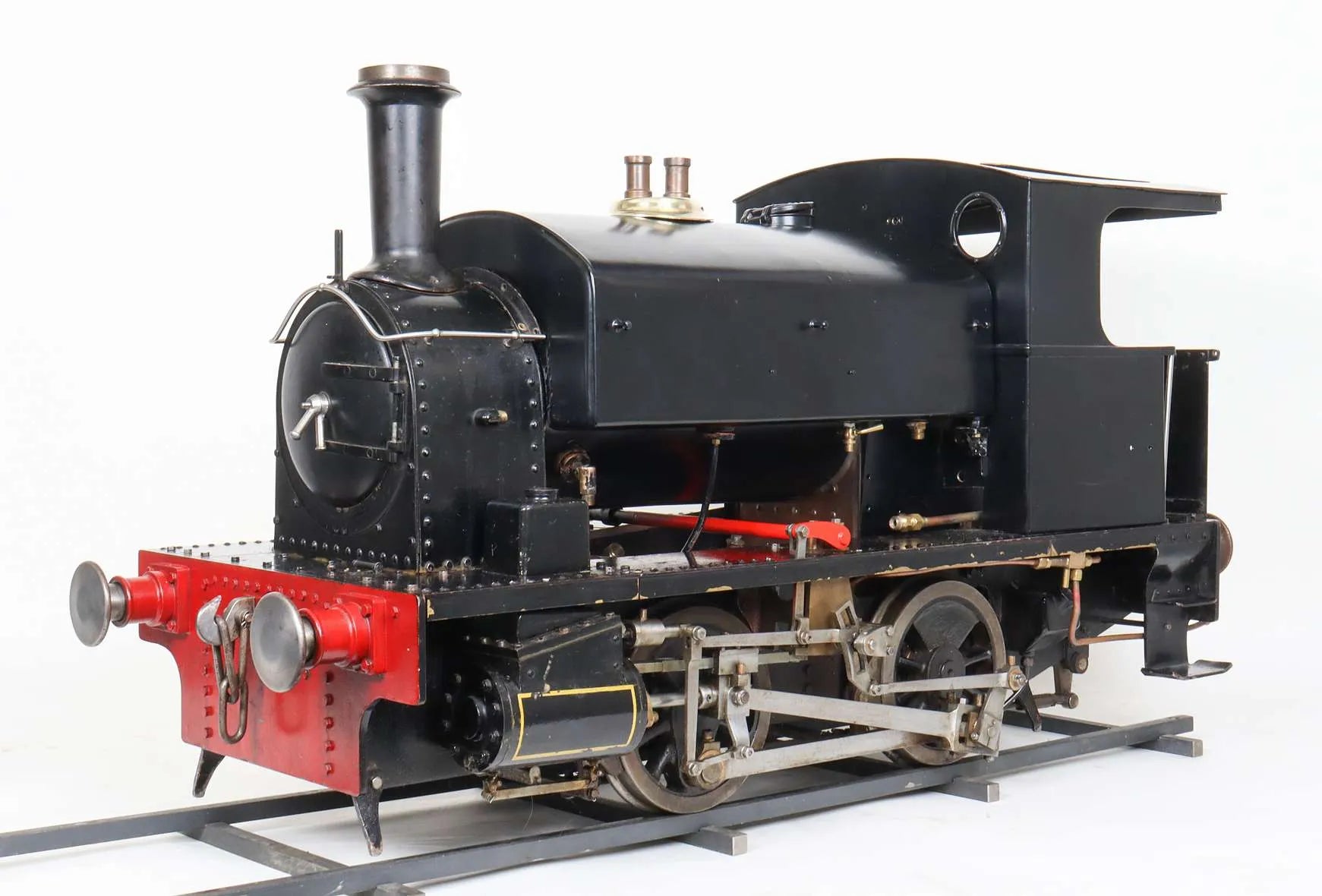

This one came to us recently from the family of a long time customer. Dismantled when the boiler failed some years ago, the overhaul stalled due to the owner's failing health - it is shown here loosely reassembled, with the new Western Steam boiler he bought for it at the time, complete with manufacturer's documentation and test certificate.

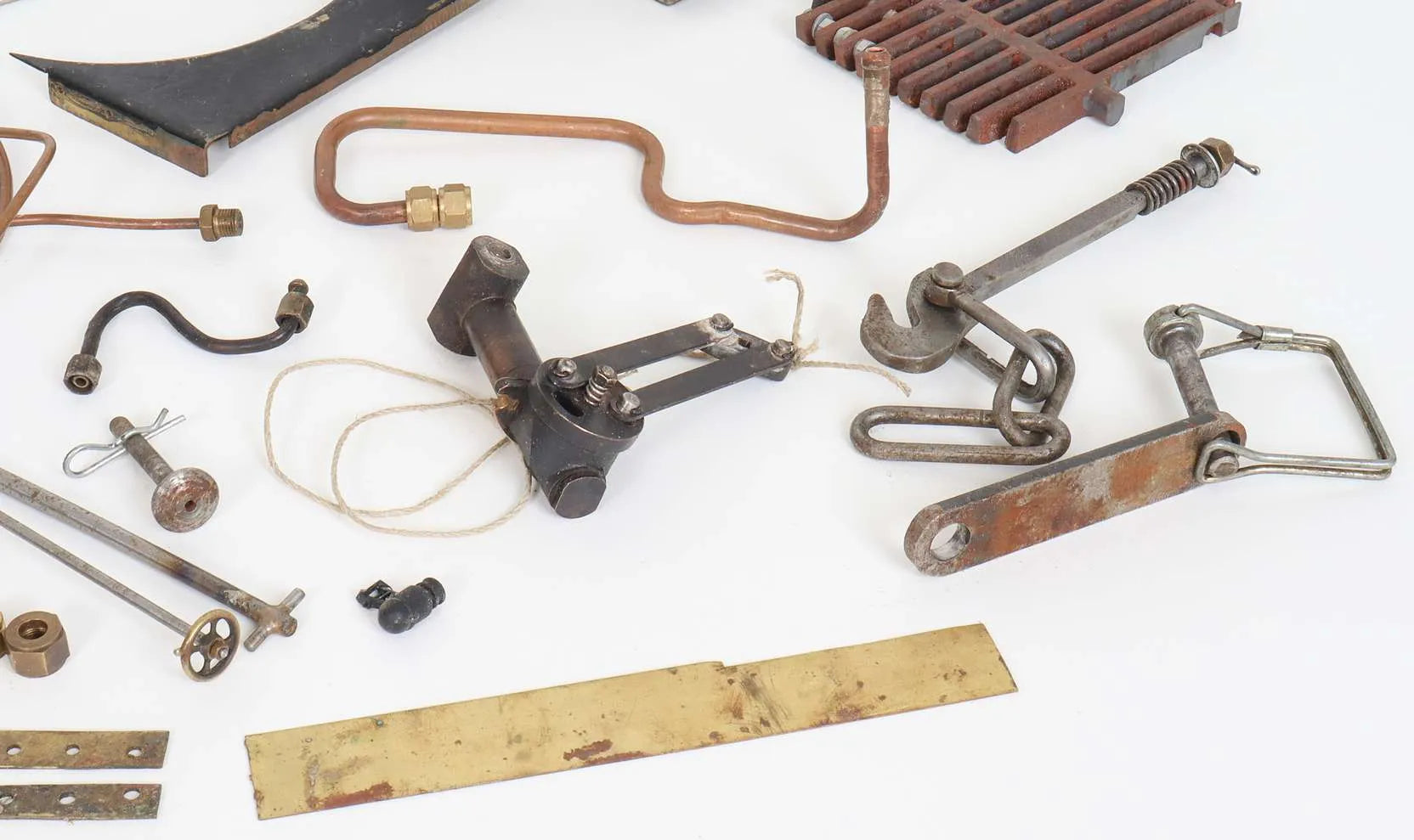

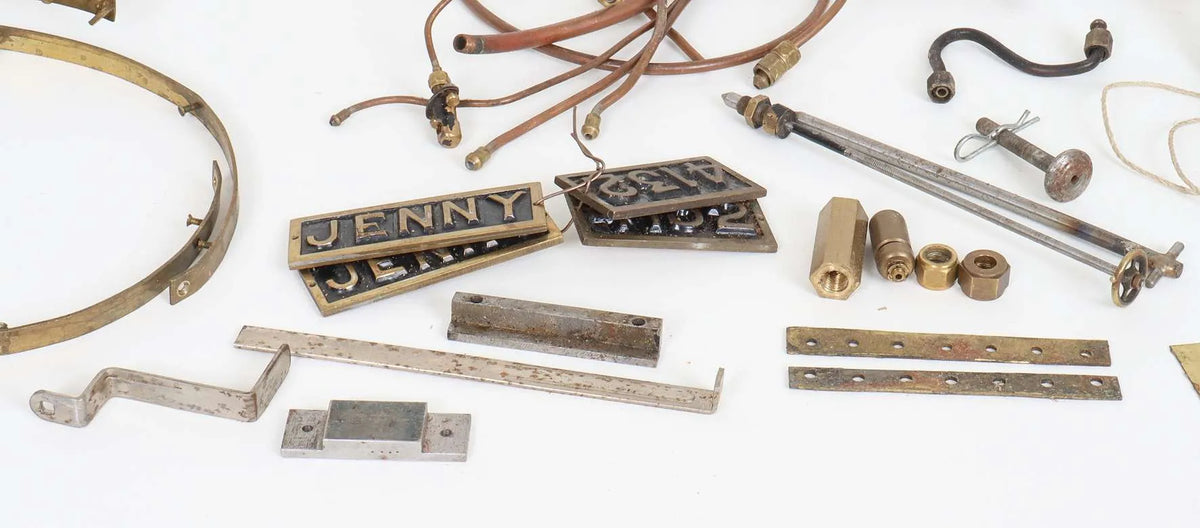

From what we can see this looks to be complete - a reassembly job with little further expenditure required.

Technical information

Stock code

11053

Gauge

7 1/4 inch

Length/inches

33

Width/inches

12

Height/inches

17

Weight/Kg

66

Wheel material

cast iron

Axlebox type

plain

Cylinder material

cast iron

Valve type

slide

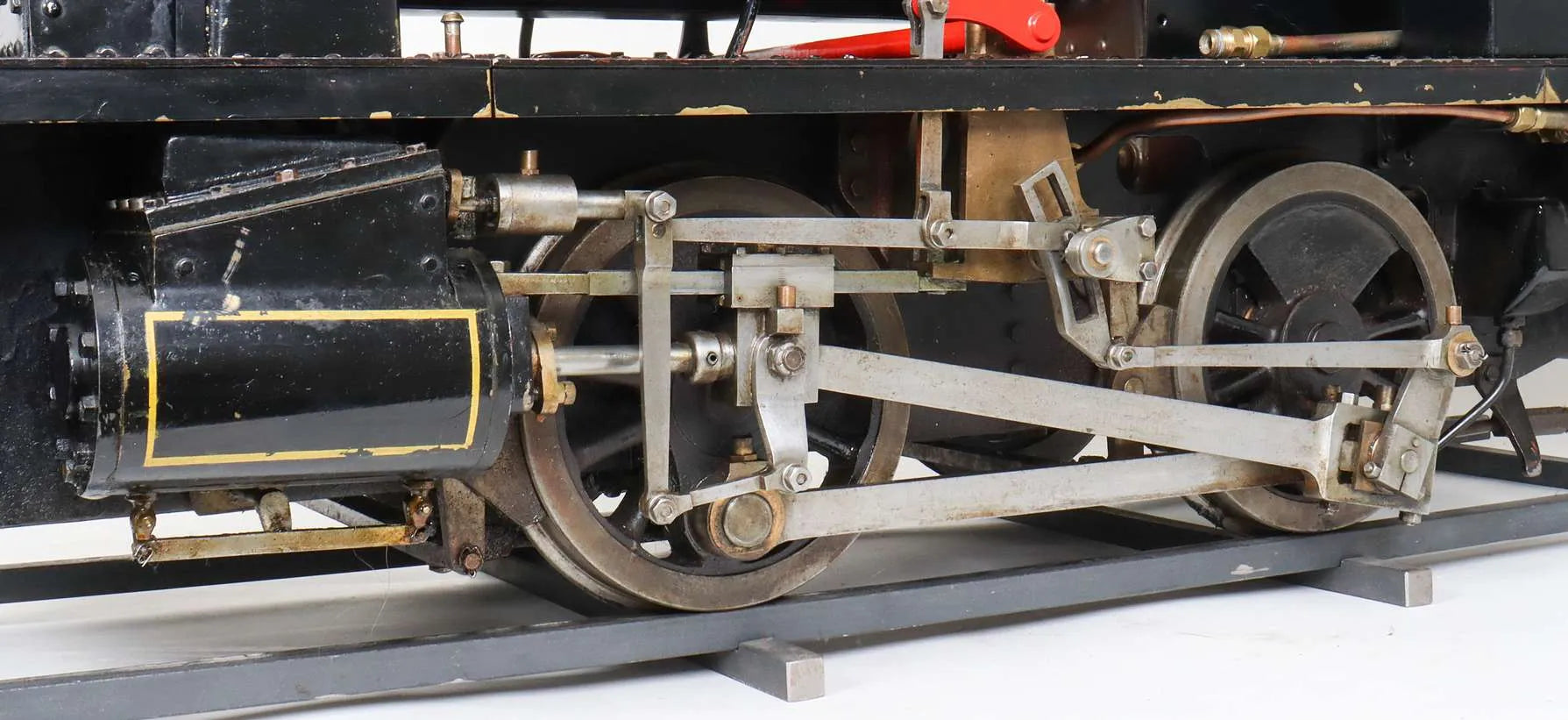

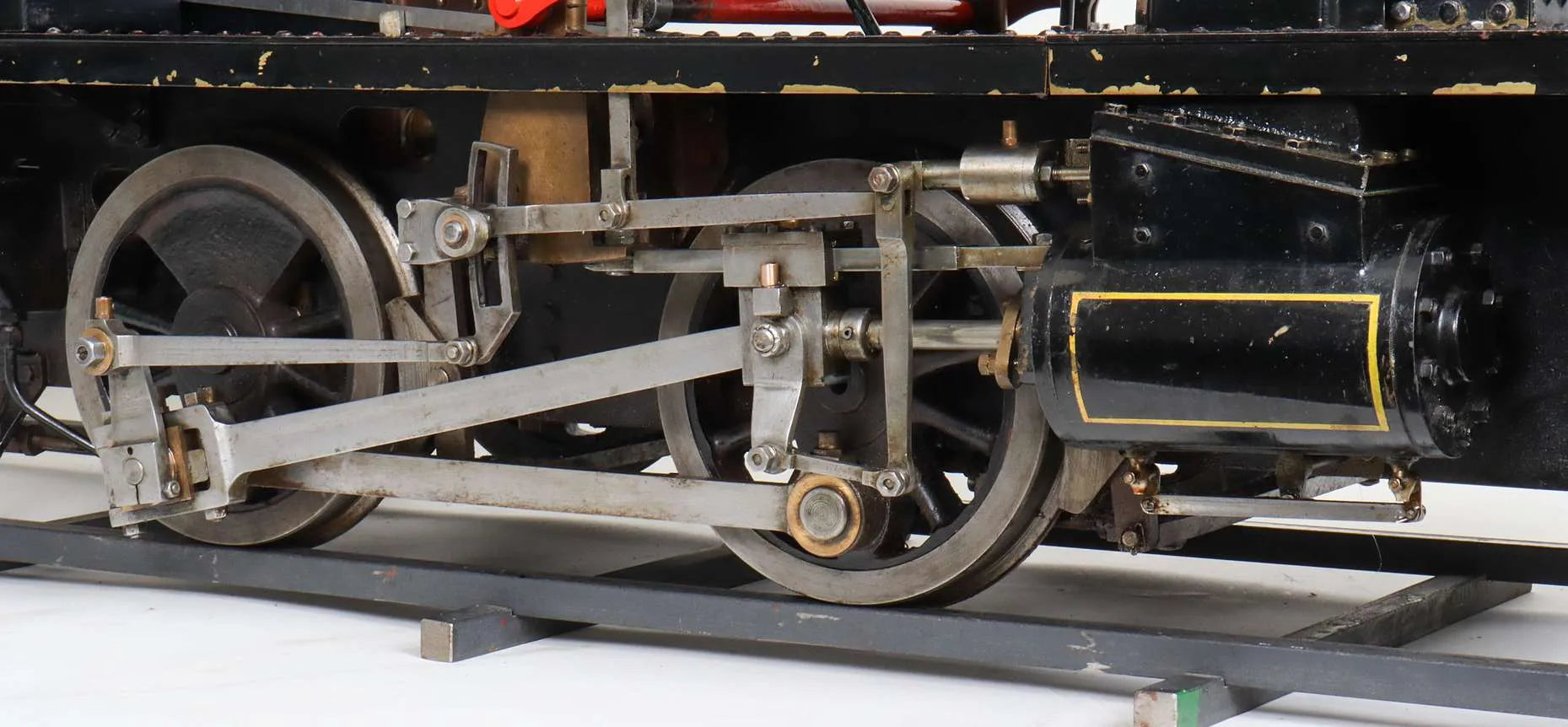

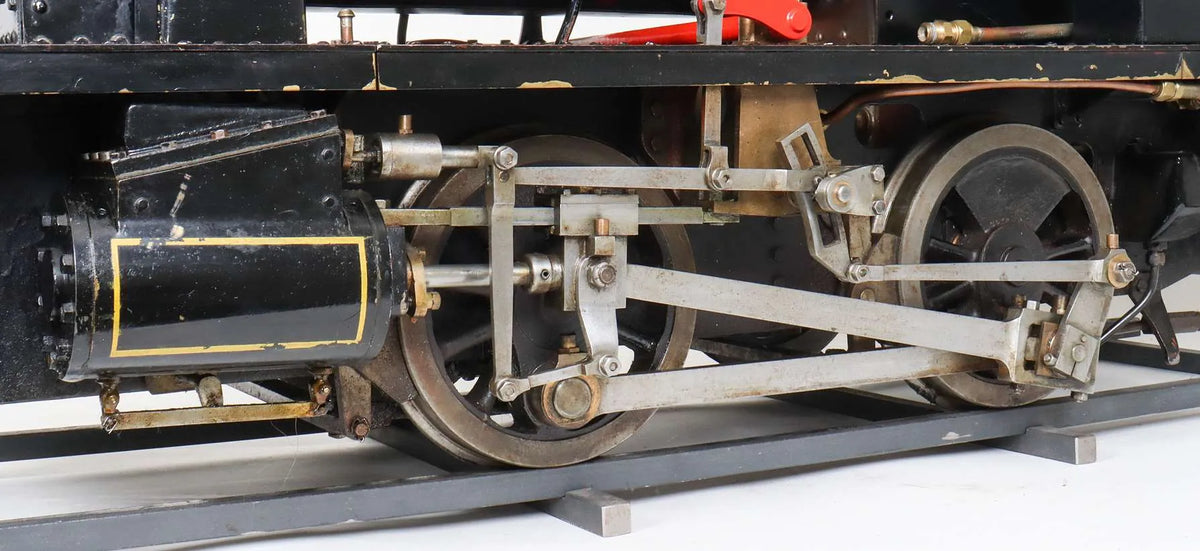

Valve gear

Walschaerts

Reverser type

pole

Boiler maker

Western Steam

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

yes

Year built

2014

Boiler number

WSME.958.05.14.HVS

Safety valve type

spring

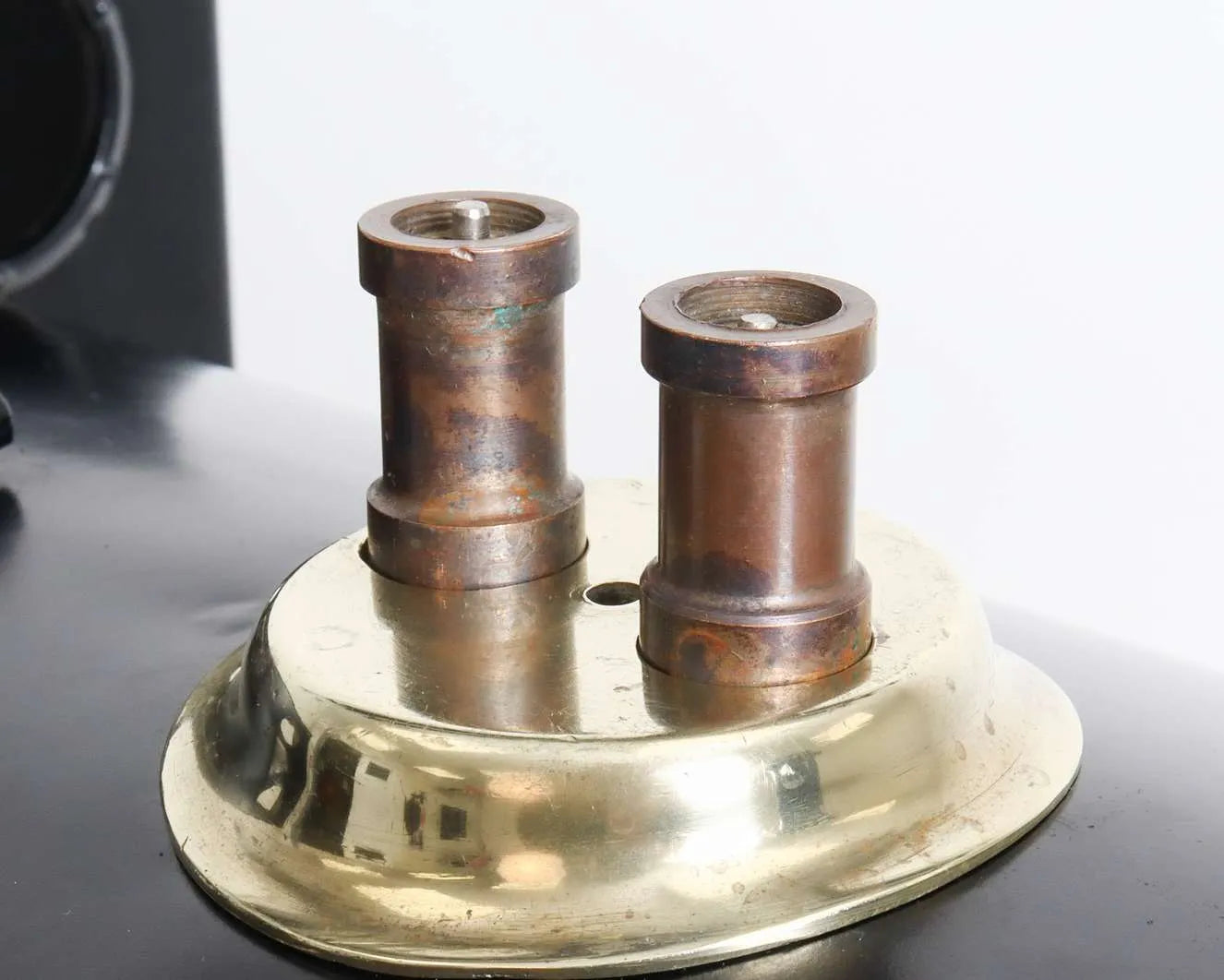

Safety valve

2

Whistle

yes

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

3

Date out

Apr-23
