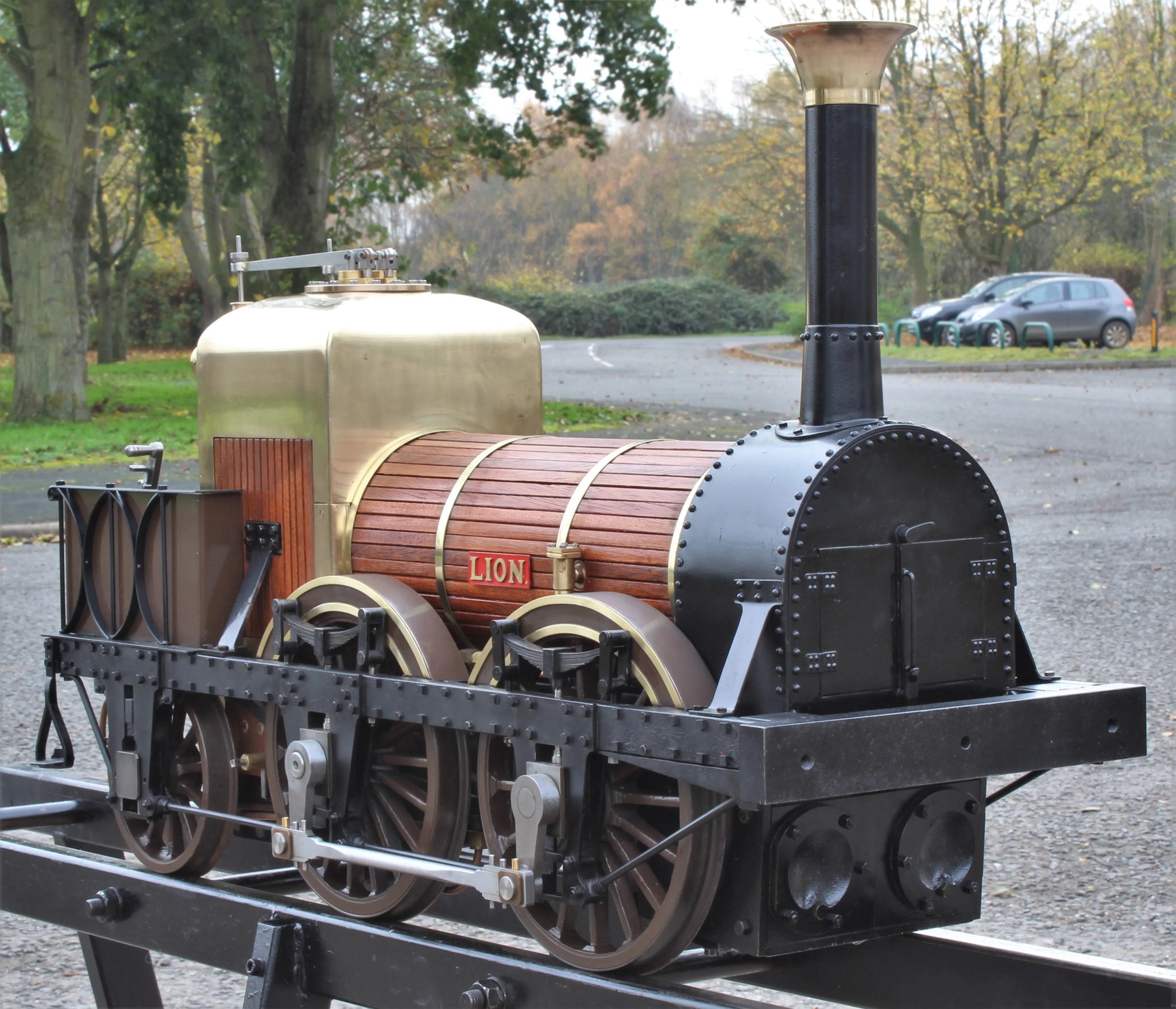

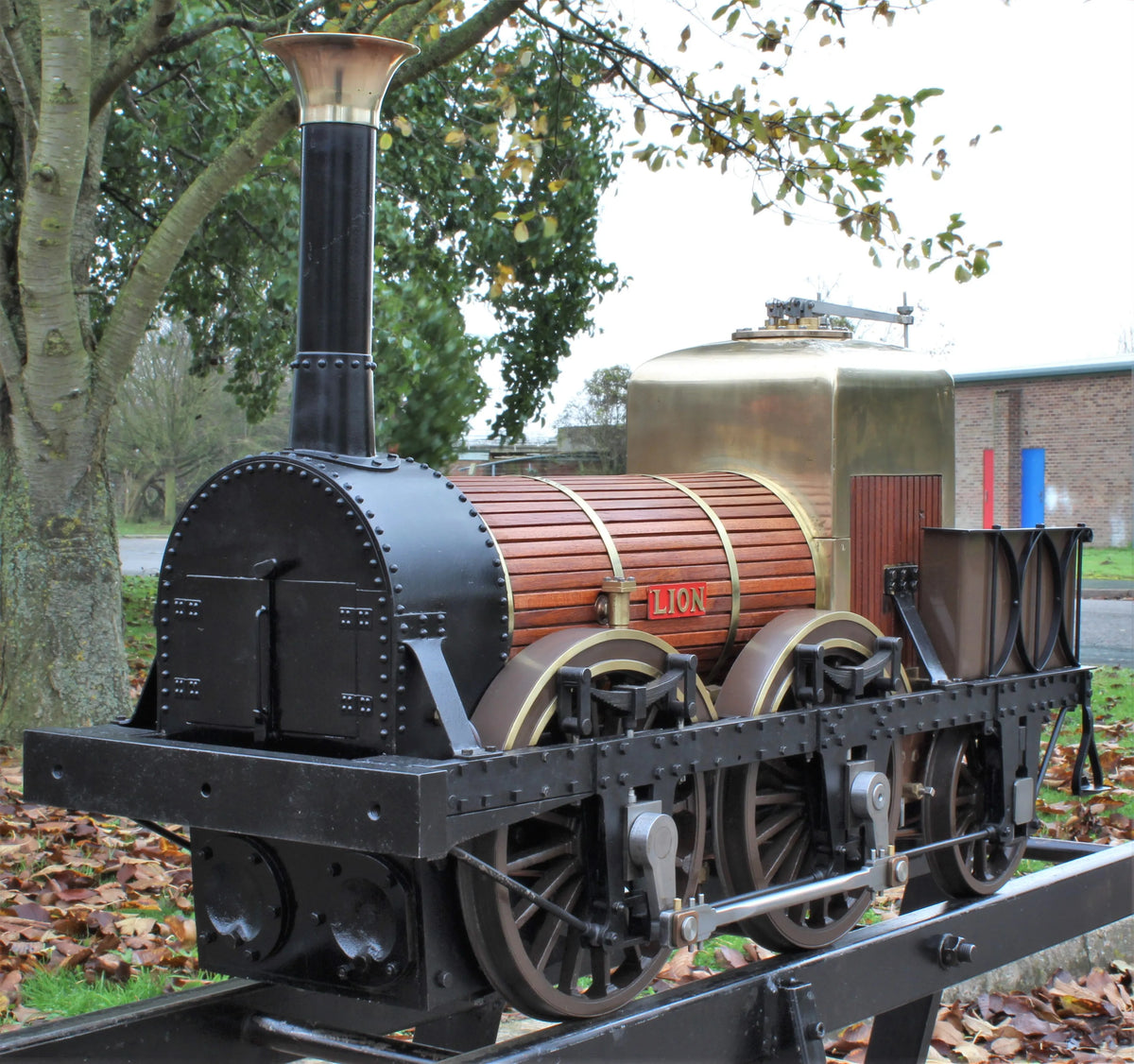

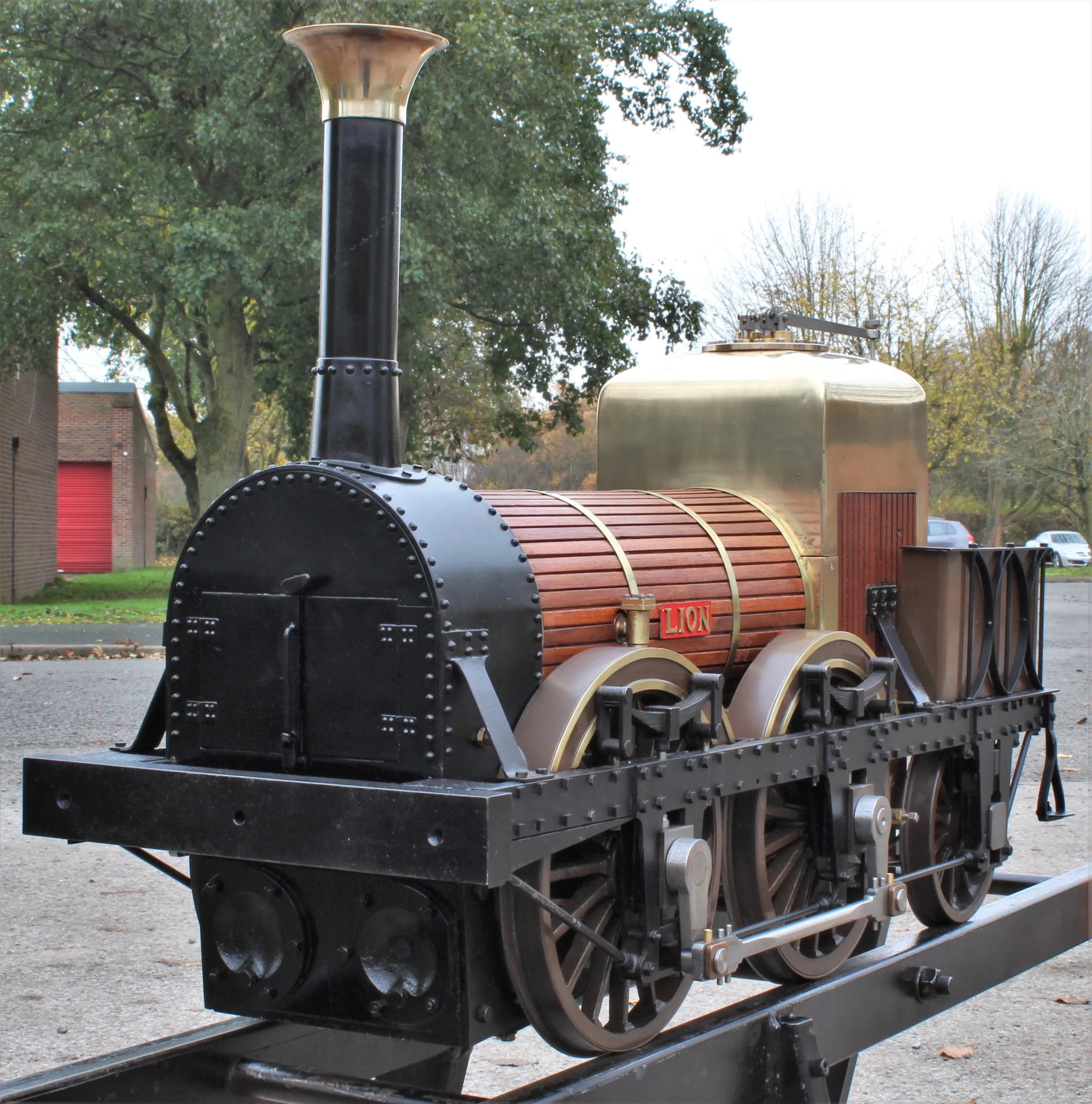

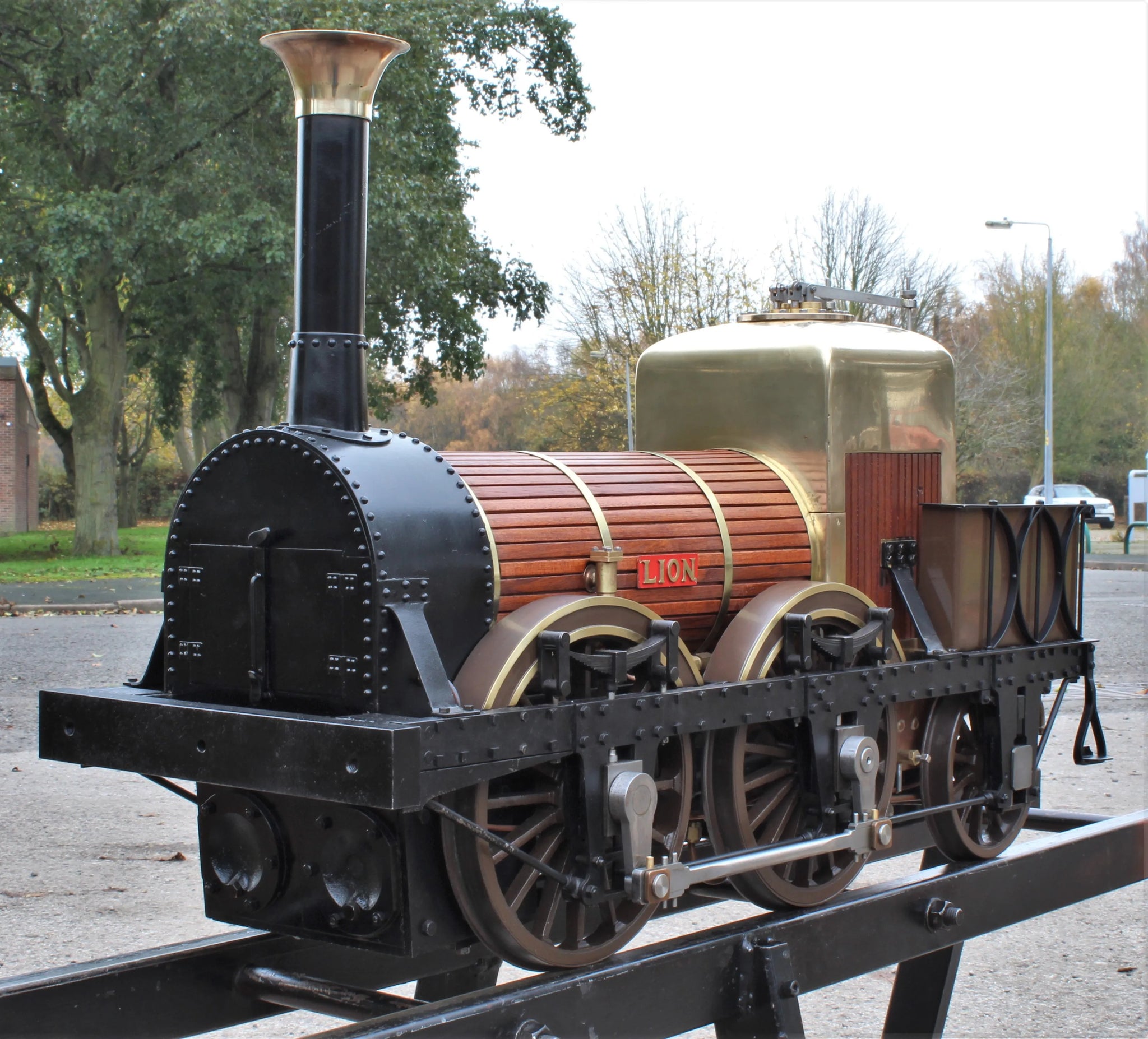

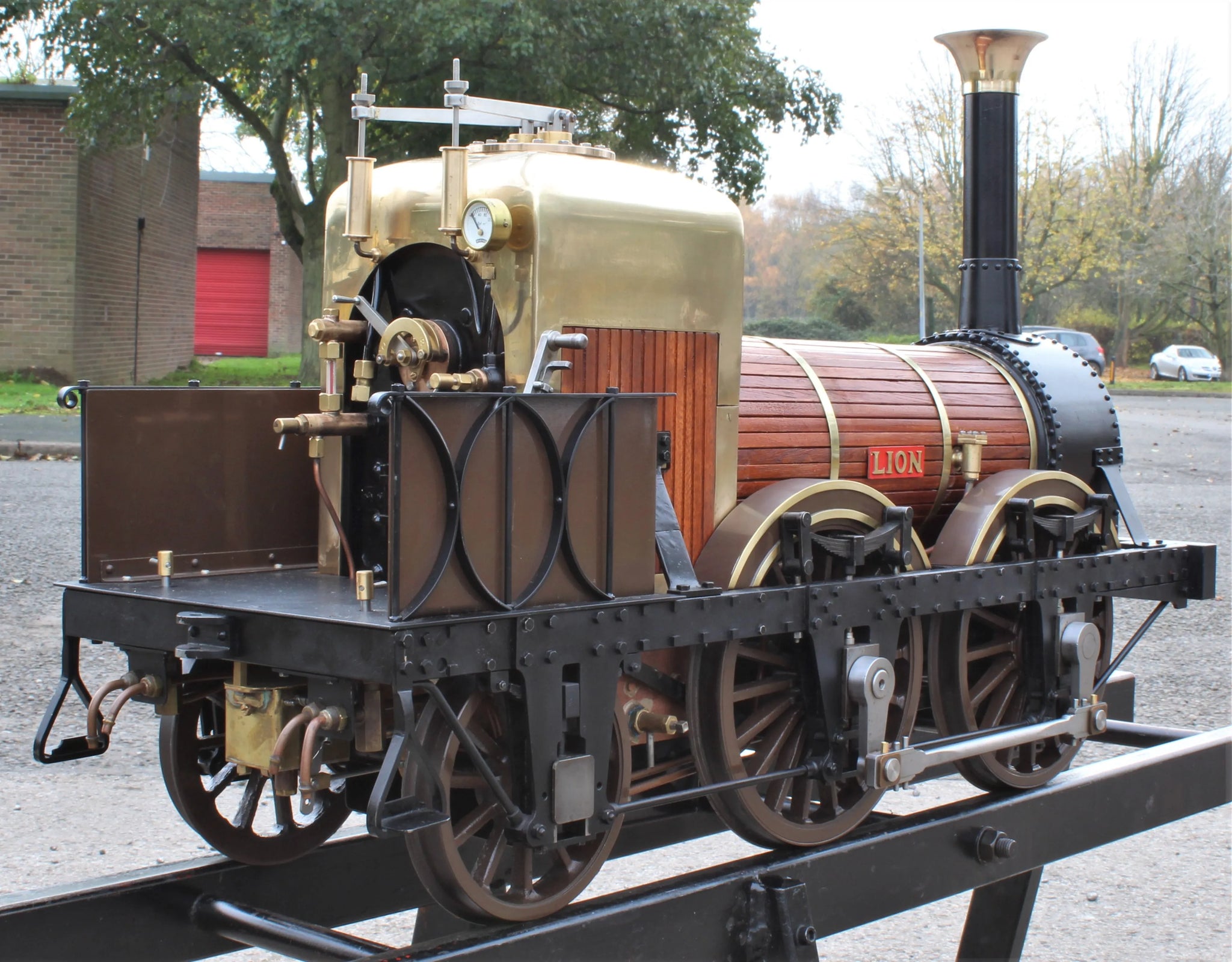

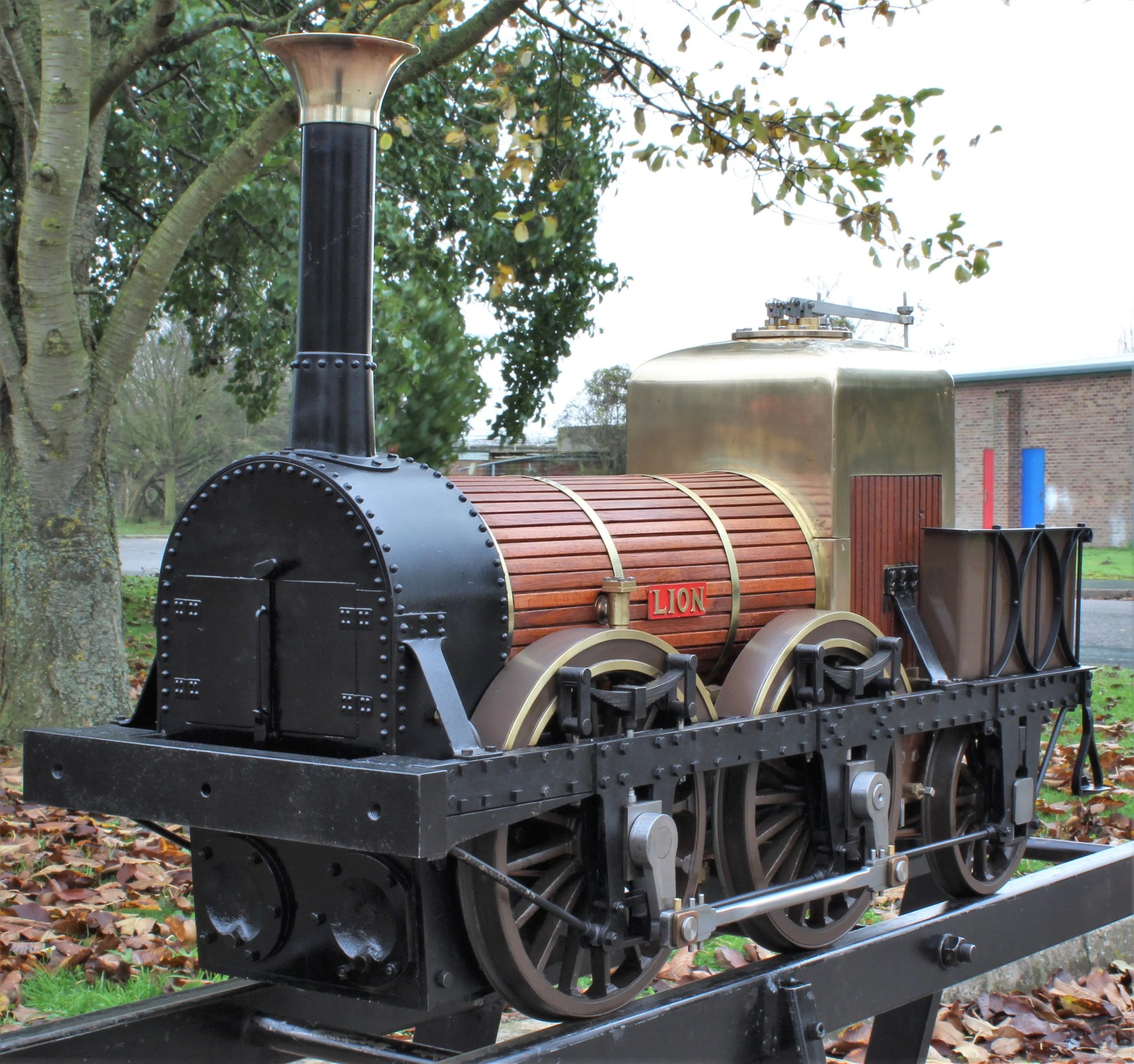

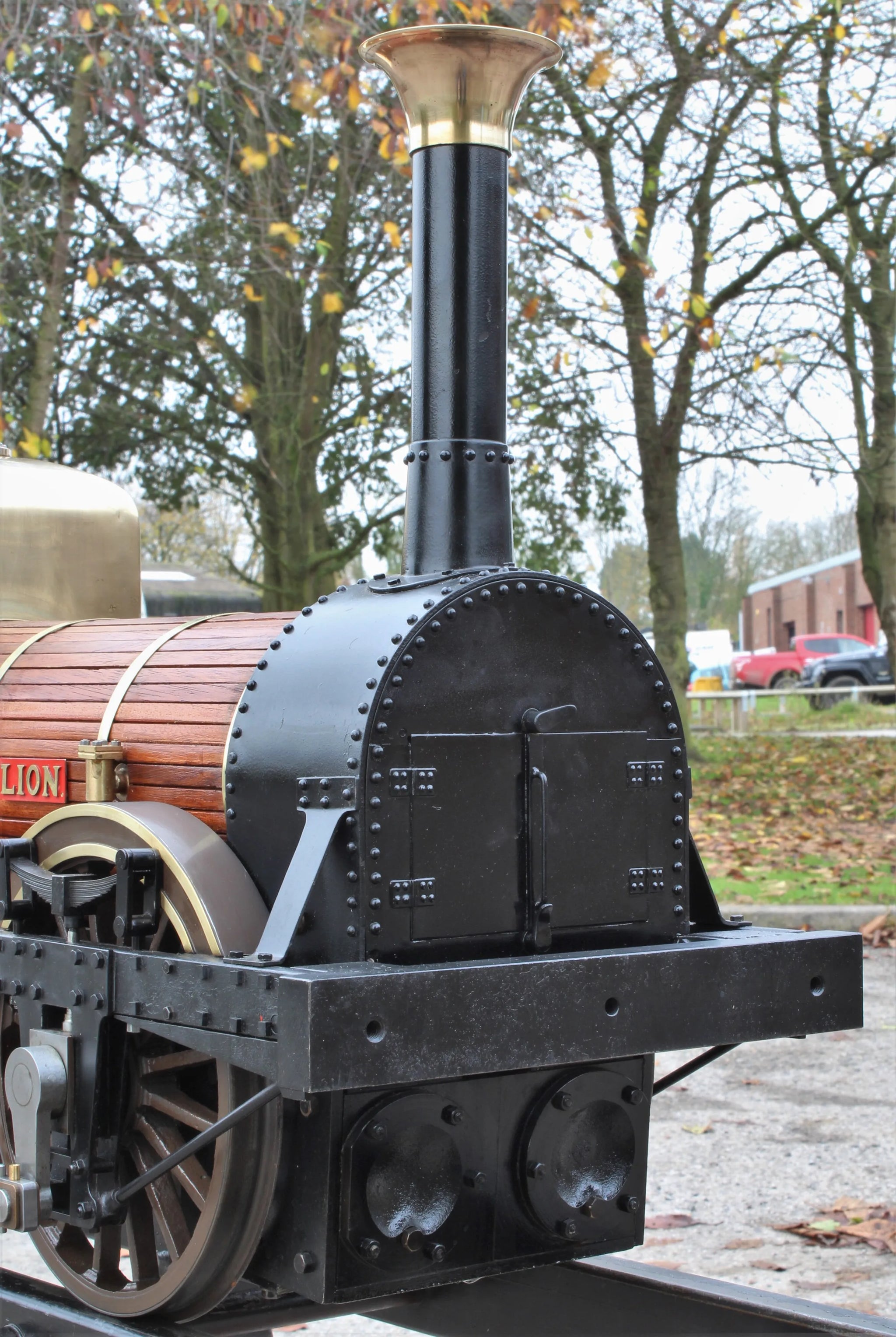

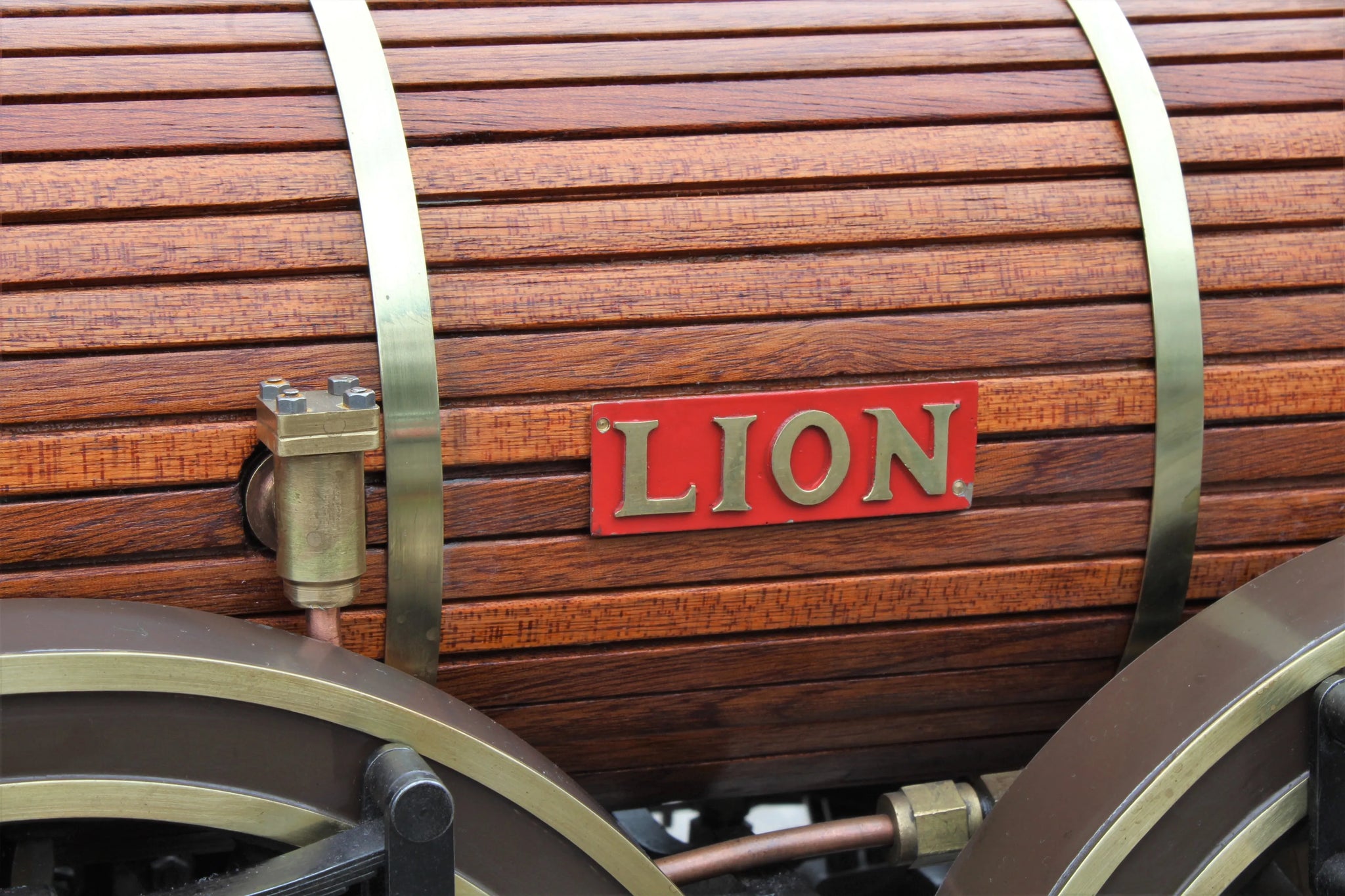

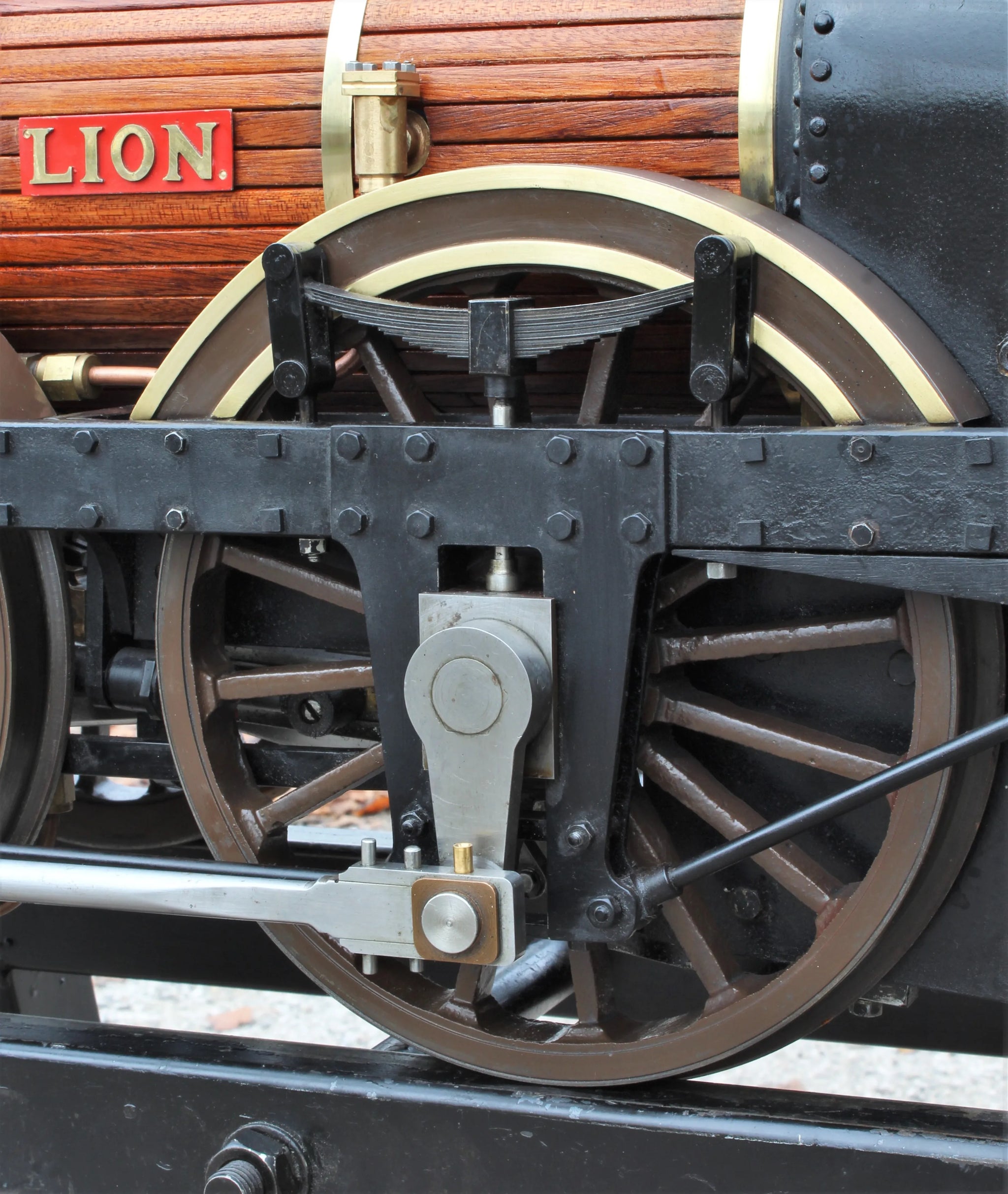

7 1/4 inch gauge Liverpool & Manchester Railway "Lion"

A finely made 7 1/4 inch gauge Liverpool & Manchester Railways, the work of an experienced engineer responsible for many locomotives including, in this gauge, an 0-6-0T "Holmside", Baldwin 4-4-0, an LNER B1 "Roedeer" and A4 Pacific "Sir Nigel Gresley".

Unsteamed from new, the locomotive ticks over beautifully on 15 pounds of air, with crisp, even beats in both directions.

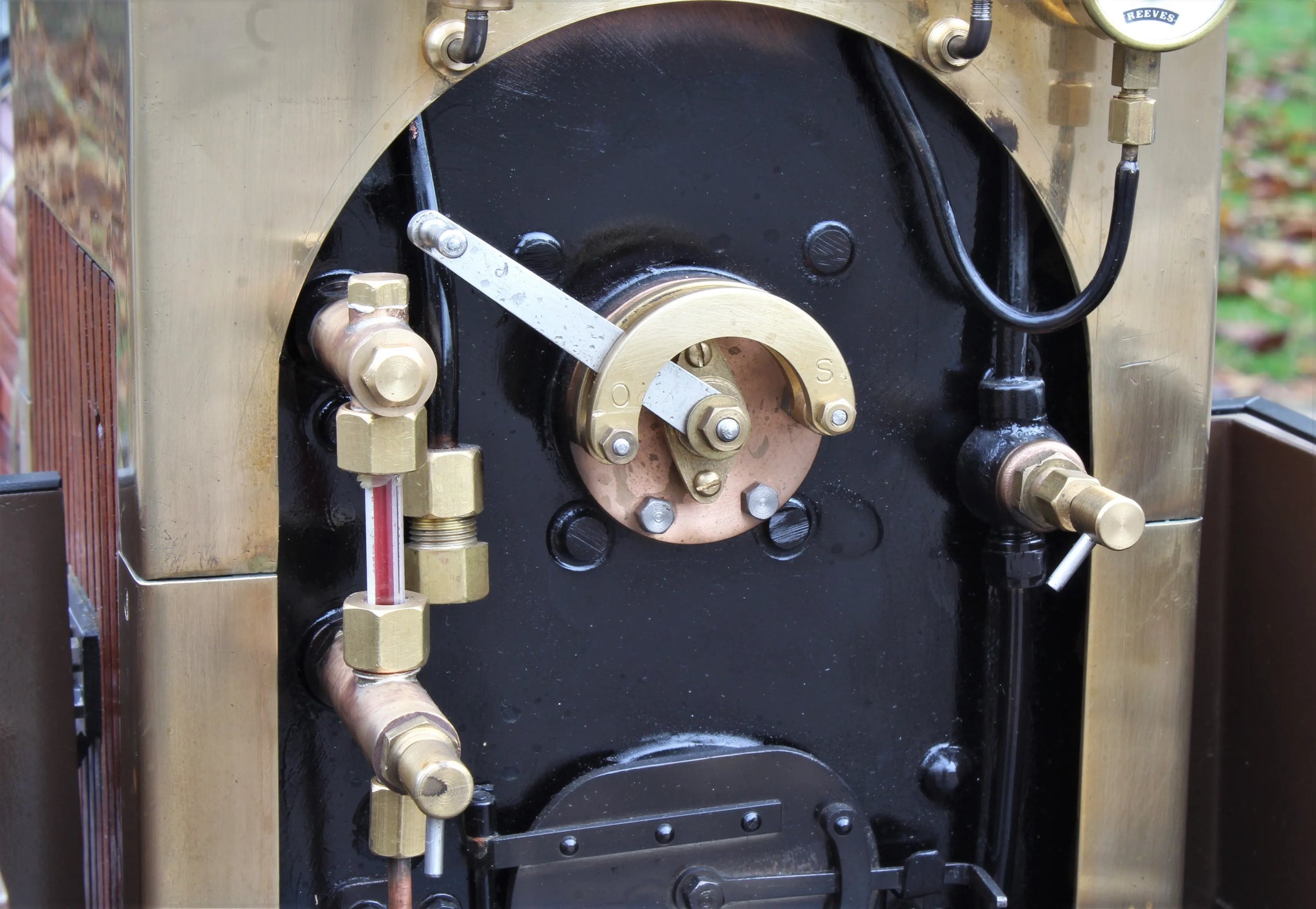

The commercially built, CE-marked copper boiler is by Kingswood Boilers, complete with manufacturer's original certification. Since arriving with us the boiler has had a repeat hydraulic test at 135psi for 90psi working pressure, with new certification issued.

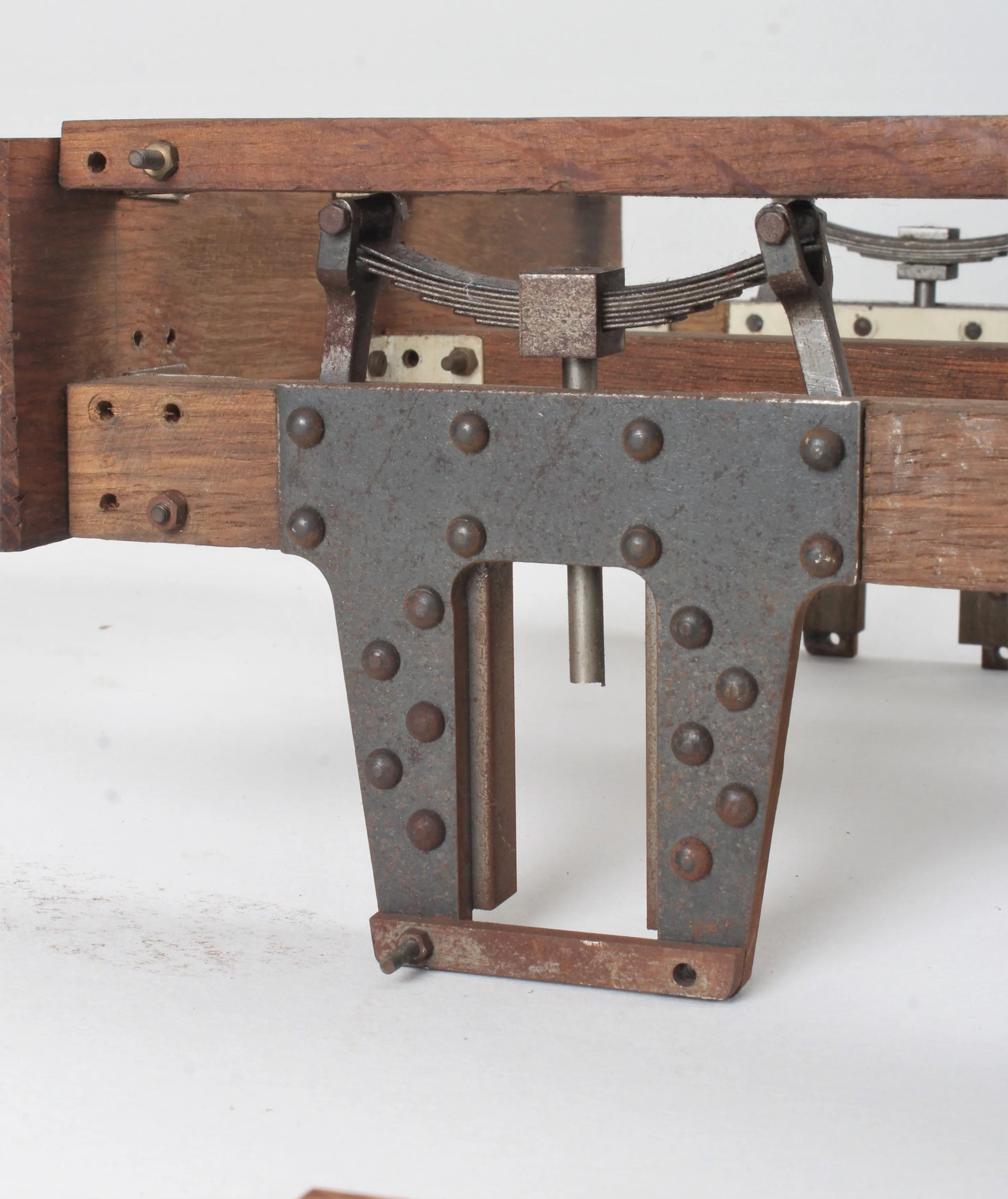

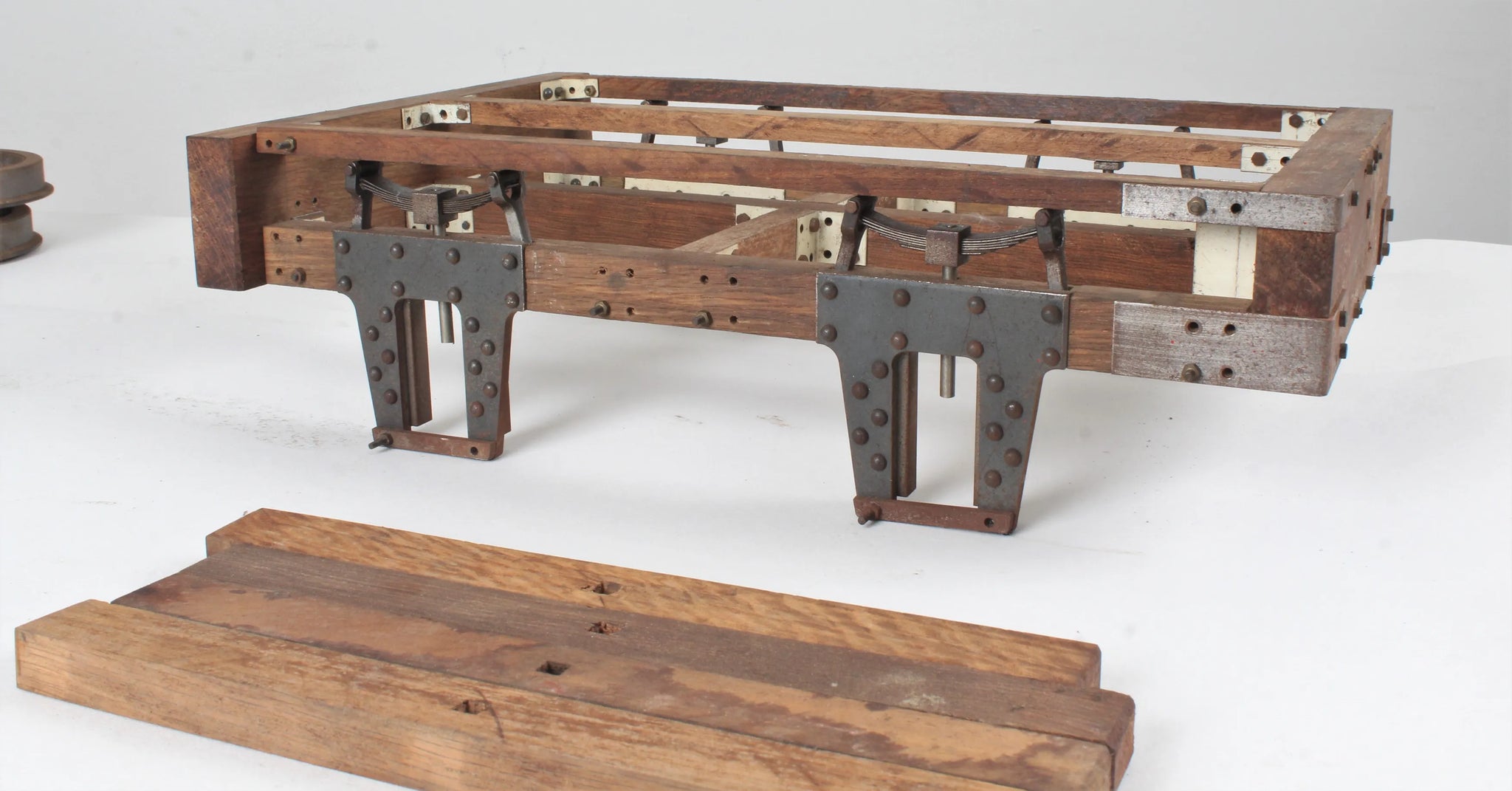

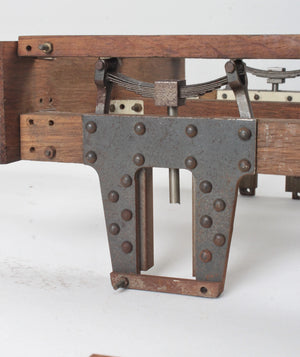

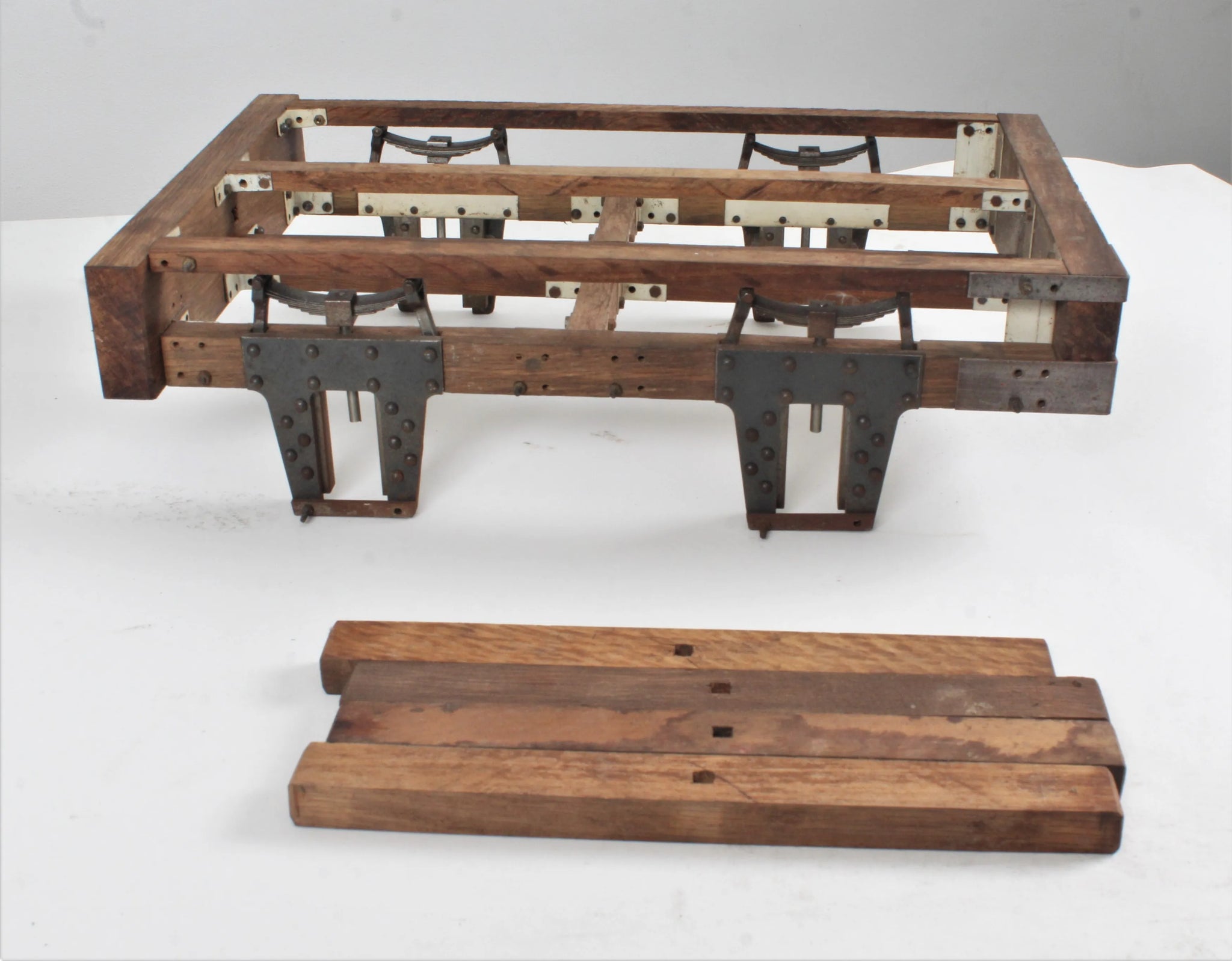

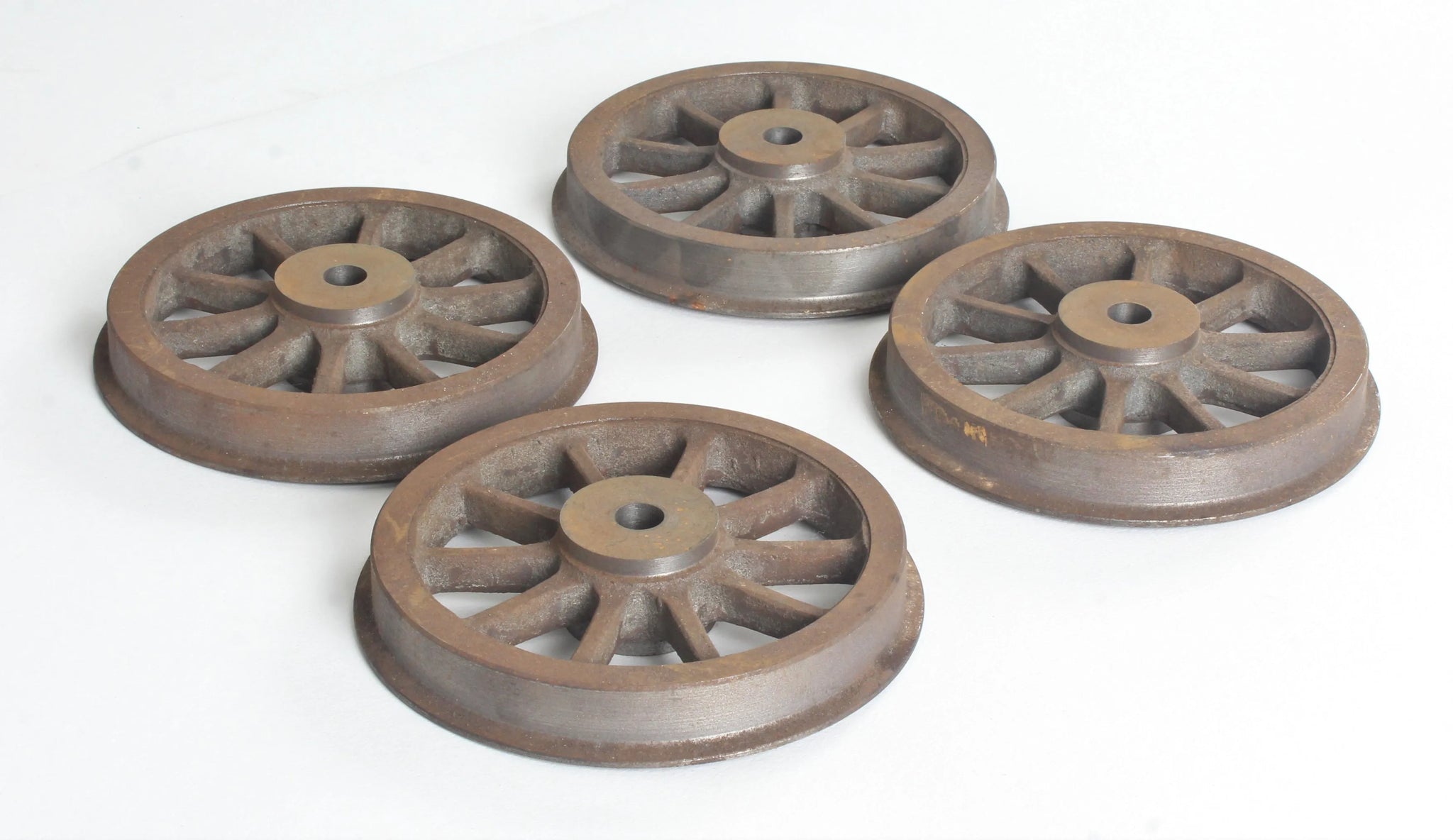

The tender is part built and comprises erected frames and a set of wheel castings.

Technical information

Stock code

9286

Gauge

7 1/4 inch

Length/inches

31.5

Width/inches

13

Height/inches

21

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

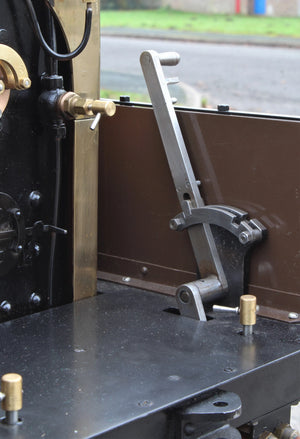

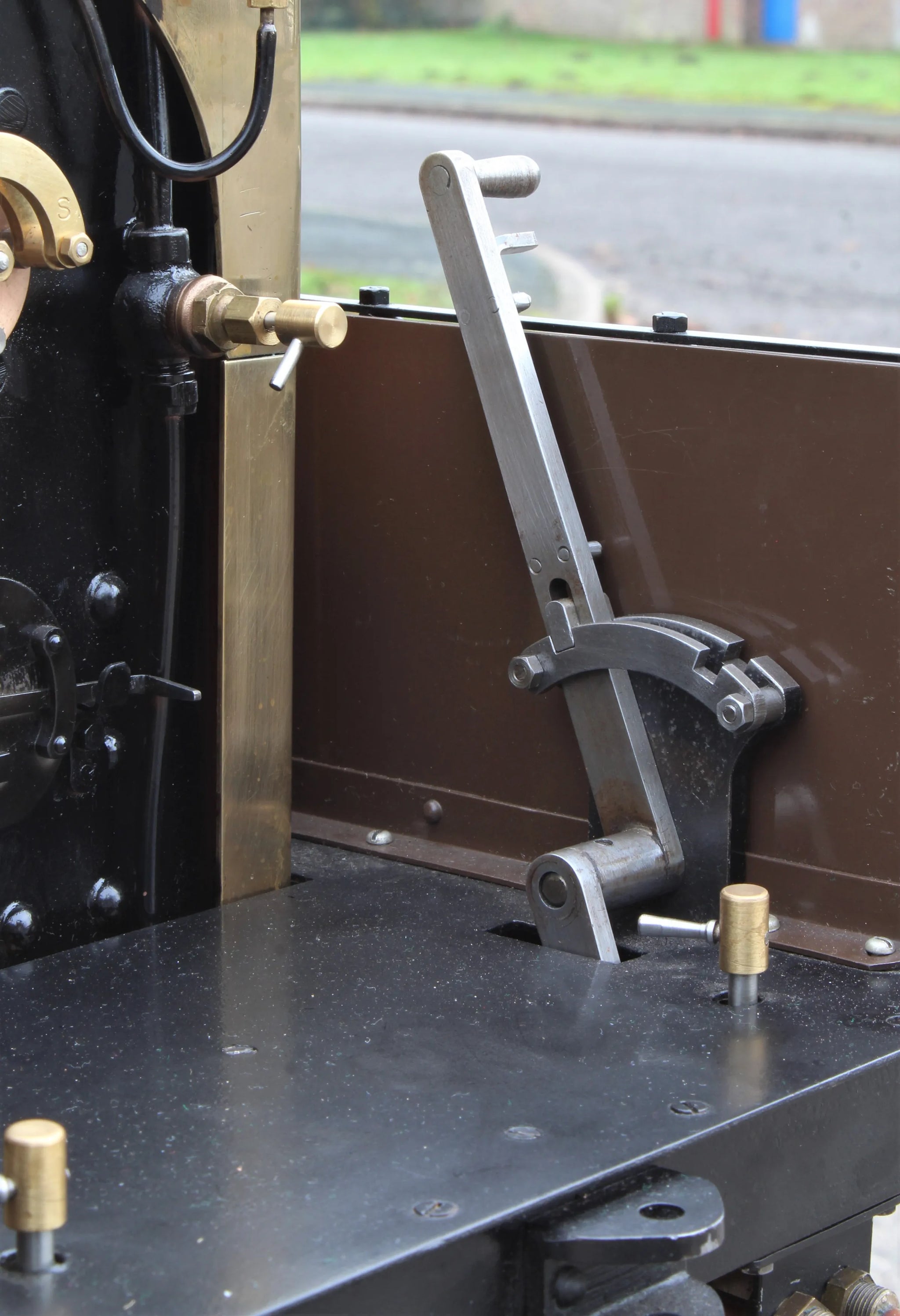

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Kingswood Boilers

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

yes

Year built

2008

Boiler number

KB08006

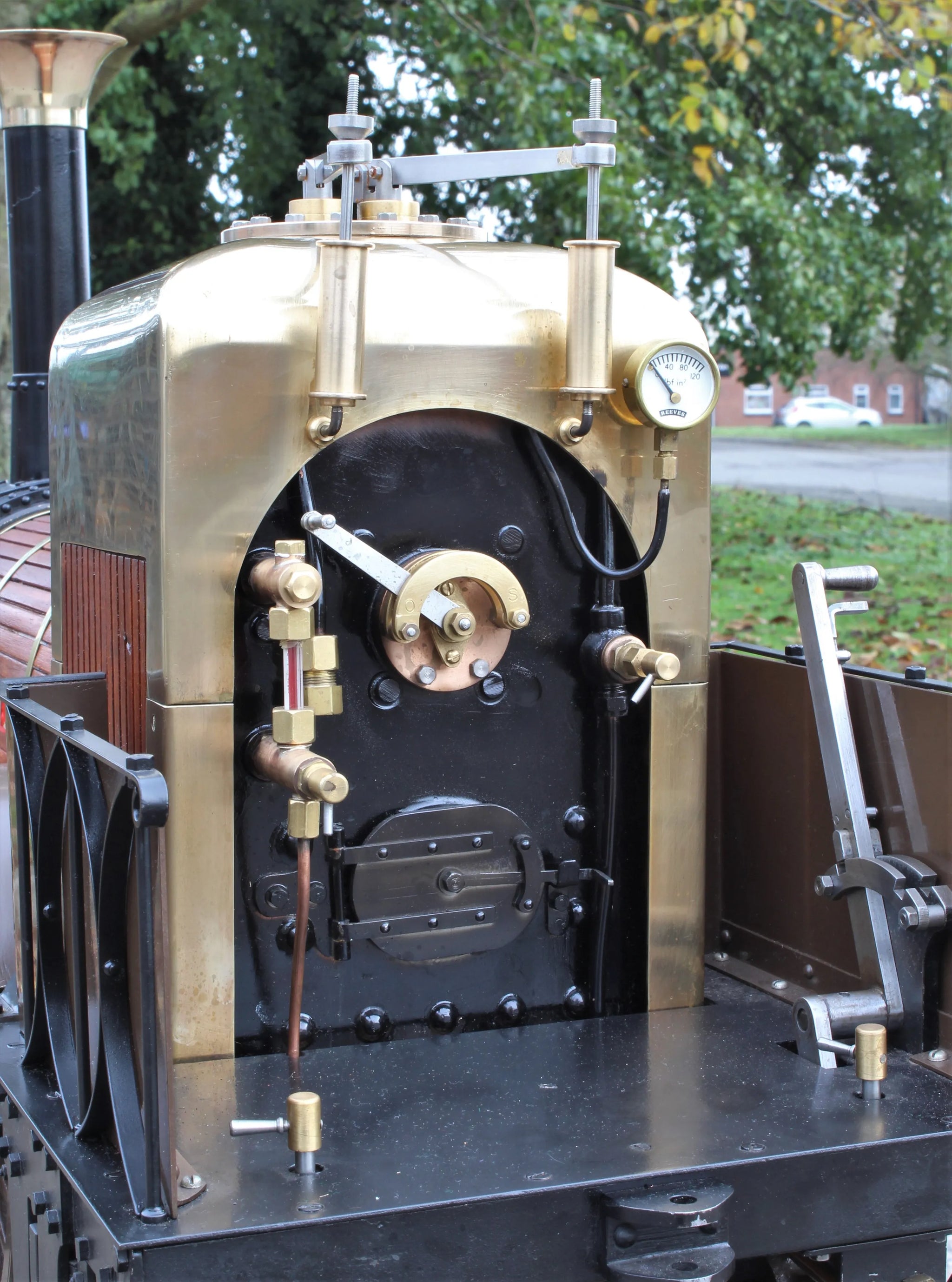

Safety valve type

Salter

Safety valve

2

Fusible plug

yes

Whistle

yes

Hand pump

0

Mechanical pump

2

Superheater type

flue tube

Superheater

3

Date out

Nov-20

Hydraulic test valid to

12-Oct-24
