Sold

8513

7 1/4 inch gauge LSWR O2

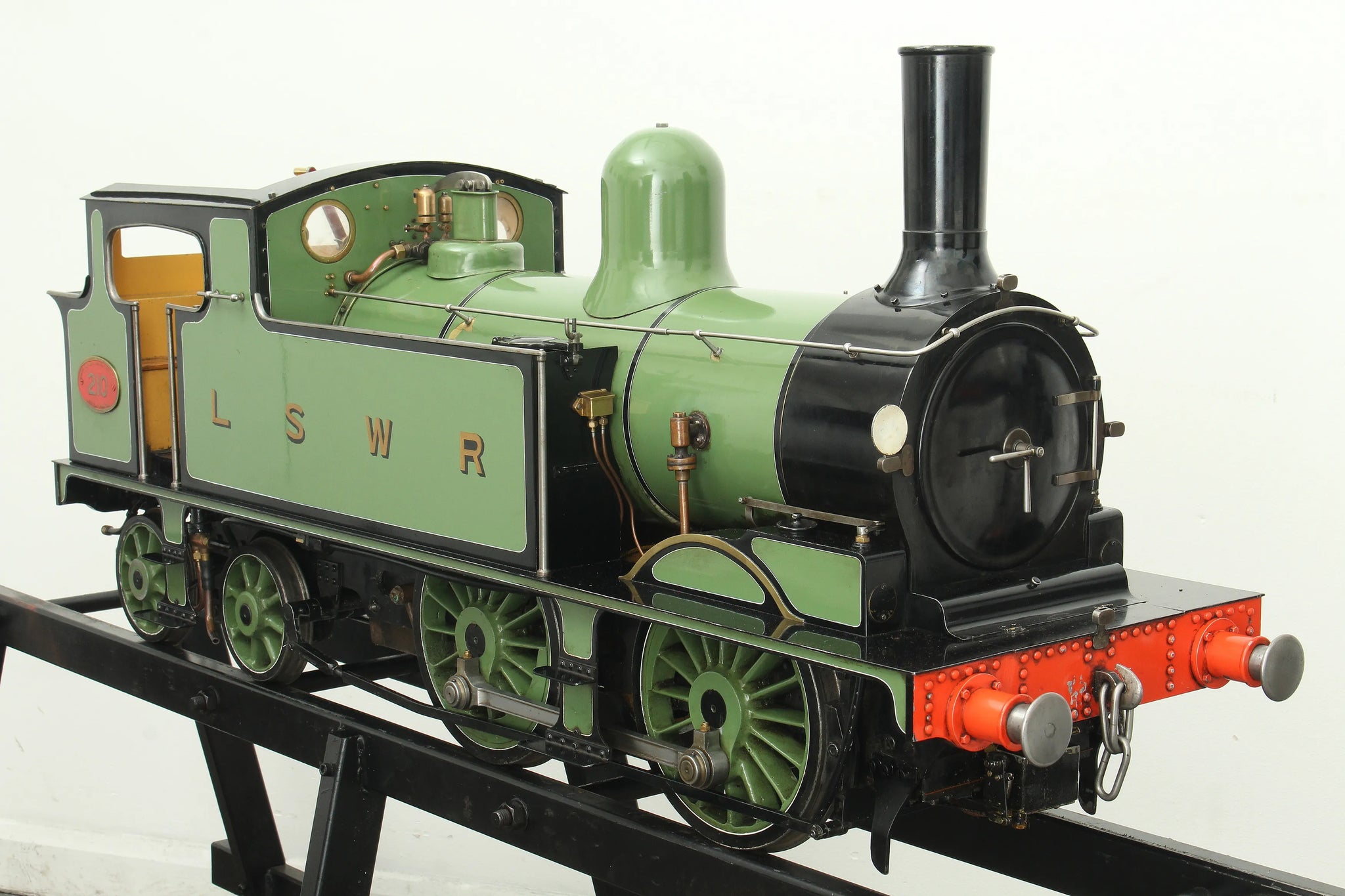

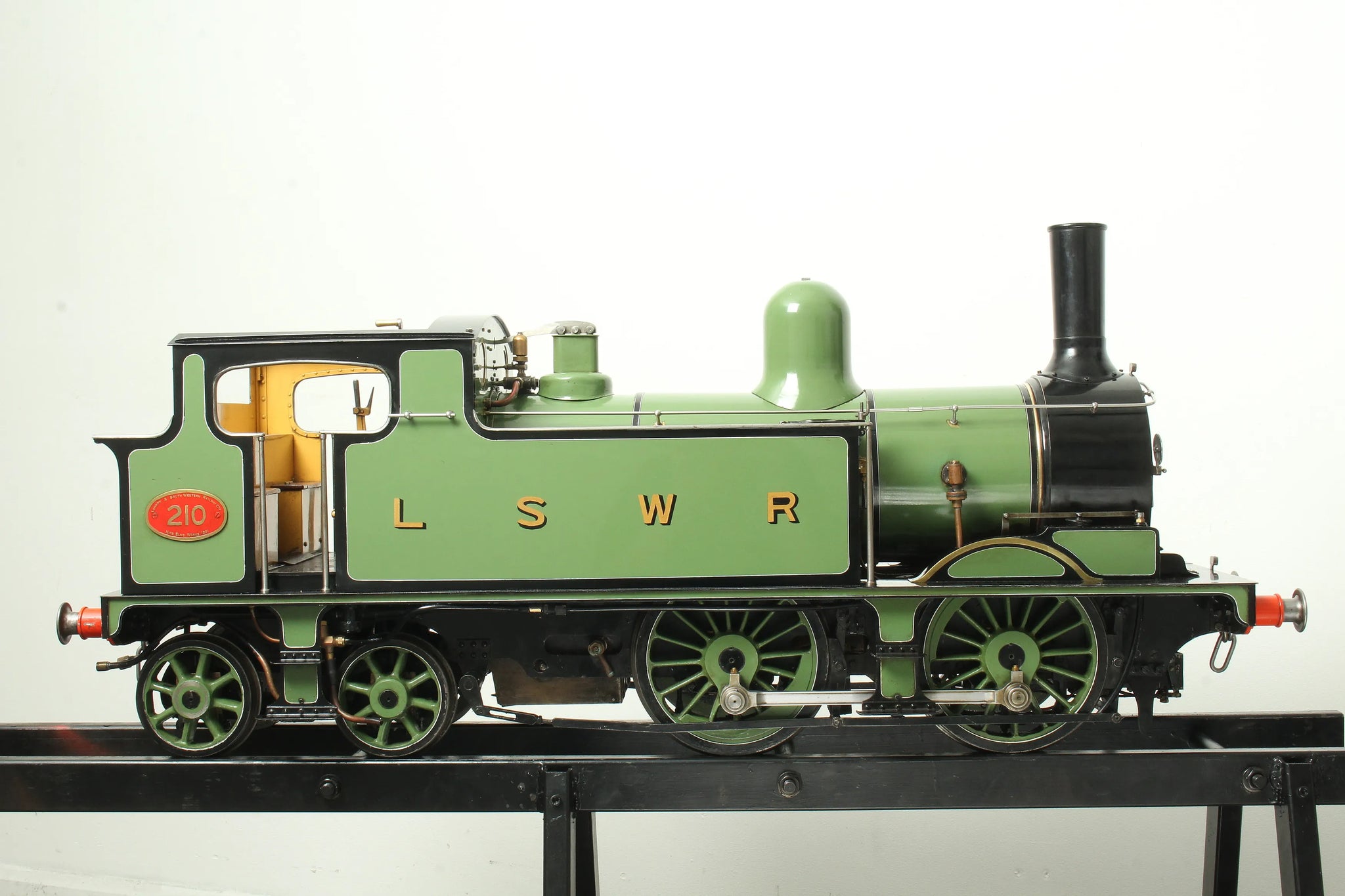

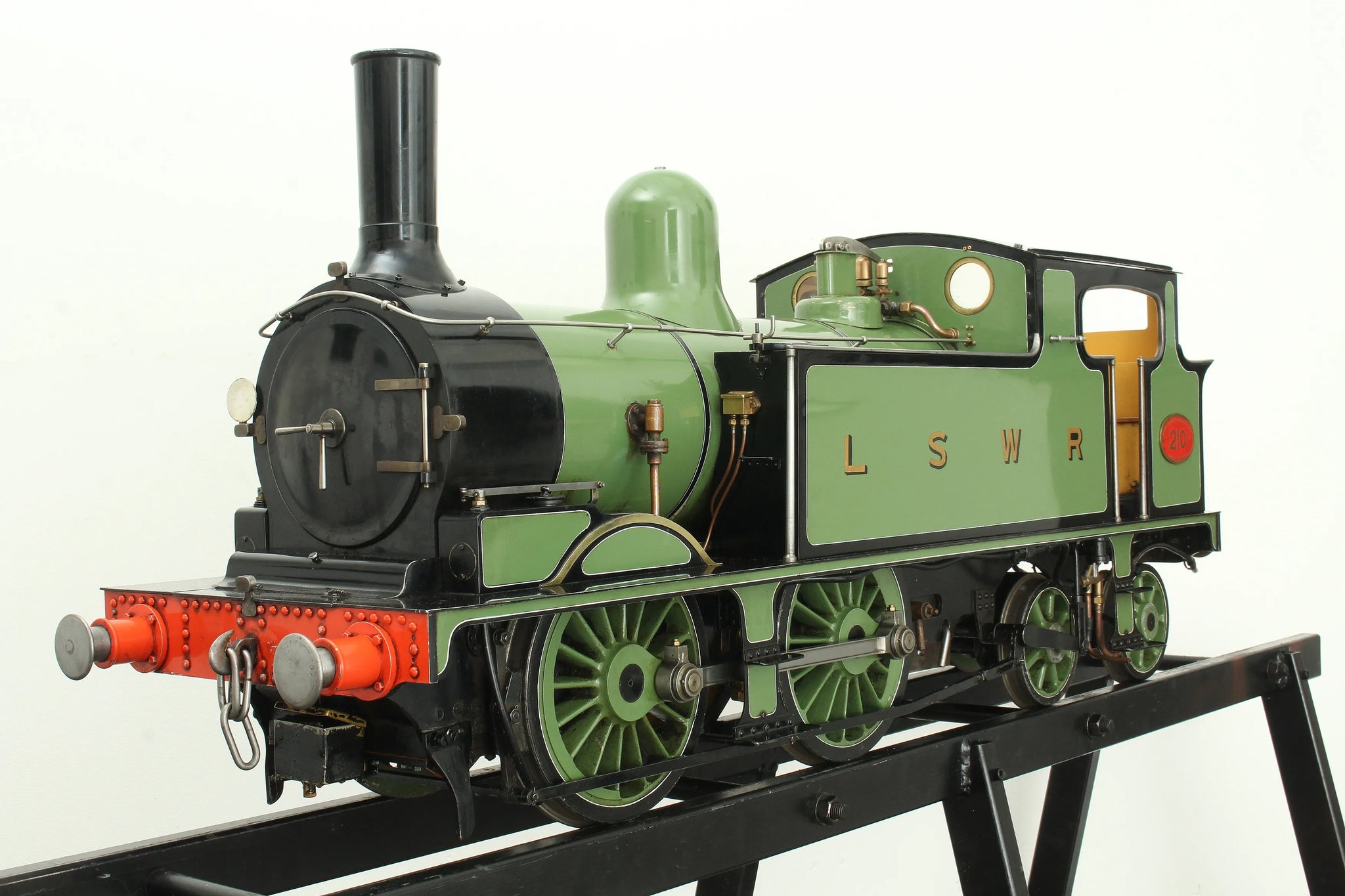

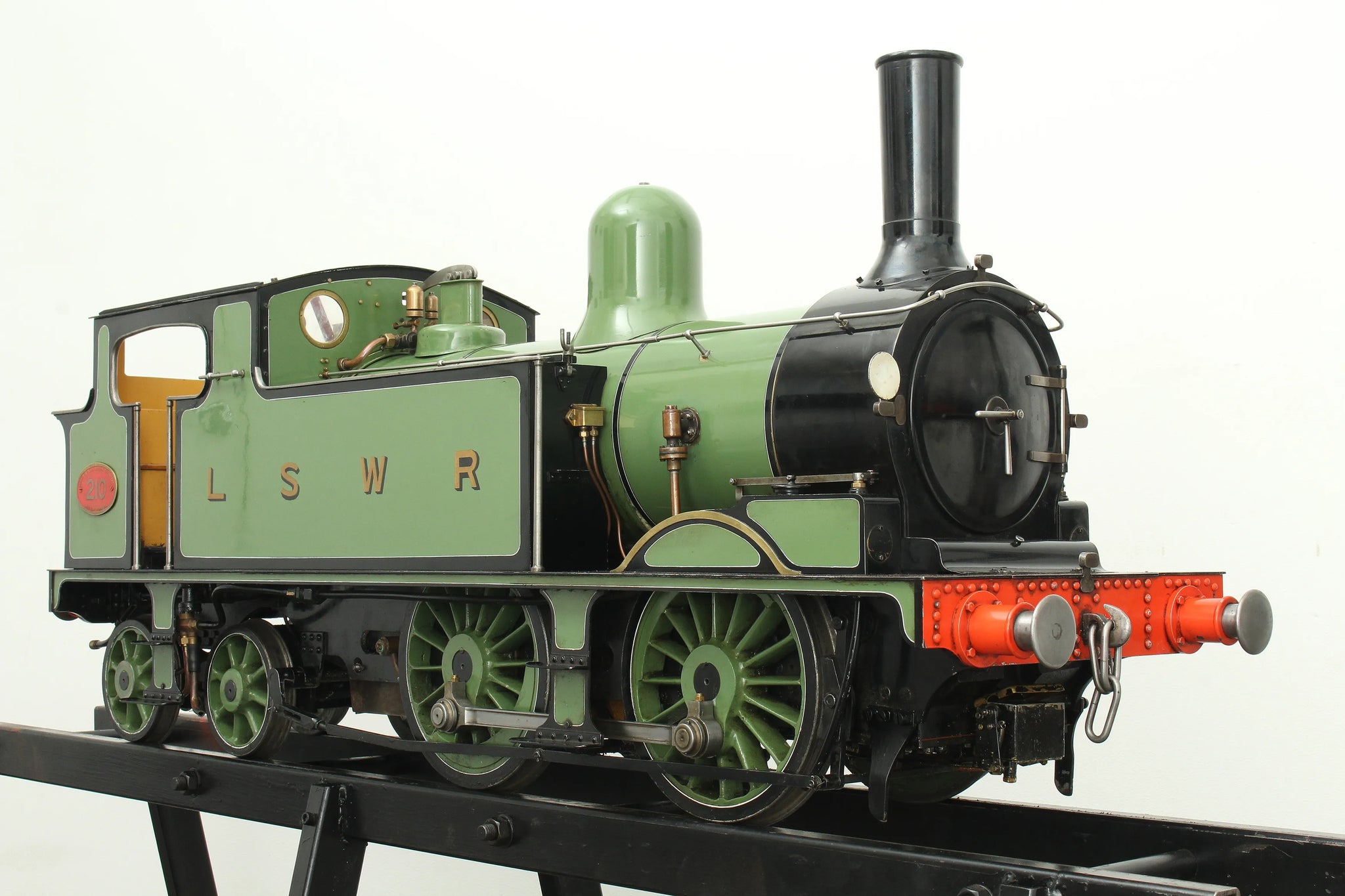

A finely built 7 1/4 inch gauge O2 0-4-4T, a thoroughly well-sorted engine in good condition - we had this in steam last week and everybody had a go on it (even Laura, after a fair bit of persuasion!), there's a short clip of it running here.

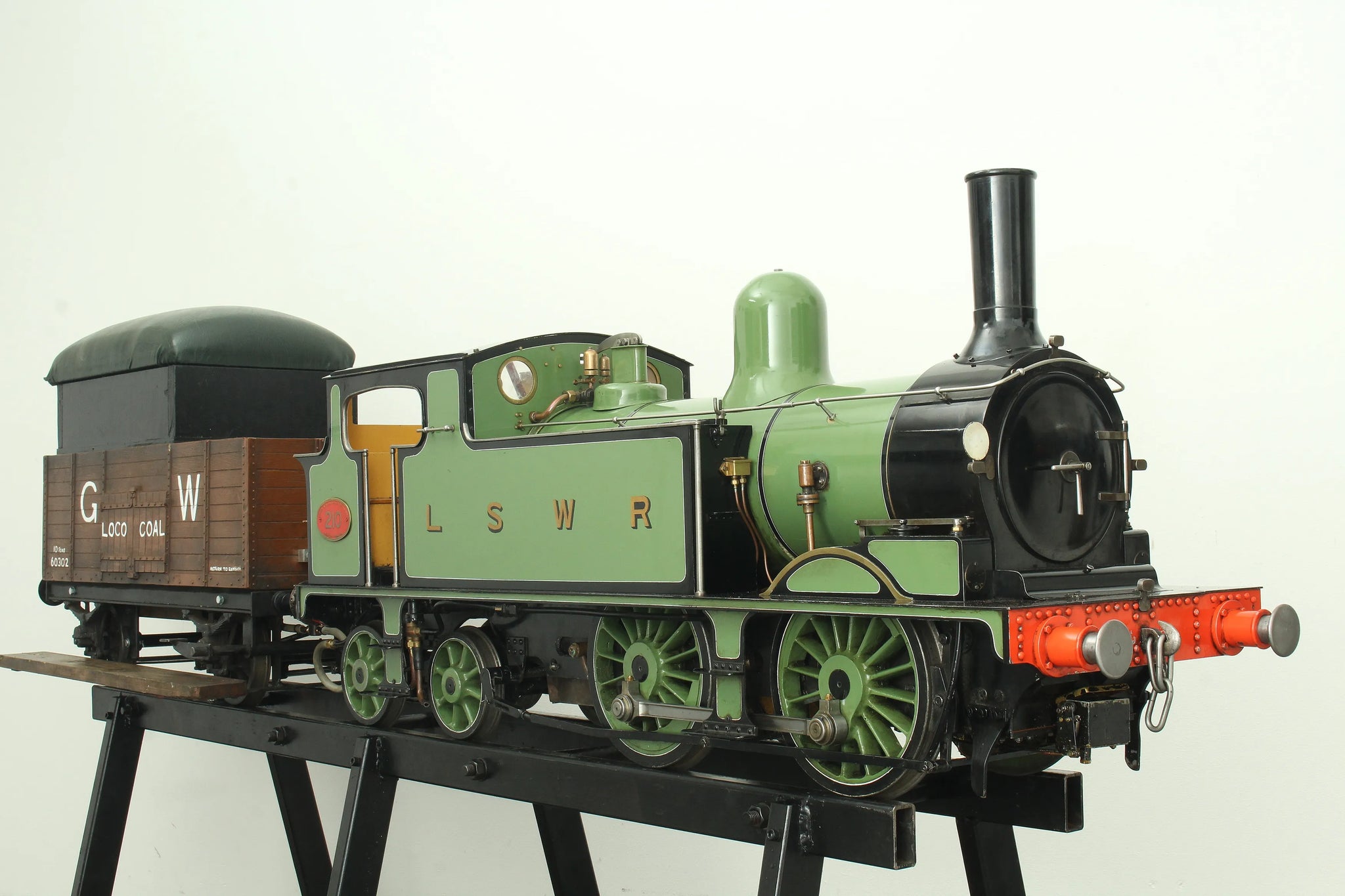

Side tanks have been ballasted with lead - it's a substantial two man lift - the extra adhesive weight making it sure-footed on the track. Water is carried in the braked driving truck, which is fitted with a seat providing a comfortable driving position.

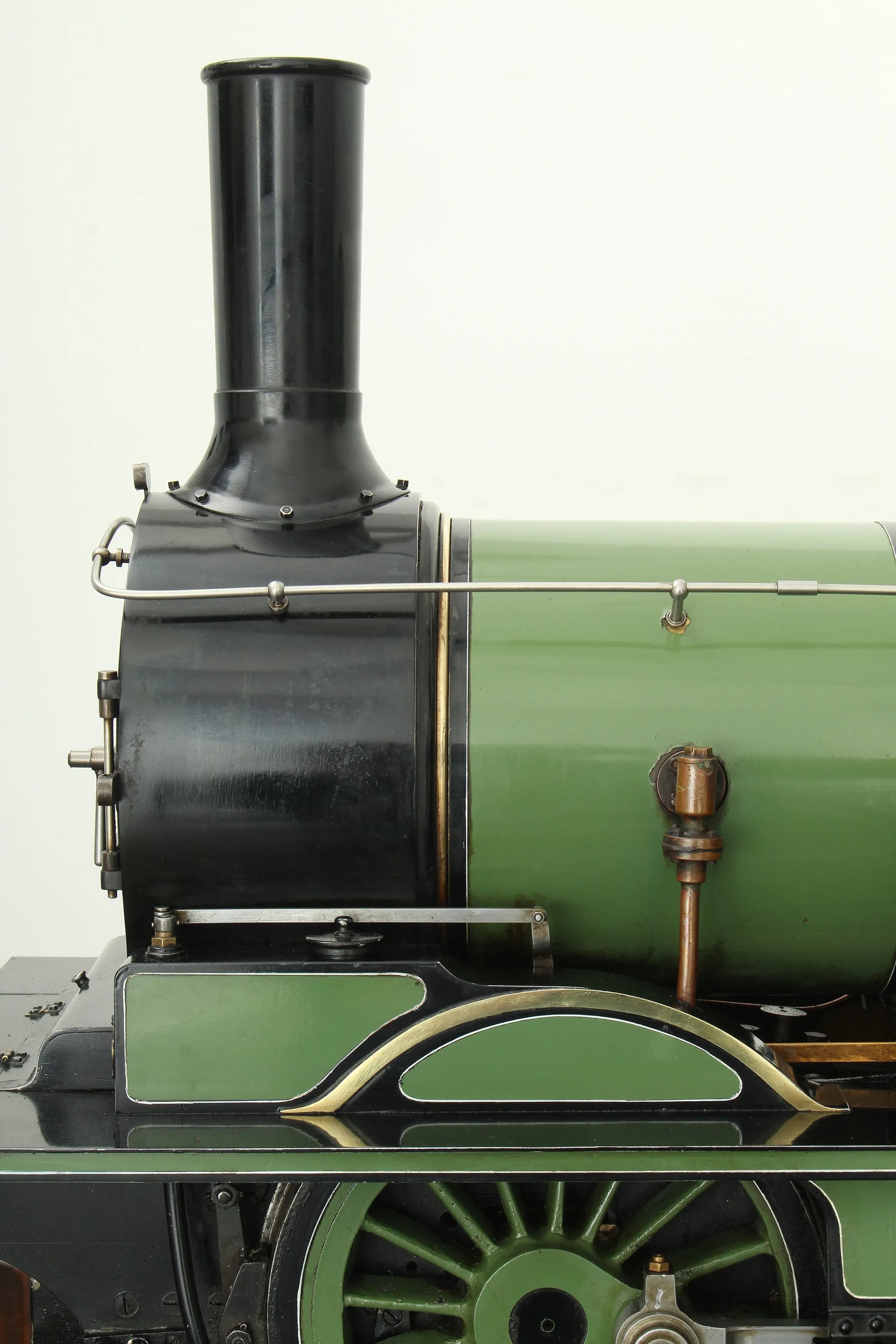

Paintwork is good, with some minor paint loss to the boiler cladding.

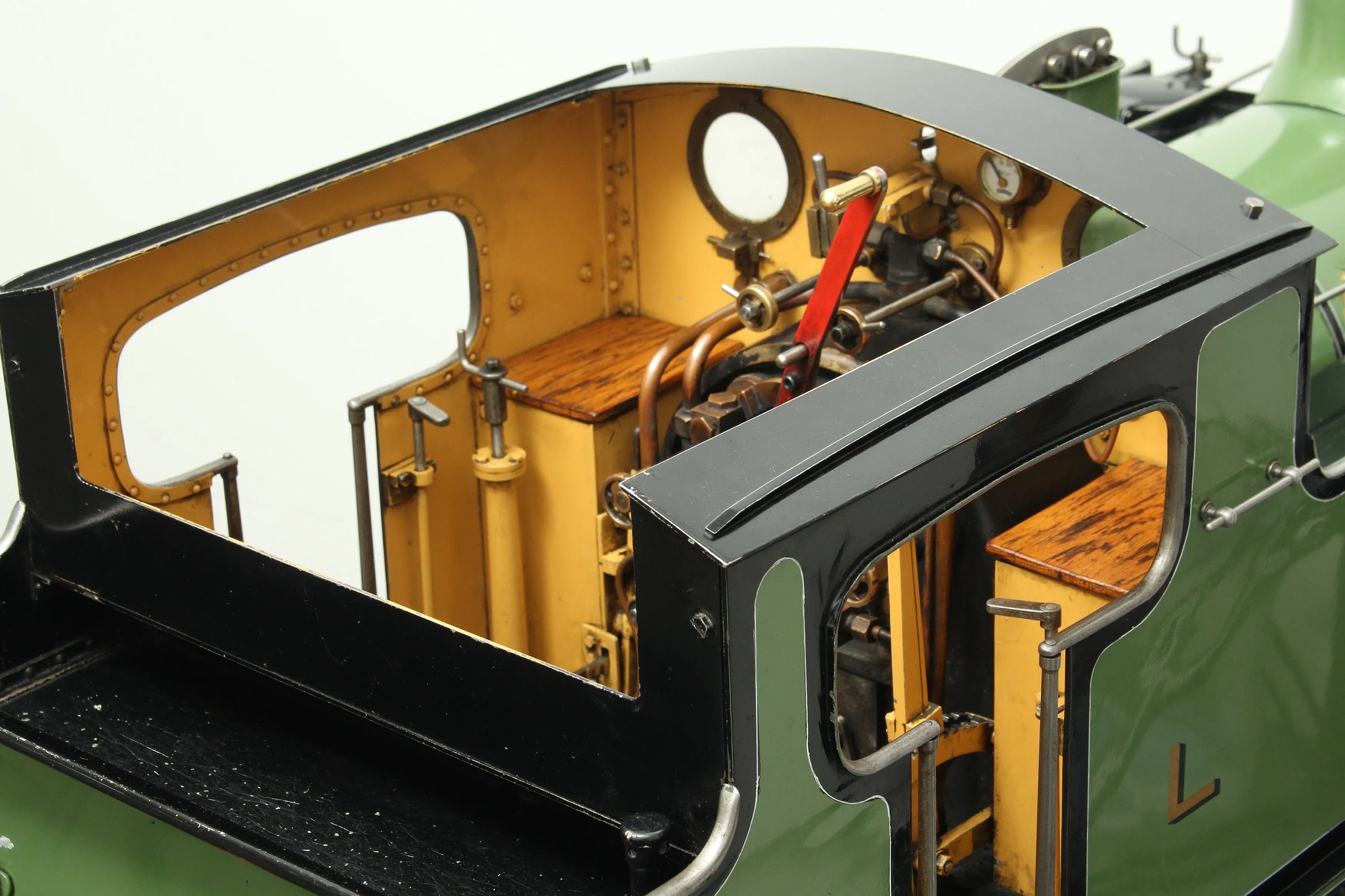

Complete with a full cab roof, which can be fitted in place of the cutaway version when not out on the track.

Technical information

Stock code

8513

Gauge

7 1/4 inch

Length/inches

46 + 32

Width/inches

12.5

Height/inches

20

Weight/Kg

128

Wheel material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - non-commercial

Year built

2002

Boiler number

N138/85/213

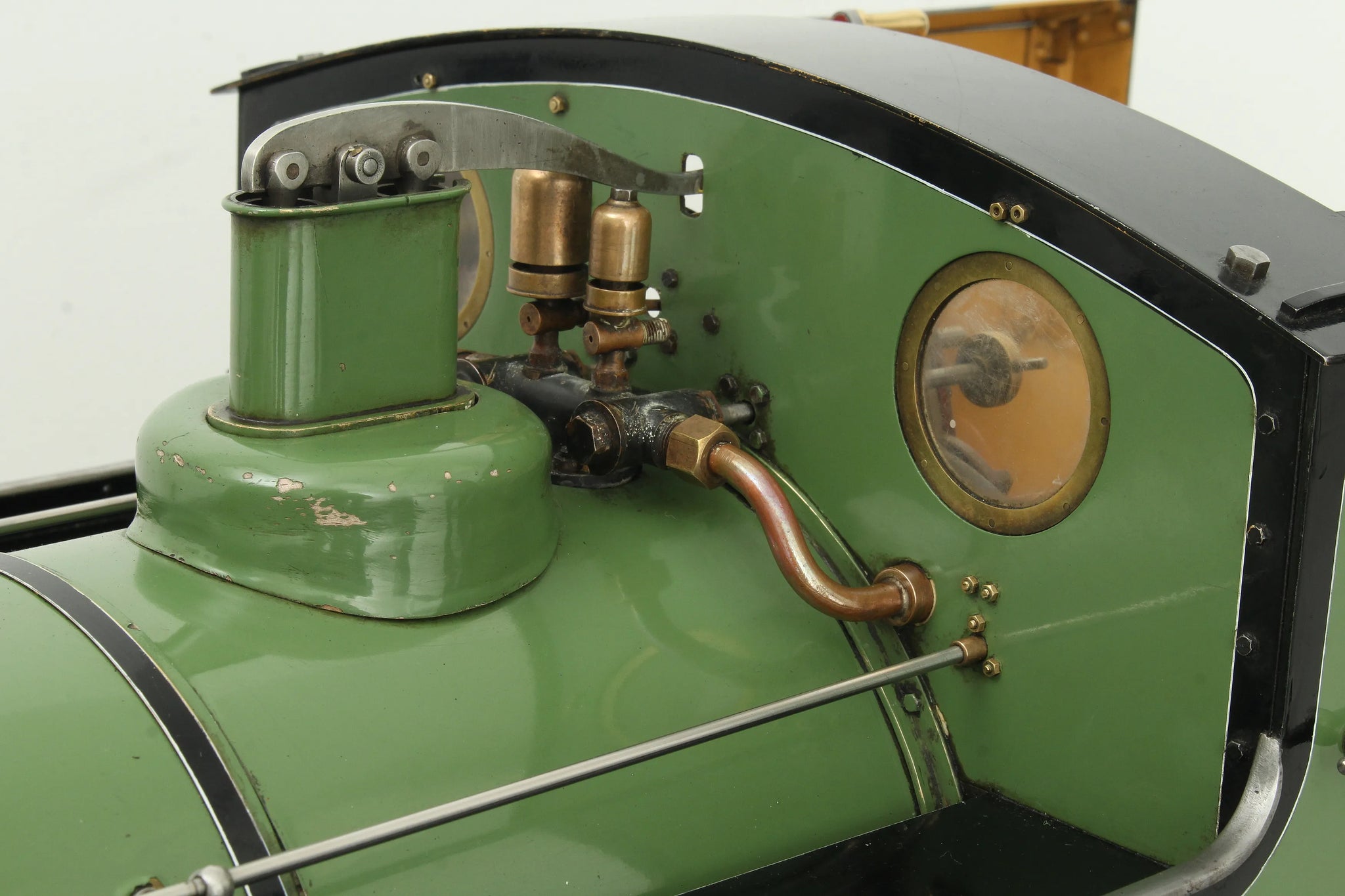

Safety valve type

Ramsbottom

Safety valve

2

Fusible plug

no

Whistle

yes

Injector

2

Superheater type

radiant

Superheater

3

Date out

Apr-19

Hydraulic test valid to

02-Apr-23

Steam test valid to

02-Jun-20
